Apple Patents a Way for XR Headsets to Tell the Network Which Upload Slots They Skipped
When a wireless headset doesn't send data during a prescheduled upload window, the network has no idea whether it missed that window or simply had nothing to send. Apple's new patent tackles that problem with a compact notification system built specifically for XR devices.
What Apple's unused-slot signaling does for XR headsets
You're wearing an AR headset, streaming mixed-reality content over a 5G connection. The network has set aside a series of upload windows for your device, but some of those windows go unused because you're just watching, not interacting. Right now, the network has no clean way to know those slots were empty on purpose.
Apple's patent describes a small, efficient message your device would send to the network to say exactly which scheduled upload slots it didn't use, and which ones it did. That message is encoded as a simple checklist, one bit per slot, so it's compact enough not to eat into the bandwidth it's trying to free up.
The goal is to let the network reallocate those unused slots to other devices in real time, which is especially important for XR headsets because they tend to have very spiky, unpredictable upload needs.

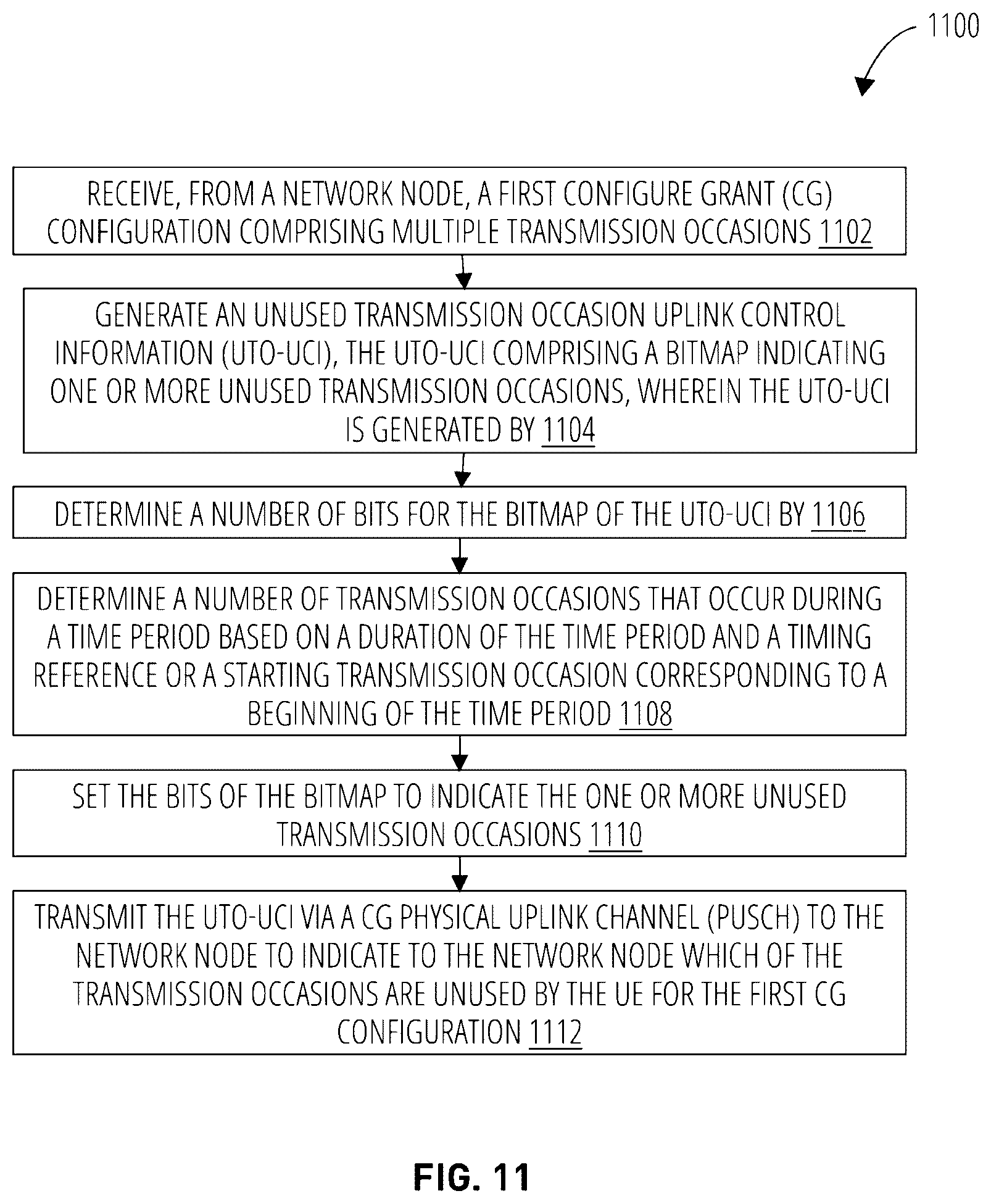

… generating an unused transmission occasion uplink control information (UTO-UCI), the UTO-UCI comprising a bitmap indicating one or more unused transmission occasions …
Translation: The headset creates a status report with a map showing which scheduled upload slots it decided to skip.
How the bitmap encodes skipped upload windows
The patent describes a system called UTO-UCI (Unused Transmission Occasion Uplink Control Information). In plain terms, it's a feedback message a device sends to the cellular network to report which of its prescheduled upload windows it left empty.
Here's how it's structured:
- The network pre-assigns a set of upload windows (called configured grant transmission occasions) to the device on a recurring schedule.
- The device tracks which of those windows it actually used during a given time period.

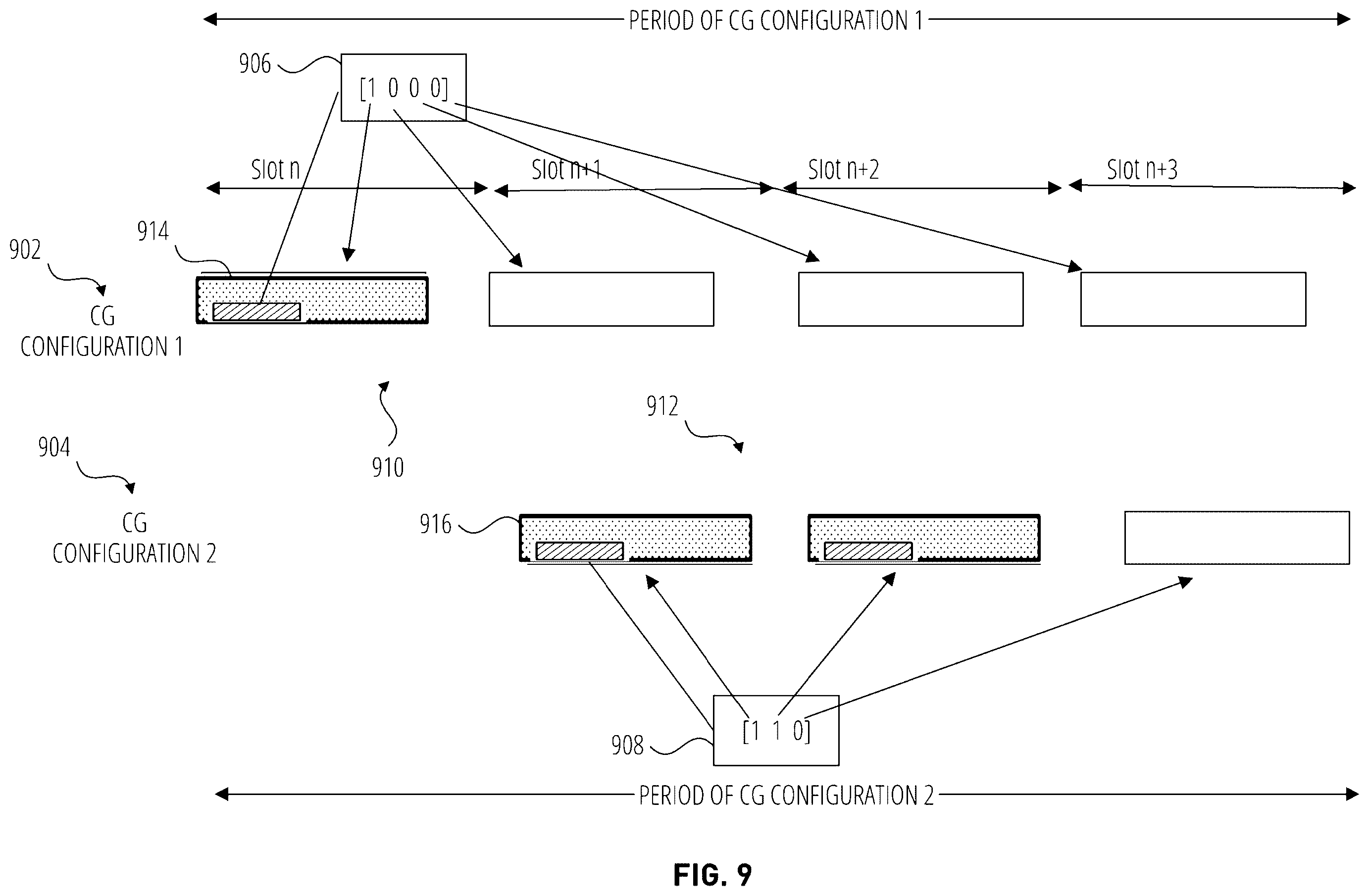

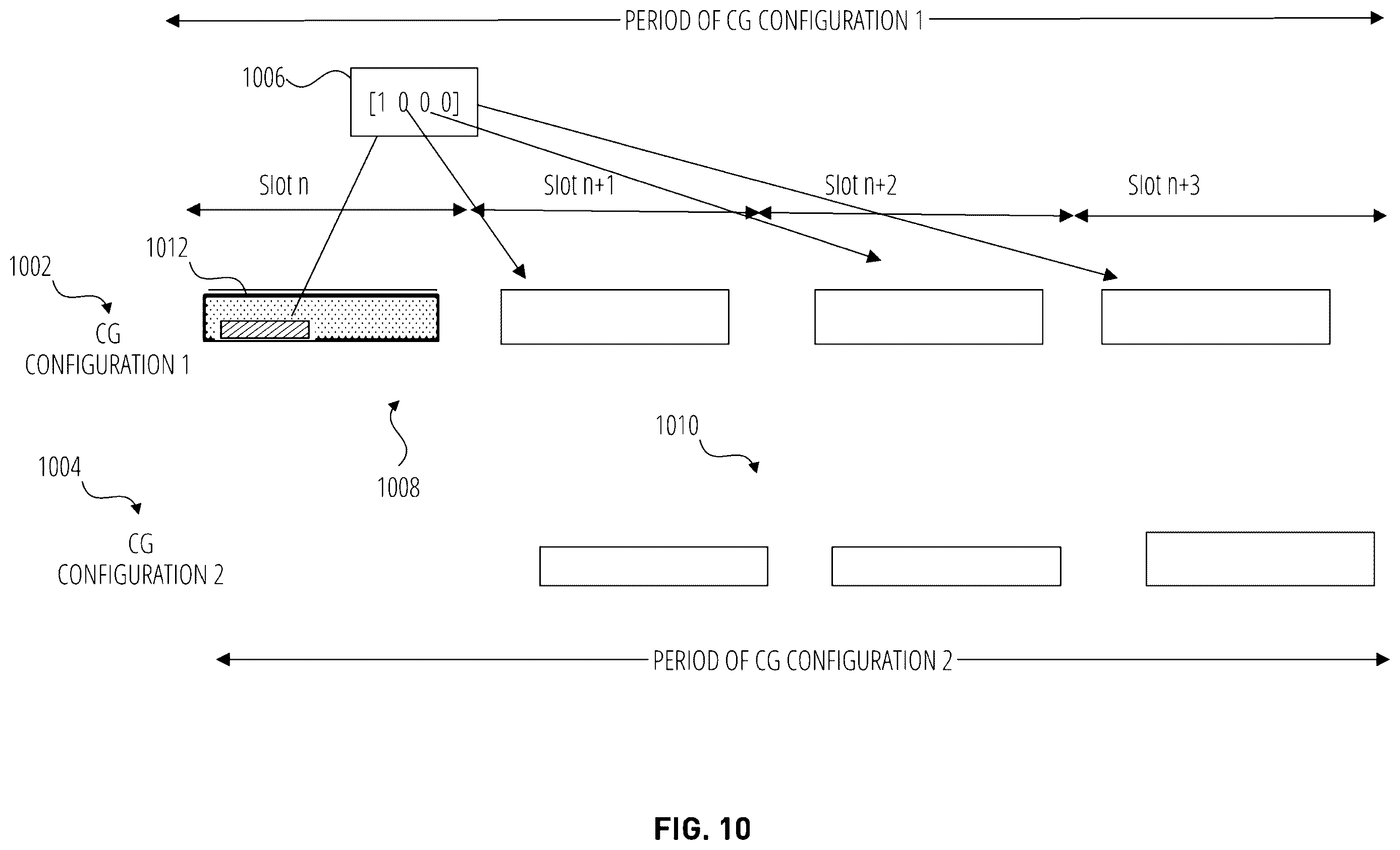

- It then builds a bitmap (a string of ones and zeros, one per window) where each bit flags whether that slot was used or skipped.
- The size of that bitmap is calculated based on how many windows fit into the reporting period, anchored to a fixed timing reference so the network and device stay in sync.

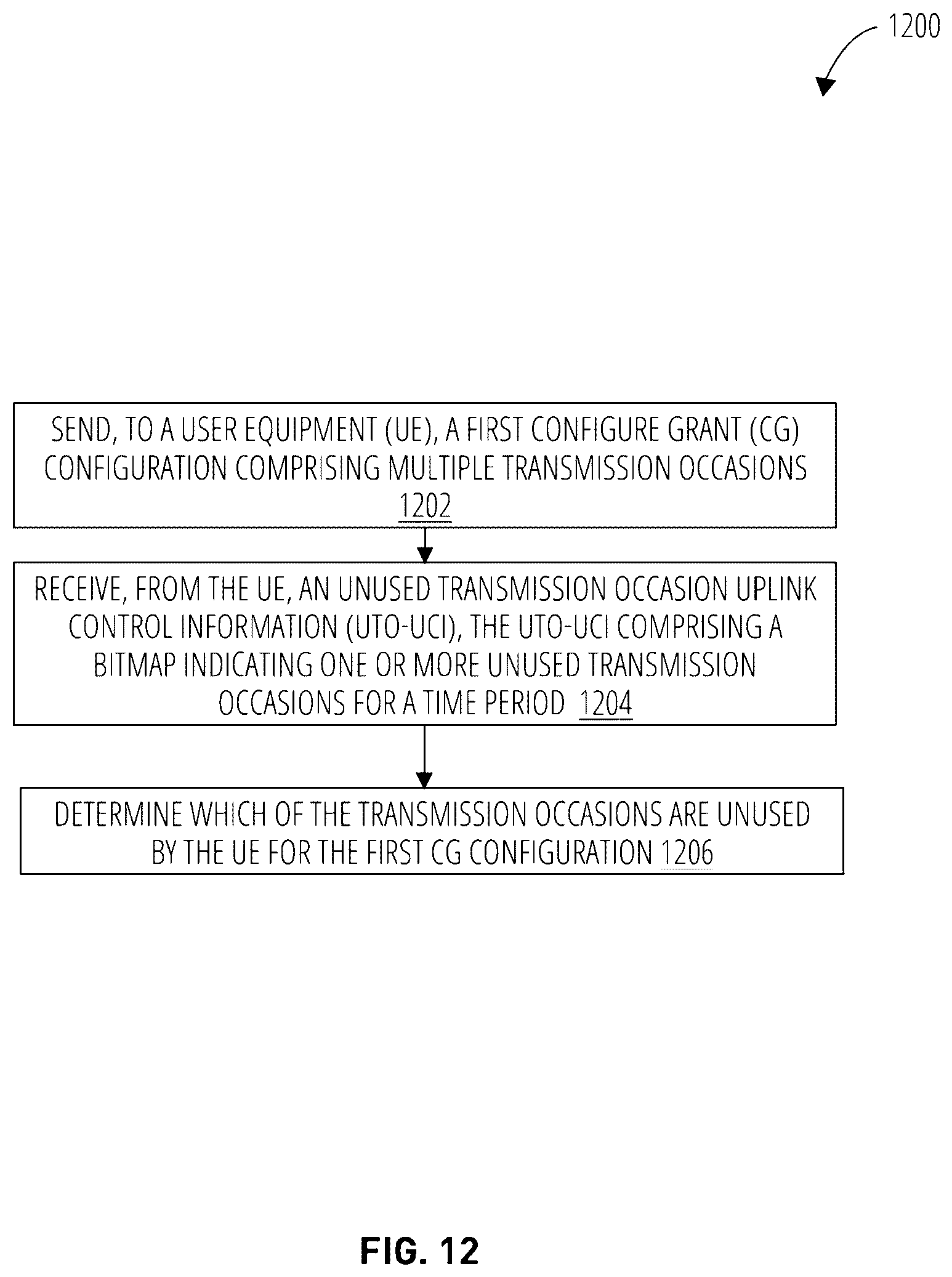

The message travels back to the network over the same uplink channel the device uses for data, so no separate control channel is needed. The network can then reassign the skipped slots to other devices or adjust its scheduling.
The design is tuned for XR (extended reality) workloads, which generate data in short intense bursts rather than a steady stream, making unused-slot waste a real throughput problem.
The UE may send the UTO-UCI via a CG physical uplink channel (PUSCH) to the network node to indicate to the network node which of the transmission occasions are unused by the UE for the first CG configuration.
Translation: The device sends this report over the wireless connection so the network stops wasting resources on empty slots.
What this means for wireless bandwidth in AR and VR
For everyday users, the practical payoff is a wireless network that wastes less capacity. When a VR or AR headset reports its empty upload slots promptly, the network can hand them to another device nearby, which means more people can share the same tower without the connection degrading for anyone.
Apple's steady stream of XR-related wireless filings suggests the company is thinking carefully about how cellular infrastructure will need to adapt to headsets. Current 5G scheduling was designed with phones in mind; XR devices have different traffic patterns, and small protocol additions like this one are exactly how standards bodies eventually update the spec. Whether this specific approach reaches a ratified standard depends on industry adoption, not just Apple's patent.
This is the 36th Apple filing we've tracked in our AR glasses race watchlist since May, following one on showing device status by looking and one on fixing flickering lenses.
No new chips or antennas are required here, just a change to how phones and cell towers exchange messages, which puts this closer to a software update than a hardware reinvention.
The catch is that software still has to be adopted everywhere. This message format would need to become an official global wireless standard, and then every carrier would need to update their networks before a single phone could use it. That chain typically takes years.
The underlying waste this solves, networks holding resources open for headsets that go briefly quiet, will become a real problem as those devices grow common. Whether this particular approach reaches people through Apple or through the broader standards process, the need it addresses is genuine and the proposed fix is lightweight enough to travel.
