Samsung Patents an On-Chip Circuit for Testing Interconnect Health

As chips get smaller and the wires connecting their components shrink to nanometer scales, verifying those connections without destroying the chip becomes a serious engineering puzzle. Samsung's latest patent embeds the testing equipment directly into the chip itself.

By · Updated · 3 min read

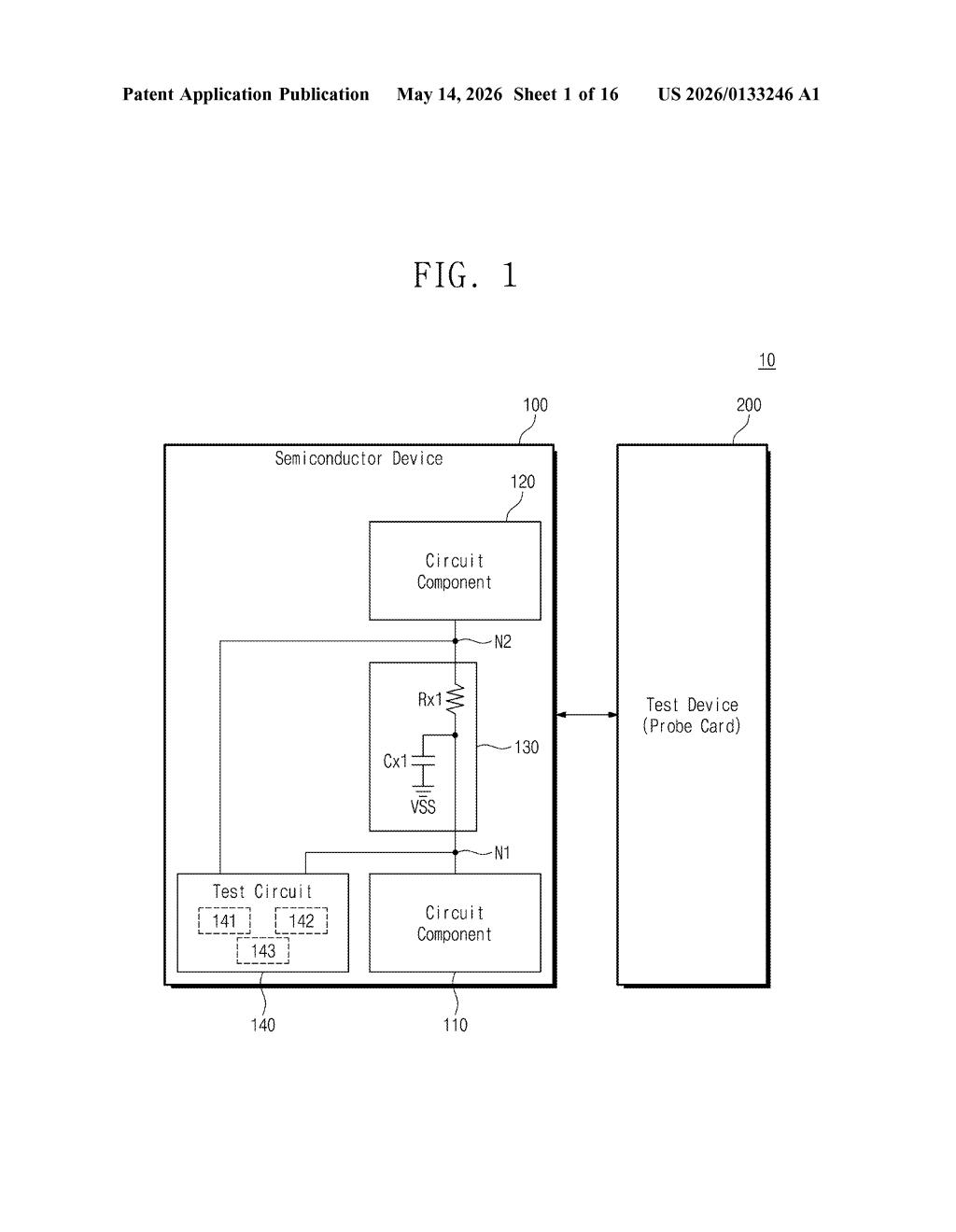

Samsung Patent: On-Chip Interconnect RC Testing System, figure from US 2026/0133246 A1
Figure from the official USPTO publication.
Publication number
US 2026/0133246 A1(US20260133246A1)
Applicant
Samsung Electronics Co., Ltd.
Filed · Published
Jul 21, 2025 · May 14, 2026
Inventors
Seungmo NOH, Sang-In PARK
Status when we published
Waiting for an examiner
Document
20 claims
US classification
324/762.01

What Samsung's built-in interconnect tester actually does

Imagine buying a new appliance, only to find out it occasionally fails because of a tiny, invisible wire inside that's slightly too resistive or has a small electrical leak. Detecting that kind of flaw normally requires specialized external equipment — and by the time you find it, the device may already be in your hands.

Samsung is patenting a smarter approach: a test circuit built directly onto the semiconductor chip that can measure the health of the wires (called interconnects) running between components on that same chip. Think of it like embedding a multimeter inside the chip so it can check its own wiring.

The circuit specifically measures two key electrical properties — resistance (how much the wire fights the flow of electricity) and capacitance (how much the wire unintentionally stores charge). Both can signal defects or degradation, and catching them early means fewer bad chips reaching customers.

How the test circuit measures RC values on the interconnect

The patent describes a semiconductor device that pairs two circuit components — essentially functional blocks on a chip — connected by an interconnect (the metal wire or trace linking them). Sandwiched between those components and the interconnect is a dedicated test circuit.

The test circuit's job is to measure two fundamental electrical properties of the interconnect:

  • Resistance component — how much the wire impedes current flow, which can indicate thinning, corrosion, or poor material deposition
  • Capacitance component — how much parasitic charge the wire accumulates, which can slow signal propagation or cause cross-talk between adjacent wires

By positioning the test circuit directly between both circuit components and the interconnect, Samsung ensures measurements reflect the actual in-circuit behavior of the wire — not an approximation taken from a separate test structure elsewhere on the wafer.

The design is meant to interface with an external test device (such as a probe card — a tool with tiny pins that contact the chip during manufacturing) to read out those measurements, enabling automated quality screening during production.

What this means for chip yield and manufacturing quality

For chip manufacturers, interconnect defects are one of the leading causes of yield loss — the percentage of chips that pass quality control. As process nodes shrink below 5nm and 3nm, interconnect wires become so thin that tiny variations in deposition or etching can push resistance or capacitance out of spec. Catching those failures early, before chips are packaged and shipped, saves significant cost.

For Samsung specifically, this kind of in-situ (on-chip) testing capability could strengthen its foundry competitiveness by improving yield predictability. If the test circuit can be queried during wafer-level testing or even in the field, it also opens the door to post-deployment reliability monitoring — knowing when a chip's internal wiring is starting to degrade before it causes a system failure.

Source: US 2026/0133246 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.
