Samsung Patents a Dual-Storage Camera Design That Captures More Light in Less Space
Samsung is patenting a way to wire two capacitors in an image sensor together using a single shared vertical connector — a small but meaningful space-saving trick inside the chips that power your camera.
What Samsung's shared-connector capacitor design does
Inside every digital camera sensor, tiny components called capacitors temporarily store electric charge while the sensor reads light. The more efficiently you can pack these components onto the chip, the better the sensor can perform without growing in size.
Samsung's patent describes a layout where two capacitors sit side by side on the sensor chip, and a single vertical connector — running up through the middle between them — links both at once. Instead of each capacitor needing its own dedicated wiring connection, they share one. Think of it like a single power strip plugged into two appliances at the same time, rather than running two separate extension cords.
This kind of design is about making the internal wiring of a camera chip more compact without sacrificing how the capacitors function. It's a structural efficiency play — fitting the same capability into less physical space on the silicon.
How the vertical via links both capacitors at once

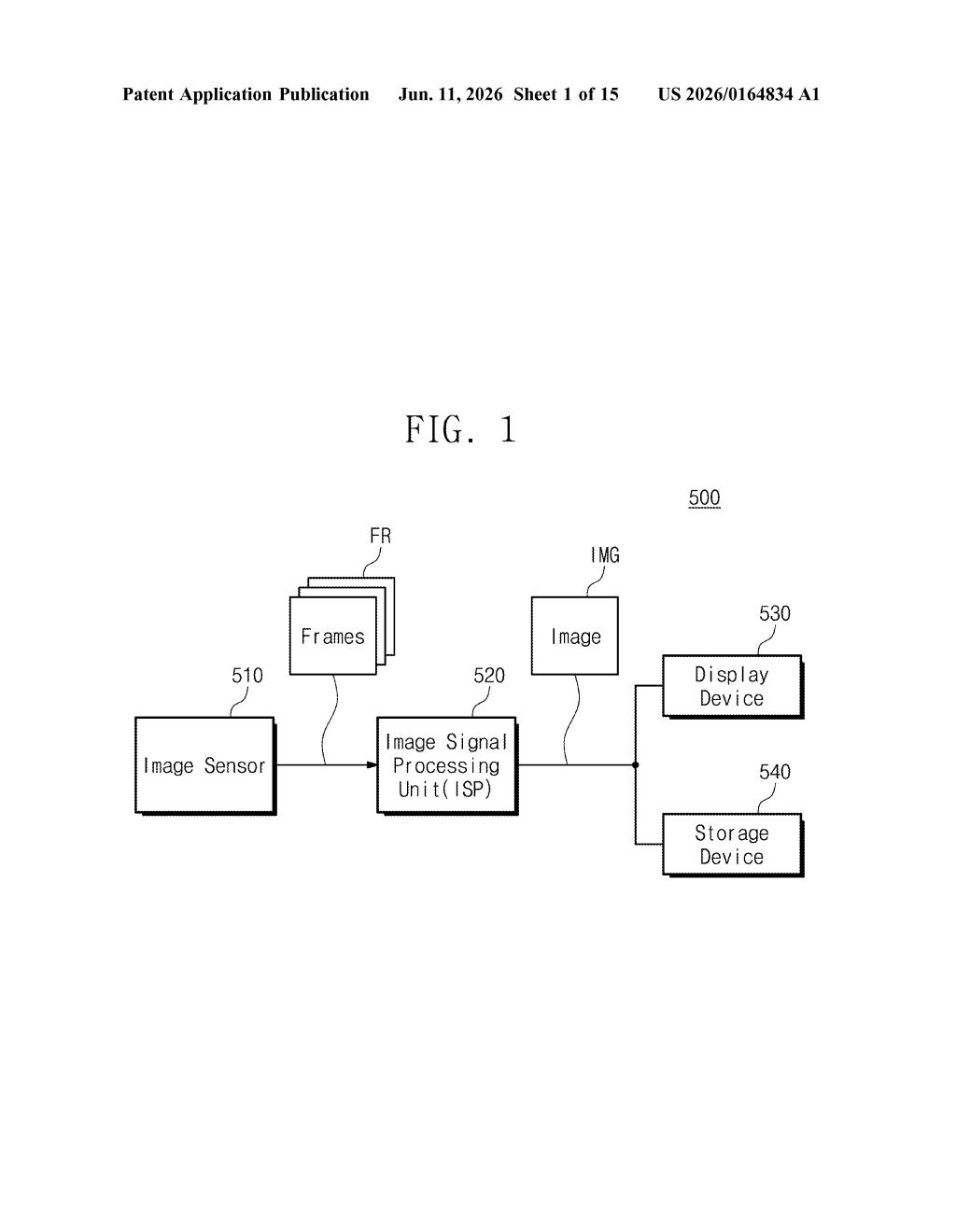

The patent describes an image sensor built on a substrate (the base layer of silicon) that includes a photodiode — the component that actually detects light and converts it to an electrical signal.
On top of that substrate sit two capacitors arranged side by side, separated along a horizontal axis. Each capacitor has the standard sandwich structure: two conductive electrodes with a dielectric layer (an insulating material that holds charge) in between.
The key innovation is a single vertical via — essentially a tiny metal pillar — placed in the gap between the two capacitors. A via is a vertical electrical connector that links components on different layers of a chip. Here, that one via connects to the inner electrode of both capacitors simultaneously, serving as a shared electrical node.
This means:
- The two capacitors can function in a coordinated way without separate wiring runs for each
- The via occupies space that would otherwise be wasted between the two components
- The overall wiring footprint inside the sensor is reduced
It's a structural optimization at the chip-layout level — the kind of detail that matters enormously when you're trying to fit more capability onto a sensor die without increasing its physical size.
What this means for future Samsung camera sensors
Image sensor chips are intensely space-constrained. Every square micrometer counts, especially as manufacturers push for higher resolution, faster readout speeds, and lower power draw in the same or smaller chip footprint. A shared via that eliminates redundant wiring connections — even a handful of them — can free up room for more photodiodes or additional circuitry.
Samsung is one of the world's largest image sensor manufacturers, supplying chips to its own Galaxy phones and to a wide range of third-party device makers. Incremental layout improvements like this one compound over generations of chip design, and this patent stakes out a specific structural arrangement that competitors would need to work around.
This is a deep-in-the-weeds semiconductor layout patent — not the kind of thing that maps to a single product announcement. It's genuinely useful engineering (shared vias in dense chip layouts are a real optimization problem), but the scope is narrow and the immediate consumer impact is invisible. Worth noting for anyone tracking Samsung's sensor R&D direction, but not a headline event on its own.
