Samsung Patents a Flexible Circuit Board Built for Foldable Phone Hinges
Every foldable phone has a dirty secret: the hinge is a nightmare for circuit designers. Samsung's latest patent takes a careful structural approach to keeping RF signals intact through the bend zone.
What Samsung's bendable circuit board actually does
Imagine folding a piece of paper that has live electrical wires running through it — every crease is a potential break point. That's essentially the engineering challenge inside every foldable phone, and it gets worse when those wires need to carry radio frequency (RF) signals for Wi-Fi, 5G, or Bluetooth without losing quality.
Samsung's patent describes a circuit board built in three sections: two sturdy, multi-layer zones on either side, and a super-thin, highly bendable zone in the middle where the hinge actually flexes. The stiff outer sections are built from several stacked layers of copper-clad laminate — basically the standard material used in printed circuit boards. But the bendy middle section strips that down to just one of those layers, keeping it thin and flexible enough to survive thousands of fold cycles.
The clever part is how that single thin layer still manages to carry an RF signal reliably. Instead of a thick conductor, Samsung arranges a set of finely spaced sub-wires flanked by ground wires on each side — a structure that mimics the electrical behavior of a full multi-layer board in a much thinner package.
How the single-CCL hinge zone handles RF signals

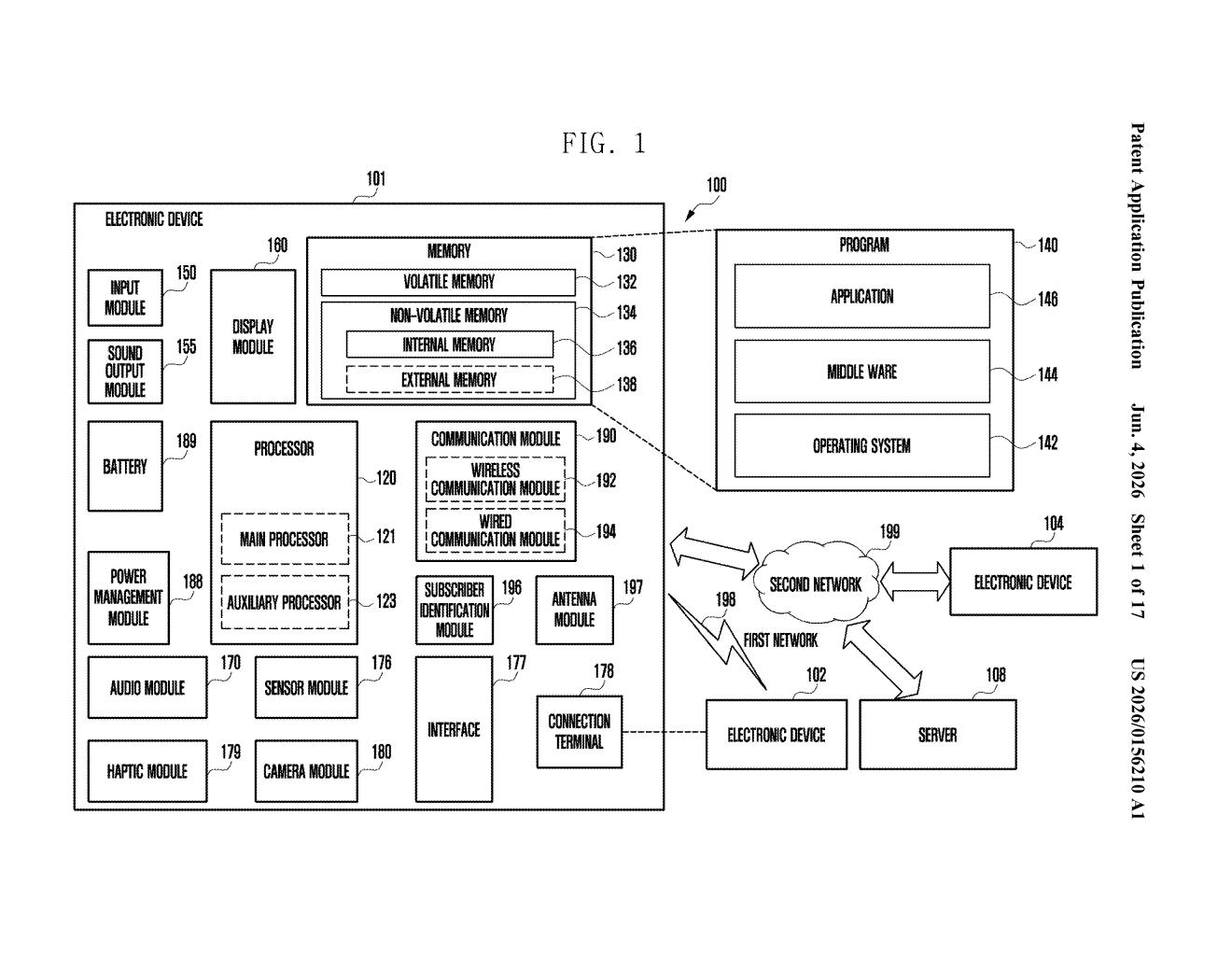

The patent describes a flexible printed circuit board (FPCB) designed specifically for foldable devices, with three distinct structural zones.
The two outer regions — called multi-layer regions — are built from multiple stacked copper-clad laminates (CCLs), which are the rigid, copper-faced fiberglass sheets that form standard PCBs. Multiple layers give these zones the signal density and structural strength needed to connect to the phone's main components.
The middle highly bendable region transitions down to a single CCL — one continuous copper layer that extends from one of the outer layers without adding thickness. This is the part that physically flexes at the hinge. Thinning it down is straightforward enough, but the engineering challenge is keeping RF signal integrity through that single layer.
To solve that, Samsung's design uses a specific wire arrangement inside the bendable zone:
- A first ground wire along one edge
- A second ground wire along the opposite edge
- Multiple sub-wires spaced between them, collectively carrying a single RF signal
This ground-signal-ground geometry (similar in principle to a coplanar waveguide — a common RF routing technique that uses adjacent ground planes to contain the signal field) lets the board maintain controlled impedance even in the ultra-thin hinge section, reducing signal loss and interference.
What this means for future Samsung foldable phones
Foldable phones like the Galaxy Z Fold and Z Flip already exist, but hinge-zone circuit design remains one of the trickier engineering constraints — particularly as manufacturers try to push displays larger and add more wireless bands. A board that reliably carries RF signals through the flex zone without needing extra layers or shielding components could allow for thinner hinges or free up space for larger batteries.
For you as a consumer, this kind of incremental engineering is what eventually makes foldables feel less like prototypes and more like mature devices. It won't show up on a spec sheet, but it's the type of work that quietly reduces the failure rate and keeps signal quality consistent whether your phone is fully open, halfway folded, or closed flat in your pocket.
This is unglamorous but genuinely important plumbing work. The foldable phone category lives or dies on whether the hinge zone can be made reliable and thin over years of use — and RF routing through a flex point is one of the last unsolved annoyances. Samsung filing this suggests they're iterating seriously on the internals, not just the exterior form factor.
