Google Patents a Camera Mode That Automatically Levels Your Photos as You Shoot
Most people have taken a photo they were sure was straight, only to find it tilted by a few degrees when they look at it later. Google is filing a patent for a camera feature that would notice when you're trying to take a level shot and automatically correct the tilt before you even press the shutter.
What Google's level-lock camera mode actually does

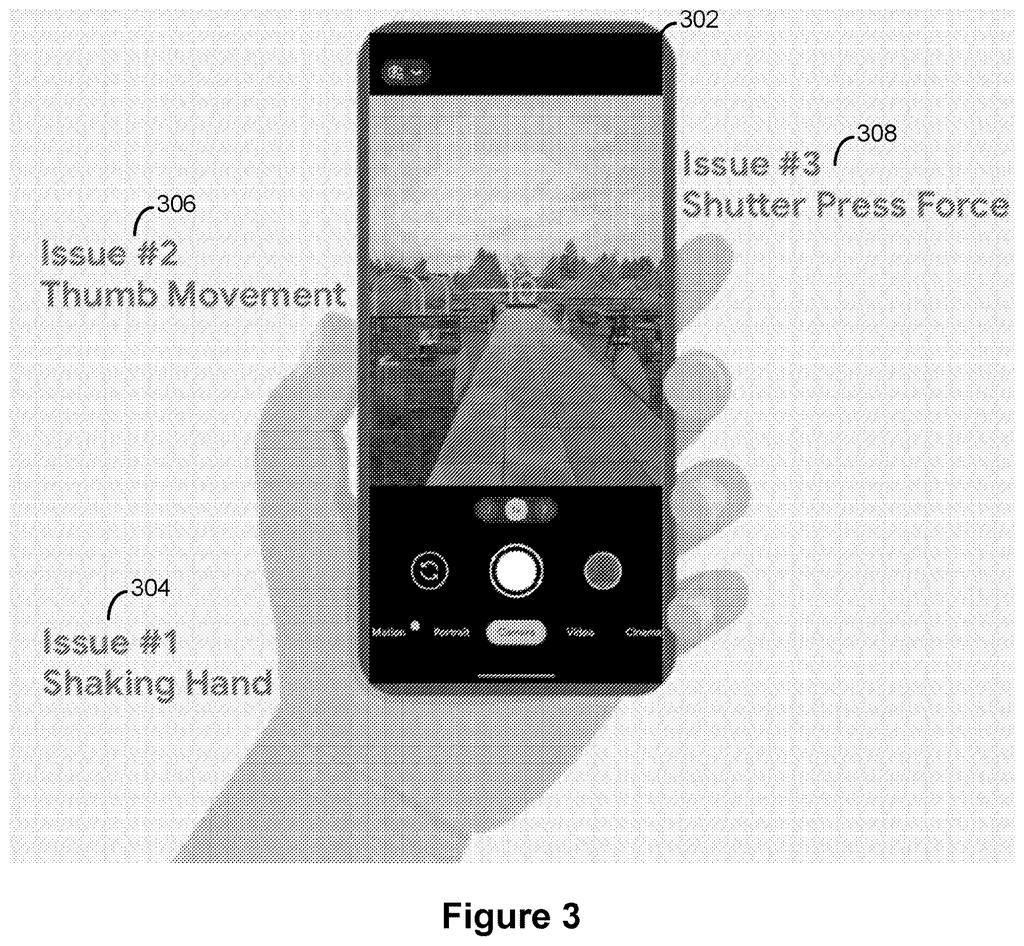

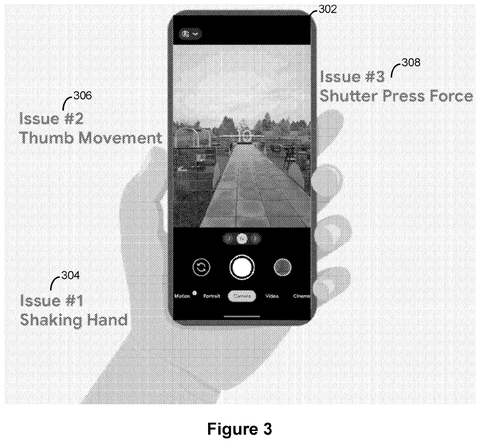

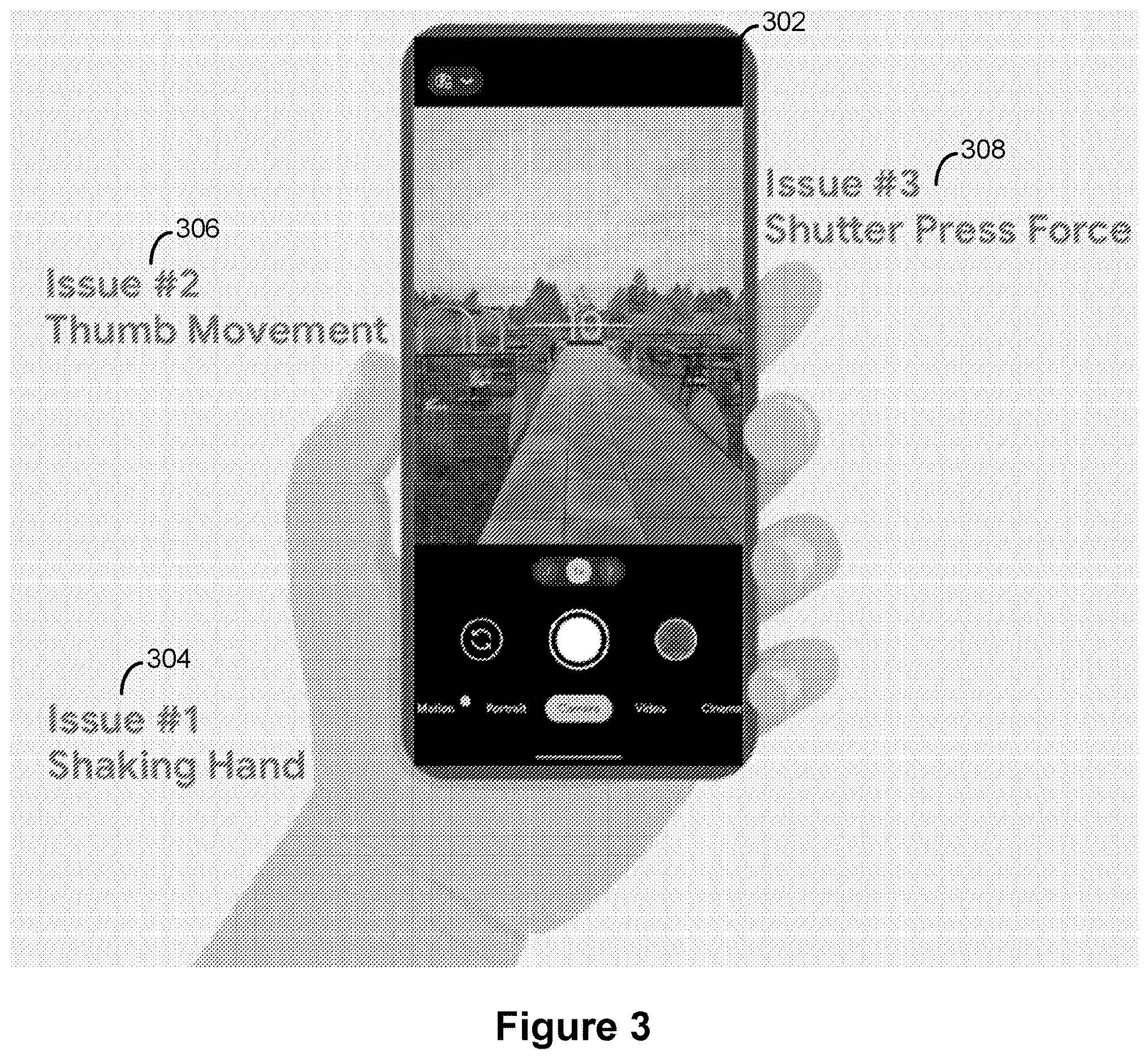

A photographer lines up a shot of a cityscape, certain the horizon is straight, and taps the shutter. The photo comes back slightly crooked. That small frustration is one of the most common complaints in smartphone photography, and it usually means a quick crop and rotate fix in a photo editor afterward.
Google's patent describes a feature called "level-lock mode." When your phone senses that you're trying to hold it level, it activates automatically. From that point on, what you see in the viewfinder is a pre-rotated preview: the image on screen adjusts in real time so the scene looks perfectly straight regardless of how your hand is drifting. When you take the shot, the saved photo is already corrected.
The key word is "infers." The phone doesn't ask you to tap a button or flip a setting. It reads how you're positioning the camera and decides on its own that you want a level image, then takes care of the rest.
inferring a user intent to capture a level image based on user positioning of a camera; based on the inferred user intent, causing a viewfinder to enter a level-lock mode …
Translation: The software figures out you want a straight photo based on how you hold the phone.
How the phone detects tilt and rotates the preview in real time

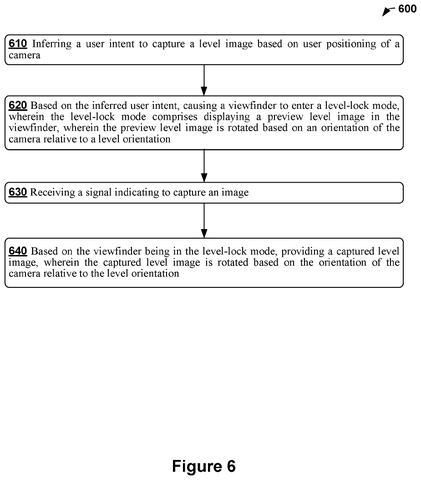

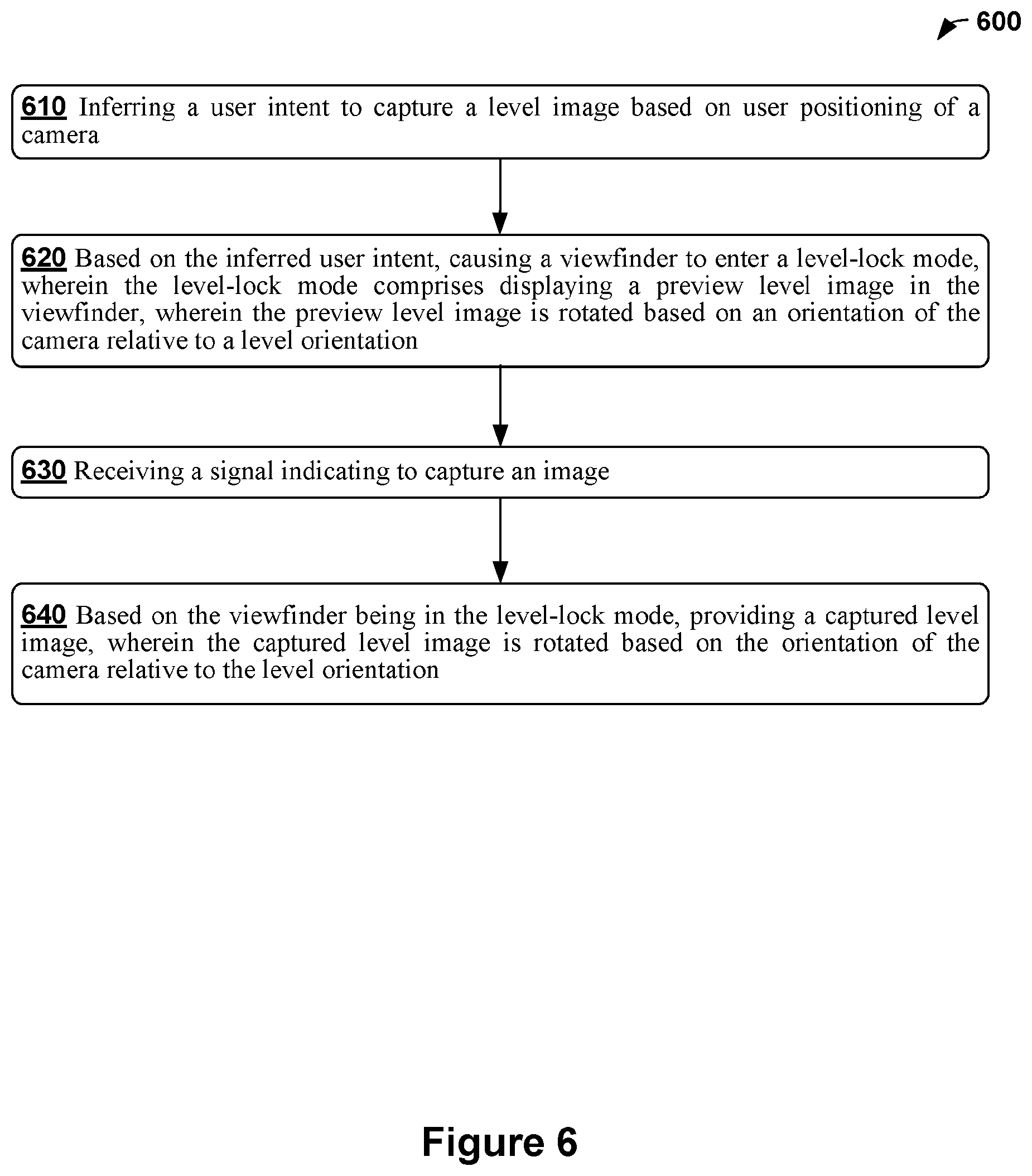

The patent describes a two-stage process: detection and correction.
First, the camera system infers user intent. Rather than requiring you to activate a level mode manually, the software watches how you're holding and positioning the phone. If your behavior suggests you're aiming for a flat, level composition (think: a landscape, a tabletop shot, a horizon line), the system decides on its own that level framing is what you want.

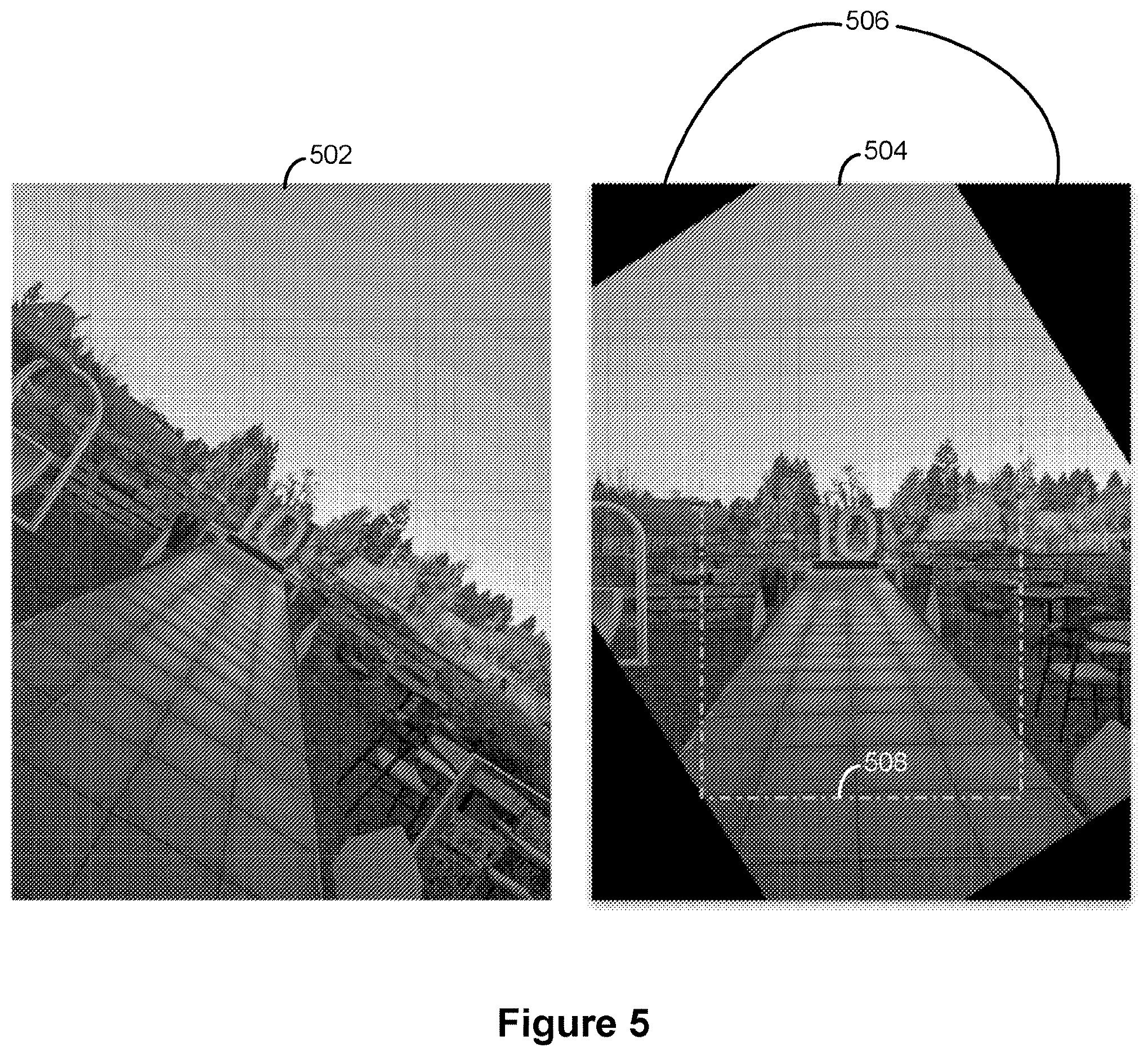

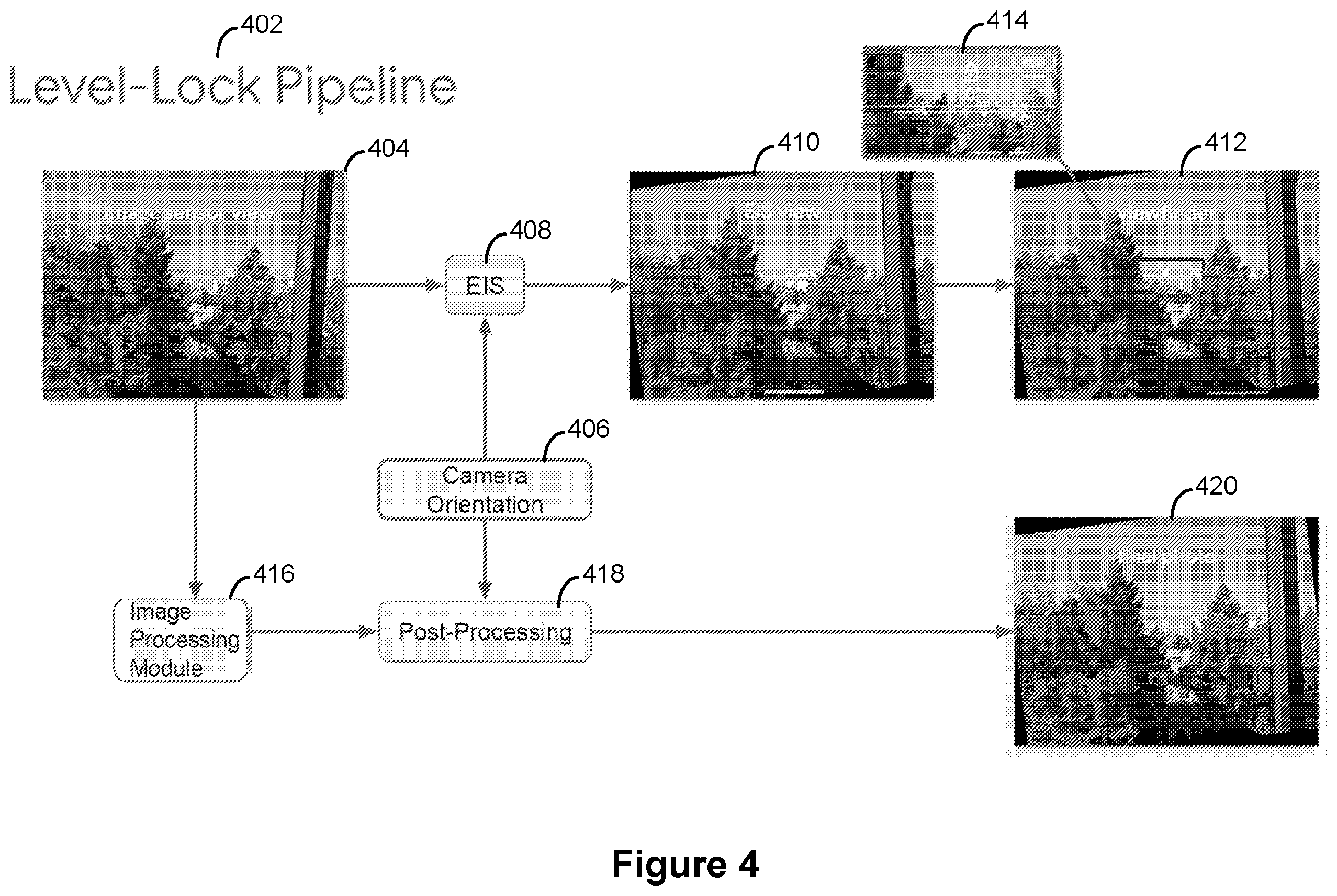

Once that intent is detected, the viewfinder enters level-lock mode. The live preview on your screen is continuously rotated to compensate for any tilt in the camera's orientation relative to true level. So if the phone is physically tilted two degrees clockwise, the displayed image rotates two degrees counterclockwise to keep the scene looking straight. This happens in real time as you move the camera.
When you tap the shutter, the final saved image gets the same rotation treatment. The captured photo is rotated based on how far the camera's actual orientation differed from level at the moment of capture. The result is a photo that's already corrected with no post-processing needed on your end.
The patent focuses on the automatic nature of the whole process: no manual toggle, no on-screen level guide to align, just the phone handling it because it read your intent.
… displaying a preview level image in the viewfinder, wherein the preview level image is rotated based on an orientation of the camera relative to a level orientation.
Translation: The screen shows you a pre-rotated preview so you can see the fix before you snap the picture.
What this means for everyday smartphone photography
Crooked photos are not a crisis, but they are a persistent small annoyance that affects nearly every person who takes casual photos with a phone. Fixing them means opening a photo editor, rotating, cropping to hide the white edges the rotation creates, and saving again. Multiply that by how often people photograph flat scenes, tabletops, or any kind of landscape, and the cumulative friction adds up.
What's more interesting about this patent is the intent-detection piece. If Google can train a camera app to read your positioning and activate the right mode without you asking, that same logic applies to other shooting scenarios: portrait mode, panorama, macro. Google's interest in on-device camera intelligence signals a broader shift toward cameras that observe context and adapt, rather than waiting for the user to navigate menus.
This is the 691st Google filing in our Google coverage we've tracked since May, adding to work like blending past frames and fixing blur with color.
Crooked photos are a small but persistent tax on everyday photography. Most people either reshoot until they get it right or lose part of the frame trimming the tilt out afterward, neither of which feels like a solved problem.
A camera that reads how you're holding it and straightens the shot before you take it matches the size of that frustration well. The correction happens in the moment rather than as cleanup, which is the right place for it.
The harder test is whether the intent-detection is reliable. A feature that silently fixes your photos when it guesses correctly is a pleasure; one that rotates your preview when you didn't ask is just a new source of irritation.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

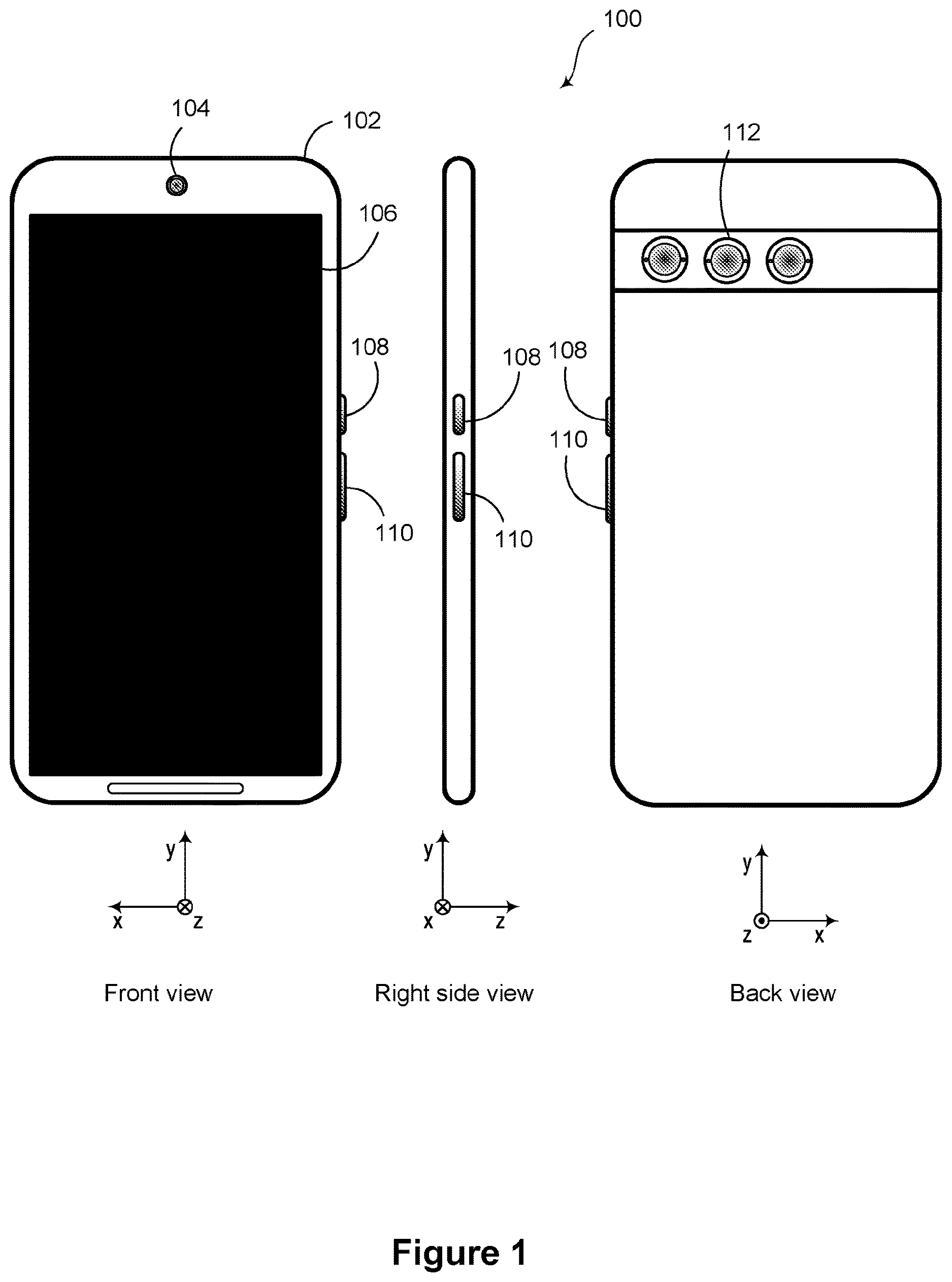

The drawings
