IBM Patents a Way to Stack Multiple Data Records Into One Memory Slot

IBM has filed a patent for a memory technique that folds many separate data records into a single compressed structure, then pulls any one of them back out on demand using a matching key.

By Patentlyze Team · Updated Sep 24, 2026 · 3 min read

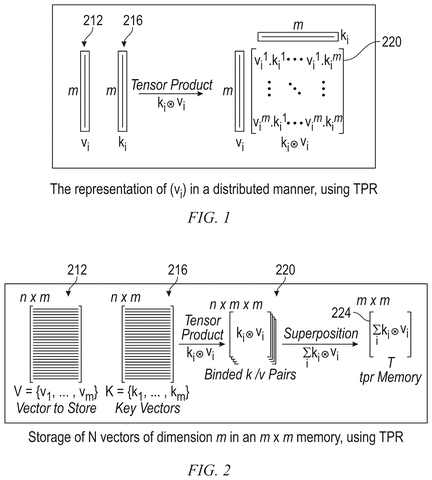

A data record is transformed into a distributed representation using a tensor product, then stored in a memory slot. Drawing from patent filing US 2026/0291719 A1. — A data record is transformed into a distributed representation using a tensor product, then stored in a memory slot.All 12 drawings ↓

Publication number: US 2026/0291719 A1(US20260291719A1)
Applicant: International Business Machines Corporation
Filed · Published: Mar 24, 2025 · Sep 24, 2026
Inventors: Athanasios Vasilopoulos, Patrick Diener, Abbas Rahimi, Abu Sebastian
Status when we published: Waiting for an examiner
Document: 20 claims
US classification: 708/607

What IBM's layered memory compression actually does

Ever tried to find one email in a ten-year archive? The problem isn't just storage, it's that looking through thousands of separate files one by one takes forever. IBM's idea is to stop storing things separately in the first place.

This patent describes a system that takes a bunch of data records (called vectors, though you can think of them as entries in a database), tags each one with a unique identifier, then mathematically blends all of them together into a single stored object. That one object takes up far less space than all the originals lined up in a row. When you need a specific record back, you use the matching tag to "unmix" it from the blend.

The system is designed to run inside in-memory compute units, a class of chips that process data where it lives rather than shuttling it back and forth to a separate processor. That kind of chip is increasingly important in AI hardware, where moving data is often the biggest bottleneck.

From the filing · CLAIM 1

… binding each vector of the plurality of vectors with a corresponding key to create a 2-dimensional distributed representation via an outer product operation; putting the 2-dimensional distributed representation in a superposition with another 2-dimensional distributed representation to create an aggregated 2-dimensional distributed representation; …

Translation: Combining data with special keys lets multiple items merge into one shared memory space.

How keys and outer products pack vectors into one structure

The patent describes a three-step process for storing and retrieving data in compressed form.

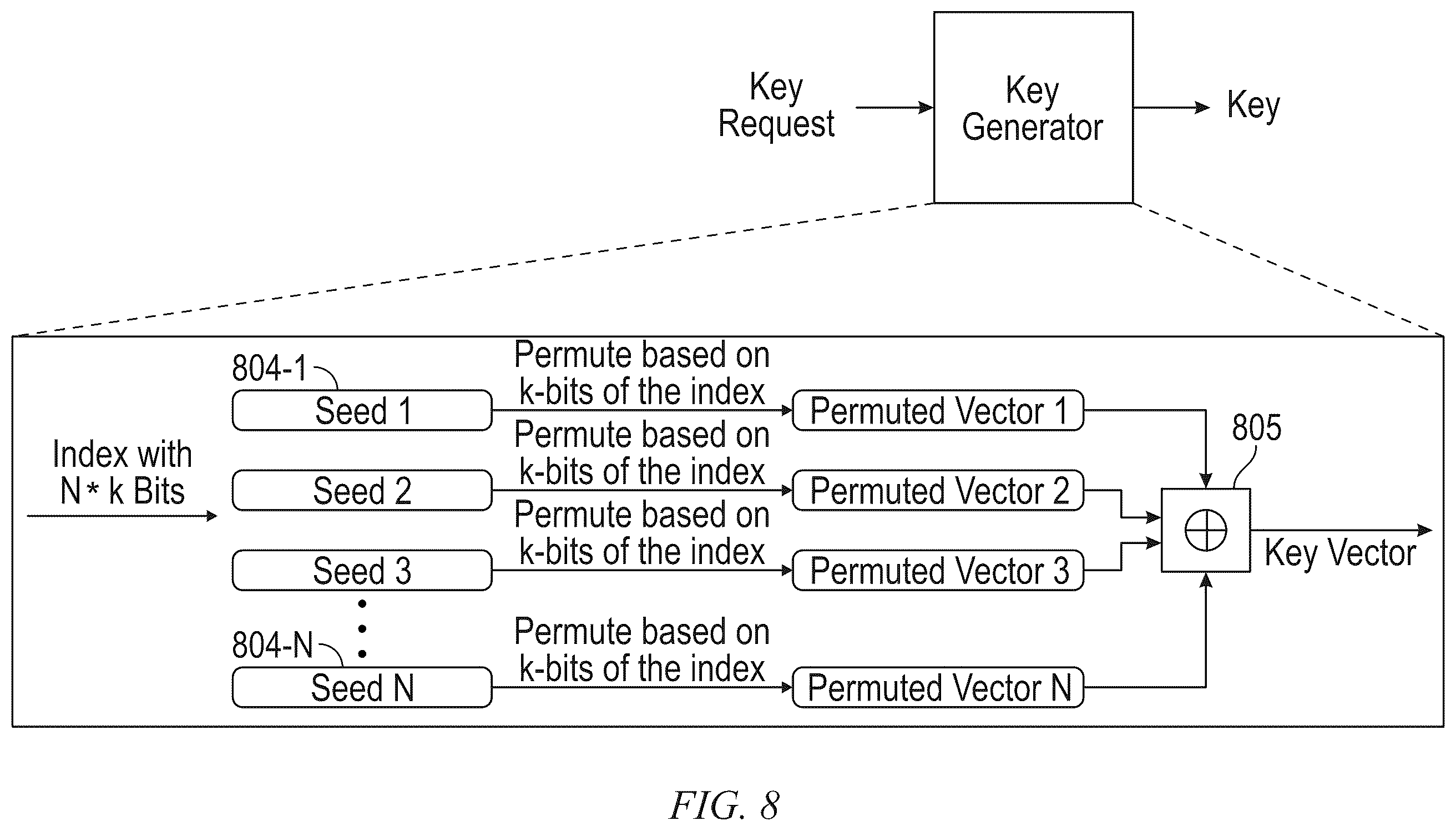

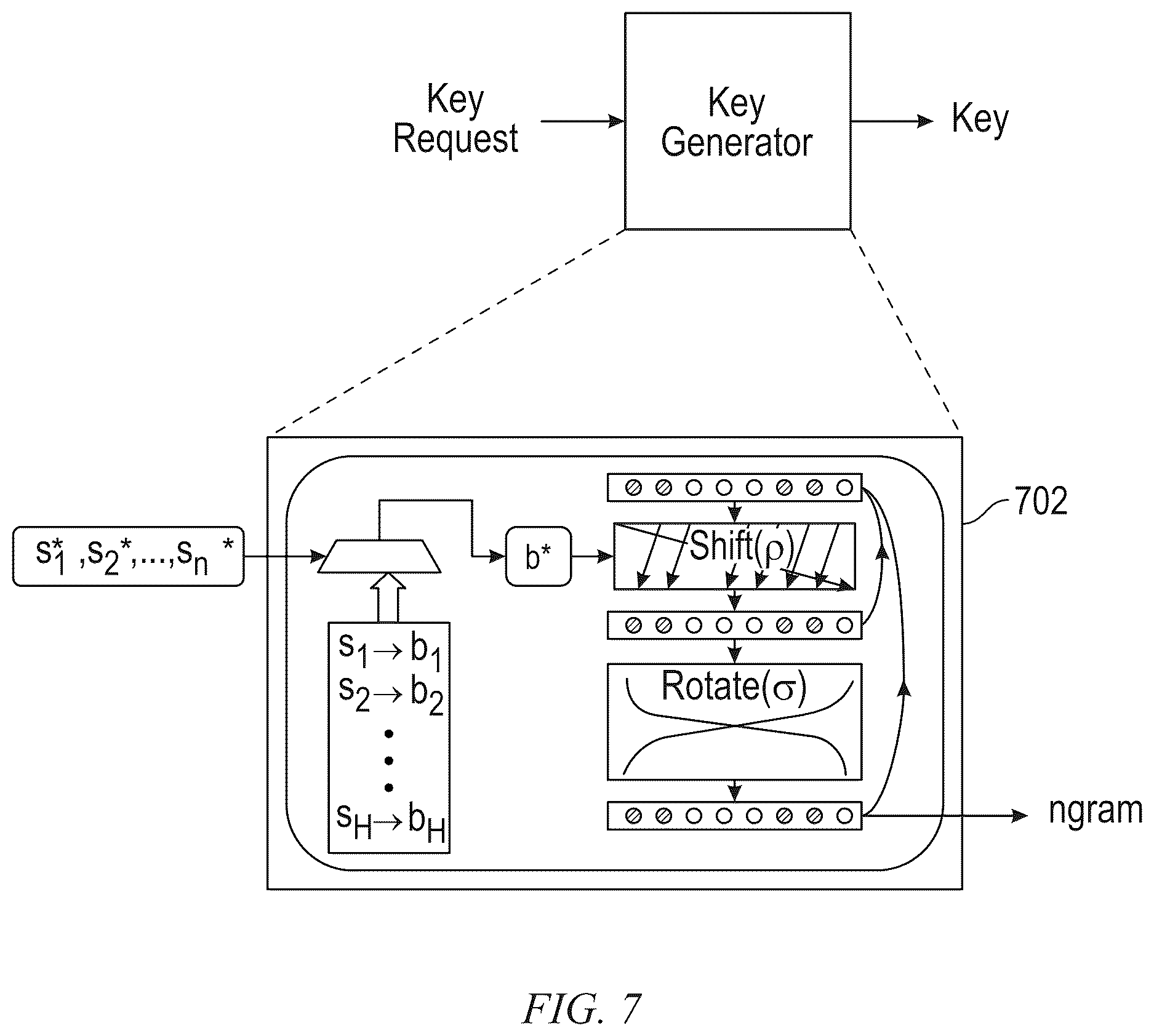

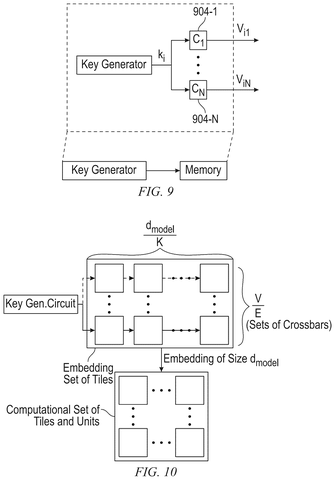

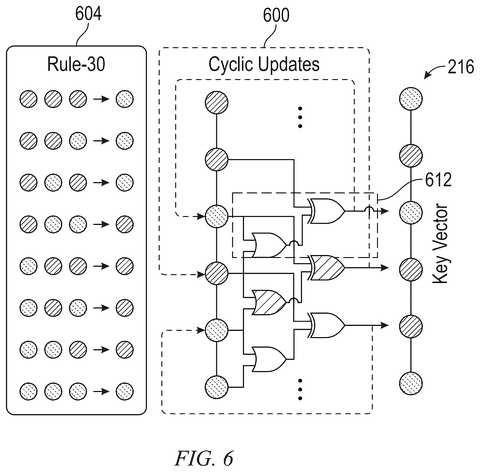

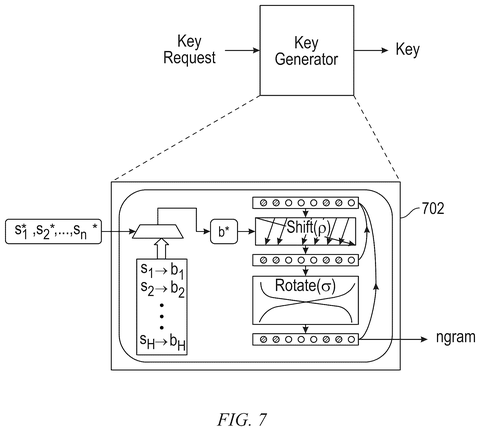

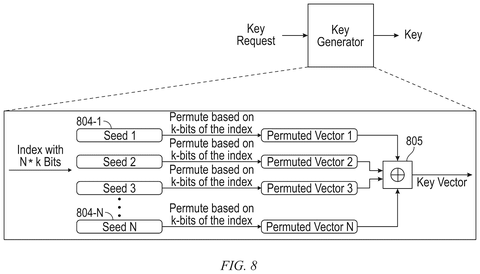

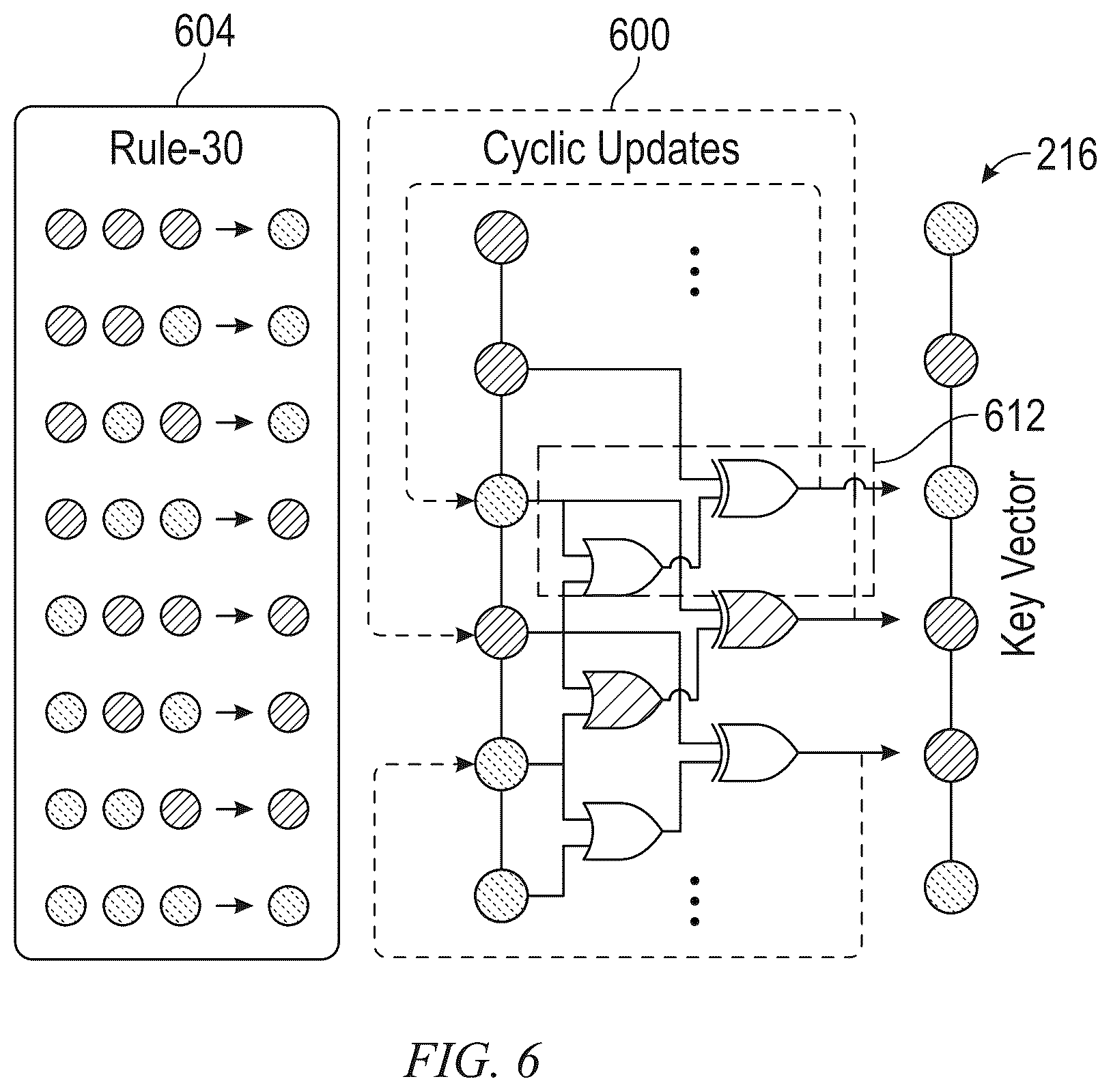

Step 1: Tag each record. For every data vector (a list of numbers representing something, such as an image embedding or a sensor reading), the system generates a unique random key. Think of it as a fingerprint specific to that record.

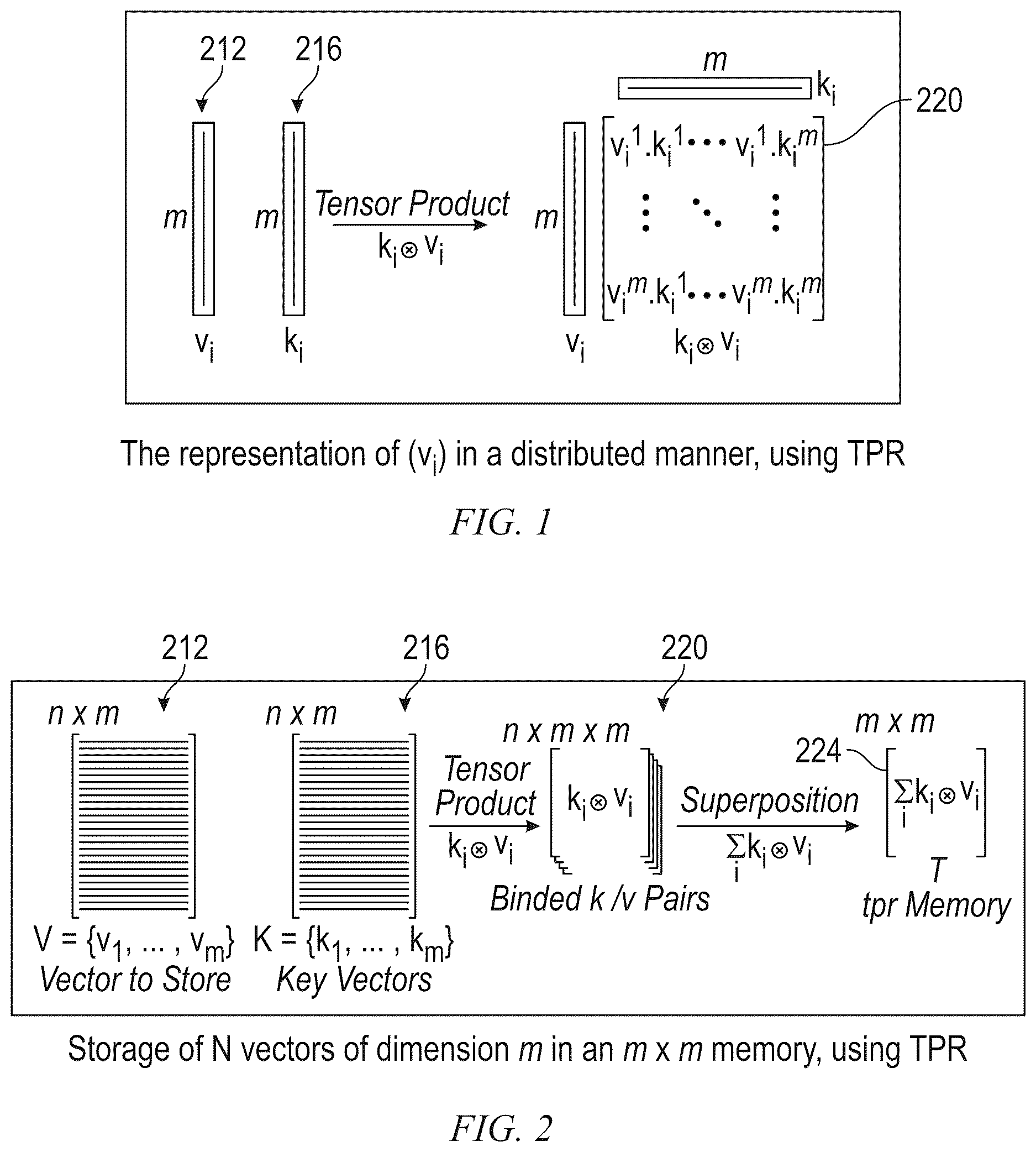

Step 2: Bind and blend. Each vector is combined with its key using an outer product operation (a mathematical operation that takes two lists and produces a 2D grid of their pairwise relationships). The result is a 2-dimensional distributed representation, meaning the data is spread across many positions rather than sitting in one spot. These grids for all records are then added together into one aggregated representation, a superposition in the physics-inspired sense: many signals occupying the same space simultaneously.

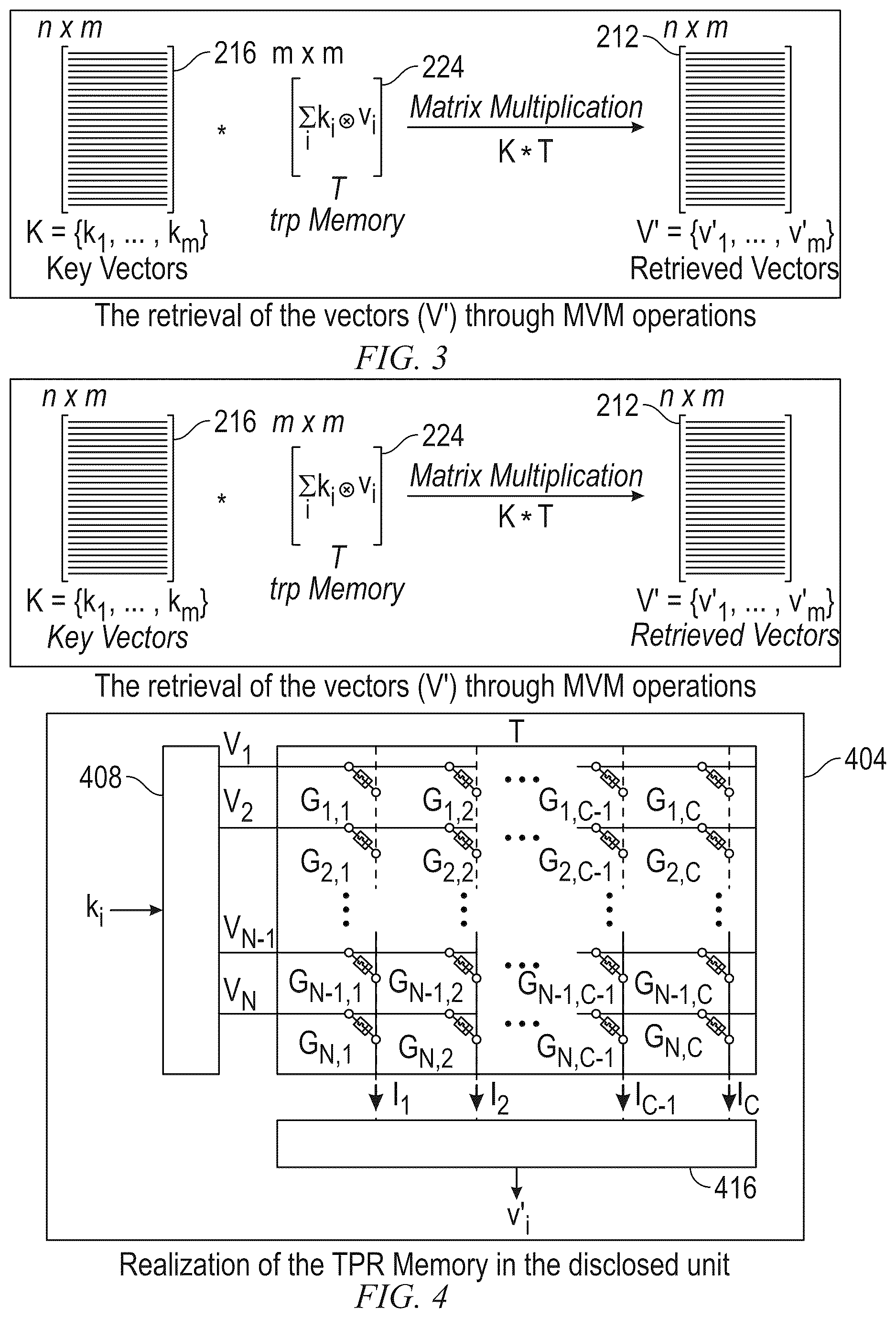

Step 3: Retrieve on demand. To get a specific record back, the system regenerates the matching key and uses it to probe the aggregated structure. Because each key was unique and tied to its vector mathematically, the correct record can be separated from the blend without unpacking everything else.

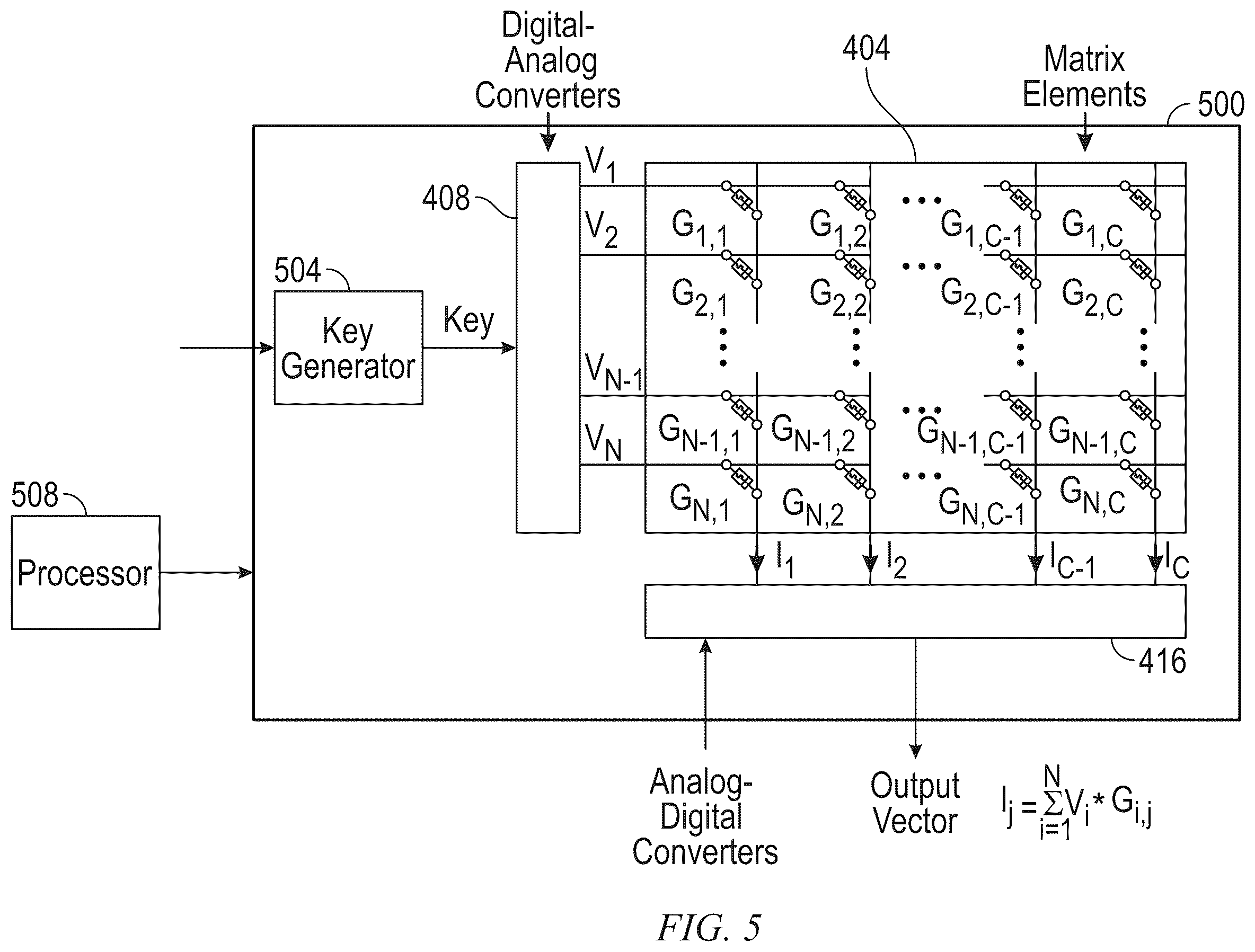

The method draws on hyperdimensional computing (an approach that encodes information in very large random vectors so that patterns survive mathematical operations). The aggregated structure is stored in an in-memory compute unit, a chip architecture where processing happens inside the memory array itself, cutting the time and energy normally spent moving data.

What this means for AI chips squeezed on memory

Memory movement is one of the biggest costs in modern AI inference, the step where a trained model actually answers a question. Chips that process data in place rather than ferrying it across a bus can be meaningfully faster and more power-efficient. A compression scheme that lets many records share a single memory footprint amplifies that advantage further.

For AI hardware designers, IBM keeps filing on in-memory and neuromorphic compute, and this patent fits that pattern: it targets a real constraint (memory capacity and bandwidth) with a technique that could, in principle, let an AI chip hold more context without needing more physical memory. The gap between "in principle" and "in a shipping product" is still wide, but the underlying problem being solved is one the whole industry is working on.

IBM's 362nd filing in our IBM coverage since May adds to a run that includes cross-checking vehicle cameras and sensors and training AI on messy questions.

Editorial take

The patent describes a way to pack many pieces of information into a single block of memory and retrieve exactly the right piece on demand, which would remove a significant bottleneck slowing down modern AI.

Two things have to exist before any of this works, and the document says so plainly: a new breed of memory chip that can run calculations inside itself, and a reliable method for generating the enormous numerical codes the whole retrieval system depends on. Neither exists at commercial scale today, which makes the shortest route to a product a long one requiring hardware manufacturers to build something that has never shipped in volume before the software side can even be tested in the real world.

IBM's research division regularly files patents like this well ahead of any actual silicon, and that is the right frame here. This marks where serious engineering effort is pointed, but a product is multiple hard steps away.

Source: US 2026/0291719 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.
