Patent: Smarter Image Shrinking Powers Next-Gen AR Headsets
Sending sharp images to a headset display is a constant tug-of-war between quality and speed. Meta's latest patent describes a system that picks the best compression strategy for each slice of the image, automatically.
What Meta's adaptive display compression actually does
Imagine streaming a video where some parts of the screen are a flat, solid color and others are packed with fine detail. Compressing both the same way wastes either quality or bandwidth. Meta's patent tackles exactly that problem for AR headsets.
The system looks at each strip of pixels coming off the display pipeline and asks: if we squeeze this losslessly (perfectly, no data thrown away), will the result be small enough? If yes, it does that. If not, it switches to lossy compression (which discards some detail) to keep the data moving fast enough.
The goal is to keep the headset's display feed flowing at a consistent rate without dropping quality where it counts. You'd notice this as fewer visual glitches or compression artifacts in the lens, especially in scenes that mix sharp text with rendered backgrounds.
How the system chooses between lossless and lossy modes

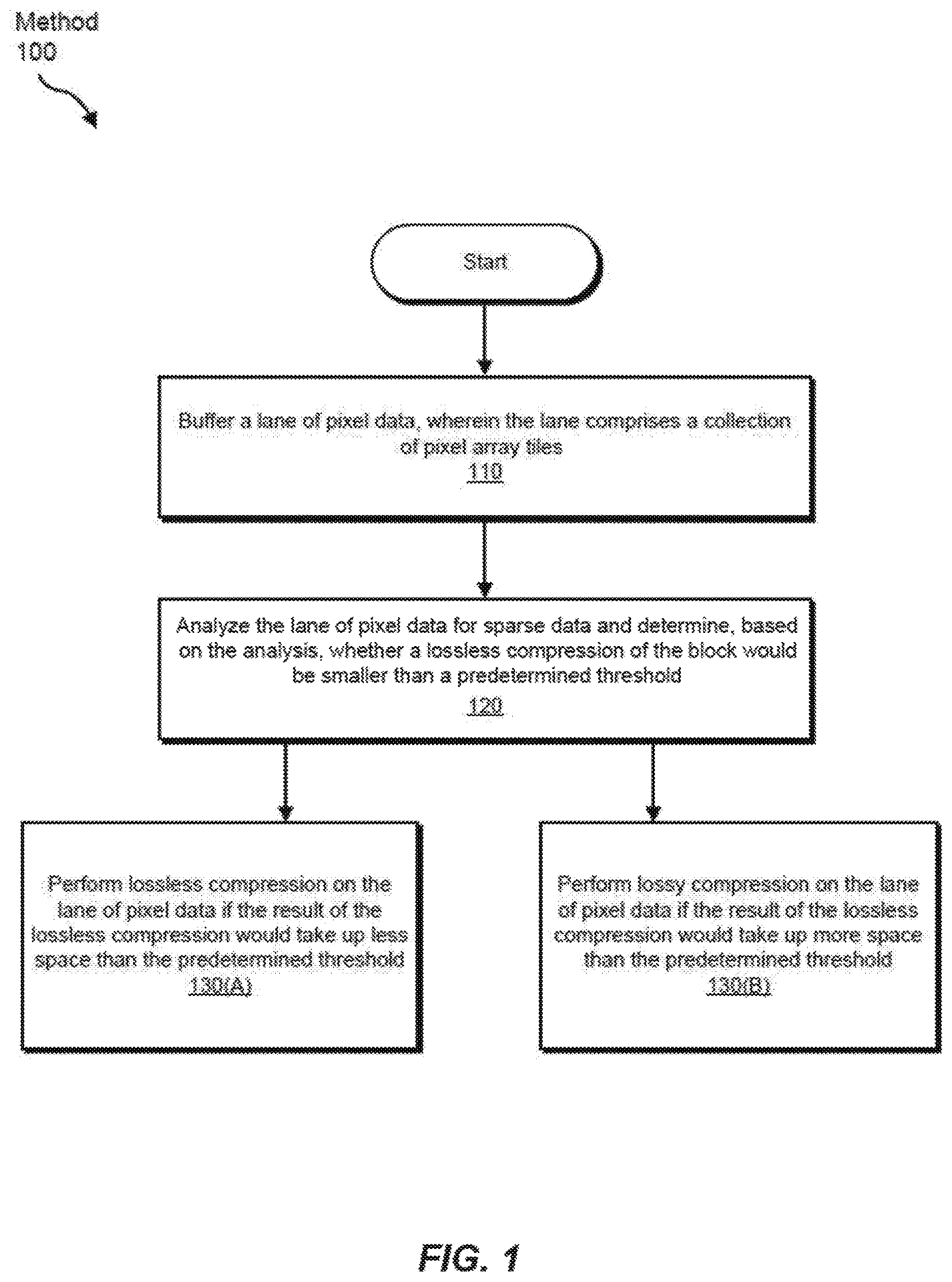

The patent describes a pipeline stage called transport adaptive range packing. It operates on a lane of pixel data, which is a horizontal strip of the display composed of smaller rectangular blocks called tiles.
For each lane, the system runs a quick analysis to detect sparse data (regions with little variation, like flat colors or empty areas). Based on that analysis, it predicts whether lossless compression would produce output smaller than a set size threshold.
- If lossless compression fits within the threshold: the lane is compressed without any quality loss.
- If lossless compression would overshoot the threshold: the system falls back to lossy compression to guarantee the data fits the available transport bandwidth.
The threshold acts as a guardrail tied to the physical bandwidth of the display connection. This kind of per-lane decision-making lets the system treat visually simple regions gently and only sacrifice fidelity where the data is too complex to compress cleanly, keeping the overall pipeline throughput steady.
What this means for AR headset image quality
AR headsets like Meta's Quest line push enormous amounts of pixel data from a processor to the lenses many times per second. If that link gets congested, the display stutters or blurs. Transport adaptive range packing is a way to avoid that by making compression decisions per strip of pixels rather than applying one blanket approach to the whole frame. That granularity matters: a heads-up display showing text next to a 3D scene has wildly different compressibility from region to region.
For you as a user, the practical payoff is cleaner visuals in mixed scenes and fewer compression artifacts on fine detail like text or UI overlays. This is largely invisible infrastructure work, but the kind that separates headsets that look sharp in real use from ones that look great only in demos.
This is quiet but useful display-pipeline engineering. It won't make headlines at a product launch, but it's exactly the kind of low-level optimization that separates a comfortable AR experience from an eye-straining one. Meta filing this suggests active work on the internal display interconnect for future headset hardware.
