Smart Glasses Patent Aims to Shame You Into Working Harder
Meta is patenting a system where your smart glasses automatically take a photo when your smartwatch detects you're falling behind on a workout goal, then offers to share that moment with your friends or coach.
What Meta's glasses-plus-watch workout sharing actually does

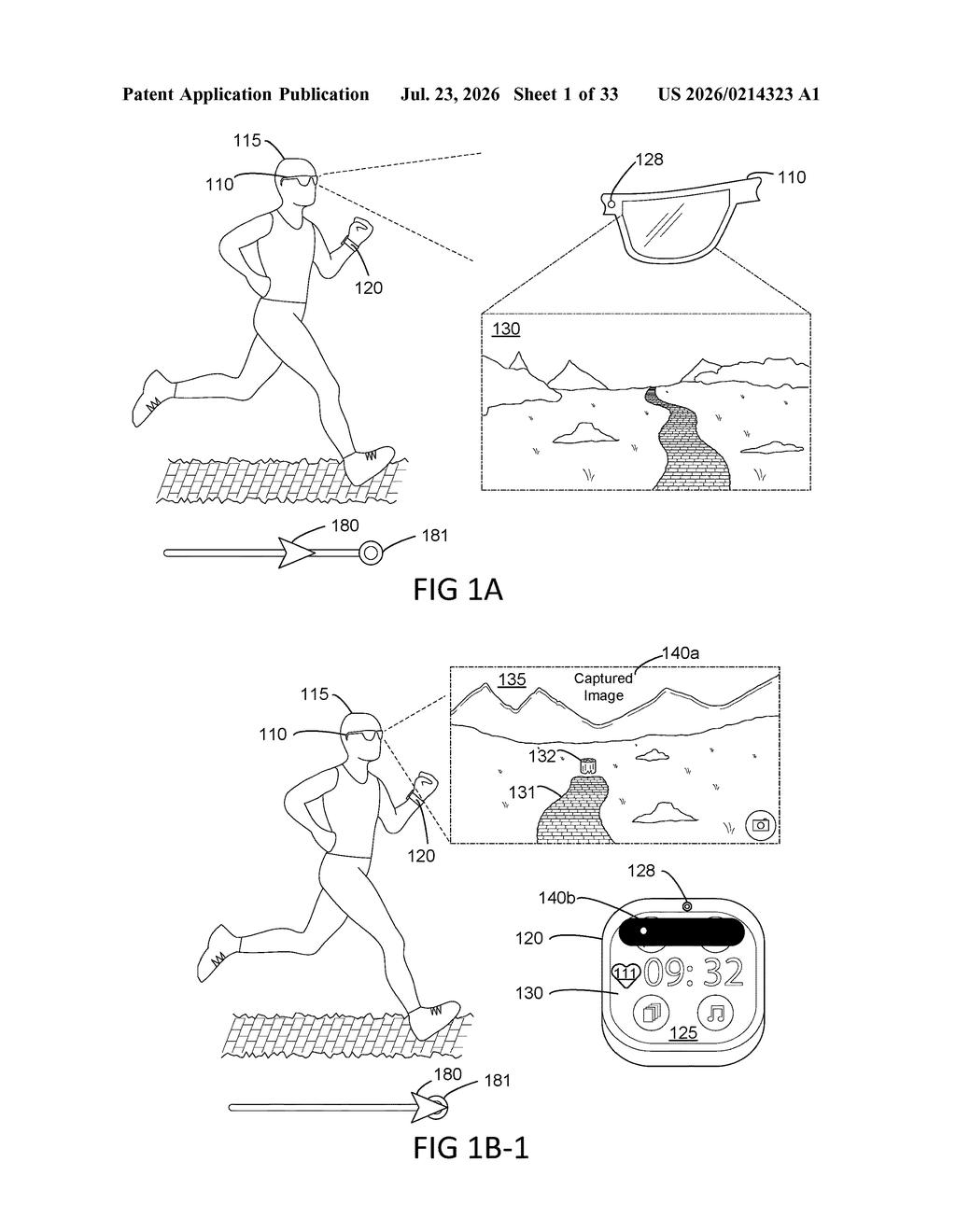

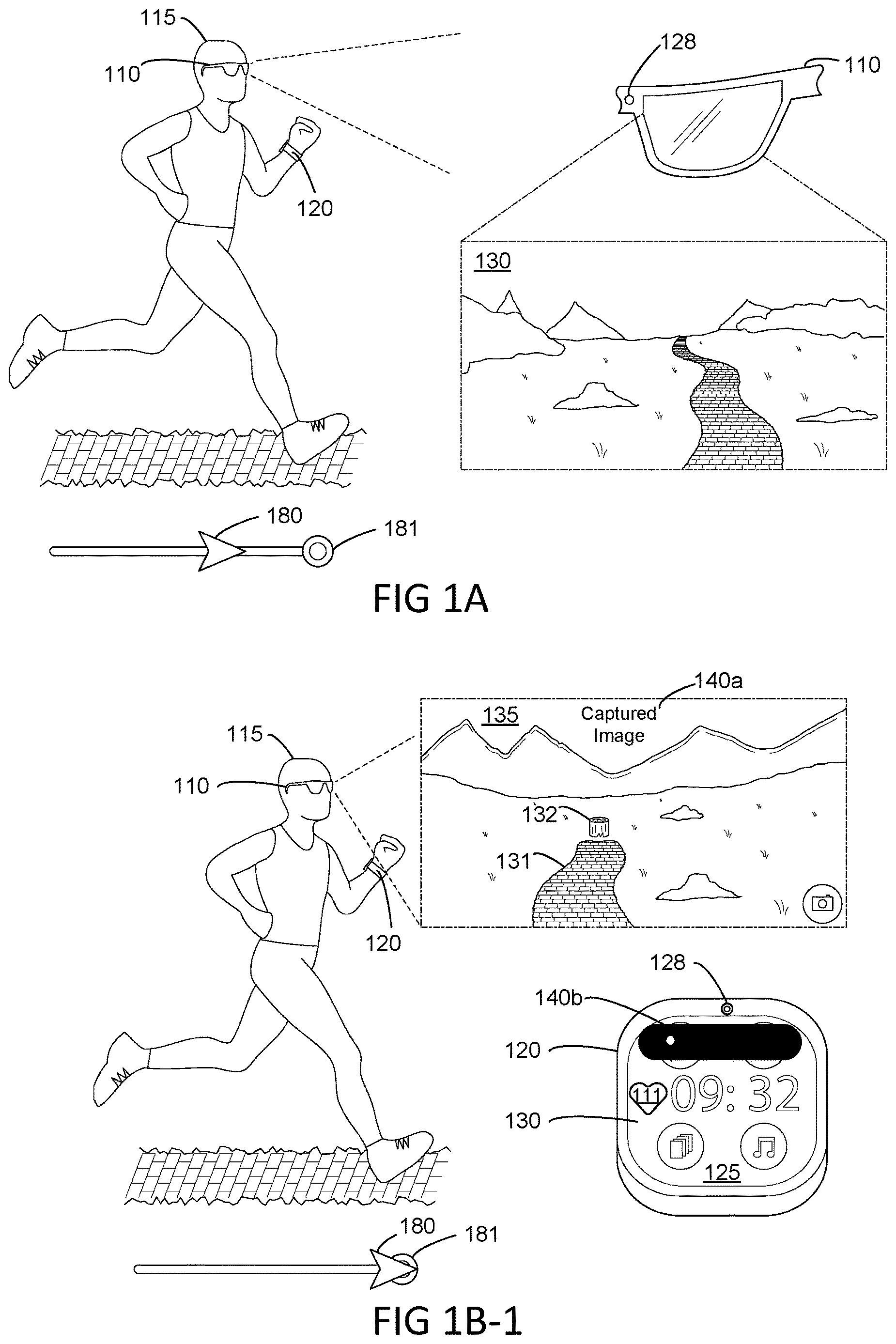

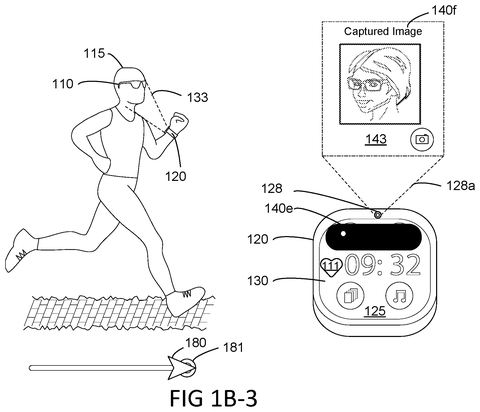

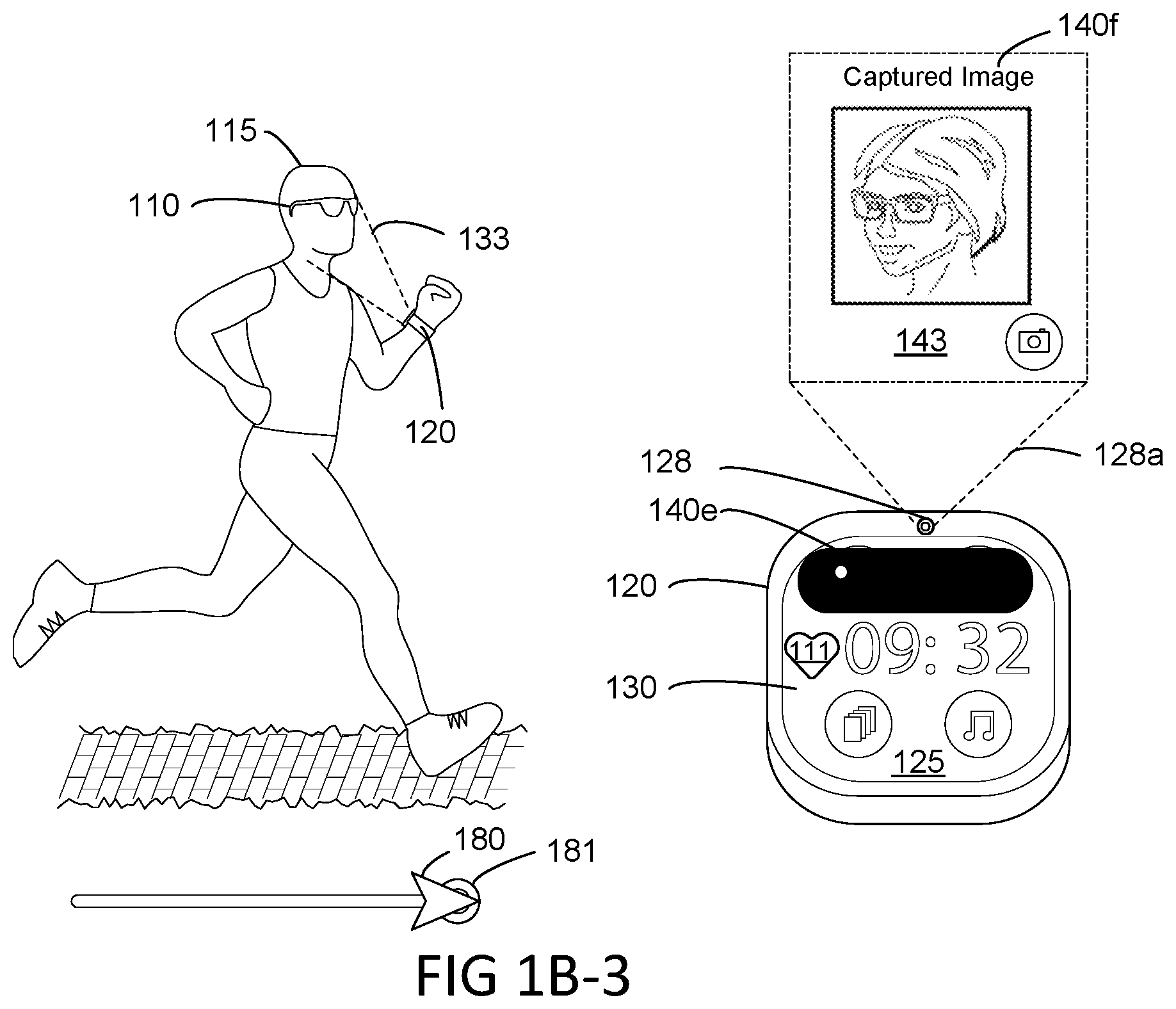

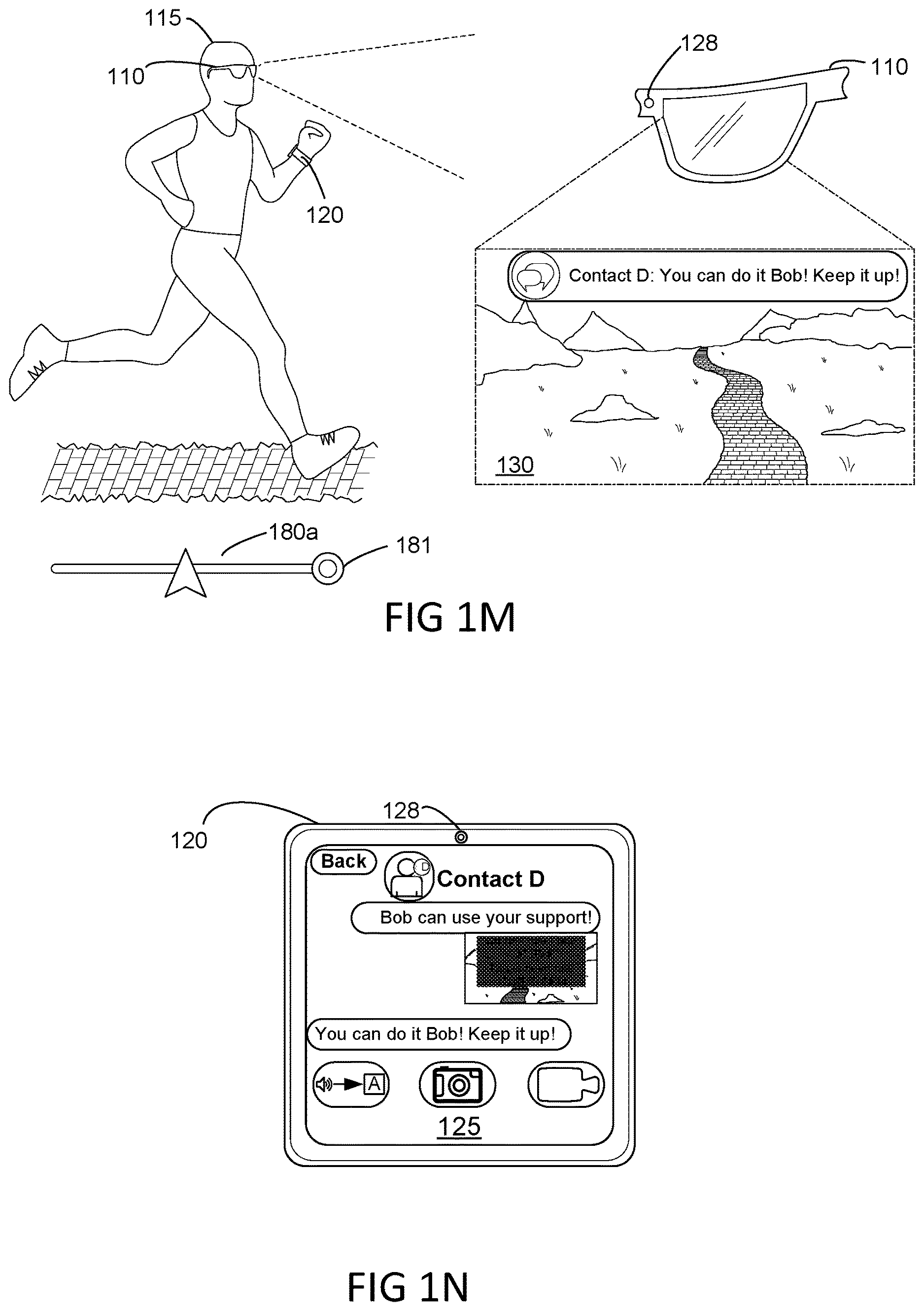

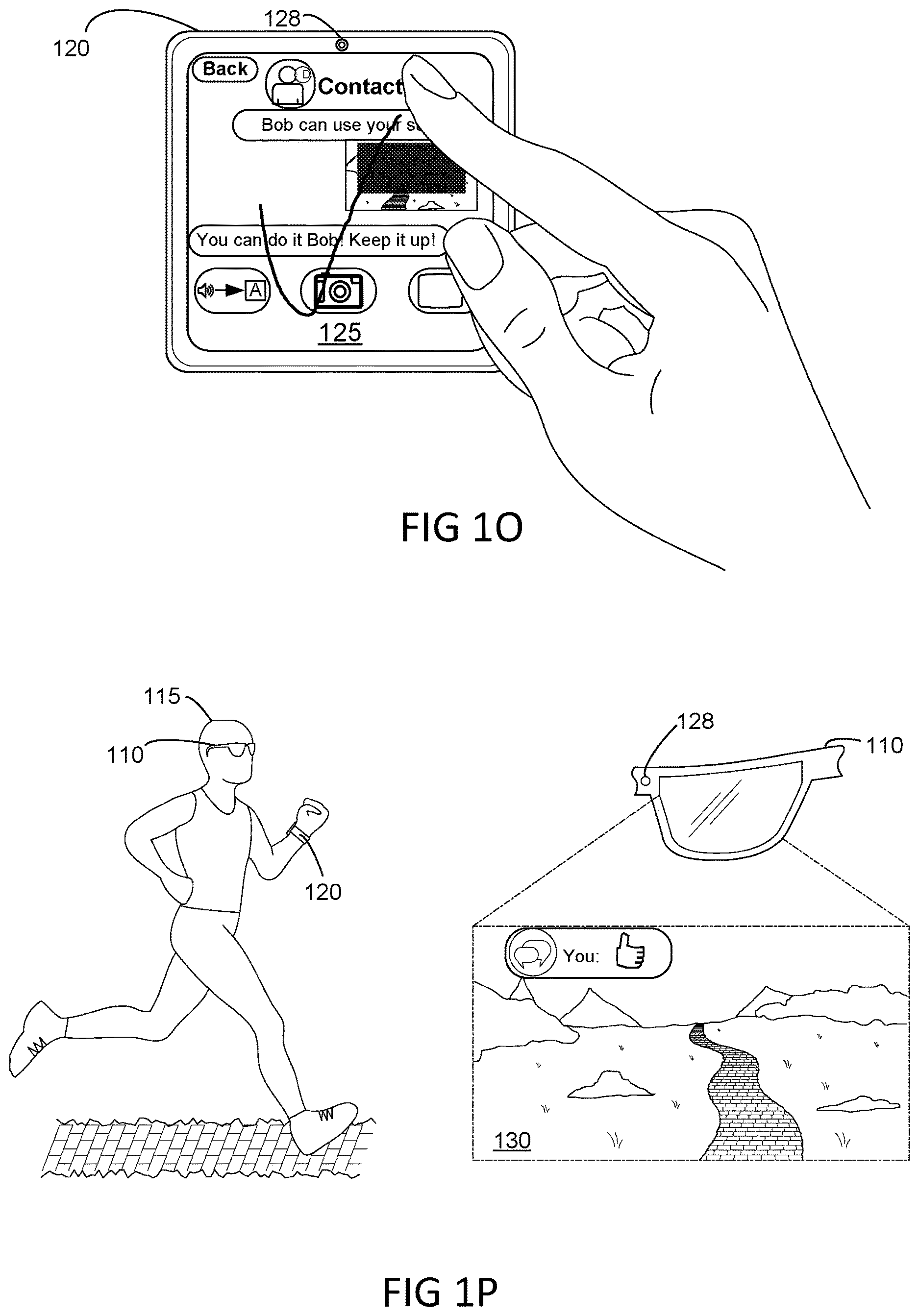

Imagine you're out for a run and your watch notices your pace has dropped below your target. Instead of just buzzing at your wrist, it triggers the camera built into your glasses to capture the moment, then overlays your workout stats directly onto that image.

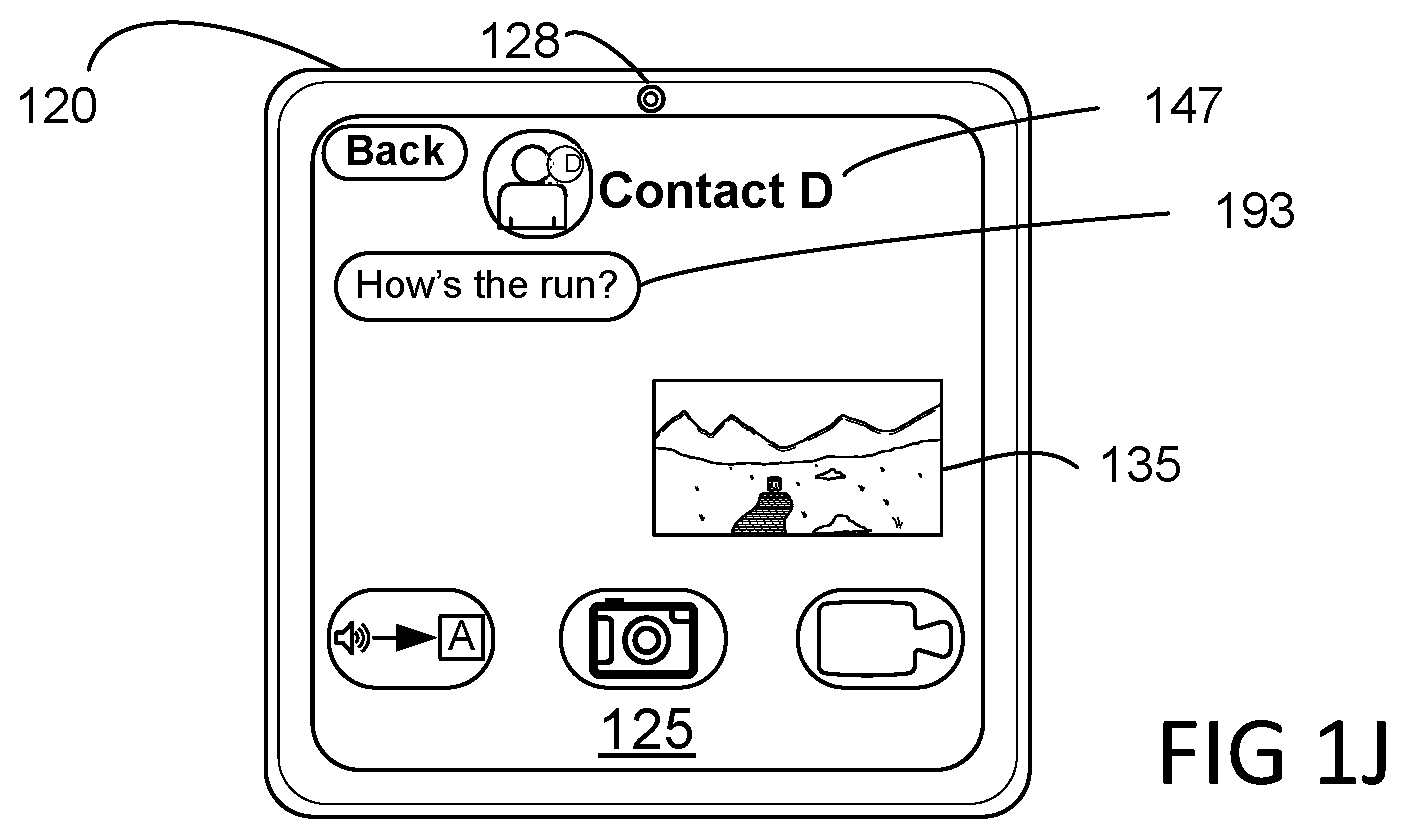

You'd get a small notification on your watch (or from the glasses themselves) saying something like "photo ready to send." One tap, and that image, complete with your real-time performance data, goes straight to a preselected group: a workout partner, a personal trainer, or a friend keeping you accountable.

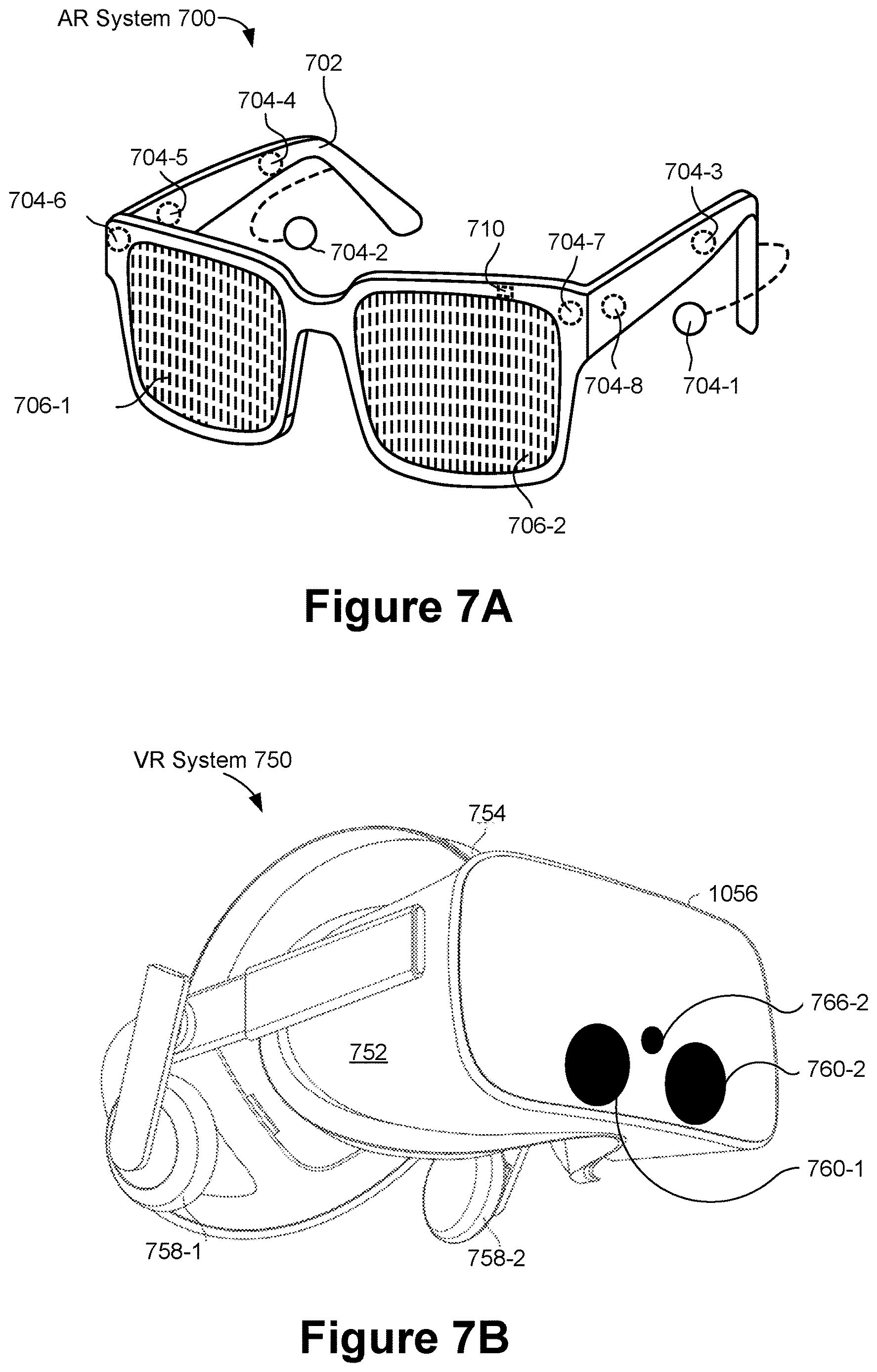

The key design choice here is that the glasses have no screen of their own. They're just a camera. Your watch handles the display and the send button. Meta is betting that the two devices work better as a team than either does alone.
How the watch triggers the glasses camera mid-workout

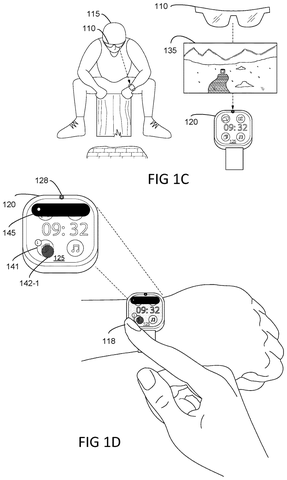

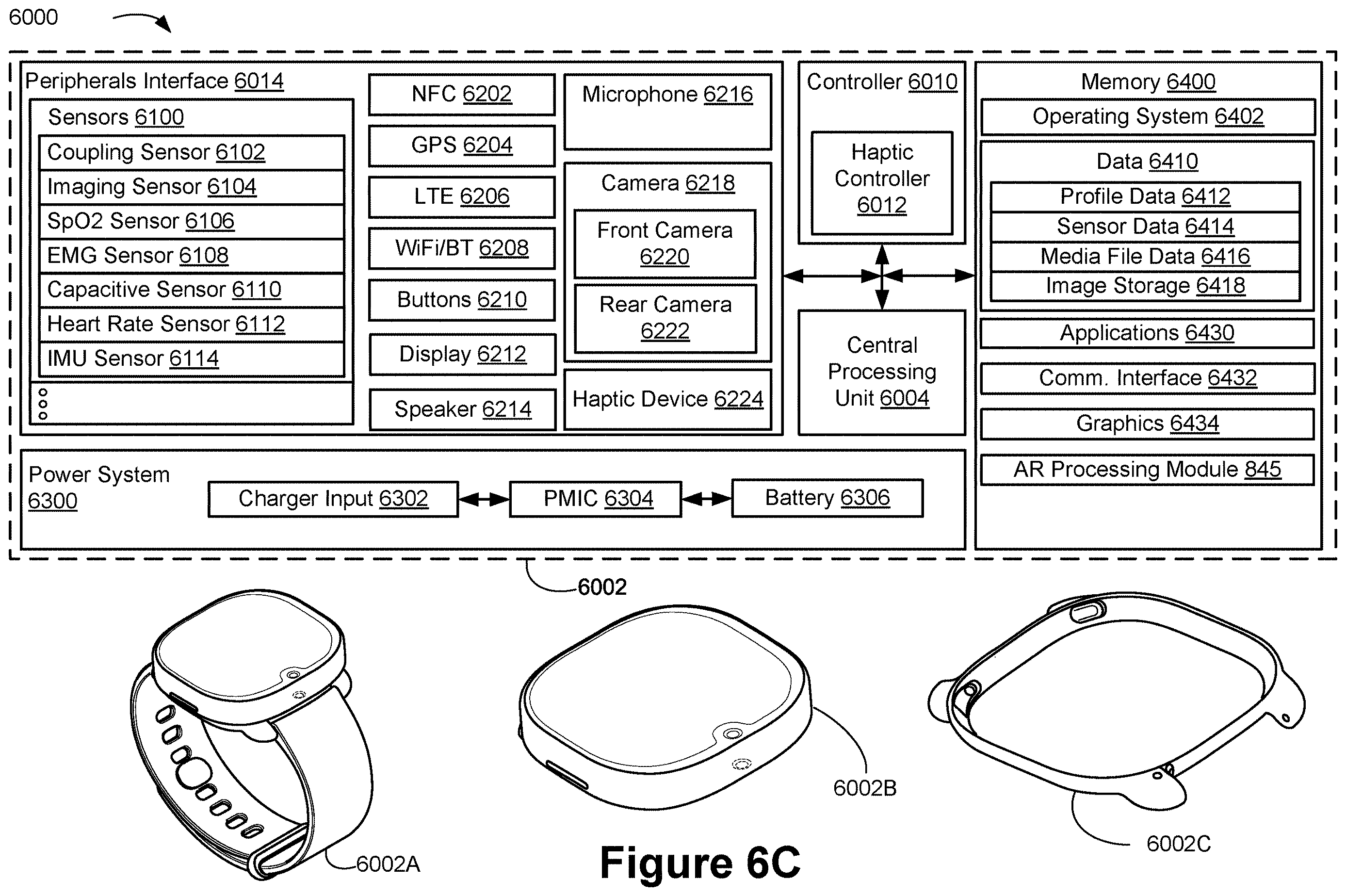

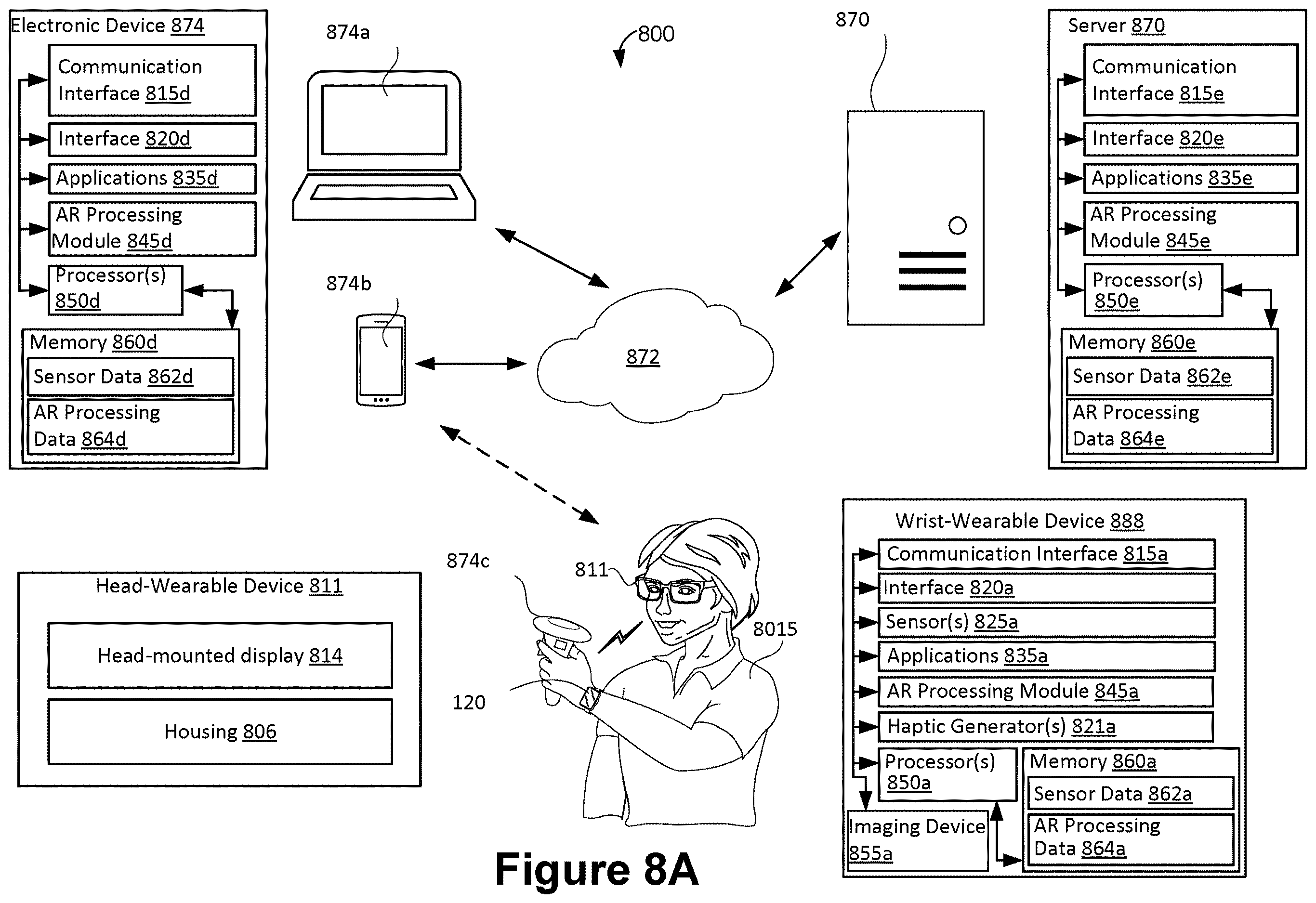

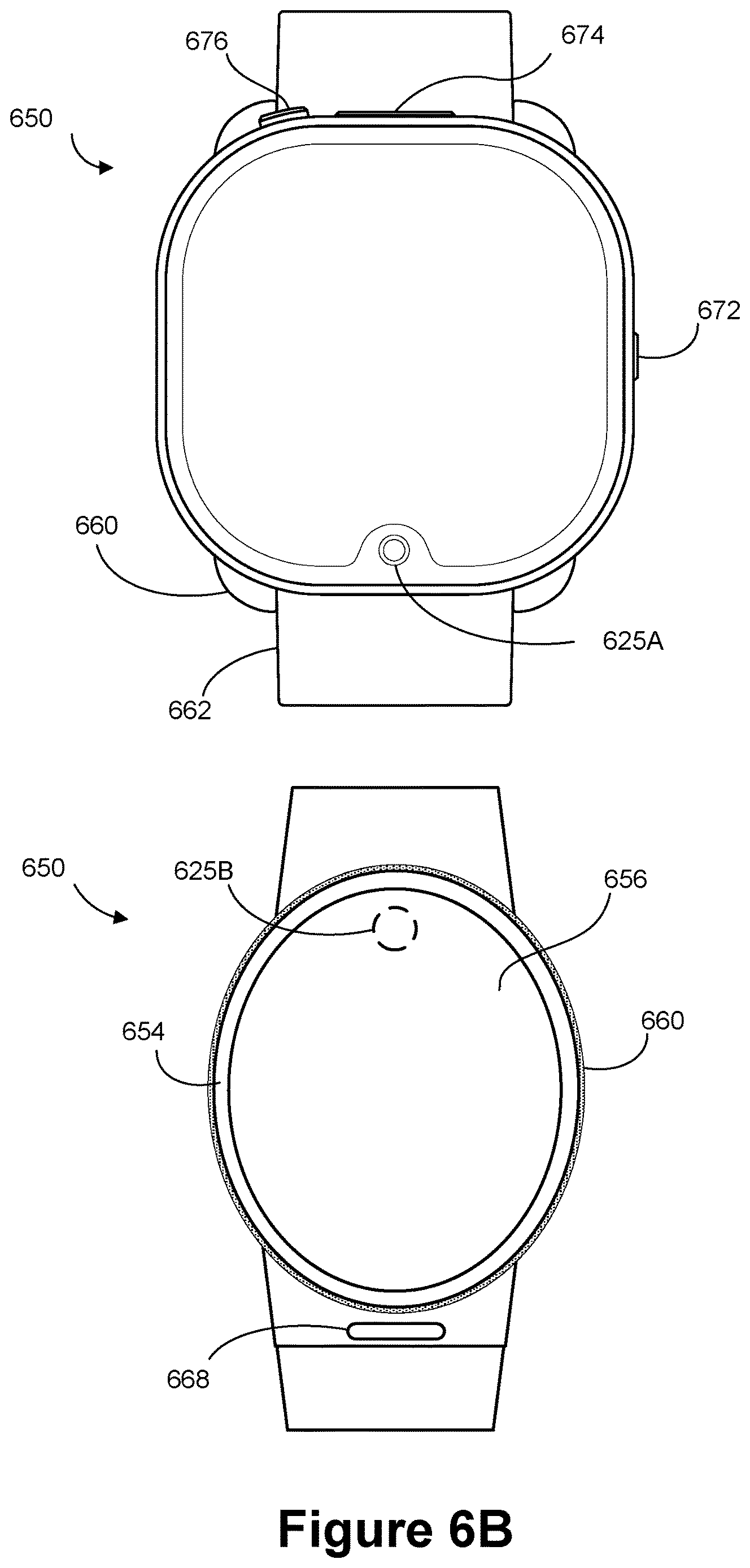

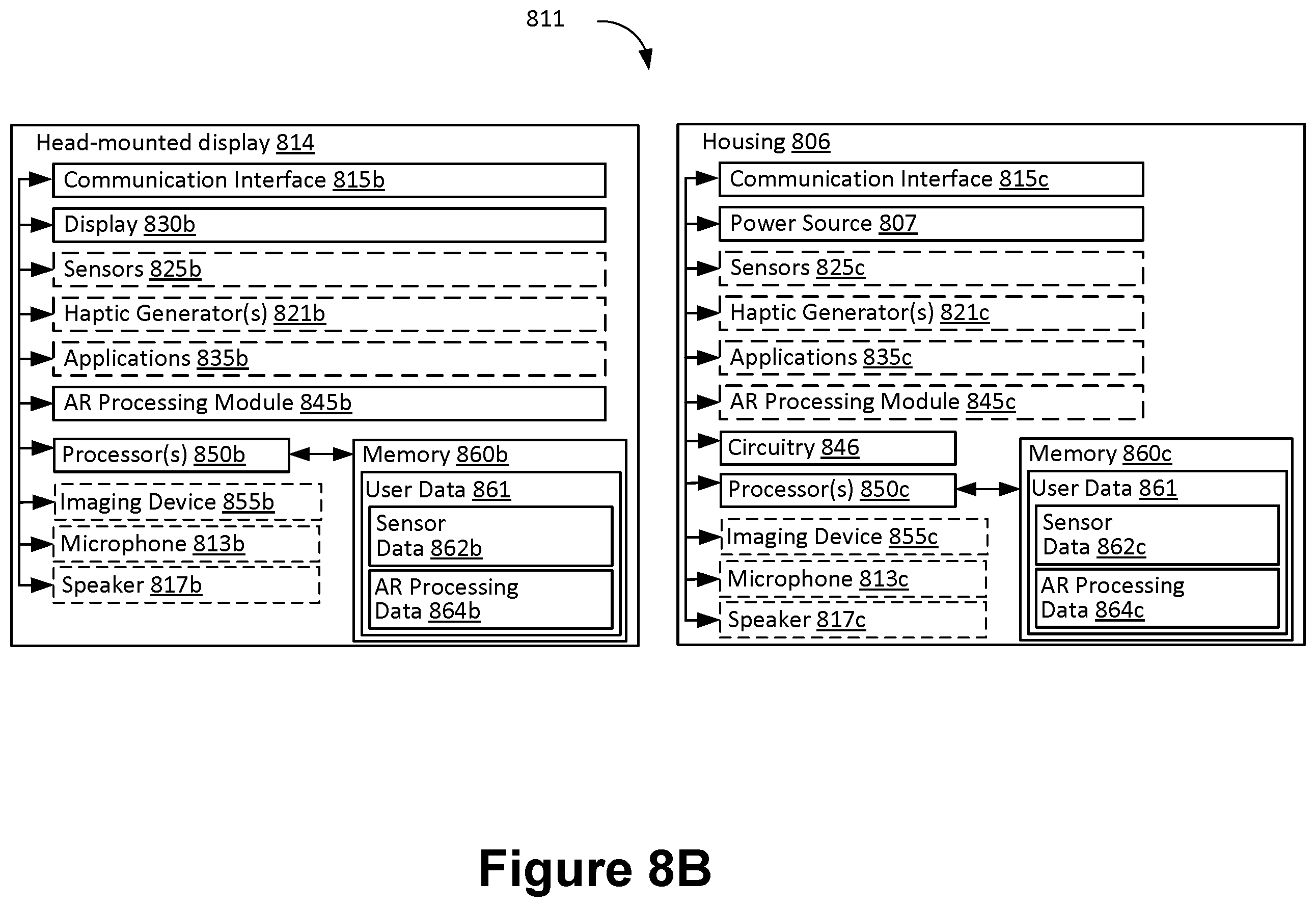

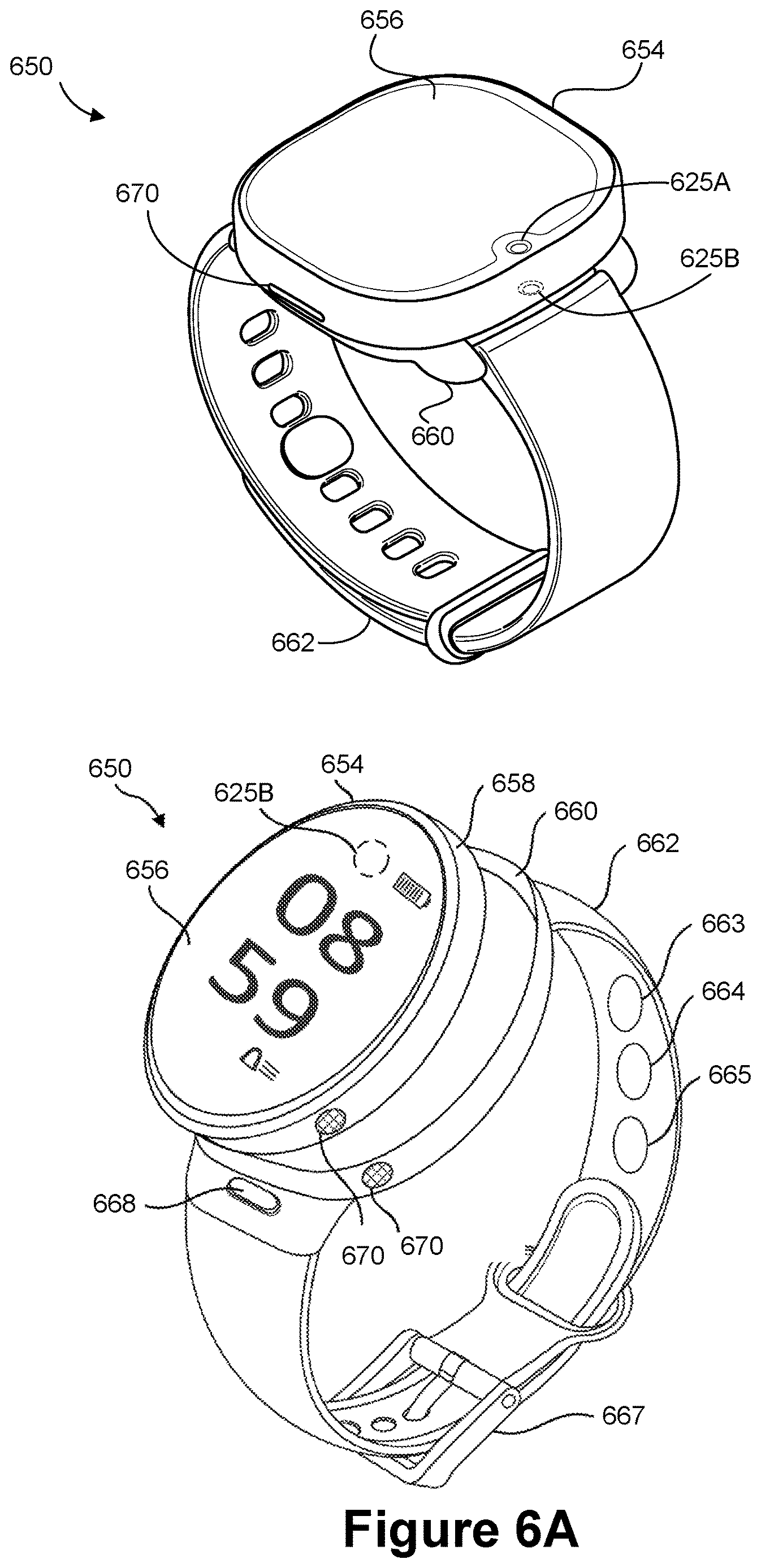

The system pairs two devices: a display-less head-wearable (think camera-equipped smart glasses with no visible screen) and a wrist-wearable with a display (a smartwatch). Together they handle a looped workflow during exercise.

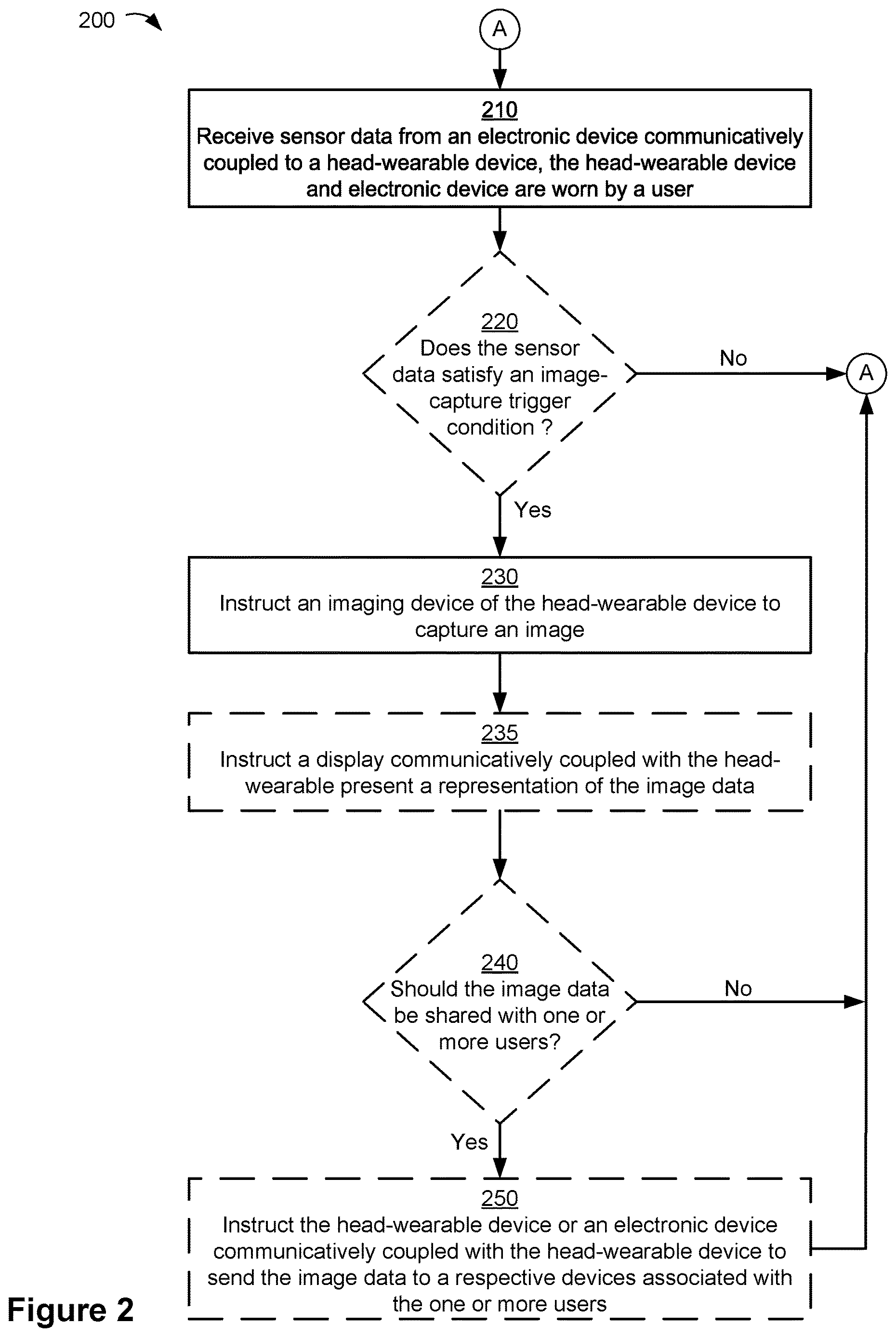

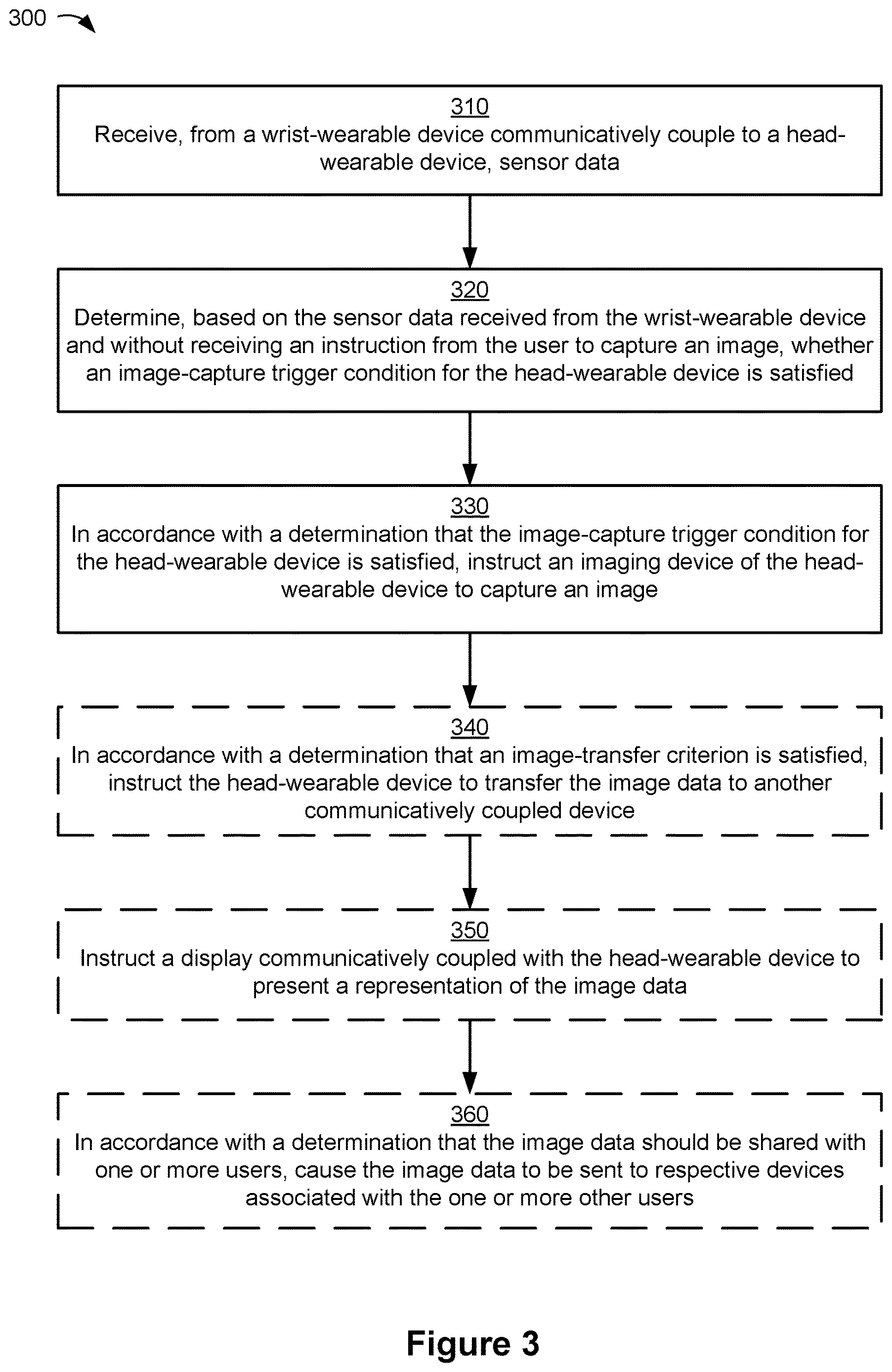

Here's the sequence the patent describes:

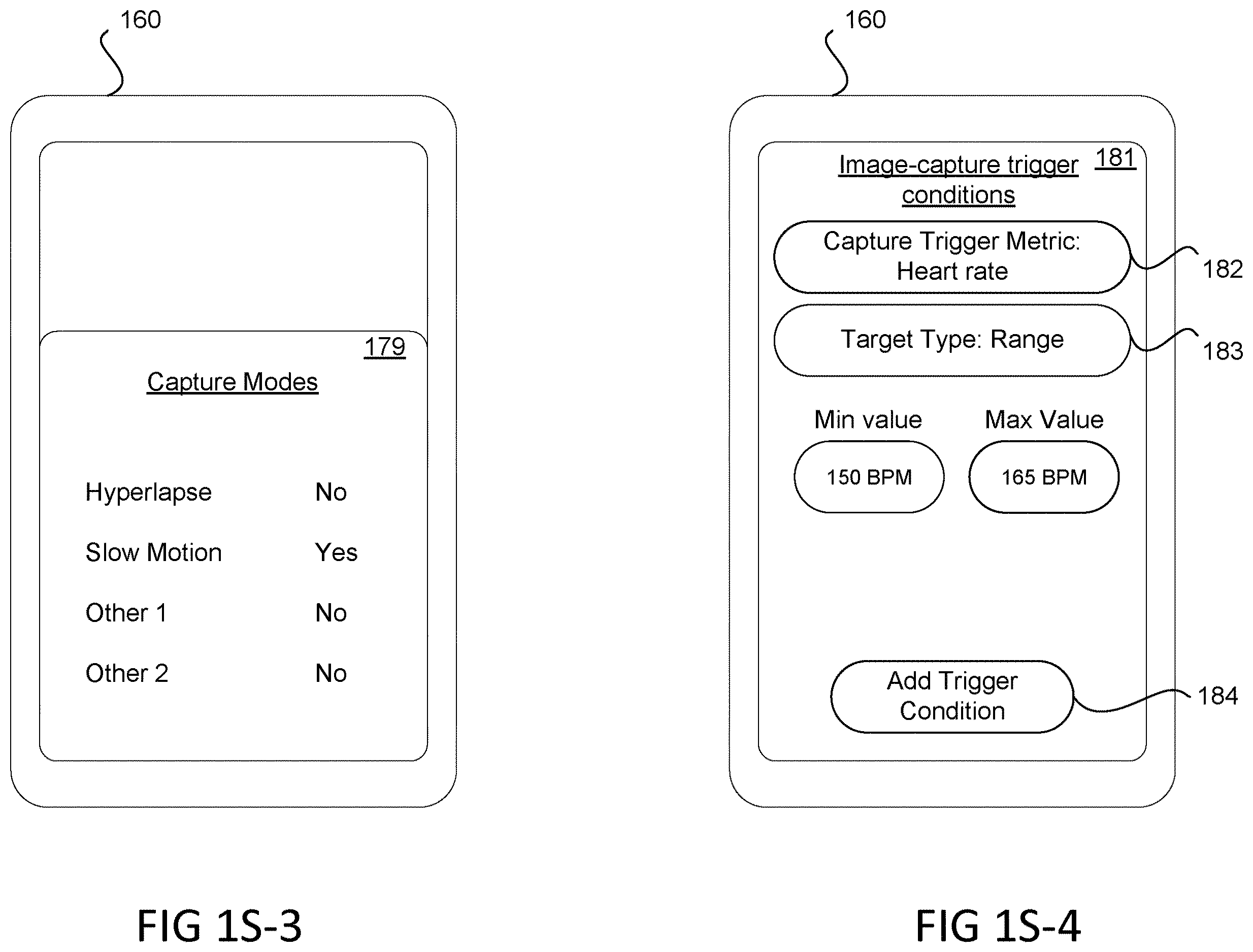

- The watch continuously reads sensor data (pace, heart rate, repetitions, or other workout metrics) and compares it against a performance criteria (a target the user or app has set).
- When the watch determines the user is not meeting that criteria, it sends a signal to the glasses to capture image data from their camera.

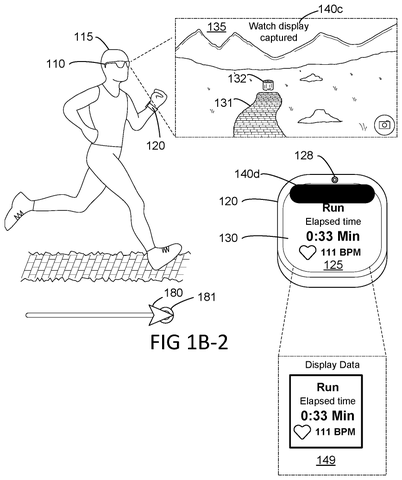

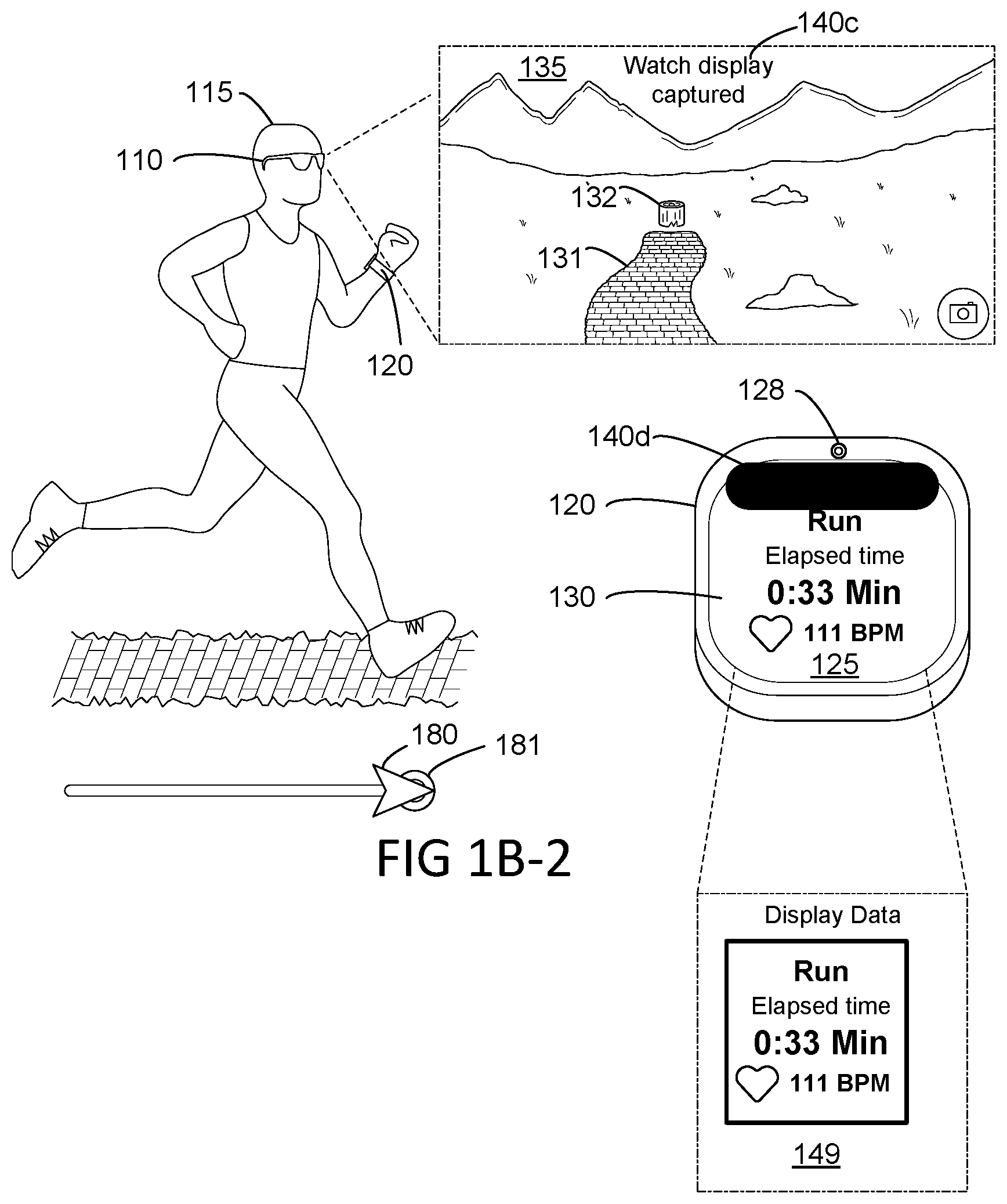

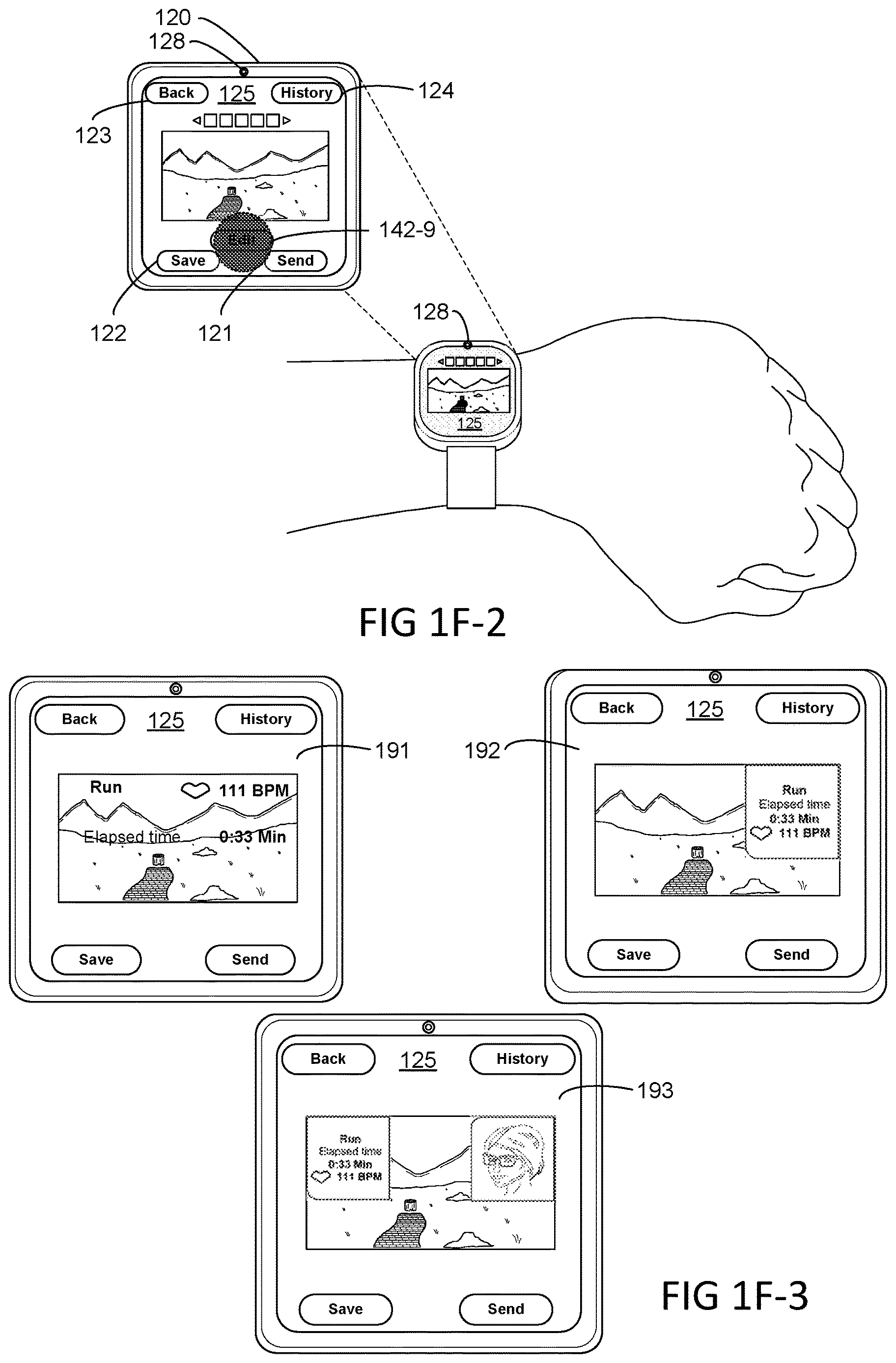

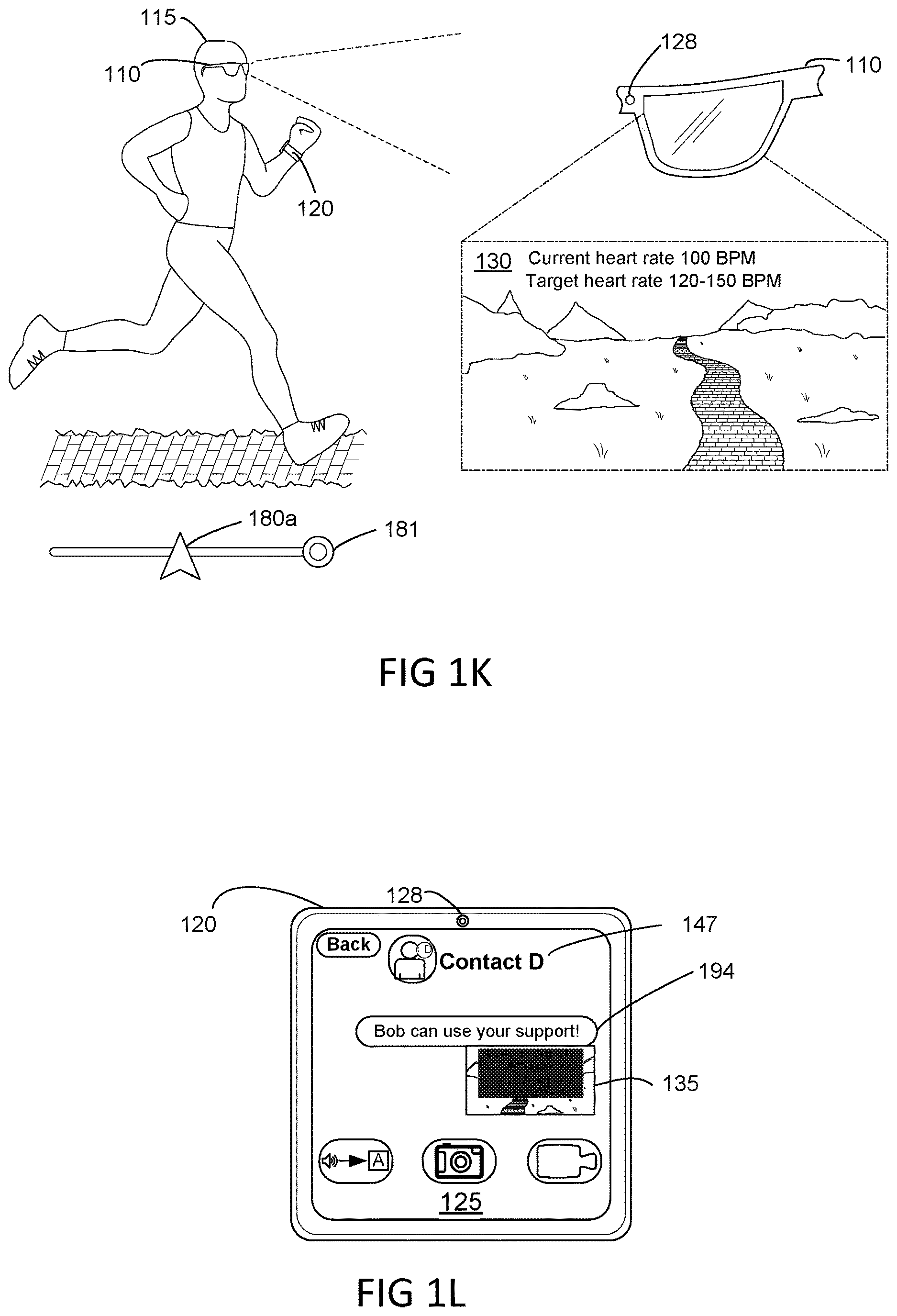

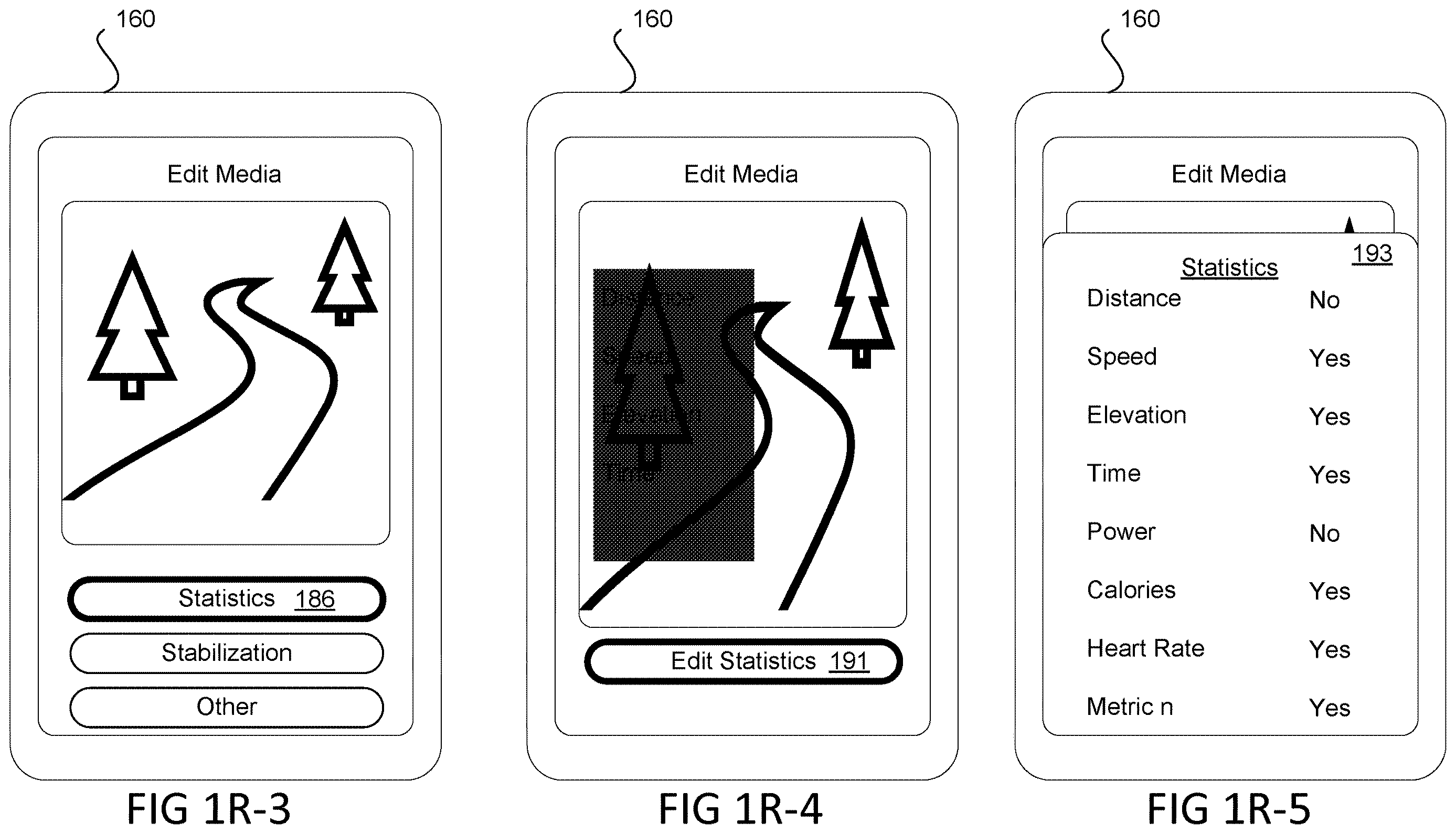

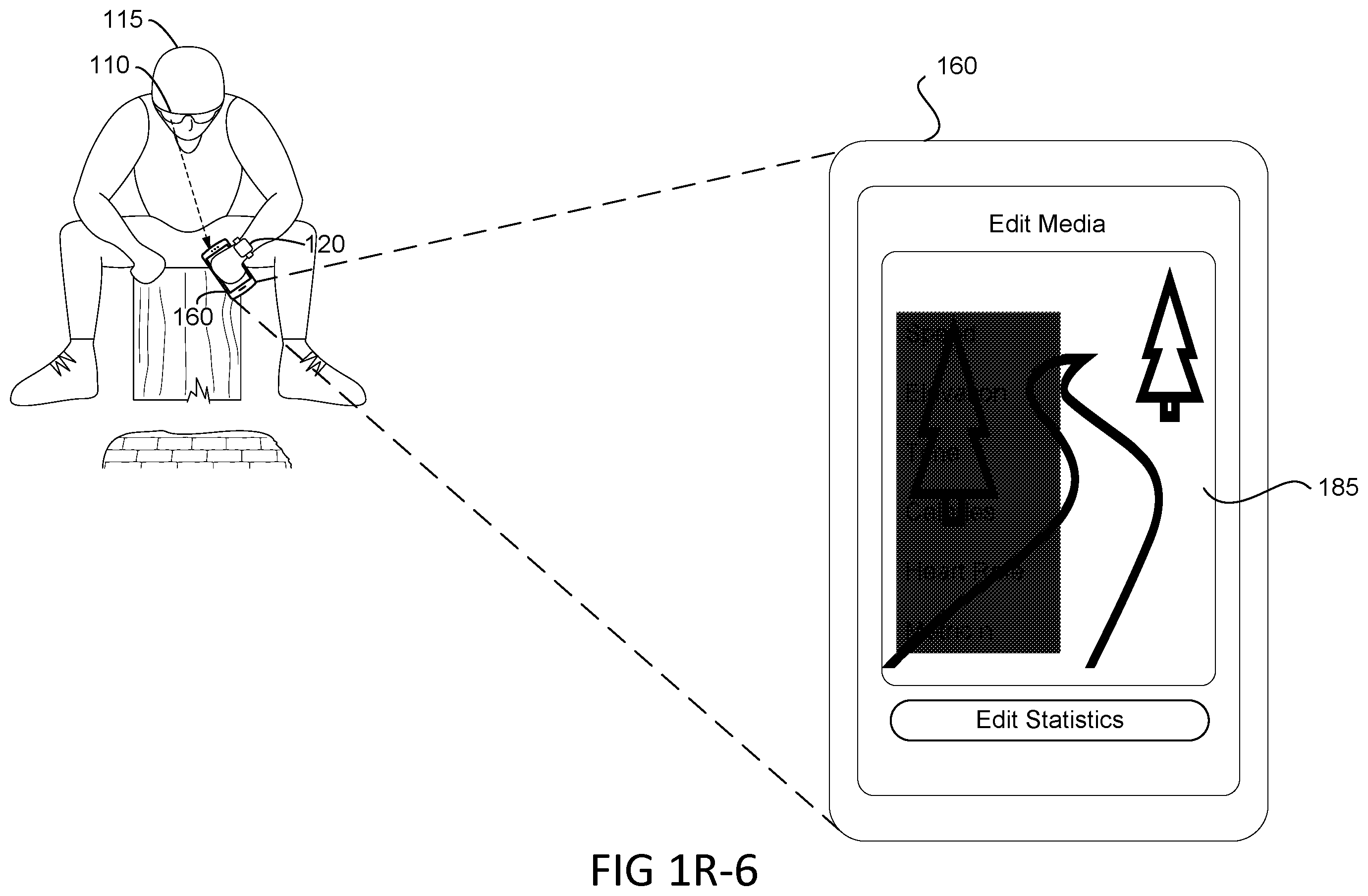

- The system then overlays a text representation of the sensor data directly onto the captured image, producing what the patent calls "modified image data."

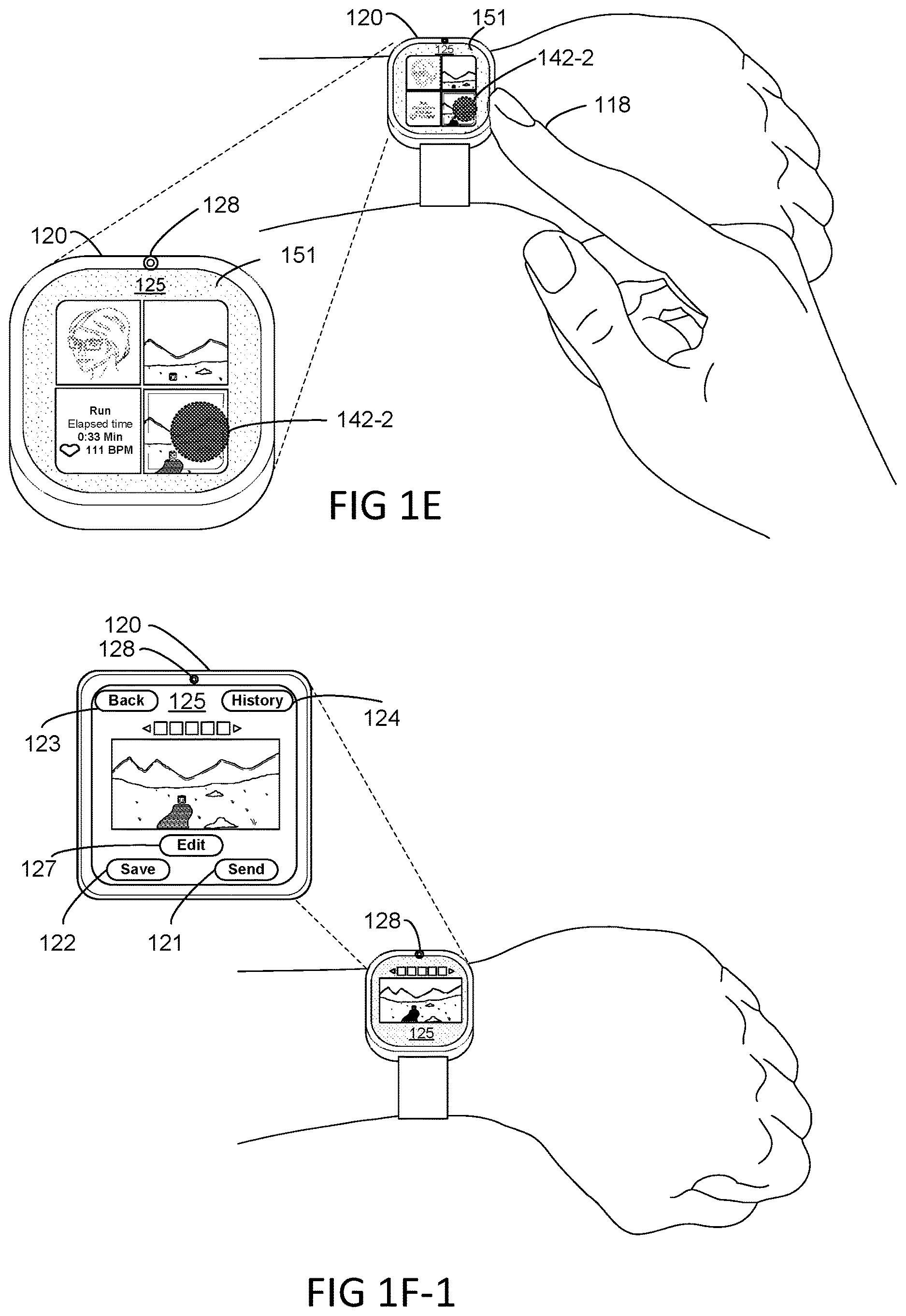

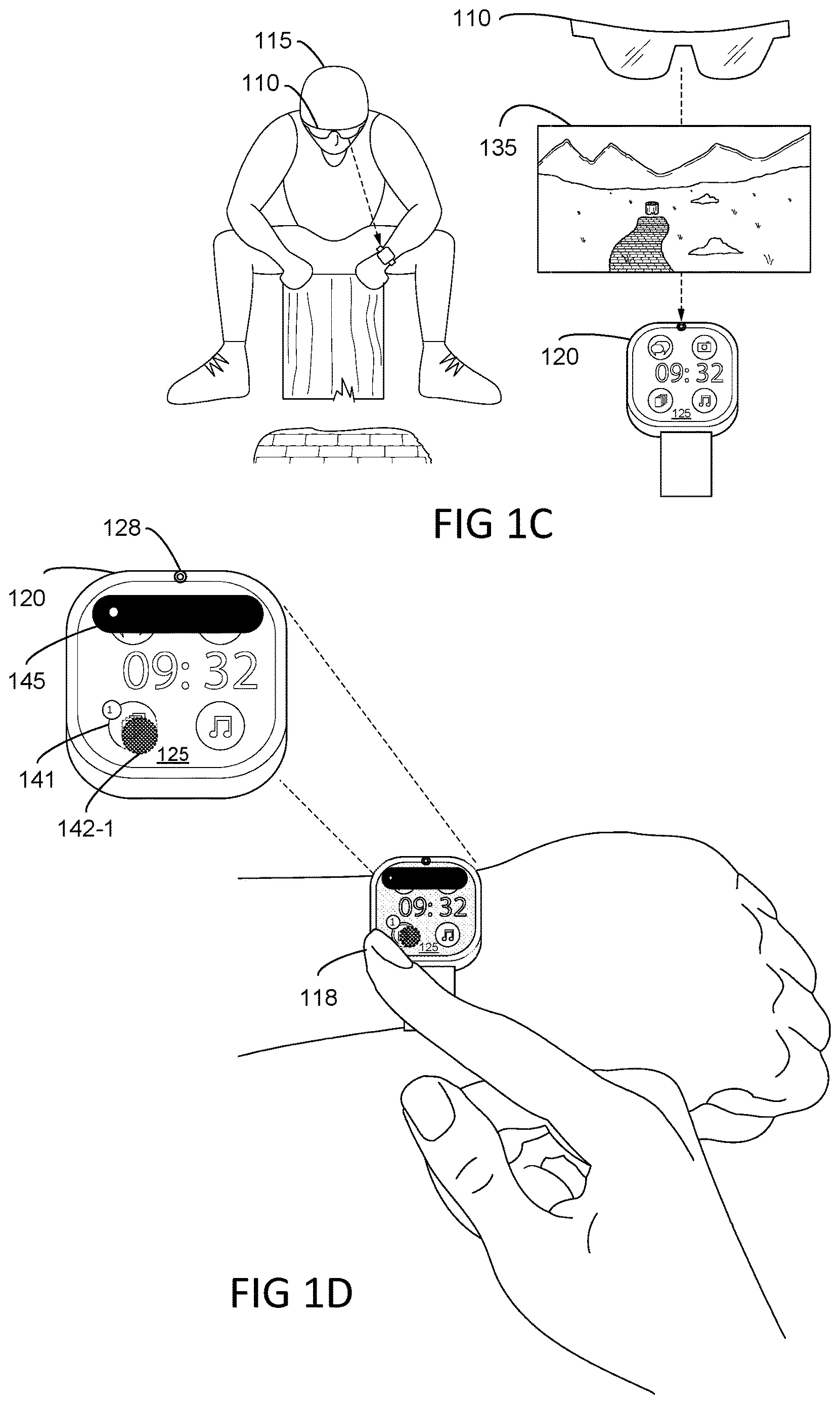

- An indication appears on the watch (or the glasses, via audio or haptic feedback) that a shareable image is ready.

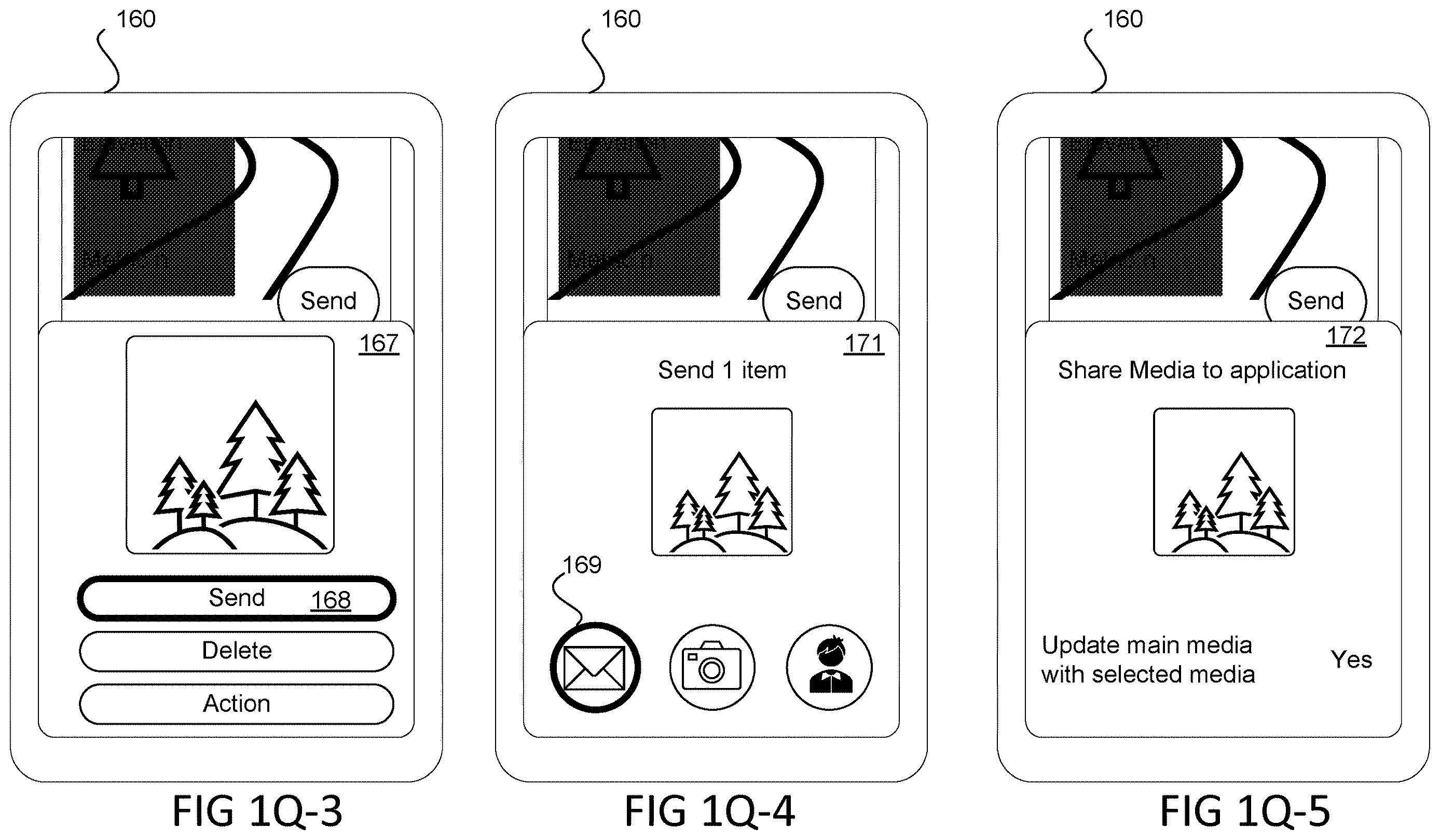

- If the user confirms with a send command, the image goes to a preselected group of contacts.
The sharing is opt-in at the moment of sending, but the image capture and data overlay happen automatically. The patent also covers the scenario where the device just notifies the user that the data is available, without forcing a share.
What this means for Meta's fitness and wearables push
Meta's Ray-Ban smart glasses already have a camera, and this patent sketches out a concrete fitness use case for that hardware sitting alongside a hypothetical Meta smartwatch. The combination turns a wearable camera into something more purposeful than passive photo-taking: it becomes a performance accountability tool that fires at exactly the moment you need motivation or coaching.
For you as a user, the pitch is real-time social pressure without stopping to fumble with your phone. For Meta, it's a reason to own both the glasses and the watch, creating hardware lock-in similar to how Apple ties the Apple Watch and iPhone together. Whether that pairing ever ships is another question, but the patent signals that Meta is actively designing workflows that only work if you're wearing their full ecosystem.
This patent is genuinely interesting because it's one of the few fitness-wearable filings that articulates a clear workflow rather than a vague sensor concept. The automatic camera trigger tied to a performance miss is a specific, product-ready idea. Whether it ships depends entirely on whether Meta ever releases a smartwatch, which remains unannounced.
