Meta Patent Uses Wrist Muscle Signals to Navigate Menus Without Touching Screens

By Patentlyze Team · Updated Jul 25, 2026

Forget tapping, swiping, or pointing a controller at a screen. Meta is patenting a wristband that reads the electrical signals your muscles fire when you move your hand in the air, using those signals to control a menu or interface floating in front of you.

See all 35 drawings from this filing ↓

What Meta's muscle-reading wrist control actually does

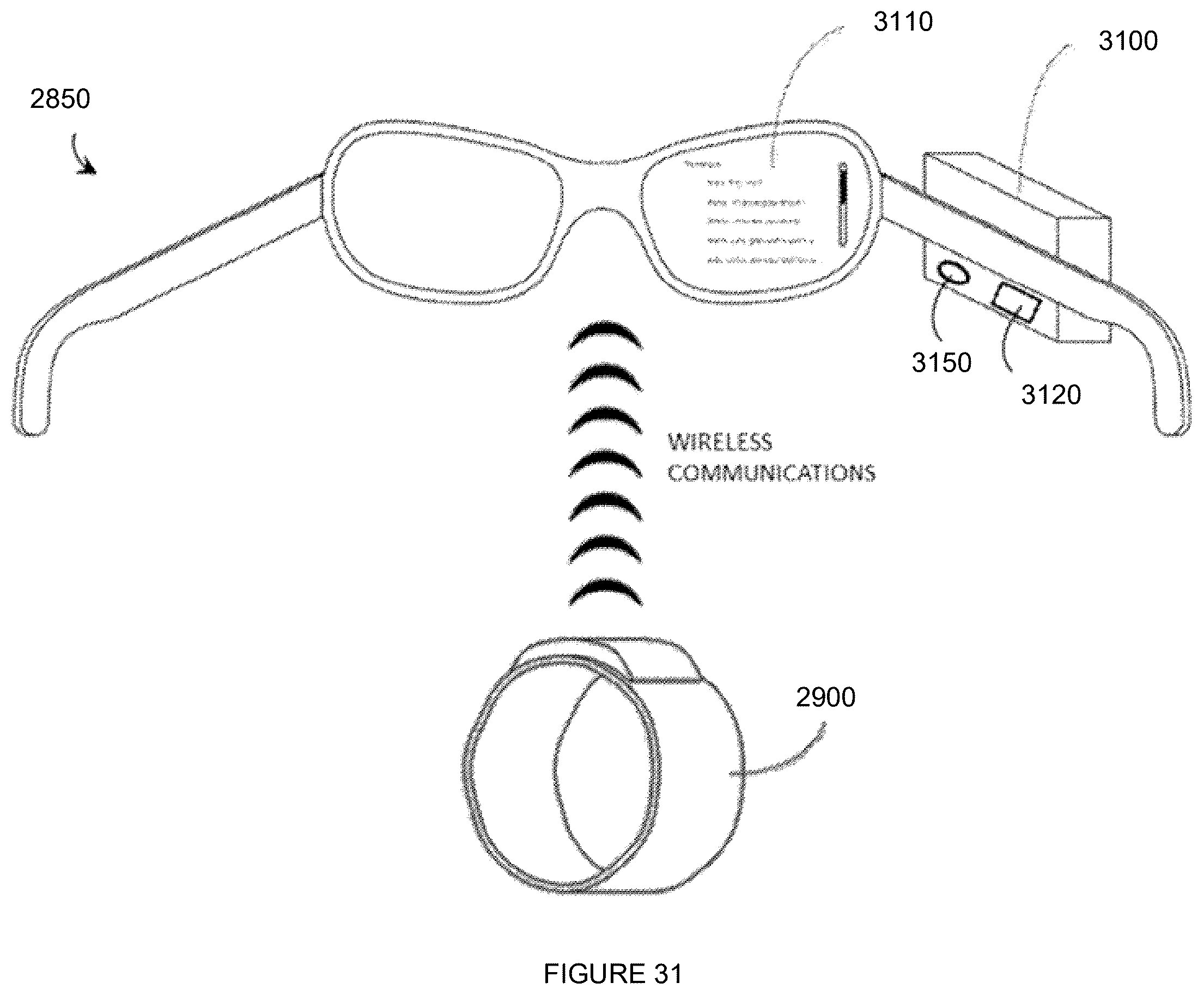

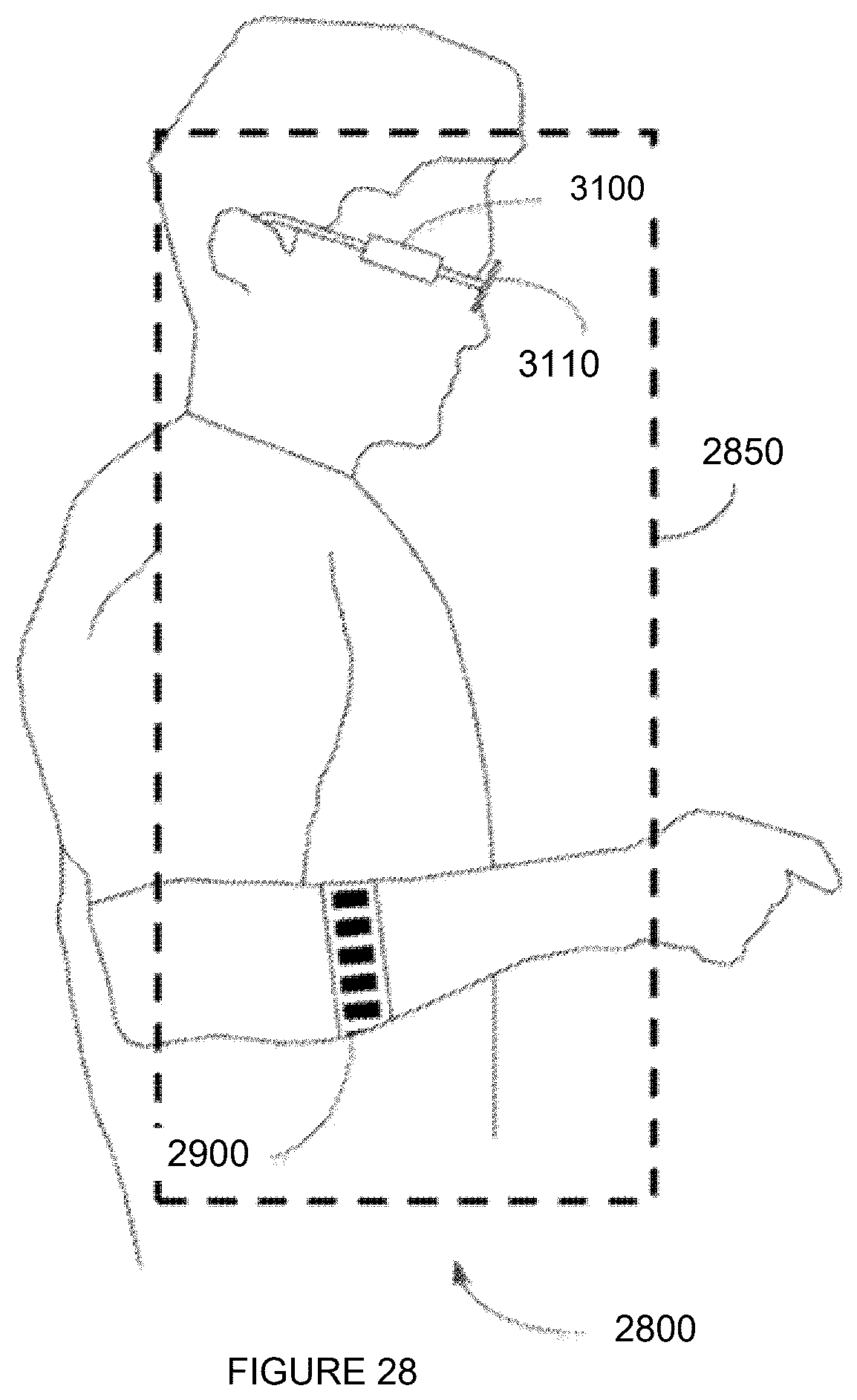

Imagine a floating menu in front of you, like the kind you'd see through AR glasses, and you need to highlight an option and select it. Right now, that usually means poking at the air awkwardly or pressing a button on a controller. Meta's patent describes a different path: a wristband you're already wearing.

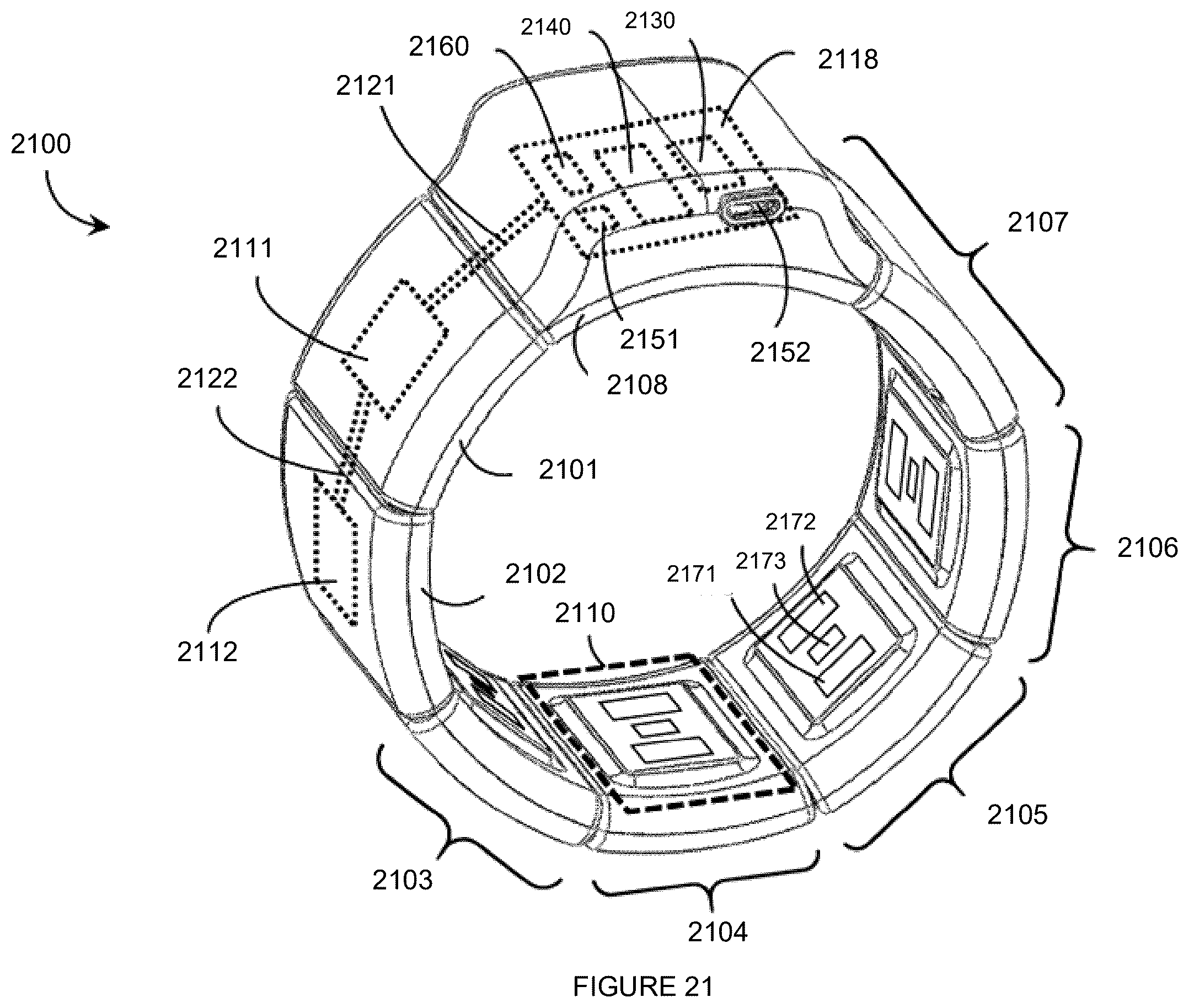

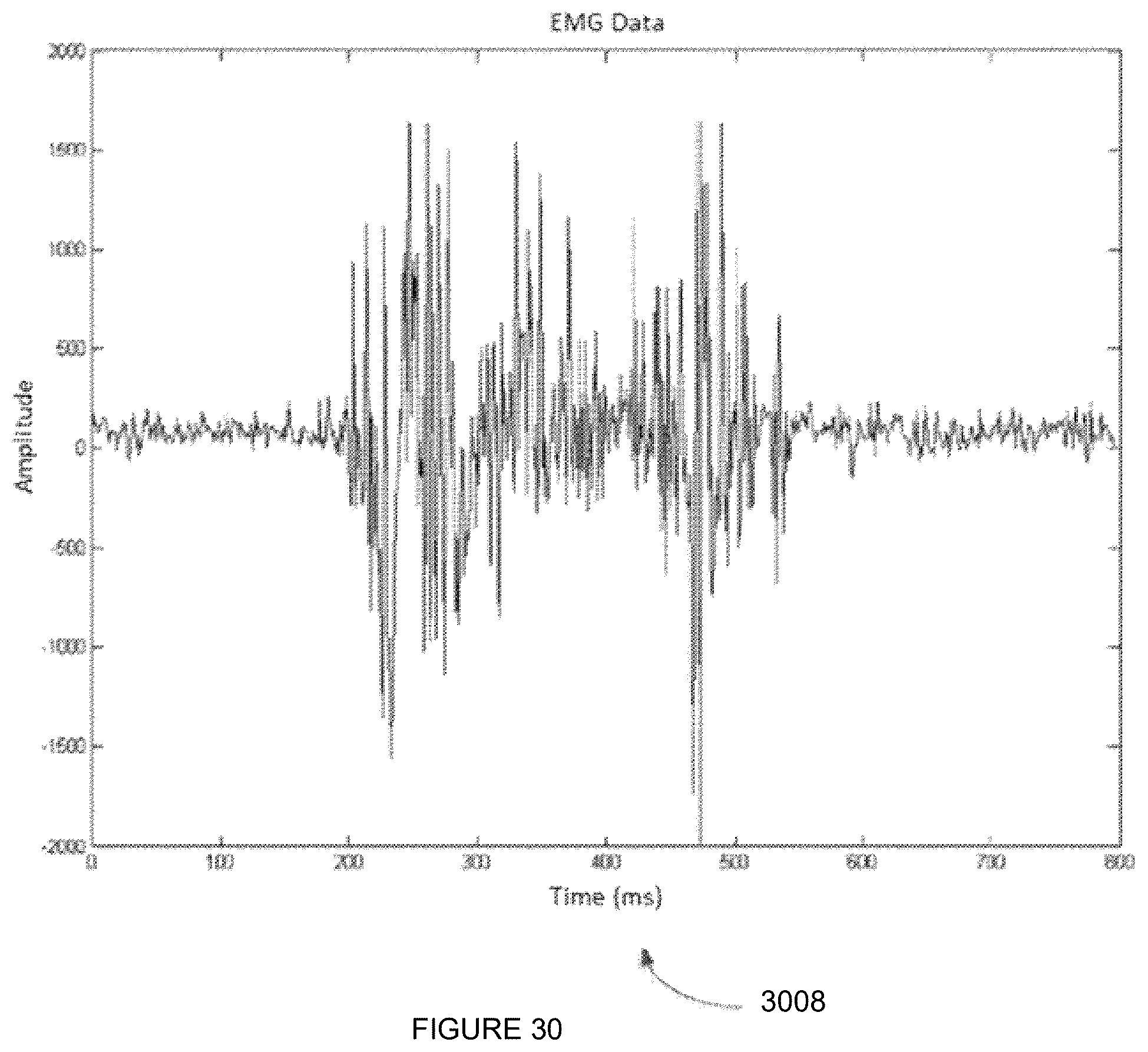

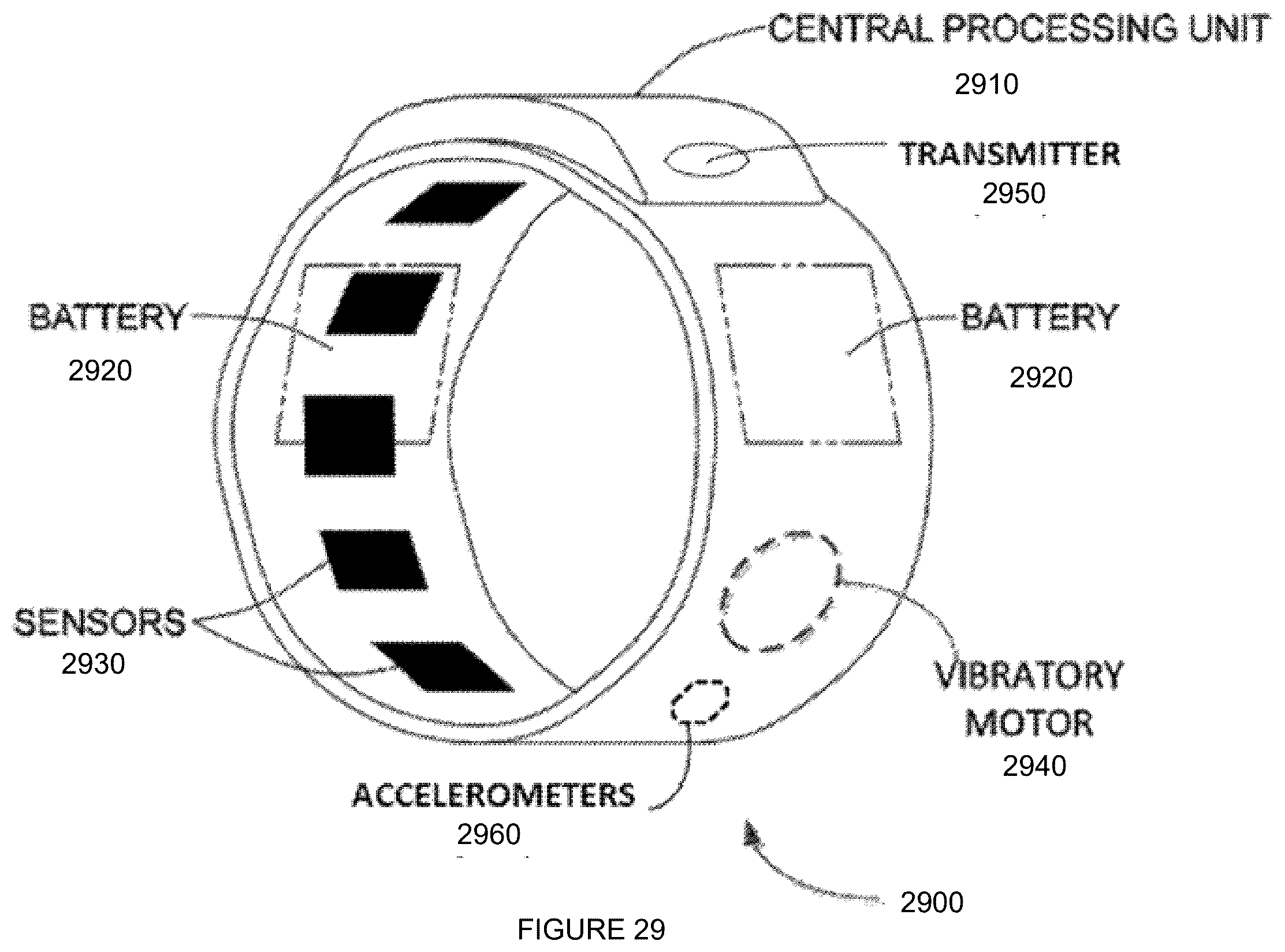

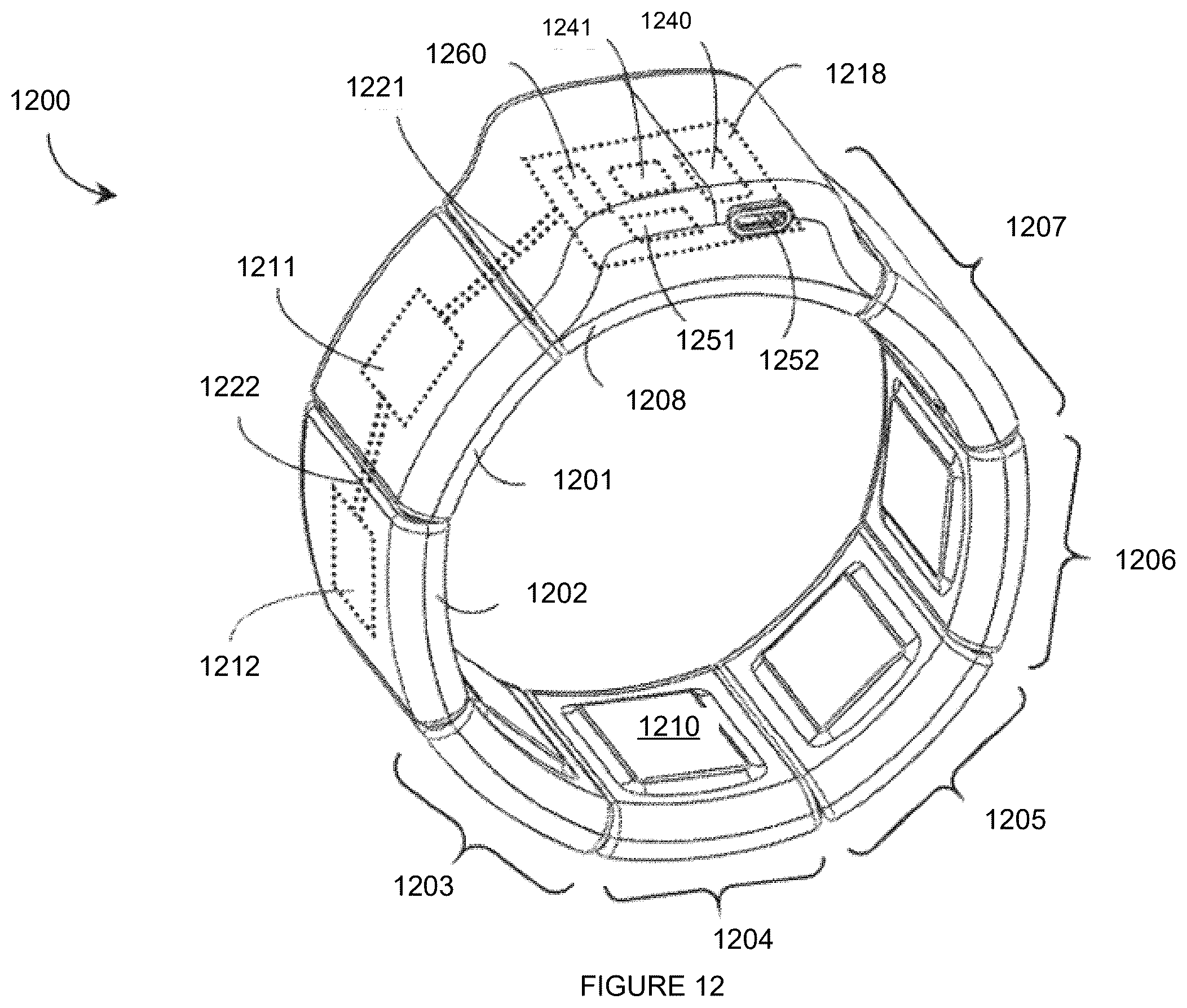

The band picks up the tiny electrical signals your muscles generate whenever you move your wrist or fingers, even slightly. Tilt your wrist, and the highlighted item on the menu moves with you. Make a specific small gesture, and that gesture triggers a command, like pressing a button or confirming a selection. No physical surface, no controller, no phone.

This is part of Meta's longer-running work on EMG (electromyography) wristbands, technology they inherited when they acquired CTRL-labs back in 2019. The goal is to give people a natural, low-effort way to interact with AR and VR interfaces when there's no screen or keyboard around.

How the wristband reads gestures before your fingers move

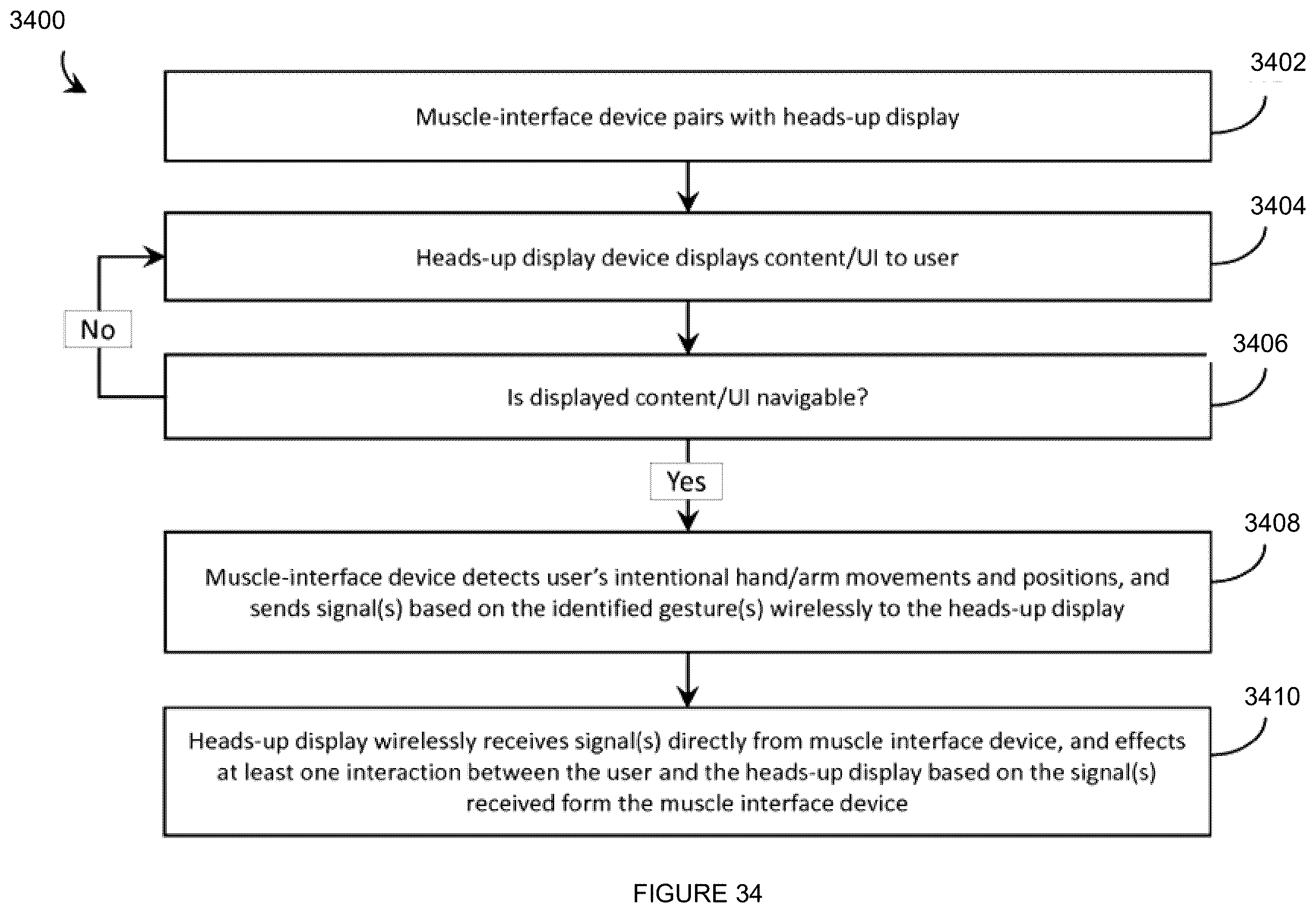

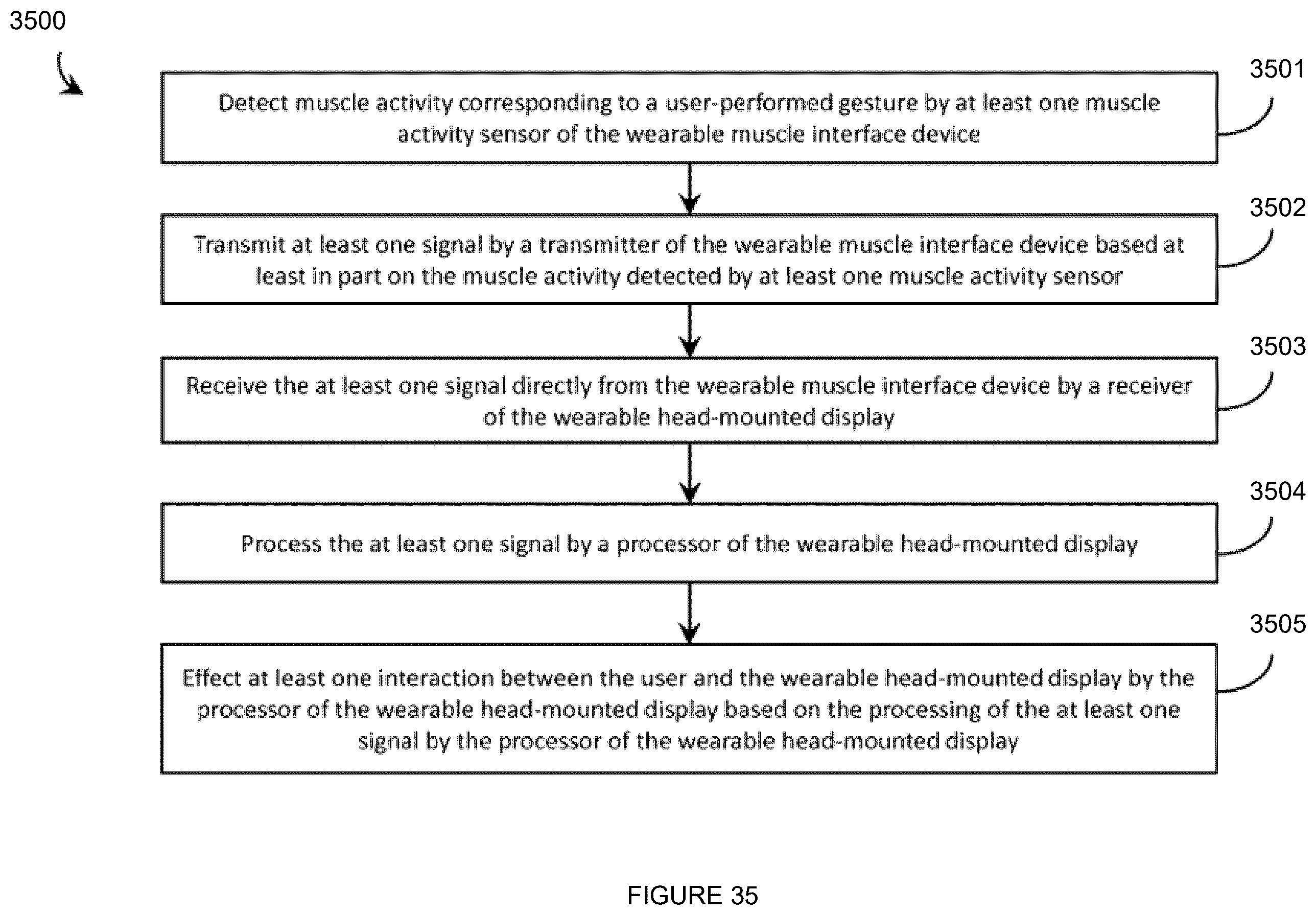

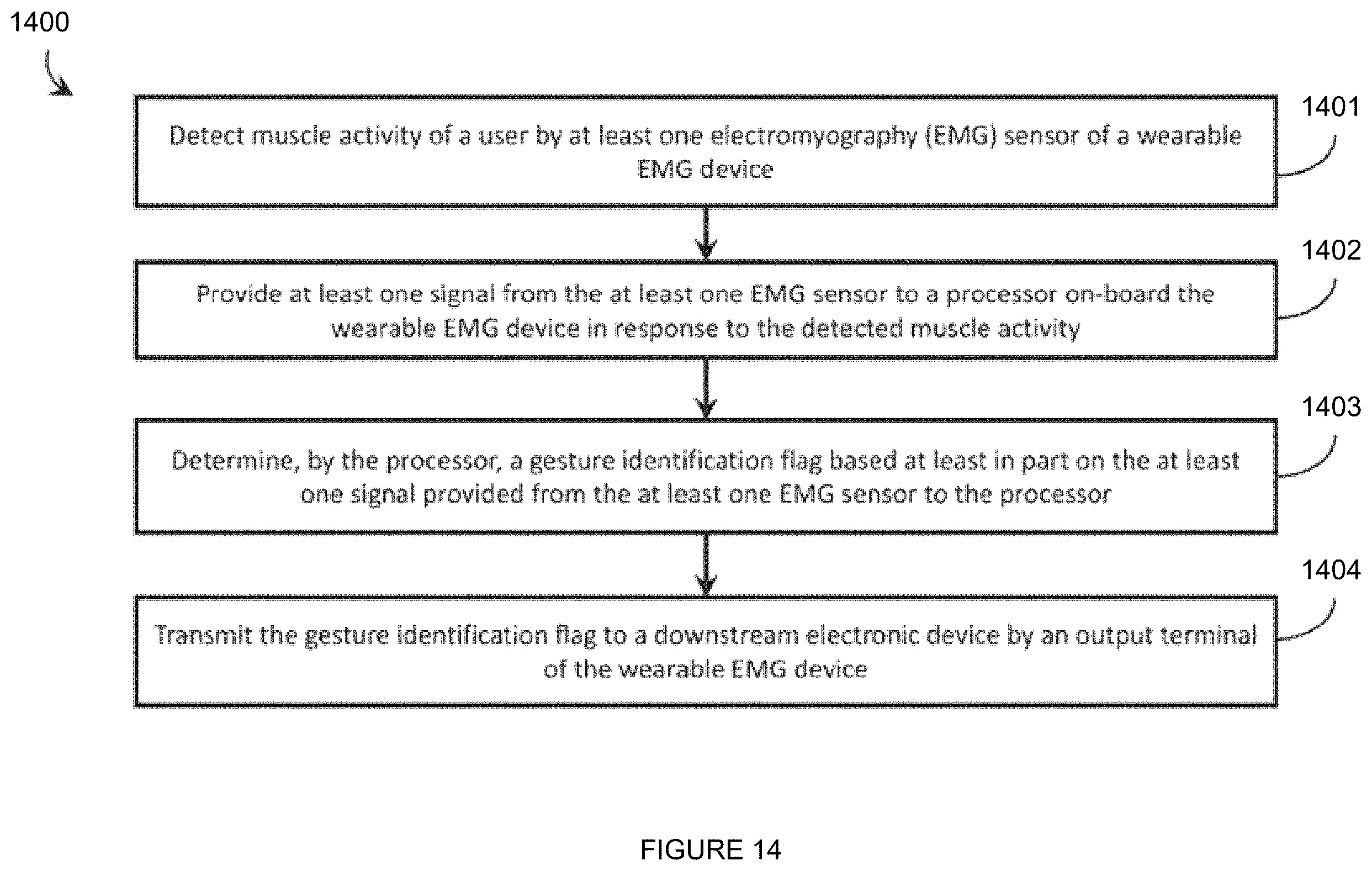

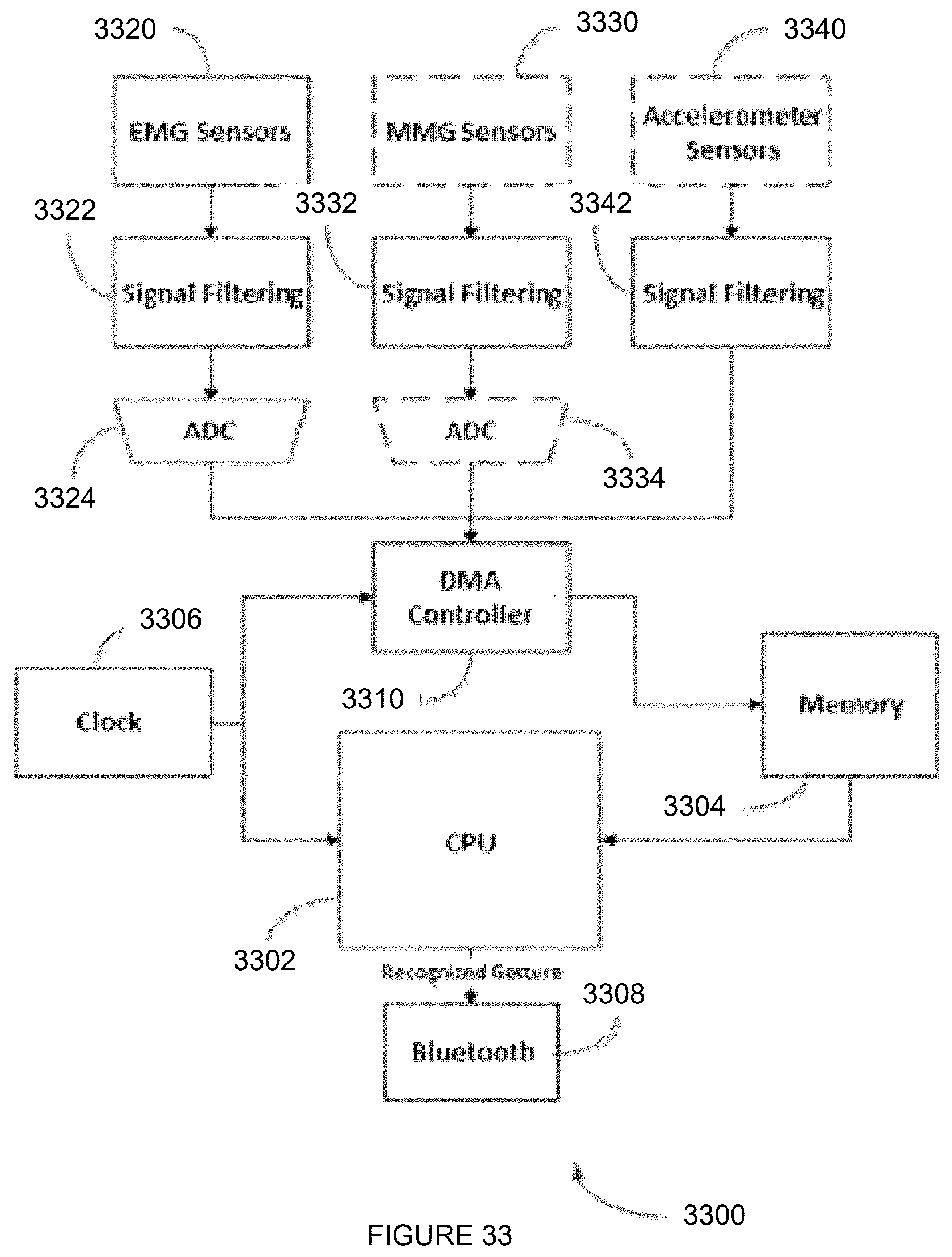

The patent describes a two-part control loop built on neuromuscular-signal sensors (electrodes that detect the electrical activity muscles produce during movement, a technique called electromyography or EMG).

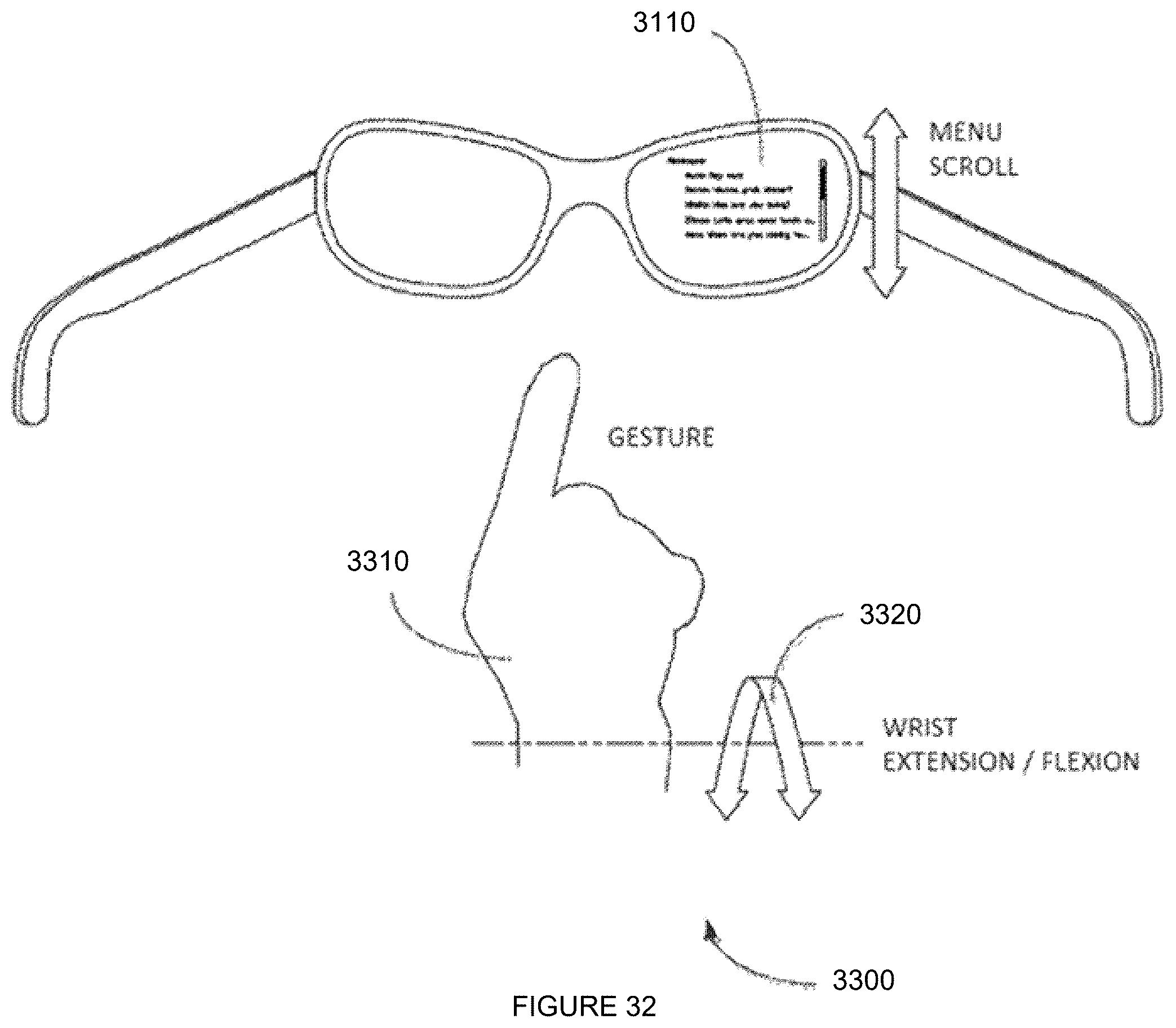

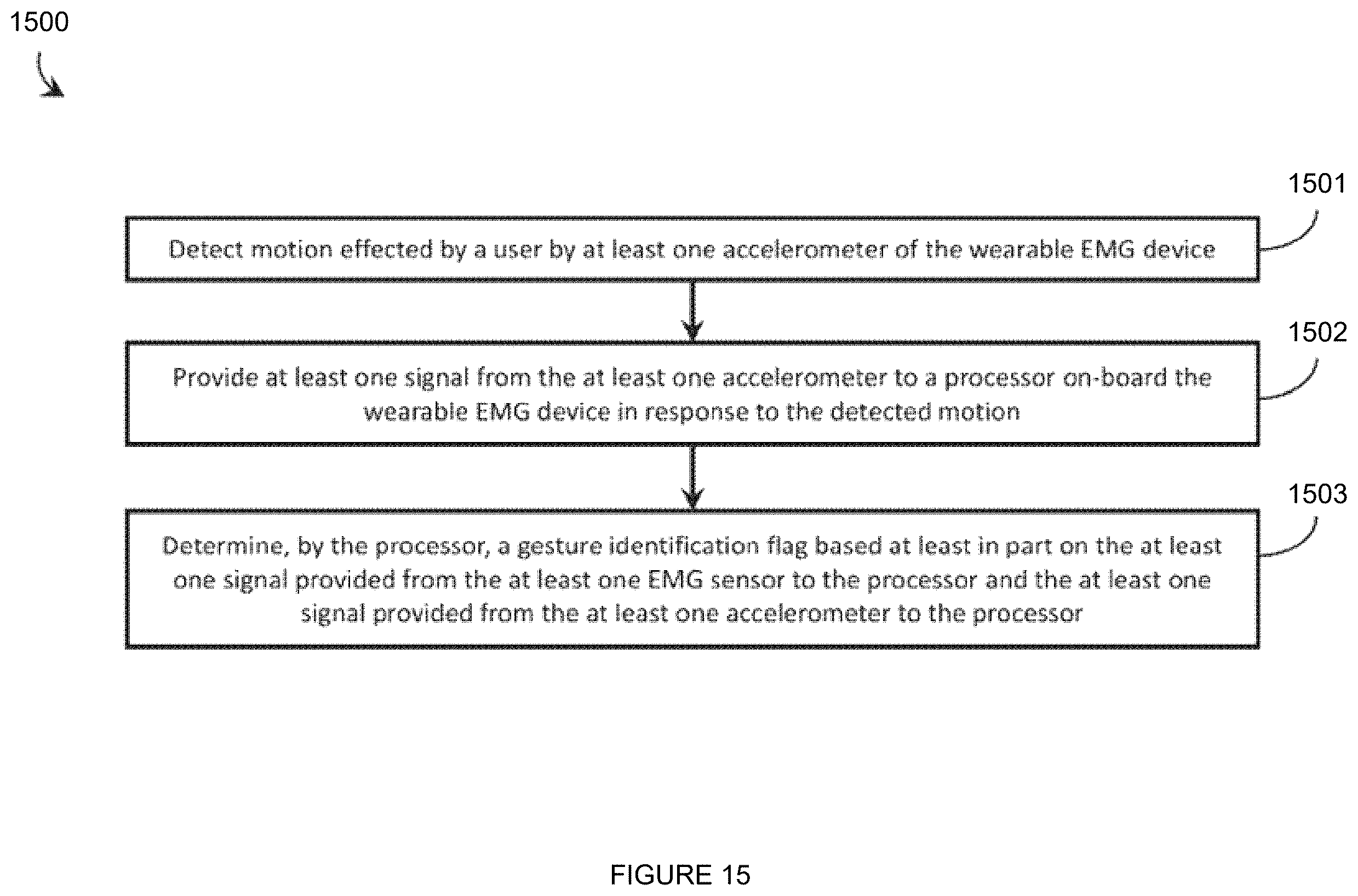

First, the wristband watches for what the patent calls an "in-air movement": a continuous motion of the wrist or fingers that isn't a command by itself but rather acts like a cursor. As you tilt or sweep your hand, a "point of focus" (basically a cursor or highlight) moves across the interface to match.

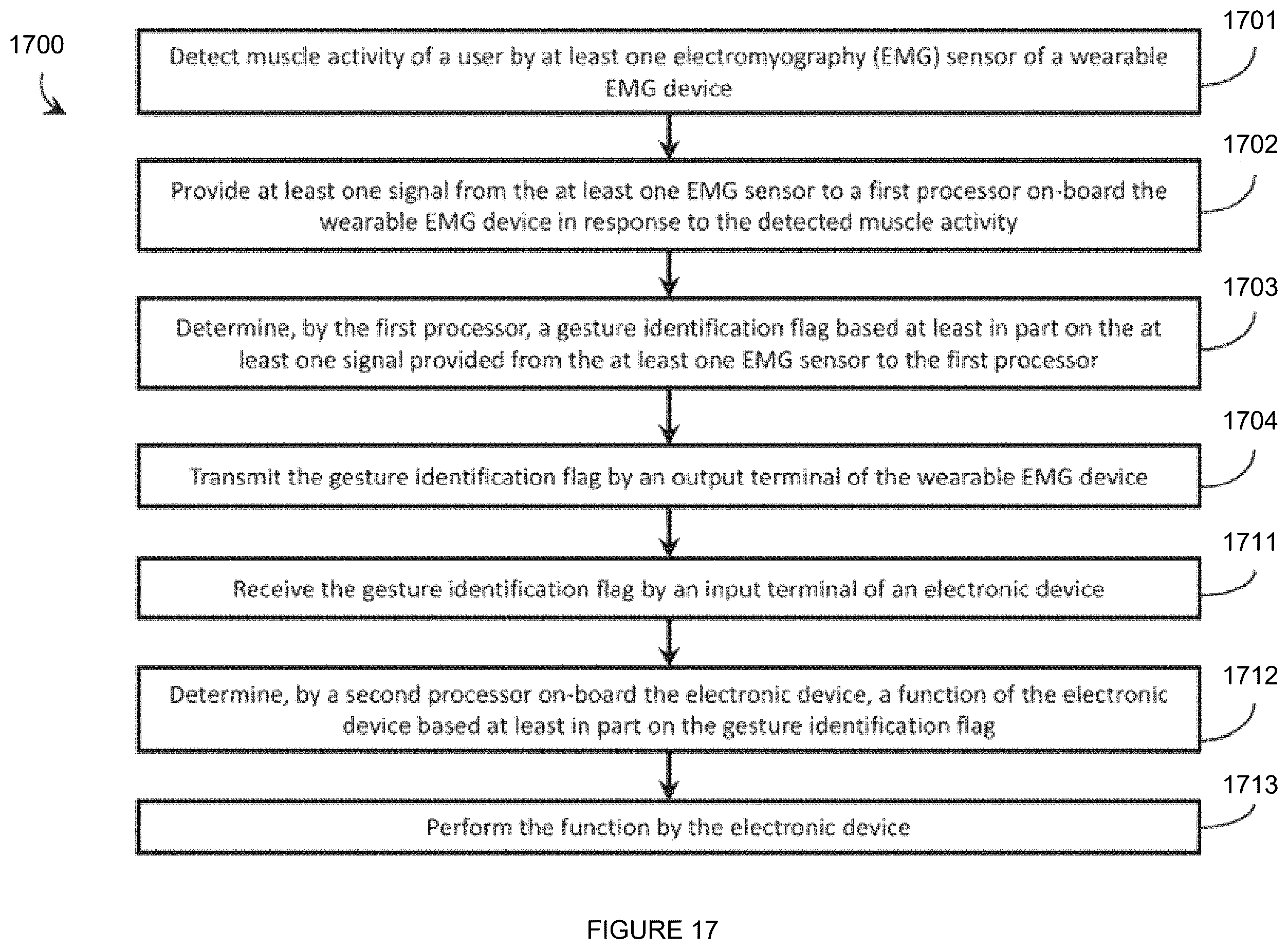

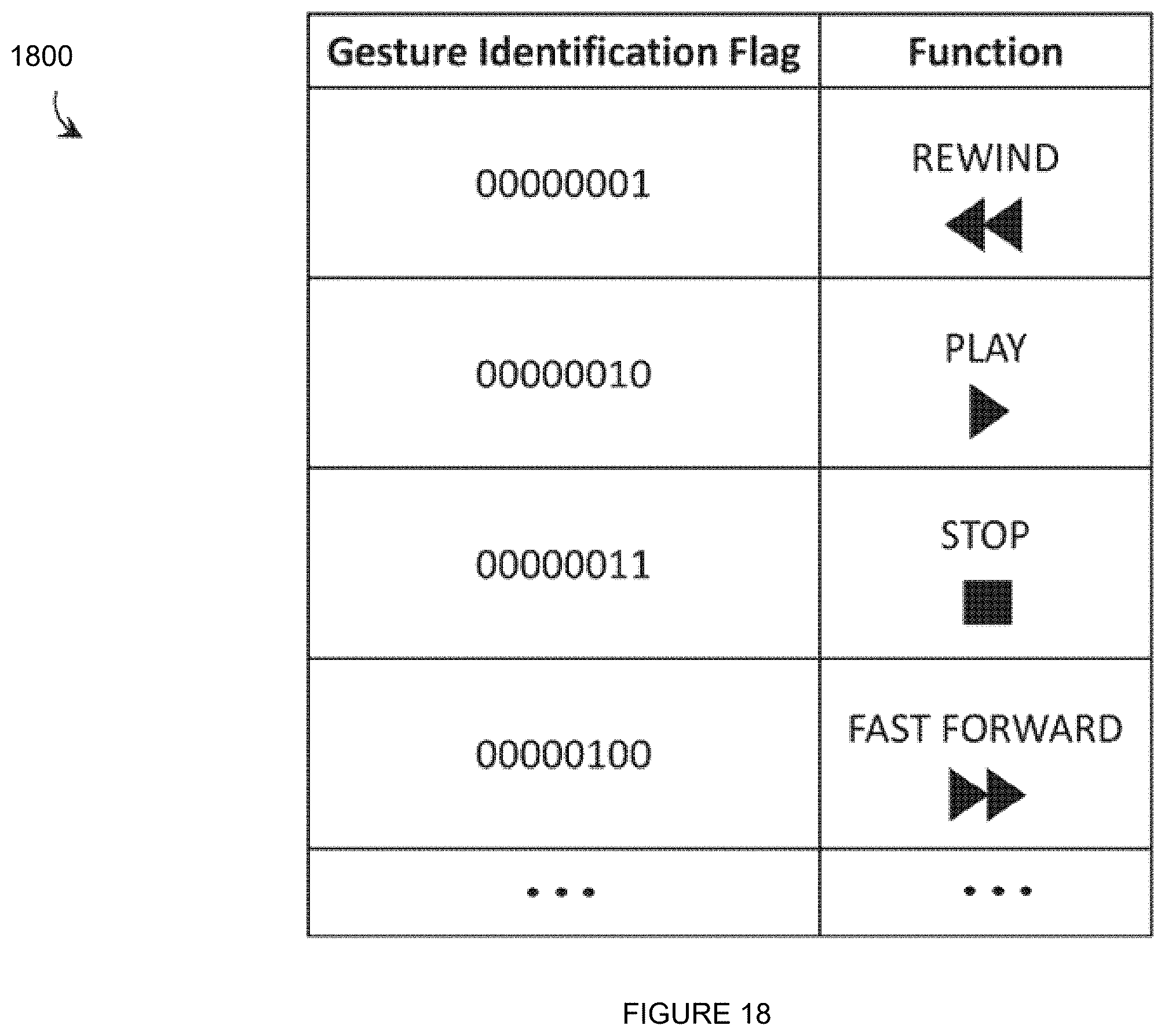

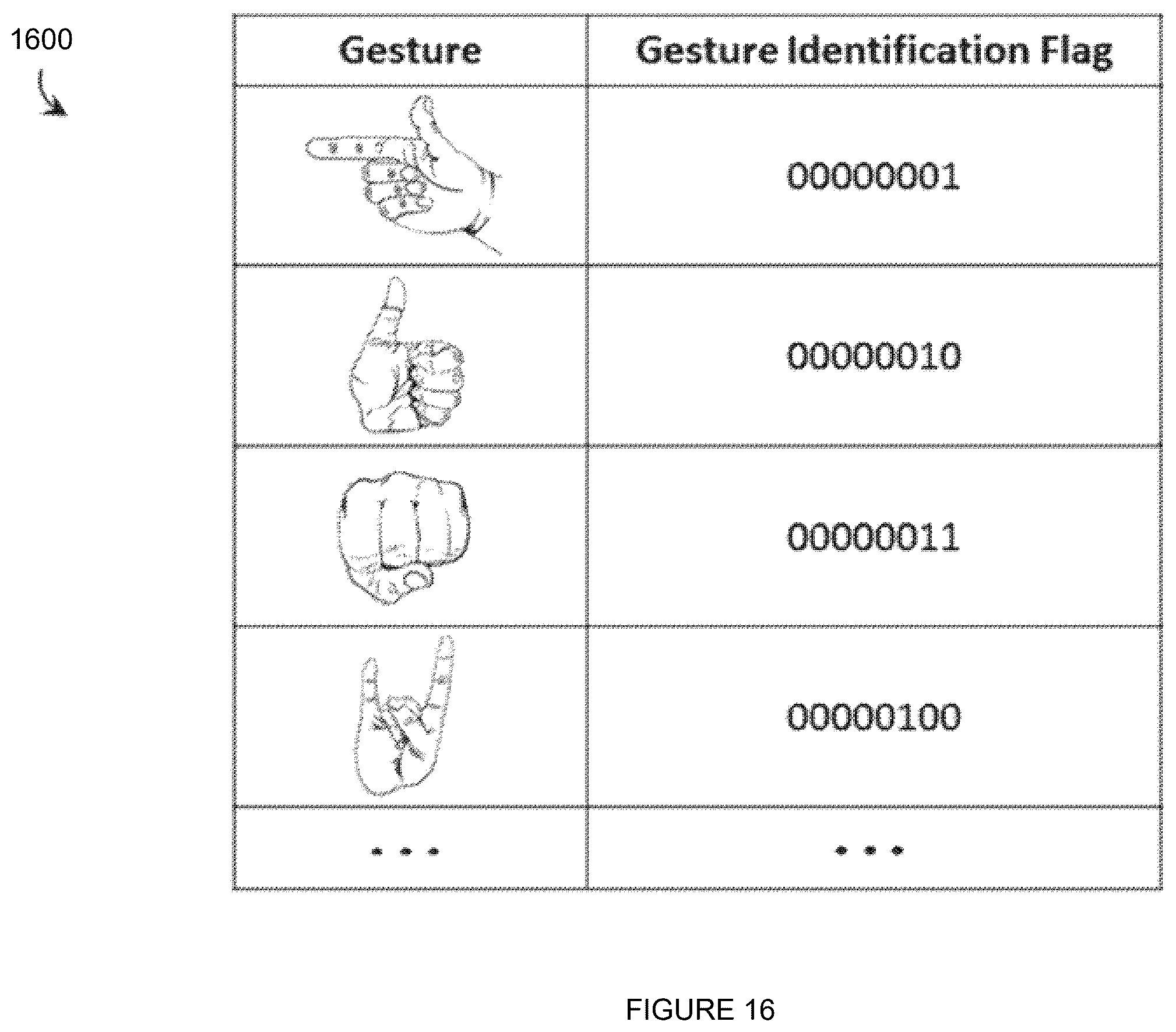

Second, when you perform a distinct, deliberate gesture, the system classifies it as an "execution gesture" (a recognized input that triggers a specific action). The system then fires off the command tied to that gesture, whether that's selecting an item, opening a menu, or something else entirely.

Key pieces the patent covers:

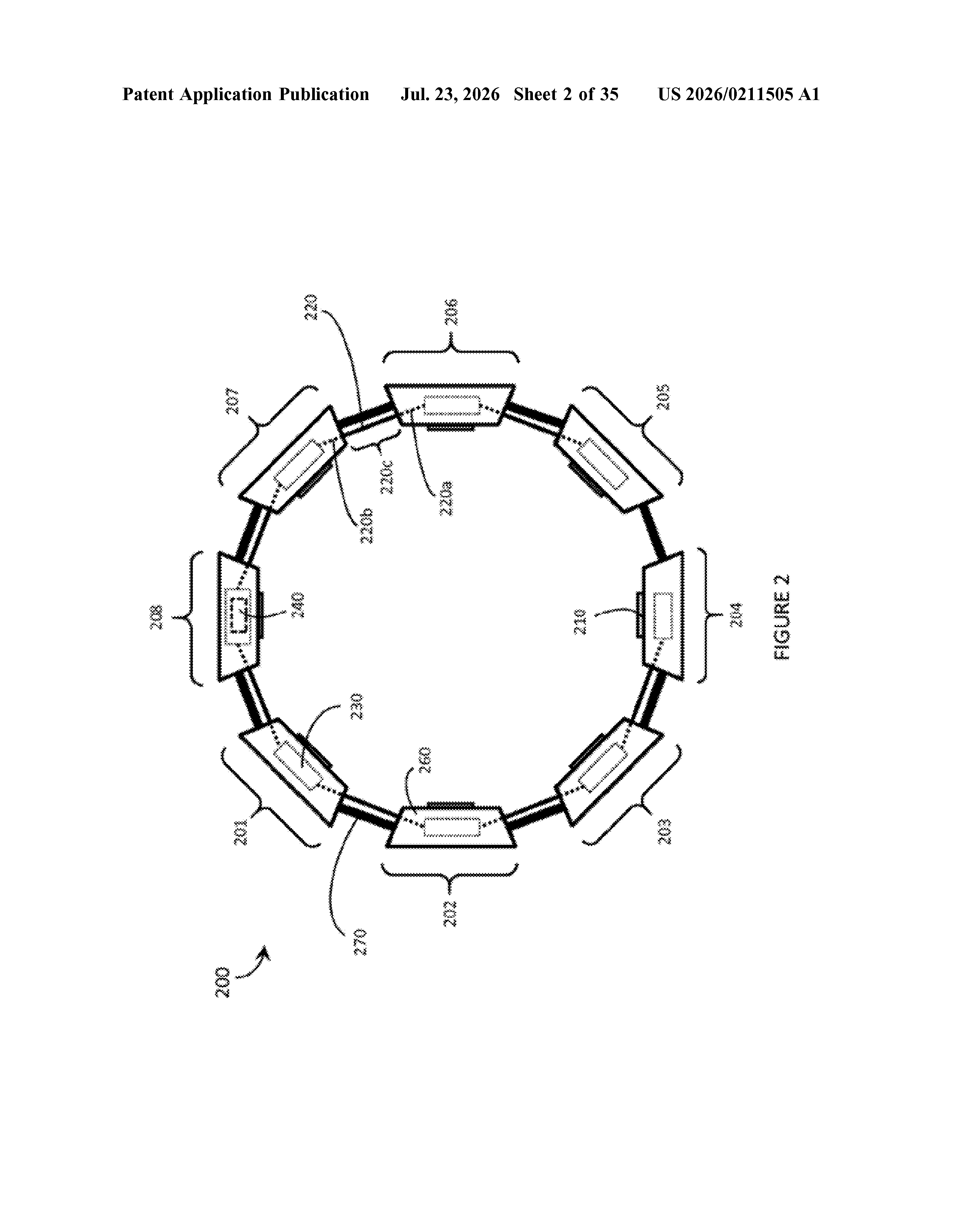

• Reading muscle signals continuously through a wrist-worn band
• Translating hand motion into cursor or focus movement on a UI
• Recognizing discrete gestures as intentional commands
• Executing those commands on the connected interface

The patent doesn't lock in a specific gesture vocabulary, leaving room for the system to support different gesture sets depending on the application.

What this means for Meta's glasses and headset ambitions

Meta has been building toward hands-free, controller-free input for its Ray-Ban glasses and Quest headsets for years. A wristband that works through muscle signals sidesteps one of the biggest friction points in AR: you can't tap a floating menu the way you tap a phone screen, and holding a controller defeats the point of glasses you just put on and forgot about. Muscle-reading control makes the interaction invisible in a way cameras and hand-tracking cameras can't quite manage, since it works in low light, in a pocket, or with your hand at your side.

For Meta's Ray-Ban smart glasses line in particular, this kind of wristband input could be the missing piece for anything beyond voice commands. If Meta ships this, the wristband becomes the de facto remote control for your face.

The drawings

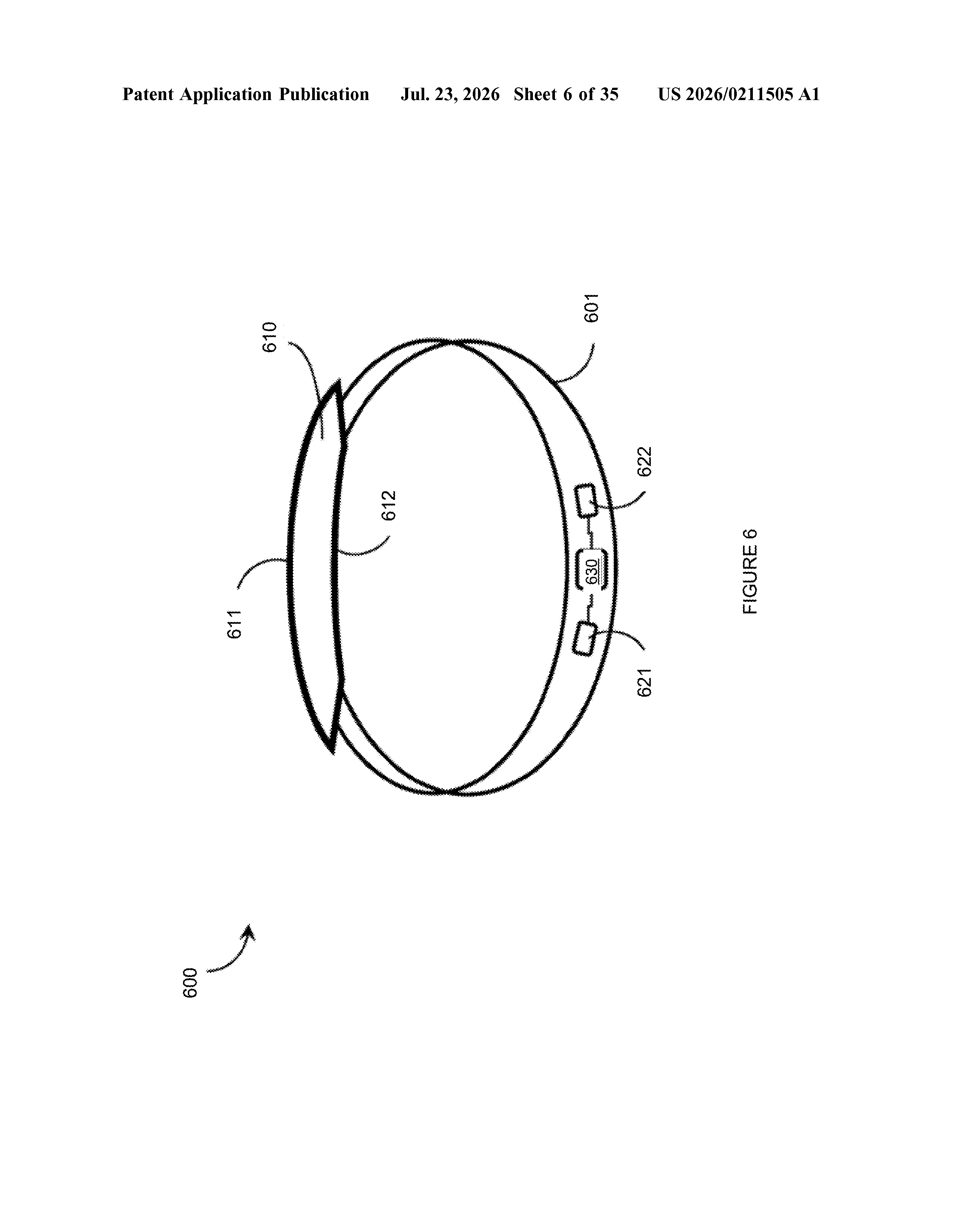

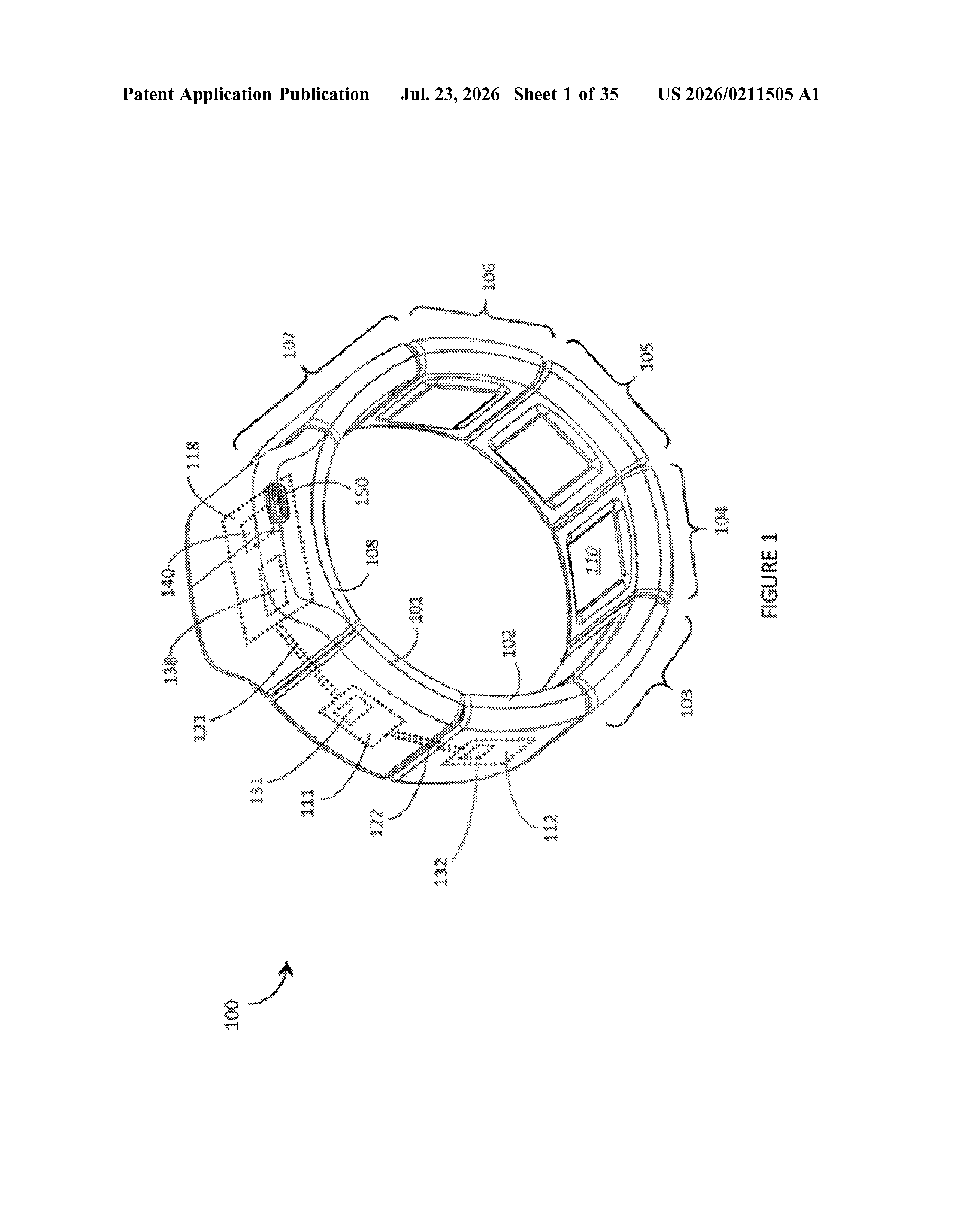

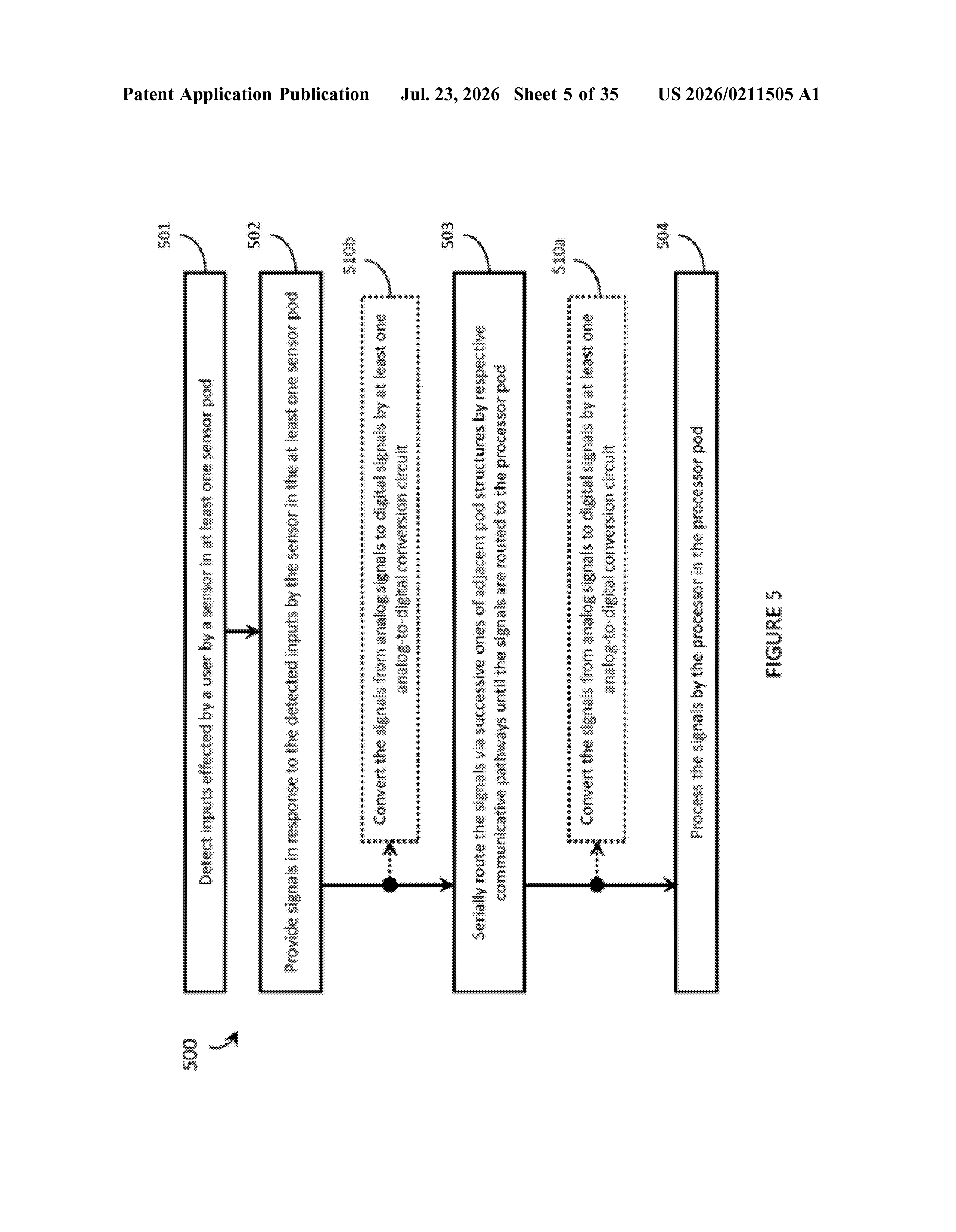

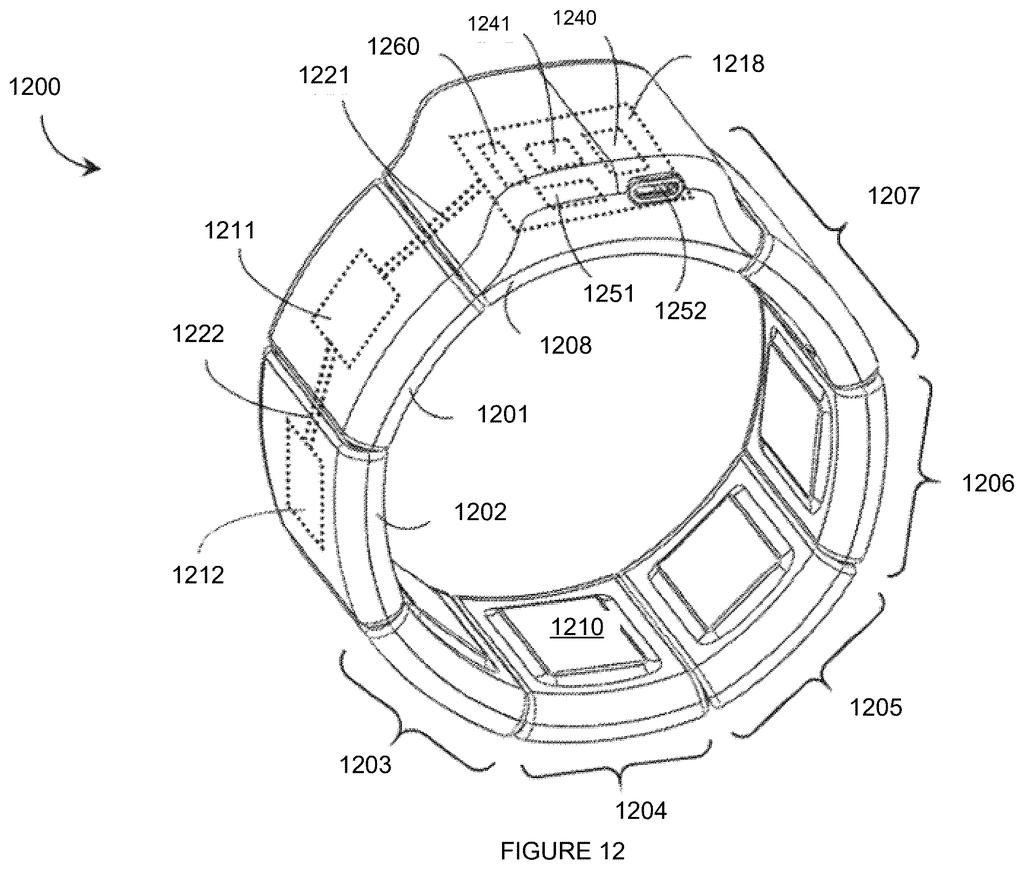

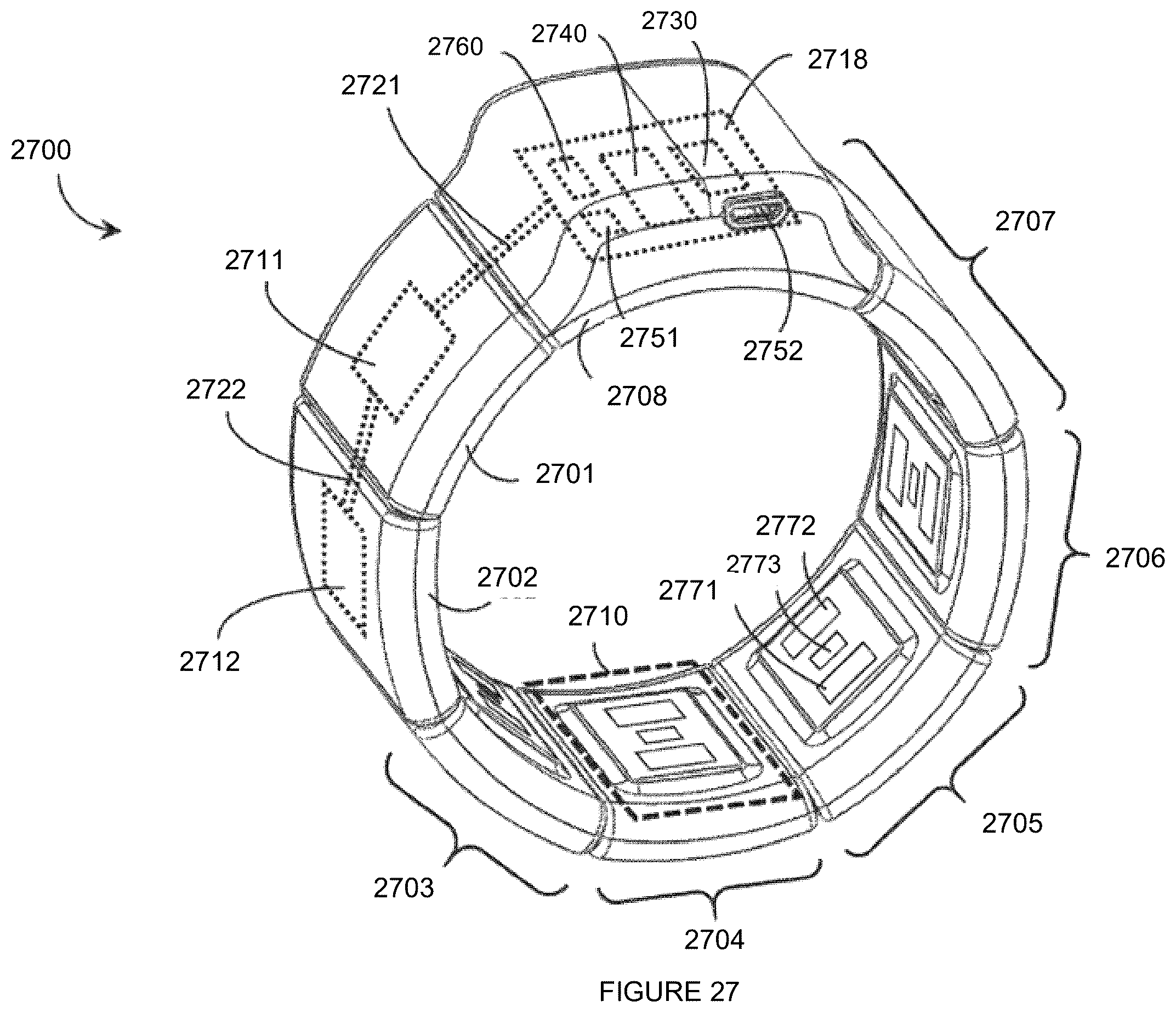

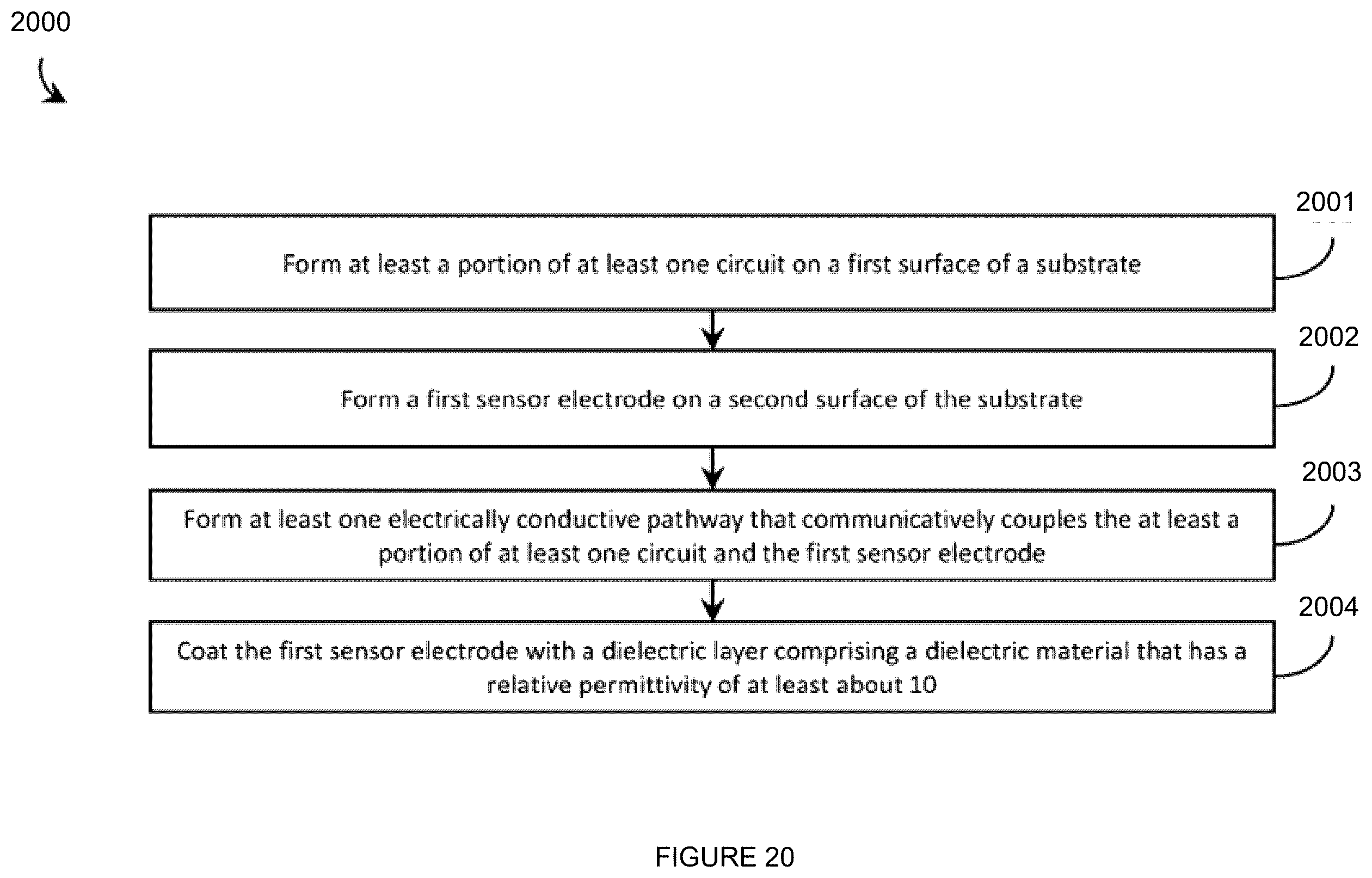

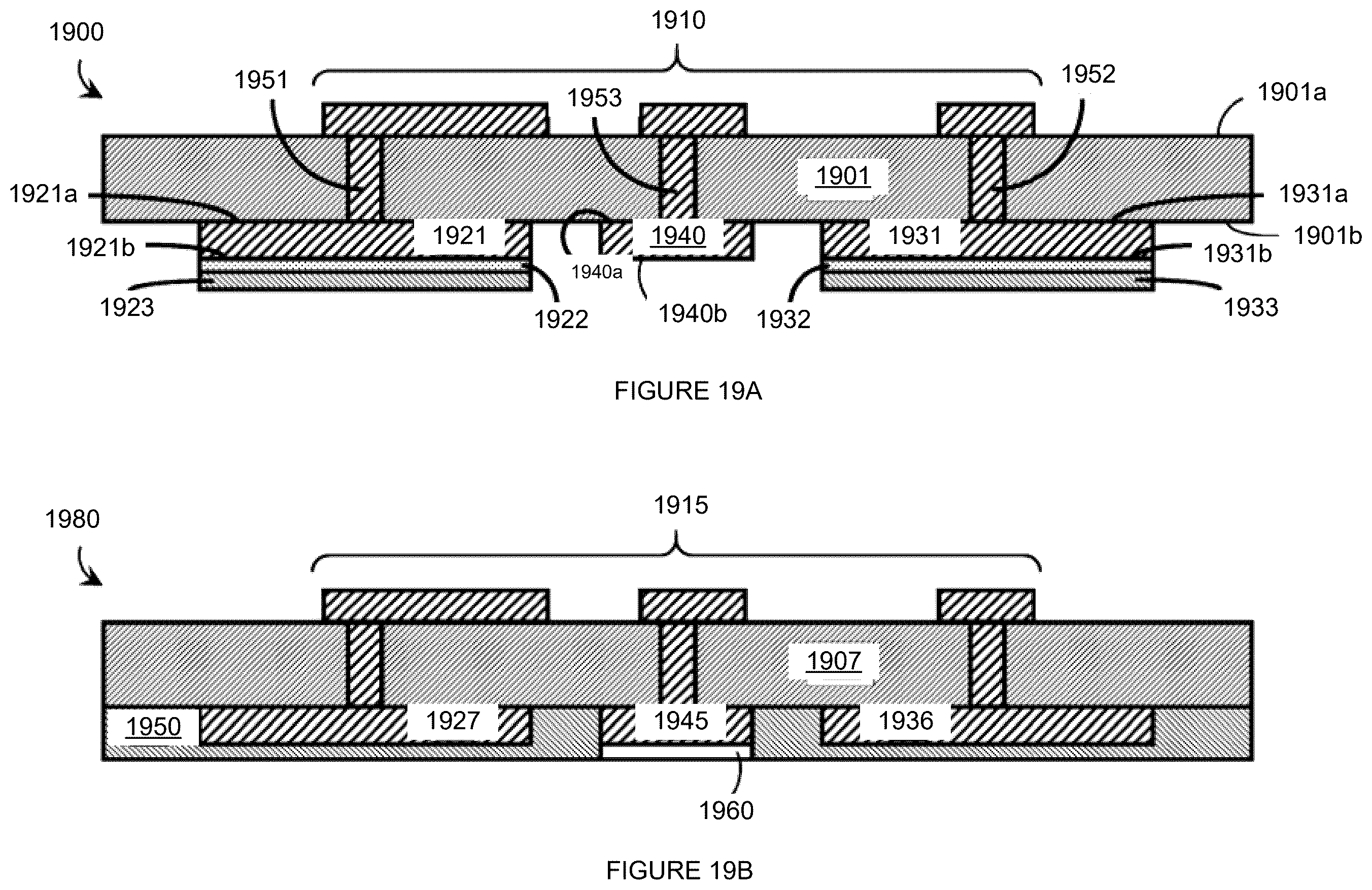

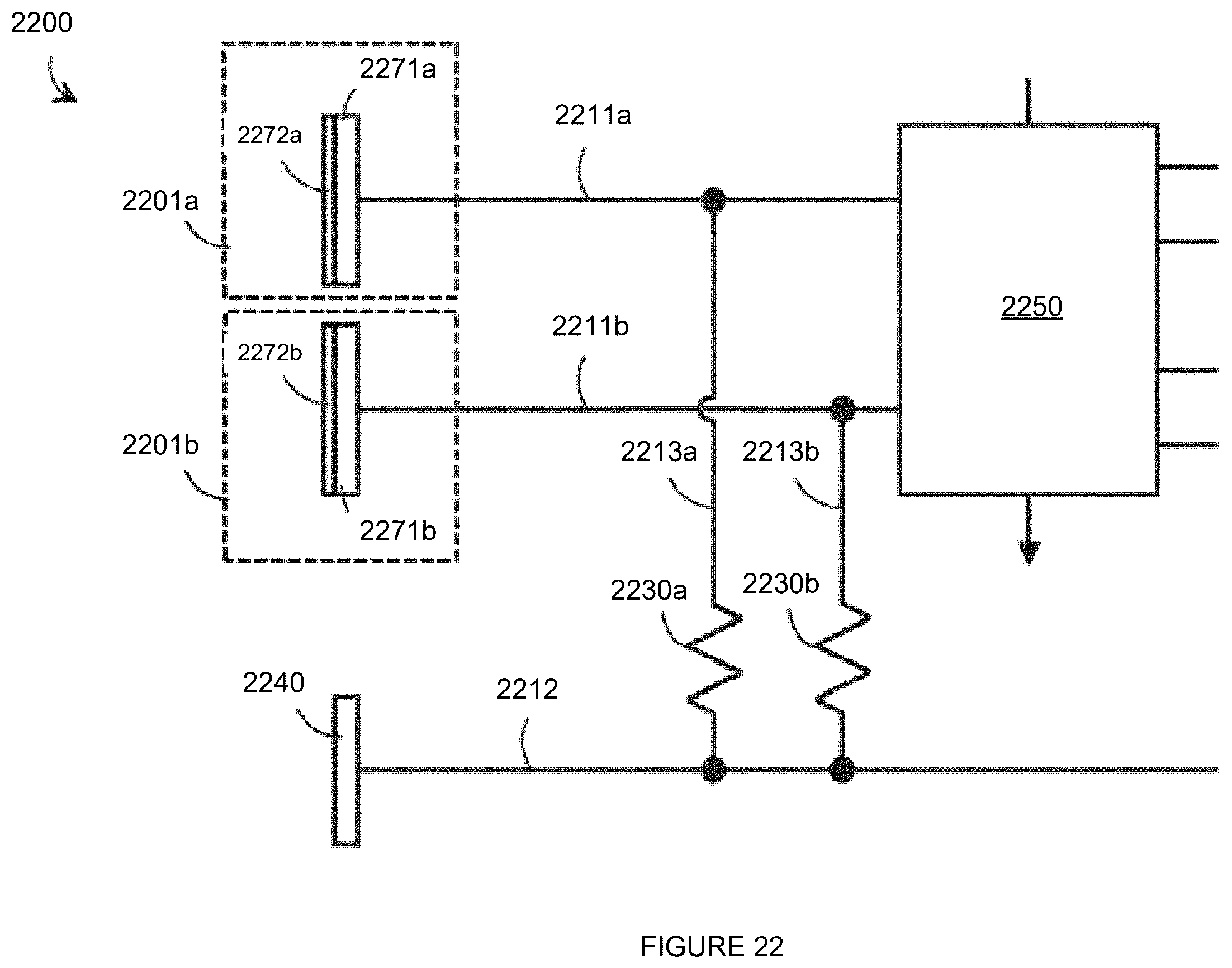

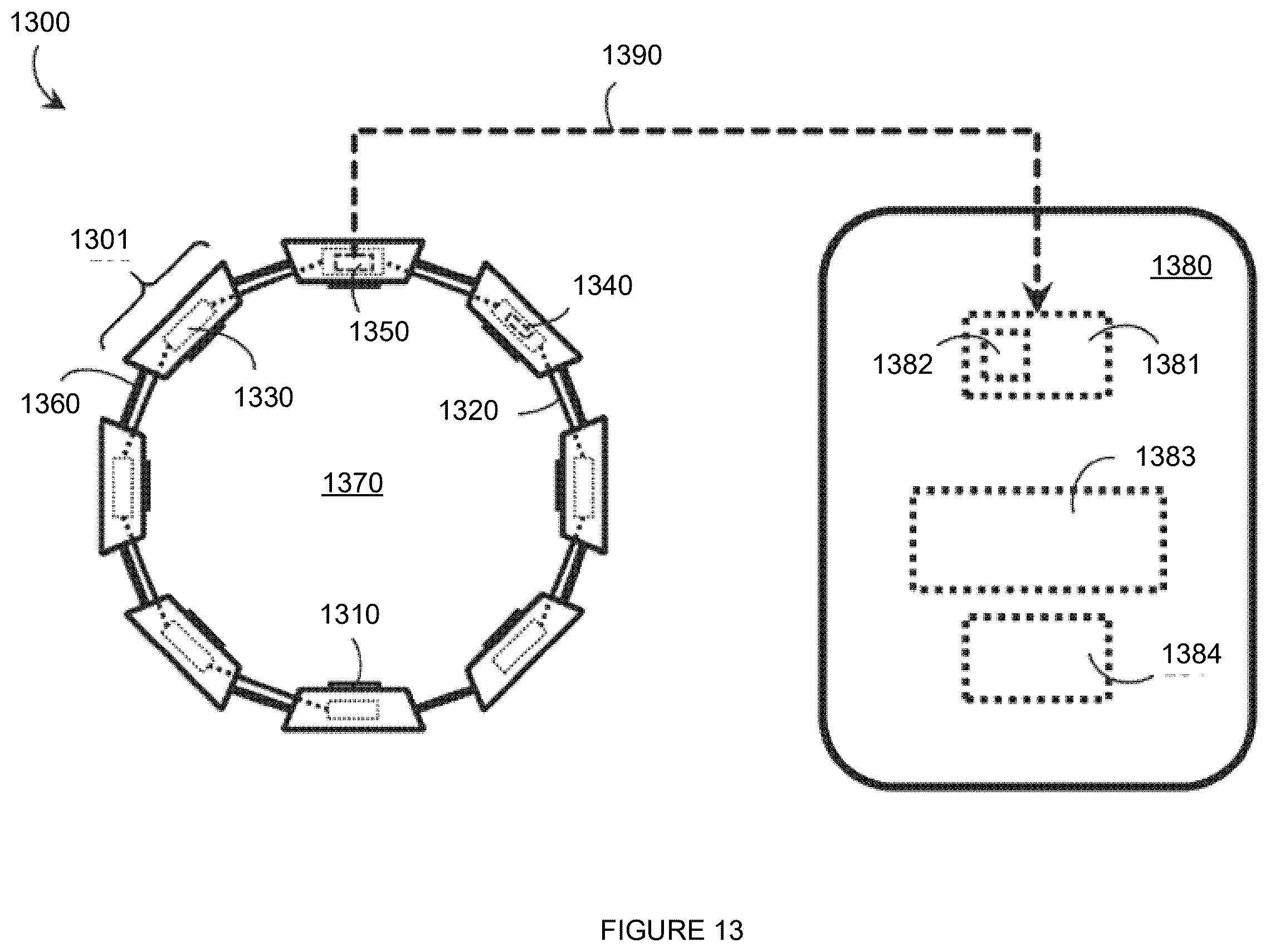

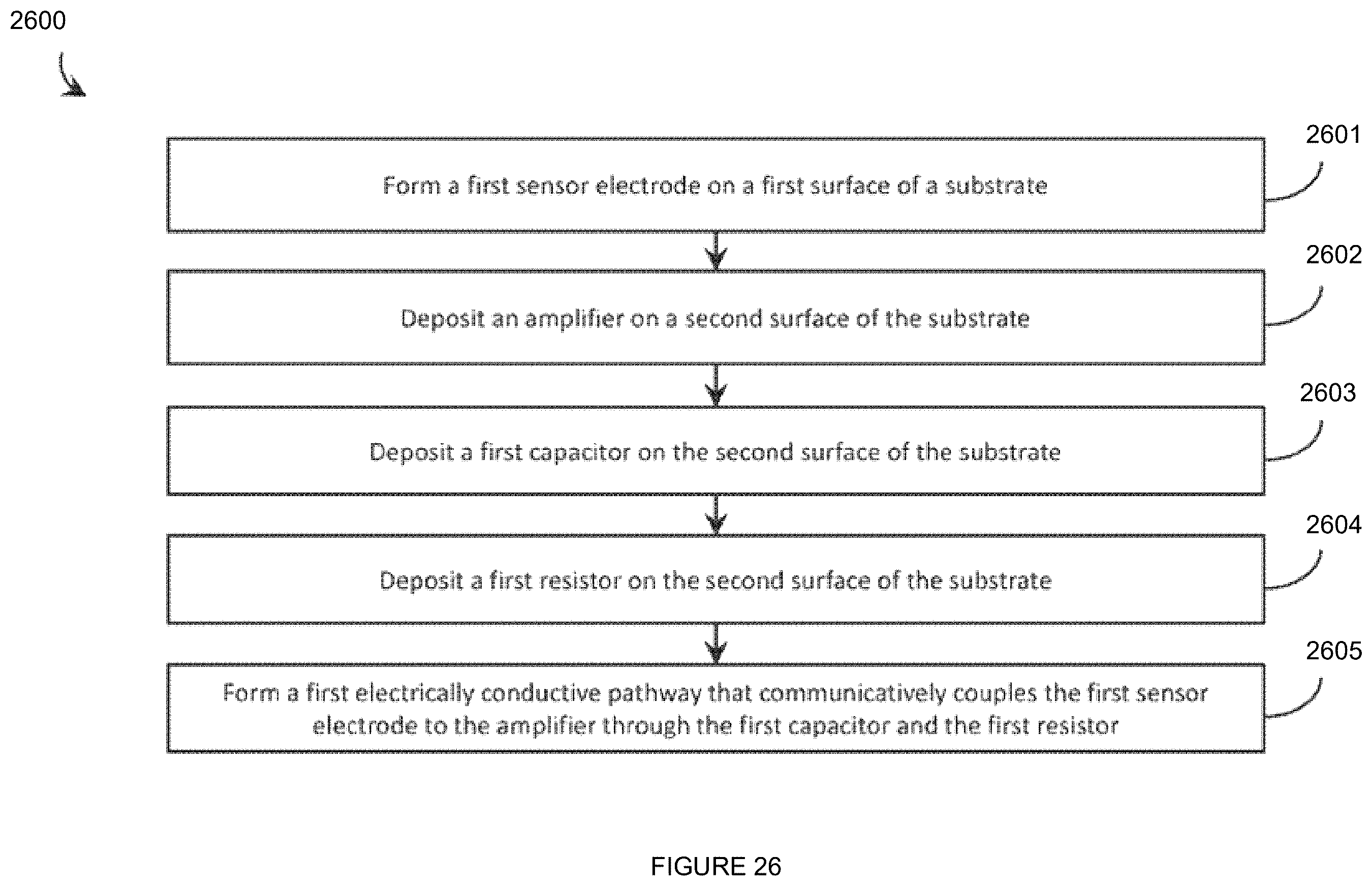

35 drawing sheets from US 2026/0211505 A1 · click any drawing to enlarge

SHEET 1 SHEET 2 SHEET 3 SHEET 4 SHEET 5 SHEET 6 SHEET 7 SHEET 8

Browse all the drawings 35 drawing sheets

× ← →
