Microsoft Patent Teaches AI Prompts to Automatically Select Their Most Relevant Data
Every time an AI assistant pulls in outside information to answer your question, someone had to decide what order that information should arrive in. Microsoft's latest patent automates that decision, and then refines it over time based on whether users found the answers useful.
How Microsoft's prompt-filling system learns from feedback
A help-desk bot stares at your support ticket and pulls a dozen knowledge-base articles before answering. The order those articles arrive in, front-loaded with the most relevant ones, changes whether you get a useful answer or a frustrating wall of text. That ordering problem is exactly what this patent is trying to solve.

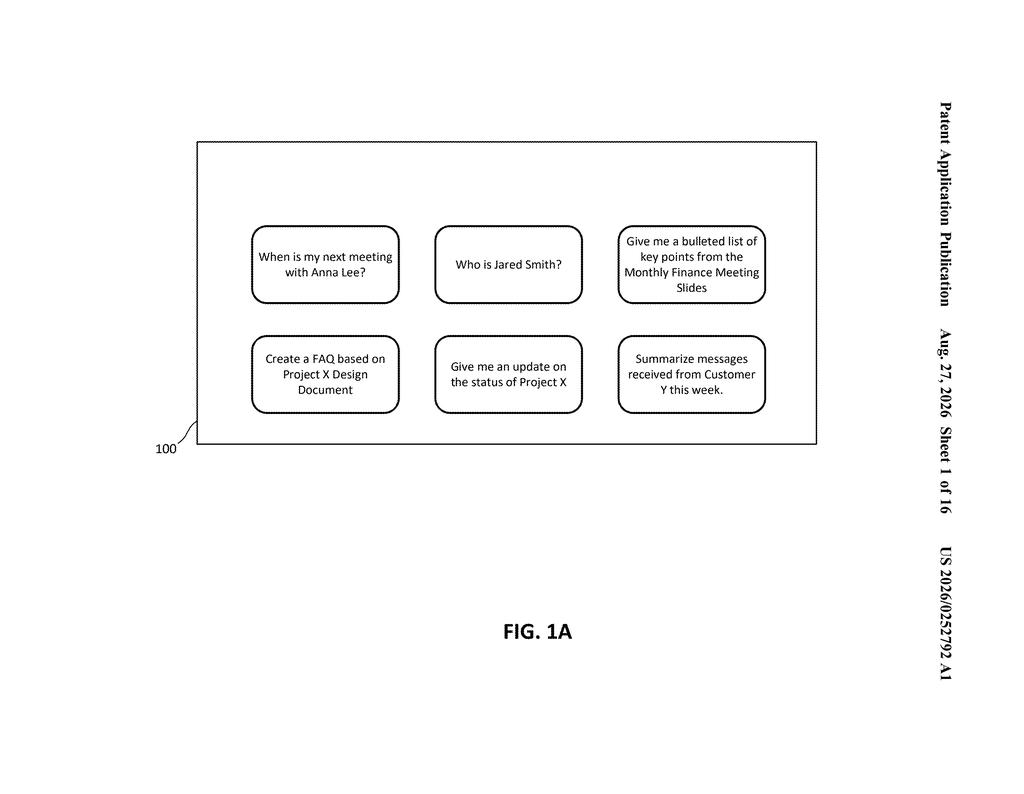

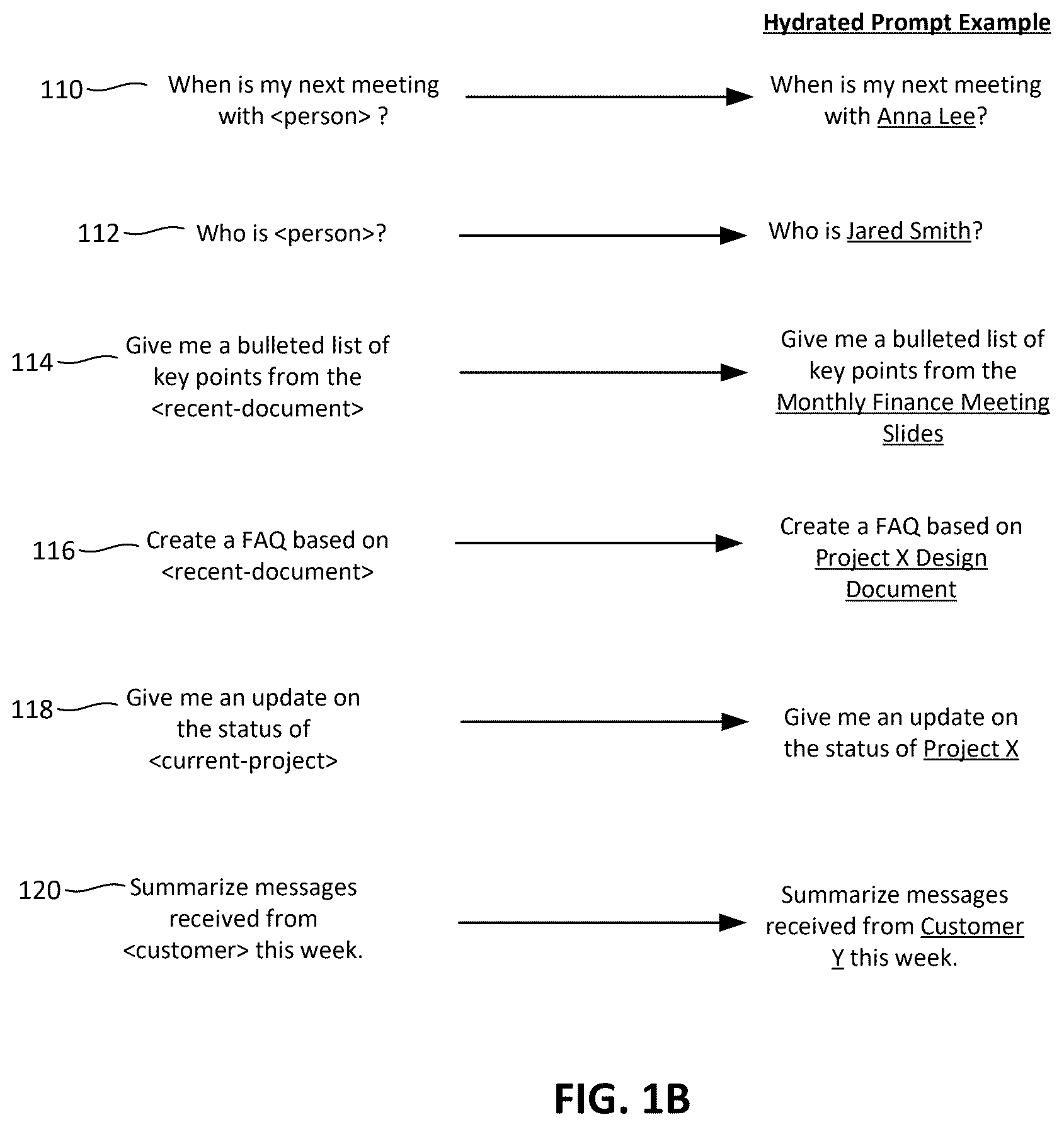

Microsoft's system works with something called a prompt template, which is basically a fill-in-the-blank script for an AI. The blank spots get filled with real data pulled from databases or documents. The patent describes an automated way to decide which data goes in first, by looking at how similar templates have worked in the past and then testing different approaches until user feedback points to a winner.
Over time, the system stops experimenting and locks in the ordering method that produced the best responses. You get better AI answers without anyone manually tuning the plumbing behind the scenes.

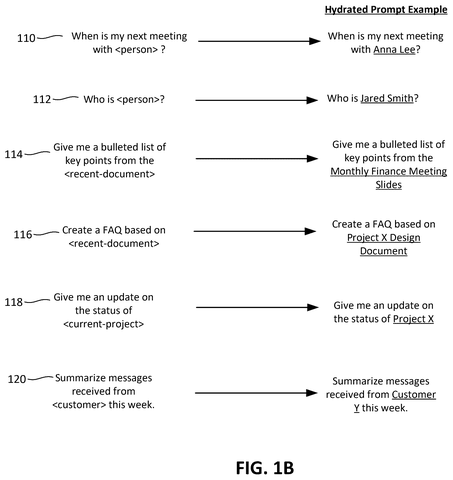

receiving a first prompt template comprising a natural language prompt for a large language model that includes a placeholder term configured to be replaced with data when the first prompt template is hydrated to create an executable prompt …
Translation: The system takes a prompt template containing a placeholder that gets filled with real data to run the AI model.
How the system matches templates and tests ranking strategies

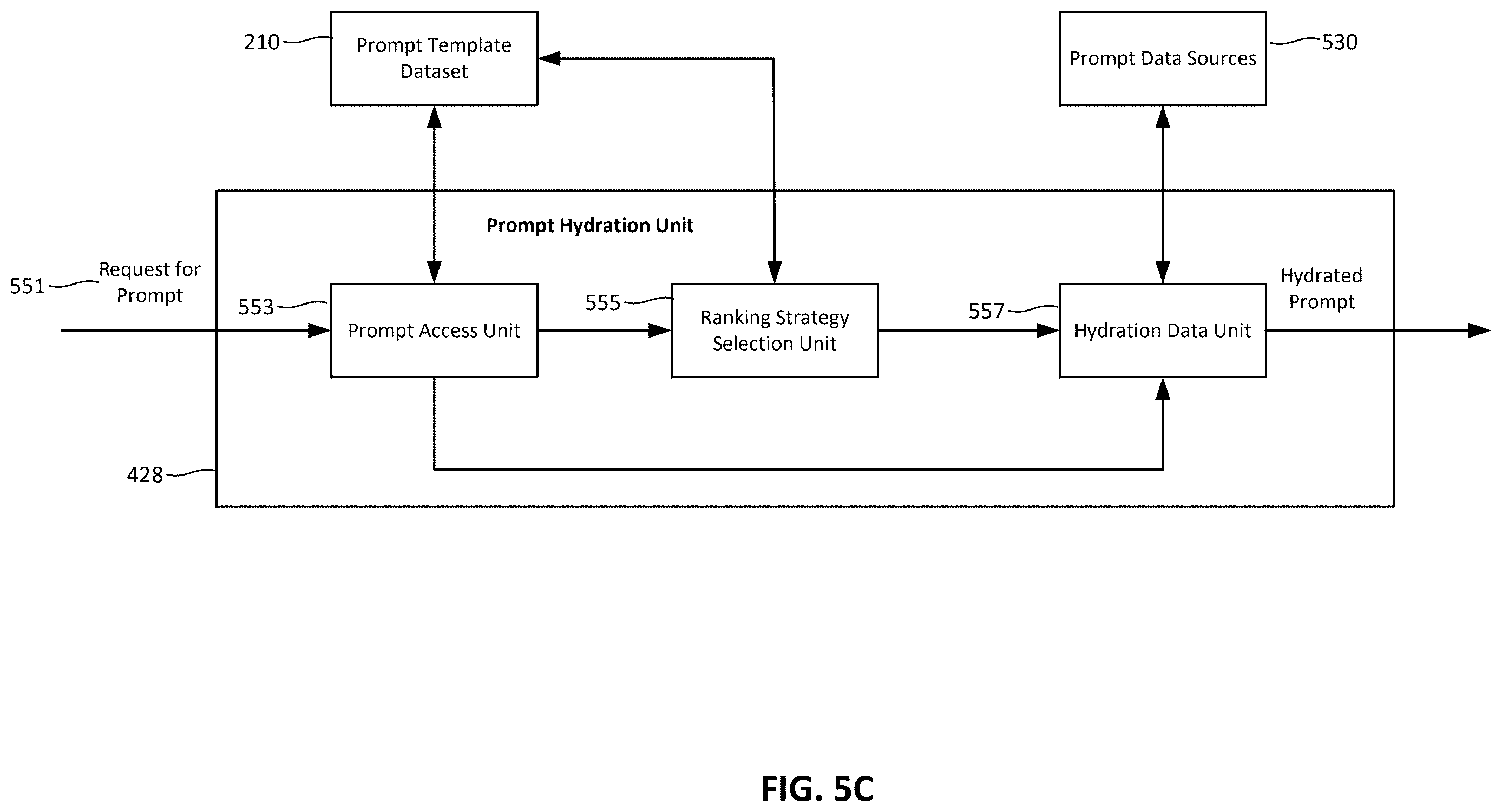

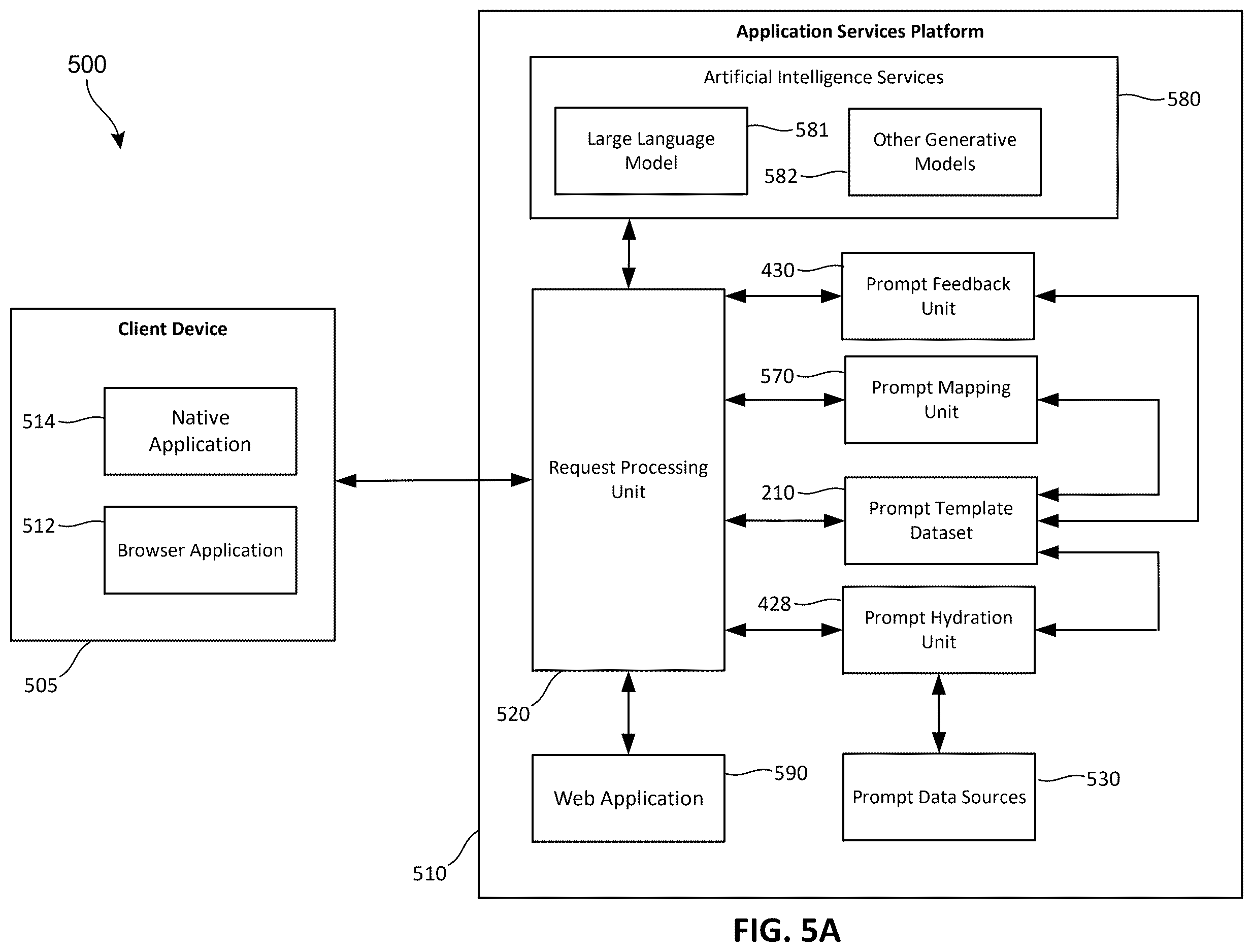

The patent describes a data processing system that manages how AI prompts are "hydrated" (filled with real content) before being sent to a large language model.
Here is the basic flow:
- The system receives a prompt template, a partially written AI instruction that contains placeholder terms where real data will be inserted.

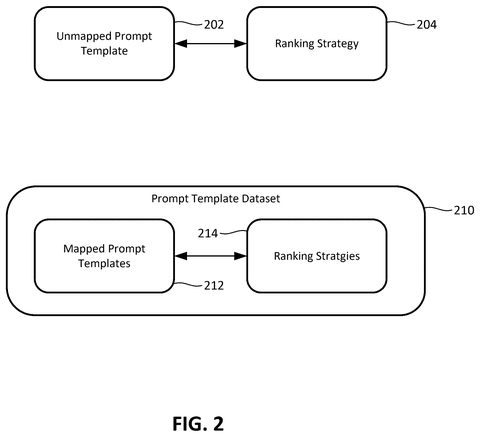

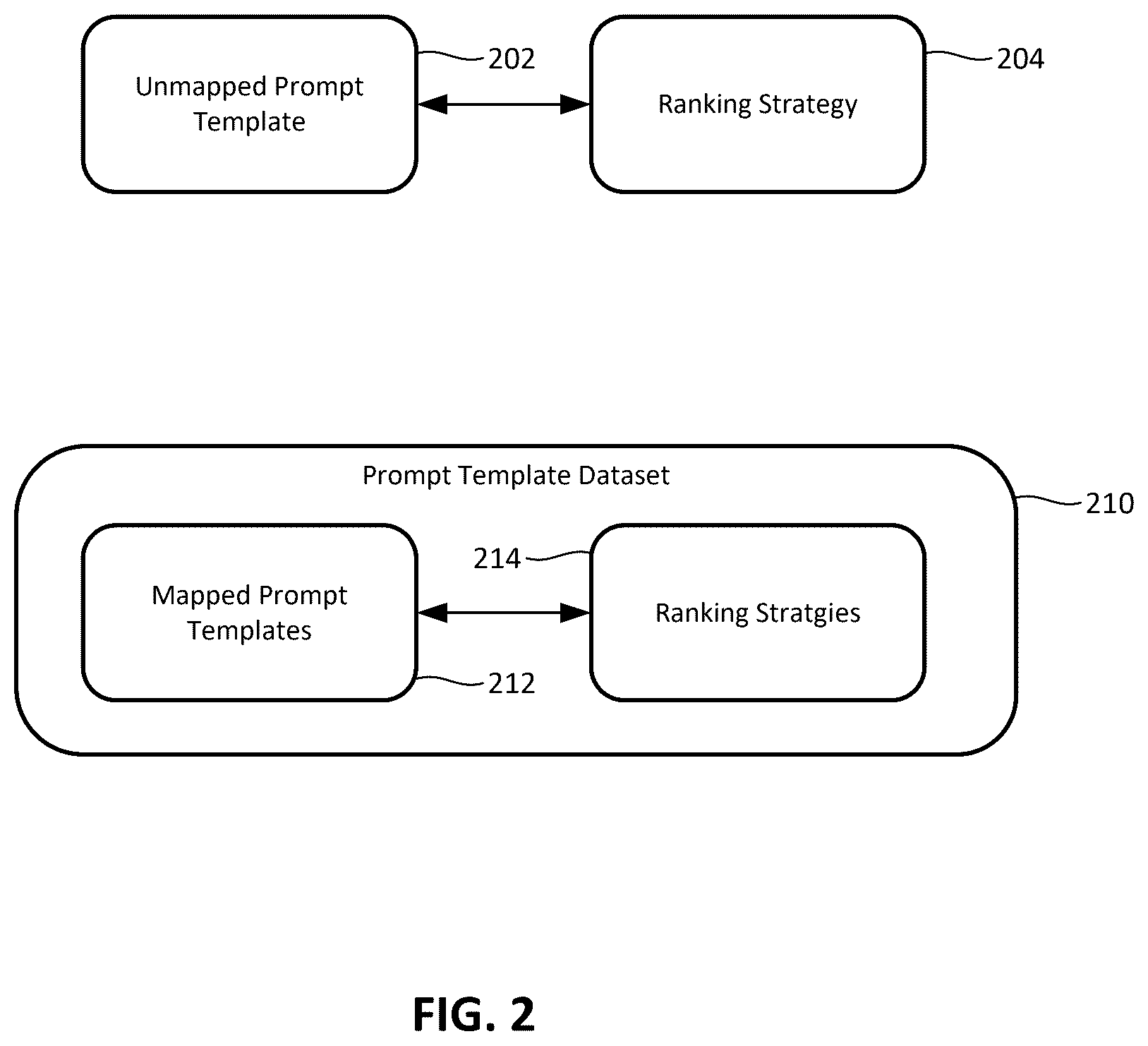

- It compares that template against a library of previously used templates to find similar ones, then borrows the data-ordering approaches (called ranking strategies) that worked well for those similar templates.

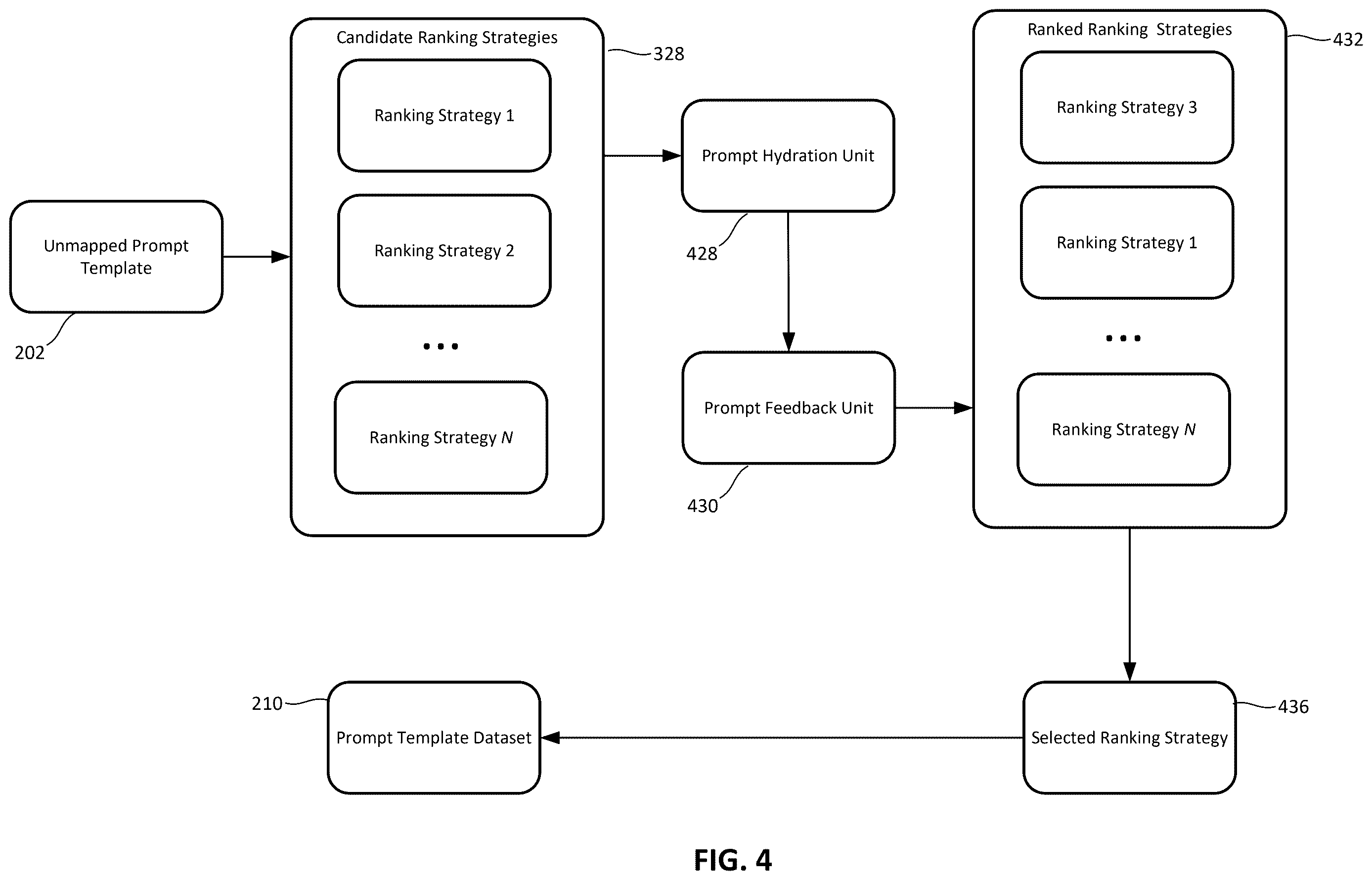

- It runs several of those candidate ranking strategies in parallel across real user requests, collecting feedback on which strategy produced satisfying results.
- Once enough feedback accumulates, it picks a winner and uses that strategy for all future requests with that template.
A ranking strategy is essentially a rule for sorting data before it gets inserted into the prompt. For example, one strategy might sort by date (newest first), another by semantic similarity to the user's question, and another by source authority. The system figures out which rule produces AI answers that users actually like, without a human engineer having to test each option manually.

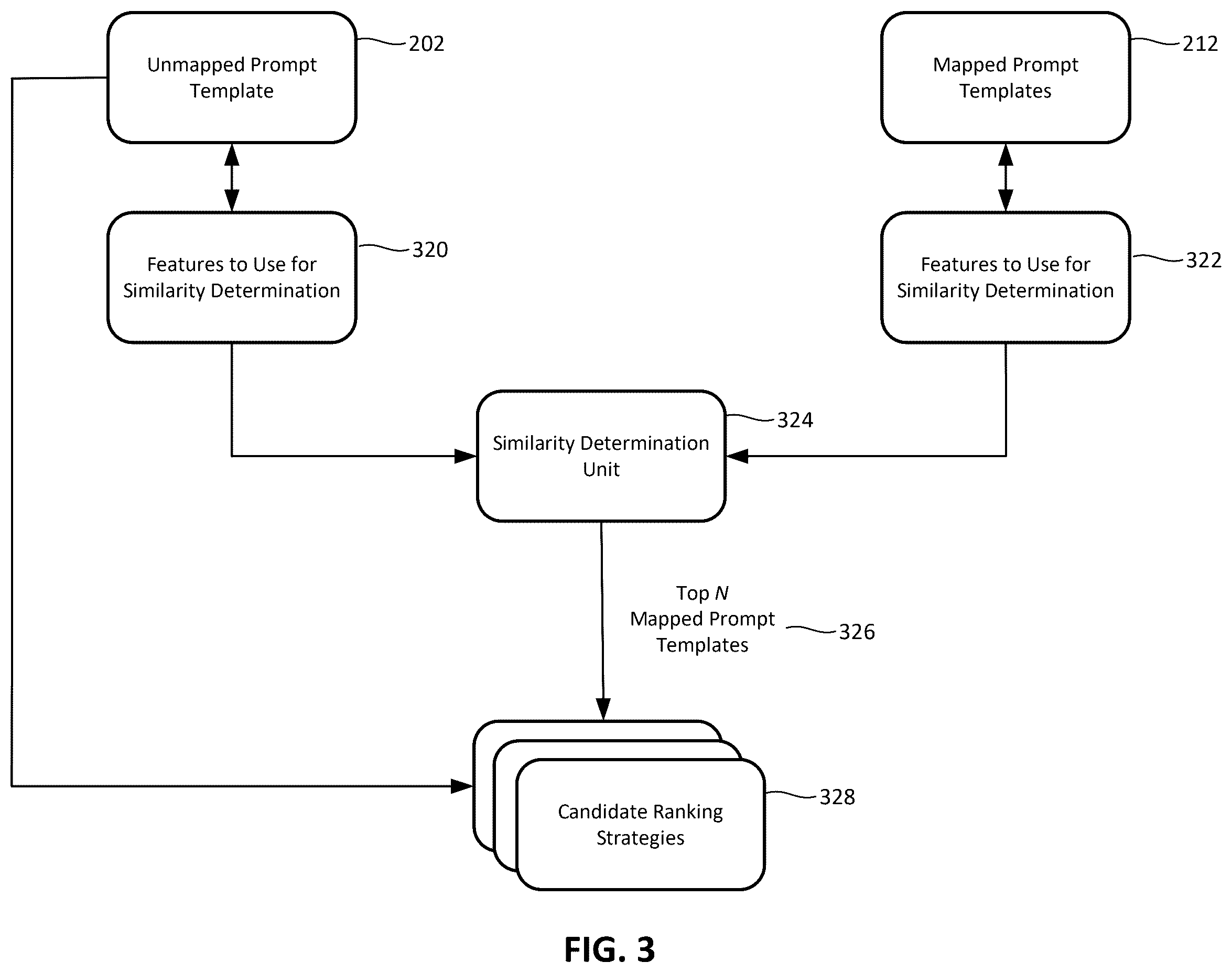

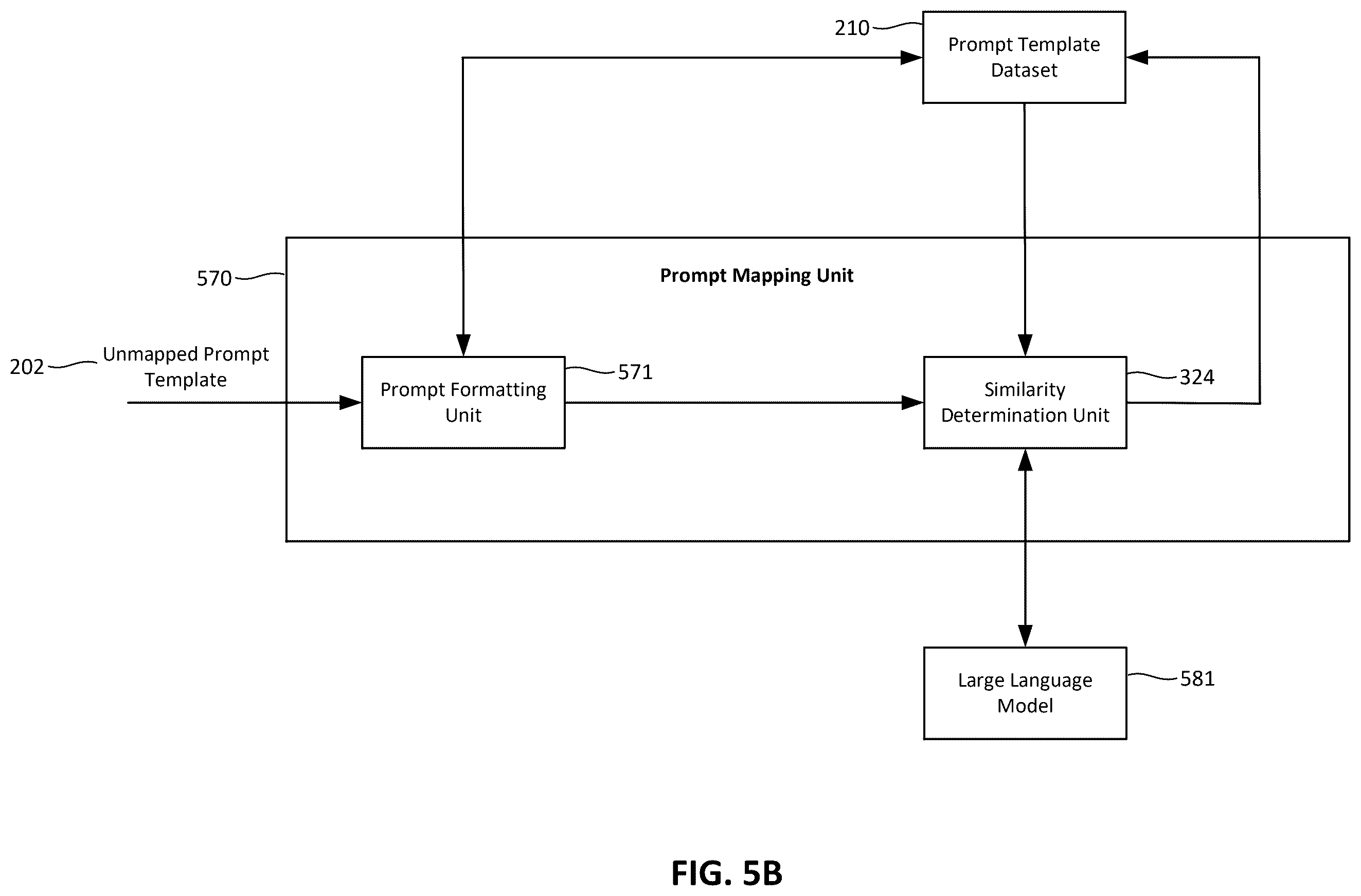

The patent also covers the mechanism that maps an incoming template to its best-fit candidate strategies by measuring feature similarity, which means comparing structural and contextual characteristics of the templates to find close relatives in the historical dataset.
… selecting a ranking strategy from among the set of candidate ranking strategies based on the user feedback …
Translation: The system picks the best way to sort data based on how users respond.
What this means for AI tools that pull in live data
AI assistants that pull in live data, think customer-service bots, internal knowledge-base tools, or any copilot that cites documents, live and die by data ordering. If the least relevant chunk lands at the top of the prompt, the AI may produce a confident but wrong answer. Right now, getting that ordering right usually requires engineers to hand-tune each prompt type. This patent describes automating that process and making it self-correcting, which could meaningfully improve accuracy across large deployments without ongoing manual work.
The claim as written is fairly broad. It covers any system that compares prompt templates, tests multiple ranking strategies, collects user feedback, and selects a winner, without requiring a specific algorithm for any of those steps. That width means it could apply to a wide range of enterprise AI tools that slot data into prompts. Whether that breadth survives patent examination is a separate question, but it signals Microsoft's intent to stake out territory in the infrastructure layer of AI applications, an area well-represented among the latest Big Tech patents covering how AI systems decide what information to act on.
This is the 41st Microsoft filing we've tracked in our AI assistant and agent work since May, which also includes one where AI watches tasks and one on adapting chatbots by group.
Claim 1 is written at a high level of abstraction. It does not specify what kind of ranking strategies are tested, what algorithm selects similar templates, or what counts as user feedback. That breadth is a deliberate choice, and it is a double-edged one. On the strength side, a broad claim could block competitors from building any feedback-driven, template-matching prompt-hydration system inside an enterprise product, which covers a lot of ground in the current AI tooling market. On the vulnerability side, broad claims invite prior-art challenges.
Retrieval-augmented generation (a technique where AI pulls in documents before answering) already involves data ranking, and examiners will want to see a clear line between what exists and what this claim actually adds. The most interesting part of the filing is the feedback loop. Automating the initial strategy selection is useful but incremental.
Building in a mechanism that updates the selection based on whether real users were satisfied is the part that could matter in practice, because it ties the system's behavior to outcomes rather than assumptions.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

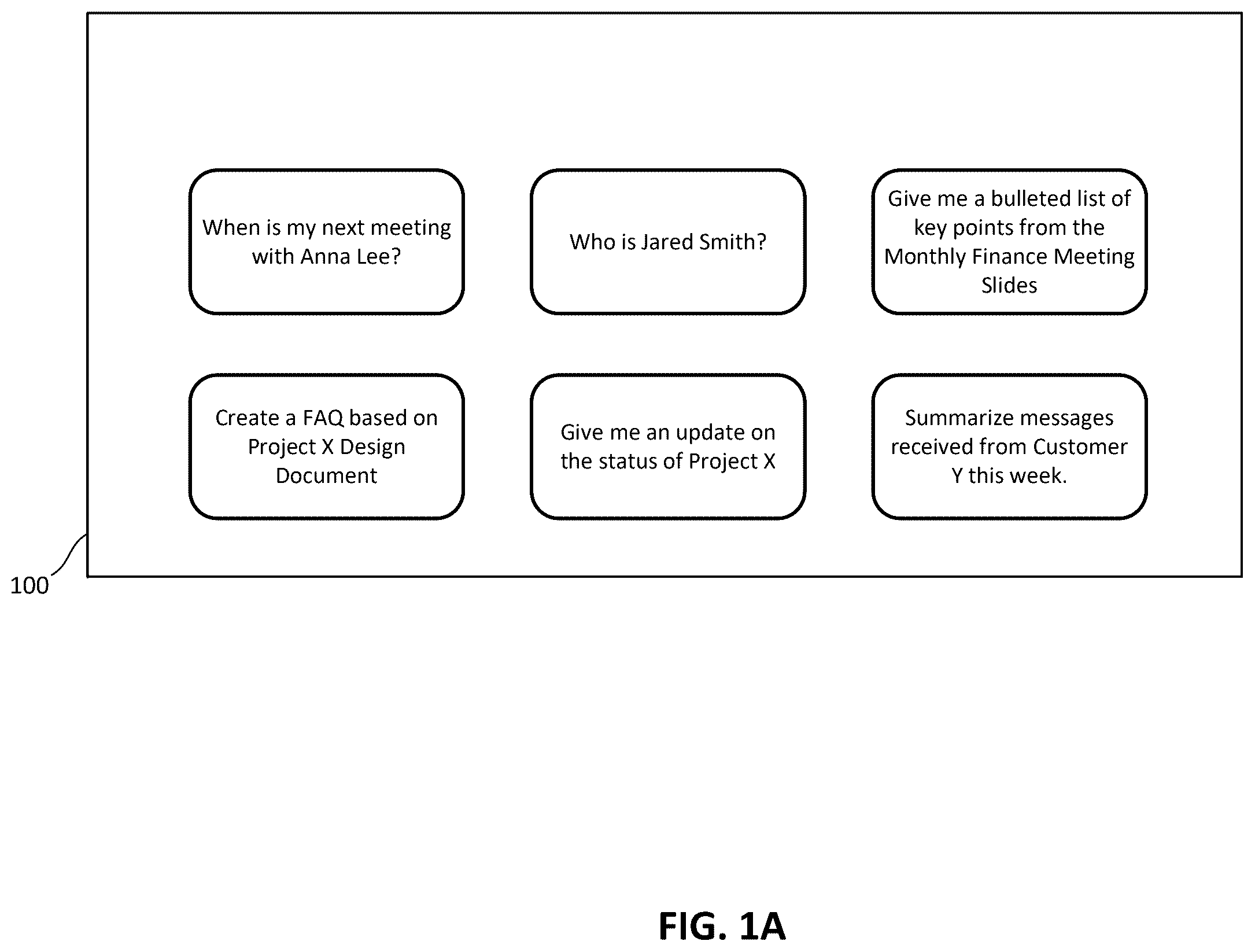

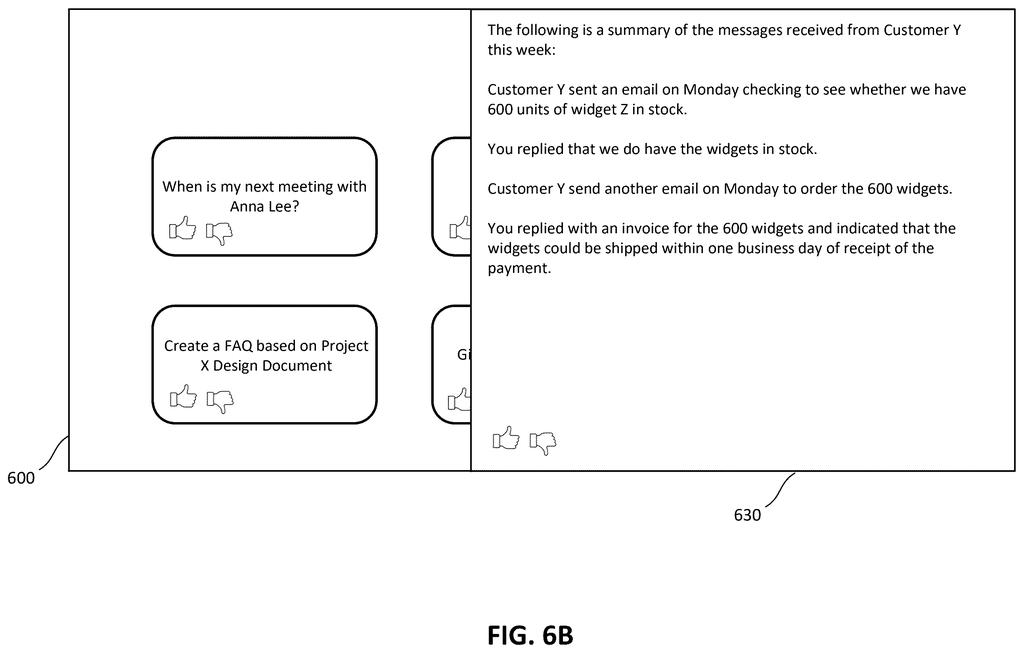

The drawings
16 drawing sheets from US 2026/0252792 A1 · click any drawing to enlarge
