Sony Patents a Camera That Uses Flickering Light Bands to Build Richer Images

By Patentlyze Team · Updated Jul 21, 2026

Sony is patenting a camera system that rapidly pulses different types of light at a subject and then uses the timing of those pulses to reconstruct a much more detailed image than a standard camera can capture. Think of it as a camera that 'reads' light like Morse code.

What Sony's multi-wavelength flicker camera actually does

Imagine shining a flashlight at an object, but instead of one steady beam, you quickly flicker several different colored lights at it in a pattern. If you know exactly when each color flashed, you can figure out how much of each color bounced back from the object at any given moment. That's essentially what Sony is describing here.

A normal camera captures what's in front of it using whatever light is available. Sony's patented system goes further: it controls its own light source, cycling through multiple wavelengths (think different colors or types of light, including ones invisible to the human eye), and then uses those timed flickers as a key to decode the incoming light and sort it into separate channels.

The result is an image that holds information from several different wavelength bands at once, rather than just the red, green, and blue that a typical photo contains. That kind of image can reveal details that ordinary cameras completely miss.

How the sensor reads light timing to separate wavelengths

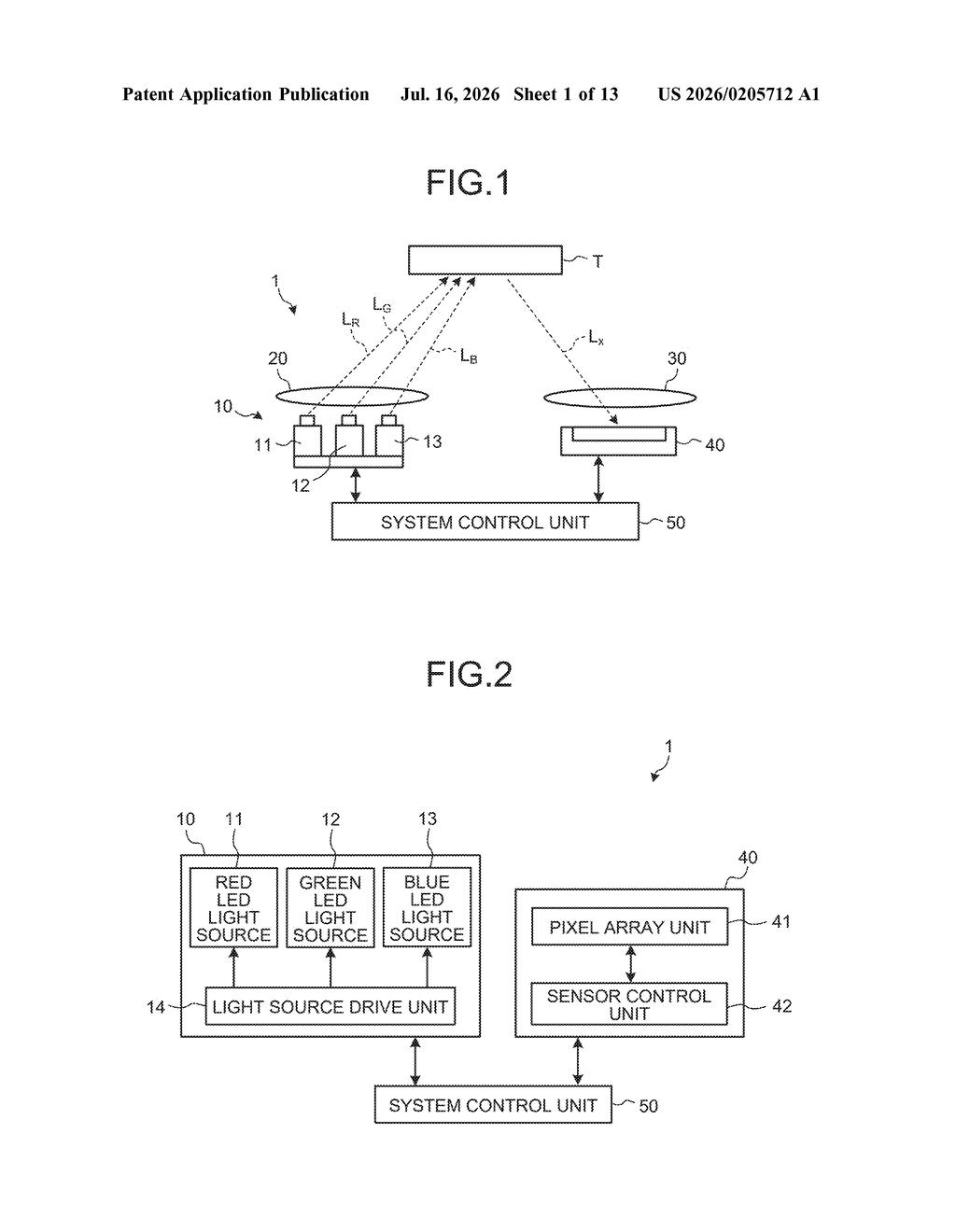

The system has three main parts working together:

• Light source unit: This shines light at a subject, but can rapidly change the intensity of light across multiple wavelength bands independently. Wavelength bands are essentially different types of light, separated by their frequency, the way a prism splits sunlight into a rainbow.
• Pixel array unit: This is the sensor, a grid of pixels arranged in rows and columns, each capable of detecting light and converting it to an electrical signal (a process called photoelectric conversion).
• Image generation unit: This is the brain of the operation. It knows the precise timing pattern the light source used, and it matches that timing against what the sensor recorded. By correlating those two streams of data, it can figure out how strongly each wavelength was reflected by the target at each point in the scene.

The key innovation is using timing as a sorting mechanism. Because each wavelength band changes intensity at a known schedule, the sensor's output can be mathematically unpacked into separate per-wavelength images. The final output is a single image that carries multiple wavelength components simultaneously.

What this means for industrial and medical imaging

Multi-wavelength imaging (also called multispectral or hyperspectral imaging) is already used in fields like medical diagnostics, food inspection, agriculture, and industrial quality control, where different materials reflect or absorb specific wavelengths in distinctive ways. Current systems are often expensive or bulky because they use physical filters or multiple sensors to separate wavelengths. Sony's approach does it with a single sensor and a controlled light source, which could make the technology cheaper and more compact.

Sony is a major supplier of image sensors to smartphone makers and industrial customers, so a patent in this space signals interest in bringing richer spectral imaging into smaller, more affordable devices. Whether that means future phones or specialized inspection cameras, the underlying method points toward cameras that see more than the human eye, not just faster.

Editorial commentary on a publicly published patent application. Not legal advice.
