Nvidia Patents a System That Keeps AI Calculations Running Without Idle Delays
GPUs are only useful when they're actually computing, not sitting idle waiting for data to arrive. Nvidia's latest patent tackles exactly that dead time by letting processors work on one chunk of data while the next chunk is still in transit.
How Nvidia's multi-queue trick keeps GPUs busy
Imagine a factory assembly line where workers have to stop everything and wait for the next batch of parts to be delivered before they can start working again. That waiting time is wasted capacity, and the same problem exists inside the chips that power AI.
Nvidia's patent describes a way to keep those chips busy by splitting data into pieces and sending each piece through its own dedicated lane (called a queue). While the chip's workers (threads) are already computing on the first piece, the second and third pieces are moving through their own lanes simultaneously. No waiting.
The practical upshot is that AI training and inference jobs could finish faster without needing faster or more expensive hardware, just better scheduling of the work that's already there.
How threads split work across parallel queues

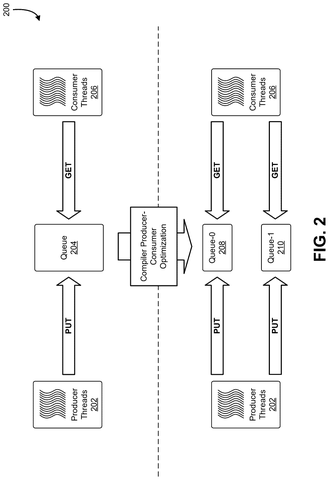

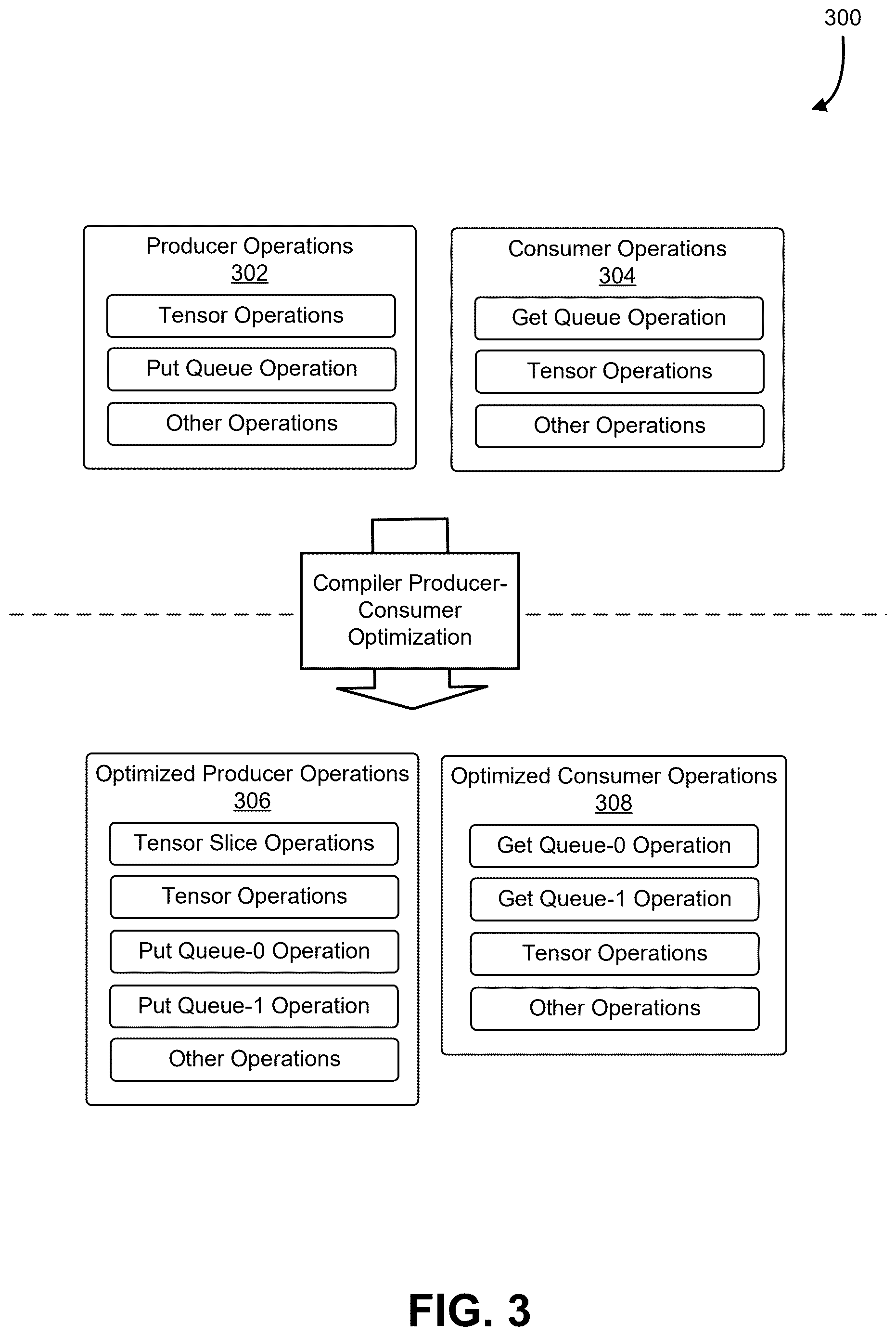

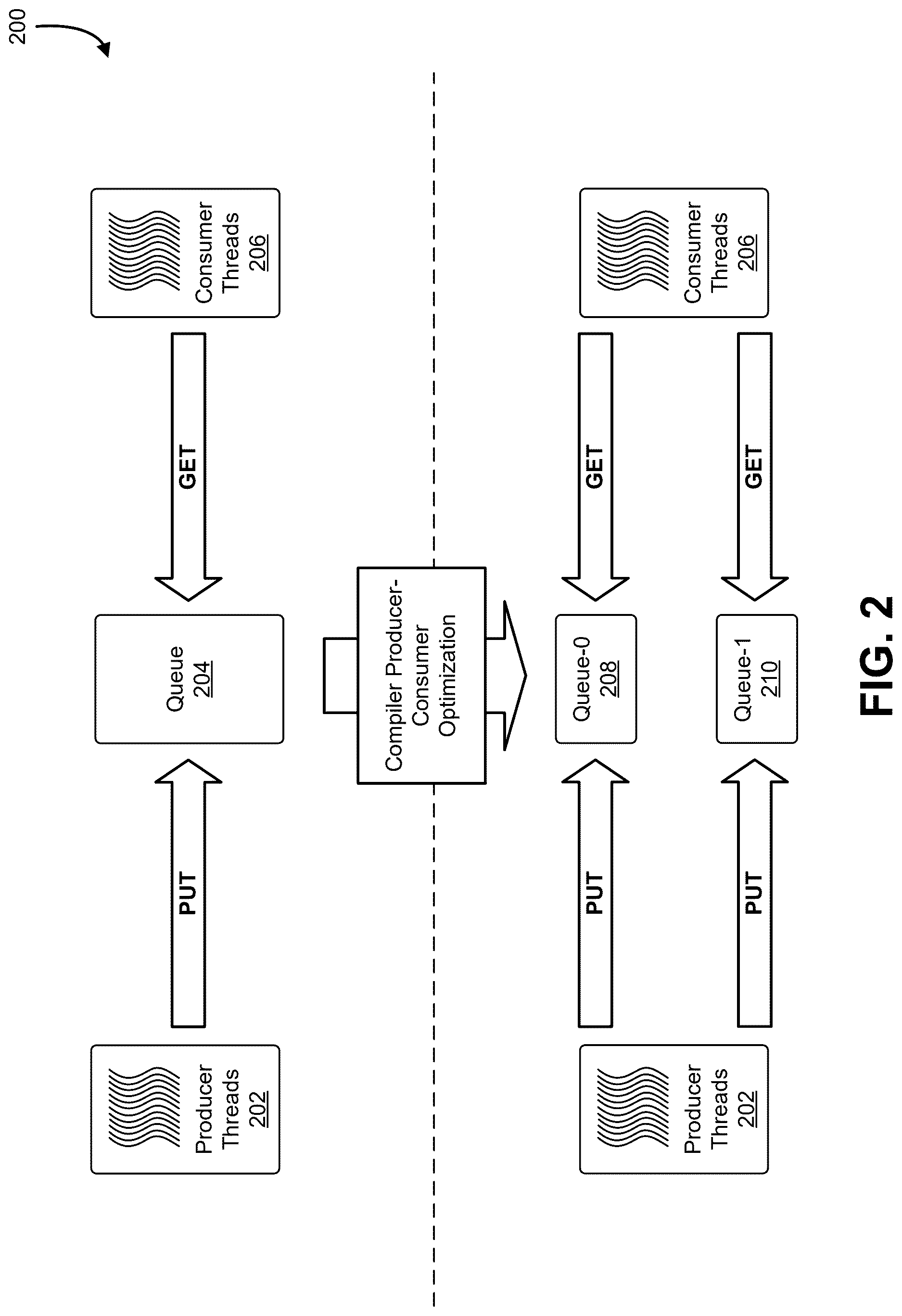

The patent covers a system where a processor automatically sets up multiple queues (think of them as parallel conveyor belts for data) between two groups of threads. One group, the producers, sends data. The other group, the consumers, processes it.
The key behavior the patent protects is overlap: the consumer threads start computing on data from the first queue before the other queues have even finished delivering their payloads. Normally, a processor would wait until all the data arrived, then start working. Here the two activities run concurrently.

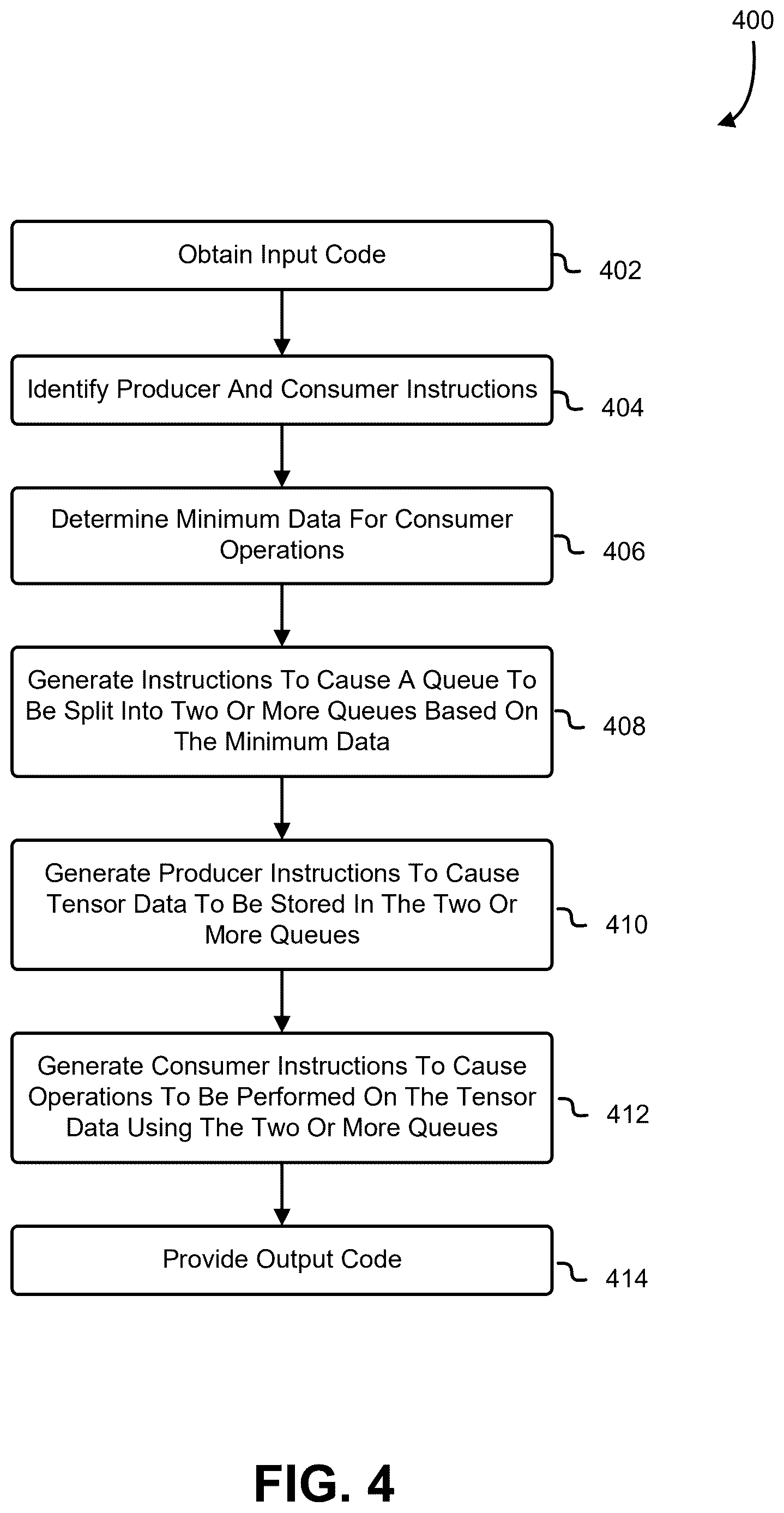

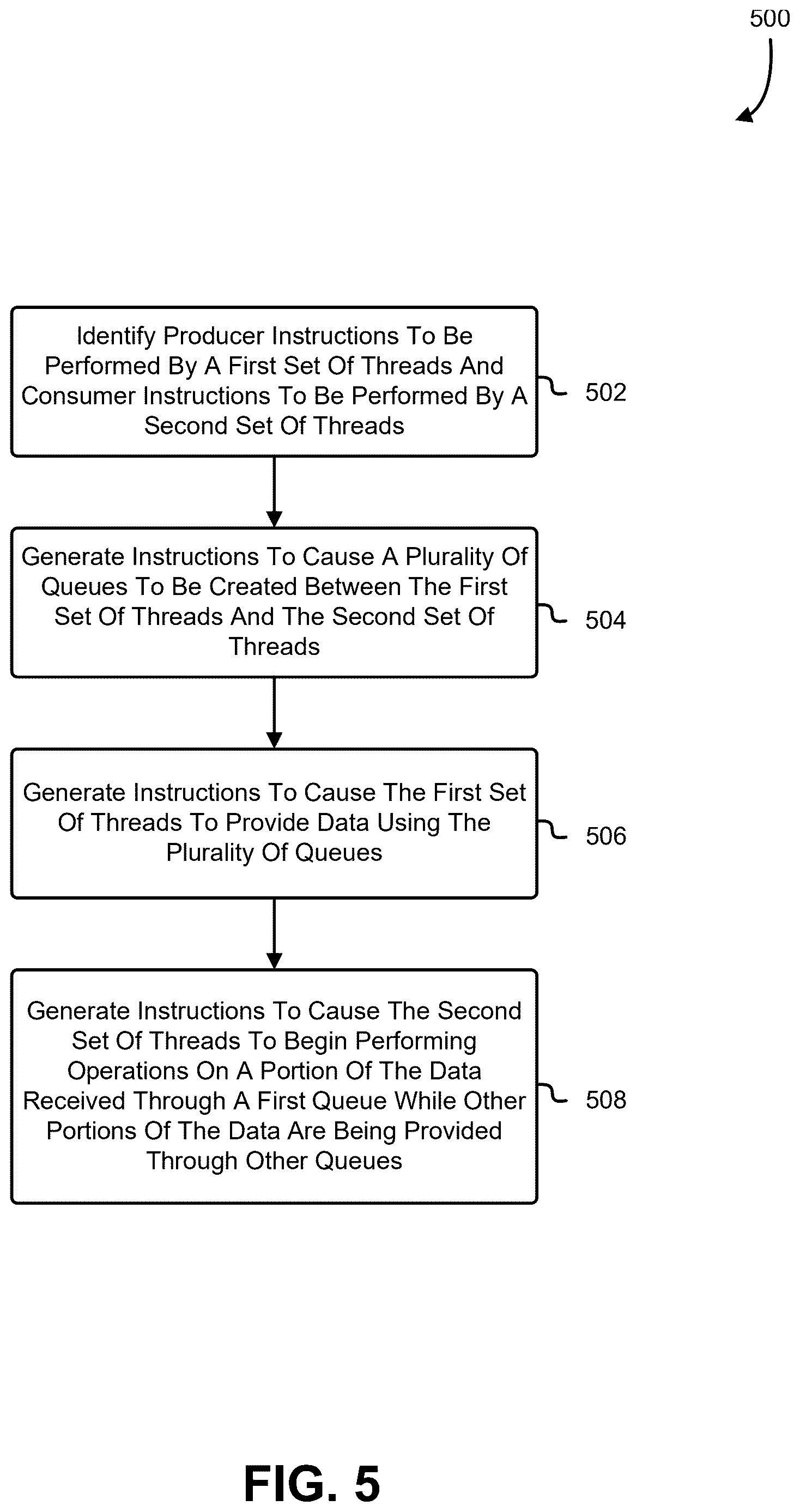

Under the hood, the system:

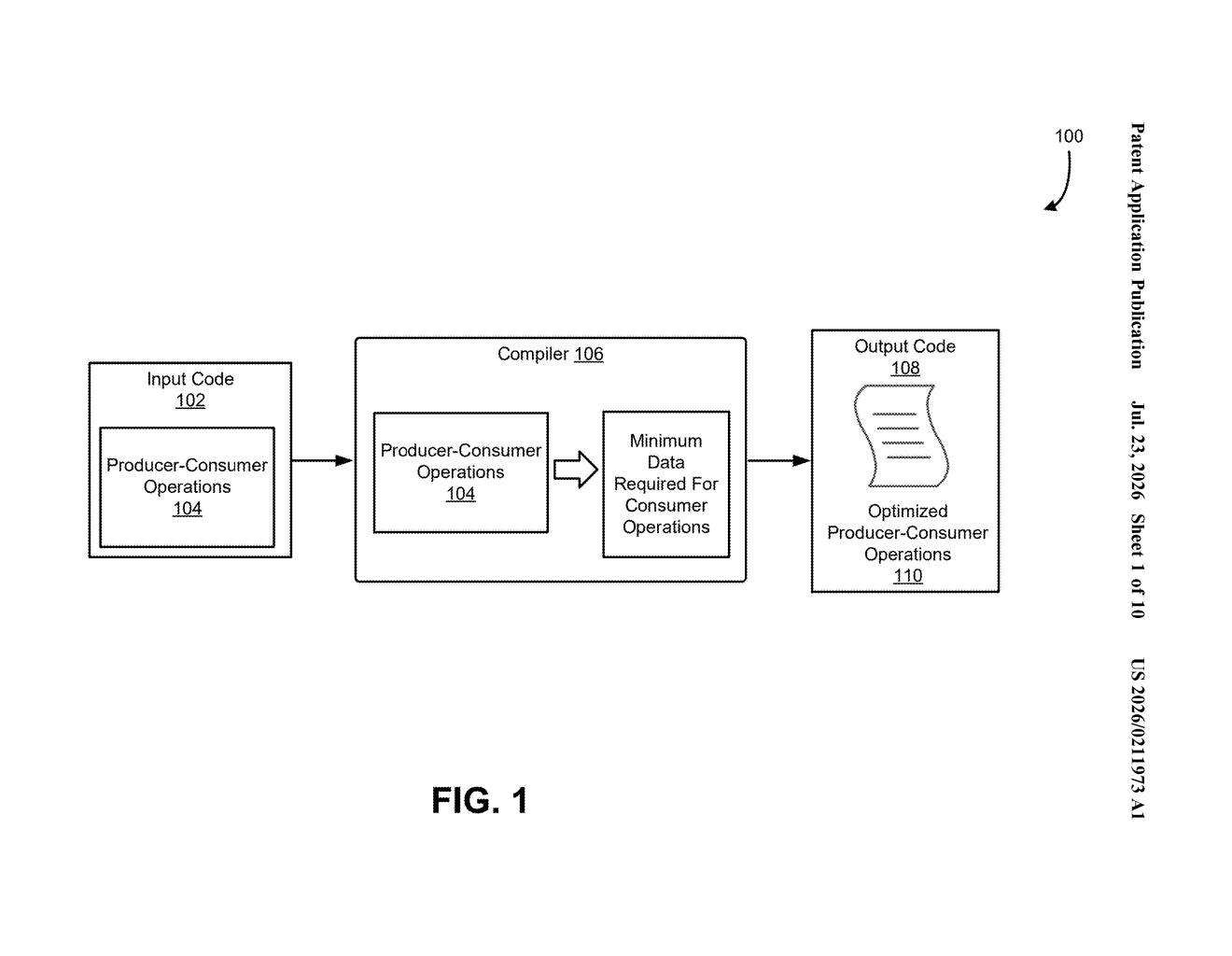

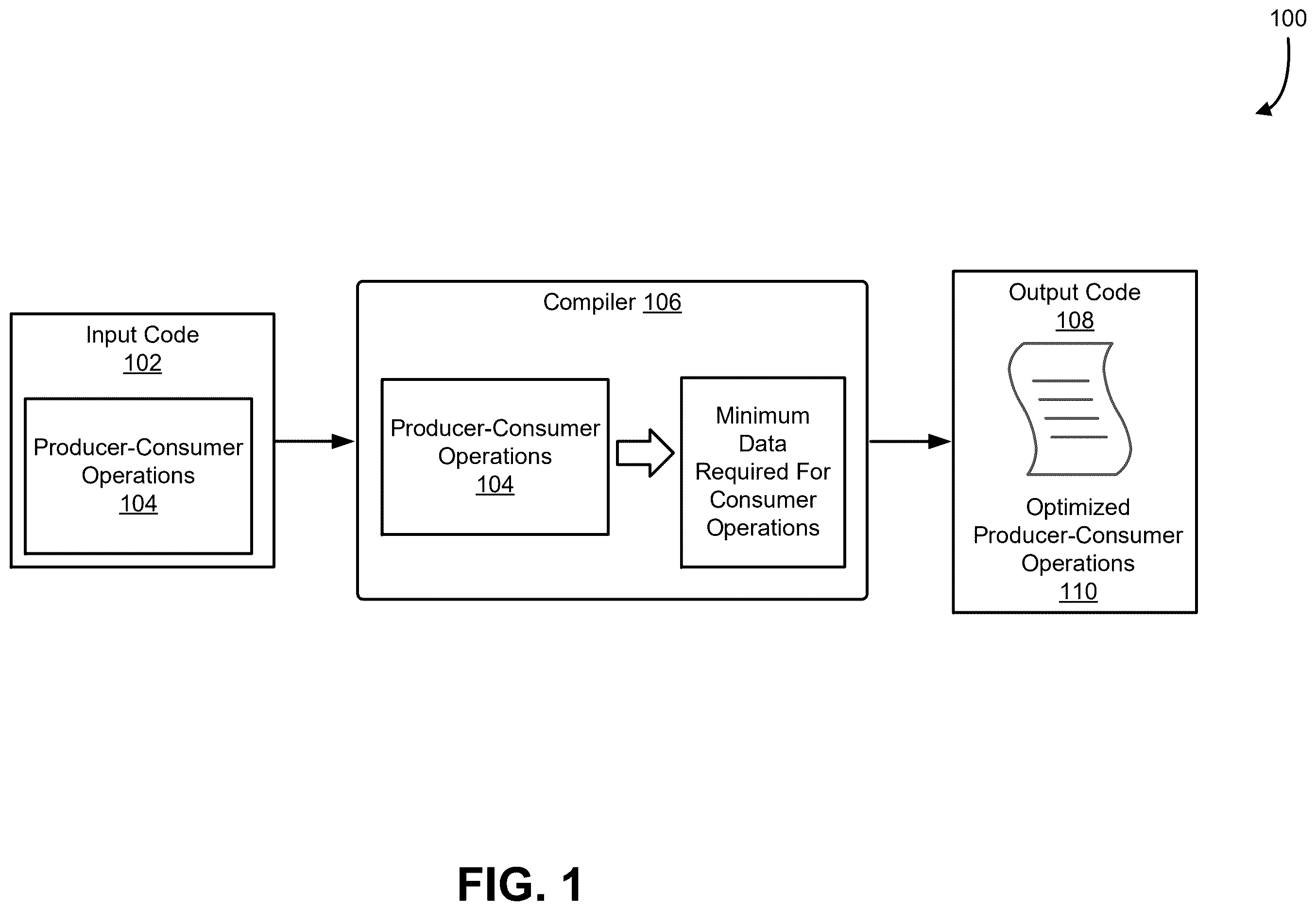

- Identifies thread groups from existing program code, so developers don't have to rewrite their software from scratch
- Creates multiple queues automatically between those groups
- Schedules compute operations on early-arriving data while later chunks are still traveling through remaining queues
The patent is written broadly enough to cover both within-chip transfers (between different blocks of GPU cores) and potentially transfers across chips or nodes in a larger AI cluster.
What this means for large AI training jobs
For large AI models, the time a GPU spends idle waiting for its next batch of data can eat into a significant share of total training time. This kind of overlap technique, where compute and data movement happen in parallel, is a well-known optimization goal, but patents in this area signal that Nvidia is baking it deeper into hardware and compiler infrastructure rather than leaving it to developers to hand-tune.
For you as an end user, this is invisible plumbing. But it's the kind of plumbing that could shave real time off AI training runs, which translate directly into cost for any company renting GPU hours in the cloud.
This is infrastructure-level engineering, not a flashy product announcement. But it's exactly the kind of work that keeps Nvidia's chips ahead on AI benchmarks without simply adding more cores. The overlap-compute-with-transfer idea isn't new in theory, but patenting a specific hardware and scheduling implementation is how Nvidia locks in an architectural edge.
