Nvidia Patents a Way to Manufacture Robot Training Images From Scratch
Training a robot to recognize objects normally requires thousands of real photos, taken in every possible lighting condition and angle. Nvidia's new patent describes a system that skips most of that by generating those photos using AI.
How Nvidia teaches robots without real-world photos
Imagine teaching a self-driving car to spot stop signs, but instead of driving around for months collecting footage, you just describe what you want and a computer draws it for you. That's roughly what this patent is about, applied to robots.

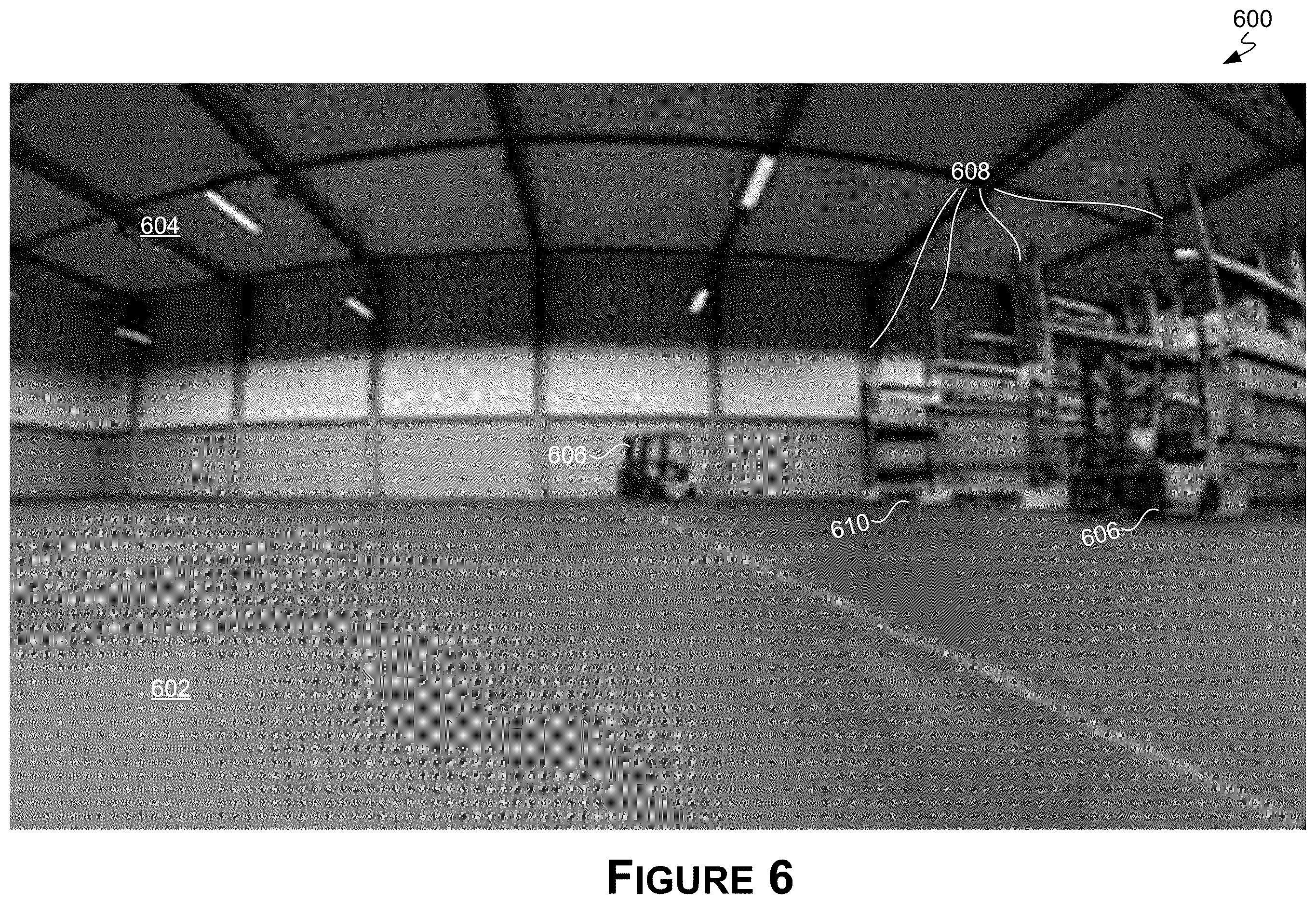

Nvidia's system takes a simple layout diagram (think: a rough sketch of a scene) and a text description, then uses an AI image generator to produce a photorealistic version of that scene. The robot can then train on those generated images as if they were real photographs.
The big payoff is scale. Collecting real-world training data is slow and expensive. If Nvidia's system works reliably, a robotics team could generate thousands of varied, realistic training scenarios in hours rather than months, covering rare situations that might almost never appear in the real world.
How the diffusion model turns a diagram into a photo

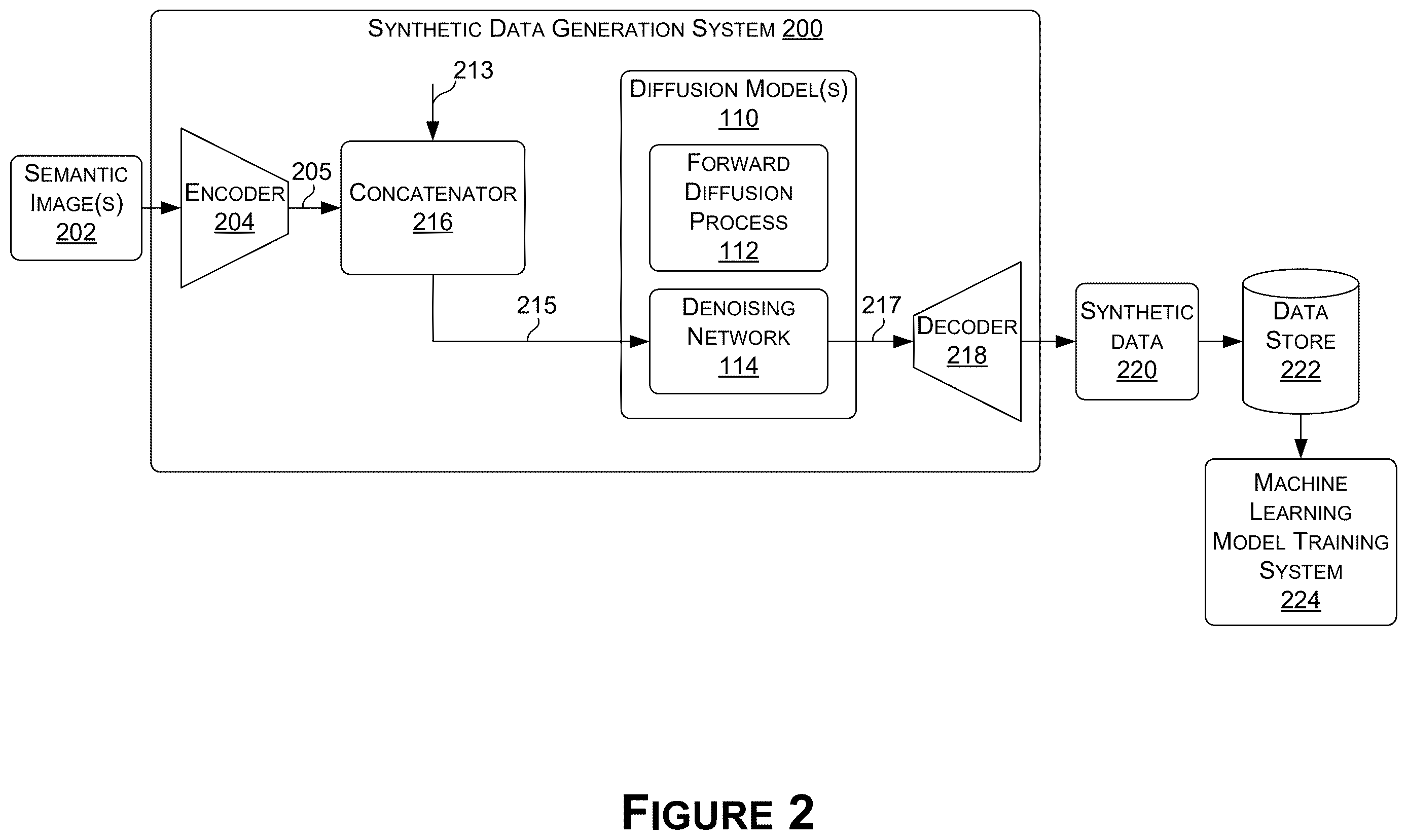

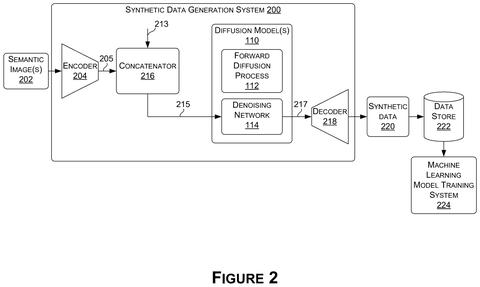

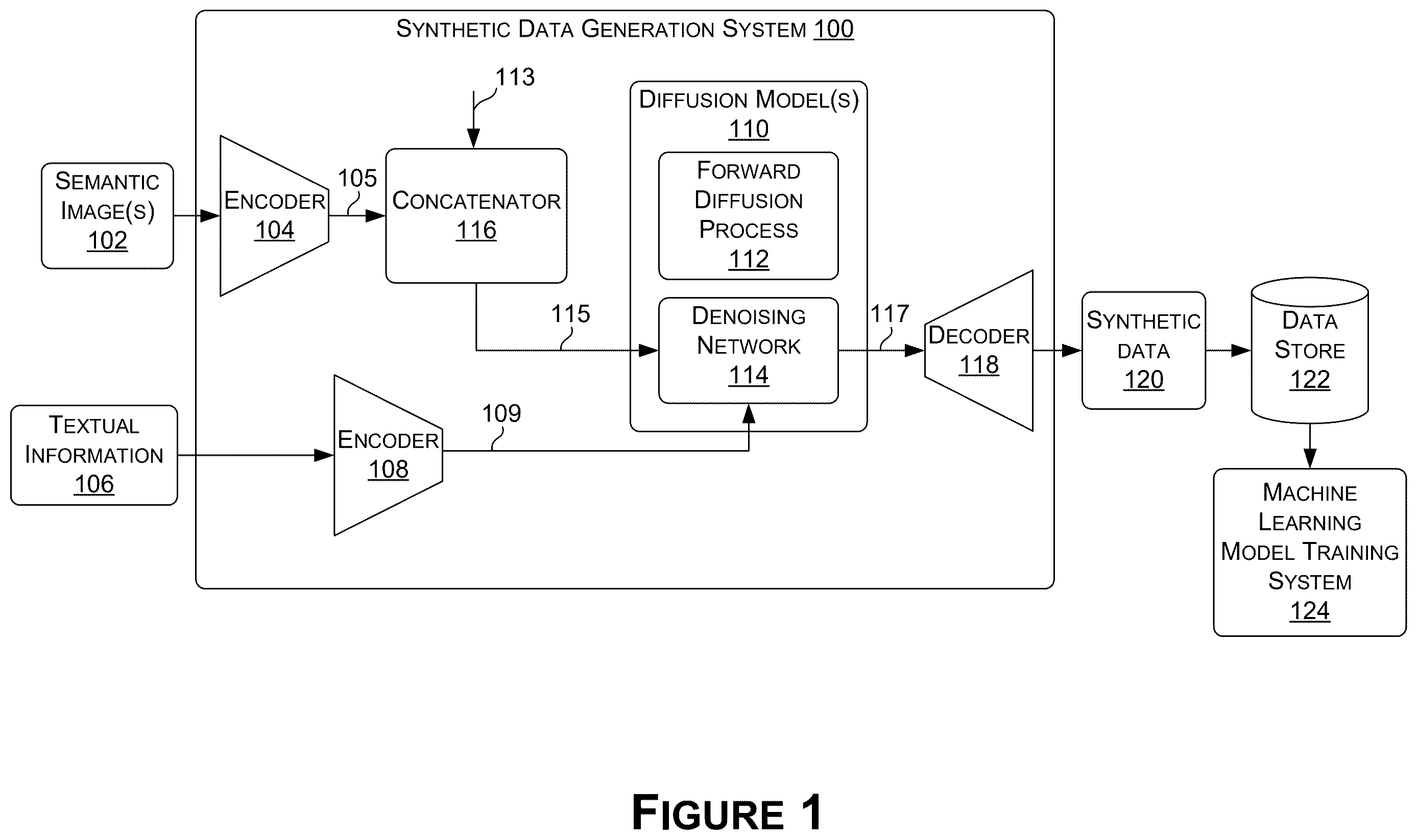

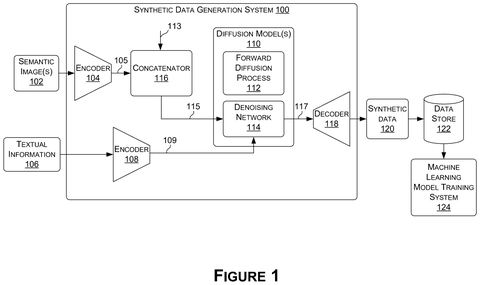

The patent describes a pipeline built around diffusion models (the same family of AI behind image generators like Stable Diffusion or DALL-E). The system takes two inputs:

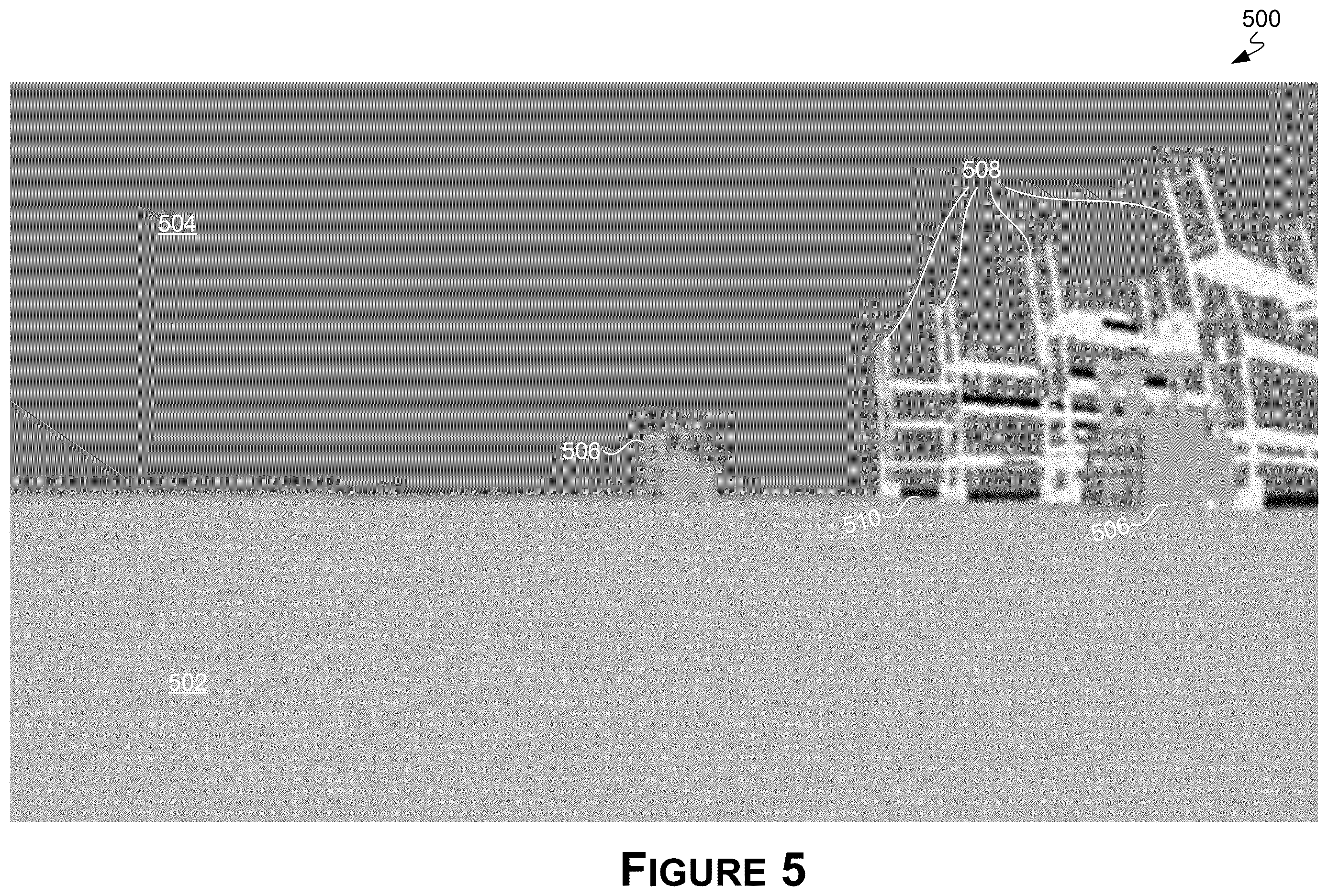

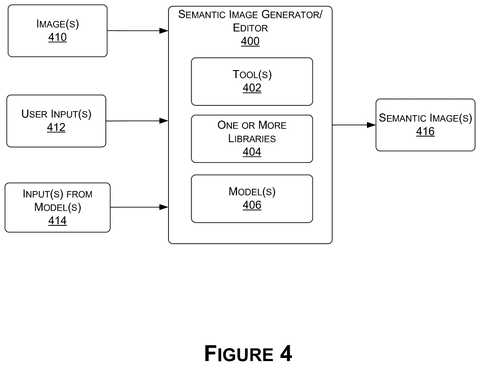

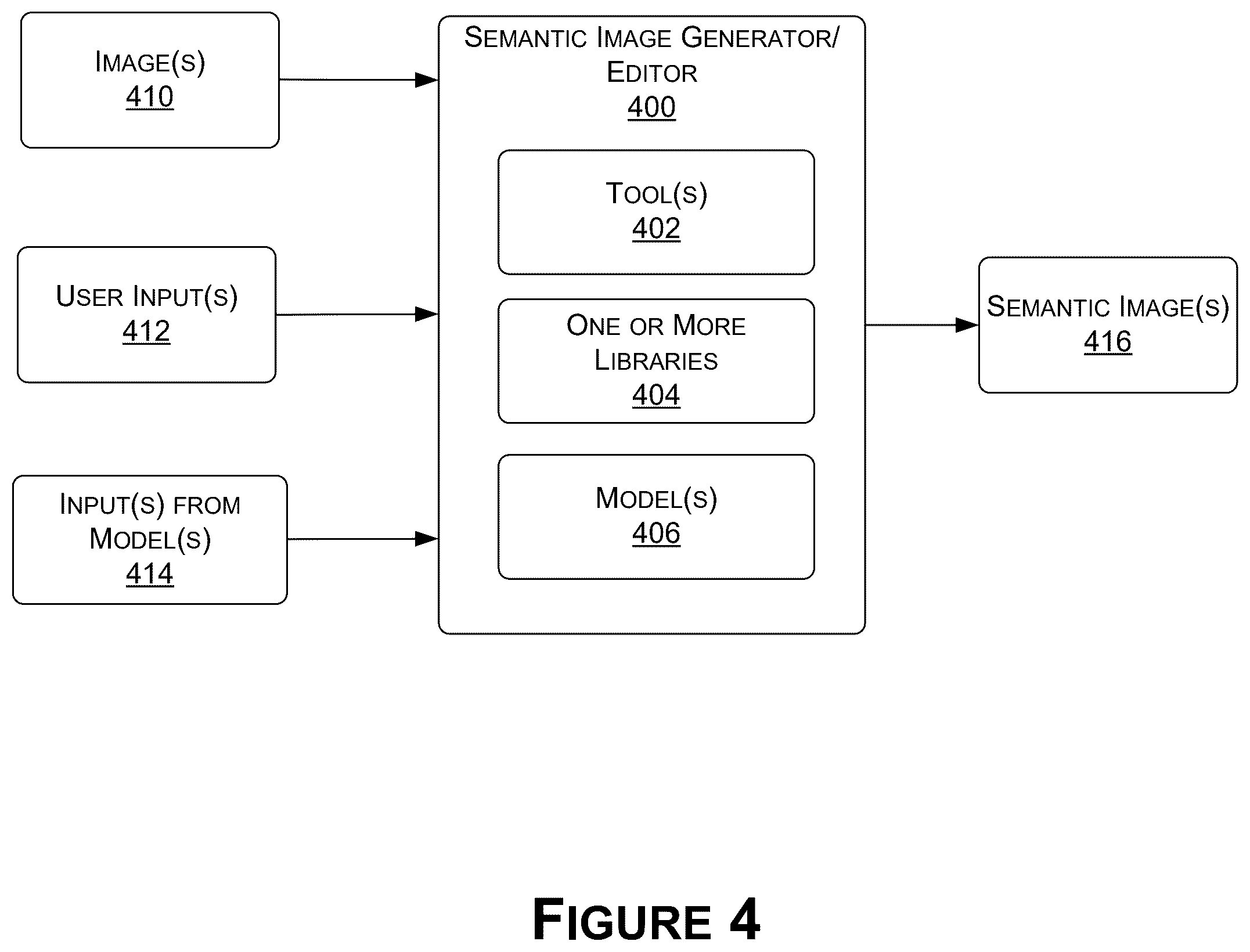

- A semantic image: a simplified map or diagram of a scene, where different areas are color-coded by object type (floor, table, robot arm, etc.)
- Text descriptions: written prompts that add context, like lighting conditions, surface materials, or object properties

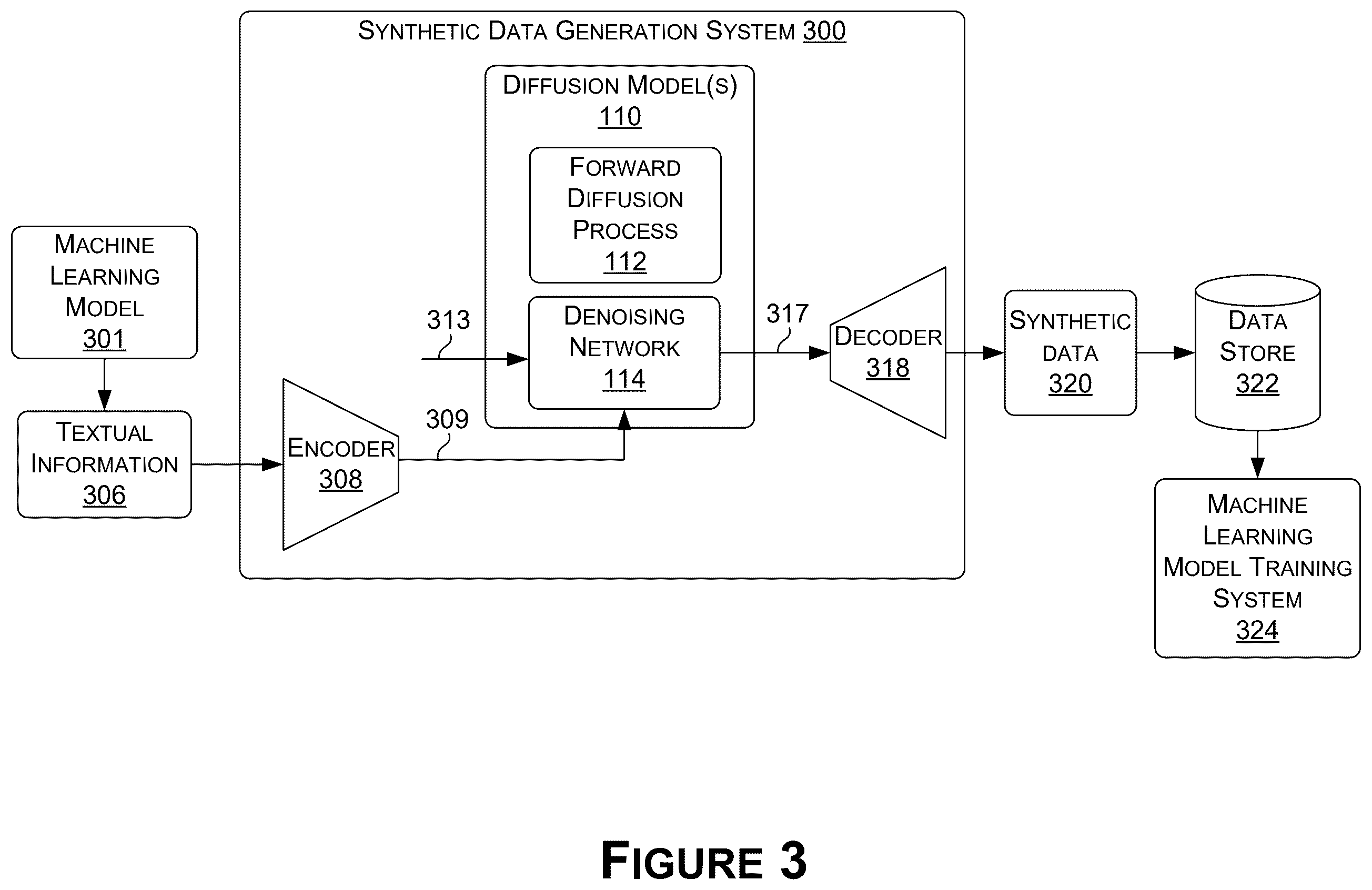

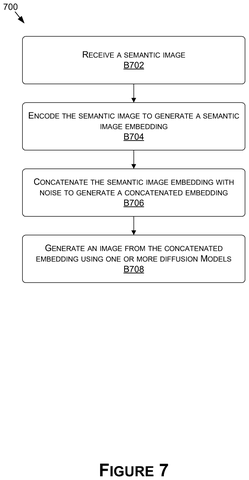

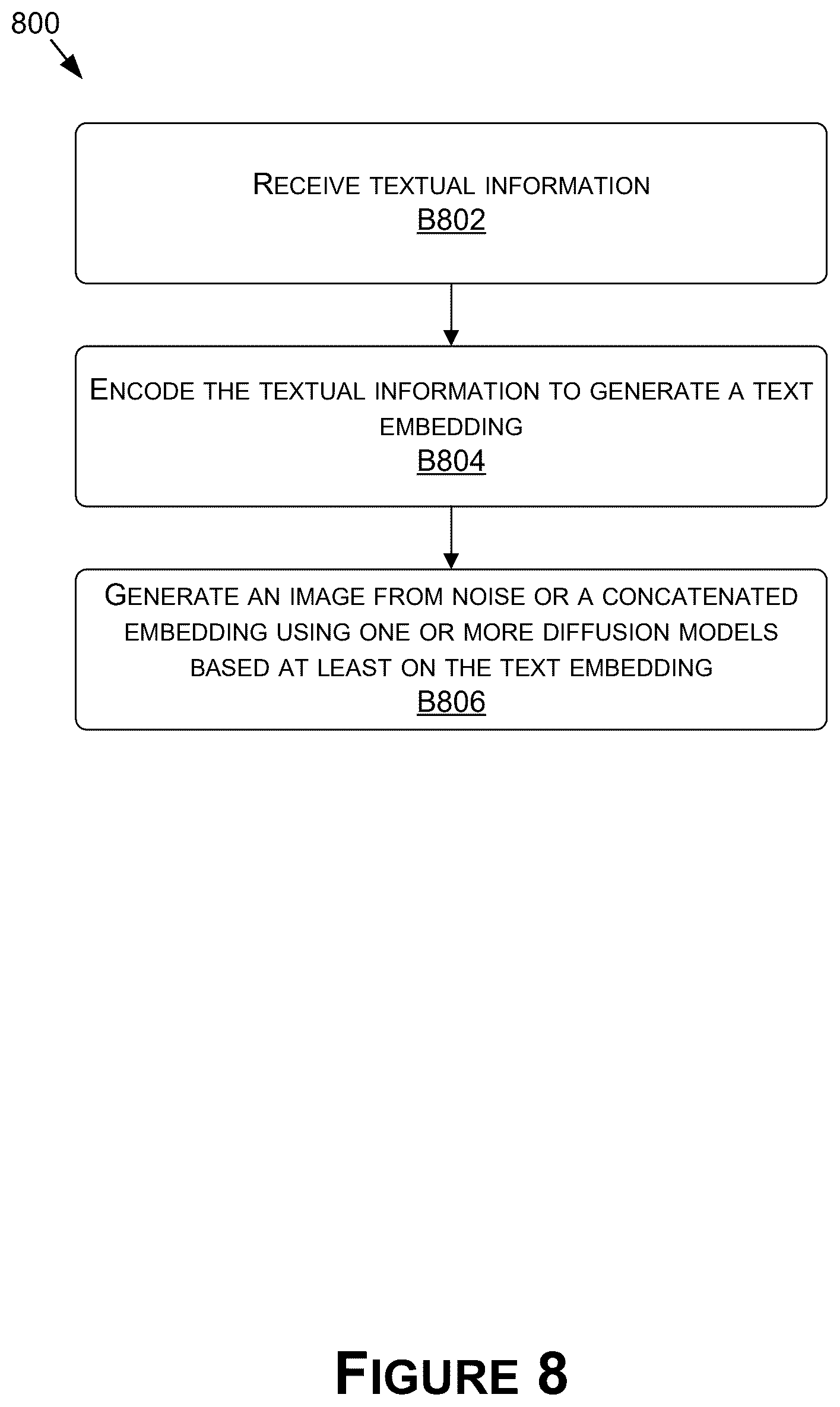

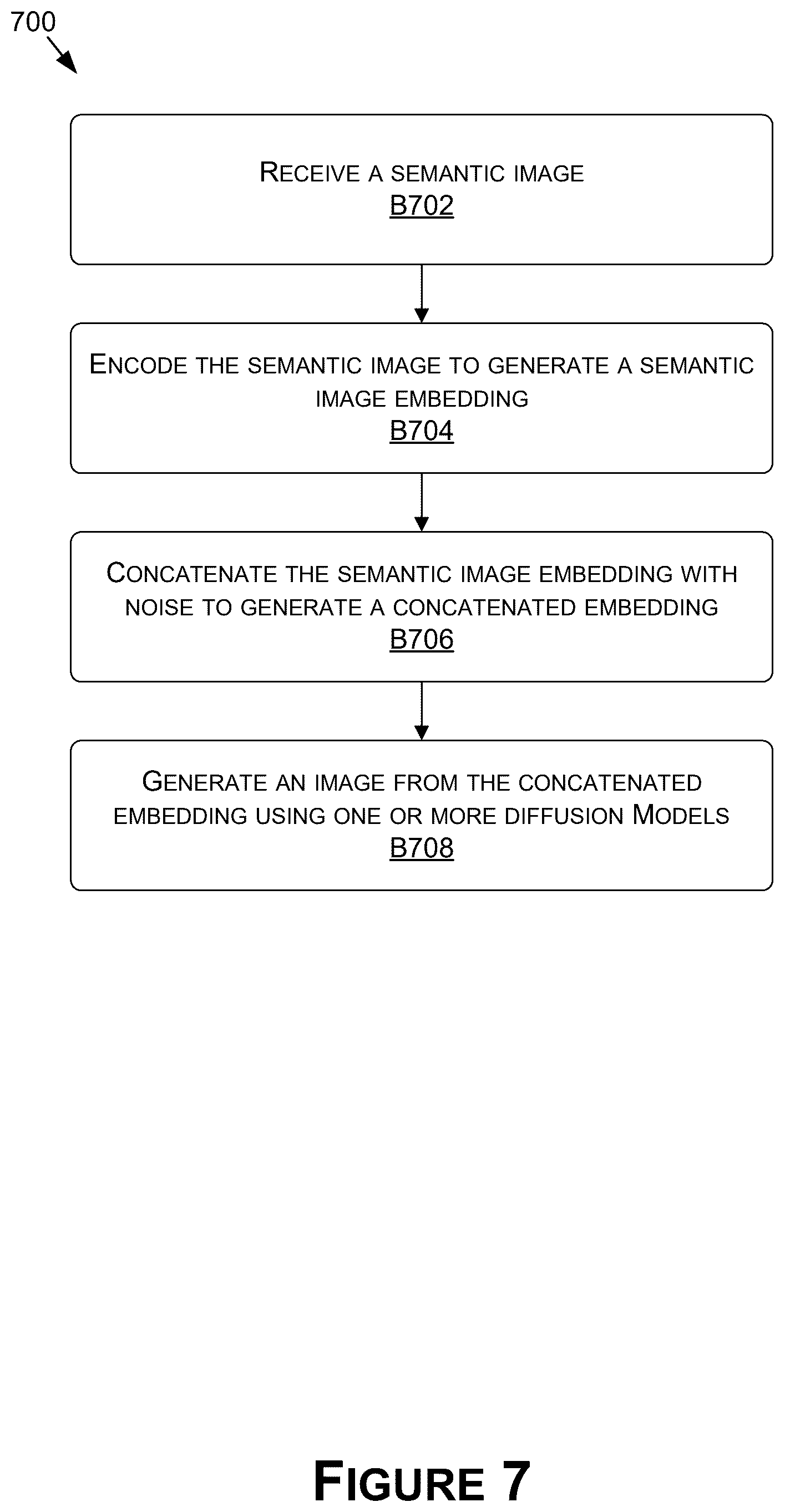

The semantic image is converted into a compressed numerical representation (an embedding), then blended with random noise. A denoising network (the core of the diffusion model) progressively cleans that noisy signal into a full photorealistic image, while being guided by the text embedding through cross-attention (a mechanism that lets the text steer which visual features the model focuses on at each step).
The generated images are then used to update the parameters of other neural networks, meaning the synthetic photos directly train downstream robot perception models. The diffusion model itself is trained on datasets of real images paired with their semantic diagrams and text labels, so it learns the mapping between simplified layouts and realistic appearances.
What this means for the cost of training physical robots
Collecting real training data for robots is one of the most expensive bottlenecks in the industry. Every new environment, lighting condition, or object variation ideally needs its own photos and labels. A system that can generate photorealistic, correctly labeled images from simple diagrams could dramatically lower the cost of building capable robots, and let teams test edge cases (a wet floor, an unusual box shape) without ever staging them physically.
For Nvidia, which sells the hardware and software platforms that power most serious robotics research today, owning a strong synthetic-data pipeline also means tighter control over the full training stack. If your customers generate their data on your platform, that's a significant lock-in.
This is a genuinely important area of robotics infrastructure, and Nvidia is smart to be filing here. Synthetic data generation is already a real practice in the industry, but doing it reliably and at scale for physical robot training remains hard. The specific combination of semantic layout plus text conditioning is a practical approach worth watching.
The drawings
10 drawing sheets from US 2026/0220826 A1 · click any drawing to enlarge
