Qualcomm Patents a Way to Stop Blurry Photos From Corrupting 3D Scene Maps
Every camera-based navigation or AR system has the same dirty secret: blurry, dark, or washed-out frames still get fed into the map. Qualcomm's new patent describes a way to measure how bad each image is and use that score to limit how much damage a bad frame can do.
How Qualcomm's system handles bad photos in 3D maps
Every time a robot, drone, or AR headset tries to build a map of its surroundings, it stitches together dozens or hundreds of camera frames taken from different angles. Most of the time, some of those frames are blurry, overexposed, or just plain dark. Right now, many systems treat every frame equally, so one bad photo can distort the whole map.
Qualcomm's patent describes a system that scores each incoming image for quality before it joins the map. Think of it like a spell-checker that flags uncertain words instead of silently leaving them in. The system extracts the visual content from each image, then separately calculates a "degradation score" for it, and uses both pieces of information together when building the final picture of the space.
The end result is a 3D representation of an environment where bad images contribute less and good images carry more weight. That kind of reliability matters most for devices that need to navigate or overlay graphics onto the real world in real time.
process a plurality of images of the environment to generate a respective plurality of image-feature tensors; process the plurality of image-feature tensors to generate a respective plurality of image-degradation tensors …
Translation: The system analyzes multiple photos of a space to figure out how blurry or degraded each one is.
How the degradation scores reshape the scene reconstruction

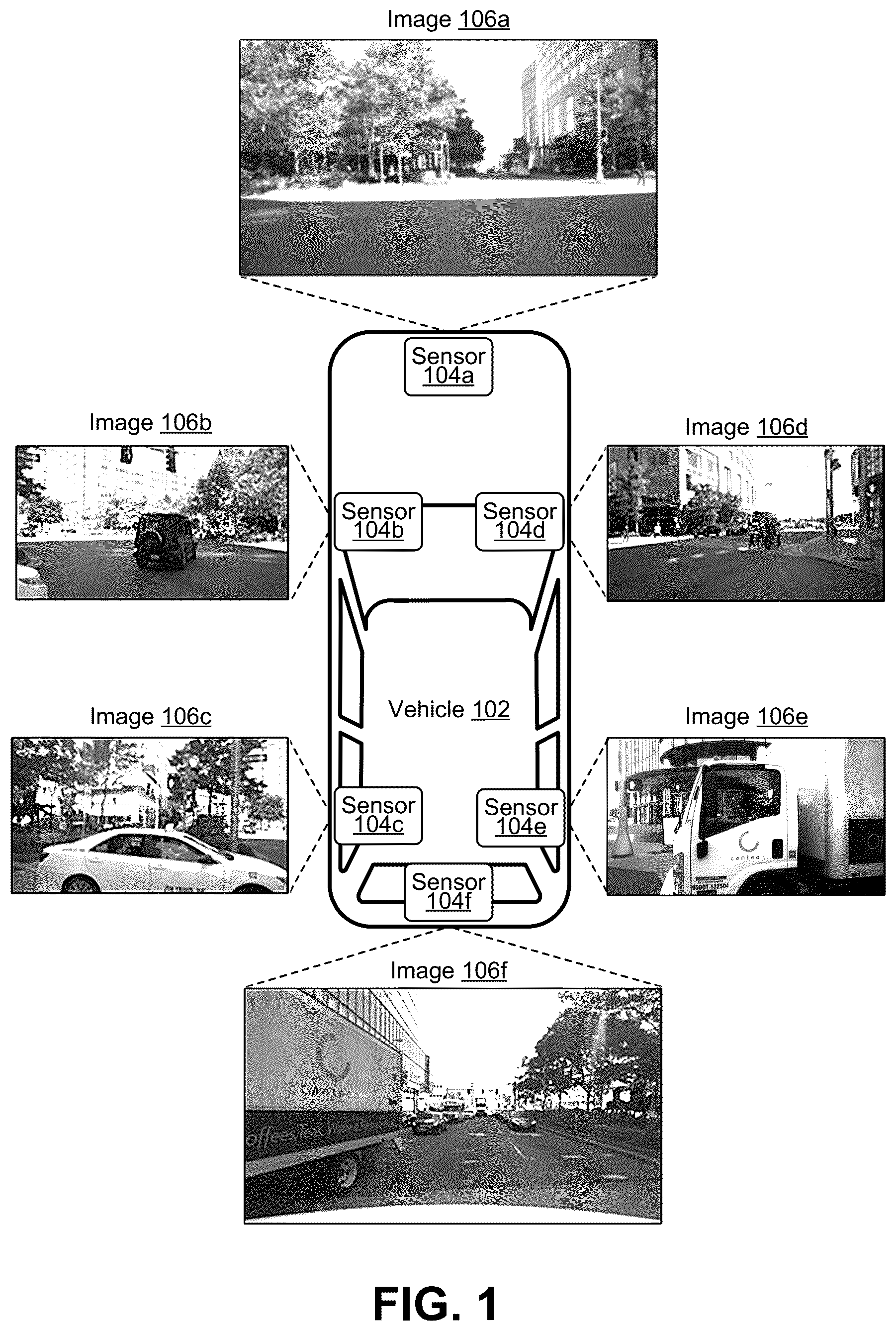

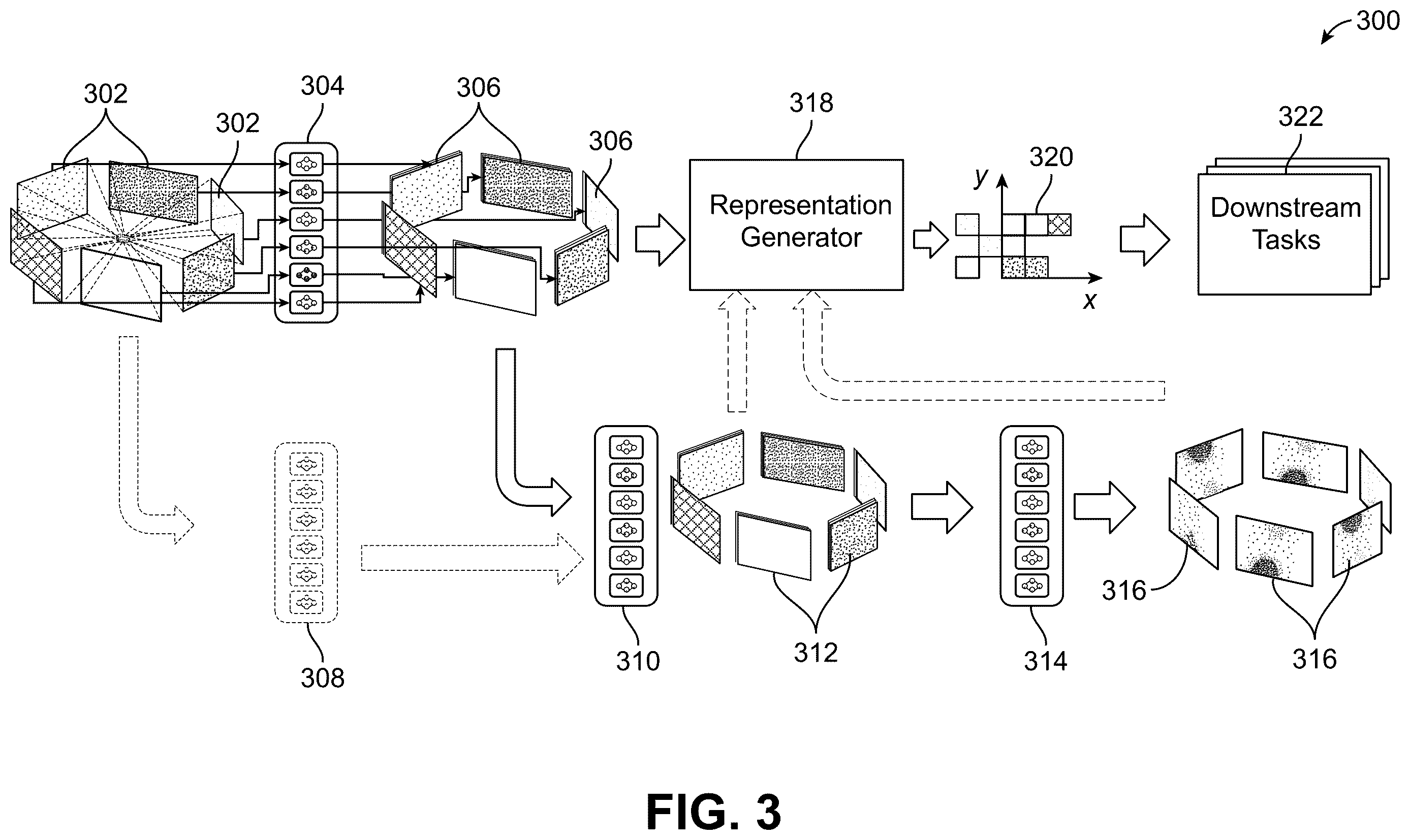

The patent describes a processor-based system that takes a batch of images captured from different viewpoints and runs them through two parallel analysis tracks.

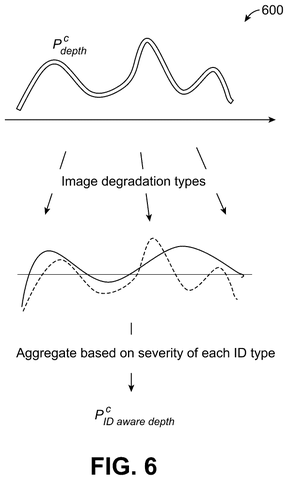

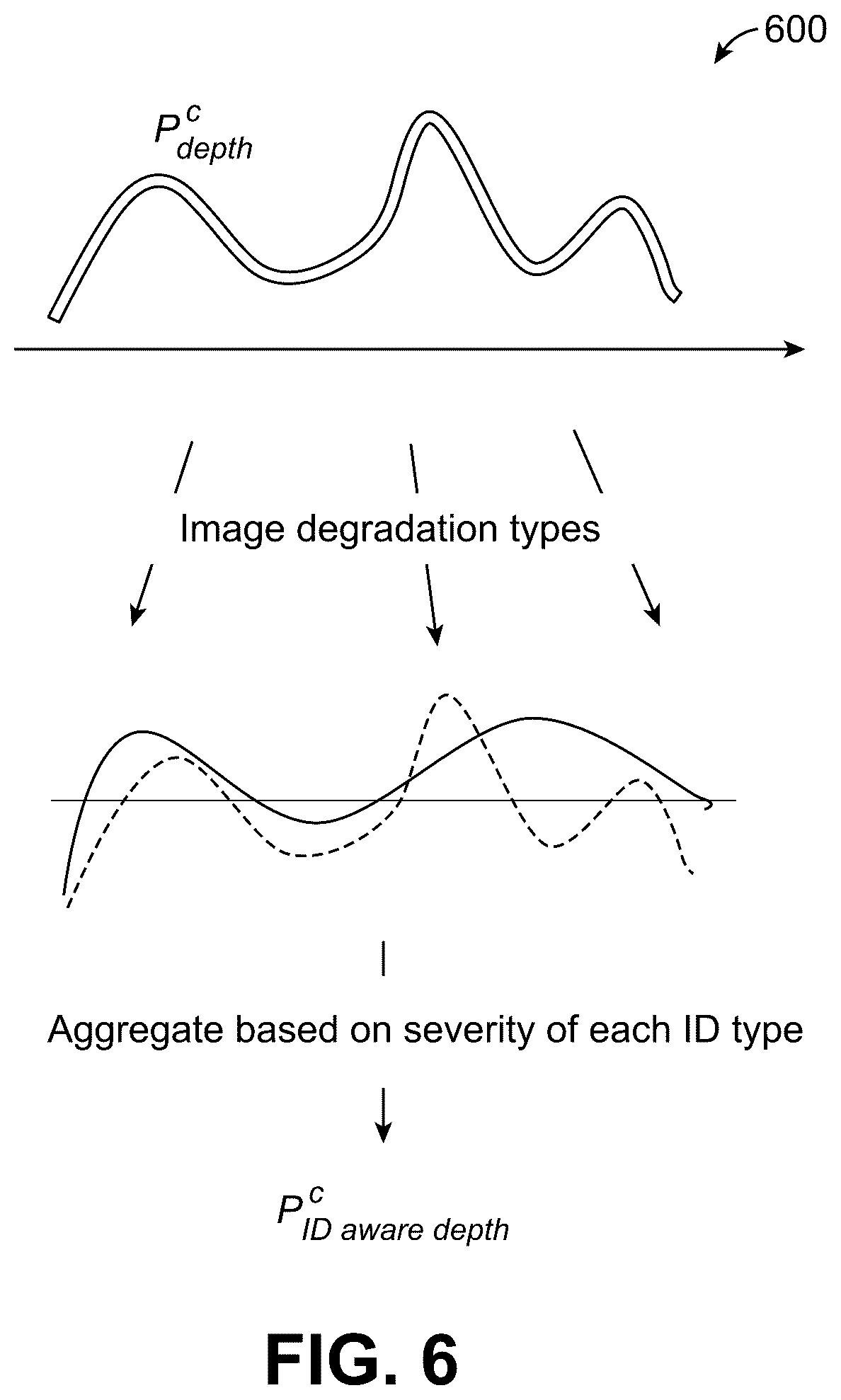

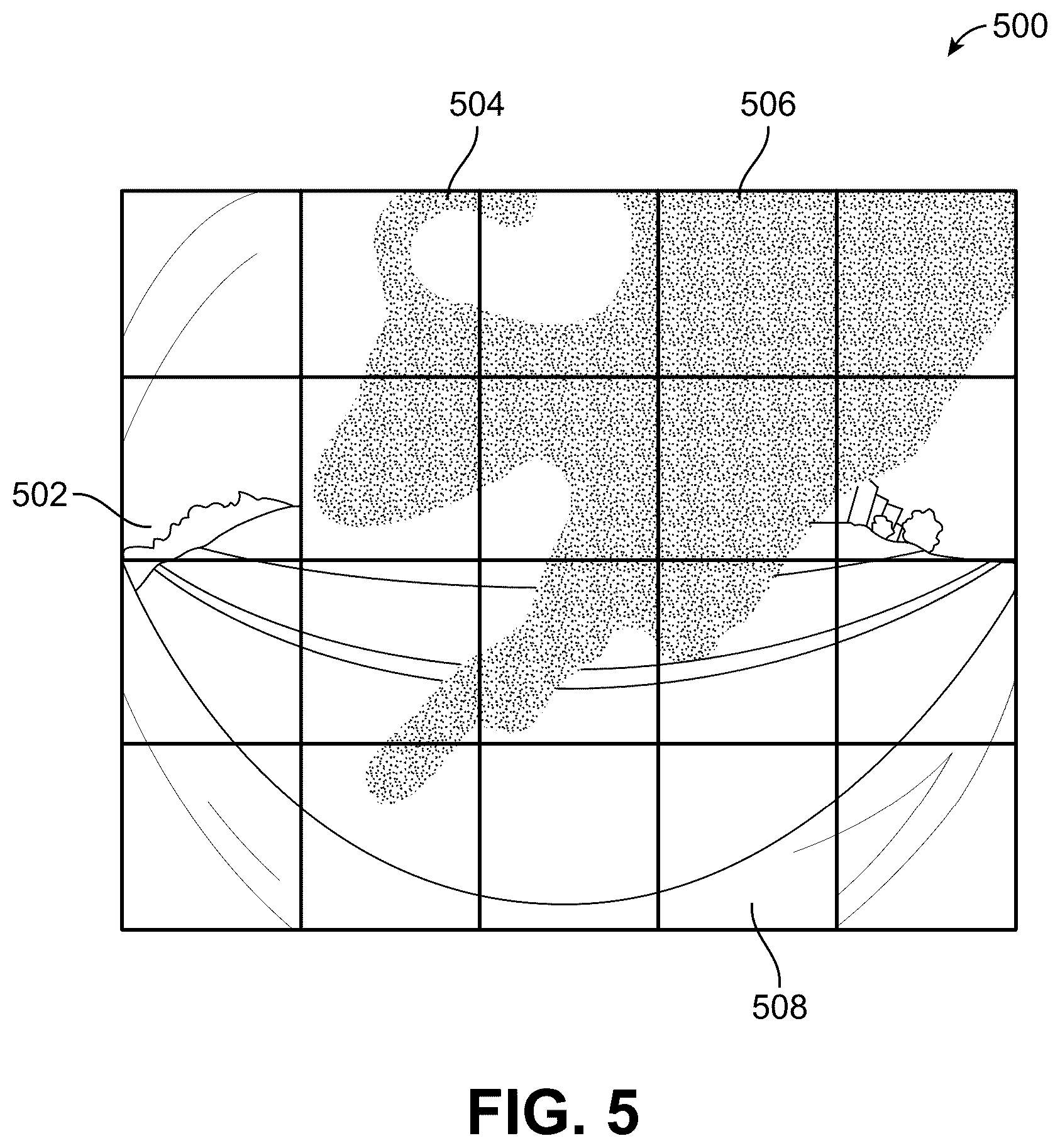

First, a neural network extracts image-feature tensors from each photo (a tensor here is just a structured grid of numbers that encodes what the camera saw: edges, colors, depth cues, and so on). Second, those same feature tensors are passed through a second network that produces image-degradation tensors, numerical maps that encode how much blur, noise, overexposure, or other quality problems are present in each frame.

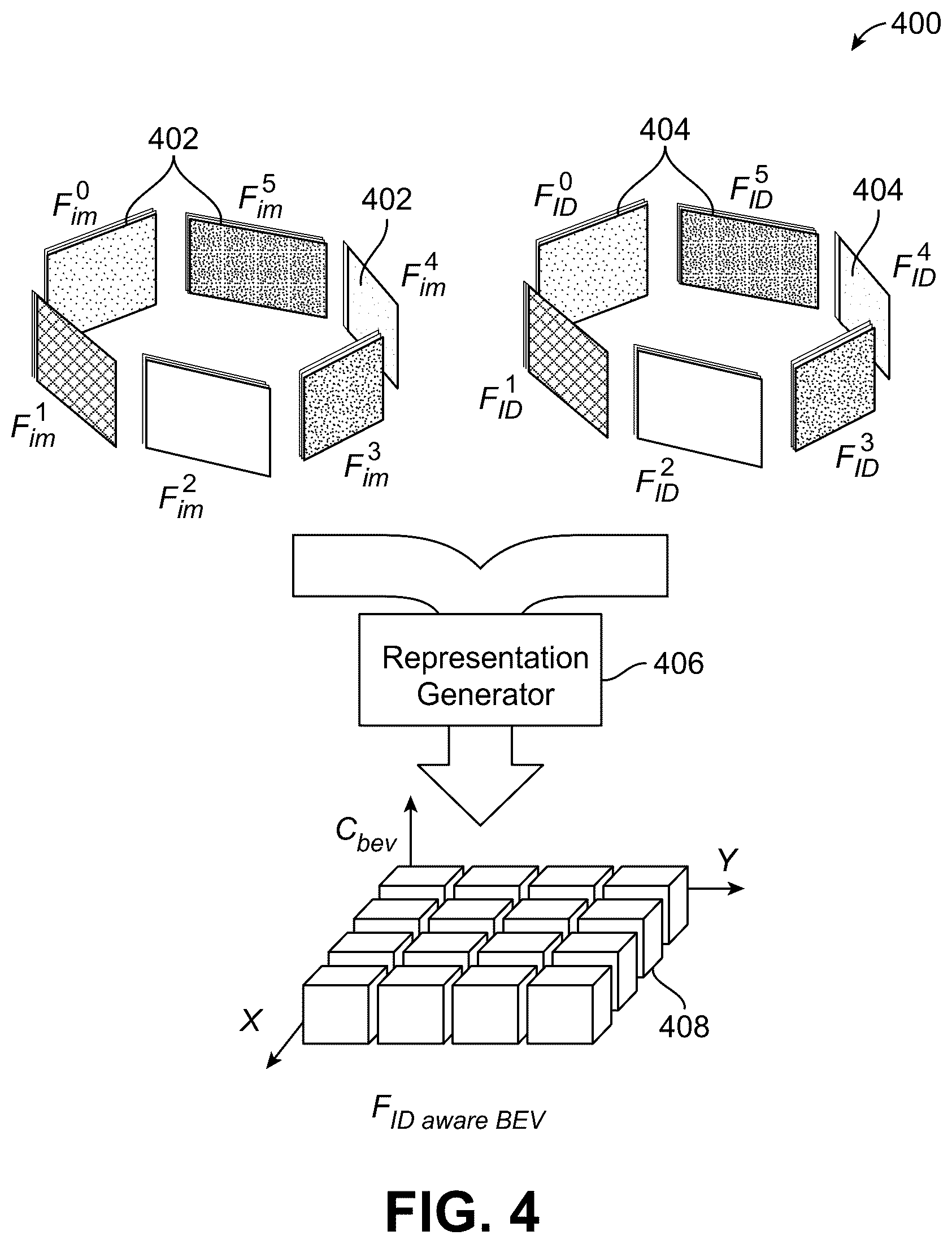

The key step is in how these two outputs are combined. Rather than simply averaging all the frames together, the system uses each image's degradation score to modulate how much that image influences the final 3D reconstruction. A sharp, well-lit frame gets a high-trust weighting; a motion-blurred or poorly exposed frame gets a low-trust weighting.
- Feature extraction: what the image shows
- Degradation scoring: how reliable that image is
- Weighted fusion: combining both to build the scene map
The architecture is designed to run on-device, which fits Qualcomm's chip business, since the whole pipeline would live on the application processor or a dedicated neural processing unit.
What this means for AR and self-driving camera systems
For AR glasses, robots, and self-driving cameras, a corrupted map isn't just an annoyance, it's a safety or usability failure. If a headset thinks a wall is a meter farther away than it is because two blurry frames skewed the reconstruction, virtual objects appear to float through solid surfaces. If a robot's navigation map has ghost obstacles from a bad exposure, it may freeze or take a wrong path.
Qualcomm makes the chips that power a large share of the world's Android phones, AR headsets, and connected cameras. Qualcomm's interest in on-device perception and scene understanding means this kind of quality-aware mapping could eventually land in a Snapdragon-powered device near you, though the filing covers the method, not a finished product.
Qualcomm's 45th filing we've tracked since July in the AR glasses race builds on their earlier work on image correction for headsets and a sound-guided camera focus.
The core idea is practical: when a phone or headset builds a map of a room, some of the photos it takes will be blurry or dark, and this method gives the system an explicit way to account for that, rather than hoping it works out on its own.
Getting this from patent to product is a relatively short road. It runs as software on chips that already exist in current devices, so no new camera hardware or exotic components are required. The main unknown is how much extra battery and processing power the quality-scoring step demands on a small, power-limited device, and the document does not settle that question.
For everyday users, the payoff lands in the background: AR overlays that stay anchored to the right spot on a wall, or indoor maps that do not suddenly glitch because the system captured a few bad frames. That is quiet, infrastructure-level work, but it is often what separates a feature that ships from one that disappears.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

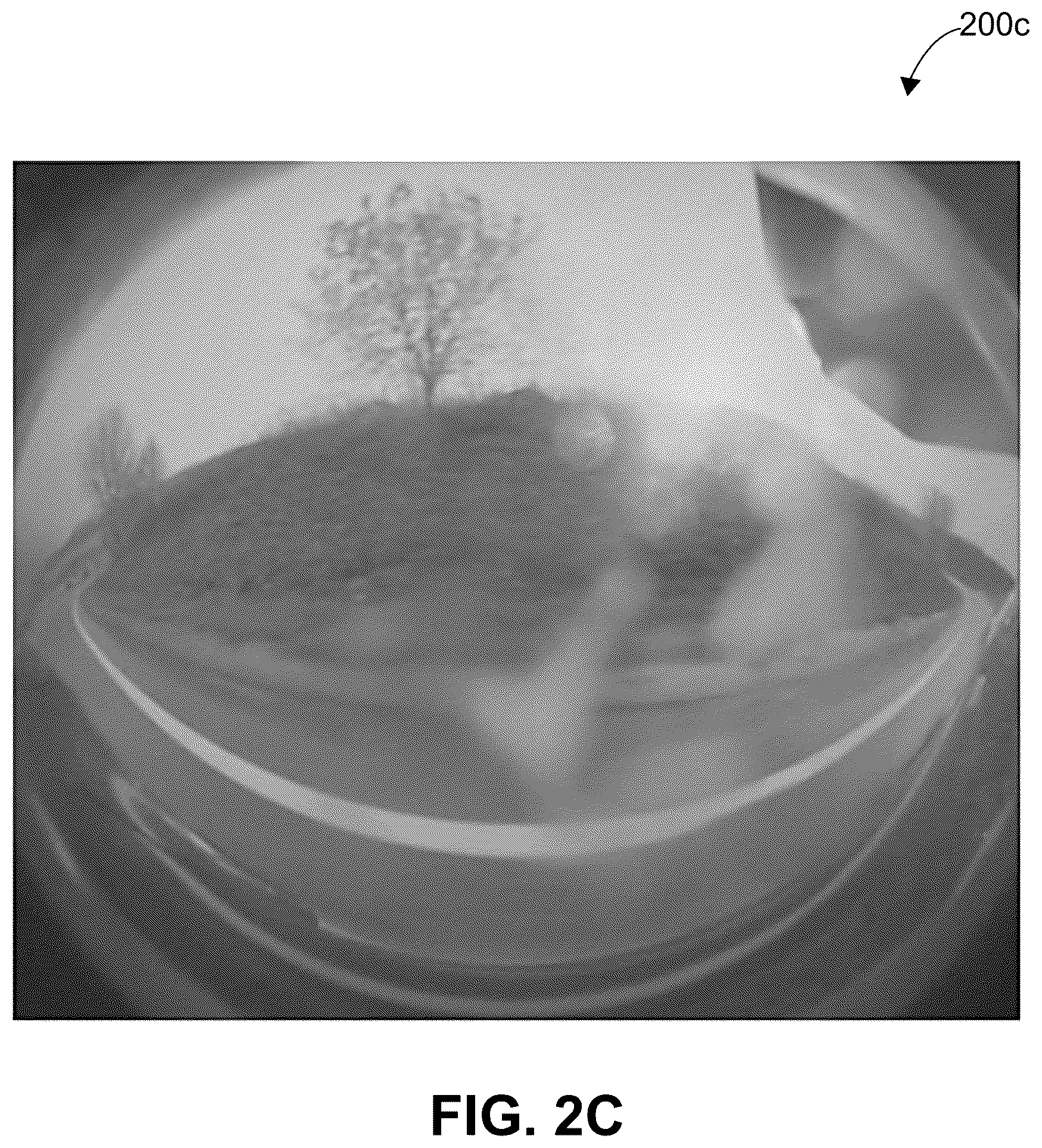

19 drawing sheets from US 2026/0290001 A1 · click any drawing to enlarge
