Sony · Chip · Filed Sep 12, 2025 · USPTO published Sep 10, 2026 · Sep 10 release

Sony Patents a Detection System That Spots Changes by Counting Light Pulses in Time Slots

Most cameras capture everything and sort it out later. Sony's new patent describes a sensor circuit that only triggers when something in a scene actually changes, by counting individual light particles arriving in precise time windows.

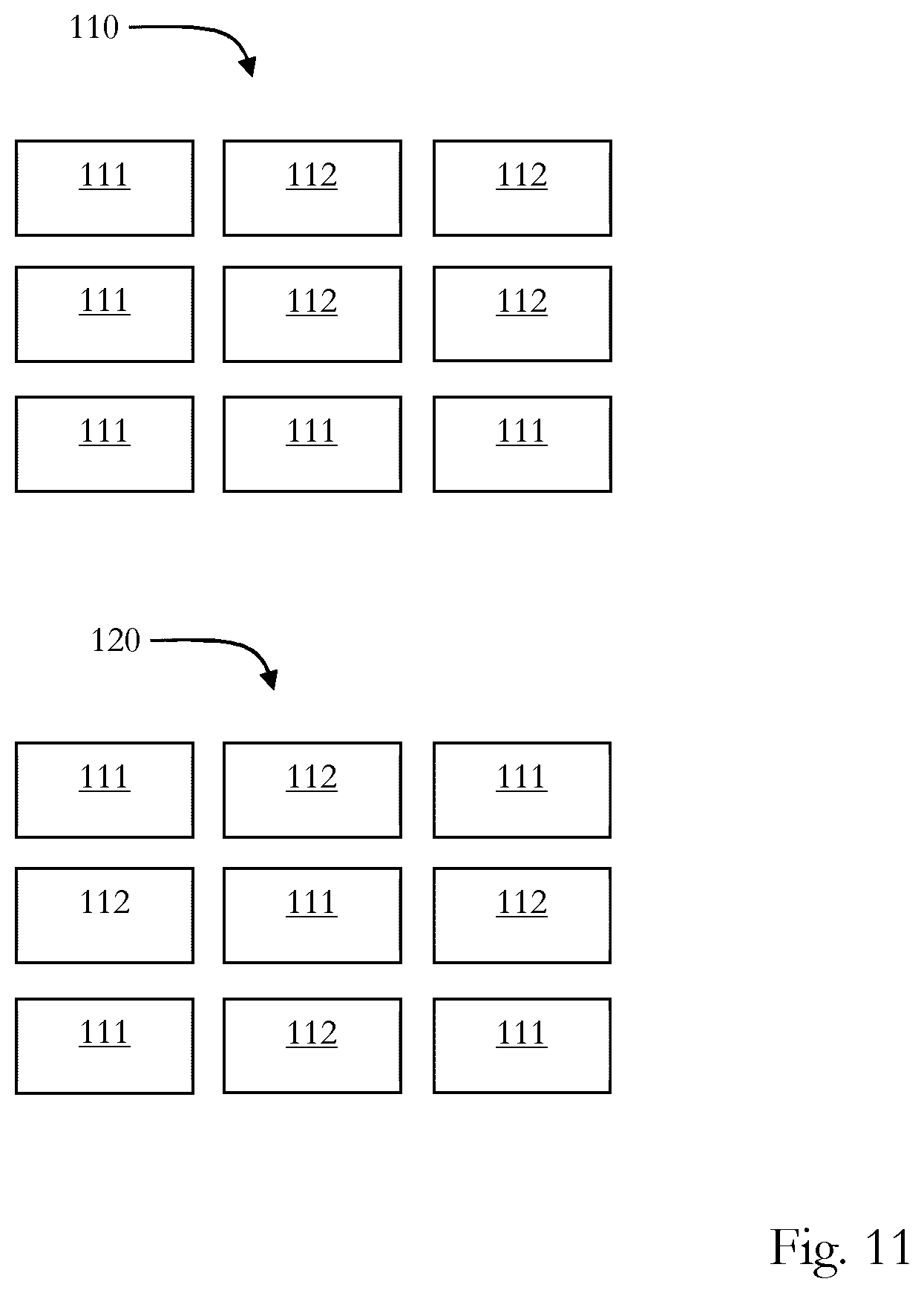

Two different arrangements of light-detecting pixels for a detection system. Drawing from patent filing US 2026/0270572 A1.
Two different arrangements of light-detecting pixels for a detection system.All 11 drawings ↓
Publication number
US 2026/0270572 A1(US20260270572A1)
Applicant
Sony Semiconductor Solutions Corporation
Filed · Published
Sep 12, 2025 · Sep 10, 2026
Inventors
Daniel VAN NIEUWENHOVE, Maarten KUIJK
Status when we published
Waiting for an examiner
Document
20 claims
US classification
348/295
Parent application
National Stage Entry of PCT/EP2024/058450 (filed Mar 28, 2024)(PCTEP2024058450)

What Sony's photon-counting event sensor actually does

Imagine you're trying to catch a hummingbird on camera. A normal camera films every quiet millisecond and then you scrub through hours of footage. A sensor built on this patent would stay silent until the hummingbird actually moves into frame, because it notices changes in light, not just light itself.

Here's the idea: the circuit counts individual photons (particles of light) hitting a tiny detector during a short time window. It then compares that count to the count from the last time something interesting happened. If the two counts differ by enough, it flags that as an event, meaning something in the scene changed.

This is called an event-based sensor, and it's a different philosophy from traditional cameras. Instead of delivering a flood of image frames every second, it delivers only the moments that matter, which can make downstream processing far lighter and faster.

From the filing · CLAIM 1
… associate the photon detection signal with a photon detection time period; and detect an event if, within a predetermined integration time period, a predetermined difference is detected between a number of associations of the photon detection signal with a photon detection time period and a number of associations of a previous event.

Translation: It flags a change when the count of timed light pulses shifts compared to the last recorded event.

How the circuit bins photons and compares burst counts

The patent describes circuitry built around a single-photon detection unit, a pixel-level sensor capable of registering individual photons. When a photon arrives, the circuit logs the detection and assigns it to a specific photon detection time period, essentially a short named slot in time.

Over a predetermined integration time period (a configurable window), the circuit accumulates a count of how many time-slot associations occurred. It then compares that count against the count stored from a previous event, which is the last moment the sensor decided something significant happened. If the difference between those two counts crosses a set threshold, a new event is declared.

The key components the claim covers include:

  • Obtaining a photon detection signal from a photo detection unit
  • Associating each signal with a specific time period (binning it)
  • Counting associations within an integration window
  • Comparing that count to the count at the last recorded event
  • Declaring an event when the difference is large enough

This is fundamentally a change-detection architecture rather than a frame-capture architecture. Instead of delivering a steady stream of full images, the circuit stays quiet and only speaks up when the photon arrival rate shifts meaningfully.

What this means for cameras that react instead of record

Event-based sensors are a serious area of interest for robotics, autonomous vehicles, and high-speed industrial vision, because they can react to changes in microseconds while ignoring static parts of a scene. A camera that only fires when something moves uses far less power and generates far less data than one recording everything at 60 or 120 frames per second.

Sony Semiconductor Solutions' steady investment in sensor architectures shows up here in the single-photon layer: building the event logic directly around photon-level detection, rather than analog pixel voltage, could allow this approach to work in very low-light conditions where traditional event cameras struggle. For your everyday camera or phone, the practical effect would be faster, more efficient scene-change detection without draining the battery on pixels that didn't change.

This is the 37th Sony filing in our chip coverage we've tracked since May, adding to work like one on self-correcting LiDAR and one on AI chip memory.

Source: US 2026/0270572 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Sony patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 11 sheets

11 drawing sheets from US 2026/0270572 A1 · click any drawing to enlarge

Light pulse detection system., drawing sheet 1 from US 2026/0270572 A1
Sheet 1 Light pulse detection system.
Light pulse processing unit., drawing sheet 2 from US 2026/0270572 A1
Sheet 2 Light pulse processing unit.
Light pulse detection system., drawing sheet 3 from US 2026/0270572 A1
Sheet 3 Light pulse detection system.
SPAD power and output., drawing sheet 4 from US 2026/0270572 A1
Sheet 4 SPAD power and output.
Photon detection timing., drawing sheet 5 from US 2026/0270572 A1
Sheet 5 Photon detection timing.
Light pulse detection system., drawing sheet 6 from US 2026/0270572 A1
Sheet 6 Light pulse detection system.

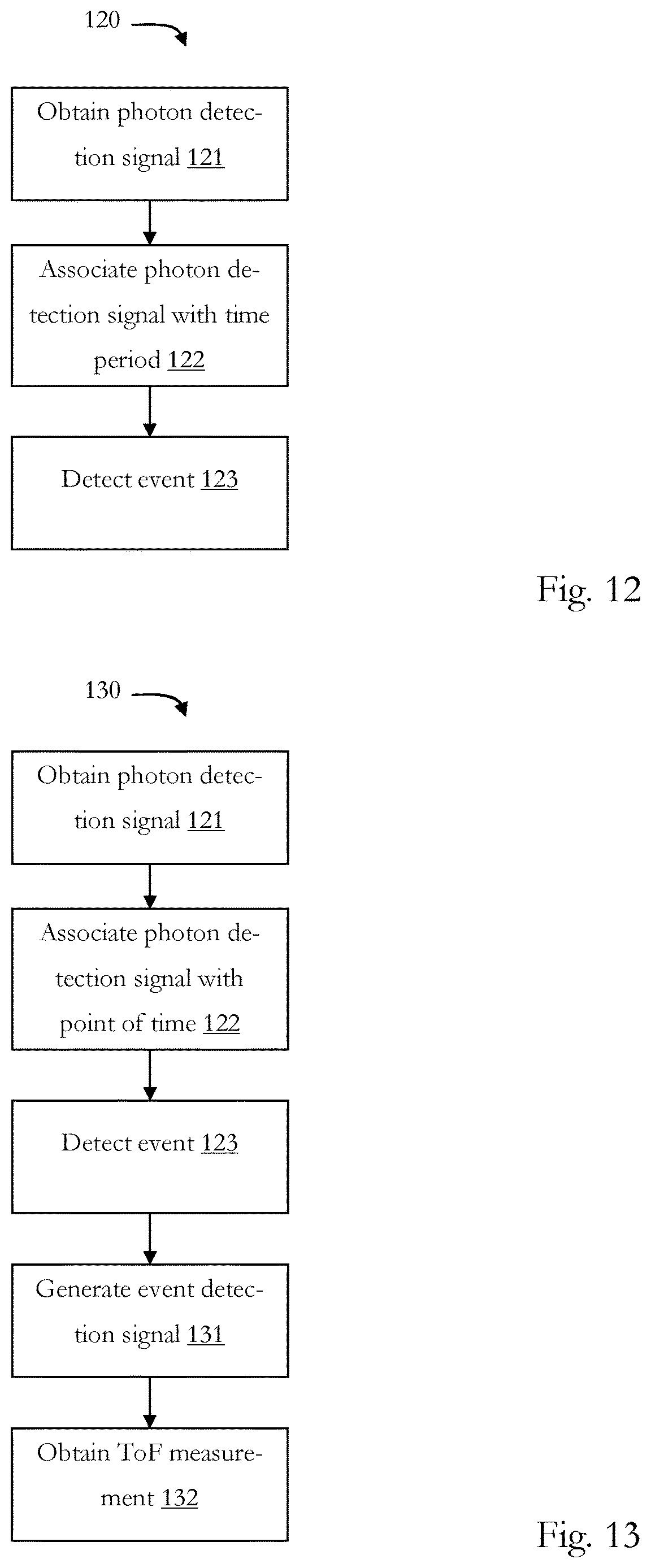

Event detection process., drawing sheet 7 from US 2026/0270572 A1
Sheet 7 Event detection process.
Sensing mode flowchart., drawing sheet 8 from US 2026/0270572 A1
Sheet 8 Sensing mode flowchart.
Show the other 3 sheets
Sony Patents a Detection System That Spots Changes by Counting Light Pulses in Time Slots patent drawing, sheet 9
Sheet 9
Sony Patents a Detection System That Spots Changes by Counting Light Pulses in Time Slots patent drawing, sheet 10
Sheet 10
Sony Patents a Detection System That Spots Changes by Counting Light Pulses in Time Slots patent drawing, sheet 11
Sheet 11
