Microsoft Patents a Cooling System That Pushes Air Through Stacked Blocks in Three Directions

Cooling a modern chip is less like running a fan and more like solving a plumbing puzzle. Microsoft's new patent tries to solve that puzzle with a heat sink built from snap-together cells that route coolant in three directions at once.

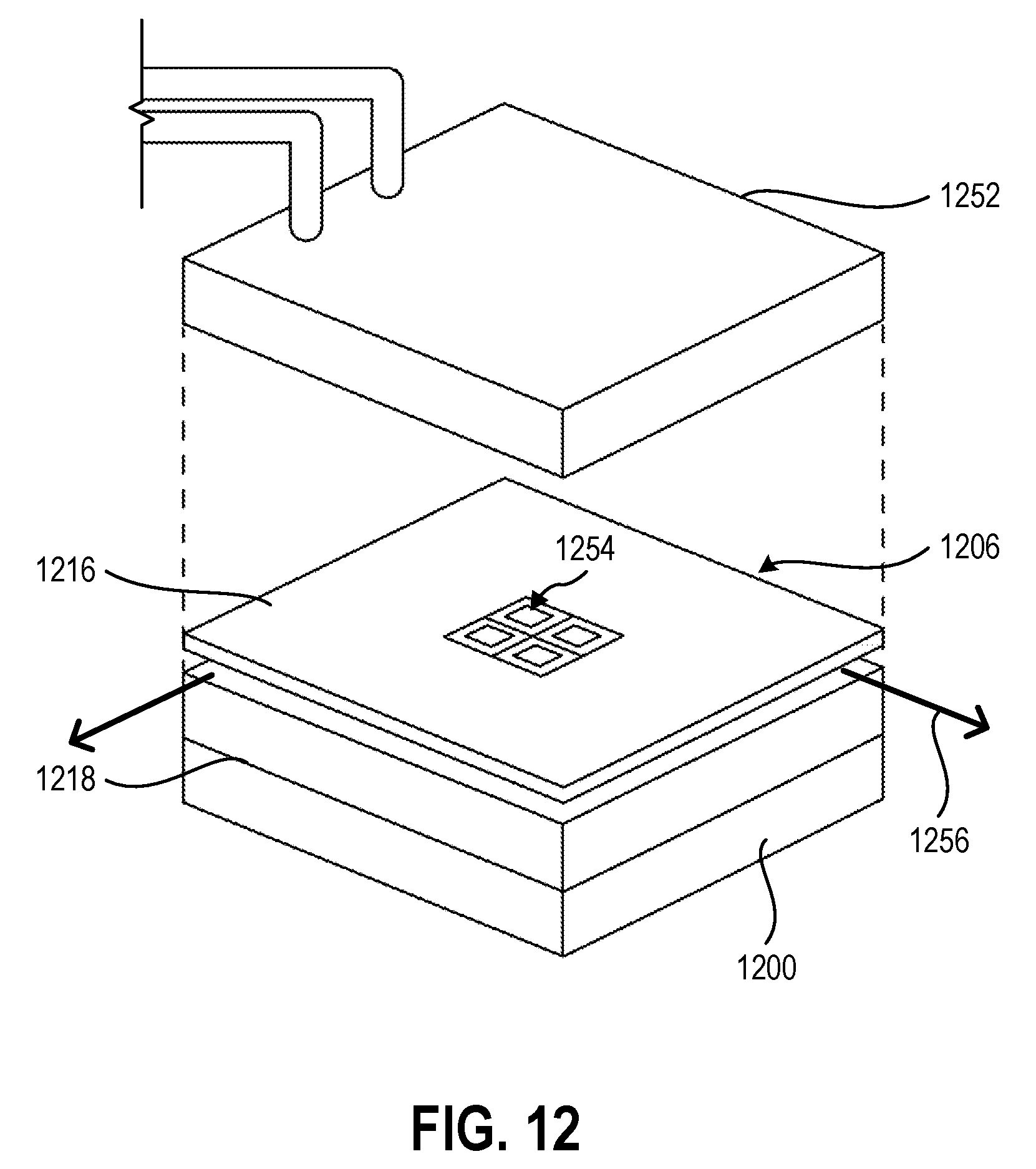

An exploded view of a cooling system with a heat sink and an electronic device, showing coolant flow. Drawing from patent filing US 2026/0262196 A1.
An exploded view of a cooling system with a heat sink and an electronic device, showing coolant flow.
See all 11 drawings from this filing ↓
Publication number US 2026/0262196 A1
Applicant Microsoft Technology Licensing, LLC
Filing date Apr 30, 2025
Publication date Sep 3, 2026
Inventors Oscar FARIAS MOGUEL, Erin Elizabeth HURBI, Alexis Grace SCHUBERT, Dennis TRIEU
CPC classification 165/80.3
Grant likelihood Medium
Examiner CENTRAL, DOCKET (Art Unit OPAP)
Status Docketed New Case - Ready for Examination (May 17, 2025)
Parent application Claims priority from a provisional application 63765133 (filed 2025-02-28)
Document 20 claims

What Microsoft's interlocking heat-sink cells actually do

Ever noticed how a hot laptop throttles and slows down right when you need it most? Heat is the enemy of fast electronics, and the basic metal fins that have cooled chips for decades are struggling to keep up with today's densely packed processors.

Microsoft's patent describes a heat sink made of many small, identical building blocks it calls "dissociated unitary cells." Each cell has a base, walls, a top surface, and a set of internal fins. Stack them together and the fins guide a cooling fluid (think water or refrigerant) not just left-to-right or up-and-down, but through all three dimensions at once.

The payoff is that coolant can reach hot spots that a flat, two-dimensional cooling plate would simply miss. The modular design also means you could scale the heat sink by adding or removing cells, rather than machining a whole new part from scratch.

From the filing · CLAIM 1
a plurality of dissociated unitary cells adjacent to one another, wherein each of the dissociated unitary cells includes: a base supporting a body having at least one sidewall, a top surface, and a plurality of fins to direct a cooling fluid through the body …

Translation: The cooling block is made of many separate small units packed together, each using tiny fins to guide airflow.

How the fins and cell walls create a 3D cooling path

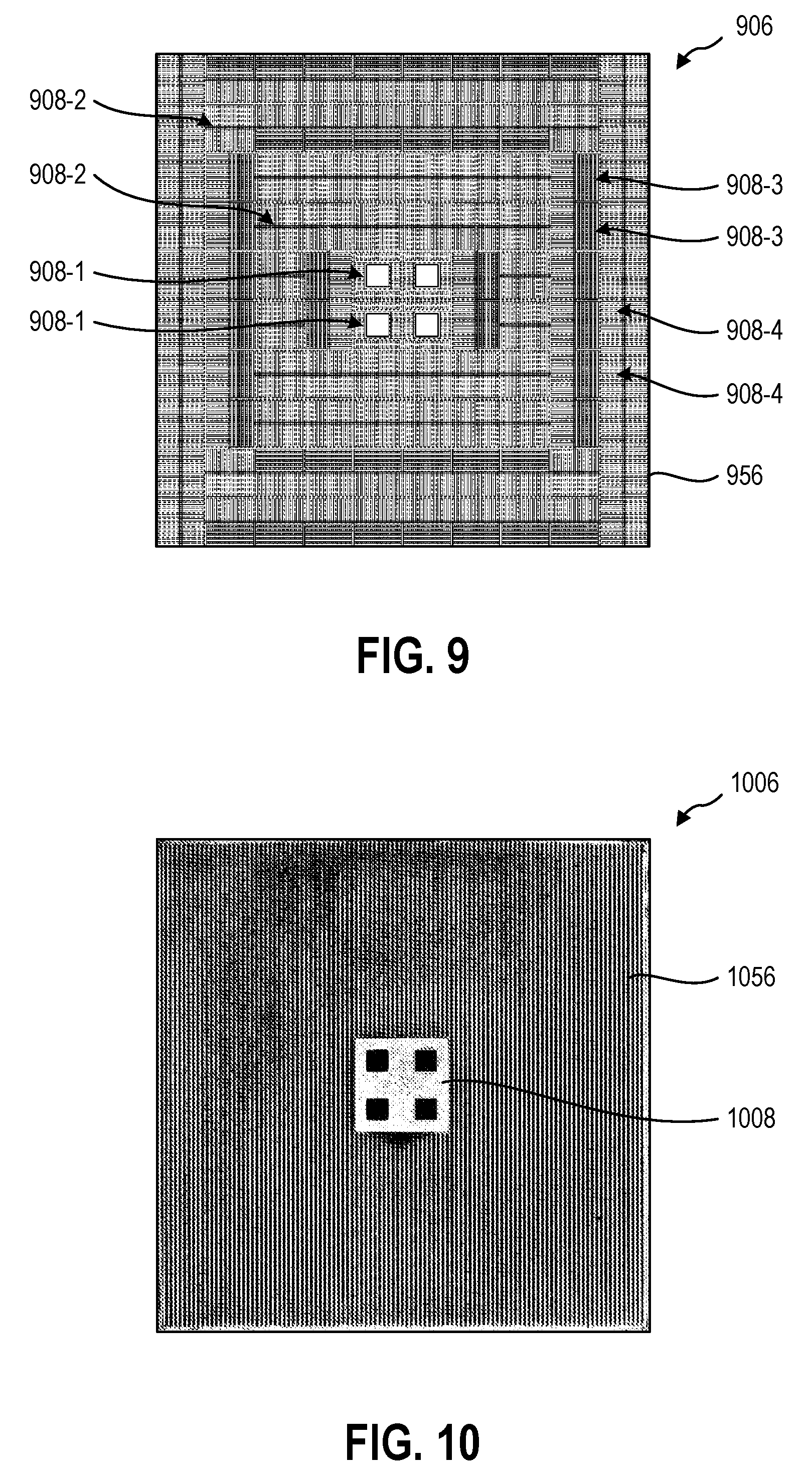

The patent describes a heat sink composed of multiple dissociated unitary cells (think of each cell as a small, self-contained cooling block) placed side by side. Each cell shares the same structure: a flat base, at least one sidewall that forms the body, a top surface, and internal fins.

The fins are the key part. In a conventional heat sink, fins are flat blades that channel air or liquid in one direction. Here, the fins are arranged so the cooling fluid is forced along a three-dimensional flow path as it travels from cell to cell. That means the fluid moves forward, sideways, and vertically rather than along a single straight channel.

  • Base: anchors each cell to the chip or heat-spreading plate below.
  • Sidewalls and top surface: form a sealed pocket that keeps the fluid on the intended path.
  • Fins: act as internal baffles (deflectors) that redirect the fluid in three dimensions.

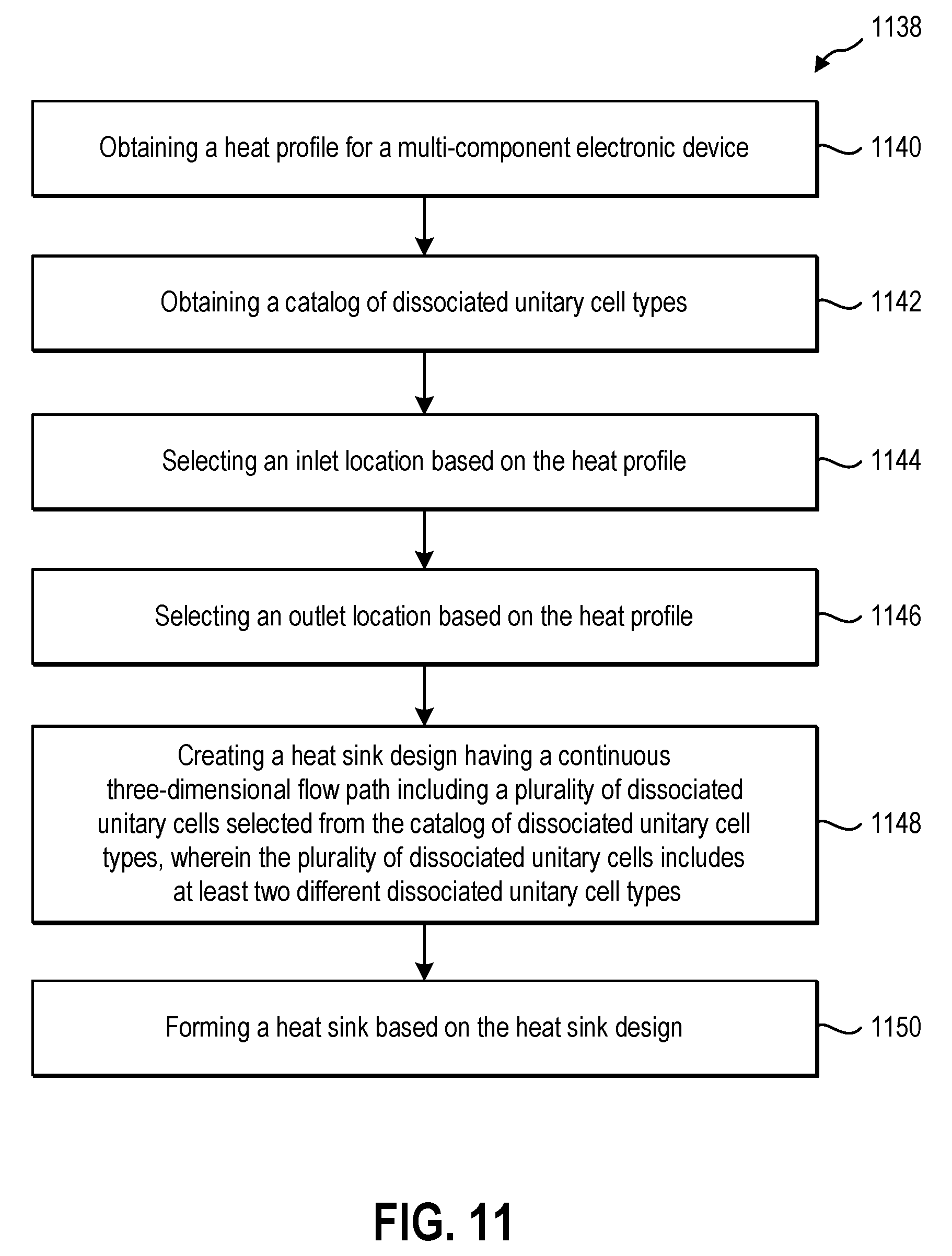

Because the cells are modular and uniform, the heat sink can be extended or reconfigured without a full redesign. The three-dimensional flow path increases the surface area the fluid touches and can direct coolant toward the hottest zones of a chip rather than spreading it evenly and inefficiently.

From the filing · THE ABSTRACT
A dissociated unitary cell may include a plurality of fins to direct a cooling fluid through the body in a three-dimensional flow path through the plurality of dissociated unitary cells.

Translation: Each individual block uses a set of fins to force cooling air to move in three different directions at once.

What this means for dense servers and hot chips

For everyday users this is mostly invisible, but it has a direct effect on how fast your computer can run without slowing itself down to avoid overheating. As processors pack more computing power into smaller spaces, flat cooling solutions can't move heat away fast enough. A three-dimensional flow path is one answer to that wall.

For data centers and AI servers, the stakes are higher. Racks of chips running machine-learning workloads generate enormous heat, and cooling accounts for a large fraction of operating costs. Microsoft's investment in data-center thermal research suggests the company is treating heat management as a long-term infrastructure problem, not just a component spec. A modular, scalable heat sink that performs better in tight spaces could translate to denser, cheaper server racks.

This is the 12th Microsoft filing we've tracked in AI chip wars since July, building on one about memory-access speed rules and one about cross-chip data fetching.

Editorial take

Forcing cooling fluid through a winding, three-dimensional path pulls out more heat, but it also makes the fluid harder to push. Every extra turn adds resistance, which means the pump works harder and burns more energy doing it. Whether the cooling gain is worth the pumping cost depends on the exact shape of the fins, and this patent keeps those specifics vague.

The modular cell design is the stronger idea. A cooler built from repeating, swappable units means a data center can replace one damaged piece instead of pulling the whole system, which is a real, measurable cost saving.

The honest limit here is that both advantages sit or fall on geometric details the patent declines to quantify. The concept is sound; the proof is in the measurements nobody has shared yet.
