Sony Patents a LiDAR Sensor That Catches Its Own Timing Errors
LiDAR sensors measure distance by timing how long a laser pulse takes to bounce back from an object, but if the internal clock drifts even slightly, every measurement is wrong. Sony's new patent describes a sensor chip that monitors and corrects those timing errors on its own.
What Sony's self-correcting distance sensor actually does
Every time a self-driving car or delivery robot scans its surroundings, it fires tiny laser pulses and waits for the echo. The gap between firing and receiving tells the system exactly how far away each object is. If that timing slips, even by a tiny fraction of a second, distances come out wrong, and the vehicle's picture of the world distorts.
Sony's patent describes a LiDAR chip with a built-in watchdog. Instead of assuming the timing is always correct, the chip actively checks whether the moment a laser fires and the moment pixels register reflected light are drifting apart. It can also check whether the pixel grid itself has shifted, a separate but equally damaging source of errors. When it finds a problem, it corrects the timing before the bad data reaches the distance calculation.
The result is a sensor that is meant to stay accurate over time and temperature changes, rather than one that works perfectly out of the factory and slowly gets less reliable as conditions shift.
… a signal processing section that generates a distance value to the target on a basis of information regarding a difference between the light emission timing and a generation timing of the detection signal …
Translation: It calculates how far away an object is by measuring the time between firing the laser and catching the bounce.
How the control section catches and fixes timing drift
A LiDAR sensor (Light Detection and Ranging) works by firing a laser at a scene and measuring the round-trip time of the reflected light. That time-of-flight is converted into a distance. The accuracy of every single measurement depends on knowing precisely when the laser fired and when the reflected light hit the detector.

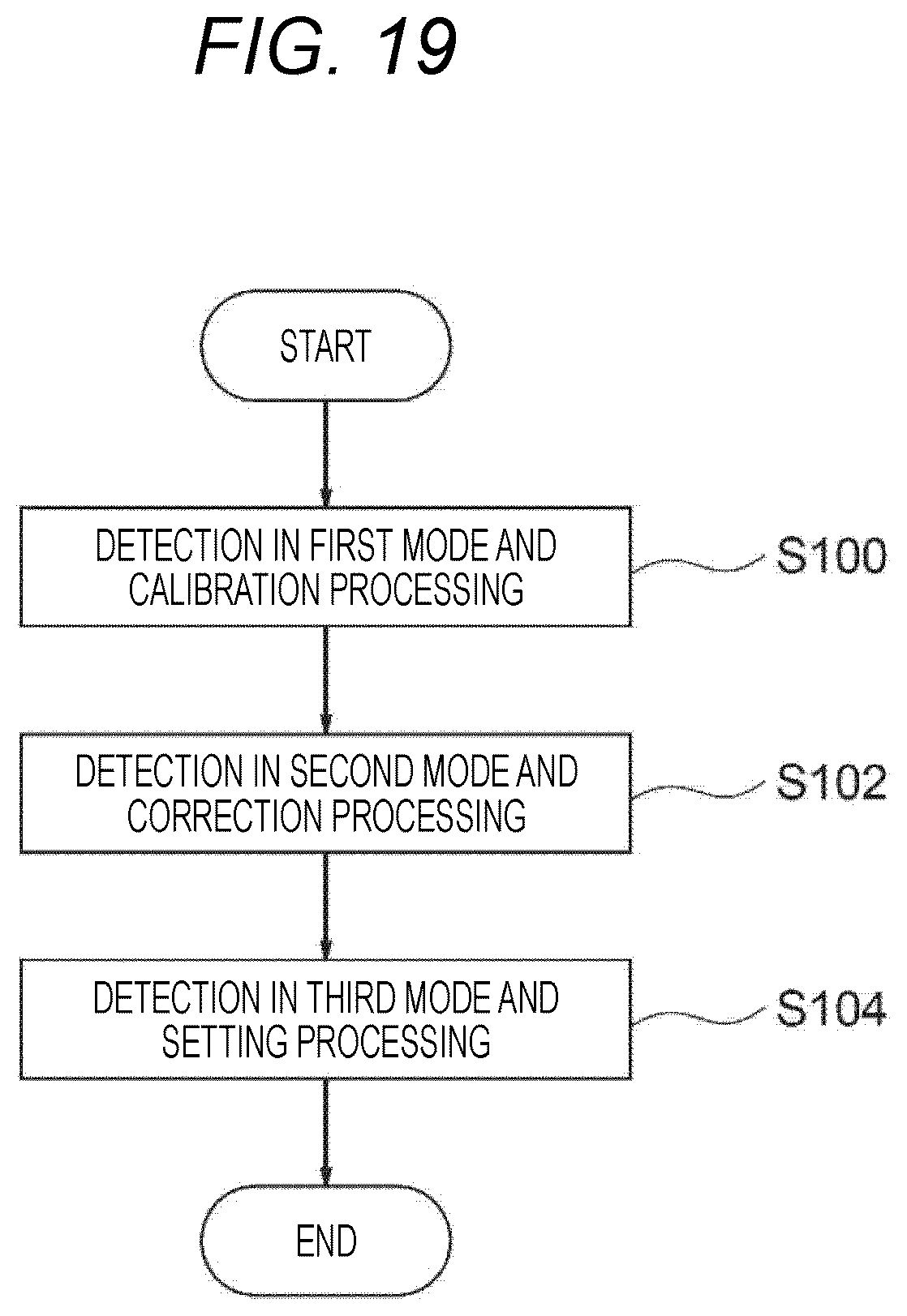

Sony's patent adds a control section to the chip that can run three types of checks:

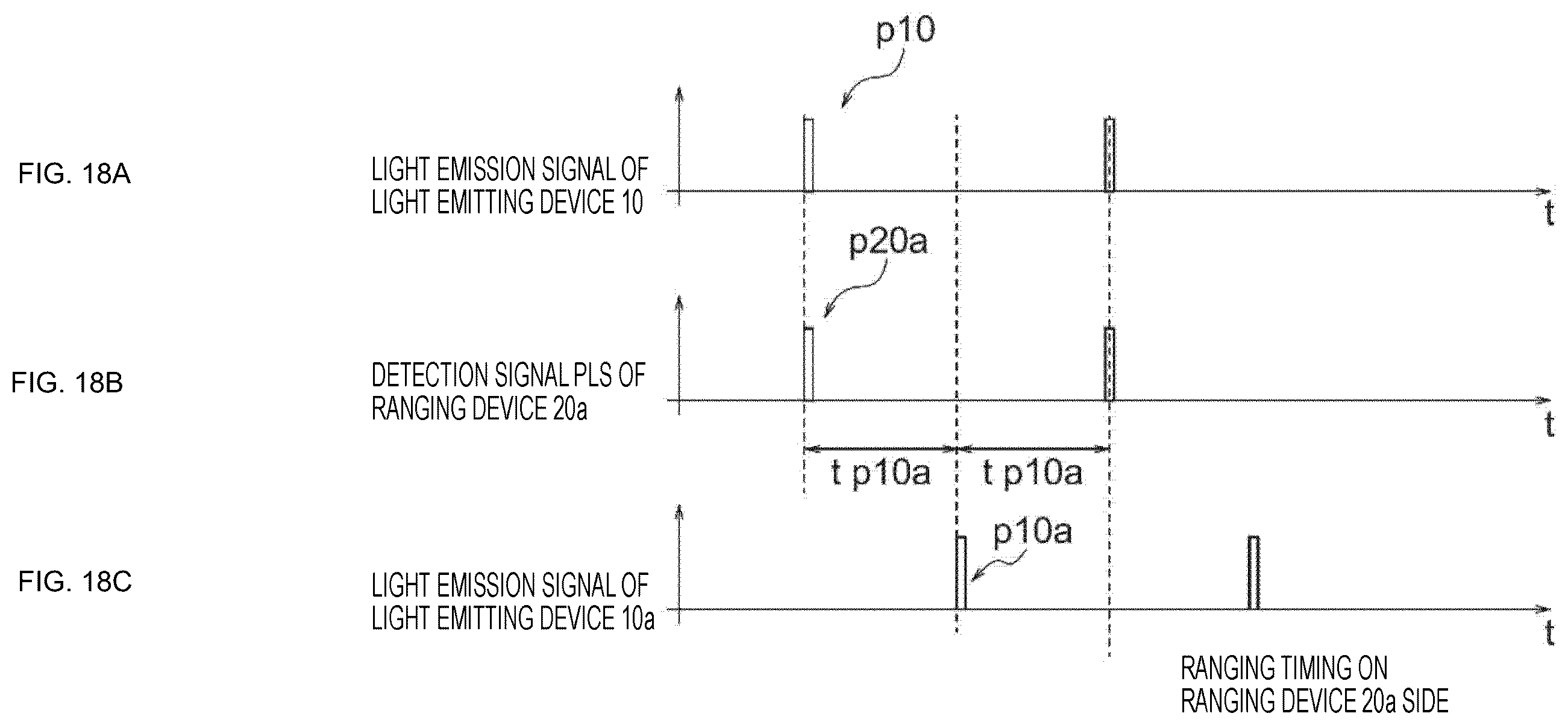

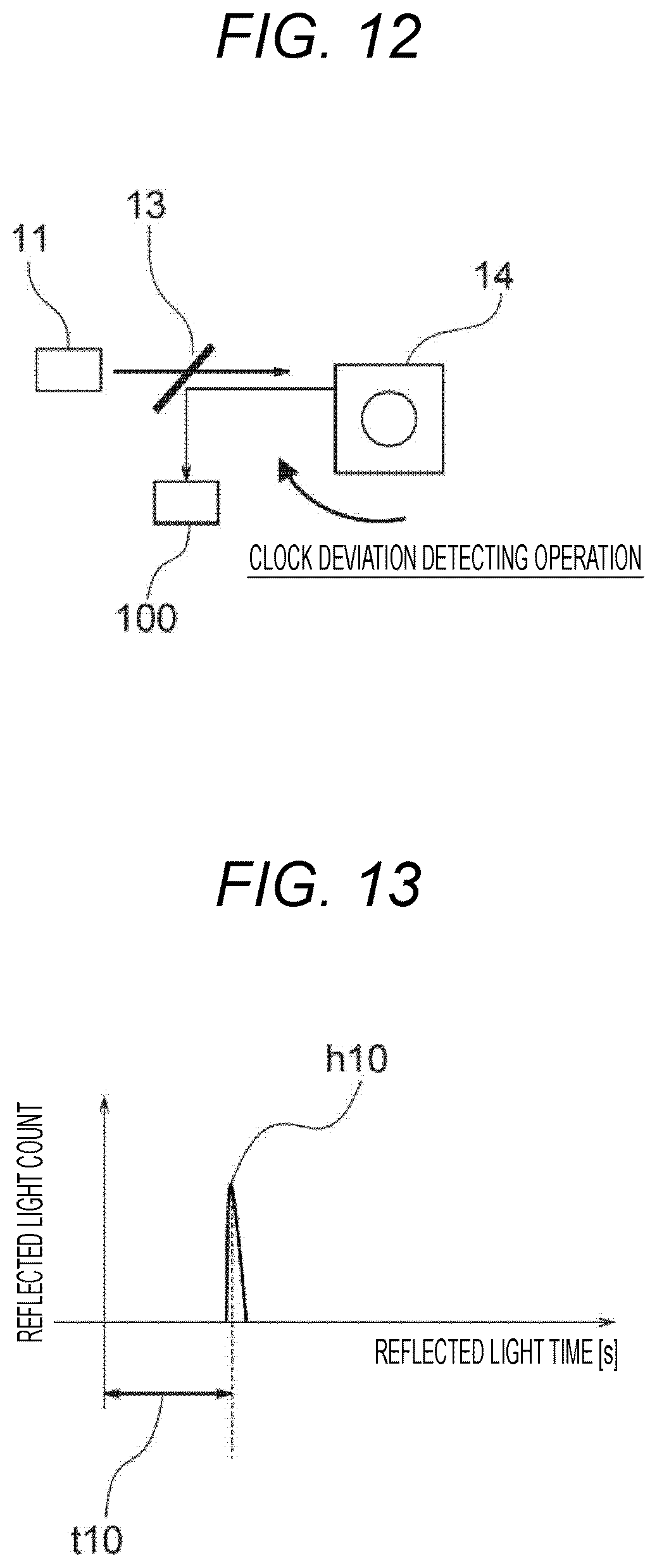

- Deviation time detection: It compares the registered firing timestamp with the registered detection timestamp to find any accumulated offset between the two clocks or circuits involved.

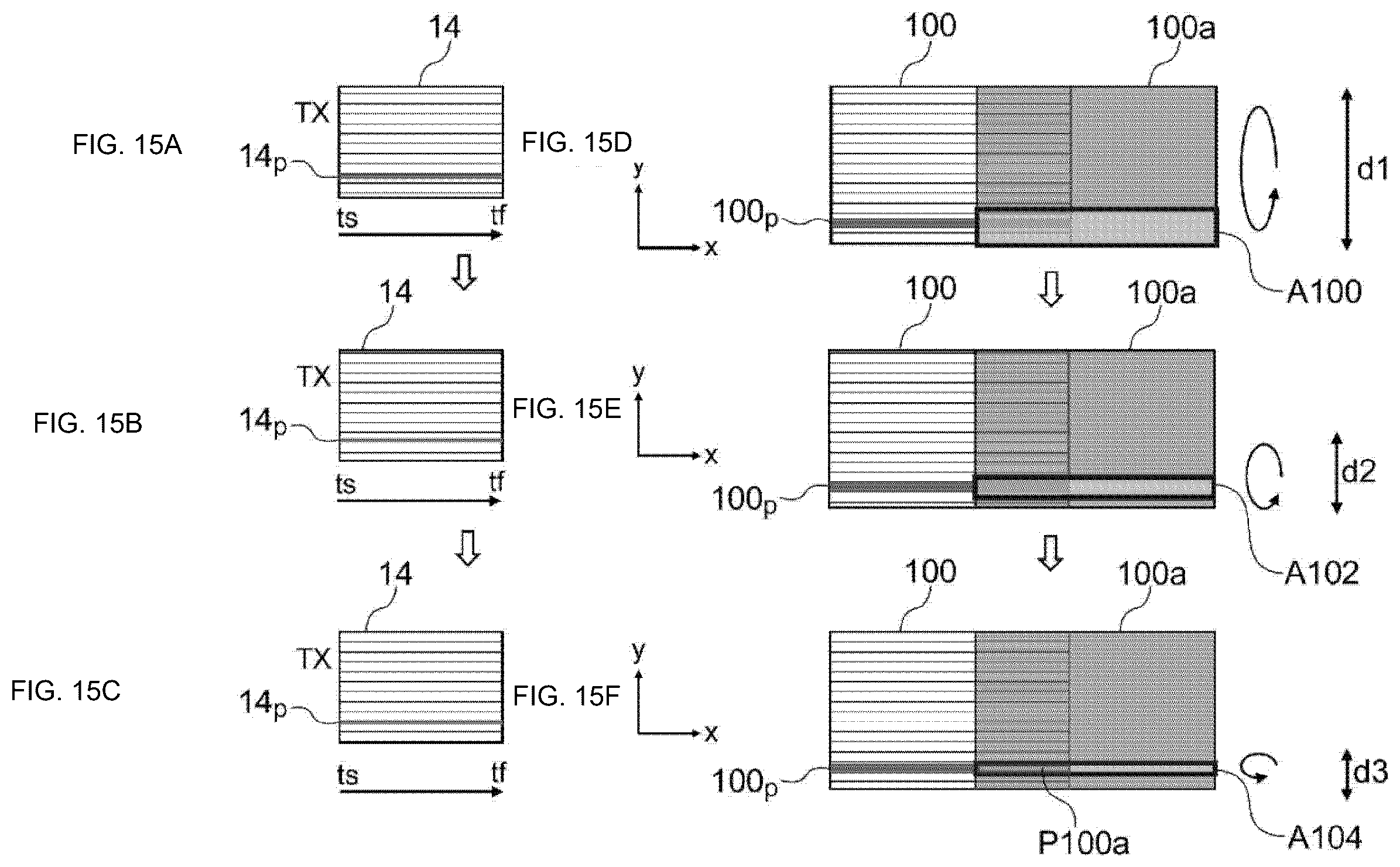

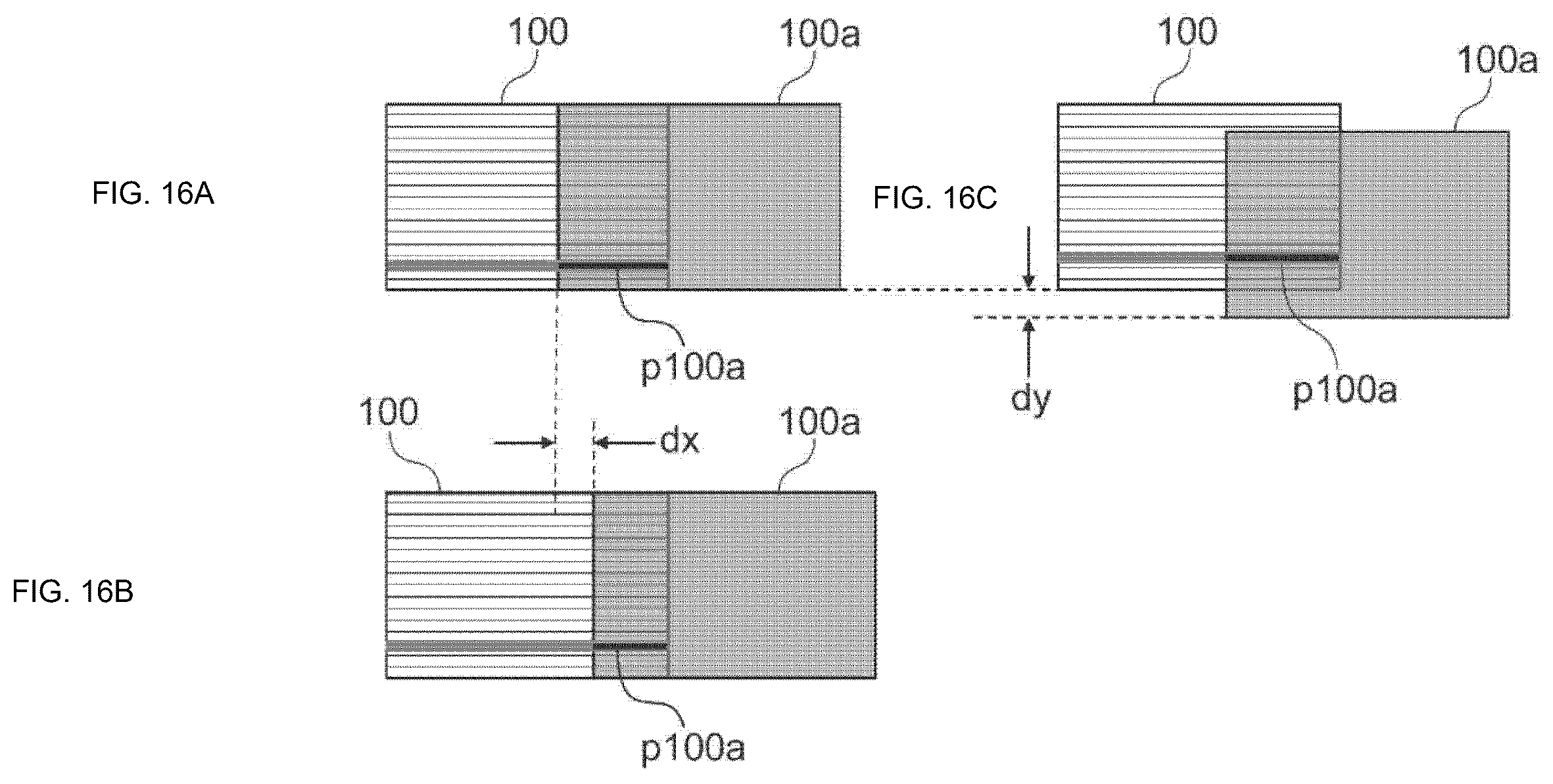

- Coordinate deviation detection: It checks whether the physical pixel array is still correctly aligned, if pixels have shifted (due to heat, vibration, or manufacturing tolerance), the spatial map of the scene becomes distorted.
- Light emission timing adjustment: Armed with what it finds, it can reset or adjust when the laser fires, bringing the system back into calibration.
The chip does not require an external calibration step or a separate processor to handle this. The signal processing section that computes distances and the control section that monitors accuracy are integrated into the same device, so corrections can happen continuously rather than during scheduled maintenance.
… a control section capable of executing at least one of detection processing of a deviation time between the light emission timing and the generation timing of the detection signal, coordinate deviation detection processing of the plurality of pixels, and setting processing of the light emission timing …
Translation: The sensor includes a built in controller that actively catches timing errors and adjusts itself.
What this means for robots and cars that rely on LiDAR
For autonomous vehicles, warehouse robots, and any system that navigates using LiDAR, accuracy that degrades over time is one of the harder failure modes to catch. The sensor still returns numbers; they are just increasingly wrong. A chip that audits its own timing removes one category of that slow drift.
Sony Semiconductor's push into automotive and industrial sensing makes this kind of filing fit a clear pattern. If this approach makes it into production silicon, it could reduce the calibration burden on the systems that embed these sensors, which matters most in long-lived deployments like fleet vehicles or fixed industrial scanners where pulling a unit offline for recalibration is expensive.
Sony's 22nd filing we've tracked since July in our self-driving sensing watchlist follows a signal processing application and a remote human takeover filing.
Folding accuracy monitoring directly into the sensor chip keeps things compact and fast, but it consumes space that could have gone to more light-sensing pixels or lower power draw. That is a real cost, not a footnote.
For a sensor buried inside a car door or a robot arm, that trade reads as worth it. A device that catches and corrects its own timing errors in the field is far more valuable than a slightly leaner one that needs a technician to recalibrate it.
The patent describes three distinct monitoring functions, and the language leaves room to include only some of them depending on the product. That flexibility matters because it means Sony can tune how much of that silicon budget it spends based on how much accuracy a given application actually demands.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings
16 drawing sheets from US 2026/0259326 A1 · click any drawing to enlarge
