Intel Patents a Way to Stop AI Chips From Wasting Memory on Image Recognition Tasks
Every time an AI chip processes an image, it risks leaving big chunks of its memory sitting idle or overflowing. Intel has filed a patent for a system that watches those chunks in real time and reshapes them on the fly to keep memory use as tight as possible.
What Intel's AI memory-splitting trick actually does
AI chips that recognize images or objects work by sliding small mathematical filters across a picture, layer by layer. Today, those chips often load data in fixed-size batches, which means memory is either sitting half-empty or getting crunched past its limit, depending on the workload.
Intel's patent describes a chip that calculates, before it starts a computation, exactly how many data chunks to load at once and how many filters to pair with them, choosing the combination that wastes the least memory. Instead of you or a developer having to tune those numbers manually, the chip picks the best split automatically each time.
The result is an AI processor that squeezes more work into the same amount of memory, which matters most in devices where memory is tight: think edge processors in cameras, cars, or factory sensors rather than giant server rooms.
… determining memory efficiency metrics based on one or more activation groups of the activation groups and one or more kernels of the kernels …
Translation: The chip calculates how well different memory setups will perform before doing any math.
How the chip picks the optimal split at runtime

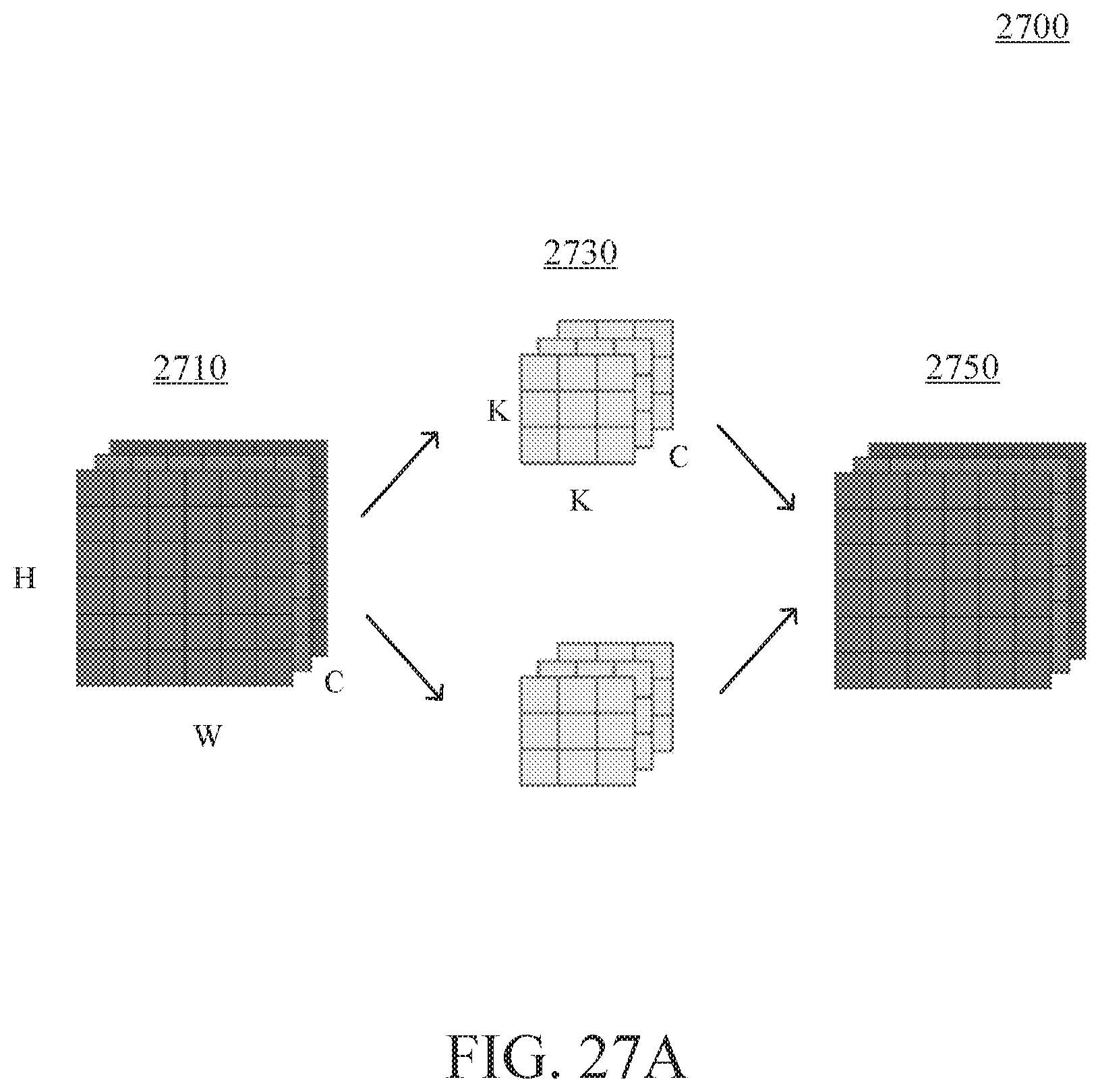

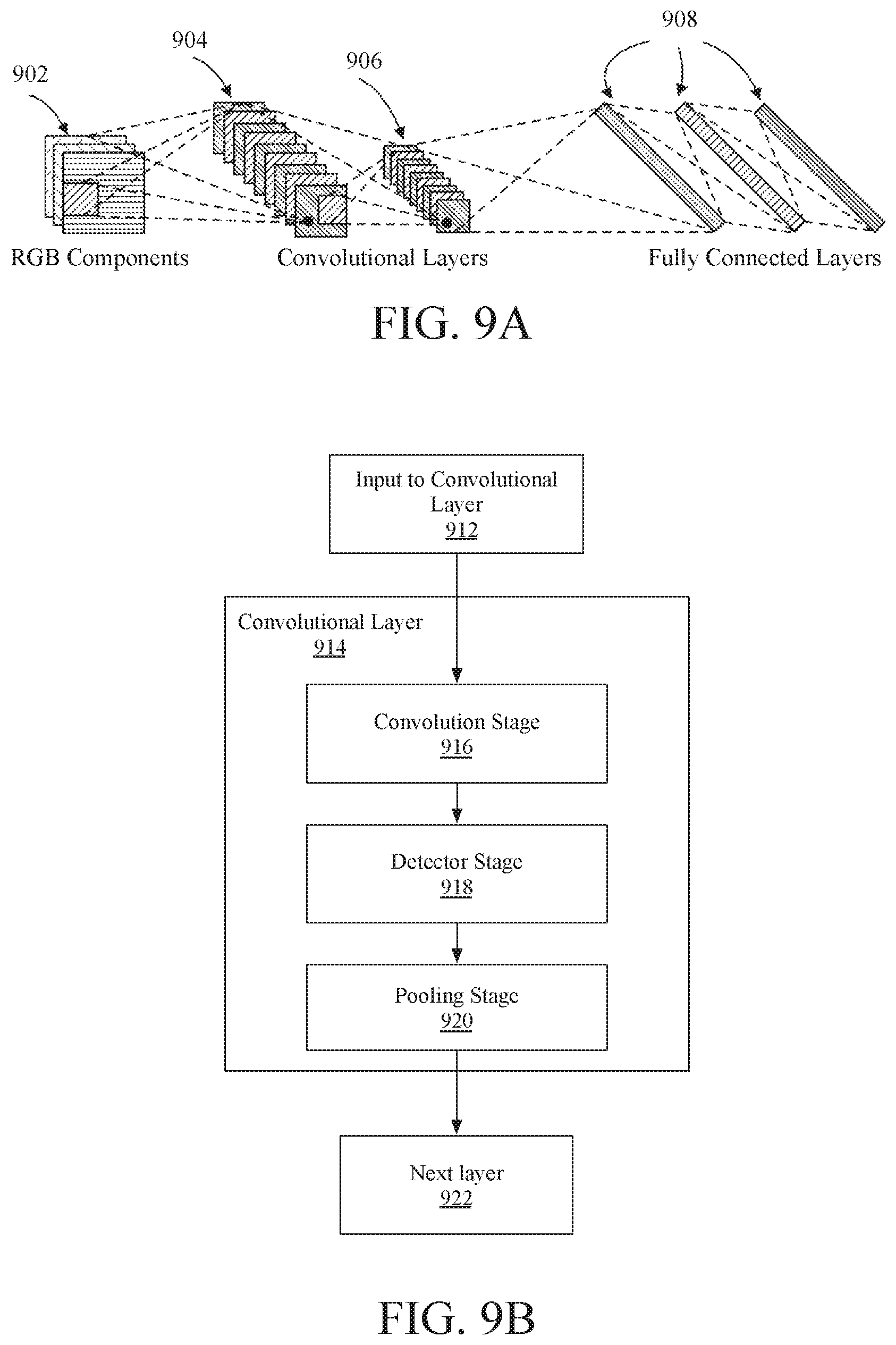

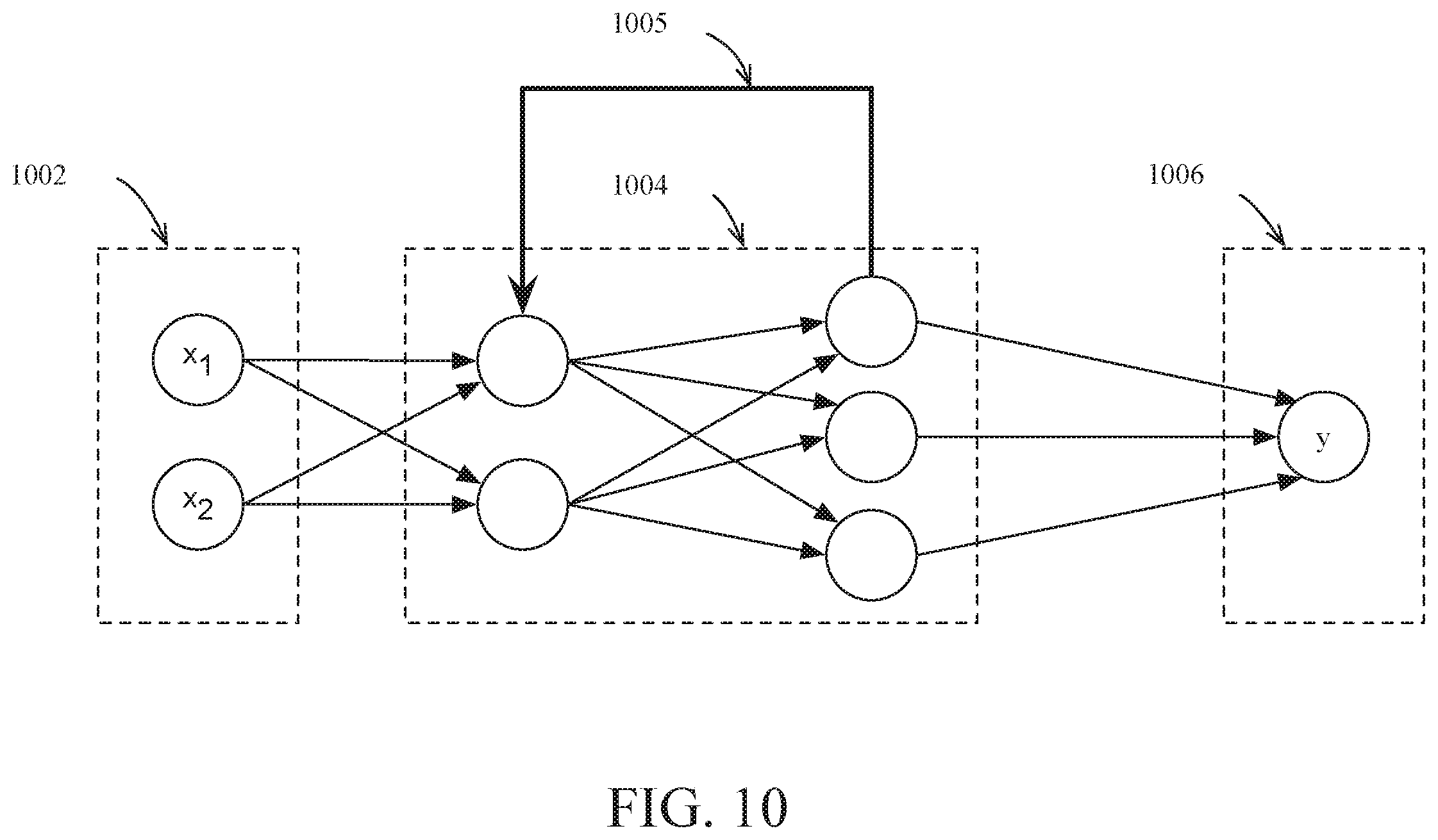

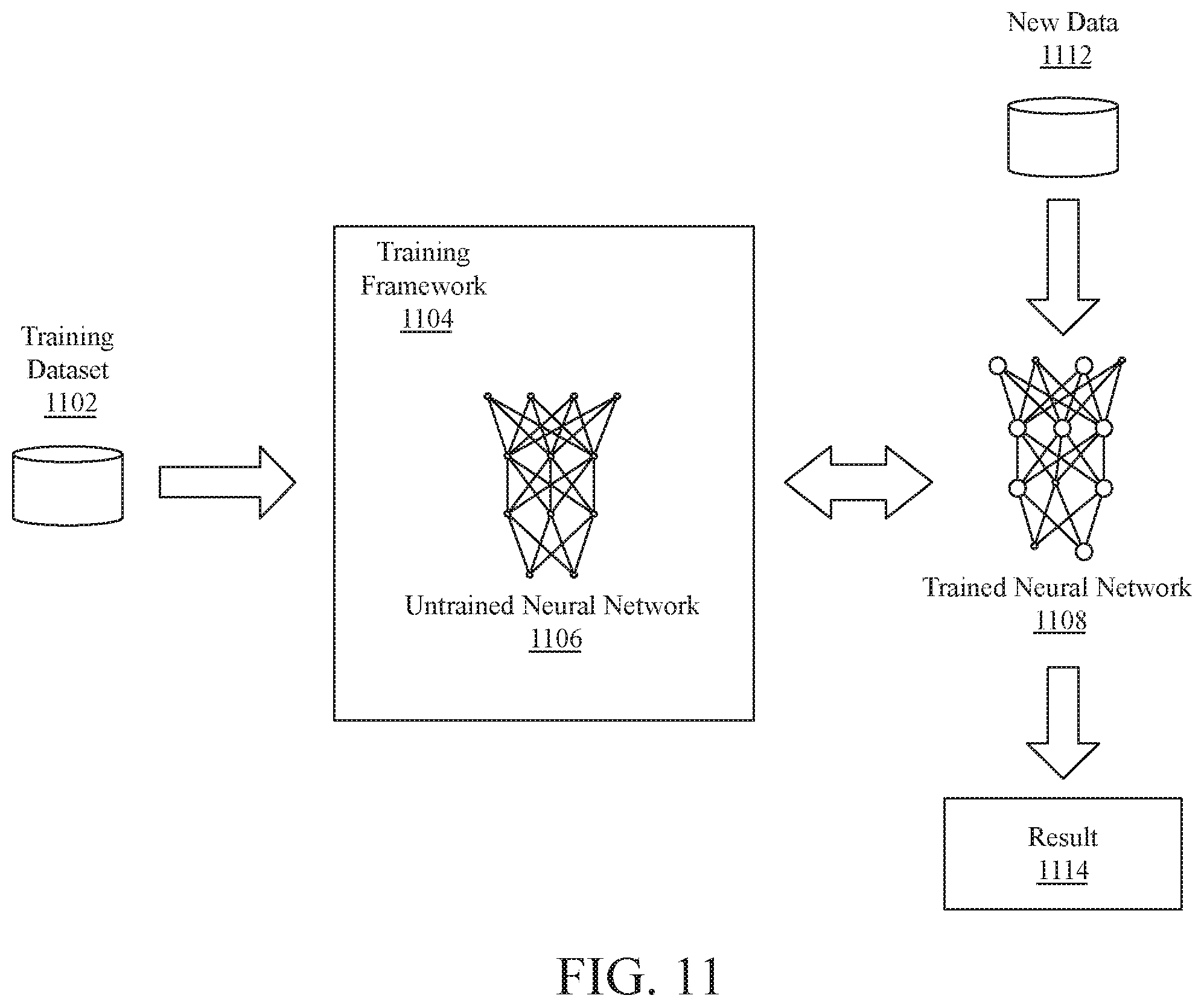

Modern image-recognition systems use convolutional neural networks (CNNs), which process data by running small mathematical filters (called kernels) across blocks of the input image (called activations). Both the image data and the filters have to live in on-chip memory during computation, and balancing how many of each you load at once is a real engineering headache.

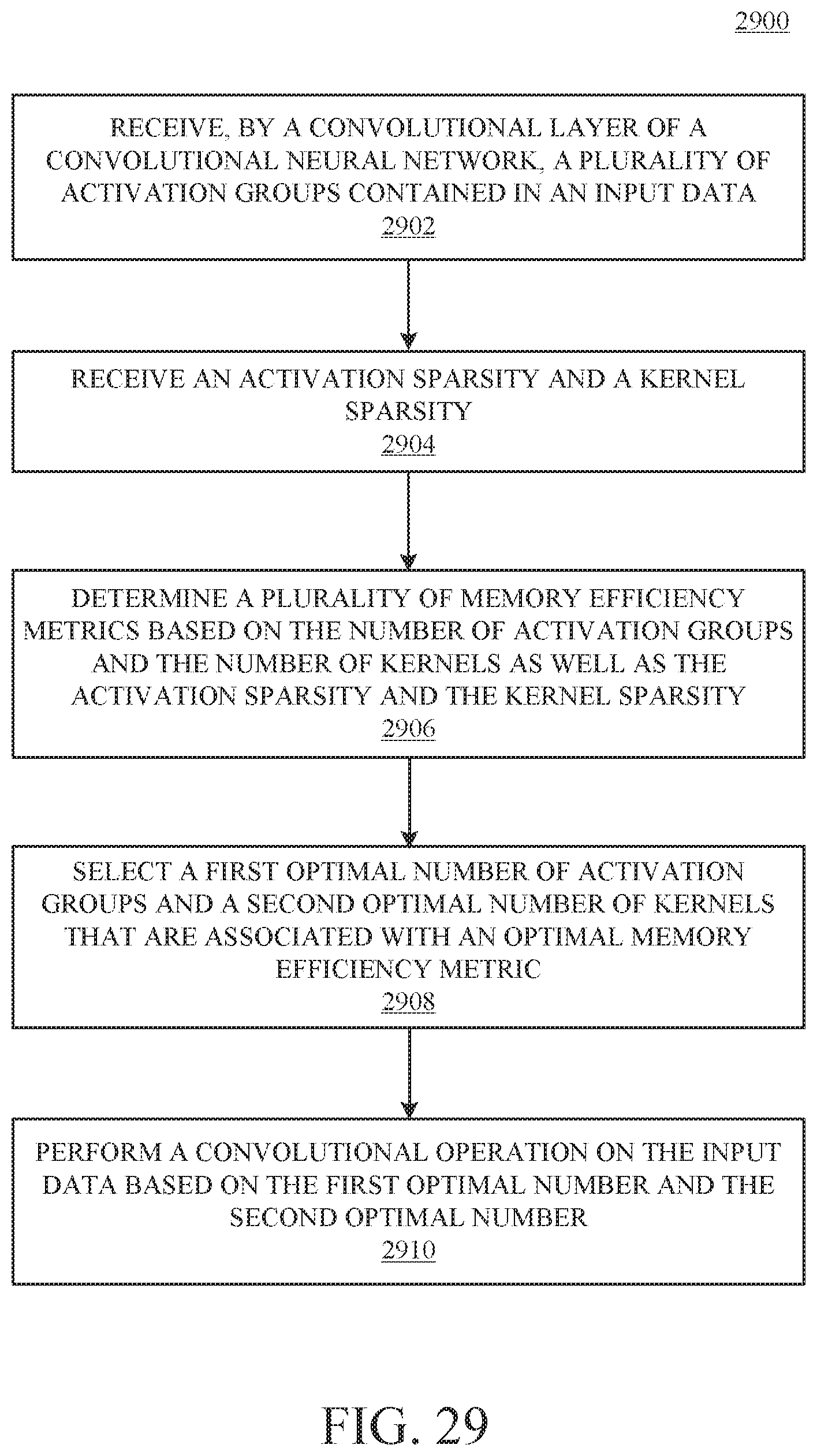

Intel's method works like this:

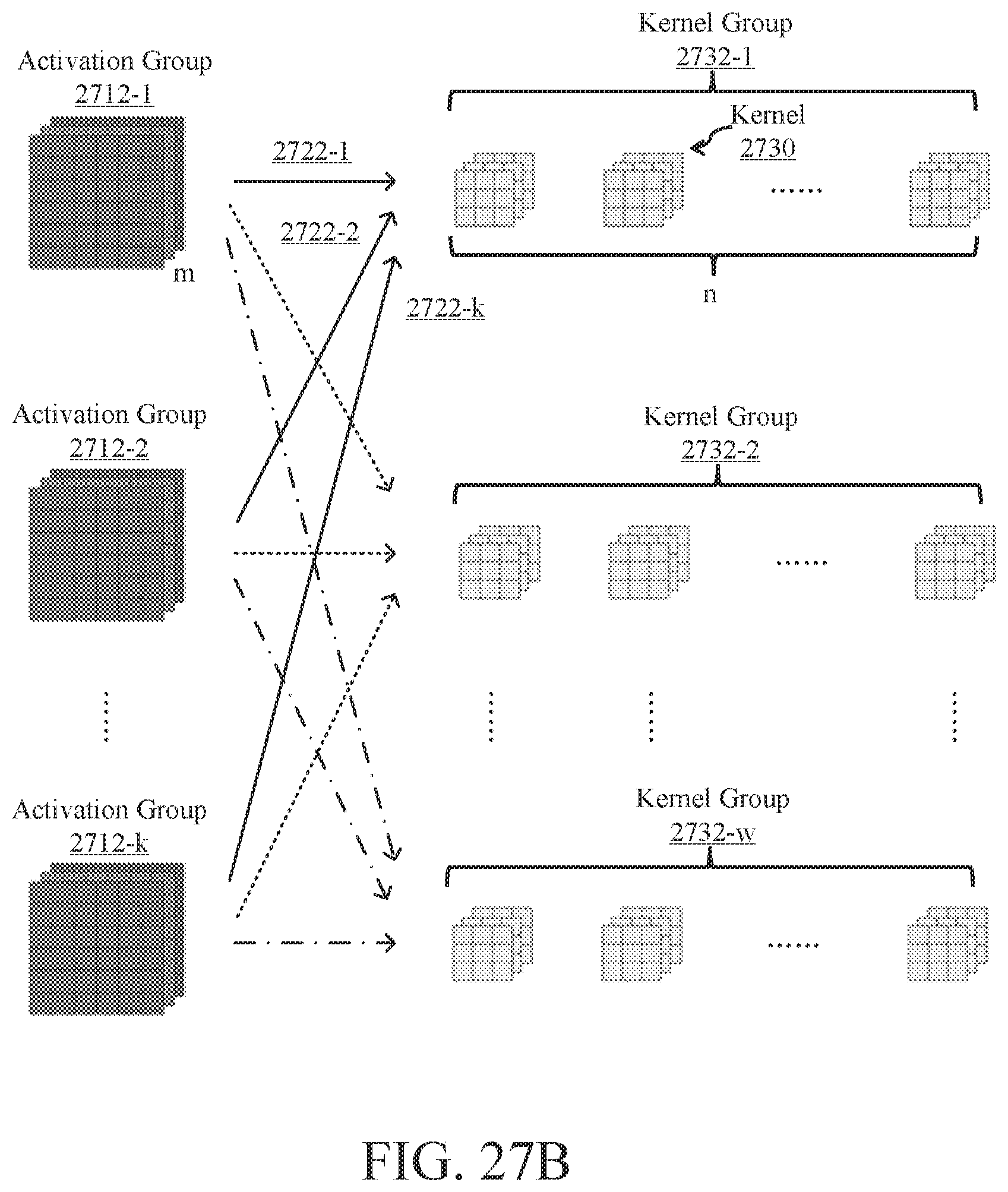

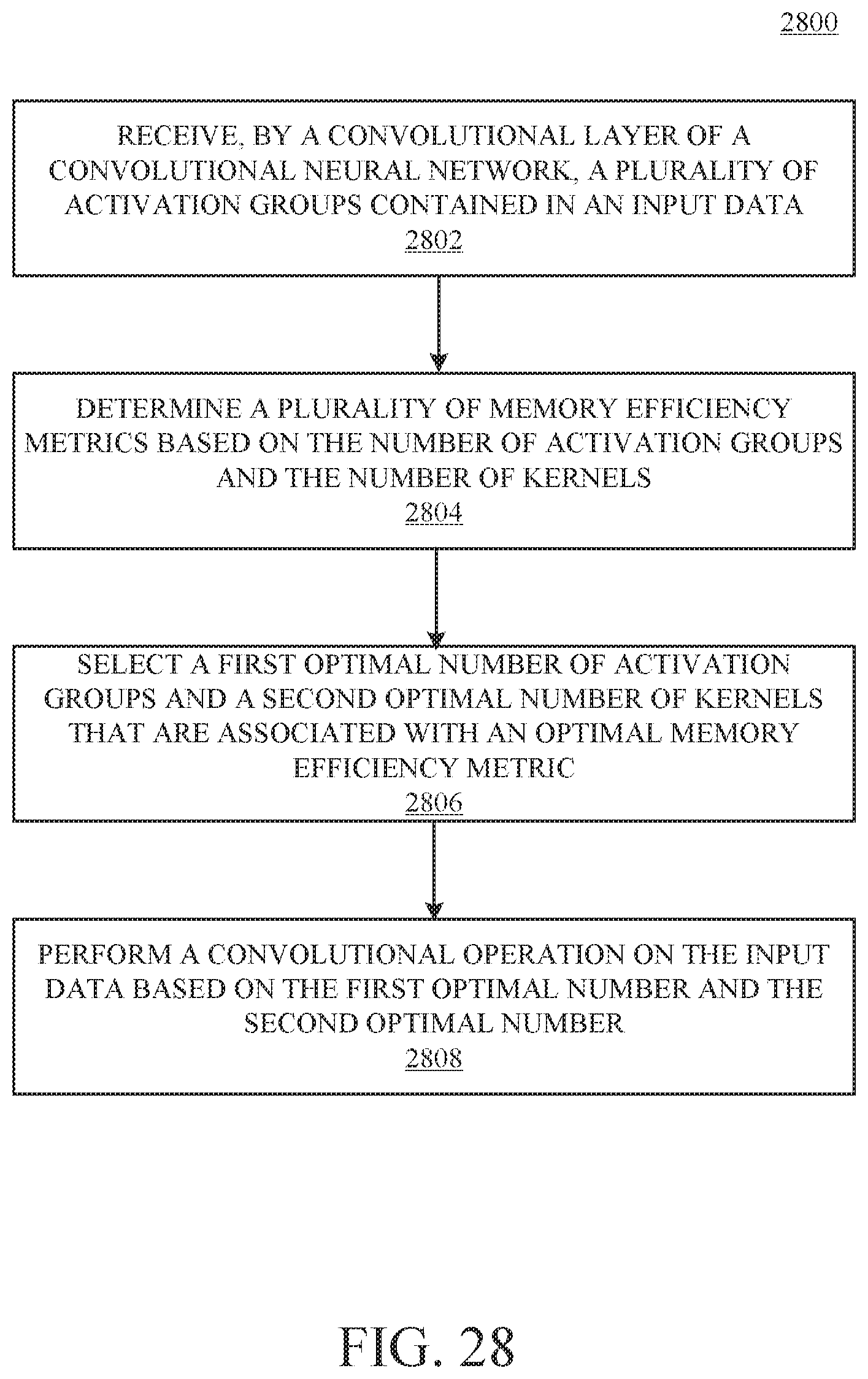

- The CNN receives the input image, already divided into activation groups (smaller data slices).
- The chip evaluates a set of memory efficiency metrics, essentially scoring every possible combination of "how many activation slices" and "how many filters" against available memory.
- It selects the pairing that scores best and performs the convolution using only those optimal numbers.
The key word is dynamically: this scoring happens at runtime, not at design time. Different inputs or network configurations can yield different optimal splits, and the chip recalculates each time rather than relying on a fixed setting baked in by the developer.
The patent covers both the compute method and the hardware circuitry that would implement it, suggesting Intel is thinking about this as a silicon-level feature rather than a software patch.
… selecting a first optimal number of activation groups and a second optimal number of kernels that are associated with an optimal memory efficiency metric in the plurality of memory efficiency metrics …
Translation: It automatically chooses the most memory-efficient configuration for the task.
What this means for AI hardware efficiency
For AI workloads running on chips with limited memory, like cameras, autonomous sensors, or industrial controllers, memory waste directly translates to slower performance or the need for a more expensive, larger chip. A system that tunes its own memory use could let a cheaper or smaller chip handle tasks currently requiring a bigger one.
Intel's push into edge AI processors makes this filing fit a clear pattern. Whether this ends up in a consumer product or a data-center accelerator, the underlying promise is the same: your AI hardware doing more with what it already has, without you or a developer needing to manually retune anything when the workload changes.
Intel's 33rd filing we've tracked since May in the AI chip wars watchlist builds on earlier applications including one handling four tasks at once and one for faster matrix math.
The tradeoff here is real and worth naming. Calculating memory efficiency metrics at runtime costs time and power. The chip has to score multiple combinations before it can start the actual computation, which adds latency to every layer of the network. Intel's bet is that the memory savings outweigh that overhead, but the patent does not show benchmarks proving the math works out in the chip's favor across varied workloads.
There is also a fragility risk. The scoring logic is only as good as the efficiency metrics it uses. If those metrics do not accurately model real memory behavior, say because cache behavior or memory bandwidth varies under load, the chip could pick a combination that looks optimal on paper but performs worse in practice. That is a real concern for deployment in unpredictable real-world environments.
That said, the core idea is sound engineering for constrained hardware. The edge AI space genuinely needs chips that can self-tune rather than requiring expert configuration. The question is whether Intel's runtime scoring is fast and accurate enough to make the overhead worthwhile, which is exactly the kind of thing that will show up only in silicon, not in a patent filing.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Intel patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

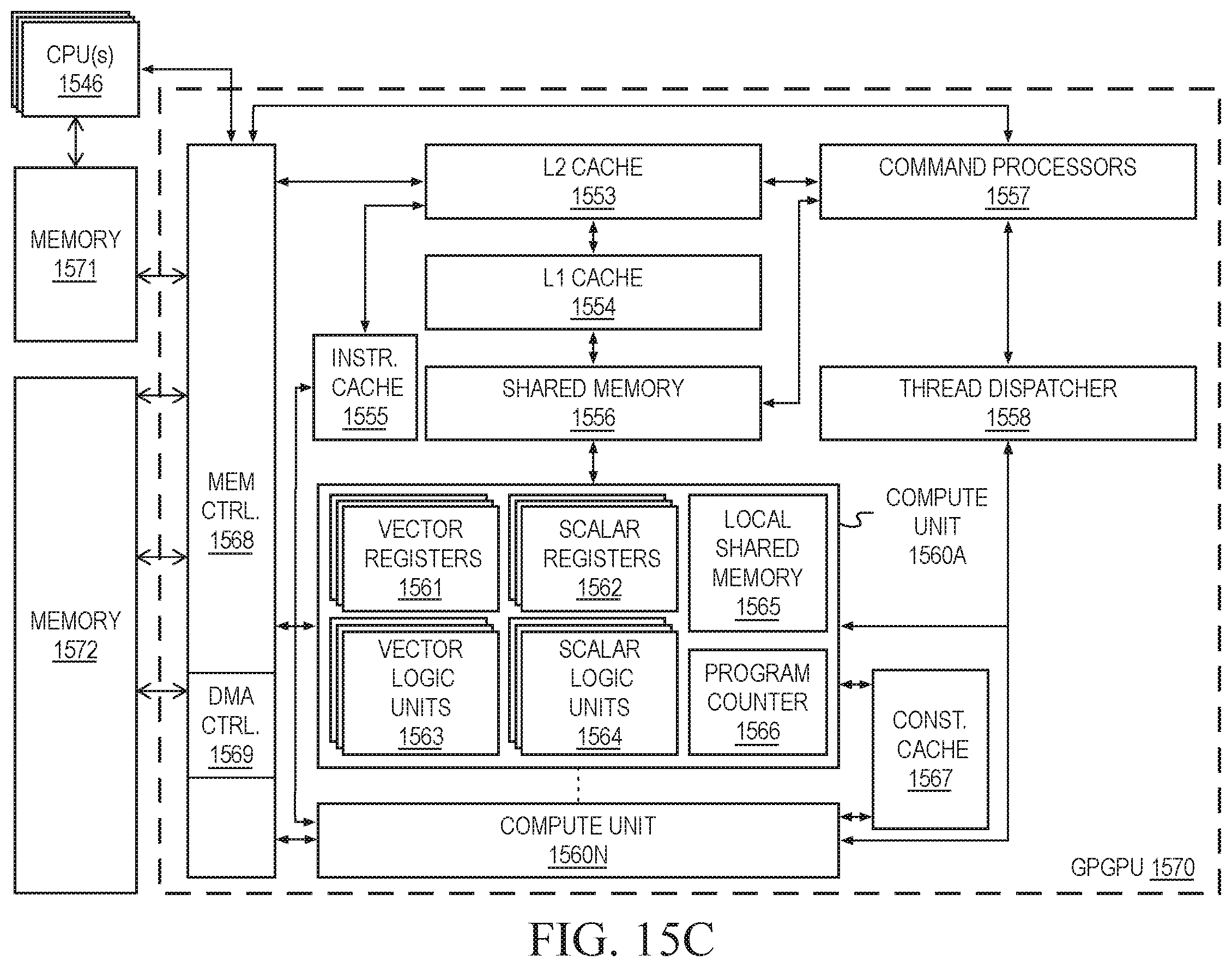

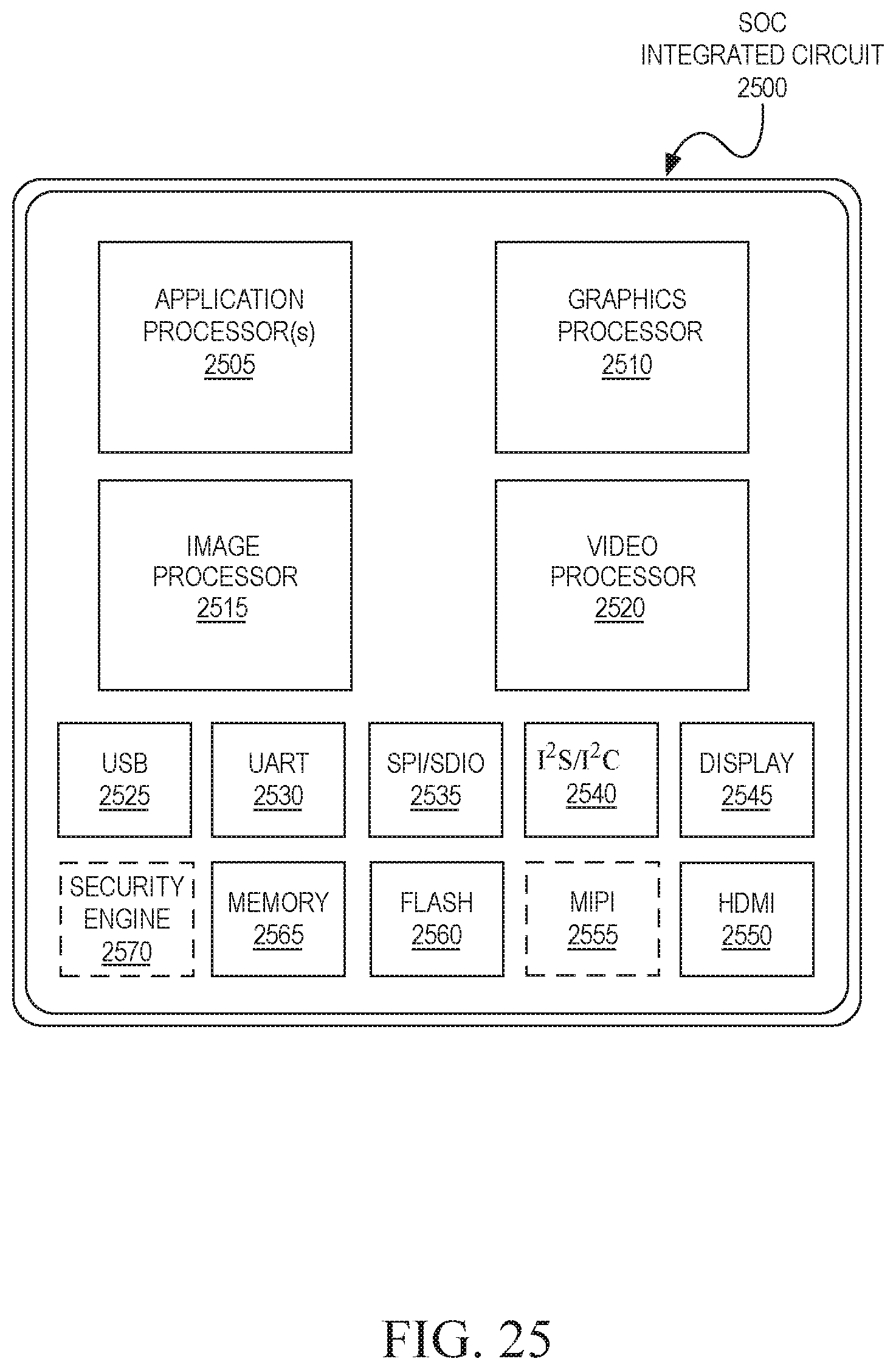

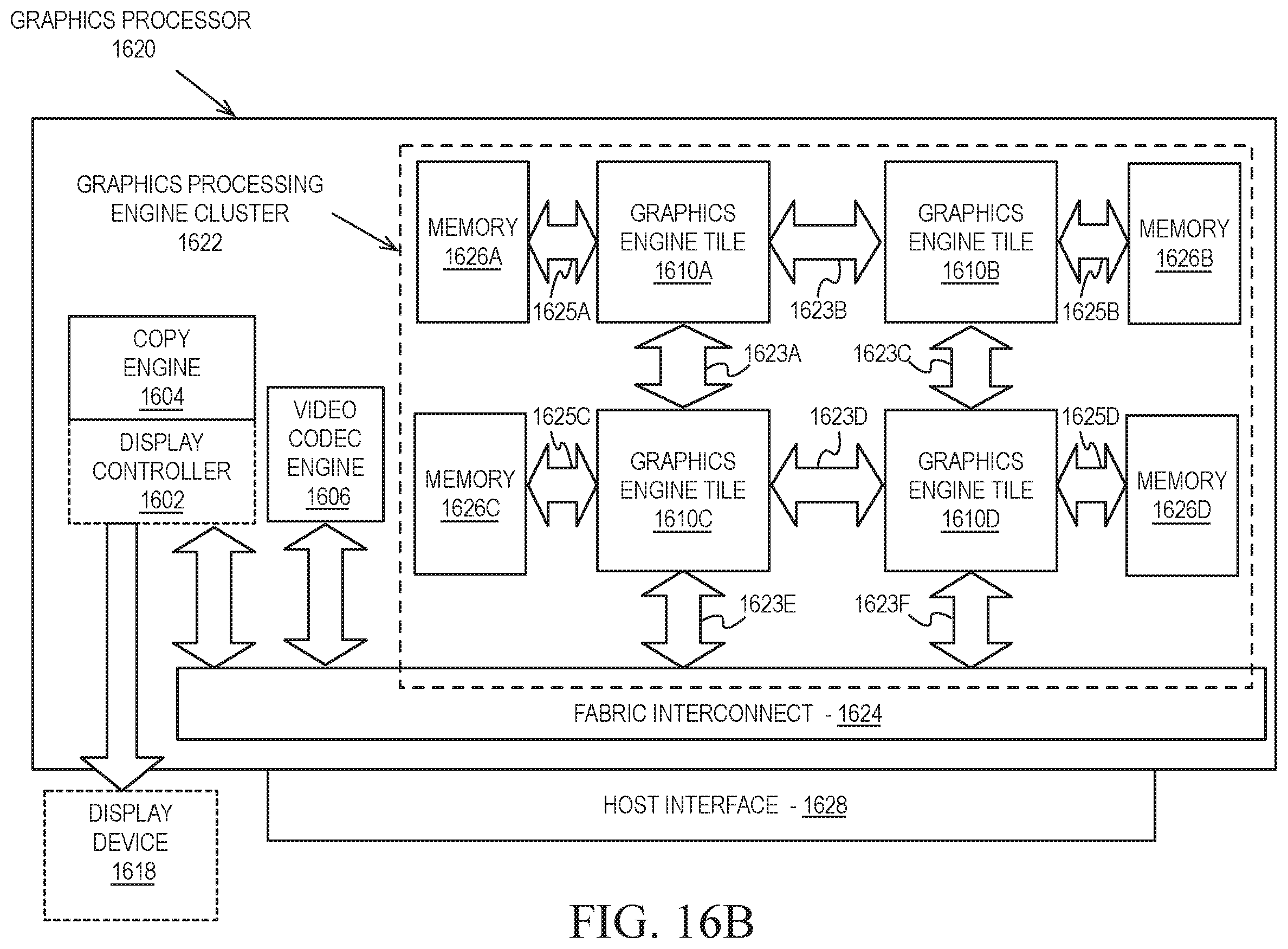

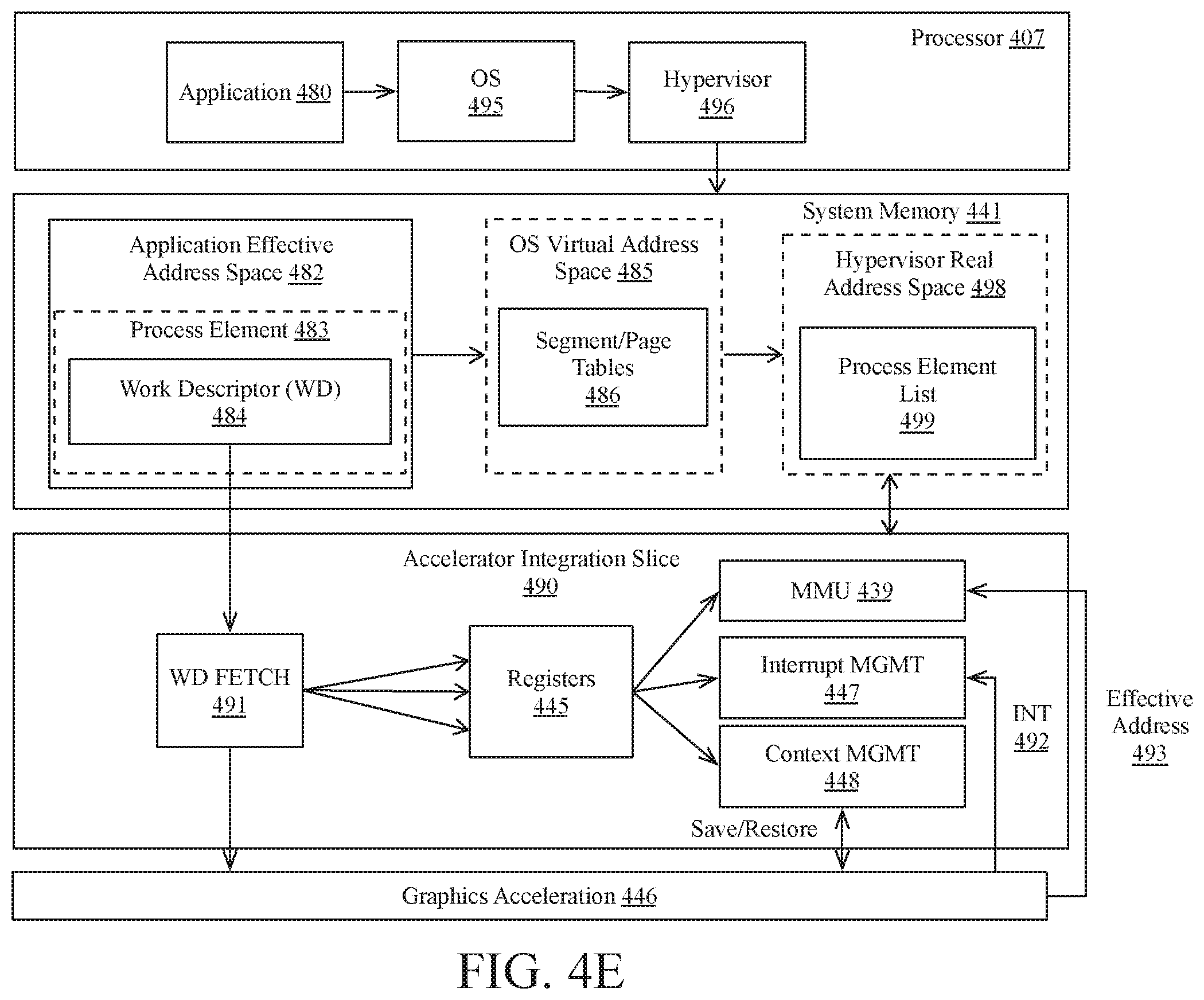

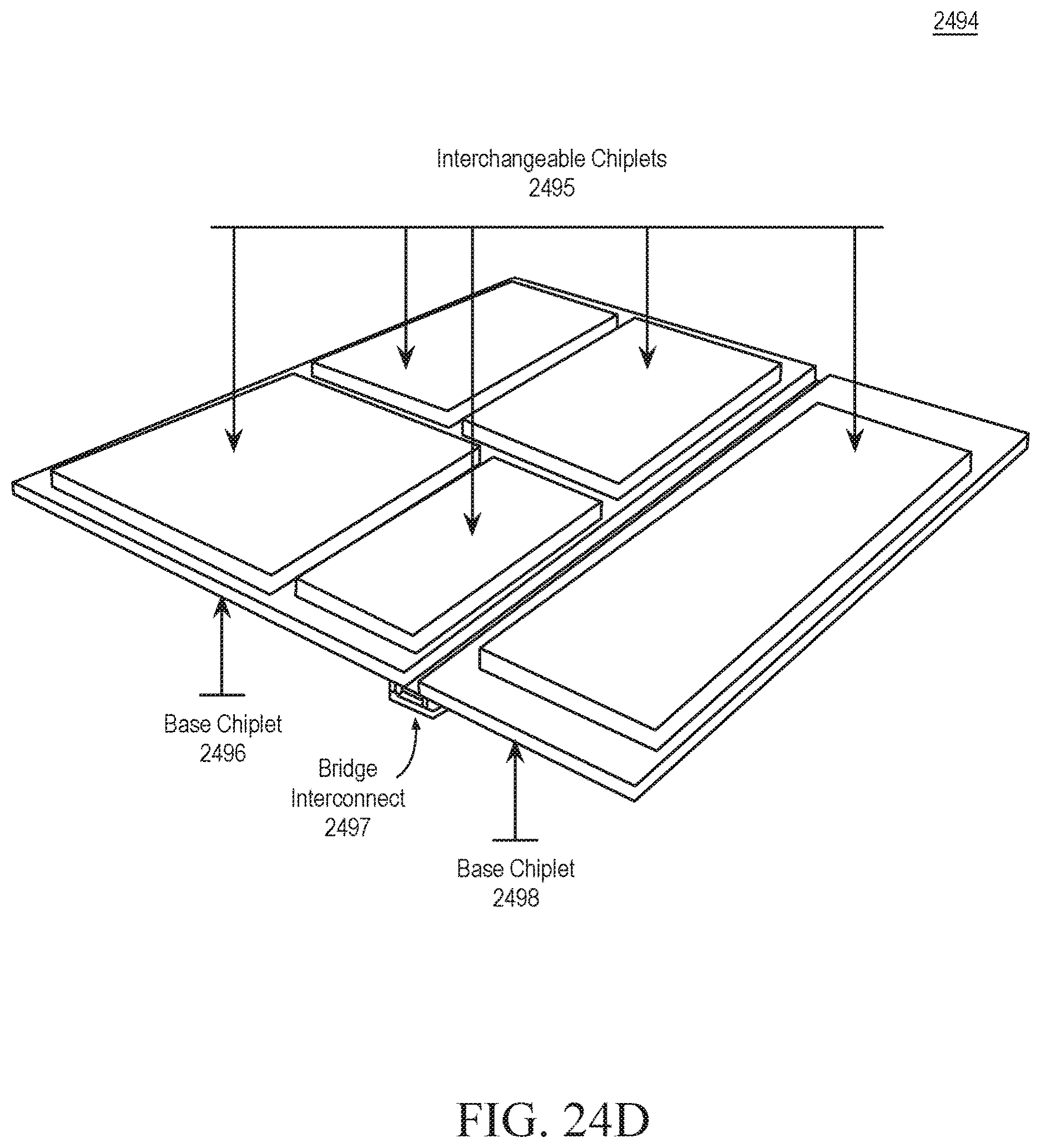

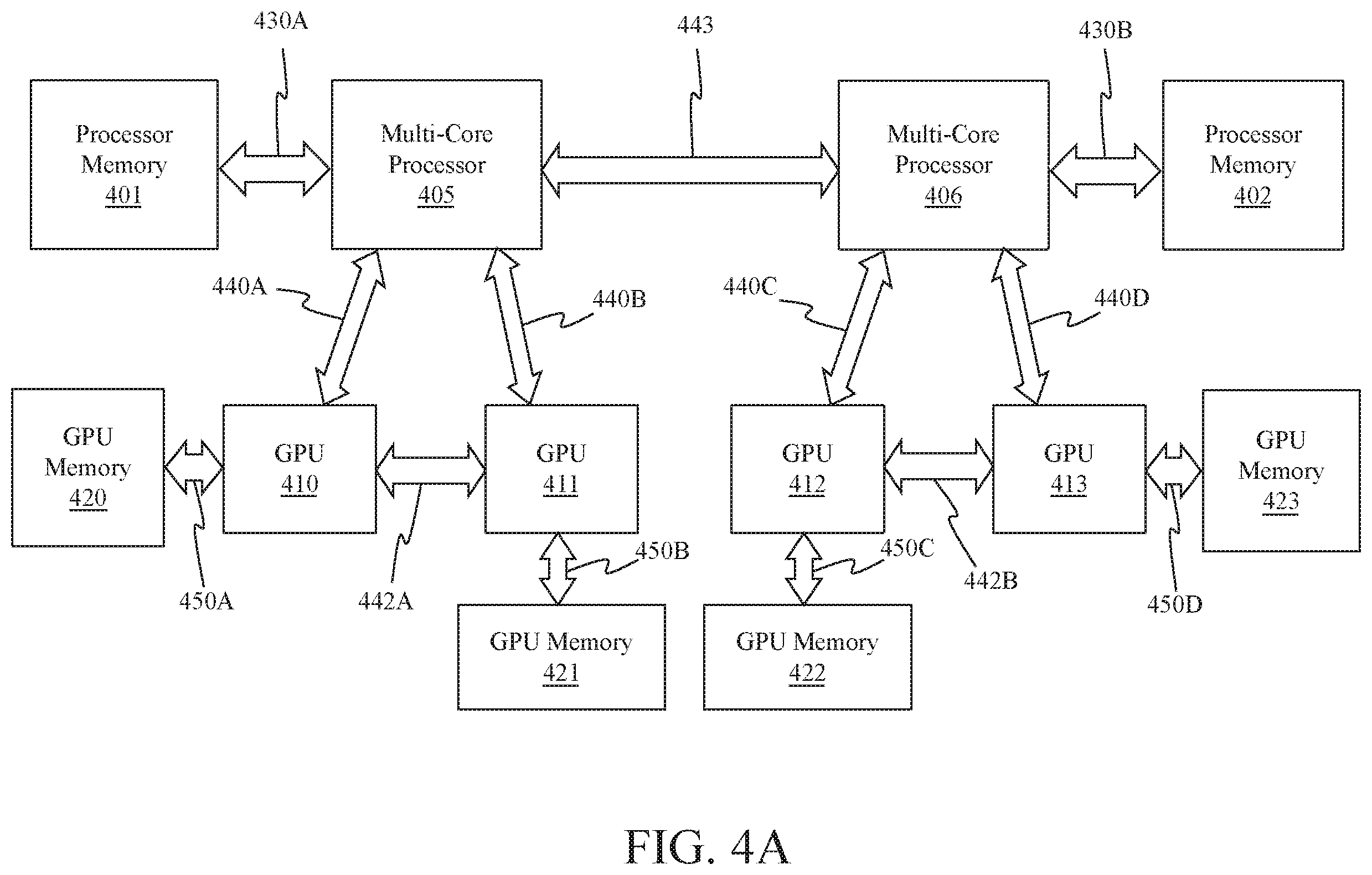

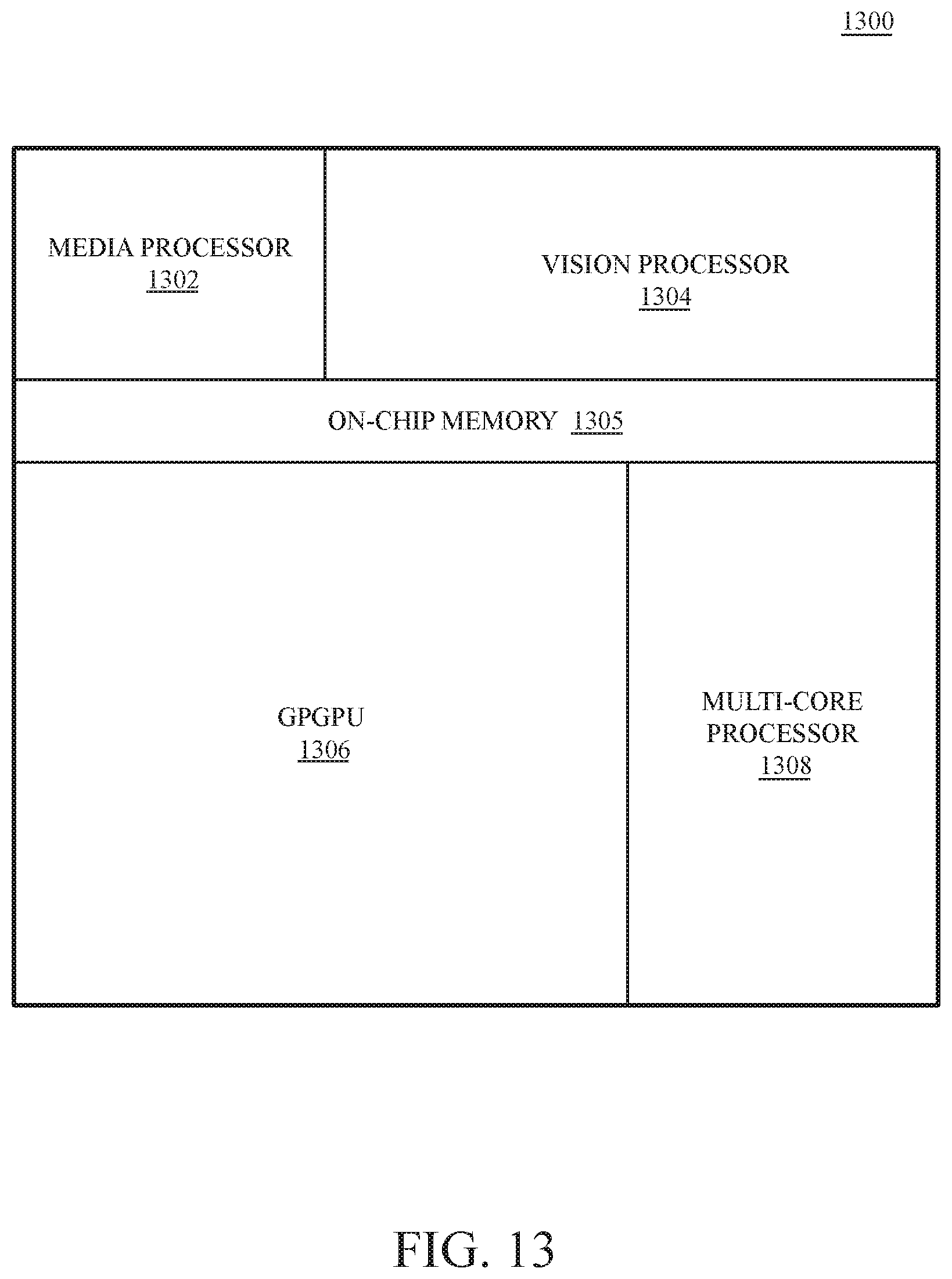

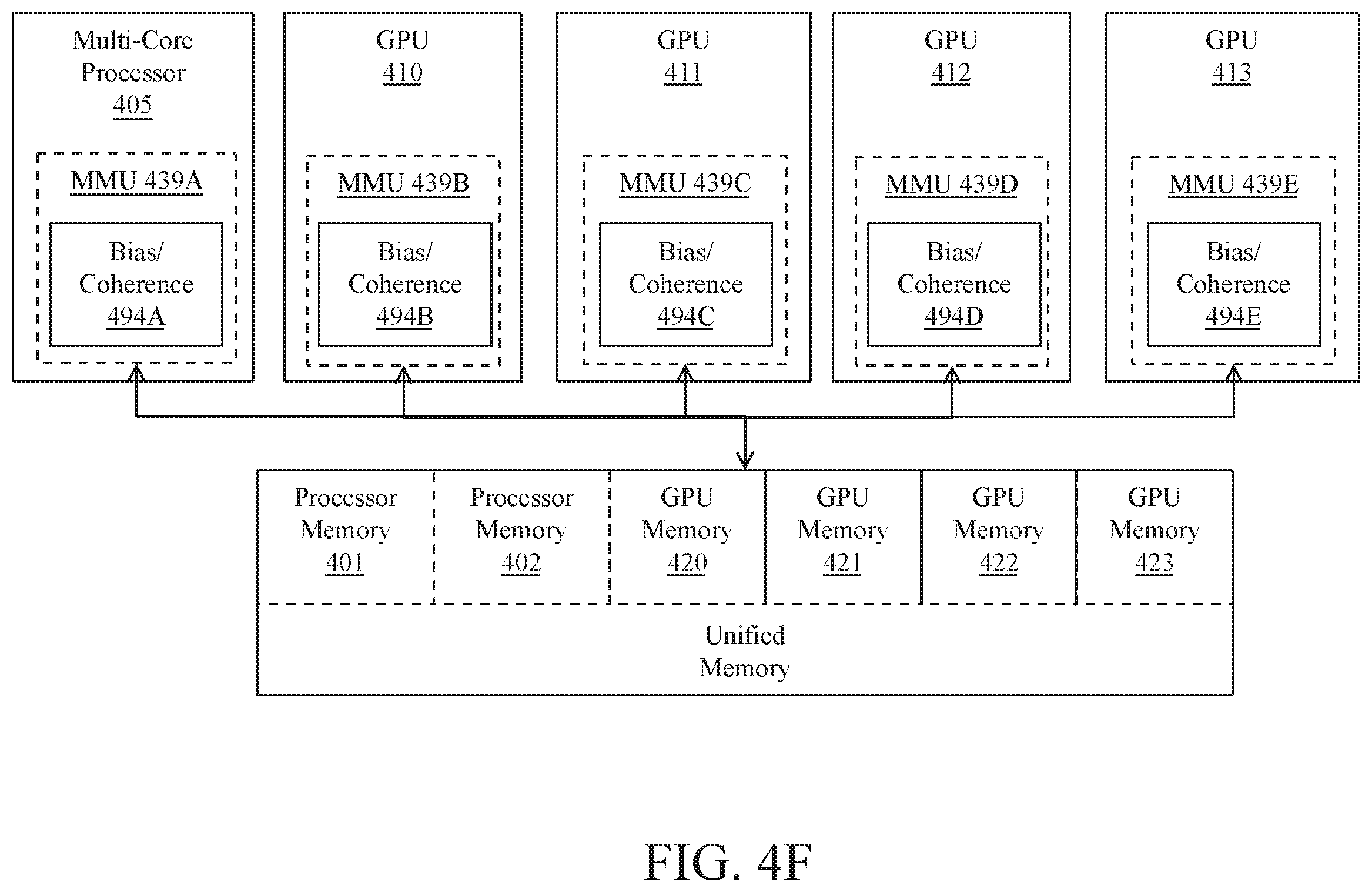

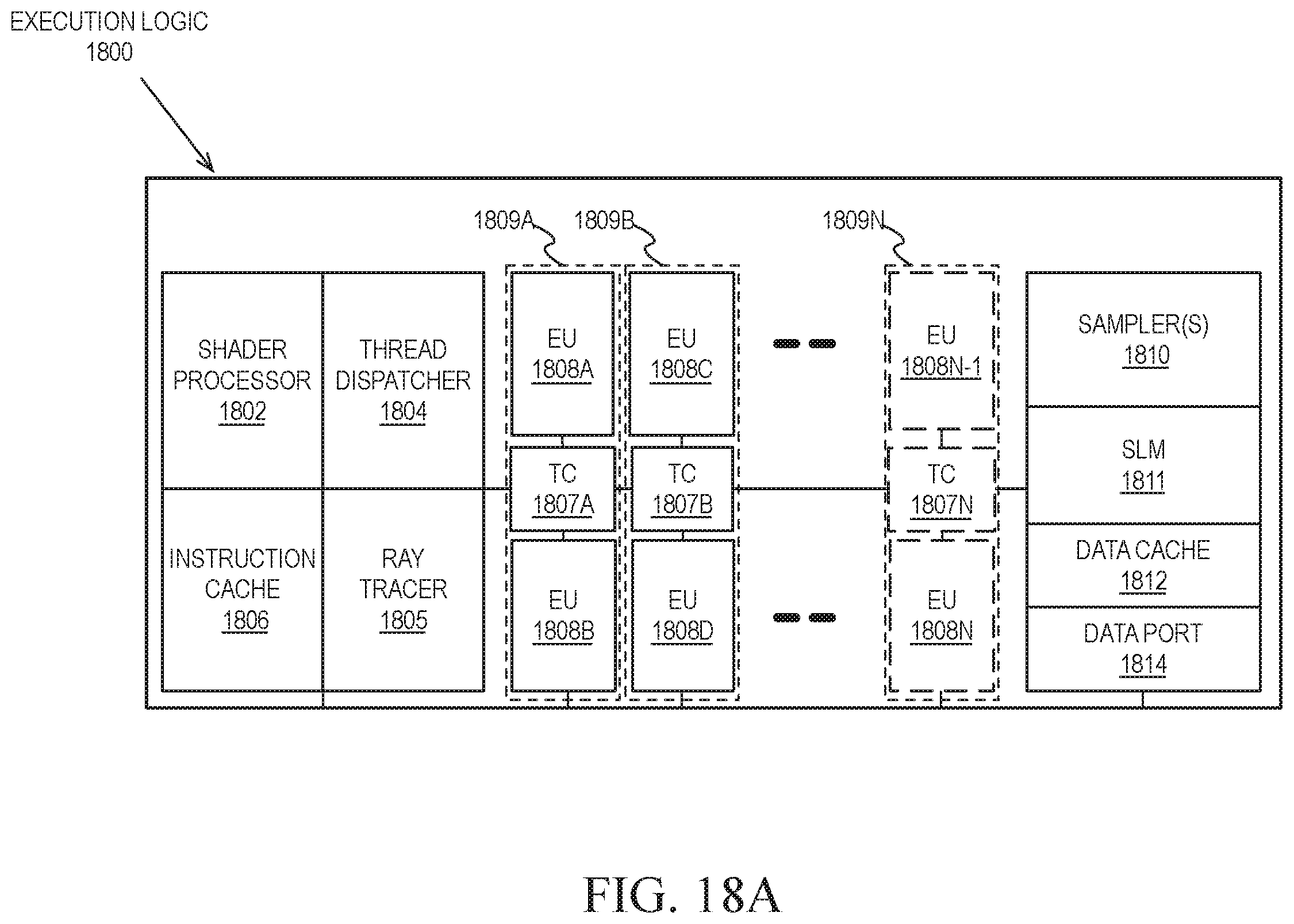

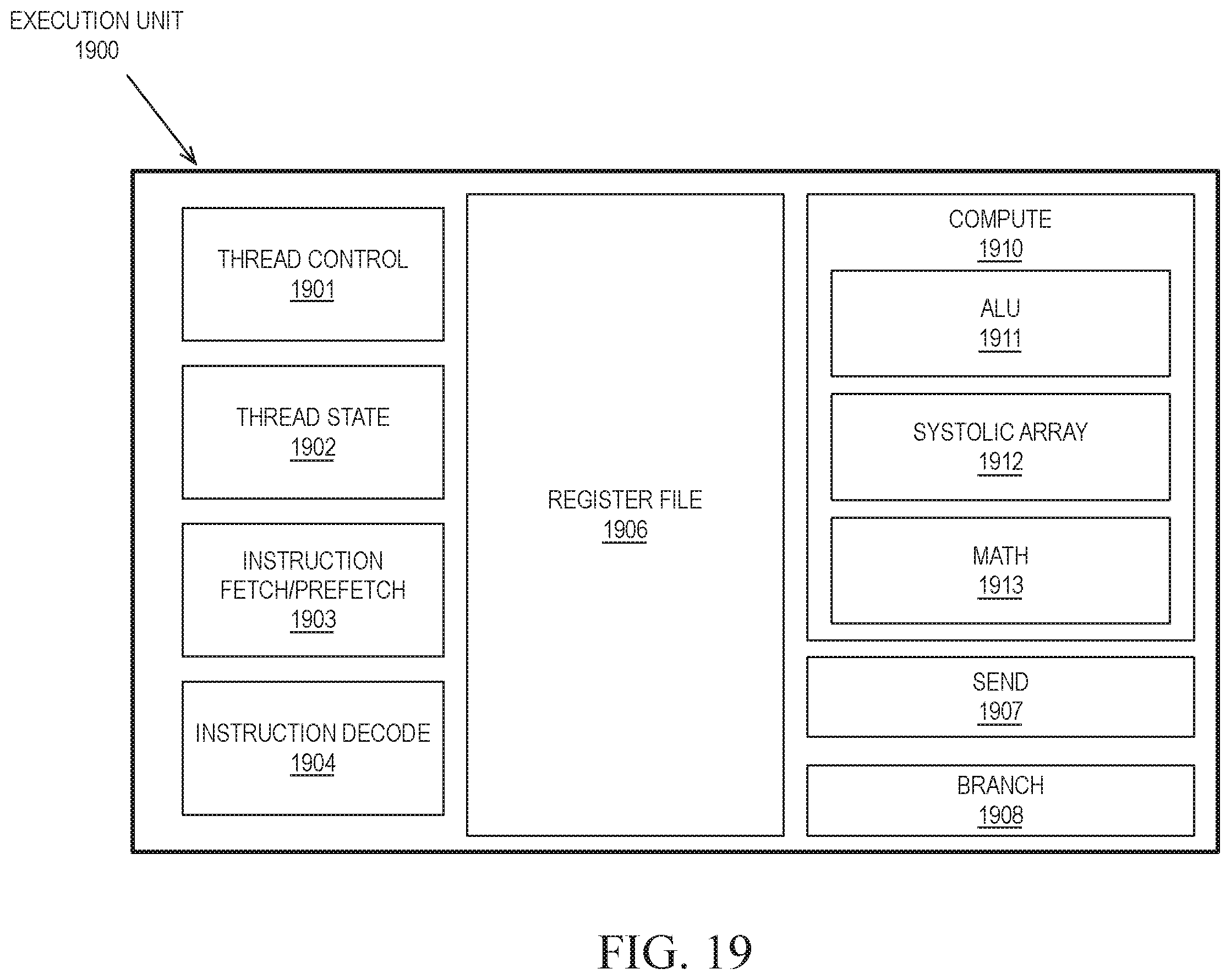

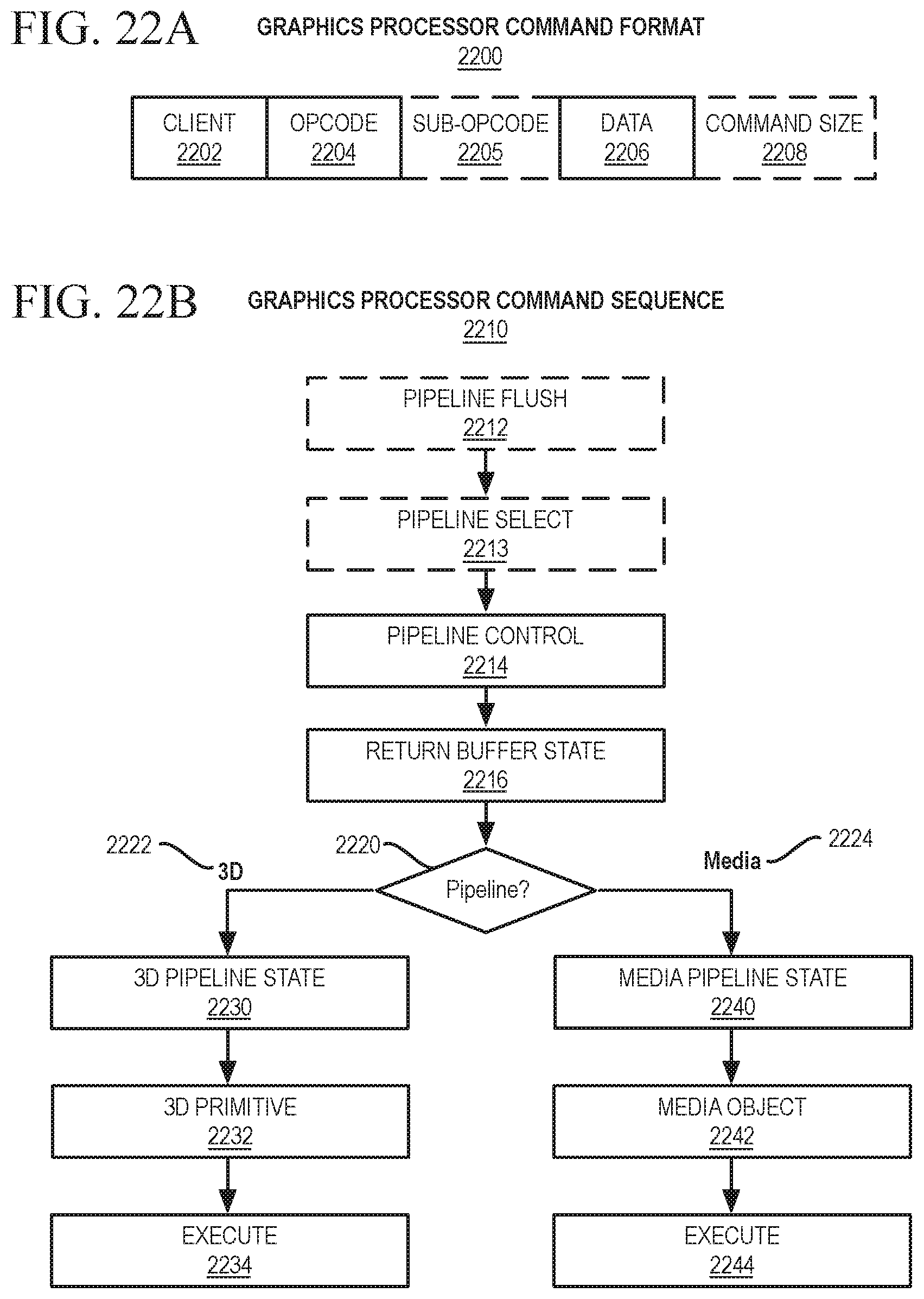

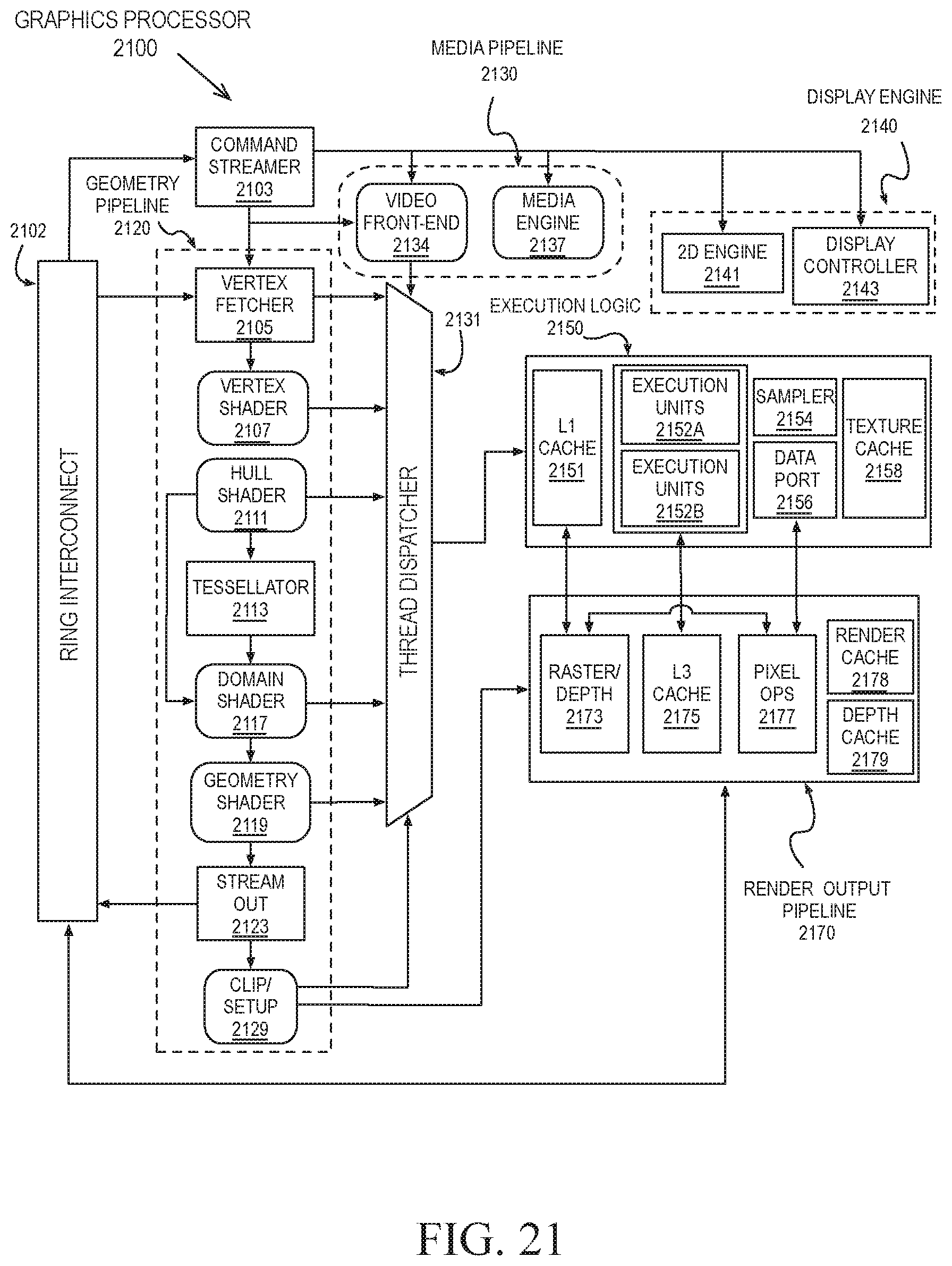

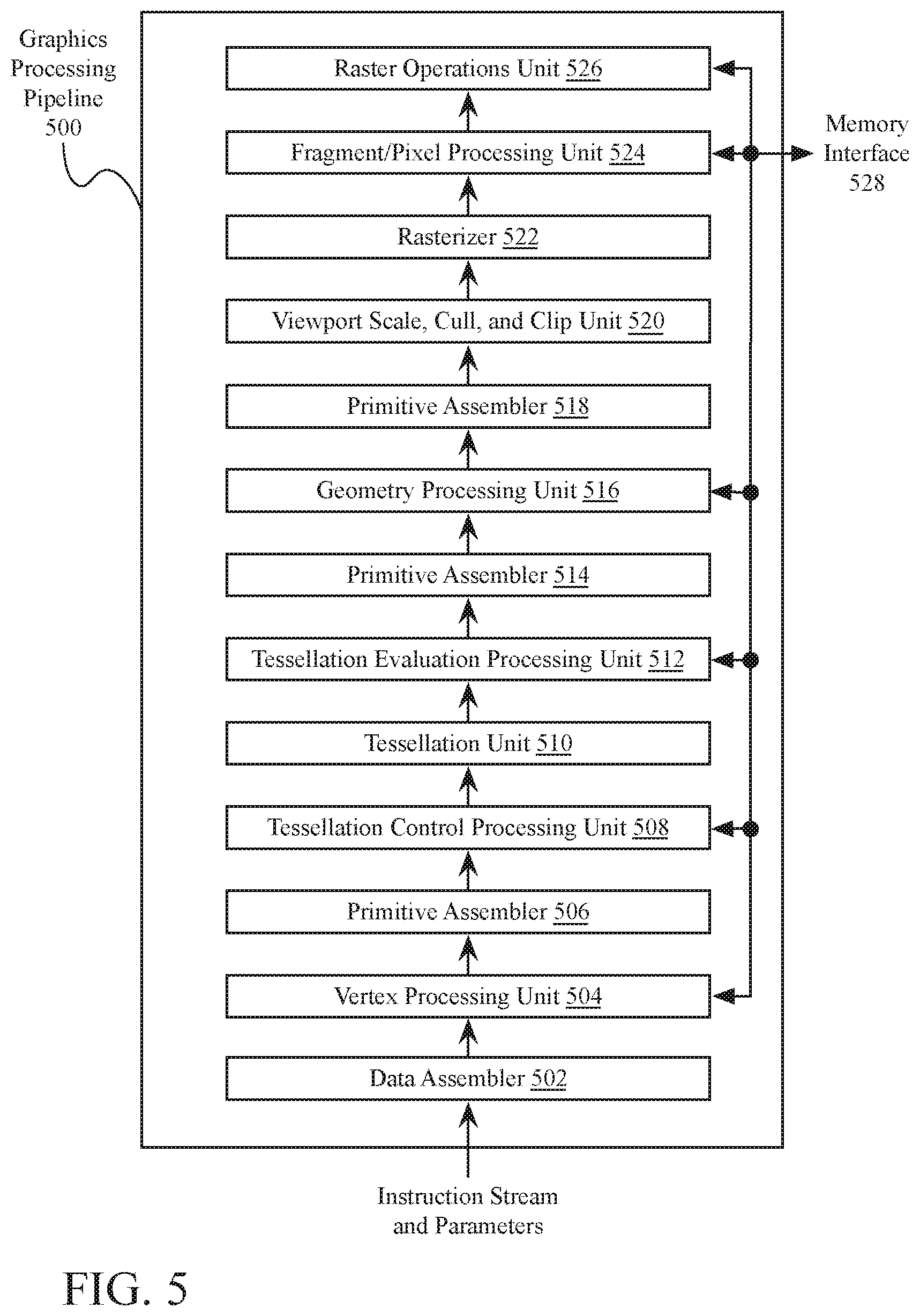

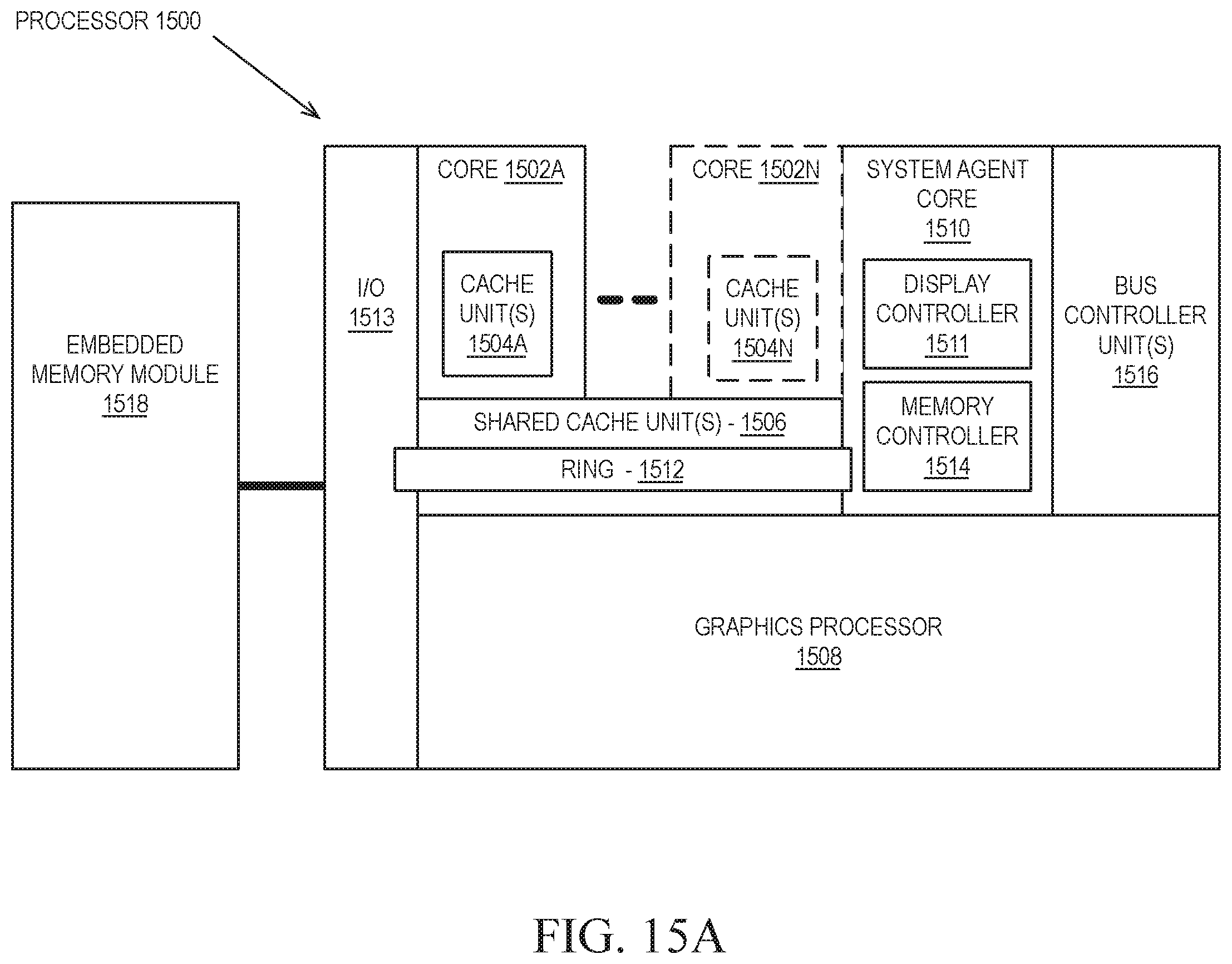

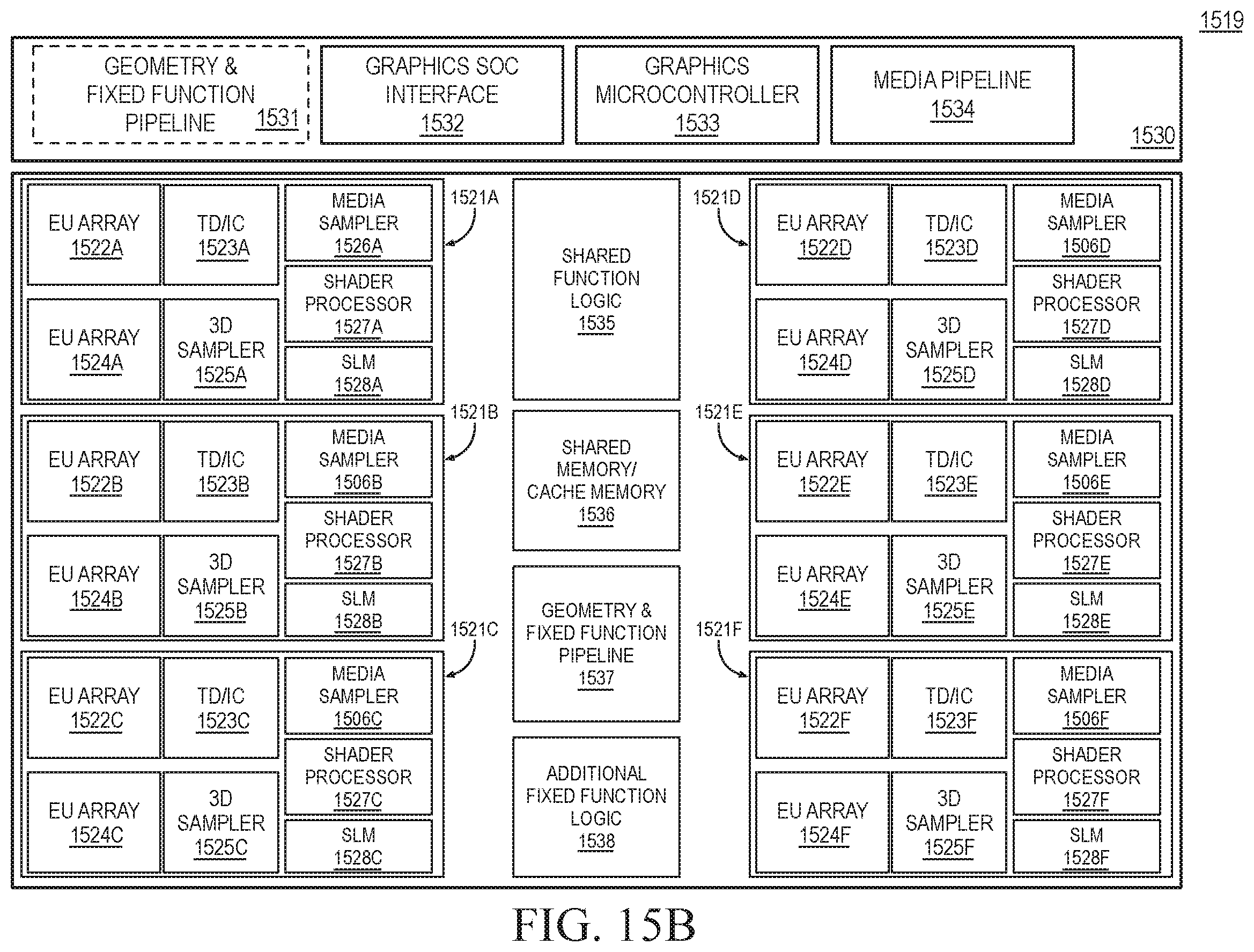

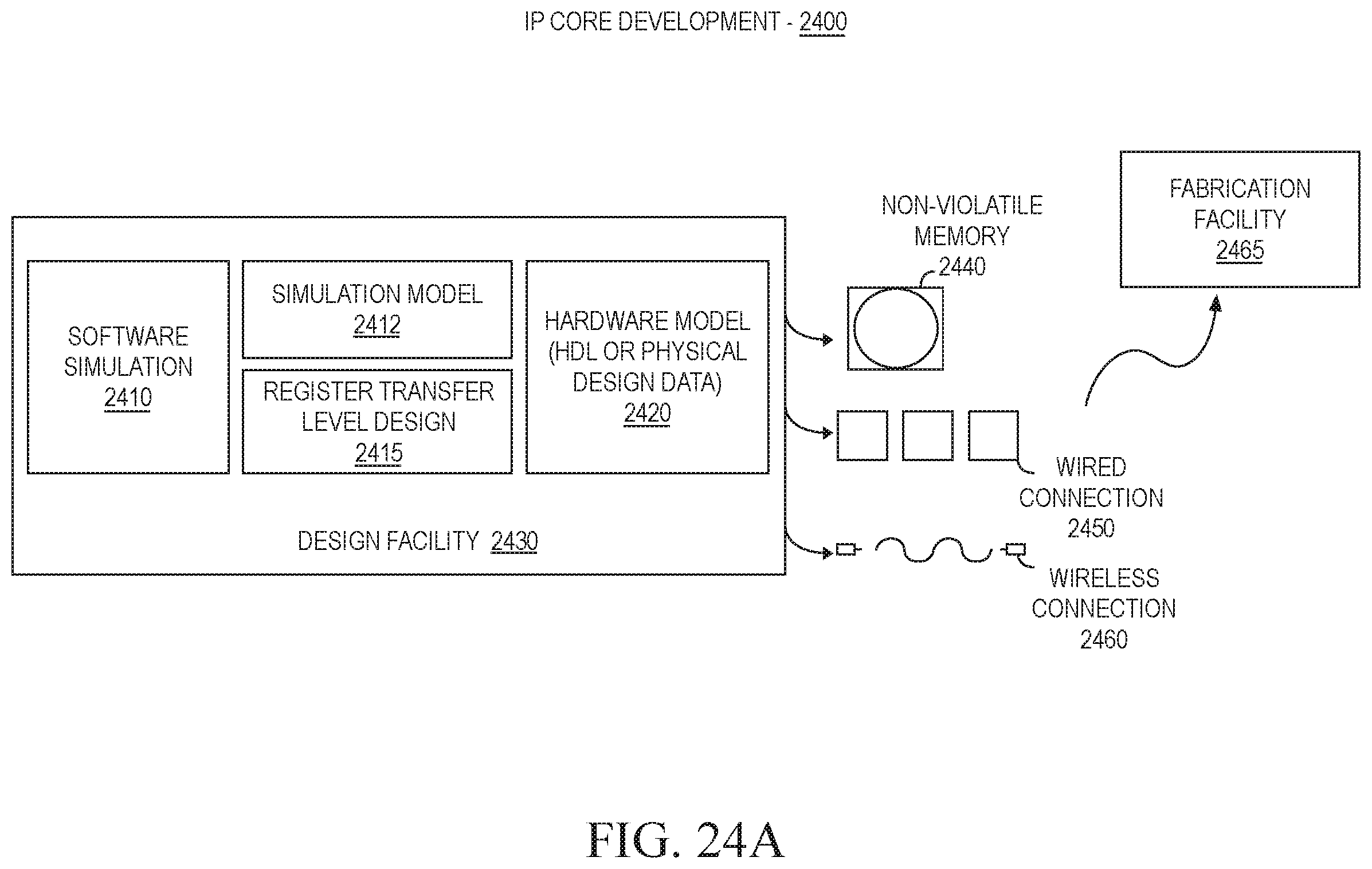

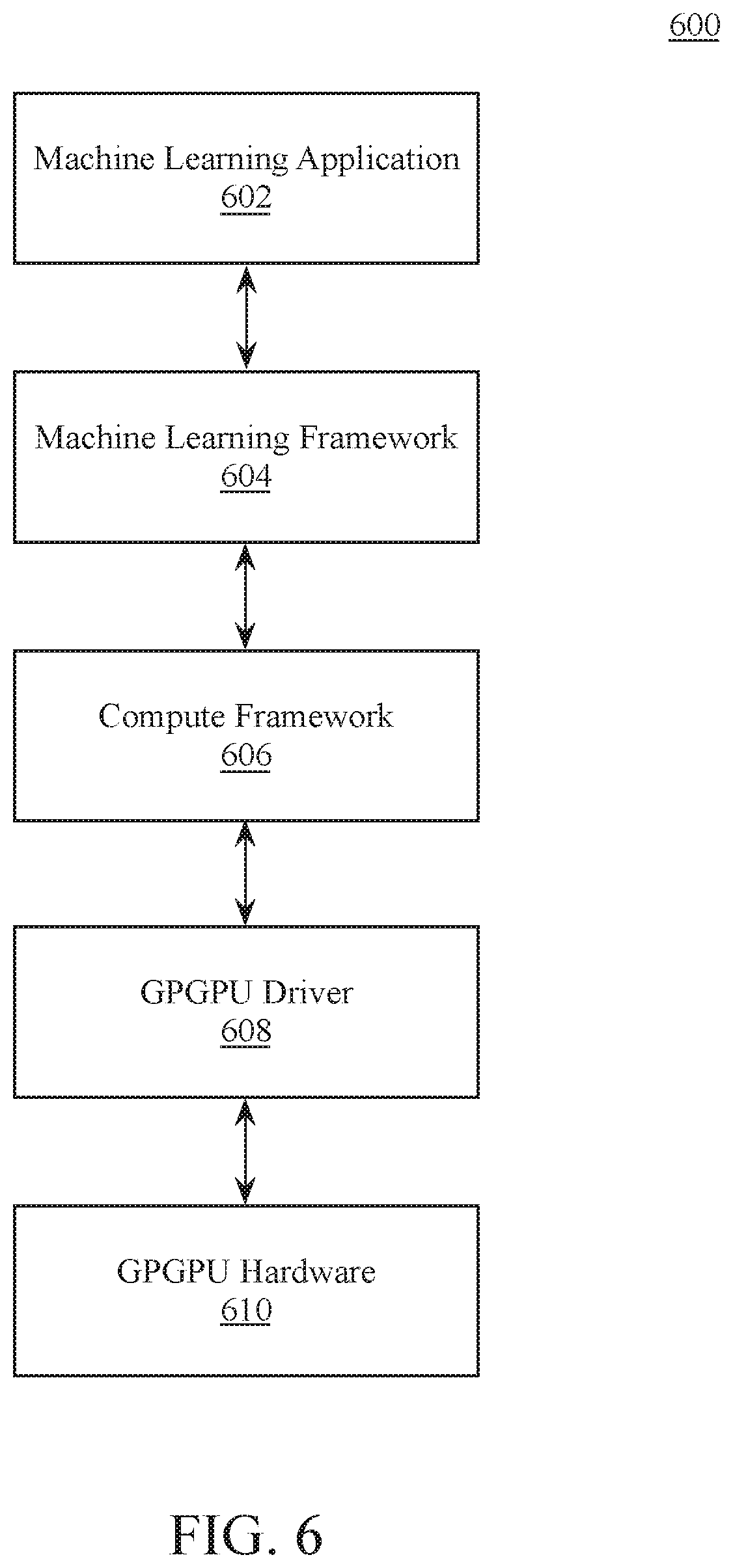

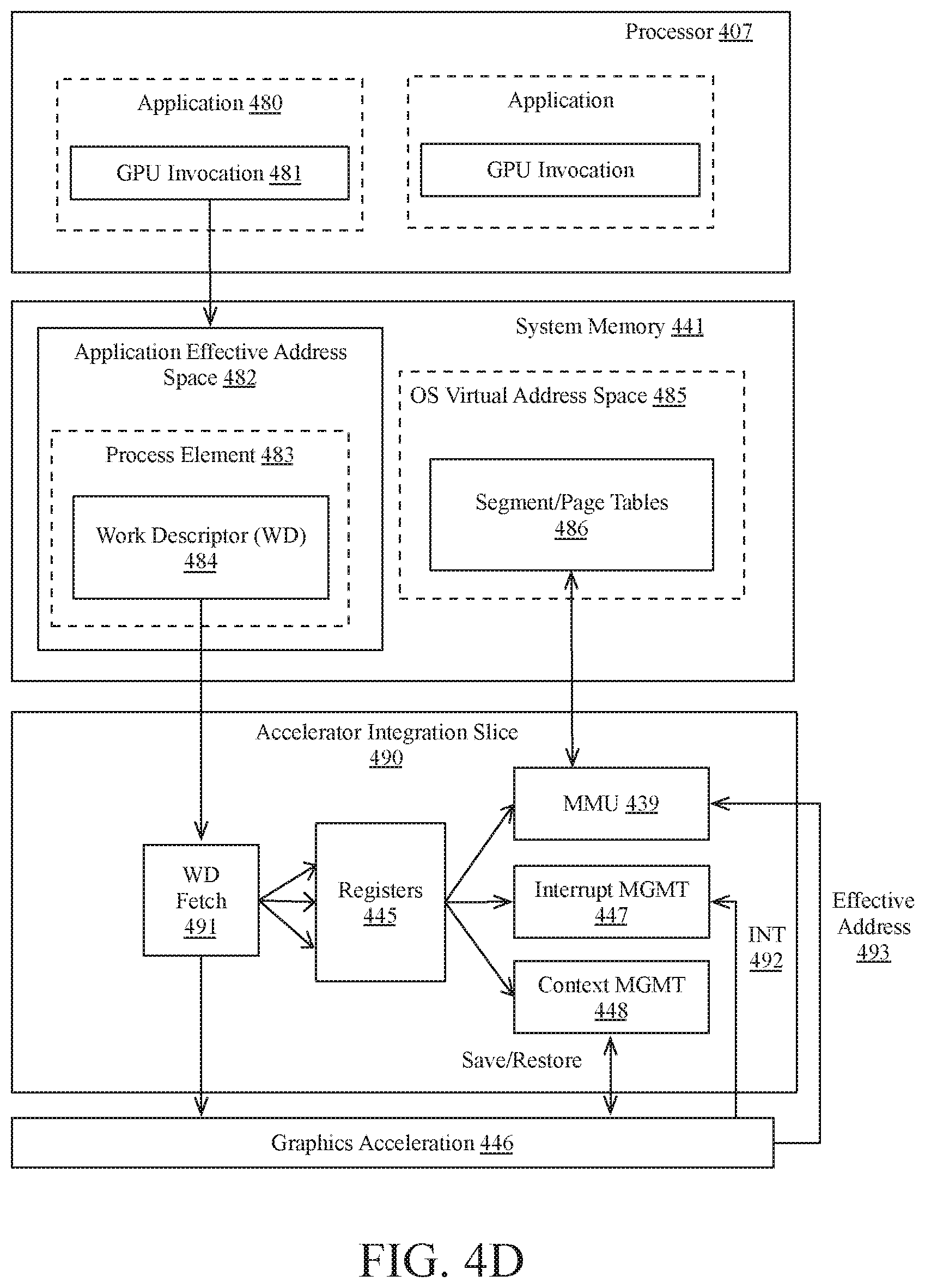

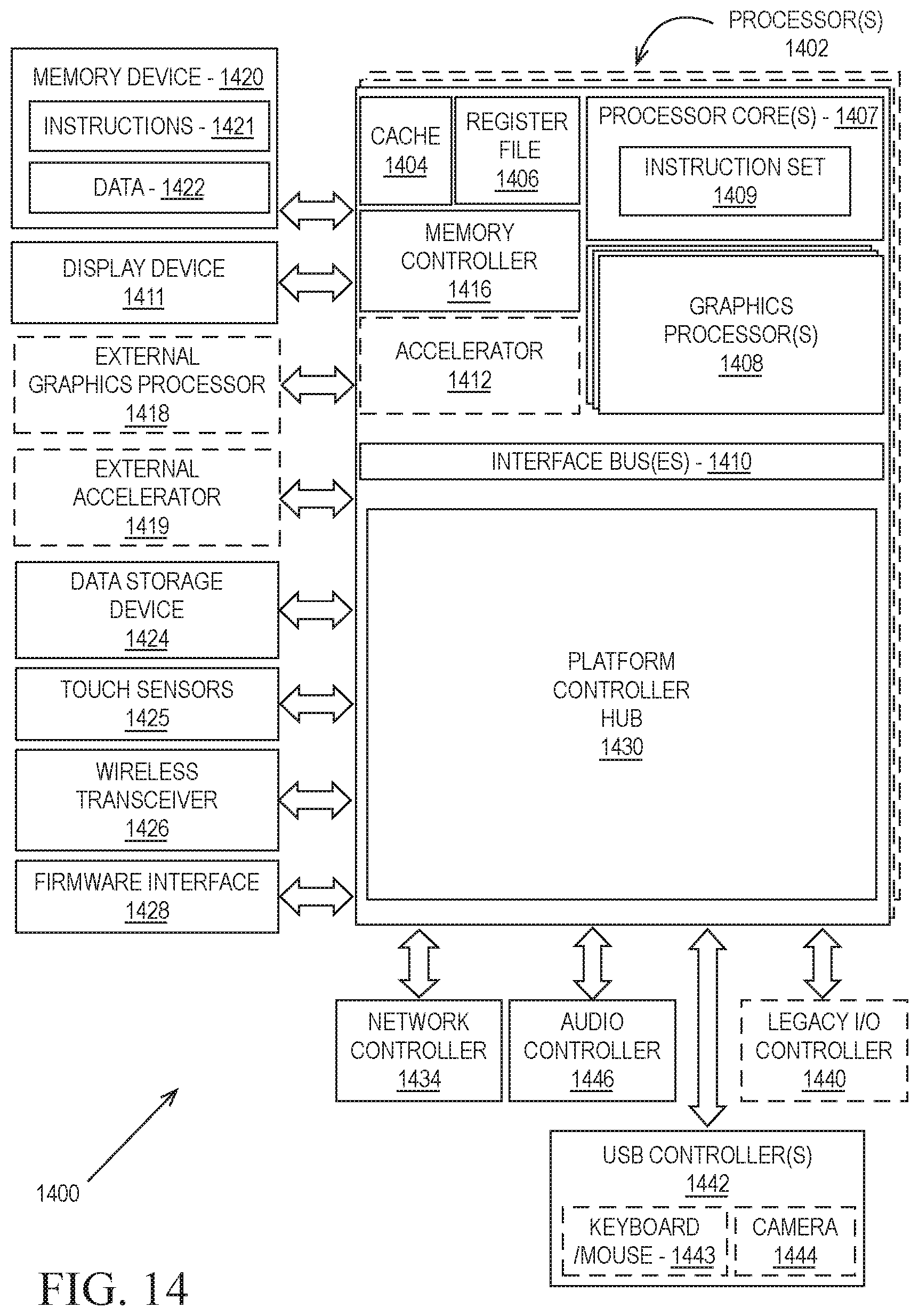

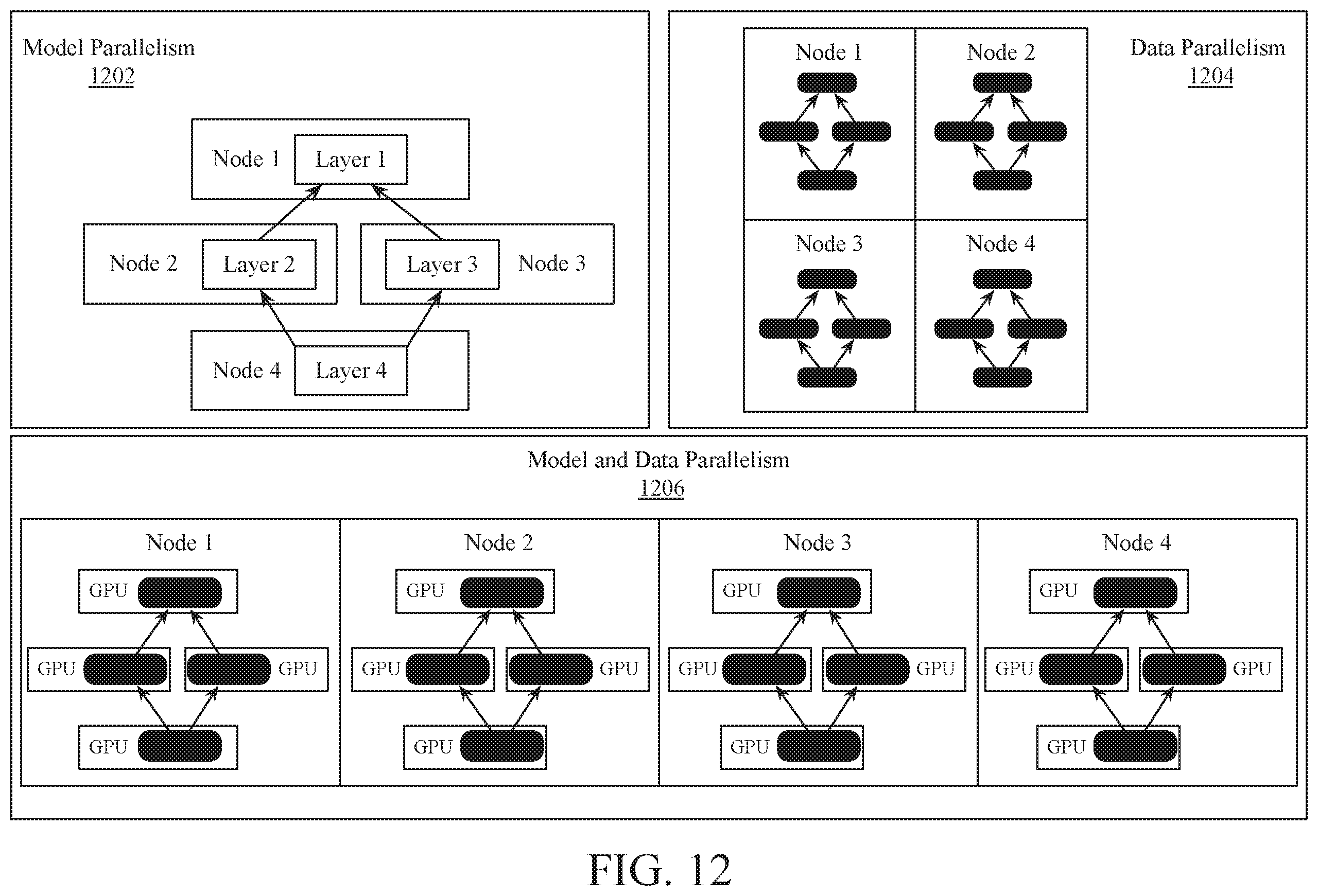

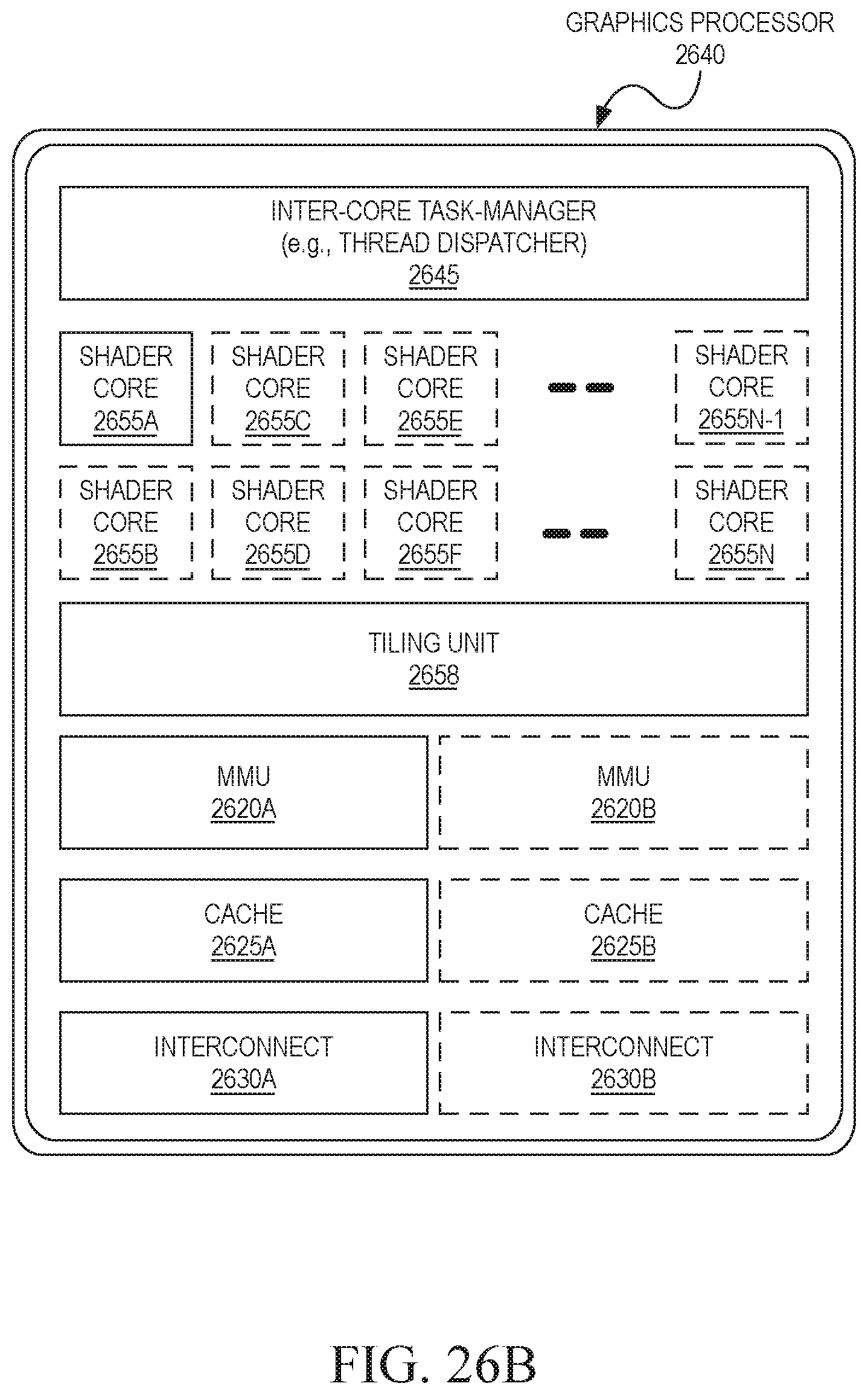

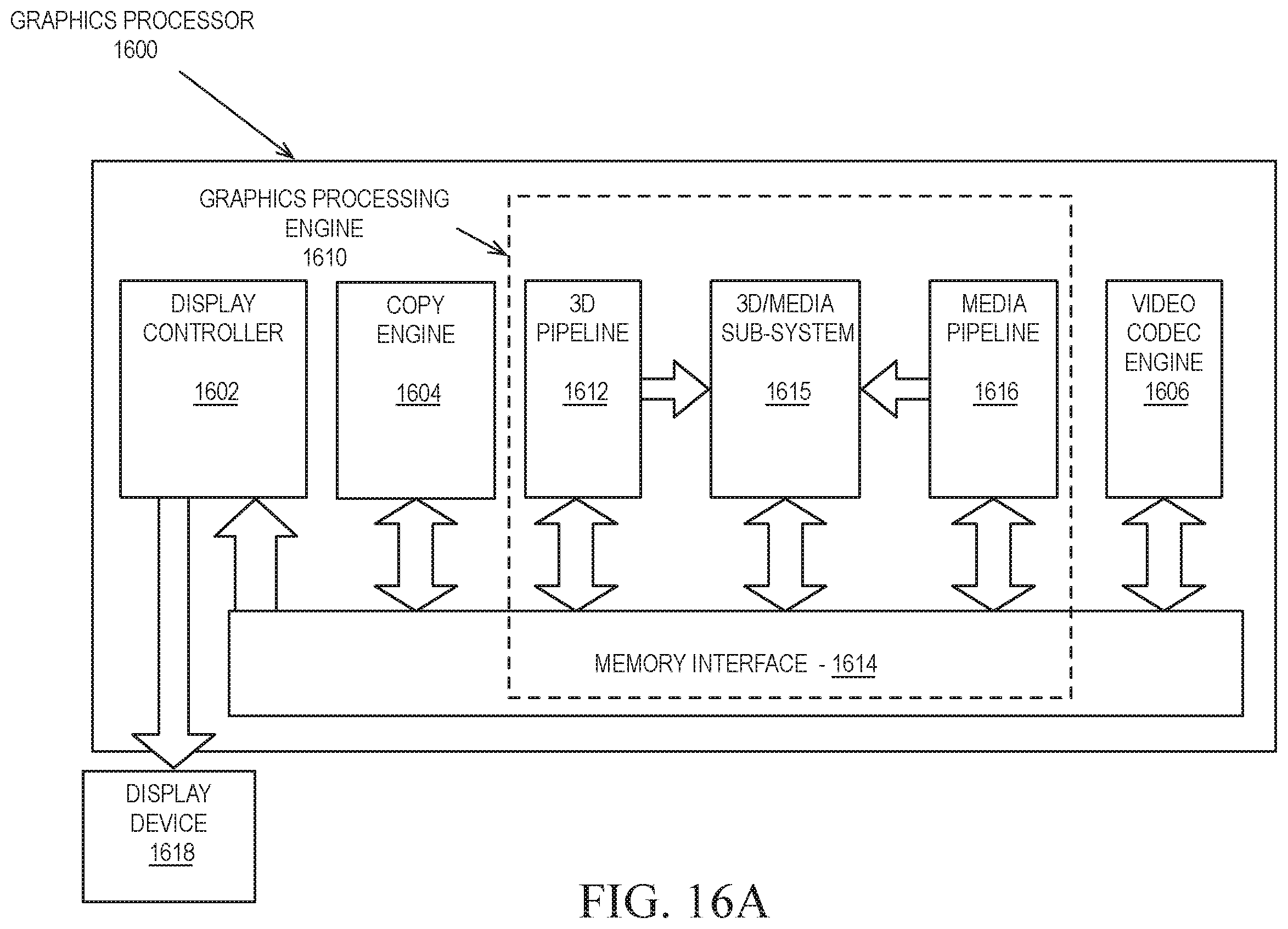

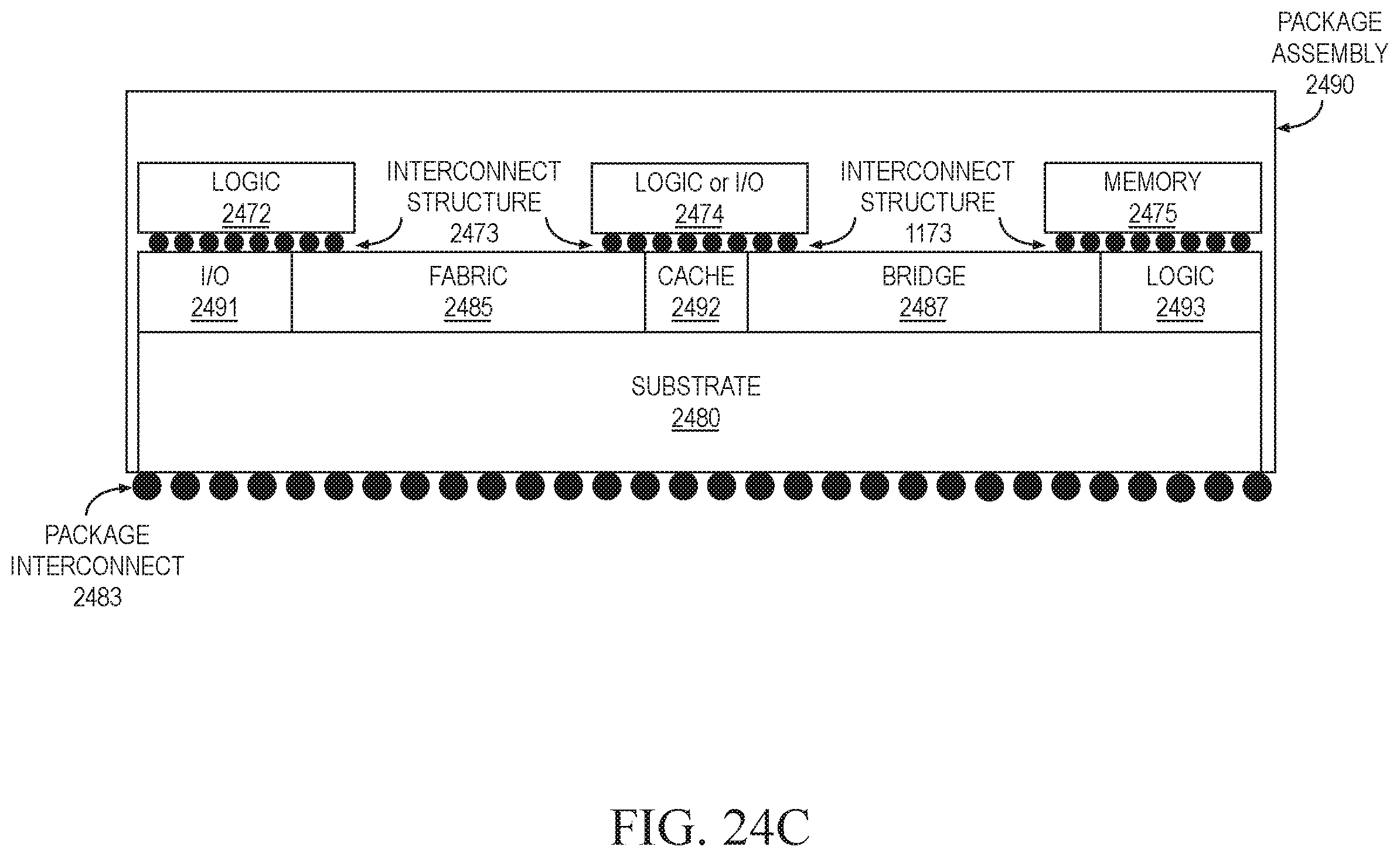

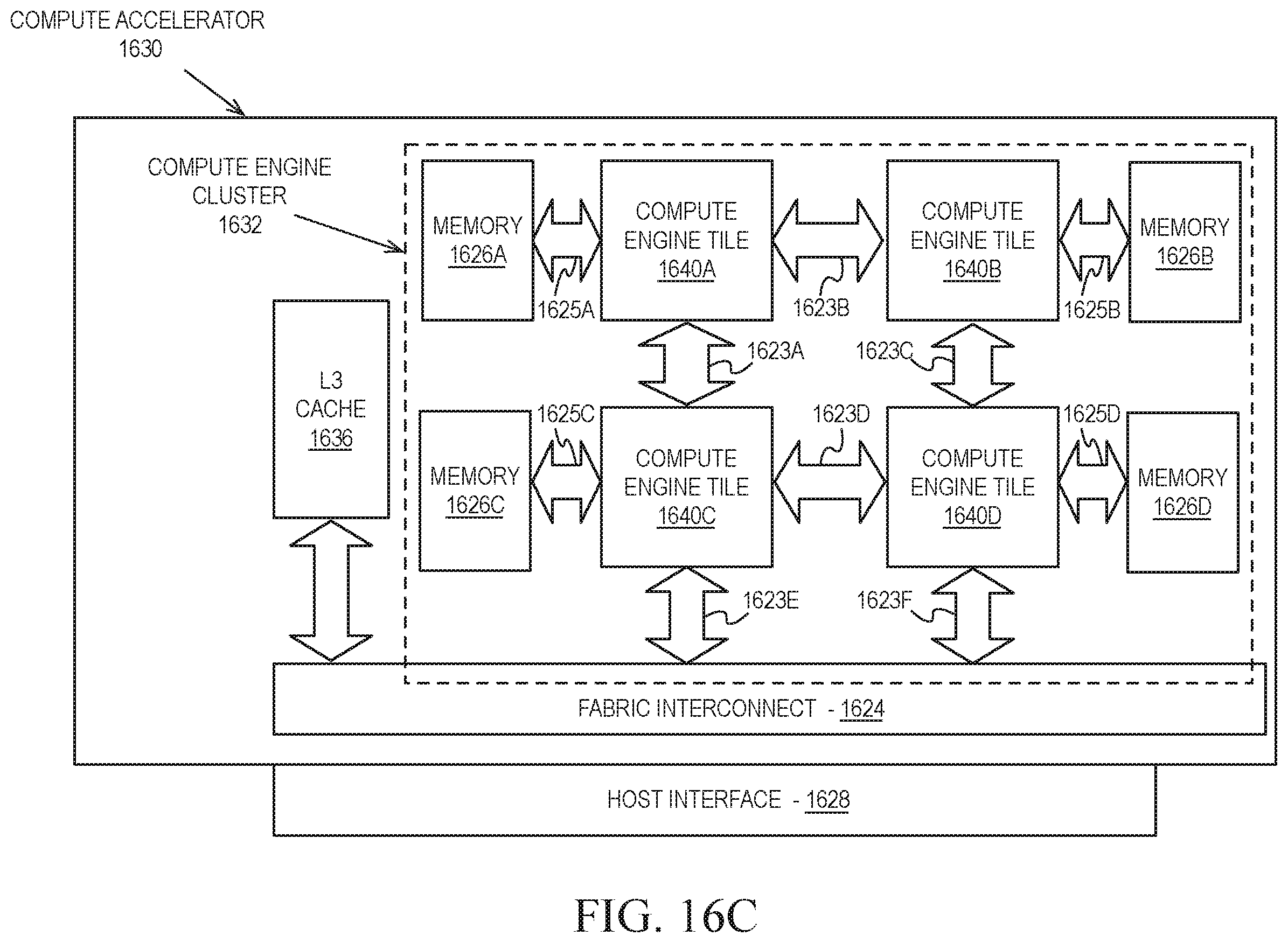

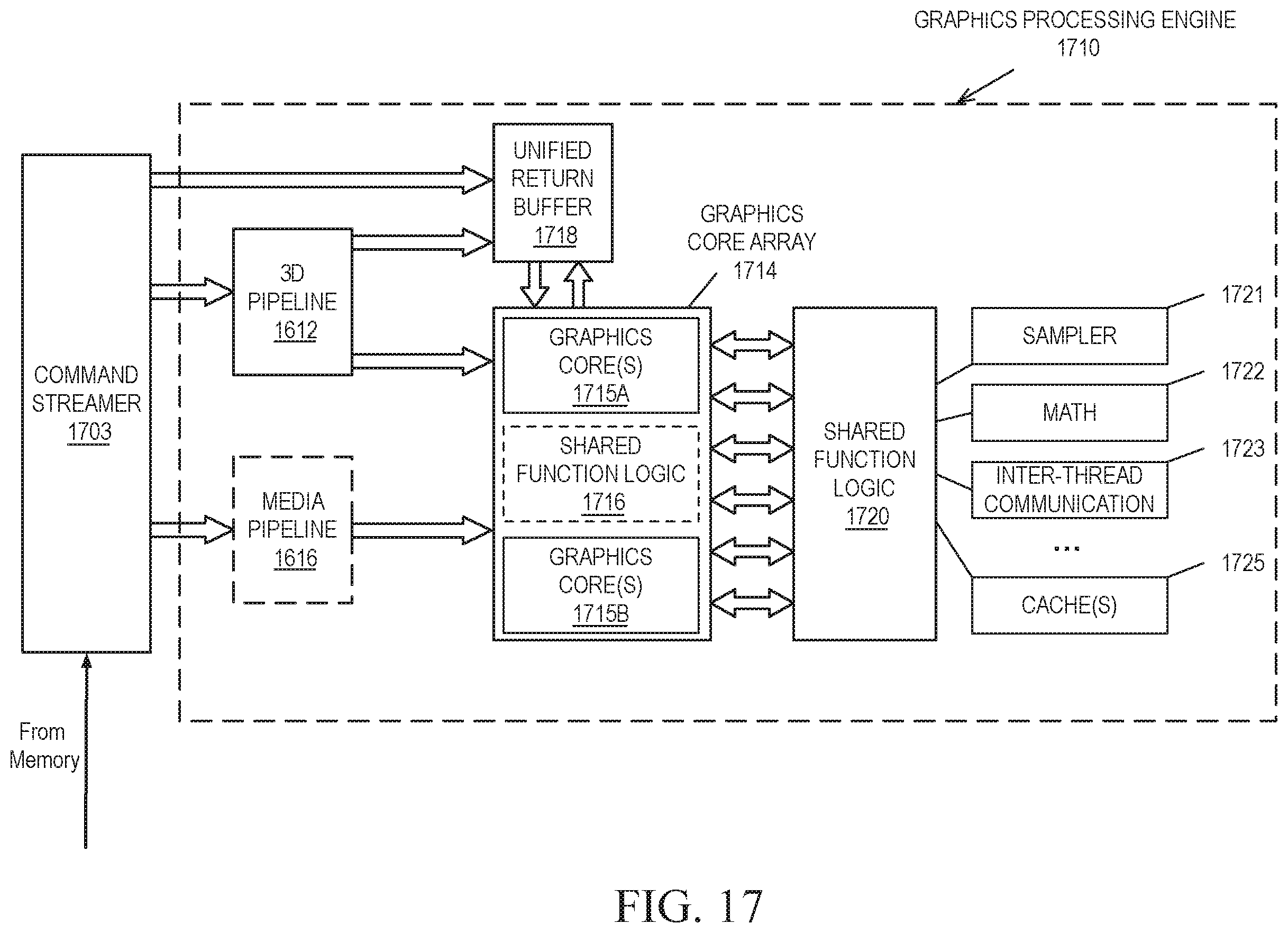

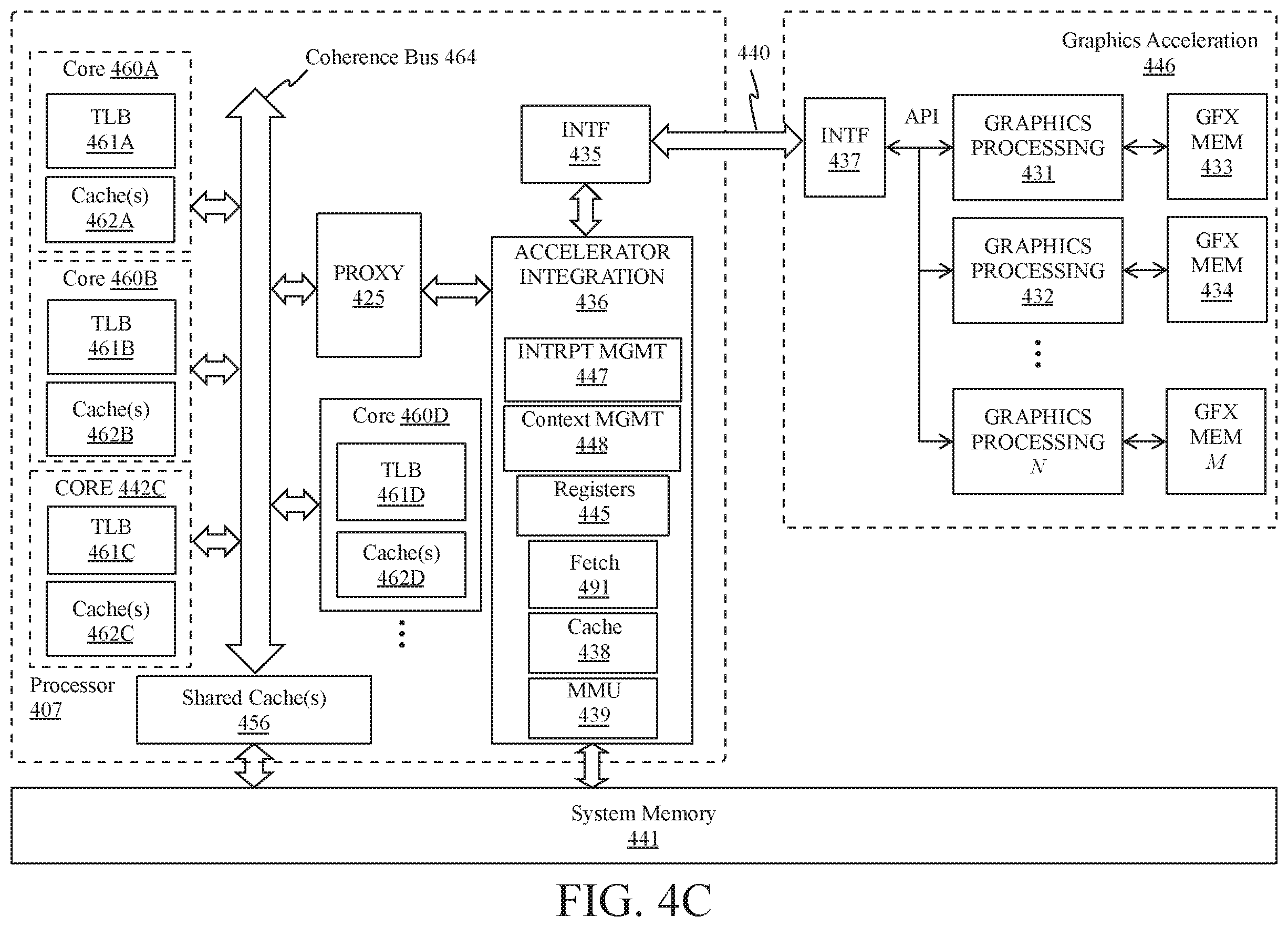

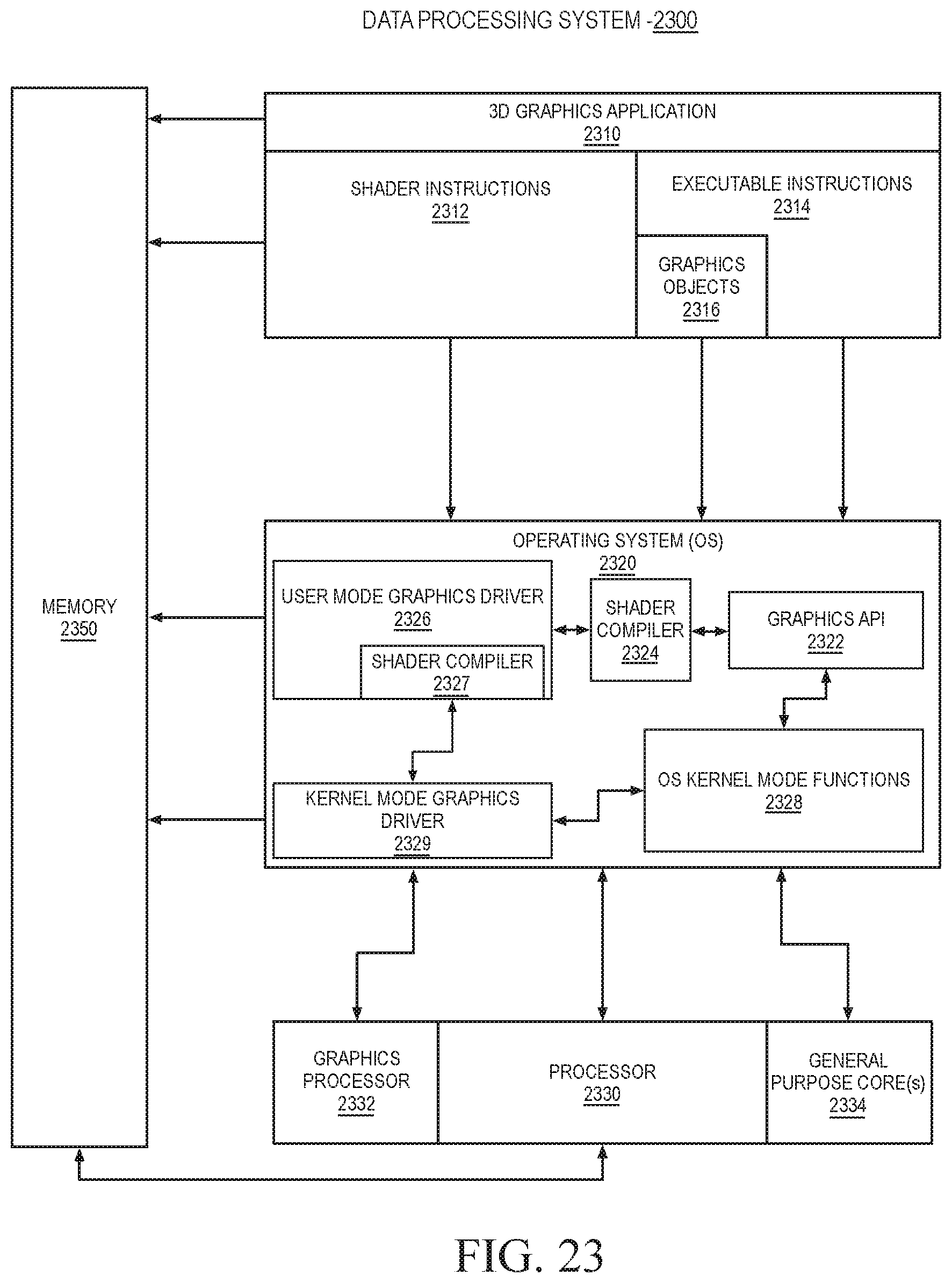

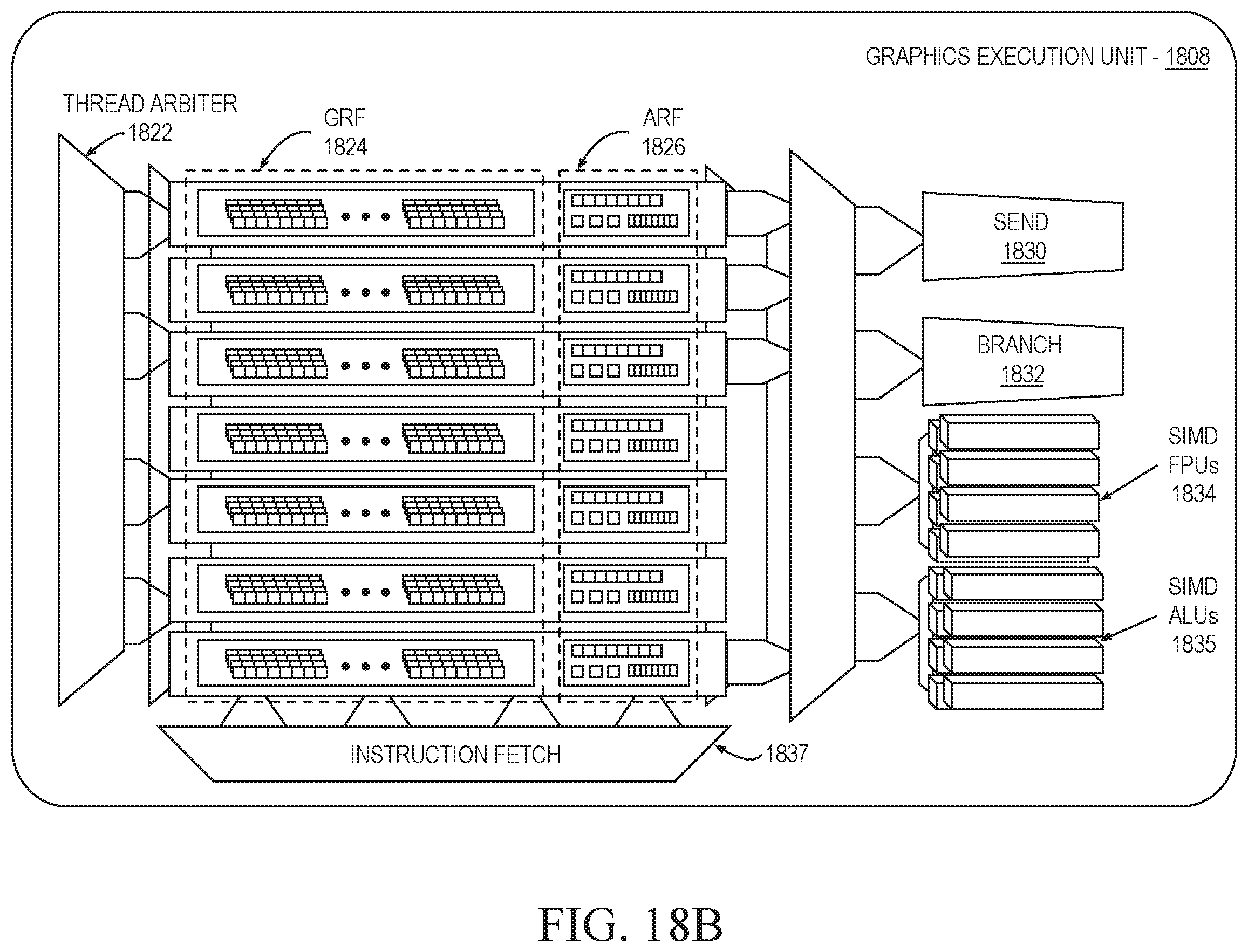

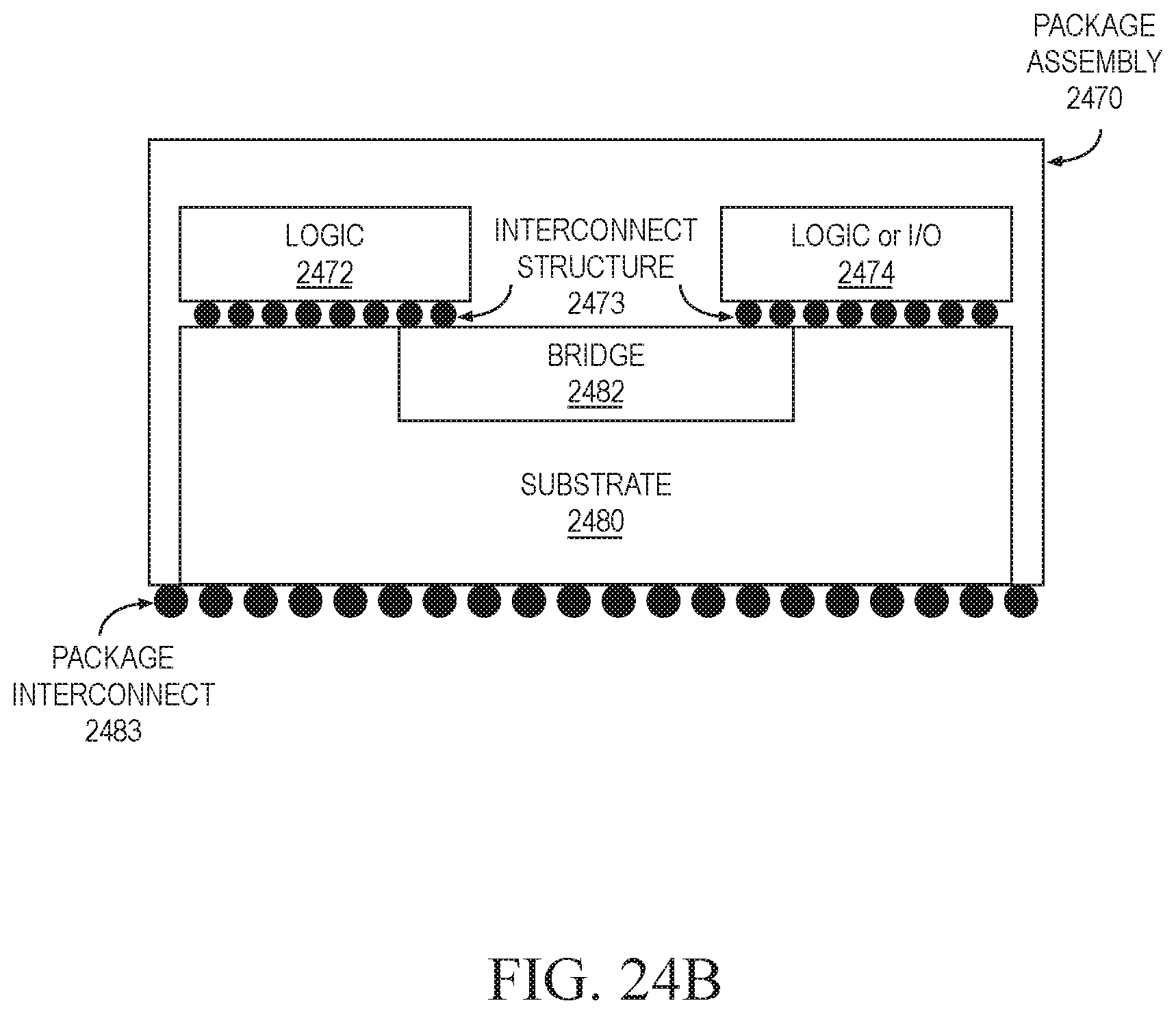

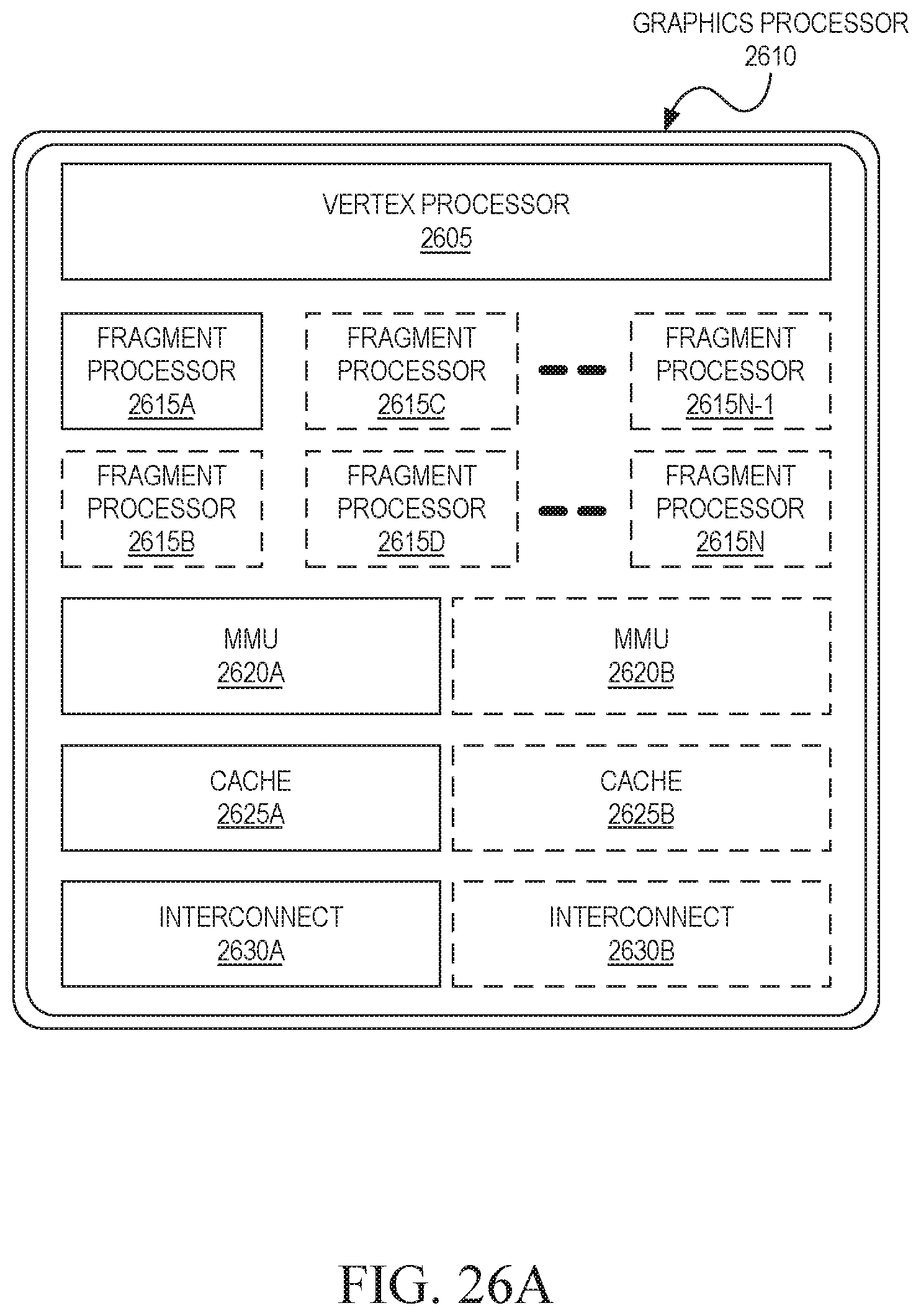

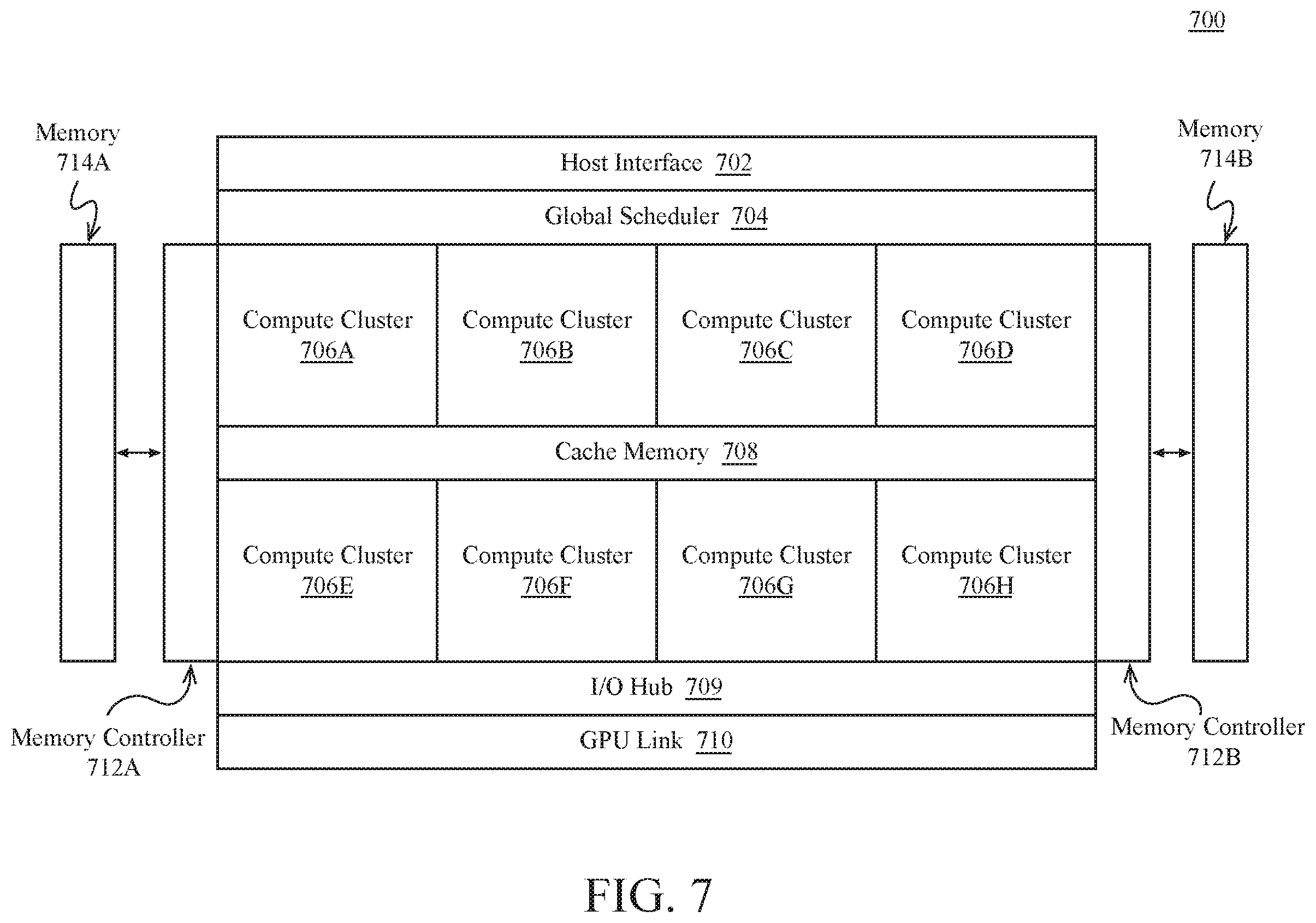

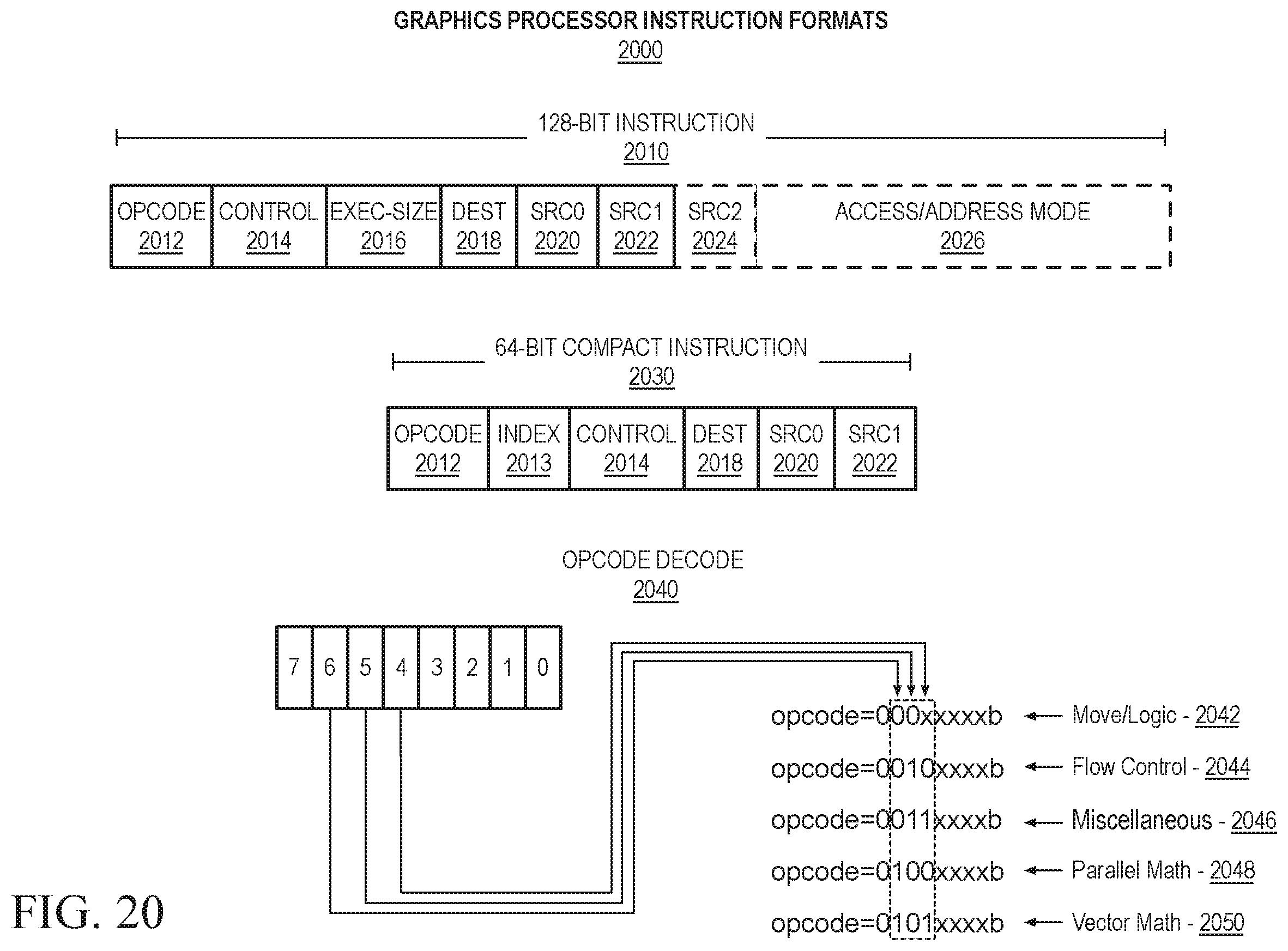

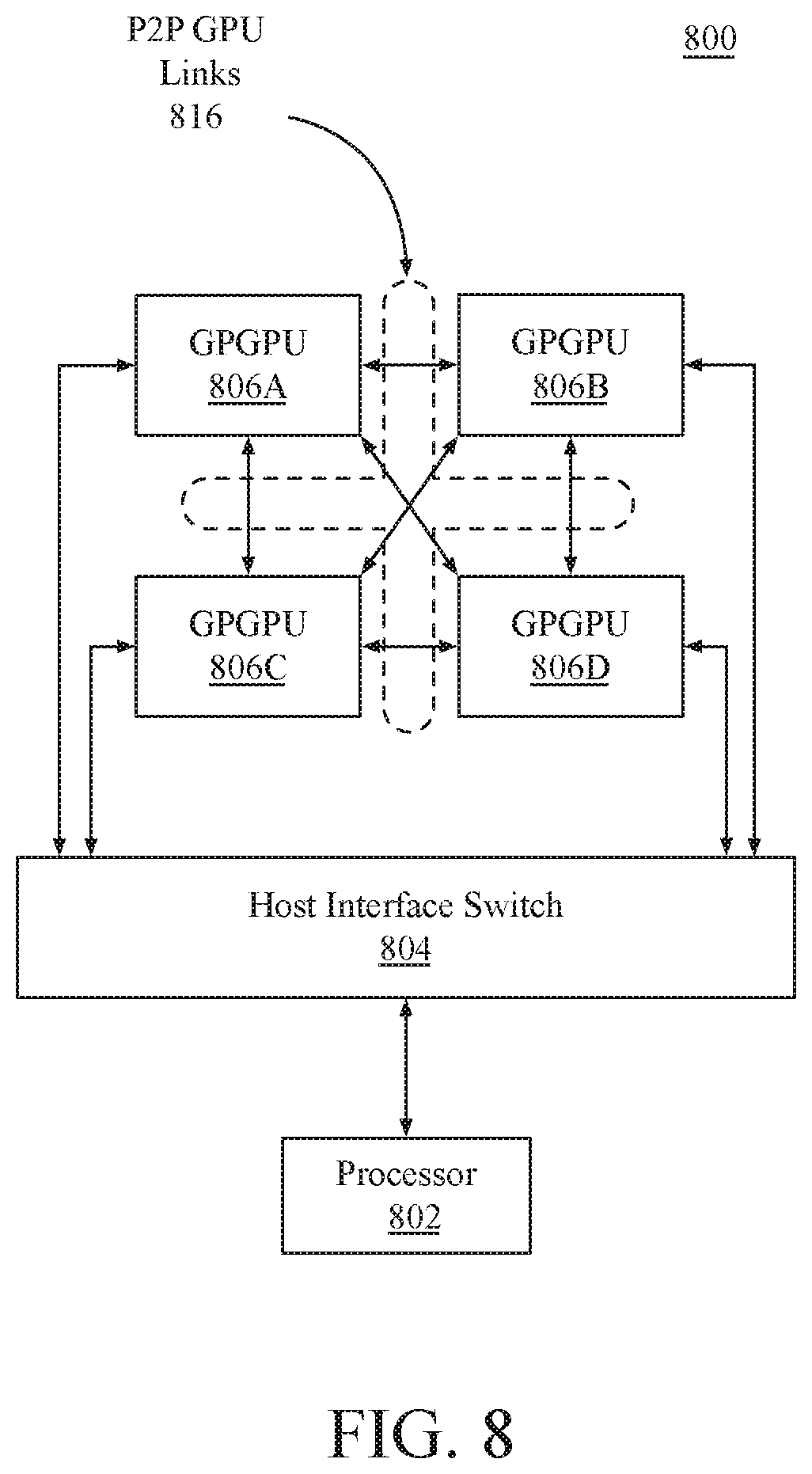

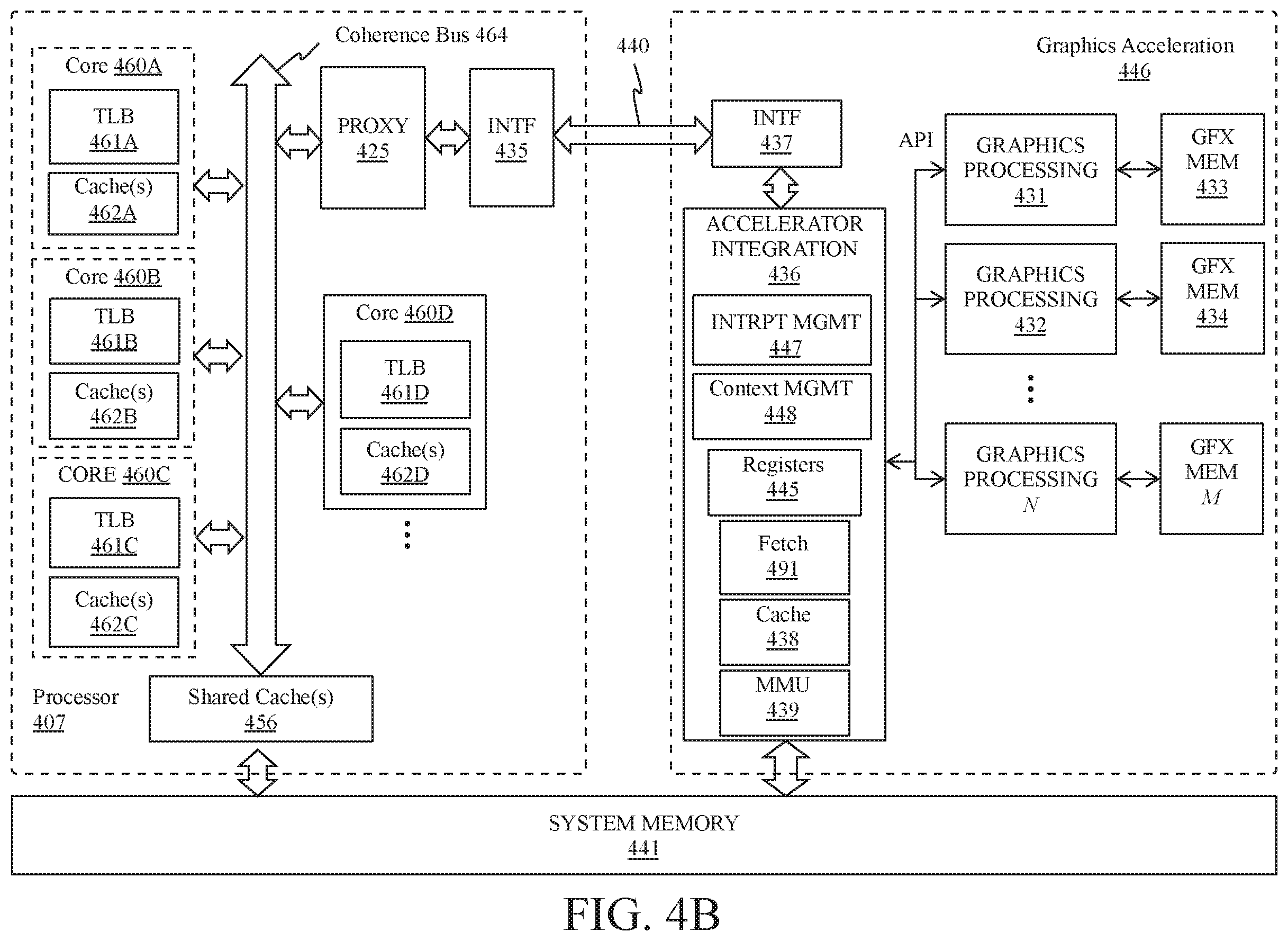

49 drawing sheets from US 2026/0260115 A1 · click any drawing to enlarge
