Apple Files Patent for a Headset Menu That Decides Where Your Apps Open
When you launch an app in a mixed-reality headset, where does the window go? A new Apple patent application says it opens a set distance from wherever the home menu was floating.
What Apple's app-placement rule actually does

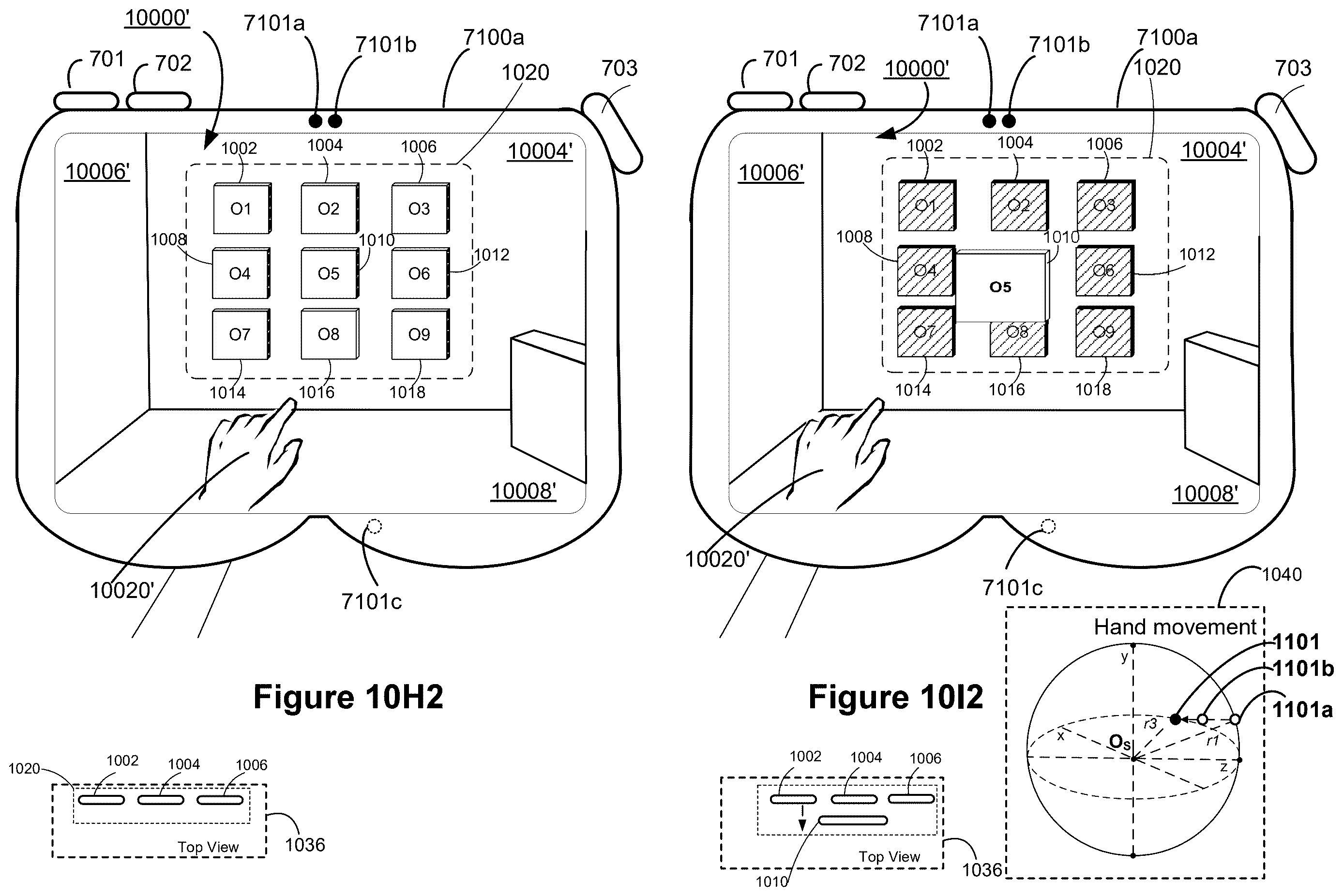

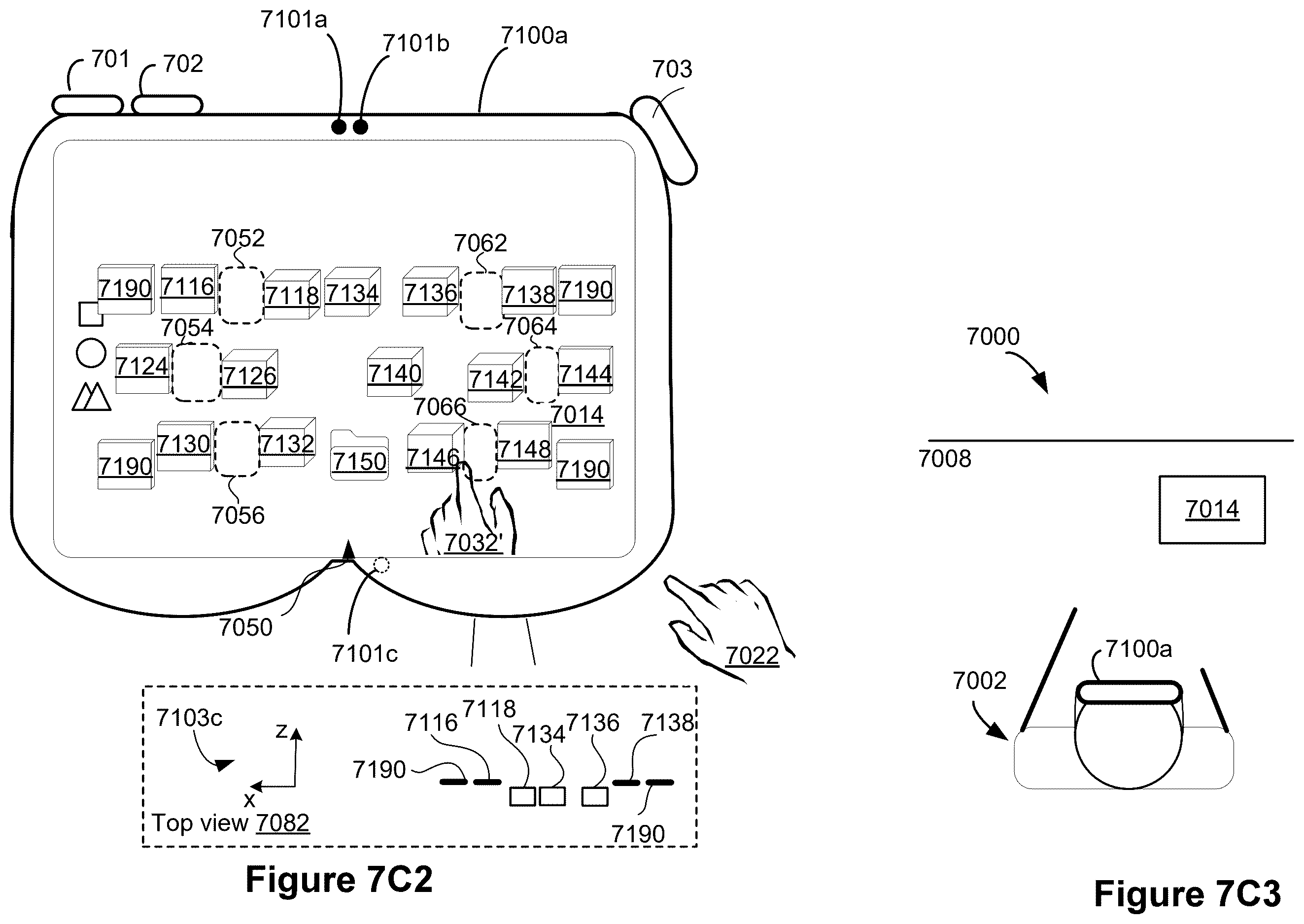

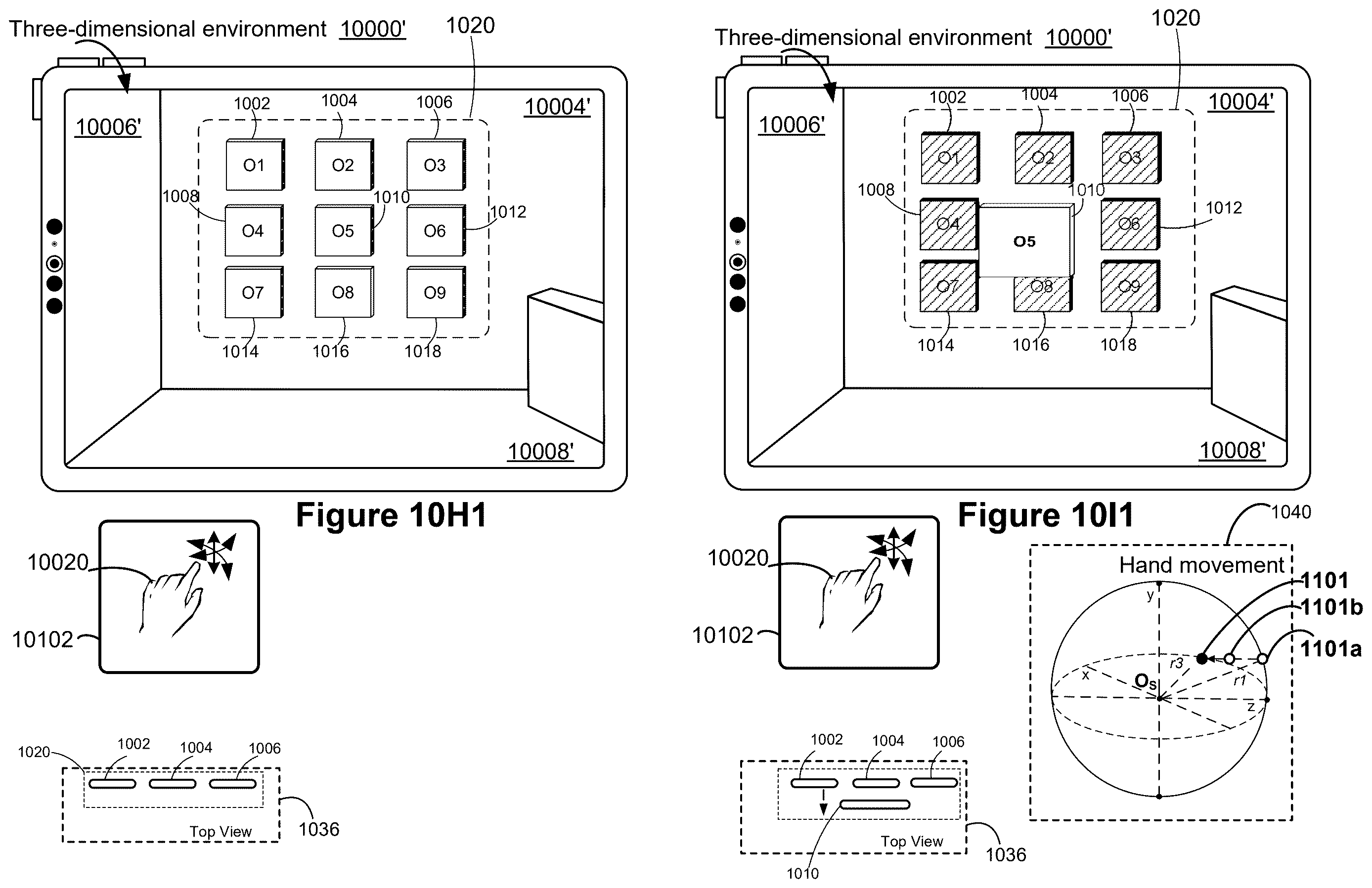

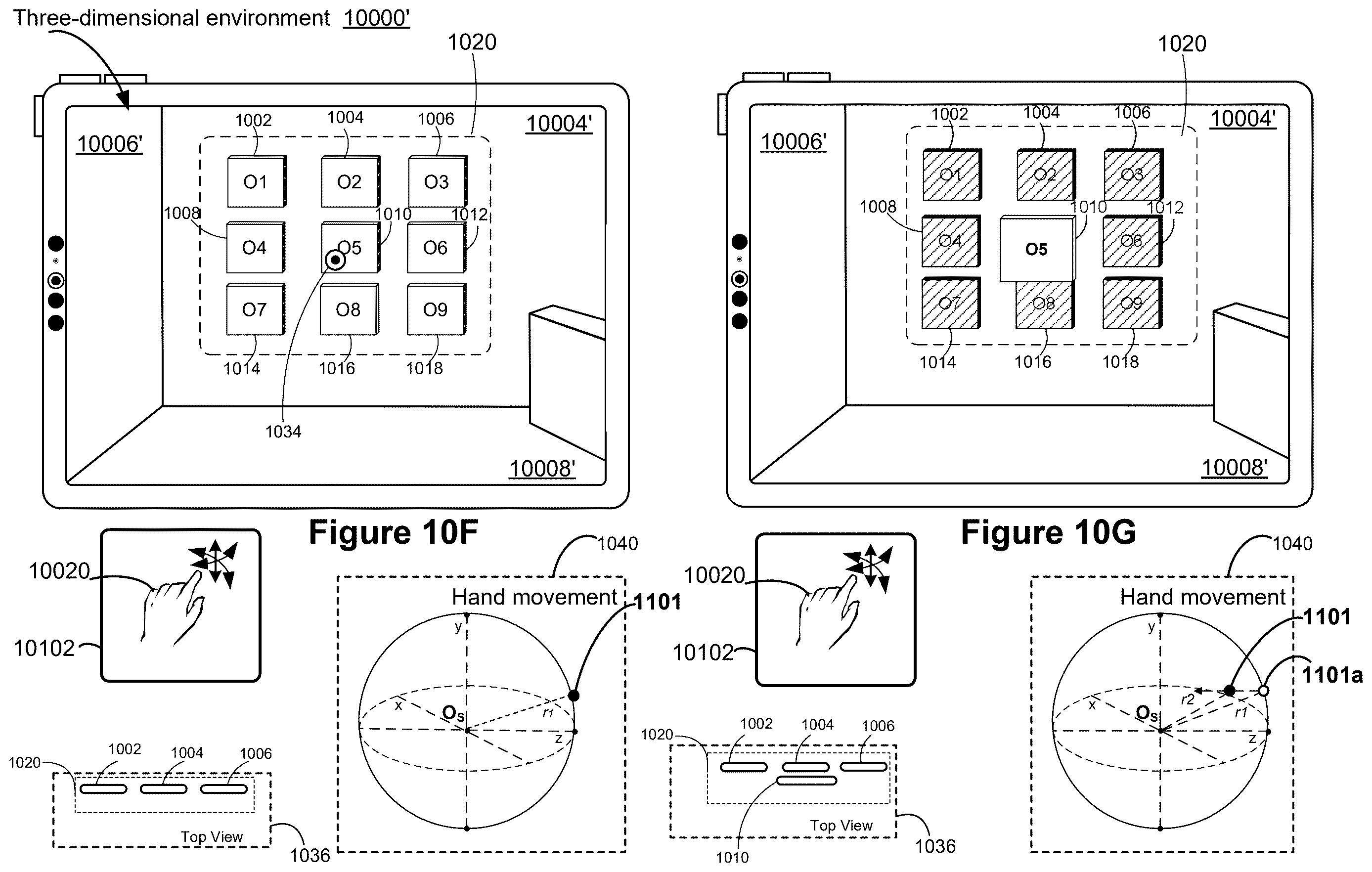

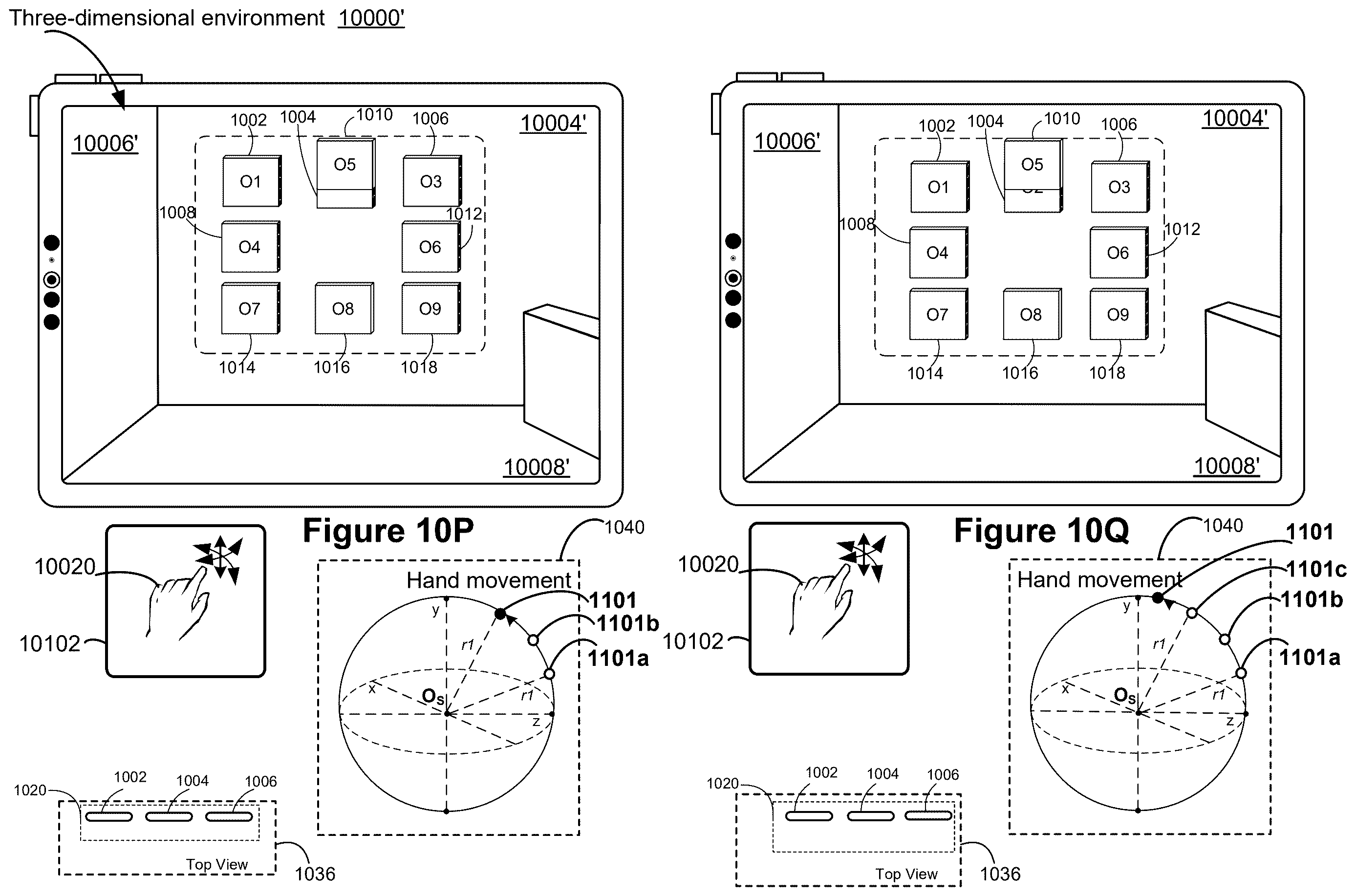

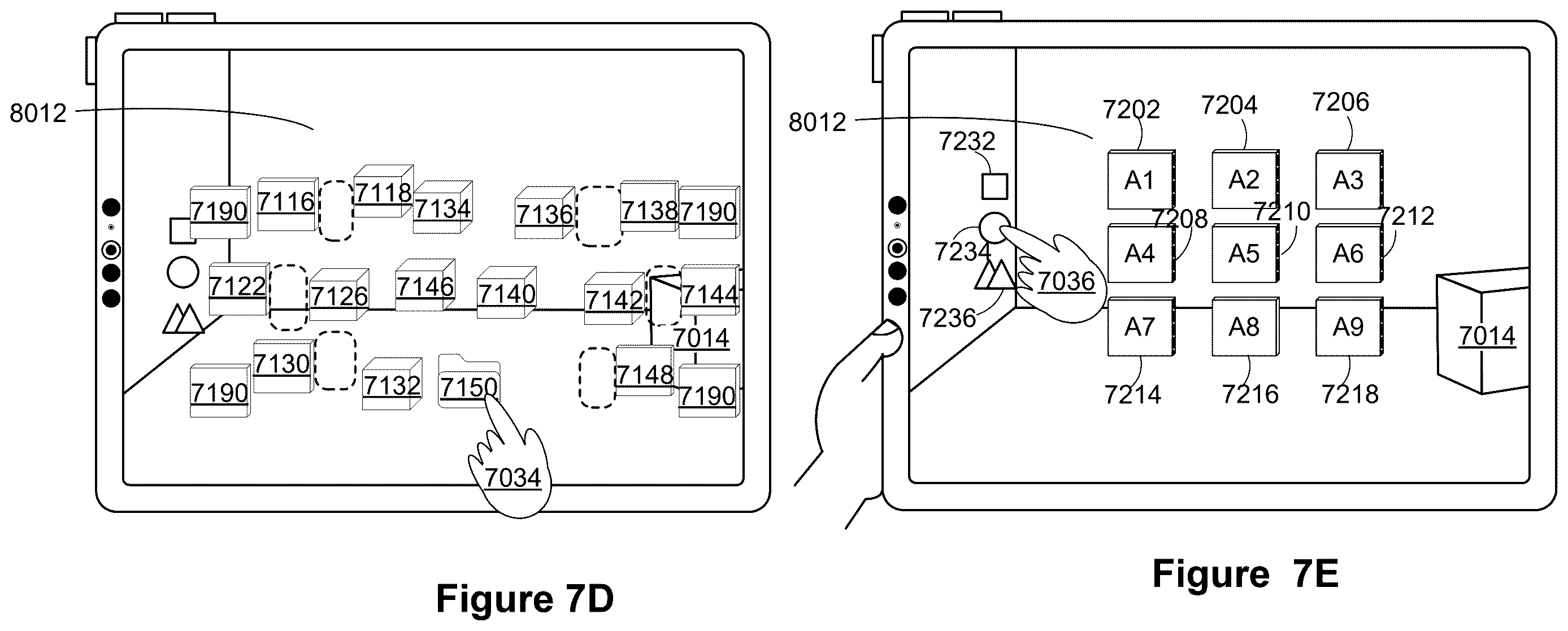

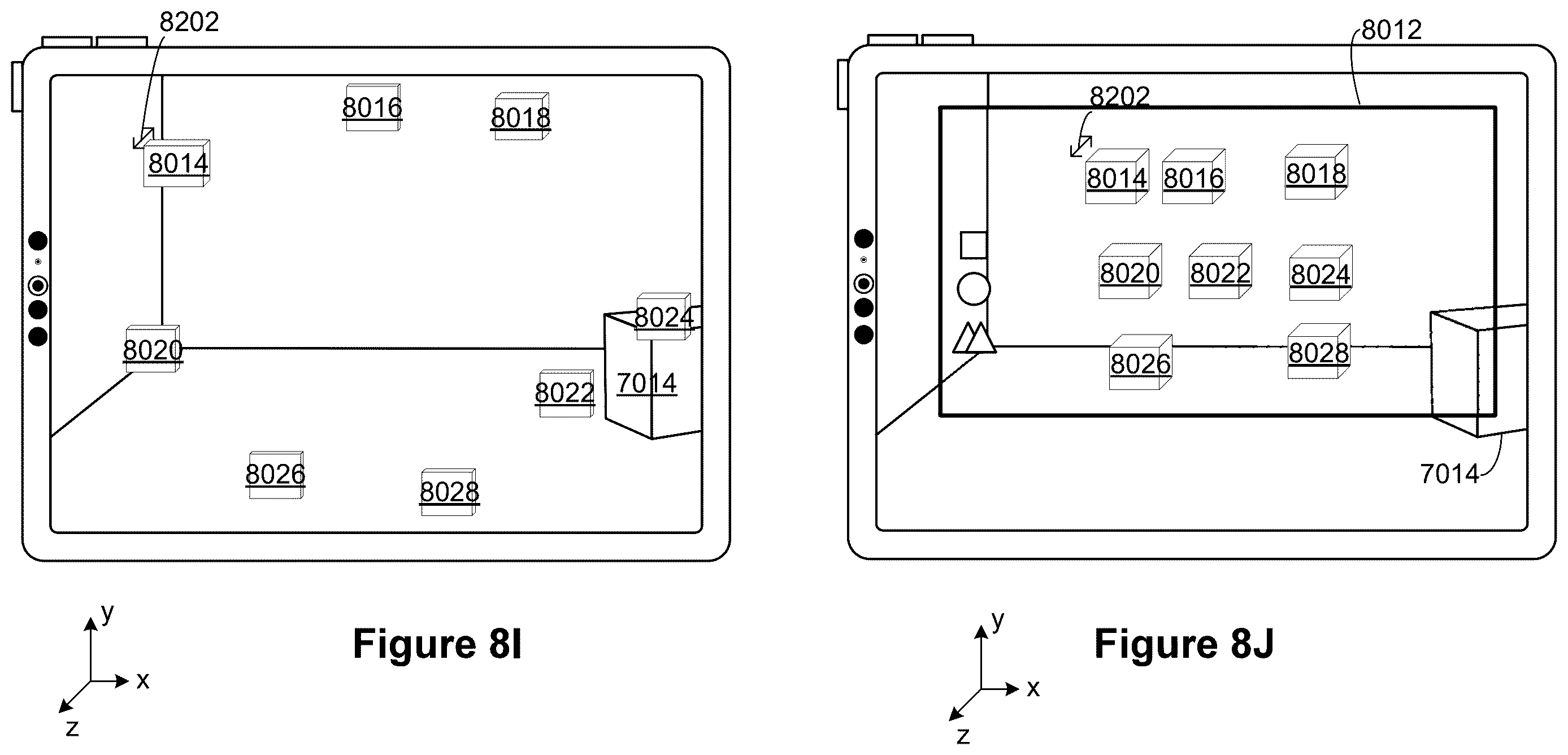

You're wearing a mixed-reality headset, you glance up a little, and a floating grid of app icons appears in front of you. You pinch Notes, and the window has to land somewhere. If it opens too far to the side or down by your feet, you spend the first few seconds hunting for it.
Apple's filing answers with a simple rule: the app opens at the same fixed distance and direction from wherever the menu was. Call up the menu high and off to your left, and the app appears in the same relative spot, behind and a bit below it. Call it up somewhere else, and the app follows. The menu is the anchor.
The filing also covers the awkward cases, like keeping a window from sinking through the floor and deciding when a fresh menu should appear if you've turned your head a lot.
displaying, via the one or more display generation components, a home menu user interface at a respective location; while displaying the home menu user interface at the respective location, detecting a first user input for launching an application from the home menu user interface …
Translation: The headset shows your app menu and waits for you to pick an app to open.
How the menu's position decides the window's spot

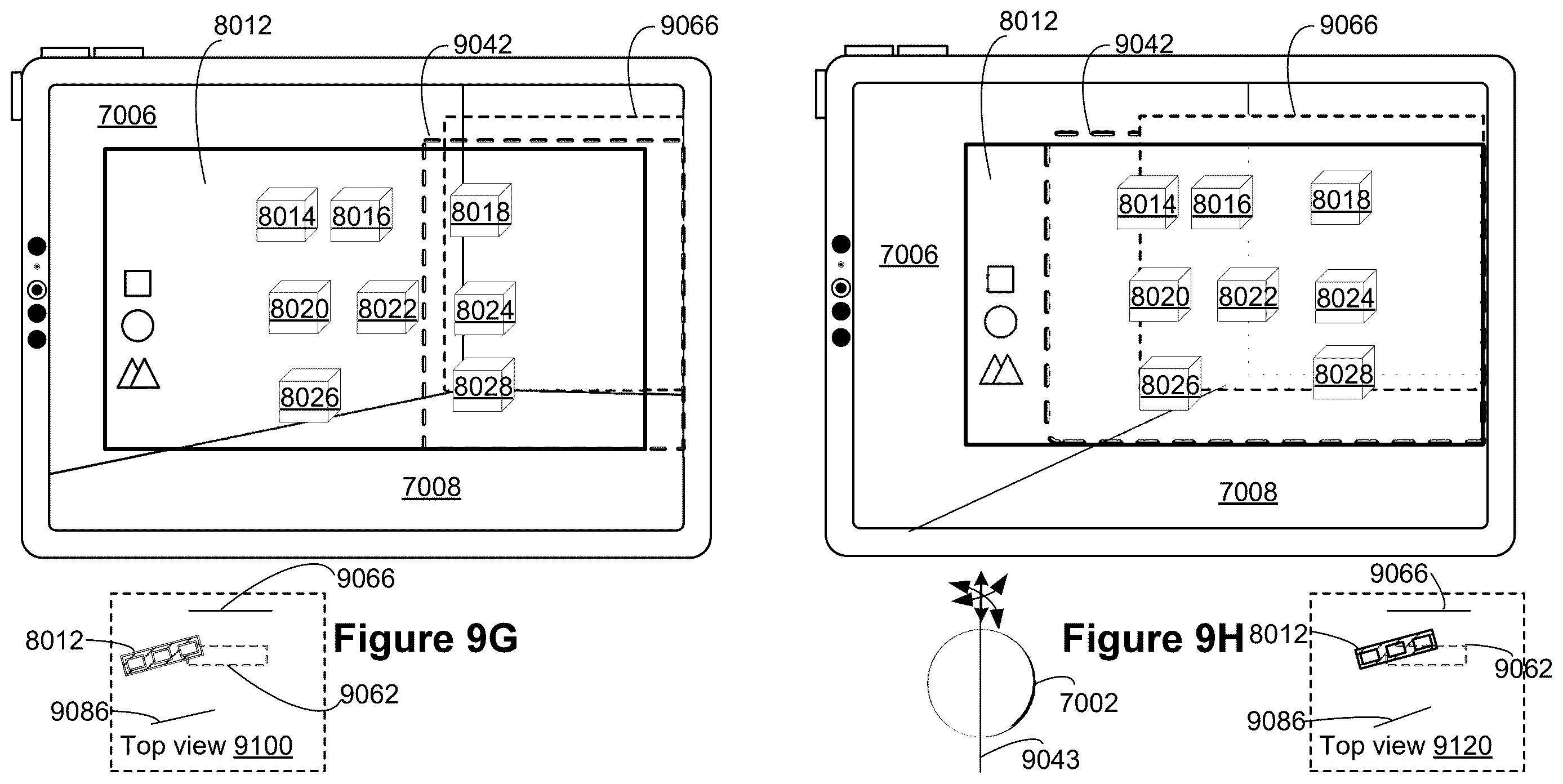

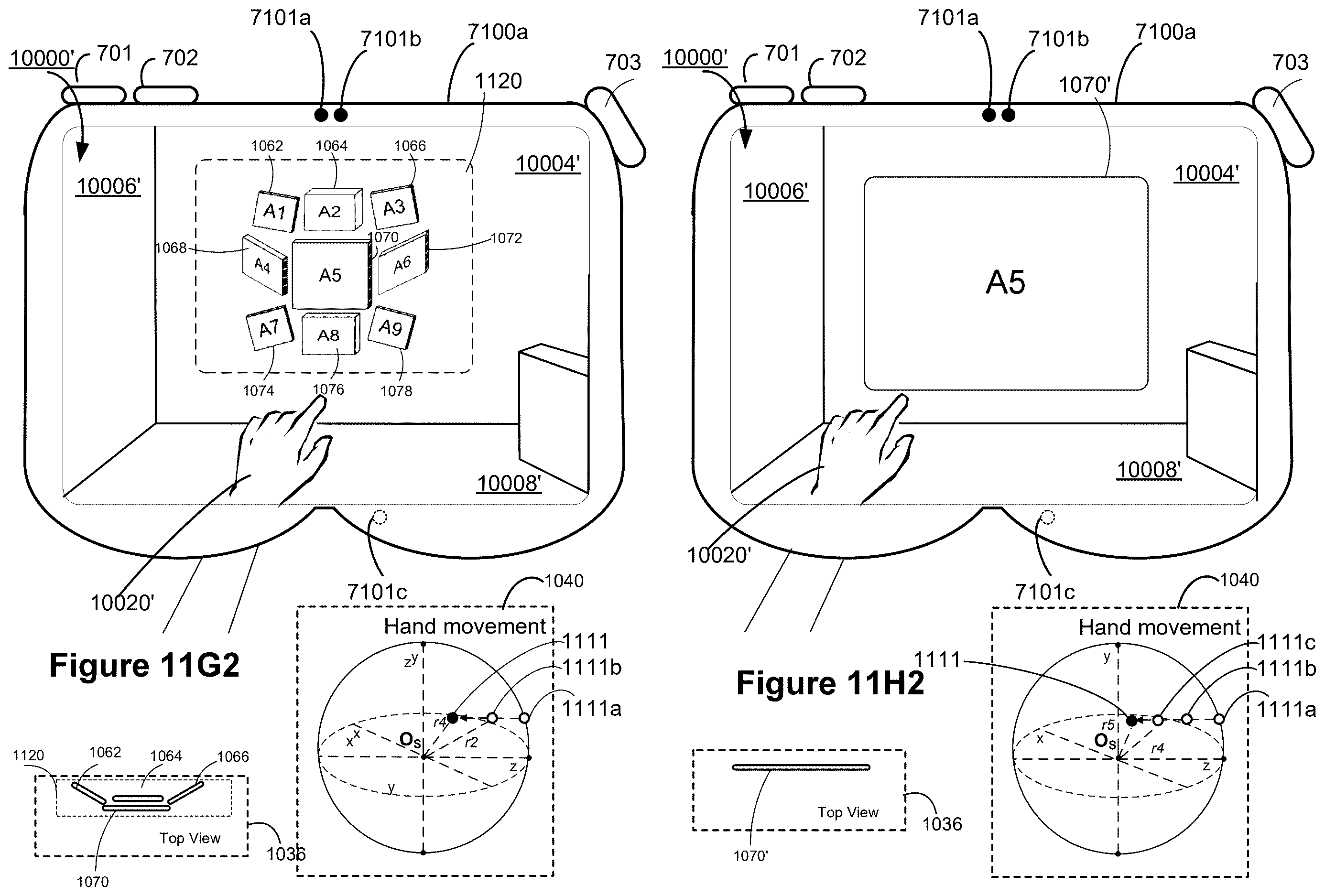

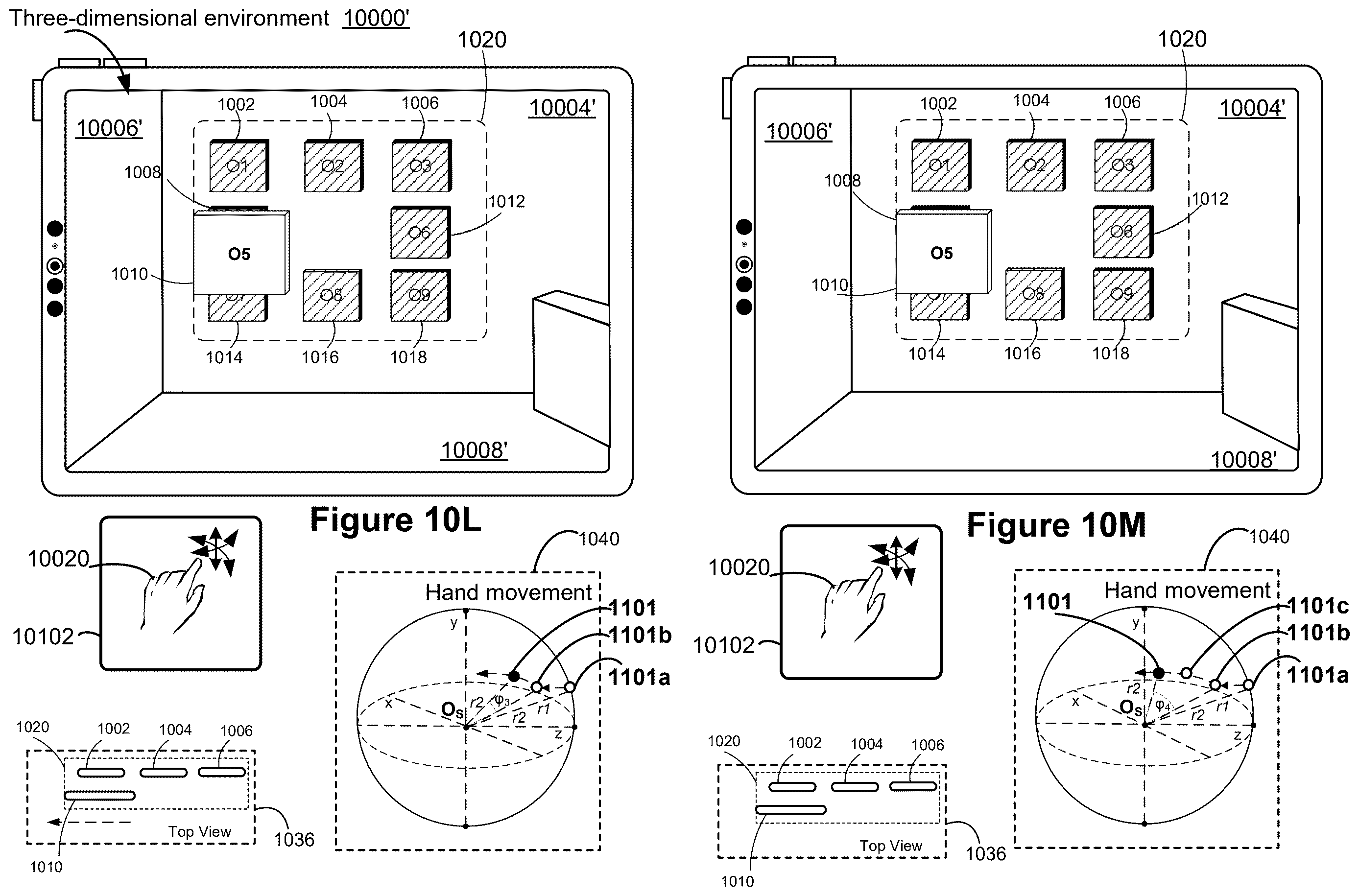

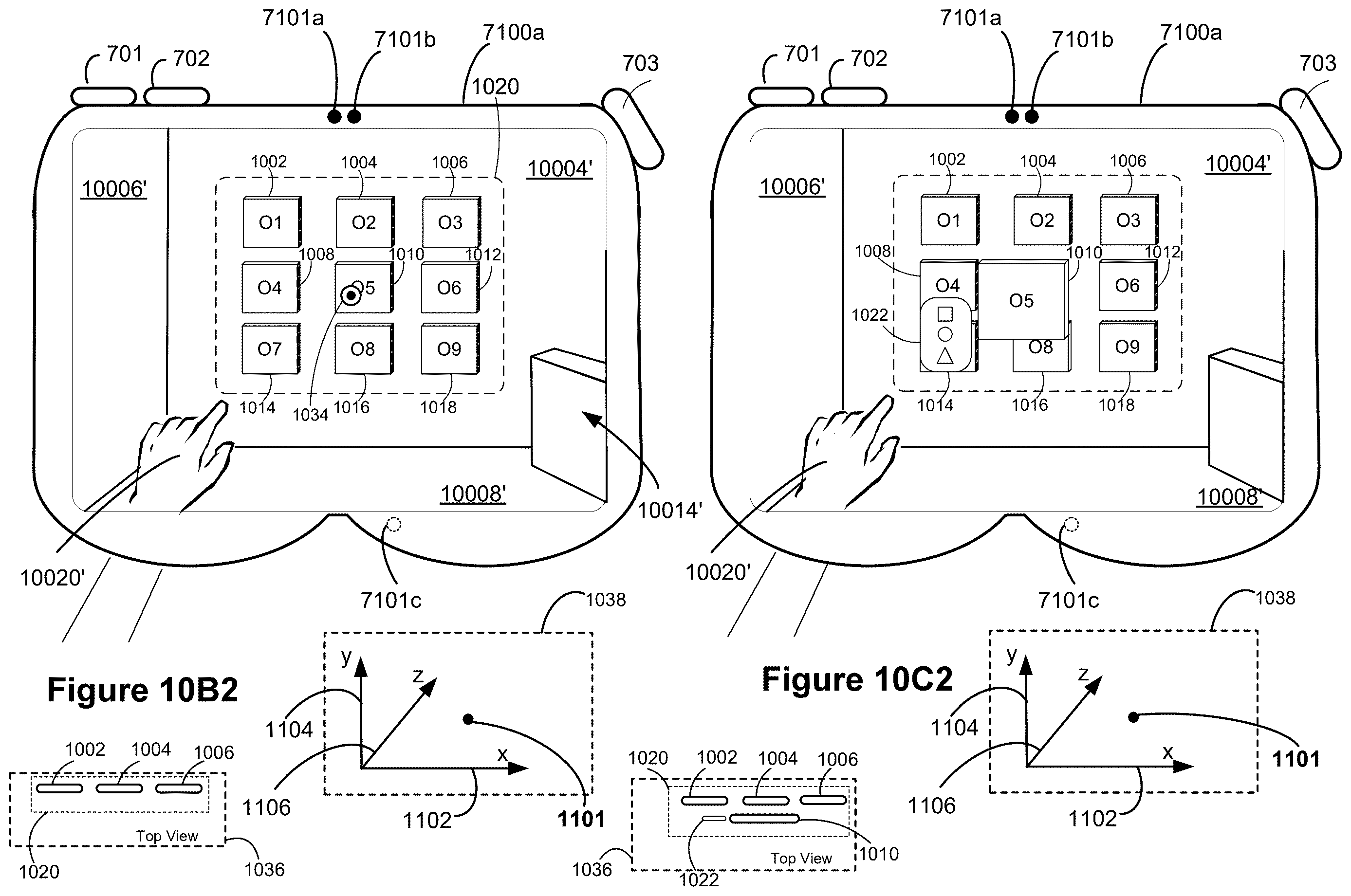

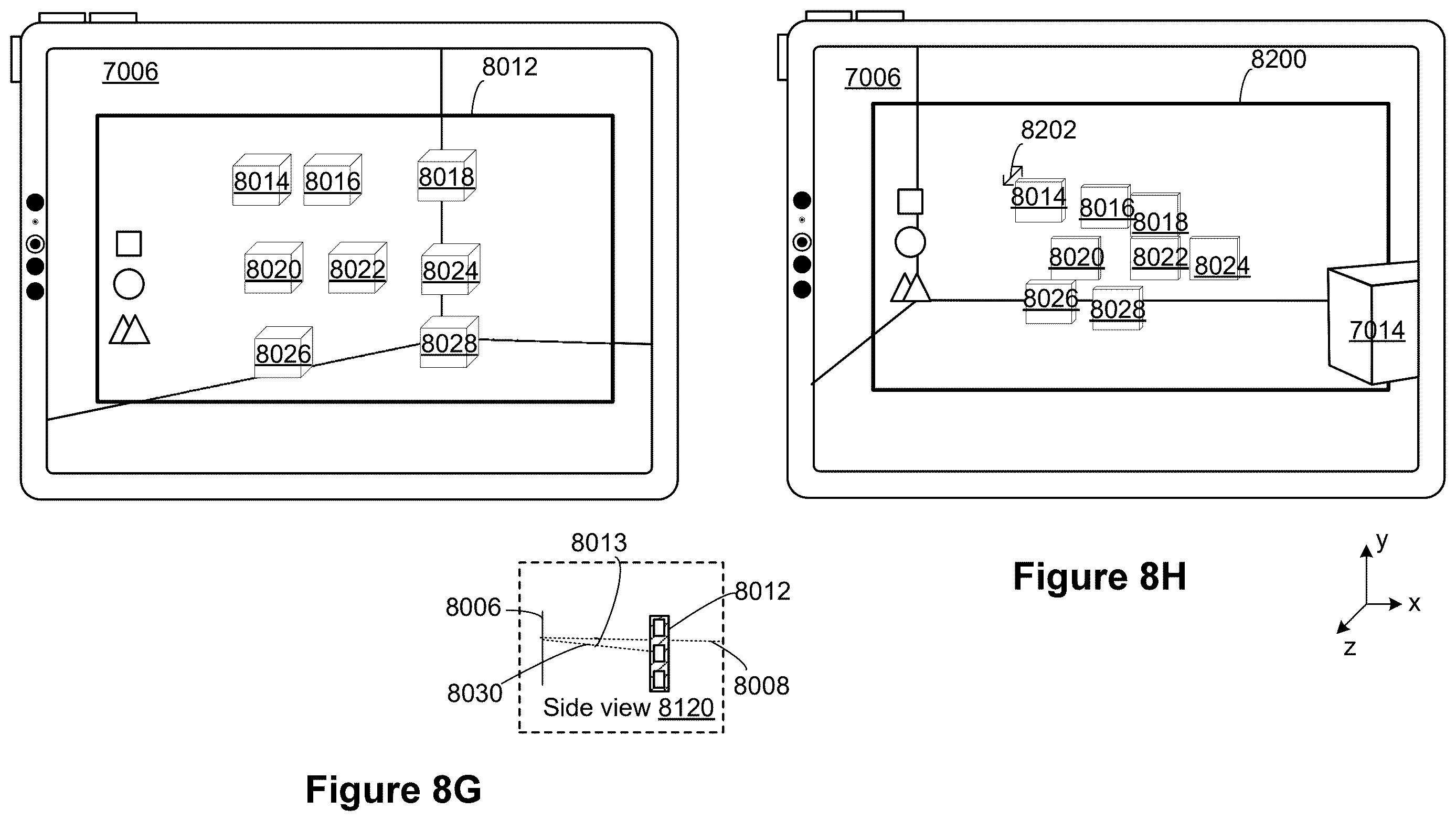

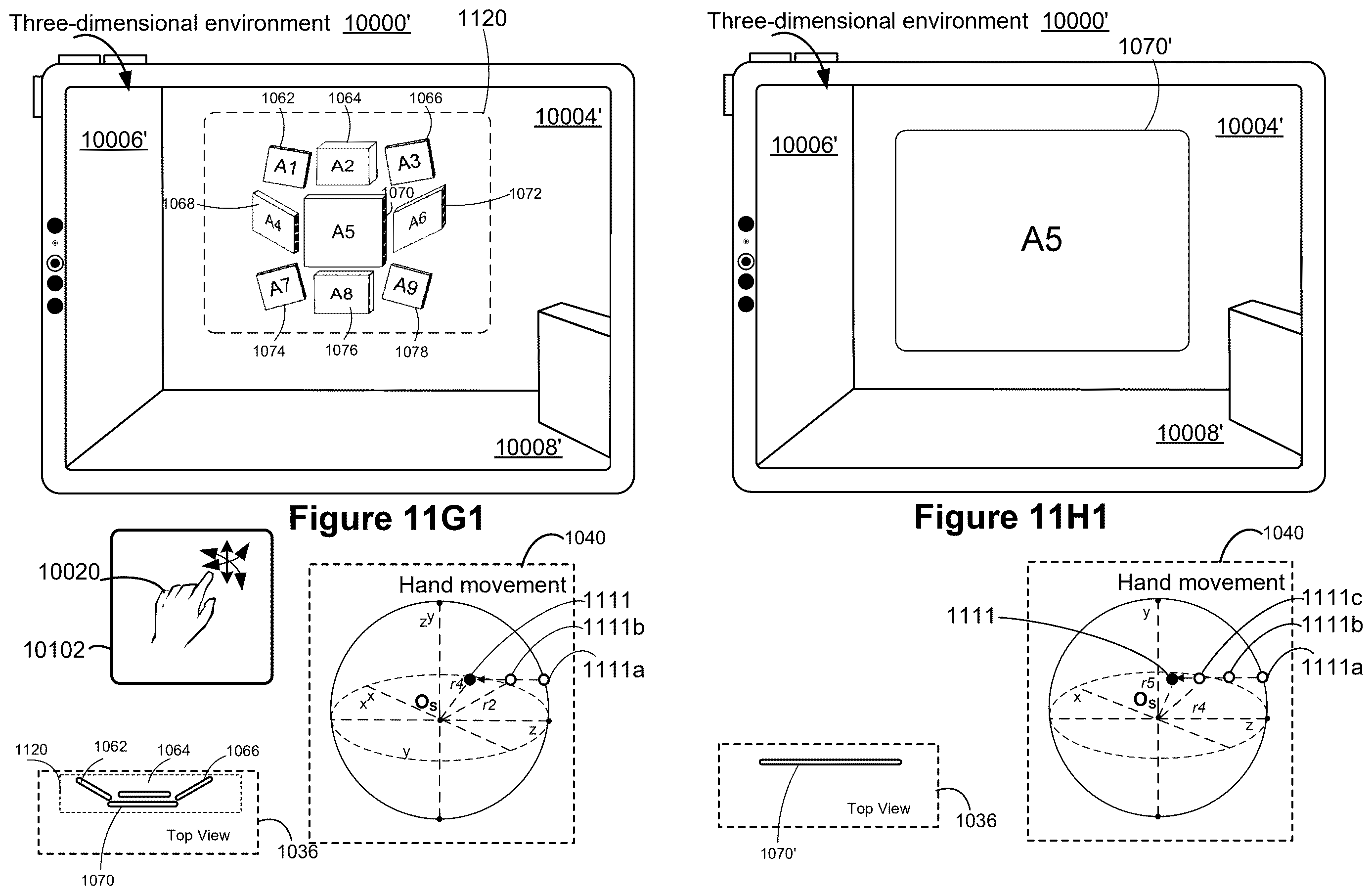

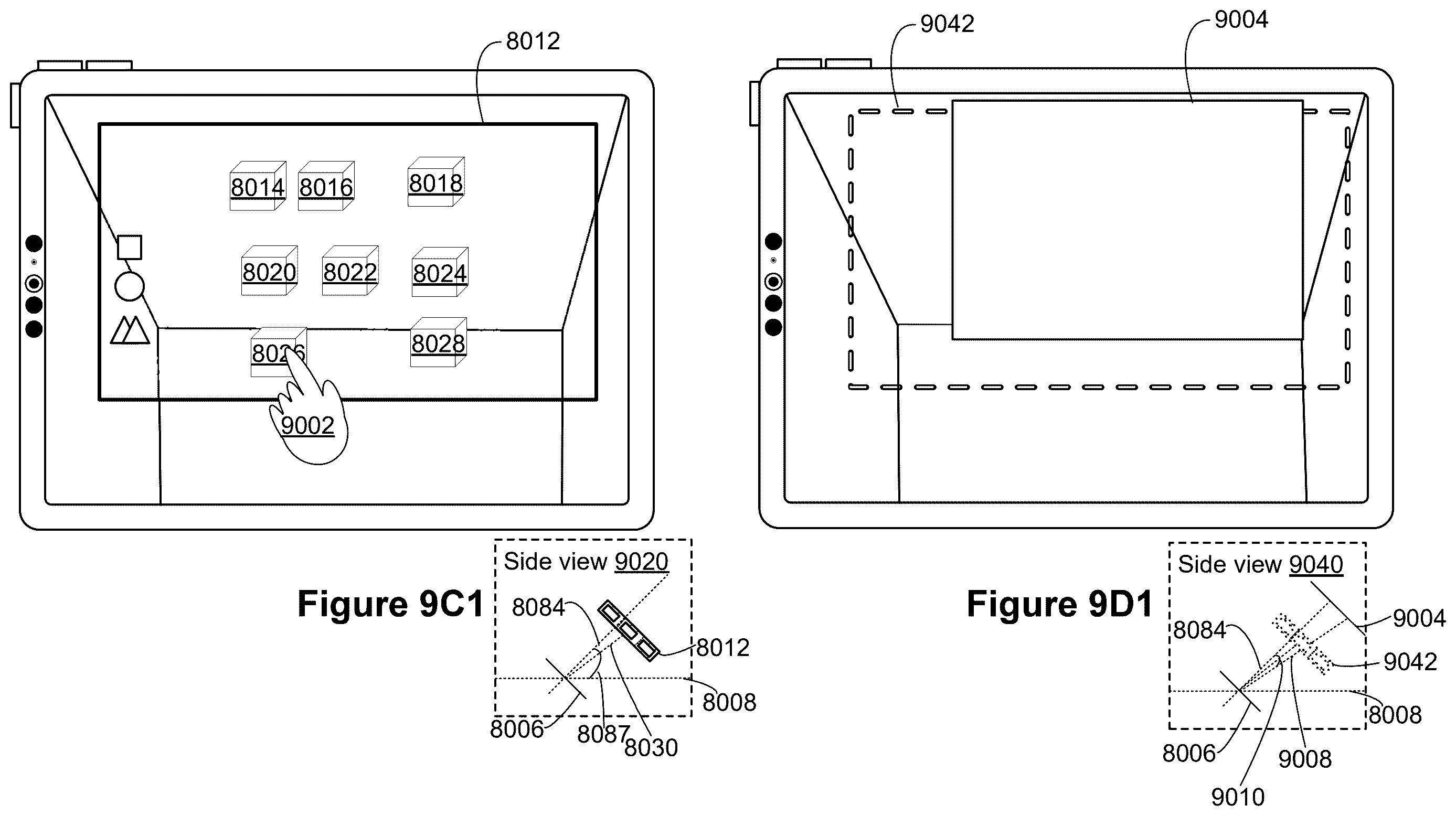

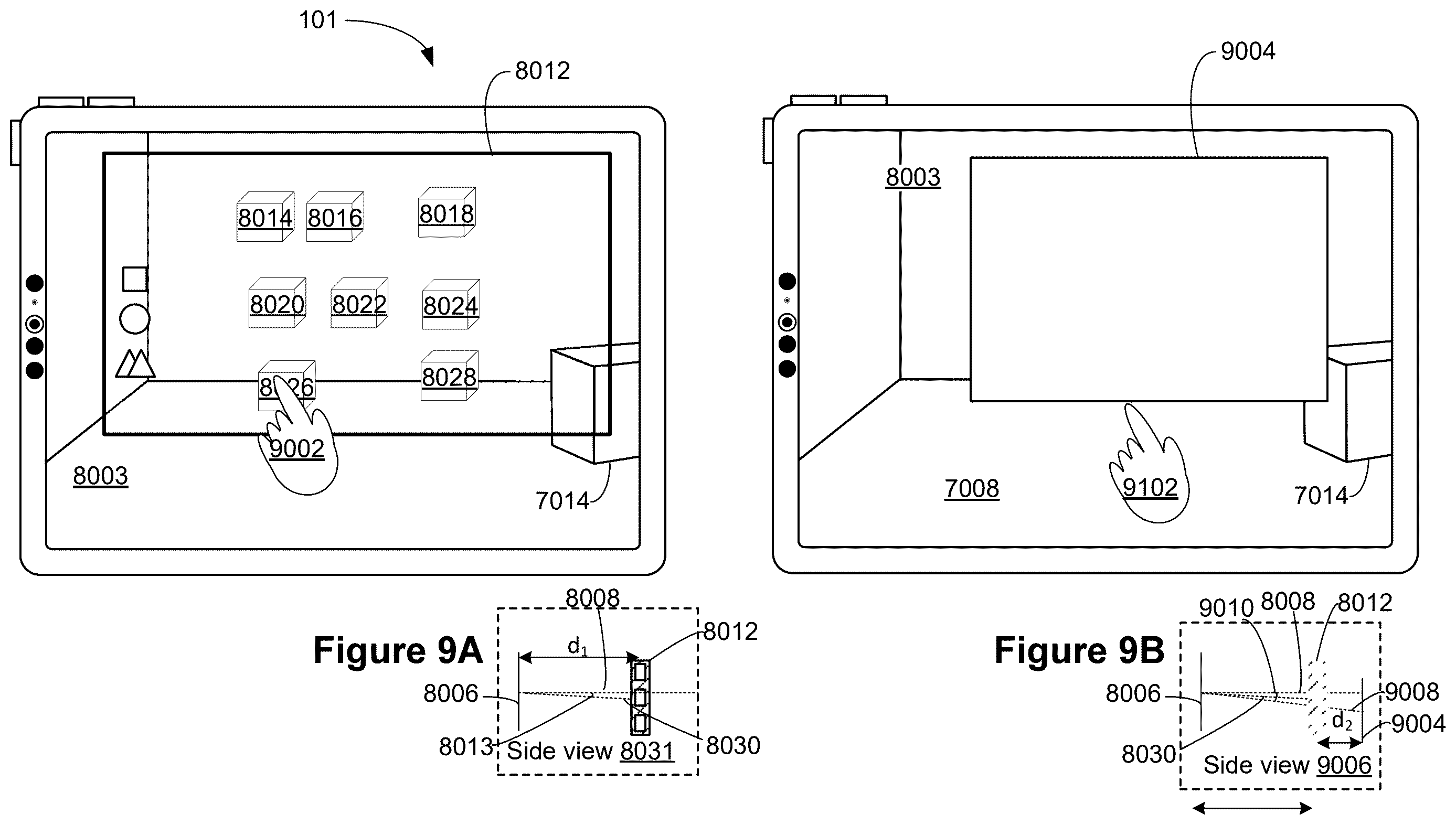

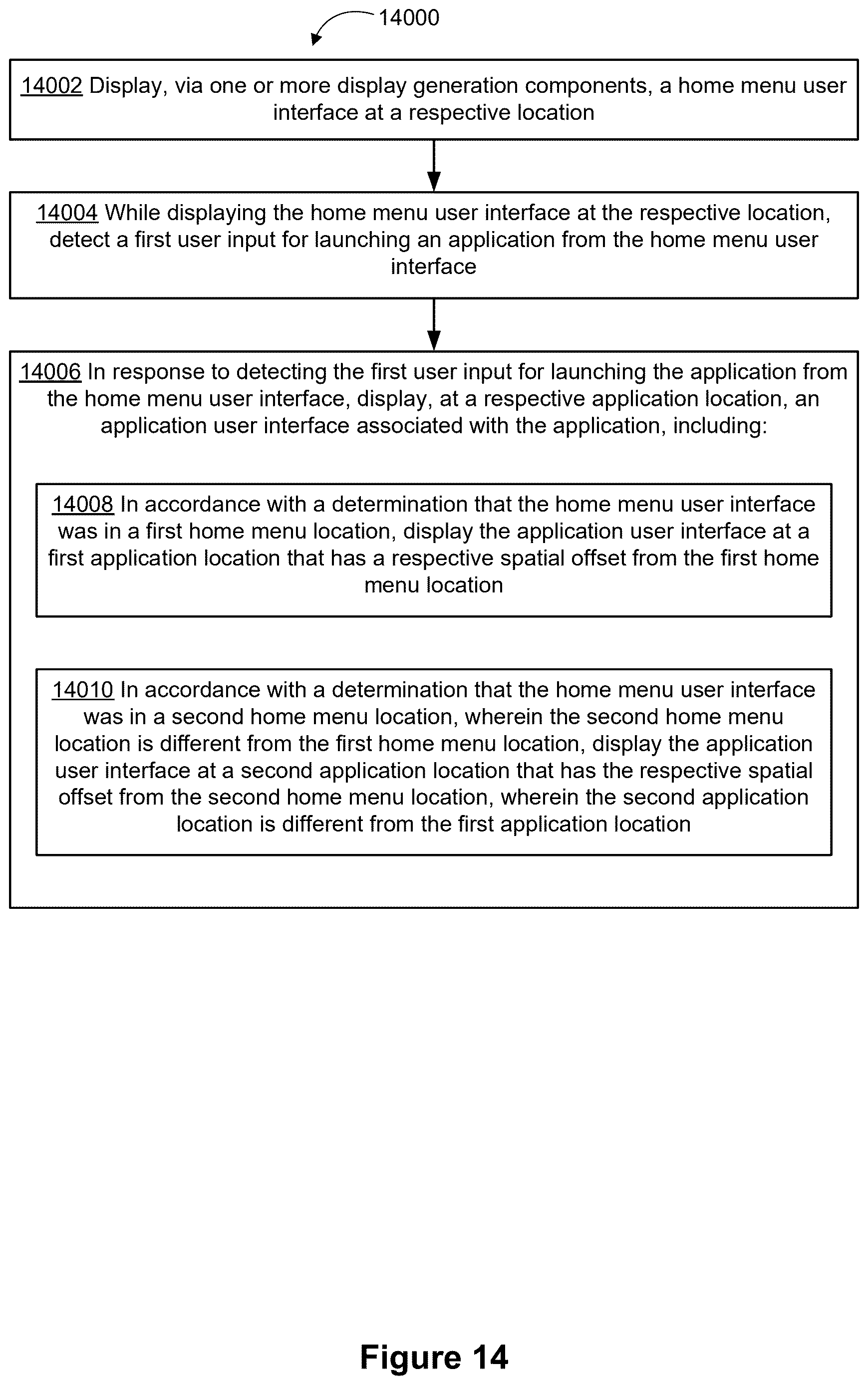

The core claim has three steps. The headset shows a home menu (the floating grid of app icons) at some spot in the 3D room around you. You pick an app. The system then opens that app's window at a fixed spatial offset (a set distance and direction) from the menu's position. A different menu position means a different window position, but the relationship between the two stays the same.
The dependent claims add detail:

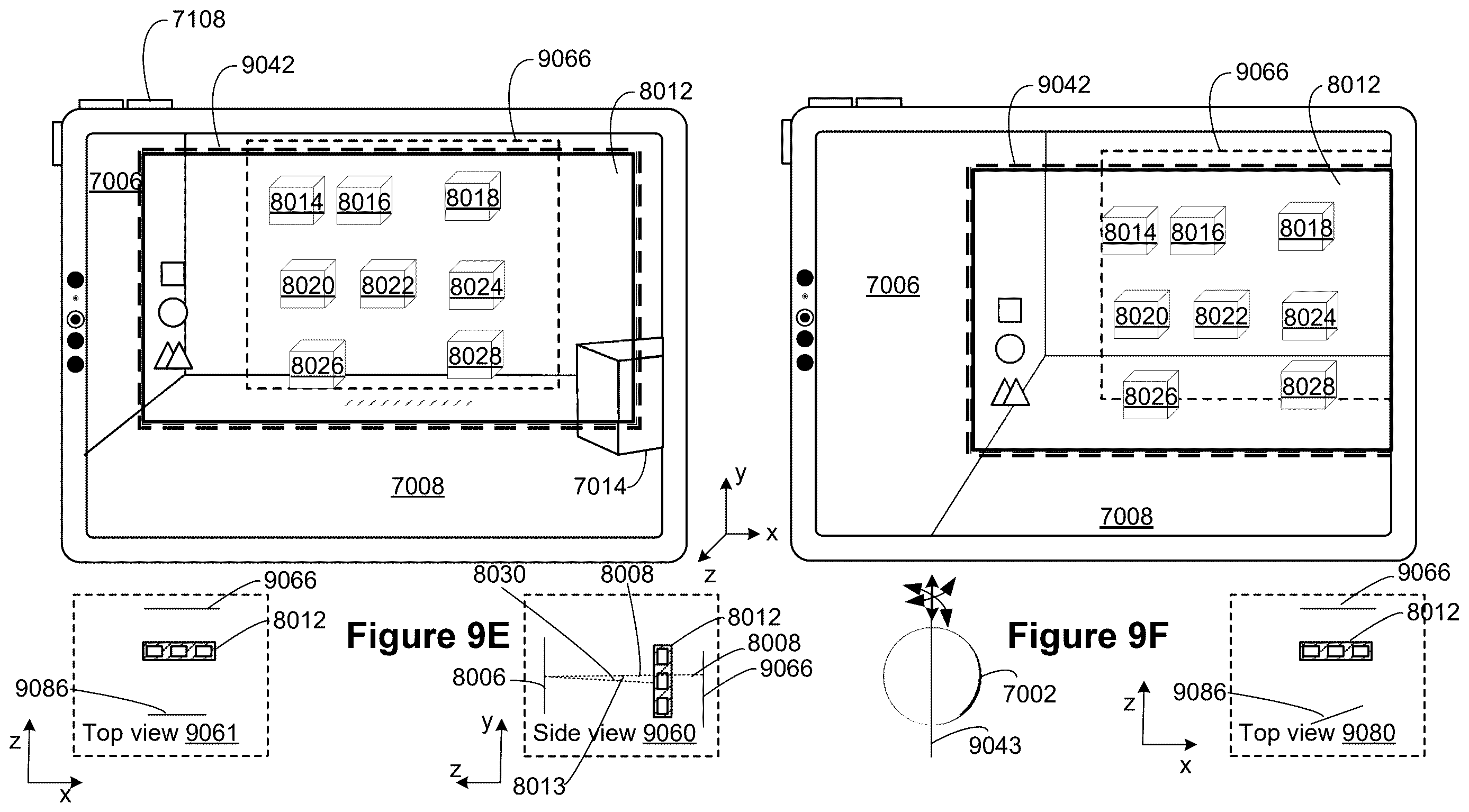

- The window can be centered on the menu along an axis, sit behind the menu from your point of view, or open at a height below it.

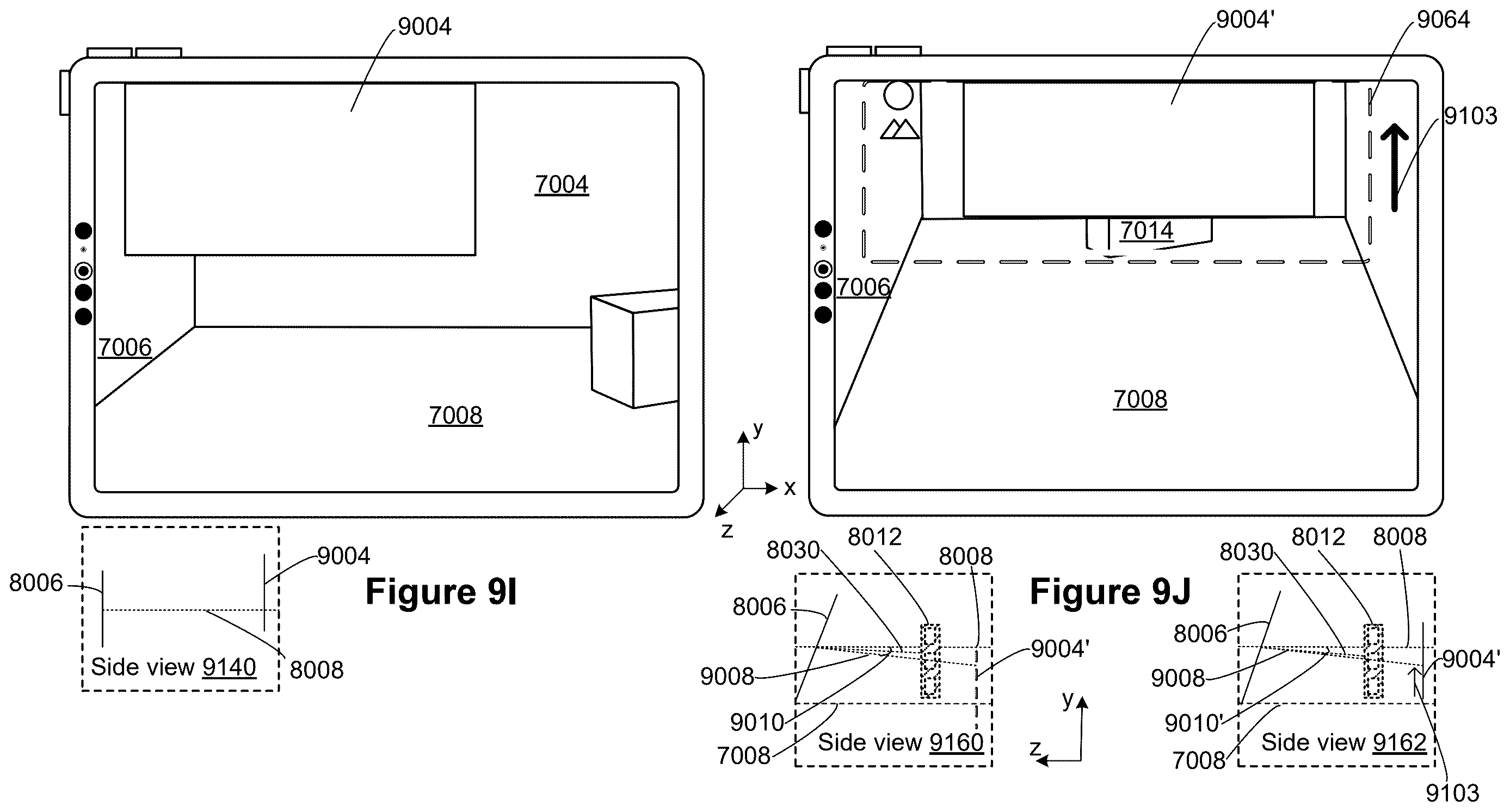

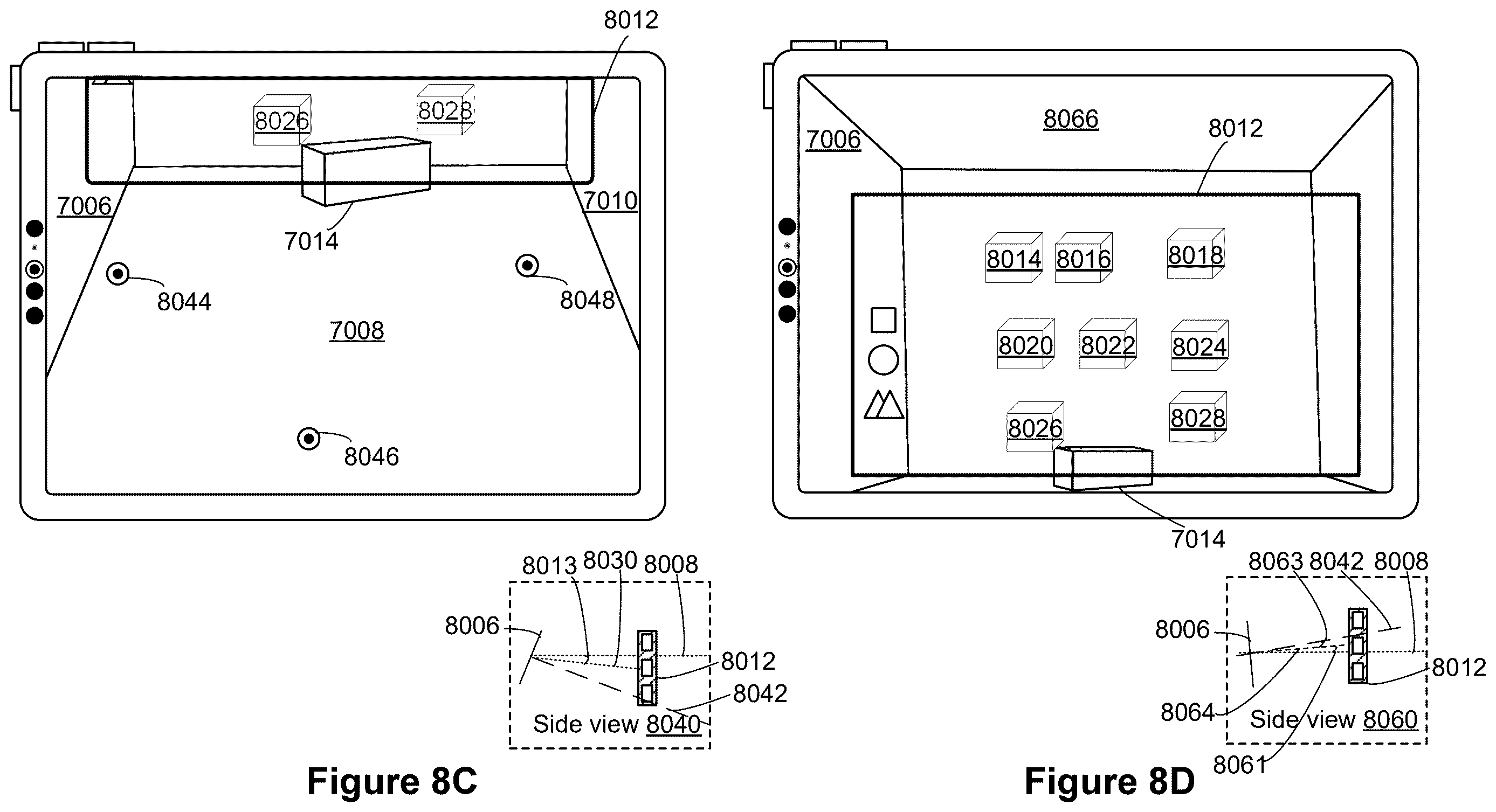

- If the offset would push part of the window through the floor, the window is shifted up so it doesn't intersect that lower surface.

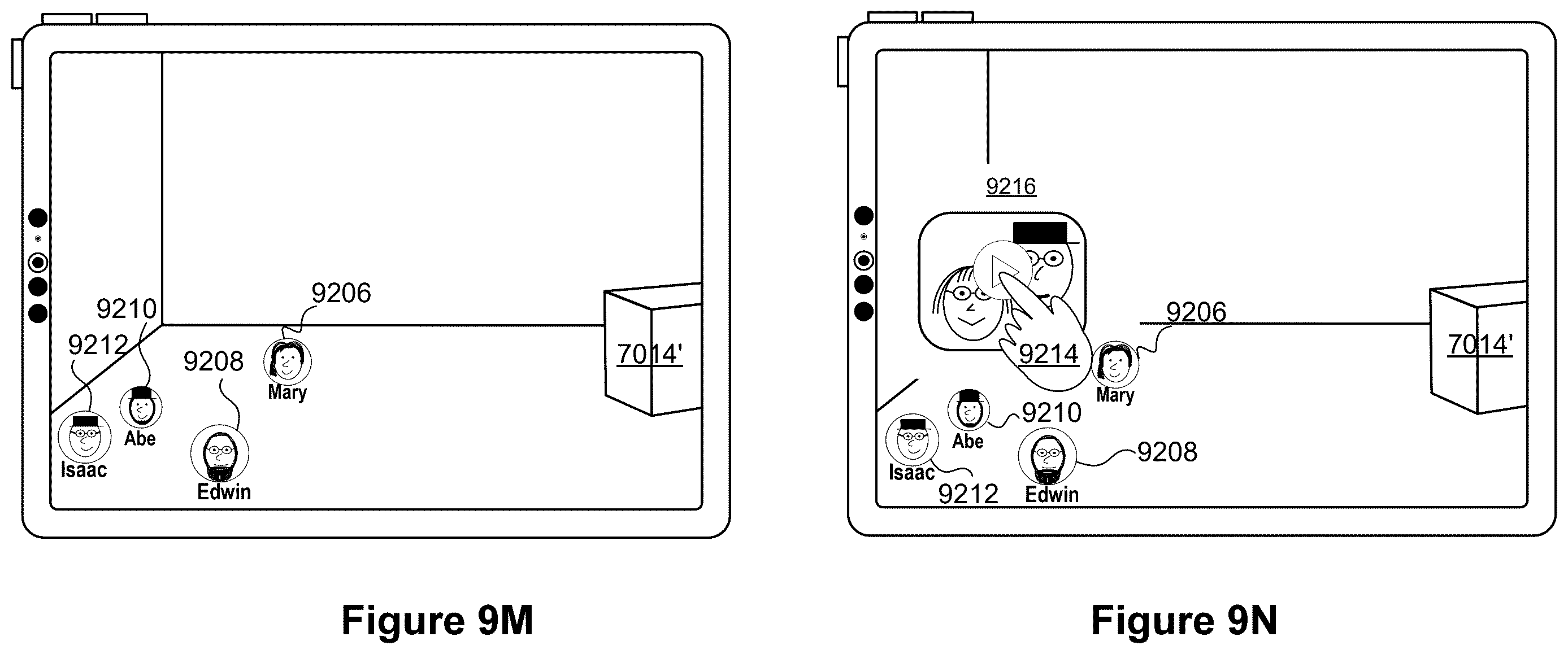

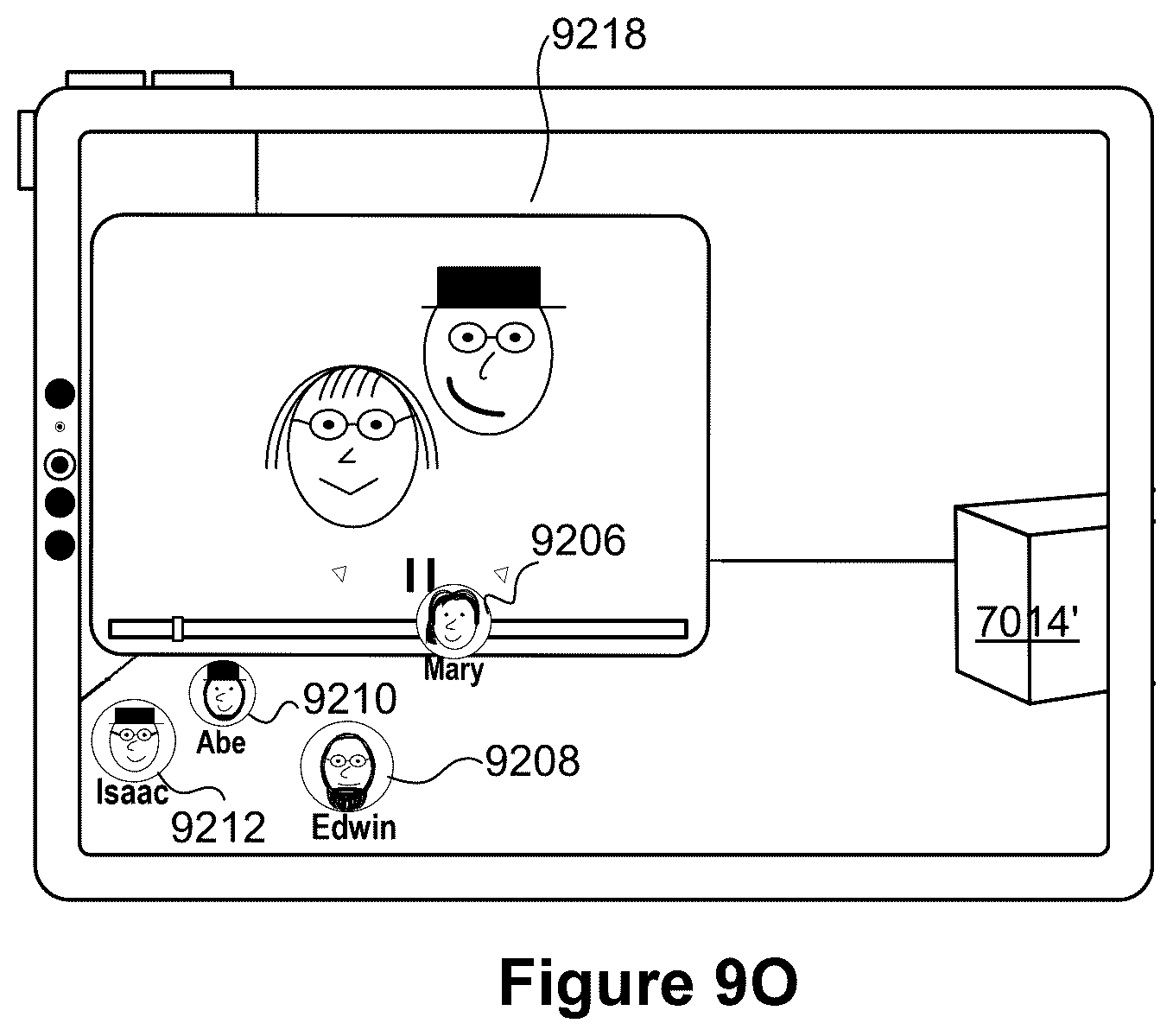

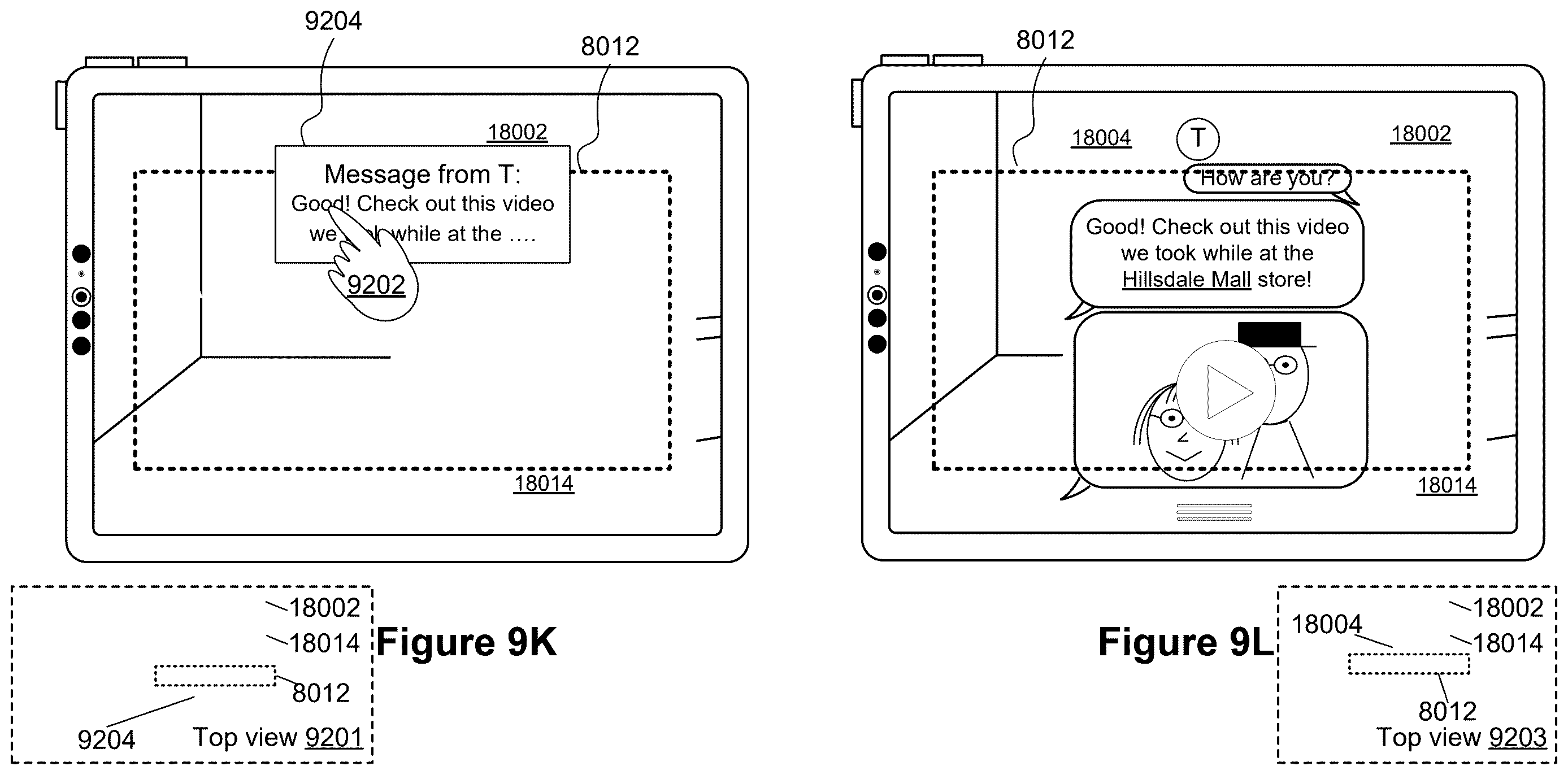

- Apps opened from a notification or from a call (a real-time communication session) are also placed relative to a related location, such as the menu or the people in the call.

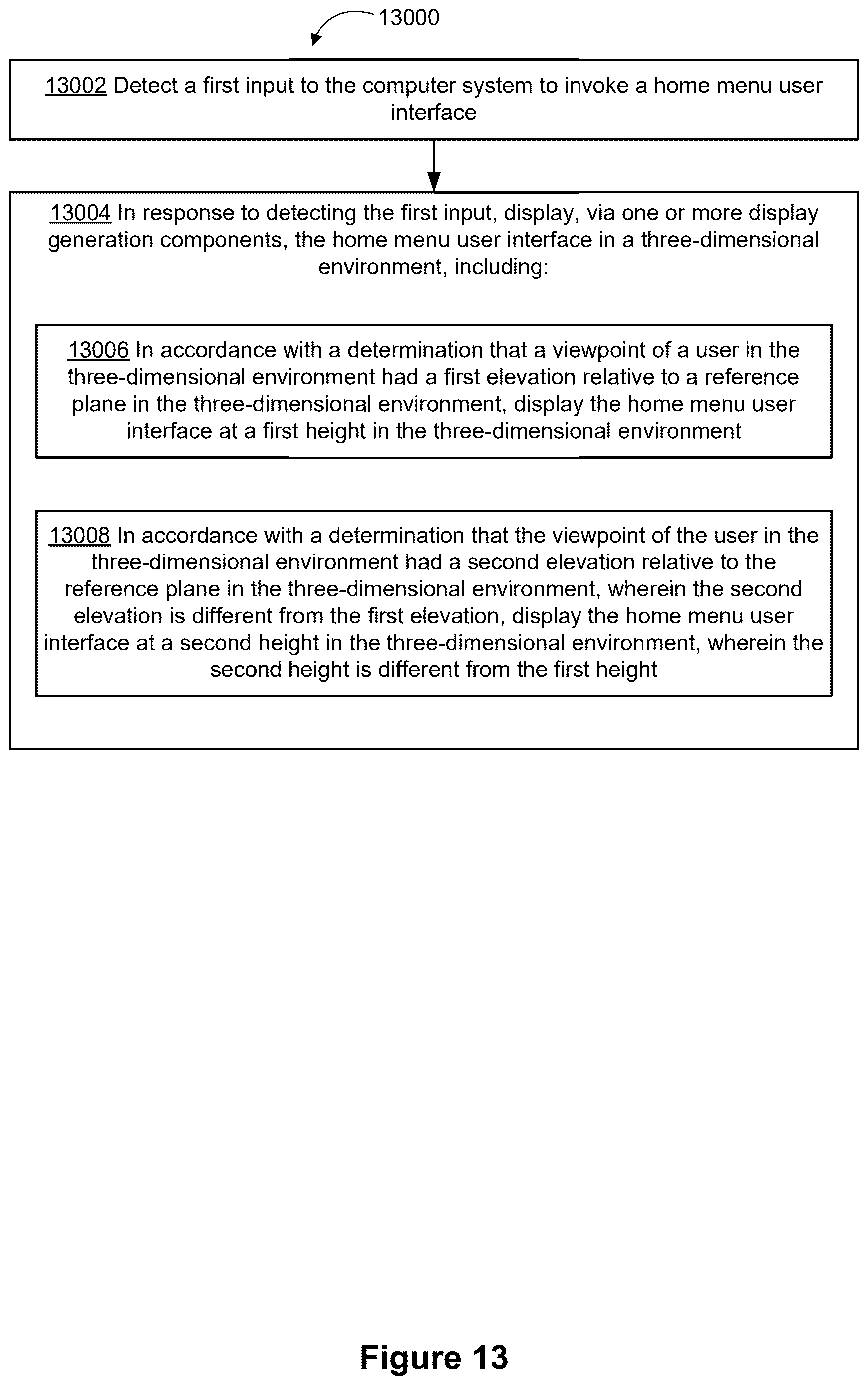

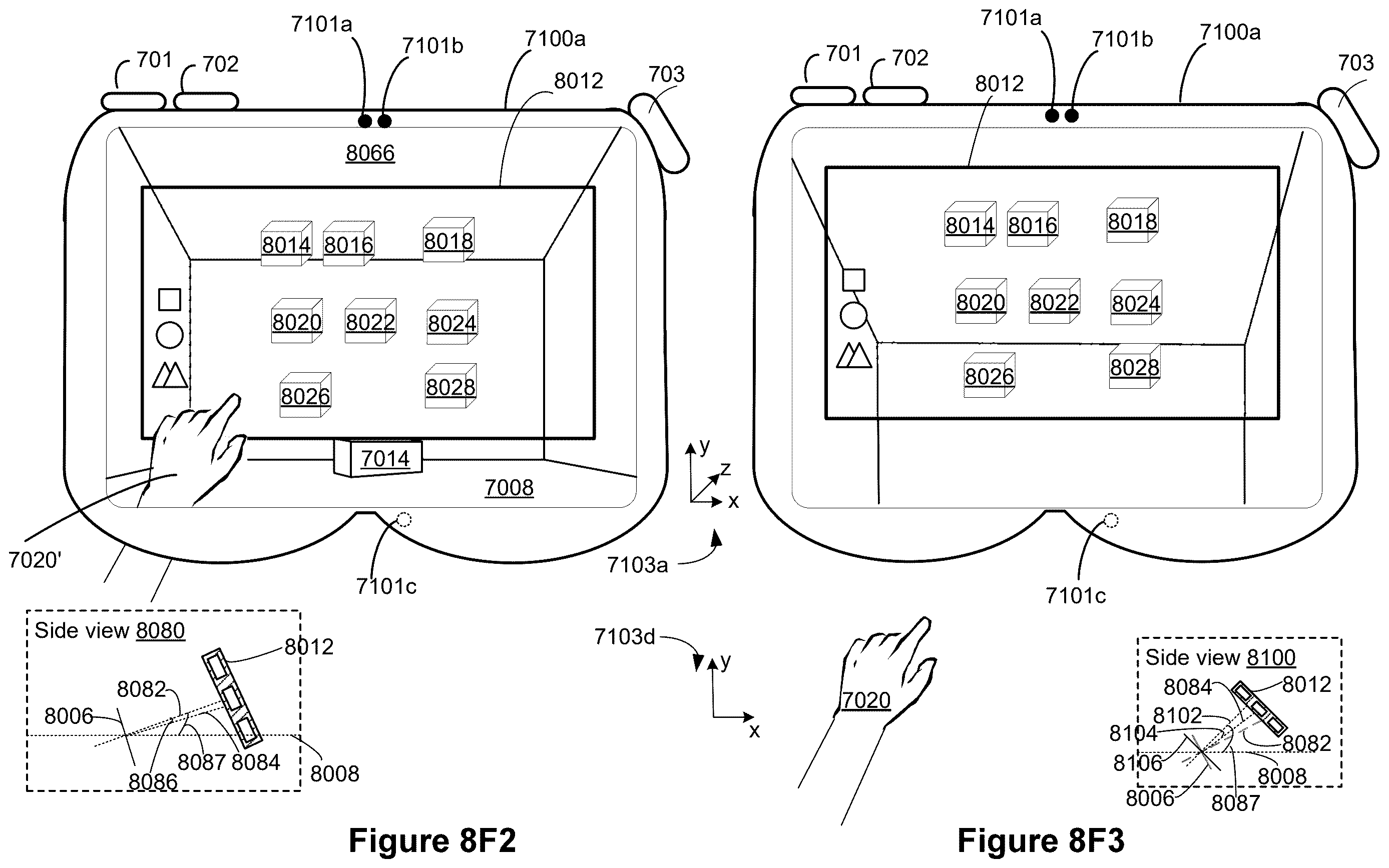

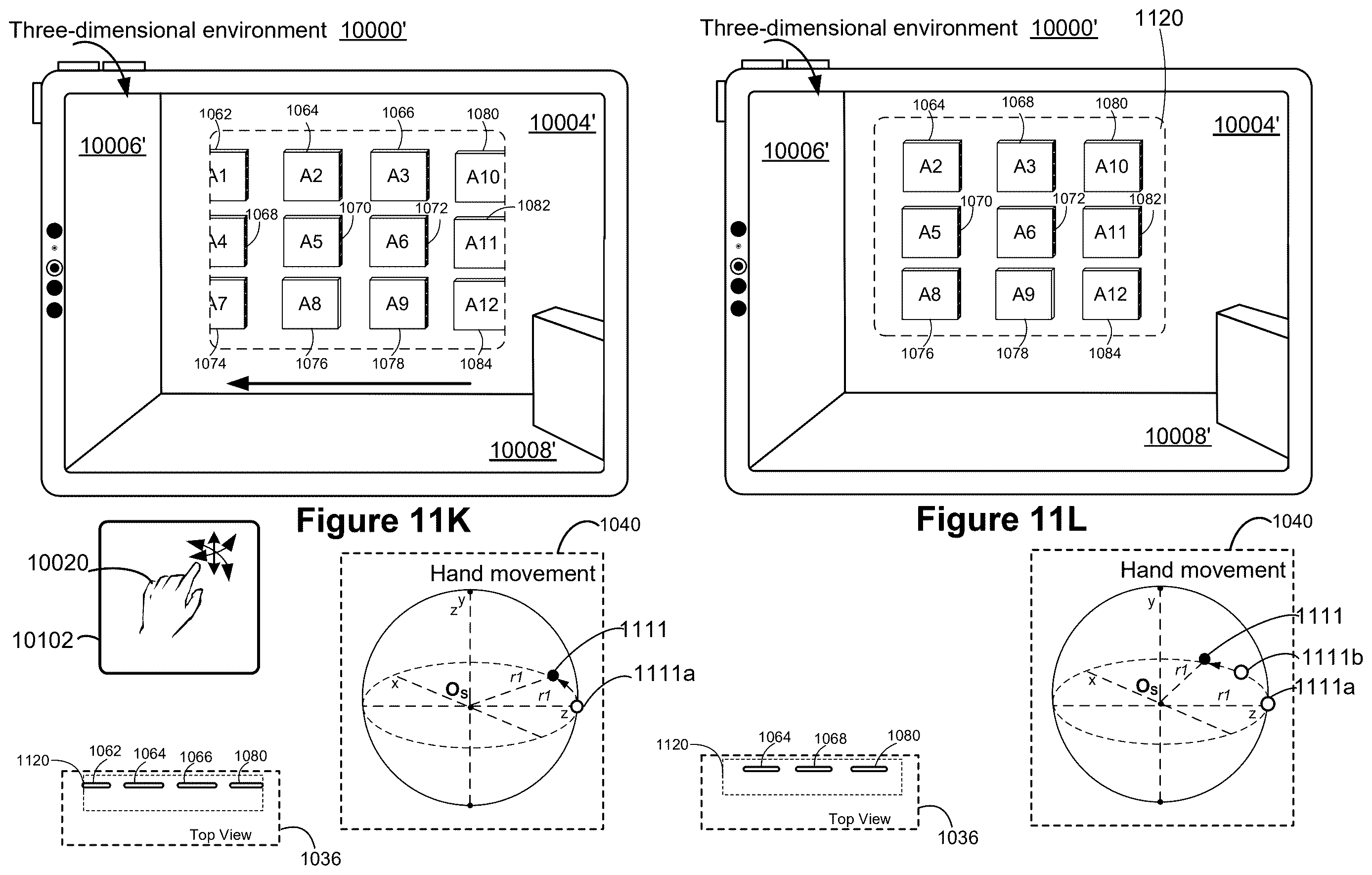

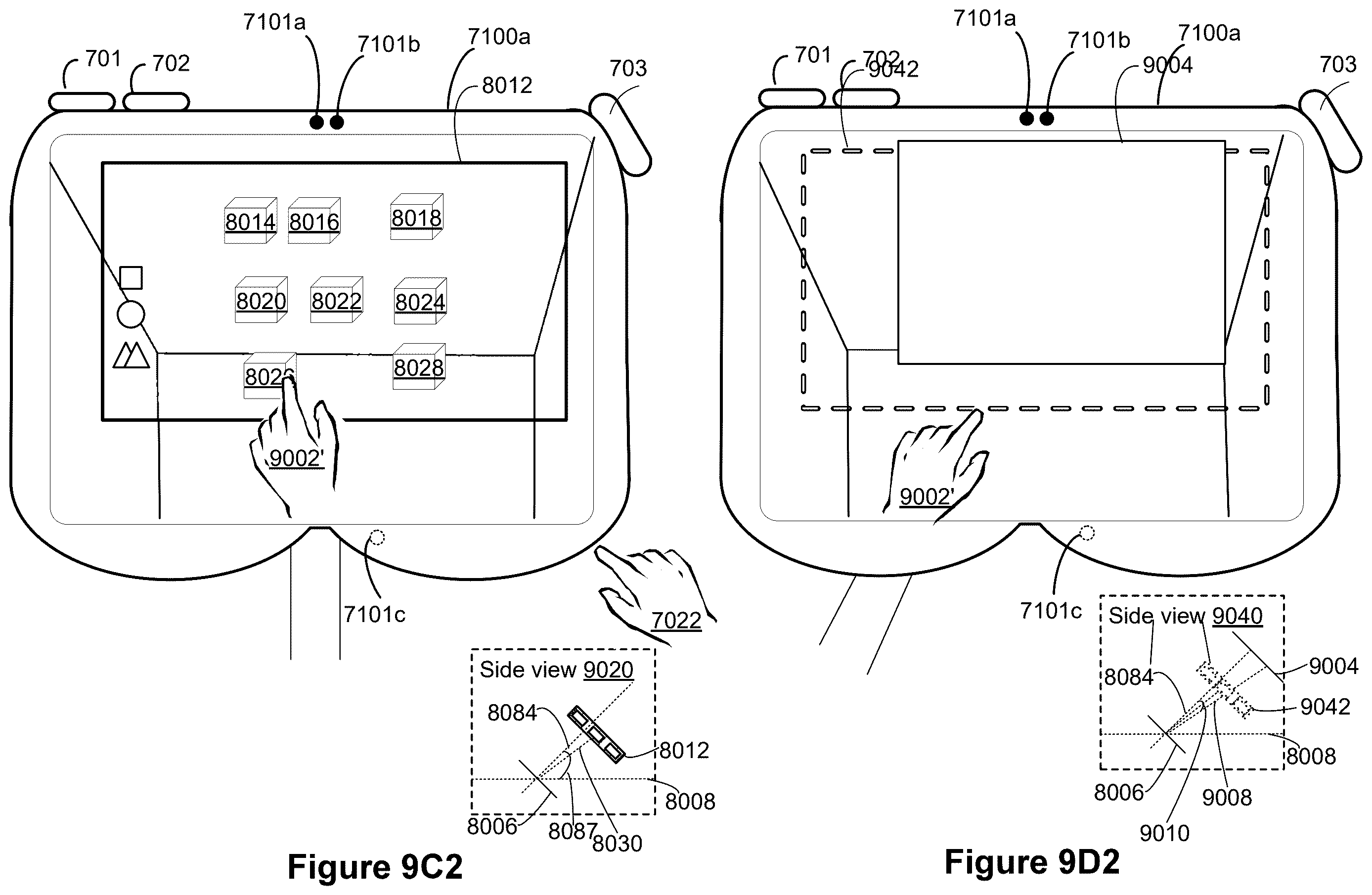

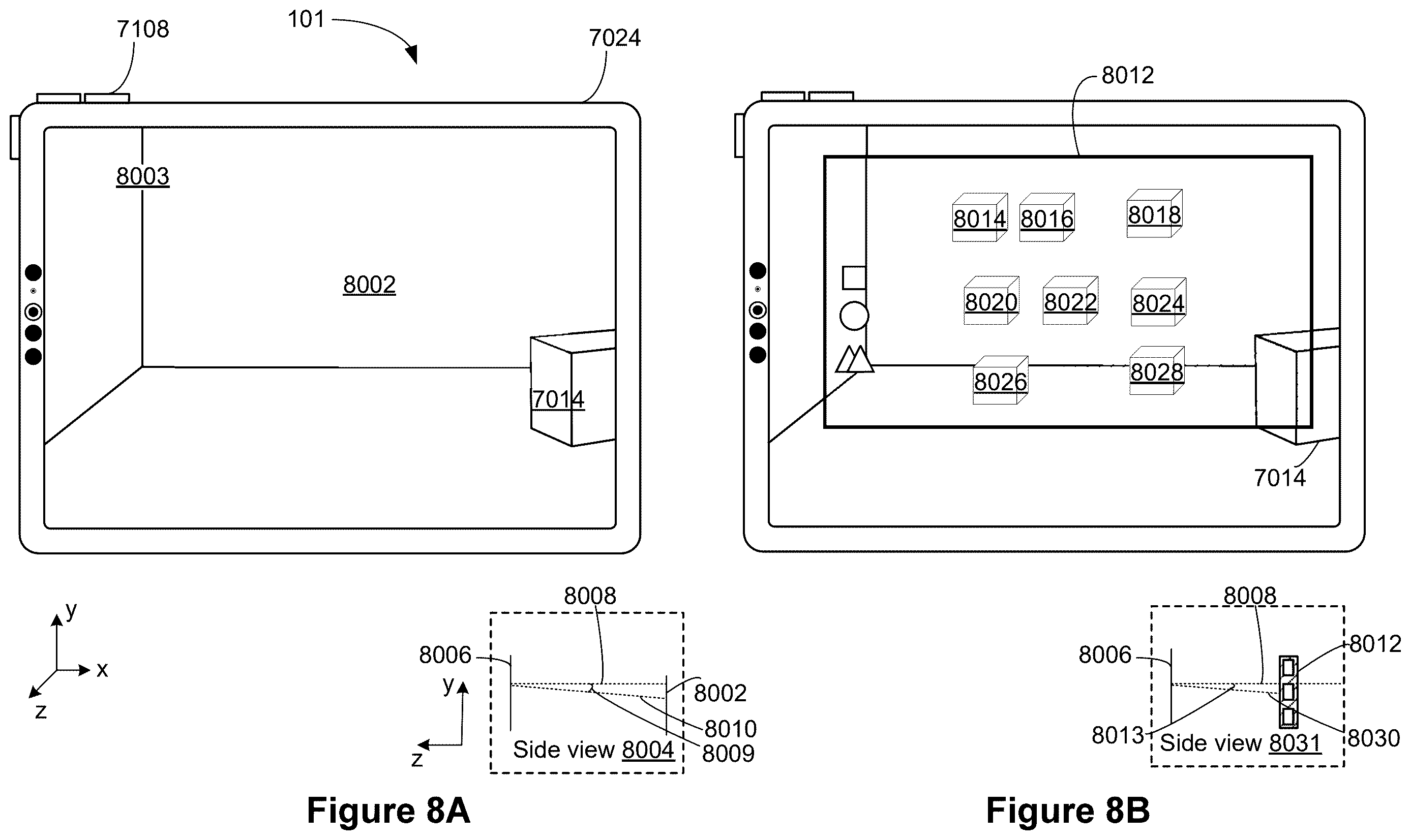

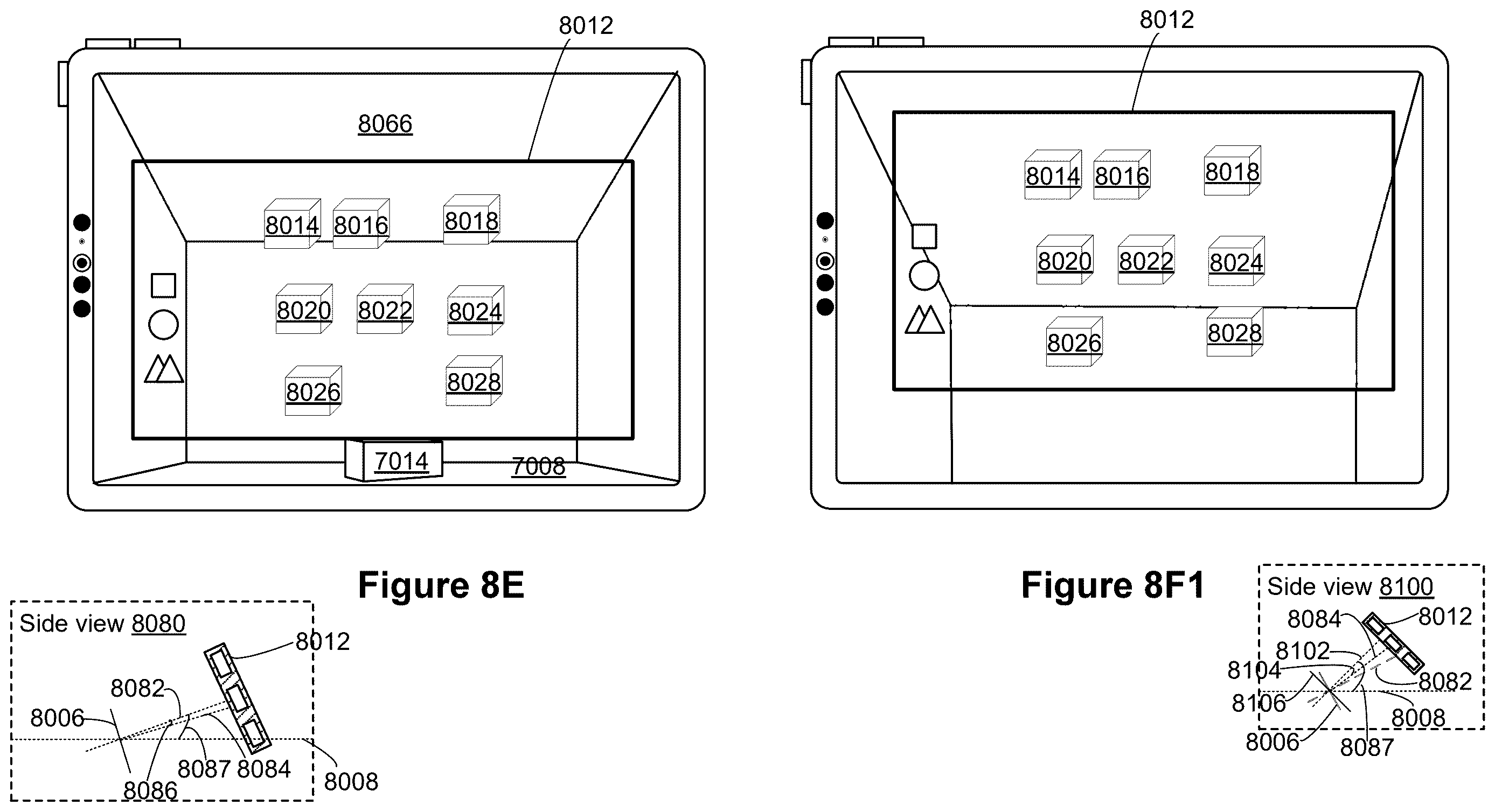

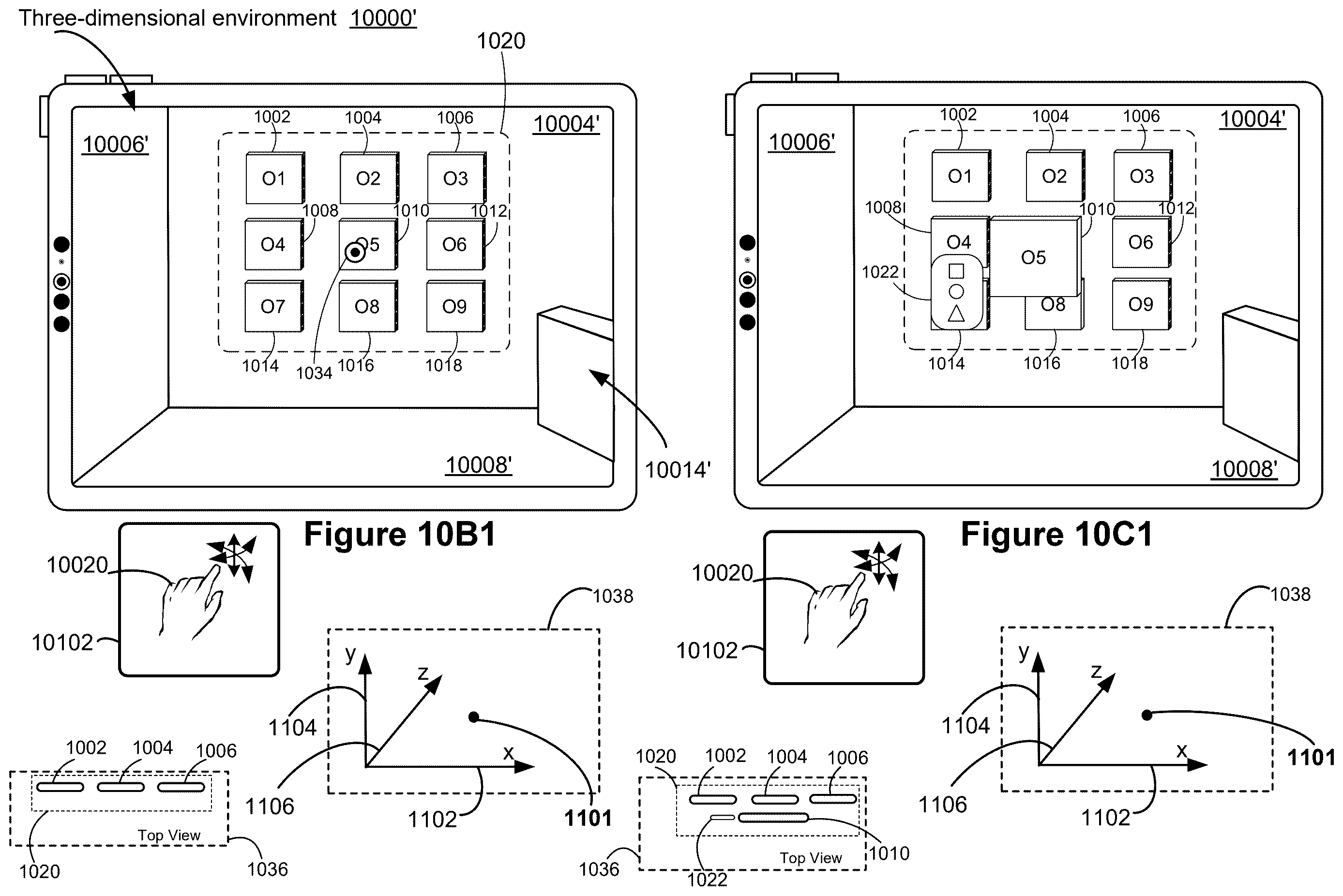

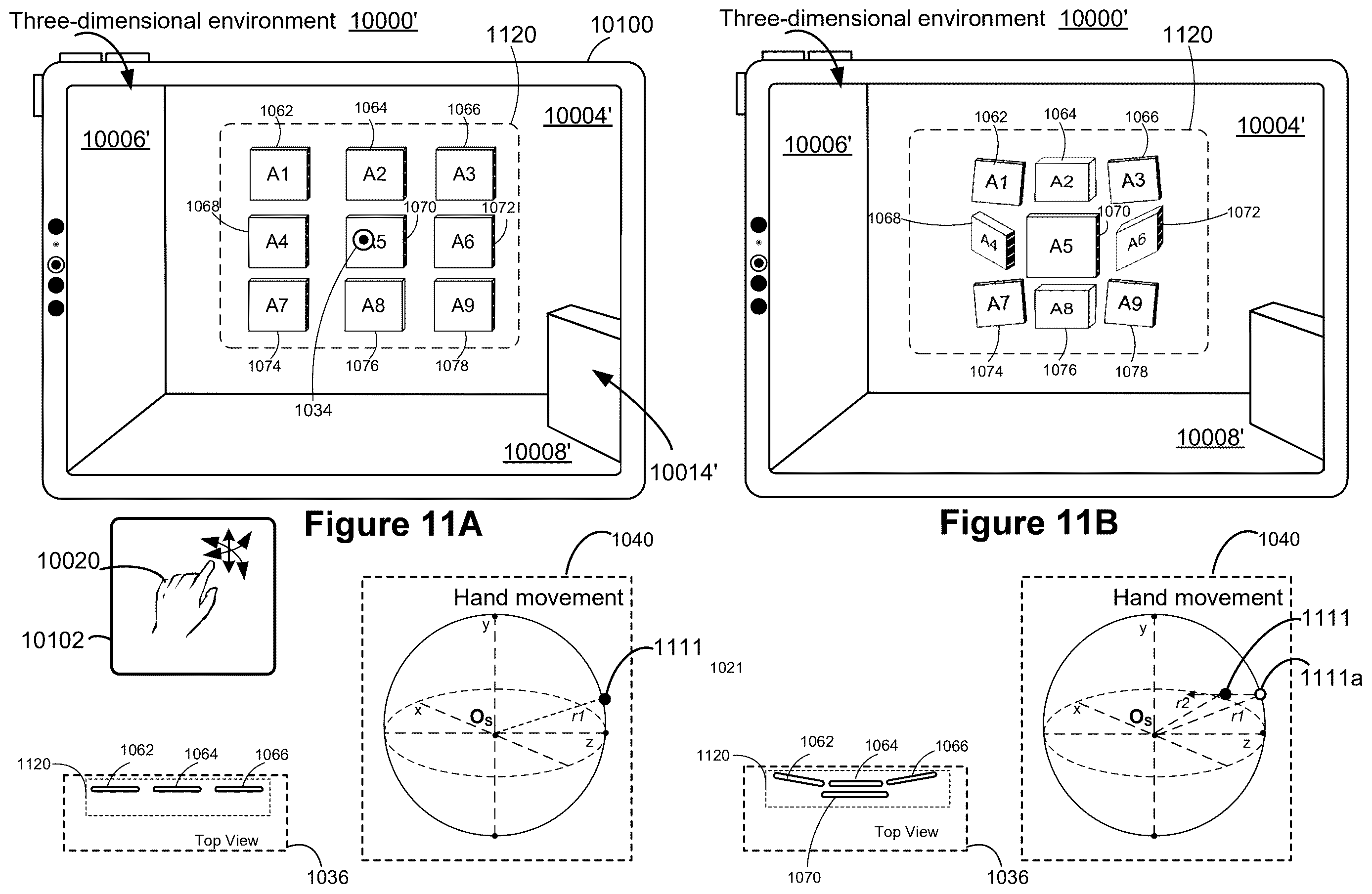

The menu has its own rules. If you bring it back after moving your head by less than a threshold (measured by sideways movement or tilt), it reappears in the same spot. Move more and it shows up in a new place. When your head tilts above horizontal, the menu angles toward you in proportion to the tilt. Below horizontal, its angle doesn't depend on how far down you look.

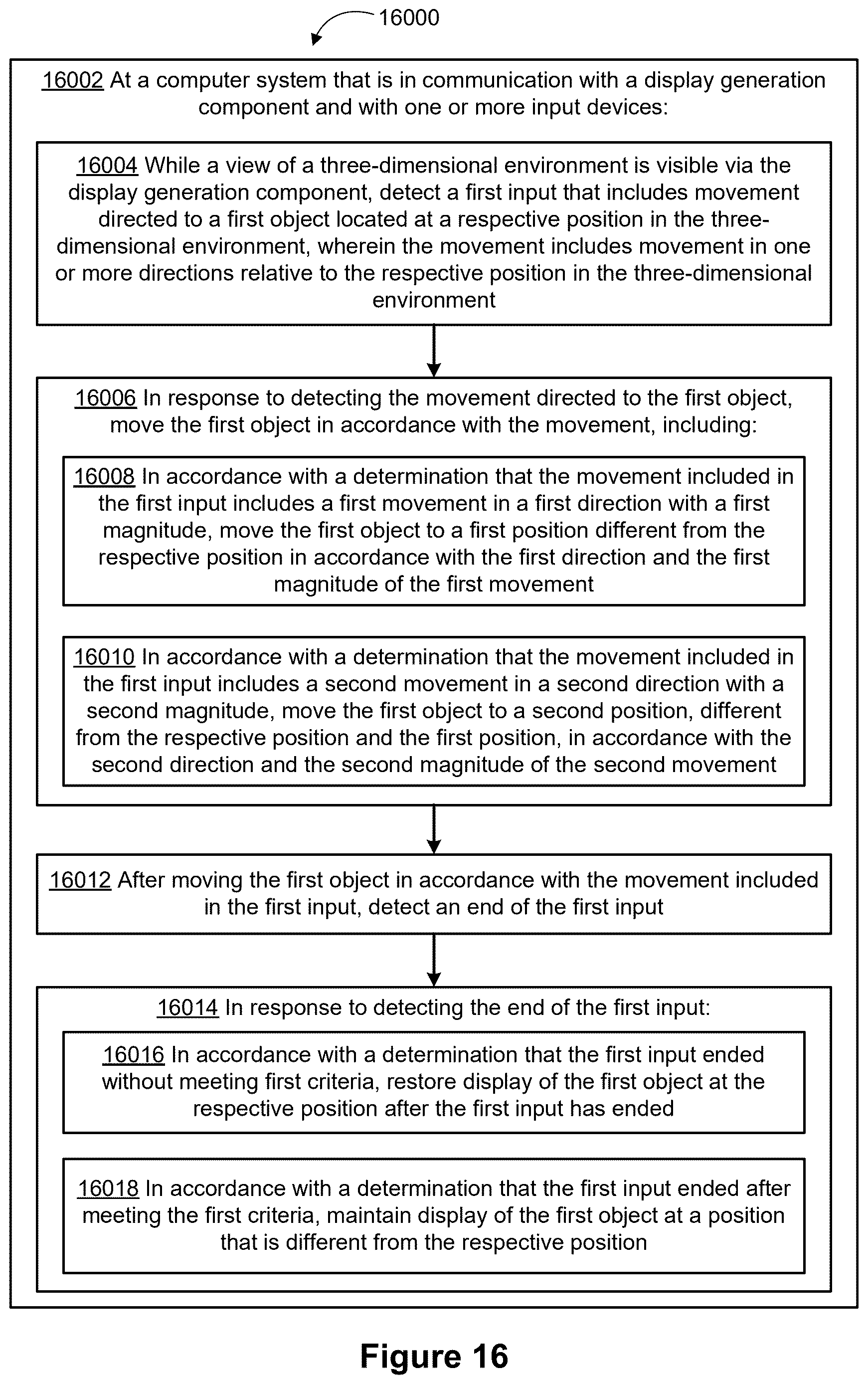

Once the window opens, you can still drag it elsewhere.
if the home menu user interface was in a first home menu location, displaying the application user interface at a first application location that has a respective spatial offset from the first home menu location …
Translation: The new app opens at a fixed distance from wherever your menu happened to be floating.
Why windows that open in reach matter for headsets
If you've worn a headset, you know the small annoyance: a window opens somewhere awkward, and you drag it into reach before you can do anything. A rule that ties each app to the spot where you just opened the menu removes that chore. It also makes the result predictable, because the window shows up roughly where your eyes and hands already are.
The filing's own stated goal is to place both the menu and the app at ergonomically favorable positions without manual adjustments, and it links this to less fatigue and fewer inputs. The application is a continuation of an earlier one that traces back to provisional filings from 2023 and 2024, so basic navigation like this has been under design work for a while.
Apple's 93rd filing we've tracked in our Apple AR glasses watchlist since May builds on earlier applications like one on fit detection and one on posture-based views.
The trade is flexibility for predictability. Apps always open somewhere you can roughly guess, but the system picks the spot, and that spot is only as good as wherever you happened to summon the menu. Call the menu up while glancing at an awkward corner of the room, and your app inherits that corner.
The floor rule reveals the cost plainly. The offset has to bend whenever a window would sink below ground level, so the promise of consistent placement already has a built-in exception. A menu that stays anchored through small head movements feels stable, but one that stays anchored through large ones can end up behind you.
These are small prices in a device where windows float in open air and nobody wants to chase them across a room. The trade reads as worth it, but just barely, and you would only notice this design if it were missing.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Apple patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

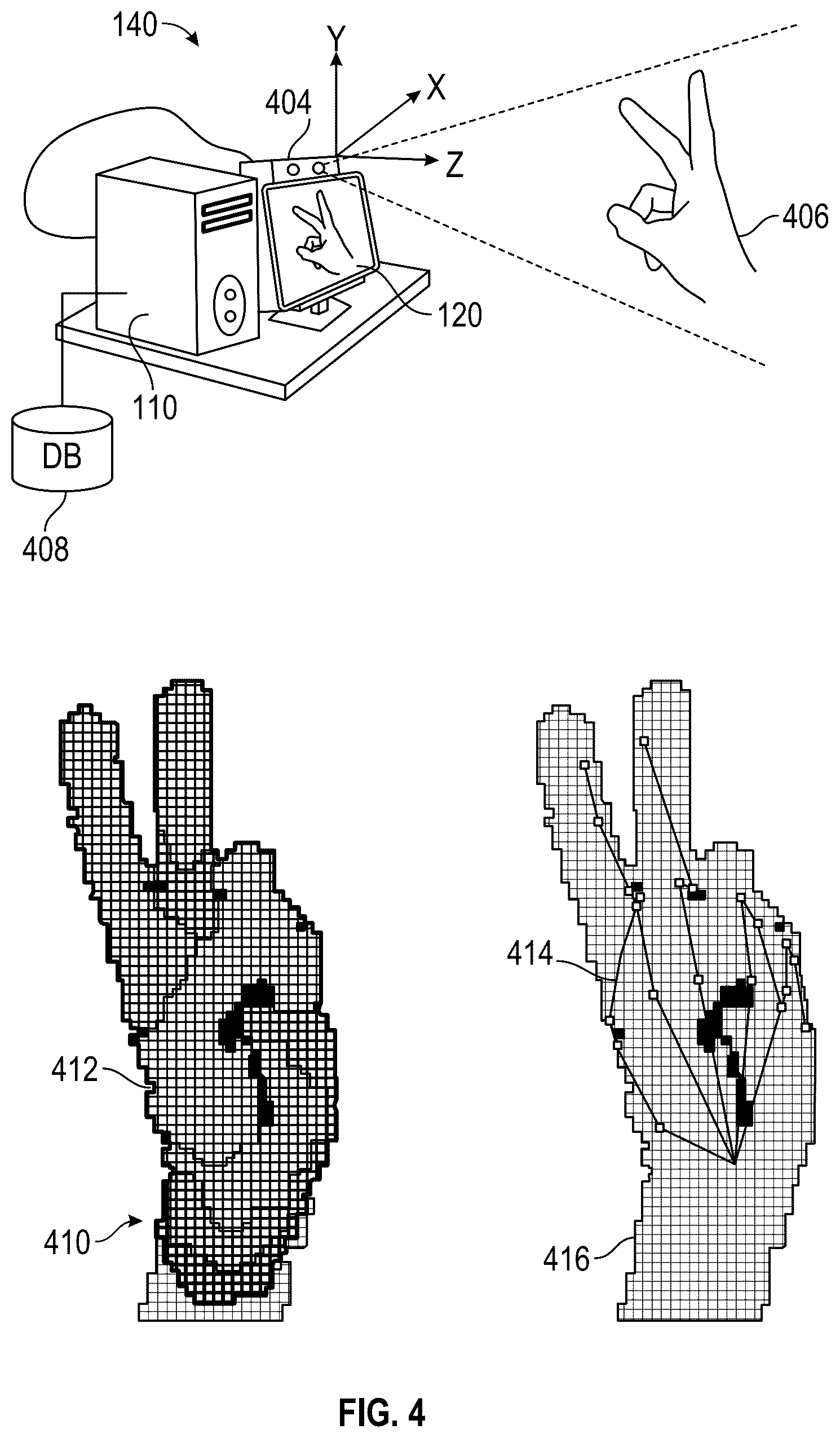

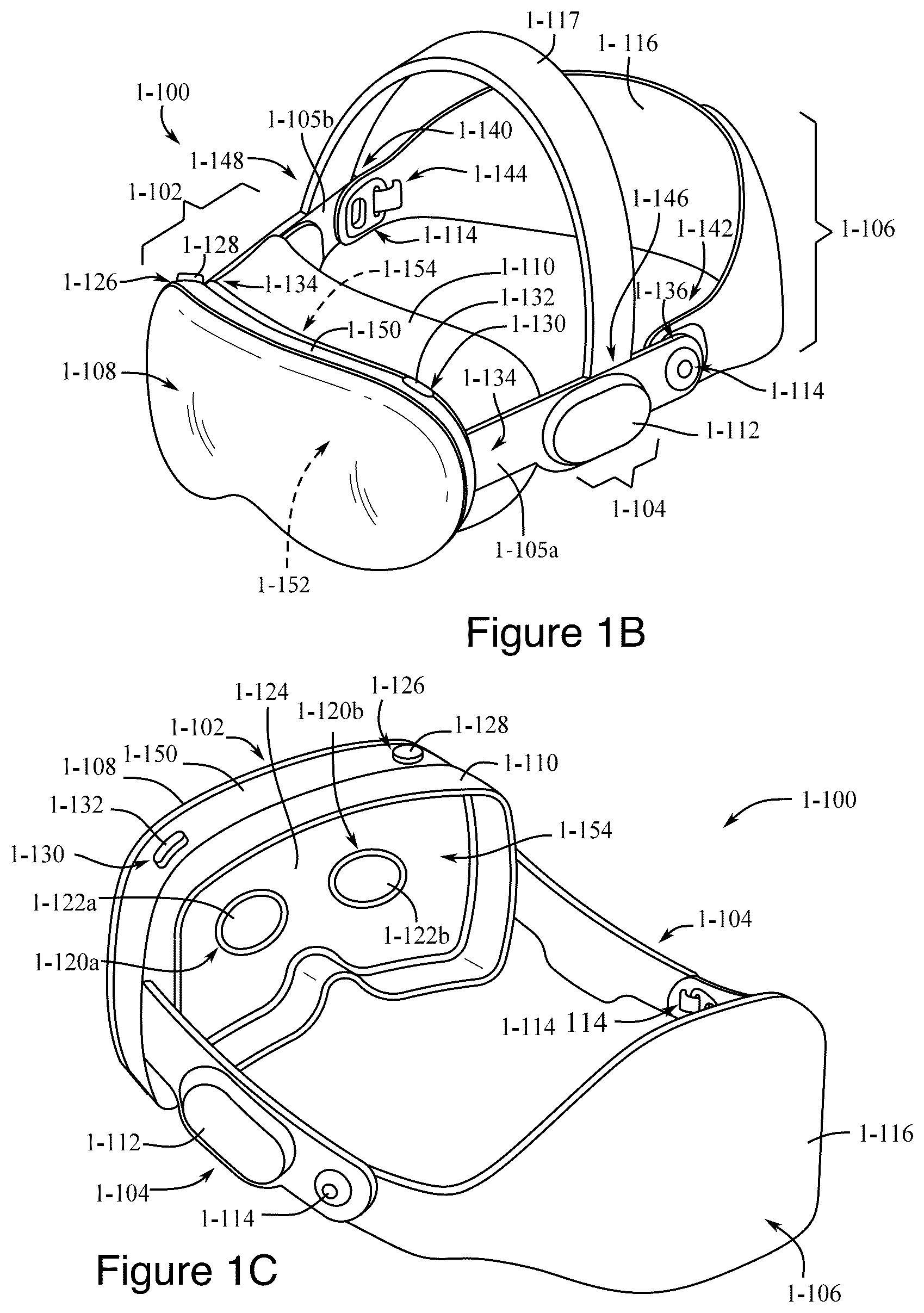

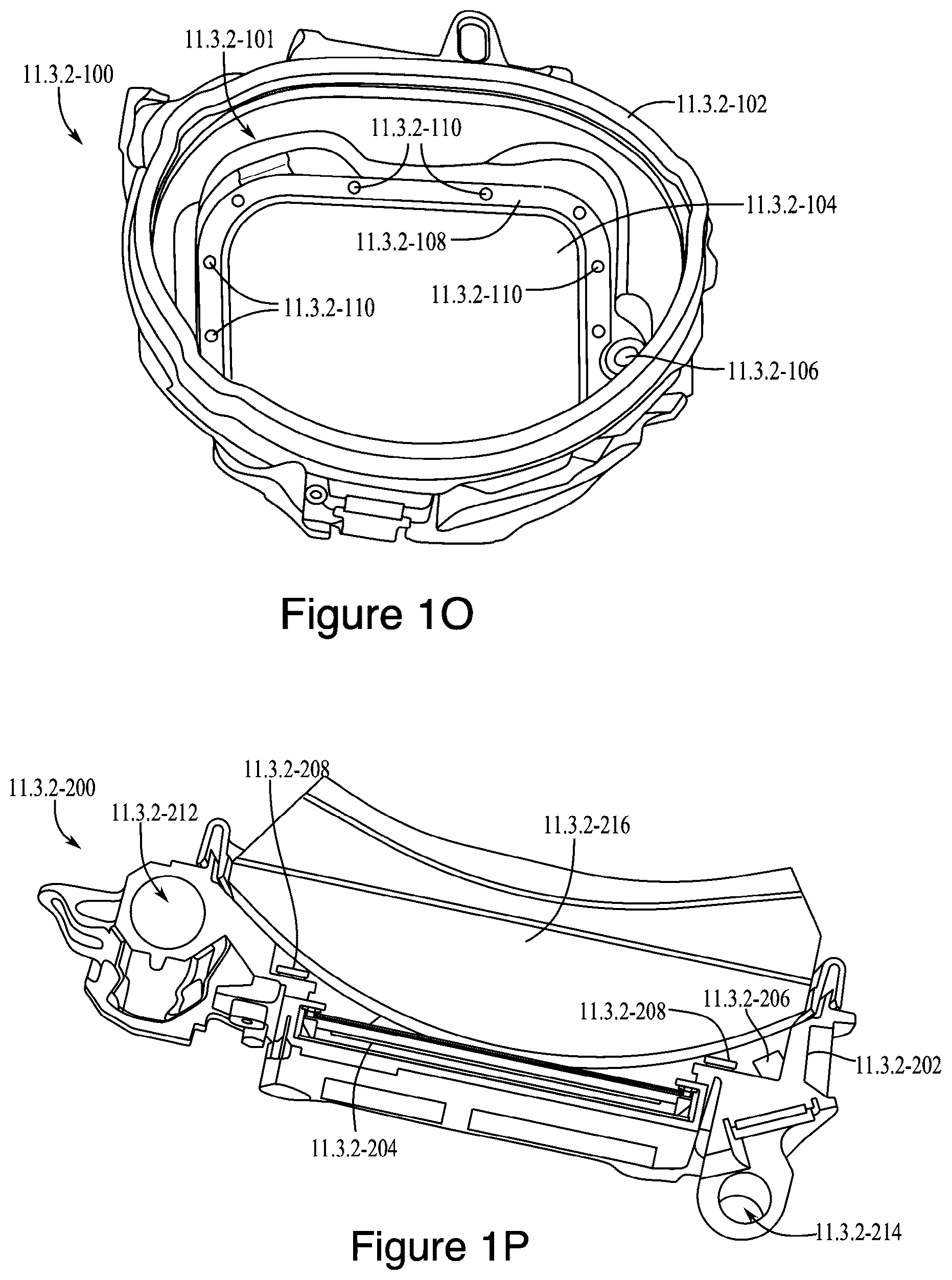

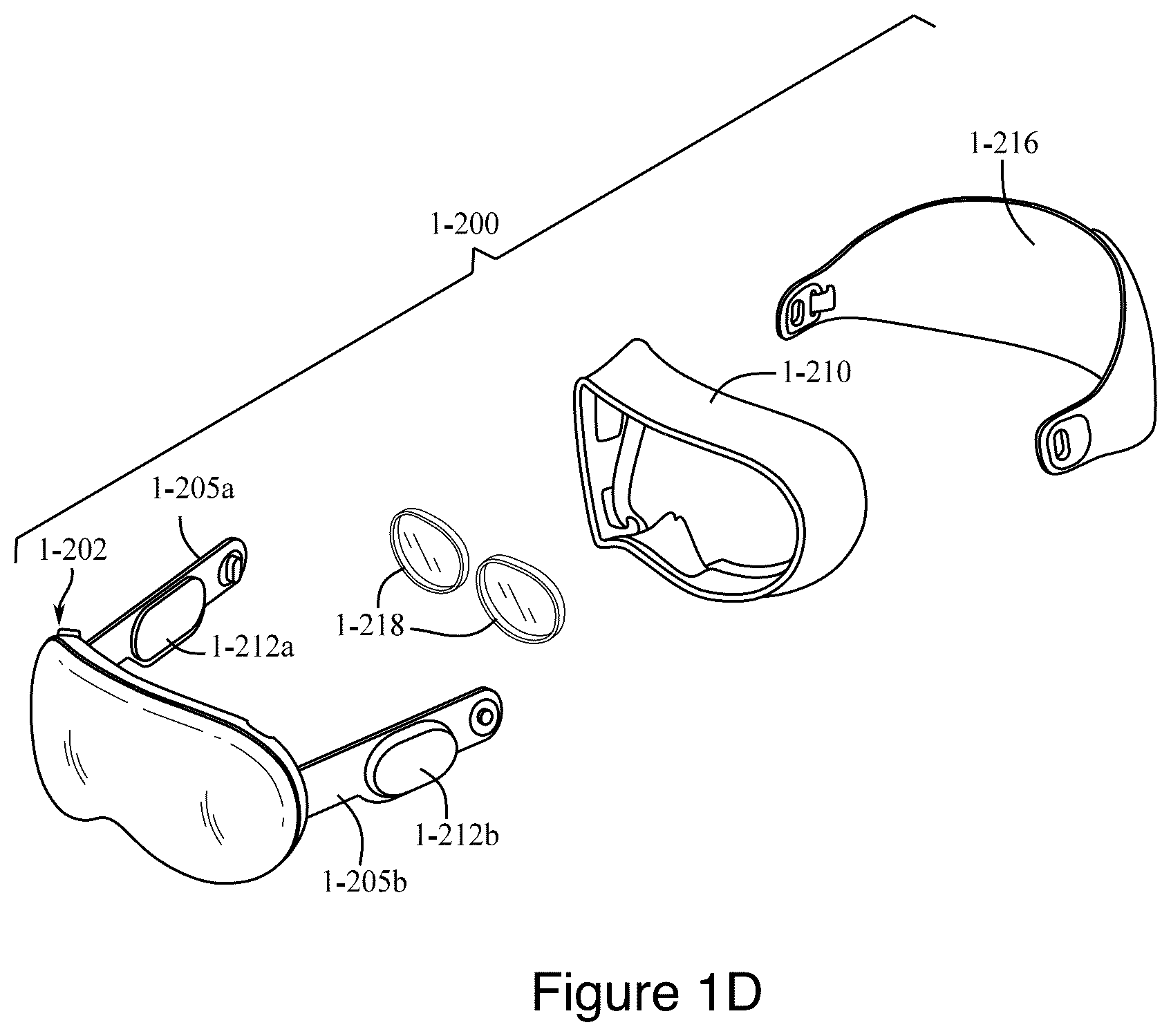

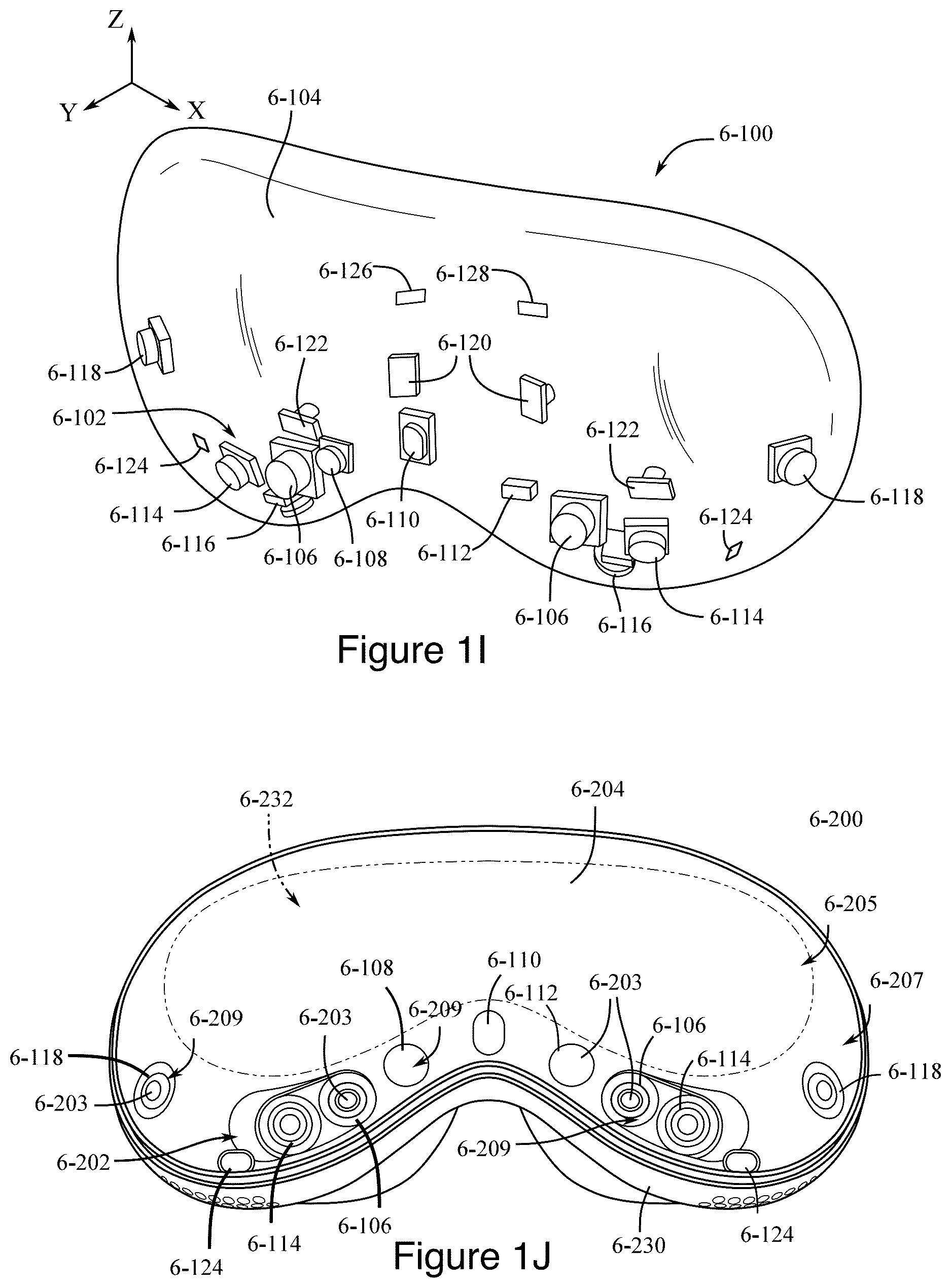

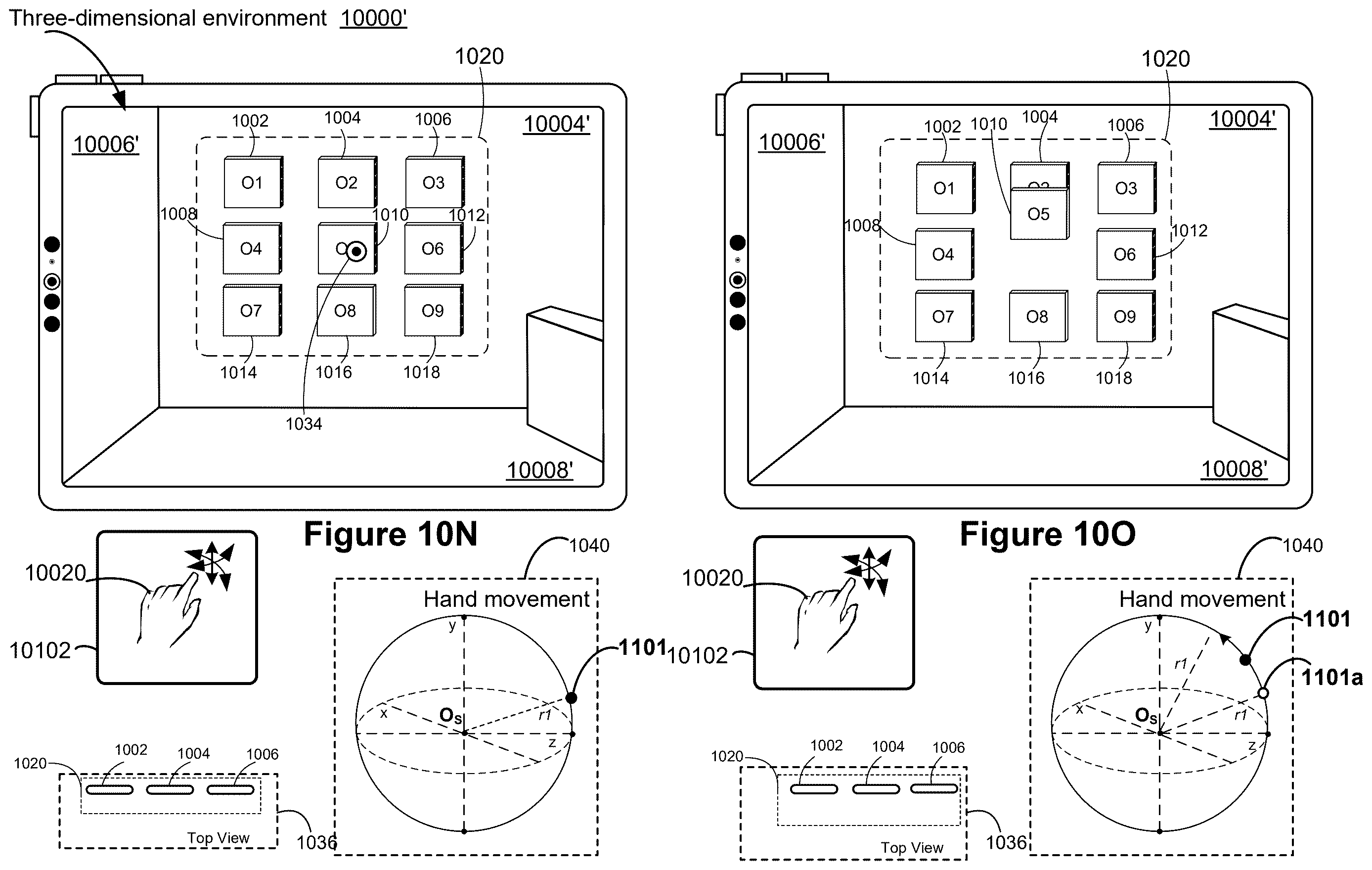

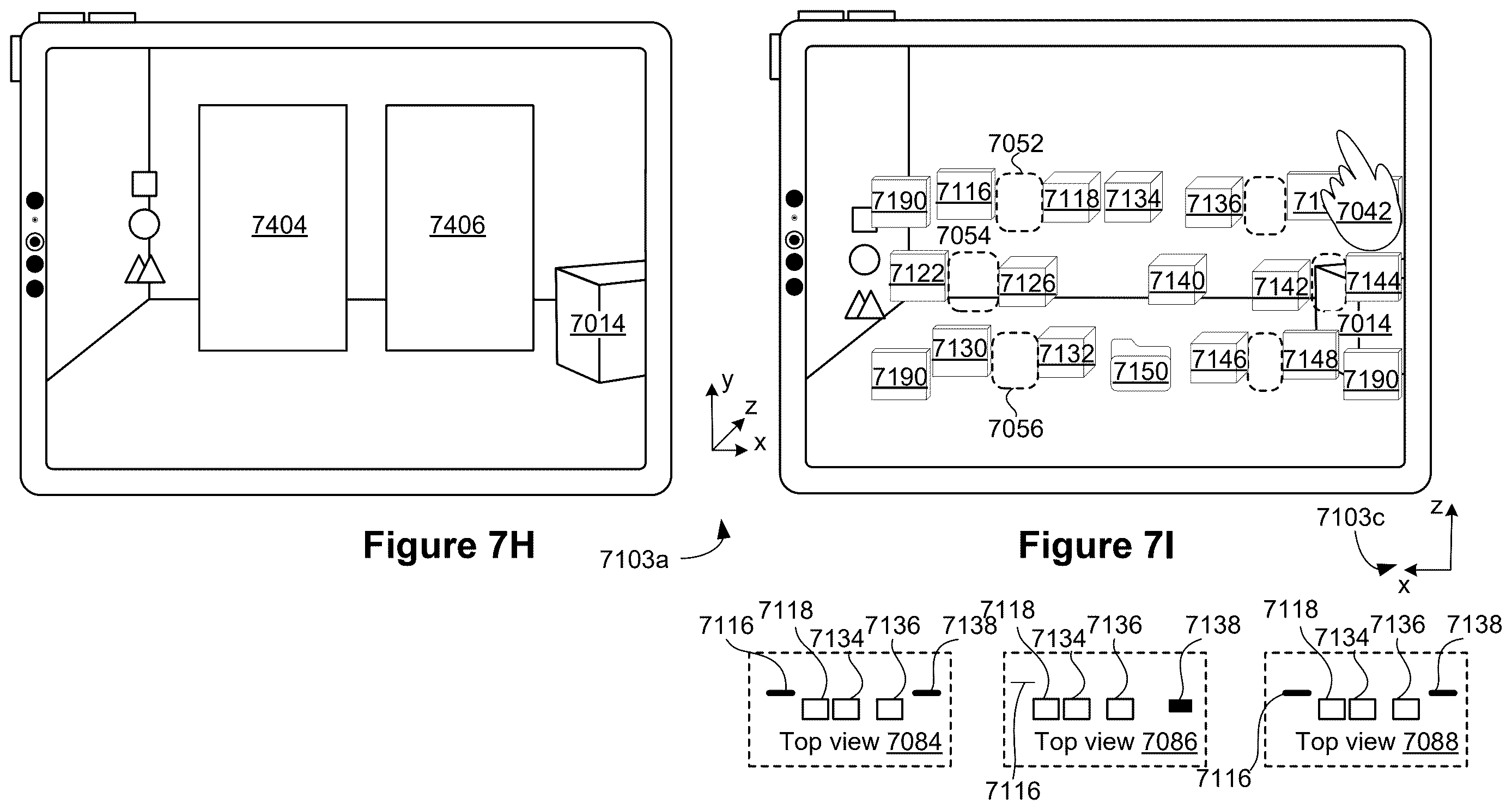

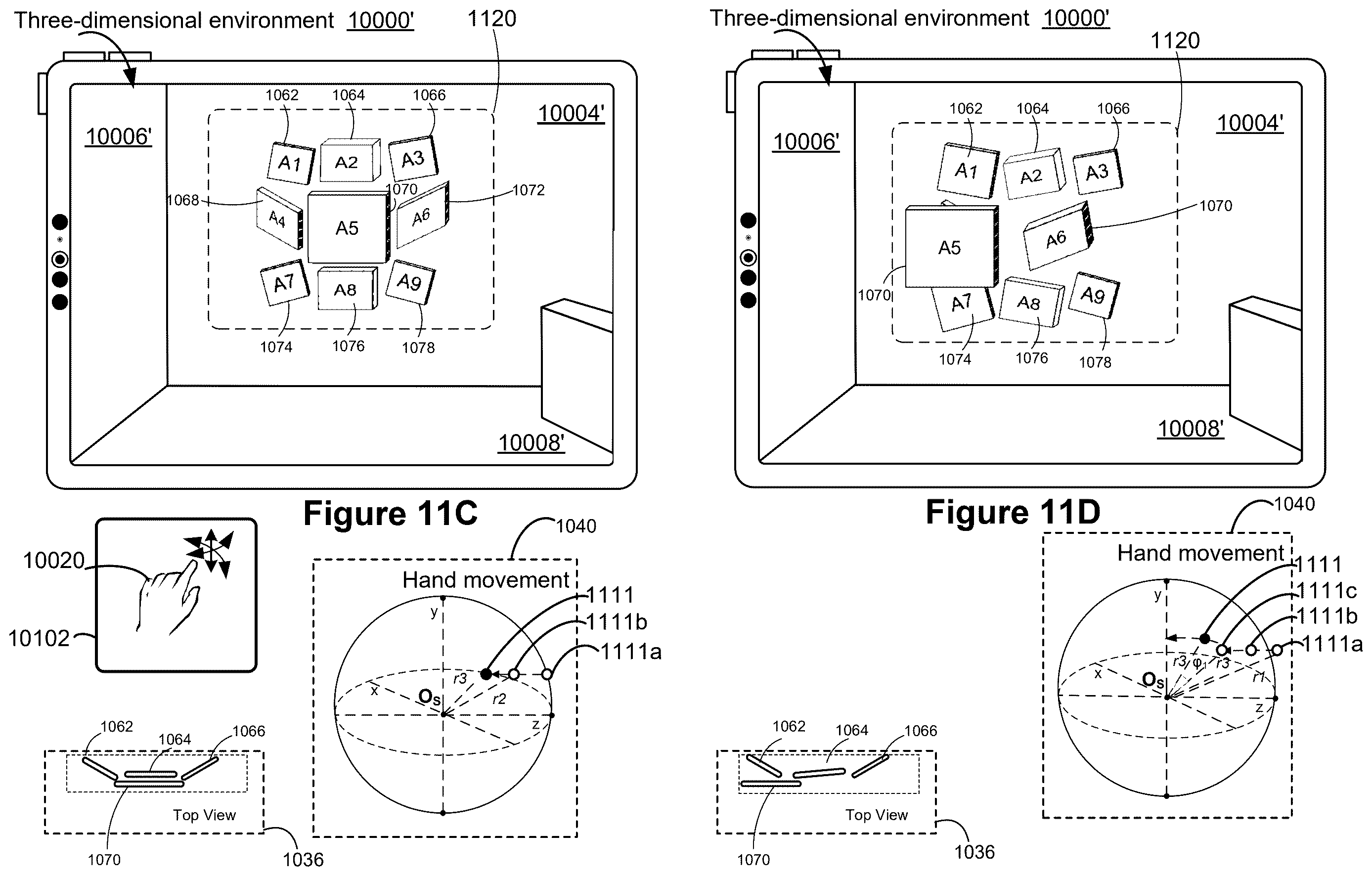

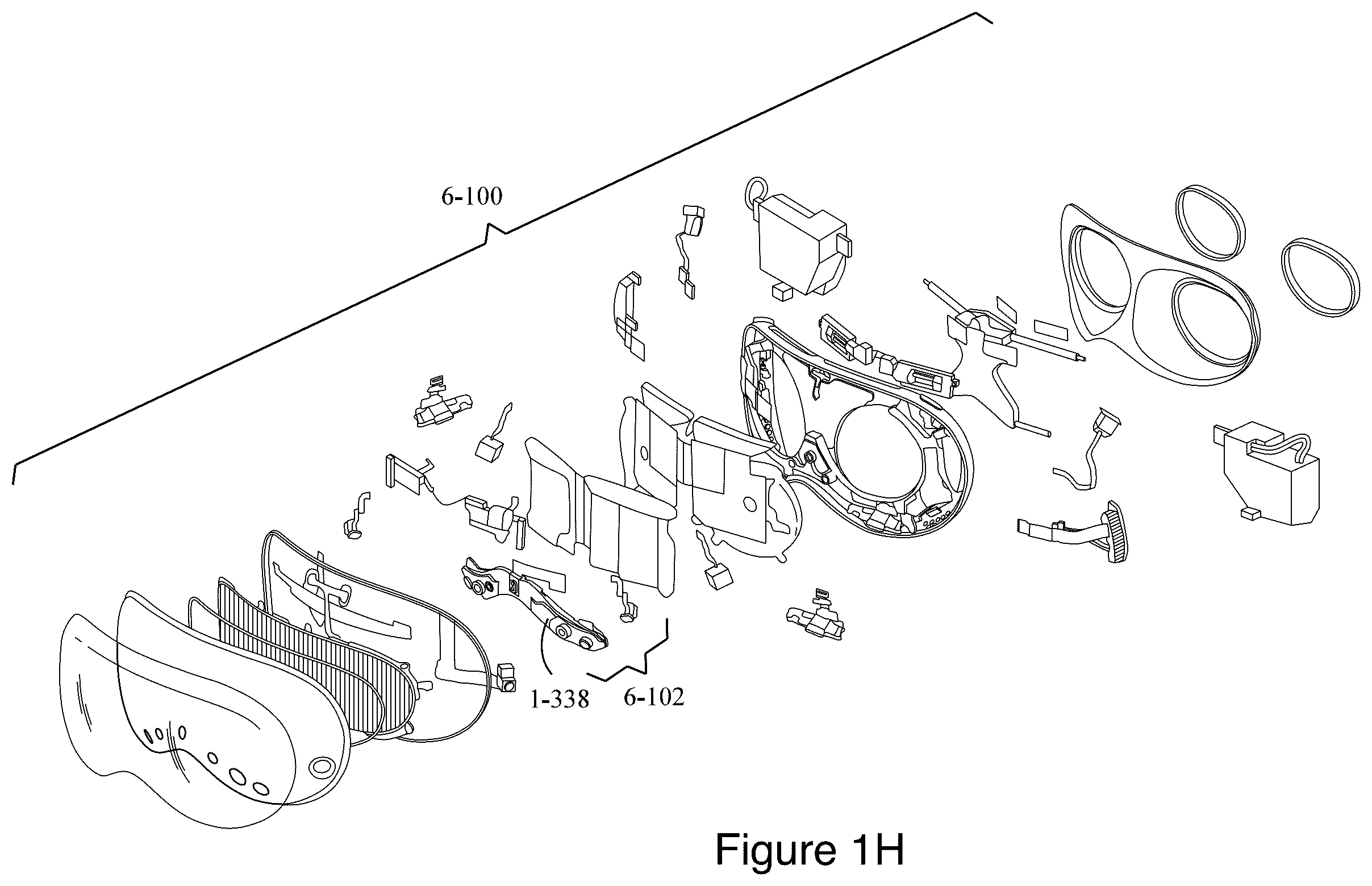

The drawings

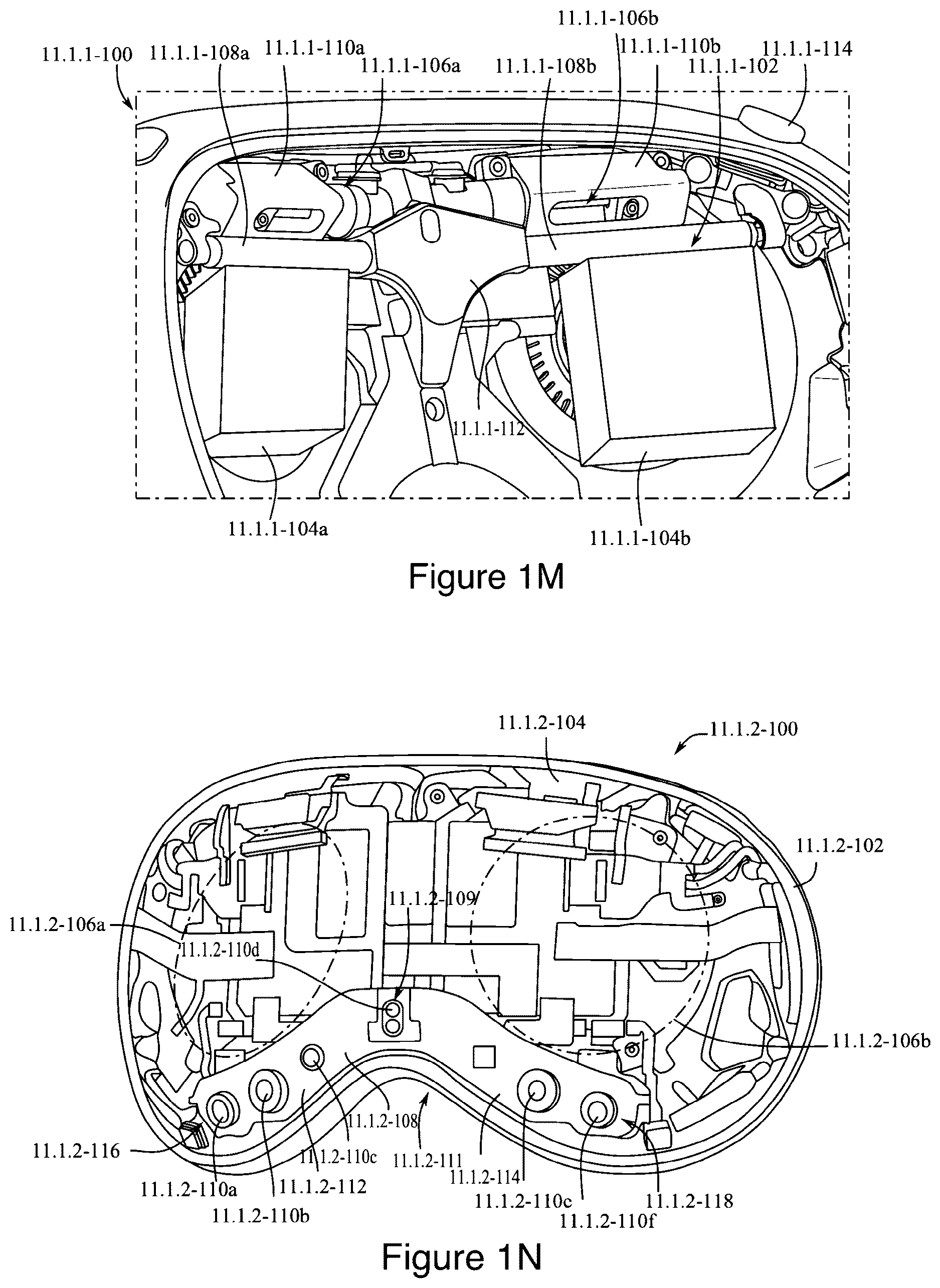

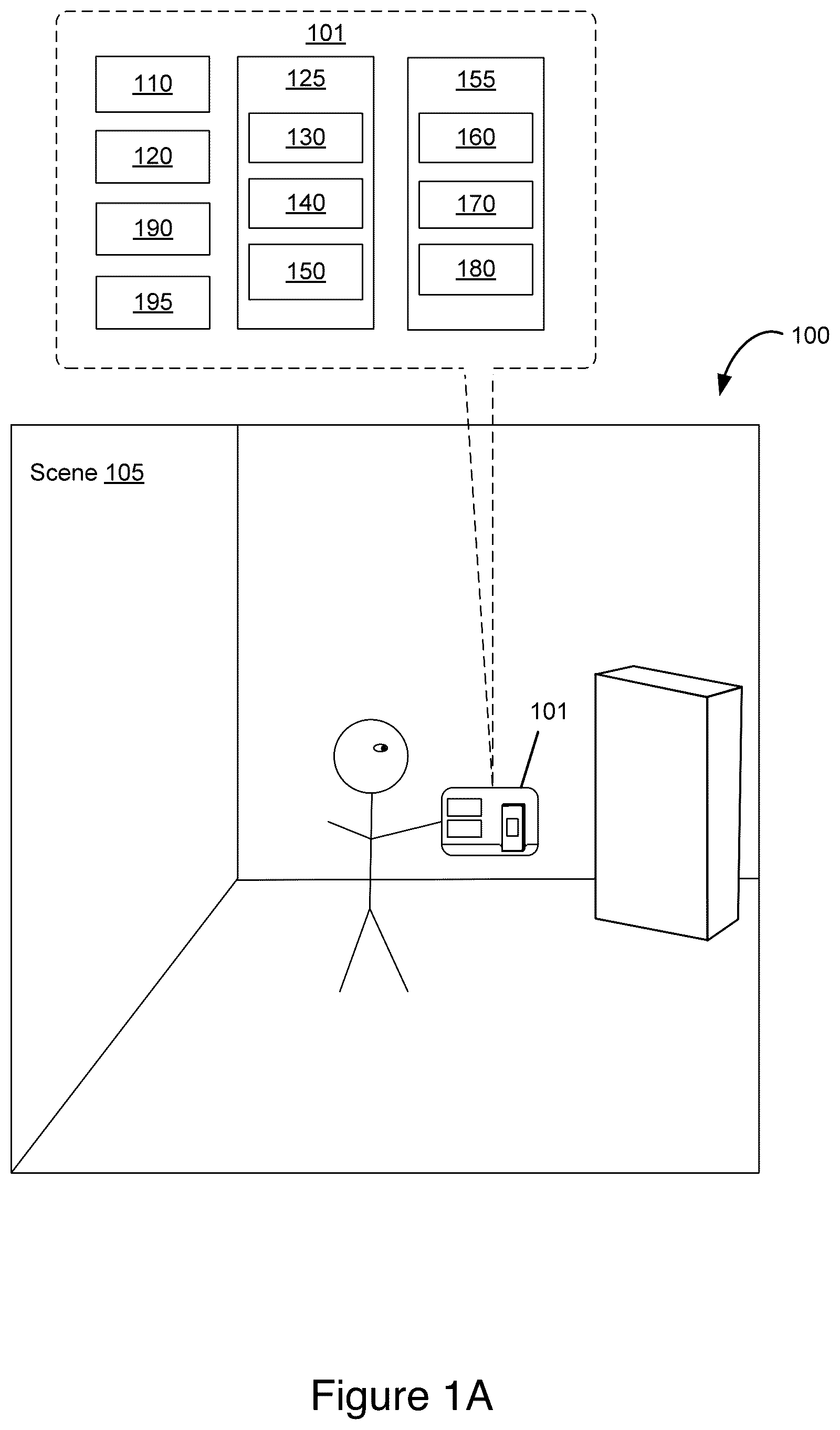

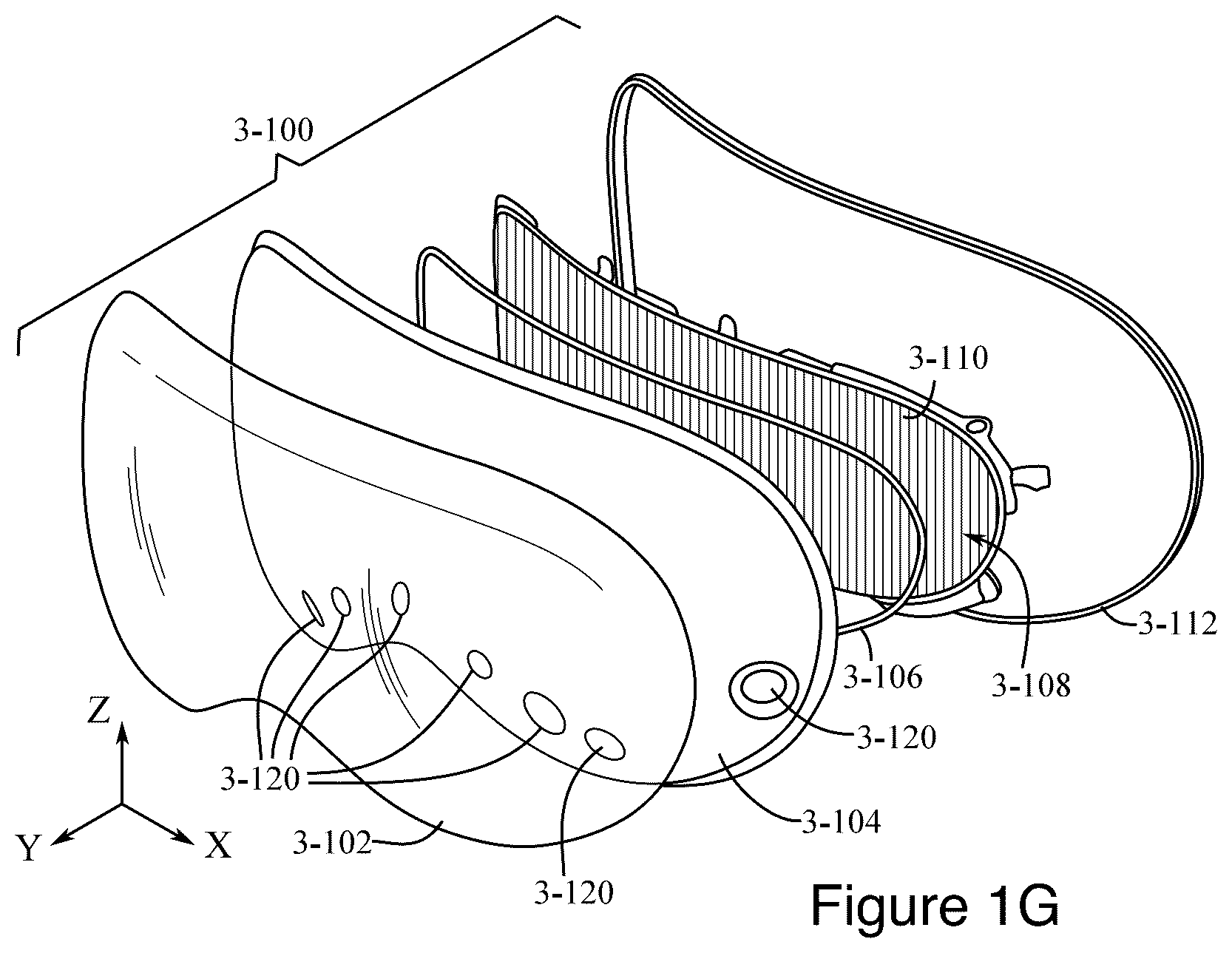

141 drawing sheets from US 2026/0319633 A1 · click any drawing to enlarge
