Disney · AI / ML · Filed Feb 14, 2025 · USPTO published Aug 20, 2026 · Aug 20 release

Disney Patents an AI System That Spots Failing Park Equipment Before It Breaks Down

Every major theme park runs on thousands of moving parts, and Disney is patenting a way to let an AI watch all of them at once so a problem machine gets flagged before guests ever notice something is wrong.

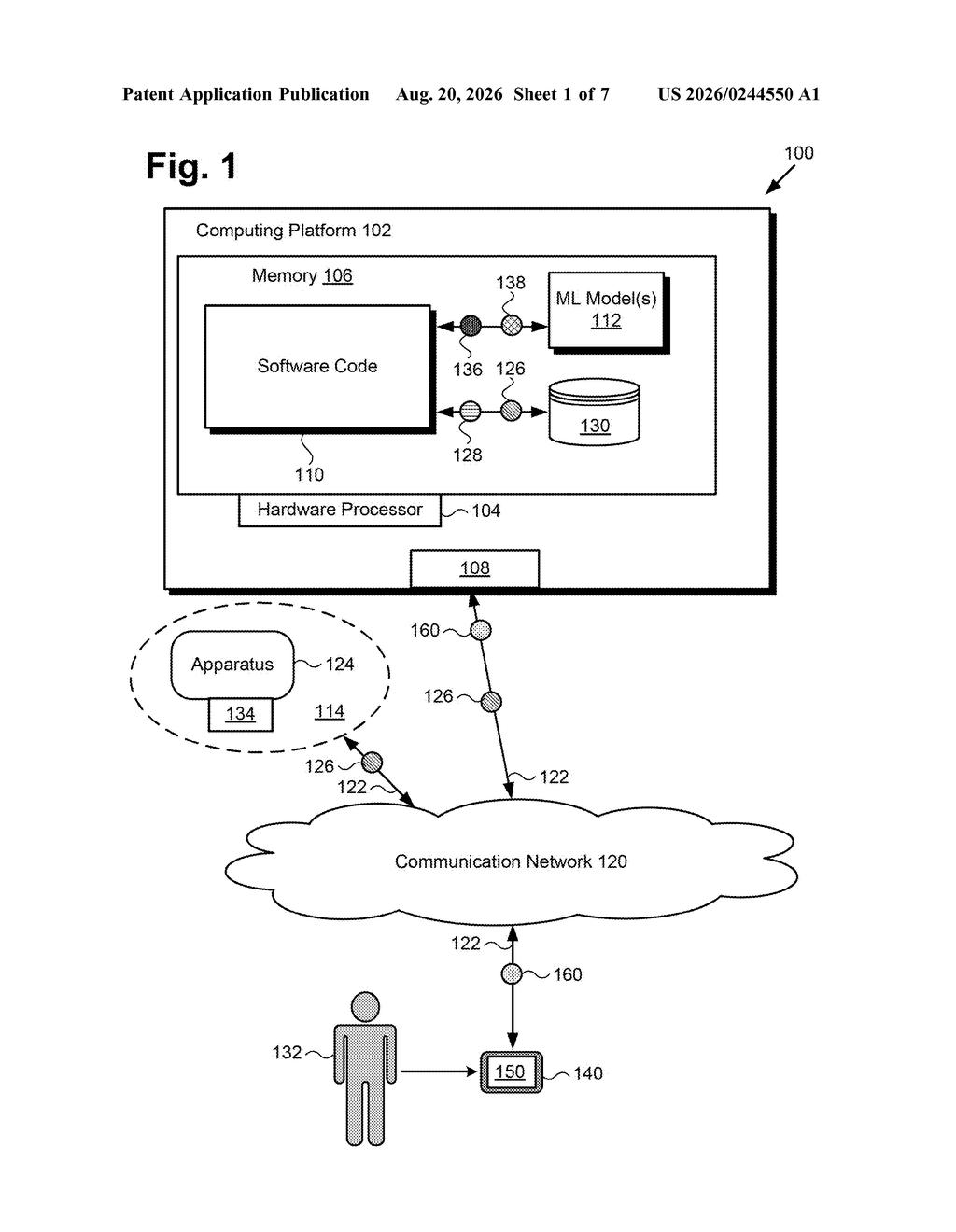

Overall system architecture connecting a central computing platform and machine learning model to park equipment across a network. Drawing from patent filing US 2026/0244550 A1.
Overall system architecture connecting a central computing platform and machine learning model to park equipment across a network.All 7 drawings ↓
Publication number
US 2026/0244550 A1(US20260244550A1)
Applicant
Disney Enterprises, Inc.
Filed · Published
Feb 14, 2025 · Aug 20, 2026
Inventors
Thiago Borba Onofre, Michael Tschanz
Status when we published
Waiting for an examiner
Document
20 claims
US classification
702/182

How Disney's sensor-watching AI flags a broken ride

Every time a rollercoaster launches a car, dozens of sensors log temperature, vibration, speed, and pressure. That data streams in constantly, from every ride, every attraction, every piece of equipment on the property, all at the same time.

What Disney's patent describes is a system that sorts through all of that sensor noise and keeps a dedicated eye on each individual machine. When your favorite ride's sensors start reporting something unusual, the system also checks what nearby or related sensors were reading at the same moment. It then feeds that combined picture into a trained AI model, which decides whether the machine is behaving outside its normal range.

If the AI says something is wrong, a notification goes out automatically, complete with a visual chart of the sensor data so a maintenance team can see exactly what tipped the alarm. The goal is catching small problems early, before they become ride closures or, worse, safety issues.

From the filing · CLAIM 1
… identify, using the global sensor data, a first other sensor data generated by a sensor of the plurality of sensors not included in the first subset of the plurality of sensors within a respective predetermined time interval of an expected timing of at least one sensor of the first subset of the plurality of sensors; …

Translation: The system looks at outside sensors that might affect the equipment around the exact same time.

How the system clusters sensor data around each machine

The system maintains a sensor database that maps every sensor on a property to the specific machine it monitors. When fresh data arrives from all active sensors at once (what the patent calls "global sensor data"), the processor knows which readings belong to which machine.

For each machine, it pulls only that machine's assigned sensor readings. But here is the clever part: it also grabs readings from other sensors that fired within a set time window around the expected moment one of the machine's own sensors should have fired. That time-windowed context (think of it as "what else was happening at that exact second") is bundled together with the machine's own data to form a performance data package.

That package is fed into a pre-trained ML model (a pattern-recognition engine built on historical data about how the machine normally behaves) which returns a judgment: normal or anomalous.

  • If normal, the system moves on.
  • If anomalous, it generates a notification that includes a visual representation of the performance data, giving technicians an at-a-glance view of what went wrong and when.

The design handles many machines in parallel, not just one, so a single deployment could watch an entire park's worth of equipment simultaneously.

From the filing · THE ABSTRACT
… output, when the first apparatus is operating anomalously, a notification including a visual representation of the performance data.

Translation: When something acts weird, the system sends an alert that includes charts of how it is performing.

What this means for theme park maintenance and safety

For theme parks, equipment downtime is expensive and safety oversights are unacceptable. A system that continuously monitors every machine and surfaces problems automatically could mean shorter inspection cycles, fewer surprise closures, and a faster path from "something seems off" to a technician standing in front of the right machine with the right data.

The broader category here, predictive maintenance powered by ML, is one of the more practical applications of AI in physical operations. Disney's angle, pulling in neighboring sensor data as context rather than judging each machine in isolation, is the specific design choice that makes this filing interesting to follow alongside other new Big Tech patents in industrial AI and equipment monitoring.

Disney's 29th filing we've tracked since June in our Disney coverage follows patents like the ride-warning system and the dialogue clarity fix.

Source: US 2026/0244550 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Disney patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 7 sheets

7 drawing sheets from US 2026/0244550 A1 · click any drawing to enlarge

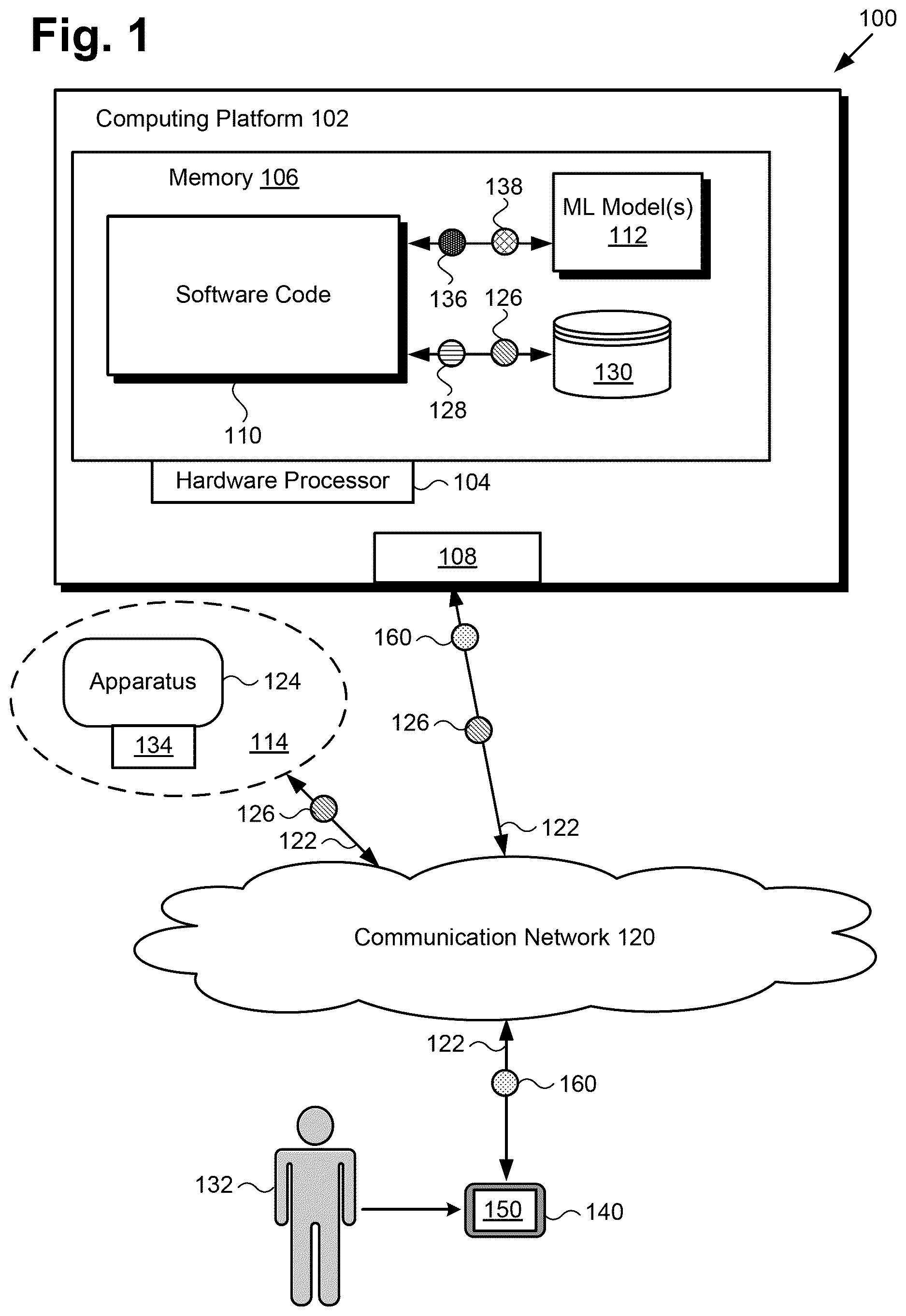

System architecture for park equipment, drawing sheet 1 from US 2026/0244550 A1
Sheet 1 System architecture for park equipment

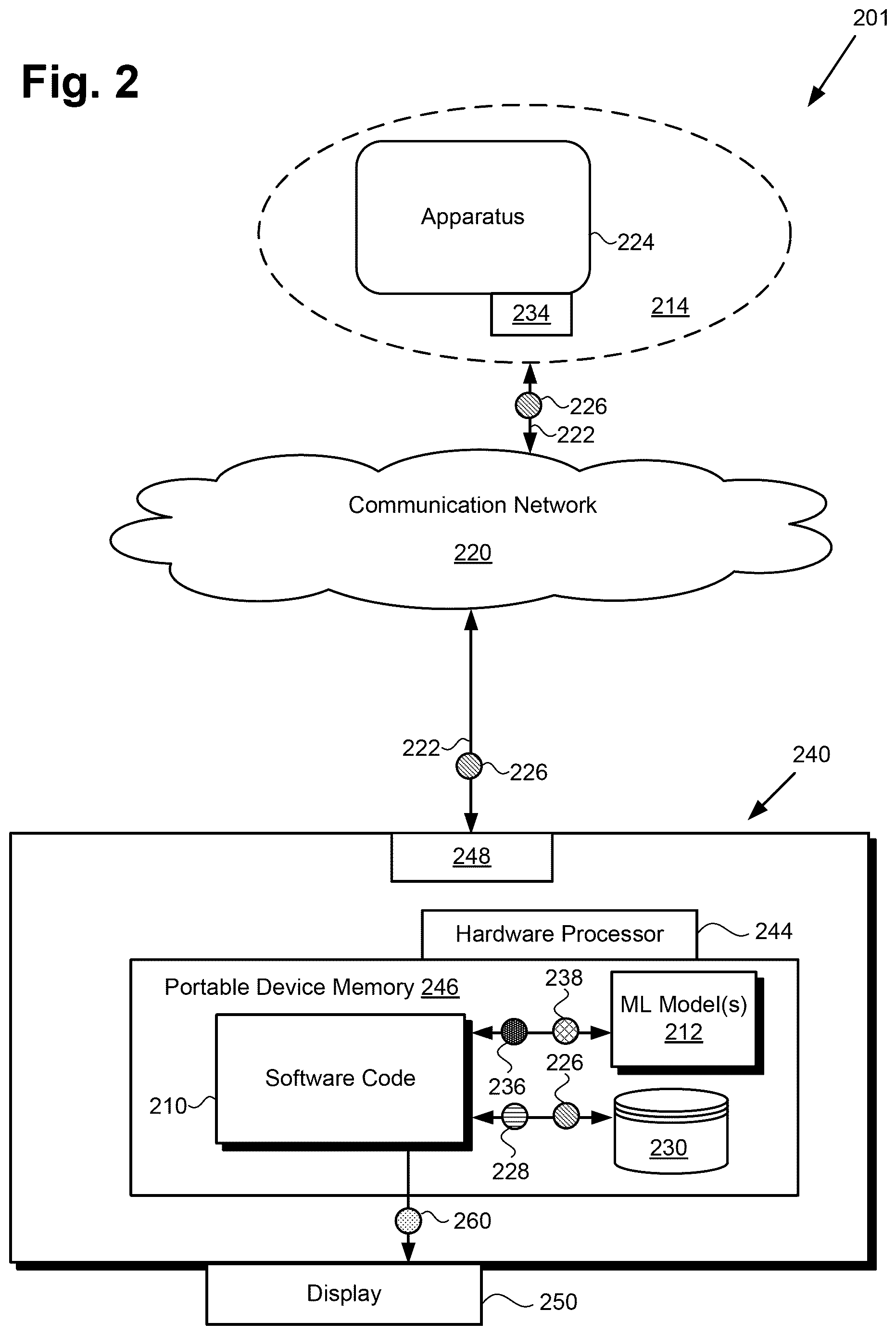

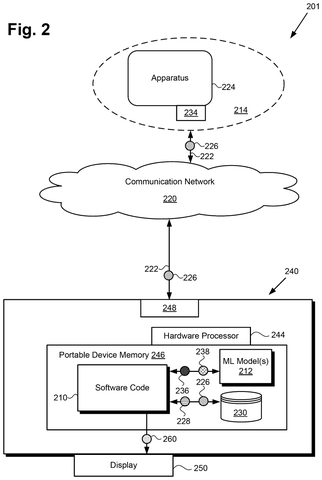

Alternative computing platform and device setup, drawing sheet 2 from US 2026/0244550 A1
Sheet 2 Alternative computing platform and device setup

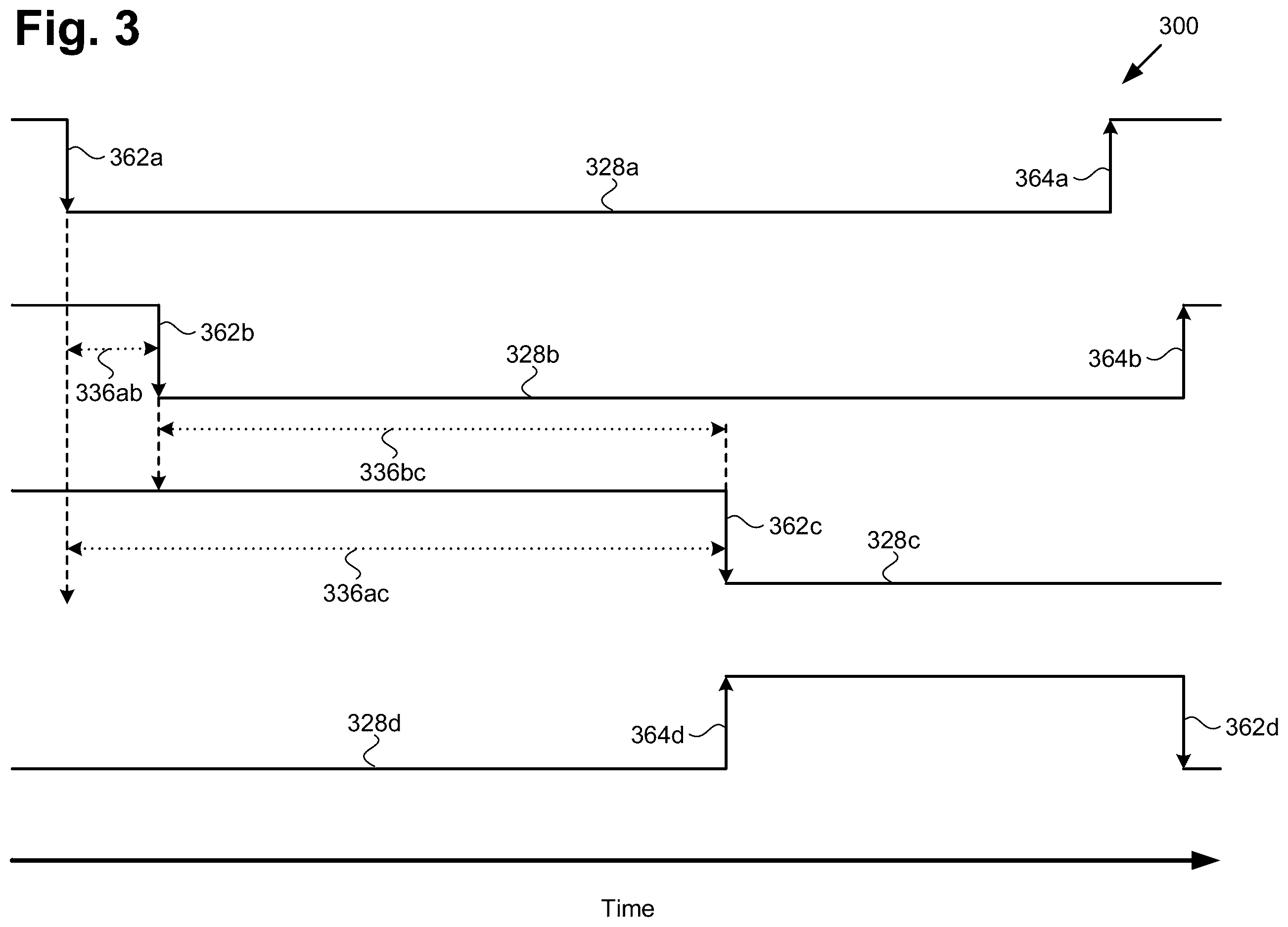

Timing waveforms for equipment sensors, drawing sheet 3 from US 2026/0244550 A1
Sheet 3 Timing waveforms for equipment sensors

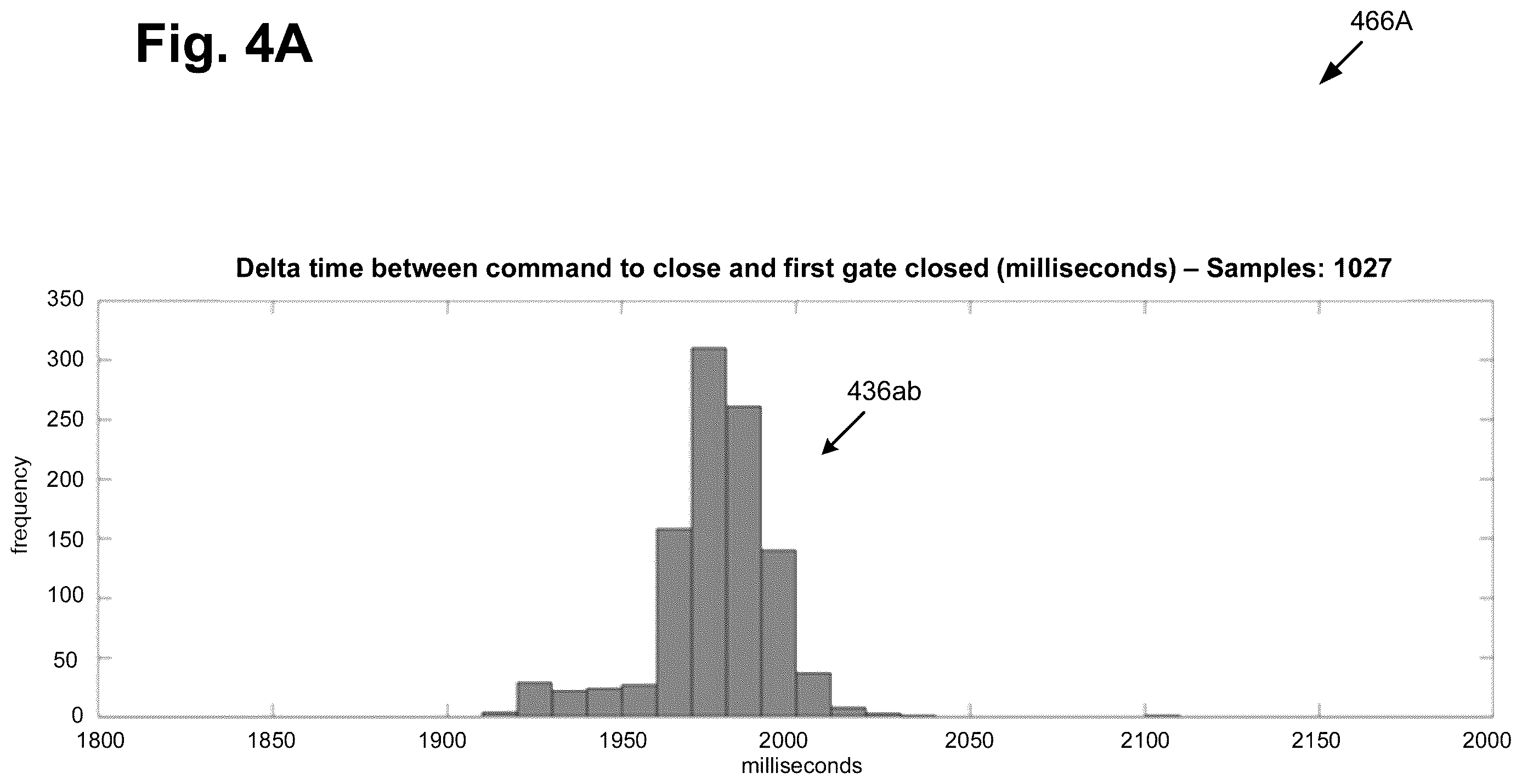

Frequency distribution of gate closing times, drawing sheet 4 from US 2026/0244550 A1
Sheet 4 Frequency distribution of gate closing times

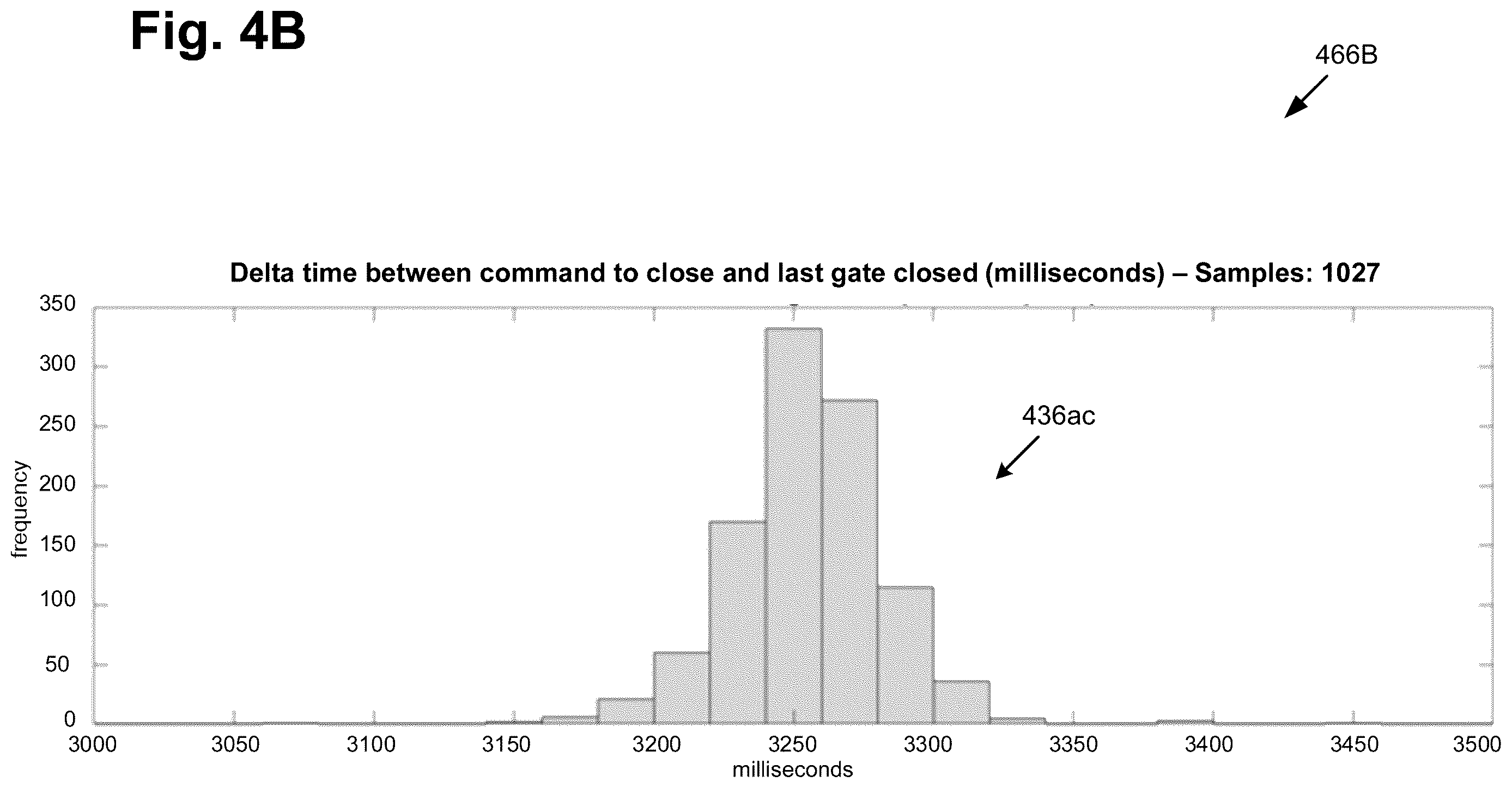

Frequency distribution of last gate times, drawing sheet 5 from US 2026/0244550 A1
Sheet 5 Frequency distribution of last gate times

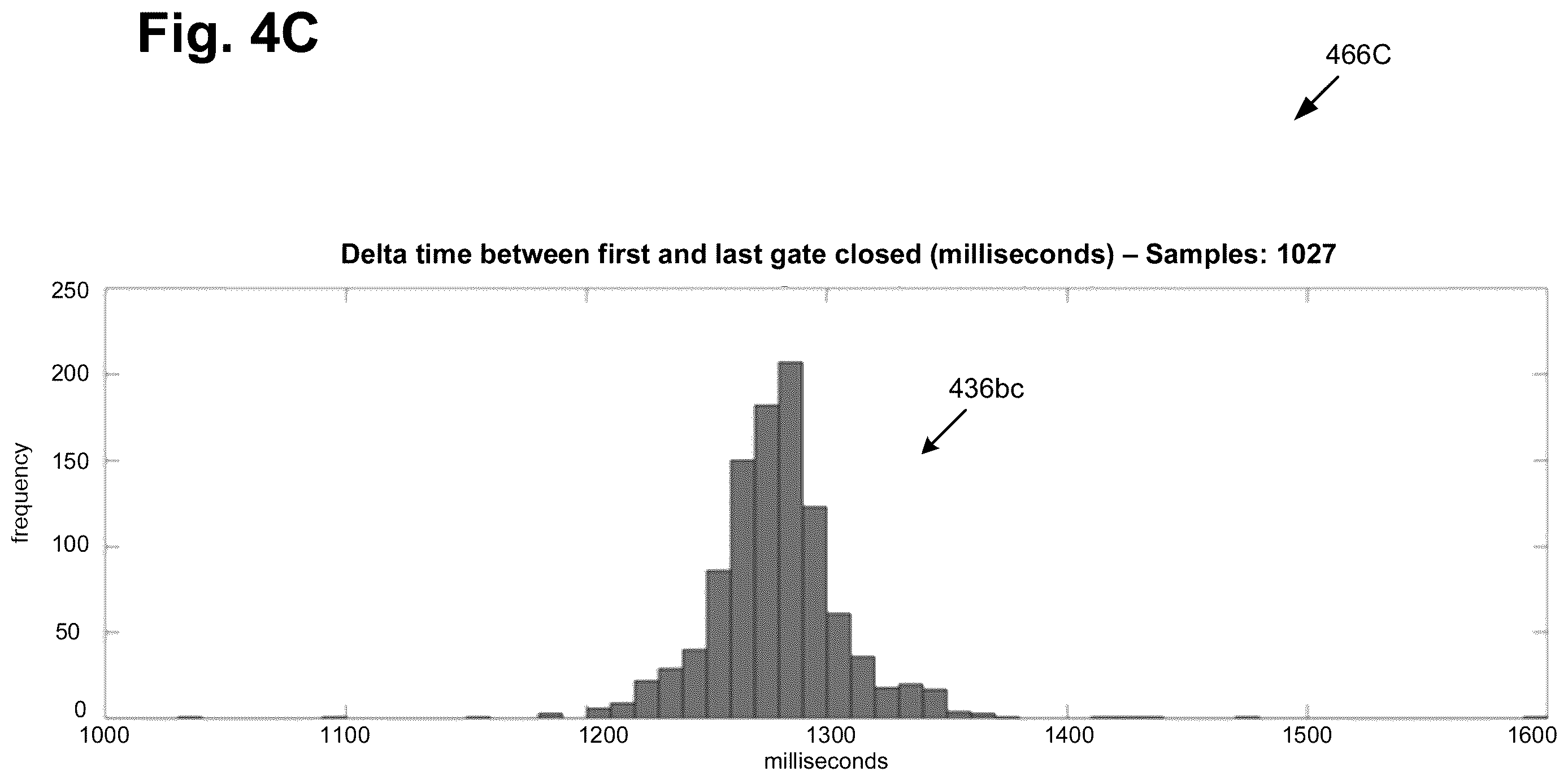

Frequency distribution of gate timing delta, drawing sheet 6 from US 2026/0244550 A1
Sheet 6 Frequency distribution of gate timing delta

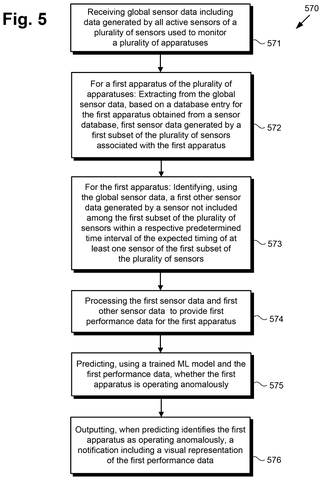

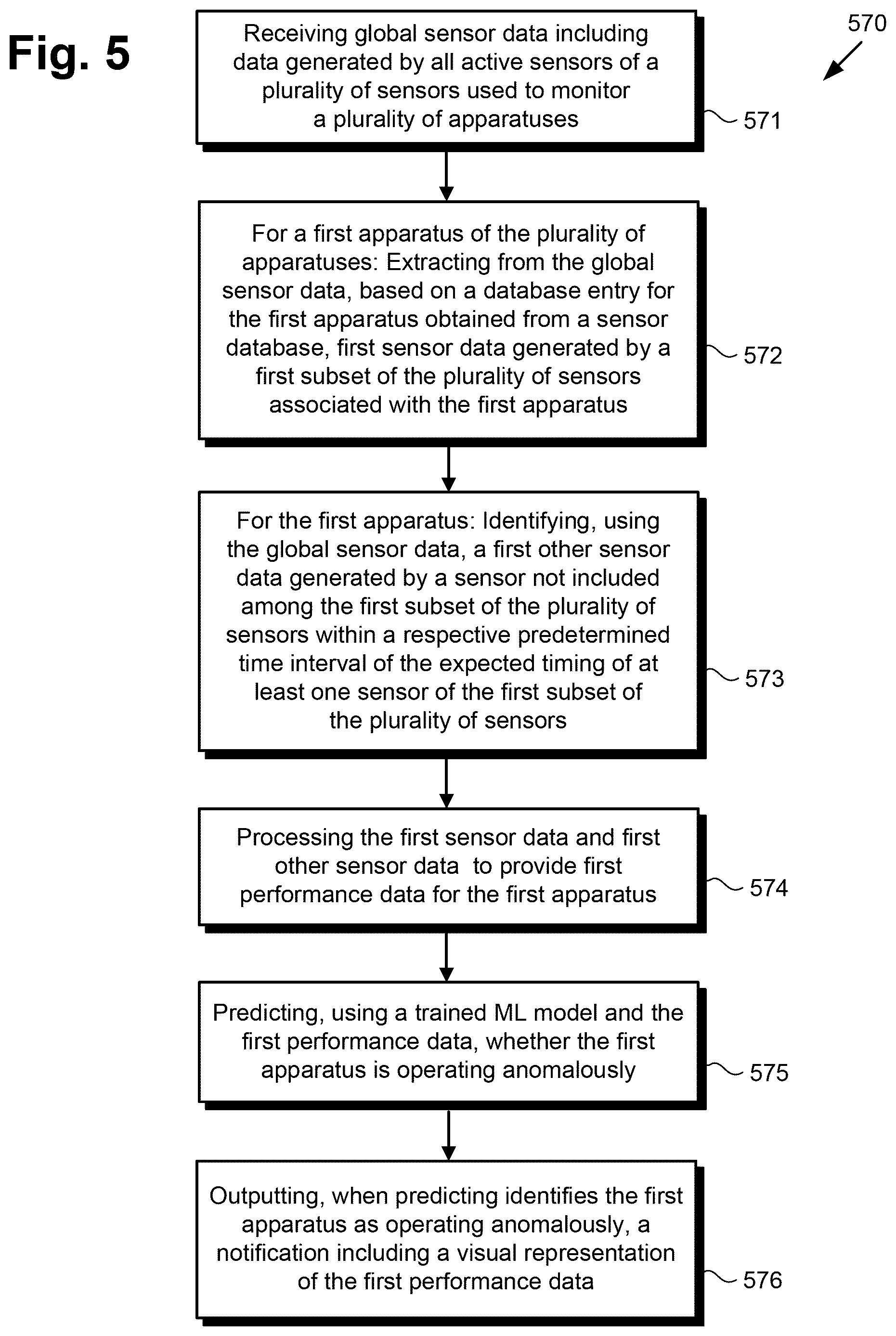

Flowchart of anomaly detection process, drawing sheet 7 from US 2026/0244550 A1
Sheet 7 Flowchart of anomaly detection process
