Qualcomm Patents a Chip Design That Keeps Two Graphics Jobs Processing Simultaneously

Mobile GPUs typically finish one graphics job before starting the next, leaving parts of the chip sitting idle. Qualcomm's new patent describes a way to overlap two rendering jobs so those idle stretches shrink.

By · Updated · 3 min read

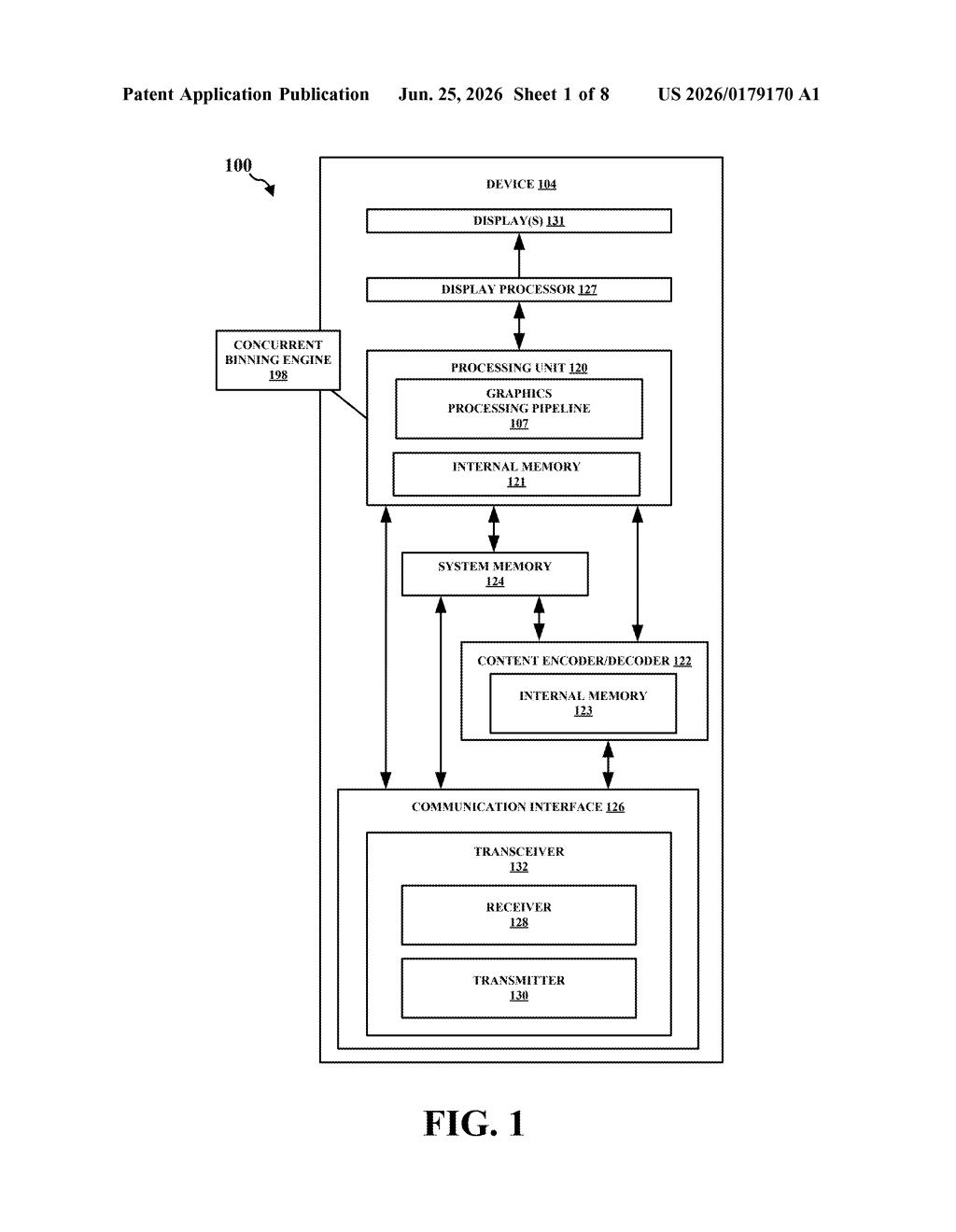

Qualcomm Patent: Faster Mobile GPU Rendering Pipeline, figure from US 2026/0179170 A1
Figure from the official USPTO publication.
Publication number
US 2026/0179170 A1(US20260179170A1)
Applicant
QUALCOMM Incorporated
Filed · Published
Dec 20, 2024 · Jun 25, 2026
Inventors
Sanjeevi S., Nawneet KUMAR, Vignesh BASKARAN
Status when we published
Examiner raised objections; the company can respond
Document
20 claims
US classification
345/522
Examiner
SAJOUS, WESNER (Art Unit 2612)

What Qualcomm's overlapping GPU stages actually do

Imagine a restaurant kitchen where the grill cook has to fully plate every dish before the prep cook is allowed to start chopping ingredients for the next order. That's roughly how many mobile GPUs handle back-to-back graphics tasks, and it wastes time.

Qualcomm's patent describes a system that figures out the earliest point at which a second graphics job can safely start, even while the first one is still being finished. The GPU then splits the second job into two parts: the portion that can run in parallel with the end of the first job, and the portion that has to wait. That way, the chip is doing useful work during what would otherwise be dead time.

The practical effect is that more rendering work gets done per second without asking the chip to do anything it wasn't already capable of, just in a smarter order.

How the pipeline splits and sequences the two workloads

Mobile GPUs that use a technique called tile-based rendering (a power-efficient approach where the screen is divided into small tiles processed one at a time) typically run two distinct phases for each frame: a bin visibility pass (figuring out which objects are visible in each tile) and a bin render pass (actually drawing those objects). These phases normally run in strict sequence.

Qualcomm's patent introduces a scheduling layer that analyzes two back-to-back graphics workloads and identifies the exact minimum dependent draw call, the earliest instruction in the second workload that genuinely depends on output from the first workload's render pass. Everything in the second workload before that point can safely run early.

  • The GPU processes the first workload's render pass and the first (independent) portion of the second workload's visibility pass at the same time.
  • Once the first workload's render pass is done and the dependency is cleared, the GPU handles the remaining portion of the second workload's visibility pass.
  • The second workload then proceeds to its own render pass normally.

The key insight is that the system doesn't just blindly parallelize everything; it finds the precise cut point so that ordering constraints are respected while idle time is minimized.

What this means for graphics performance on Snapdragon devices

Tile-based rendering is standard on virtually every mobile GPU, including Qualcomm's Snapdragon Adreno series. Any improvement to how those rendering phases are scheduled has a direct path to shipping devices. Games, high-refresh-rate displays, and augmented-reality applications are the obvious beneficiaries because they generate the densest back-to-back GPU workloads.

For everyday users, this kind of pipeline optimization typically shows up as higher frame rates at the same battery consumption, or the same frame rate at lower power draw. Neither outcome is flashy, but both are the kind of thing you notice when your phone doesn't get warm during a gaming session or your AR app stops dropping frames.

Source: US 2026/0179170 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.
