Samsung Patents a Cam-Driven Sliding Hinge for Foldable Phones

By Patentlyze Team · Updated May 22, 2026

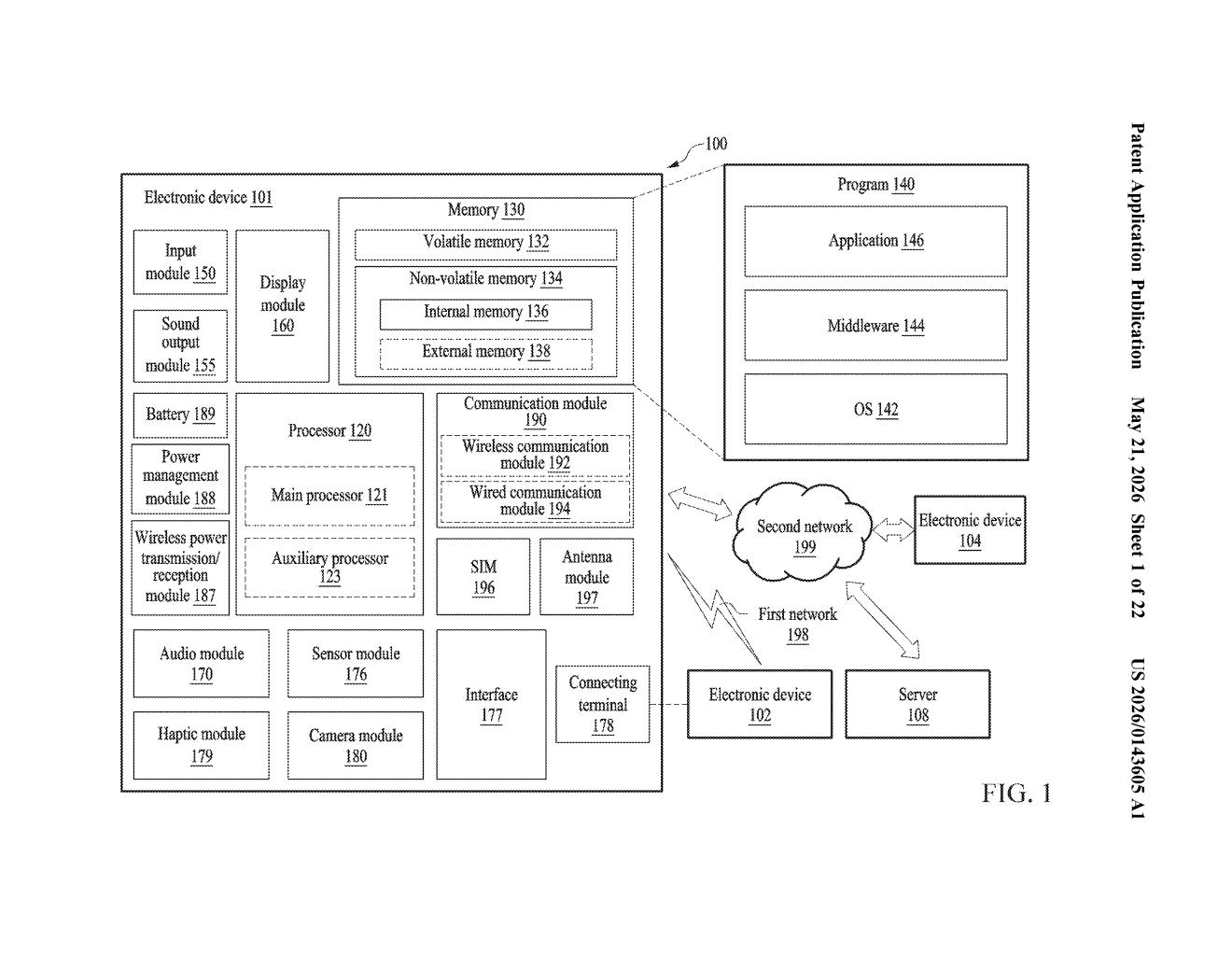

Samsung's latest patent describes a foldable phone hinge that physically pushes a small slider outward the moment you fold the device — using the rotation of the fold itself as the driving force.

What Samsung's pop-out hinge slider actually does

Imagine folding a piece of paper in half and having a tiny latch automatically pop out to hold the two halves snugly together. That's roughly what Samsung is engineering here for its foldable phones.

When your phone is lying flat and open, a small sliding piece sits tucked inside the hinge housing — you'd never know it's there. The moment you start folding the phone, the rotation of the hinge shaft mechanically pushes that slider outward, and by the time the phone is fully closed, the slider has popped out just enough to press against one of the two phone halves.

This creates a self-activating contact point that's directly linked to the fold itself — no separate spring or latch required. It's the kind of detail that, if it works well, makes a folded phone feel tighter, more premium, and less likely to wobble in your pocket.

How the eccentric cam drives the sliding mechanism

The core trick here is an eccentric cam — a protrusion that sits off-center on the hinge shaft. When the shaft rotates (because you're folding the phone), that off-center protrusion swings in a circle around the shaft's axis. That circular motion is converted into straight-line movement, pushing a sliding member outward along a track that runs perpendicular to the hinge axis.

In the unfolded state, the slider is fully retracted inside the hinge housing — flush and hidden. As the device transitions toward the folded state, the rotating protrusion progressively drives the slider outward. In the fully folded state, part of the slider protrudes beyond the hinge housing and physically contacts either the first or second housing half.

The hinge assembly connects the two phone housings via a bracket, and the hinge housing itself sits in recessed "seating portions" cut into each housing — it's flush when open, and partially exposed along the spine when folded (the classic Galaxy Z Fold profile).

Key components:

• Hinge bracket — the fixed structural anchor
• Shaft — rotates about the primary fold axis
• Rotation protrusion member — the eccentric cam attached to the shaft
• Sliding member — the piece that gets pushed outward during folding

What this means for foldable phone durability and fit

Foldable phones live and die by hinge quality. A hinge that leaves a gap, wobbles, or feels loose when closed is one of the first things reviewers and users notice — and it telegraphs "cheap" even on a $1,800 device. A mechanism that automatically tightens the fit when folded, driven purely by the geometry of the fold itself, is an elegant engineering answer to that problem.

For Samsung's Galaxy Z Fold and Z Flip lines, tighter closure also has practical benefits: less dust ingress, better feel in the hand, and reduced stress on the flexible display's fold crease. This patent suggests Samsung is still investing heavily in the mechanical side of foldables — not just the software experience.

Editorial commentary on a publicly published patent application. Not legal advice.
