Google Patents a Fingertip Blood Pressure Sensor Built Into Everyday Devices

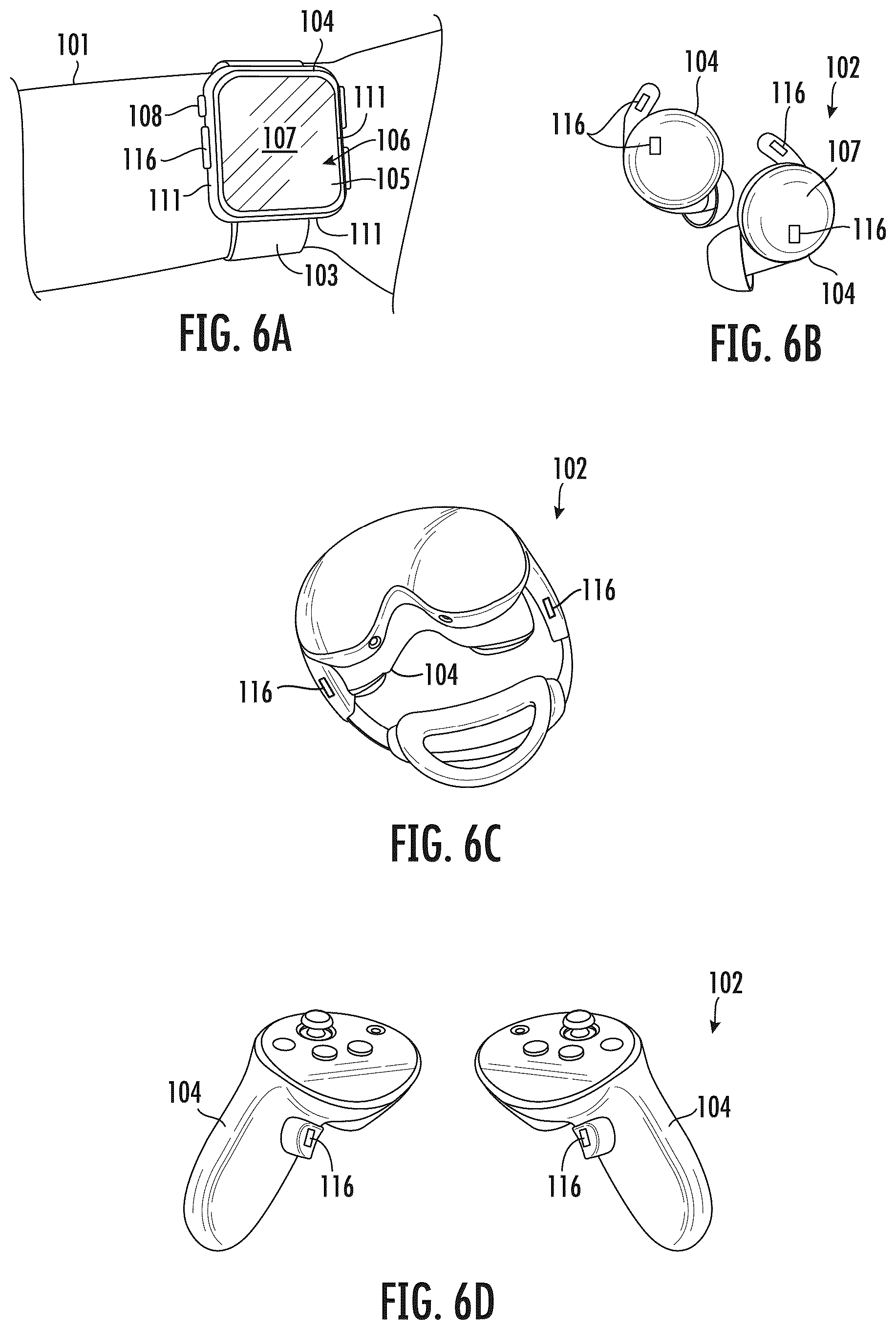

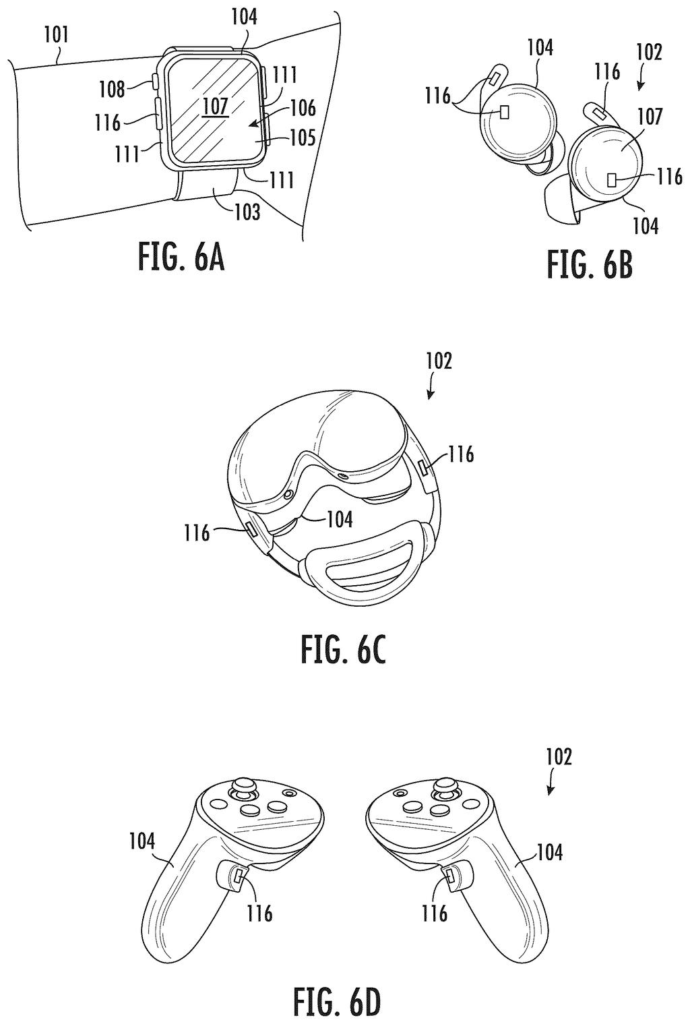

Google has filed a patent for a blood pressure sensor small enough to fit under one fingertip, designed to be built directly into phones, tablets, or other personal devices. No cuff, no separate gadget, just a touch.
How Google's fingertip blood pressure reading works

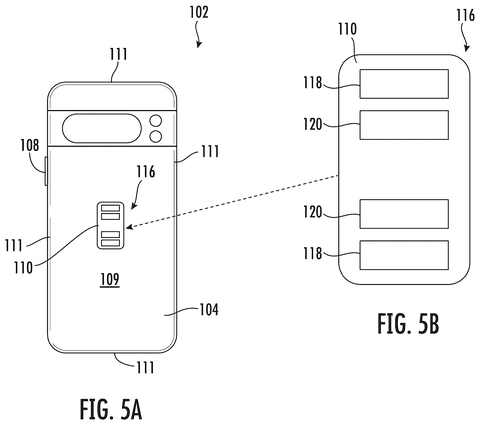

A person rests a finger on the back of their phone for a few seconds. That brief, ordinary contact might one day be enough to estimate their blood pressure. That's the scenario Google is building toward with this patent.
The system uses a cluster of four tiny electrodes, small enough to sit under a single fingertip, to send a mild electrical signal through the skin and measure how the finger's tissue responds. Because blood is a better conductor of electricity than other tissue, the sensor can detect the tiny pressure waves your heart creates with every beat. From those waves, a processor calculates your blood pressure or a close approximation of it.
Blood pressure is one of the most important numbers in cardiovascular health, but most people only check it at a doctor's office or with a dedicated arm cuff. If this works as described, checking your blood pressure could become as easy as unlocking your phone.
… a pair of miniaturized excitation electrodes and a pair of miniaturized sensing electrodes that together are sized to fit under a fingertip of a user …
Translation: Four tiny metal pads fit beneath your fingertip to measure blood flow.
How the four-electrode sensor turns finger contact into blood pressure data
The patent describes an impedance plethysmography (IPG) sensor, a technology that measures blood volume changes by sending a small alternating electrical current through tissue and tracking how electrical resistance shifts over time. Because blood conducts electricity differently than surrounding tissue, each heartbeat creates a measurable ripple in that resistance.

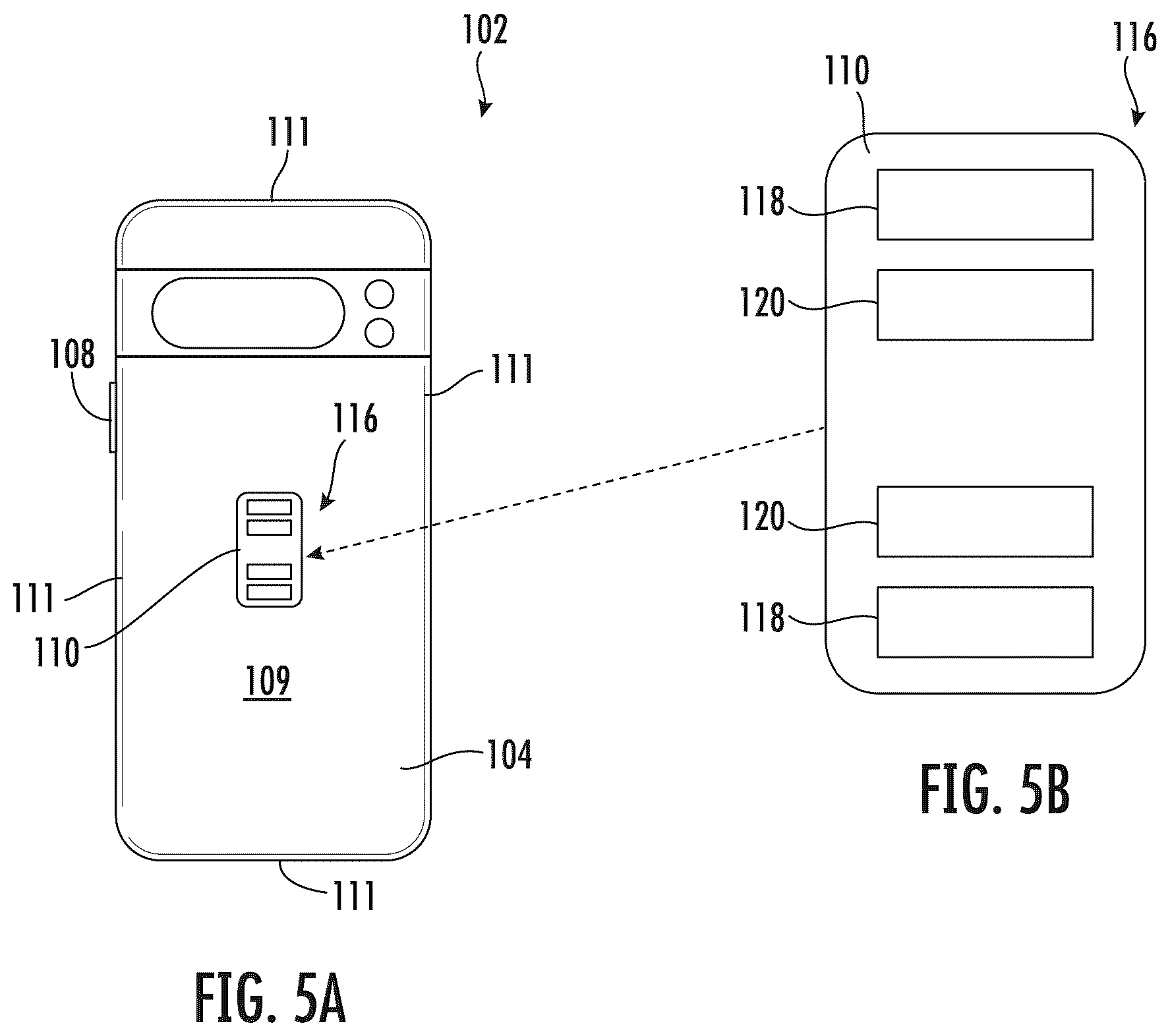

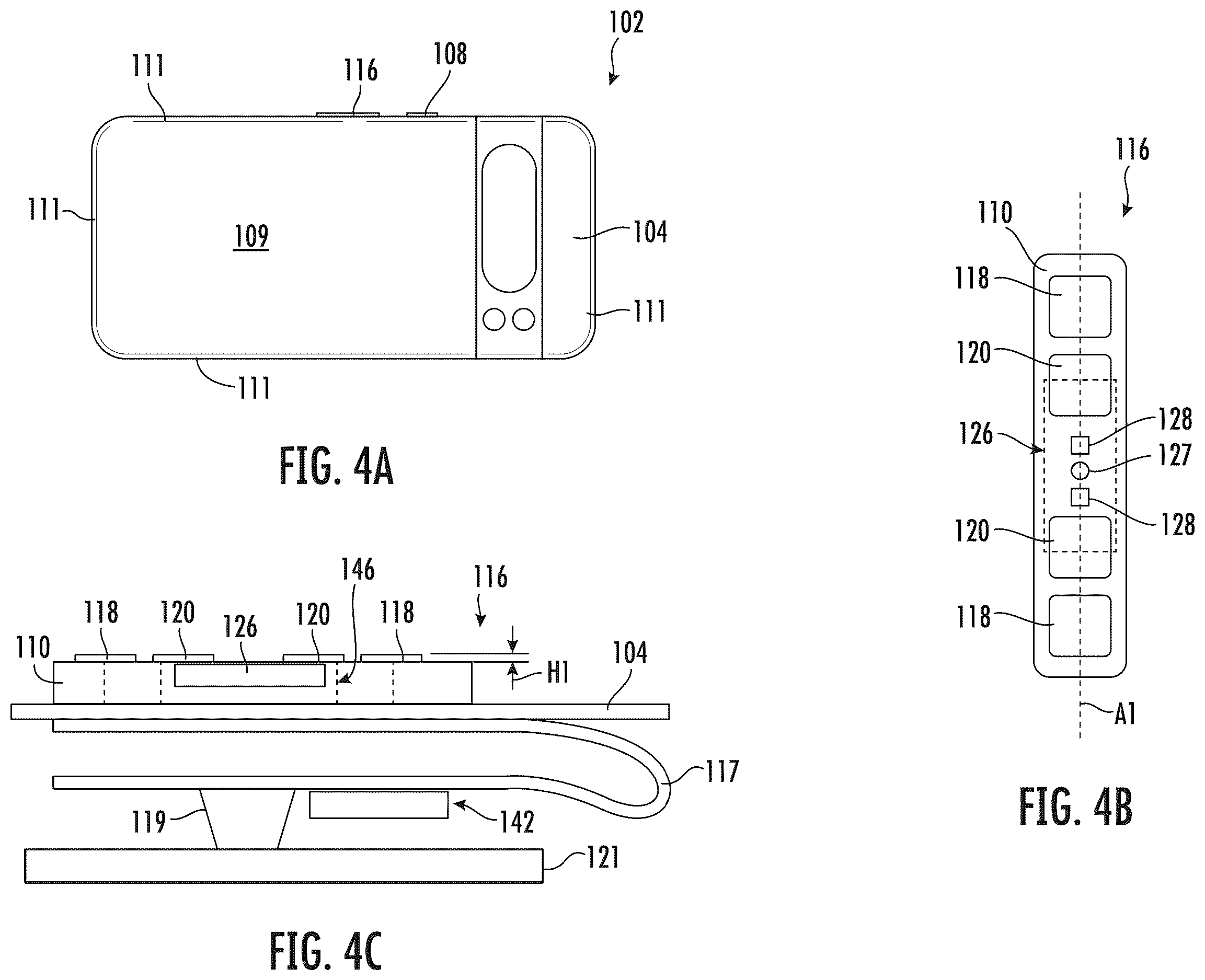

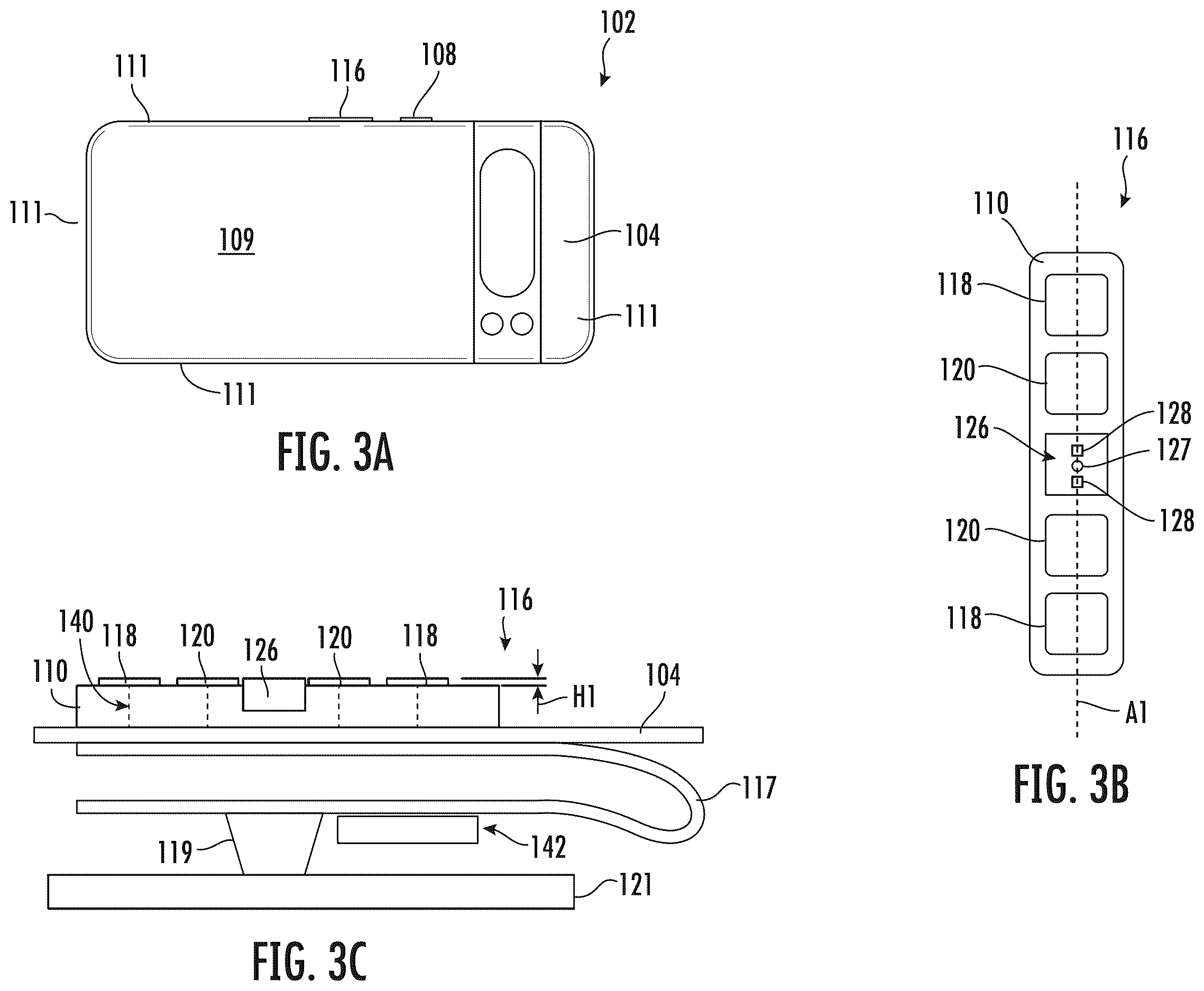

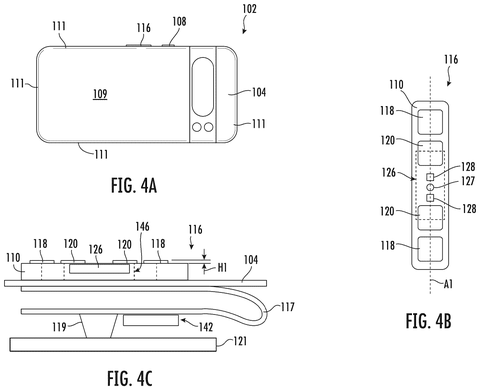

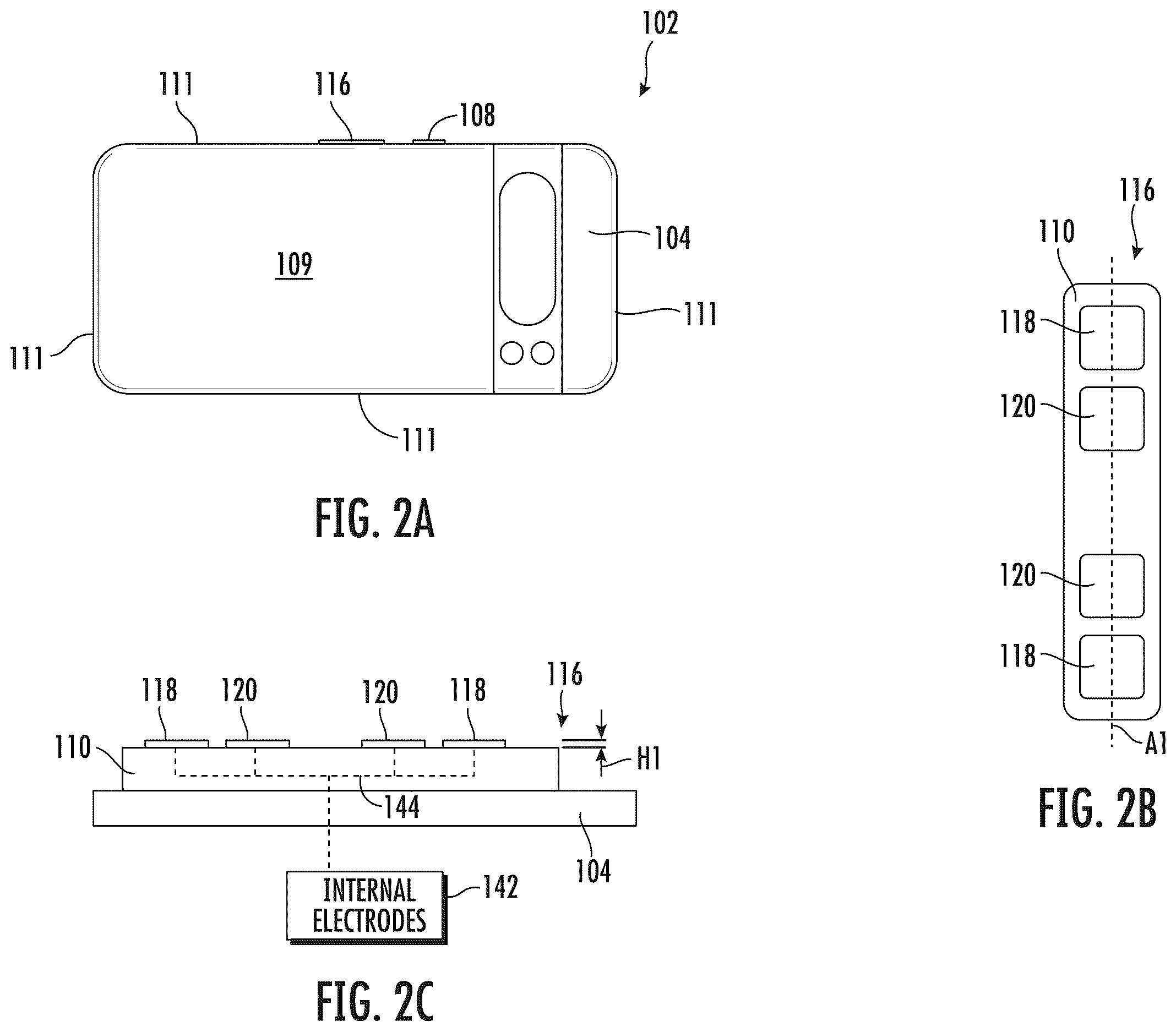

The sensor uses two pairs of electrodes arranged on the device housing:
- Excitation electrodes inject the tiny electrical current into the fingertip.
- Sensing electrodes detect how the current changes as it passes through tissue where blood pressure waves are moving.
All four electrodes together are sized to fit under a single fingertip, which is the miniaturization challenge the patent addresses directly.

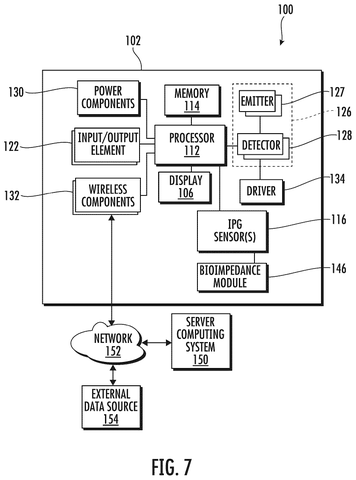

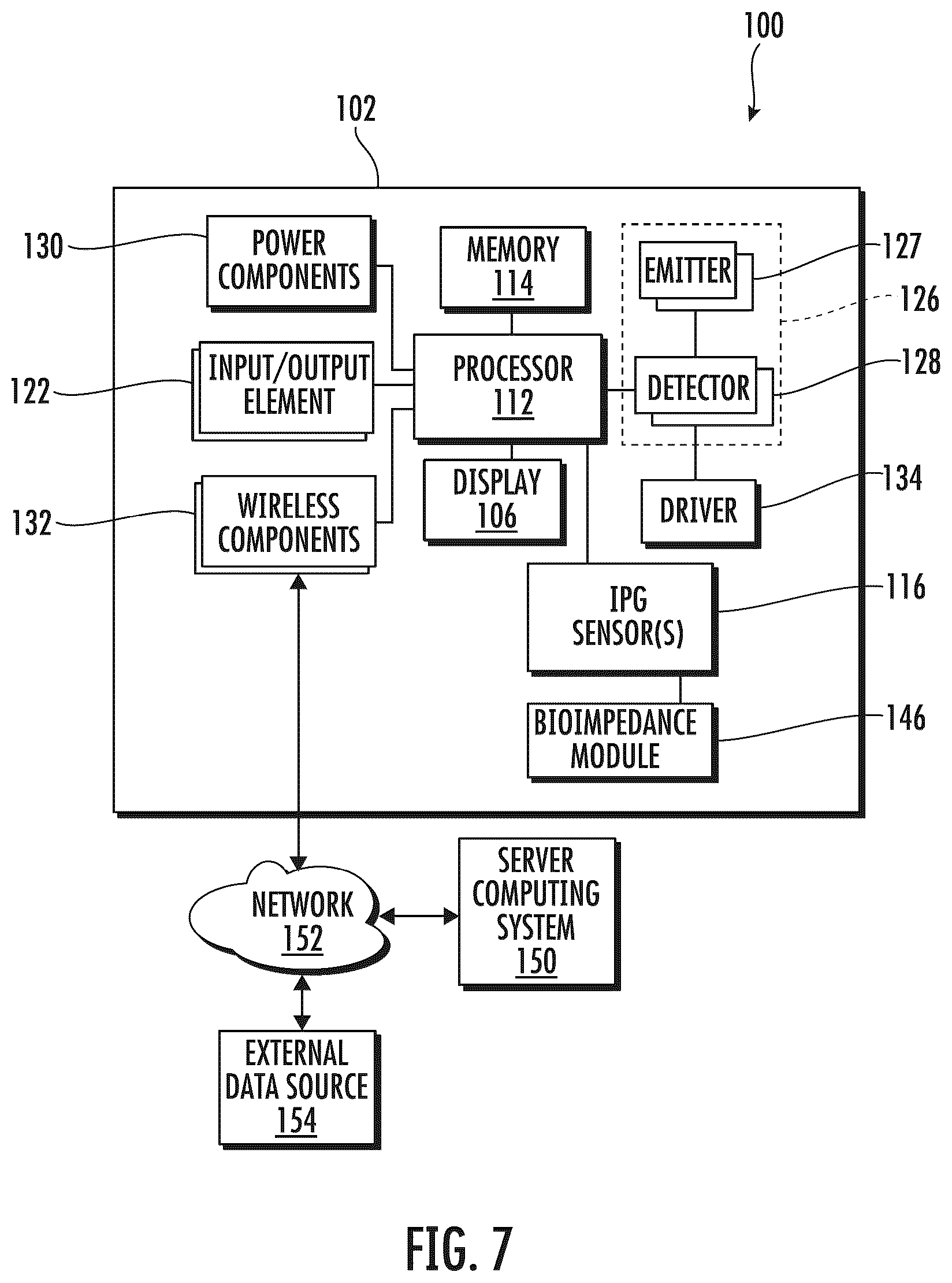

The device's processor takes the raw IPG data and constructs a pulsatile signal (a waveform that rises and falls with each heartbeat) from which blood pressure or a proxy for blood pressure can be derived. A proxy here means a calculated estimate, not a clinically direct measurement, similar to how a smartwatch estimates heart rate from optical sensors rather than an electrocardiogram electrode.
The key engineering claim is fitting all of this into a housing that a user naturally touches during normal device interaction, removing the need for any separate medical accessory.
… generate a pulsatile signal for deriving a blood pressure or a proxy of blood pressure of the user based at least in part on the IPG data …
Translation: The device uses electrical resistance changes to calculate your blood pressure.
What this means for blood pressure checks on your phone or tablet
High blood pressure affects roughly one in three adults worldwide, and a large share of them don't know it because checking requires dedicated equipment they rarely use. A sensor embedded in a device people already carry could make casual, frequent monitoring realistic for the first time. You wouldn't need to remember a gadget or follow a measurement ritual; you'd just pick up your phone.
The practical payoff depends heavily on accuracy. Blood pressure estimation from fingertip contact is technically plausible, but clinical-grade readings typically require a calibrated cuff around the upper arm. Google's long bet on passive health sensing suggests the company is comfortable building toward that bar over time. Whether this sensor reaches a point where it's medically actionable, or stays in the category of rough wellness indicators, will determine whether it's a meaningful health tool or a marketing feature.
Google's 12th filing we've tracked since May on our body-reading wearables watchlist builds on earlier applications like one adjusting sensors for skin tone and one pairing cameras with wearables to capture body signals.
The real question this patent raises is whether someone with high blood pressure who never checks it would actually use this. An arm cuff lives in a drawer. A reading you get by resting your finger on the back of your phone while you're already holding it is a different proposition entirely.
Google is careful to describe the output as a "proxy" of blood pressure rather than blood pressure itself, which is honest. What that means in practice is a trend: you would learn that your readings have been creeping up this week, and that knowledge alone could prompt a doctor's visit that a drawer-bound cuff never would.
For the tens of millions of people who go years without a single blood pressure check, a consistent nudge from a device they already carry is a concrete prevention story. The measurement does not have to be perfect to matter; it has to be present.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

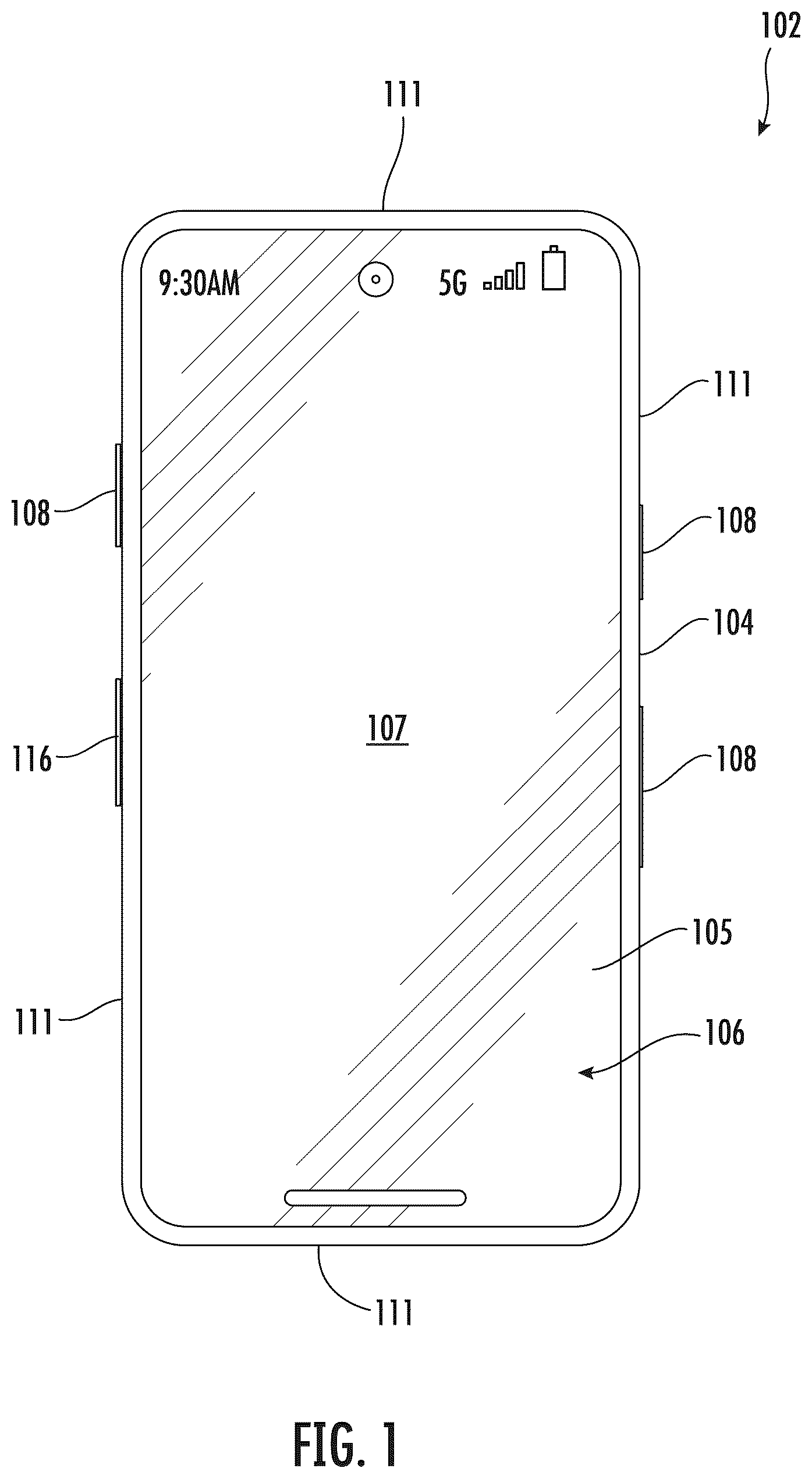

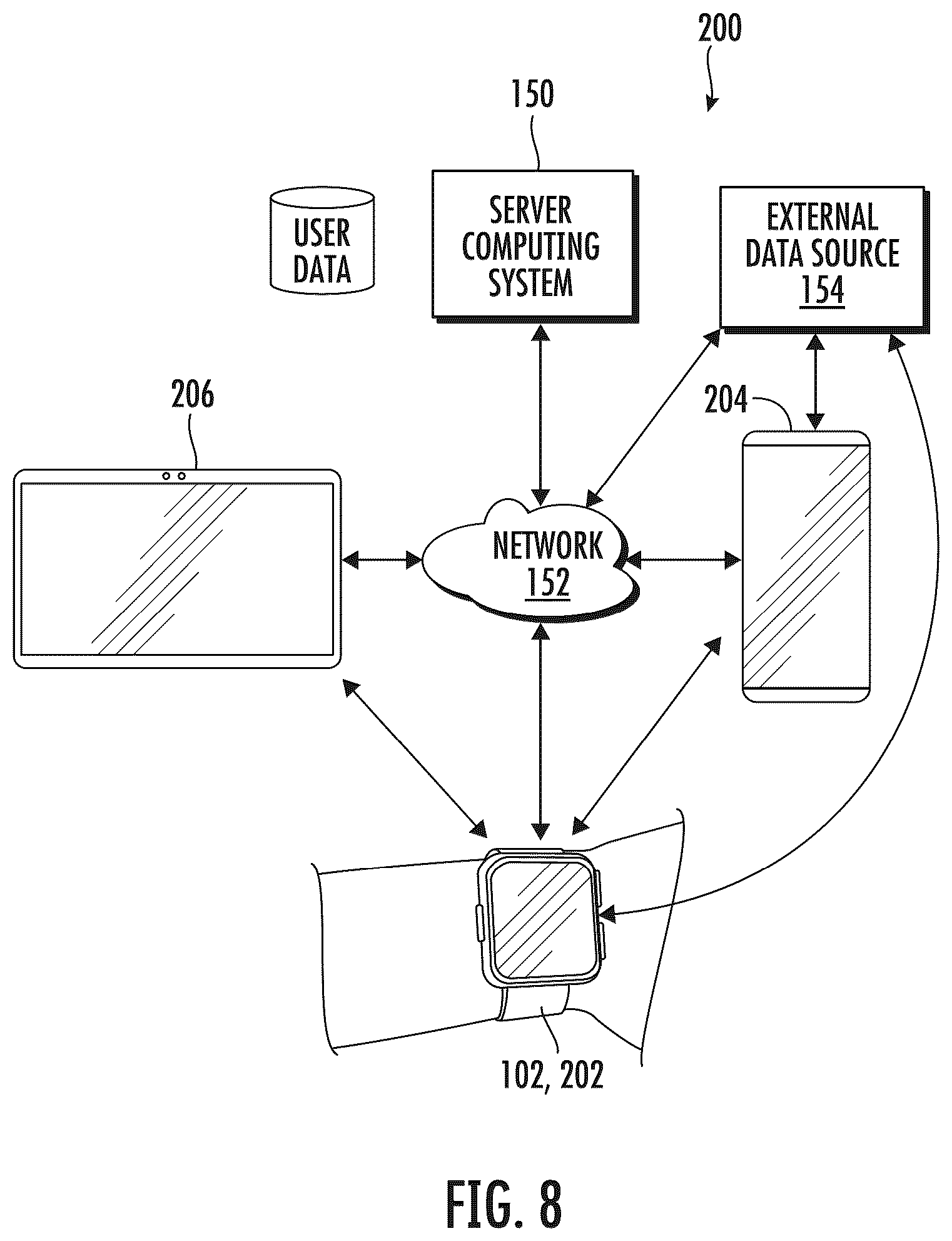

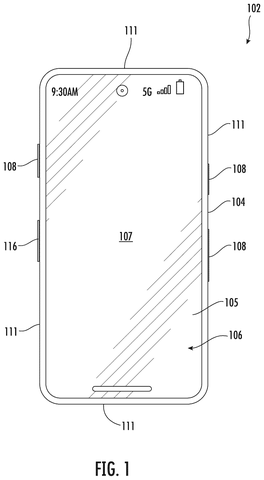

9 drawing sheets from US 2026/0272323 A1 · click any drawing to enlarge
