Google · Display · Filed Apr 13, 2026 · USPTO published Aug 20, 2026 · Aug 20 release

Google Patents a Way to Read Body Gestures Using Both Cameras and Wearables

Google is working on a system that combines what a camera sees with what your smartwatch feels to figure out exactly what gesture you just made, then fire off a command without you ever touching a screen.

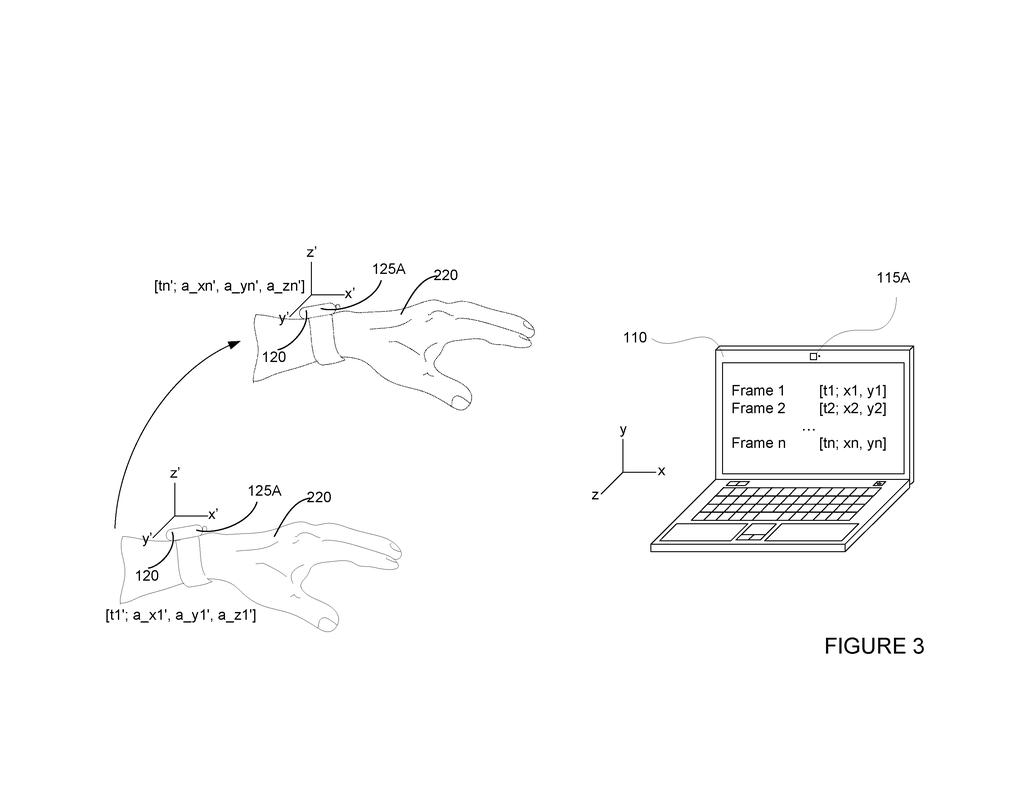

A wristband tracks hand movements in three-dimensional space for computer interaction. Drawing from patent filing US 2026/0244277 A1.
A wristband tracks hand movements in three-dimensional space for computer interaction.All 9 drawings ↓
Publication number
US 2026/0244277 A1(US20260244277A1)
Applicant
Google LLC
Filed · Published
Apr 13, 2026 · Aug 20, 2026
Inventors
Katherine Blair Huffman, Gregory Granito
Status when we published
Waiting for an examiner
Document
20 claims
US classification
345/156
Parent application
Continuation of 18/830,795 (filed Sep 11, 2024)(18830795)

How Google combines your watch and a camera to read gestures

You're sitting across the room from your TV and you flick your wrist to skip to the next episode. A camera picks up the movement, your watch senses the motion, and the system figures out what you meant and does it.

That's the idea behind this Google patent. Instead of relying on just one sensor, the system cross-checks what it sees in video with what a wearable device (like a smartwatch or fitness band) detects in your movement. That double-check makes it much better at knowing which part of your body moved and what the gesture actually was.

The end result is that a device you're not even touching can respond to a gesture, run a command, and do it accurately enough to be useful in a real room with real distractions.

From the filing · CLAIM 1
… identifying, by the one or more processors based on the time-based series of motion data, a gesture performed by the user; determining, by the one or more processors, a command associated with the identified gesture; and sending, by the one or more processors, instructions to a computing device configured to perform the command.

Translation: The system figures out what the movement means and tells a device to execute it.

How the system matches wearable motion data to camera frames

The patent describes a two-track sensing system. On one track, one or more visual sensors (cameras) capture video of the user and identify which part of the body is moving. On the other track, a wearable device worn by the user records motion data, essentially a time-stamped log of where parts of the body were at each moment.

The core step is correlation: the processors look for matches between the camera's view and the wearable's motion log. If the camera sees an arm move at the same time the watch registers a specific wrist arc, the system can confidently say, "That was gesture X," and trigger the associated command on a connected device.

  • Sensor data ingestion: wearable sends a time-series of position readings to the processor
  • Body-part recognition: camera footage is analyzed to identify which limb or segment is in motion
  • Correlation check: motion data and image data are compared frame by frame to confirm the gesture
  • Command dispatch: once the gesture is confirmed, instructions go out to whatever device should respond

The first independent claim is broad: it anchors to the wearable sensor data alone as the primary detection input, with cameras serving as supplemental confirmation. That framing means the system could work even in partially obstructed camera conditions, as long as the wearable data is clean.

From the filing · THE ABSTRACT
The one or more processors may also determine one or more correlations between the image data and the received motion data. Based on the recognized portion of the user’s body and the one or more correlations between the image data and the received motion data, the one or more processors may detect the gesture.

Translation: The software compares camera footage with wearable sensor data to accurately spot the action.

What this means for hands-free control of Google devices

For anyone who has tried to use a camera-only gesture system and watched it misfire because the light was bad or another person walked through the frame, this approach is a direct answer to that problem. Pairing a wearable with a camera gives the system two independent sources of truth, and it only needs both to agree to act confidently.

Google makes products on both sides of this equation, from Pixel Watch to Google TV and Nest devices, so the patent points toward a tighter ecosystem where your wrist becomes a reliable remote control for the room around you. Wearable-driven gesture control is one of the more active areas tracked across new Big Tech patents, and Google's cross-sensor approach adds a layer of precision that pure computer-vision systems have struggled to deliver in everyday home environments.

Google's tenth filing we've tracked since May in our wearables and body data watchlist builds on earlier applications, including one on earbuds that track chewing and one on health data from a photo.

Source: US 2026/0244277 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Google patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 9 sheets

9 drawing sheets from US 2026/0244277 A1 · click any drawing to enlarge

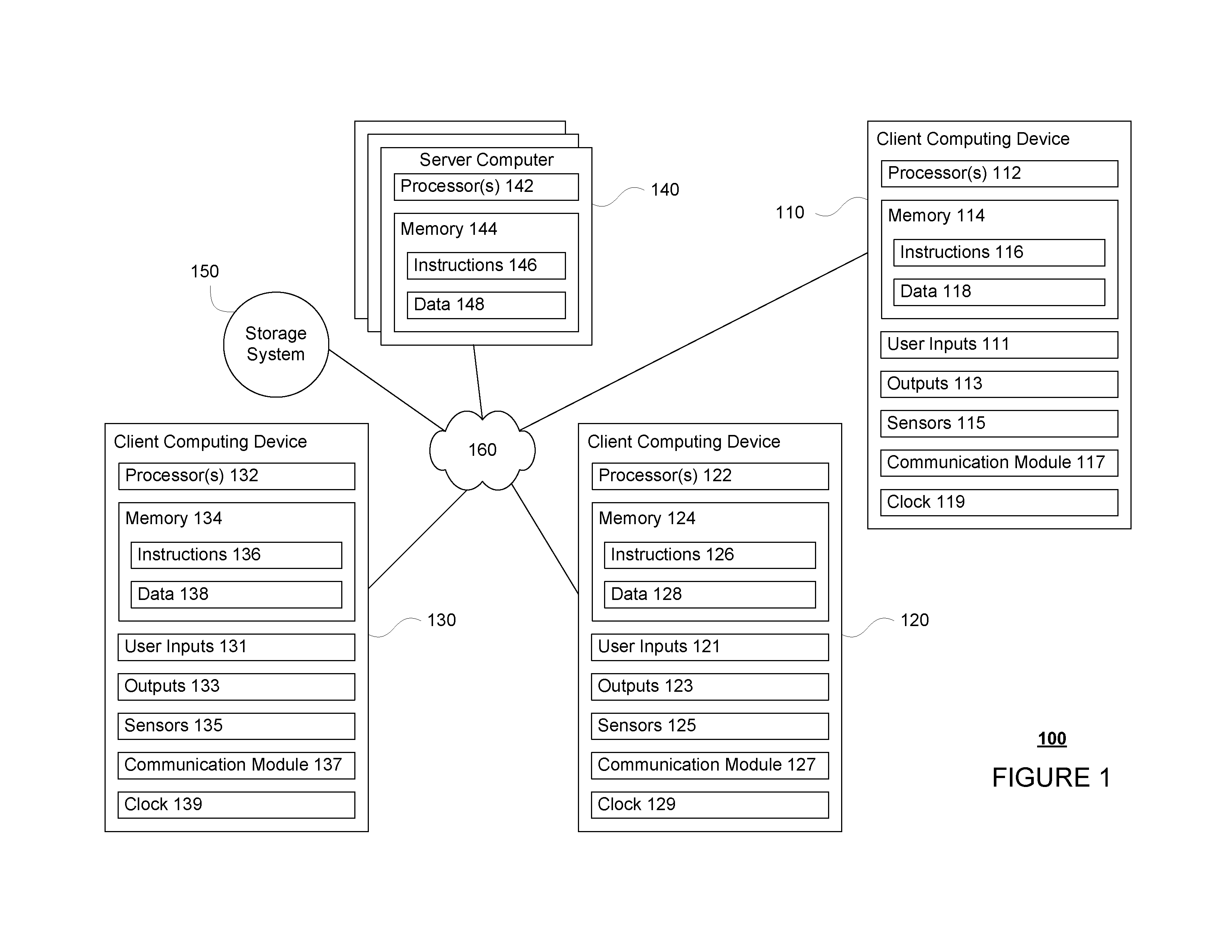

System architecture block diagram, drawing sheet 1 from US 2026/0244277 A1
Sheet 1 System architecture block diagram

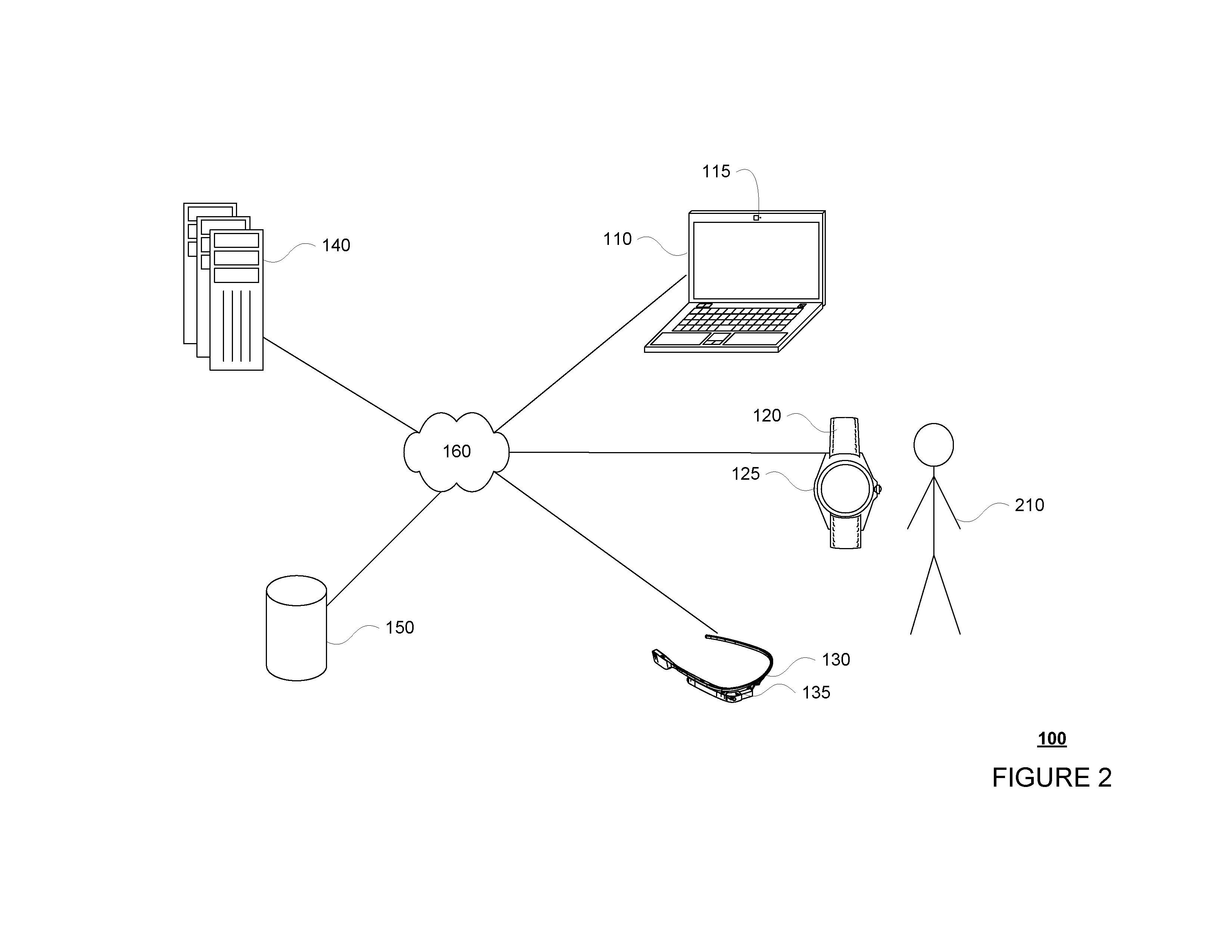

Connected devices and server network, drawing sheet 2 from US 2026/0244277 A1
Sheet 2 Connected devices and server network

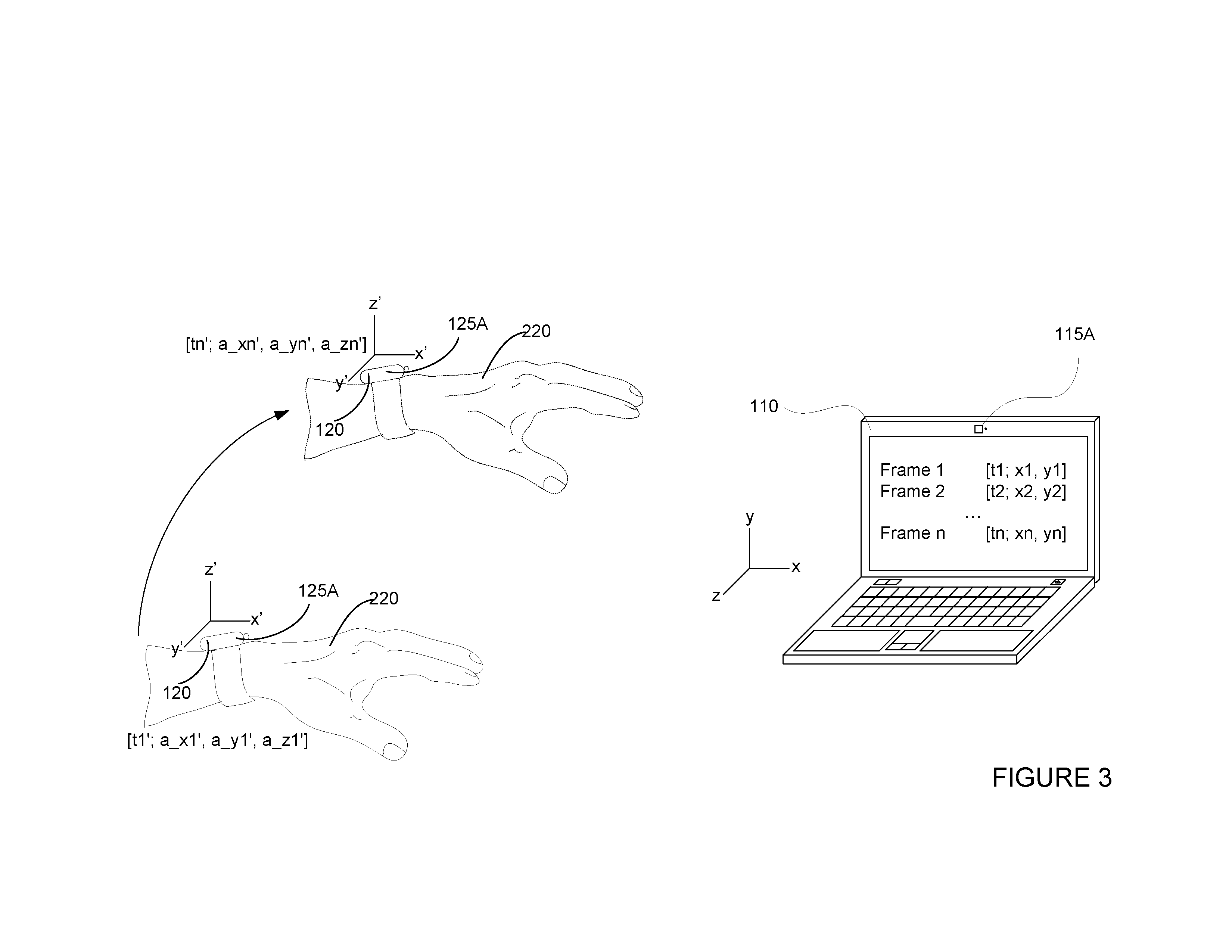

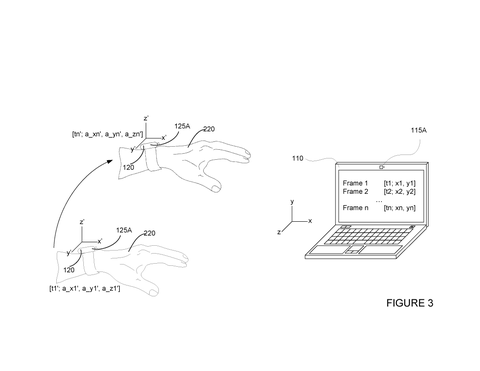

Spatial hand tracking with wristband, drawing sheet 3 from US 2026/0244277 A1
Sheet 3 Spatial hand tracking with wristband

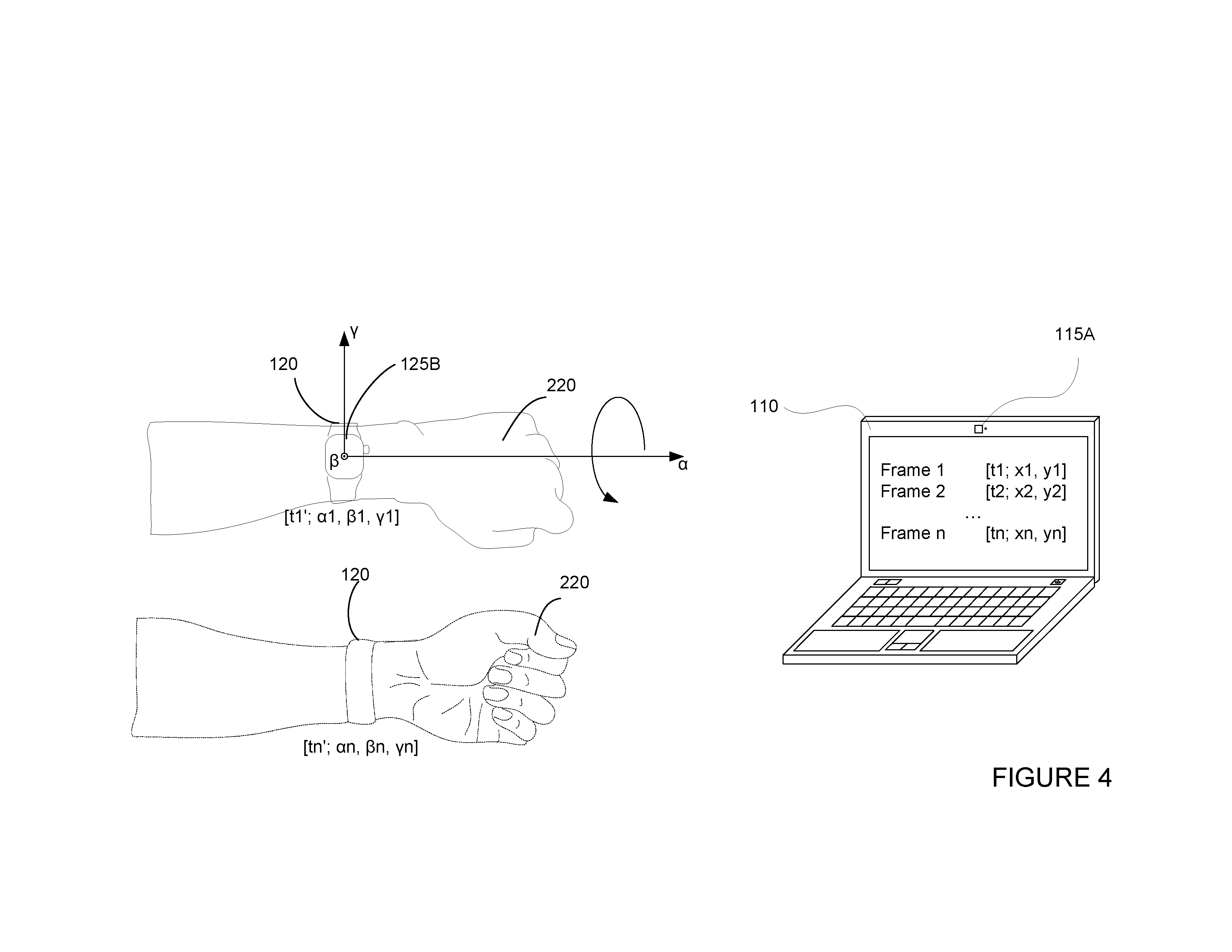

Rotational hand gesture sensing, drawing sheet 4 from US 2026/0244277 A1
Sheet 4 Rotational hand gesture sensing

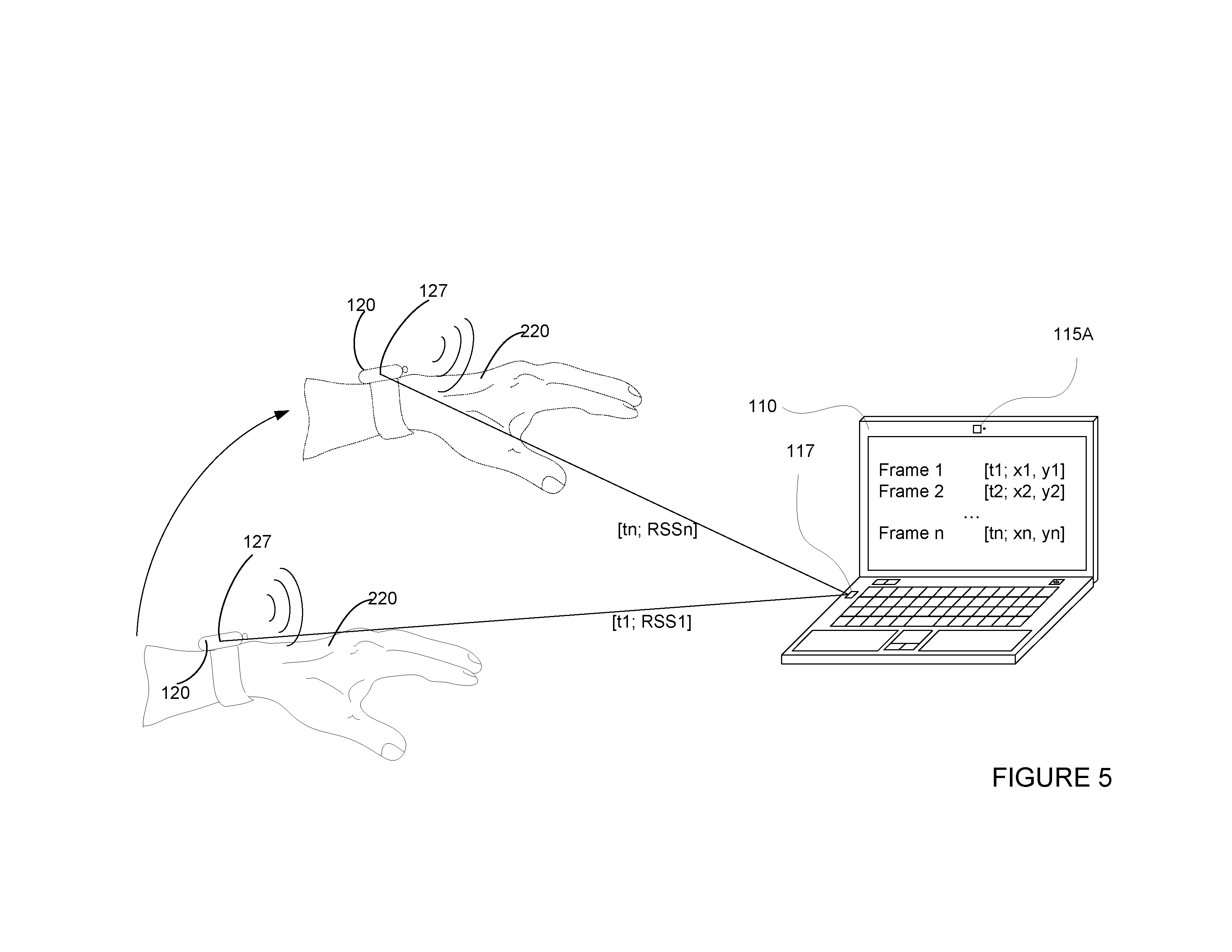

Wireless signal strength monitoring, drawing sheet 5 from US 2026/0244277 A1
Sheet 5 Wireless signal strength monitoring

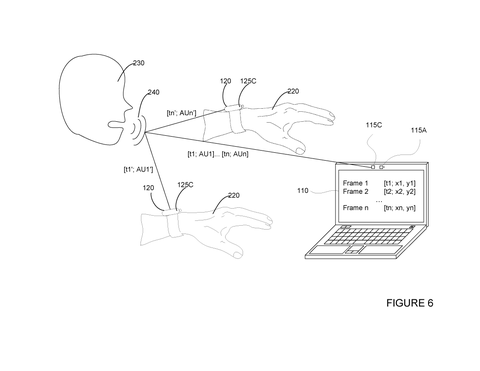

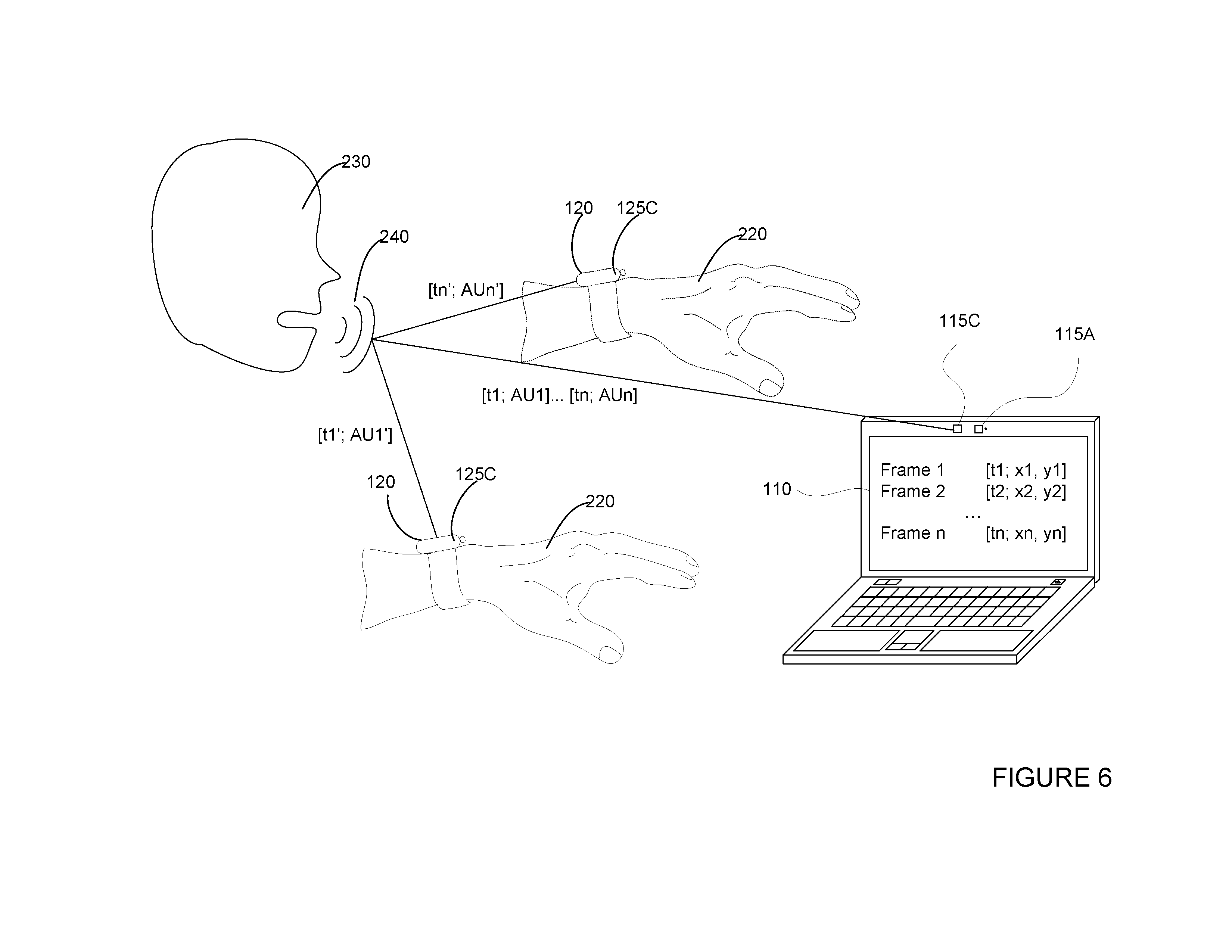

Voice and gesture tracking system, drawing sheet 6 from US 2026/0244277 A1
Sheet 6 Voice and gesture tracking system

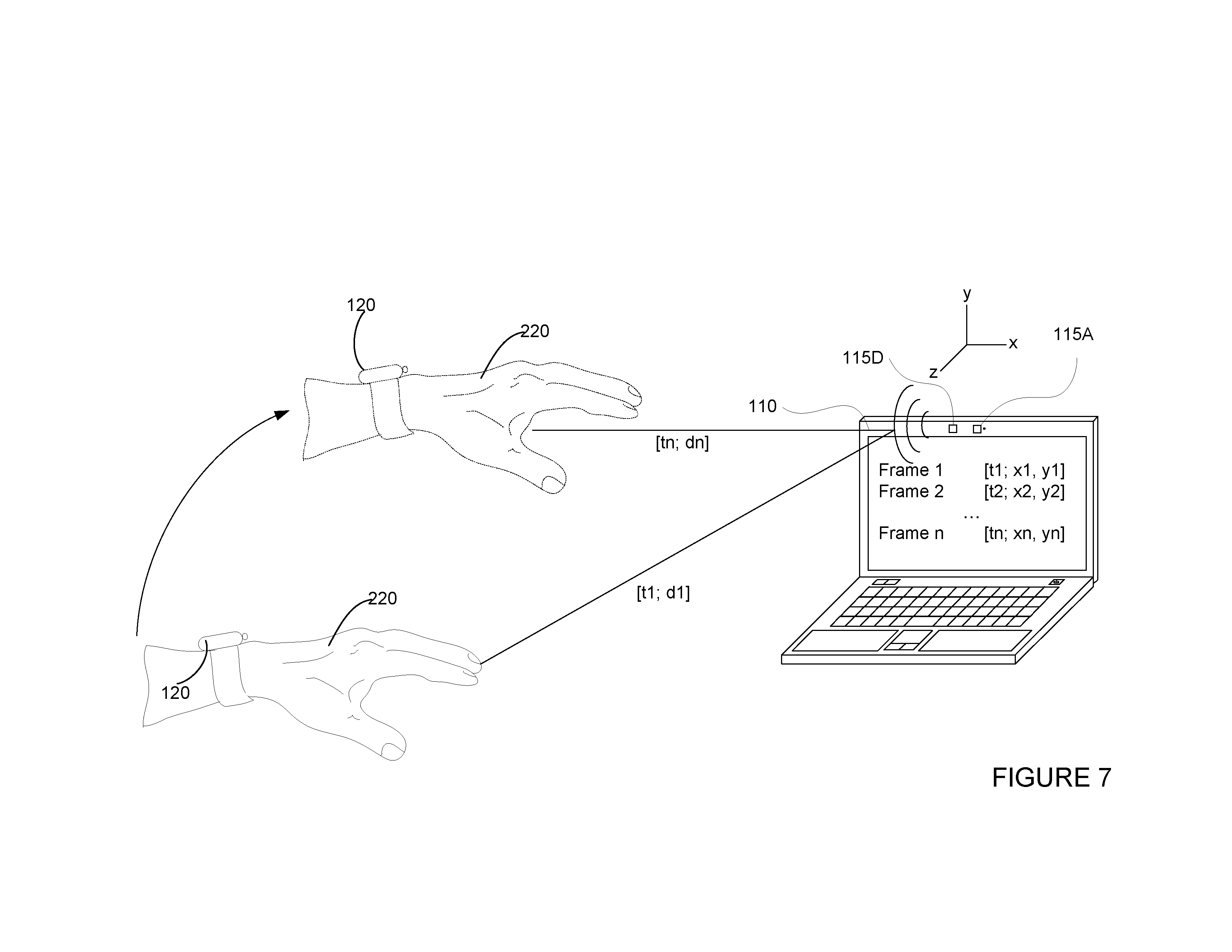

Distance measurement using wireless signals, drawing sheet 7 from US 2026/0244277 A1
Sheet 7 Distance measurement using wireless signals

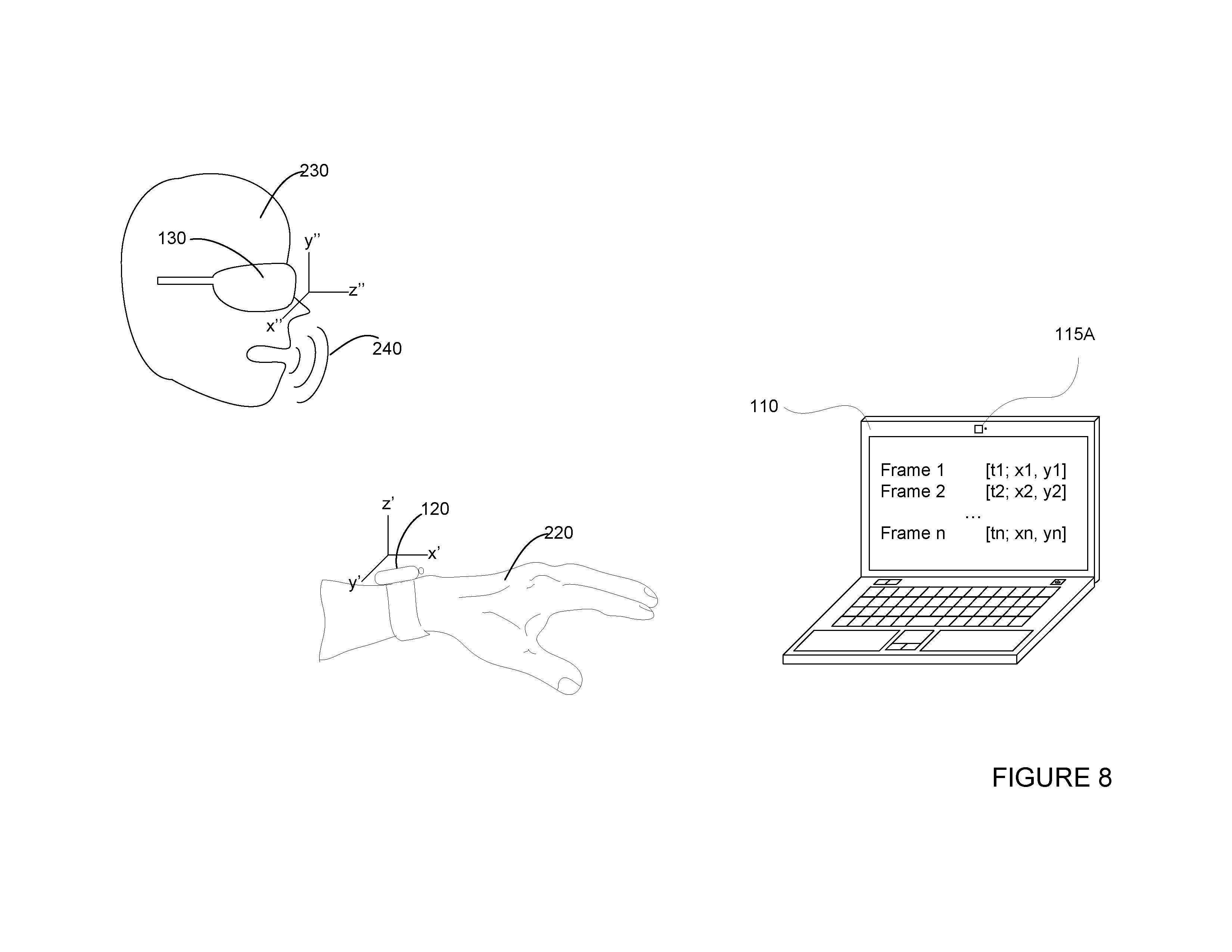

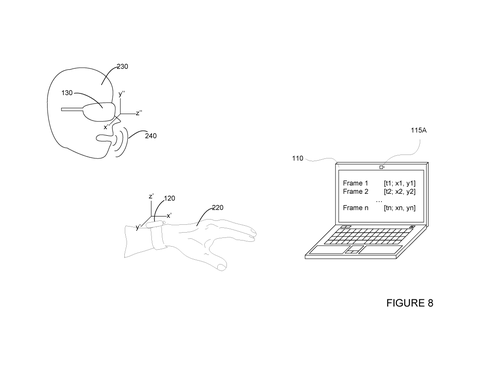

Headset and wristband sensor coordination, drawing sheet 8 from US 2026/0244277 A1
