IBM Patents a Way to Shrink Encrypted Data Before Sending It

Encryption and compression normally can't work together because encrypted data looks like random noise. IBM's new patent describes a clever workaround that does both, in the right order.

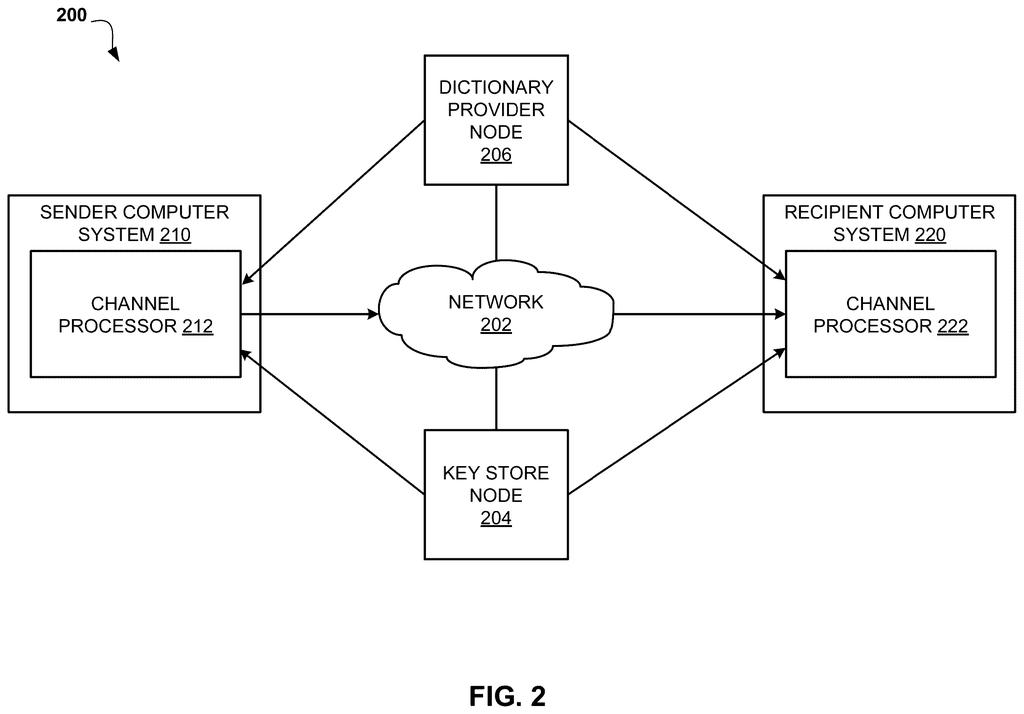

Network nodes connecting a sender and recipient computer system for secure data transmission. Drawing from patent filing US 2026/0238476 A1.
Network nodes connecting a sender and recipient computer system for secure data transmission.All 3 drawings ↓
Publication number
US 2026/0238476 A1(US20260238476A1)
Applicant
INTERNATIONAL BUSINESS MACHINES CORPORATION
Filed · Published
Feb 21, 2025 · Aug 13, 2026
Inventors
Oliver Benke, Tobias Ulrich Bergmann, Matthias Ringe
Status when we published
Examiner raised objections; the company can respond
Document
20 claims
US classification
713/168
Examiner
SALEHI, HELAI (Art Unit 2433)

How IBM squeezes encrypted data before it travels

Every time a server sends encrypted data across a network, it ships a full, bloated package that nobody has bothered to shrink first. That's because encryption scrambles data so thoroughly that standard compression tools can't find the repetitive patterns they need to do their job.

IBM's patent proposes solving this with a carefully sequenced process: briefly decrypt the outgoing data, compress it using a shared "dictionary" that both the sender and receiver already know, then encrypt it again before it ever leaves the building. The result is a smaller, still-secure package.

The key piece is that shared static compression dictionary. Both computers agree on it in advance, so the receiver can decompress without needing any extra information sent along with the data. You get the size savings without sacrificing the security you started with.

From the filing · CLAIM 1
… compressing the decrypted data stream using a predefined static compression dictionary shared with a recipient computer system; …

Translation: It shrinks the unencrypted data using a shared dictionary known to both sender and receiver.

Inside IBM's decrypt-compress-encrypt pipeline

The patent describes a process handled by a channel processor, a dedicated component inside the sender's computer system that manages the flow of outgoing data.

The sequence works like this:

  • The channel processor receives an already-encrypted outgoing data stream.
  • It triggers decryption of that stream, briefly exposing the raw data internally.
  • It compresses the decrypted data using a predefined static compression dictionary (a fixed lookup table of common patterns, agreed upon ahead of time with the recipient, rather than built on the fly from the data itself).
  • It triggers re-encryption of the compressed result.
  • It hands the final encrypted, compressed stream off to the network for transmission.

The critical design choice is the static dictionary. Normal compression algorithms scan the data they're working on to build their own internal reference tables, which is exactly what you can't do with encrypted content. A pre-shared static dictionary sidesteps that problem entirely because the compression rules are established before the data ever arrives.

The recipient, holding the same dictionary, can reverse the process: decrypt, then decompress, restoring the original data.

From the filing · THE ABSTRACT
According to embodiments, a method, computer system, and computer program product for handing over an encrypted outgoing data stream by a sender computer system is provided.

Translation: The patent describes a system designed to process and transmit encrypted data securely.

What this means for enterprise data transfer costs

For large enterprise systems, especially mainframe environments where IBM dominates, moving encrypted data at scale is expensive. Bandwidth costs money, and network throughput is a real bottleneck. A reliable way to compress encrypted traffic without weakening security could meaningfully reduce both costs and transmission times for organizations that send large volumes of sensitive data, like financial records or health data, continuously across private networks.

The practical scope here is narrower than it might first appear. The approach works best in controlled, pre-arranged connections where both sides can share a static dictionary in advance, which suits IBM's enterprise and mainframe customer base well. This kind of encryption-layer efficiency work sits alongside a steady stream of new Big Tech patents targeting data-center infrastructure, where incremental gains in throughput and cost add up quickly at scale.

Source: US 2026/0238476 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time IBM patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 3 sheets

3 drawing sheets from US 2026/0238476 A1 · click any drawing to enlarge

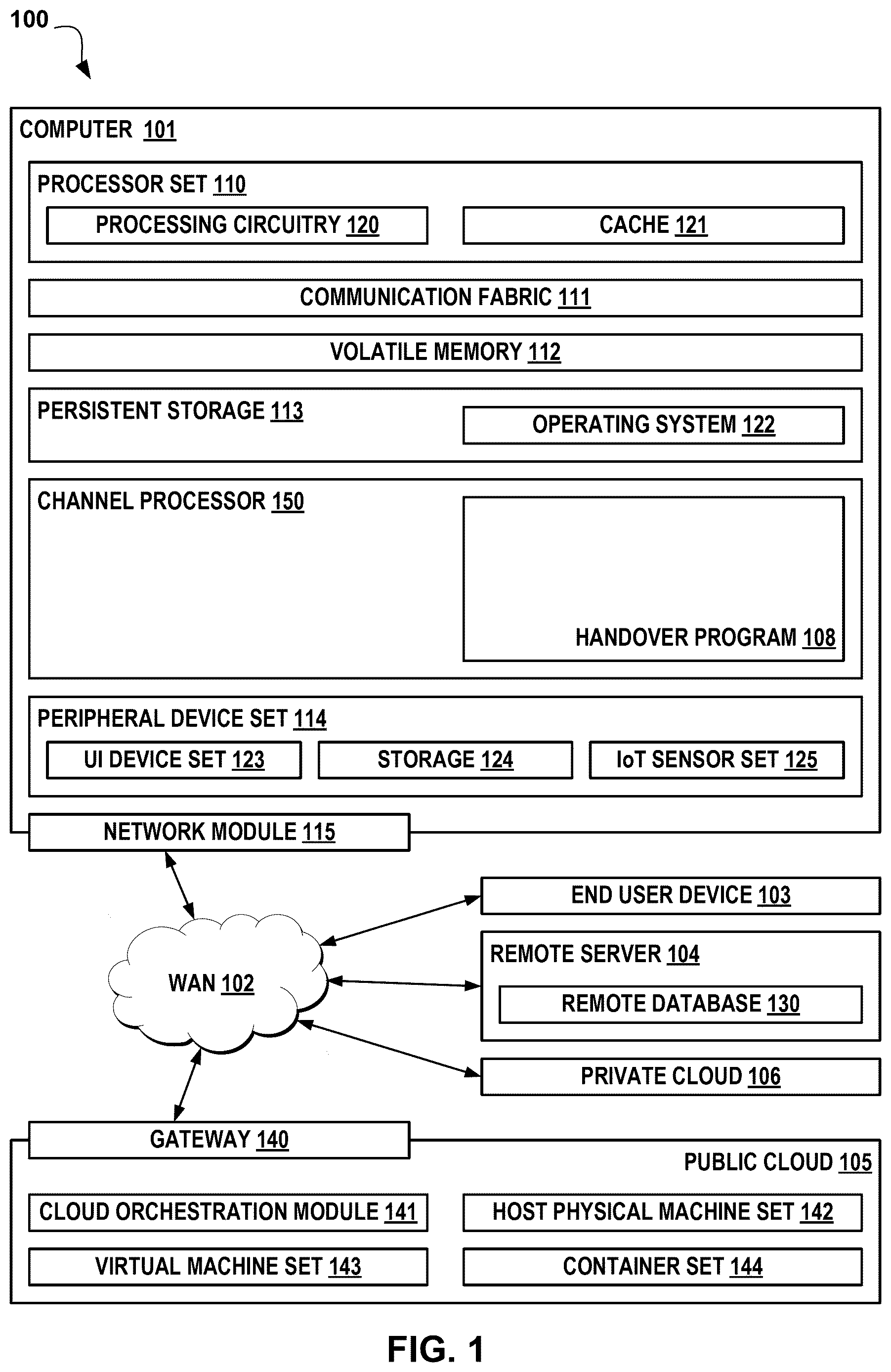

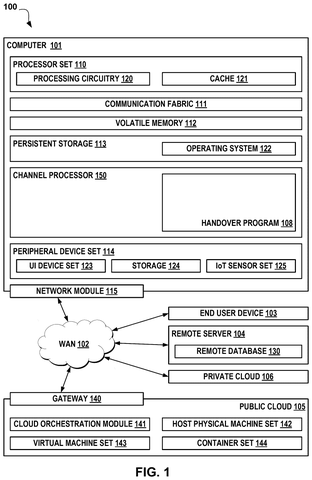

Computer system architecture diagram, drawing sheet 1 from US 2026/0238476 A1
Sheet 1 Computer system architecture diagram

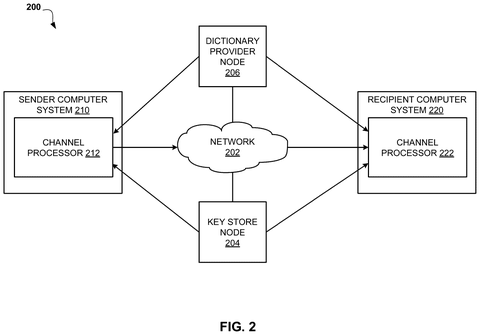

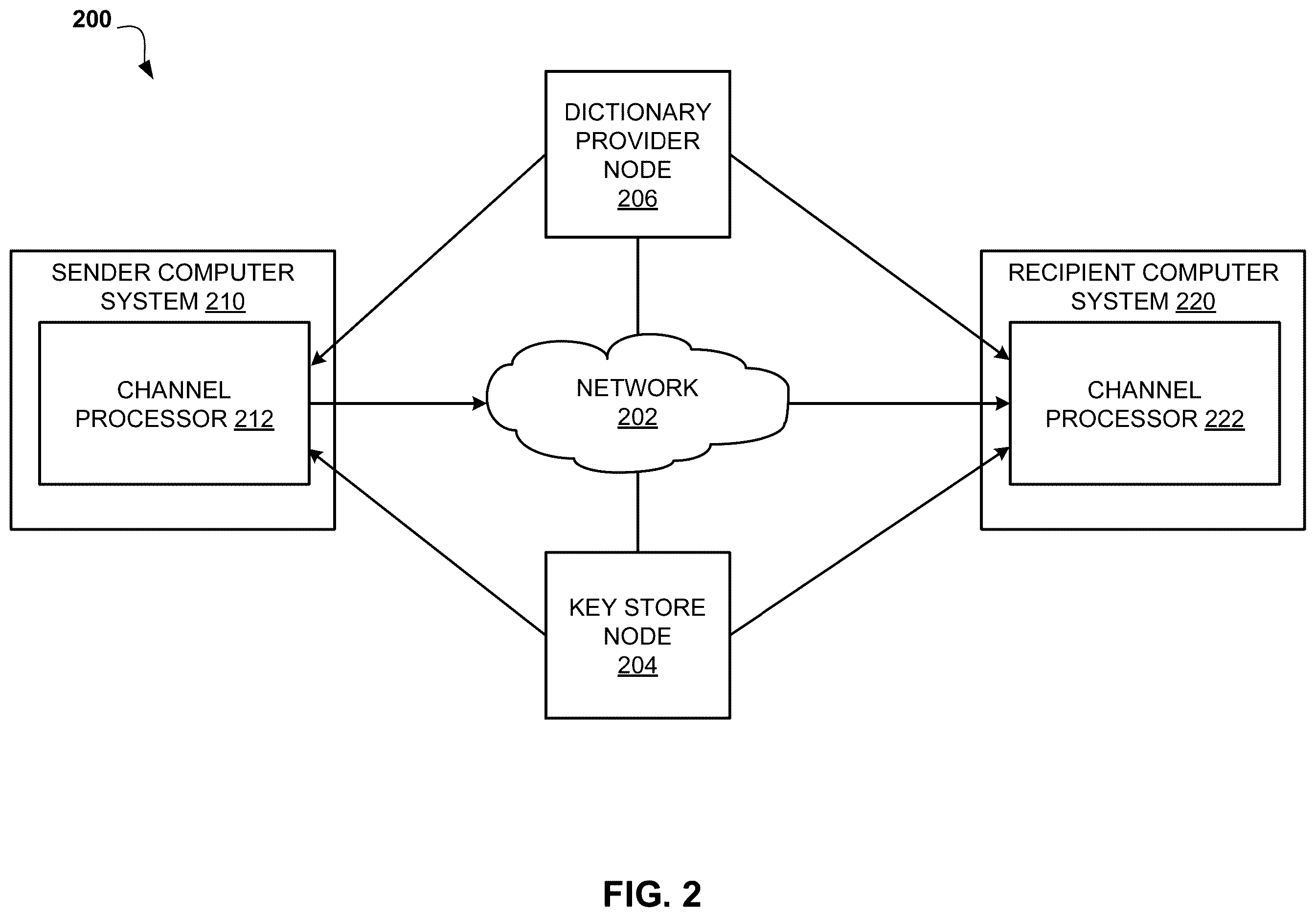

Secure data transmission network, drawing sheet 2 from US 2026/0238476 A1
Sheet 2 Secure data transmission network

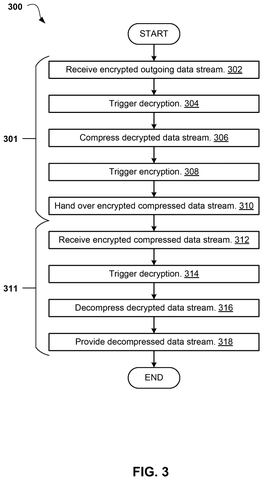

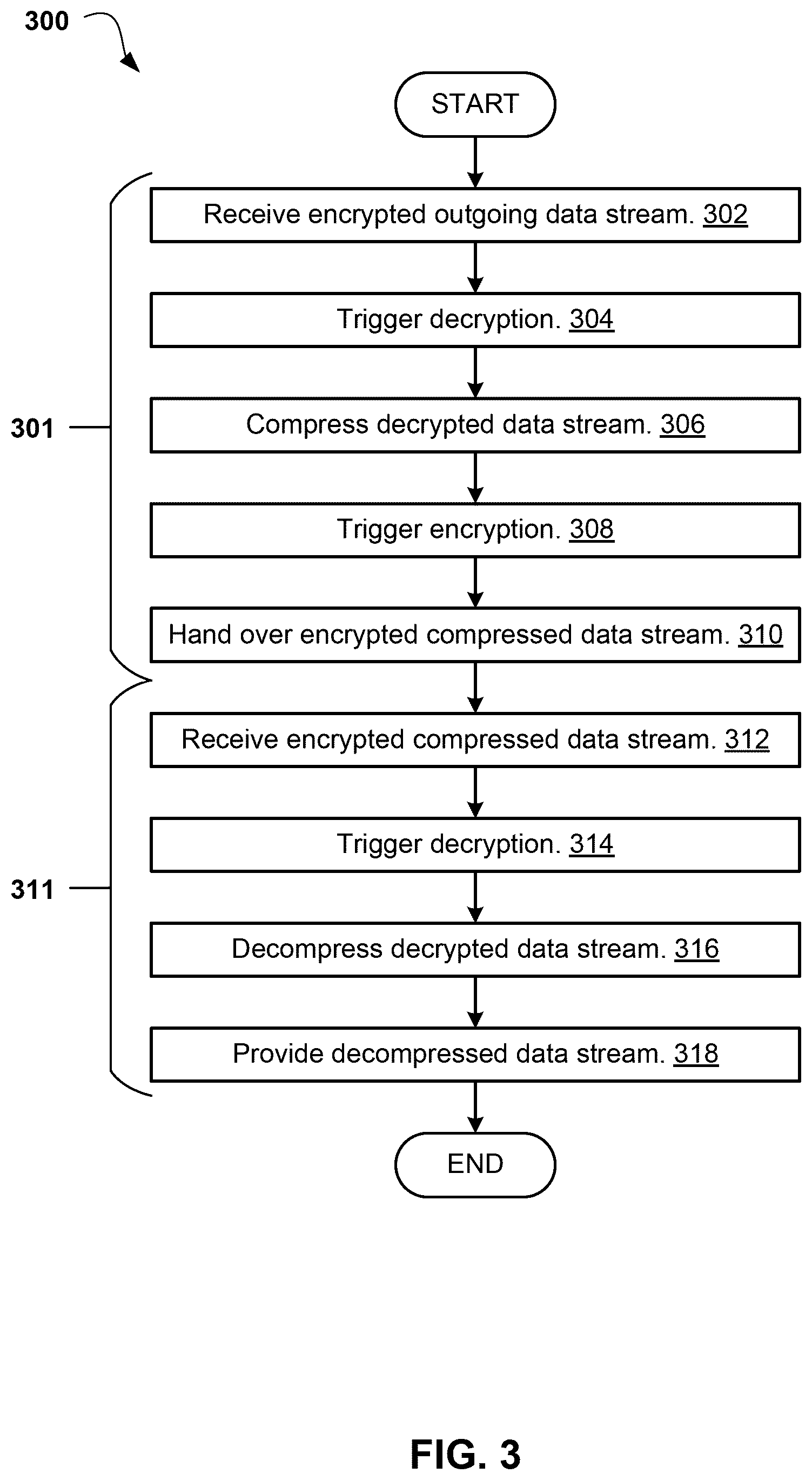

Data encryption and compression flowchart, drawing sheet 3 from US 2026/0238476 A1
Sheet 3 Data encryption and compression flowchart
