IBM Patents a Way to Teach AI the Hidden Structure Inside Drug Molecules

Drug molecules can be written out as text strings, but most AI models treat them like random letter sequences. IBM has filed a patent for a training technique that forces the model to actually learn which groups of characters form meaningful chemical structures.

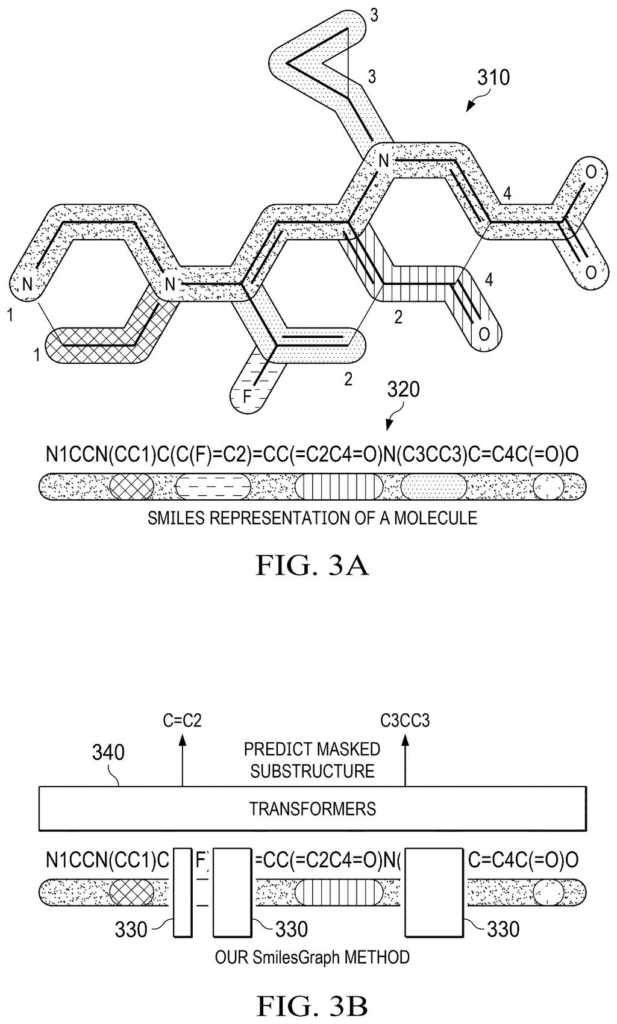

A detailed molecular structure and its corresponding SMILES representation, used to teach AI about drug molecules. Drawing from patent filing US 2026/0301884 A1.
A detailed molecular structure and its corresponding SMILES representation, used to teach AI about drug molecules.All 9 drawings ↓
Publication number
US 2026/0301884 A1(US20260301884A1)
Applicant
International Business Machines Corporation
Filed · Published
Mar 31, 2025 · Oct 1, 2026
Inventors
Thanh Lam Hoang, Raúl Fernández Díaz, Mykhaylo Zayats, Vanessa Lopez Garcia
Status when we published
Waiting for an examiner
Document
25 claims
US classification
702/19

How IBM's AI reads a molecule like a sentence

A chemist stares at a string of letters like CC(=O)Oc1ccccc1C(=O)O, that's aspirin, written in a shorthand called SMILES. To you or me, it looks like a password. To a trained chemist, specific clusters of those characters describe recognizable chemical shapes that determine how the molecule behaves.

The problem is that AI models often miss those clusters too. They process the string character by character, without understanding that certain characters far apart in the text are actually part of the same physical structure in the molecule. IBM's patent describes a way to fix that during training: the model is shown a molecule string, then forced to guess which masked-out sections belong together as a meaningful substructure.

The goal is AI that can reliably predict drug-relevant properties, like whether a compound is toxic, how it binds to a target protein, or how the body processes it. That kind of prediction is one of the expensive, slow steps in pharmaceutical research that IBM's long bet on AI-assisted drug discovery is trying to speed up.

From the filing · CLAIM 1
… masking, using a machine learning model, all tokens in the sequence string representation corresponding to a chemical substructure within the molecular graph of the chemical molecule using a plurality of discontinuous substrings in the sequence string representation …

Translation: The system hides specific parts of the molecular text so the AI has to figure out what is missing.

How the masking and hash-vector training loop works

The patent describes a training pipeline built around a concept borrowed from language models: masked prediction. In standard language-model training, you hide a word and ask the model to guess it. IBM's approach hides entire chemical substructures instead.

Here is how it works step by step:

  • A molecule is first converted into a SMILES or SELFIES string, two standardized text notations that encode atomic bonds as characters.
  • The system identifies a chemically meaningful substructure (think: a benzene ring, an amine group) within the molecule's graph representation.
  • All characters in the string that correspond to that substructure are masked out simultaneously, even if those characters are not sitting next to each other in the text.
  • Instead of asking the model to guess each masked character separately, the model must predict a single hash vector, a compact numeric fingerprint representing the entire set of masked characters at once.

The key insight is that chemical substructures are defined by connectivity in the molecule's three-dimensional graph, not by position in the text string. A ring structure might scatter its characters across the string with other atoms in between. By masking all of them together and training the model to recognize them as a unit, the system teaches the transformer to understand higher-order relationships (meaning: interactions between multiple parts of the molecule, not just adjacent atoms).

The result is a model that builds richer internal representations of molecules, which should translate into more accurate predictions of drug-related properties.

From the filing · THE ABSTRACT
… transformers learning high-order interaction between important substructures of molecules, and thus enhancing the ability of those transformers to learn and predict drug-related properties …

Translation: The AI learns how different molecular pieces interact to better predict how drugs will behave.

What this means for AI-driven drug discovery

Drug discovery is extraordinarily expensive, and a large fraction of that cost comes from testing compounds that turn out to be toxic, inactive, or impossible for the body to absorb. AI models that can predict those properties from a molecule's structure, before any lab work begins, could cut years and billions of dollars from early-stage research. The catch is that those models are only as useful as their ability to genuinely understand molecular structure, not just pattern-match on text.

For you as a reader, the practical stakes are straightforward: better molecular AI means faster filtering of bad drug candidates, which eventually means cheaper and faster paths to treatments. This filing is about the training methodology, not a finished product, but the underlying problem it addresses is one of the most consequential open questions in pharmaceutical AI today.

IBM's 36th filing we've tracked in Language AI since May adds to a run that includes one on rewriting prompts and one on cleaner code output.

Source: US 2026/0301884 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time IBM patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 9 sheets

9 drawing sheets from US 2026/0301884 A1 · click any drawing to enlarge

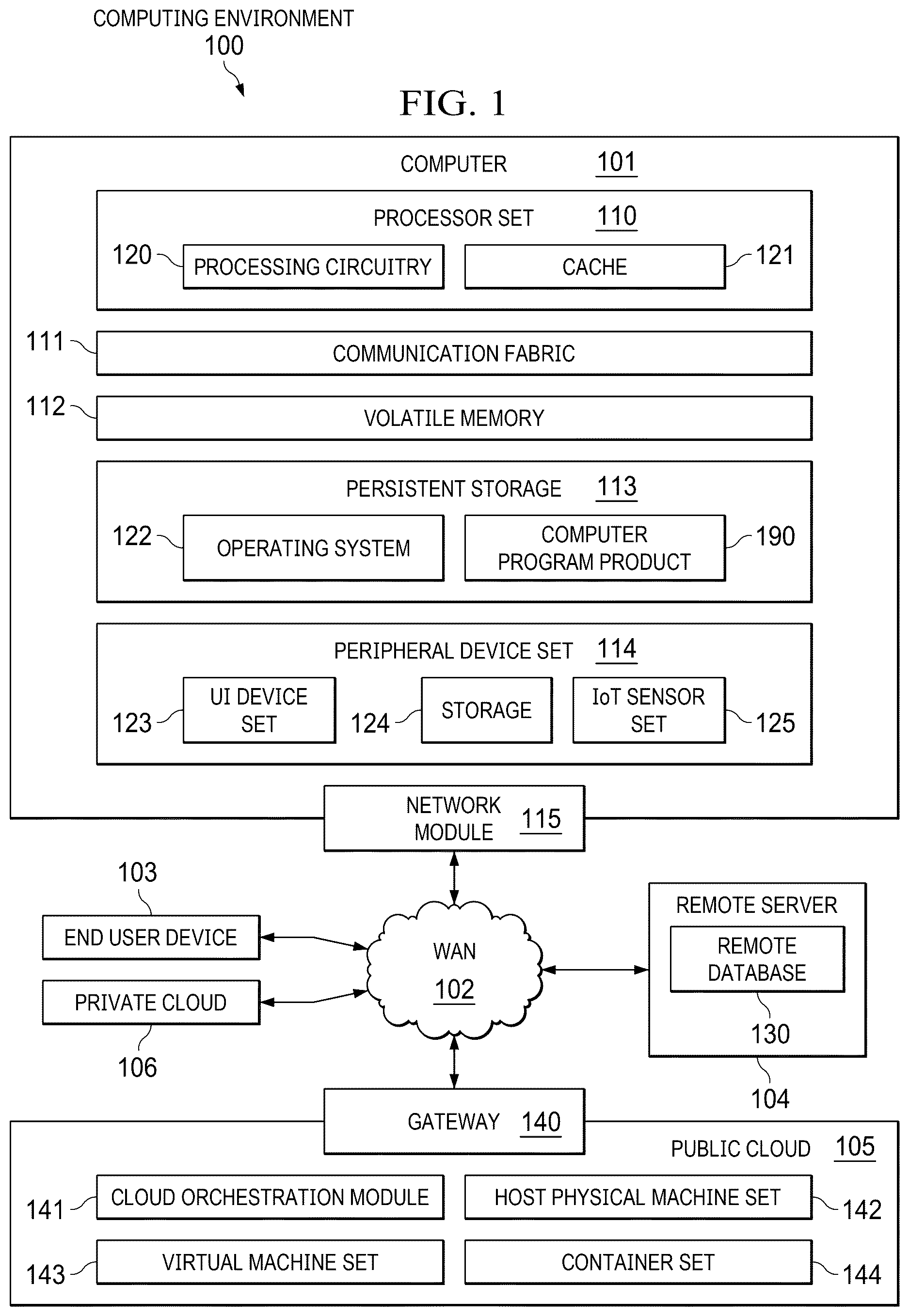

Computer environment and network connections., drawing sheet 1 from US 2026/0301884 A1
Sheet 1 Computer environment and network connections.

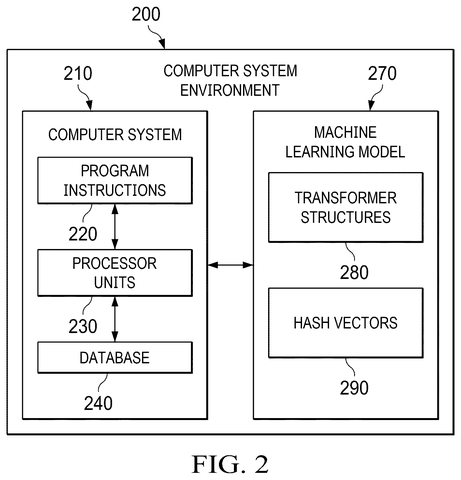

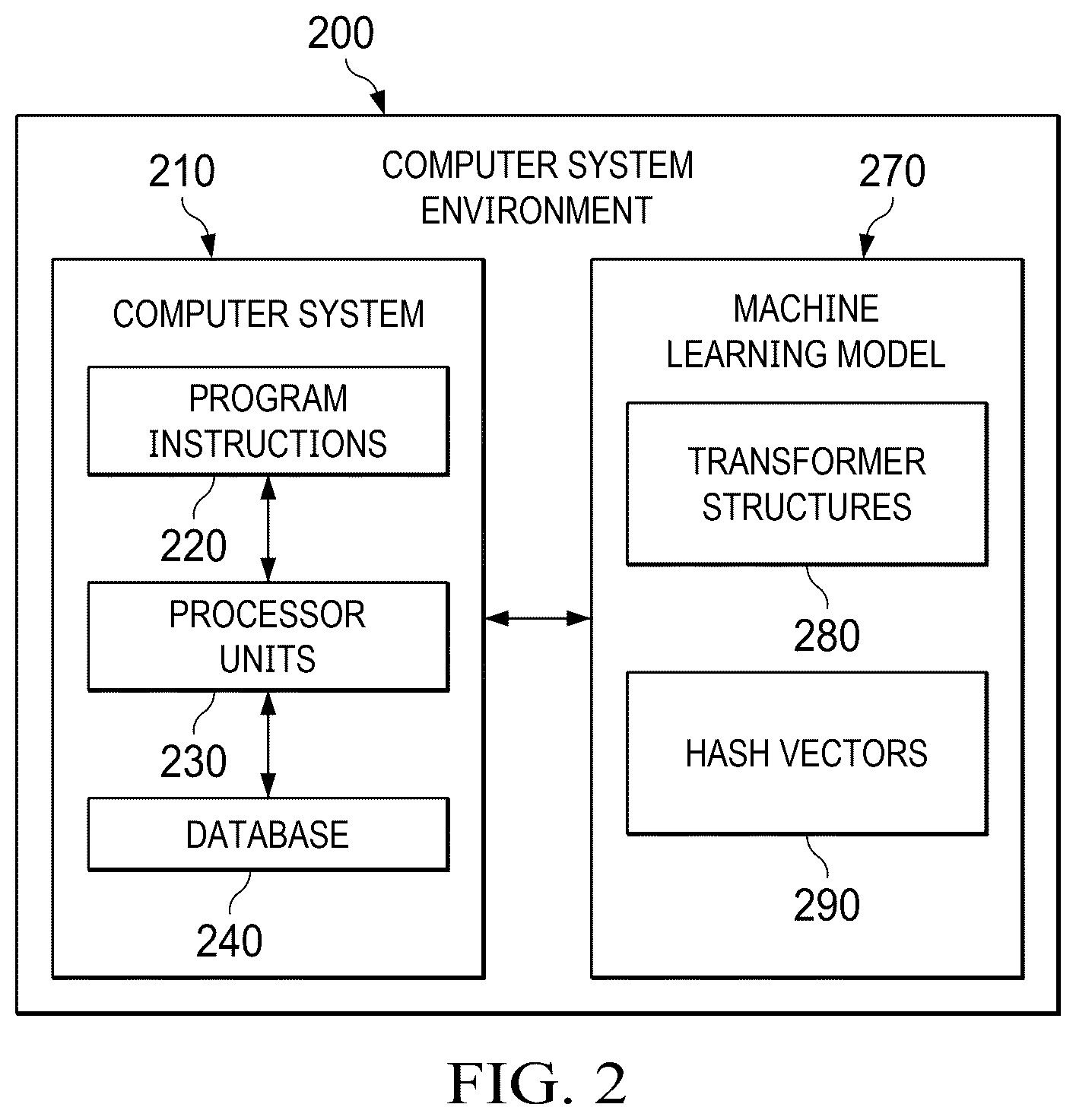

Computer system and machine learning model., drawing sheet 2 from US 2026/0301884 A1
Sheet 2 Computer system and machine learning model.

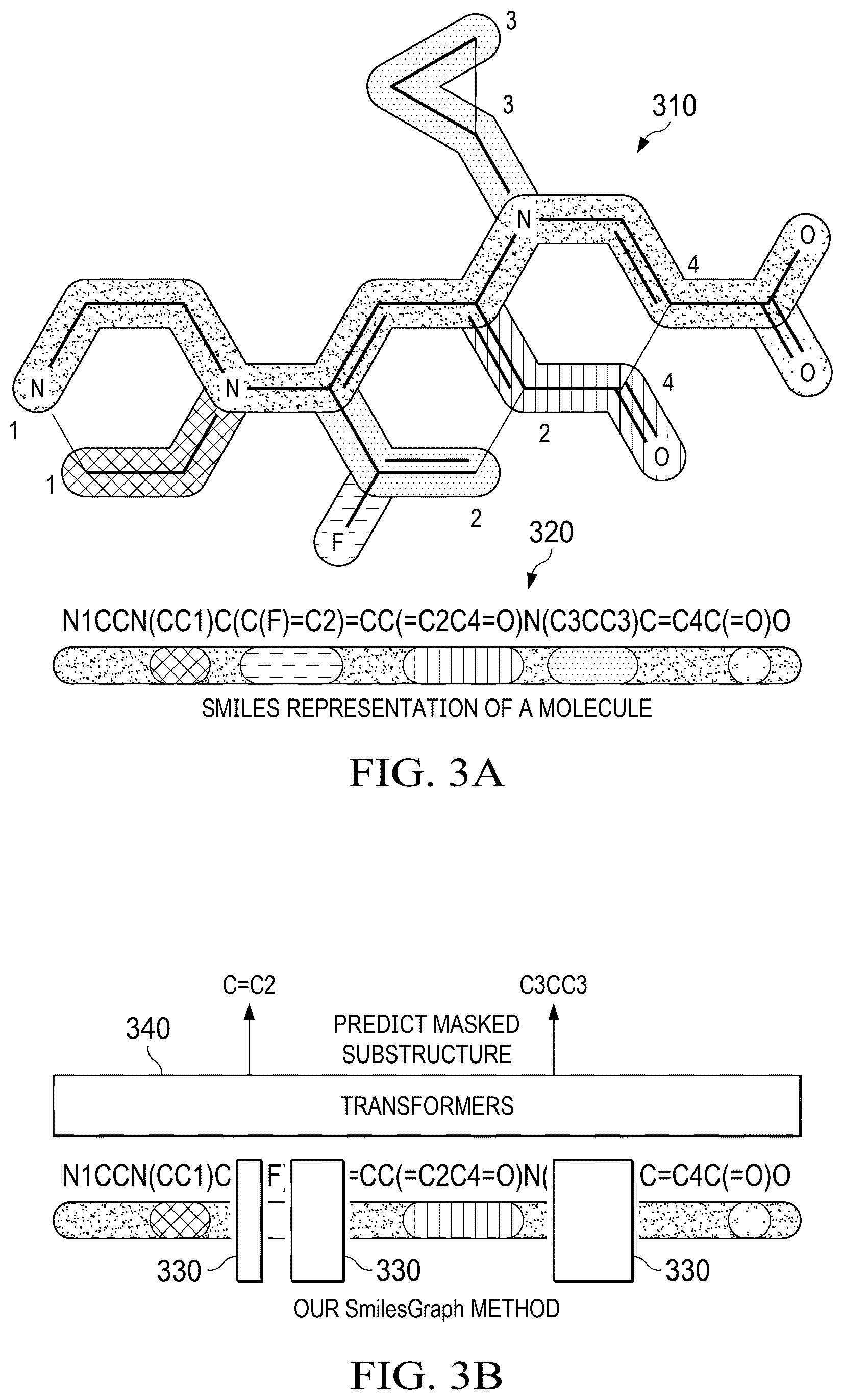

Molecule structure and SMILES representation., drawing sheet 3 from US 2026/0301884 A1
Sheet 3 Molecule structure and SMILES representation.

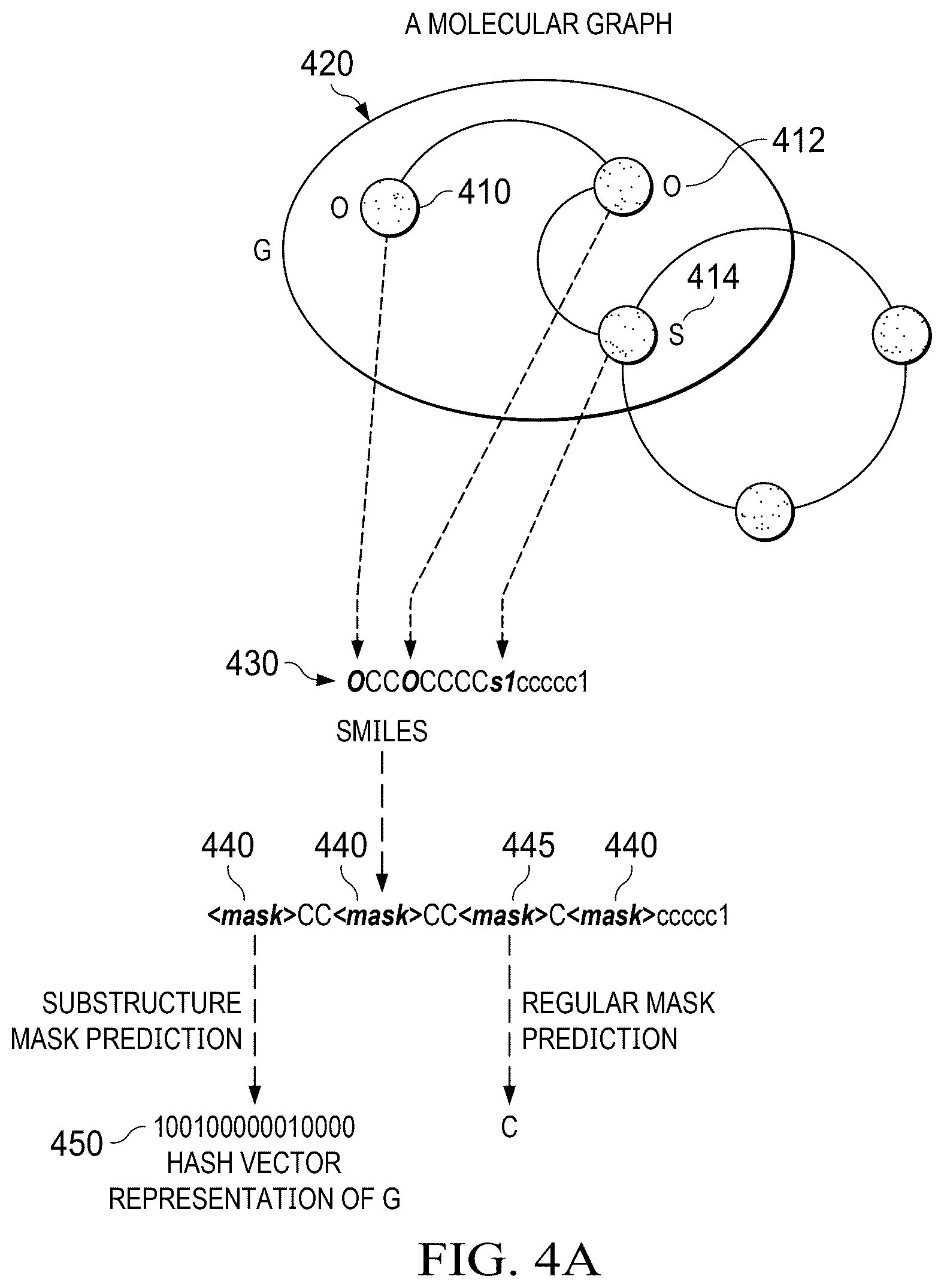

Molecular graph to hash vector., drawing sheet 4 from US 2026/0301884 A1
Sheet 4 Molecular graph to hash vector.

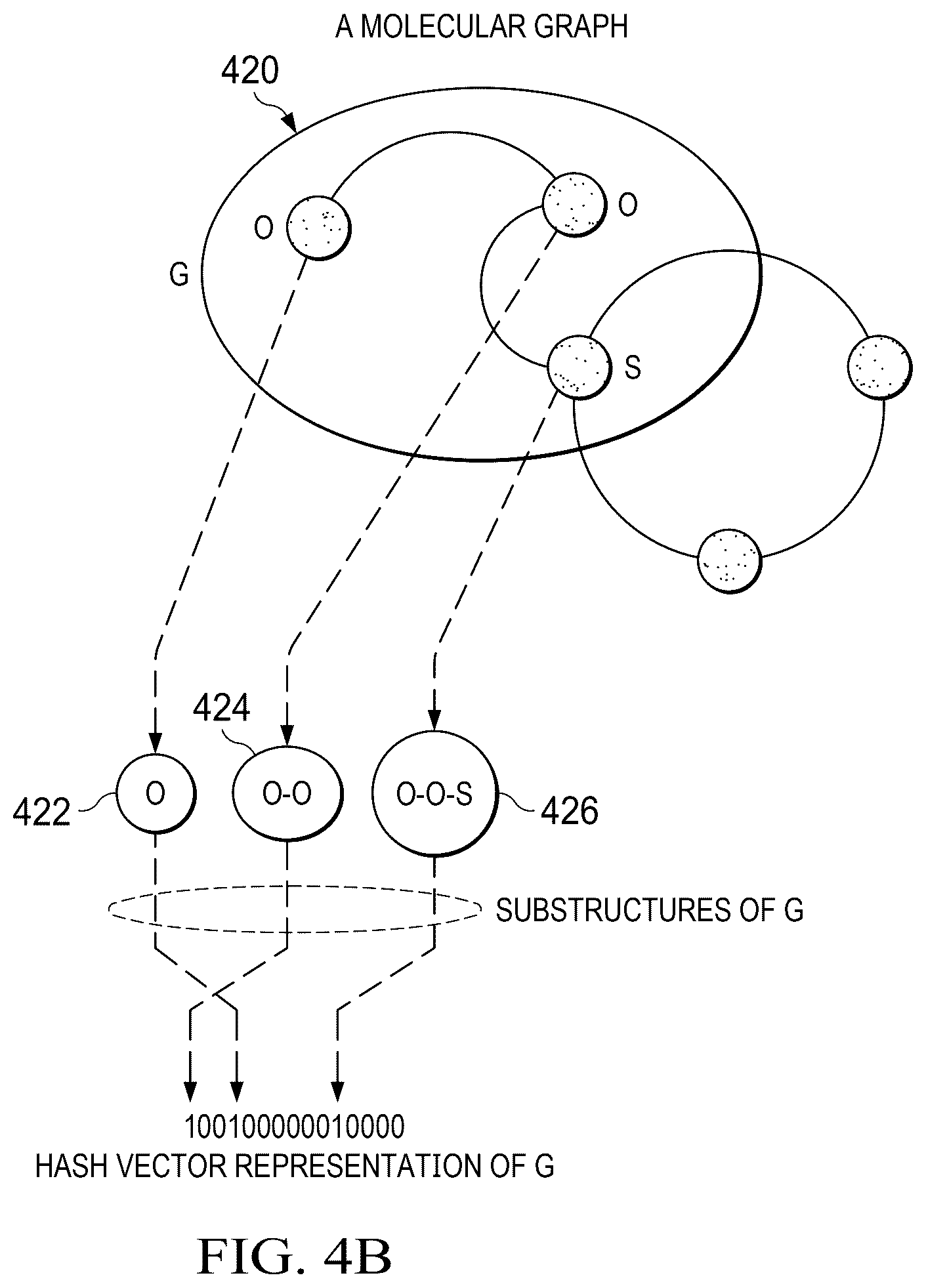

Molecular graph to hash vector., drawing sheet 5 from US 2026/0301884 A1
Sheet 5 Molecular graph to hash vector.

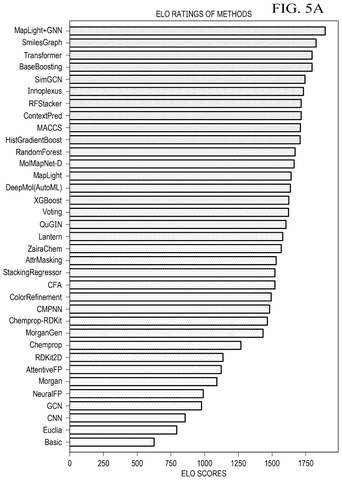

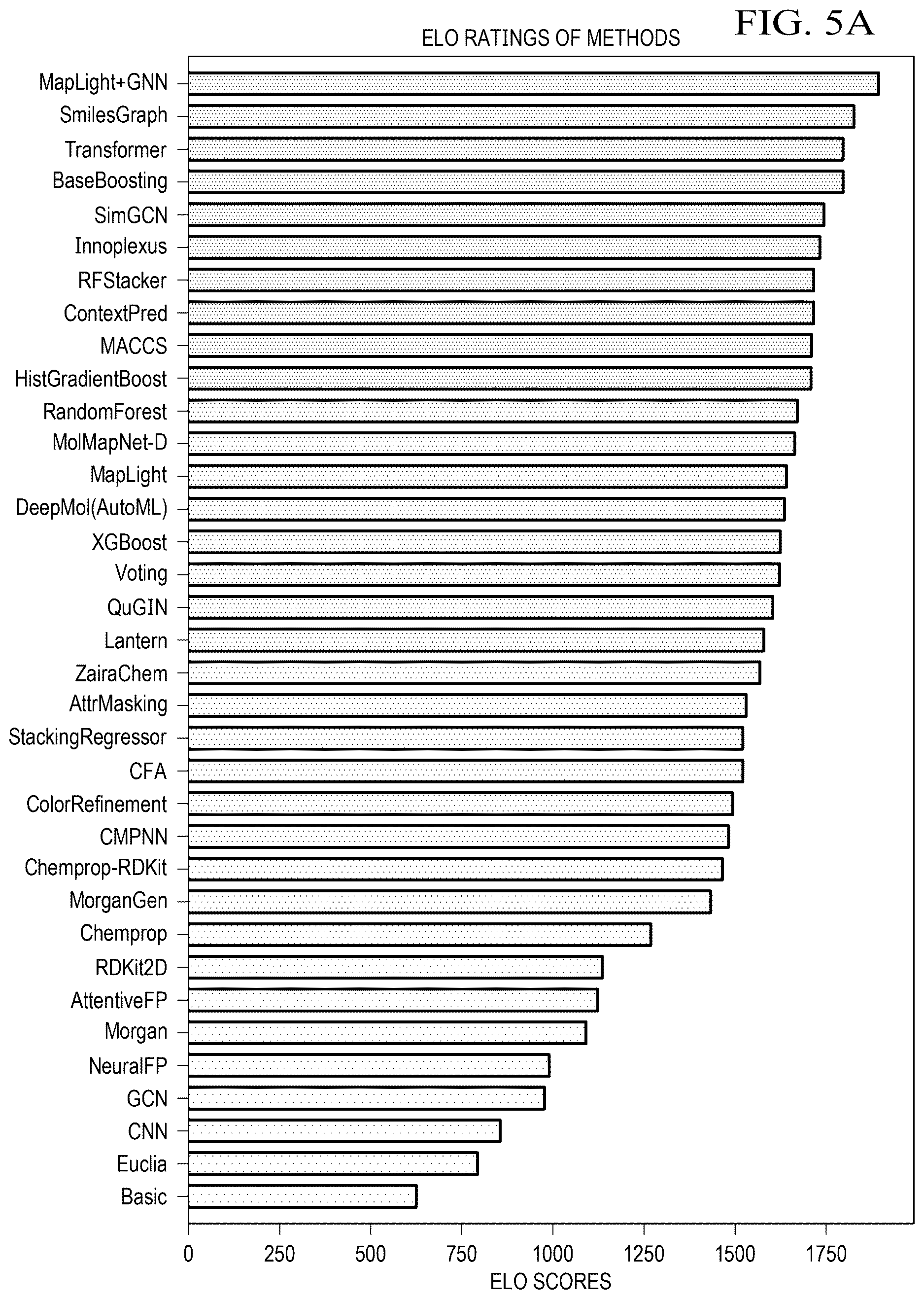

ELO ratings of various methods., drawing sheet 6 from US 2026/0301884 A1
Sheet 6 ELO ratings of various methods.

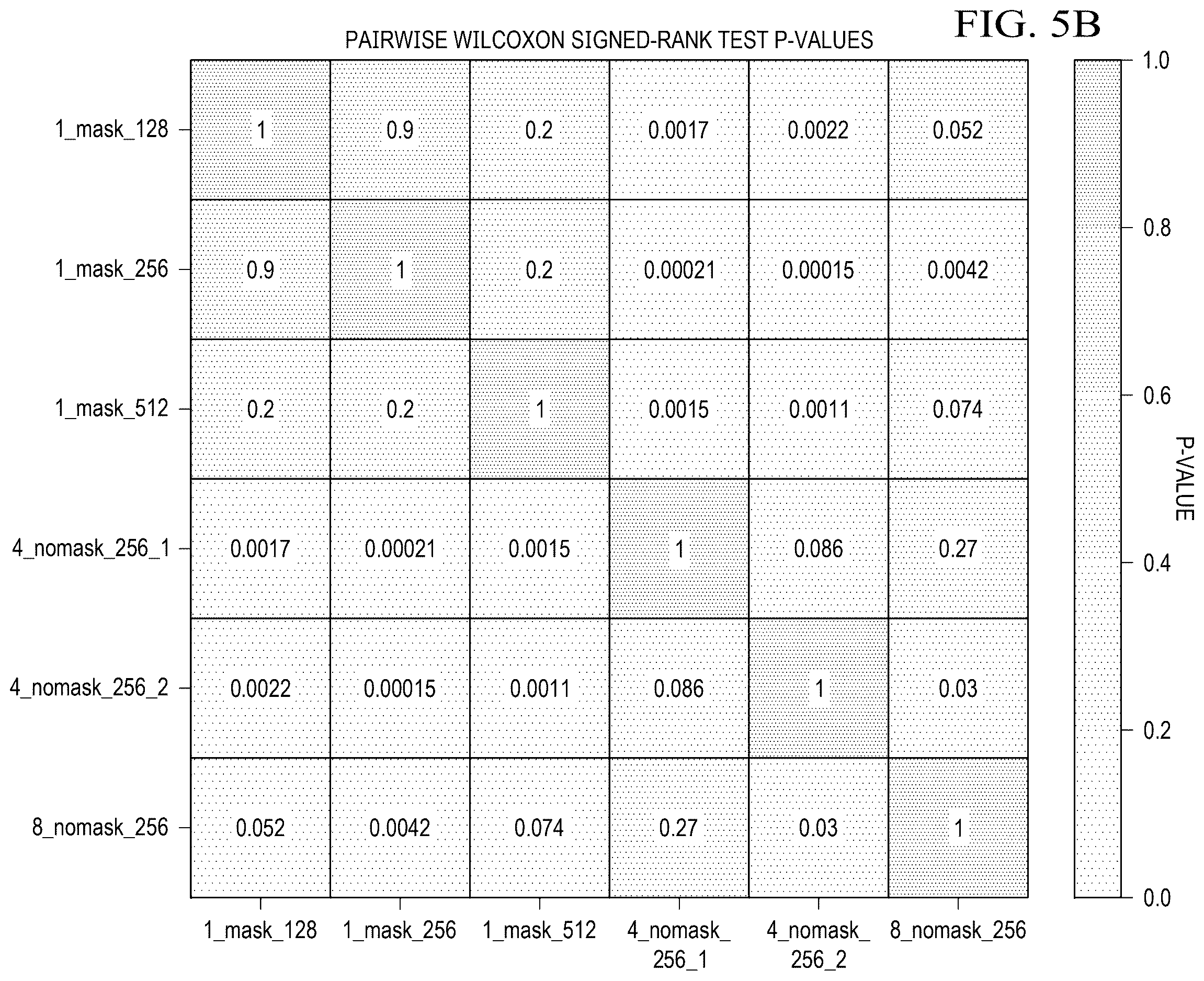

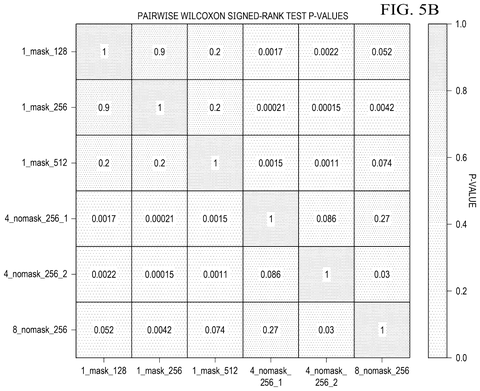

Pairwise Wilcoxon signed-rank test p-values., drawing sheet 7 from US 2026/0301884 A1
Sheet 7 Pairwise Wilcoxon signed-rank test p-values.

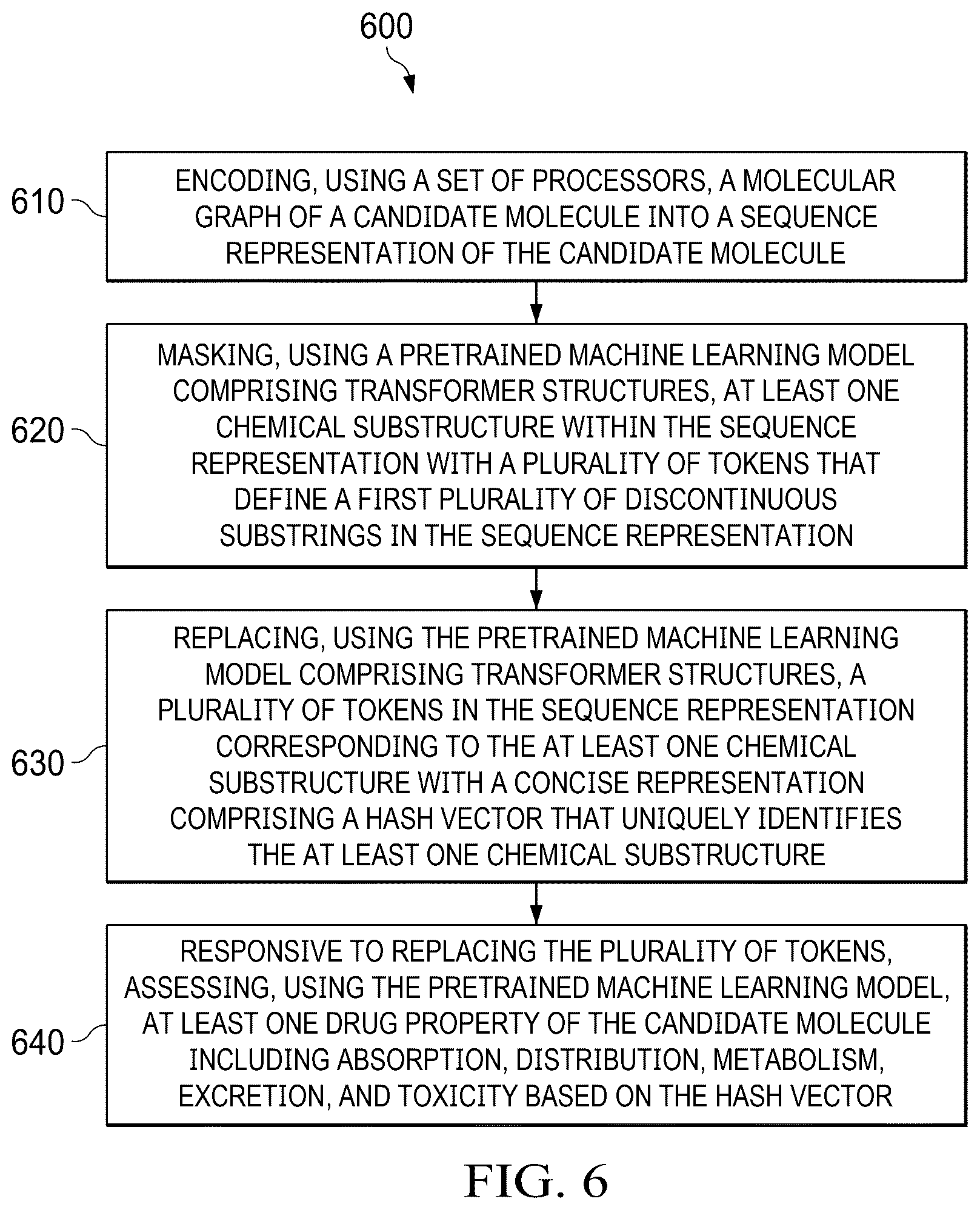

Steps for encoding molecular graphs., drawing sheet 8 from US 2026/0301884 A1
Sheet 8 Steps for encoding molecular graphs.
Show the other 1 sheets
IBM Patents a Way to Teach AI the Hidden Structure Inside Drug Molecules patent drawing, sheet 9
Sheet 9
