Samsung Patents Real-Time App Status Overlays for Foldable Cover Displays

By Patentlyze Team · Updated May 22, 2026

Samsung is filing patents to make the small cover screen on its foldable phones more useful — not just a clock, but a live window into whatever apps are running inside.

What Samsung's cover-screen app widgets actually do

Imagine glancing at the outside of your folded phone and seeing your Spotify track change in real time, or a navigation arrow update as you walk — without ever flipping the phone open. That's the core idea here.

Samsung's patent describes a system where your foldable phone's small outer cover display can show a live widget on top of your wallpaper or lock screen. This widget reflects what's actually happening inside a running app — updated in real time or on a regular schedule — so you get a quick-glance status without opening the device.

The widget occupies a defined sub-area of the cover screen, sitting as an overlay on the default background. The phone can trigger this either because you woke the screen, or because the system decided something was worth surfacing automatically.

How the visual object layers over the cover display

The patent describes a foldable device — one with both an inner flexible display and an outer cover display — where a second screen area is reserved for dynamically updated execution state information from running apps.

Here's the breakdown of what the system does:

• When the cover display turns on (either from a user tap or an automatic system trigger), it renders a default screen — think wallpaper or a lock screen — across the full first area.
• Simultaneously, a visual object (essentially a live widget) is drawn in a sub-region of that same area, overlapping the background.
• That widget reflects the current execution state of one or more apps running on the device — updated in real time or on a fixed polling interval.

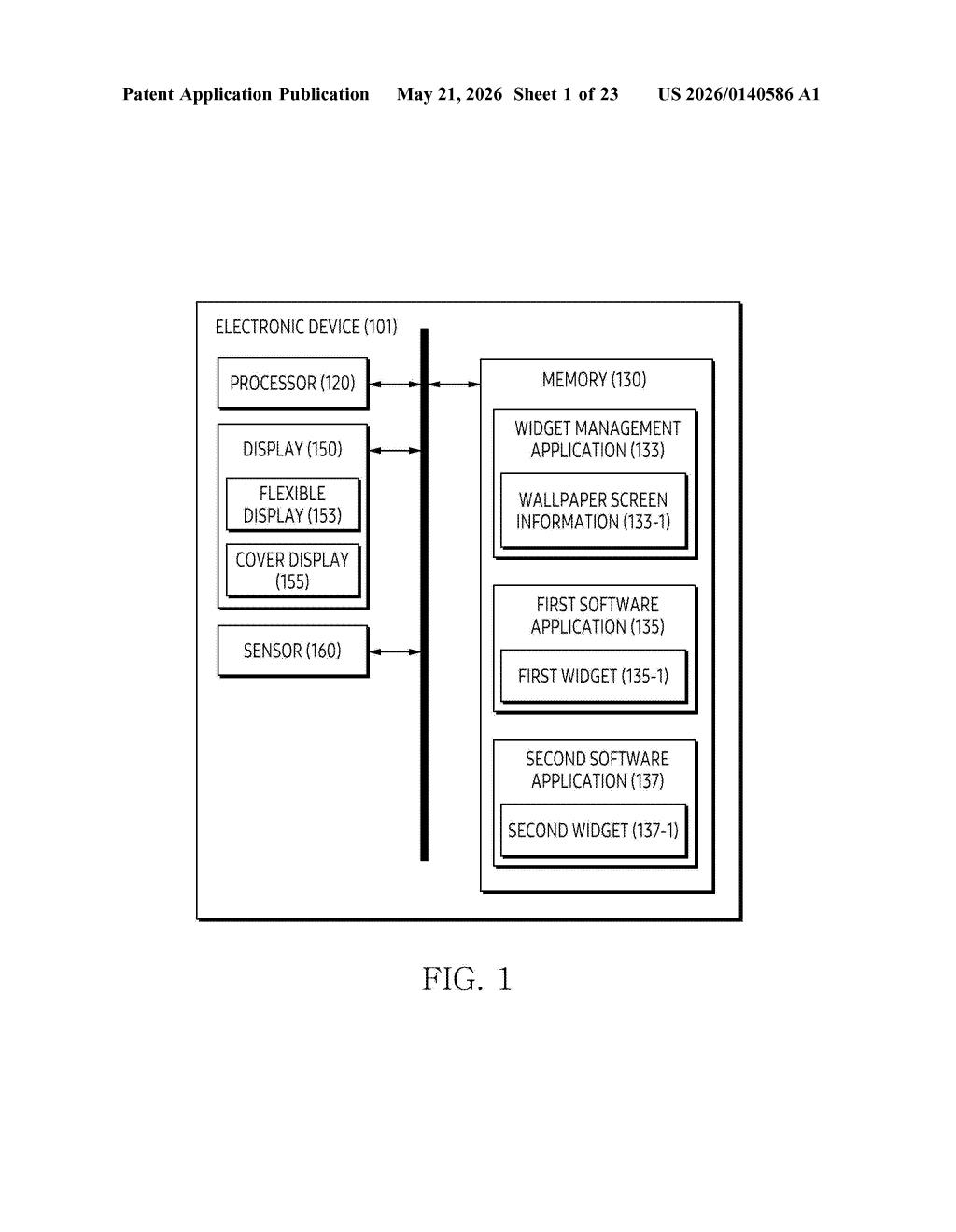

The patent's claim specifically ties this to a foldable form factor: the device has a first and second housing part that rotate relative to each other, with a flexible inner display spanning both halves and a separate cover display on the outside. The widget management logic is handled by a dedicated widget management application that pulls from running software applications and wallpaper/screen configuration data stored in memory.

What this means for Galaxy Z Flip cover-screen utility

The Galaxy Z Flip line already has a cover screen, and Samsung has been slowly expanding what it can do — but it's still largely a passive information surface. A patent like this formalizes the idea of the cover display as a live app dashboard, not just a notification mirror. If this ships, your cover screen could surface real-time context from fitness apps, navigation, timers, or media controls without a single unfold.

The system-triggered wake condition is also worth noting: the device can proactively push a widget update to the cover screen even if you didn't touch it. That's the difference between a passive glanceable and something closer to an ambient display — which changes how useful a folded phone can be throughout your day.

Editorial commentary on a publicly published patent application. Not legal advice.
