Samsung · Networking · Filed Nov 7, 2025 · USPTO published May 14, 2026 · May 14 release

Samsung Files Patent for Low-Power 5G/6G Reader-Device Scheduling Protocol

Samsung is patenting a way for a wireless 'reader' — think a base station or access point — to precisely schedule when low-power devices talk back to it, using timing windows measured at the chip level. It's infrastructure plumbing, but it's the kind of plumbing that makes battery-free IoT tags actually usable in a 5G or 6G network.

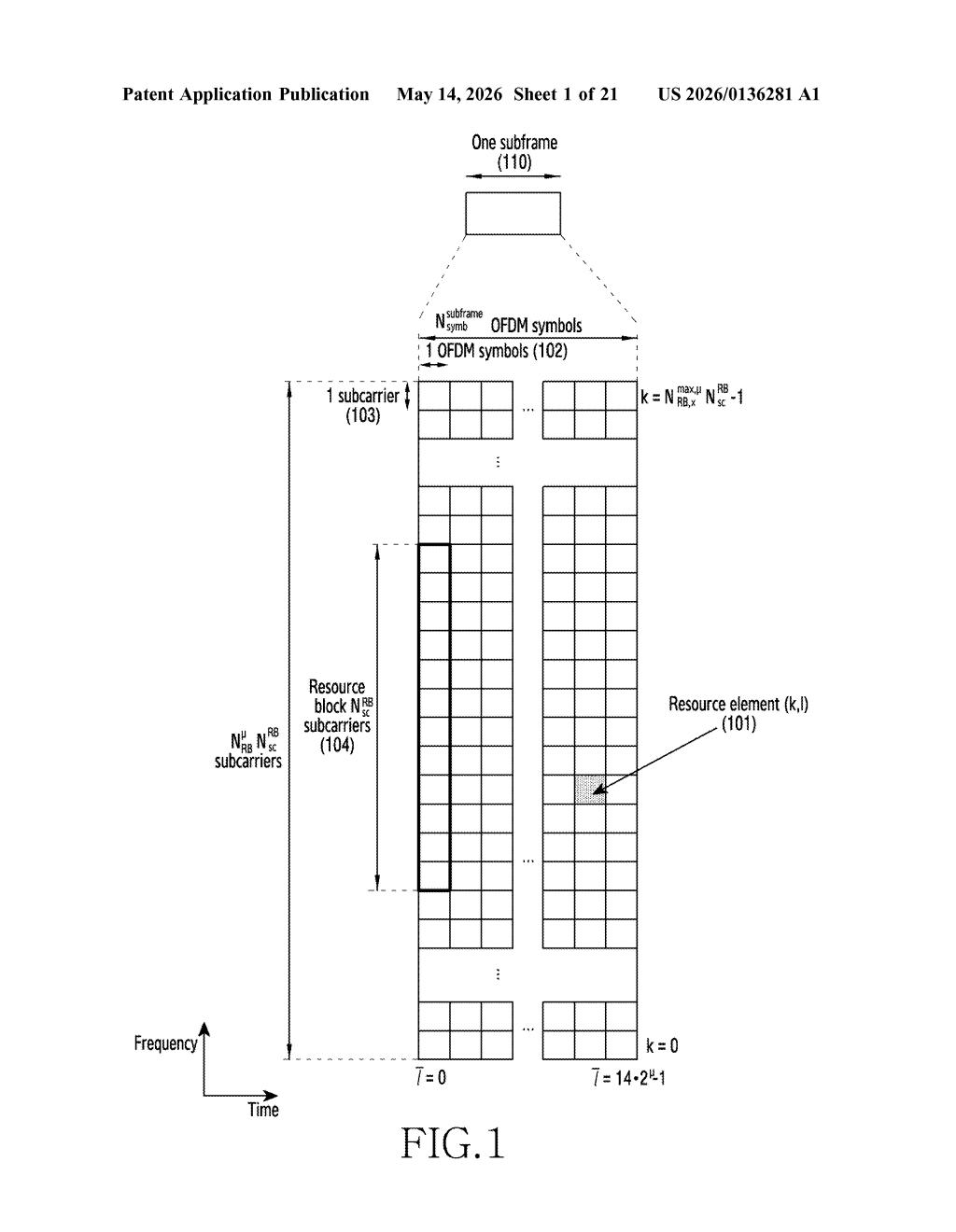

Samsung Patent: Low-Power 5G/6G Device Scheduling, figure from US 2026/0136281 A1
Figure from the official USPTO publication.
Publication number
US 2026/0136281 A1(US20260136281A1)
Applicant
Samsung Electronics Co., Ltd.
Filed · Published
Nov 7, 2025 · May 14, 2026
Inventors
Hyemin CHOE, Kyungjun CHOI, Hyoungju JI, Younsun KIM
Status when we published
Waiting for an examiner
Document
20 claims
US classification
370/311

What Samsung's chip-duration scheduling actually does

Imagine tiny wireless sensors — on a shipping pallet, sewn into a garment, or embedded in a retail shelf label — that need to send data back to a nearby reader without draining a battery fast. The tricky part isn't the sensor sending one message; it's coordinating many messages reliably without collisions or wasted energy.

Samsung's patent describes a system where the reader sends a configuration message to the device first, telling it exactly when to reply — and those reply slots are timed using something called a chip duration, which is an extremely short, precise unit of time used in spread-spectrum radio systems. The device then fires off multiple responses according to that schedule.

In plain terms: the reader sets the clock, the device follows it, and everything happens in tight, predictable bursts. That's how you keep low-power devices talking efficiently without them stepping on each other or wasting energy waiting around.

How the R2D/D2R message exchange is timed

The patent describes a two-way communication protocol between a reader (an infrastructure node like a base station or access point) and a device (a low-power or passive tag-like endpoint).

The flow works like this:

  • The reader sends a Reader-to-Device (R2D) message that includes configuration information — essentially a schedule for the upcoming conversation.
  • That scheduling information tells the device when to transmit each of several Device-to-Reader (D2R) messages — the device's replies.
  • The timing of those reply slots is anchored to a chip duration — a very fine-grained time unit used in spread-spectrum systems like CDMA or 5G NR, where data is spread across a wide frequency band using short 'chips.' Using chip duration as the scheduling unit gives sub-microsecond precision.

This is essentially a lightweight scheduling handshake — the reader sets up the entire exchange up front so the device doesn't need to negotiate or listen continuously. For power-constrained devices (think passive RFID-style tags or ambient IoT sensors), minimizing active listening time is critical. The chip-duration anchor ensures the schedule is precise enough to work in a dense, fast 5G or 6G radio environment.

What this means for passive IoT and 6G device networks

The broader context here is ambient IoT — the emerging class of devices so low-power they may not even have a battery, harvesting energy from radio waves themselves. Both 5G Advanced and the anticipated 6G standard are explicitly targeting this use case, and Samsung is one of the companies leading that standardization effort.

For you as a consumer or enterprise buyer, this is the invisible scaffolding that would let a future warehouse track every individual item in real time, or let a smart package report its condition without anyone ever swapping a battery. It's not a user-facing feature — it's the protocol layer that makes those features possible.

Source: US 2026/0136281 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.
