Meta Files Patent for a Display Module That Fits Inside Different Glasses Frames
Meta has filed a patent application for an AR display that is built and checked on its own, then dropped into whatever glasses frame it's needed in. The filing's examples include square and heart-shaped frames, metal and plastic.
What Meta's swap-in AR display actually is

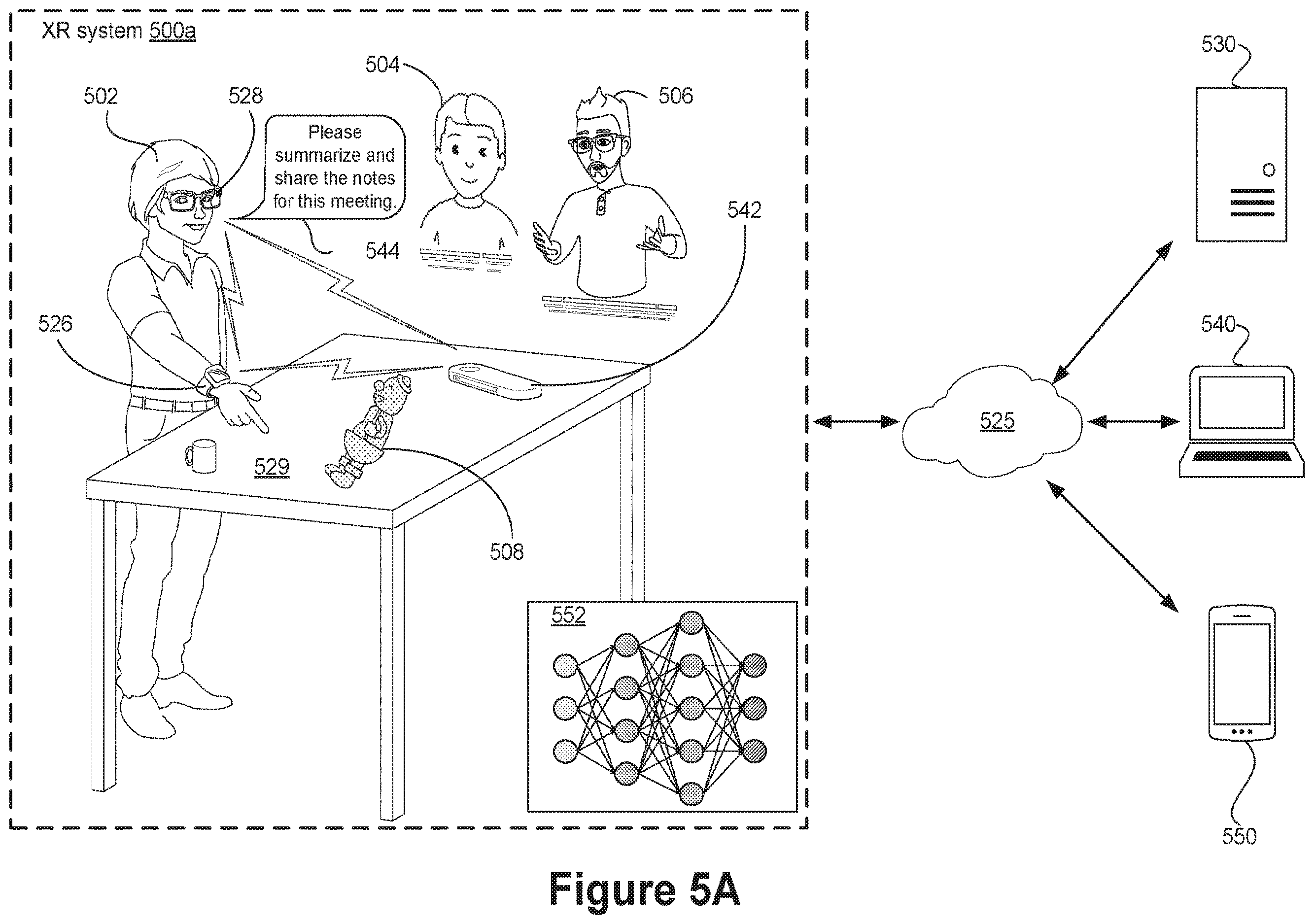

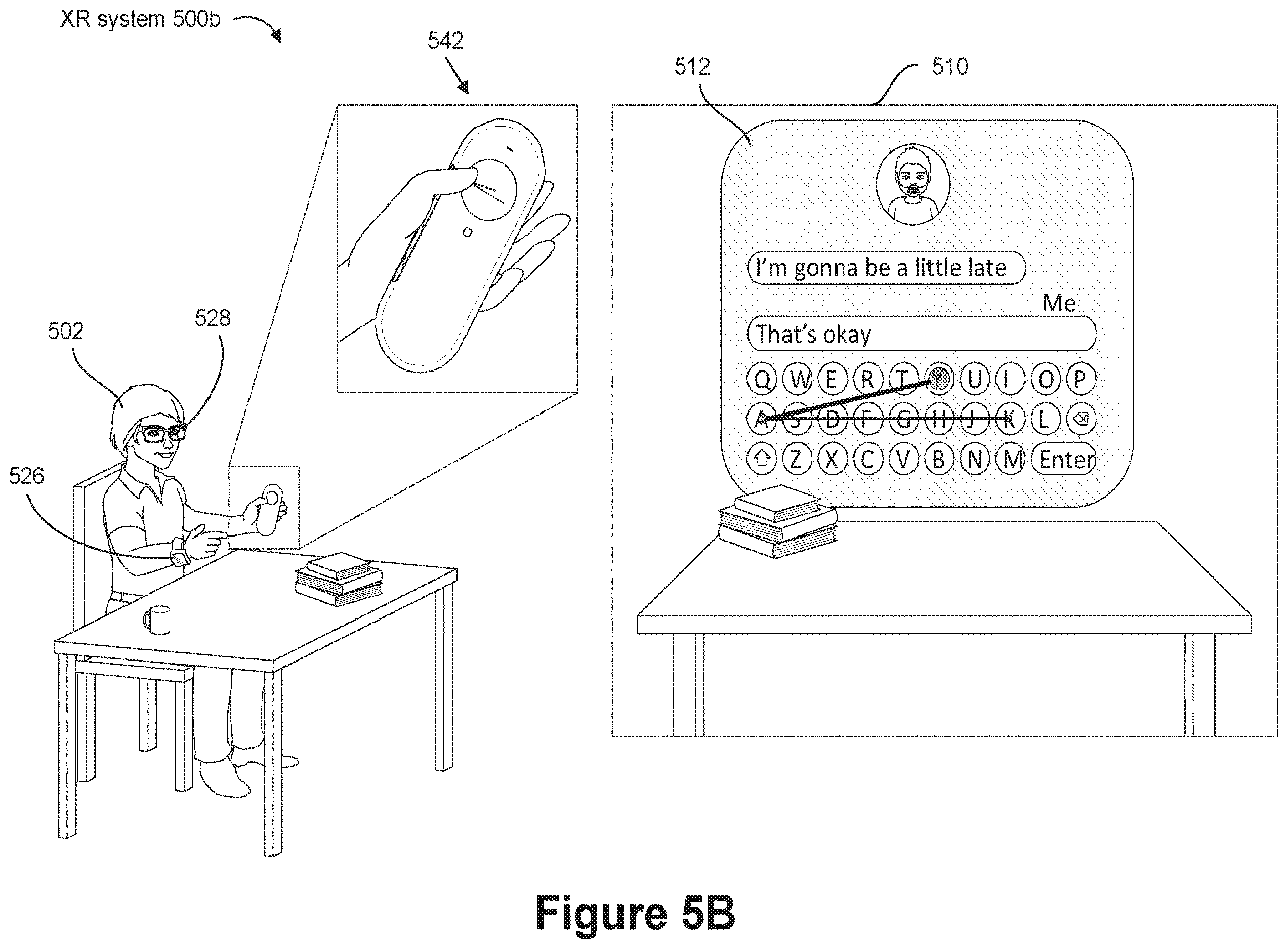

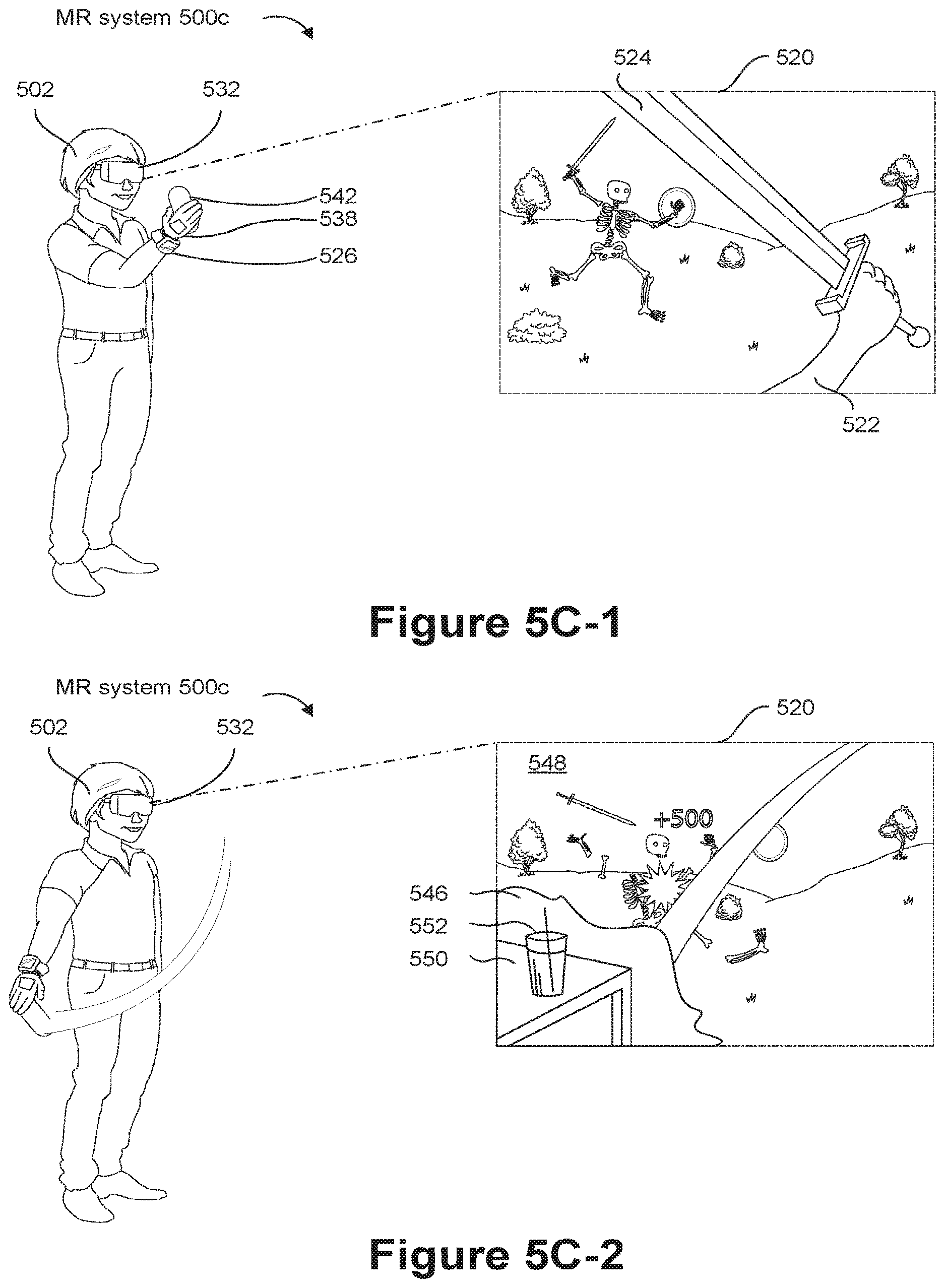

Ever wished you could change the frames on your glasses but keep the lenses you already like? Meta has filed a patent application that does something similar for AR glasses, the kind that show digital information on top of what you see.

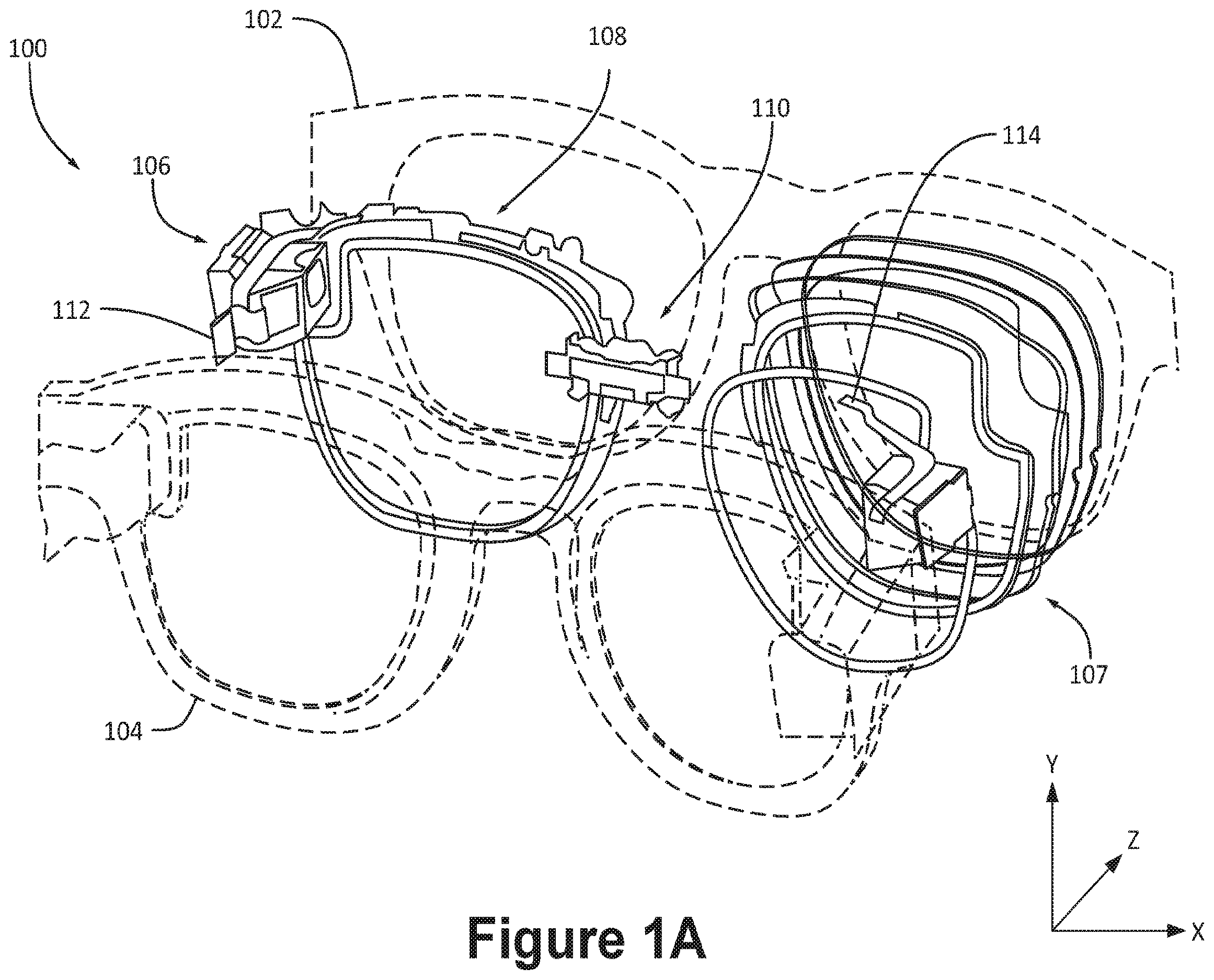

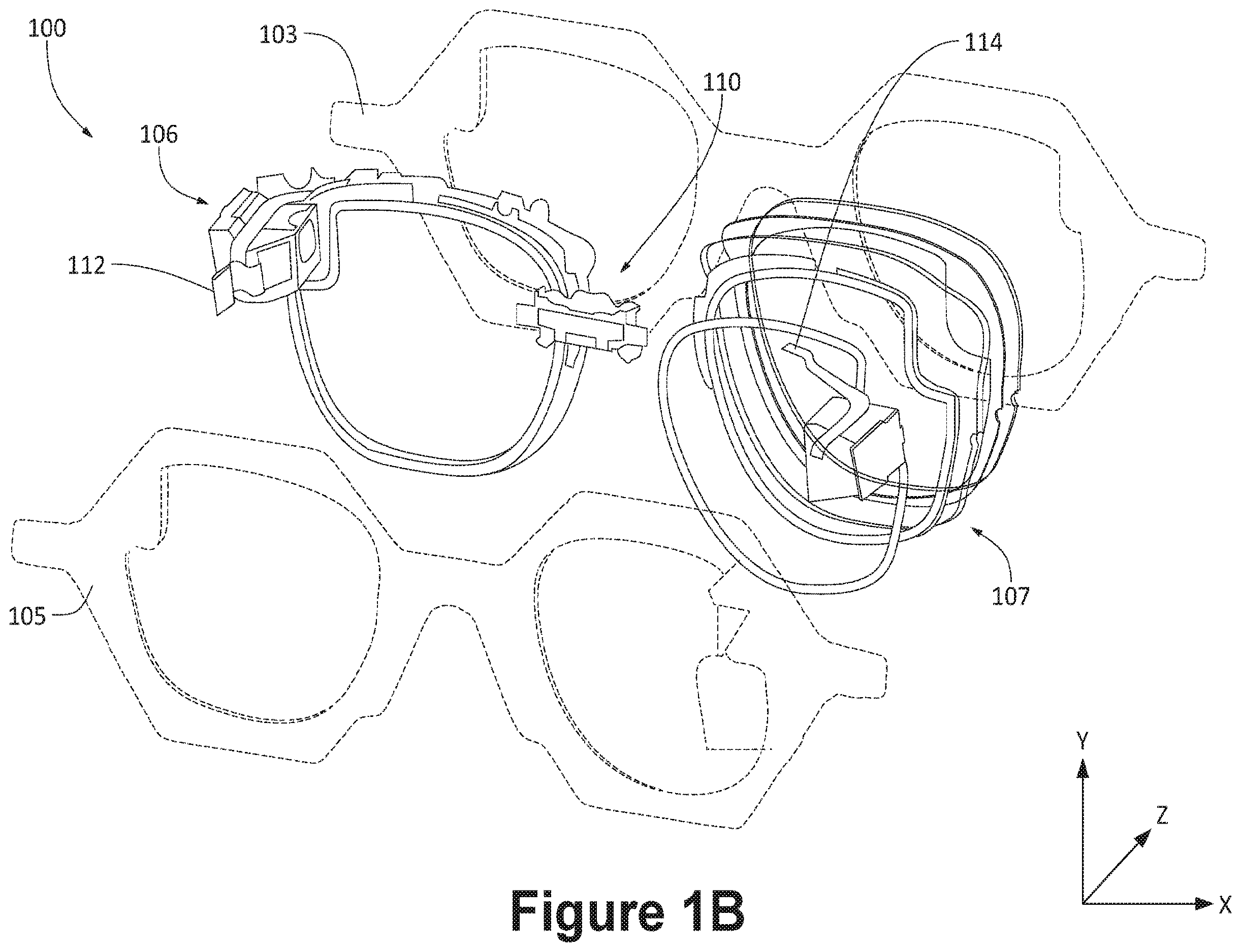

According to the filing, the part that creates the picture in AR glasses is normally built into one specific pair. It doesn't fully work until it's installed, so it can't be checked until then either. Meta describes a self-contained display module that is finished and tested on its own, then fitted into a frame. Its mounting points line up the same way across frame designs, so one module could go into a square pair or a heart-shaped one.
Heat is handled too. The module's projector can pass warmth to the front of the frame, so it radiates away from your face.
… a modular mounting system configured to allow the display assembly to fit into different lens frames of different types …
Translation: The tech uses an adaptable mount so the core screen parts can snap into various glasses frames.
How the display locks into each glasses frame
The patent covers a display assembly: the lenses plus the electronics that produce the AR picture, packaged as one unit with a modular mounting system. That system lets the same unit fit lens frames of different types, such as a metal frame and a plastic one.

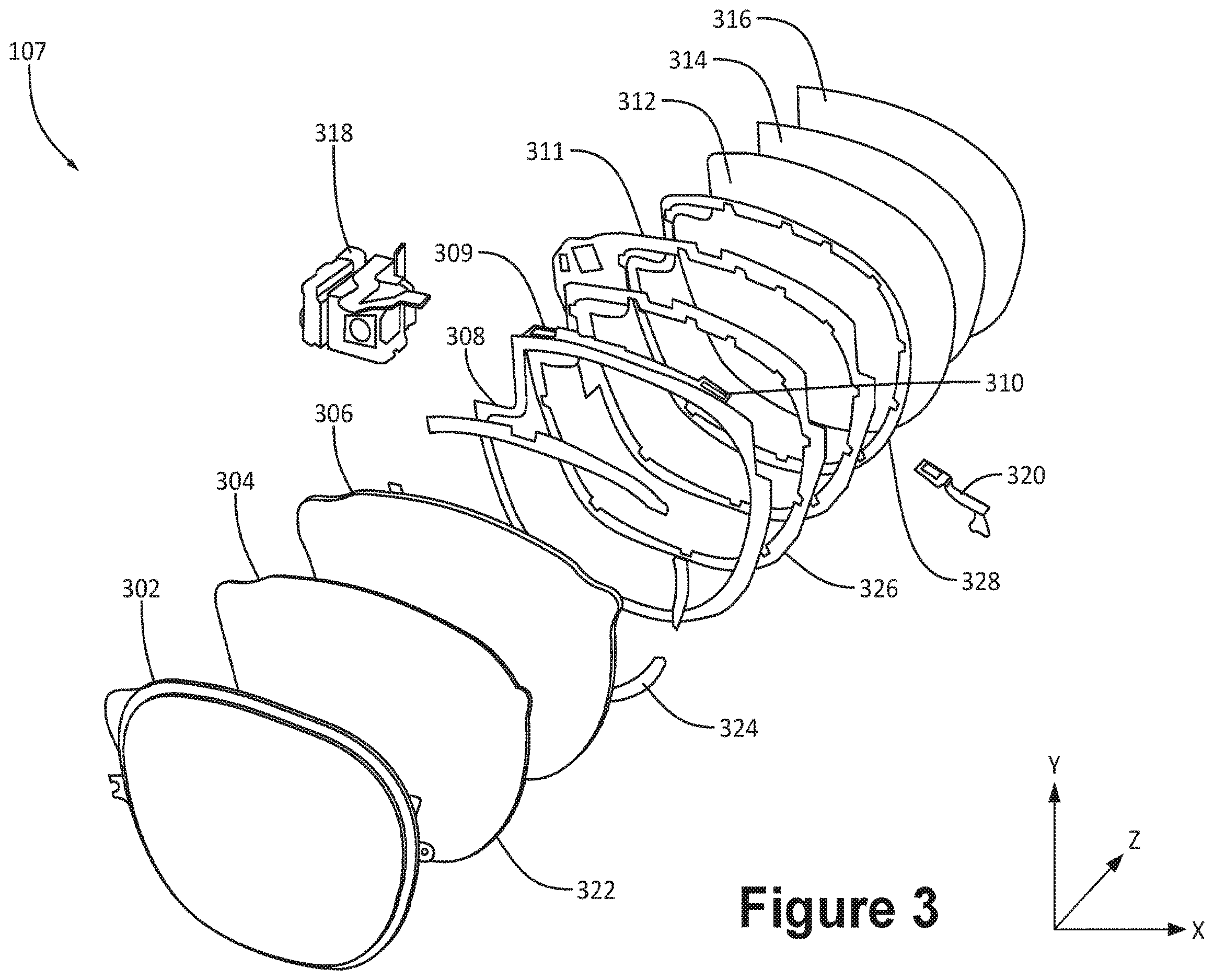

Inside is a lens stack. It includes a waveguide (a clear piece of glass that carries the projector's image to your eye using tiny partial mirrors), one lens that sets how far away the image appears, and a second lens that cancels the distortion so the real world still looks normal. Optional layers add eye tracking and active dimming (a coating that darkens on command so the image stands out).
Alignment relies on locating features near the temple and the nose bridge. They sit in the same relative positions on every frame design:

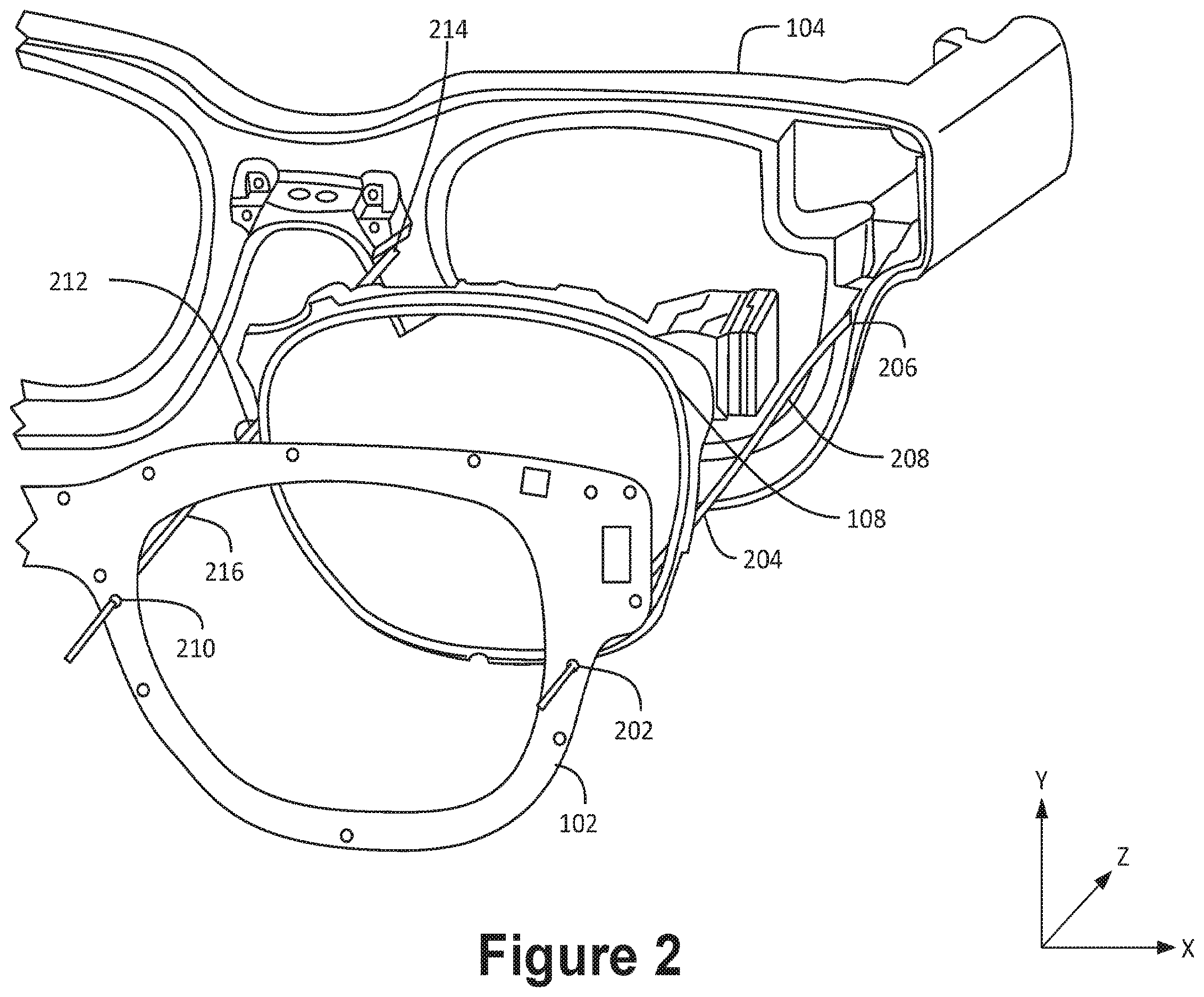

- A pin or screw passes through matching holes in the front frame, the display unit and the rear frame.
- The display unit is sandwiched between the two frame halves.
- The front frame blocks forward movement, and the rear frame blocks backward movement.

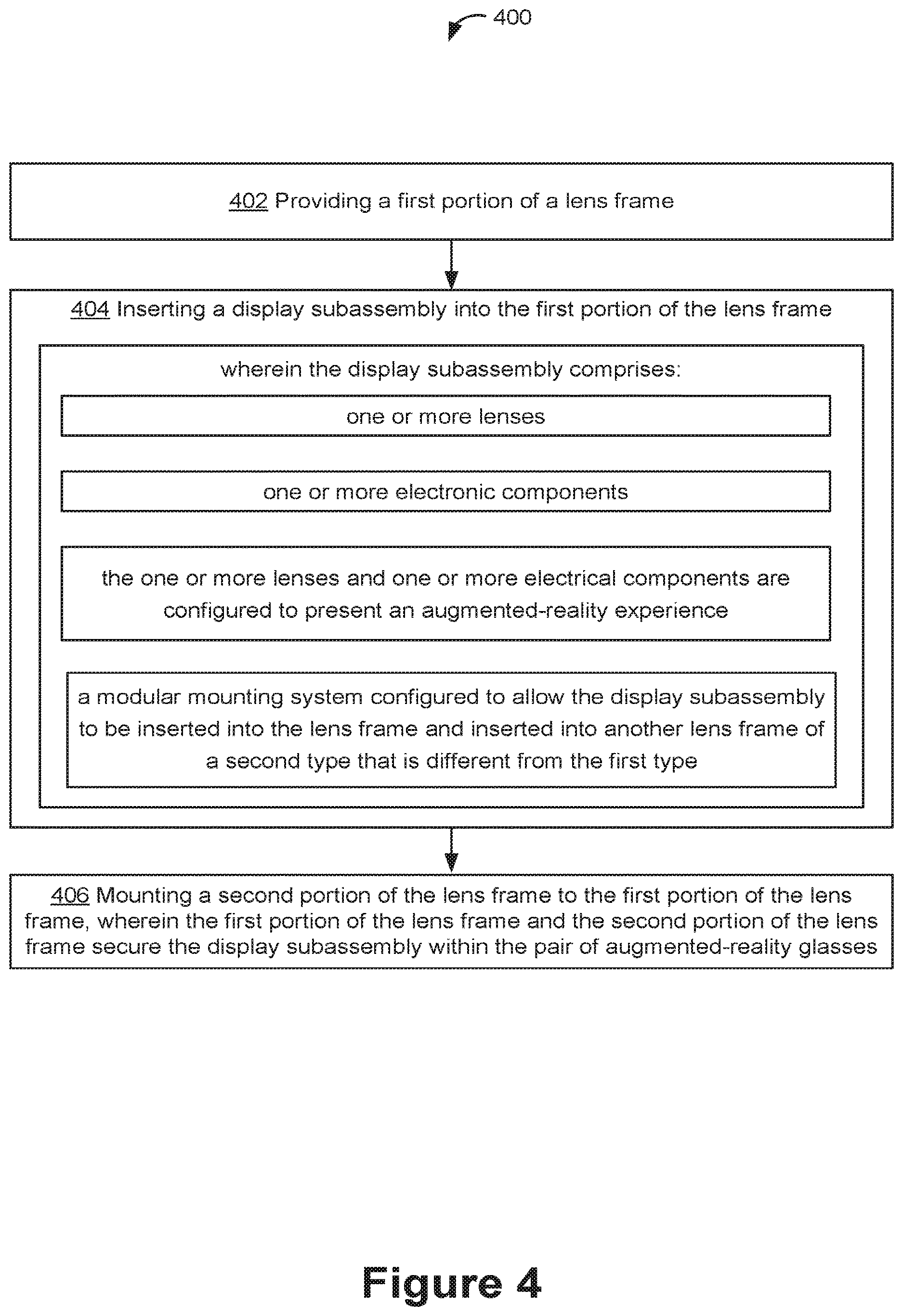

Because the unit is fully built before installation, it can be tested early. The claims also cover a method of assembling glasses this way, and a thermal link between the projector and the frame.
… configured to allow the display assembly to be inserted into a lens frame of a first type having a first shape and into a lens frame of a second type having a second shape that is different from the first shape …
Translation: The same display module can move between completely different frame styles.
Why a testable display part matters for AR
The most practical effect is on how AR glasses get made. If the display can be checked before it goes into a frame, a faulty one can be caught early instead of after a whole pair of glasses has been put together.
For you, the more visible payoff could be choice. A display that fits several frame shapes and materials could make it easier to offer glasses in more styles without redesigning the display each time. The filing doesn't name a product, so treat this as a manufacturing idea. It matters mostly if AR glasses need to look like everyday eyewear.
Meta's 77th filing we've tracked since May, this follows a shock-absorbing lens and glasses that film your hike in our Meta smart glasses watch.
Building glasses around a display you can't test until the very end is a costly way to work. If the picture part fails after it's installed, the frame, the labor and the other parts around it were spent on a pair that can't be sold. Testing the display on its own, early, goes straight at that problem.
The filing gives no figures on how much money or waste this would save, so the size of the win is unknown. Still, a standalone module with mounting points in standard positions is a sensible answer to a problem of this scale.
The frame-swapping side adds variety. One tested display could serve many frame styles, which helps if AR glasses are going to be worn like ordinary glasses. It is a factory-floor patent, and it deserves to be judged as one.
