Samsung Patents a Shell-Wrapped Micro-LED Structure to Boost Display Efficiency

By Patentlyze Team · Updated May 16, 2026

Tiny LEDs lose a surprising amount of light through their exposed edges — Samsung's new patent wraps each one in an ultra-thin metal shell to plug that leak.

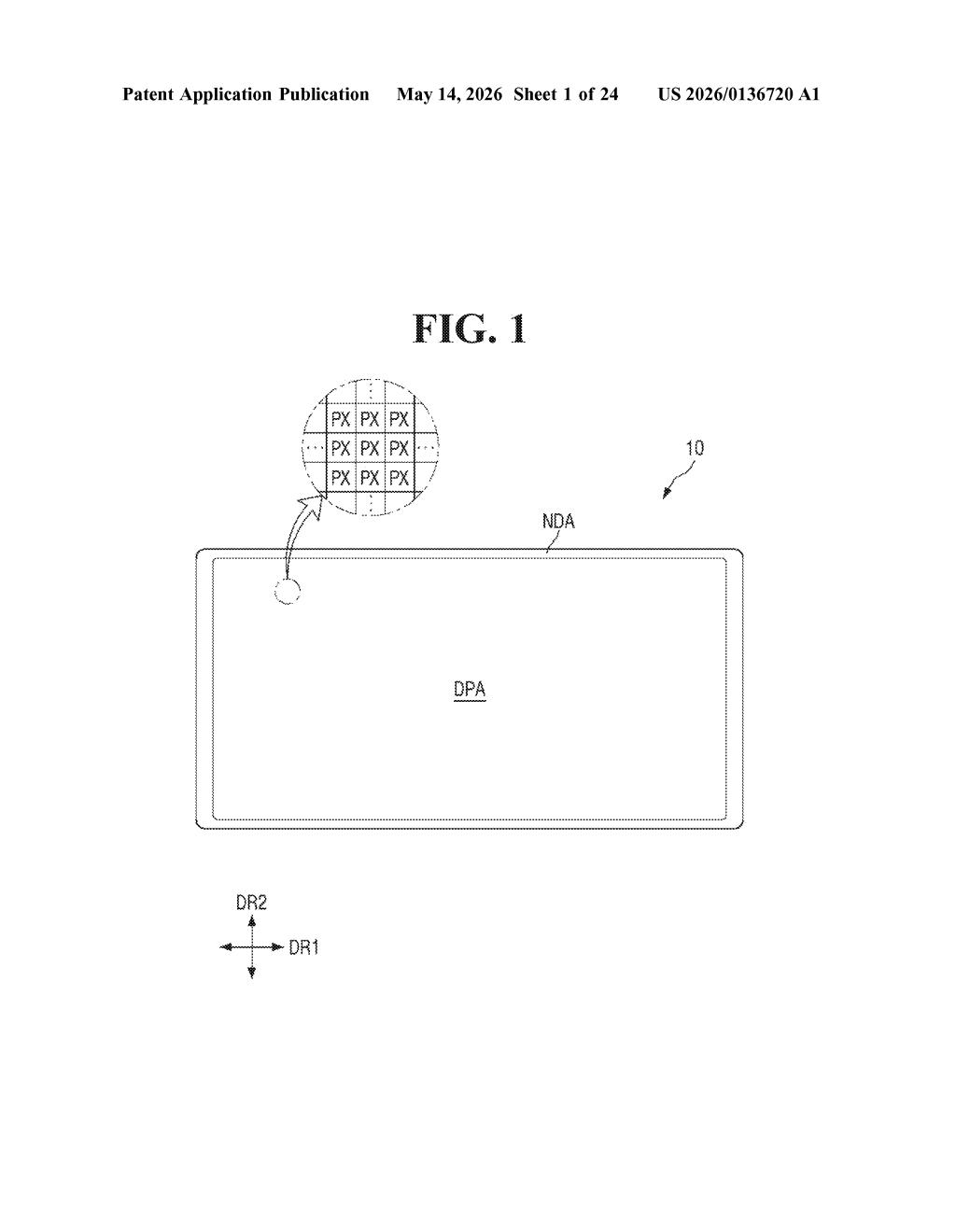

What Samsung's divalent-metal LED shell actually does

Imagine a candle inside a paper lantern. If the paper has holes in the sides, light bleeds out in all the wrong directions. The same problem haunts micro-LEDs — the microscopic light sources behind next-generation screens. When the edges of the light-producing layer are exposed, electrons and light can escape sideways instead of going where they're supposed to, which wastes energy and hurts picture quality.

Samsung's patent describes wrapping each individual micro-LED in a very thin shell layer made from divalent metals like beryllium, calcium, strontium, barium, or cadmium. That shell coats the sides of the whole LED stack — the two semiconductor layers and the light-emitting layer sandwiched between them. An additional insulating film then covers the shell, giving extra protection around the critical light-emitting zone.

The result is a sealed, well-behaved little light source. By controlling what happens at the edges, Samsung aims to reduce defects and wasted energy, which could translate into brighter, more efficient displays — the kind you'd want in a high-end TV, phone, or wearable screen.

How the shell layer and insulating film wrap each tiny LED

The patent describes a micro-LED structure with five key layers stacked in sequence. At its core is the familiar sandwich: a first semiconductor layer (n-type, carrying negative charges), a second semiconductor layer (p-type, carrying positive charges), and a light-emitting layer (the active region where electrons and holes recombine to produce photons) between them.

What's new is what wraps around that sandwich. A shell layer — between 0.5 nanometers and 10 micrometers thick — covers the side surfaces of all three layers. The shell must include at least one divalent metal element (an atom that forms two chemical bonds): beryllium, calcium, strontium, barium, or cadmium. These elements are chosen because they can passivate (chemically neutralize) the dangling atomic bonds at the LED's surface that would otherwise act as traps for electrons, killing efficiency.

On top of the shell sits an insulating film that encases the shell's outer surface and specifically surrounds the side of the light-emitting layer. This double-layer protection strategy — conductive-passivating shell plus insulating outer coat — is the structural innovation the patent claims.

• Shell thickness range: ~0.5 nm to ~10 µm (tunable for different LED sizes)
• Divalent metals listed: Be, Ca, Sr, Ba, Cd
• Insulating film targets: outer shell surface and the light-emitting layer's sidewalls

What this means for micro-LED display quality

Micro-LED displays are widely seen as the successor to OLED — potentially brighter, longer-lasting, and more power-efficient. But one of the hardest engineering problems is surface recombination: as LEDs shrink to microscopic sizes, a larger fraction of their total volume is exposed edge, and those edges bleed energy. This problem gets worse the smaller you go, which is exactly why consumer micro-LED products have been slow to arrive despite years of hype.

If Samsung can reliably passivate those edges with a divalent-metal shell during fabrication, it would directly improve the external quantum efficiency (how much light you actually get out per electron you put in) of small LEDs. For you as a consumer, that could mean micro-LED TVs and mobile displays that are brighter at lower power — and potentially more affordable to manufacture at scale.

Editorial commentary on a publicly published patent application. Not legal advice.
