Qualcomm Patents an Indoor Location System That Reads Magnetic Fields

GPS stops working the moment you walk through a door. Qualcomm is betting that the magnetic field running through a building's walls and floors can act as a substitute map, guiding your phone through hospitals, airports, and malls without a satellite in sight.

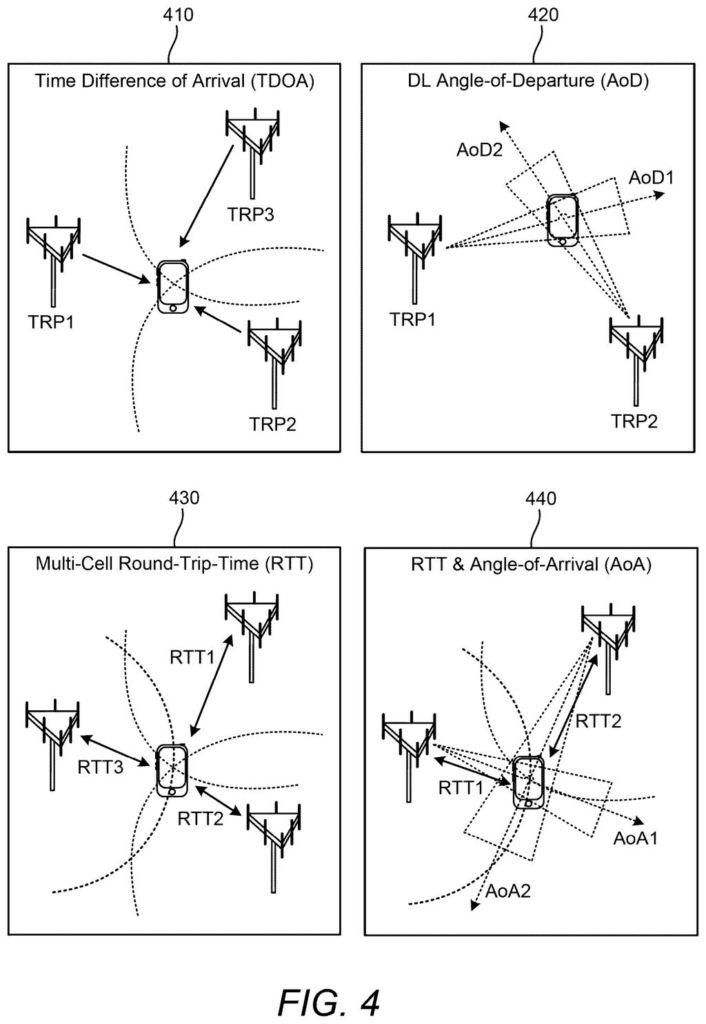

A mobile phone is located using various radio signal measurements from multiple transmitting/receiving points. Drawing from patent filing US 2026/0304364 A1.
A mobile phone is located using various radio signal measurements from multiple transmitting/receiving points.All 15 drawings ↓
Publication number
US 2026/0304364 A1(US20260304364A1)
Applicant
QUALCOMM Incorporated
Filed · Published
Feb 11, 2026 · Oct 1, 2026
Inventors
Benjamin TARLOW, Thomas ALLAN, Abhishek PRASAD
Status when we published
Waiting for an examiner
Document
20 claims
US classification
455/456.1
Parent application
Claims priority from a provisional application 63777951 (filed Mar 26, 2025)

How Qualcomm's magnetic indoor positioning actually works

Ever tried to follow directions inside a huge airport and watched your phone's map freeze because GPS can't reach you indoors? That dead zone is a real and unsolved problem for most smartphones today.

Qualcomm's patent describes a system that uses magnetic fingerprinting to fill that gap. Every building has a unique magnetic signature, shaped by its steel beams, electrical wiring, and concrete. The idea is to measure that magnetic field at known spots throughout a building, then use those readings to figure out where you are when you wander near them.

The clever part is that you don't have to measure every spot. The system takes readings from a sample of locations and uses a mathematical process to predict what the magnetic field looks like in the unmeasured areas nearby. The result is a fuller map of the building's magnetic landscape, built from fewer data collection trips.

From the filing · CLAIM 1
obtain a set of magnetic field measurements for a corresponding first set of cells of an indoor environment, wherein the indoor environment is divided into a plurality of cells including the first set of cells; and determine a set of magnetic field values for a second set of cells …

Translation: It maps indoor spaces into a grid and measures the magnetic field in certain areas to figure out the rest.

How the masking function fills in unmeasured indoor zones

The patent describes a positioning entity (think: a server or an on-device chip) that collects magnetic field readings from a defined grid of locations inside a building. The building is divided into a set of cells, like squares on a chessboard, and the system measures the magnetic field at some of those squares.

The interesting step is what happens next. A masking function is applied to those known readings. In practice, this means the system deliberately hides or ignores some of the measurements it has, then tries to reconstruct what the magnetic field looks like in the cells it didn't directly measure. Think of it like filling in a crossword puzzle: you use the letters you know to figure out the ones you don't.

The output is a magnetic field map covering a broader set of indoor cells, including spots where no one ever walked around with a sensor. A device inside the building can then compare its own real-time magnetic reading against this map to figure out where it is.

  • The building is divided into a grid of cells
  • Magnetic readings are collected at a subset of those cells
  • A masking function predicts values for the unmeasured cells
  • A device matches its live reading to the map to find its location
From the filing · THE ABSTRACT
Disclosed are techniques for magnetic positioning. In an aspect, positioning entity obtains a set of magnetic field measurements for a corresponding first set of cells of an indoor environment …

Translation: The system tracks indoor locations by analyzing magnetic fields throughout different areas of a building.

What this means for GPS-free navigation in buildings

For you as a user, this is about whether your phone can give you turn-by-turn directions inside a building: navigating to a hospital ward, finding a gate at an airport, or locating a specific aisle in a big-box store. GPS fails in all of those environments, and current alternatives like Wi-Fi triangulation or Bluetooth beacons require expensive hardware installations that most venues skip.

Magnetic fingerprinting is appealing because the magnetic field already exists in every building. No new transmitters, no new infrastructure. The question this patent tries to answer is whether you can build an accurate map without exhaustively measuring every corner, and the masking-based approach is Qualcomm's proposed answer to that. Qualcomm has been filing around indoor positioning since at least the early 2020s, and this filing fits that broader push toward location services that don't depend on cellular or satellite signals.

Qualcomm's 466th filing in our Qualcomm coverage since May adds to a run of location work that includes filtering positions through walls and linking distance to separate objects.

Source: US 2026/0304364 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Qualcomm patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 15 sheets

15 drawing sheets from US 2026/0304364 A1 · click any drawing to enlarge

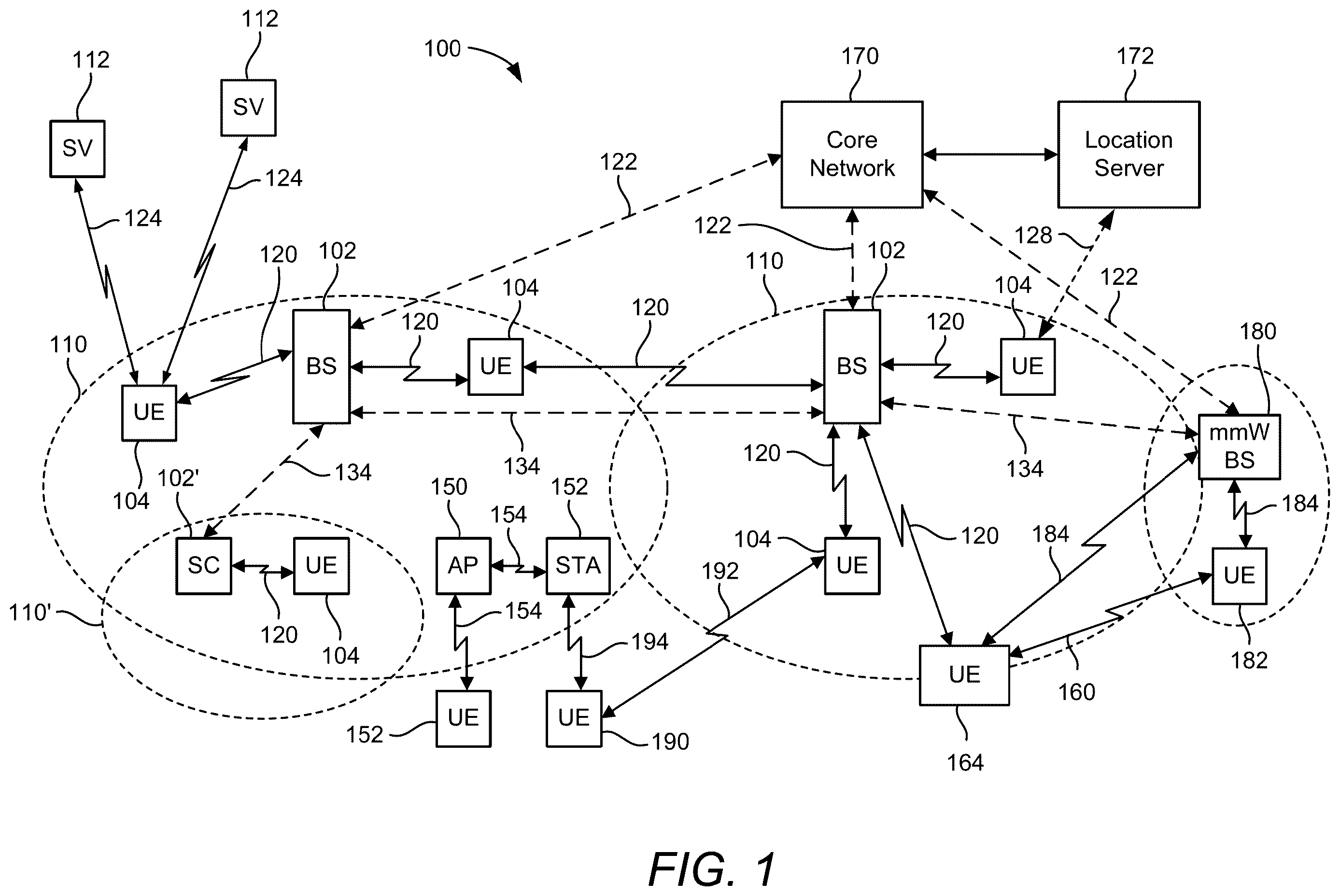

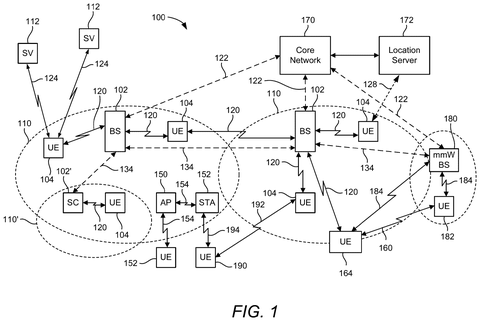

Wireless communication network architecture., drawing sheet 1 from US 2026/0304364 A1
Sheet 1 Wireless communication network architecture.

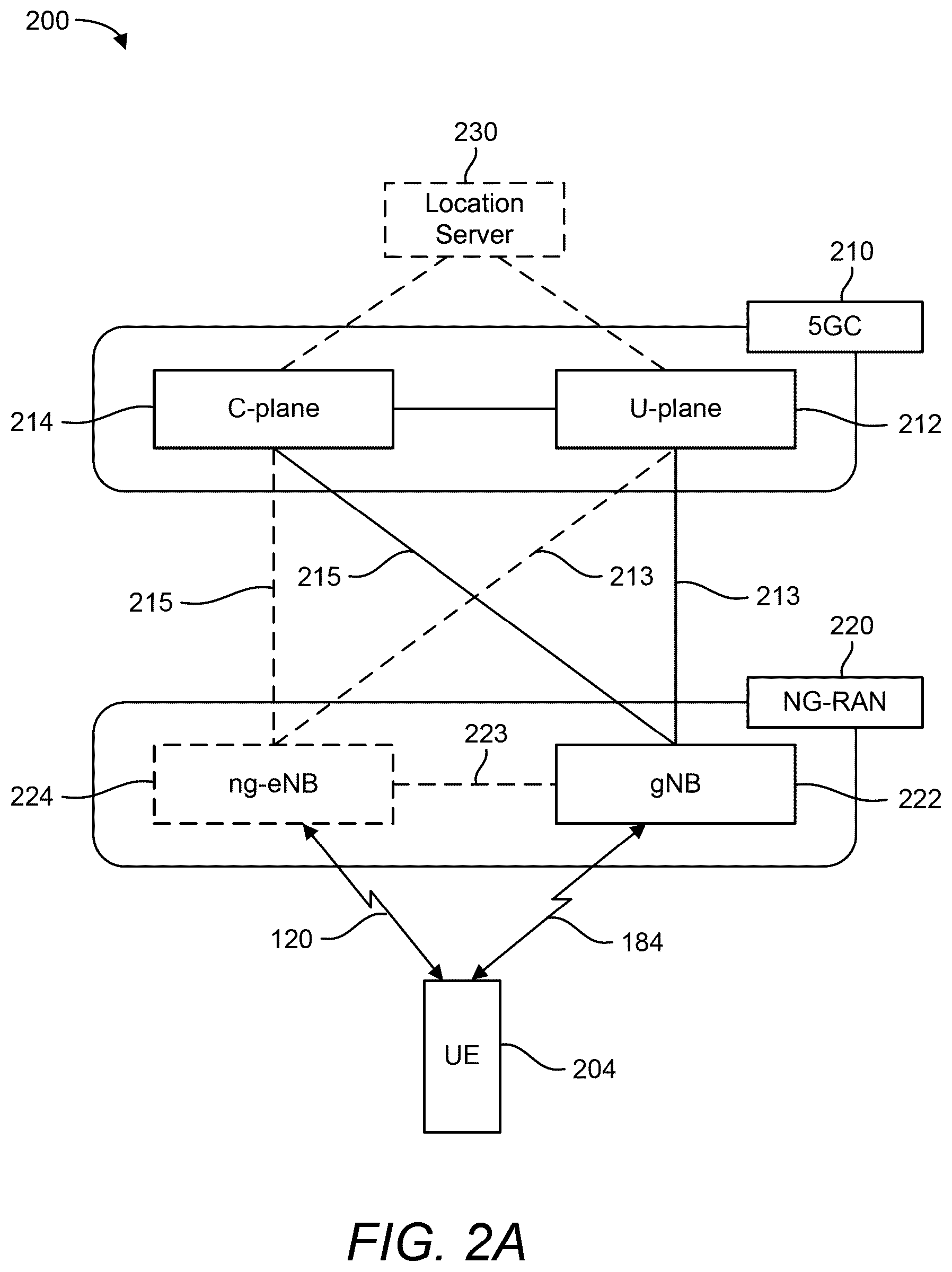

5G core network and radio access., drawing sheet 2 from US 2026/0304364 A1
Sheet 2 5G core network and radio access.

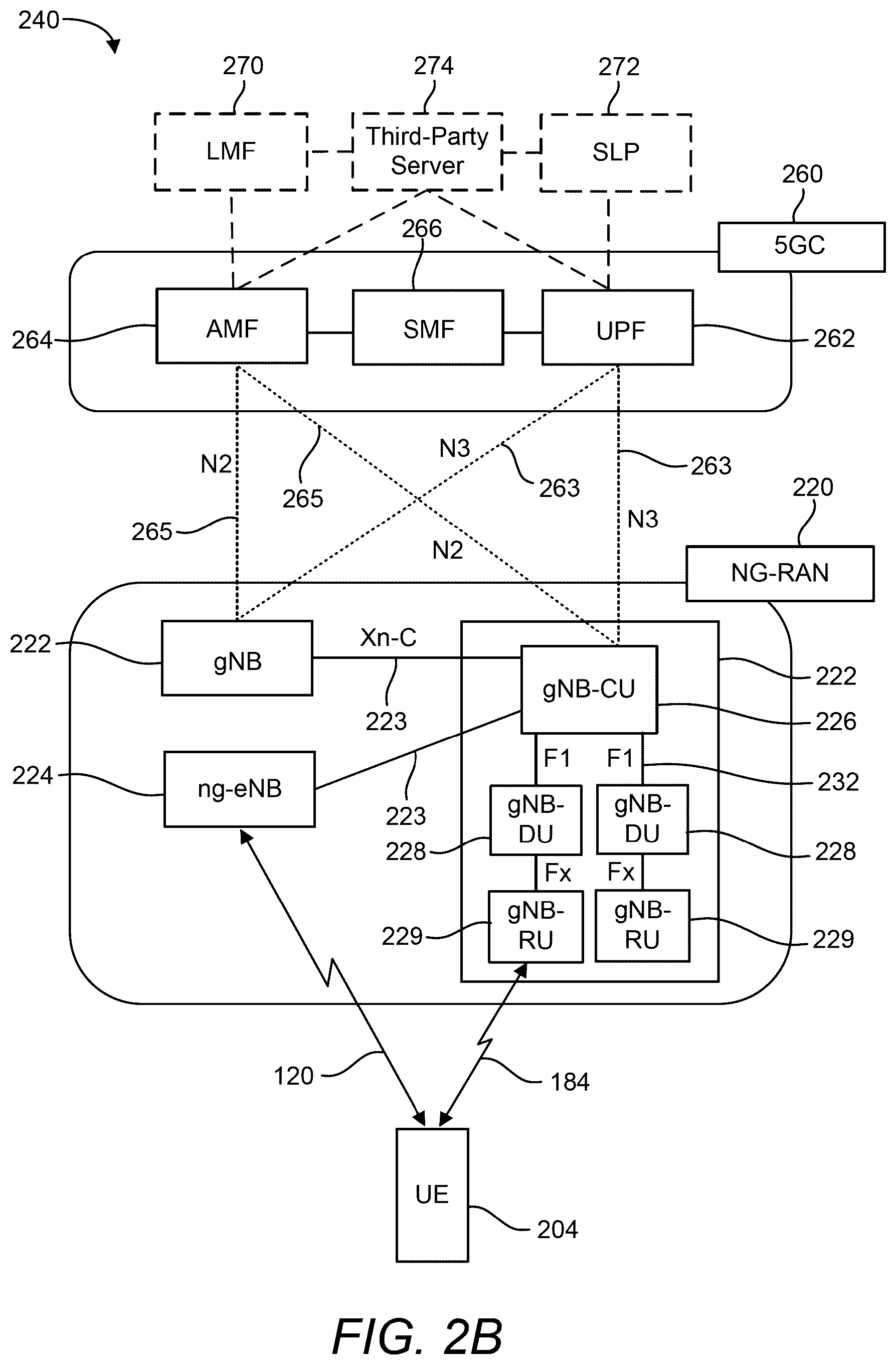

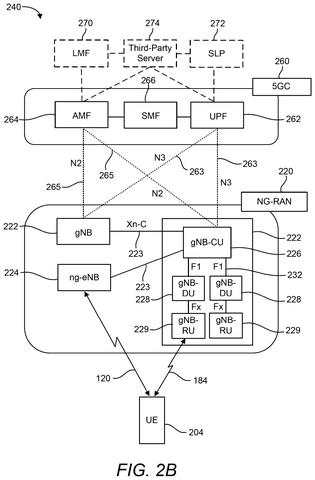

5G core network and radio access., drawing sheet 3 from US 2026/0304364 A1
Sheet 3 5G core network and radio access.

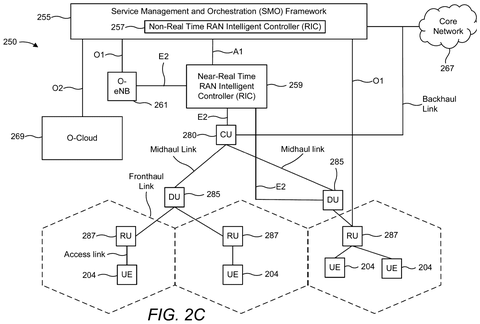

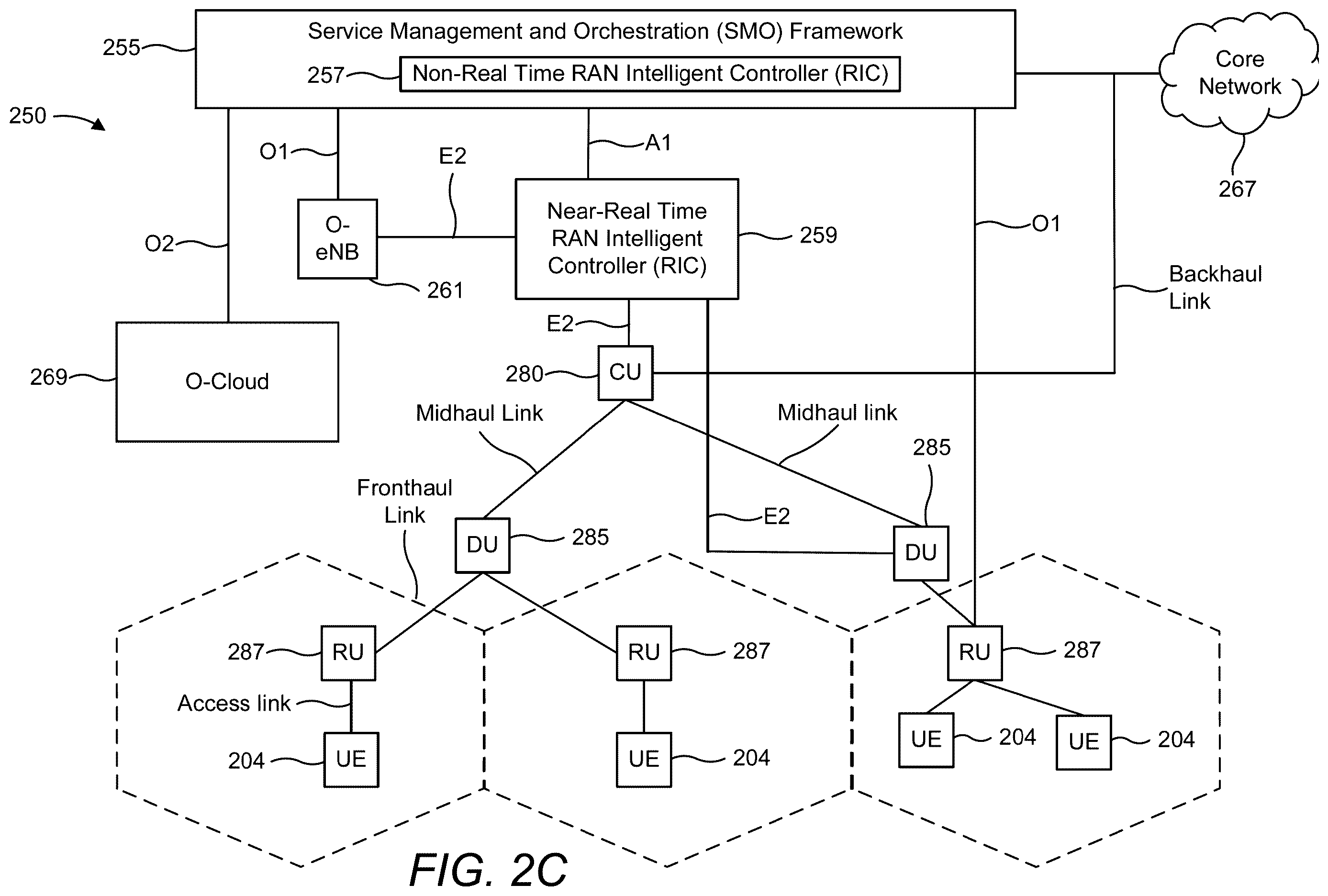

Service management and orchestration framework., drawing sheet 4 from US 2026/0304364 A1
Sheet 4 Service management and orchestration framework.

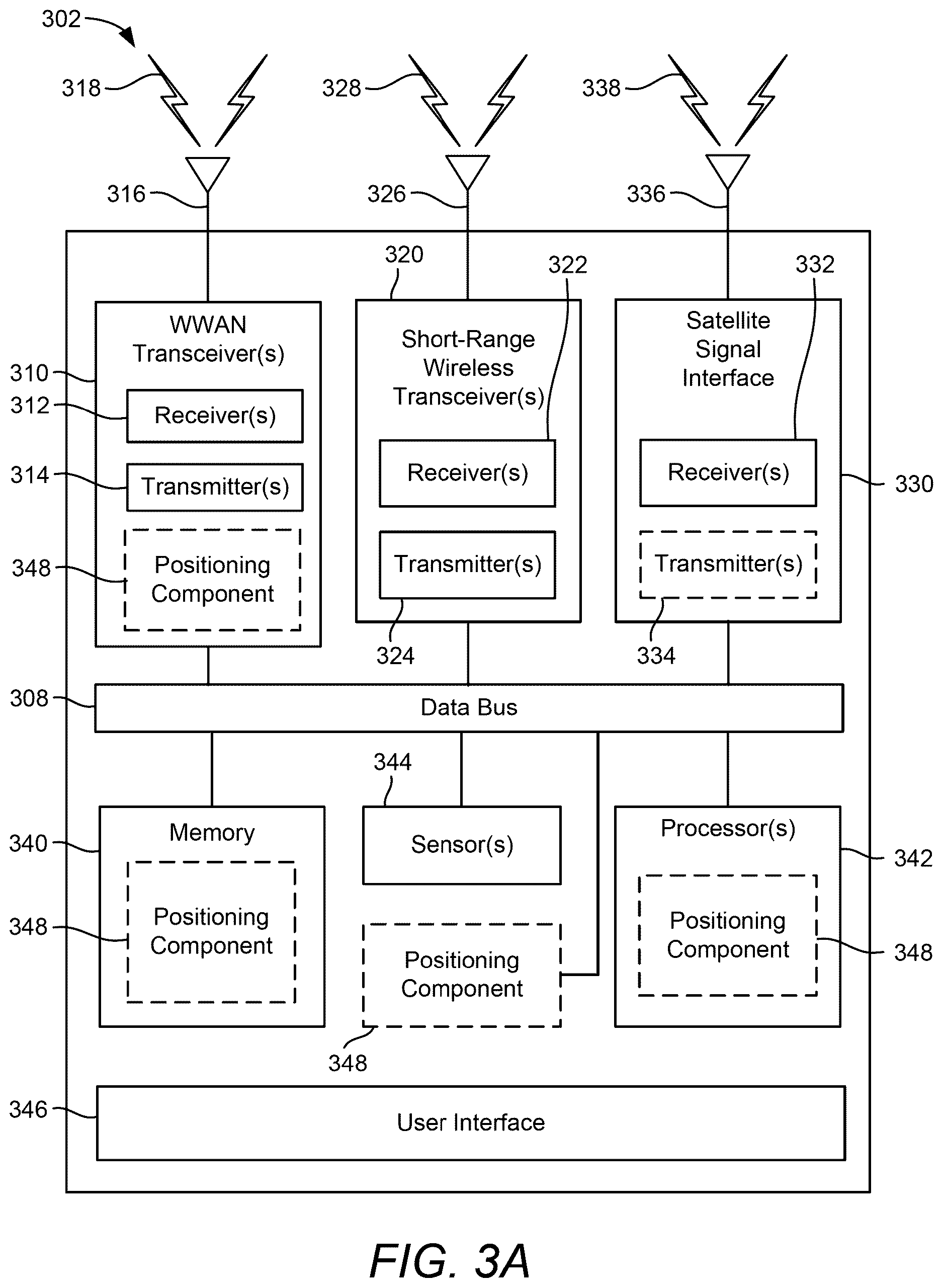

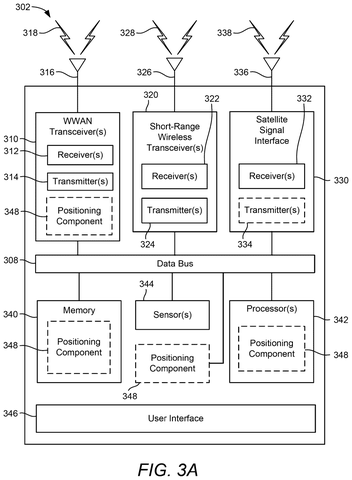

Mobile phone with wireless transceivers., drawing sheet 5 from US 2026/0304364 A1
Sheet 5 Mobile phone with wireless transceivers.

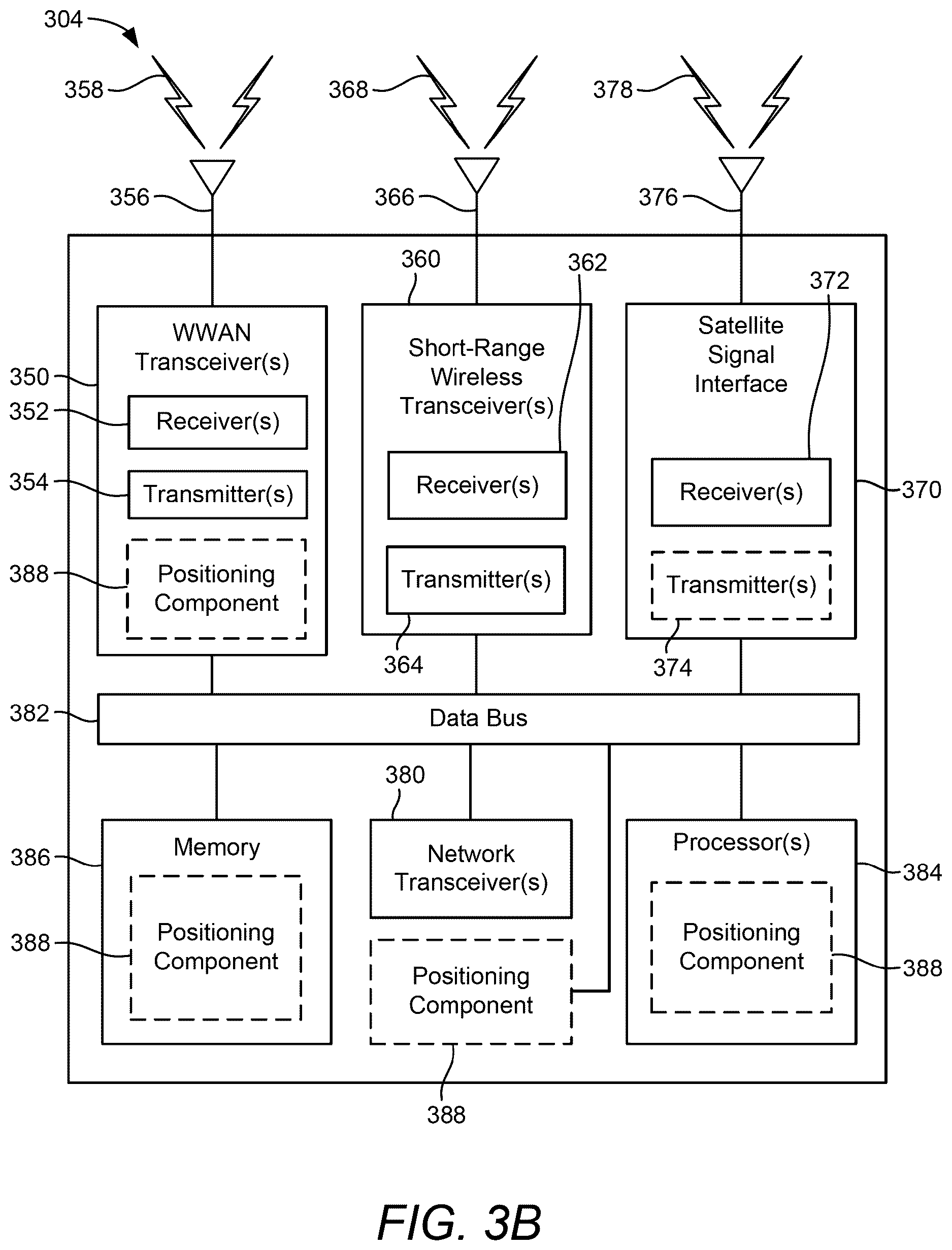

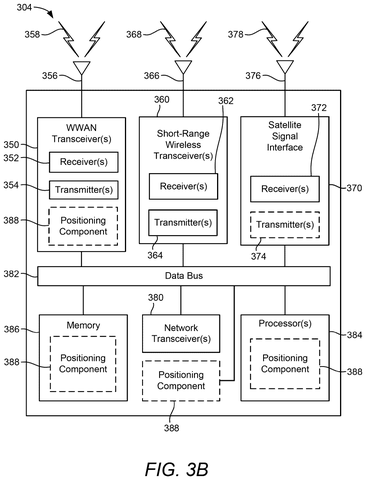

Base station with network transceivers., drawing sheet 6 from US 2026/0304364 A1
Sheet 6 Base station with network transceivers.

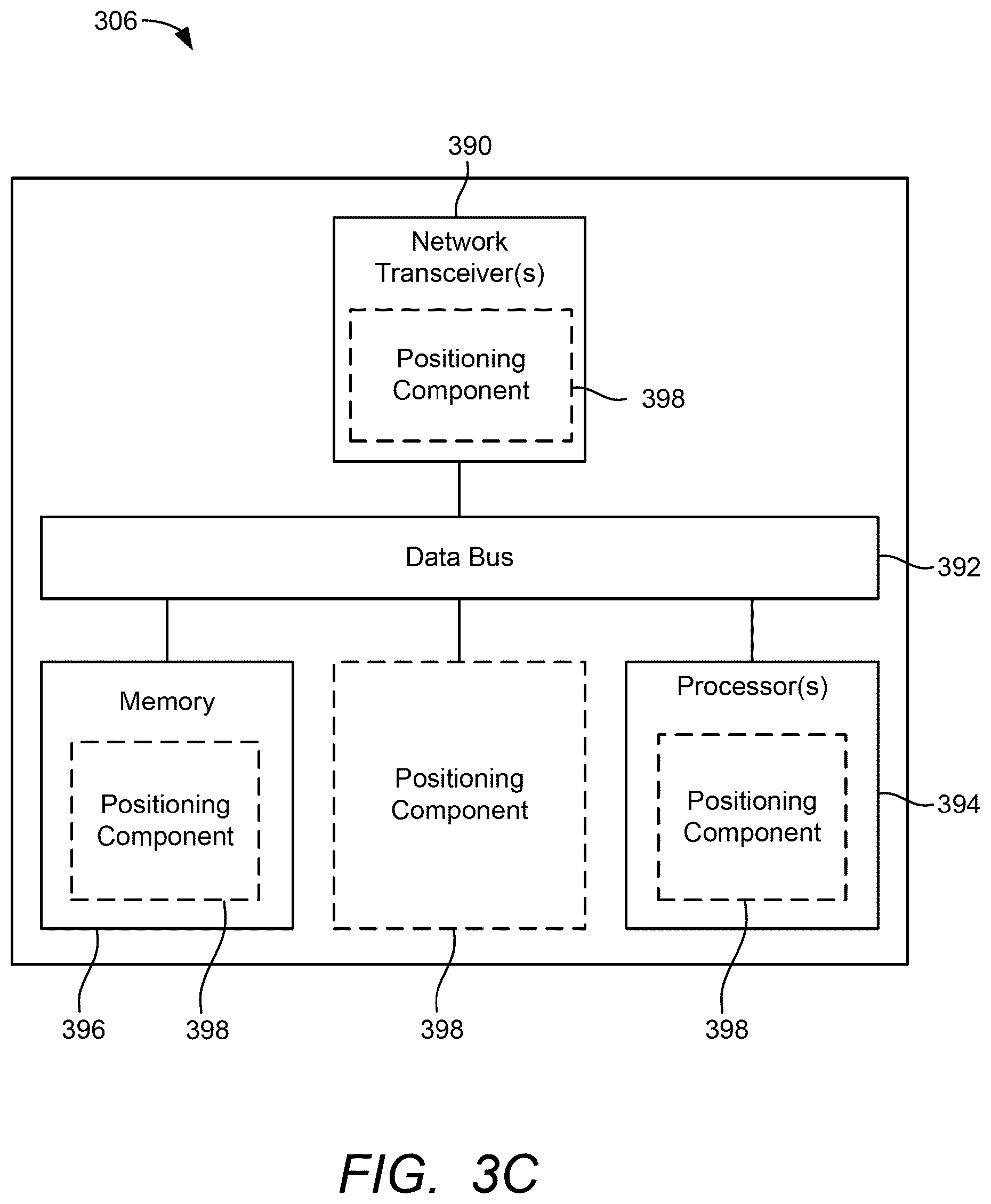

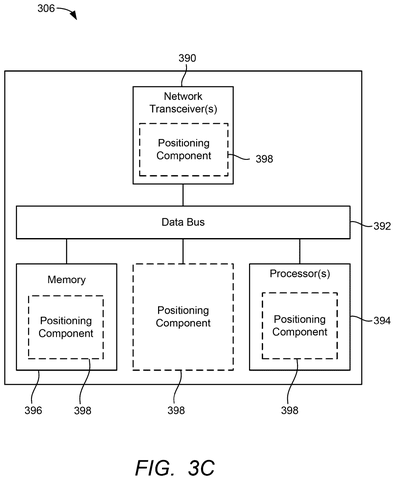

Positioning entity with network transceiver., drawing sheet 7 from US 2026/0304364 A1
Sheet 7 Positioning entity with network transceiver.

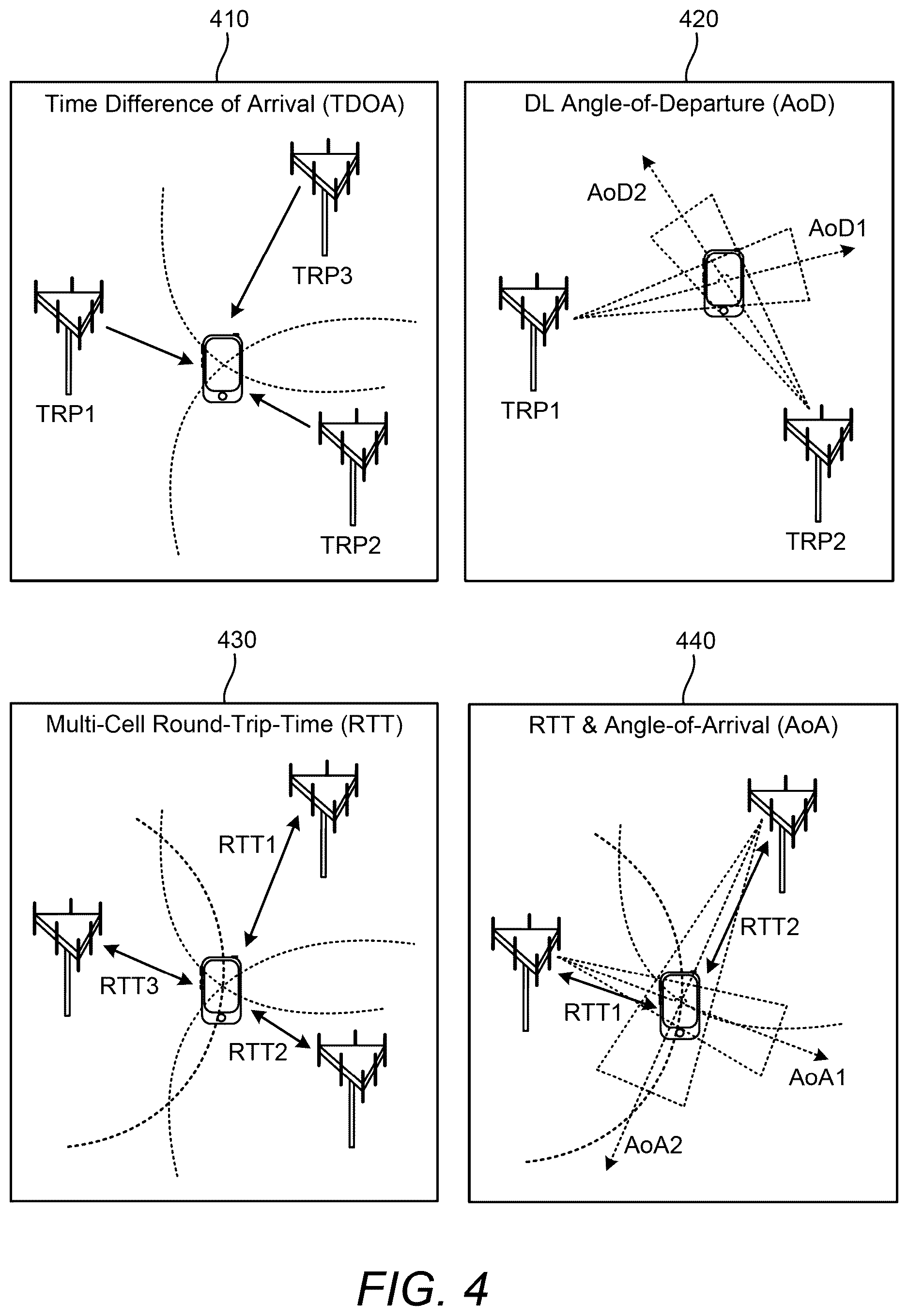

Mobile phone positioning methods., drawing sheet 8 from US 2026/0304364 A1
Sheet 8 Mobile phone positioning methods.
Show the other 7 sheets
Qualcomm Patents an Indoor Location System That Reads Magnetic Fields patent drawing, sheet 9
Sheet 9
Qualcomm Patents an Indoor Location System That Reads Magnetic Fields patent drawing, sheet 10
Sheet 10
Qualcomm Patents an Indoor Location System That Reads Magnetic Fields patent drawing, sheet 11
Sheet 11
Qualcomm Patents an Indoor Location System That Reads Magnetic Fields patent drawing, sheet 12
Sheet 12
Qualcomm Patents an Indoor Location System That Reads Magnetic Fields patent drawing, sheet 13
Sheet 13
Qualcomm Patents an Indoor Location System That Reads Magnetic Fields patent drawing, sheet 14
Sheet 14
Qualcomm Patents an Indoor Location System That Reads Magnetic Fields patent drawing, sheet 15
Sheet 15
