Qualcomm Files Patent for a Scanner That Tells You When Your Hand Is Blocking It
Your own hand can sharply weaken a handheld scanner's signal, and you may never know it. This Qualcomm filing has the scanner speak up.
What Qualcomm's blocked-antenna alert does
Ever pointed a handheld scanner at a shelf of stock and gotten nothing back? Sometimes the culprit is you. If your hand or a thick work glove covers the scanner's antenna, the signal can drop by roughly 10 to 20 decibels (a big loss), and the filing says you may have no idea it's happening.
Qualcomm's patent has the scanner watch its own signal while it reads tags. When the signal looks too weak, the device tells you, and the suggested fix is simple: move your hand off the antenna. Then it tries the read again.
This matters most where people count inventory in stores and warehouses all day, and slow or wrong reads add up.

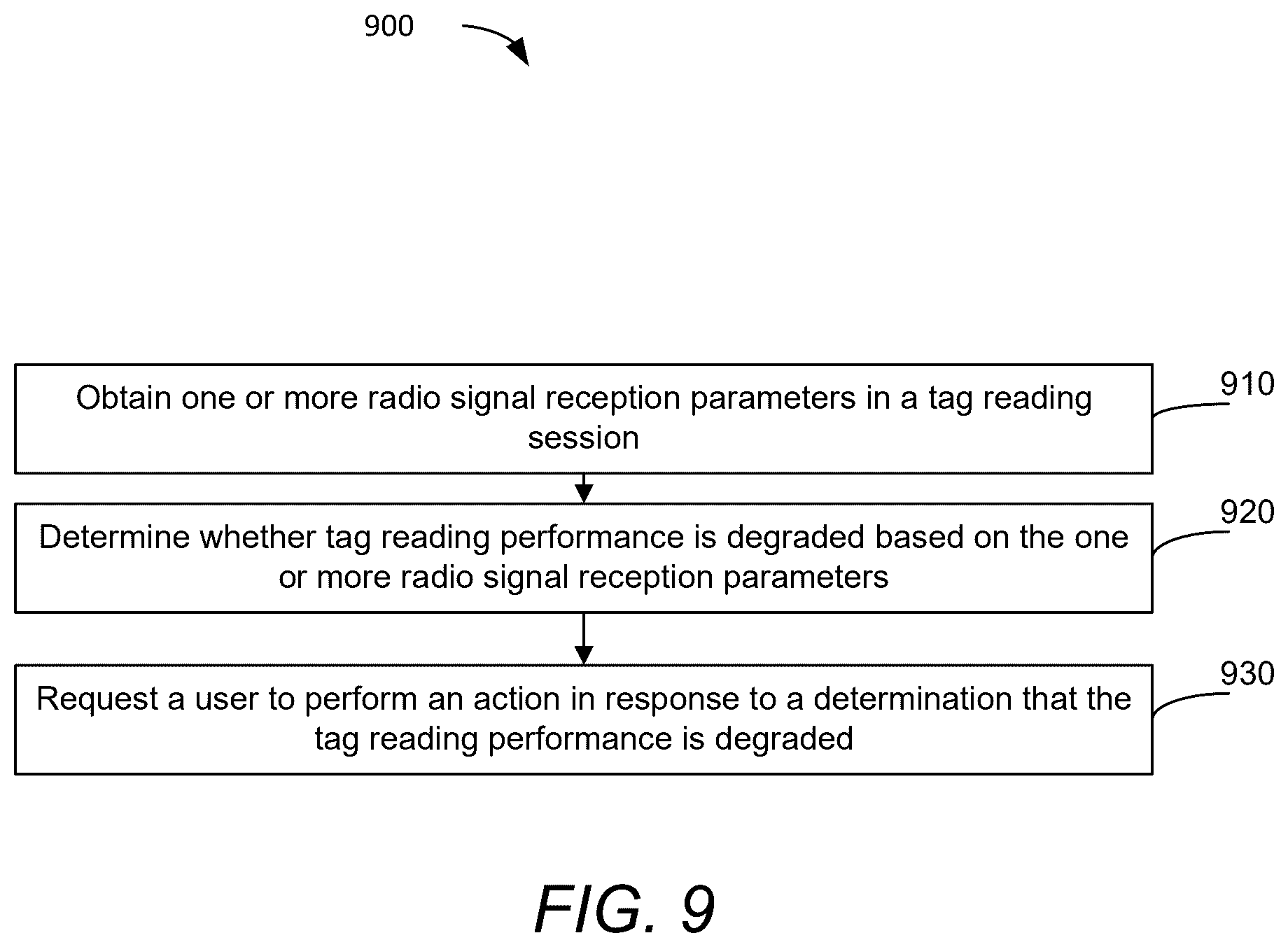

… determine whether tag reading performance is degraded based on the one or more radio signal reception parameters; and request a user to perform an action in response to a determination that the tag reading performance is degraded.
Translation: It figures out when a signal is blocked and then asks you to move your hand.
How the reader decides your hand is in the way

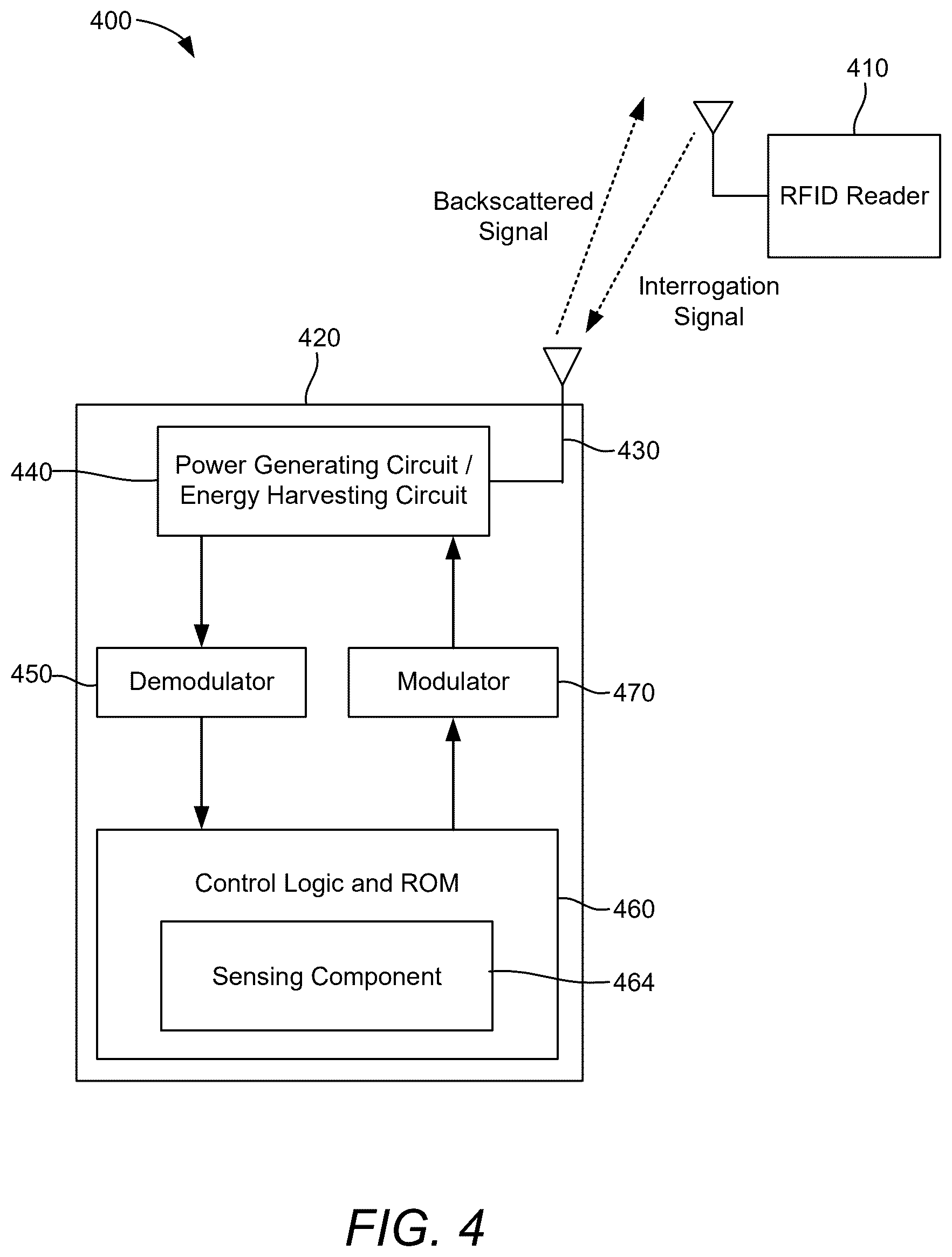

The patent describes a tag reader, most plainly an RFID reader (a handheld device that sends out a radio pulse, which wakes small tags attached to products so they can reply with an ID). While it reads tags, the device records radio signal reception parameters, meaning measurements of how strong and clean the returning signal is.
It then checks whether reading performance has dropped. The filing lists several possible measurements: received power, received energy, RSRP (reference signal received power, a standard signal-strength reading), SNR (signal-to-noise ratio, how much louder the signal is than background hiss) and SINR (the same idea, but it also counts interference). Two checks are described:
- Compare each measurement to a preset threshold. One example sets RSRP at -110 dBm and SNR at -3 dB as signs of serious degradation.
- If the reader has more than one antenna, compare the antenna doing the reading with the others. A big gap suggests that one antenna is blocked.
When the check says performance is degraded, the reader asks the user to act. The main example is unblocking an antenna, for instance by moving a hand away, and the filing says the alert could appear in an RFID app on the reader. The reader can then run the read again. The claims cover the device, a method, and stored software instructions.
Why slow tag reads cost warehouses time
The practical point is time. The filing says a blocked antenna can make tags harder to read, slow down each read, and raise the chance of wrong readings during inventory counts in stores and warehouses. It also names thick gloves and protective gear, such as in freezers or power facilities, as another source of the same problem.

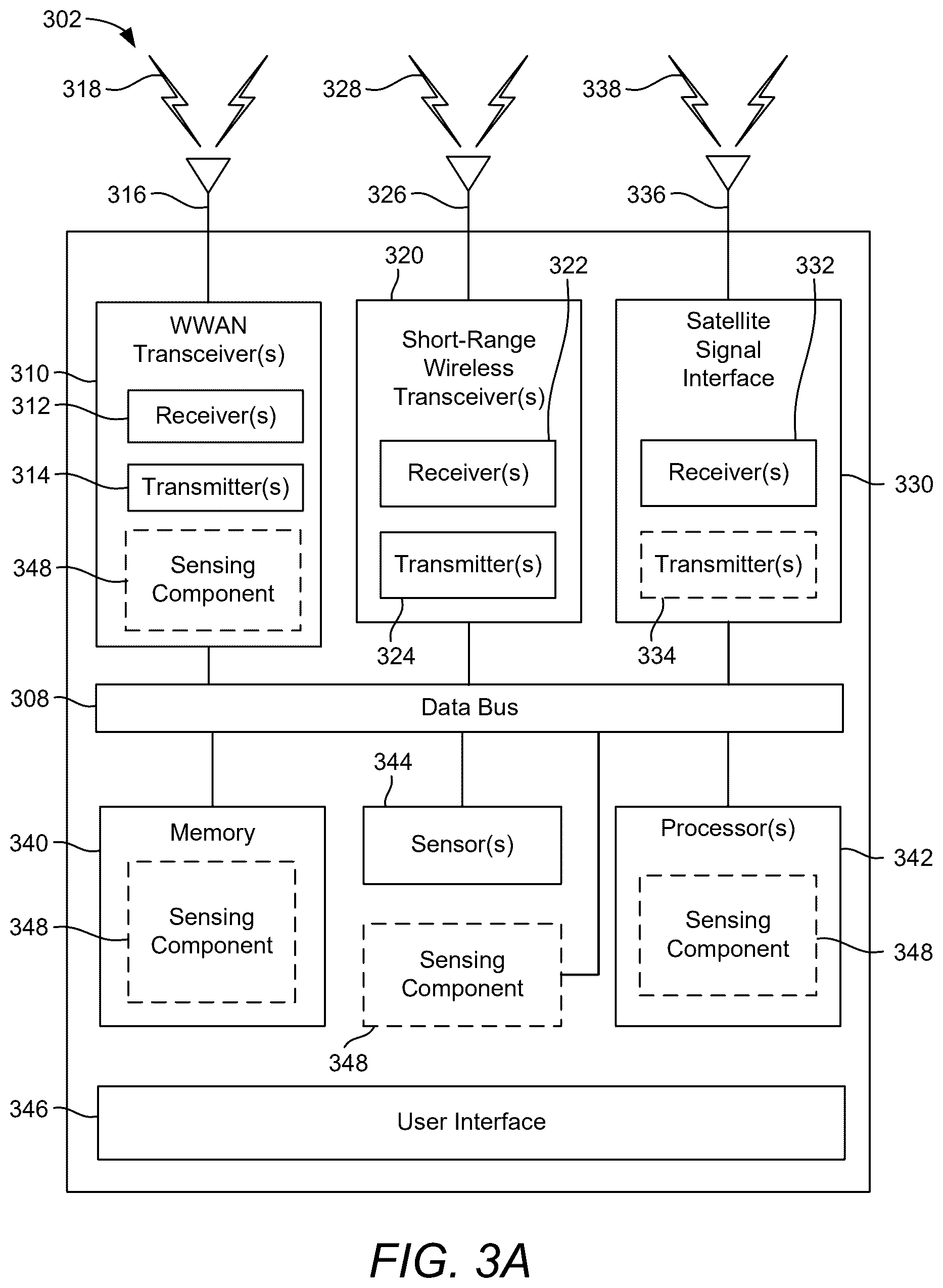

For anyone using one of these readers, the feature would turn a mystery (why is this thing so slow?) into a clear message with an easy fix. The filing also describes the reader as a user device, a category that includes phones, so the idea is not tied to a dedicated scanner. It is a modest idea, but it targets a real annoyance.
Qualcomm's 516th filing in our Qualcomm coverage since May extends a pattern that includes phones grading their own AI and roadside GPS error detection.
Claim 1 is wide. It covers any tag reader with memory, a radio and a processor that measures signal quality during a read, decides the readings have gotten worse, and asks the user to do something about it. It never mentions hands, antennas or RFID by name.
Those specifics show up in the follow-up claims: RFID readers in claim 2, unblocking an antenna in claim 3, comparing against a second antenna in claim 6, and fixed thresholds in claim 7. If granted as written, the broad version would reach any reader that prompts its user after a poor signal, whatever the cause or the fix.
The idea itself is plain once stated, and that plainness is the story. The concrete detail lives in the narrower claims, so those are the ones to read closely.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Qualcomm patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

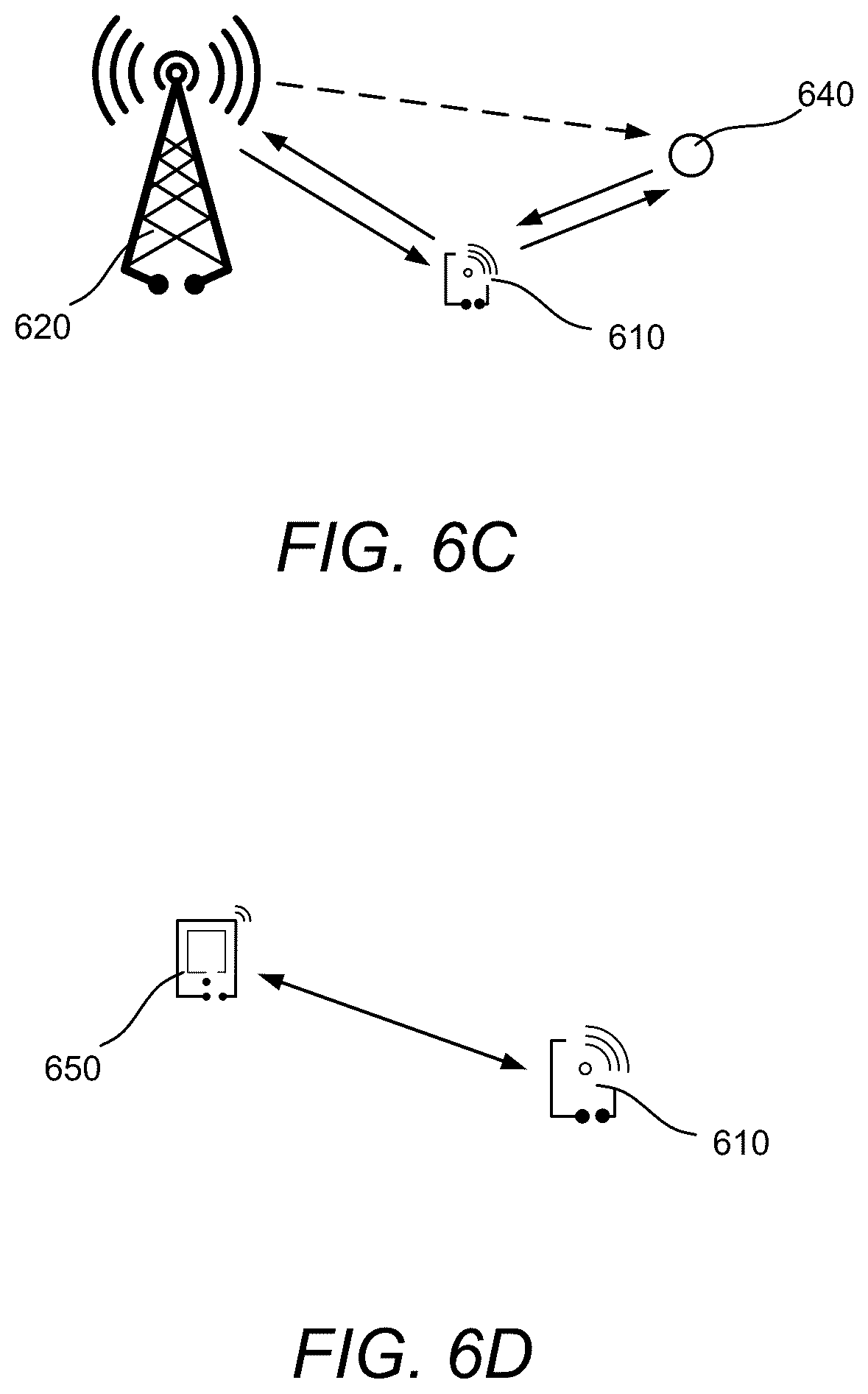

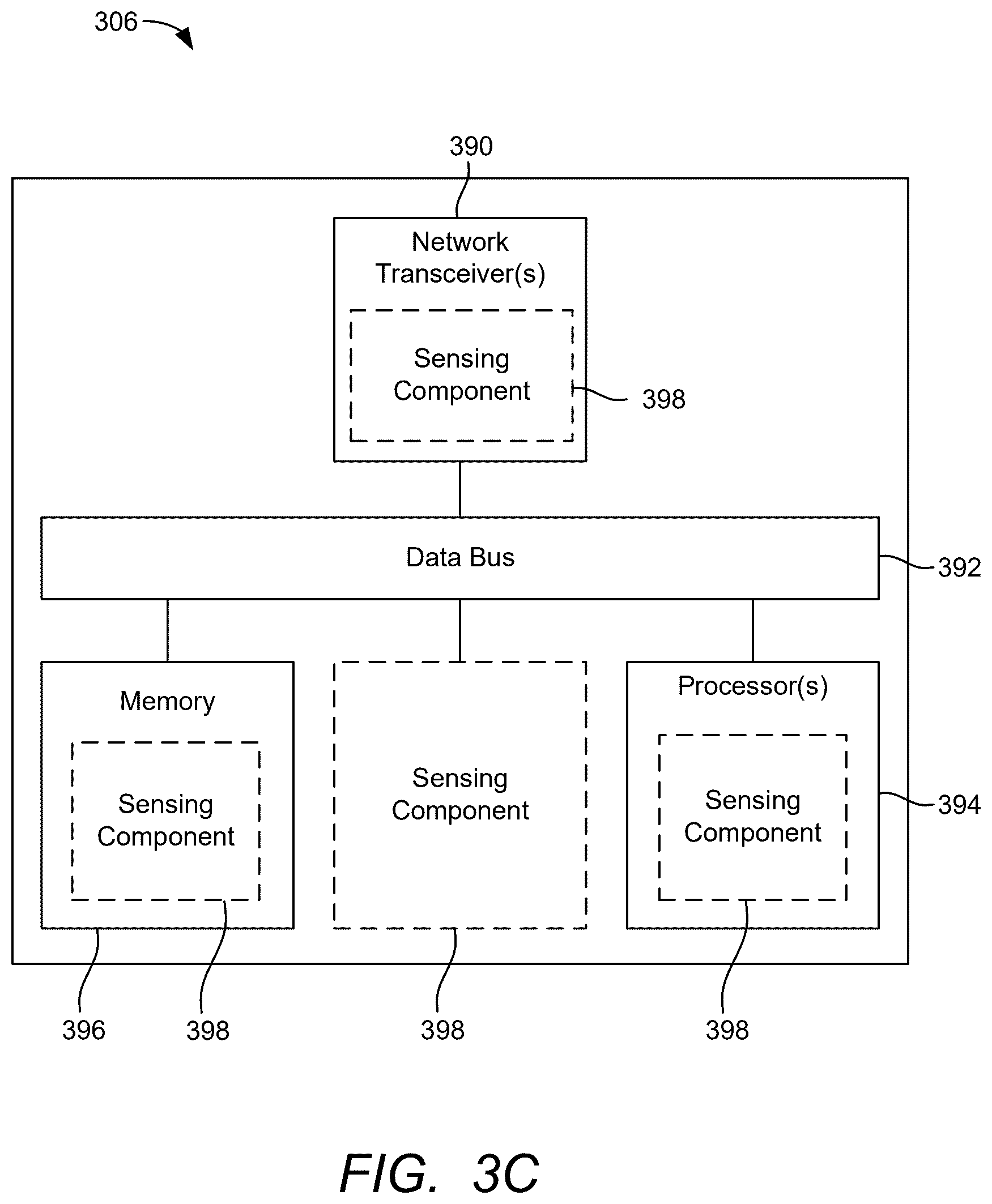

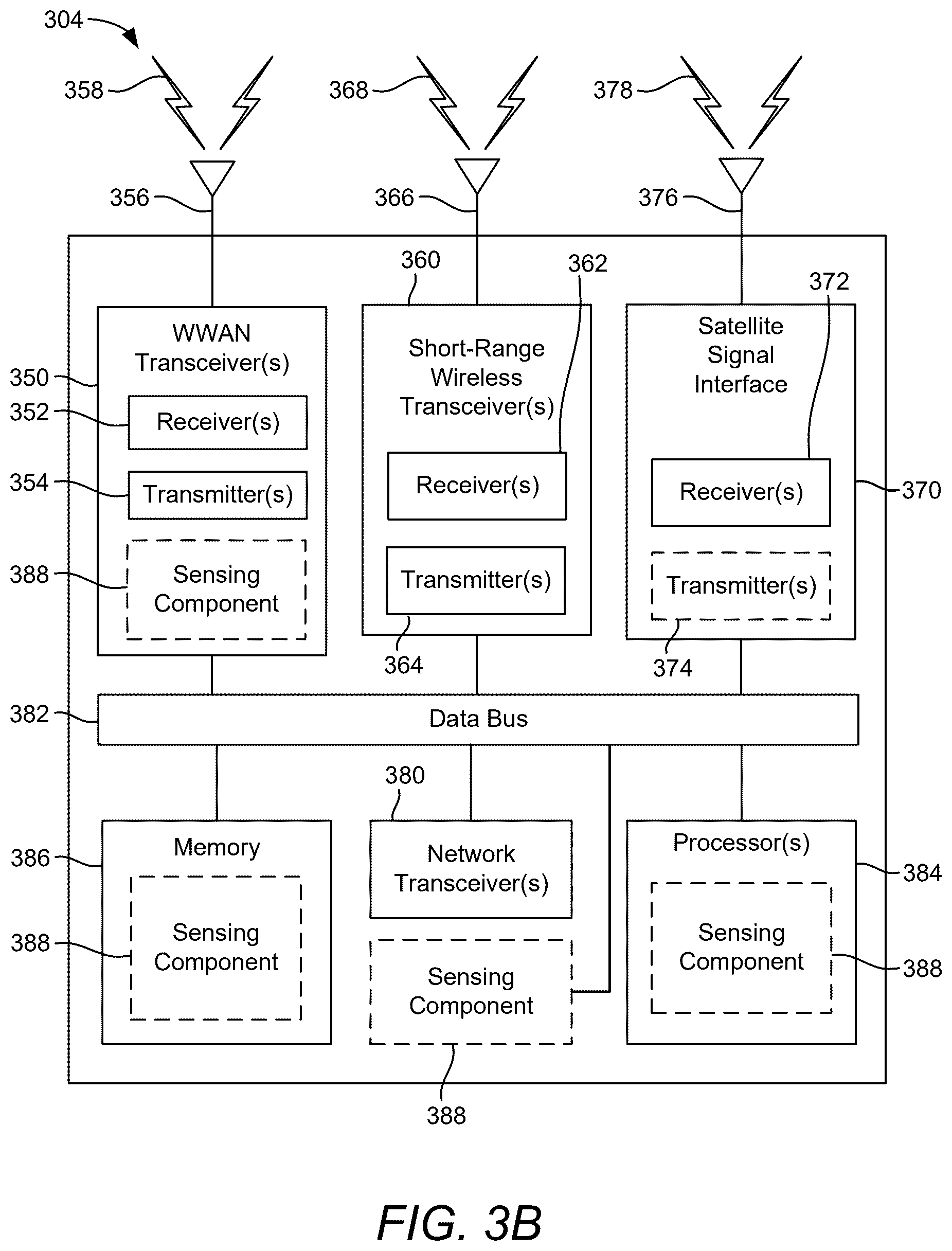

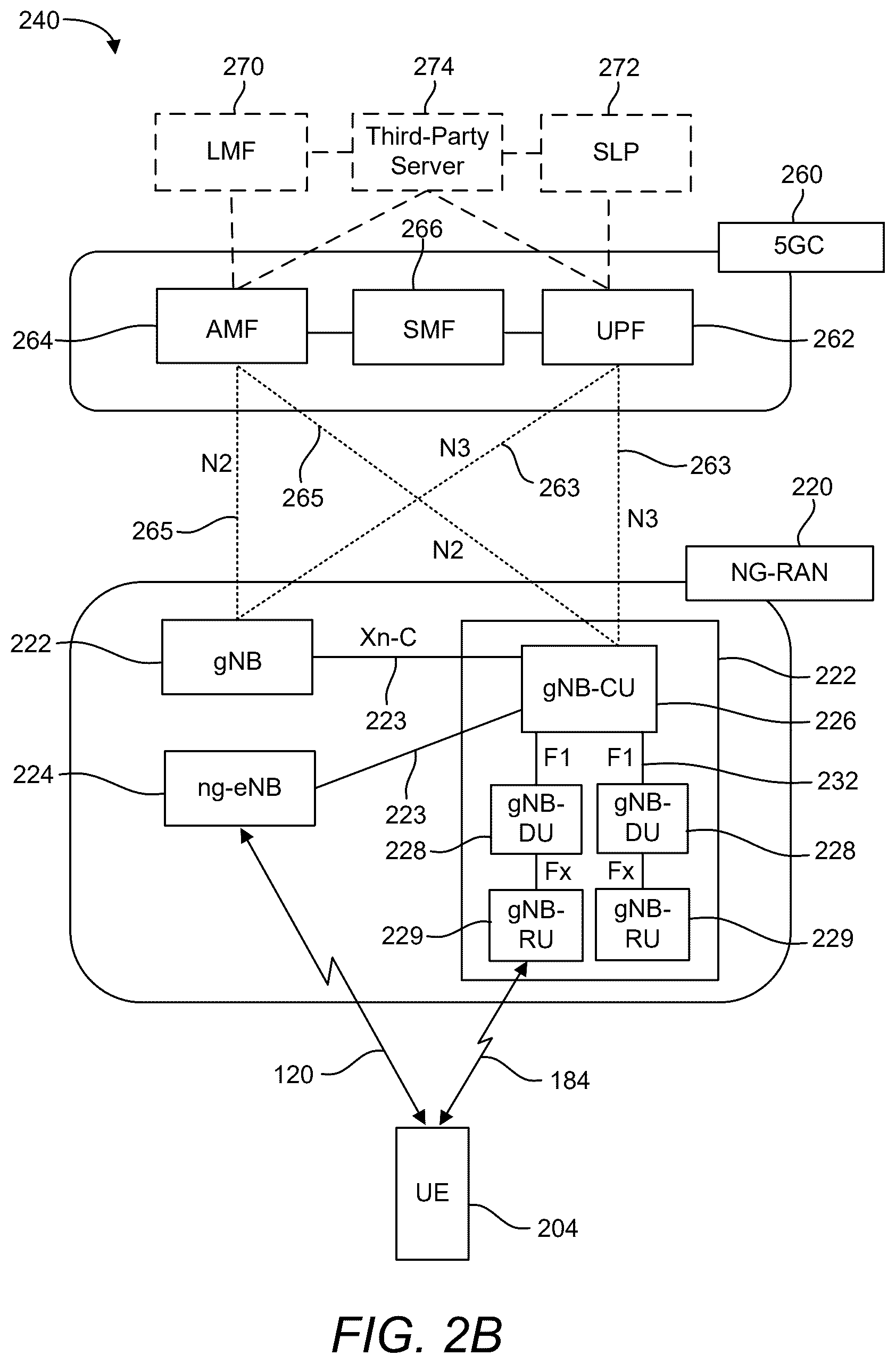

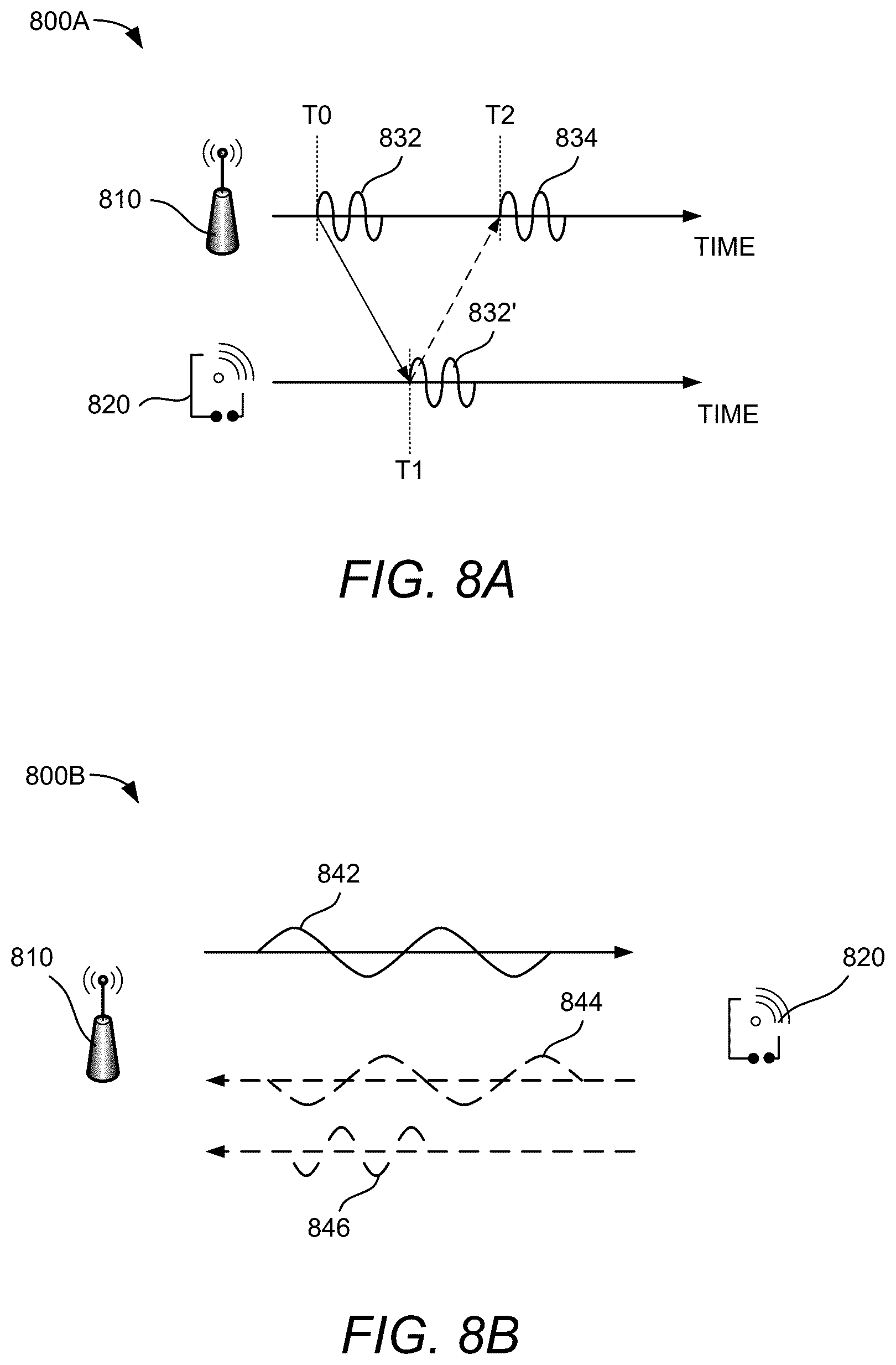

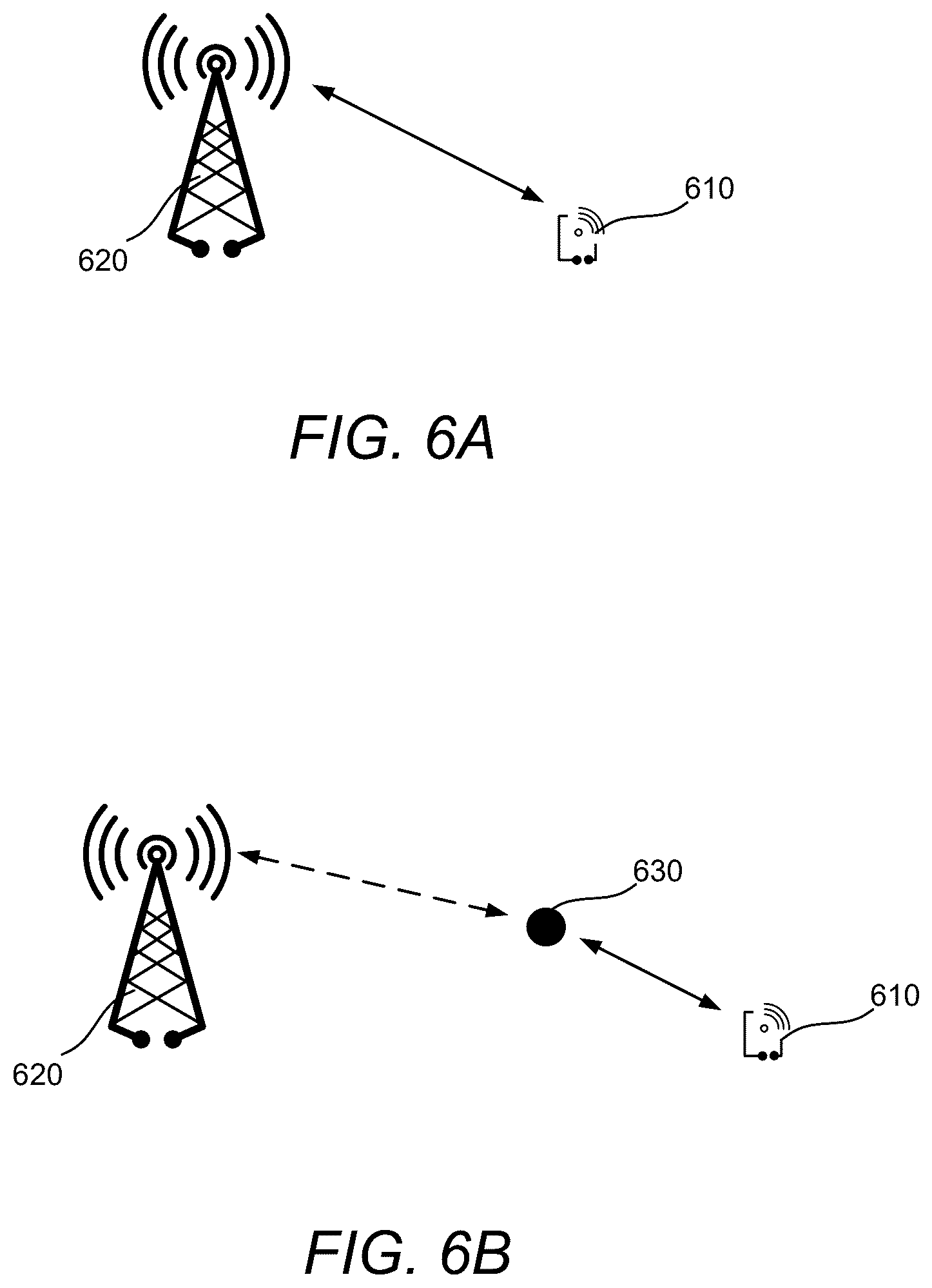

14 drawing sheets from US 2026/0323263 A1 · click any drawing to enlarge
