Qualcomm · AR / VR · Filed Feb 13, 2025 · USPTO published Aug 13, 2026 · Aug 13 release

Qualcomm Patents a Way for AR Headsets to Negotiate Their Own Workload With the Network

Running augmented reality on a headset is expensive in two ways: battery and bandwidth. Qualcomm's new patent lets the headset and the wireless network negotiate, in real time, who handles which piece of the computation.

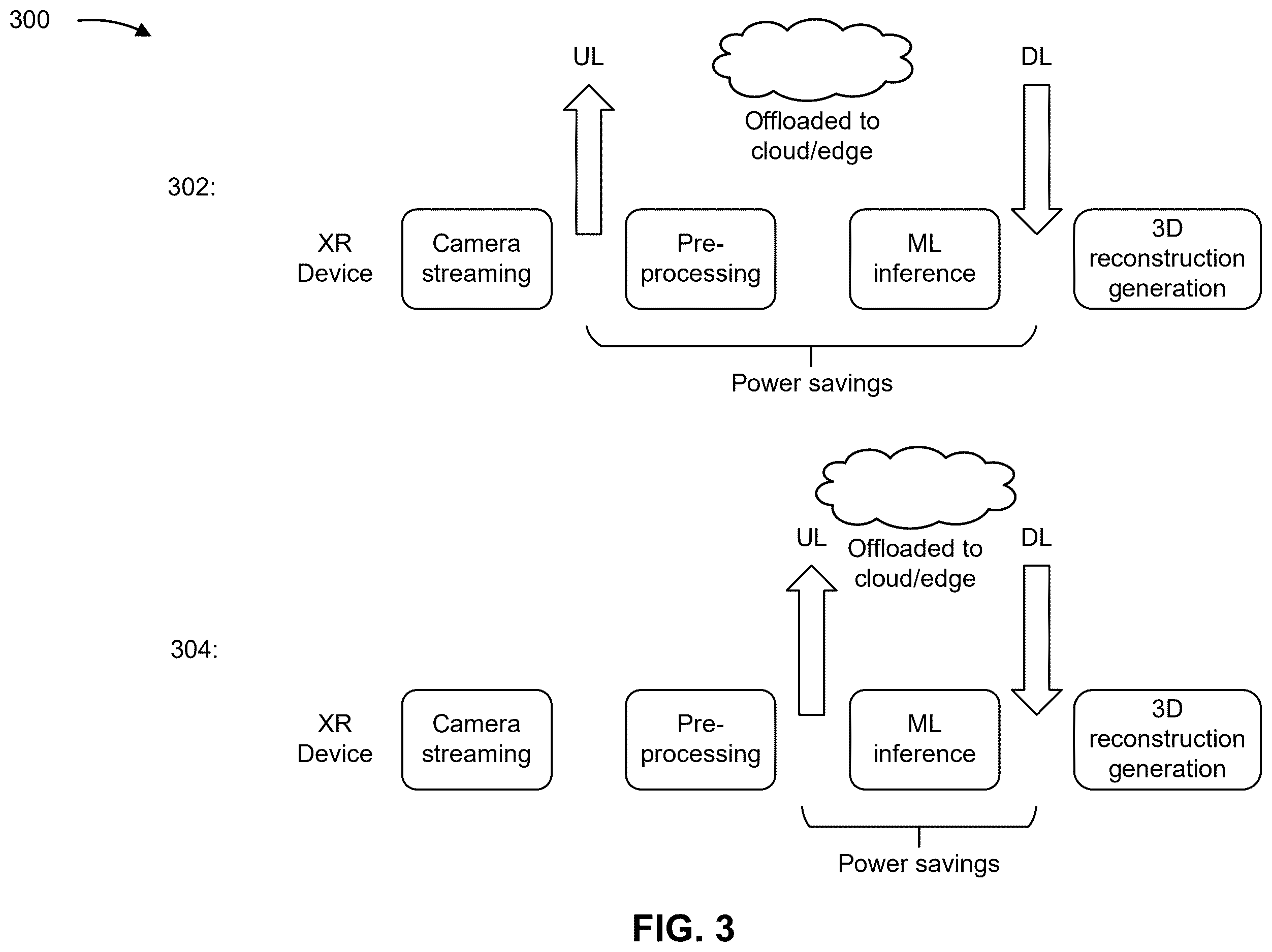

Data processing workflows showing how an AR headset offloads computing tasks to the cloud to save power. Drawing from patent filing US 2026/0238697 A1.
Data processing workflows showing how an AR headset offloads computing tasks to the cloud to save power.All 10 drawings ↓
Publication number
US 2026/0238697 A1(US20260238697A1)
Applicant
QUALCOMM Incorporated
Filed · Published
Feb 13, 2025 · Aug 13, 2026
Inventors
Belal Salama Amin KORANY, Hussein METWALY SAAD, Hyun Yong LEE, Peerapol TINNAKORNSRISUPHAP, Simone MERLIN, Prashanth Haridas HANDE
Status when we published
Examiner raised objections; the company can respond
Document
20 claims
US classification
709/203
Examiner
NGUYEN, QUANG N (Art Unit 2453)

How Qualcomm's AR headset-network handshake works

A person wearing AR glasses walks into a crowded stadium. The headset is already straining to render virtual overlays while the Wi-Fi is packed. Something has to give, and right now neither the headset nor the network has a good way to tell the other what it can handle.

Qualcomm's patent tackles that gap directly. The idea is to let the device send assistance information to the network, essentially a short status report about what the headset needs and what it can manage on its own. The network (or a server on the other end) reads that report and sends back a decision: process the graphics locally, offload them to the cloud, or split the work somewhere in between.

For you as the person wearing the headset, the goal is that the experience stays smooth even as conditions change, without any manual adjustment on your part. The device and the network figure it out together.

From the filing · THE ABSTRACT
… a user equipment (UE) may transmit radio access network (RAN) assistance information associated with an extended reality (XR) split perception …

Translation: The headset sends network data about how it is handling extended reality graphics.

Inside the RAN assistance and split-selection loop

The patent centers on a concept called XR split perception. In extended reality (XR) systems, the heavy lifting of rendering 3D graphics can happen in several places: entirely on the device, entirely on a remote server, or split across both. Each option has tradeoffs in latency (how fast images update), battery drain, and data usage.

What Qualcomm proposes is a formal signaling layer between the device and the radio access network (RAN), the cell towers or wireless infrastructure the device connects to. The device transmits RAN assistance information, a structured message describing its current state and the XR session's requirements.

Based on that information, the network (or an edge server coordinating with it) selects a split or offload option and sends that choice back to the device. The device then adjusts its rendering pipeline accordingly.

  • Transmit phase: the headset sends capability and load data to the RAN.
  • Selection phase: the network picks the best processing split given current conditions.
  • Indication phase: the chosen option is signaled back to the device so it can act on it.
From the filing · CLAIM 1
… receive, based at least in part on the RAN assistance information, an indication associated with a selected split or offload option for the XR split perception …

Translation: The device gets instructions on whether to process graphics locally or send them to the network.

What this means for wireless AR and XR glasses

AR and mixed-reality headsets are power-constrained by design. Every watt saved on rendering is a watt that goes toward sensors, display brightness, or just longer battery life. By letting the network make the offloading decision rather than hard-coding it into the device, Qualcomm's approach means the split can adapt as signal quality changes, as the server load shifts, or as the user moves between environments.

The tradeoff is real, though: this only works if the network infrastructure on the other end is actually capable of making those decisions and acting on them fast enough to matter. That is a significant assumption about 5G edge-computing buildout that is still very much in progress. For readers following the broader category of interesting tech patents around wireless XR, this filing reflects how much of the AR headset problem is actually a network problem in disguise.

Source: US 2026/0238697 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Qualcomm patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 10 sheets

10 drawing sheets from US 2026/0238697 A1 · click any drawing to enlarge

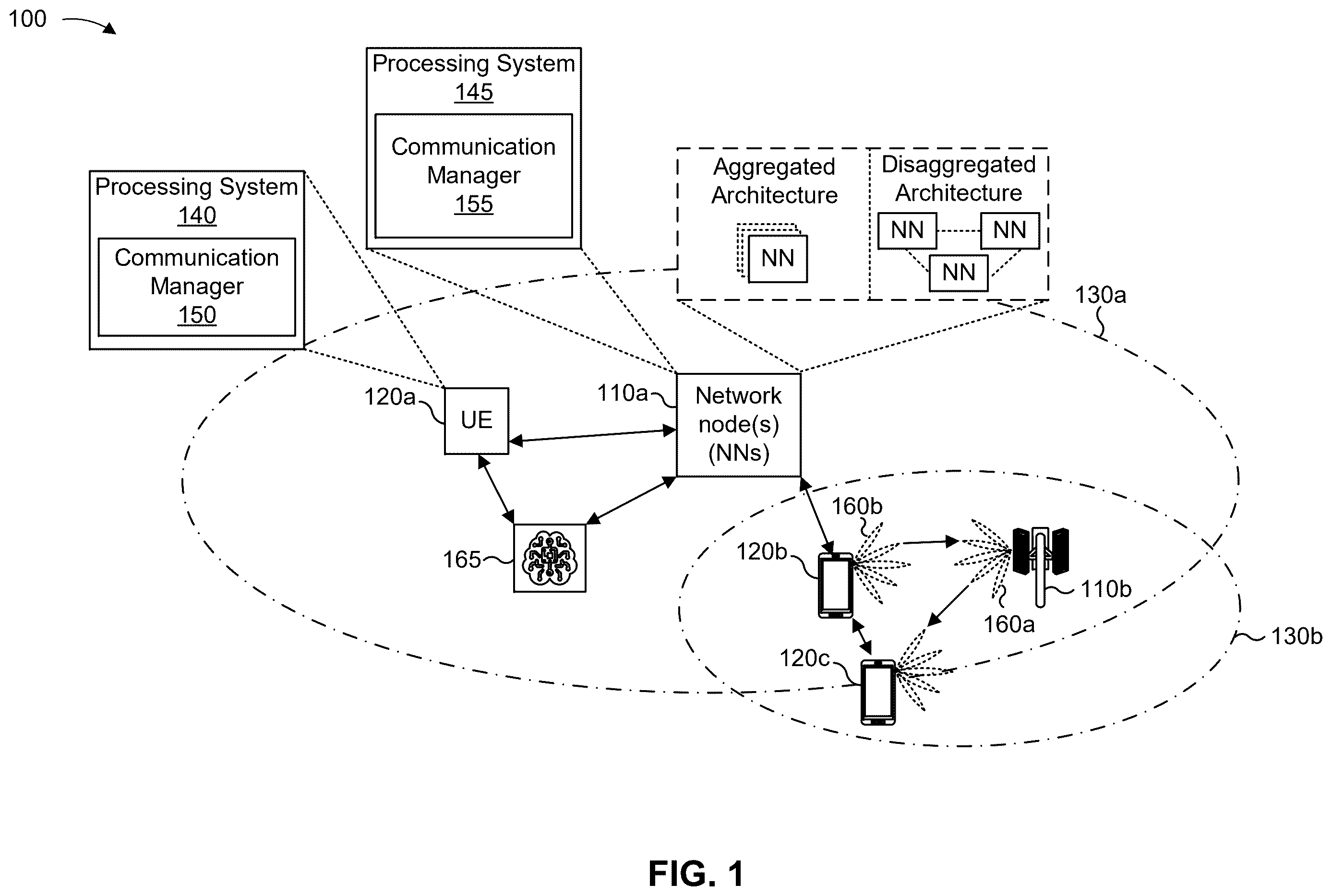

Wireless network architecture overview, drawing sheet 1 from US 2026/0238697 A1
Sheet 1 Wireless network architecture overview

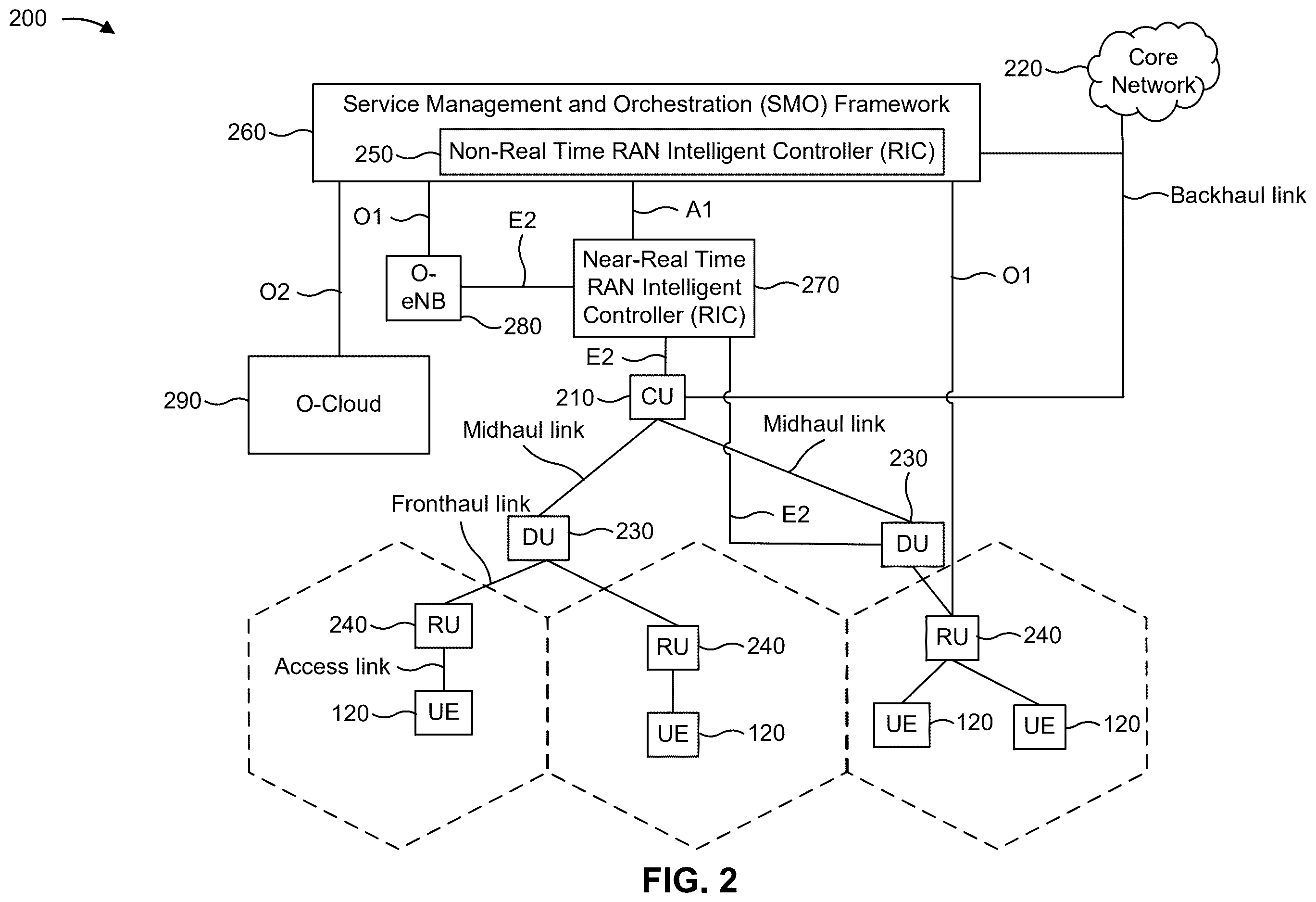

Cloud-connected radio access network, drawing sheet 2 from US 2026/0238697 A1
Sheet 2 Cloud-connected radio access network
Workload offloading workflows for headsets, drawing sheet 3 from US 2026/0238697 A1
Sheet 3 Workload offloading workflows for headsets

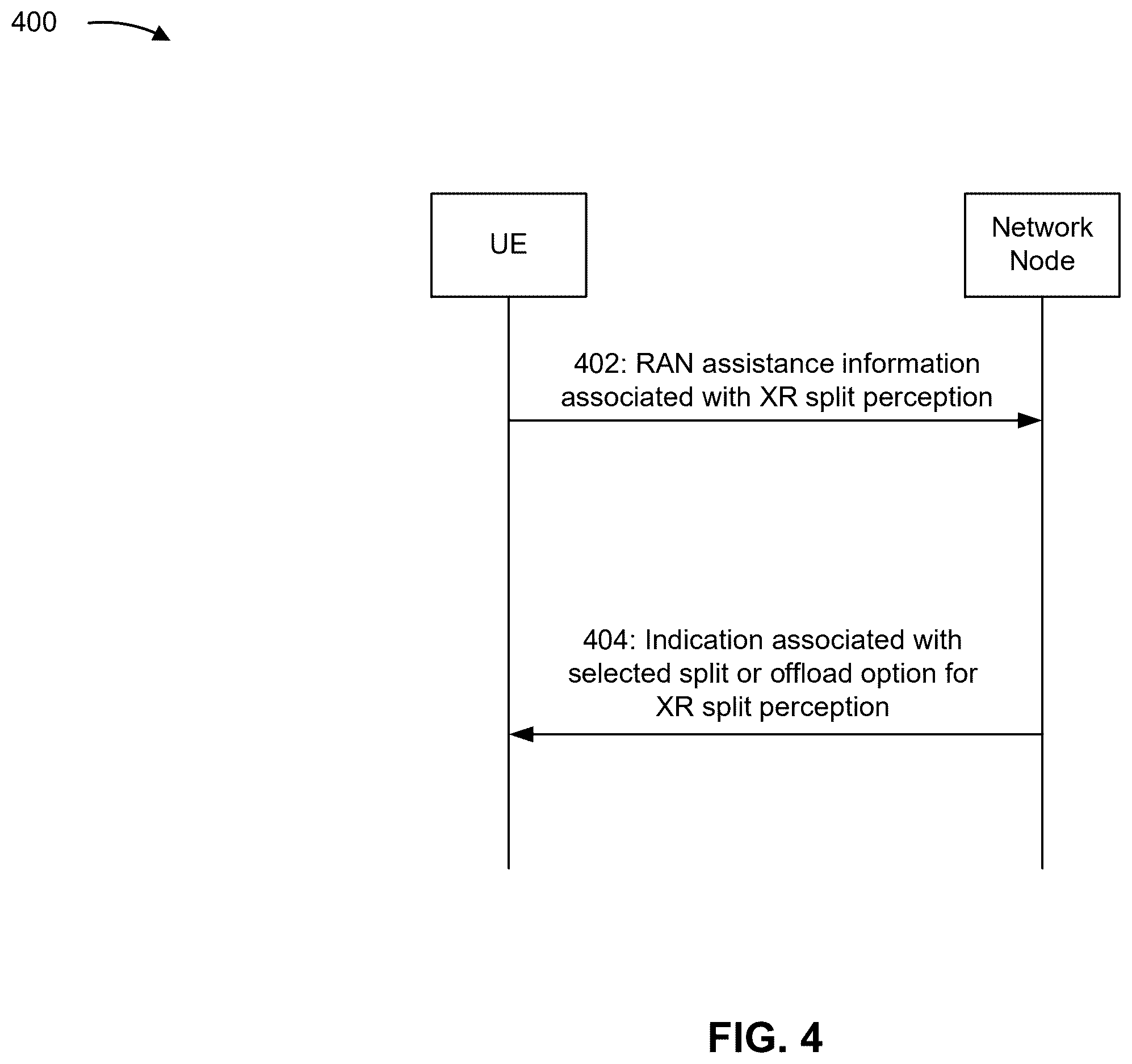

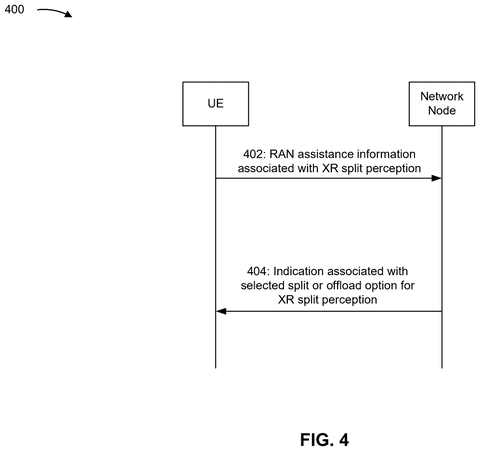

Communication sequence between device and network, drawing sheet 4 from US 2026/0238697 A1
Sheet 4 Communication sequence between device and network

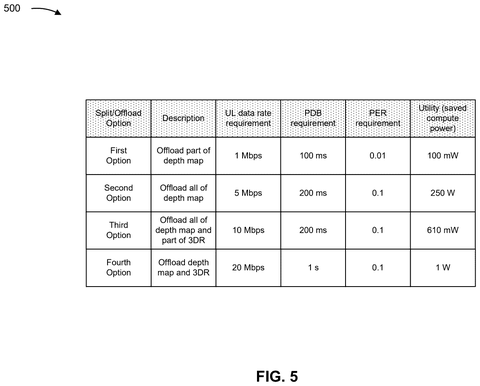

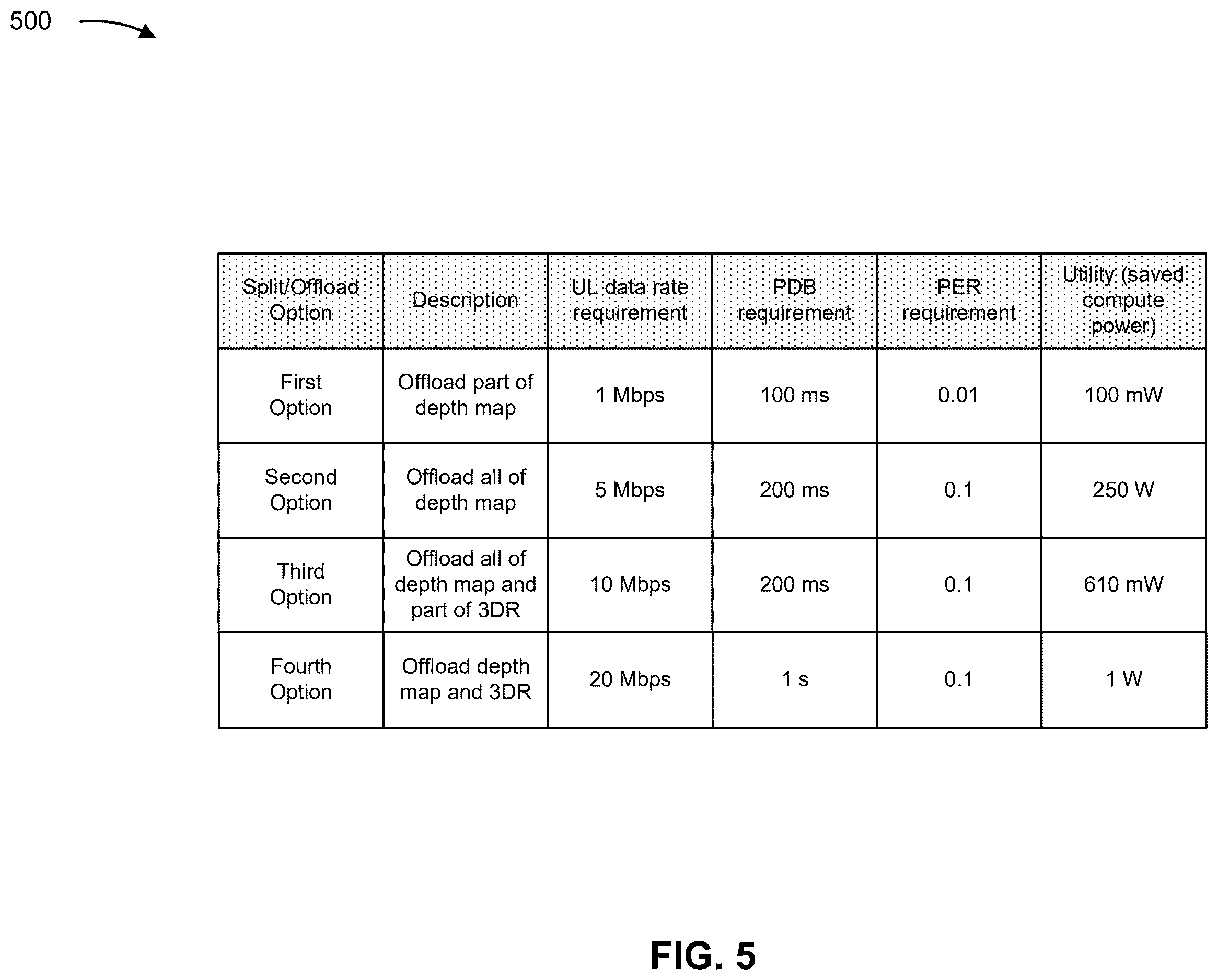

Table of candidate offload options, drawing sheet 5 from US 2026/0238697 A1
Sheet 5 Table of candidate offload options

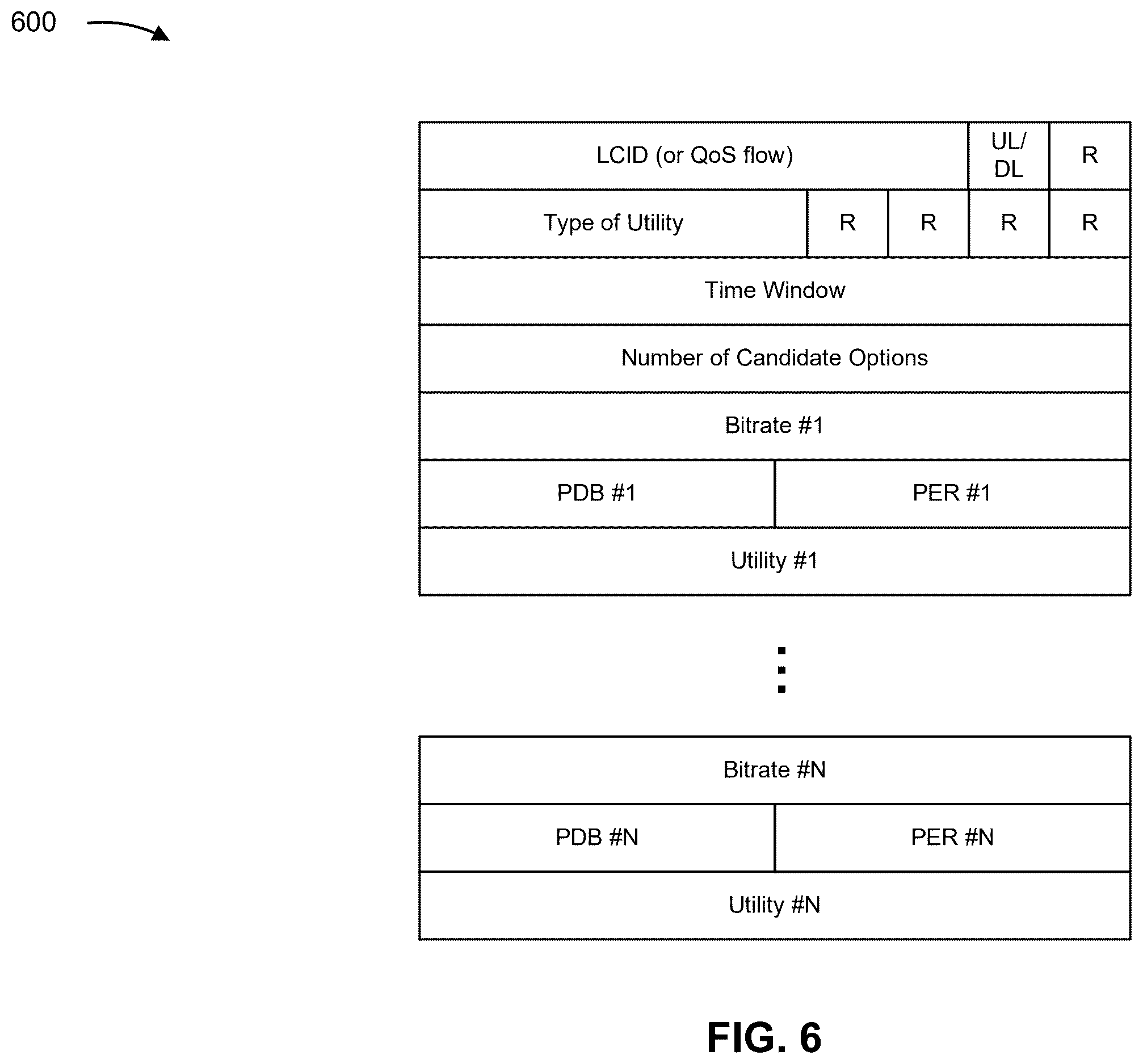

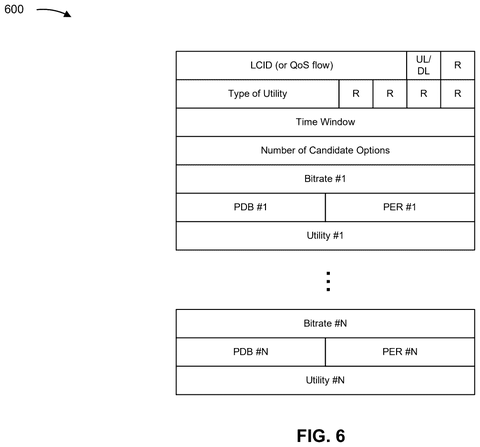

Data packet format for offload metrics, drawing sheet 6 from US 2026/0238697 A1
Sheet 6 Data packet format for offload metrics

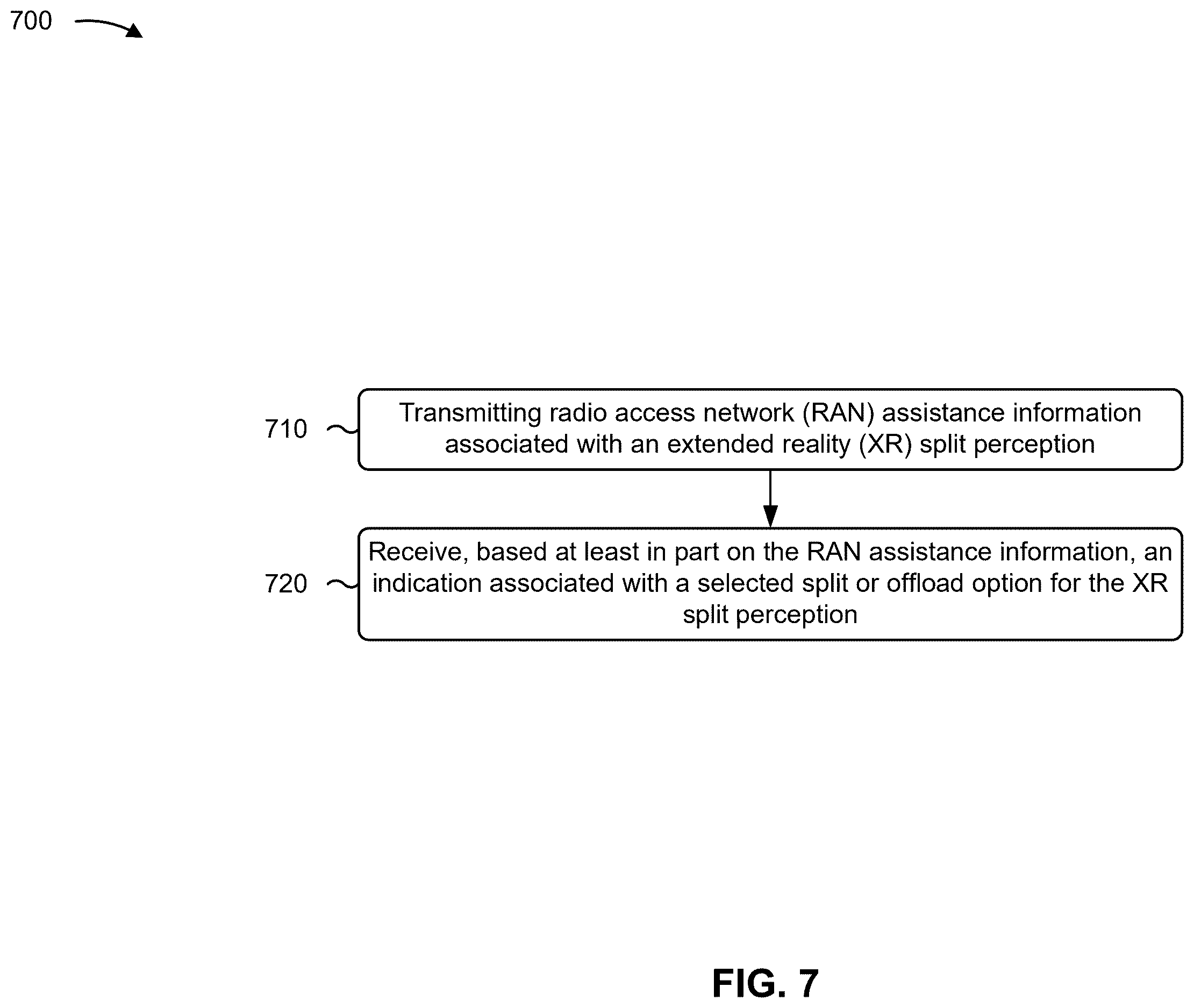

Device-side workload negotiation process, drawing sheet 7 from US 2026/0238697 A1
Sheet 7 Device-side workload negotiation process

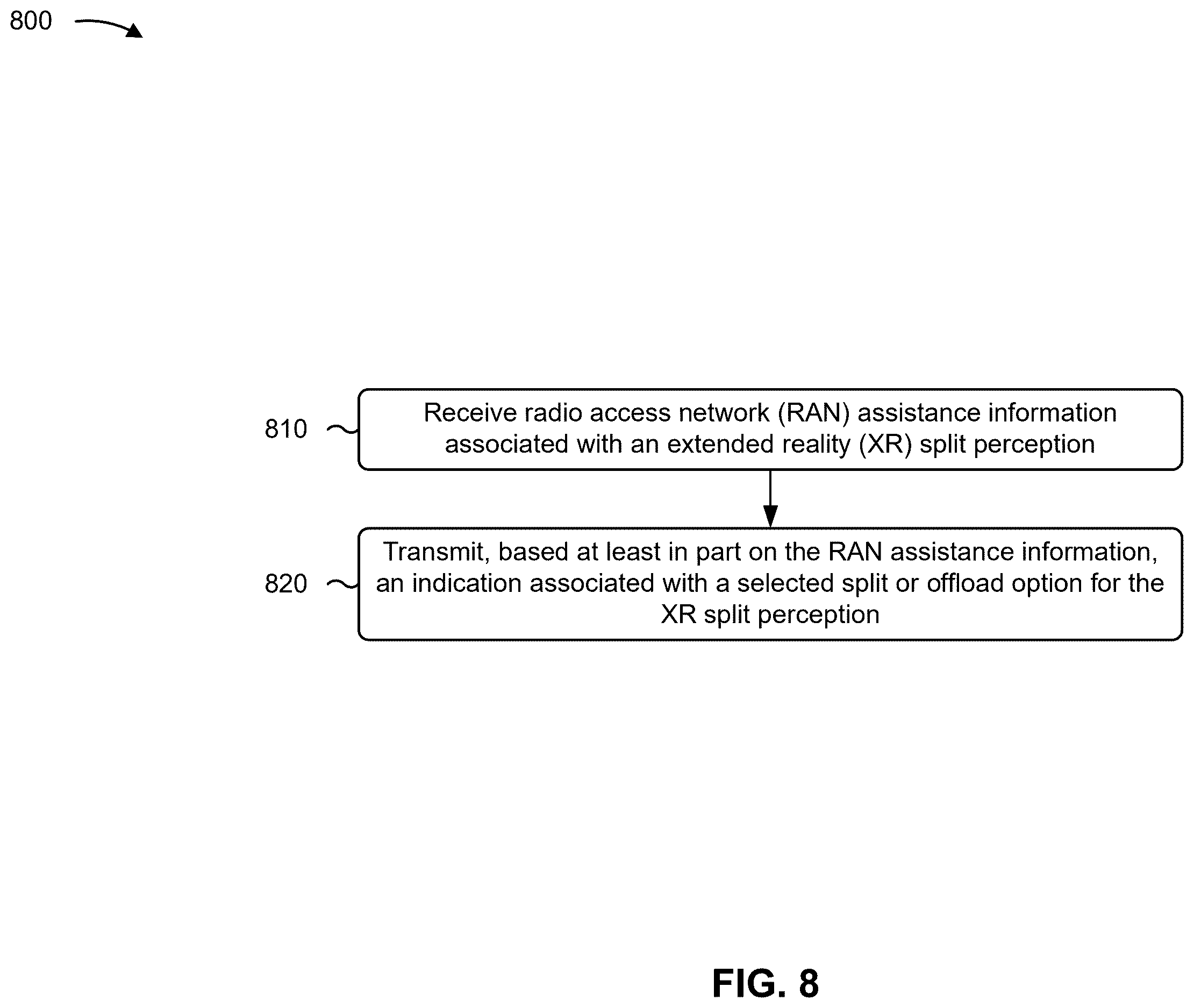

Network-side workload processing procedure, drawing sheet 8 from US 2026/0238697 A1
Sheet 8 Network-side workload processing procedure
Show the other 2 sheets
Qualcomm Patents a Way for AR Headsets to Negotiate Their Own Workload With the Network patent drawing, sheet 9
Sheet 9
Qualcomm Patents a Way for AR Headsets to Negotiate Their Own Workload With the Network patent drawing, sheet 10
Sheet 10
