Sony Patents a Way to Slow Light Down and Make Sensors Far More Precise

By Patentlyze Team · Updated Jun 19, 2026

Sony is patenting a way to make light travel more slowly through a tiny ring-shaped optical circuit — and that trick, if it works as described, could make sensors like LiDAR dramatically more precise.

What Sony's light-slowing ring resonator actually does

Picture a racetrack for light. Normally, light zips around so fast that any measurement you take has very little time to react to subtle changes. Sony's patent describes a special racetrack — a ring-shaped optical waveguide — with a photonic crystal structure built into it. That structure is essentially a repeating microscopic pattern etched into the material that forces light to slow down significantly as it travels.

When light slows down inside the ring, the device becomes far more sensitive to tiny changes in the environment around it — things like how far away an object is, or how a signal is shifting. Think of it like the difference between trying to read a street sign from a speeding car versus a slow bicycle.

This kind of technology sits at the core of optical sensors and light-based communication chips. Sony Semiconductor, the division behind image sensors in most of your smartphones, is clearly investing in the next layer of sensing hardware.

How a photonic crystal structure increases the group refractive index

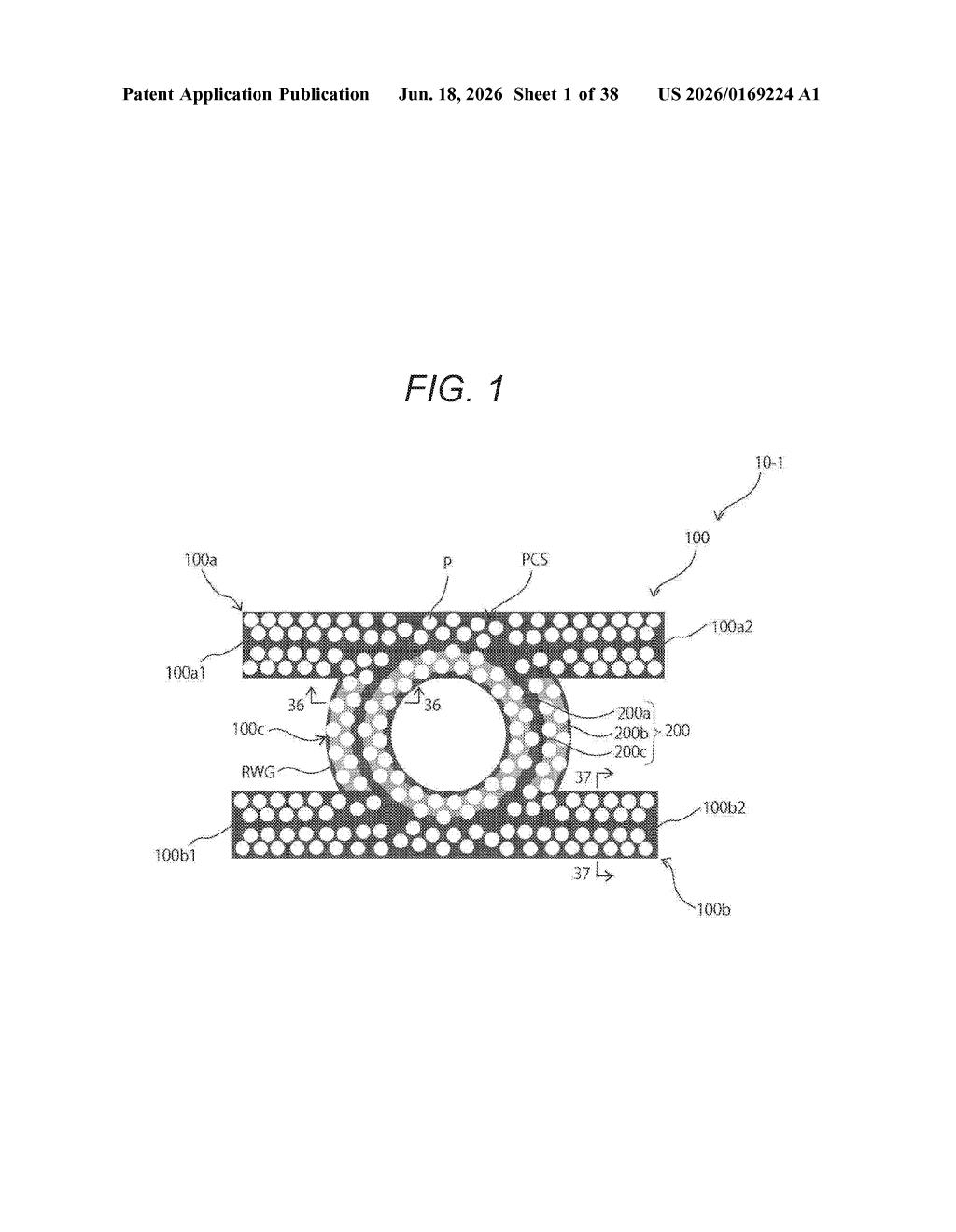

The patent covers a ring resonator — a circular loop of material that guides light around and around, letting it build up intensity and interact with itself. Ring resonators are standard building blocks in photonic chips, used in everything from optical modulators (which encode data onto light) to distance-measuring sensors.

The key addition here is a photonic crystal structure (PCS) integrated directly into the waveguide wall. A photonic crystal is a material with a periodic (repeating) internal pattern at nanometer scale — similar in concept to how a crystal's atomic lattice interacts with X-rays, but tuned to interact with visible or near-infrared light. This pattern creates what engineers call a slow-light effect, increasing the group refractive index (essentially a measure of how slowly the light pulse travels through the material).

Slowing the light has a compounding benefit: it increases the effective optical path length without making the physical ring any bigger, which sharpens the resonator's sensitivity to phase shifts. The patent title also lists several intended applications:

• Optical modulators (encoding signals onto light beams)
• Light source devices
• Distance measuring devices (LiDAR-style sensors)
• General resonator devices

The claim itself is intentionally broad — it covers any ring resonator whose waveguide incorporates a photonic crystal structure.

What this means for Sony's LiDAR and distance-sensing hardware

Sony Semiconductor Solutions is the world's largest image sensor maker, and it has been expanding into LiDAR and 3D sensing for automotive and robotics markets. A more sensitive ring resonator could translate directly into sharper distance measurements, which matters a lot when a self-driving car is trying to distinguish a pedestrian from a trash can at 40 mph.

That said, this is a foundational component patent — the kind that sits several engineering layers below anything you would ever directly touch. Its real value is as a building block that other Sony chips could incorporate. Whether that happens depends on whether the slow-light gain survives the manufacturing tolerances of real-world chip fabrication, which is where many elegant photonics ideas stall out.

Editorial commentary on a publicly published patent application. Not legal advice.
