Samsung Patents a Wafer Inspection System That Tells AI Where Every Chip Sits

When you photograph a circular wafer packed with hundreds of identical chips, the AI inspecting it has no idea which chip is which, unless you tell it. Samsung's new patent solves that orientation problem using a coordinate system borrowed from geometry class.

A neural network architecture that processes individual semiconductor chips on a wafer by combining their features with polar coordinate positions. Drawing from patent filing US 2026/0237056 A1.
A neural network architecture that processes individual semiconductor chips on a wafer by combining their features with polar coordinate positions.All 10 drawings ↓
Publication number
US 2026/0237056 A1(US20260237056A1)
Applicant
Samsung Electronics Co., Ltd.
Filed · Published
Feb 10, 2026 · Aug 13, 2026
Inventors
Yun S PARK, Ho-Kuen SHIN, Hunsik SHIN, Sungjoo SUH
Status when we published
Waiting for an examiner
Document
20 claims
US classification
382/155

How Samsung's wafer-scanning AI finds its bearings

A factory camera photographs a silicon wafer covered in hundreds of tiny chips arranged in a circular grid. The photo lands on an AI, but the AI sees a flat image with no built-in sense of where each chip sits relative to the center or the edge.

Samsung's approach gives the AI a map. Before the image is analyzed, the system reads each chip's position in polar coordinates (think: how far from the center, and at what angle, like a clock hand pointing to a chip). Those coordinates are turned into small numerical tags and attached to the AI's representation of each chip, so the model always knows where on the wafer it's looking.

The practical payoff is more accurate inspection. Defects on the edge of a wafer behave differently from defects near the center, and an AI that knows the difference can flag problems with more confidence than one treating every chip as if it were identical.

From the filing · CLAIM 1
… extracting respective polar coordinates of a chip-specific positions from within the image data of the wafer; generating a plurality of positional embeddings from a plurality of polar coordinates; and combining the plurality of positional embeddings and the plurality of chip embeddings, respectively to input the combination into a neural network.

Translation: The system maps the exact circular location of each chip on the wafer and feeds that data into an AI model.

How polar coordinates become positional embeddings

The patent describes a five-step pipeline that prepares wafer image data for analysis by a neural network:

  • Chip separation: The full wafer image is sliced into individual chip images, one per chip on the wafer.
  • Chip embeddings: Each chip image is flattened (its pixel grid is unrolled into a single row of numbers) and passed through a linear projection (a learned mathematical filter) to produce a compact numerical summary called an embedding.
  • Polar coordinate extraction: Rather than recording each chip's location as an X-Y grid address, the system records it as a distance from the wafer's center and an angle, forming a polar coordinate. Wafers are circular, so this geometry fits naturally.
  • Positional embeddings: The polar coordinates are converted into their own set of numerical summaries, called positional embeddings, that the neural network can read alongside the image data.
  • Combination and input: Each chip's image embedding and its positional embedding are merged and fed together into the neural network for classification or defect detection.

The positional encoding step is the key contribution. Standard vision transformers (a type of neural network that processes images as sequences of patches) typically use simple row-and-column grid positions. For a round wafer, that grid is a poor fit. Polar coordinates preserve the radial symmetry of the wafer layout, so the model receives location information in a form that matches the physical reality of how chips are arranged.

From the filing · THE ABSTRACT
… generating chip-specific data for respective chips by separating image data including a plurality of chips formed on a wafer, generating a plurality of chip embeddings by performing flattening and linear projection on the chip-specific data …

Translation: The software isolates individual chips from a larger wafer image and converts their visual features into a digital format.

What this means for AI-driven chip manufacturing

Semiconductor inspection is one of the most quality-sensitive steps in chip manufacturing. A single undetected defect pattern can mean scrapping an entire wafer or, worse, shipping faulty dies. AI-driven inspection promises faster throughput than human review, but only if the model can distinguish a center-of-wafer defect cluster from an edge-of-wafer one, two patterns that have very different root causes and call for different process fixes.

Samsung's filing is a targeted engineering fix for a gap in how vision models handle circular layouts, and it sits in a growing body of new Big Tech patents applying positional-encoding techniques to semiconductor manufacturing rather than natural-language or general-image tasks. Whether this approach shows up in Samsung's fab tooling or stays as foundational IP is an open question, but the problem it solves is real and the inspection market is large.

Source: US 2026/0237056 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 10 sheets

10 drawing sheets from US 2026/0237056 A1 · click any drawing to enlarge

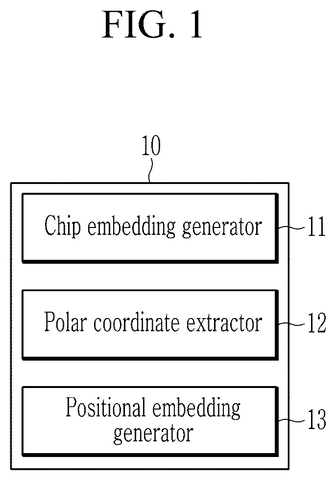

Block diagram of embedding generator, drawing sheet 1 from US 2026/0237056 A1
Sheet 1 Block diagram of embedding generator

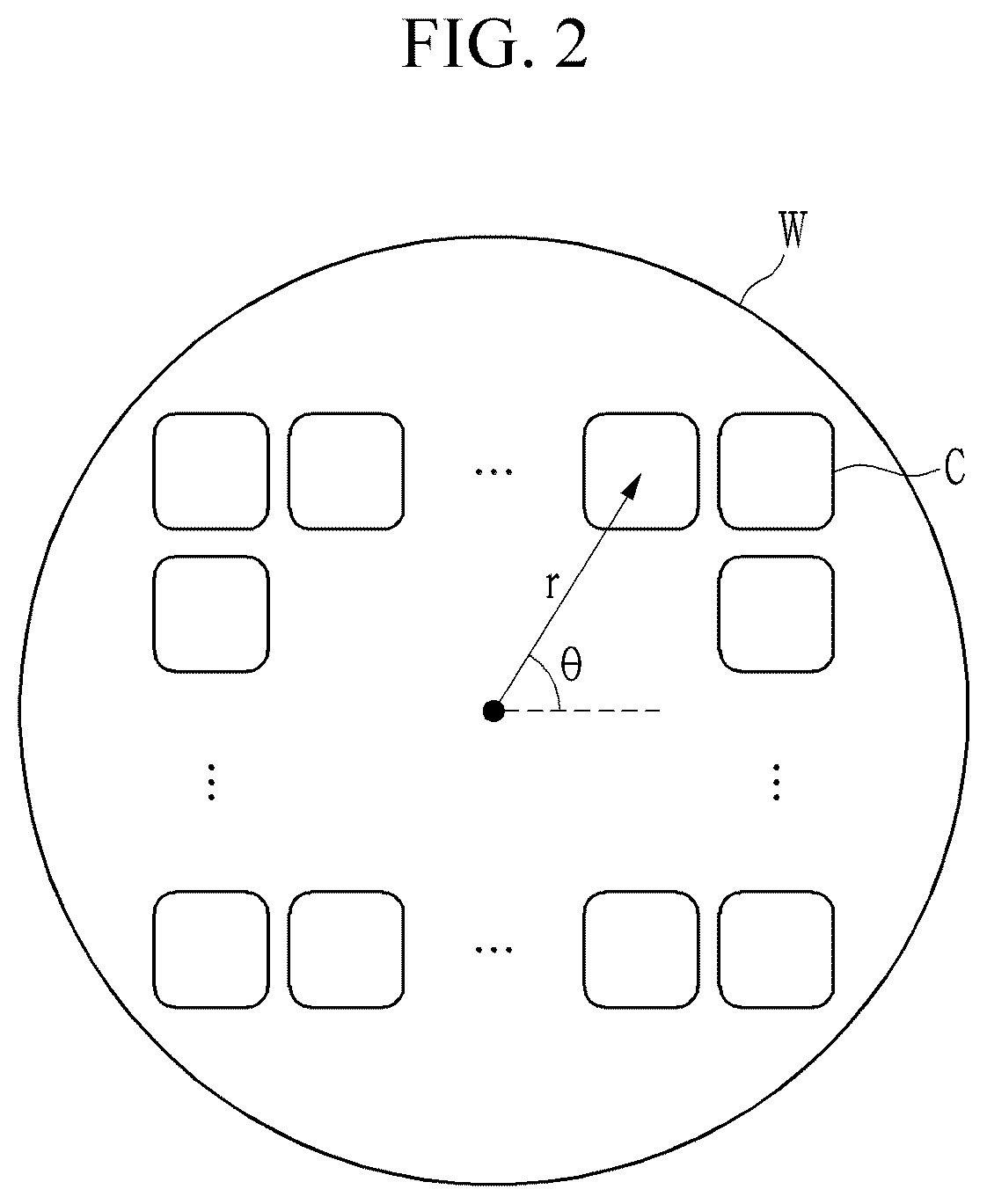

Polar coordinates on a wafer, drawing sheet 2 from US 2026/0237056 A1
Sheet 2 Polar coordinates on a wafer

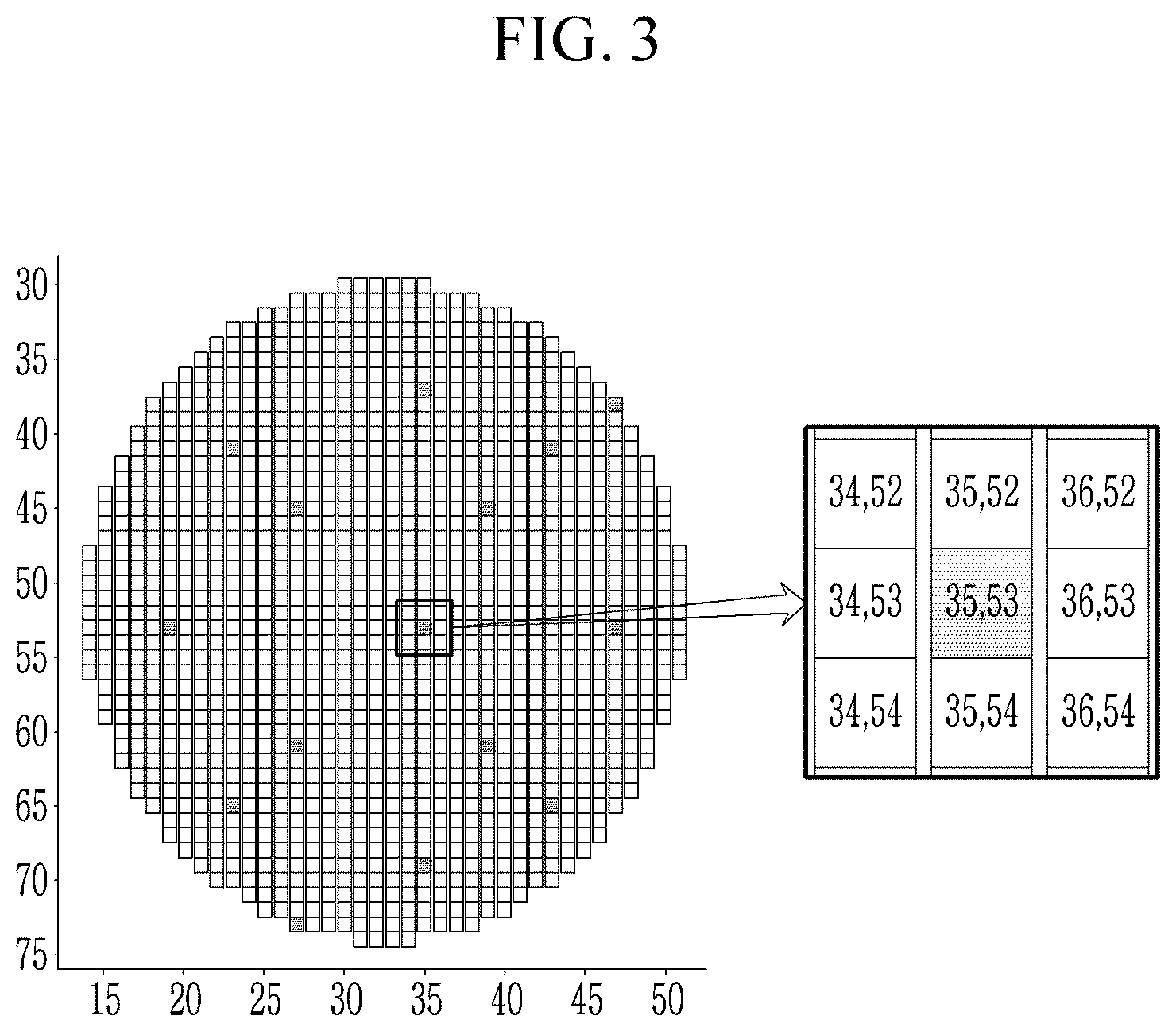

Grid map of wafer chips, drawing sheet 3 from US 2026/0237056 A1
Sheet 3 Grid map of wafer chips

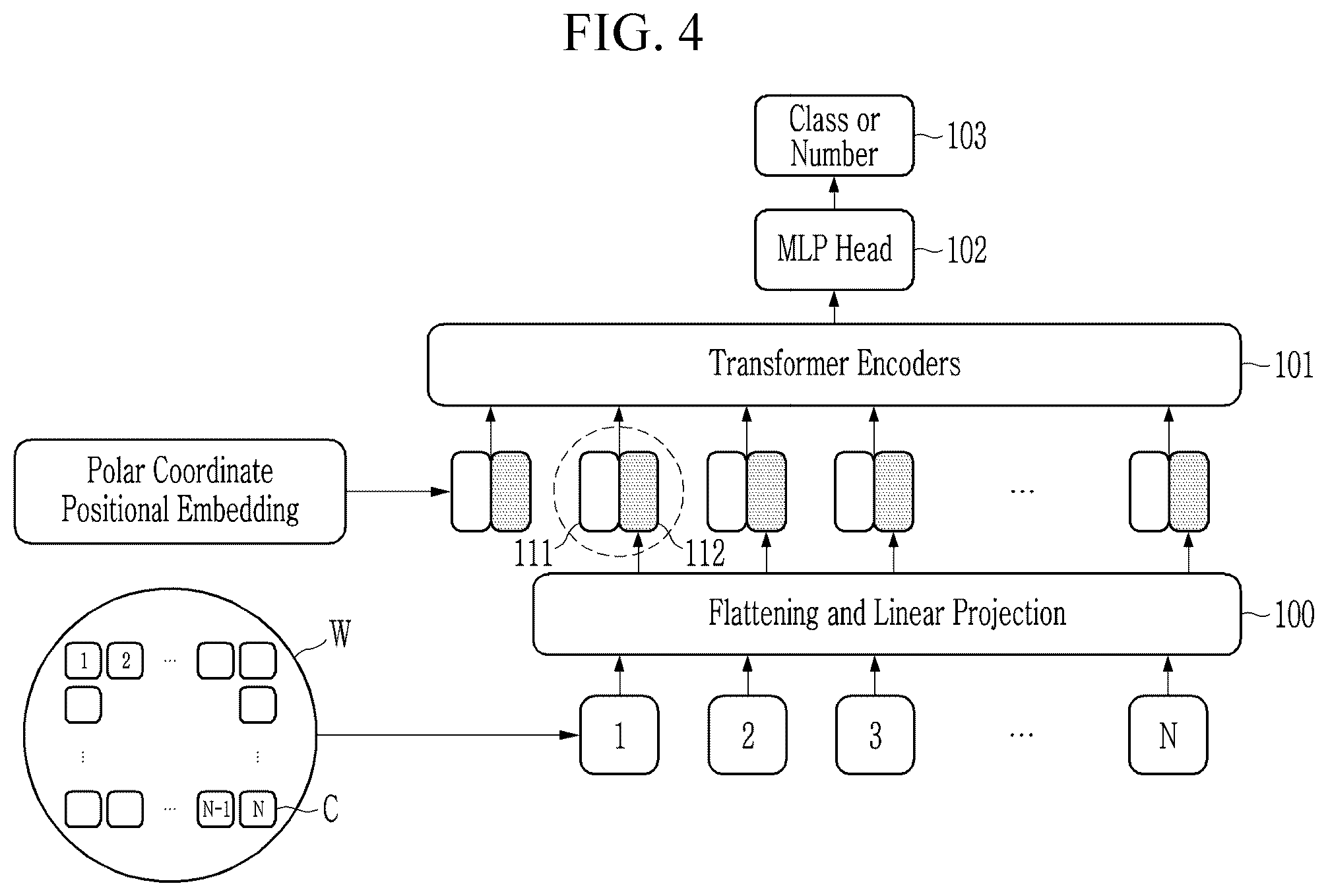

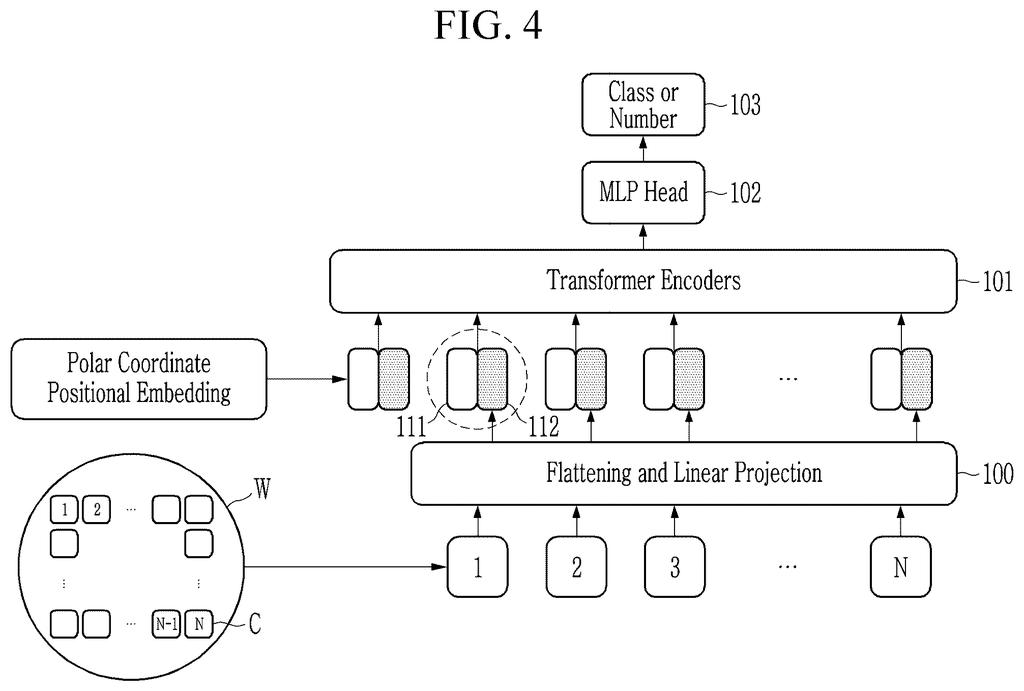

Neural network wafer inspection architecture, drawing sheet 4 from US 2026/0237056 A1
Sheet 4 Neural network wafer inspection architecture

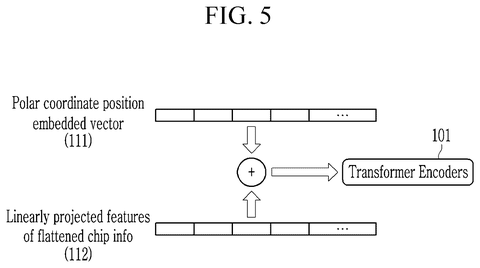

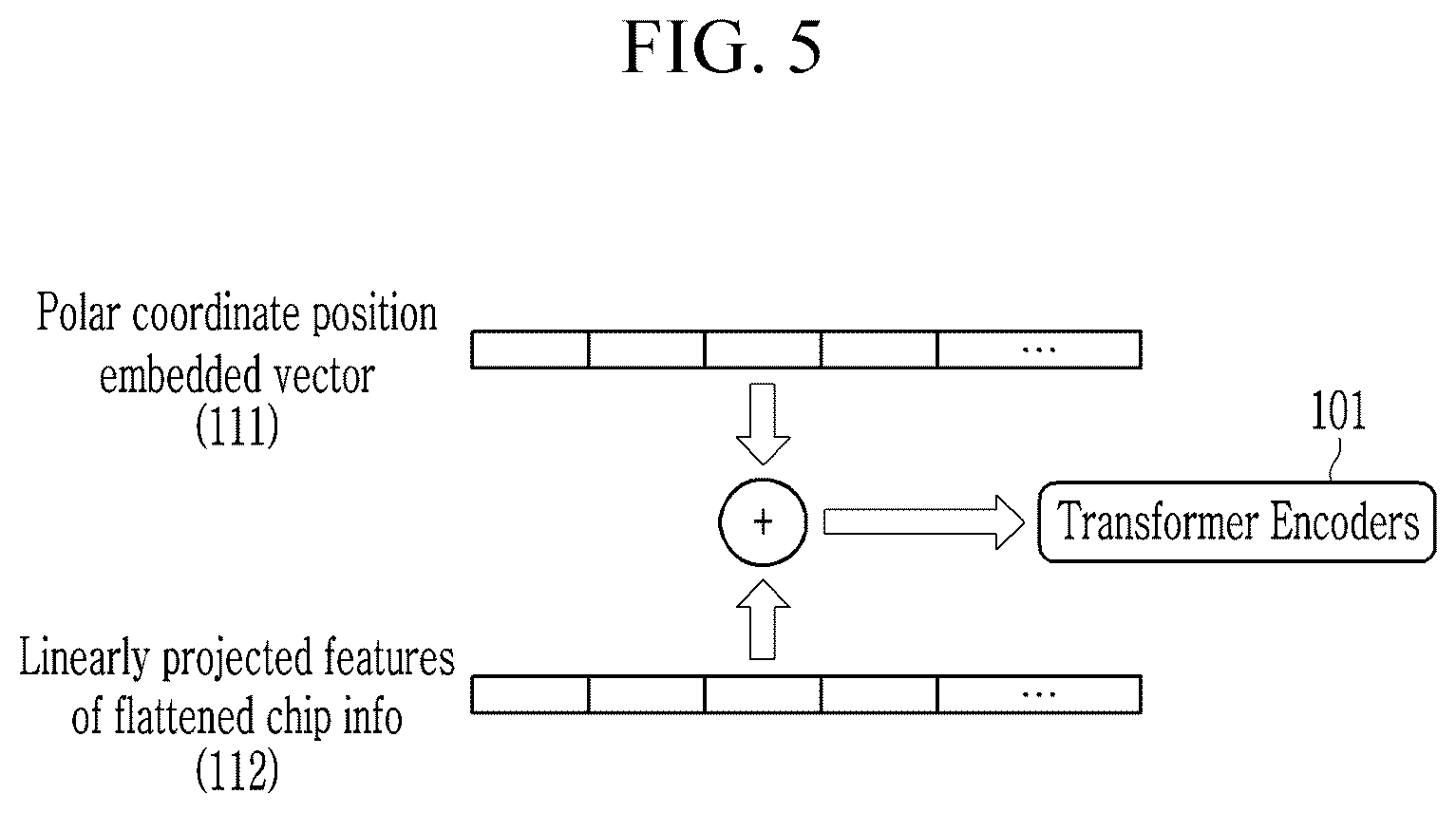

Combining position and chip features, drawing sheet 5 from US 2026/0237056 A1
Sheet 5 Combining position and chip features

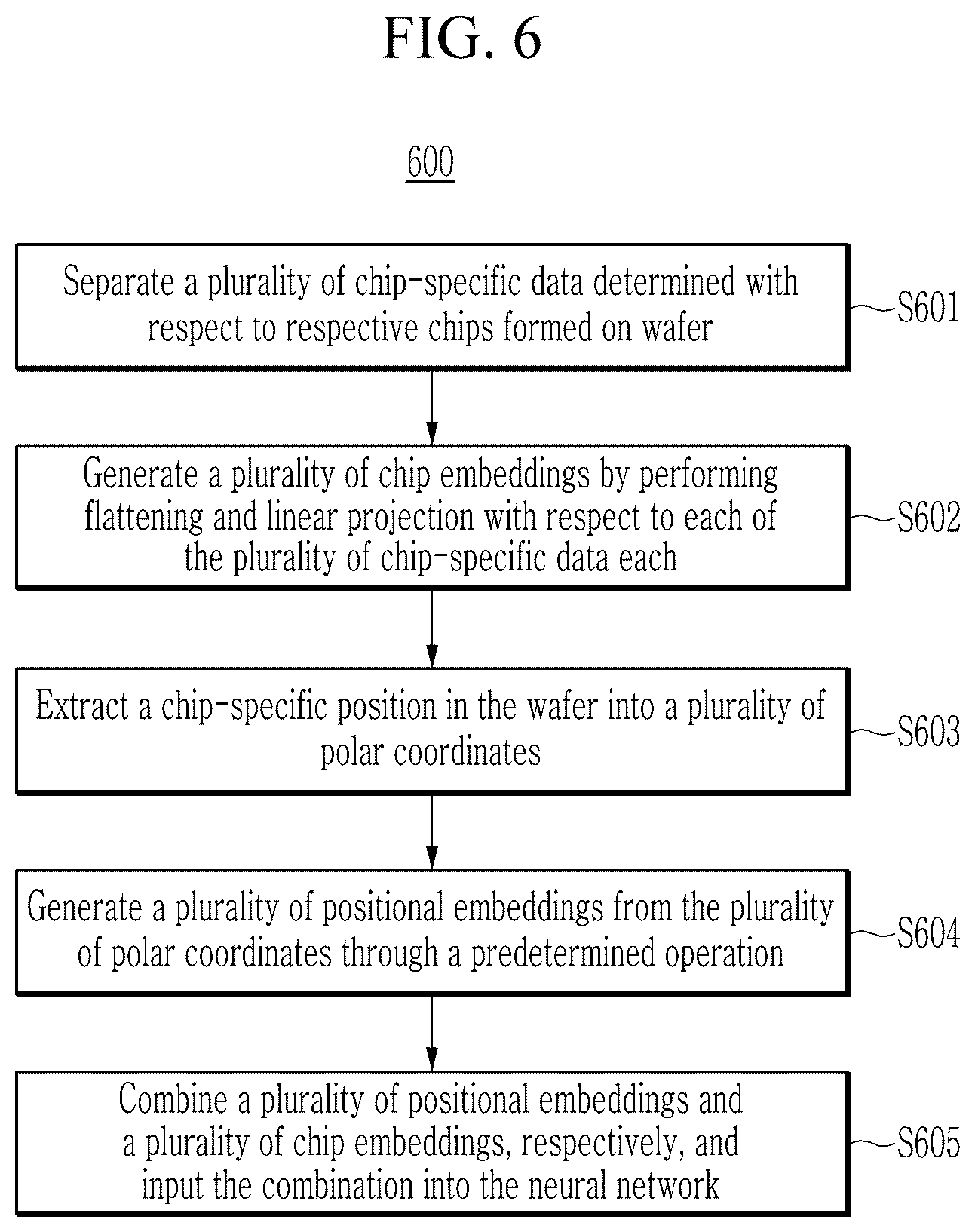

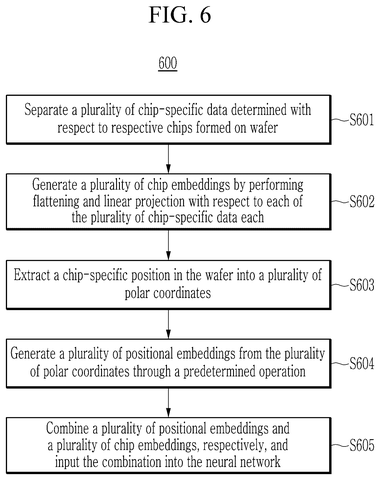

Wafer data processing flowchart, drawing sheet 6 from US 2026/0237056 A1
Sheet 6 Wafer data processing flowchart
Manufacturing data embedding system, drawing sheet 7 from US 2026/0237056 A1
Sheet 7 Manufacturing data embedding system

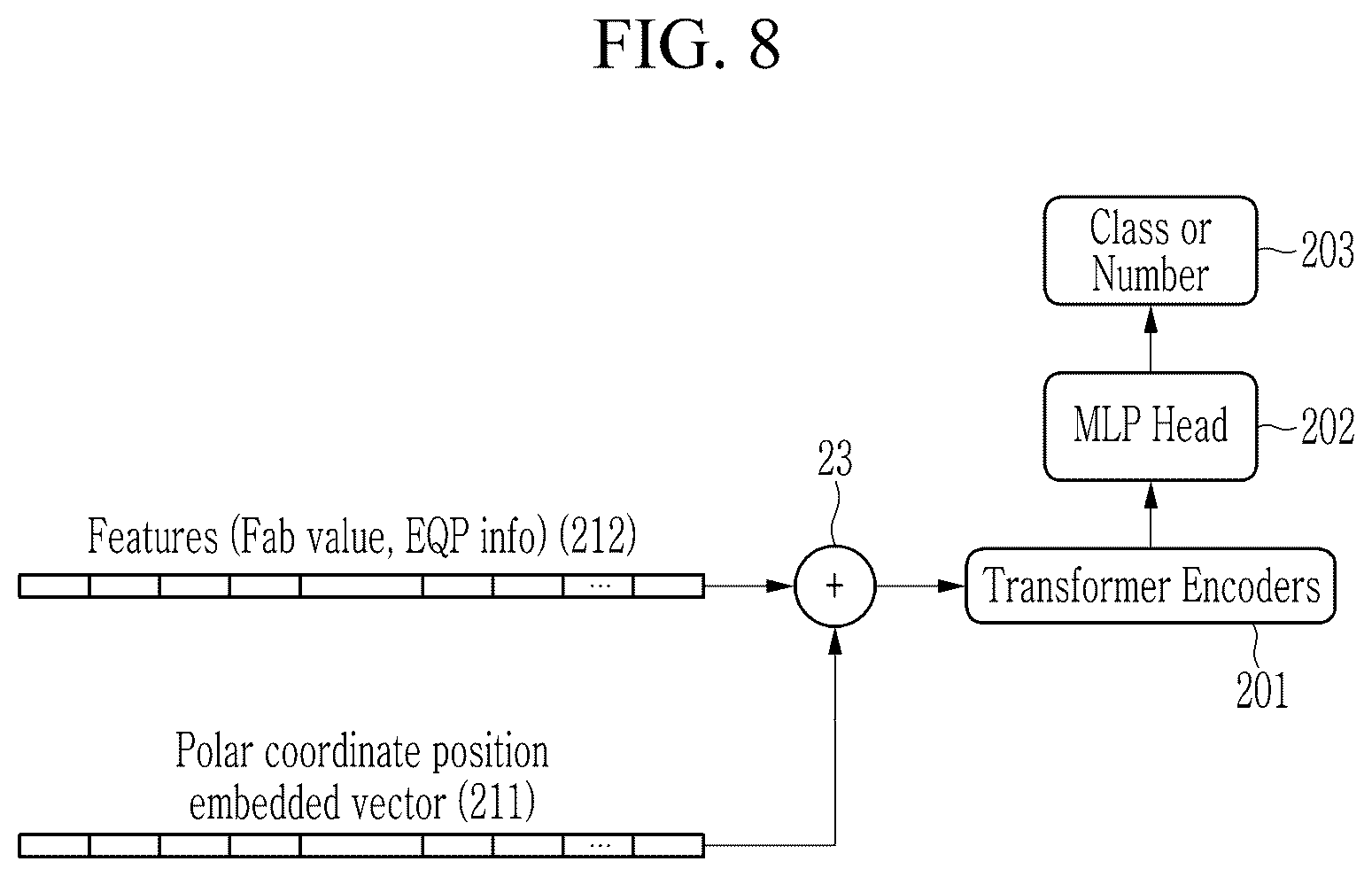

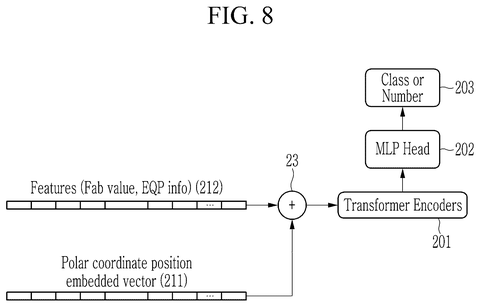

Defect classification pipeline, drawing sheet 8 from US 2026/0237056 A1
