Samsung Patents a Two-Sample Method for Detecting Light Flicker in Phone Cameras

Fluorescent and LED lights flicker at precise frequencies, and when your phone camera doesn't know what that frequency is, you get banding and pulsing in your videos. Samsung's new patent describes a way to figure that out automatically, using two quick samples at different rates instead of one.

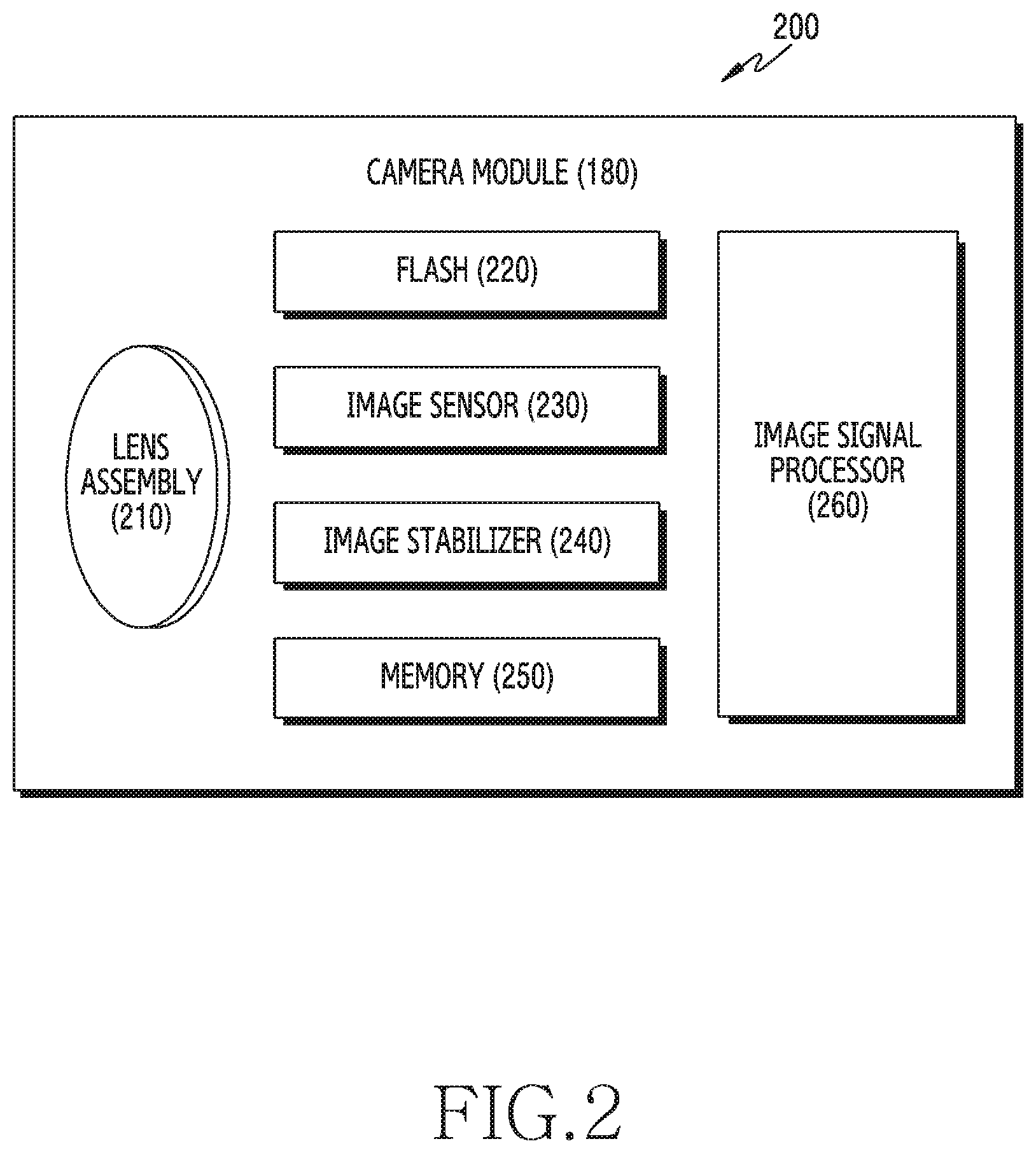

A camera module includes a lens assembly, image sensor, flash, image stabilizer, memory, and image signal processor. Drawing from patent filing US 2026/0247040 A1.
A camera module includes a lens assembly, image sensor, flash, image stabilizer, memory, and image signal processor.All 11 drawings ↓
Publication number
US 2026/0247040 A1(US20260247040A1)
Applicant
Samsung Electronics Co., Ltd.
Filed · Published
Apr 13, 2026 · Aug 20, 2026
Inventors
Hyeonseok HONG, Dongyoul PARK, Junghwan LEE, Taesoo JANG
Status when we published
Waiting for an examiner
Document
20 claims
US classification
348/226.1
Parent application
Continuation of PCT/KR2024/096461 (filed Nov 13, 2024)(PCTKR2024096461)

What Samsung's flicker-detection camera trick actually does

You're filming a birthday party under the kitchen lights and the video keeps showing a weird horizontal stripe pulsing across the screen. That's light flicker, and it happens because most artificial lights cycle on and off dozens of times per second at a specific frequency your camera needs to sync with.

Samsung's patent describes a method where, as soon as you open the camera app, the phone takes two rapid brightness readings at different speeds. By comparing what each reading picked up, the phone can work out the exact flicker frequency of the lights around you, then tune the camera shutter to match it.

The result is that banding stripe disappears, or never appears in the first place. You don't change any settings; the phone figures it out on its own in the background while you're still pointing at the cake.

From the filing · CLAIM 1
… acquire a first data frame by sampling brightness data acquired by the sensor based on a first sampling rate, identify a first frequency based on the first data frame, acquire a second data frame subsequent to the first data frame by sampling the brightness data acquired by the sensor based on a second sampling rate different from the first sampling rate …

Translation: The phone takes two quick light measurements at different speeds to help it figure out the flickering light source.

How two sampling rates pin down a light source's frequency

The patent describes a system built into a phone's camera app that uses a dedicated brightness sensor (separate from the main camera lens) to sample ambient light data twice in quick succession, each time at a different sampling rate (how many brightness readings per second it takes).

Here's the core idea: any artificial light source, such as a fluorescent tube or an LED panel running on AC power, pulses at a fixed frequency, typically 50 Hz or 60 Hz depending on the country's electrical grid. If you sample that light at the wrong rate, you can get ambiguous results because of a well-known signal-processing problem called aliasing (where two different frequencies can look identical if you sample too slowly).

  • The first sample at sampling rate one produces a candidate frequency estimate.
  • The second sample at a different sampling rate produces a second estimate.
  • The processor cross-references the two estimates to resolve the ambiguity and lock in the true flicker frequency.

Once the device knows the light source's frequency, it can set the camera's exposure timing to align with the light cycle, eliminating the visible bands. The whole process happens while the camera app is already running, so no manual input is needed.

From the filing · THE ABSTRACT
… determine a frequency of the light source based on the first frequency and the second frequency.

Translation: The device calculates the exact flicker rate of the lights by comparing the two different samples it collected.

What this means for indoor video on Samsung phones

For anyone who shoots video indoors, under office lighting, in gyms, or in shops, automatic flicker correction is one of those features that's invisible when it works and maddening when it doesn't. Getting the detection step right is the hard part, and Samsung's two-sample approach is designed to be accurate without requiring extra hardware beyond a simple brightness sensor most phones already carry.

The software-first nature of this patent means the path to a shipping feature is relatively short: the sensor hardware is already present in current devices, and the main work is in how the processor interprets the two readings. Camera-focused new tech patents like this one reflect how much competitive energy phone makers are putting into computational photography problems that users feel directly but rarely think about.

Samsung's 94th filing we've tracked since May builds on ideas like one on per-shot light storage and one on lensless reframing in our camera sensor push watch.

Source: US 2026/0247040 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 11 sheets

11 drawing sheets from US 2026/0247040 A1 · click any drawing to enlarge

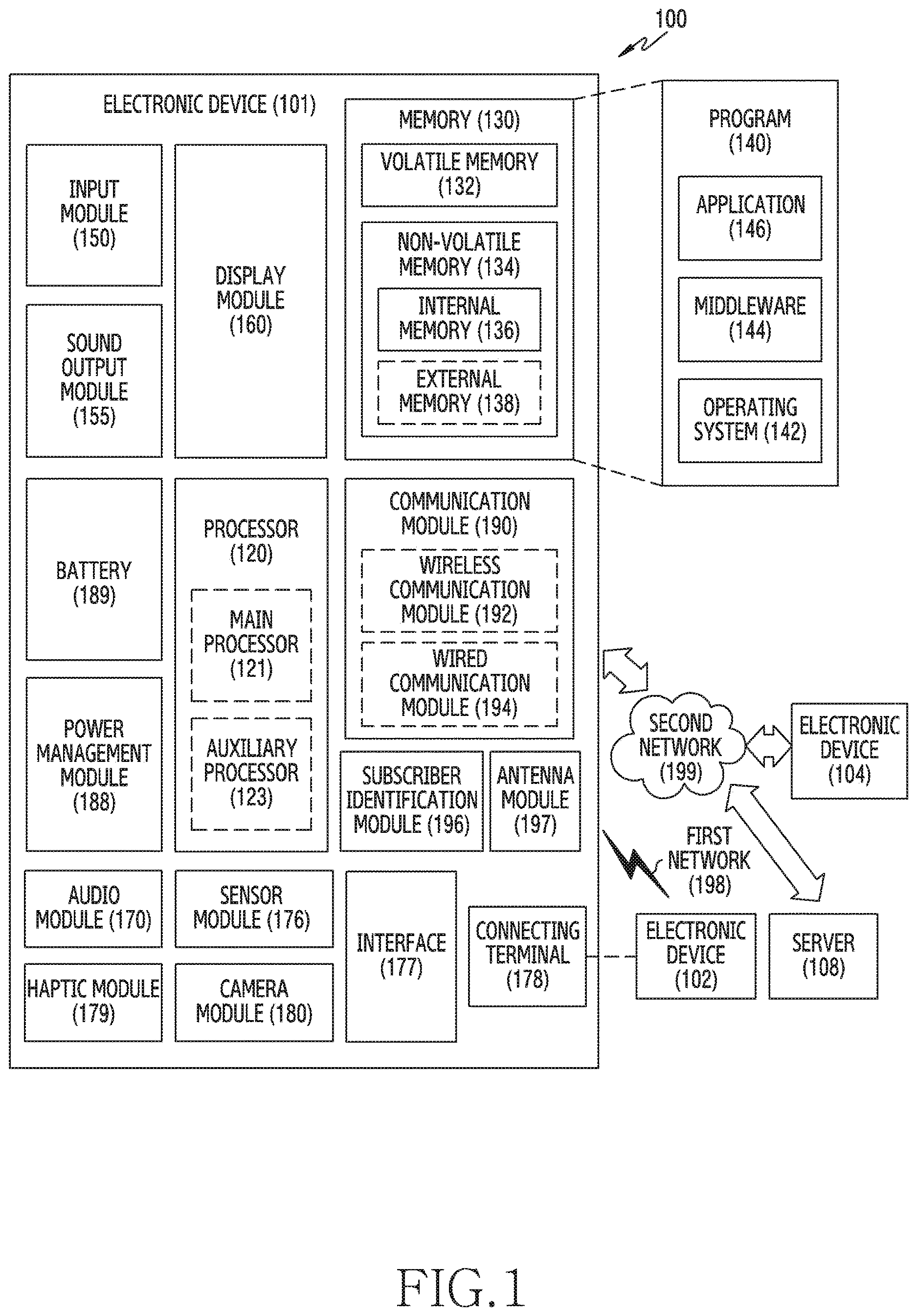

Electronic device components, drawing sheet 1 from US 2026/0247040 A1
Sheet 1 Electronic device components
Camera module components, drawing sheet 2 from US 2026/0247040 A1
Sheet 2 Camera module components

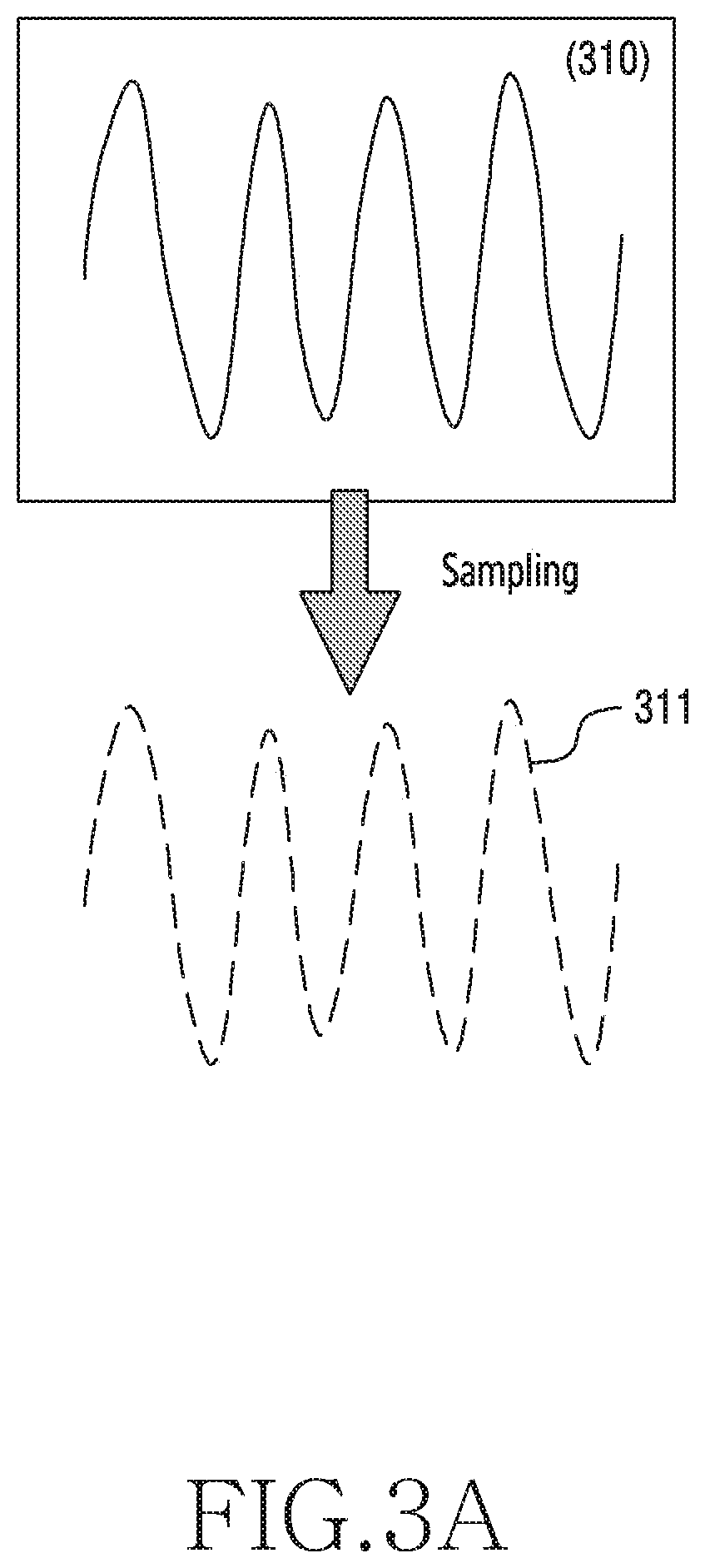

Signal sampling example, drawing sheet 3 from US 2026/0247040 A1
Sheet 3 Signal sampling example

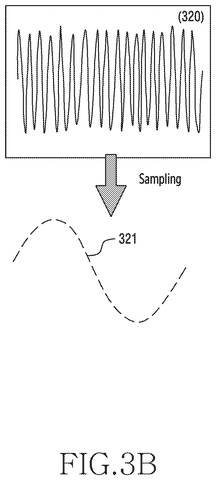

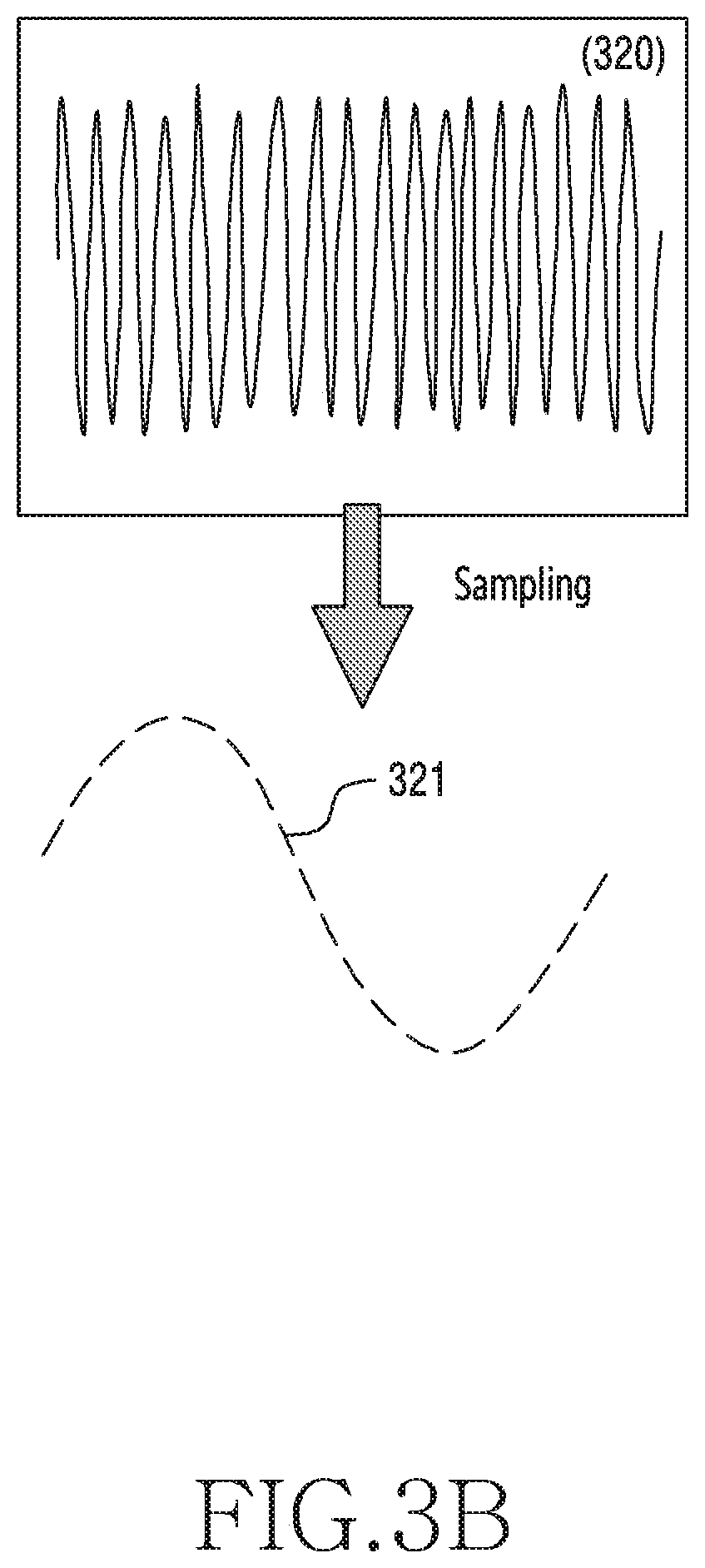

High-frequency signal sampling, drawing sheet 4 from US 2026/0247040 A1
Sheet 4 High-frequency signal sampling

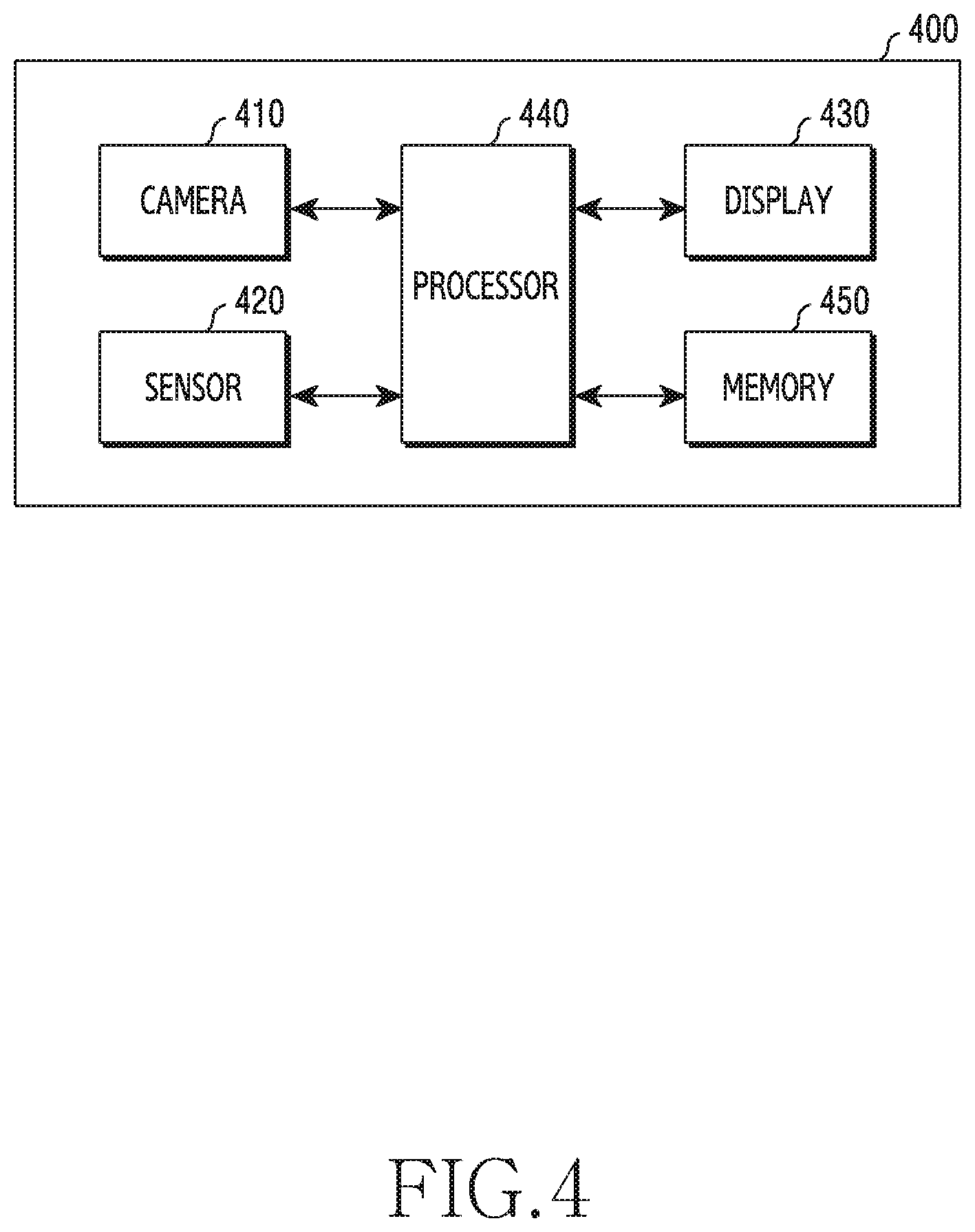

Camera, sensor, display, processor, drawing sheet 5 from US 2026/0247040 A1
Sheet 5 Camera, sensor, display, processor

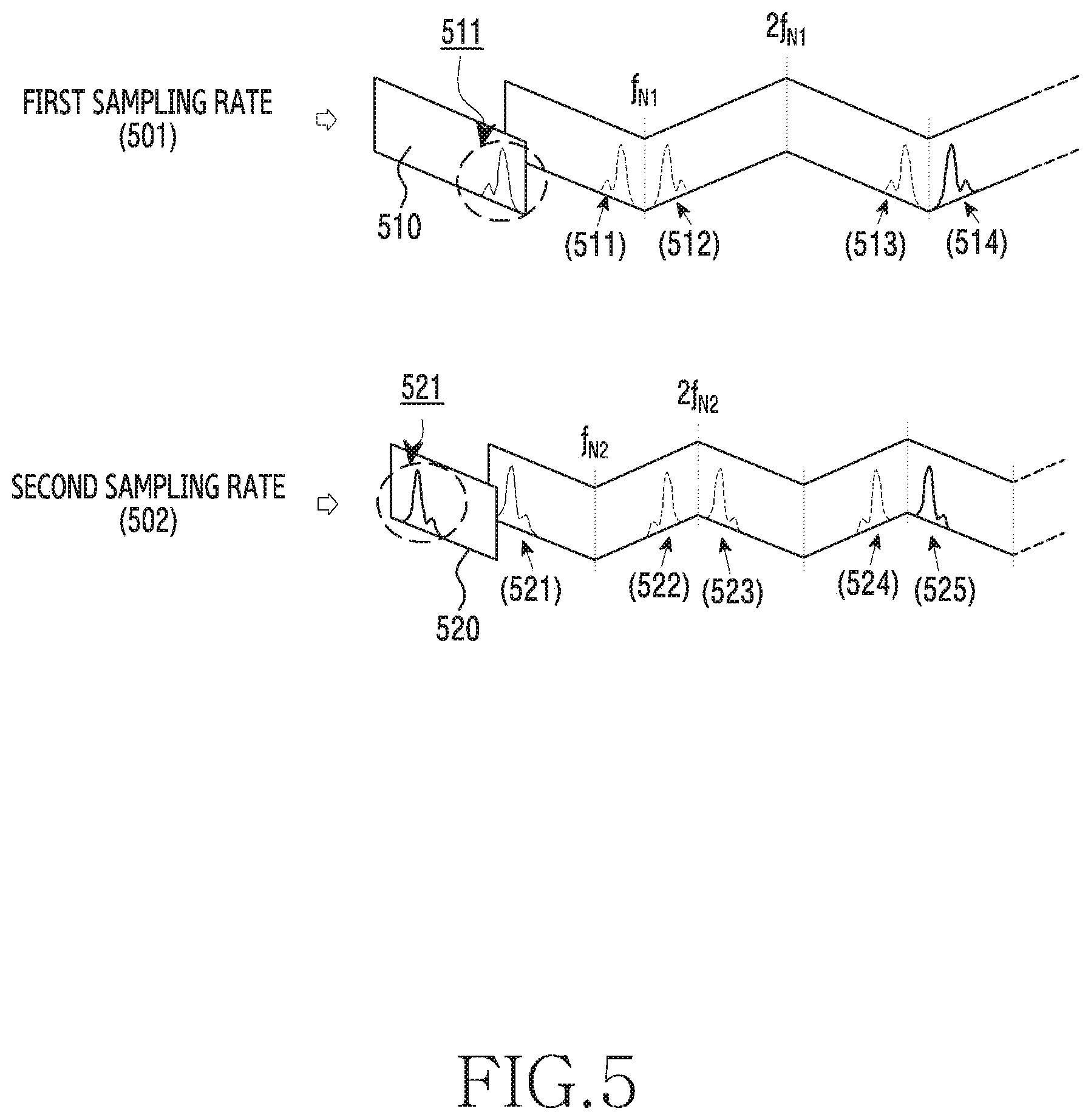

Sampling rates and aliasing, drawing sheet 6 from US 2026/0247040 A1
Sheet 6 Sampling rates and aliasing

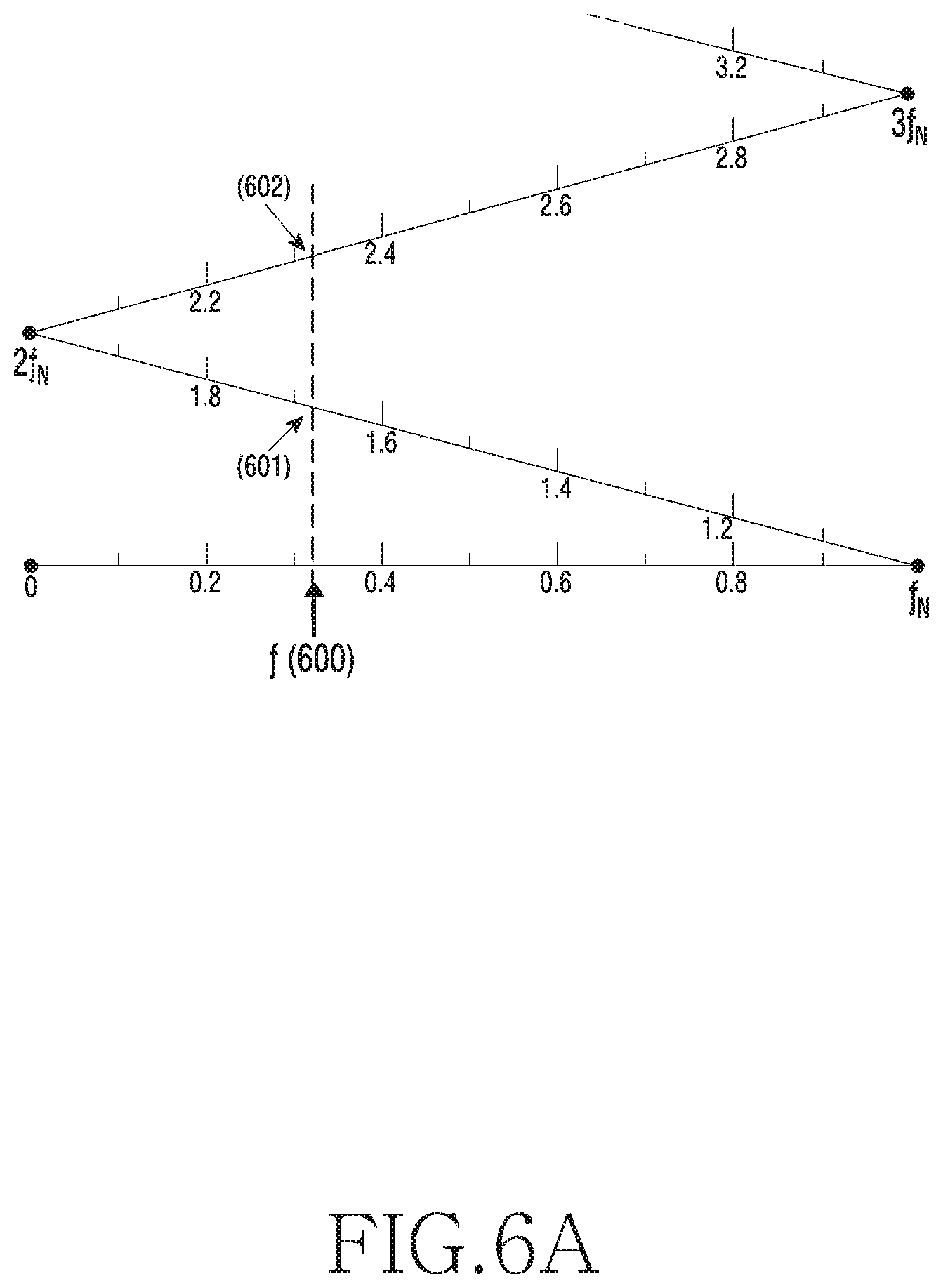

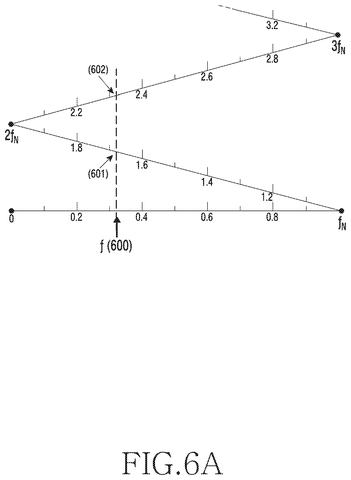

Frequency aliasing diagram, drawing sheet 7 from US 2026/0247040 A1
Sheet 7 Frequency aliasing diagram
Aliased frequency table, drawing sheet 8 from US 2026/0247040 A1
Sheet 8 Aliased frequency table
Show the other 3 sheets
Samsung Patents a Two-Sample Method for Detecting Light Flicker in Phone Cameras patent drawing, sheet 9
Sheet 9
Samsung Patents a Two-Sample Method for Detecting Light Flicker in Phone Cameras patent drawing, sheet 10
Sheet 10
Samsung Patents a Two-Sample Method for Detecting Light Flicker in Phone Cameras patent drawing, sheet 11
Sheet 11
