Samsung Patents a Camera Chip That Stores Light Data Differently Across Each Shot

Samsung has filed a patent for an image sensor that uses two structurally different capacitors side by side, letting each pixel store electric charge in a configuration tuned independently of its neighbor.

A cross-section of a camera chip, showing the photodiode, various metal layers, and color filters. Drawing from patent filing US 2026/0247736 A1.
A cross-section of a camera chip, showing the photodiode, various metal layers, and color filters.All 21 drawings ↓
Publication number
US 2026/0247736 A1(US20260247736A1)
Applicant
SAMSUNG ELECTRONICS CO., LTD.
Filed · Published
Sep 5, 2025 · Aug 20, 2026
Inventors
Hyunseung KIM, Keo-Sung PARK, Jungho PARK, Yeojin LEE, Seongho OH, Doyeon HA
Status when we published
Waiting for an examiner
Document
20 claims
US classification
257/440

What Samsung's multi-layer capacitor sensor actually does

Imagine your phone camera trying to capture a scene where one part of the frame is blazing sunlight and another is deep shadow. The sensor has to hold a huge range of charge levels without overflowing or losing detail, and the tiny storage cells inside each pixel are often the bottleneck.

Samsung's patent describes an image sensor where two different capacitors sit next to each other on the chip, each built with a different number of electrode layers. Think of them like layered sandwiches where one has more fillings than the other. Because they have different layer counts, they can hold different amounts of charge, giving the sensor more flexibility in how it handles bright and dark areas at the same time.

This is a design tweak at the hardware level inside the sensor chip itself, not a software filter or post-processing trick. The goal is to give each pixel more headroom to capture what's actually in the scene rather than clipping highlights or crushing shadows.

From the filing · CLAIM 1
… wherein the first capacitor comprises N electrodes and M dielectric layers including a first dielectric layer, wherein the second capacitor comprises L electrodes and T dielectric layers including a second dielectric layer …

Translation: The two storage components use different numbers of internal layers to hold light data.

How the electrode stacking arrangement works per pixel

The patent describes an image sensor built on a substrate that contains pixels, each with a photodiode (the light-collecting element). Above those photodiodes, the chip includes two separate capacitors spaced apart horizontally.

The key structural difference is that the first capacitor uses N electrodes (three or more, stacked vertically) separated by dielectric layers, while the second capacitor uses L electrodes (a different count, as few as two). Because the number of electrodes differs, the two capacitors have different charge-storage geometries sitting over different pixels.

This matters because capacitance in image sensors determines full-well capacity, the maximum charge a pixel can hold before it saturates and loses information. By varying the capacitor architecture pixel to pixel, the design can support:

  • Different sensitivity levels across neighboring pixels
  • More storage headroom in pixels expected to receive bright light
  • A compact footprint, since the stacking is vertical and the capacitors are connected to the circuit below via individual vias (tiny vertical wire connections)

The claim also specifies that at least part of each capacitor overlaps its corresponding photodiode in the vertical direction, keeping the overall sensor area tight.

From the filing · THE ABSTRACT
… a first capacitor and a second capacitor spaced apart from each other on the substrate; a first via connected to the first capacitor; and a second via connected to the second capacitor …

Translation: The sensor uses separate pathways to connect each storage capacitor to the substrate.

What this means for high-dynamic-range camera sensors

For engineers designing camera sensors used in smartphones, automotive cameras, or security systems, fitting more charge storage into a shrinking pixel footprint is one of the harder physics problems in the field. This patent's approach of varying the electrode count between adjacent capacitors is a structural answer to that problem, keeping the chip area compact while potentially widening the dynamic range each sensor can handle.

For consumers, the downstream effect would show up in photos and video that hold detail in both the bright sky and the dark foreground at the same time, without software doing the heavy lifting. Samsung's camera chips power a wide range of devices beyond its own Galaxy phones, so design choices baked into the sensor architecture can ripple across the industry. Coverage of new Big Tech patents in image sensor engineering has been picking up as manufacturers push pixel sizes smaller while demanding wider dynamic range.

Samsung's 93rd filing we've tracked in our camera sensor push since May builds on ideas like the reframing lock and the color-sorting chip lens.

Source: US 2026/0247736 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 21 sheets

21 drawing sheets from US 2026/0247736 A1 · click any drawing to enlarge

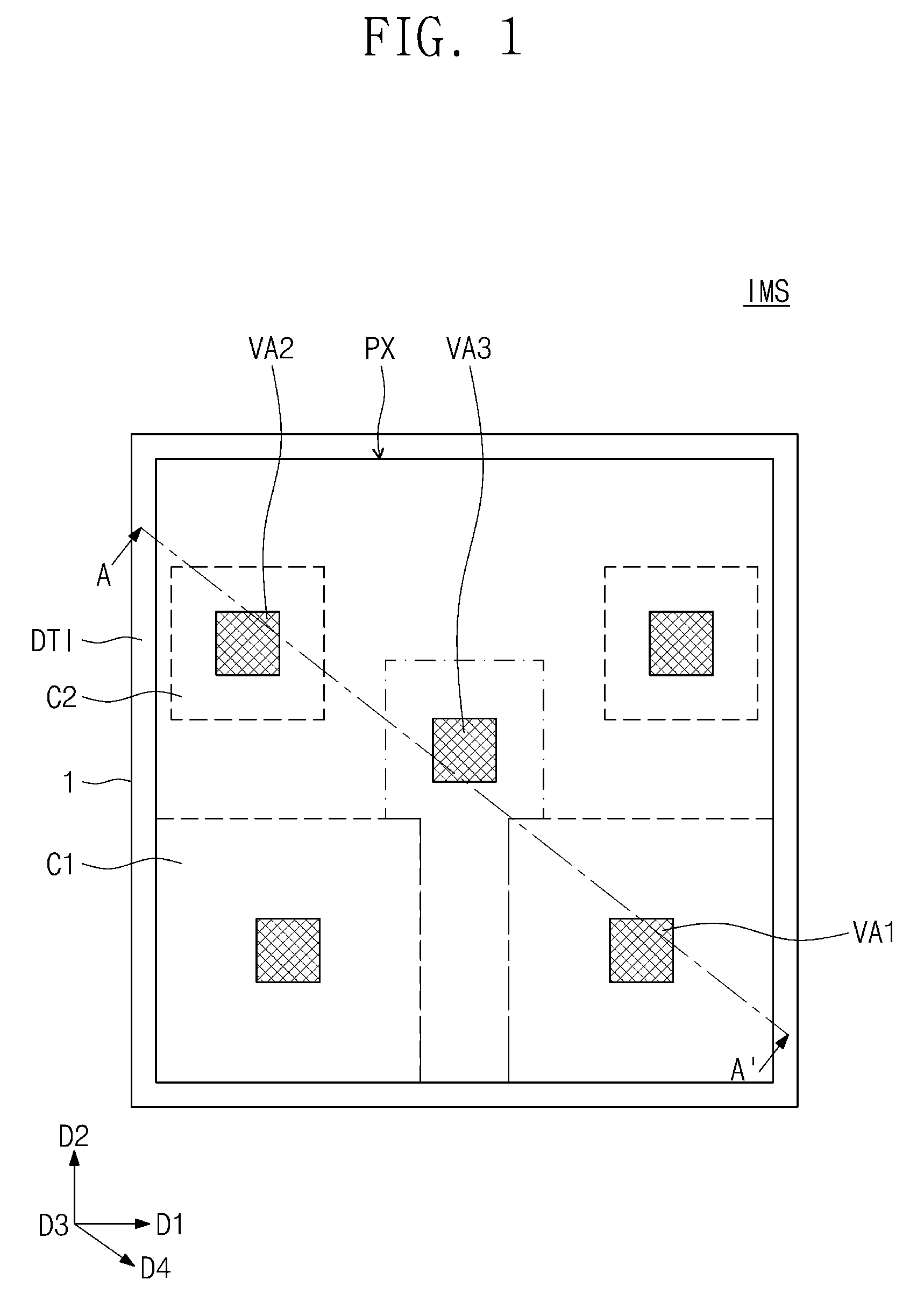

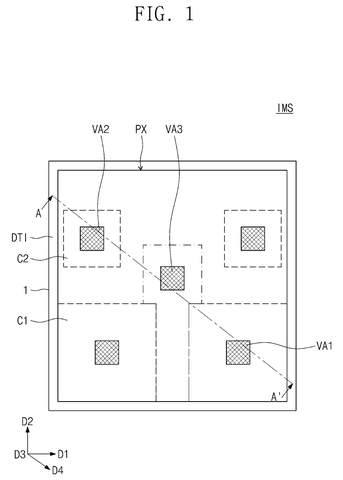

Camera chip pixel array., drawing sheet 1 from US 2026/0247736 A1
Sheet 1 Camera chip pixel array.

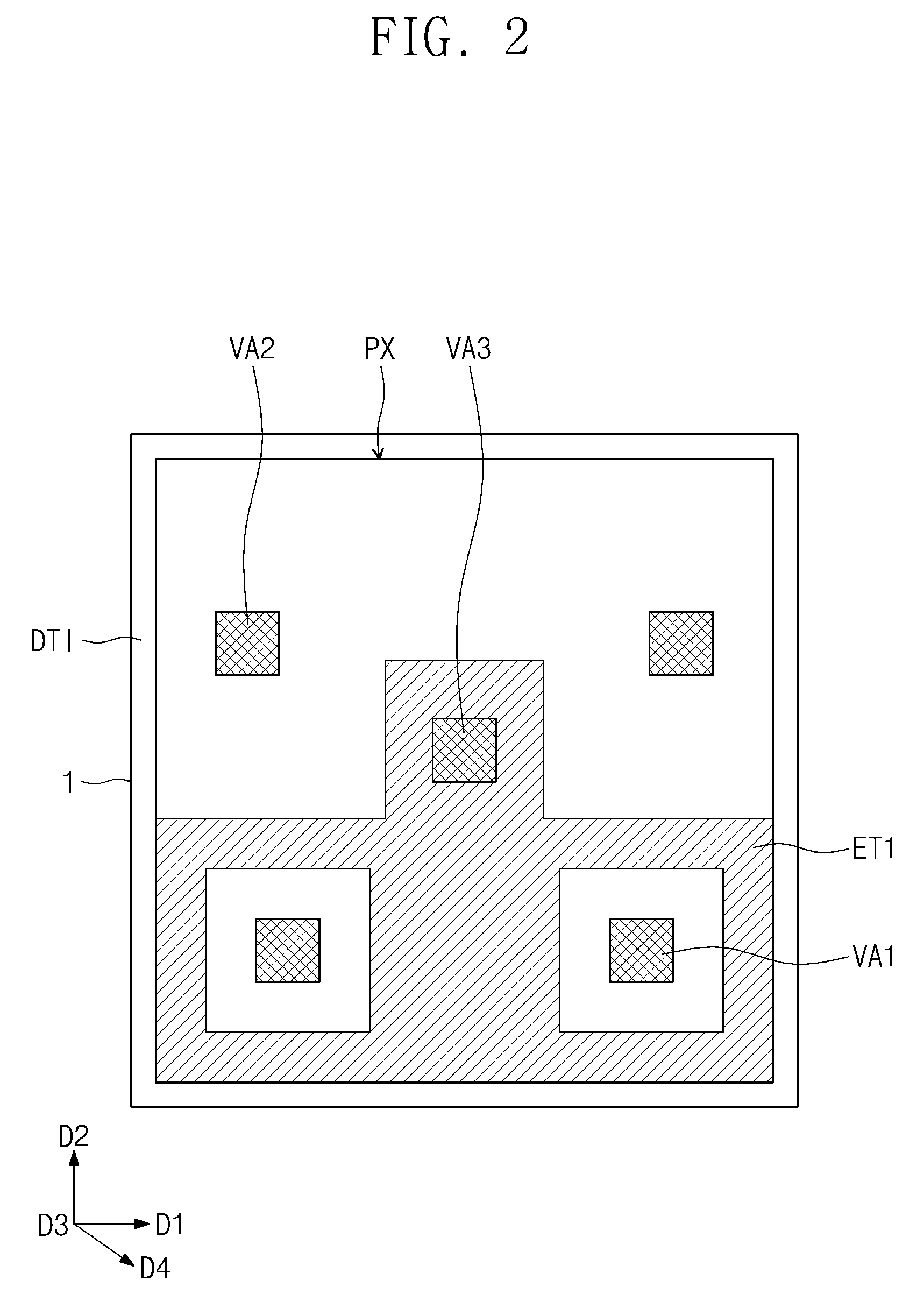

Camera chip with first electrode., drawing sheet 2 from US 2026/0247736 A1
Sheet 2 Camera chip with first electrode.

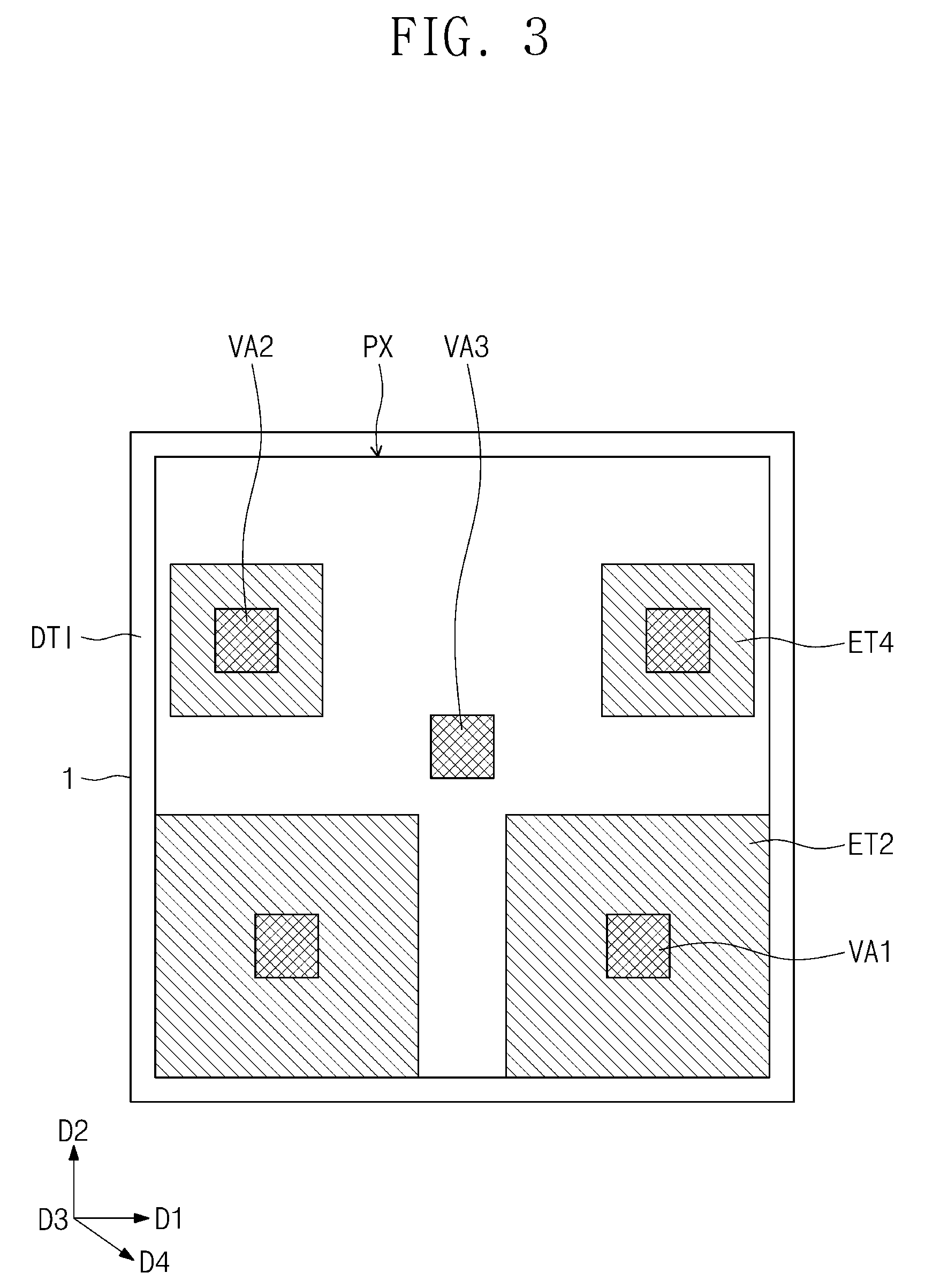

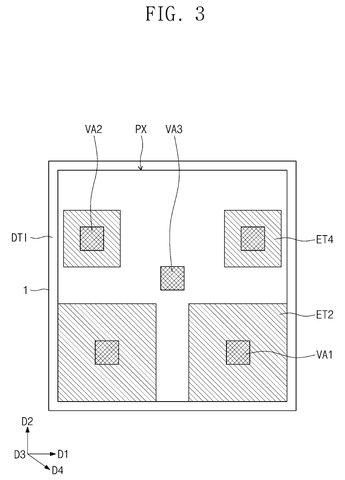

Camera chip with second electrode., drawing sheet 3 from US 2026/0247736 A1
Sheet 3 Camera chip with second electrode.

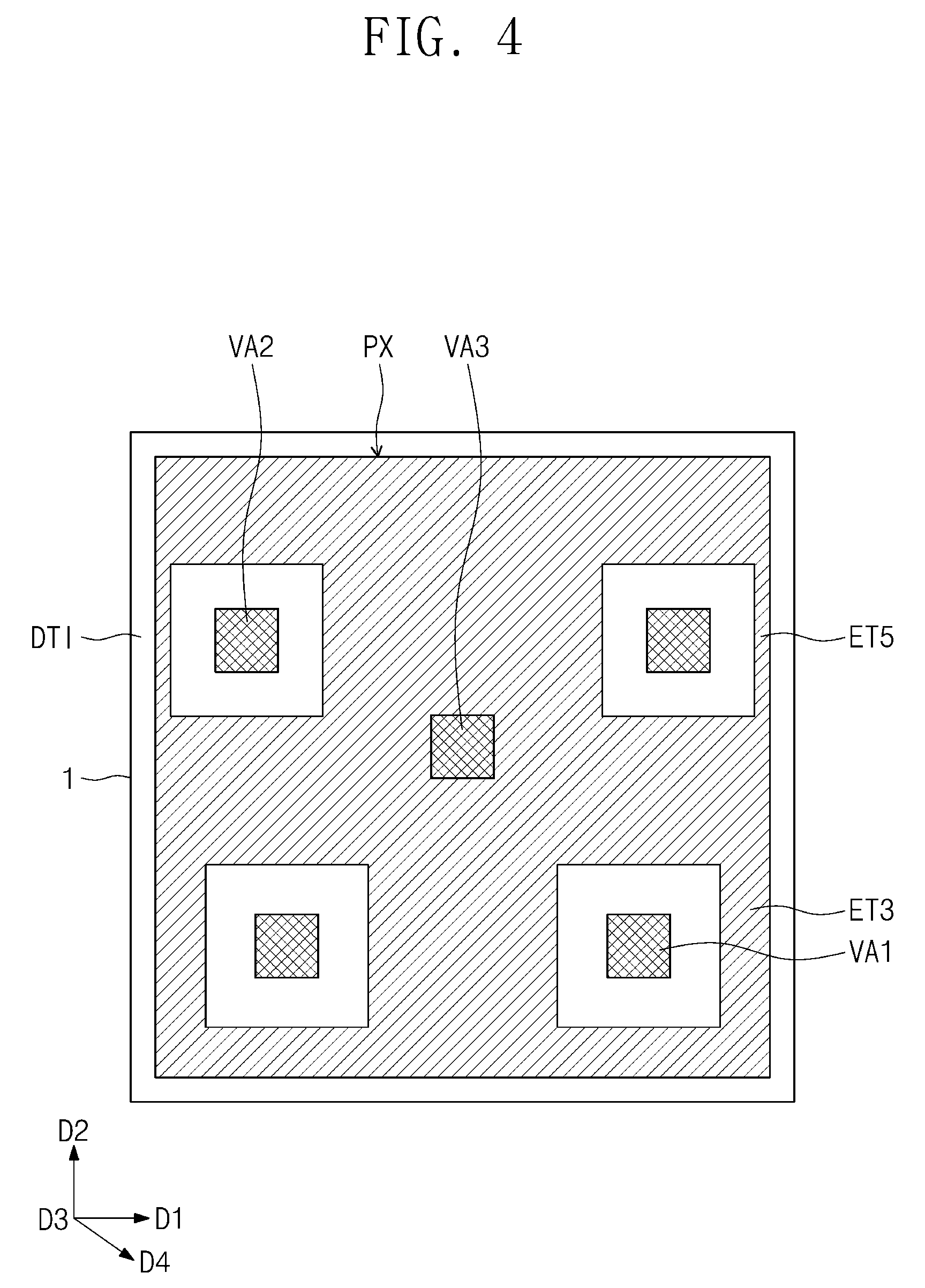

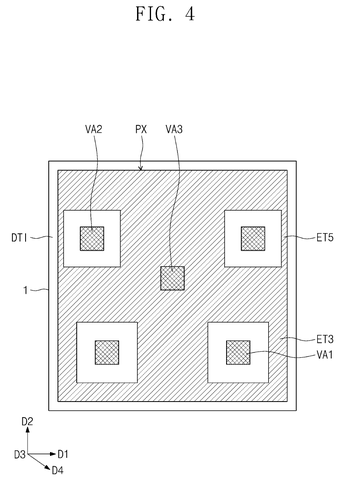

Camera chip with third electrode., drawing sheet 4 from US 2026/0247736 A1
Sheet 4 Camera chip with third electrode.

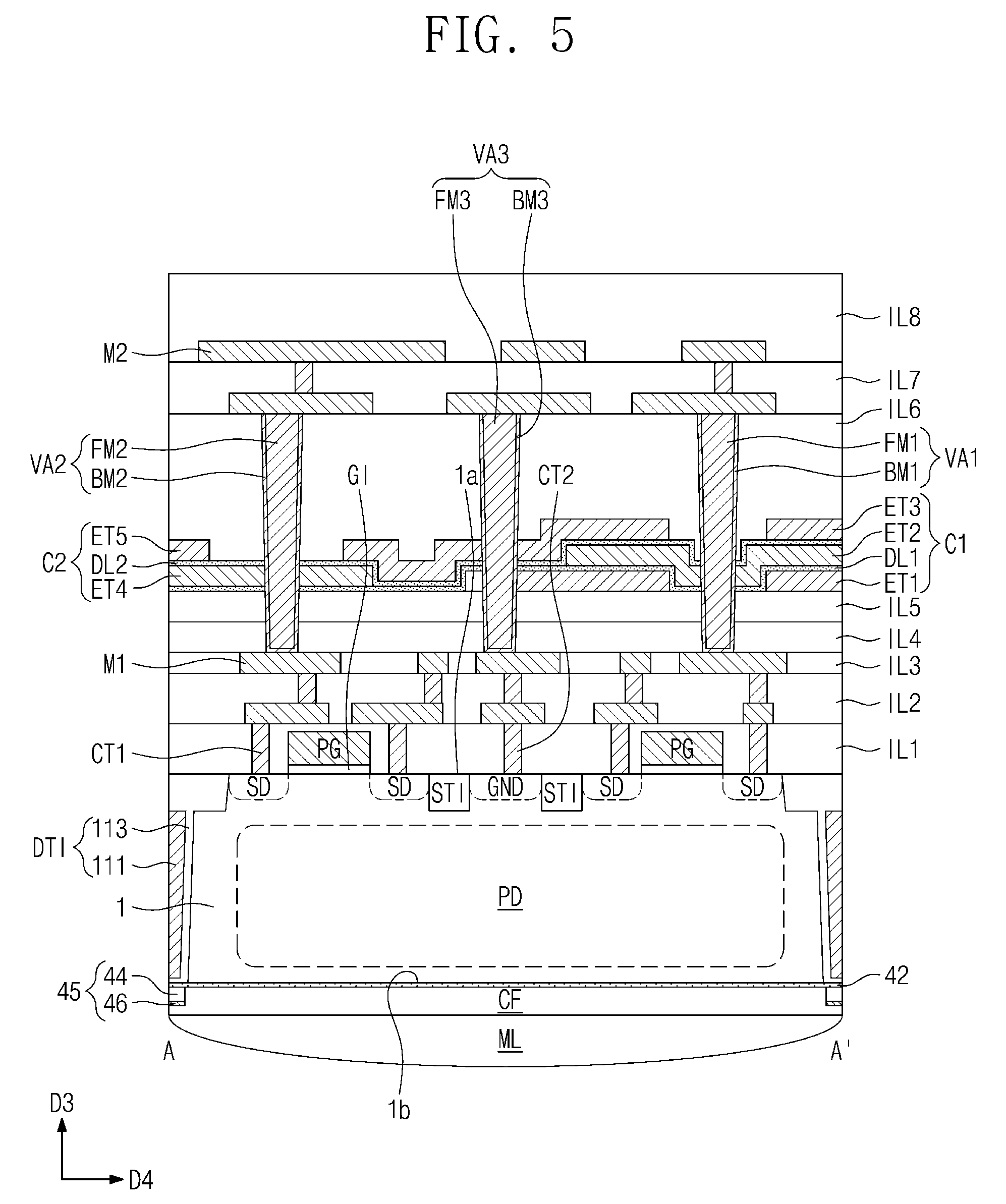

Camera chip cross-section., drawing sheet 5 from US 2026/0247736 A1
Sheet 5 Camera chip cross-section.

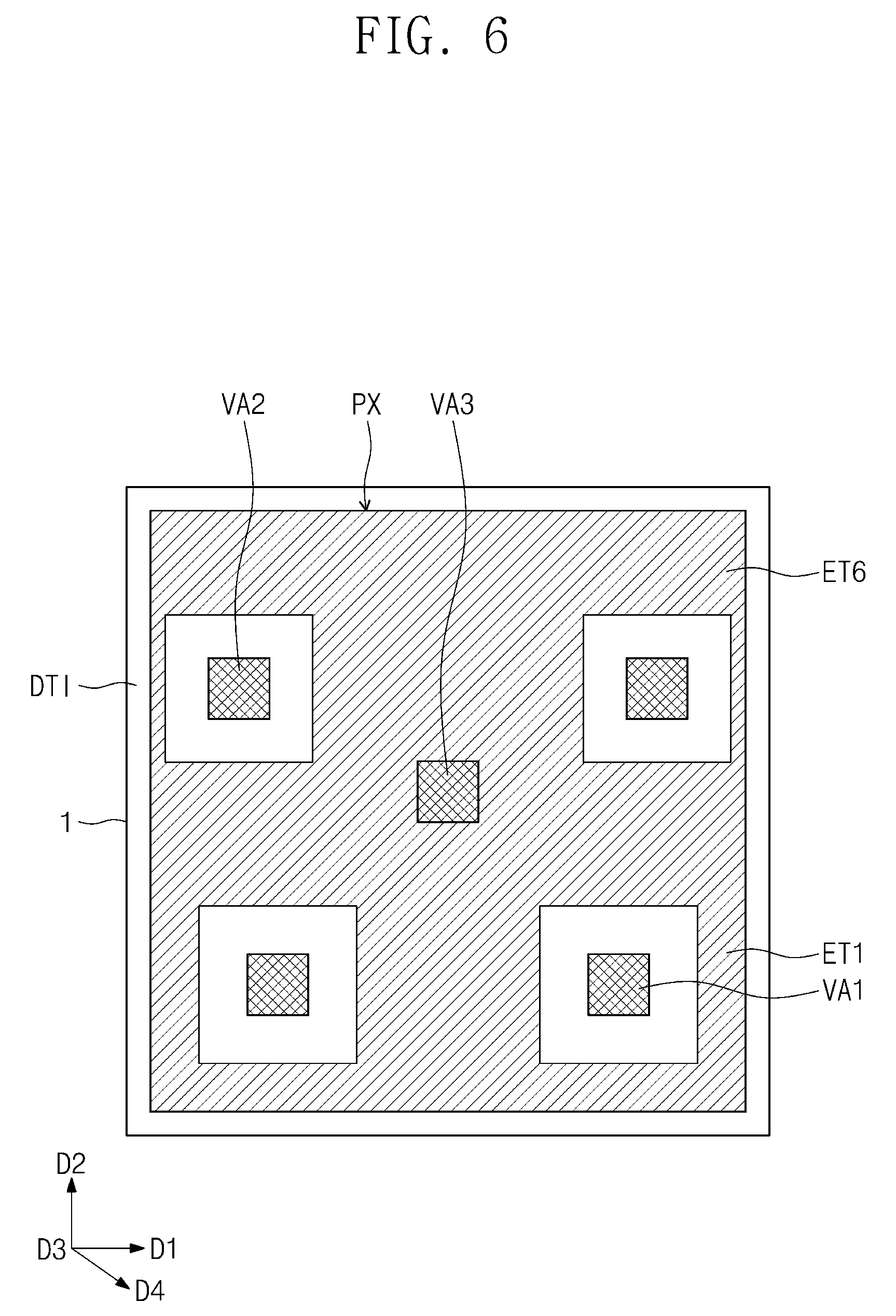

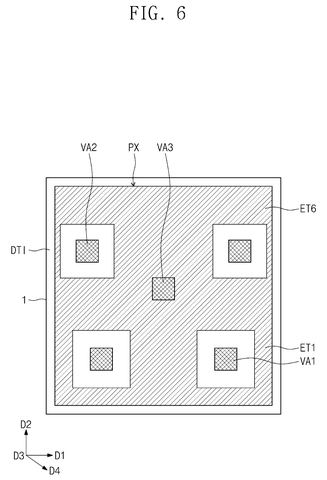

Camera chip with fourth electrode., drawing sheet 6 from US 2026/0247736 A1
Sheet 6 Camera chip with fourth electrode.

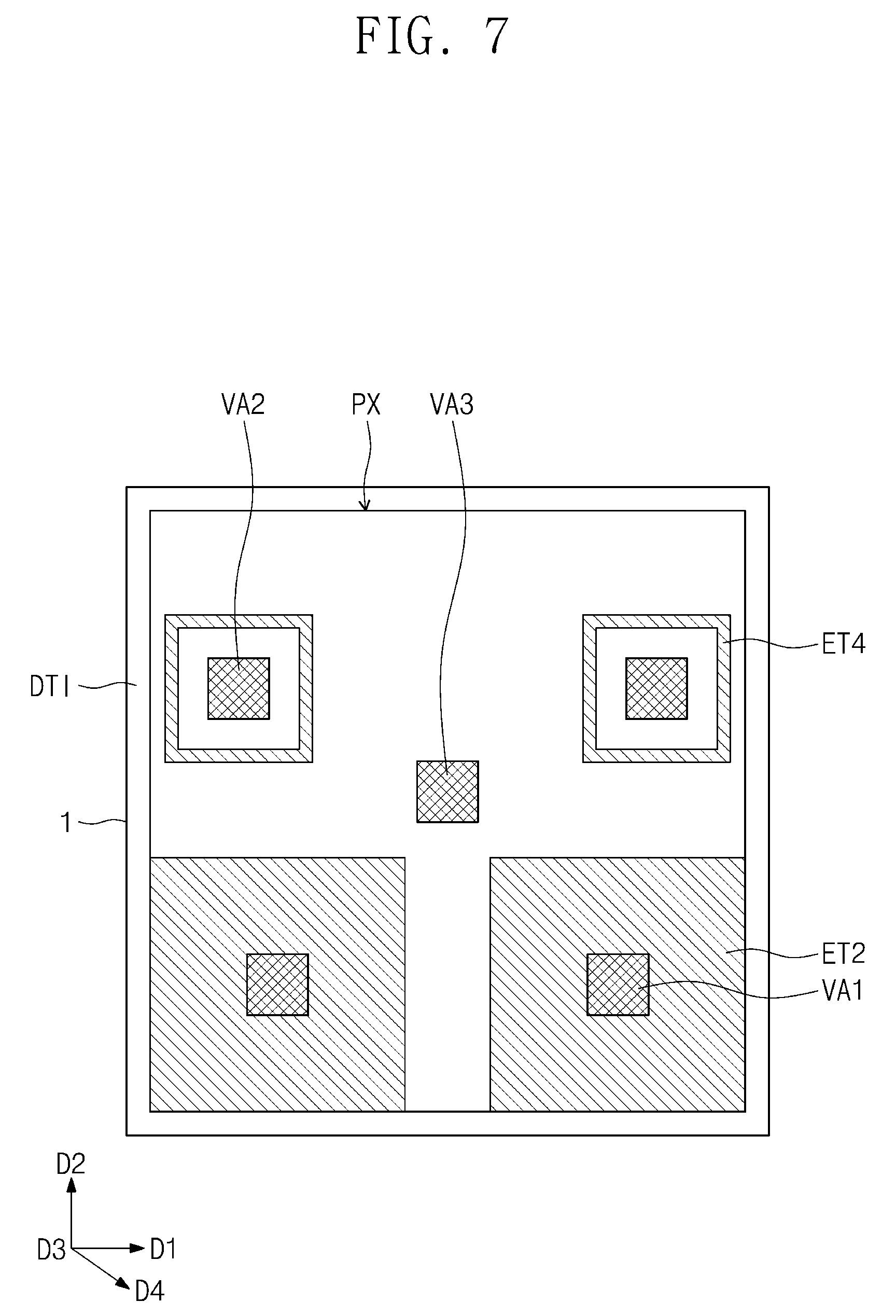

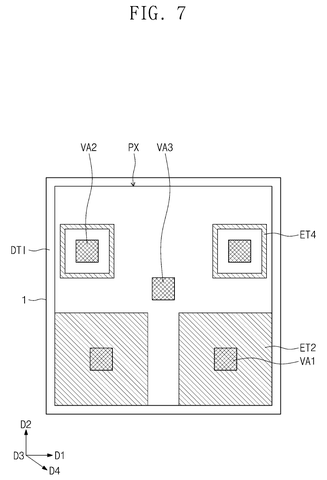

Camera chip with fifth electrode., drawing sheet 7 from US 2026/0247736 A1
Sheet 7 Camera chip with fifth electrode.

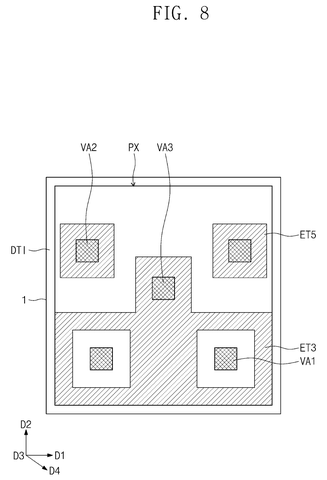

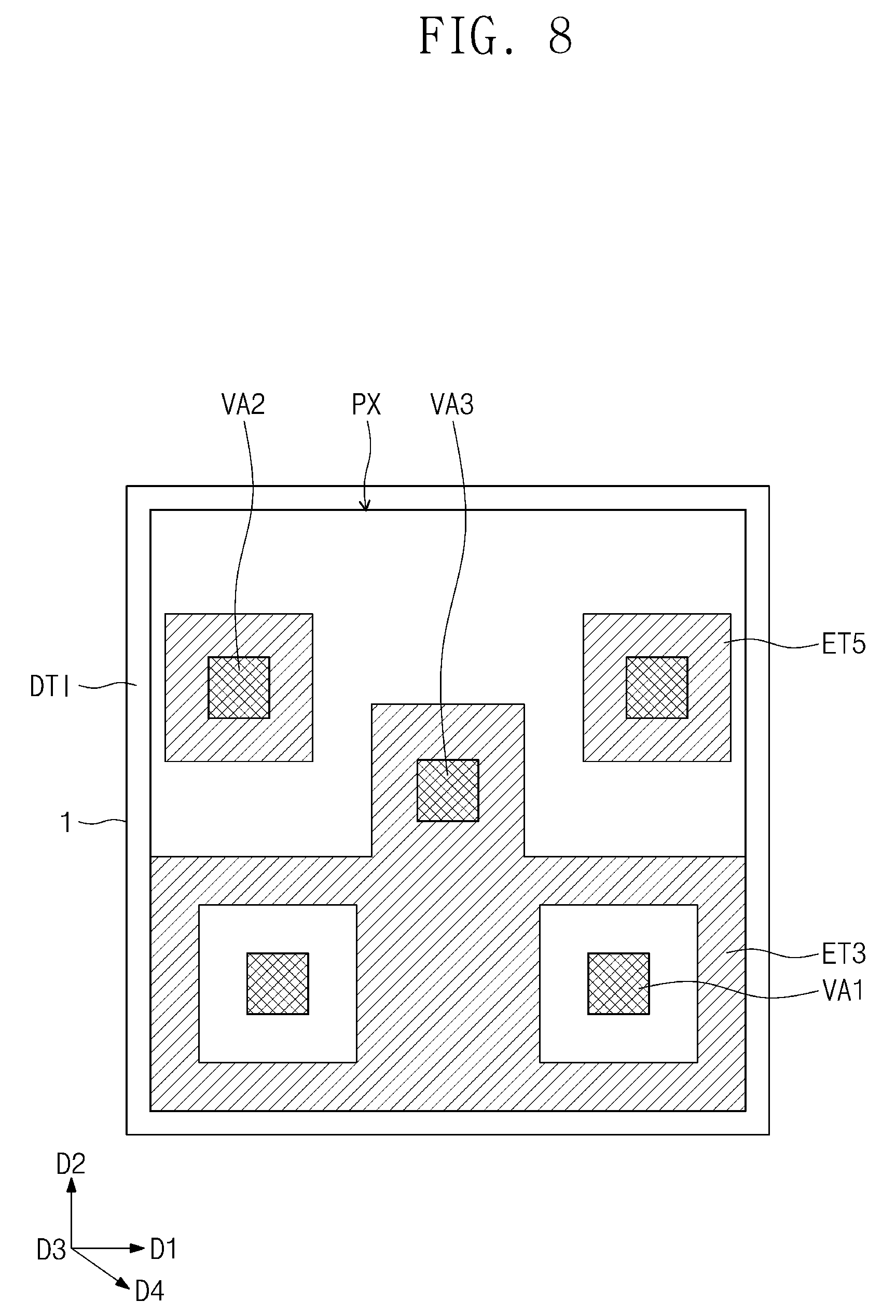

Camera chip with sixth electrode., drawing sheet 8 from US 2026/0247736 A1
Sheet 8 Camera chip with sixth electrode.
Show the other 13 sheets
Samsung Patents a Camera Chip That Stores Light Data Differently Across Each Shot patent drawing, sheet 9
Sheet 9
Samsung Patents a Camera Chip That Stores Light Data Differently Across Each Shot patent drawing, sheet 10
Sheet 10
Samsung Patents a Camera Chip That Stores Light Data Differently Across Each Shot patent drawing, sheet 11
Sheet 11
Samsung Patents a Camera Chip That Stores Light Data Differently Across Each Shot patent drawing, sheet 12
Sheet 12
Samsung Patents a Camera Chip That Stores Light Data Differently Across Each Shot patent drawing, sheet 13
Sheet 13
Samsung Patents a Camera Chip That Stores Light Data Differently Across Each Shot patent drawing, sheet 14
Sheet 14
Samsung Patents a Camera Chip That Stores Light Data Differently Across Each Shot patent drawing, sheet 15
Sheet 15
Samsung Patents a Camera Chip That Stores Light Data Differently Across Each Shot patent drawing, sheet 16
Sheet 16
Samsung Patents a Camera Chip That Stores Light Data Differently Across Each Shot patent drawing, sheet 17
Sheet 17
Samsung Patents a Camera Chip That Stores Light Data Differently Across Each Shot patent drawing, sheet 18
Sheet 18
Samsung Patents a Camera Chip That Stores Light Data Differently Across Each Shot patent drawing, sheet 19
Sheet 19
Samsung Patents a Camera Chip That Stores Light Data Differently Across Each Shot patent drawing, sheet 20
Sheet 20
Samsung Patents a Camera Chip That Stores Light Data Differently Across Each Shot patent drawing, sheet 21
Sheet 21
