Samsung Patents a Virtual Keyboard That Reads the Screen to Know What You Want to Type
Most keyboards wait for you to tell them what kind of input you need. Samsung's new patent describes a keyboard that figures it out on its own, by reading the structure of the app behind the text field.
What Samsung's context-reading keyboard actually does

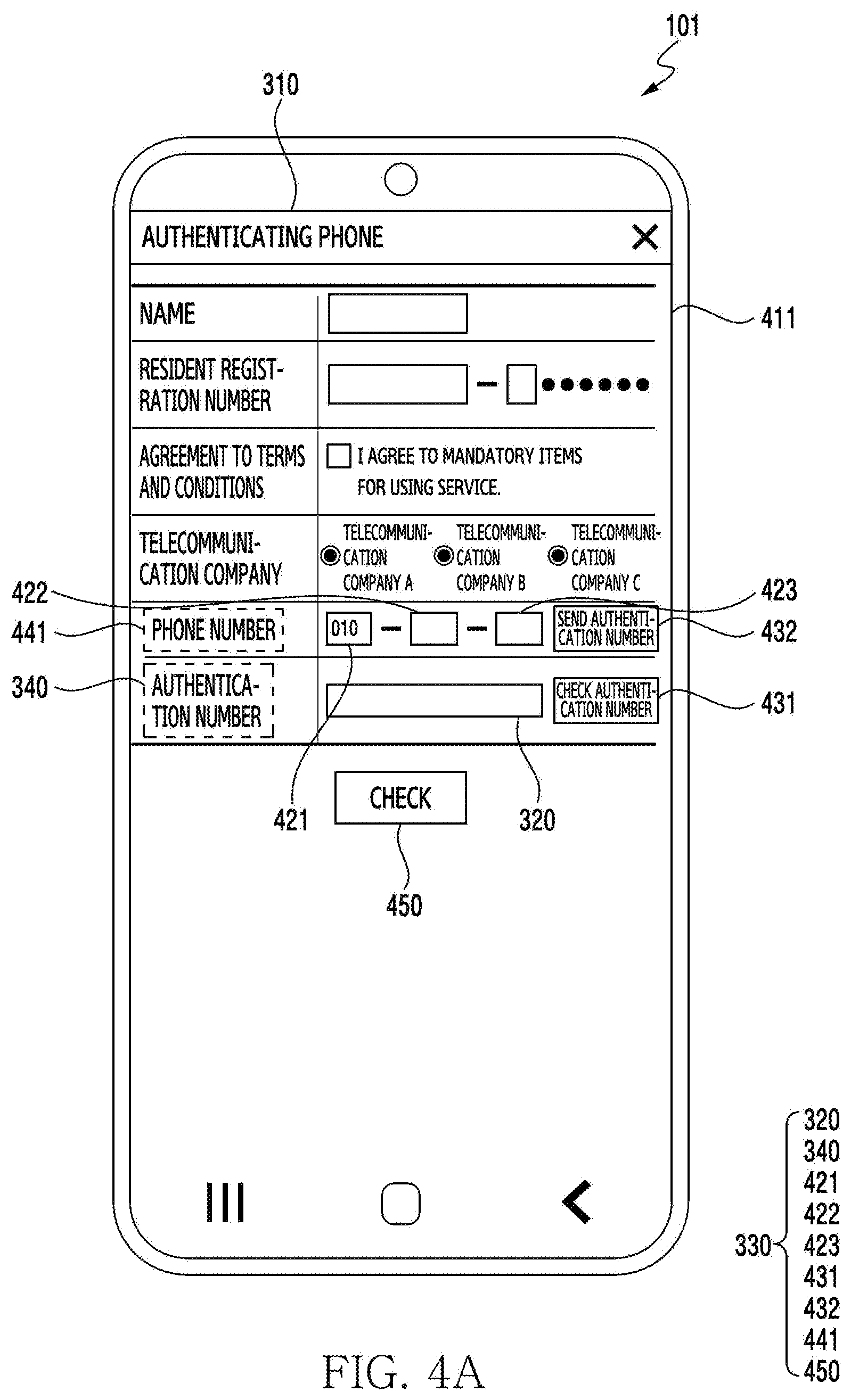

Imagine you tap a field labeled "Date of Birth" inside an app, and instead of a standard alphabet keyboard popping up, your phone immediately shows a number pad or a date picker. That's the core idea here: the keyboard changes its layout based on what the app's structure says the field is actually for.
Right now, whether you get letters, numbers, or a special input depends on how carefully the app developer set things up. Samsung's patent describes a system where the phone itself inspects the app's underlying data structure, finds context clues around the field you tapped, and uses those clues to decide which keyboard type fits best.
The result, in theory, is fewer moments where you're hunting around the wrong keyboard layout before you can even start typing. It's a small friction point, but one that happens dozens of times a day across every app on your phone.
… identify a second data element related to the first data element among the data elements arranged in the hierarchical structure; based on the second data element, determine a type of text to be input through the text input portion …
Translation: It analyzes nearby screen data to figure out what kind of information you need to type.
How the device maps screen structure to keyboard type

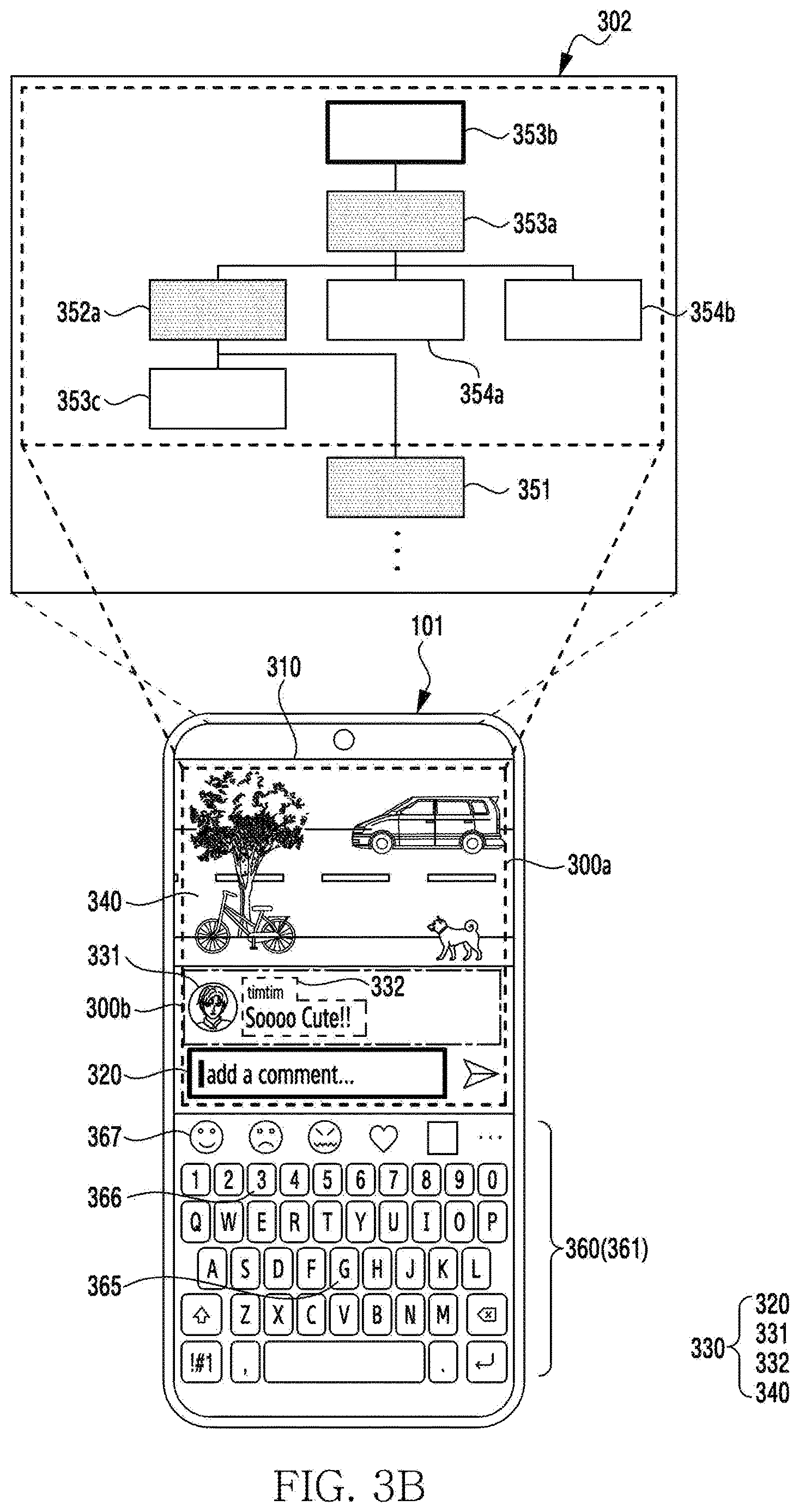

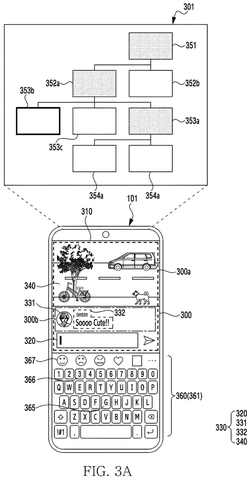

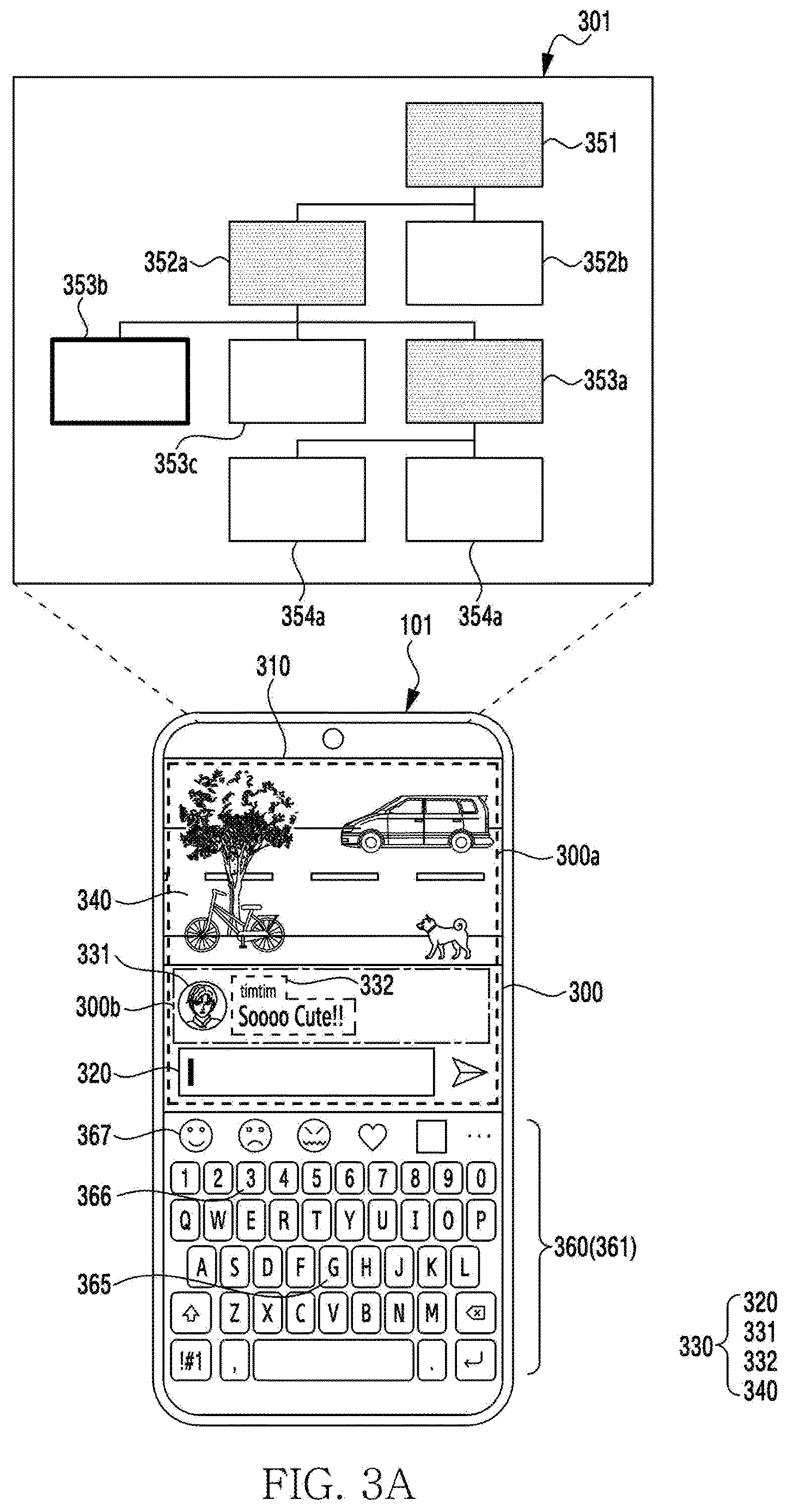

The patent centers on a device that displays screens built from data elements arranged in a hierarchical structure (think of an app's layout as a family tree, where each label, field, and button has a parent element and siblings around it).
When you tap a text input field, the device identifies two things:
- The first data element: the field itself, the specific box you tapped.
- The second data element: a related element nearby in the hierarchy, such as a label, a heading, or a grouping node that provides context about what the field is for.

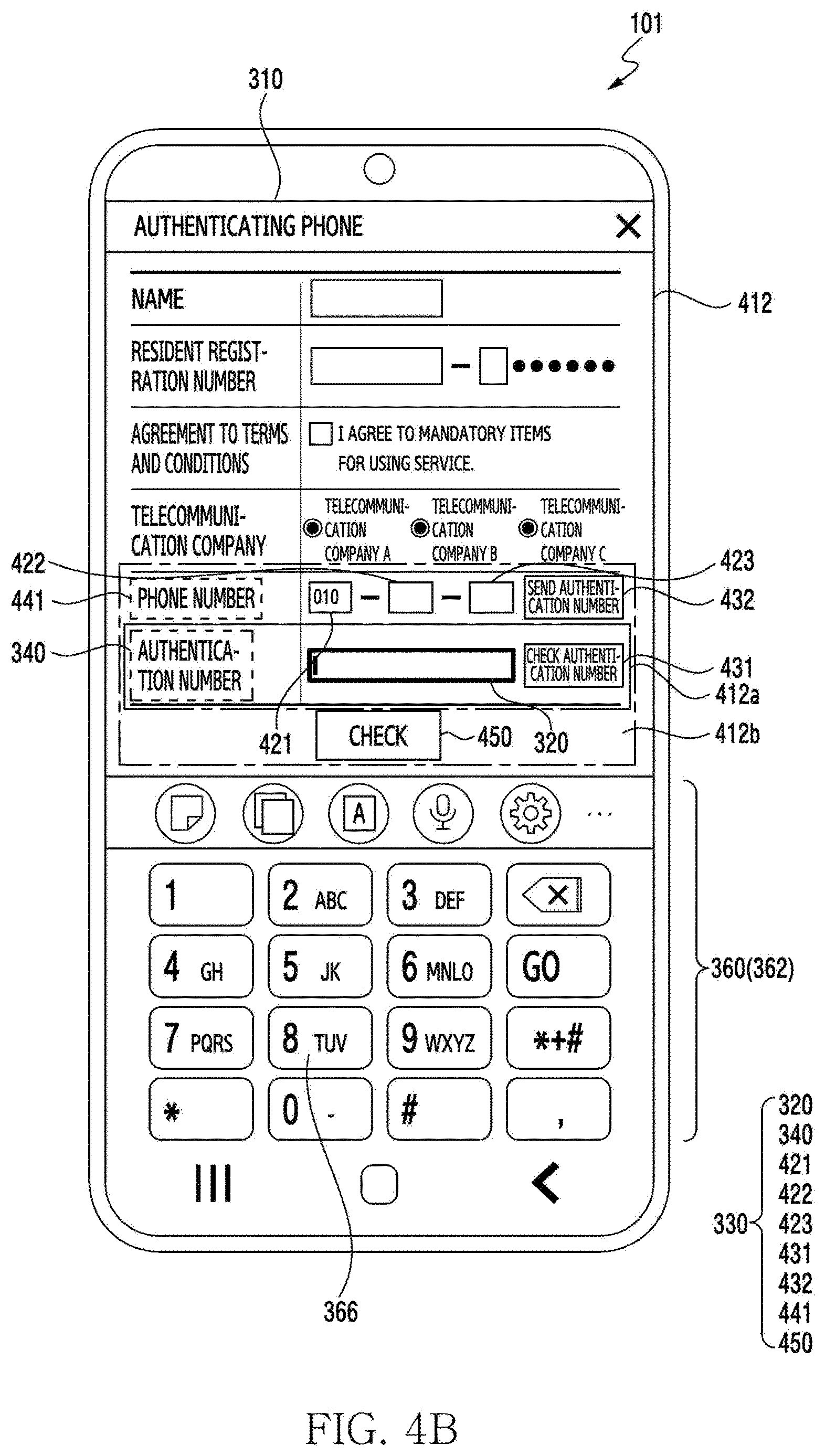

The system uses that second element to determine the type of text expected. If the surrounding structure signals a phone number field, it shows a numeric pad. If it reads a name field, it shows a standard alphabet keyboard. If it detects an email context, it might surface an email-optimized layout.

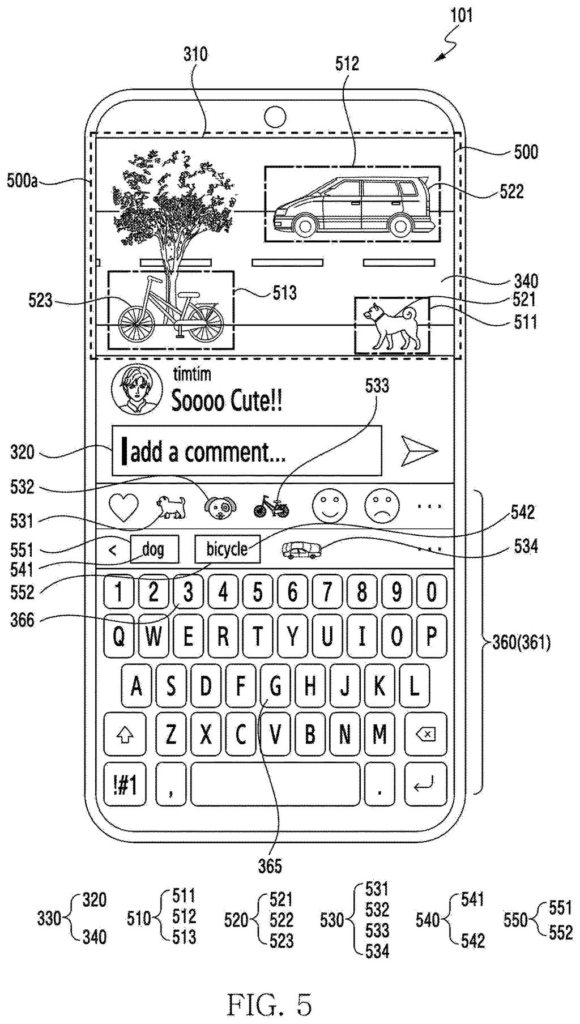

The patent also mentions recommended words (autocomplete suggestions) being shaped by the same context logic, so suggestions become more relevant to the field's purpose, not just your recent typing history.
… display, on the display, a virtual keyboard together with the text input portion of the screen according to the determined type of text …
Translation: It automatically brings up a custom keyboard layout that matches the specific field you clicked.
What this means for everyday typing on Samsung phones
For most people, the payoff is subtle but real: fewer times you open a keyboard that's clearly wrong for what you're doing, then have to switch modes manually. That friction exists today because apps vary widely in how well they communicate input requirements to the operating system, and Samsung is essentially proposing the phone fill in those gaps on its own.
This matters most in forms-heavy apps such as banking, shopping checkouts, and healthcare intake screens, where you move quickly through many different field types. If the keyboard arrives already configured for the field at hand, Samsung's interest in reducing input friction across its Galaxy device lineup could translate into a noticeably faster typing experience in the places it's most annoying.
Samsung's 1343rd filing we've tracked since May in our Samsung coverage adds to a run that includes a dual-AI object method and auto pixel correction in video.
The honest reader-impact verdict here is: you probably wouldn't notice this working, but you'd notice when it fails. That's not a knock on the idea. The best keyboard behavior is invisible, and Samsung is trying to make the invisible more reliable.
The interesting engineering bet is that app structure contains enough predictable context to guess input type correctly most of the time. In well-built apps, that's likely true. In poorly structured apps, the system might make confident wrong guesses, which could be more frustrating than a neutral default keyboard.
Whether this ends up as a broad system feature or a narrower improvement inside Samsung's own apps remains an open question. As a targeted fix for a daily annoyance, it's sensible. The gap between the patent and a polished feature that handles the messiness of real-world apps is the real work ahead.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

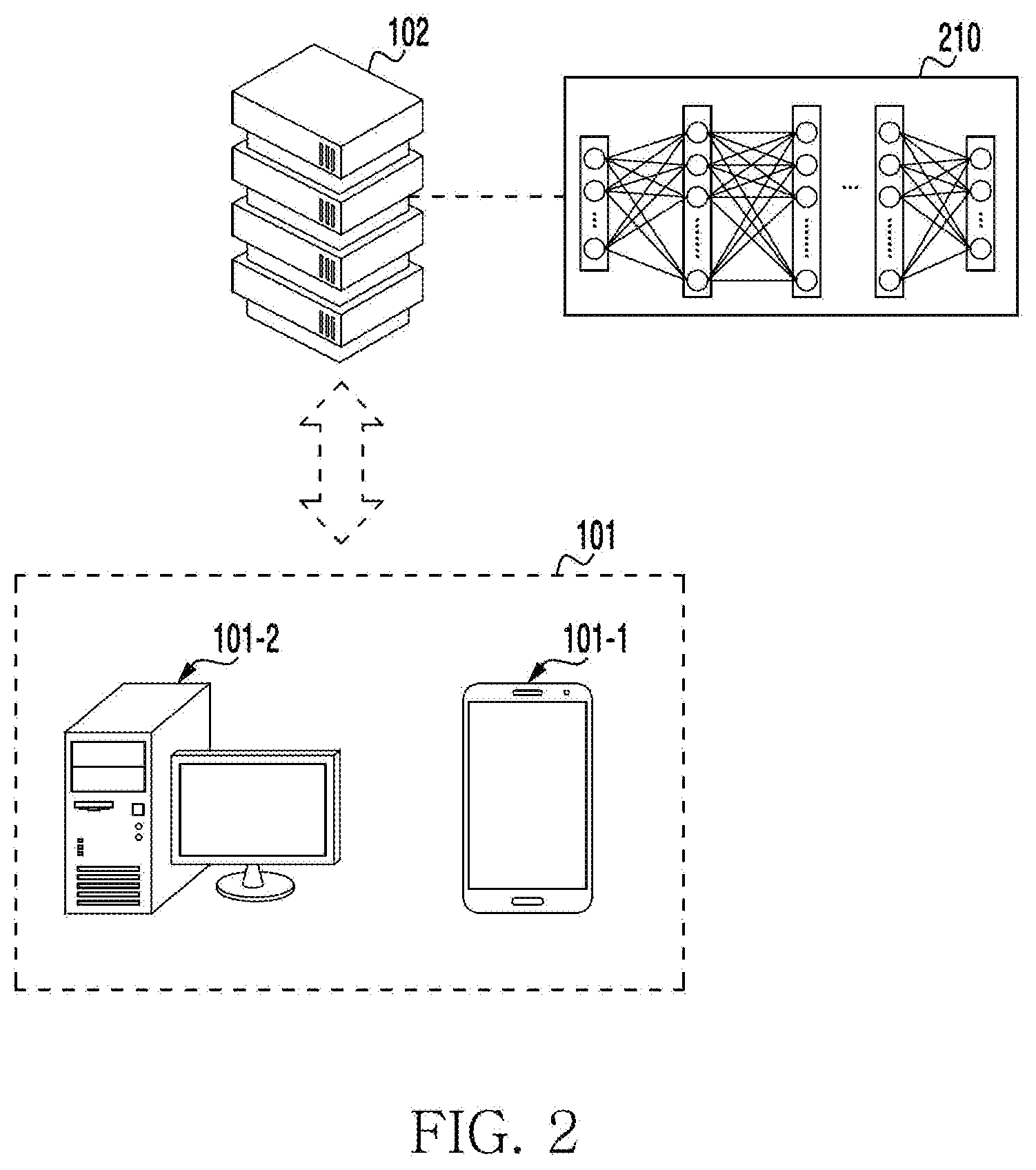

11 drawing sheets from US 2026/0288329 A1 · click any drawing to enlarge
