Samsung Patents a System That Confirms Your Phone Is Charging From the Correct Pad
Wireless charging pads sometimes latch onto the wrong device or fumble the connection entirely. Samsung's new patent describes a two-radio verification system that makes sure your phone and charger are definitely talking to each other before any power flows.
What Samsung's dual-radio charger pairing actually does
Imagine you set your phone on a wireless charging pad in a busy household where three other devices are sitting nearby. How does your phone know it's talking to that charger, and not one of your roommate's? Right now, the process is mostly guesswork with a single radio signal.
Samsung's patent describes a smarter handshake. Your phone first connects to the charger over one radio channel and swaps a unique ID code. Then it broadcasts that same ID code over a second, different radio channel. The charger listens on that second channel, confirms it hears the same ID, and only then upgrades the connection. It's a two-step check, like a bouncer confirming both your face and your name on the list before letting you in.
Once both radios agree the right device is in the right place, the phone and charger switch to that second channel to exchange the actual charging data, keeping the whole process on the most reliable connection available.
… transmit a first signal including a designated identification information to the external electronic device by using the first communication based on the first communication circuit; transmit a second signal by using the second communication based on the second communication circuit, the second signal broadcasting the designated identification information; …
Translation: The phone sends its identification data through two different wireless channels to verify its location.
How the two-signal handshake verifies and connects
The patent describes an electronic device (a phone or similar gadget) equipped with a power reception coil and two separate communication circuits, each operating on a different radio frequency band.
Here's the sequence the control circuit runs through:
- The phone connects to the charger over the first radio channel and sends a unique ID code to the charger.
- Simultaneously, it broadcasts that same ID code over the second radio channel, wide-open, so anything nearby can hear it.
- The charger, listening on that second channel, spots the broadcast and checks whether the ID matches what it received on the first channel.
- If the IDs match, the charger sends a connection request back on the first channel, asking to upgrade to a full second-channel link.
- Once that link is established, all charging negotiation data (power levels, device identity, safety parameters) flows over the second channel.
The two frequency bands are intentionally different so that interference or noise on one channel doesn't automatically affect the other. The ID-matching step is the critical guard: a nearby device that only sees the broadcast on one channel but not the other cannot hijack or disrupt the charging session.
The patent doesn't name specific radio technologies, but the architecture is compatible with how standards like Bluetooth and NFC (Near Field Communication, the tap-to-pay short-range radio) already coexist in modern phones.
… when the first and second identification information match, transmit a third signal to the external electronic device using the first communication, the third signal requests a connection to the external electronic device; …
Translation: The phone connects securely to the charging pad once both identification codes match up properly.
What this means for everyday wireless charging reliability
For most people, wireless charging already feels automatic, so a failure in device-to-charger pairing tends to show up as a phone that's mysteriously at 40% in the morning even though it was on the pad all night. Samsung's run of wireless charging filings suggests the company is treating that silent failure as a real problem worth solving at the protocol level, not just the hardware level.
If this system makes it into a Galaxy phone or charging pad, the concrete payoff is reliability you don't have to think about. Multi-device households, office desks with several gadgets, and public charging spots are all places where the wrong-device-pairing problem is most likely to bite you. A two-radio handshake that confirms identity before charging begins is a quiet but practical fix.
Samsung's 204th filing in the cell phone applications we've tracked since May adds to a run that includes a two-part screen seal and a three-panel app-rearranging phone.
You place your phone on the charging pad before bed and wake up to 12 percent battery. You assume it was slightly off-center. It probably was not.
What Samsung is patenting here is a two-signal handshake where the phone and the charging pad confirm each other's identity before charging begins. If something goes wrong, the phone asks for a reconnection rather than silently giving up.
That difference is invisible until the morning it matters, and then it is the only thing that matters.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

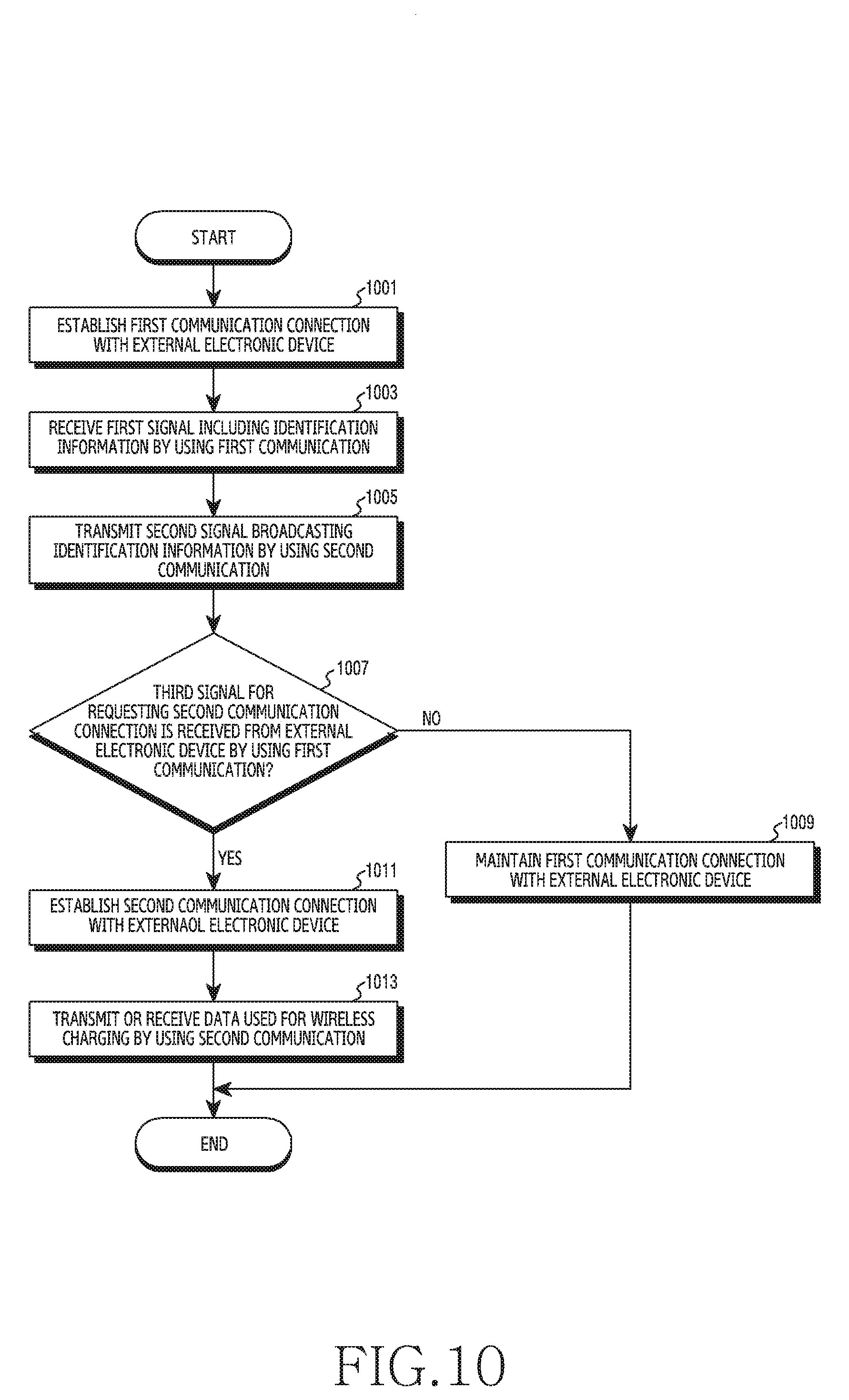

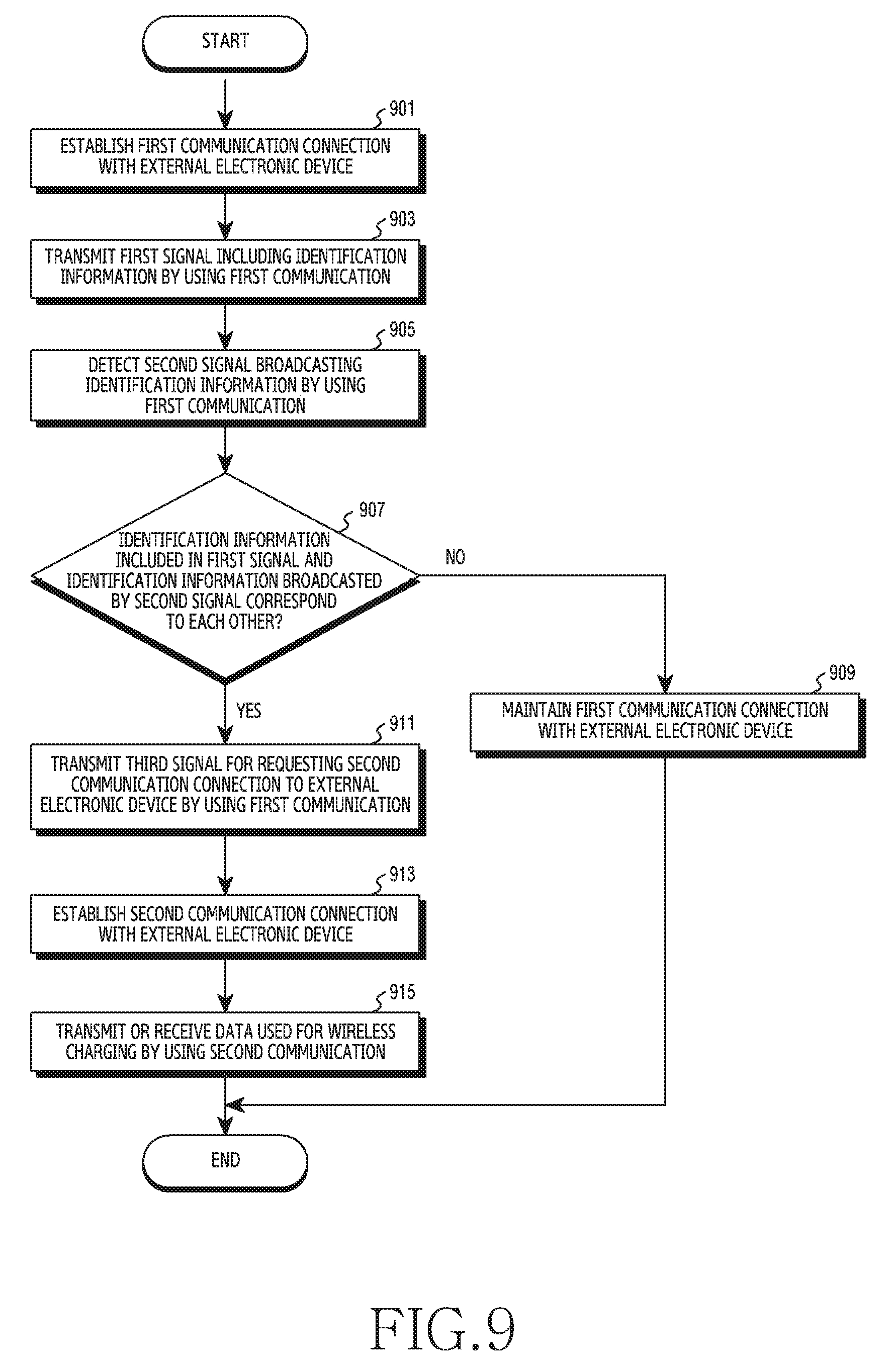

The drawings
10 drawing sheets from US 2026/0262111 A1 · click any drawing to enlarge
