Samsung Patents a Hinge That Keeps Both Foldable Screens Crease-Free and Aligned

Folding a phone sounds simple, but getting two separate display panels to bend without creasing or buckling requires a hinge that does far more than just pivot. Samsung's latest patent describes one with four distinct rotation axes, each playing a different role.

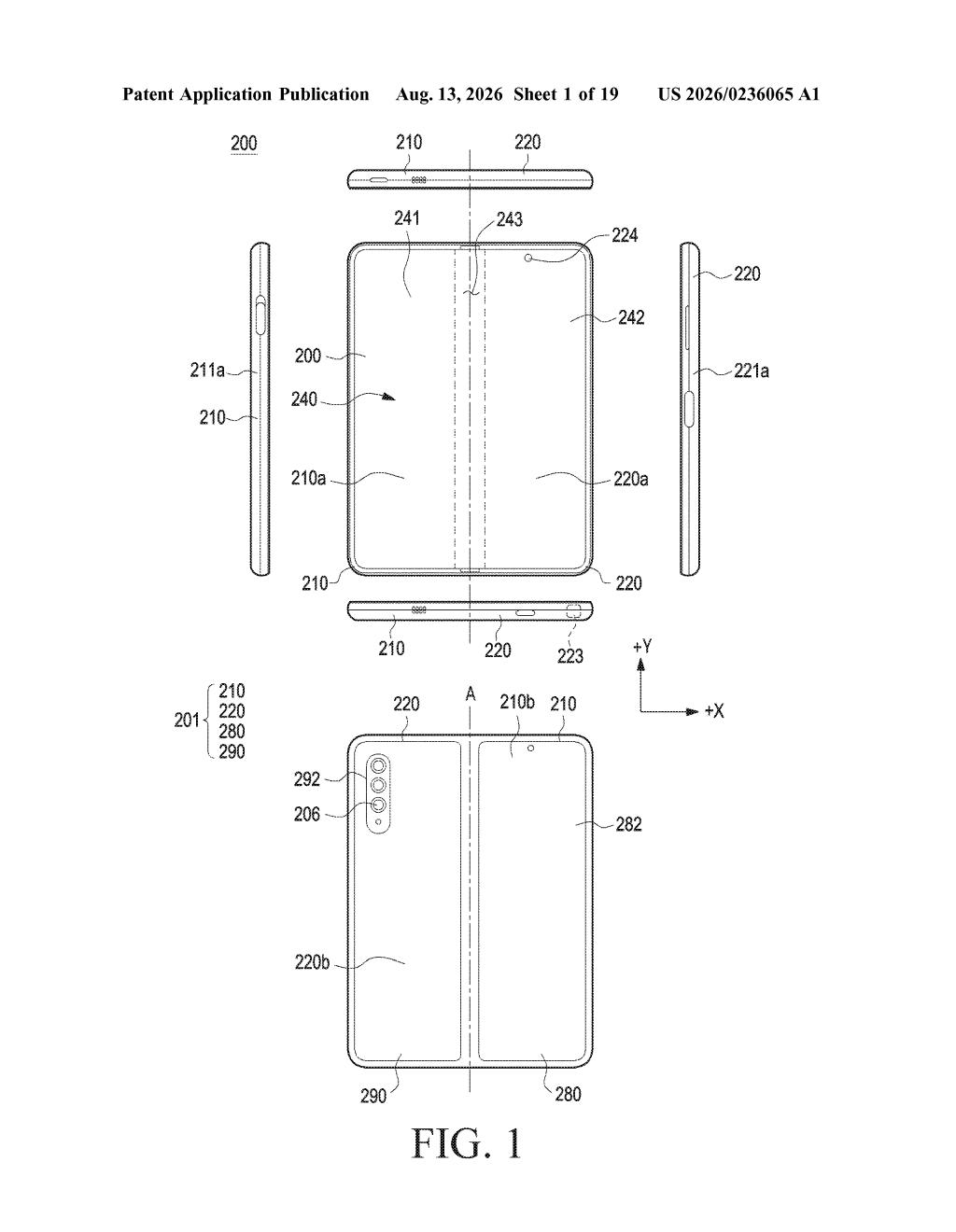

Orthographic and rear views of the foldable phone in its open, flat configuration. Drawing from patent filing US 2026/0236065 A1.
Orthographic and rear views of the foldable phone in its open, flat configuration.All 19 drawings ↓
Publication number
US 2026/0236065 A1(US20260236065A1)
Applicant
Samsung Electronics Co., Ltd.
Filed · Published
Apr 13, 2026 · Aug 13, 2026
Inventors
Giuk KANG, Younghun KIM, Dongmin SHIN, Jaehun KO
Status when we published
Waiting for an examiner
Document
8 claims
US classification
361/679.01
Parent application
Continuation of 18/625,684 (filed Apr 3, 2024)(18625684)

What Samsung's four-axis foldable hinge actually does

Most foldable phones today use a hinge that rotates around a single central point, which forces the flexible display to either gap open or compress and crease as the phone bends. That mismatch between where the screen wants to bend and where the hinge actually pivots is one of the hardest problems in foldable design.

Samsung's patent describes a hinge that splits the job across four separate axes. Two axes handle the physical rotation of the left and right housing halves. The other two create what the patent calls virtual rotation axes, meaning each display panel travels along a curved path as the phone folds, rather than simply pivoting around a fixed point. The result is that each screen moves the way it naturally wants to, reducing the stress that causes visible creasing.

An interlocking gear system keeps both sides in sync, so the left panel and right panel always fold at matching angles rather than one side pulling ahead of the other.

From the filing · CLAIM 1
… a third rotation axis (A 3 ) configured to provide a first virtual rotation axis (DX 1 ), allowing the first display to rotate around the first virtual rotation axis by moving along a first moving path formed in the hinge module …

Translation: The screen shifts along a hidden track as you fold the device to prevent the display from creasing.

How the sliding hinge arms trace two virtual rotation paths

The hinge module described in this patent has three main components working together: hinge arms, a shaft structure, and an interlocking gear assembly.

Hinge arms and shaft slots: Each housing half connects to its own hinge arm. Each arm has a slot cut into it, and a shaft (a fixed cylindrical rod) sits inside that slot. When you fold the phone, the hinge arm doesn't just rotate around the shaft; it slides along it at the same time. That combined sliding-and-rotating motion is what produces the curved, path-following movement the patent calls a virtual rotation axis.

Virtual rotation axes: Because each display panel follows a path (not a fixed pivot point), the hinge can be tuned so the screen's natural bending radius matches the mechanical path exactly. Think of it like a door hinge that also shifts the door sideways as it swings, so the edge never scrapes the frame.

Interlocking gears: A gear on the first housing meshes with a gear on the second housing. This synchronizes the fold angle on both sides, preventing the asymmetric buckling that can happen when one panel moves faster than the other.

Hinge cover: The shaft structure is anchored to a hinge cover (the decorative spine visible on the outside of the fold), which keeps the whole assembly stable and protects it from debris.

From the filing · THE ABSTRACT
… the first hinge arm is configured to slide and rotate with respect to the first shaft based on a folding angle of the electronic device, and wherein the second hinge arm is configured to slide and rotate with respect to the second shaft based on the folding angle of the electronic device.

Translation: The hinge arms slide and pivot automatically to adjust the screen position as you open or close the phone.

What this means for Galaxy Z Fold screen durability

For anyone who owns or is considering a foldable phone, the hinge is the most failure-prone part of the device. Screen creases appear at the fold line precisely because the display material is asked to bend around a fixed axis that doesn't match the screen's preferred radius. A hinge that lets each display follow its own virtual path directly attacks that problem, and if it works as described, it could meaningfully extend the usable life of the screen.

Samsung already leads the commercial foldable market with the Galaxy Z Fold and Z Flip lines, so this kind of mechanical refinement is directly relevant to those products. The engineering tradeoff is real: more rotation axes and sliding components mean more parts that can wear, stick, or accumulate grit over years of use. Whether that complexity pays off depends on manufacturing tolerances Samsung can hold at scale. Foldable display engineering is one of the more active areas among new Big Tech patents right now, reflecting how much is still being worked out in this product category.

Source: US 2026/0236065 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 19 sheets

19 drawing sheets from US 2026/0236065 A1 · click any drawing to enlarge

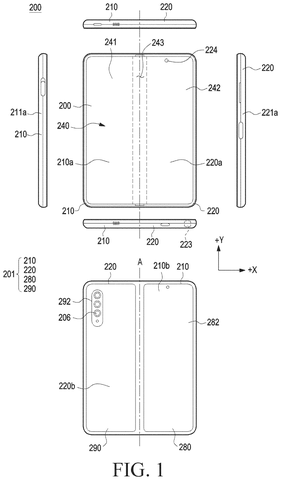

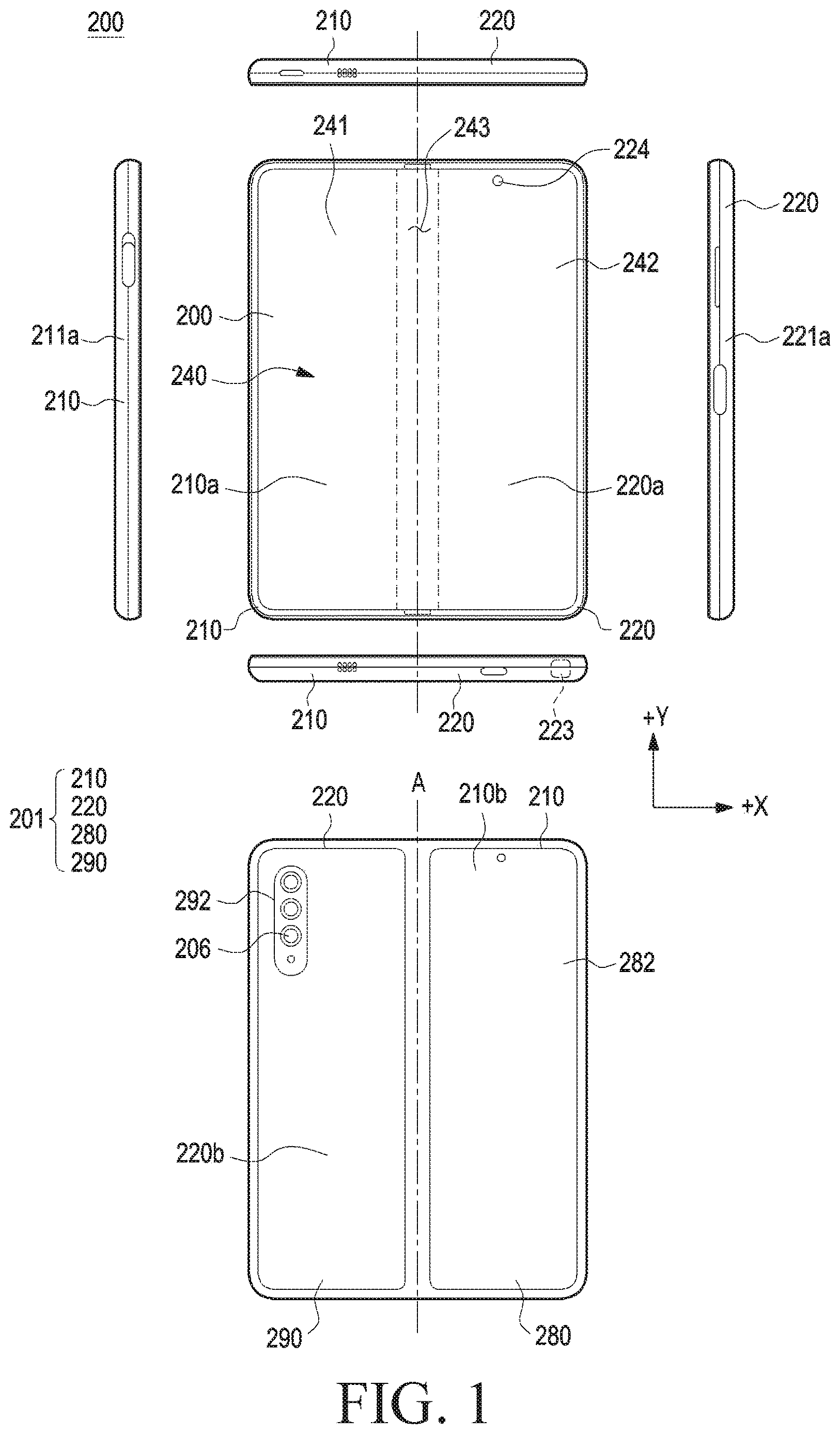

Multiple exterior views of phone, drawing sheet 1 from US 2026/0236065 A1
Sheet 1 Multiple exterior views of phone

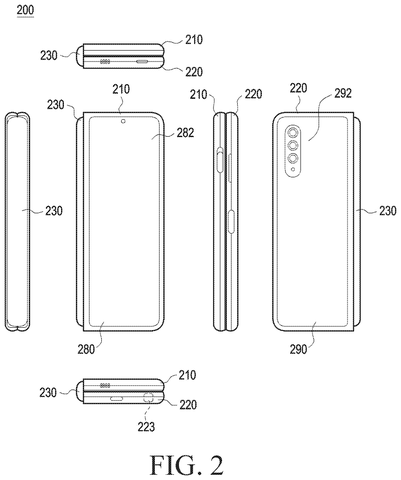

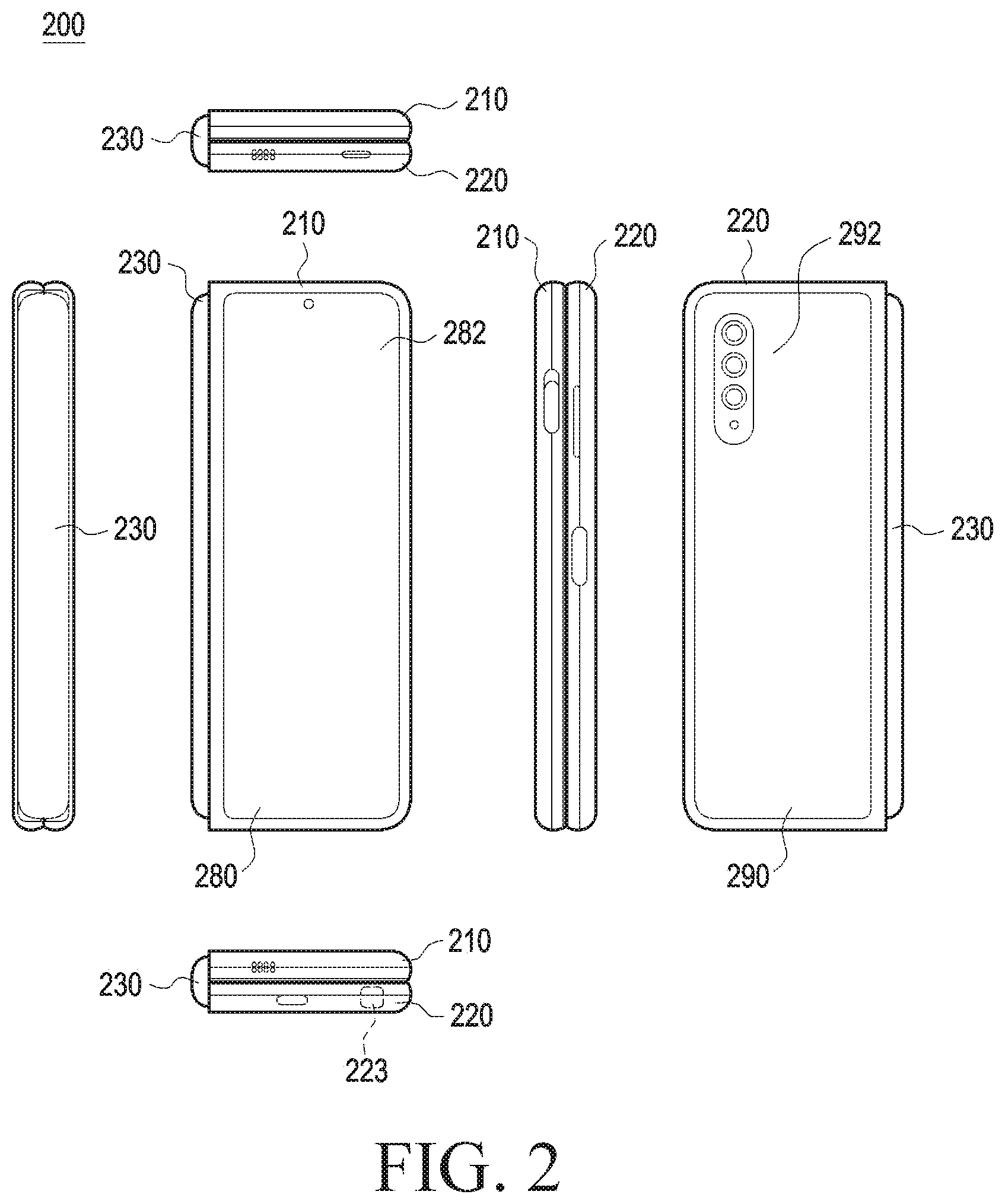

Folded phone exterior angles, drawing sheet 2 from US 2026/0236065 A1
Sheet 2 Folded phone exterior angles

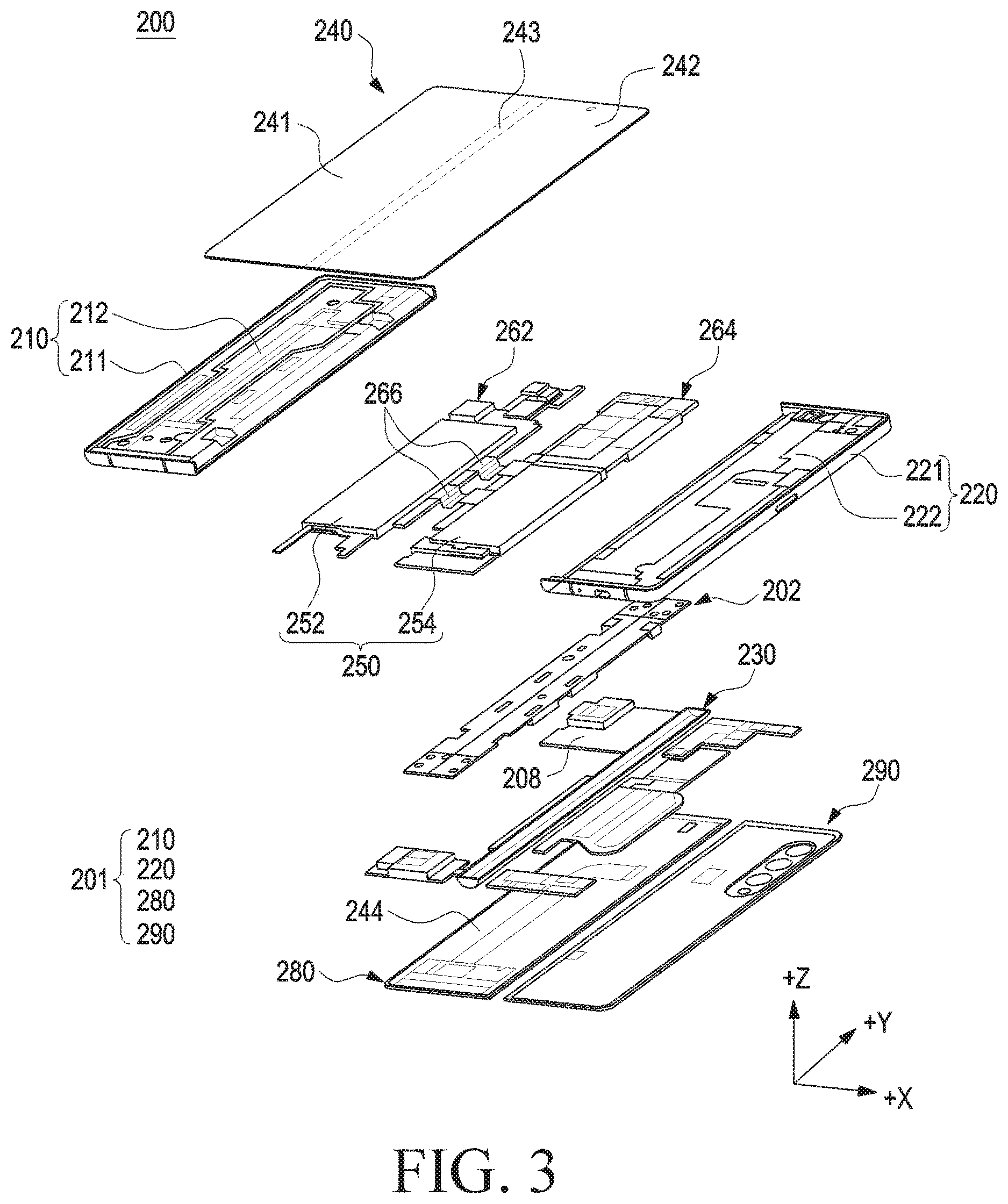

Exploded view of phone parts, drawing sheet 3 from US 2026/0236065 A1
Sheet 3 Exploded view of phone parts

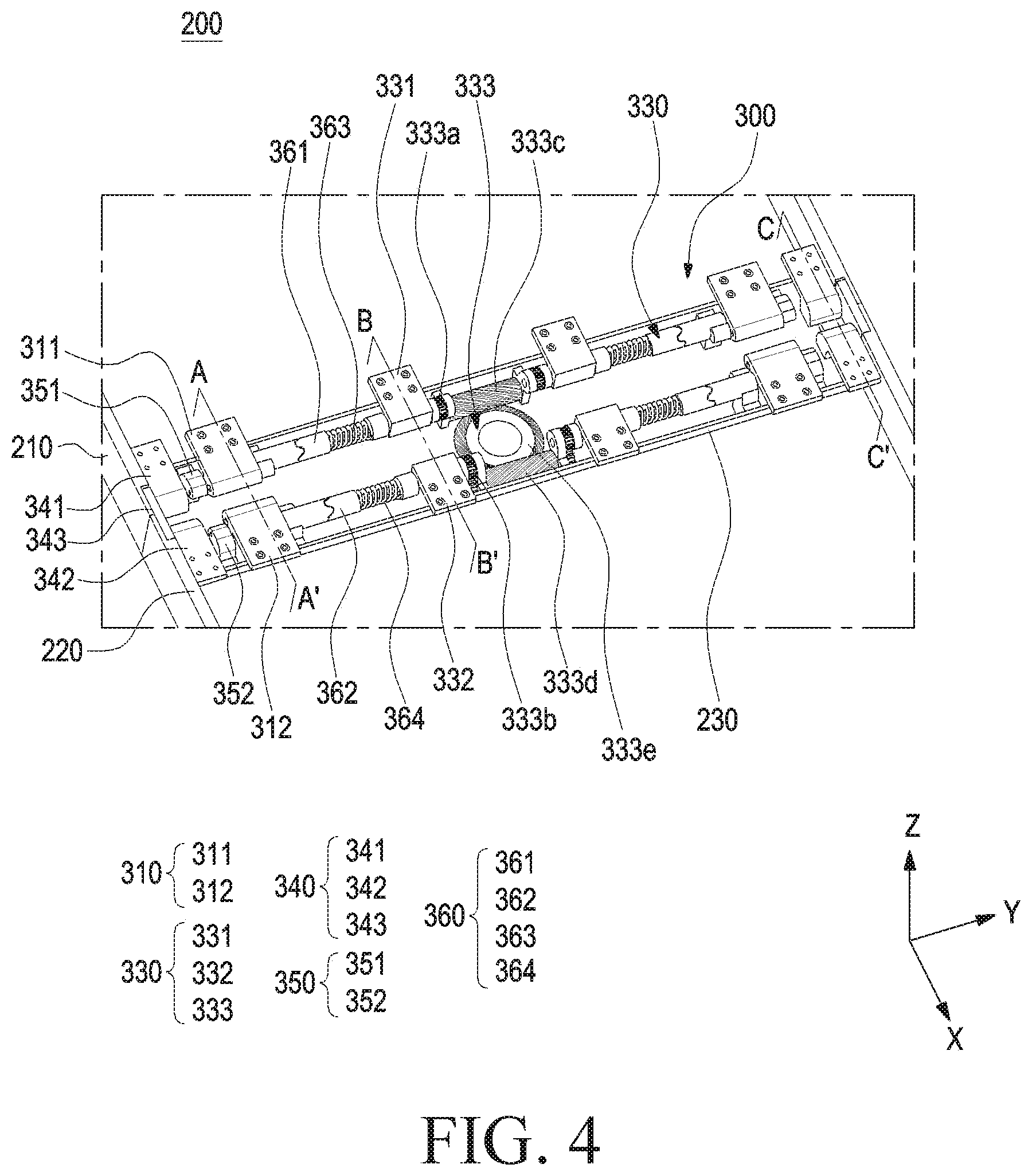

Perspective view of internal hinge, drawing sheet 4 from US 2026/0236065 A1
Sheet 4 Perspective view of internal hinge

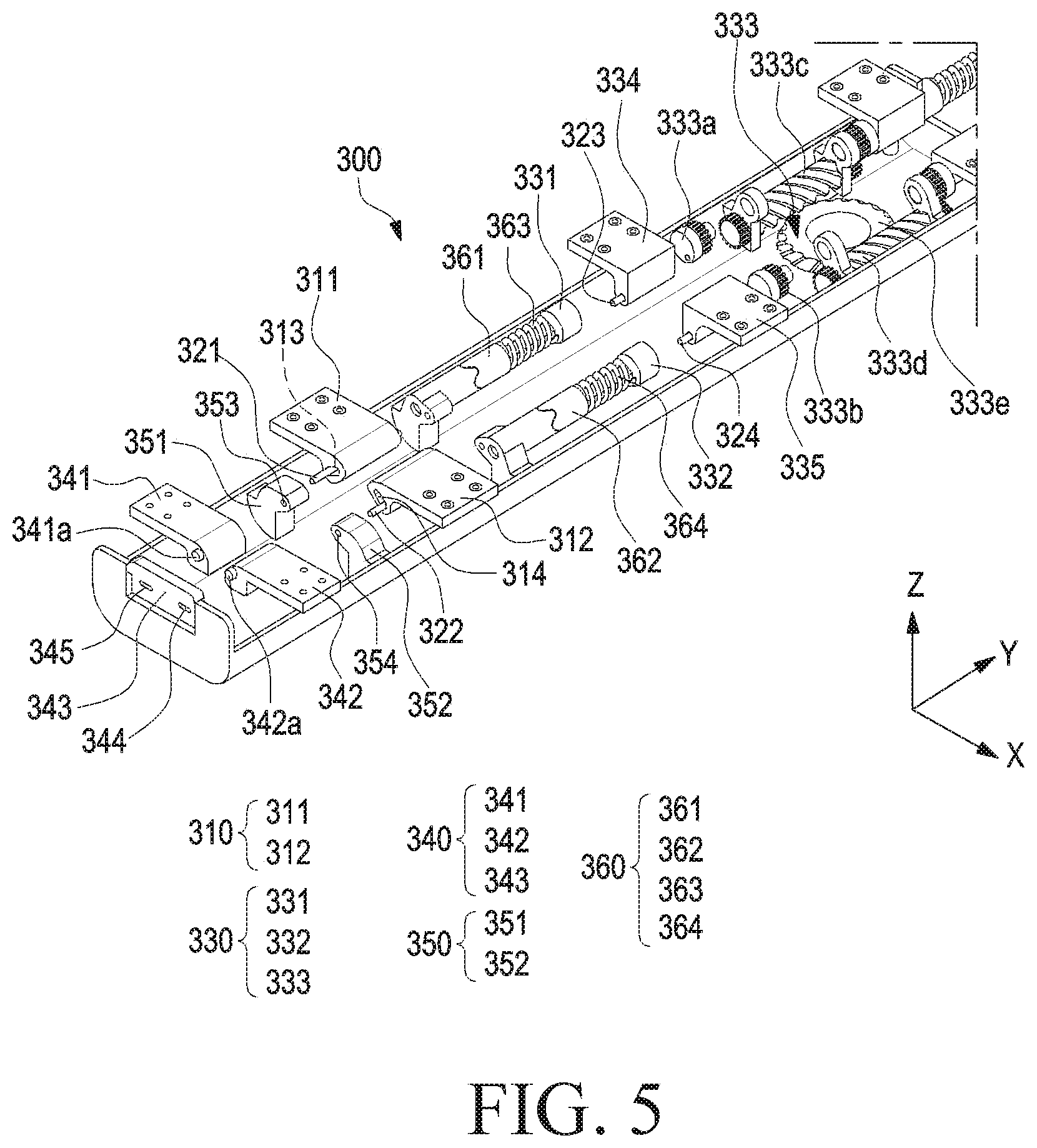

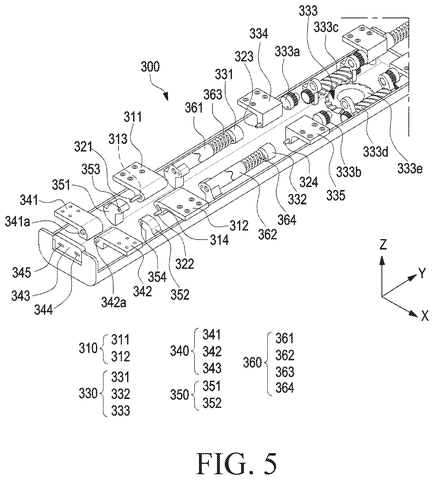

Exploded view of hinge mechanism, drawing sheet 5 from US 2026/0236065 A1
Sheet 5 Exploded view of hinge mechanism

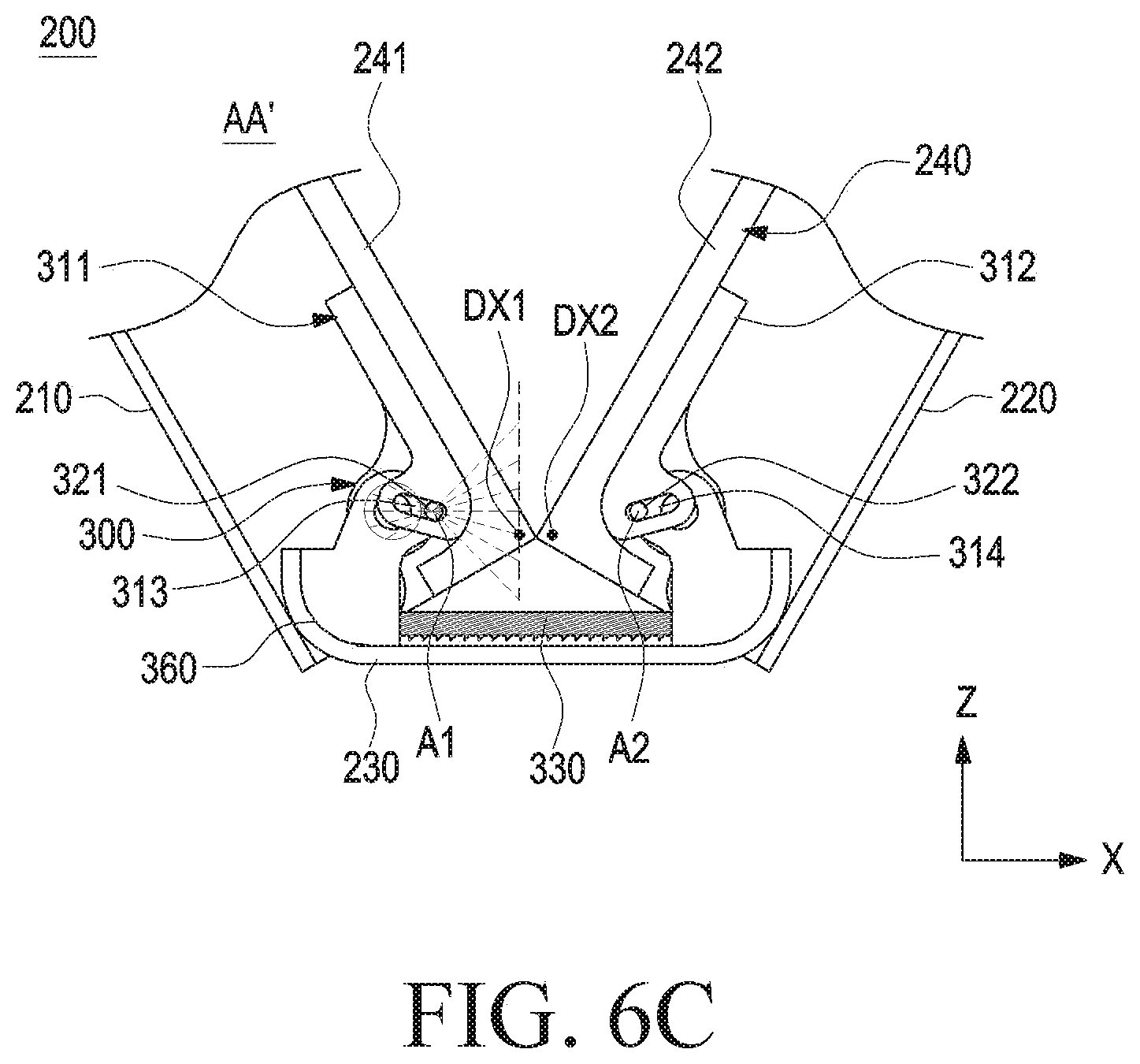

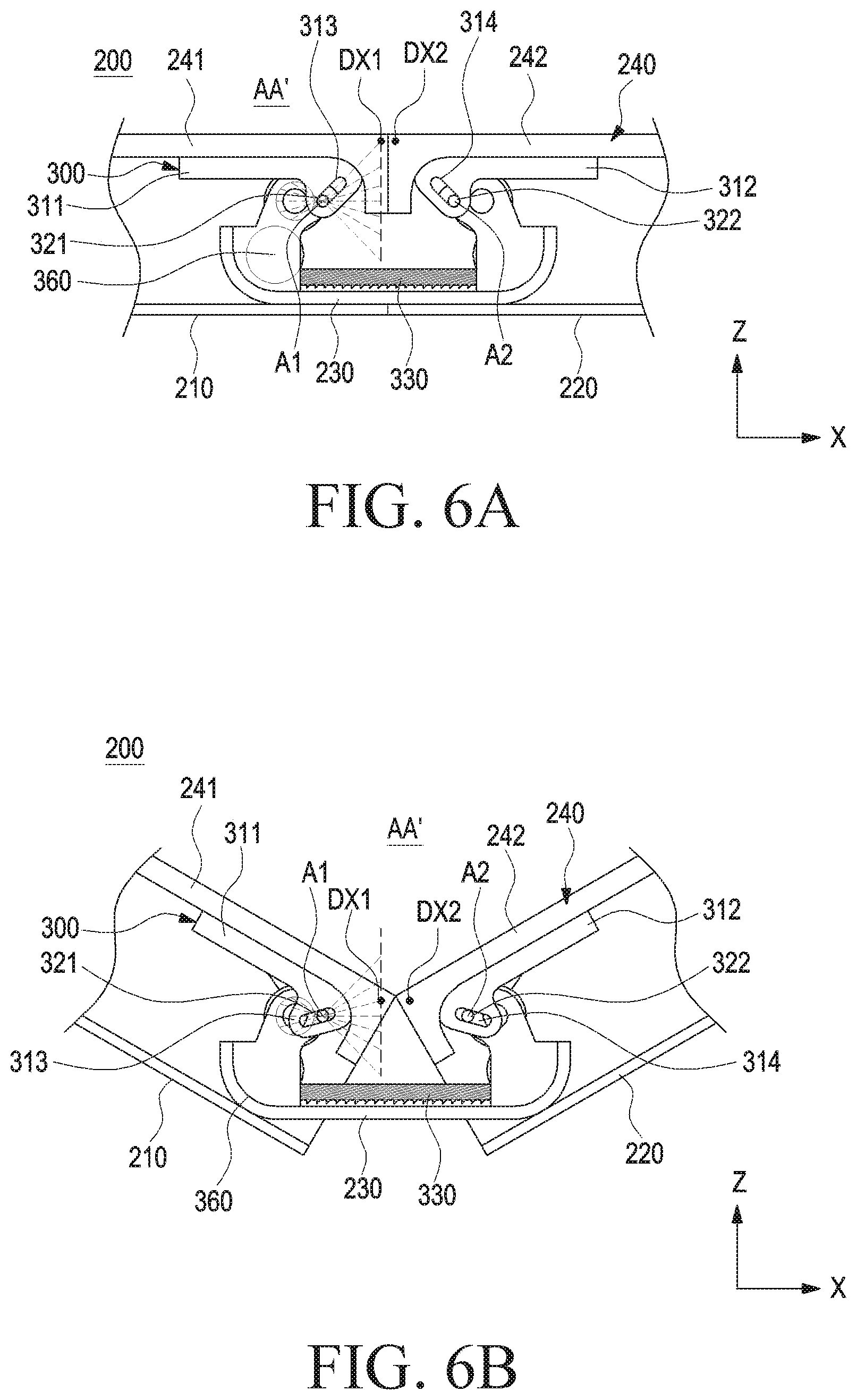

Cross section of folding action, drawing sheet 6 from US 2026/0236065 A1
Sheet 6 Cross section of folding action

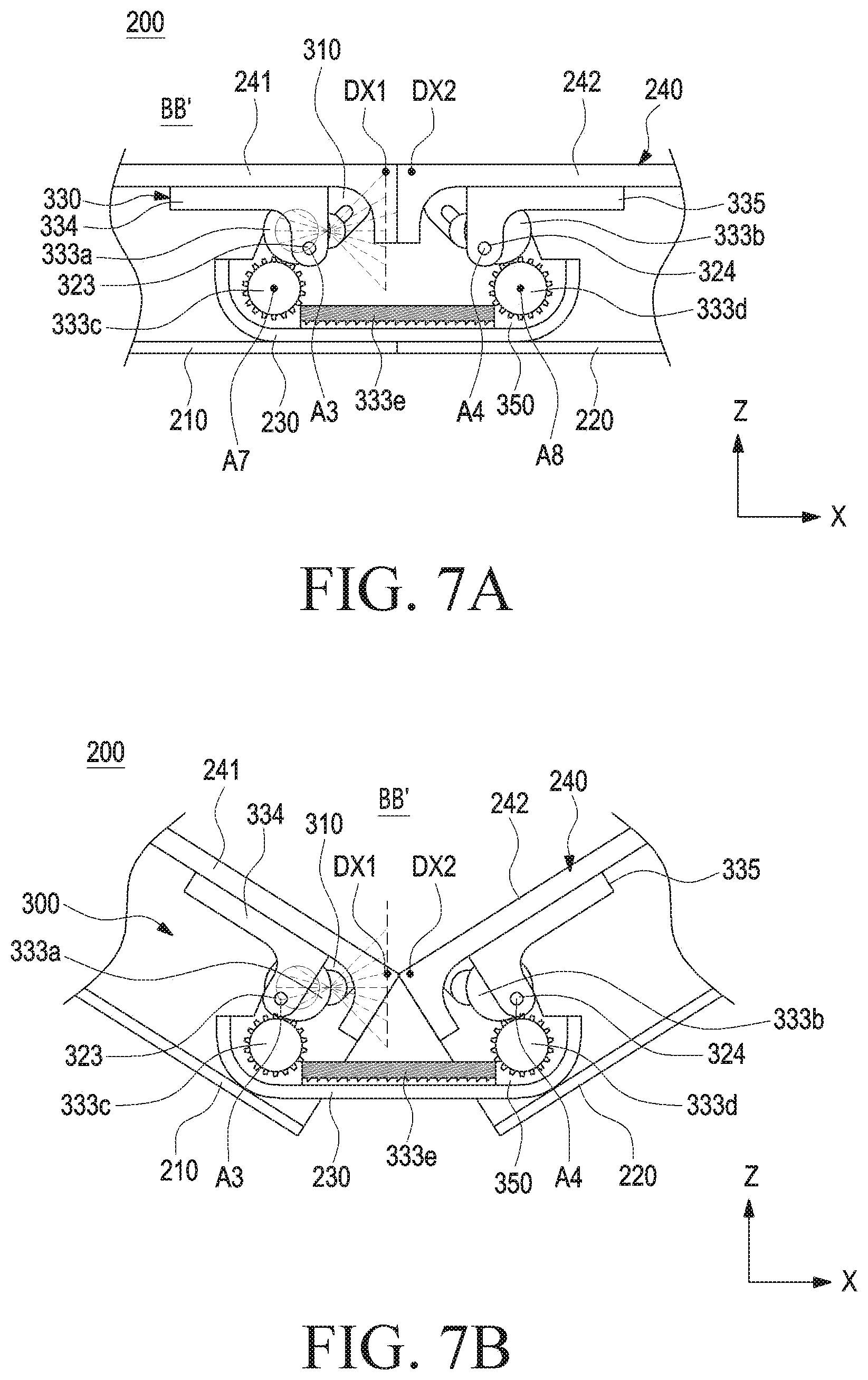

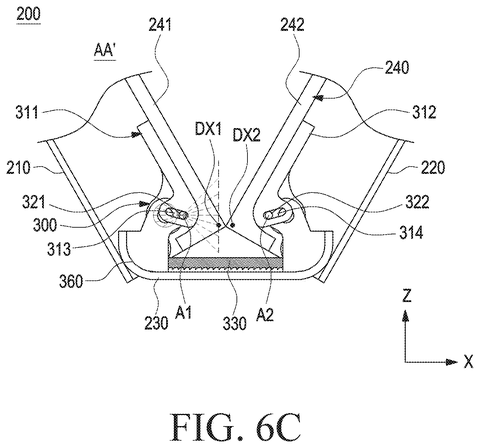

Detailed cross section of hinge, drawing sheet 7 from US 2026/0236065 A1
Sheet 7 Detailed cross section of hinge

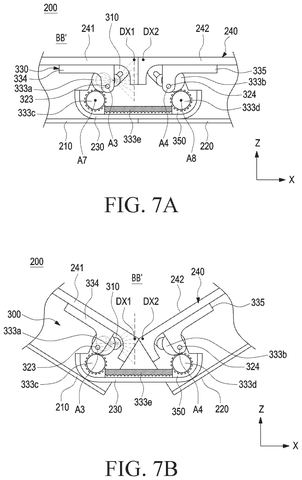

Close-up of folding hinge mechanism, drawing sheet 8 from US 2026/0236065 A1
Sheet 8 Close-up of folding hinge mechanism
Show the other 11 sheets
Samsung Patents a Hinge That Keeps Both Foldable Screens Crease-Free and Aligned patent drawing, sheet 9
Sheet 9
Samsung Patents a Hinge That Keeps Both Foldable Screens Crease-Free and Aligned patent drawing, sheet 10
Sheet 10
Samsung Patents a Hinge That Keeps Both Foldable Screens Crease-Free and Aligned patent drawing, sheet 11
Sheet 11
Samsung Patents a Hinge That Keeps Both Foldable Screens Crease-Free and Aligned patent drawing, sheet 12
Sheet 12
Samsung Patents a Hinge That Keeps Both Foldable Screens Crease-Free and Aligned patent drawing, sheet 13
Sheet 13
Samsung Patents a Hinge That Keeps Both Foldable Screens Crease-Free and Aligned patent drawing, sheet 14
Sheet 14
Samsung Patents a Hinge That Keeps Both Foldable Screens Crease-Free and Aligned patent drawing, sheet 15
Sheet 15
Samsung Patents a Hinge That Keeps Both Foldable Screens Crease-Free and Aligned patent drawing, sheet 16
Sheet 16
Samsung Patents a Hinge That Keeps Both Foldable Screens Crease-Free and Aligned patent drawing, sheet 17
Sheet 17
Samsung Patents a Hinge That Keeps Both Foldable Screens Crease-Free and Aligned patent drawing, sheet 18
Sheet 18
Samsung Patents a Hinge That Keeps Both Foldable Screens Crease-Free and Aligned patent drawing, sheet 19
Sheet 19
