Samsung Patents a Foldable Phone That Shows You Where to Place It on a Wireless Charger

Wireless charging on a foldable phone is trickier than it sounds, the coil is only in one half of the device, and if you set it down wrong, almost nothing charges. Samsung's new patent tackles that with a display that tells you exactly how to fix it.

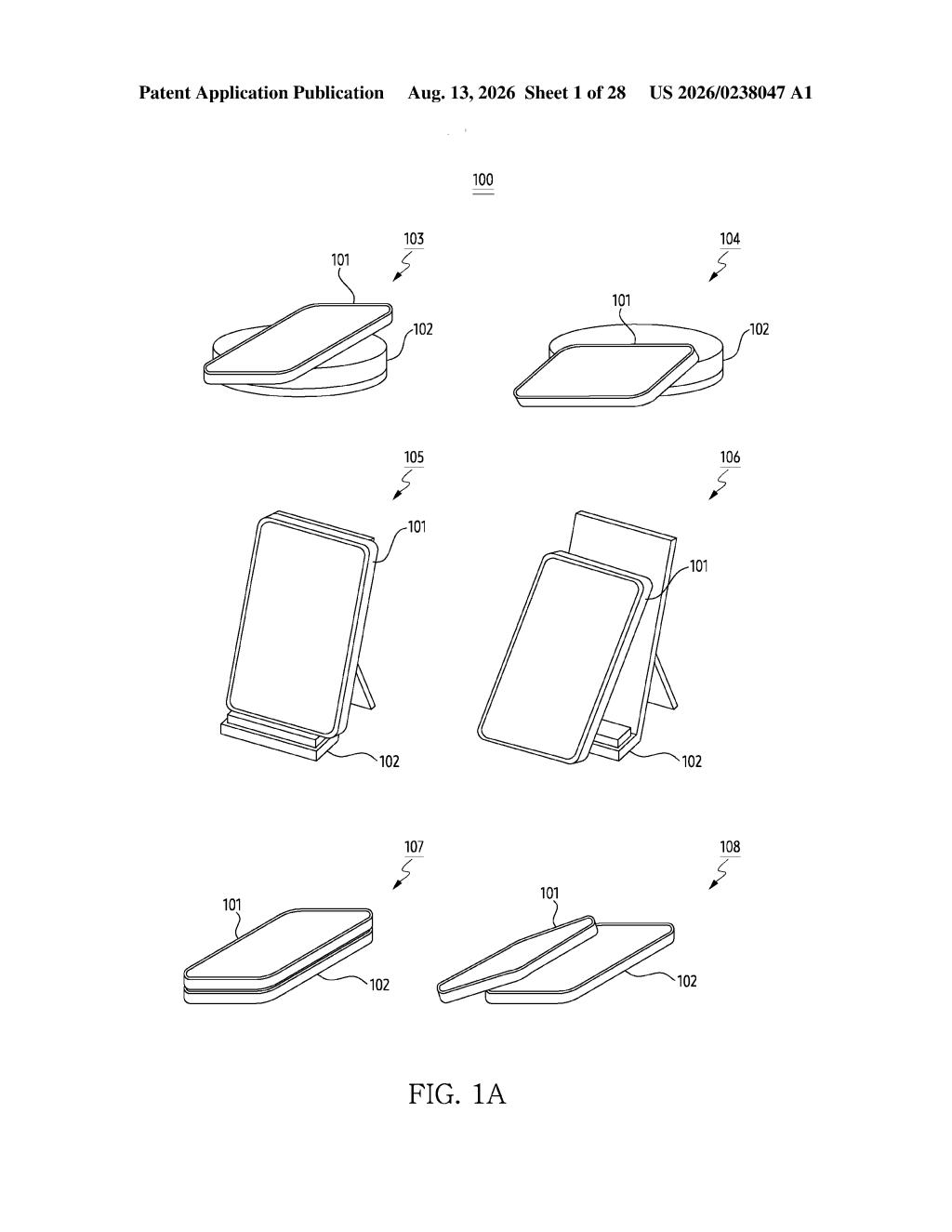

Various angles of a foldable phone placed on different wireless charging pads and stands. Drawing from patent filing US 2026/0238047 A1.
Various angles of a foldable phone placed on different wireless charging pads and stands.All 28 drawings ↓
Publication number
US 2026/0238047 A1(US20260238047A1)
Applicant
SAMSUNG ELECTRONICS CO., LTD.
Filed · Published
Apr 13, 2026 · Aug 13, 2026
Inventors
Hyunjoo KIM, Jinki JUNG, Mingi SONG, Junseok YANG, Yongsang YUN, Minyoung CHANG
Status when we published
Waiting for an examiner
Document
20 claims
US classification
320/108
Parent application
Continuation of 18/086,641 (filed Dec 22, 2022)(18086641)

How Samsung's foldable guides you to charge correctly

Ever set your phone on a wireless charger and come back an hour later to find it barely charged? On a standard phone that's annoying. On a foldable, it's a real design problem: the charging coil lives in only one half of the device, so where and how you place it matters a lot.

Samsung's patent describes a system that monitors how much power the charger is actually delivering. If that power falls below a useful threshold, the phone figures out whether it's folded or open and then shows you specific guidance on whichever screen makes sense. Folded? The small cover screen tells you to move the phone or the charger. Open and flat? The big inner screen shows the same repositioning tips, plus a suggestion to fold the device closed, since a folded position may align the coil better.

The whole point is that the phone does the thinking for you. Instead of guessing why your battery is barely moving, you get a clear, state-aware nudge on exactly the right screen.

From the filing · CLAIM 1
… display first information to guide repositioning at least one of the foldable electronic device or the wireless charging device, via the second display …

Translation: It shows instructions on the outer screen on how to move the phone or charger to fix alignment.

How the coil position drives the on-screen instructions

The patent describes a foldable electronic device with two housing halves joined by a hinge, two displays (one inner, one on the cover), and a wireless charging coil built into the first housing half only.

Here is how the logic flows:

  • The device receives a wireless power signal from the charging pad and checks whether the delivered power clears a set threshold.
  • If the power is too low, the device checks its own physical state: is it folded closed, or unfolded flat?
  • If folded, it uses the small rear cover display to show repositioning guidance.
  • If unfolded, it uses the large inner display to show repositioning guidance and prompts the user to fold the device closed, because the folded orientation places the coil in a more consistent position relative to the charging pad.

The system relies on the coil's position being fixed in the first housing half. When the phone is open and lying flat, the coil's relationship to the pad beneath it depends on exactly how the user set the phone down. Folding the device effectively standardizes that geometry. The software layer ties those physical states together and picks the most visible screen to surface the alert.

From the filing · THE ABSTRACT
… determining whether the wireless signal indicates that power provided by the external electronic device to the electronic device satisfies a threshold …

Translation: The phone checks if it is receiving enough power from the wireless charger.

What this means for Galaxy Z Fold wireless charging

For anyone who owns a foldable phone, dead-battery-despite-charging is a real frustration, and it happens precisely because foldables are not symmetric the way slab phones are. A cover screen that actively coaches you on placement is a much more user-friendly fix than burying the advice in a settings menu.

From a ship-path perspective, this patent is almost entirely a software and firmware feature sitting on top of hardware Samsung already sells. The coil, the dual displays, and the hinge are all present in current Galaxy Z Fold devices. The main work is the sensing logic, the threshold checks, and the state-aware UI, none of which require new components. That makes this one of the shorter paths from patent to shipping feature in the latest Big Tech patents covering wireless charging and foldable device design.

Source: US 2026/0238047 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 28 sheets

28 drawing sheets from US 2026/0238047 A1 · click any drawing to enlarge

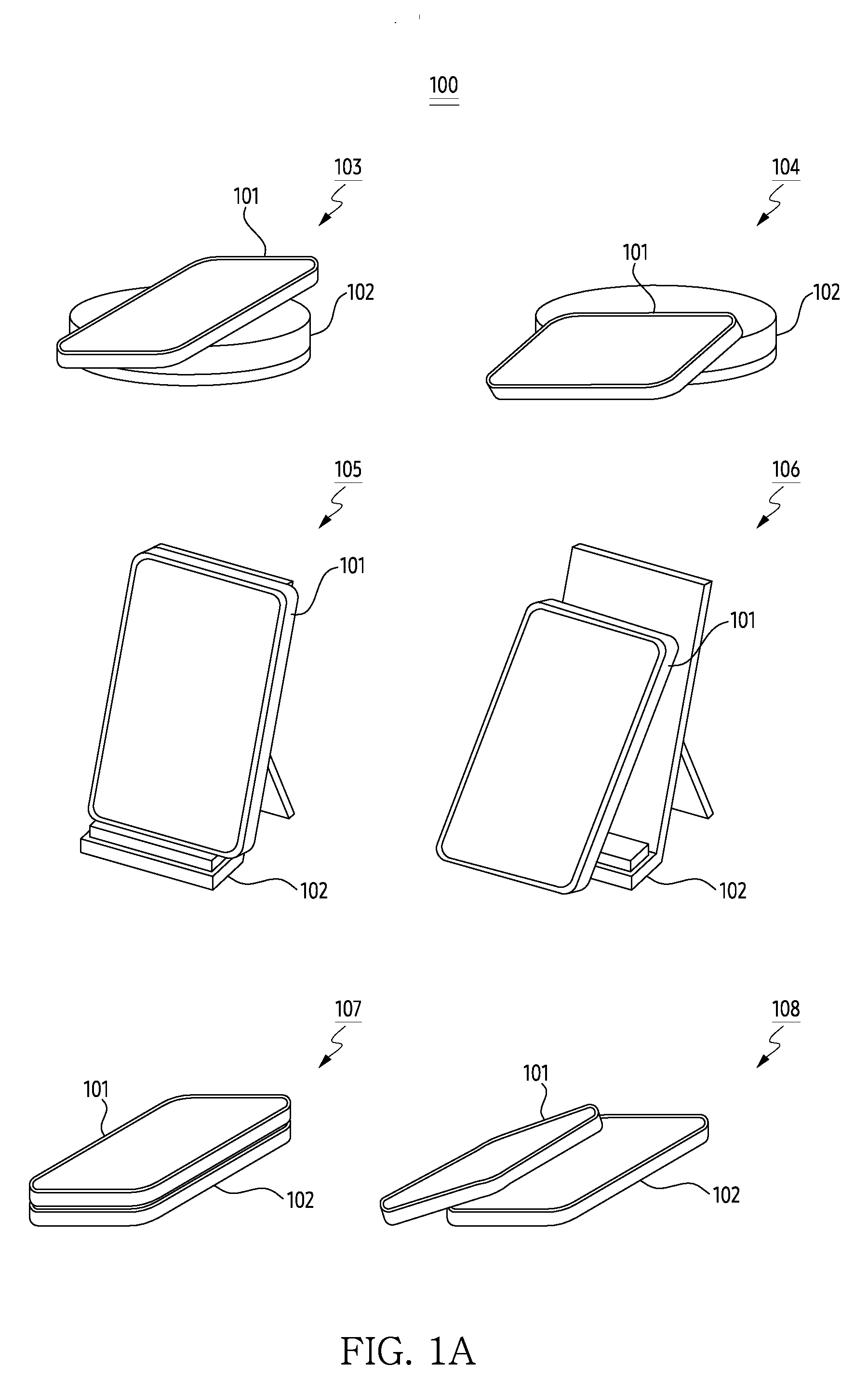

Wireless charging configurations for a phone, drawing sheet 1 from US 2026/0238047 A1
Sheet 1 Wireless charging configurations for a phone
Connection between two electronic devices, drawing sheet 2 from US 2026/0238047 A1
Sheet 2 Connection between two electronic devices

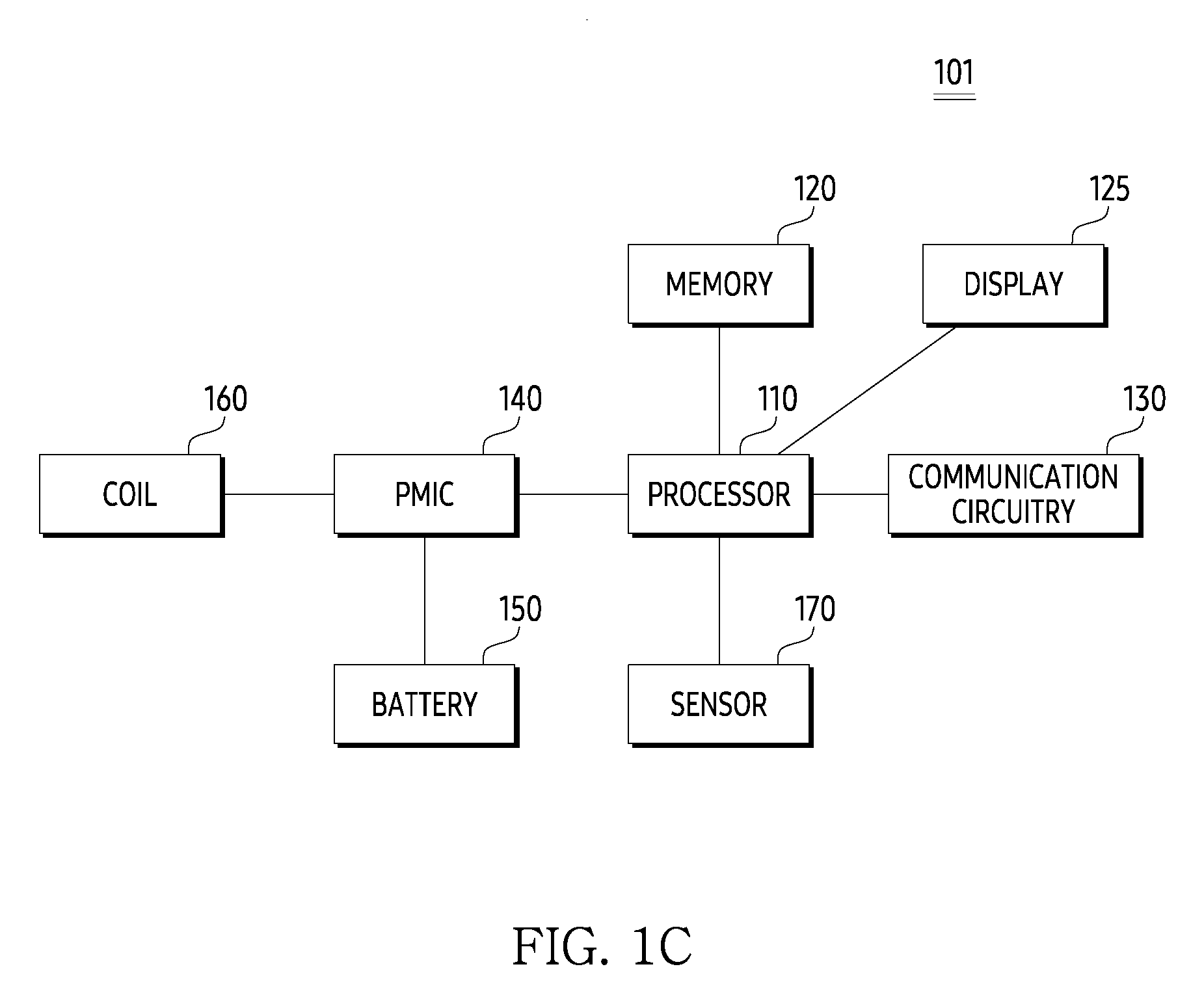

Internal components of an electronic device, drawing sheet 3 from US 2026/0238047 A1
Sheet 3 Internal components of an electronic device

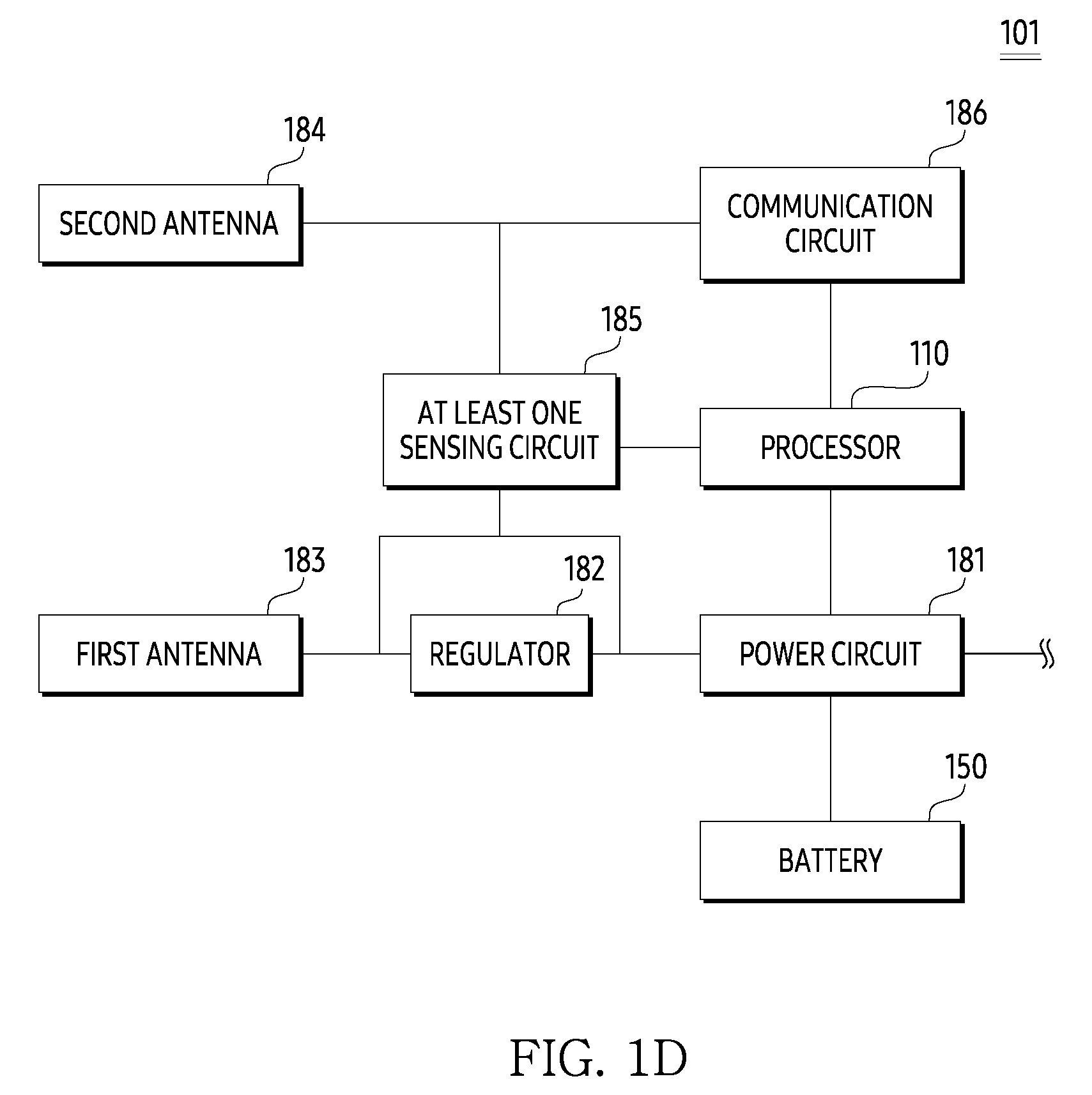

Circuitry and antennas inside a device, drawing sheet 4 from US 2026/0238047 A1
Sheet 4 Circuitry and antennas inside a device
Flowchart of device alignment detection, drawing sheet 5 from US 2026/0238047 A1
Sheet 5 Flowchart of device alignment detection

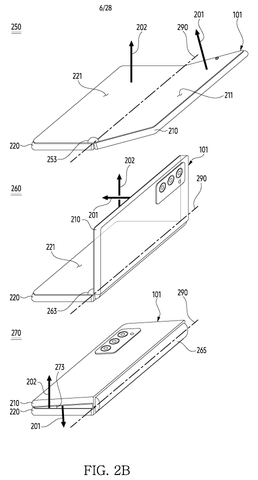

Folding states of a mobile device, drawing sheet 6 from US 2026/0238047 A1
Sheet 6 Folding states of a mobile device

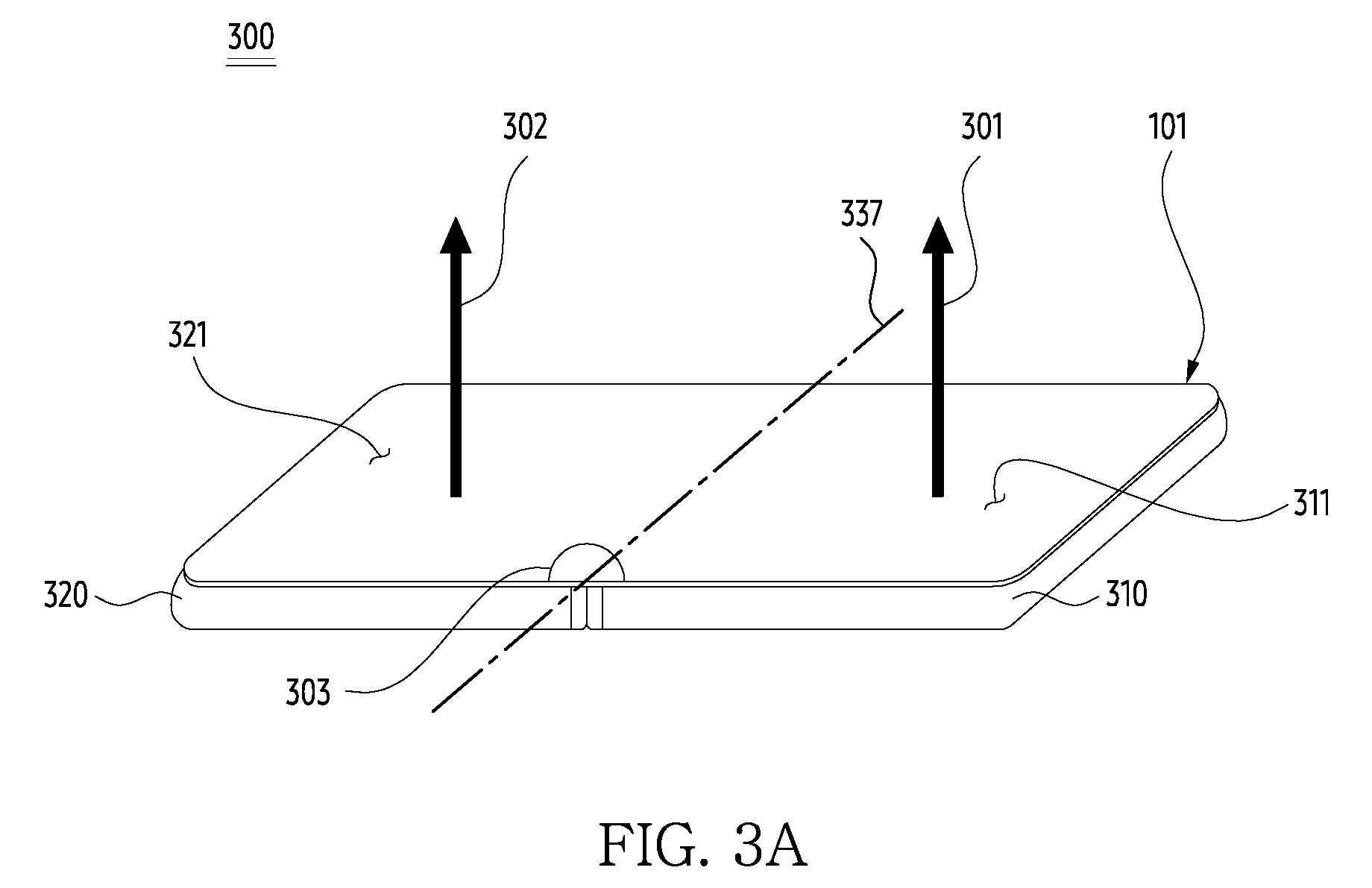

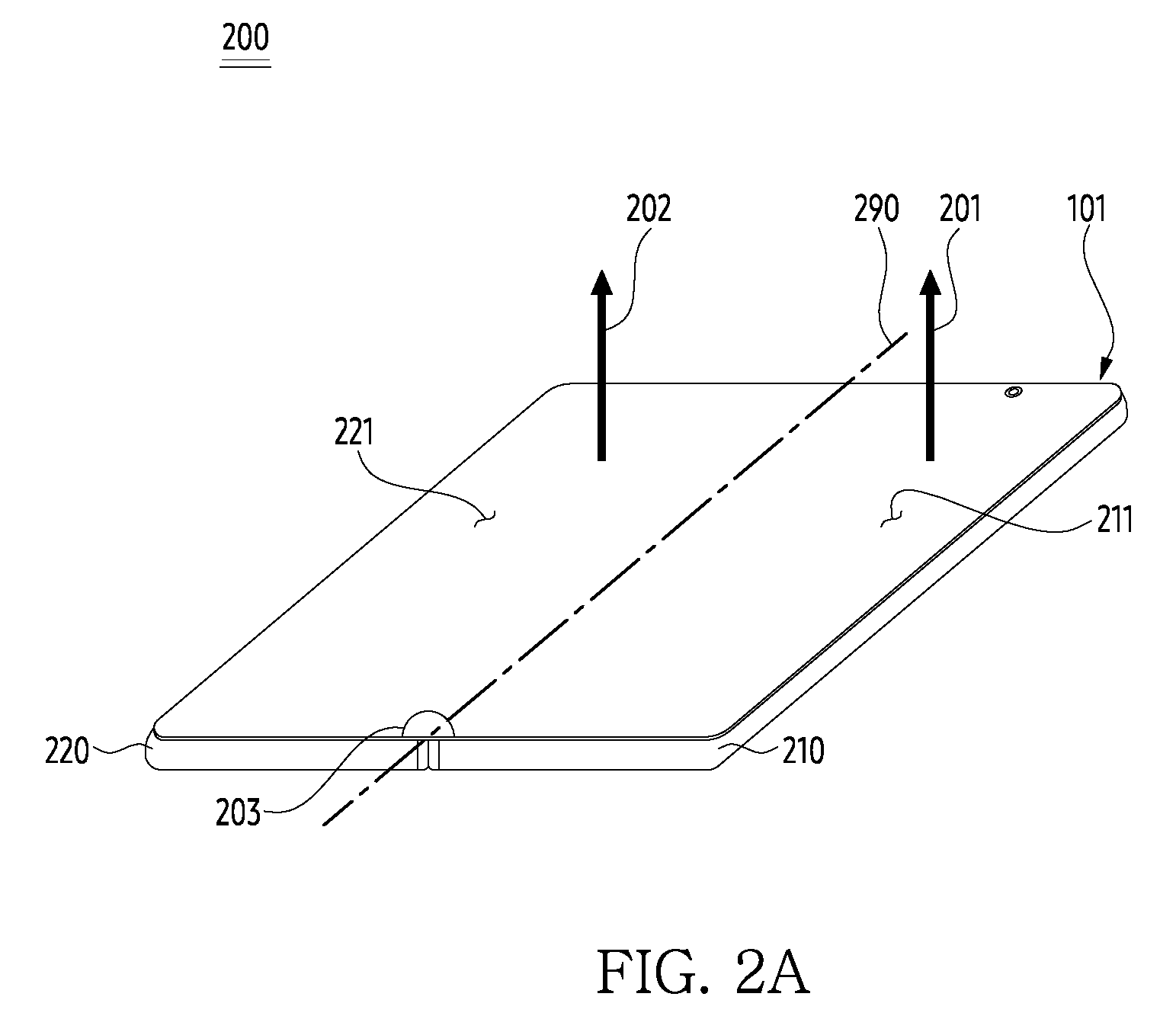

Foldable device layout with alignment lines, drawing sheet 7 from US 2026/0238047 A1
Sheet 7 Foldable device layout with alignment lines

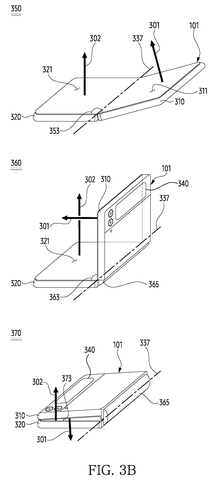

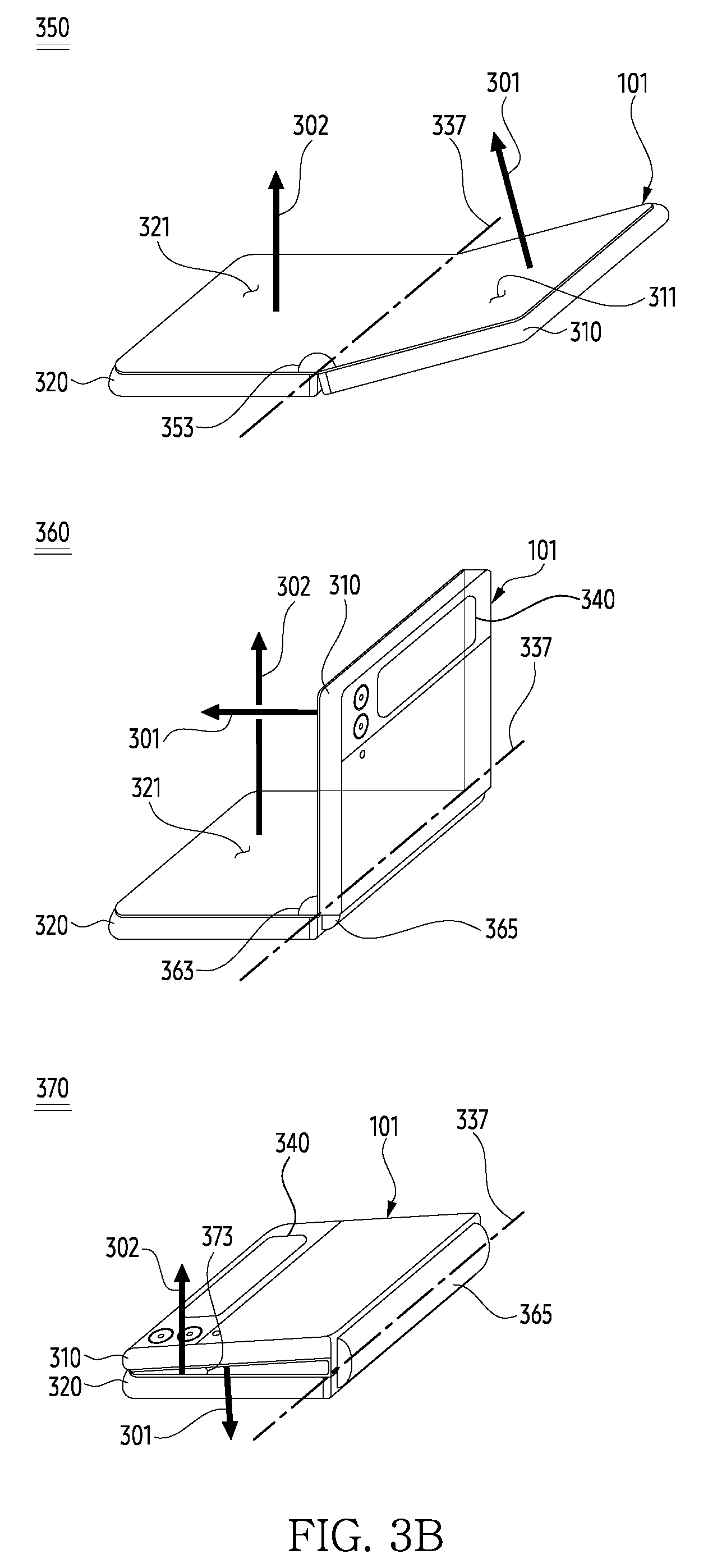

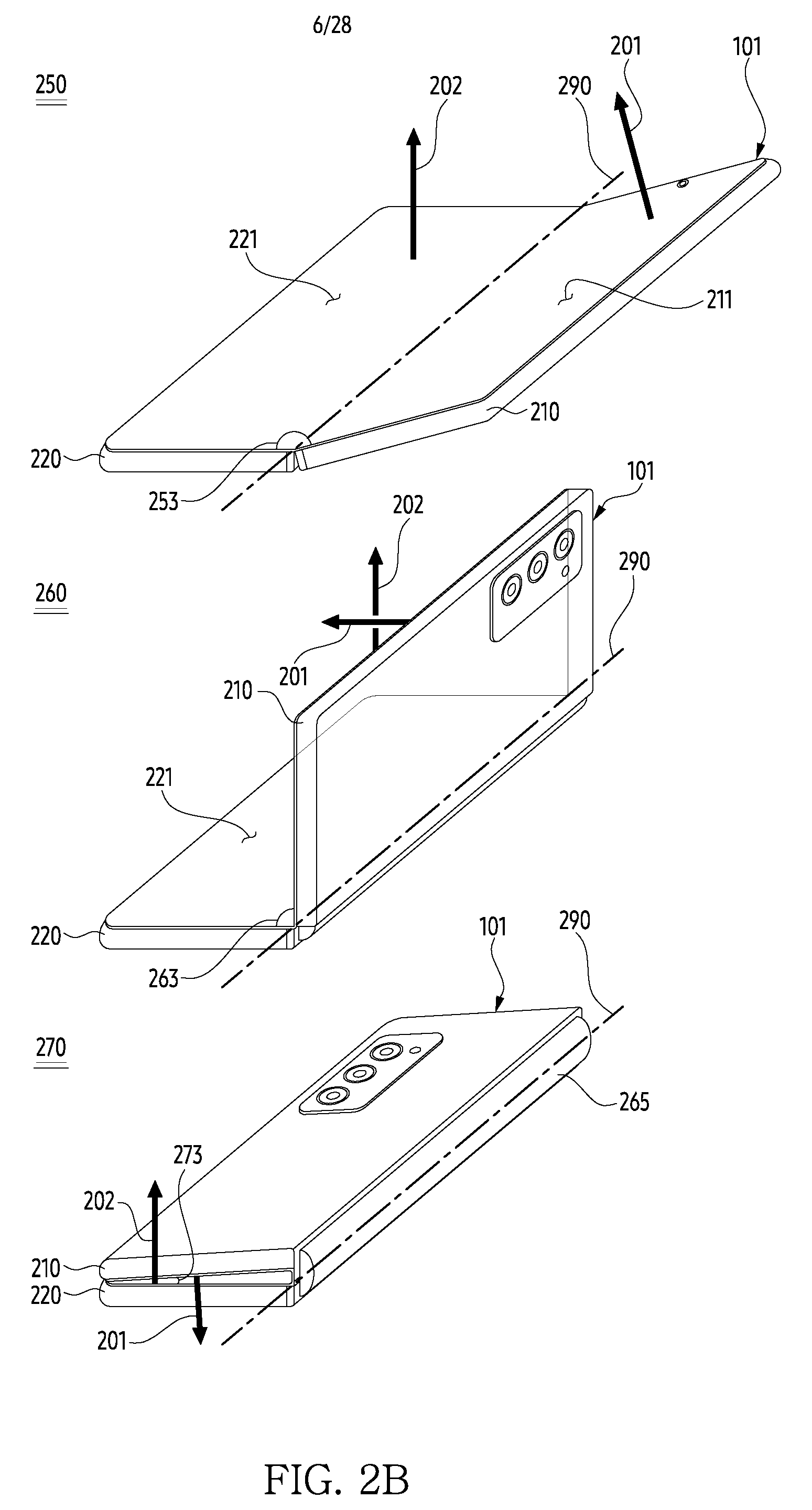

Folding sequence of a mobile device, drawing sheet 8 from US 2026/0238047 A1
