Samsung Patents a Fix to Stop Colors Washing Into Each Other on OLED Screens

A precise ratio buried in a display patent could be the difference between crisp colors and a muddy mess in tiny OLED screens. Samsung has filed a patent describing the exact proportions that keep light from one pixel from contaminating its neighbors.

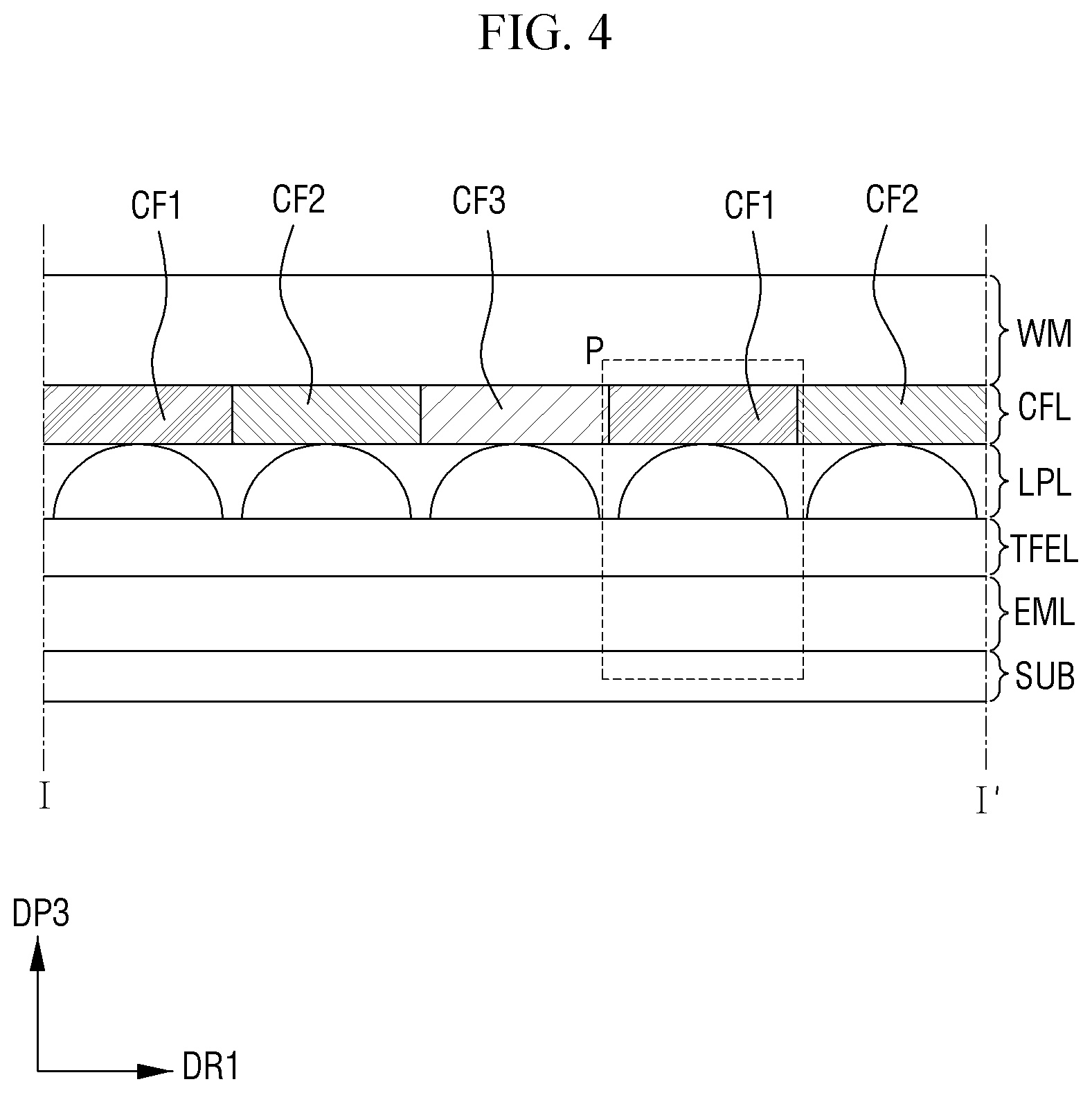

A cross-section of an OLED display pixel shows light emitted from the emissive layer, focused by a microlens, and passing through a color filter. Drawing from patent filing US 2026/0305141 A1.
A cross-section of an OLED display pixel shows light emitted from the emissive layer, focused by a microlens, and passing through a color filter.All 20 drawings ↓
Publication number
US 2026/0305141 A1(US20260305141A1)
Applicant
SAMSUNG DISPLAY CO., LTD.
Filed · Published
Jun 4, 2026 · Oct 1, 2026
Inventors
Woo Young KIM, Su Jeong KIM, Jae Heung HA
Status when we published
Waiting for an examiner
Document
10 claims
US classification
257/40
Parent application
Continuation of 18/365,363 (filed Aug 4, 2023)(18365363)

What Samsung's color-bleeding fix actually does

Imagine looking through an AR headset and noticing that the red text on your screen has a faint orange halo, or that white icons look slightly off. That kind of color muddiness often comes from light leaking between pixels inside the display itself.

Samsung's patent tackles this by specifying exact proportions for the layers stacked inside an OLED display. Think of it like fitting lids onto a row of boxes: if the lid is the wrong size relative to the box walls, light spills over the edges. The patent defines a precise height-to-width ratio (about 1:0.5-2:2-5) between the protective encapsulation layer, the walls dividing each pixel, and the color filters sitting on top.

The goal is to make sure the light from each tiny pixel travels straight up and lands only on its own color filter, not a neighbor's. For a screen that sits centimeters from your eyes inside a headset, that kind of precision matters more than it does on a phone or TV.

From the filing · CLAIM 1
… a ratio of the height of the encapsulation layer, a width of the pixel defining layer, and a width of each color filter is about 1:0.5 to 2:2 to 5.

Translation: Samsung specifies exact mathematical proportions for the screen layers to prevent color bleeding.

How the encapsulation-to-filter ratio controls light paths

The patent describes a multi-layer OLED display built on a substrate. At the base, an organic light emitting element layer generates light between two electrodes. A pixel defining layer acts as a physical wall separating individual sub-pixels, keeping each color in its lane.

Above that, an encapsulation layer seals and protects the organic materials from moisture and air, which would otherwise degrade them quickly. On top of that sits a light control pattern layer (an intermediate structure that shapes or redirects light before it reaches the final color filters), and above that, a color filter layer containing red, green, and blue filters.

The core invention is a specific geometric relationship:

  • The height of the encapsulation layer
  • The width of the pixel defining wall
  • The width of each color filter

Are tuned to a ratio of approximately 1: 0.5-2: 2-5. When these dimensions are in proportion, light traveling at an angle from one pixel is more likely to be absorbed by the pixel wall or the light control pattern rather than reaching an adjacent color filter. The result is less color mixing between neighboring pixels, which engineers call reduced color crosstalk.

From the filing · THE ABSTRACT
… a light control pattern layer disposed between the encapsulation layer and the color filter layer and including a light control pattern disposed on a light path of the organic light emitting layer.

Translation: An extra layer is placed right in the path of the light to control how colors travel through the screen.

What this means for OLED screens in AR headsets

Color crosstalk is a real and expensive problem for any display manufacturer trying to pack more pixels into a smaller area, which is exactly what near-eye displays for AR and VR headsets demand. When pixels are tiny and close together, even a slight angle of light emission can send a photon to the wrong color filter, washing out contrast and muddying hues. The closer the screen is to your eye, the more obvious those flaws become.

For Samsung, Samsung's track record in display-component patents shows this is a long-running engineering priority. A structural fix baked into the layer proportions is more reliable than a software correction applied afterward, because it attacks the problem at the source rather than masking it. If this geometry holds up in manufacturing, it could mean sharper, more accurate colors in screens designed for headsets where every millimeter of the stack matters.

Samsung's 108th filing we've tracked since May in our display technology work adds to a run that includes pixel temperature dimming and glasses-free 3D stacking.

Source: US 2026/0305141 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Samsung patent news breaks.

There are more where this came from

We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.

The drawings · 20 sheets

20 drawing sheets from US 2026/0305141 A1 · click any drawing to enlarge

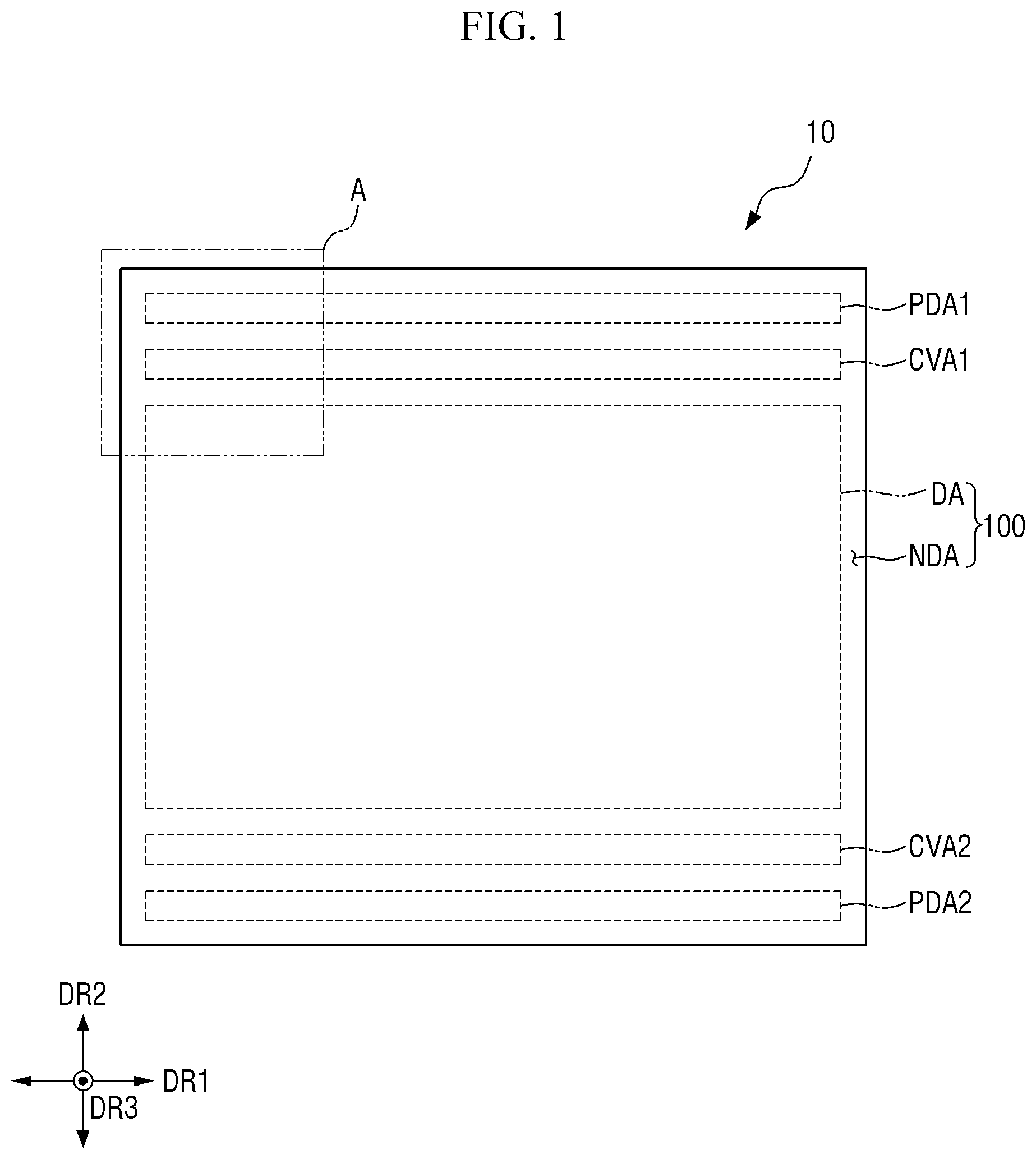

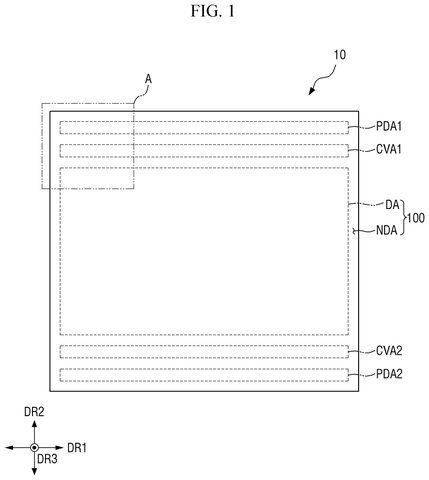

OLED display panel layout, drawing sheet 1 from US 2026/0305141 A1
Sheet 1 OLED display panel layout

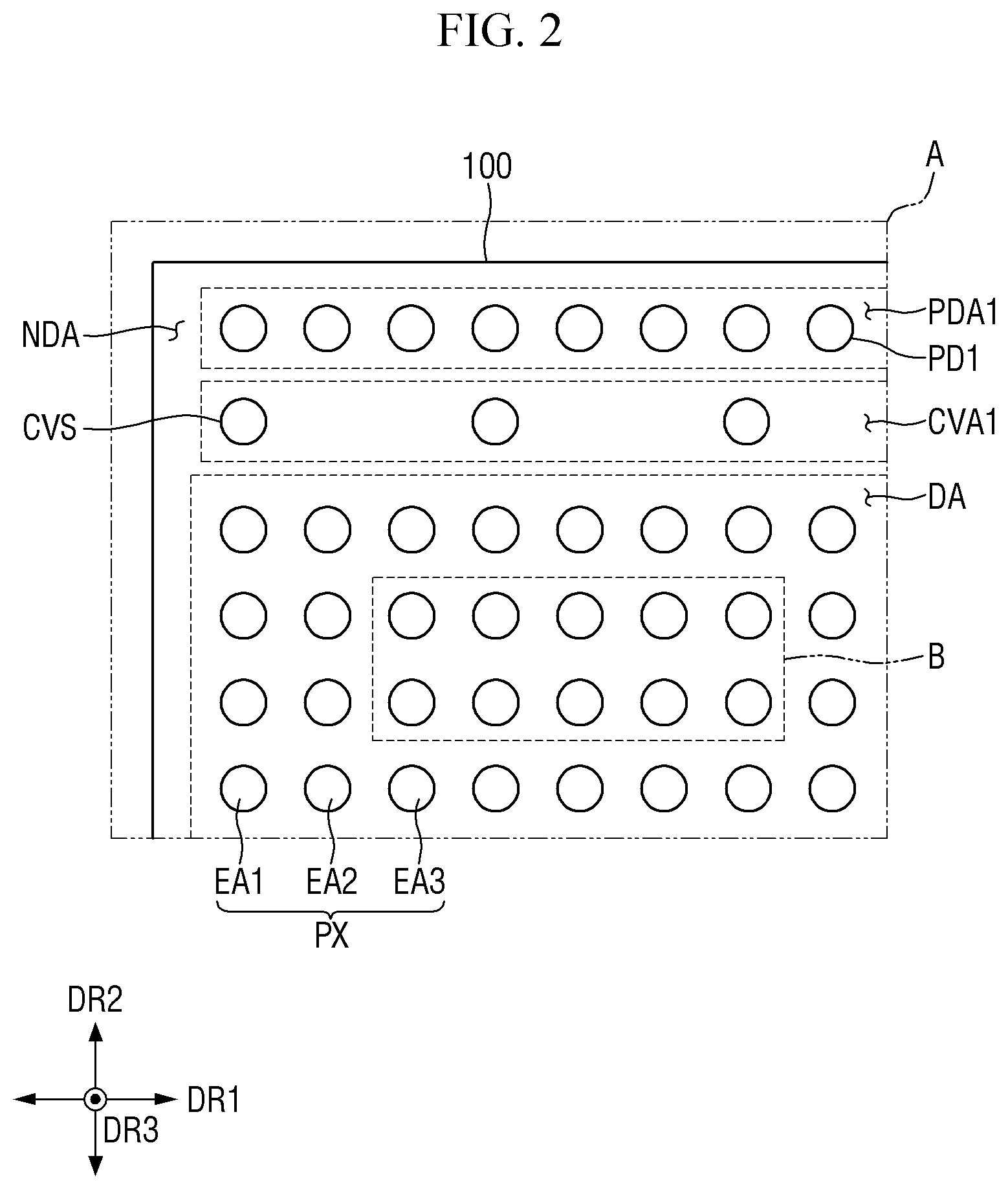

Pixel arrangement on OLED display, drawing sheet 2 from US 2026/0305141 A1
Sheet 2 Pixel arrangement on OLED display

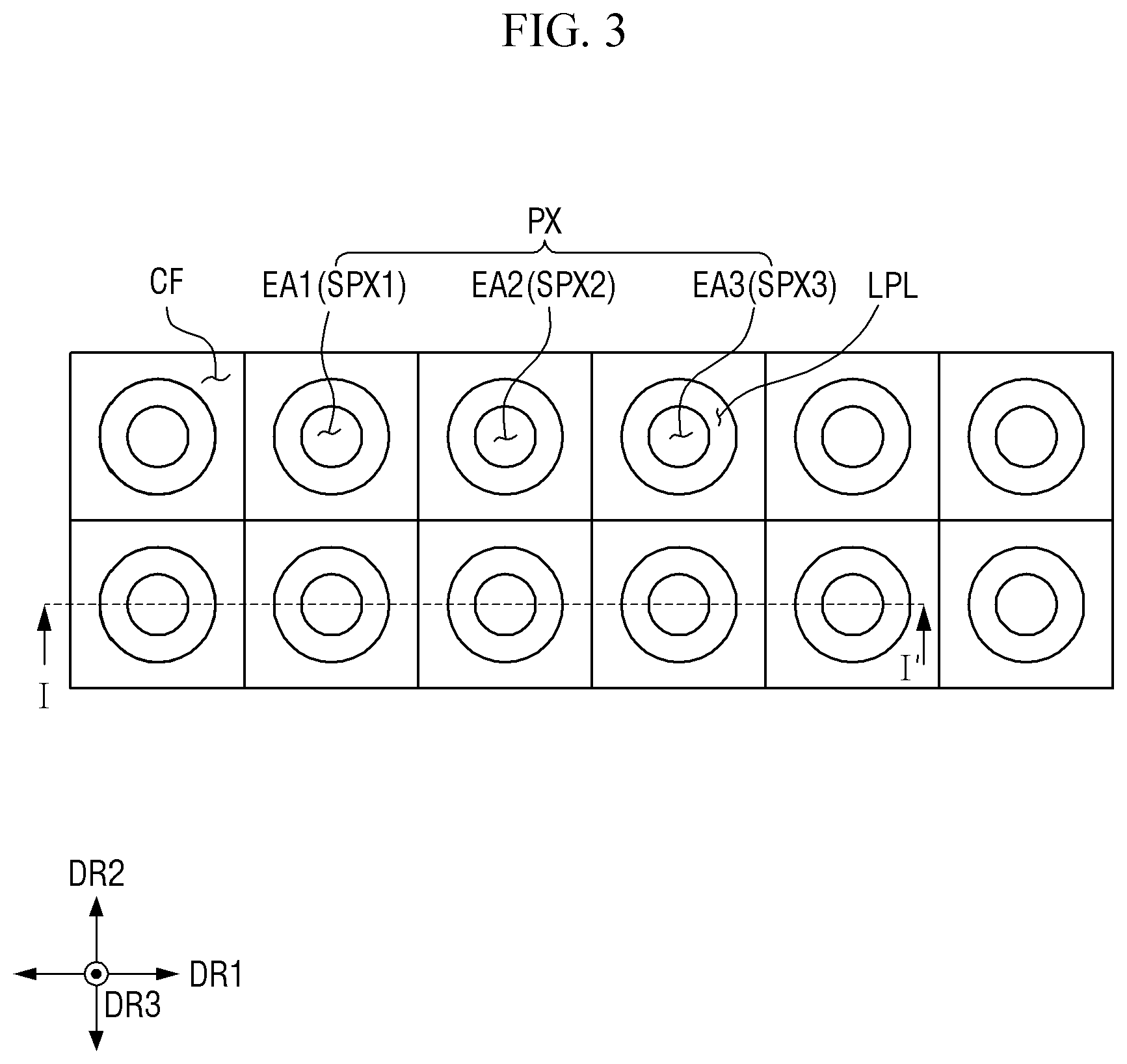

Close-up of display pixels, drawing sheet 3 from US 2026/0305141 A1
Sheet 3 Close-up of display pixels

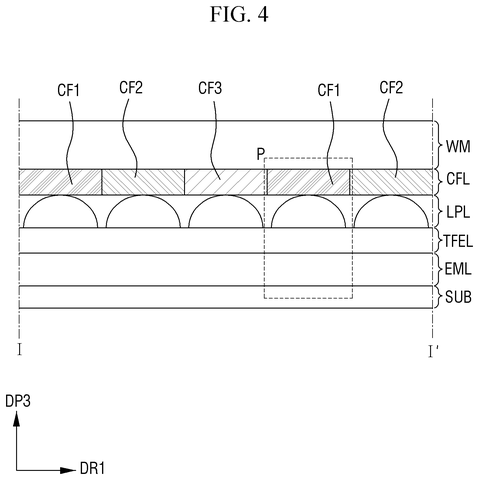

Cross-section of display layers, drawing sheet 4 from US 2026/0305141 A1
Sheet 4 Cross-section of display layers
Detailed cross-section of a pixel, drawing sheet 5 from US 2026/0305141 A1
Sheet 5 Detailed cross-section of a pixel

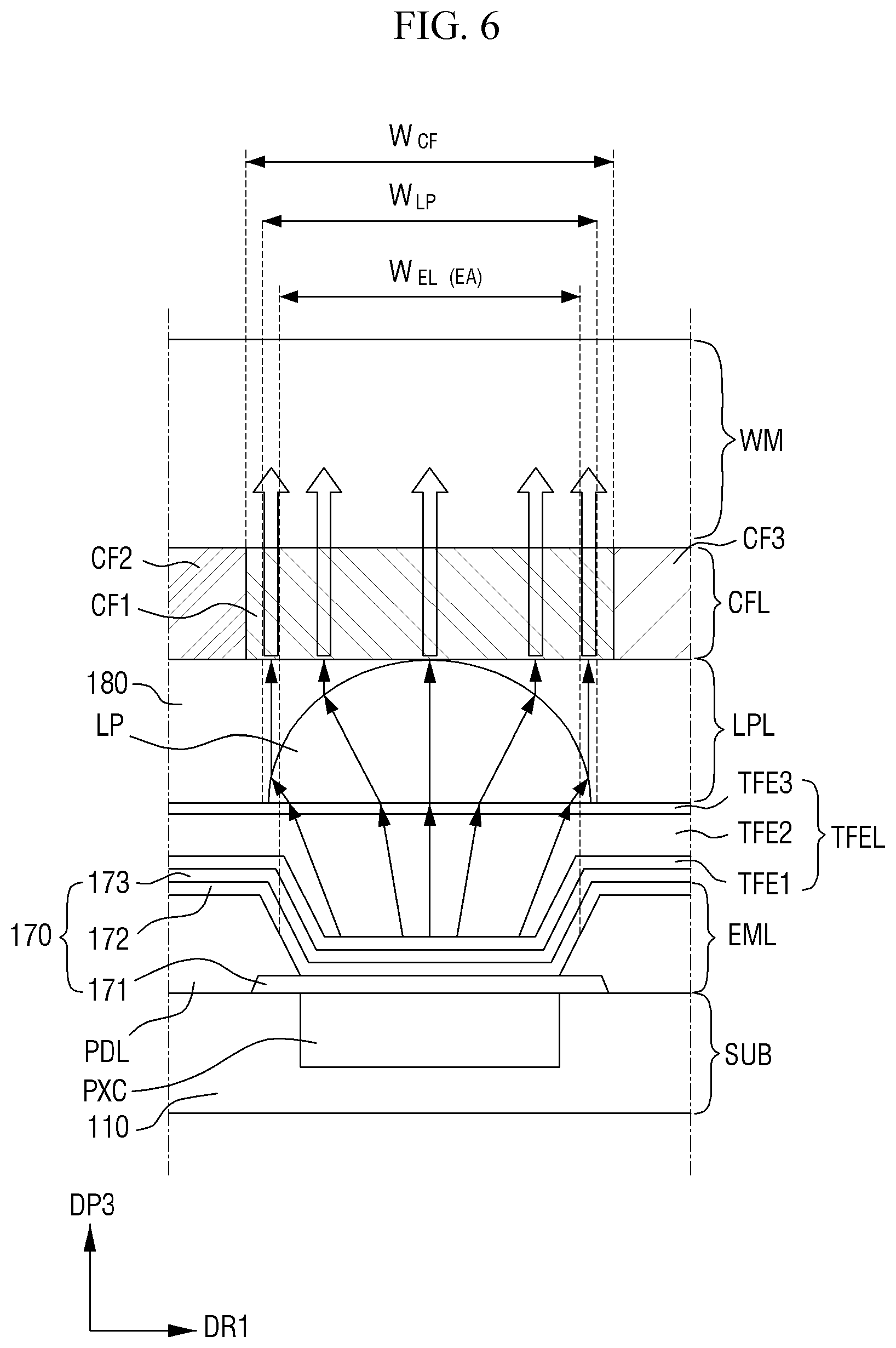

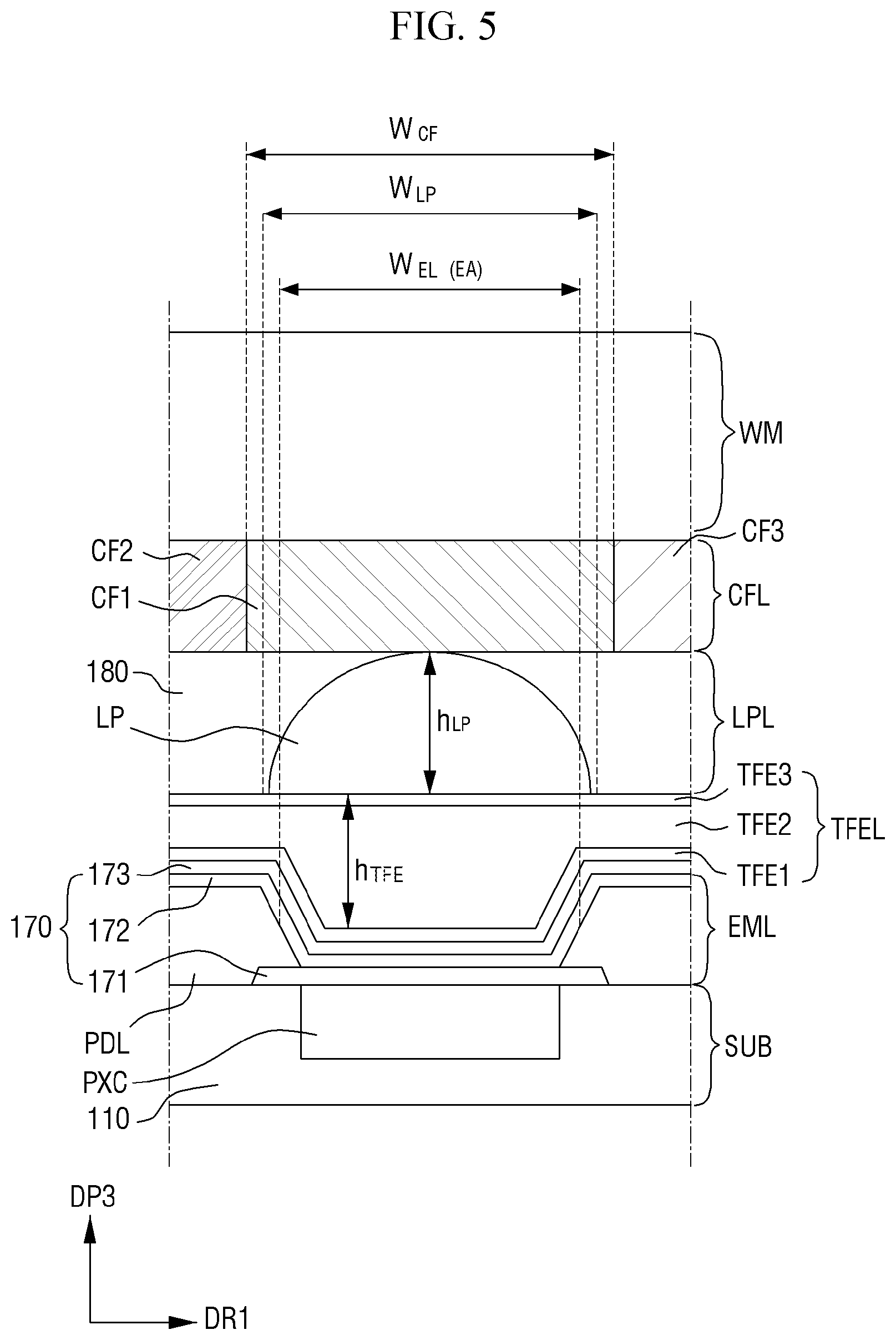

Light paths in a display pixel, drawing sheet 6 from US 2026/0305141 A1
Sheet 6 Light paths in a display pixel

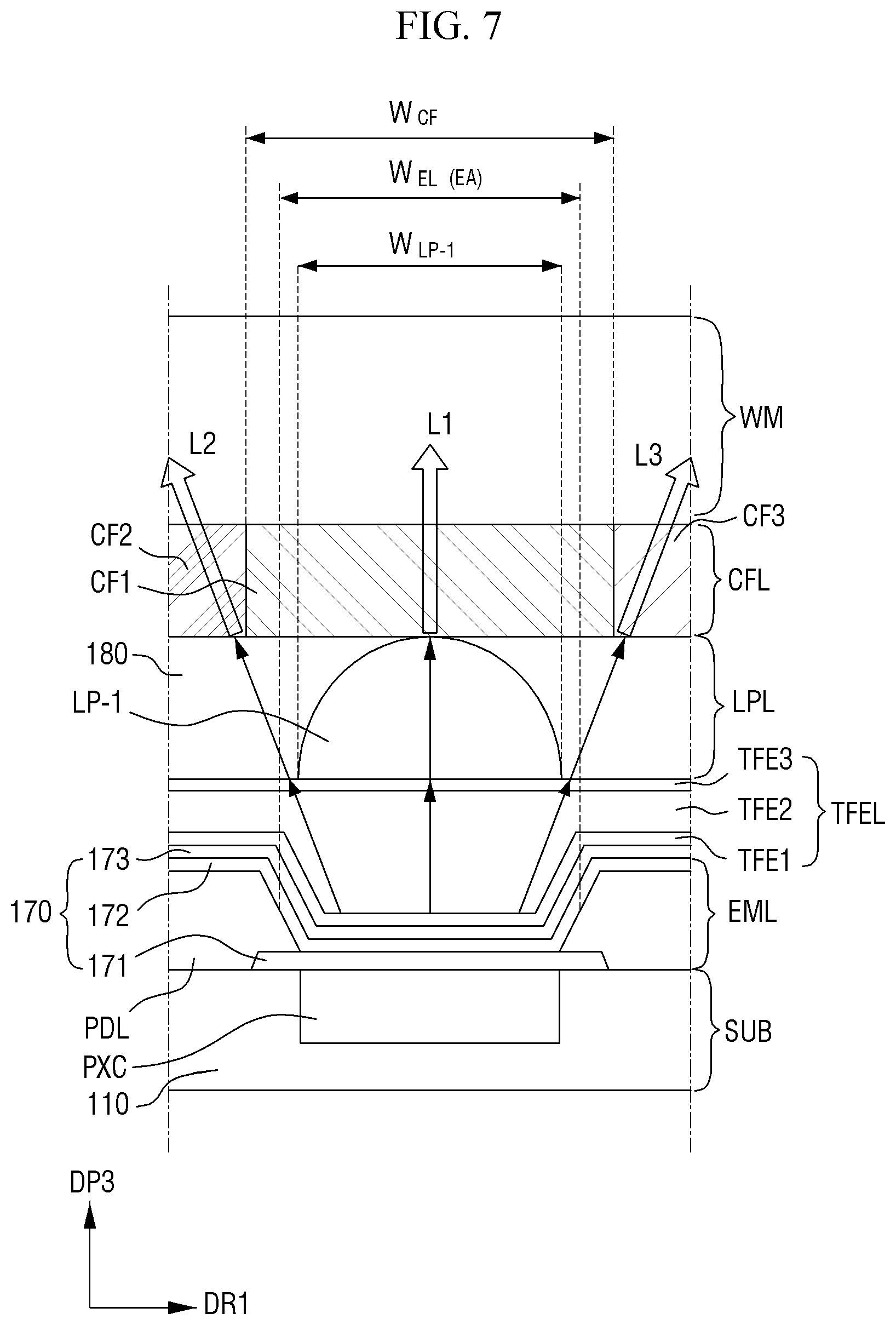

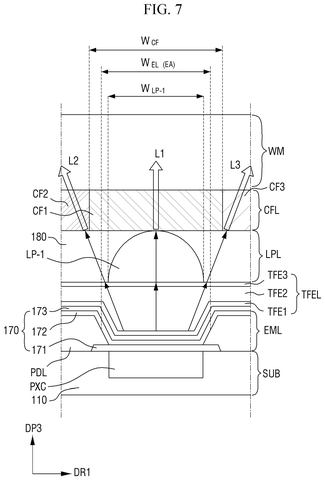

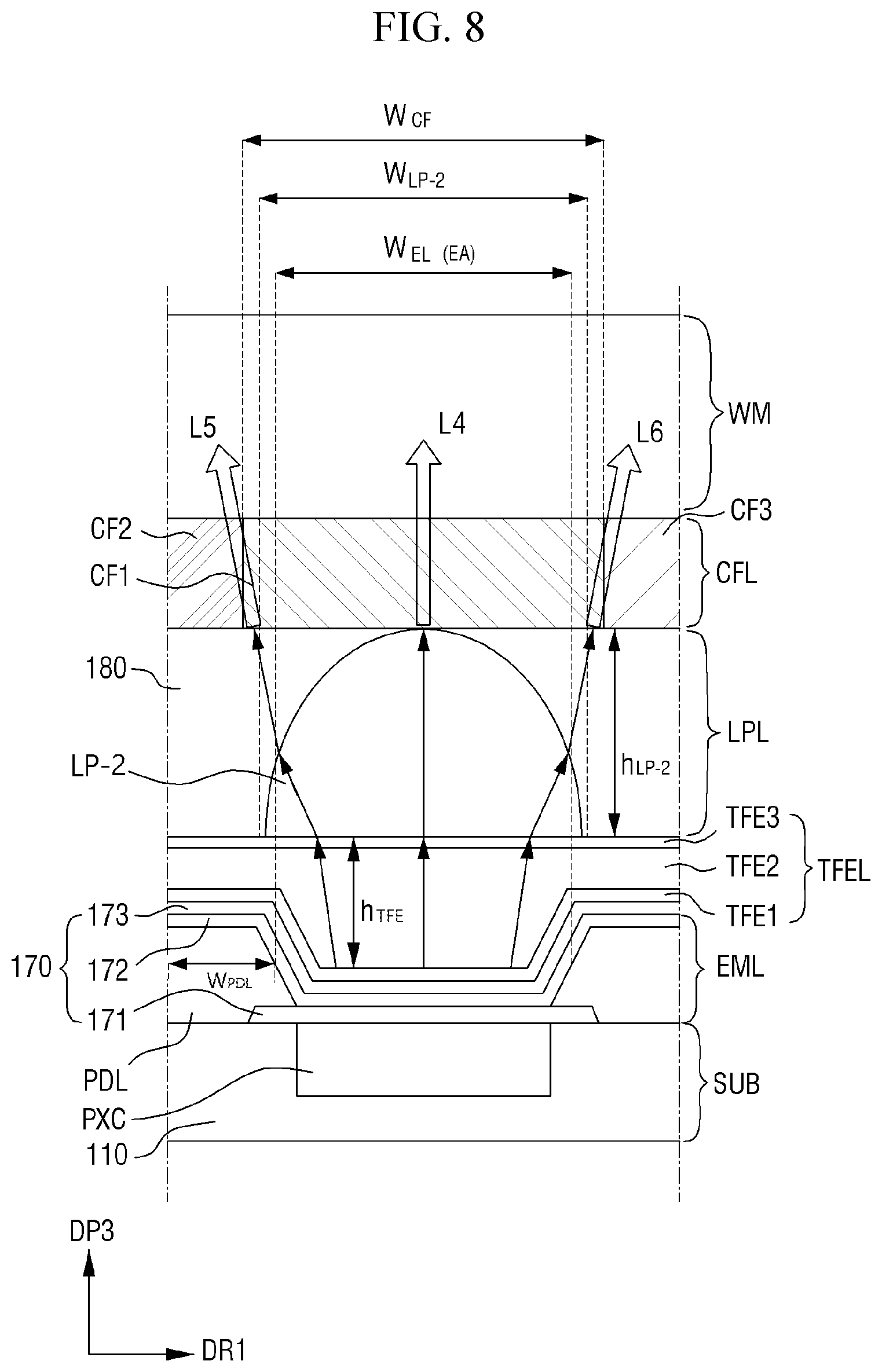

Light paths with a smaller lens, drawing sheet 7 from US 2026/0305141 A1
Sheet 7 Light paths with a smaller lens

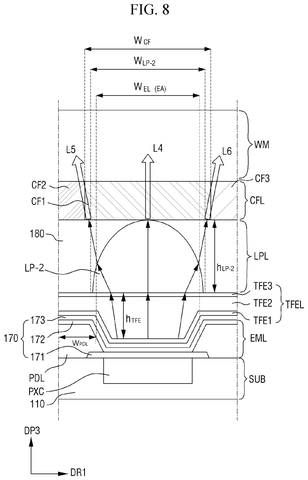

Light paths with a larger lens, drawing sheet 8 from US 2026/0305141 A1
