Samsung Patents a Way to Cut Always-On Display Power Without Dimming the Screen
Always-On Display is one of those features people love until they notice how fast it drains the battery. Samsung's new patent targets that exact tension by cutting power to the components that don't need to be fully awake when your screen is just showing the time.
How Samsung's AOD power trick actually works
Imagine your phone sitting on a desk, screen dimly showing the clock and a few notification icons. That's Always-On Display, or AOD, and it's technically running your screen's full hardware stack the whole time, even when almost nothing is happening.
Samsung's patent describes a smarter split: the screen panel itself stays powered at normal levels so it can keep showing that clock, but the display driver (the chip that pushes pixels around) and the panel processor (the brain coordinating everything) both get their power reduced. The idea is that AOD doesn't need the full firepower of those components, so there's no reason to run them at full tilt.
The result, at least in theory, is a phone that can sit in AOD mode for longer before you need to reach for the charger, without any visible change to what's on your screen.
… control the power supply to maintain power supplied to the display panel and reduce power supplied to at least one of the display driver or the panel processor in an always on display (AOD) mode …
Translation: It keeps the screen fully powered while cutting energy to the chips running the background tasks.
How the panel processor splits power in AOD mode

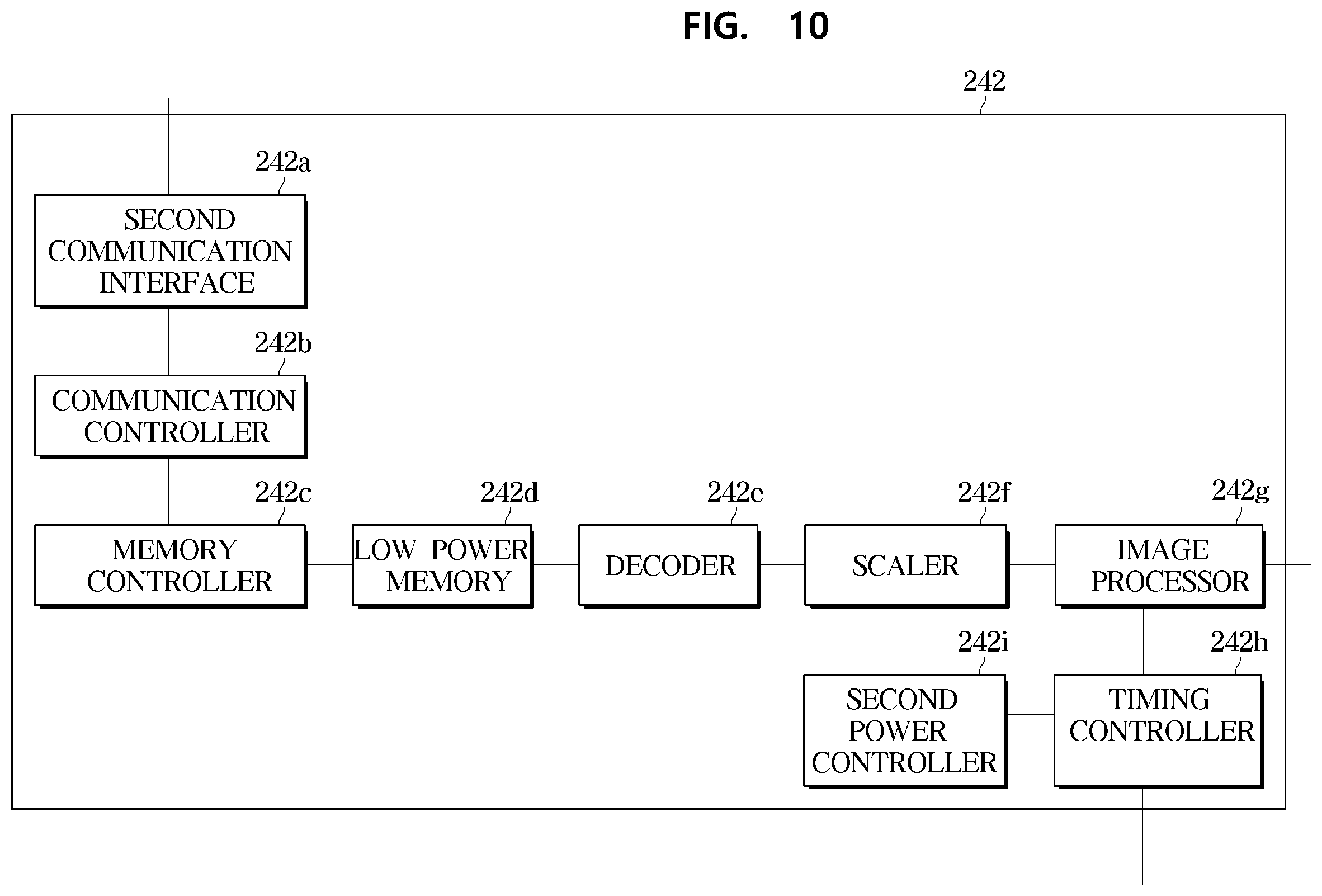

The patent covers a display device with four main parts: a display panel (the physical screen), a display driver (the integrated circuit that tells each pixel what to do), a panel processor (the controller that sends driving signals to the display driver), and a power supply that feeds all three.

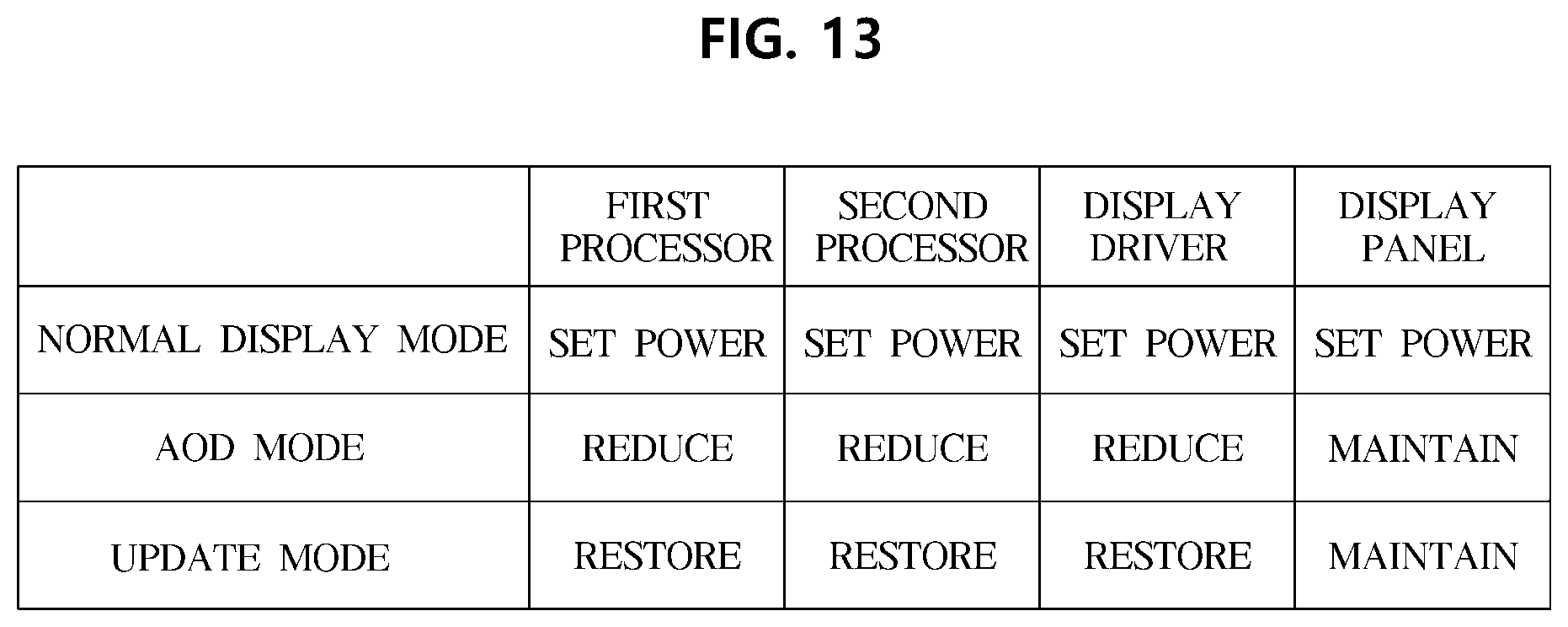

In normal operation, all four components run at full power. The patent's core claim is a new behavior in Always-On Display mode: the panel processor takes control of the power supply and issues a split instruction. Power to the display panel stays at its maintained level, because the screen still needs to show content. Power to the display driver, the panel processor itself, or both is reduced, because those components are essentially idling during AOD.
This is a targeted power reduction rather than a blanket screen-dim. The display panel's power rail is deliberately kept stable so image quality doesn't degrade. The savings come entirely from the supporting chips:
- Display driver power reduced (fewer pixel-update commands needed in static AOD)
- Panel processor power reduced (less processing work when the displayed content barely changes)
- Display panel power maintained (the screen keeps its normal operating state)
The panel processor is both the decision-maker and one of the things being throttled, which is an interesting design choice the patent doesn't elaborate on further.
What this means for your phone's battery life
Always-On Display is one of those features that sounds simple but punishes battery life. Most current implementations keep the entire display subsystem running at near-normal levels, with only brightness turned down. If Samsung can reduce power at the chip level, not just the backlight level, the gains could be more meaningful than a simple screen-dim.
For Galaxy phone owners, a more power-efficient AOD means leaving the feature on without guilt. For Samsung's display business more broadly, Samsung's steady investment in display power management makes sense given how central screen-on time is to how users judge a phone's stamina. Whether this specific approach makes it into a shipping device depends on how much real-world power it actually saves, which the patent doesn't quantify.
This is the 99th Samsung filing we've tracked in display technology work since May, adding to earlier applications like one hiding cameras in screens and one fixing foldable brightness.
The design asks the processor to manage a power-reduction plan that also cuts power to itself. That's a real risk: if it trims its own resources too aggressively, the phone may hesitate when the user picks it up and the screen needs to snap back to full activity.
Samsung is betting that the always-on display is calm enough, mostly a clock or static glanceable info, that both the processor and display driver can coast in a low-power state without the user noticing any sluggishness on wake. That holds for a simple clock face and probably breaks down for notifications that update constantly or animated display styles.
The core idea is sound, and the tradeoff reads as acceptable for typical use. The real cost is headroom: the system trades responsiveness headroom for battery savings, and how well that trade holds depends entirely on how much the always-on display is actually doing at any given moment.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

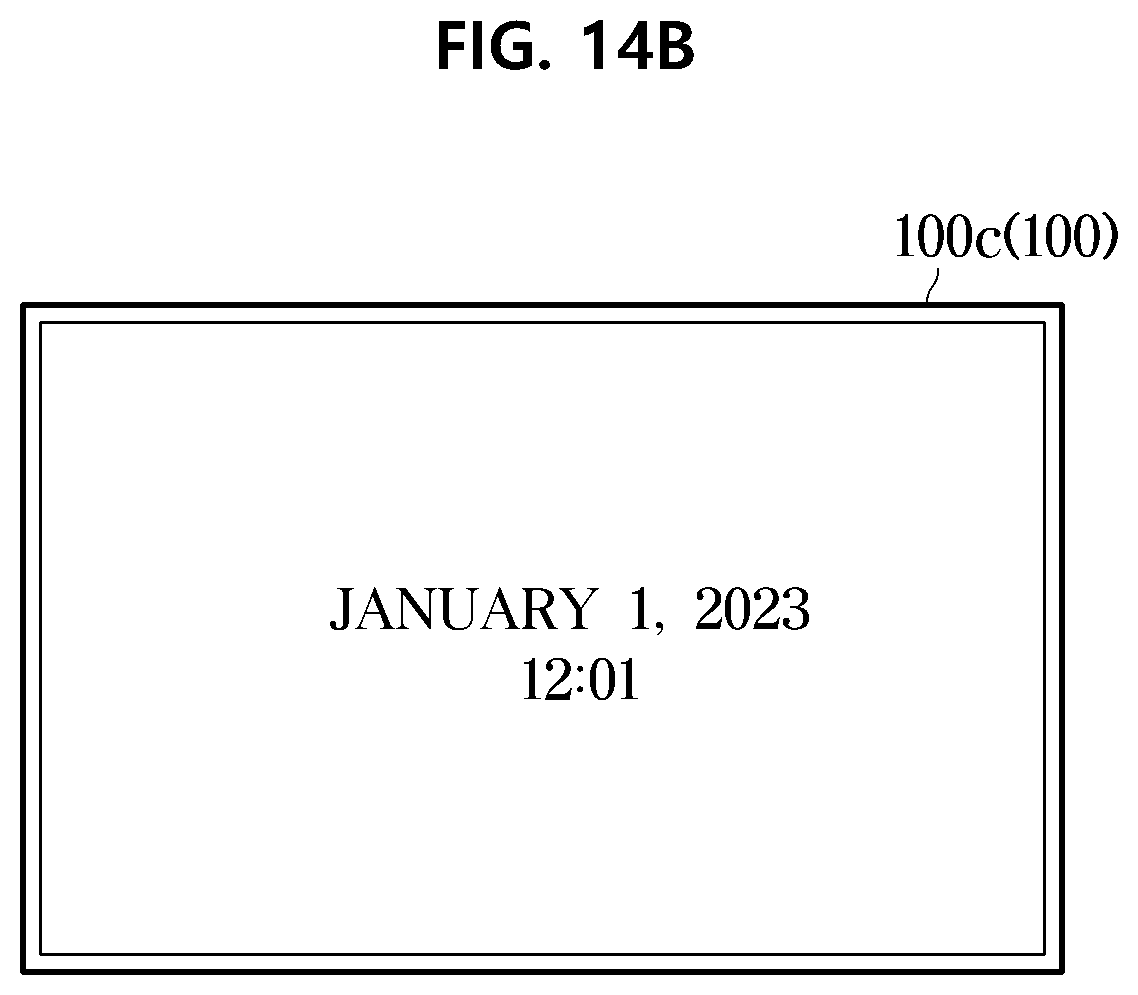

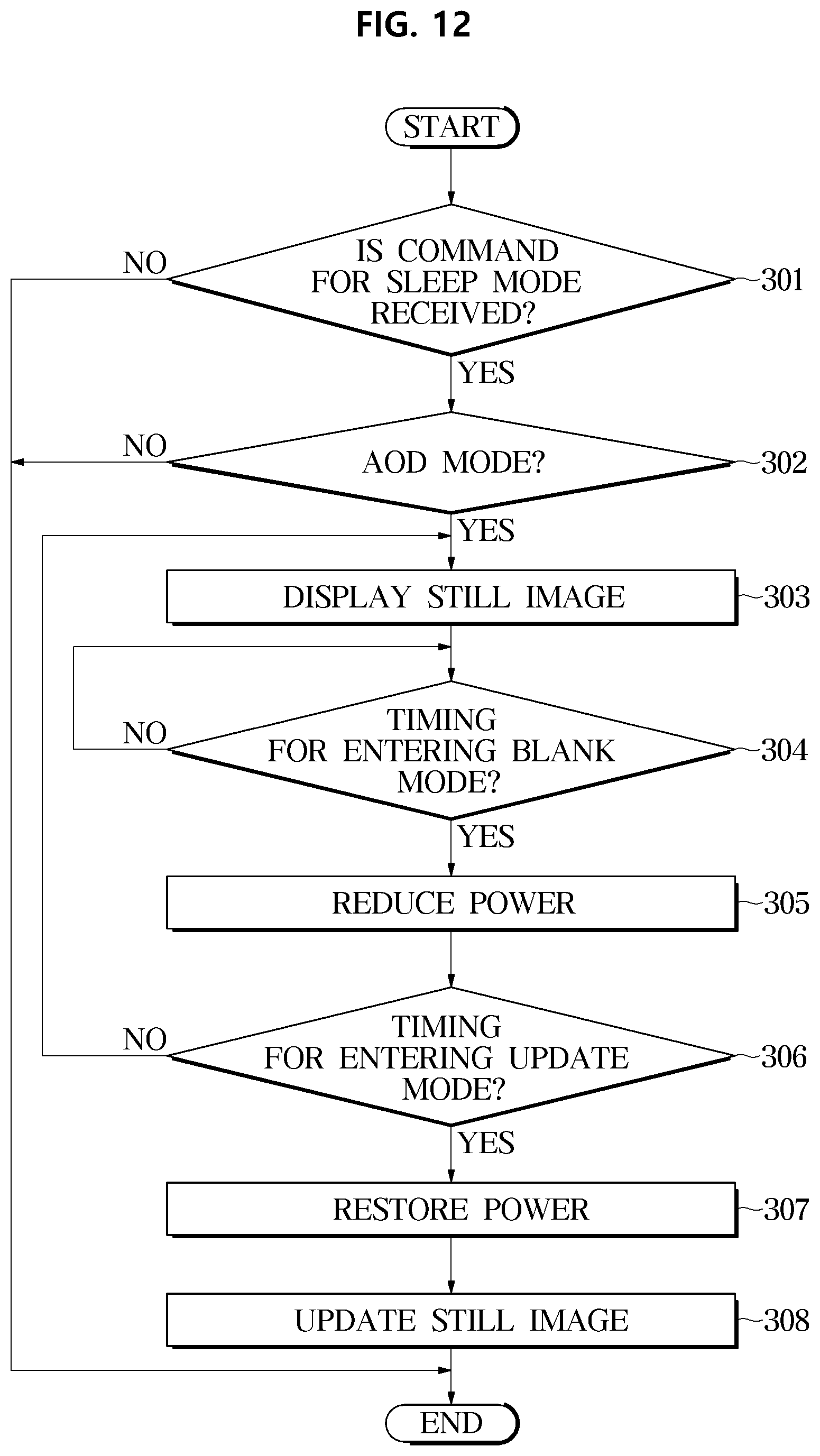

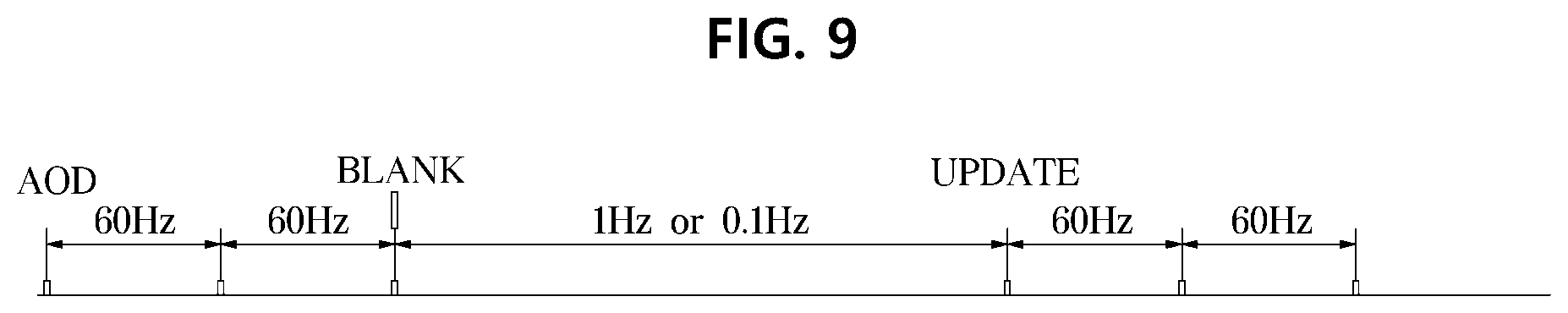

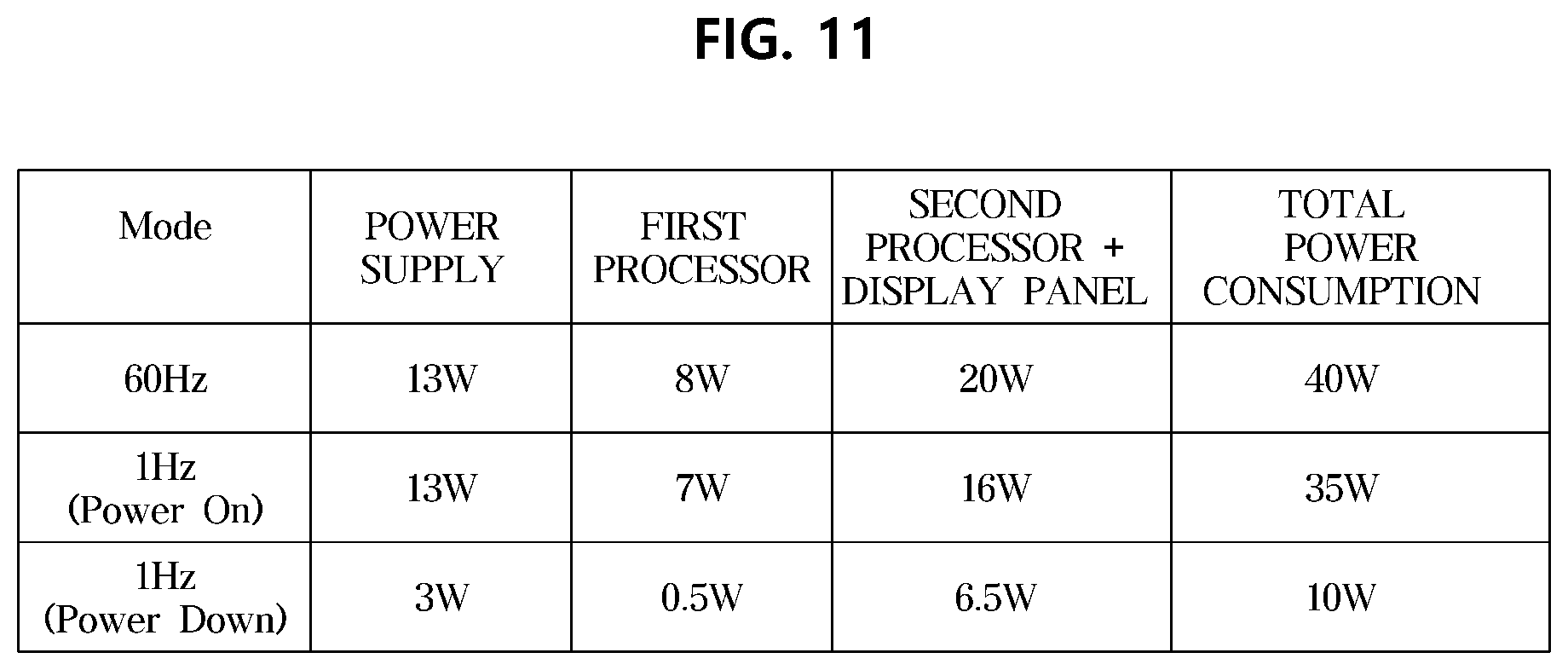

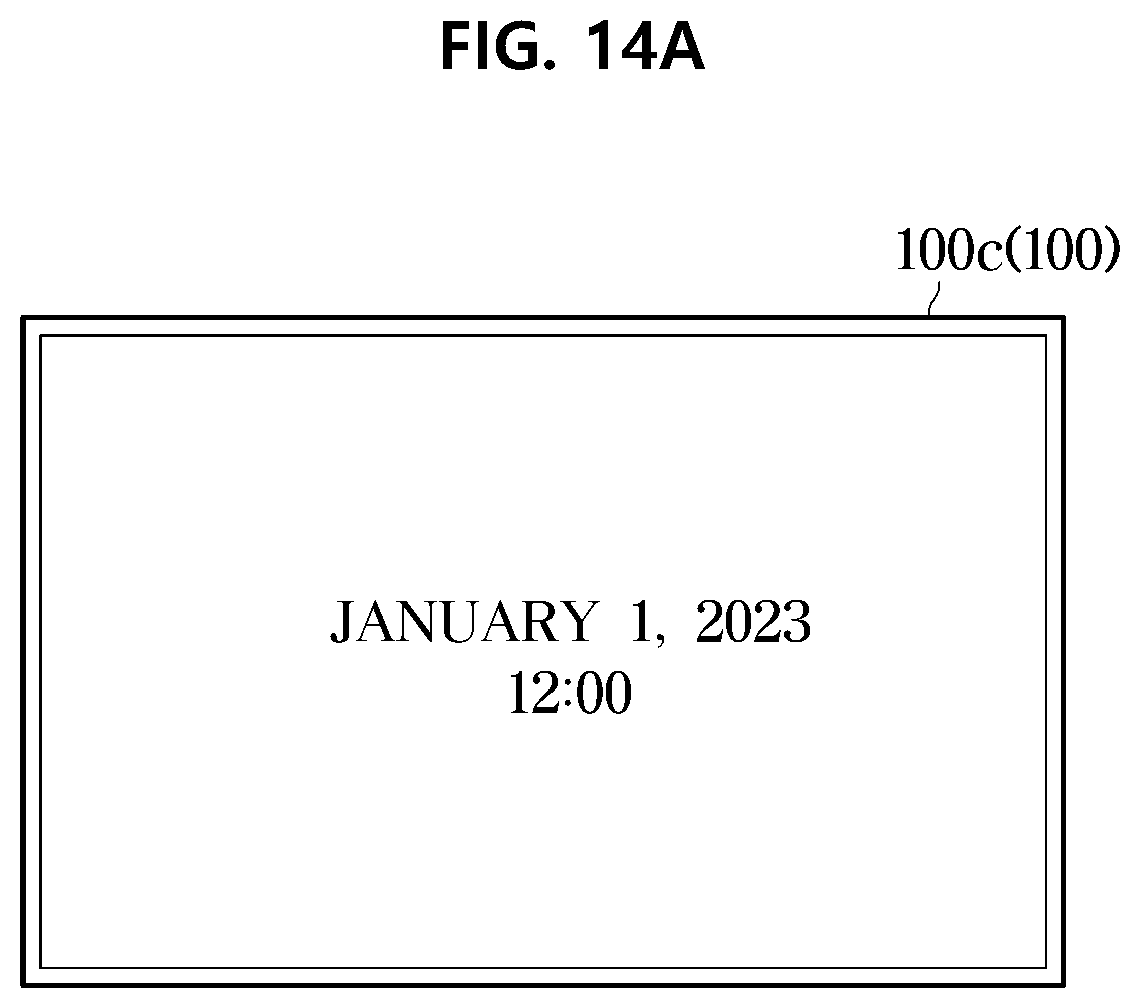

15 drawing sheets from US 2026/0268844 A1 · click any drawing to enlarge
