Samsung Patents a Slidable Phone That Adjusts Its Screen Speed as You Pull It Open
Samsung has filed a patent for a phone whose screen automatically adjusts how fast it redraws itself based on how quickly you're physically pulling the display open. It's a small but telling detail about how much engineering goes into making an expanding screen feel natural.
What Samsung's expanding-screen refresh trick actually does
Every time a slidable phone's screen stretches out, the image has to fill new real estate in real time. If the display redraws too slowly while you're pulling it open, you get visual stutters; too fast and you're burning battery on a screen that's still mid-motion.

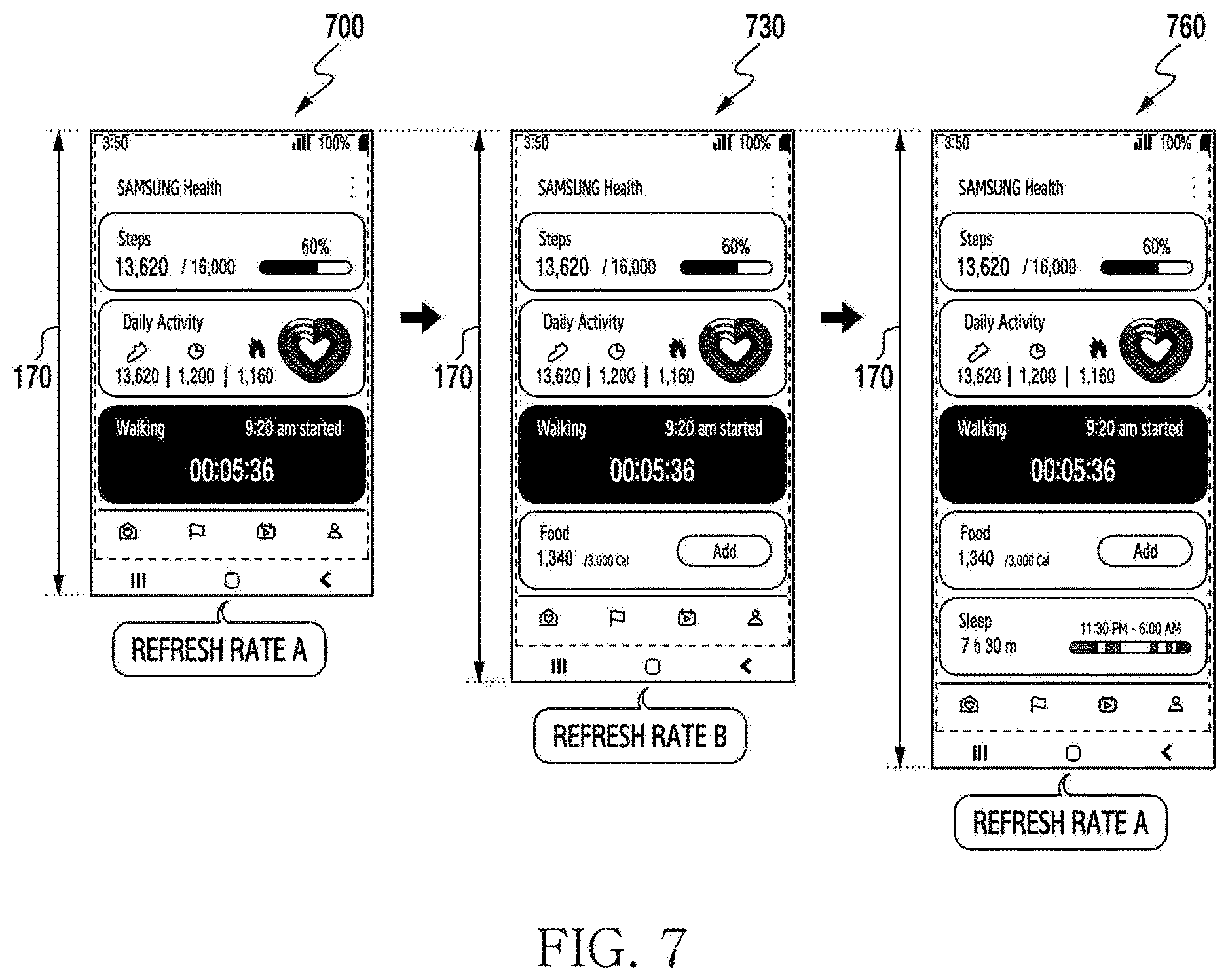

Samsung's patent tackles exactly that moment. As you slide the phone open, a motor moves the second half of the body and the flexible display unrolls to fill the gap. While that's happening, the phone watches how fast the screen area is growing and adjusts the screen's refresh rate (how many times per second the image updates) to match. Pull slowly, refresh more gently. Pull quickly, crank up the rate.
The goal is a display that looks alive rather than glitchy during the transition. Once the phone is fully open, the screen settles into its normal refresh behavior. It's a narrow fix for a narrow problem, but it's the kind of detail that separates a polished product from one that feels like a prototype.
… a flexible display coupled to the first housing part and the second housing part such that a size of an area of the flexible display that is visible from a front side of the housing changes as the second housing part is moved with respect to the first housing part …
Translation: The screen grows larger as the parts of the phone slide apart.
How the phone ties refresh rate to the speed of the slide

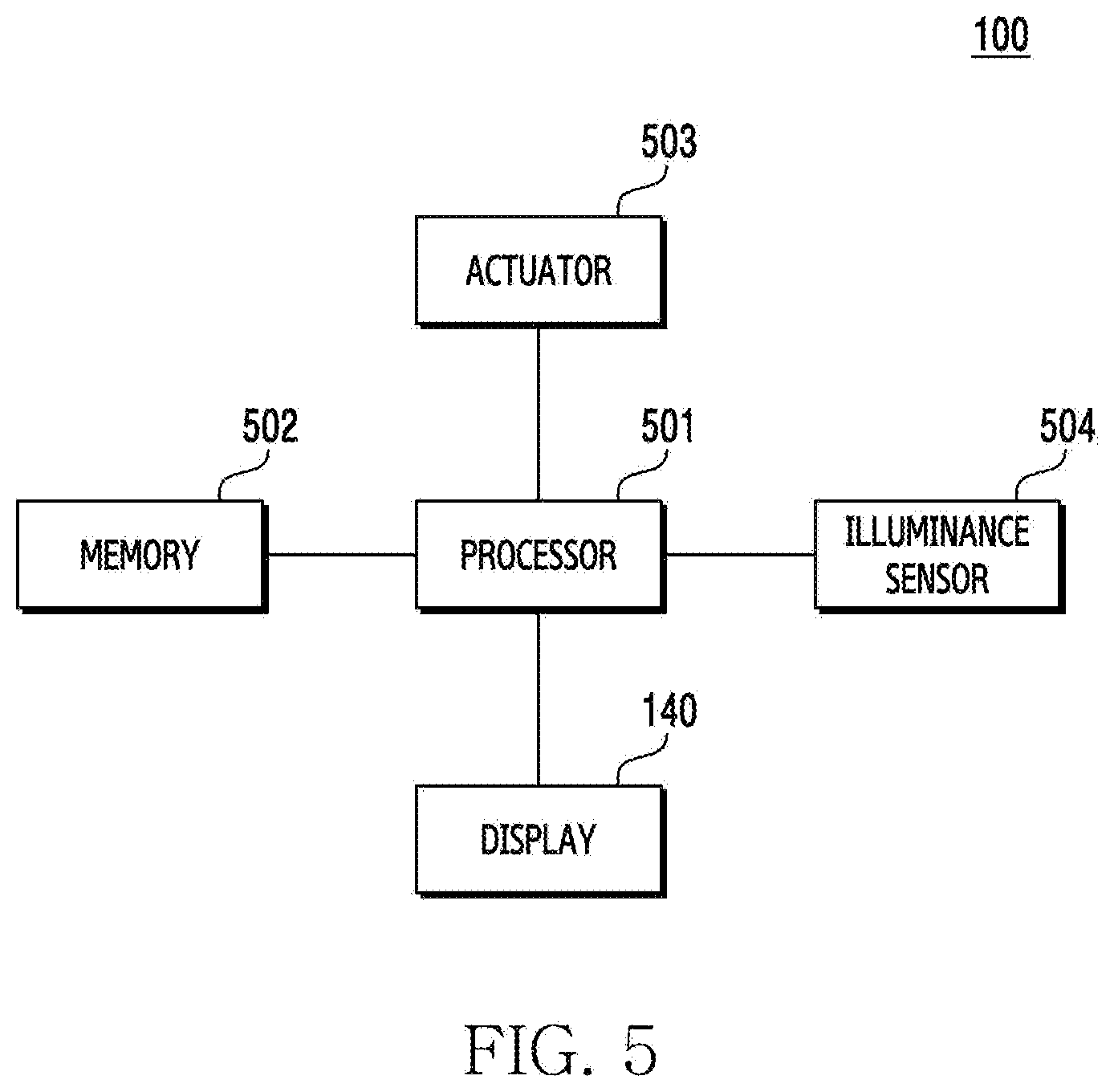

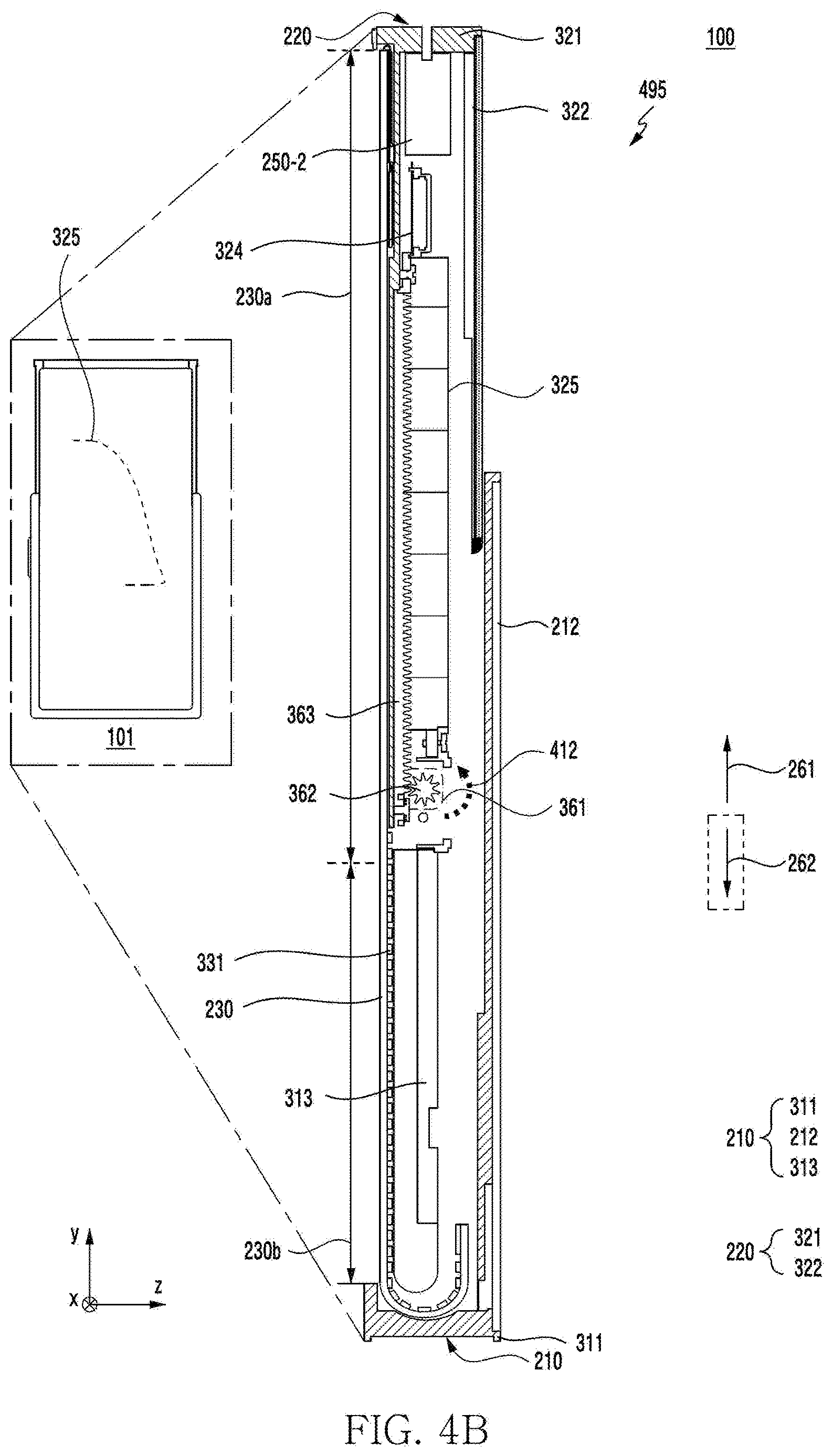

The patent describes a phone with two housing sections that slide relative to each other, exposing more of a flexible display as the second section moves outward. A motor (called an actuator) drives the physical movement.

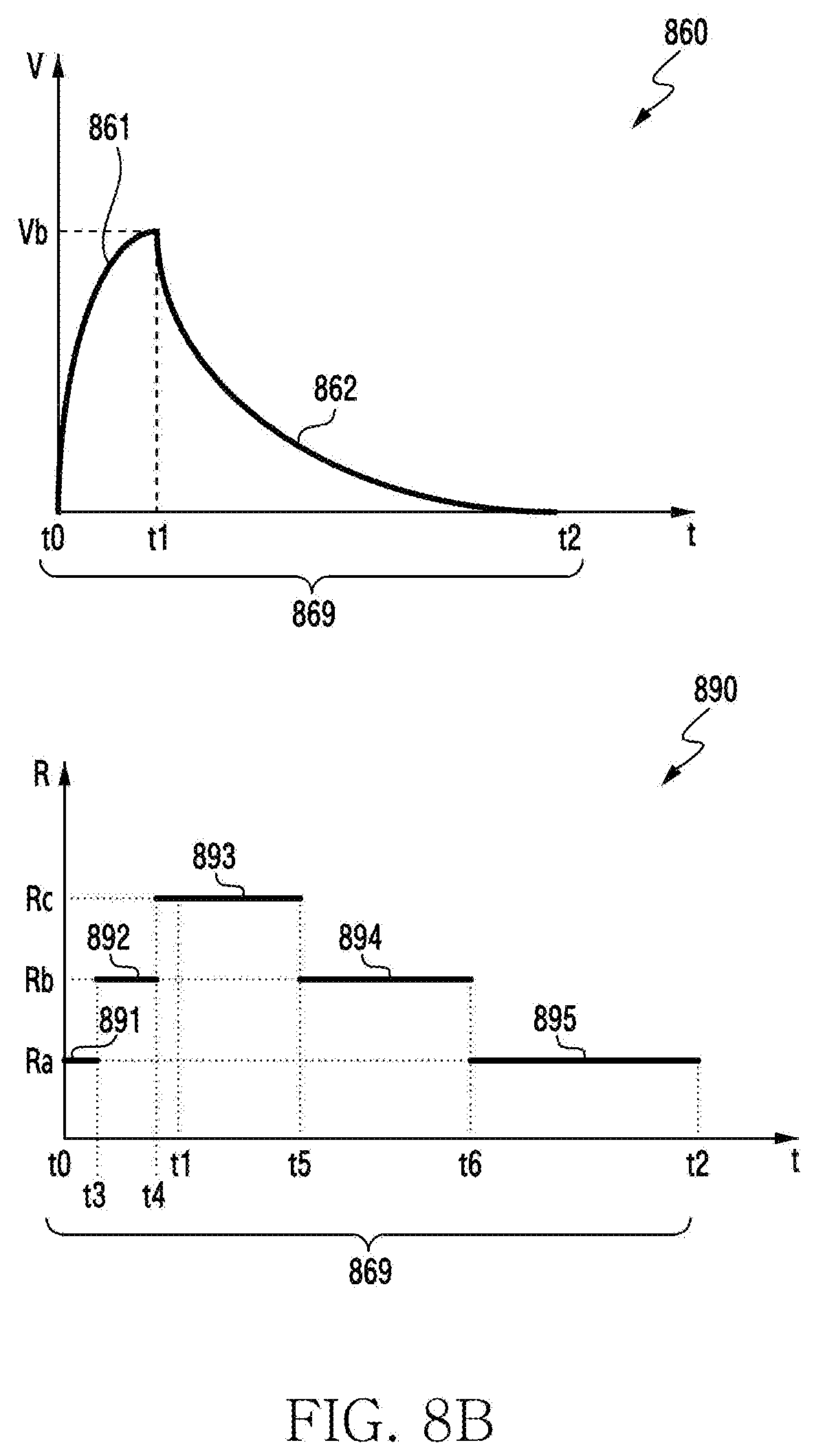

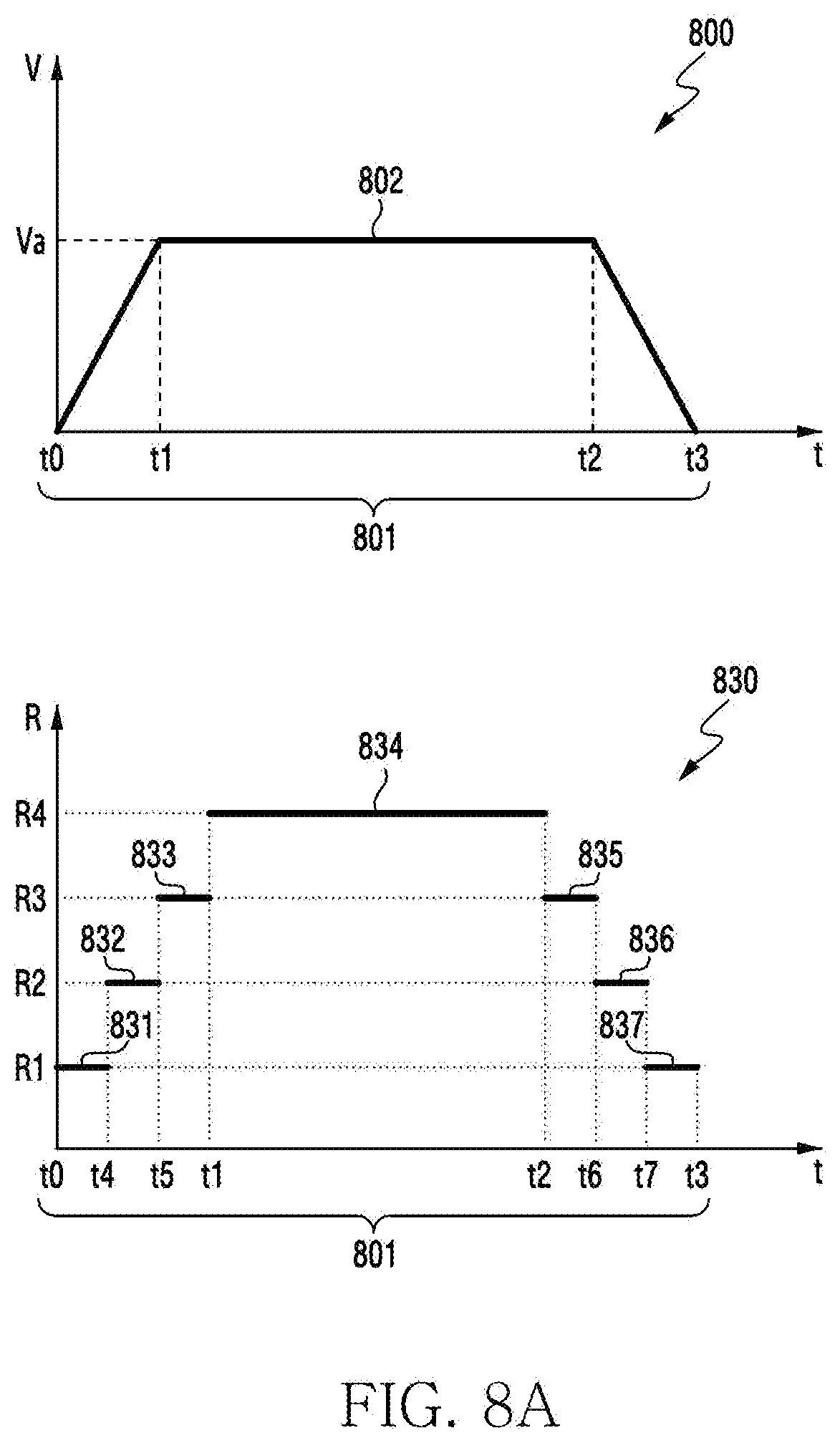

The core invention is the link between that physical movement and the screen's refresh rate, meaning how many times per second the display redraws the image. Normally, refresh rate is a fixed setting or one that changes based on content type. Here, the phone's processor monitors how quickly the visible screen area is growing during the slide-out motion and continuously adjusts the refresh rate to match that speed.

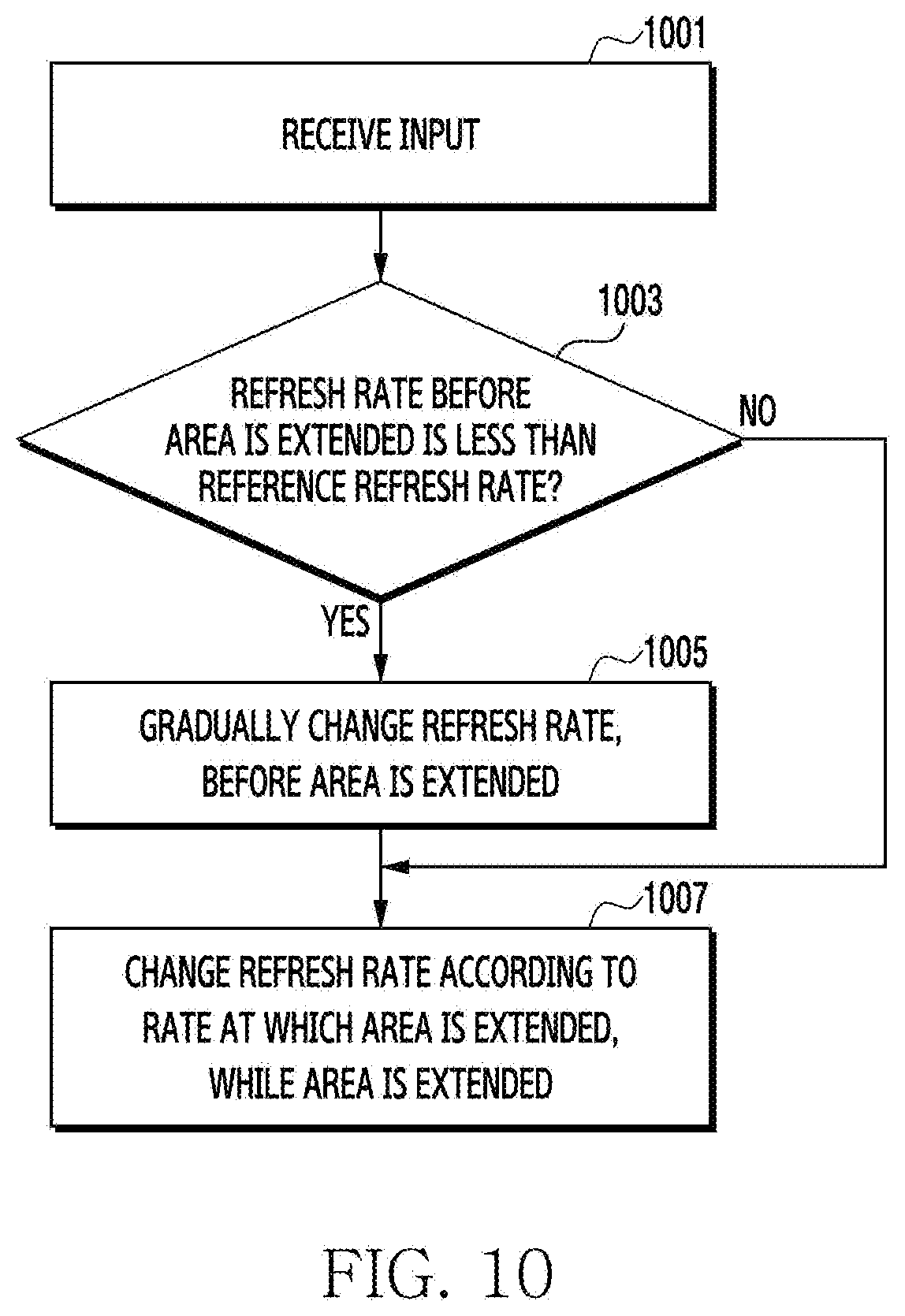

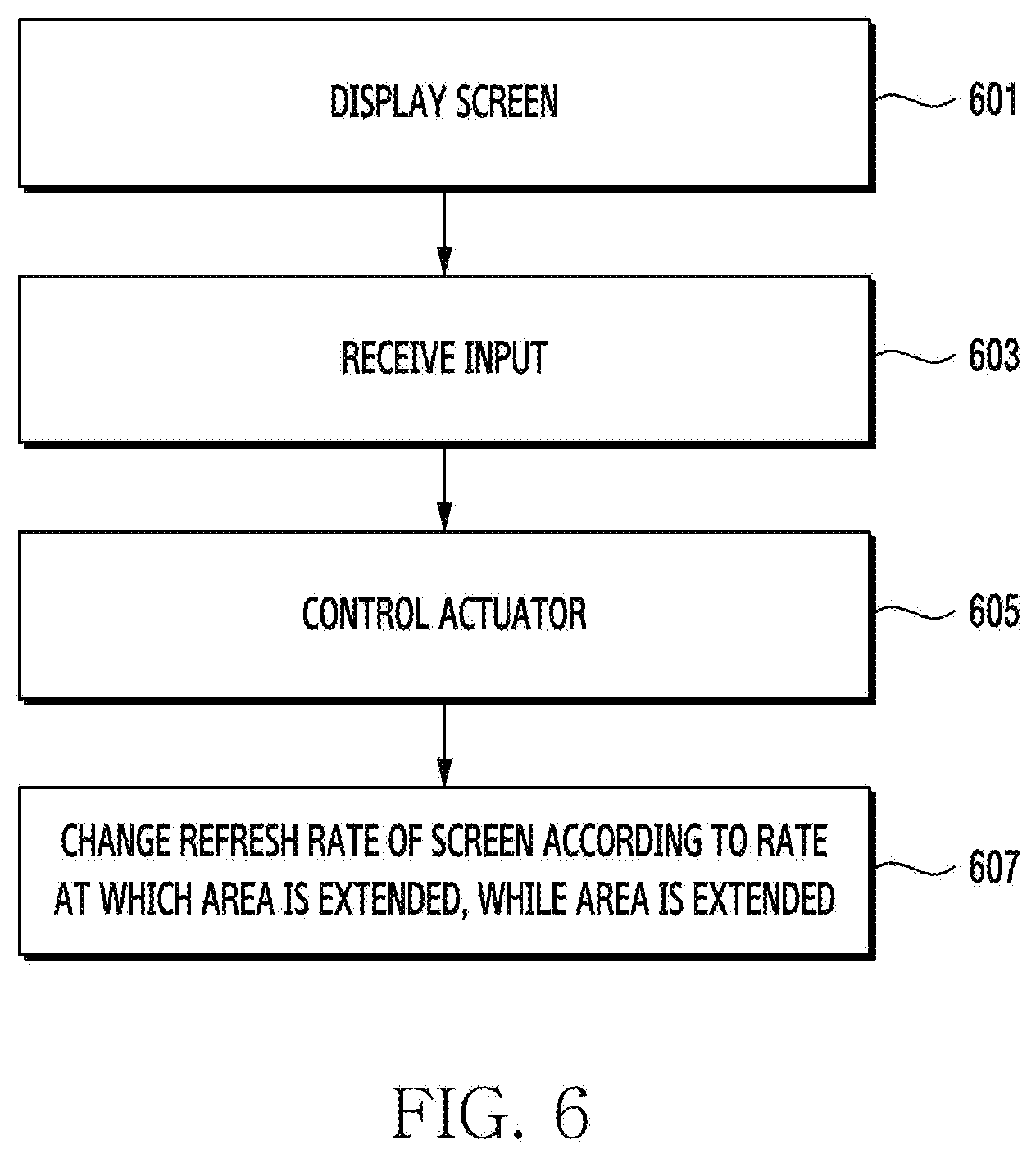

The practical flow looks like this:
- User triggers an input to expand the screen.
- The processor tells the actuator to move the second housing.
- While the housing moves, the processor tracks the rate of area expansion.
- The display's refresh rate changes in sync with that rate throughout the motion.
The patent does not specify a fixed formula for how refresh rate maps to expansion speed, leaving that as an implementation detail. What it pins down is the real-time feedback loop between physical movement and display behavior, which is the part that would need specific engineering to get right on real hardware.
… cause, while the area is extended in accordance with the second housing part being moved with respect to the first housing part in response to the input, the flexible display to change a refresh rate of the screen that is extended on the area, according to a rate at which the area is extended …
Translation: The display updates faster or slower depending on how fast you pull the phone open.
What this means for sliding-screen phones coming to market
Slidable phones have been shown as prototypes by several manufacturers, but the display transition during the slide-out motion remains a known weak point. A screen that stutters or flashes as it unrolls undercuts the whole appeal of the form factor. A refresh rate that tracks the physical expansion speed is one concrete way to address that.
For you as a potential buyer, this is about whether the device feels finished. A smooth screen expansion is table stakes for a product that costs flagship money. Samsung's steady filing activity around slidable displays suggests the company is building out a full stack of solutions, not just the hardware mechanism. Whether any of this reaches a real product is a separate question, but the engineering direction is clear.
This is the 67th Samsung filing we've tracked on foldable phones since May, following work on keeping functions across the hinge and a tougher pen-input layer.
The patent sits closer to a shippable feature than most display patents do, because the hardware it depends on (the slidable mechanism, the flexible display, the actuator) already exists in prototype and early-retail form. The software logic described here is a control loop on top of hardware Samsung has clearly been building.
The shortest route to a product would be a slidable Galaxy handset where this behavior is part of the display driver firmware. No exotic new components are required; the patent is essentially describing a policy for coordinating two systems that already have to talk to each other anyway.
The main open question is whether the refresh-rate adjustment is perceptible enough to matter in practice. If the slide takes less than a second, users may never notice whether the rate is dynamic or static. That could make this a real quality-of-life detail or an invisible one, depending on how Samsung tunes the hardware.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

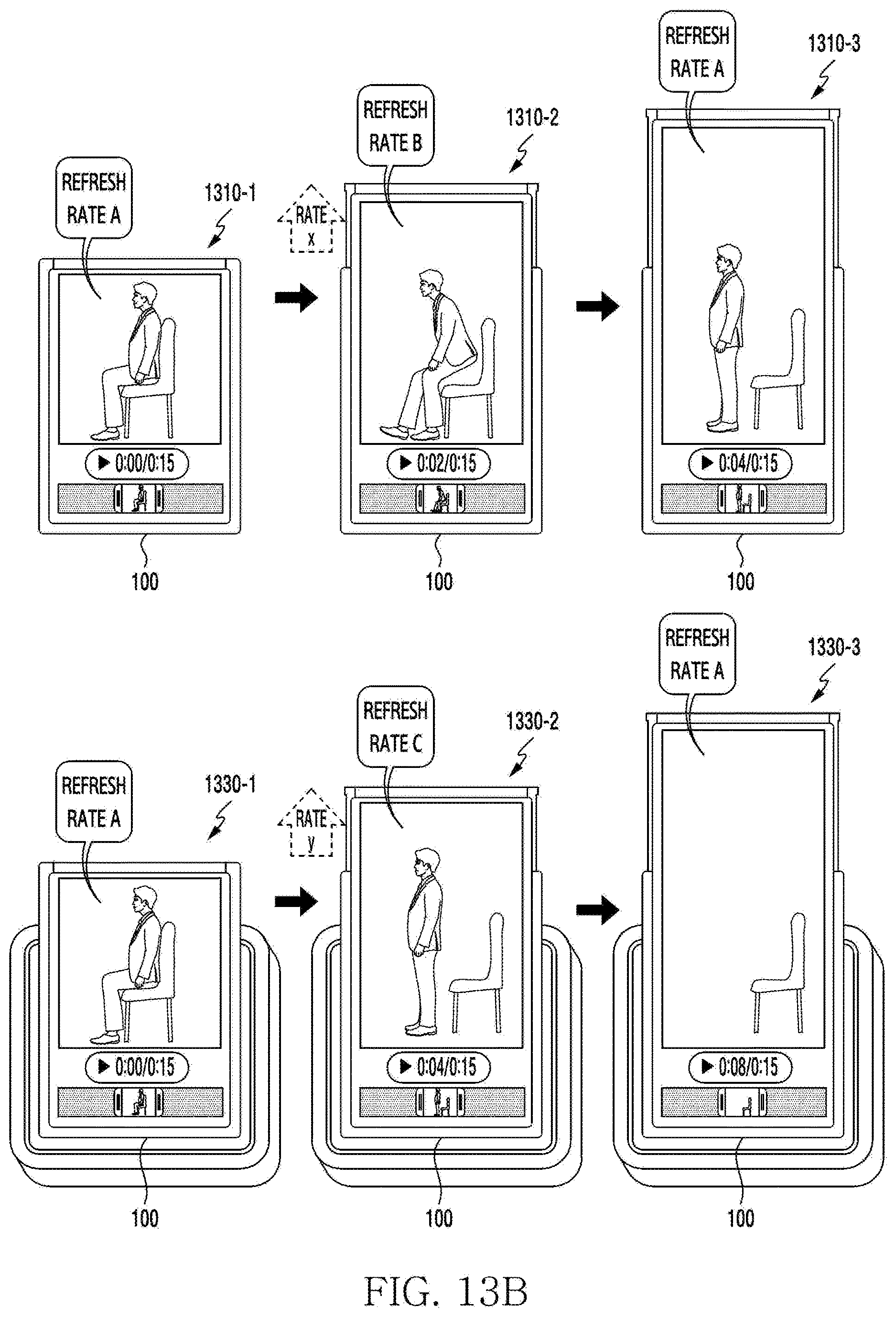

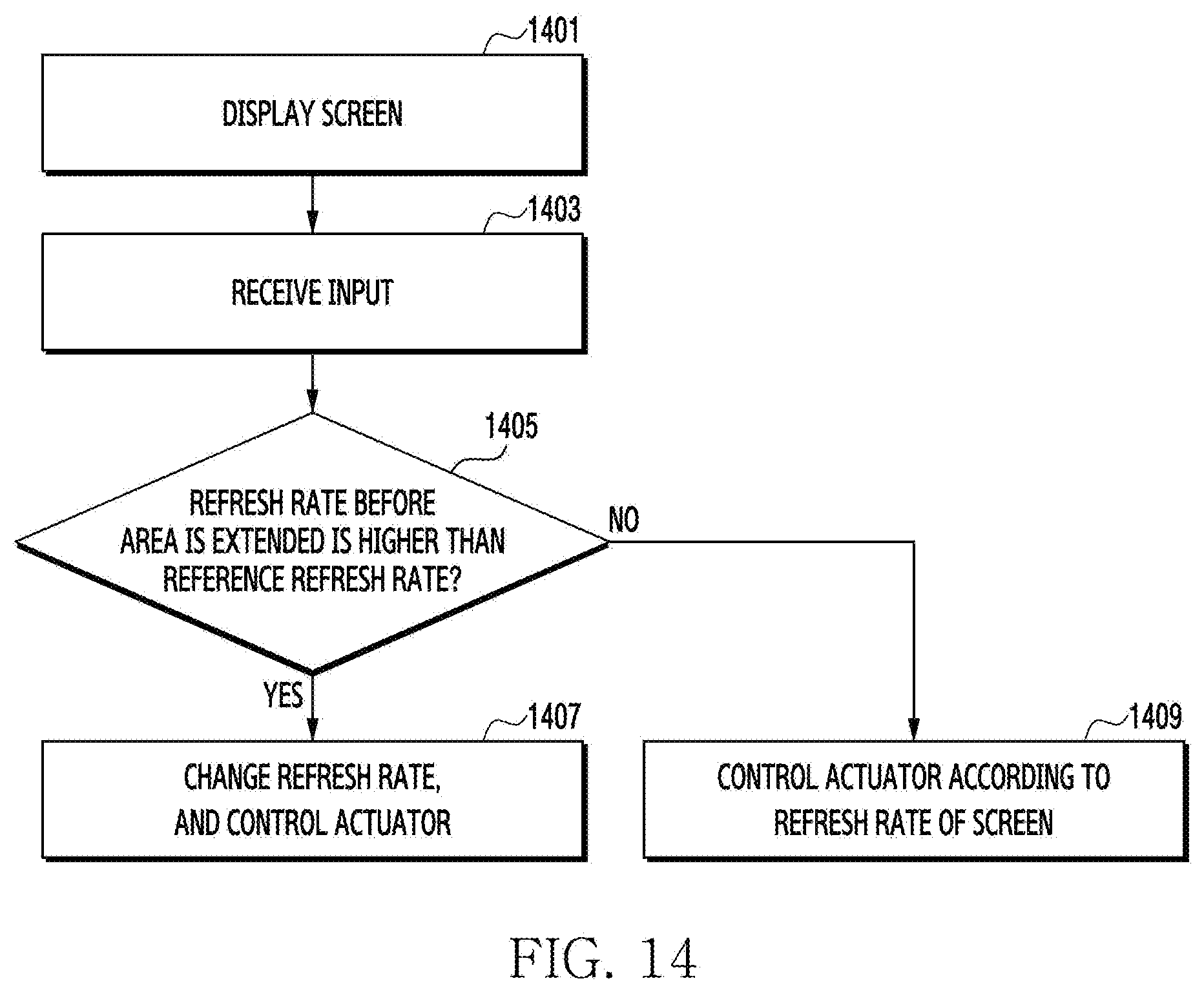

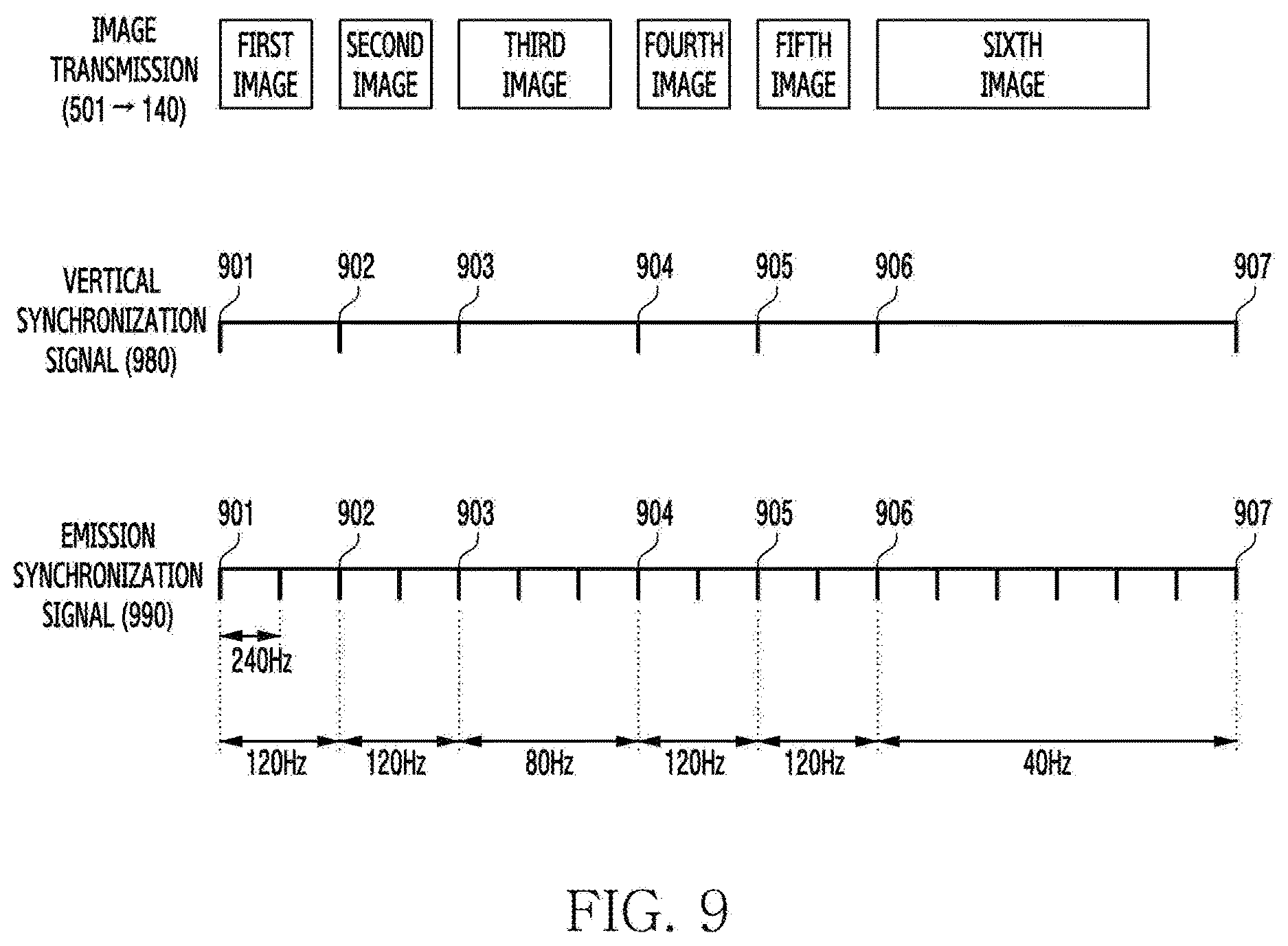

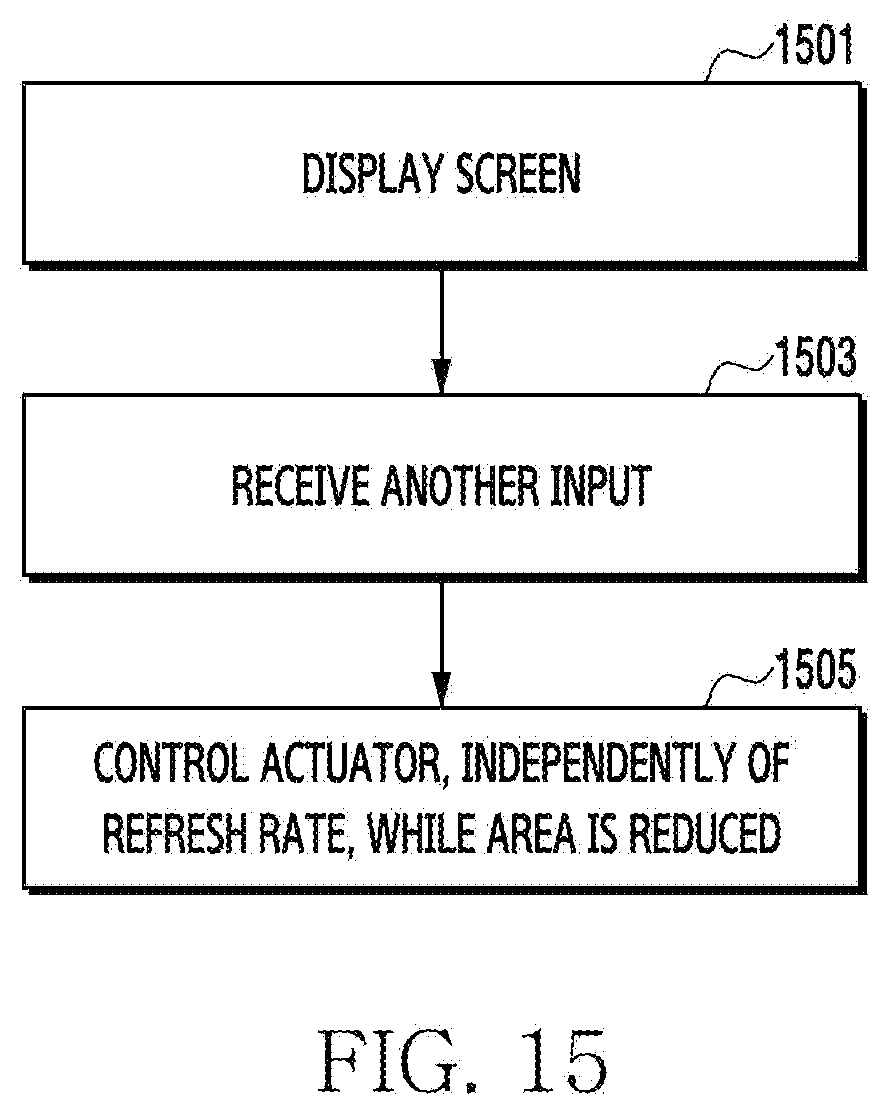

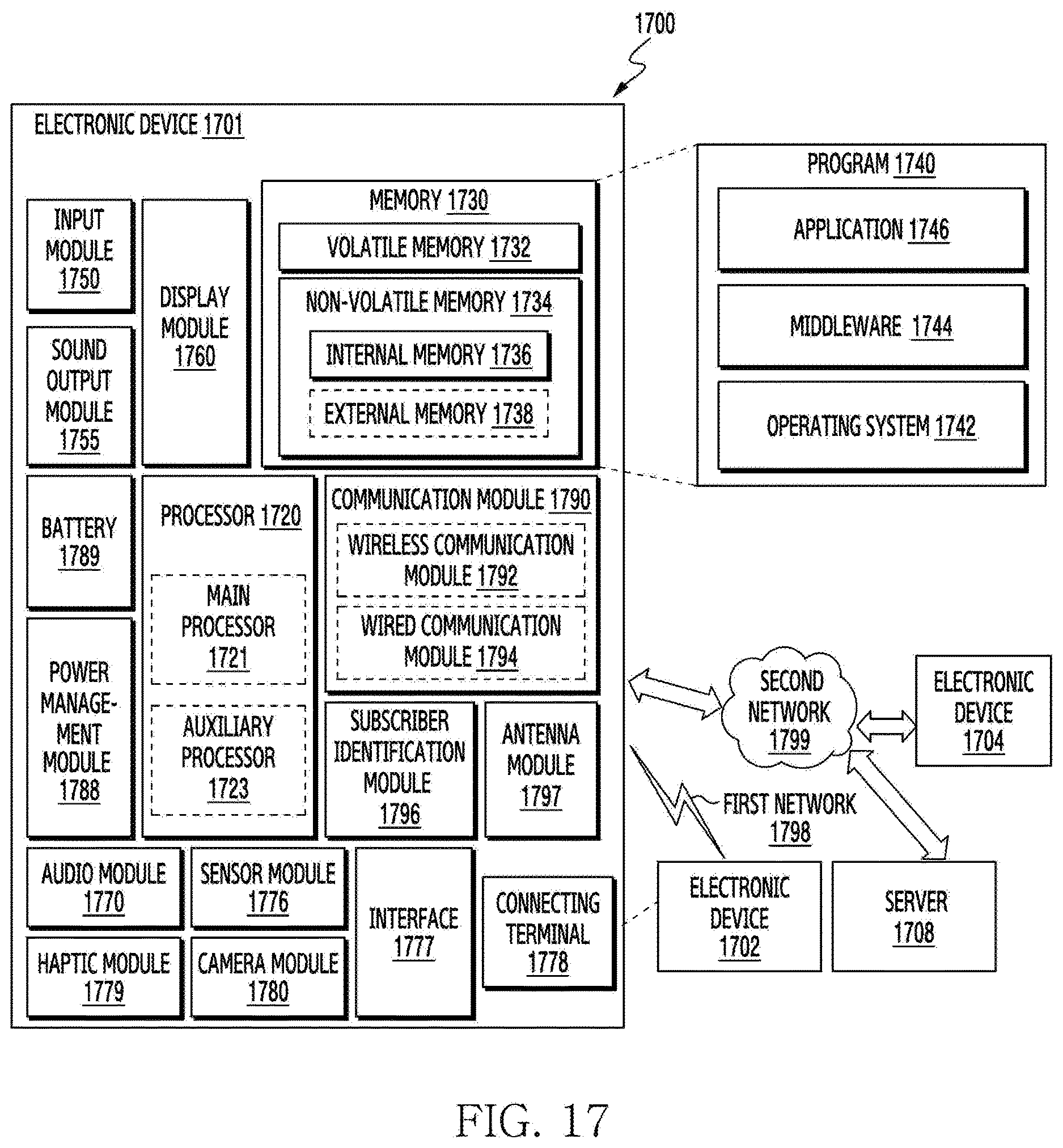

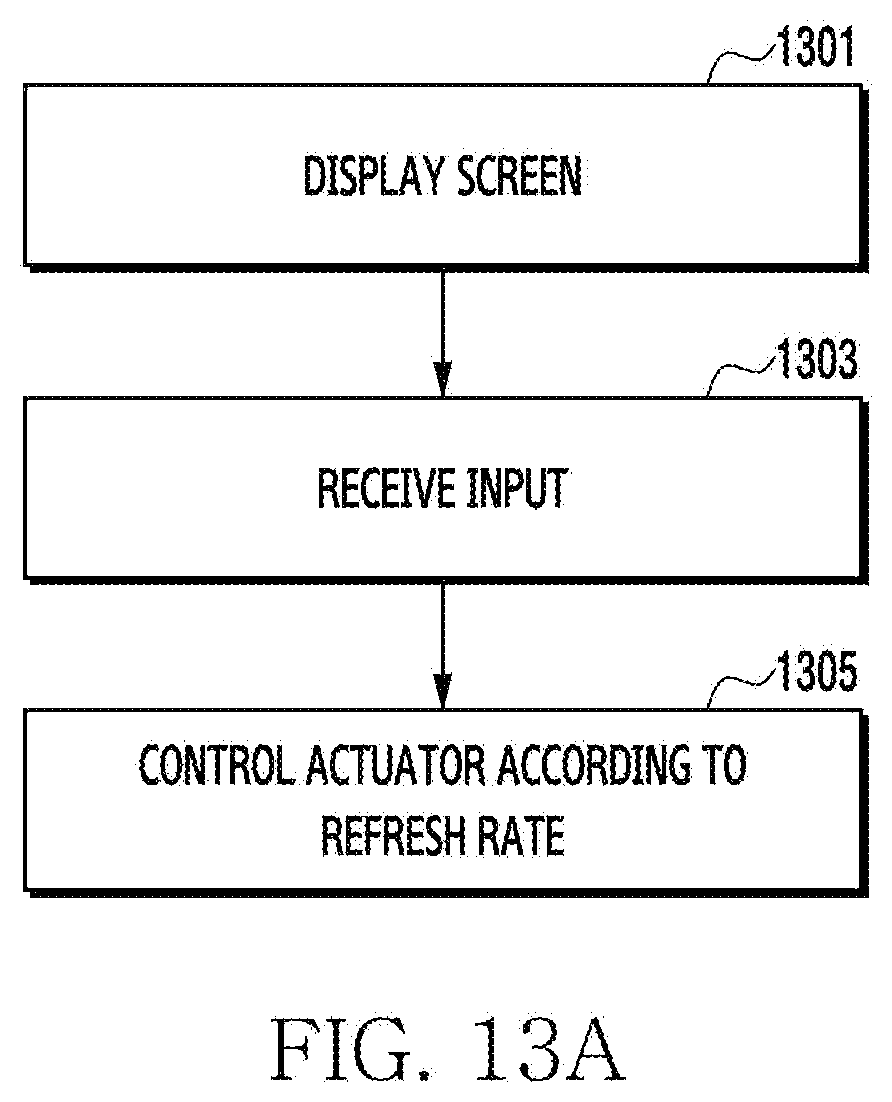

24 drawing sheets from US 2026/0270335 A1 · click any drawing to enlarge
