Samsung Files Patent for a Smartwatch That Moves Messages Onto the Strap When You Twist Your Wrist
Samsung's patent application would turn a smartwatch strap into a second screen. Grip your hand, turn your wrist, and a text slides into view where your eyes already are.
What Samsung's wraparound watch strap screen does
You're walking down the street when a text lights up your smartwatch. The screen is tiny, and answering it on that little square is a chore. This Samsung patent application treats the strap as part of the display, so the watch has far more room to work with.

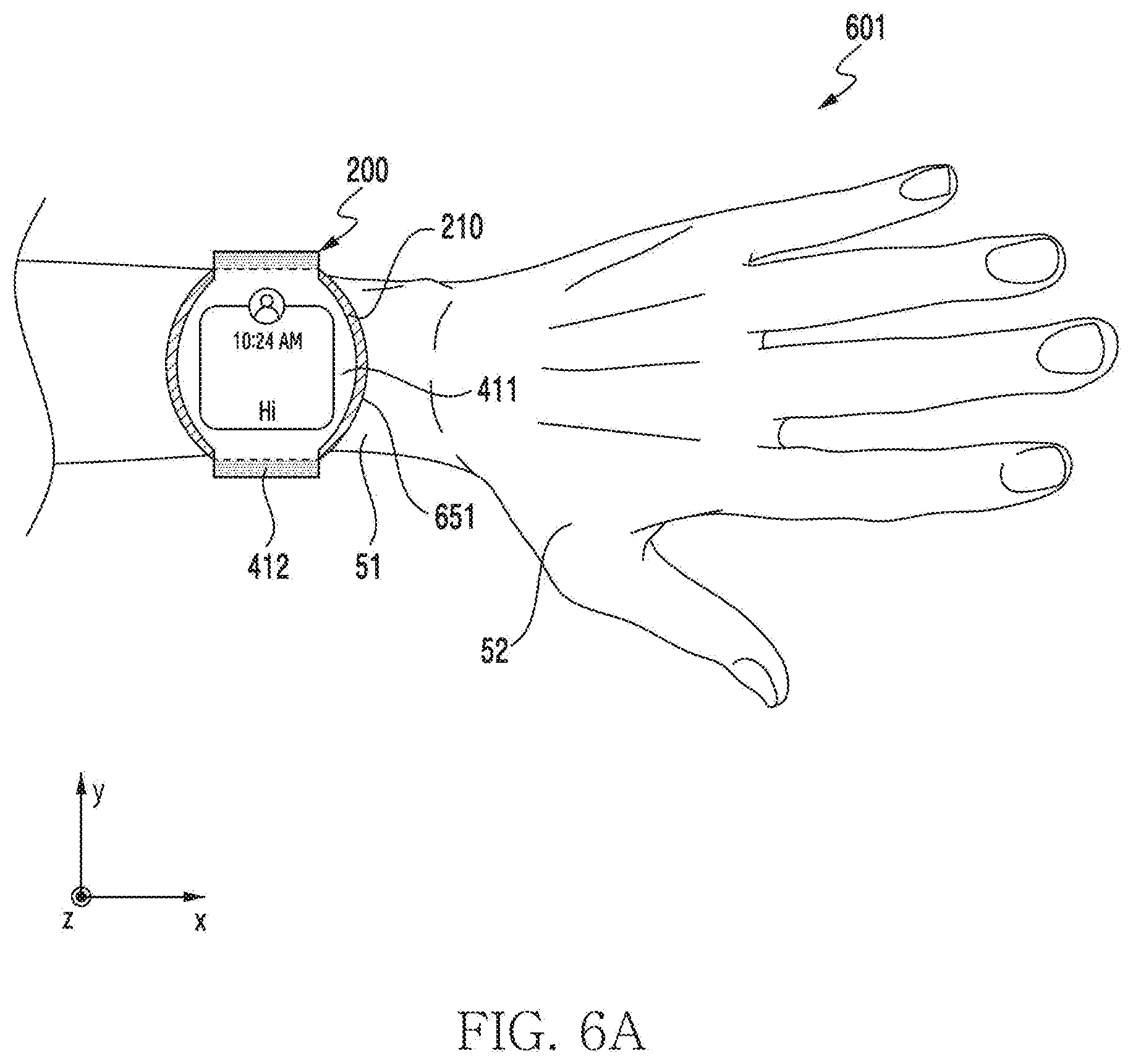

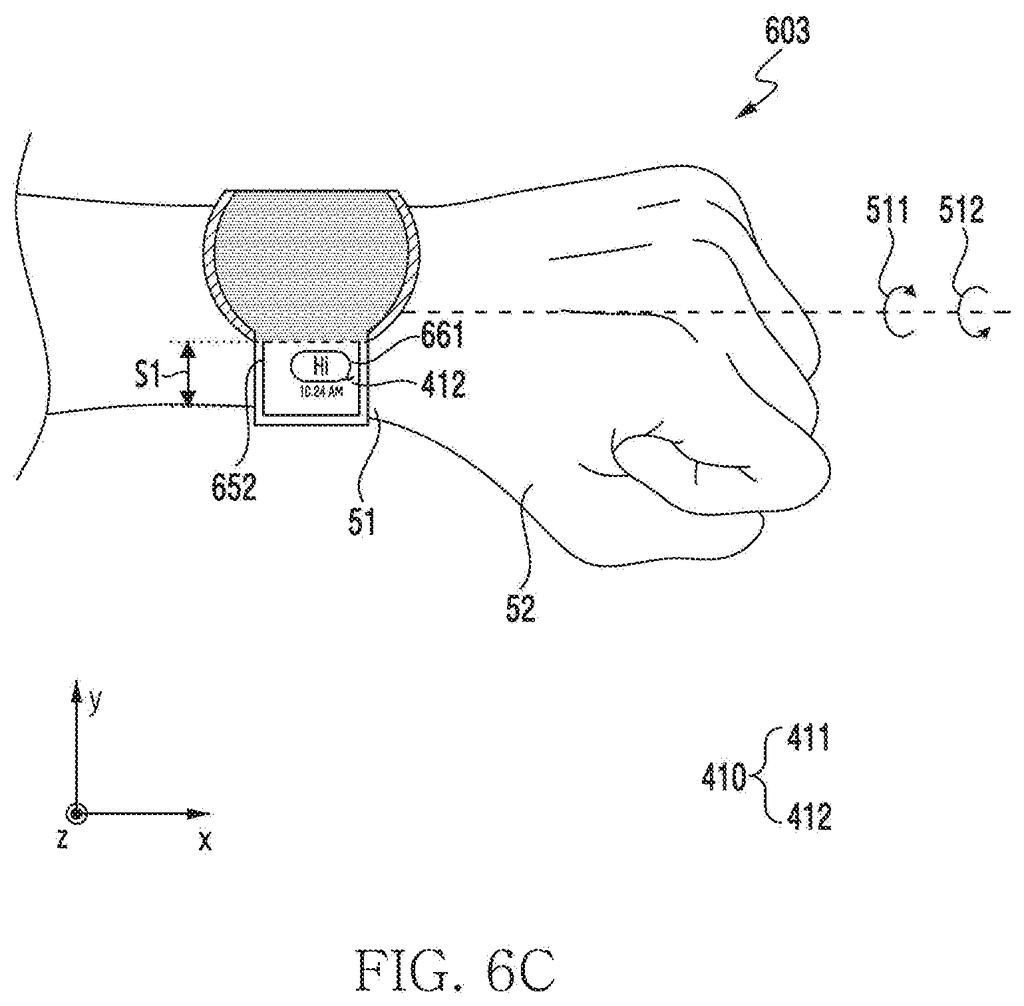

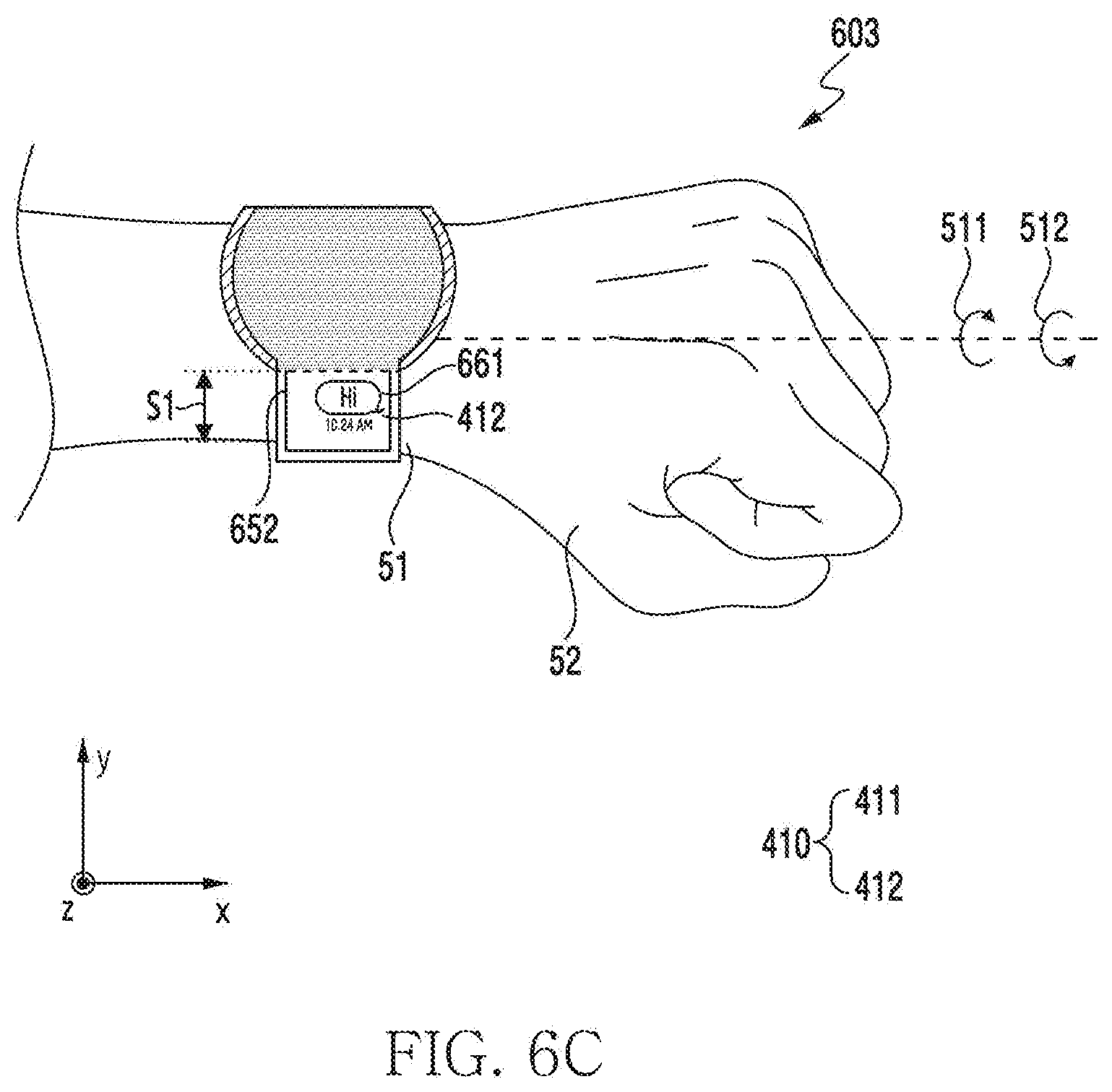

To use it, you grip your hand and, while still gripping, turn your wrist. The message slides off the watch face and onto the part of the strap that now faces you. Keep turning and it can move to a section farther around. The more you turn, the bigger it gets, until it has space for earlier messages, a box for typing and a send button.
Open your hand and the strap screen goes dark, with the message back on the watch face. Turn your wrist the other way and it slides back too.
based on identifying a first motion of the user detected via the at least one sensor while visual information is displayed in the first area, execute a function for switching a screen of the display, and based on identifying a second motion of the user while the first motion detected via the at least one sensor is maintained, display the visual information in the second area.
Translation: When you move your wrist twice, the watch shifts the message from the main screen onto the strap.
How a grip and a wrist turn move the screen

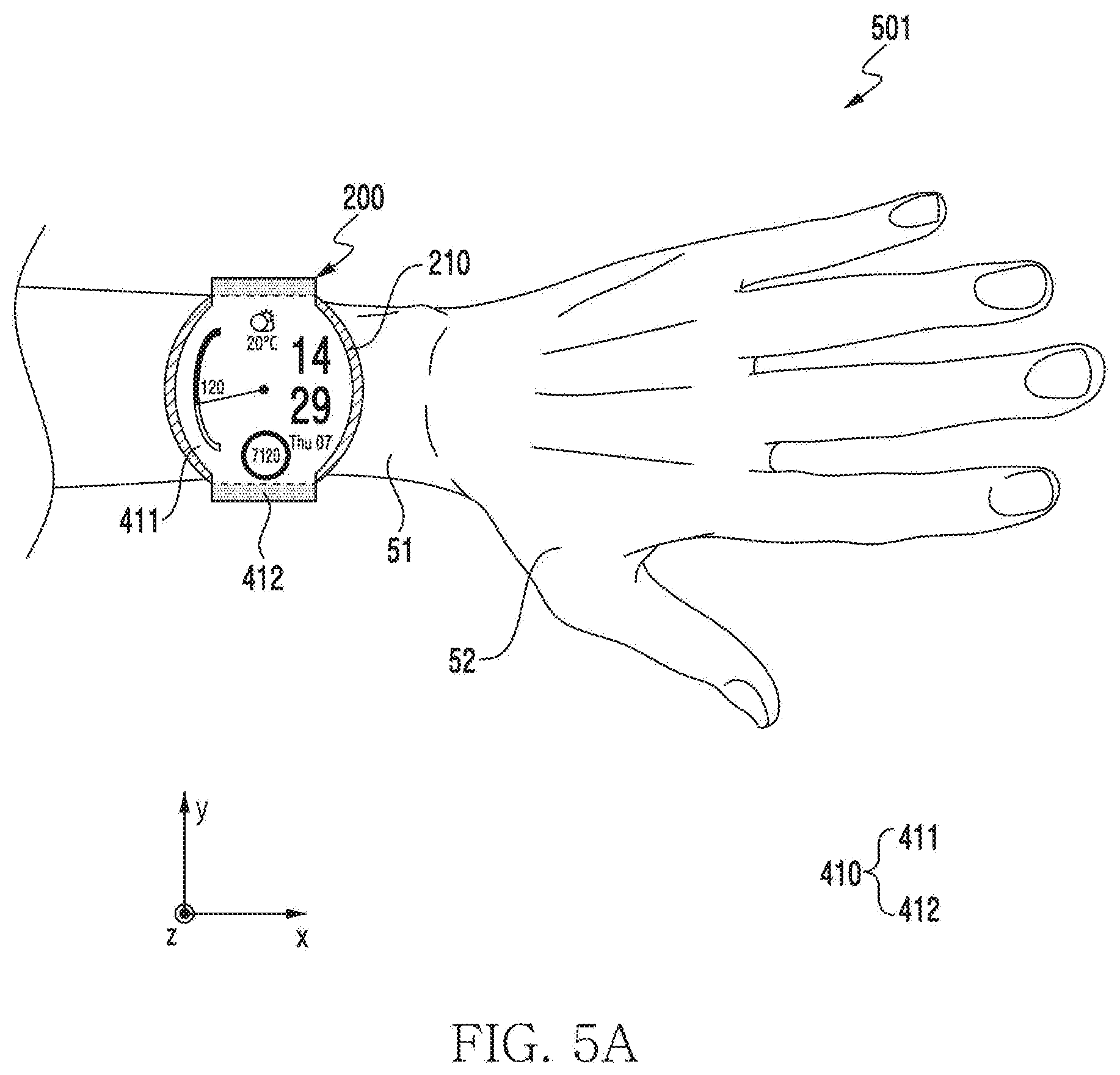

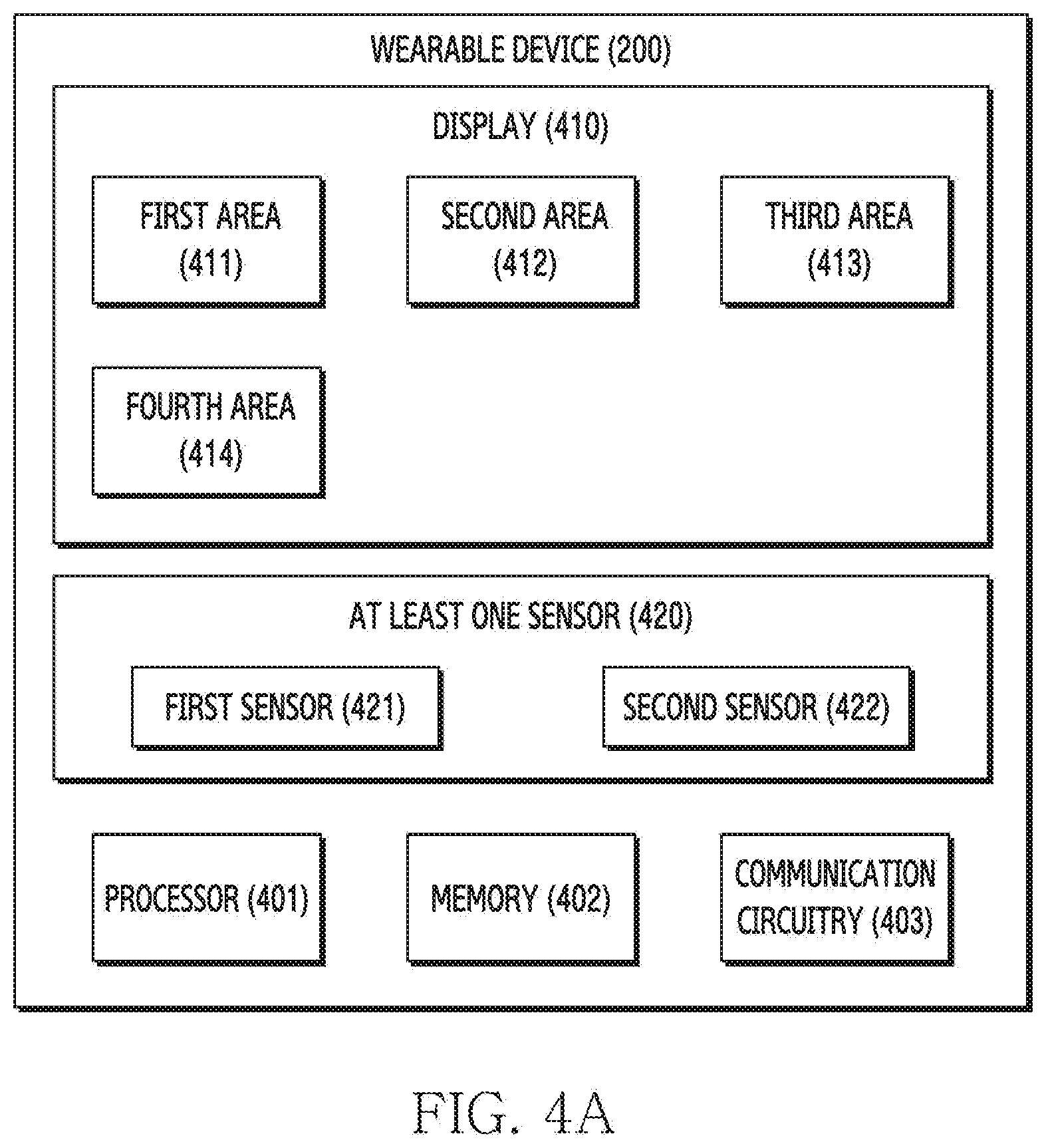

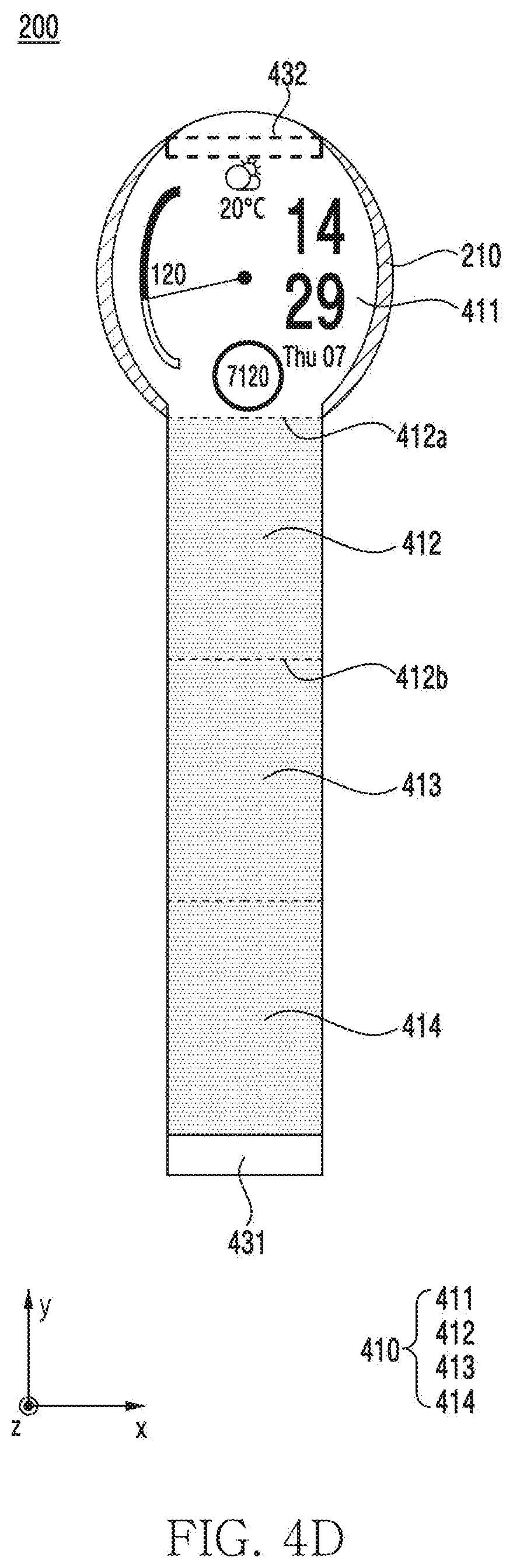

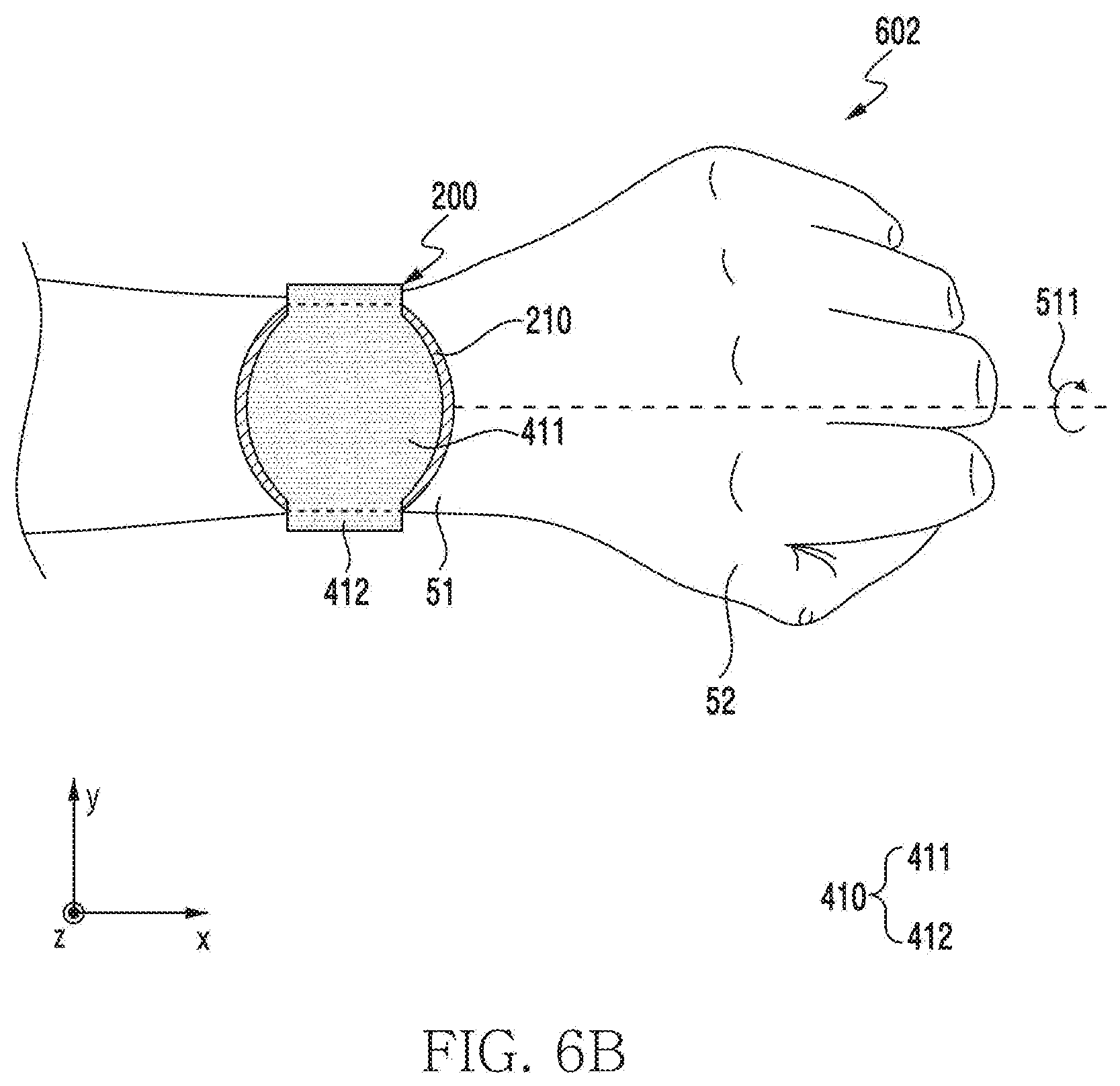

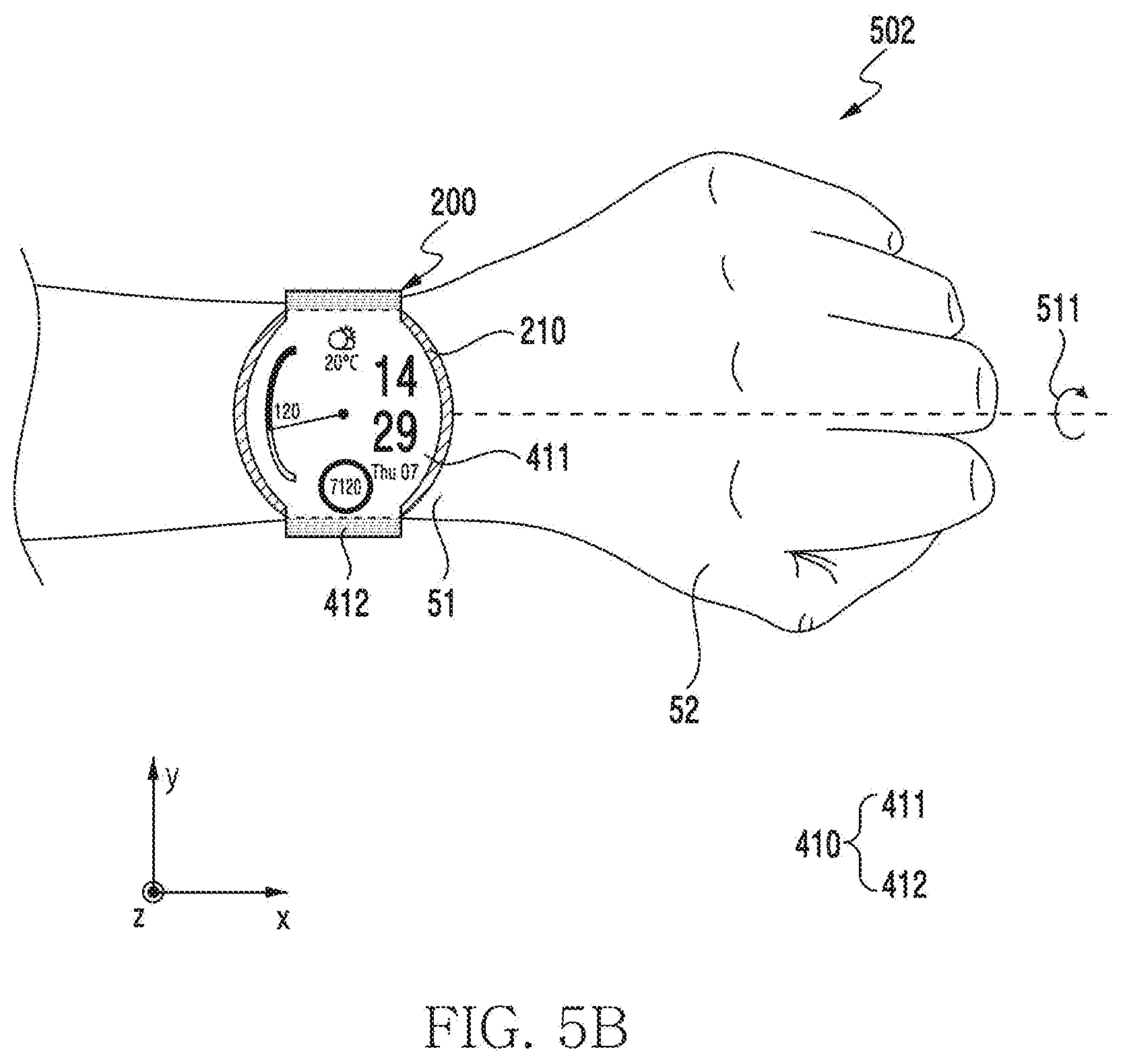

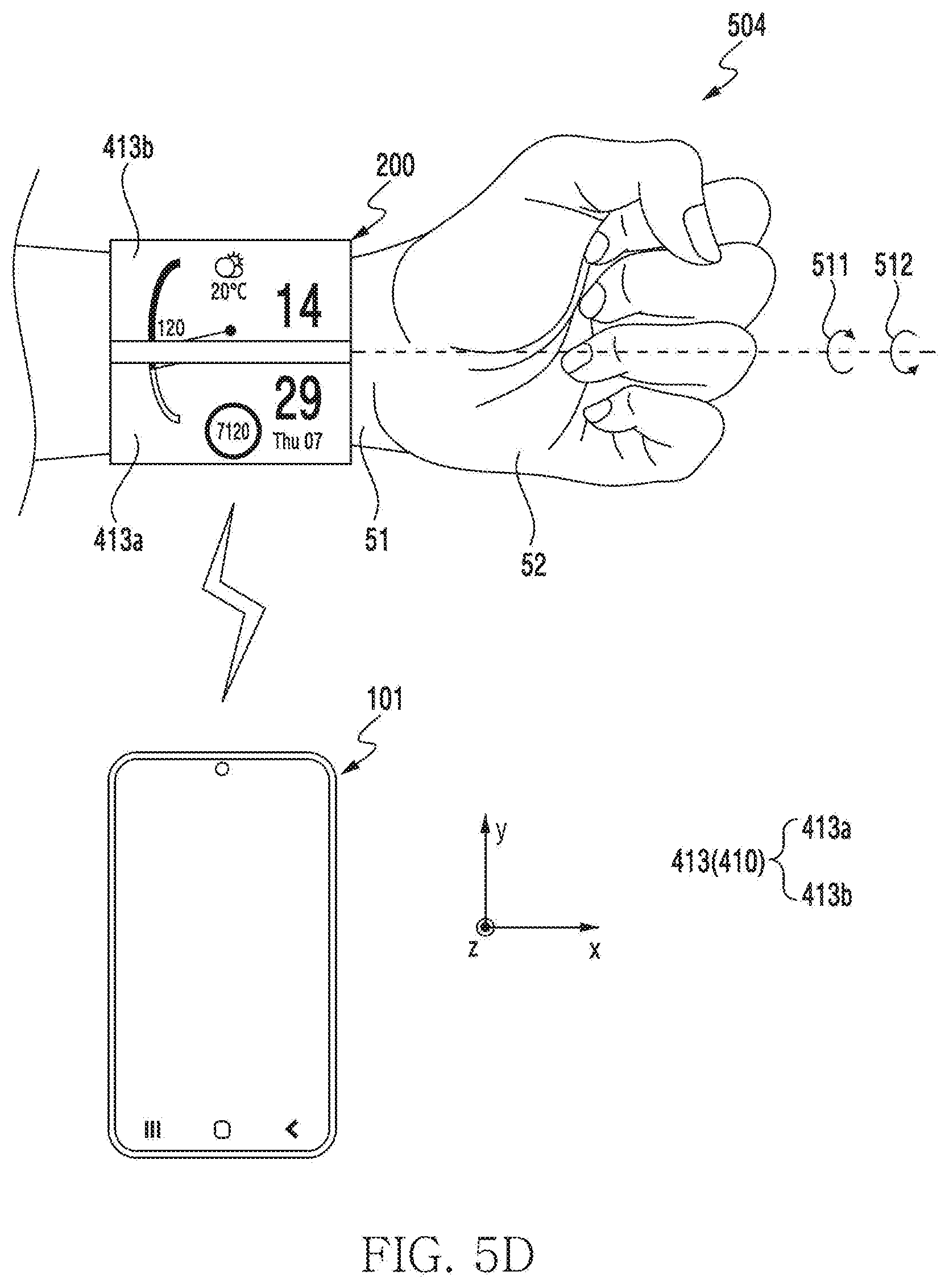

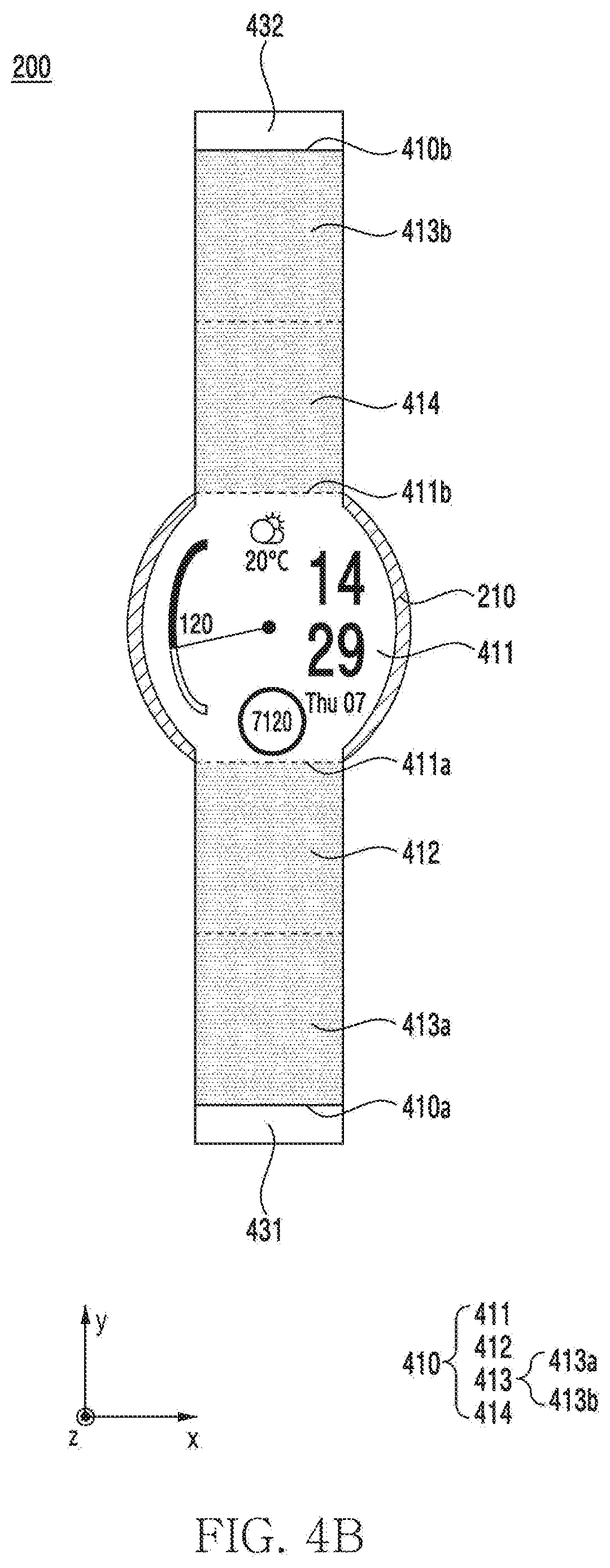

The watch has a flexible display split into zones. The first area is fixed to the watch body, like a normal watch face. A second area extends from it and wraps partly around your wrist. The filing says this part can be elastic (stretchy), so it can double as the strap. A third area can continue further around the band.

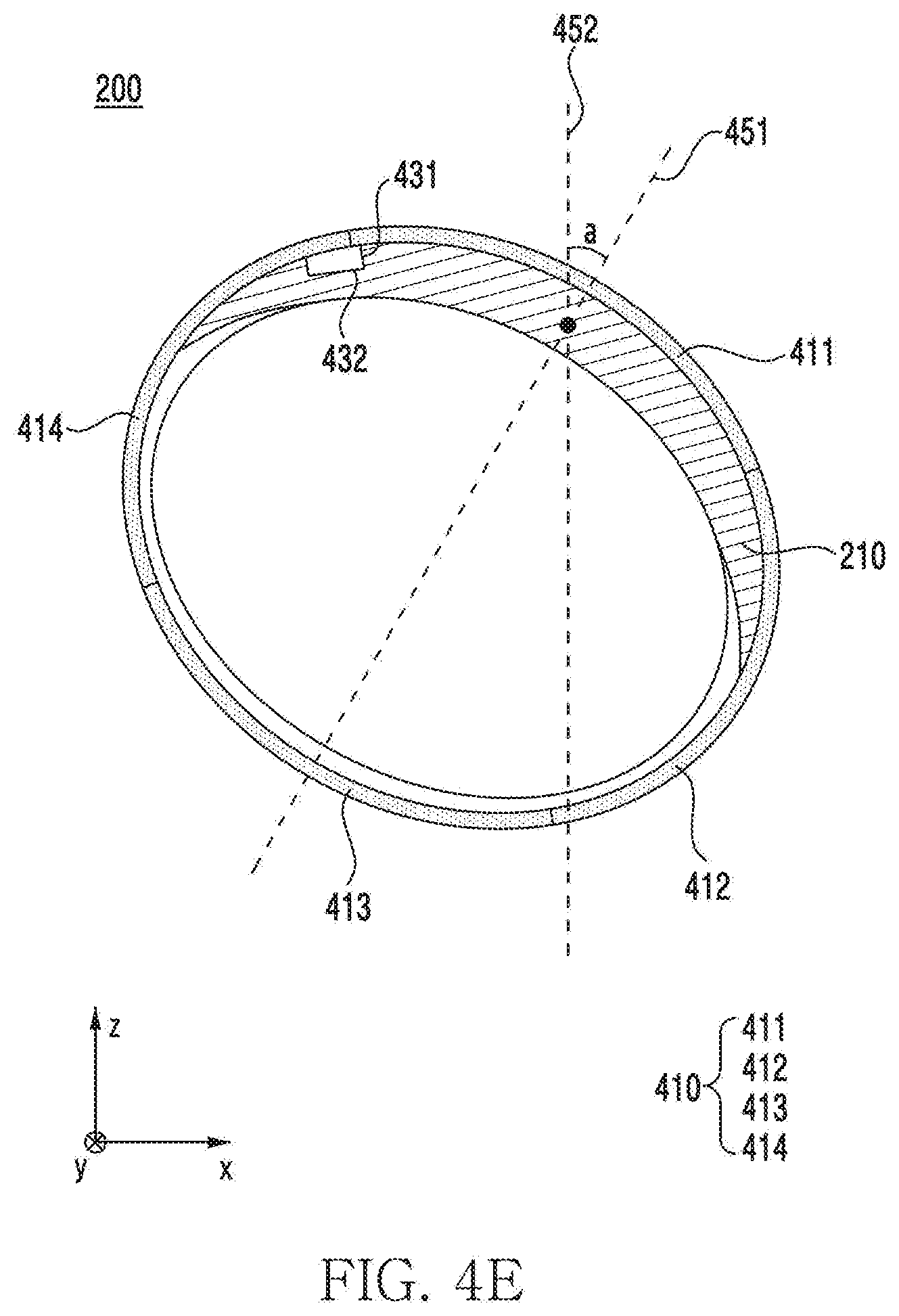

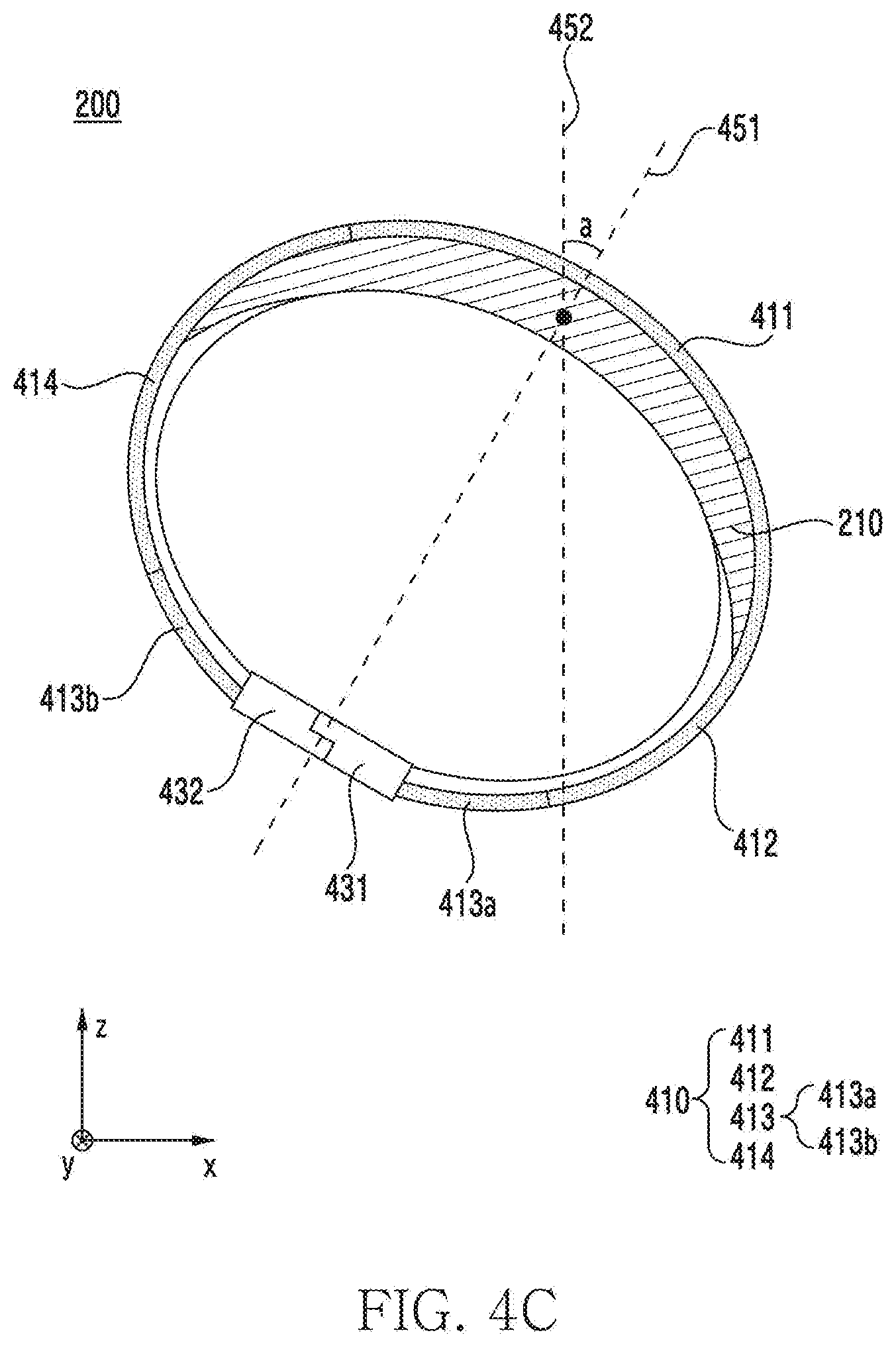

Two kinds of sensors do the watching. One picks up hand movement, such as a grip. The other tracks wrist rotation by measuring the angle between the watch's orientation and a fixed line that follows gravity (straight up and down). In the examples, roughly 0 to 90 degrees of turn puts content on the second area, and 90 to 180 degrees moves it to the third.

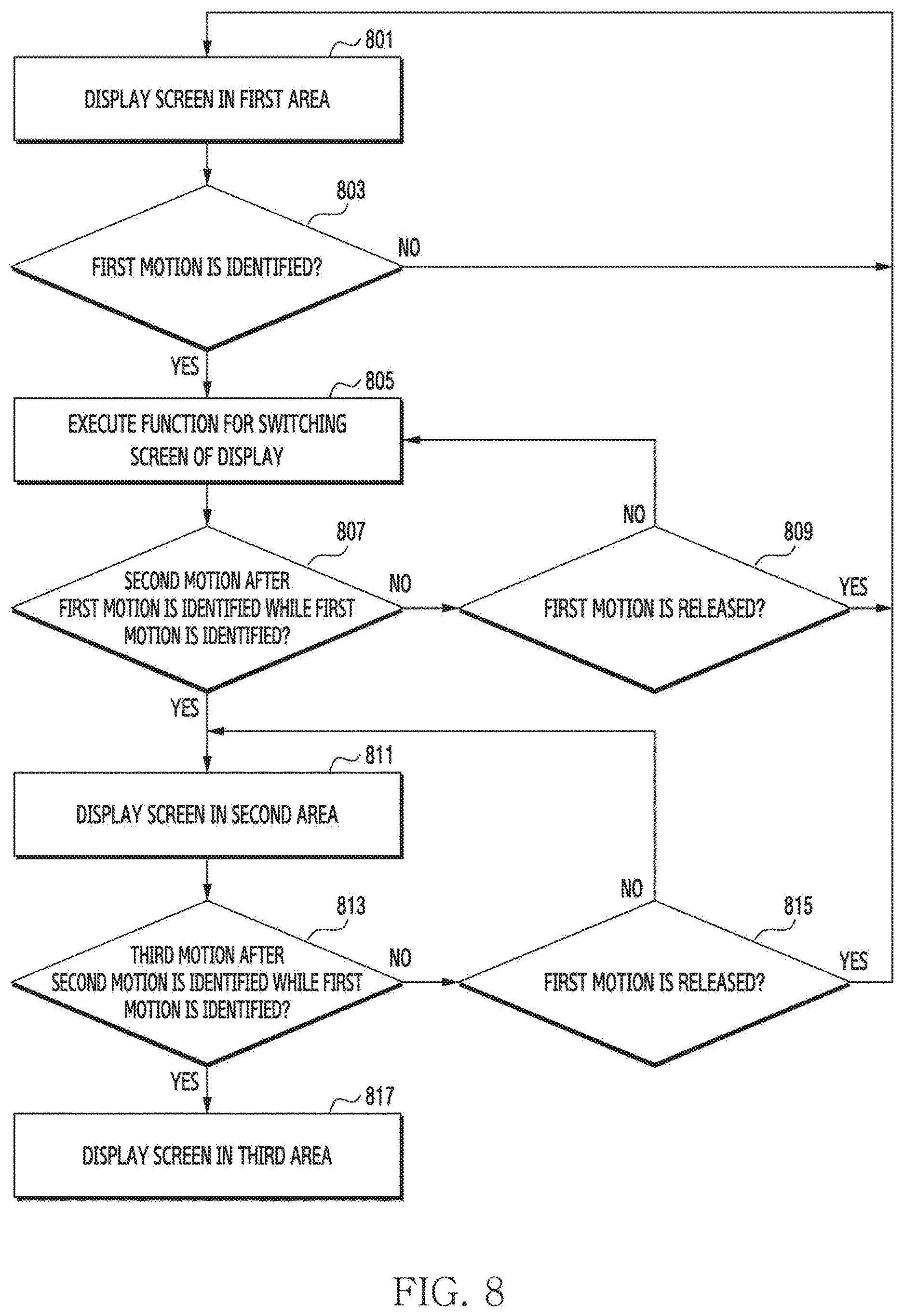

The sequence works like this:
- You grip while something shows on the watch face, which starts a screen switch.

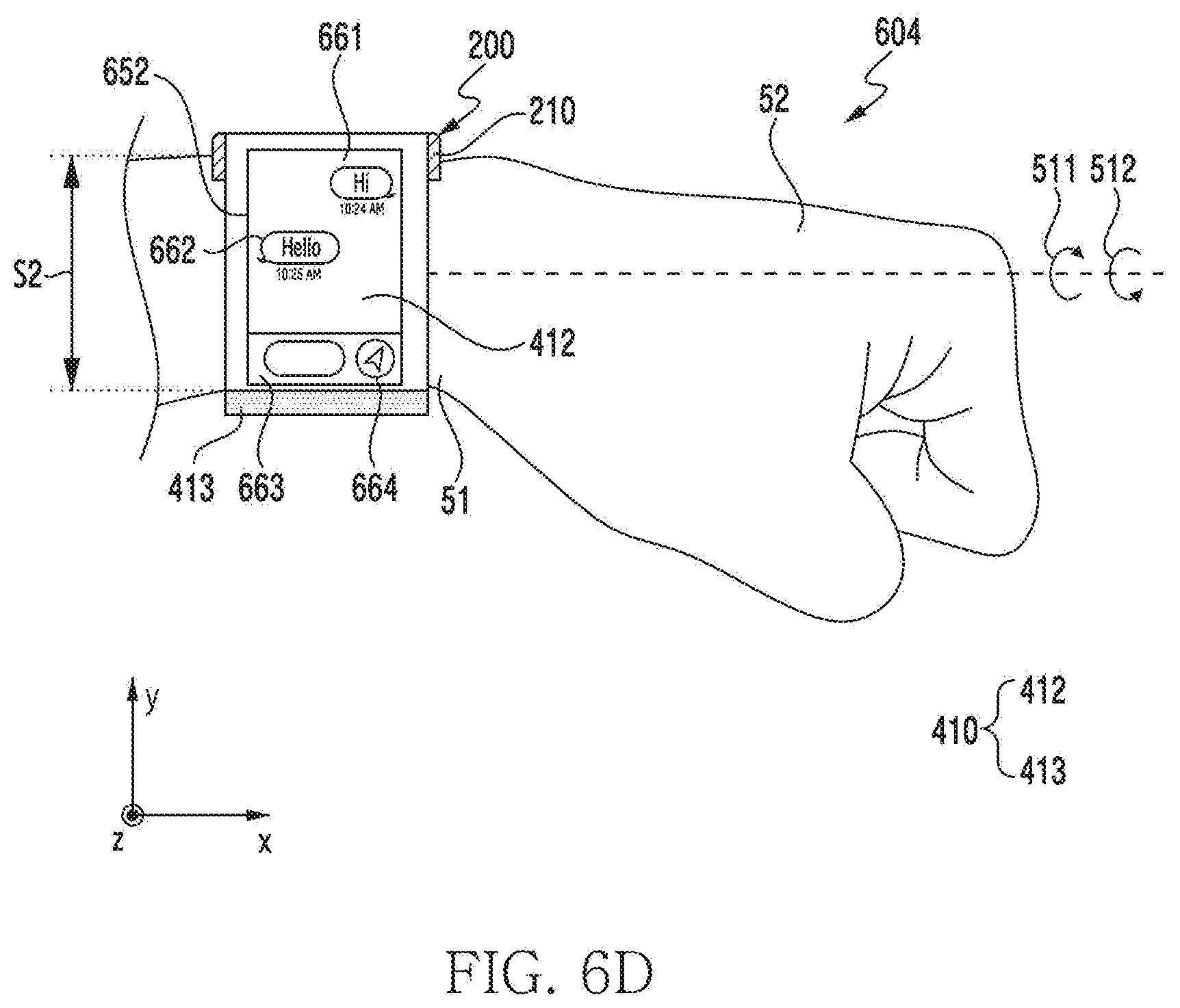

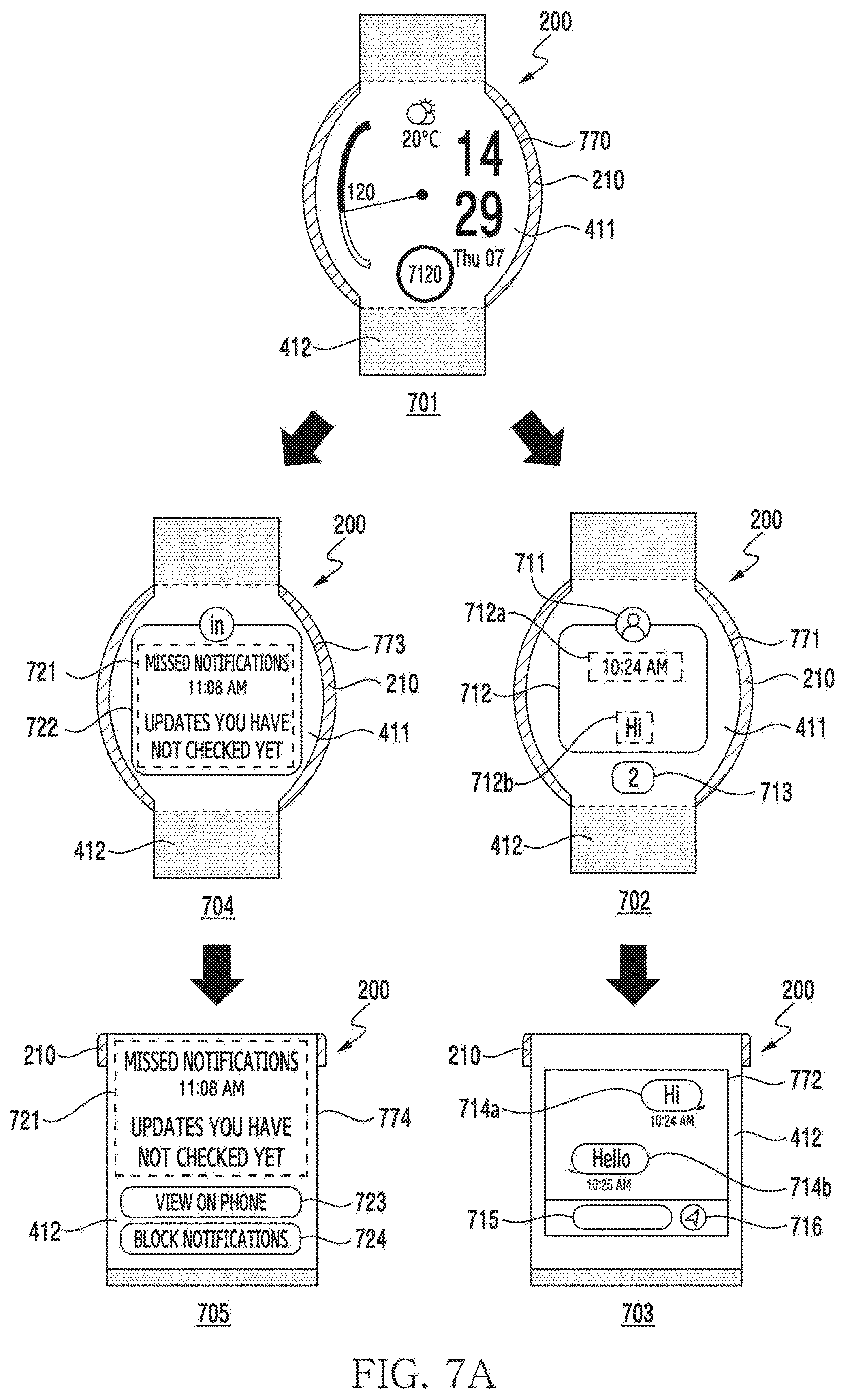

- You turn your wrist while still gripping, and the content appears on the strap. In the text message example, the window is smaller up to 45 degrees and larger from 45 to 90, when earlier messages, a typing box and a send button appear.
- You open your hand, the strap screen turns off, and the content returns to the watch face.

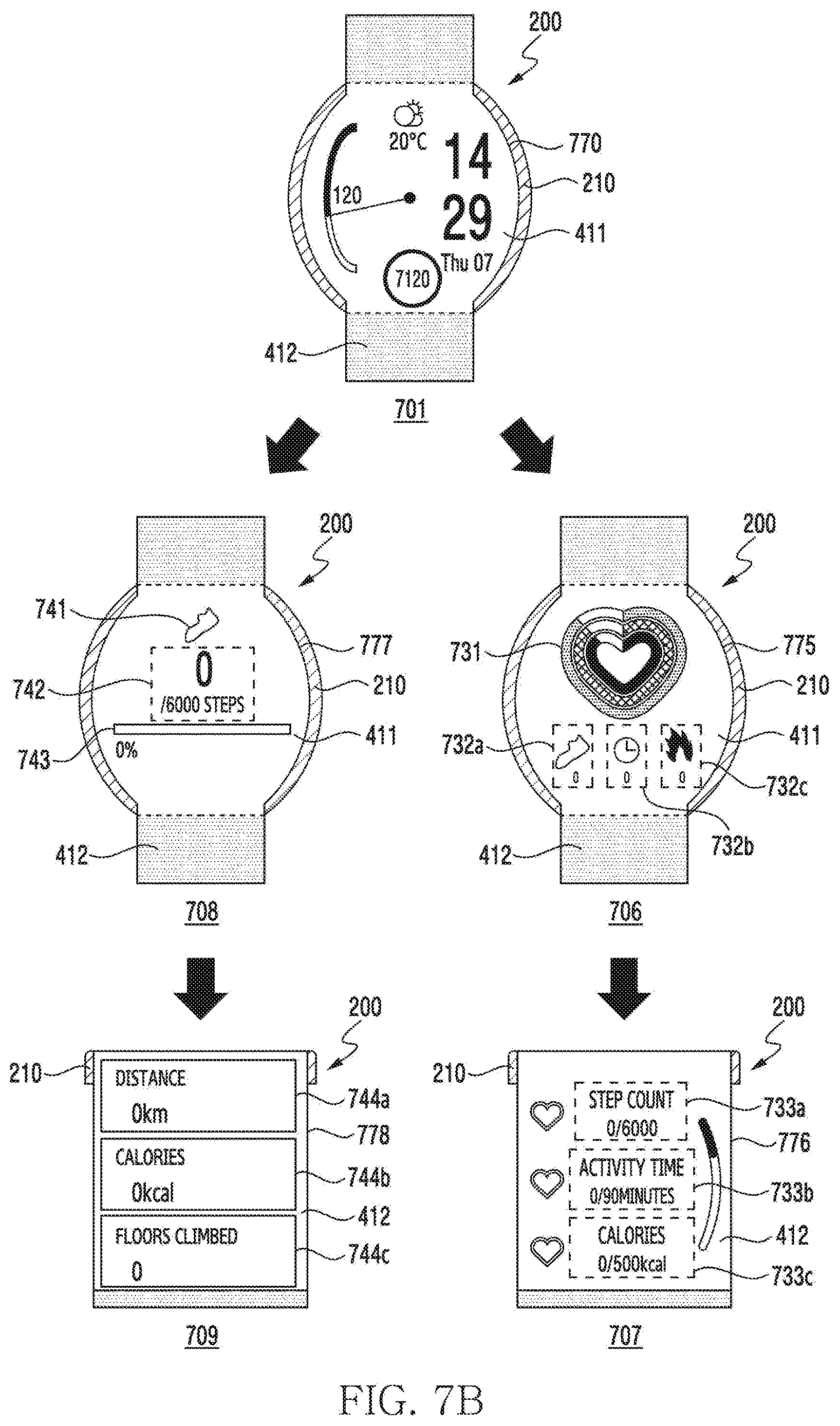

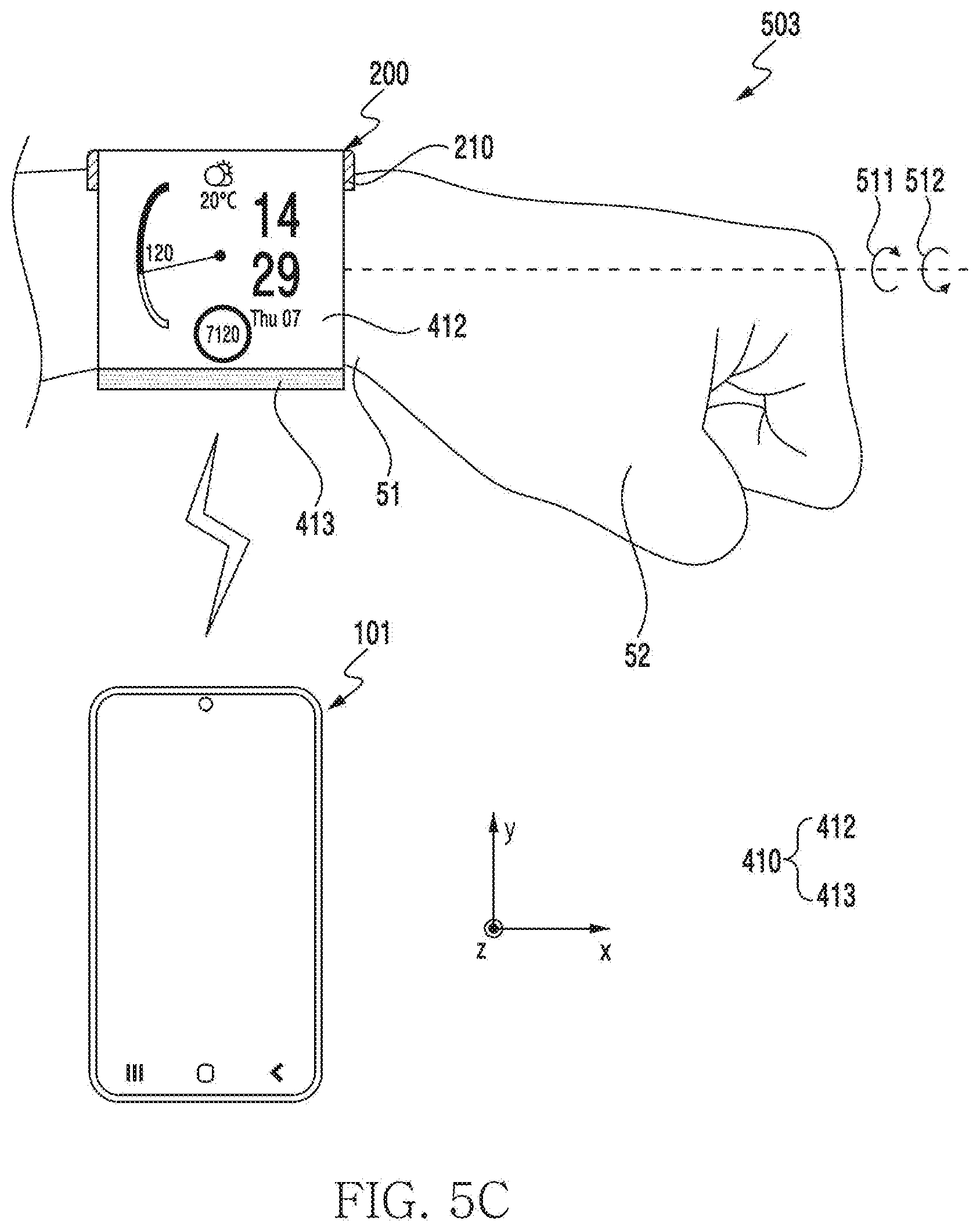

If you grip but never turn within a preset time, the watch face switches off to save power. The filing also says the grip-and-turn combination could trigger an action on a connected phone, such as opening an app or an authentication step. In health and exercise examples, the face shows a simple summary and the strap shows details like distance, calories and stairs climbed.
Why a screen on the strap matters for replies
The practical gain is reading and replying without reaching for your phone. A strap section turned toward your eyes can hold more than a watch face can: a full message thread, a typing box, detailed workout numbers. The two-level idea, a quick glance on the face and the details on the strap, also matches how most people use a watch, which is mostly for short checks.
Keep in mind that this is a patent application, and nothing in it says a product is coming. A watch with a screen-covered strap would face hard questions about battery life, durability and price that the filing doesn't address. Still, it shows one way the empty space on your wrist could be put to work.
Samsung's 120th filing we've tracked in display technology work since May connects ideas like a touch-reactive band and hidden video wall markers.
If this works as described, the thing you'd notice is a text you can actually answer. Replying on a watch face is a chore today, and a strap screen that grows as you turn your wrist, with a typing box and a send button, gives a reply real room.
The catch is everyday life. You grip things all day, from grocery bags to steering wheels, and the watch has to tell a deliberate grip-and-turn from ordinary arm movement. The filing doesn't say how well it manages that, and a screen that lights up at the wrong moment would get old fast.
A stretchy display on a strap also has to survive sweat, sleeves and years of bending, and the filing leaves those worries aside. Until Samsung shows more, this is an interesting idea whose value depends on details we can't see yet.
