Samsung Patents a Way to Block Electrical Interference Inside Touchscreens

Every touchscreen hides a web of tiny wires routing signals from your fingertip to the processor, and those wires can pick up stray electrical noise that makes the screen feel less responsive. Samsung's latest patent targets that interference directly.

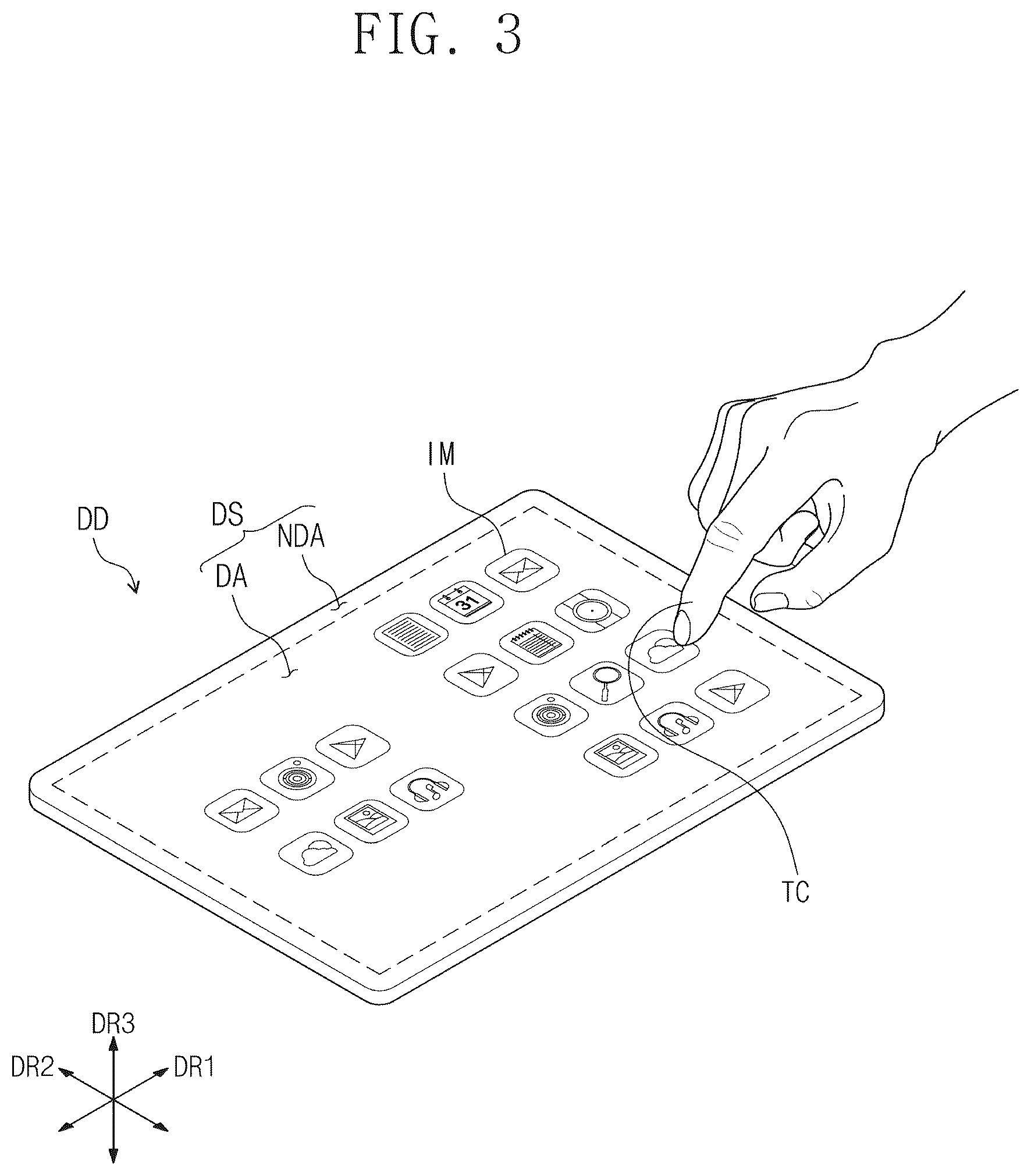

A hand interacting with icons displayed on a touchscreen device. Drawing from patent filing US 2026/0236118 A1.
A hand interacting with icons displayed on a touchscreen device.
See all 17 drawings from this filing ↓
Publication number US 2026/0236118 A1
Applicant Samsung Display Co., Ltd.
Filing date Sep 15, 2025
Publication date Aug 13, 2026
Inventors JUNGHA SON
CPC classification 345/174
Grant likelihood Medium
Examiner ARONOVICH, OLGA (Art Unit 2629)
Status Non Final Action Mailed (Jun 16, 2026)
Document 20 claims

What Samsung's touchscreen shielding actually does

You're scrolling through your phone and the screen misreads your swipe, jumping to the wrong app or failing to register a tap entirely. That kind of error isn't always a software bug. It can come from electrical noise bleeding into the thin wires that carry touch signals across the display.

Samsung is patenting a fix built into the screen's physical layer. The idea is to place a shield electrode directly on top of the signal-carrying wires wherever they pass through areas of the screen that could cause interference. Think of it like wrapping a noisy wire in a grounded sleeve to stop it from picking up stray signals.

The result, in theory, is a touchscreen that reads your input more accurately, especially in the edge zones of the display where routing wires tend to bunch up and crosstalk is most likely to occur.

From the filing · CLAIM 1
… a shield electrode on the sensing line, and overlapping the sensing line in a plan view.

Translation: Samsung adds a protective layer over the internal wiring to prevent electrical signals from interfering with each other.

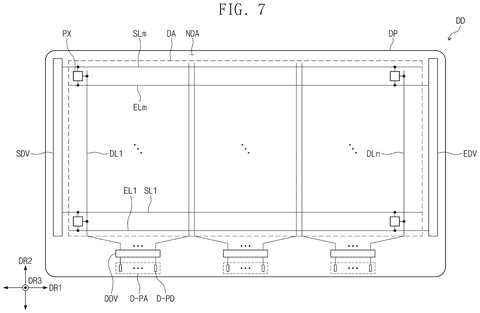

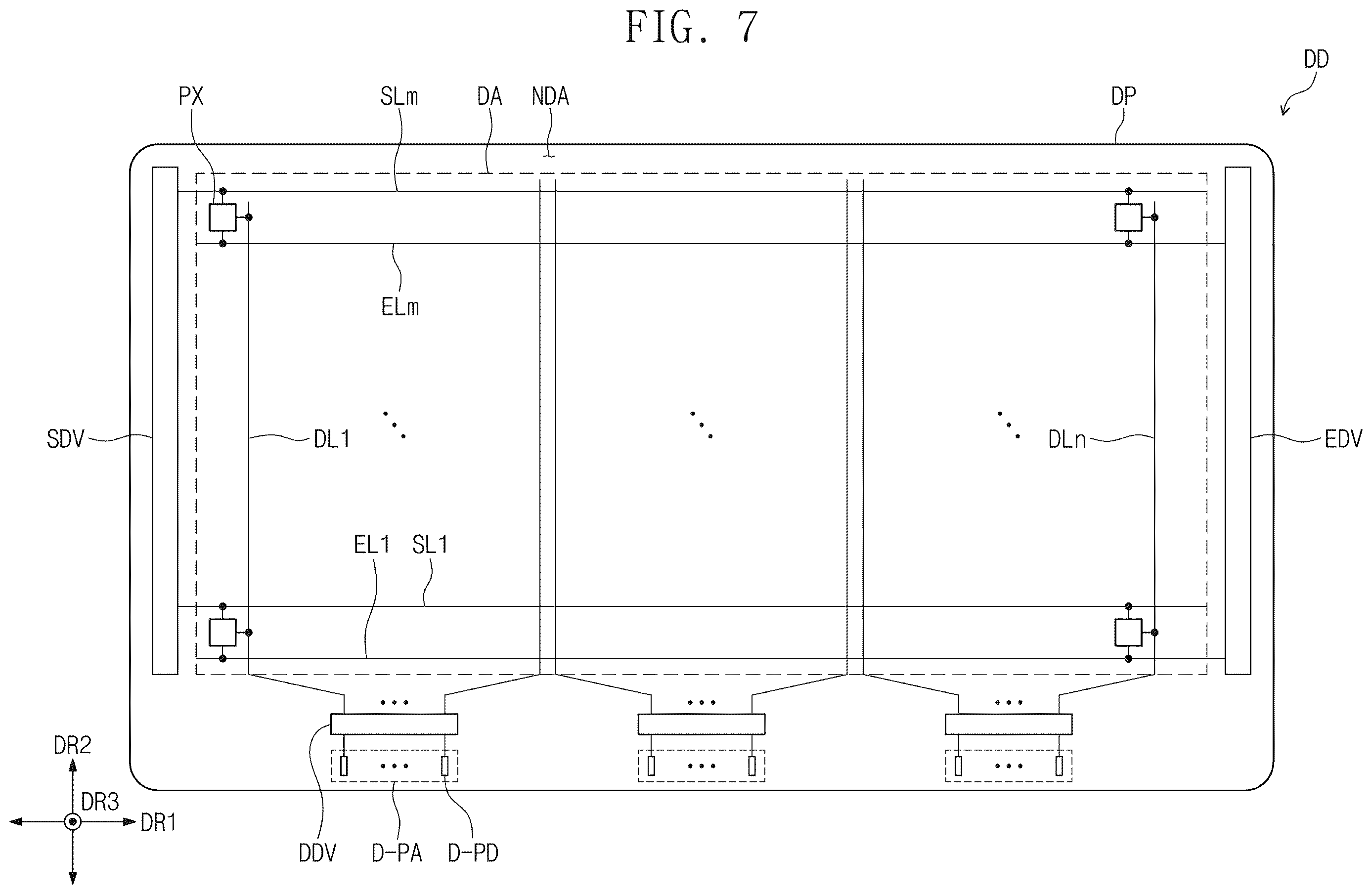

How the shield electrode sits over the routing lines

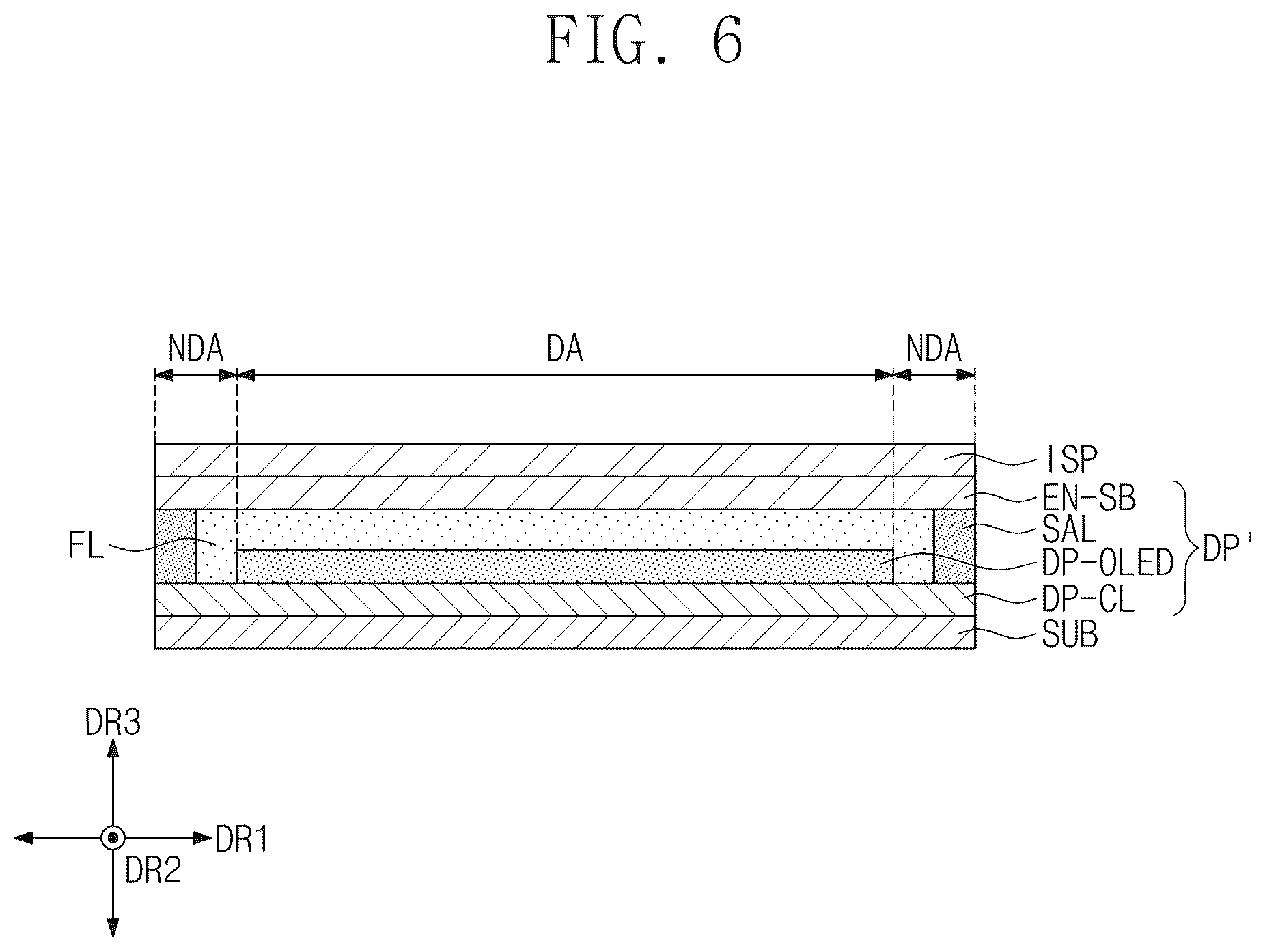

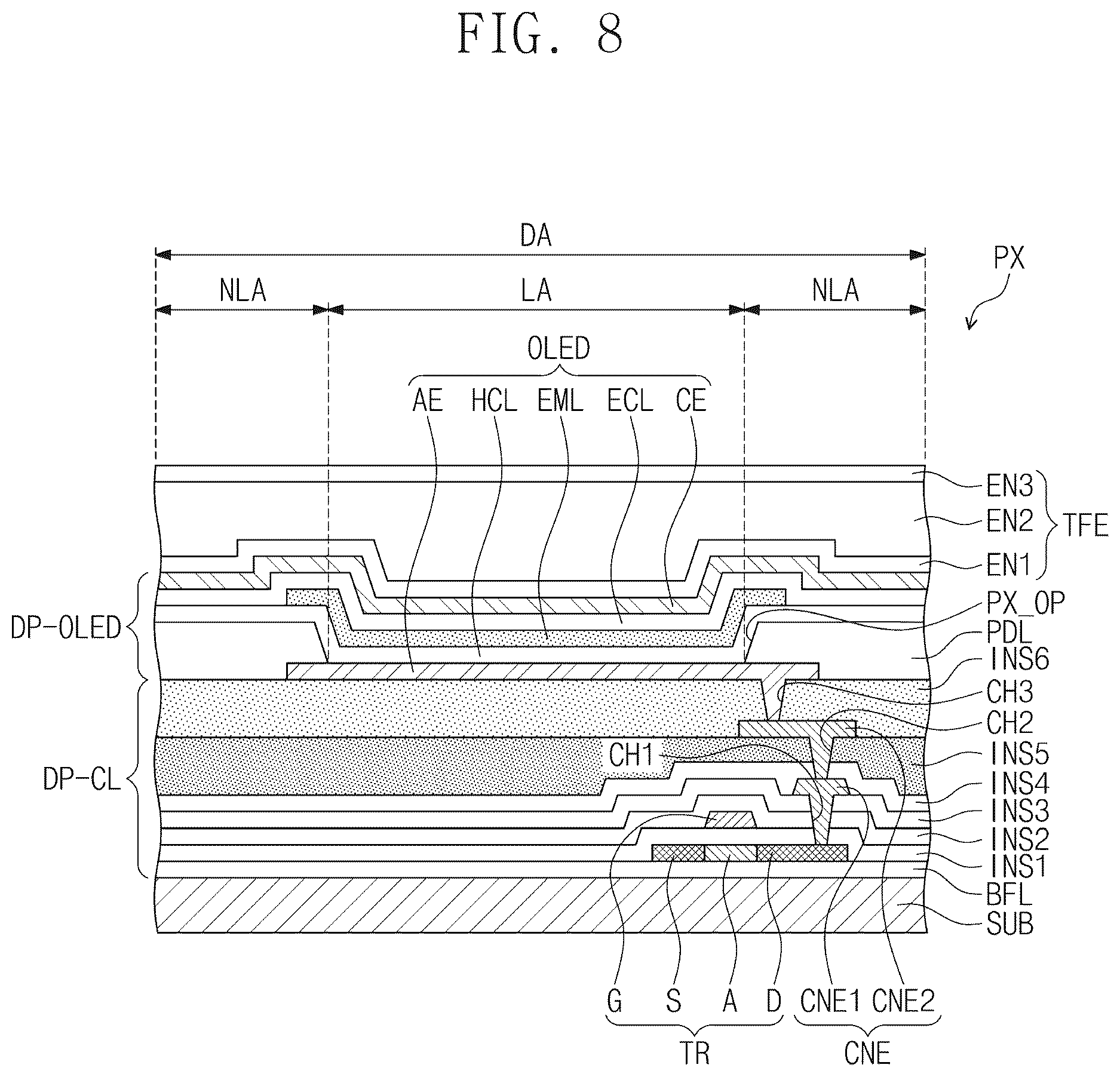

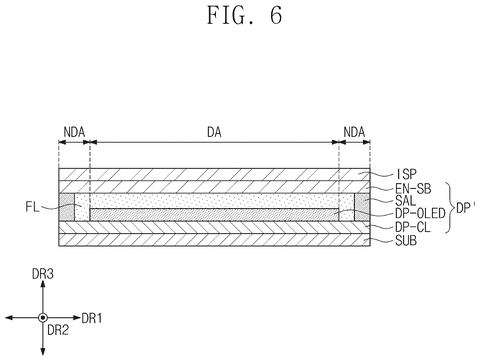

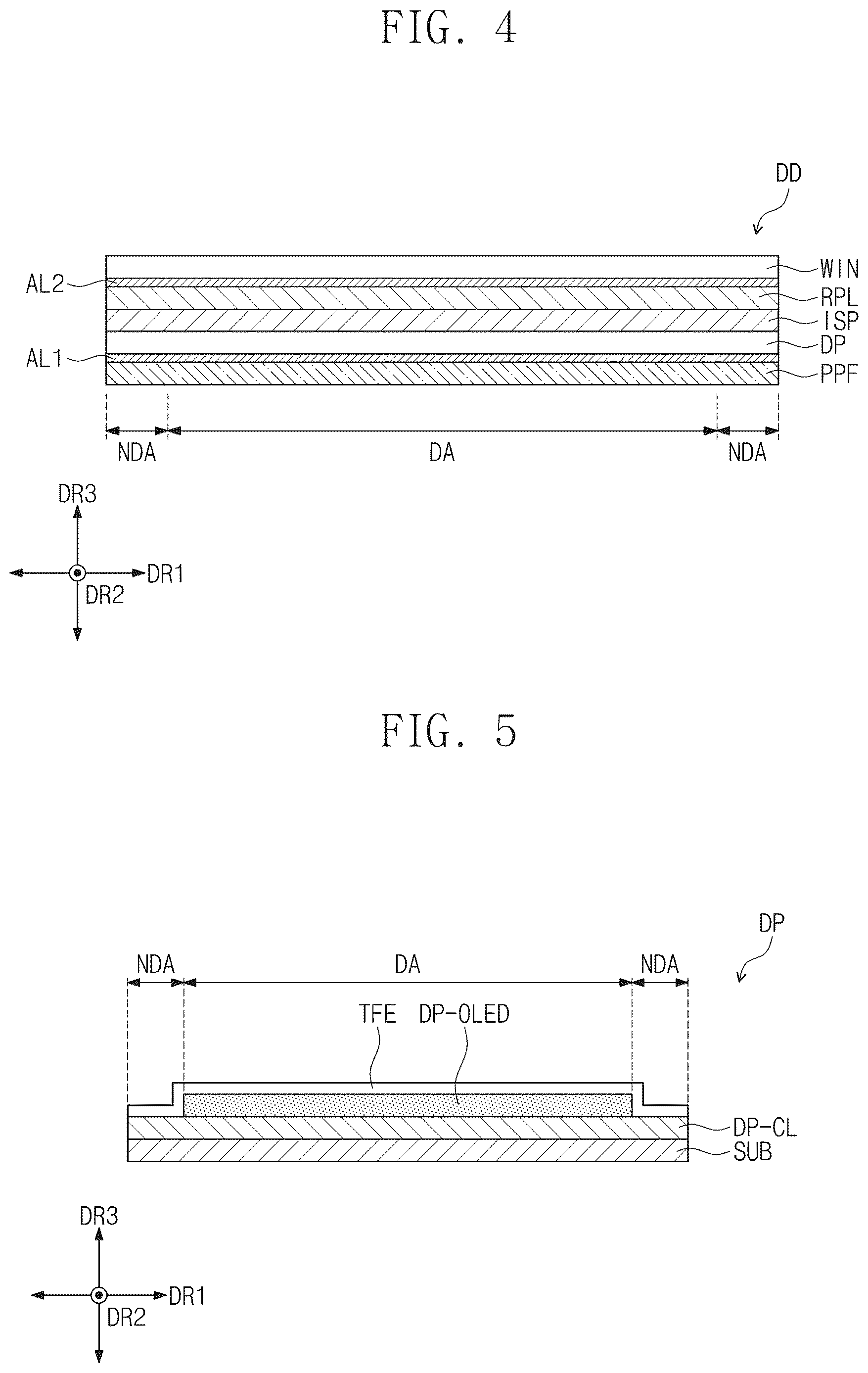

The patent describes a layered structure inside a touchscreen panel. It has four main components working together:

  • Sensing electrodes: the actual touch-detecting elements that register your finger's position.
  • Dummy electrodes: electrically inactive pads placed next to sensing electrodes, used to keep the visual and electrical pattern uniform across the screen surface.

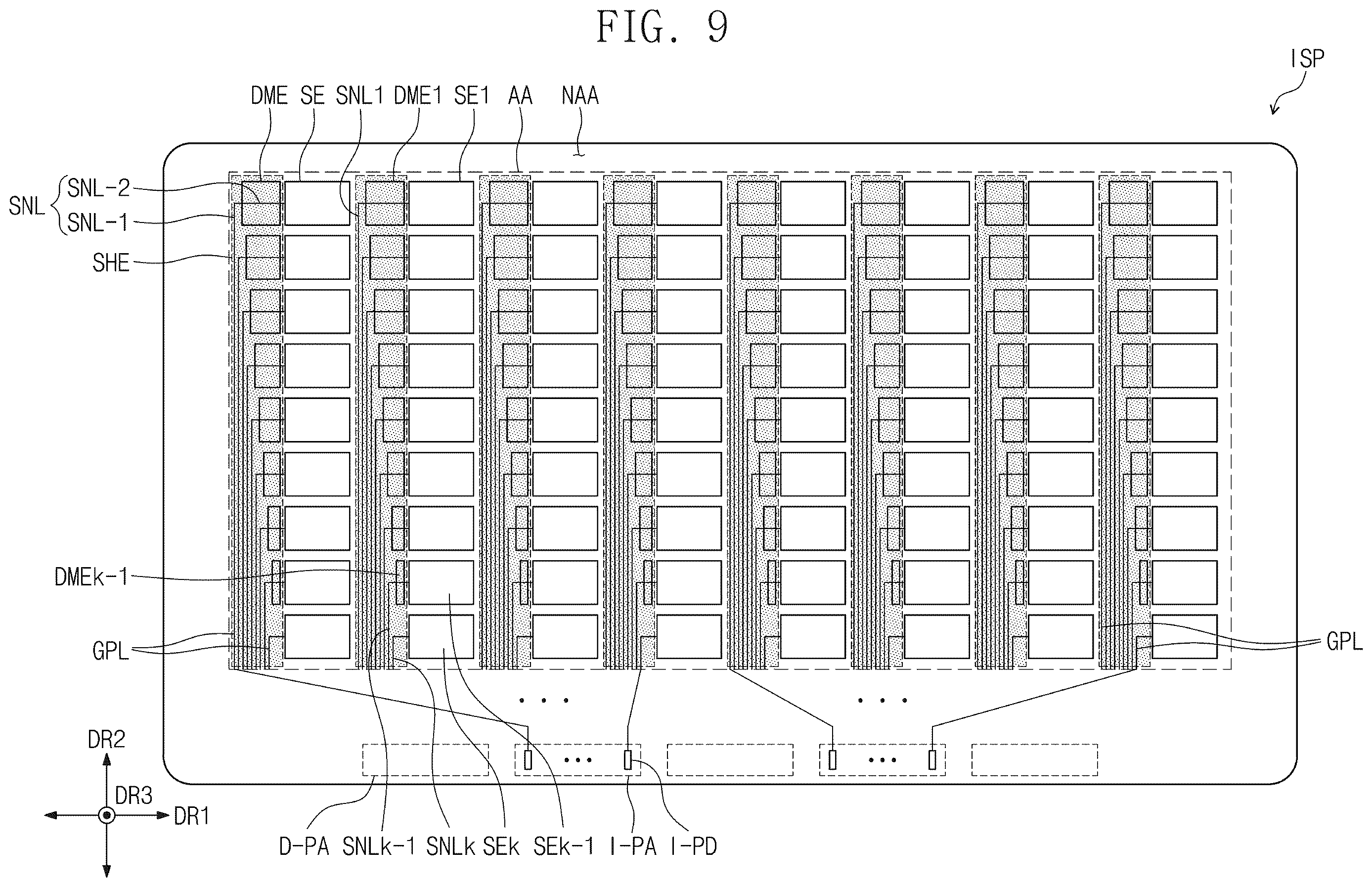

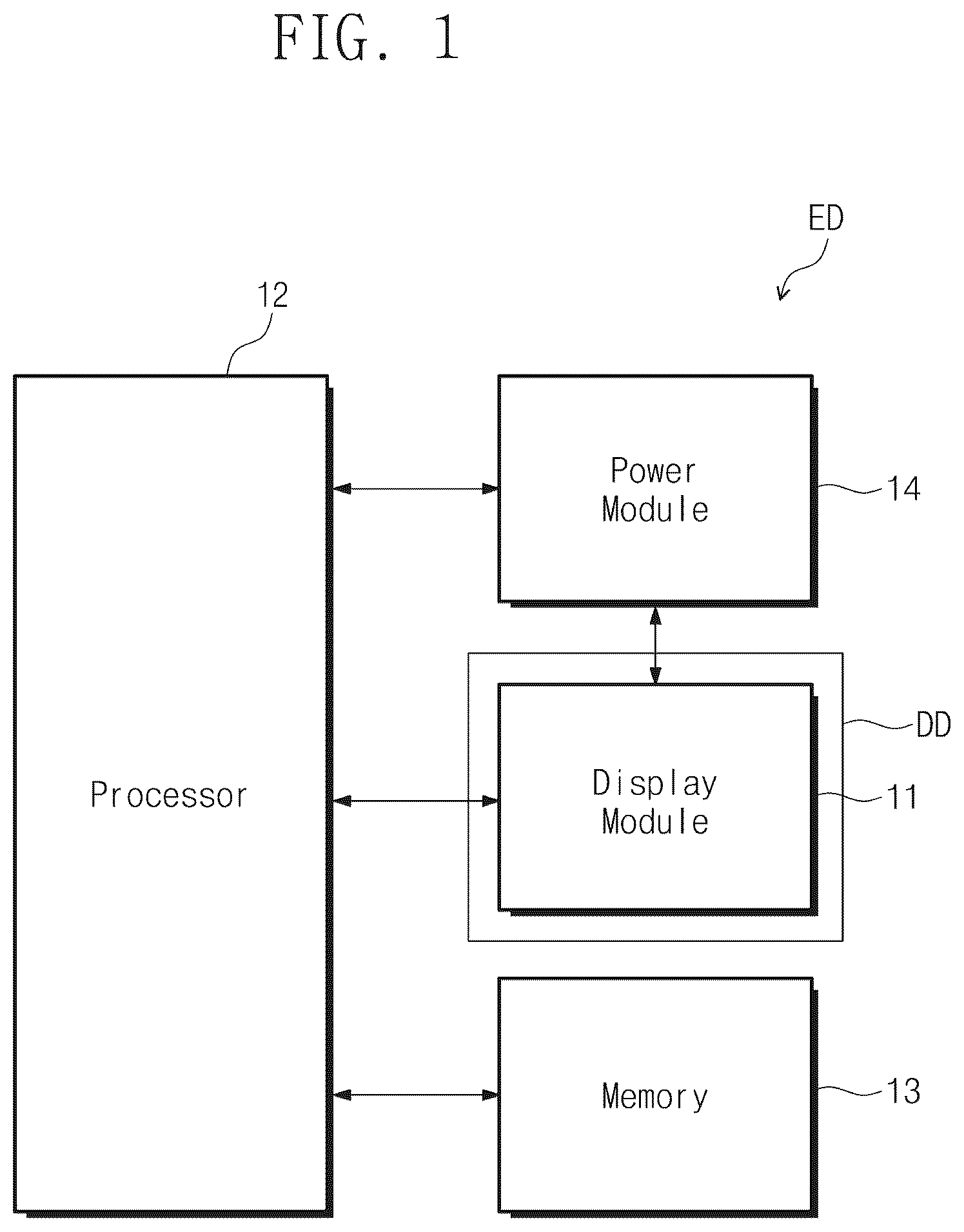

  • Sensing lines: thin conductive traces (essentially tiny wires printed onto the panel) that route touch signals from sensing electrodes to the display's processor. These lines must pass through the dummy electrode regions to reach their destination.
  • Shield electrode: a conductive layer placed directly on top of the sensing lines in those pass-through zones, overlapping them when viewed from above.

The shield electrode acts as a guard. By sitting over the sensing line in the same area as the dummy electrodes, it intercepts stray electrical fields that would otherwise couple into the signal wire and corrupt the touch reading.

This kind of interference, called capacitive crosstalk (when nearby conductors unintentionally influence each other through their electric fields), is a known problem in dense, high-resolution touchscreens where wiring runs are tightly packed.

From the filing · THE ABSTRACT
… a sensing line adjacent to the dummy electrode, and extending to pass through the dummy electrode to be connected to the sensing electrode …

Translation: The design routes the touch sensor's wiring through an empty space to keep it away from other sensitive components.

What this means for future Samsung displays

For consumers, better interference shielding translates to a touchscreen that responds accurately at the edges and in fast, multi-finger gestures, the situations where crosstalk is most disruptive. Foldable phones and large-format tablets are especially vulnerable because their routing paths are longer and more complex than a standard flat panel.

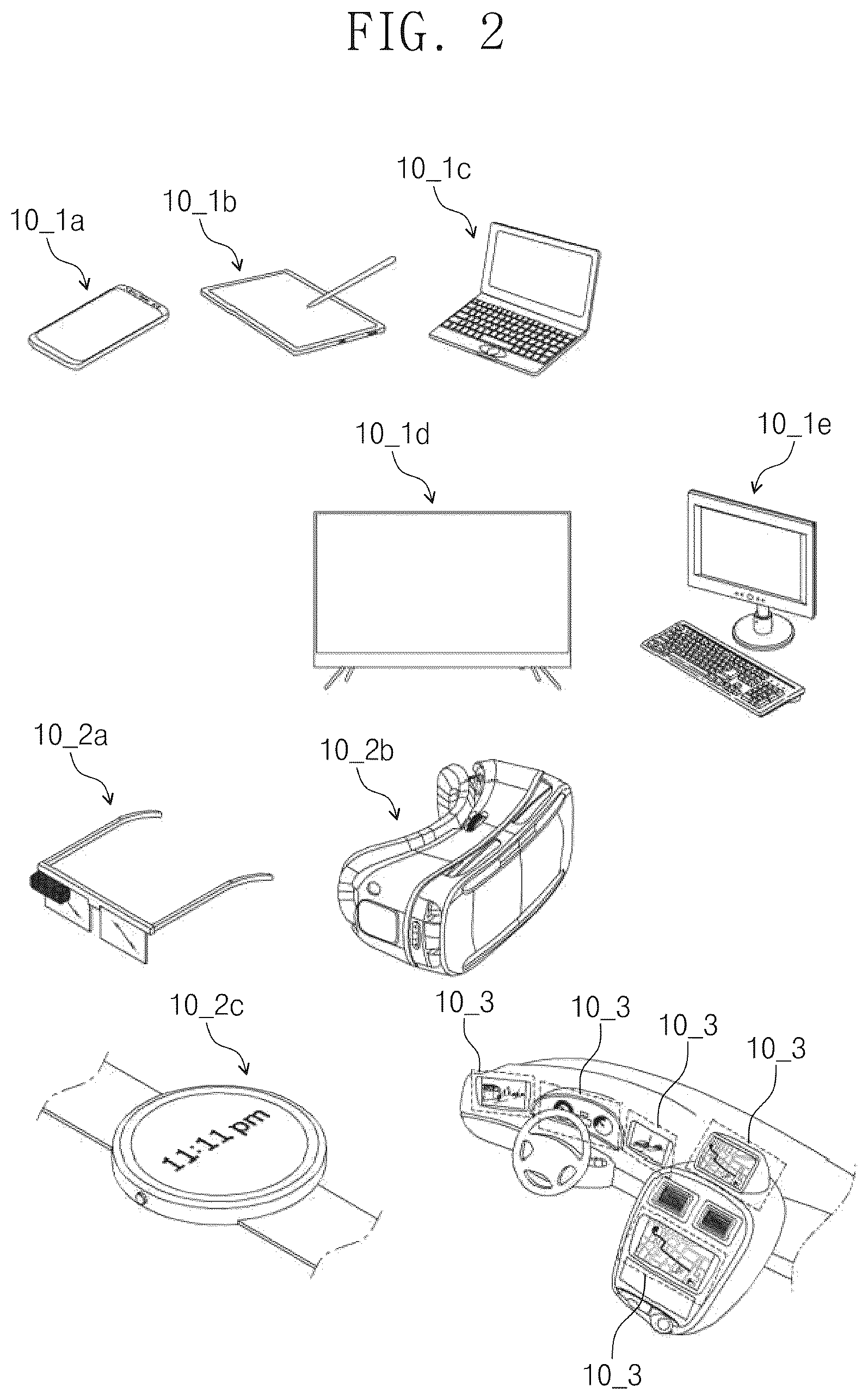

Samsung Display supplies screens to Samsung's own Galaxy lineup as well as other manufacturers, so improvements at this component level can ripple across a wide range of devices. The display industry's ongoing push toward thinner panels and higher touch-sampling rates makes shielding problems harder to solve, not easier, which is why Big Tech patent news in the display and touchscreen space keeps returning to interference management as one of the field's persistent engineering headaches.

Editorial take

Electrical interference in touchscreen routing is a genuine, recurring problem: as panels get thinner and refresh rates climb, tolerance for signal noise shrinks, and the cost shows up as phantom touches or missed inputs. The physical shield electrode over the routing traces is straightforward, sits well within established display manufacturing practice, and is therefore manufacturable. The concern is proportionality: the claim likely covers one specific geometric arrangement rather than the broader shielding concept, so its impact depends on whether this exact layout is the one Samsung's production lines need.
