Sony Patents a Laser Design That Cuts Structural Defects in Depth-Sensing Hardware
Tiny cracks in laser crystals are one of the quieter enemies of depth-sensing cameras. Sony has filed a patent for a vertical laser design that tries to prevent those defects from forming in the first place, by picking a substrate material that sits between two semiconductor extremes.
What Sony's lattice-tuned laser is actually trying to fix
Lasers used in depth-sensing cameras, the kind that measure distances by bouncing light off objects, are built from layers of crystalline materials stacked on top of each other. If those layers don't match up at the atomic level, microscopic cracks and imperfections form, and the laser loses quality or fails early.
Sony's patent tackles that problem by choosing a substrate (the base layer the laser is grown on) made from a material whose atomic spacing falls between two common semiconductors, GaAs and AlAs. That middle-ground spacing lets the layers above it use different material combinations than they could on a standard base, giving engineers more freedom to tune the laser's performance without the mismatch stress that causes defects.
The result, Sony claims, is a surface emitting laser that can hit the characteristics engineers want while staying physically intact. Surface emitting lasers shoot light straight up through the top of the chip rather than out the side, which makes them compact and easy to test, and they're widely used in face-ID systems and 3D-sensing modules.
… the substrate includes a material having a lattice constant that is greater than a lattice constant of GaAs and less than a lattice constant of AlAs …
Translation: The foundation uses a specific crystal spacing between two common semiconductor materials.
How the substrate sits between two semiconductor extremes
The laser in this patent is a VCSEL (vertical-cavity surface-emitting laser), a type of chip-scale laser used heavily in ranging and sensing devices. VCSELs work by bouncing light back and forth between two mirrors called reflectors until it builds up enough energy to emit a tight beam.
Sony's design splits the laser into three stacked sections:
- A first structure: the substrate (the crystal base) plus a bottom reflector grown on top of it.
- An intermediate structure: the active layer, where electrons recombine to actually produce light.
- A second structure: the top reflector that completes the optical cavity.

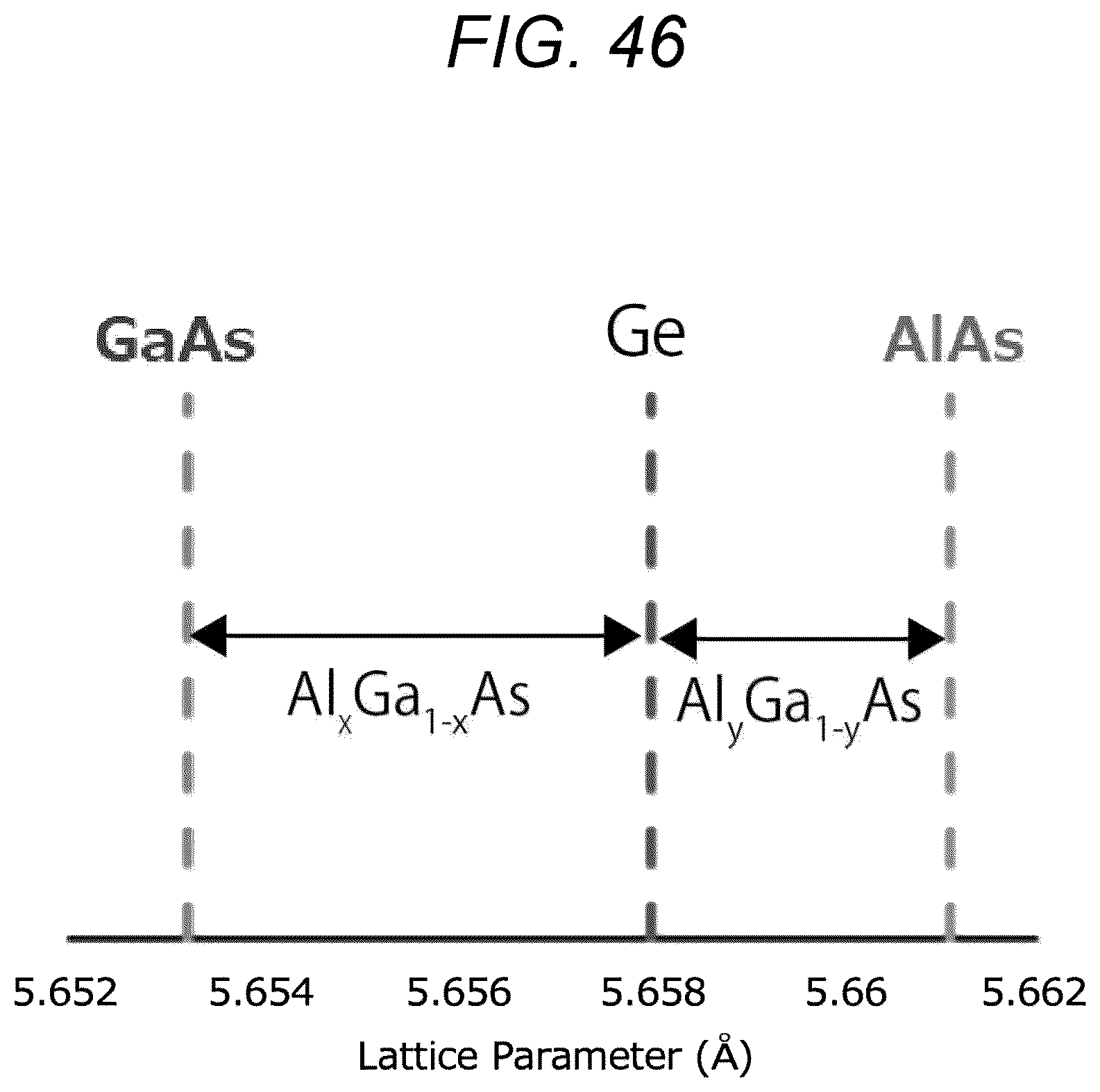

The key innovation is the substrate material. In semiconductor manufacturing, lattice constant refers to the spacing between atoms in a crystal. If you stack crystals with different spacings, the mismatch creates strain and defects, like trying to lay two differently-sized tiles so they line up at every grout joint. Sony specifies a substrate whose lattice constant falls strictly between those of GaAs (gallium arsenide) and AlAs (aluminum arsenide), two common semiconductor materials.
By landing in that intermediate range, the substrate lets the bottom reflector and the active layer use different material systems from each other. That flexibility means engineers can optimize each layer for its own job, reflecting or emitting, without being forced into a single material family that compromises both.
… a surface emitting laser capable of obtaining desired characteristics while suppressing occurrence of structural defects …
Translation: The design prevents physical flaws while delivering the exact performance the hardware needs.
What this means for Sony's cameras and ranging sensors
Depth sensors and time-of-flight cameras are in smartphones, robotics, and autonomous vehicles, and VCSELs are the lasers that power most of them. Manufacturing defects in those lasers mean lower yields, shorter lifespans, and lasers that drift away from the wavelength they were designed for. A cleaner crystal structure translates directly to more consistent, longer-lasting sensors.
Sony is a major supplier of image sensors and has been developing ranging hardware for years. Sony's steady investment in laser and sensor filings suggests this kind of foundational component work is central to their strategy. A more defect-tolerant VCSEL architecture could matter across any product line that embeds a depth camera, from consumer devices to industrial scanners.
This is the 40th Sony filing in chip patents we cover since May, a topic that also includes a self-steering laser emitter and splitting video across two devices.
Sony is patenting a specific way to build the light source inside a depth-sensing laser, choosing a substrate material that sits in a precise middle range between two known compounds to reduce internal stress that would otherwise crack or warp the device.
Turning this into a shipping product requires fabricating actual chips, measuring defect rates, integrating those chips into a complete ranging module, and proving the whole assembly survives years of heat and vibration. Each of those steps is its own engineering campaign, and none of them appear in this document.
What the filing shows is that Sony is doing foundational component research on the building blocks of distance-sensing hardware, which could eventually feed into cameras, robots, or vehicles, but the distance from this patent to a product on a shelf is measured in years and many unresolved problems.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Sony patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

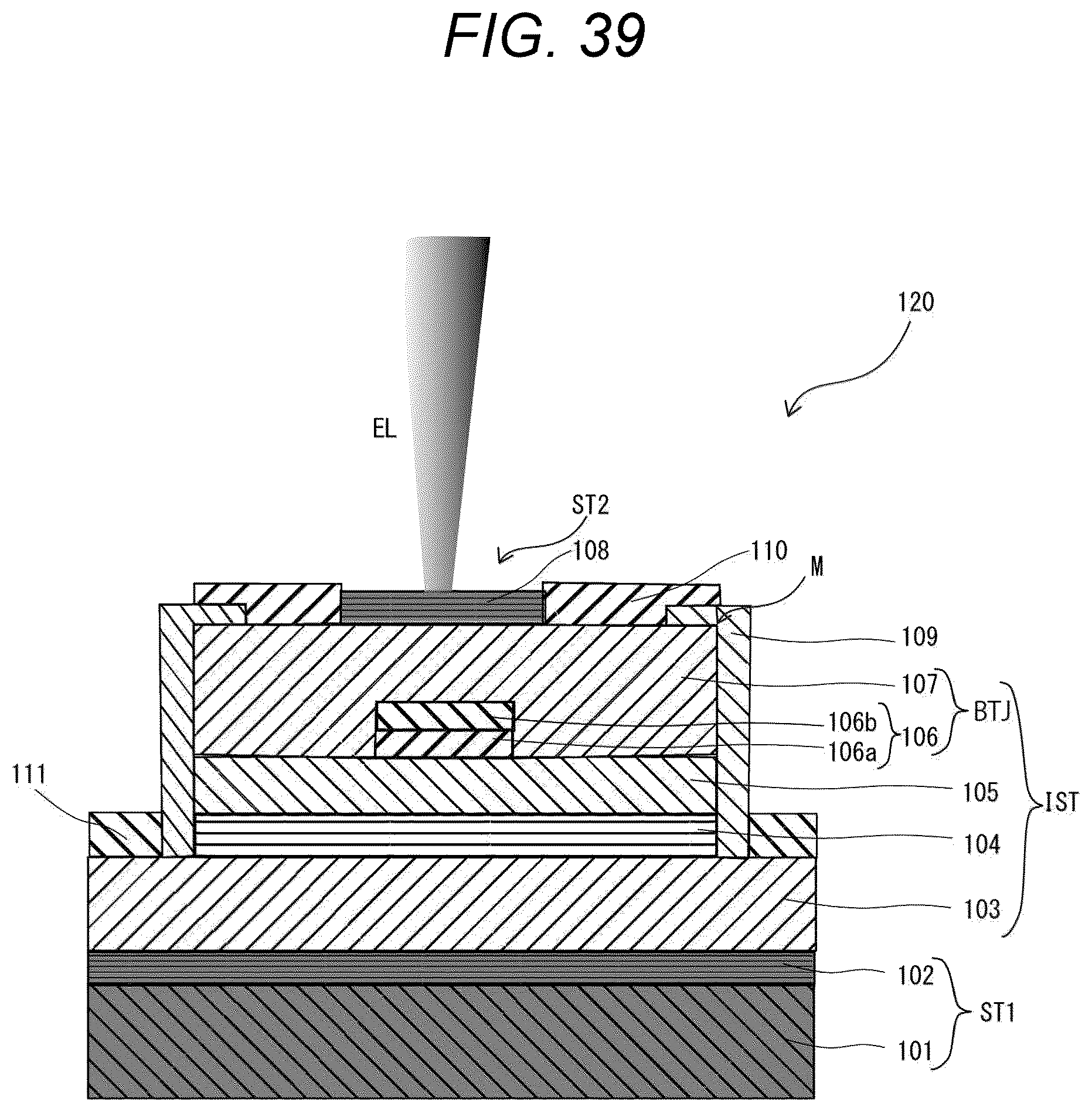

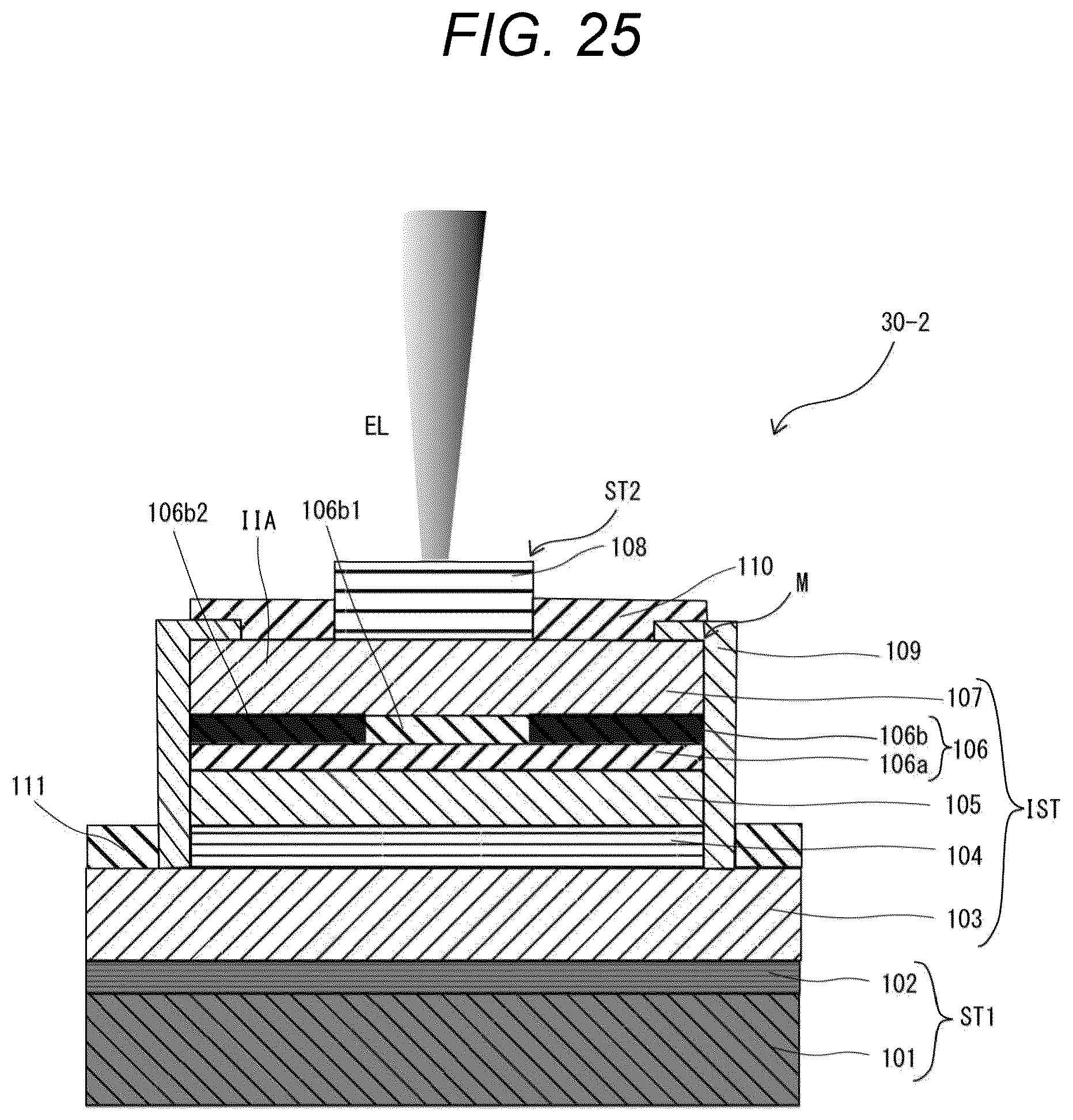

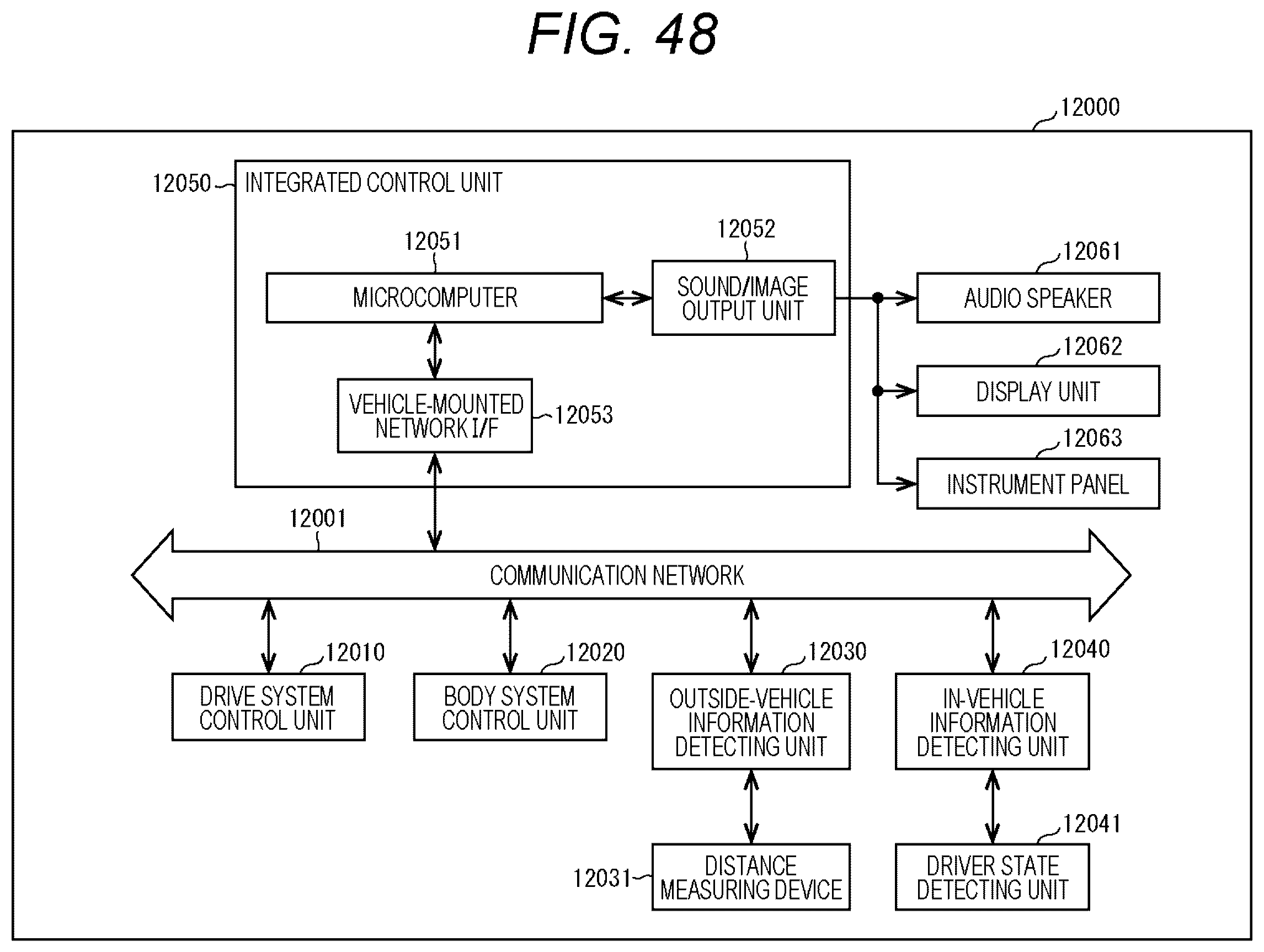

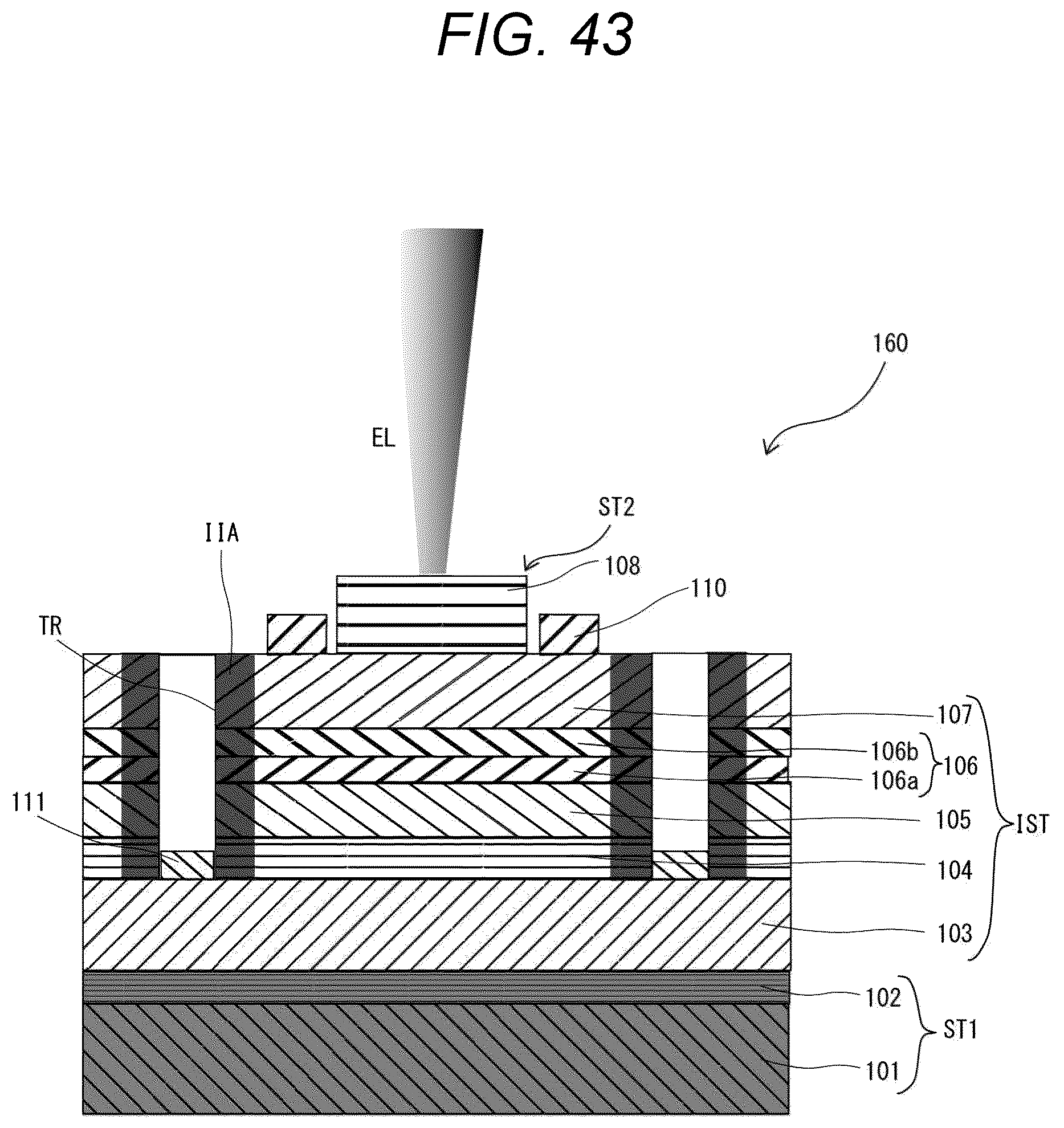

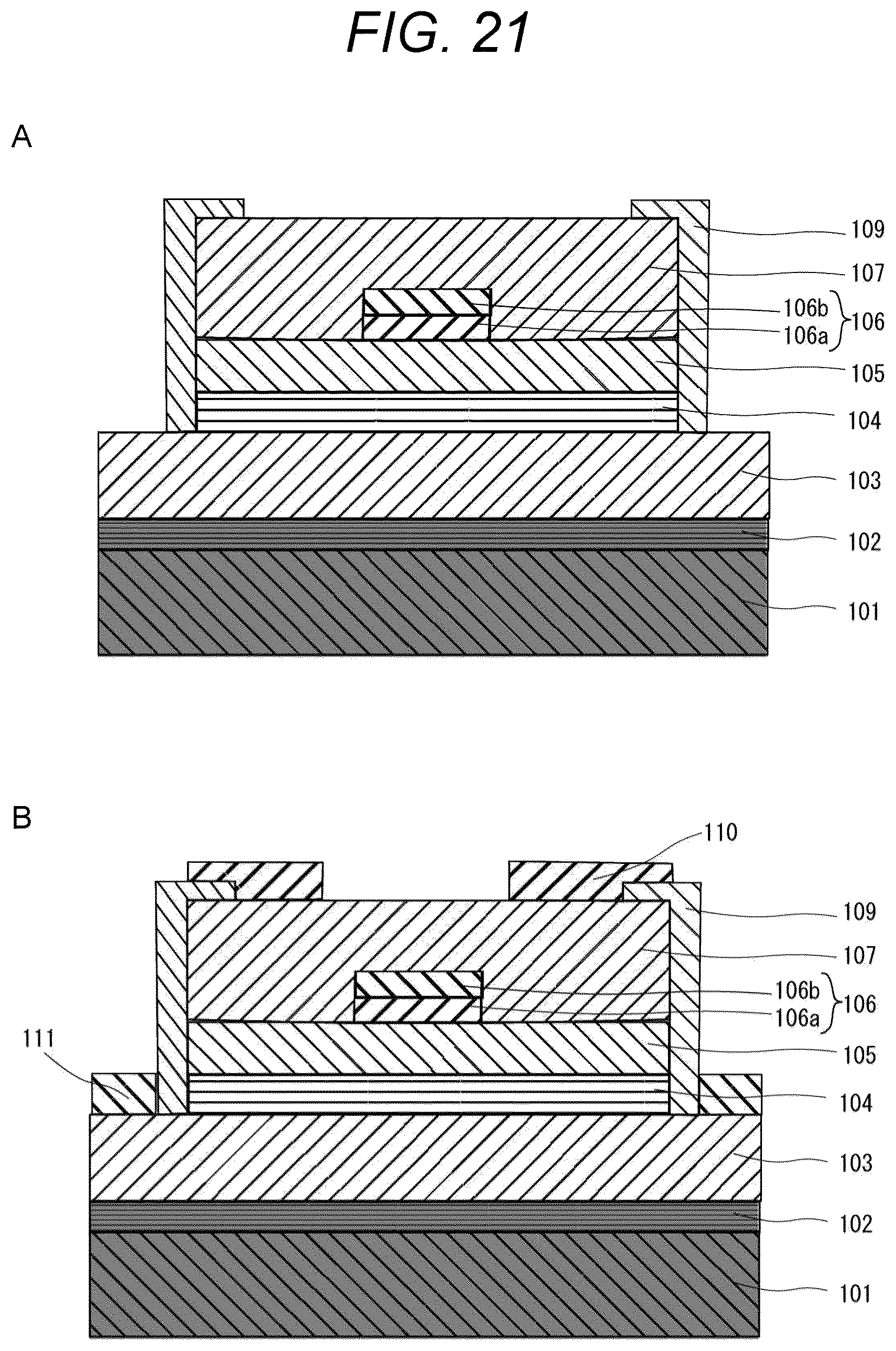

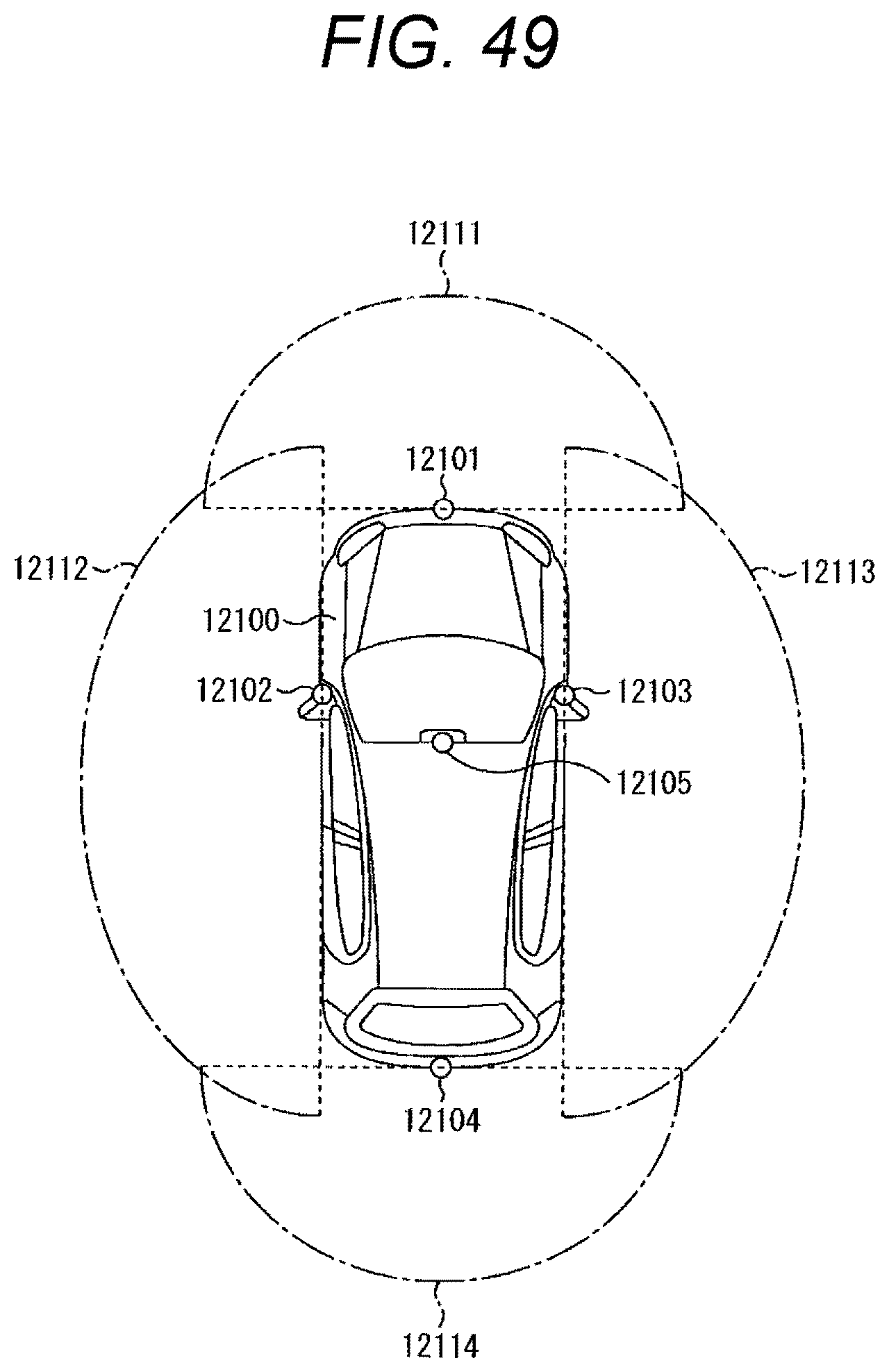

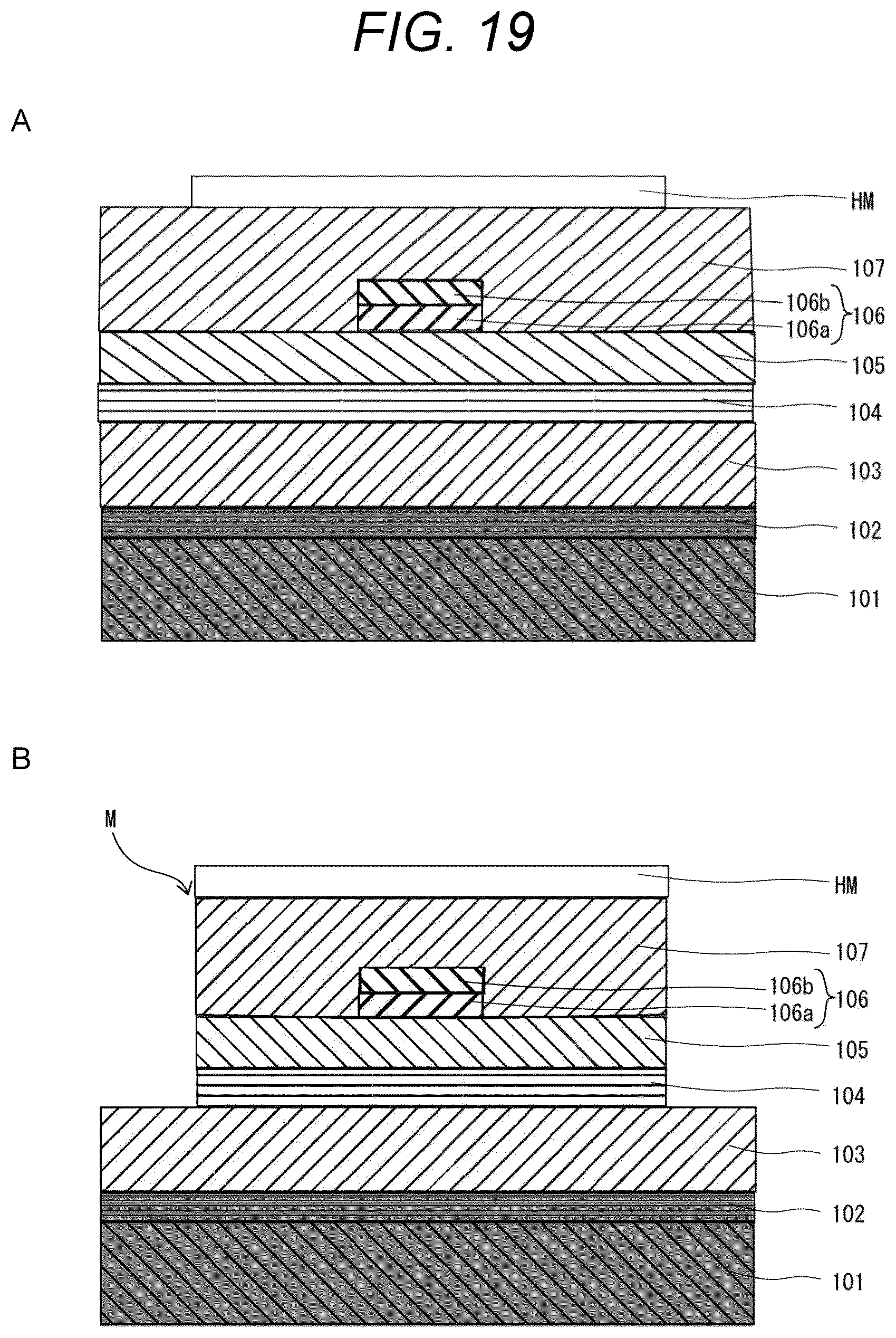

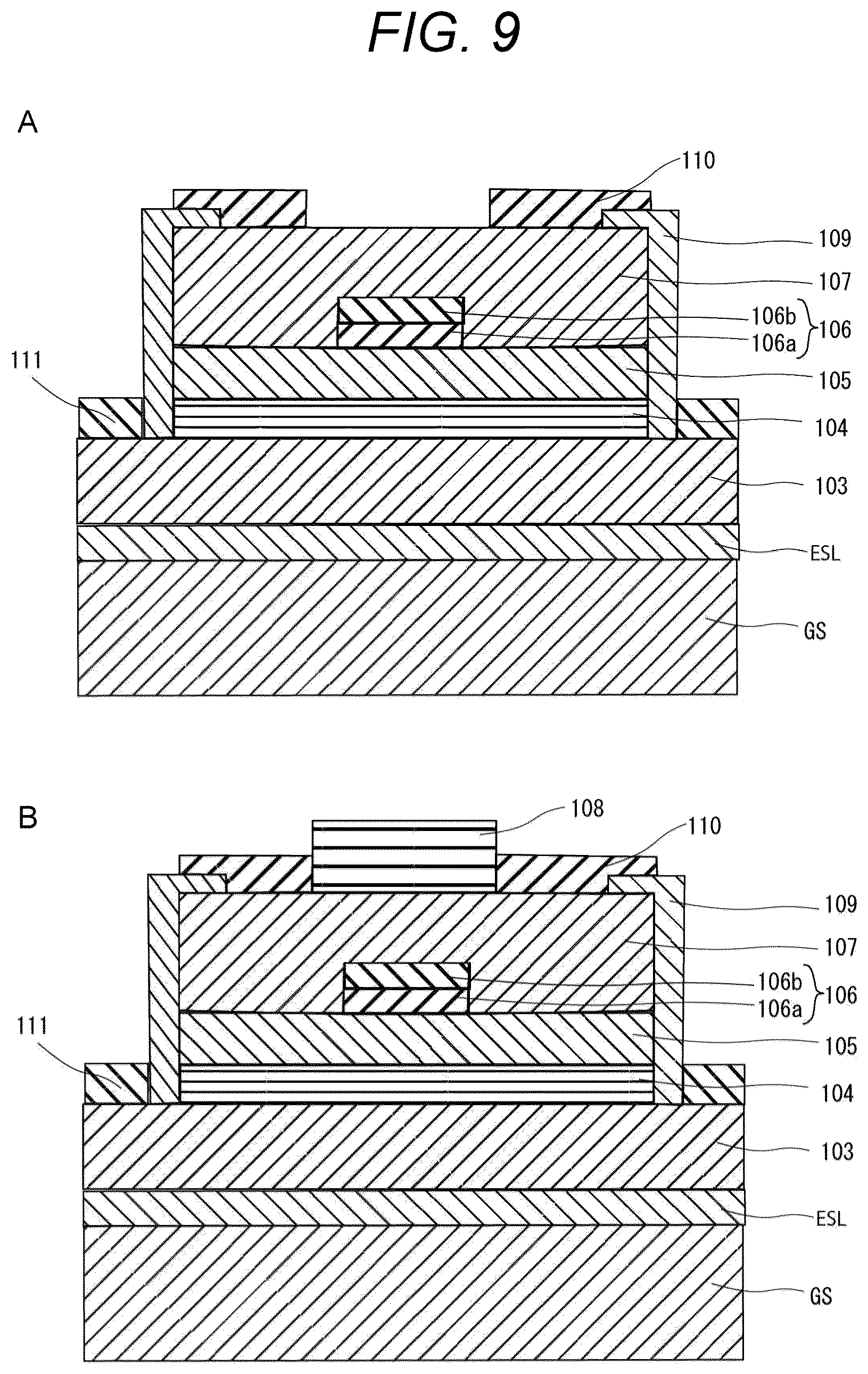

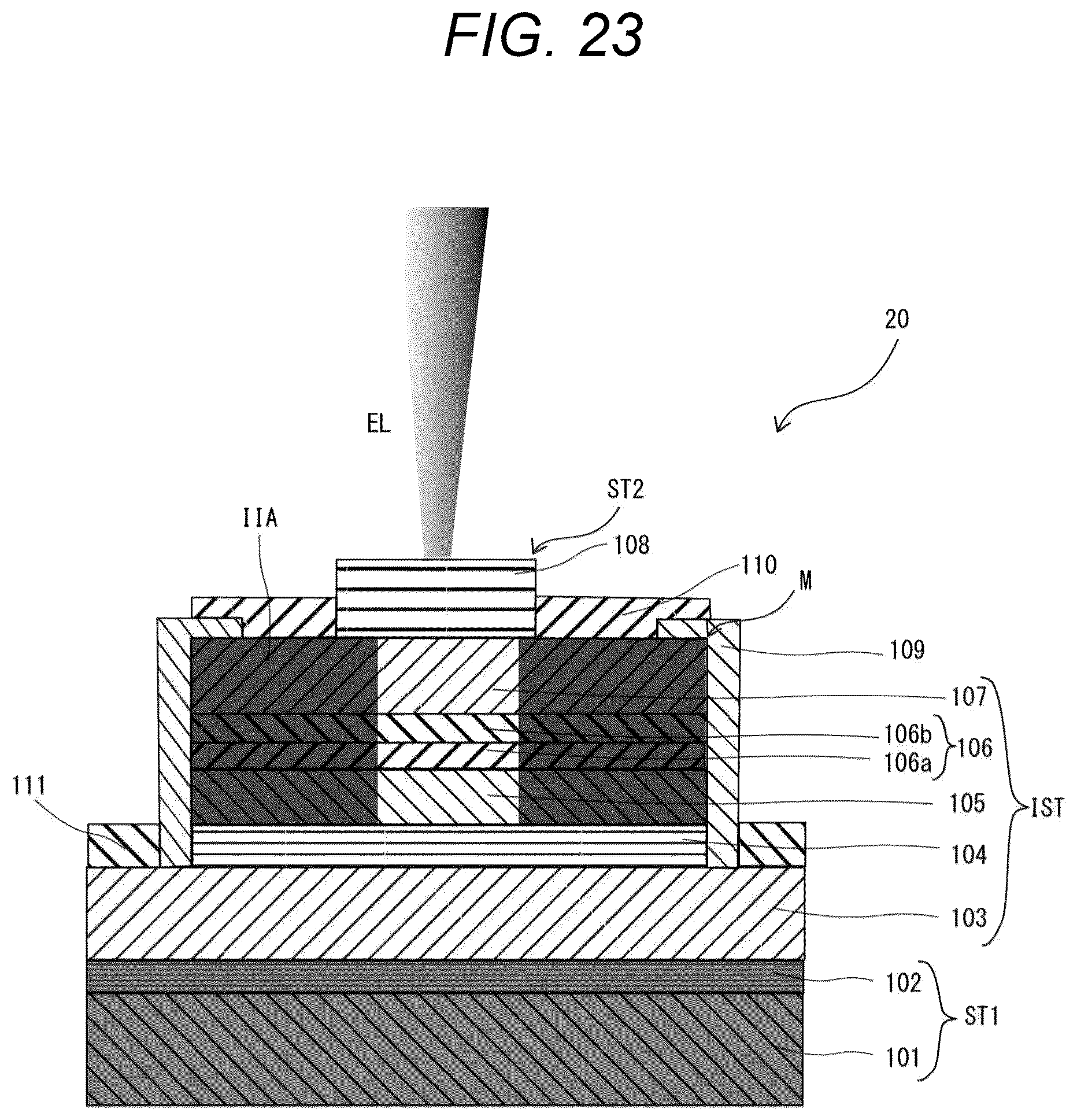

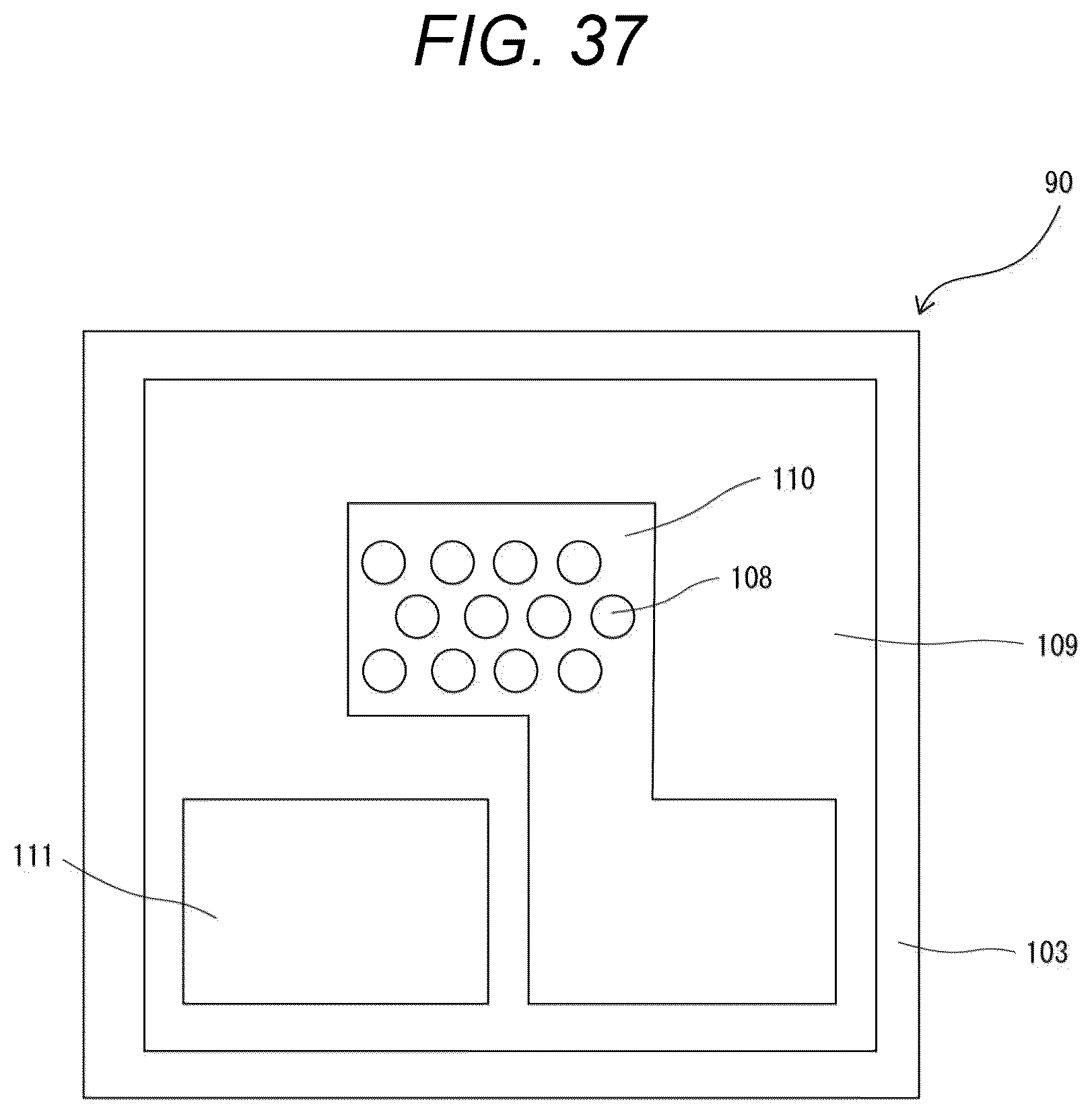

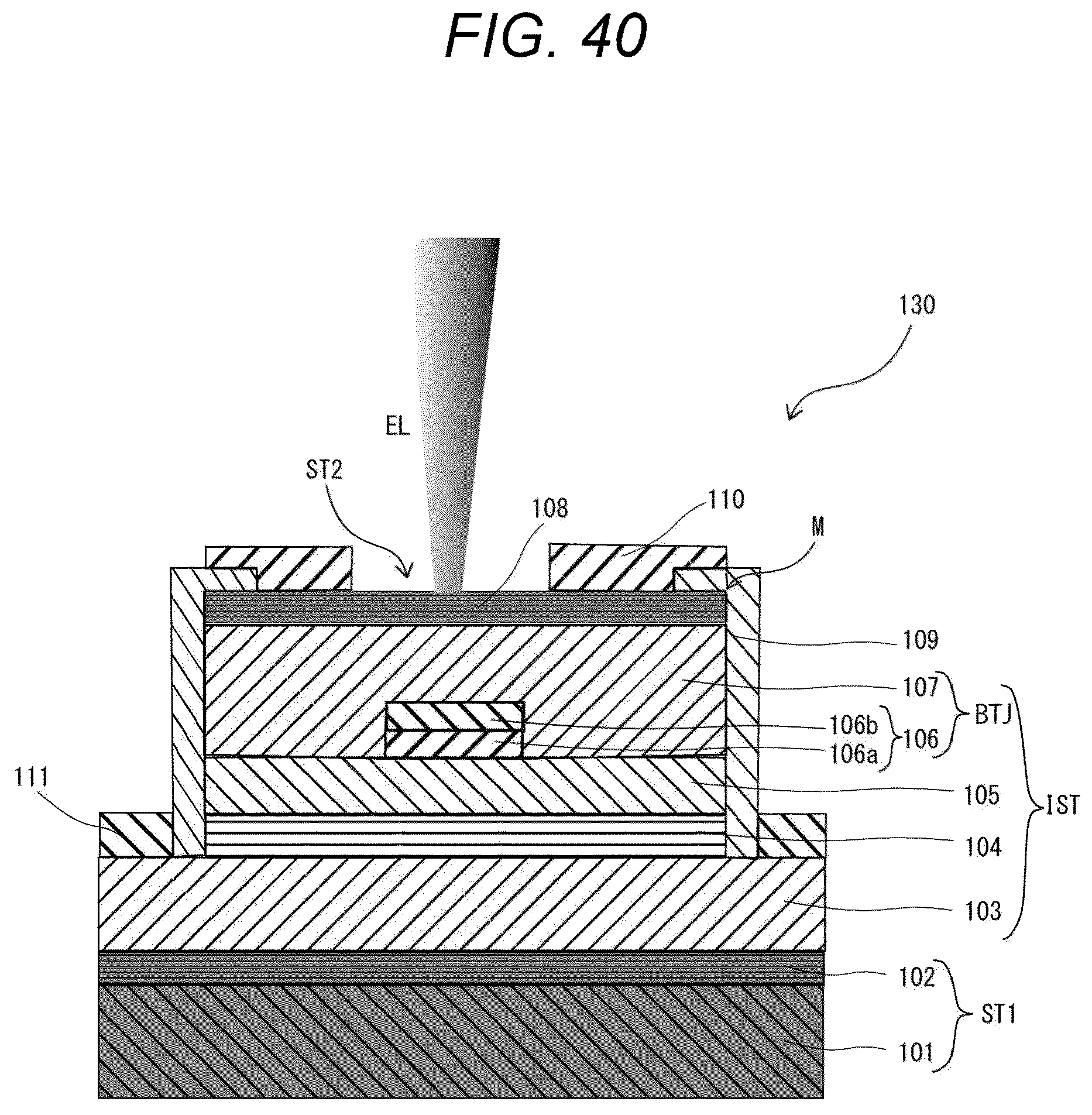

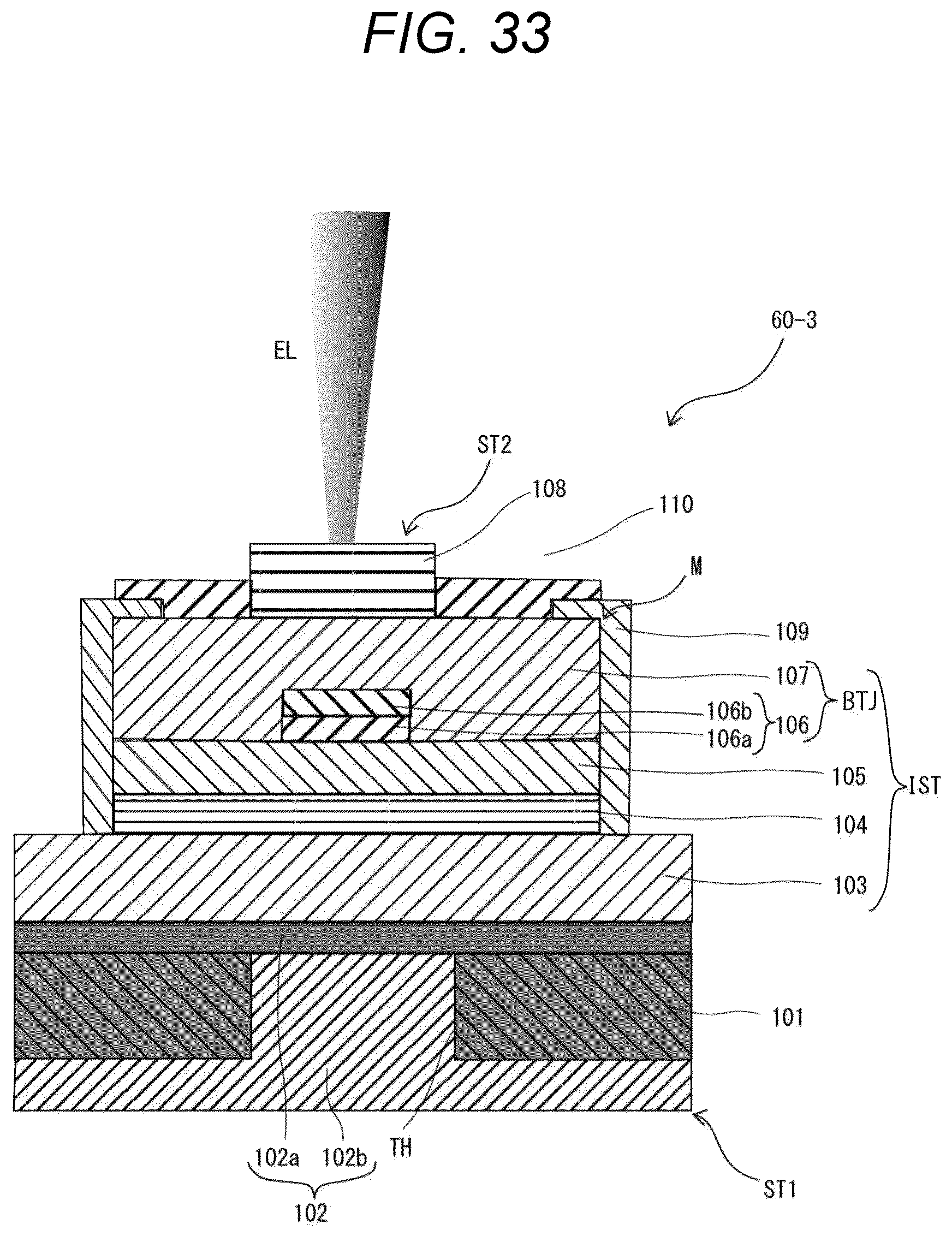

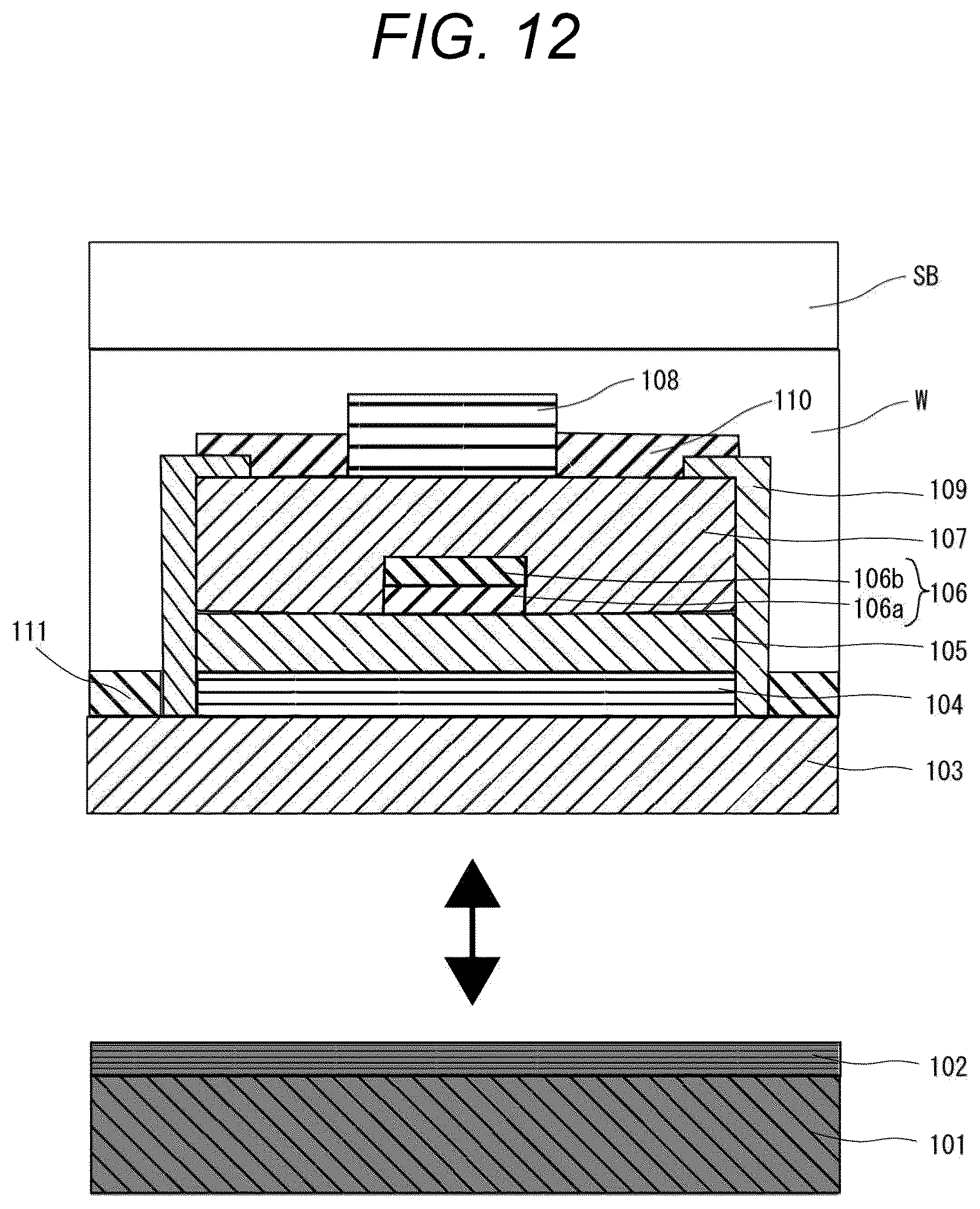

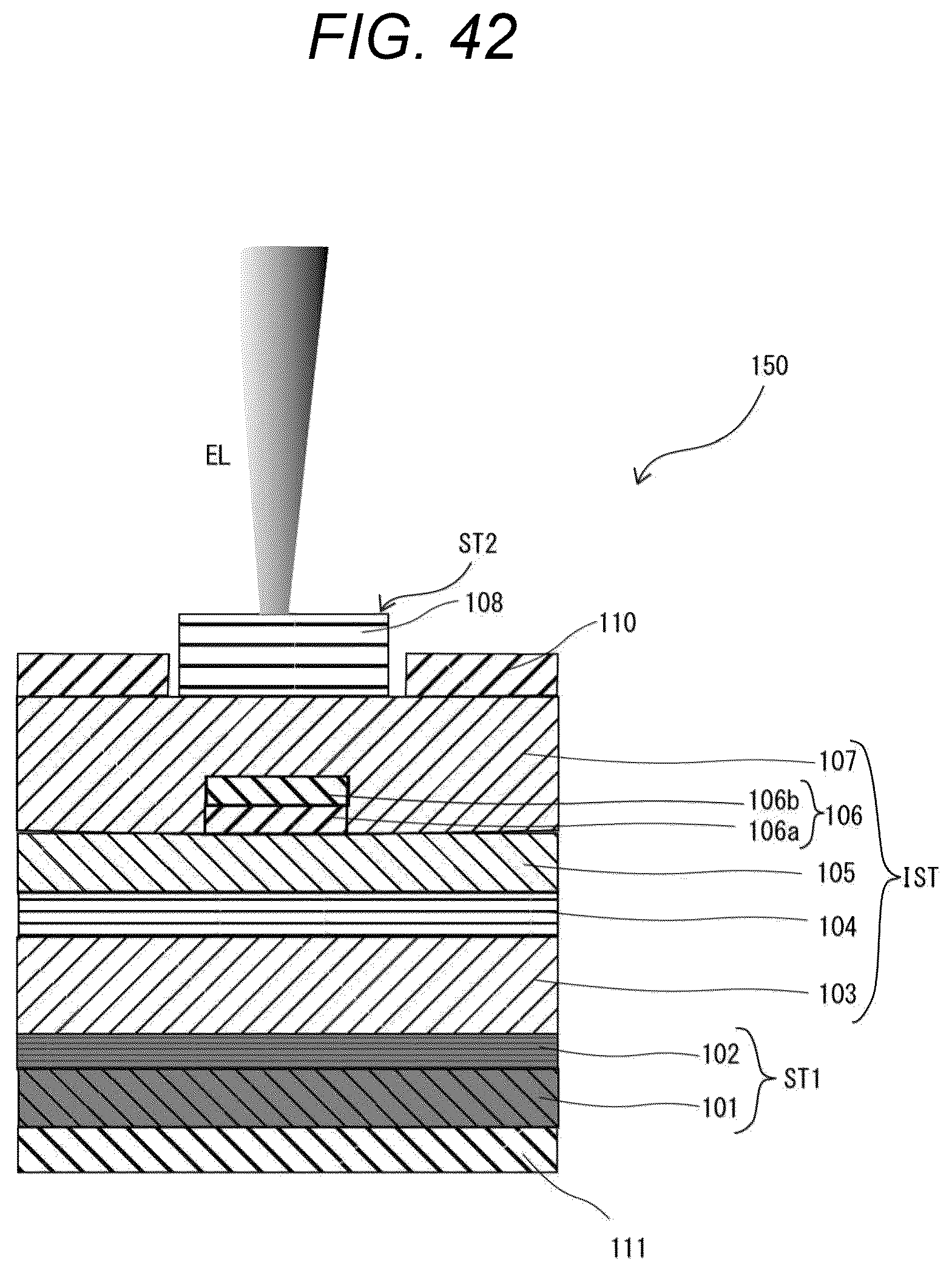

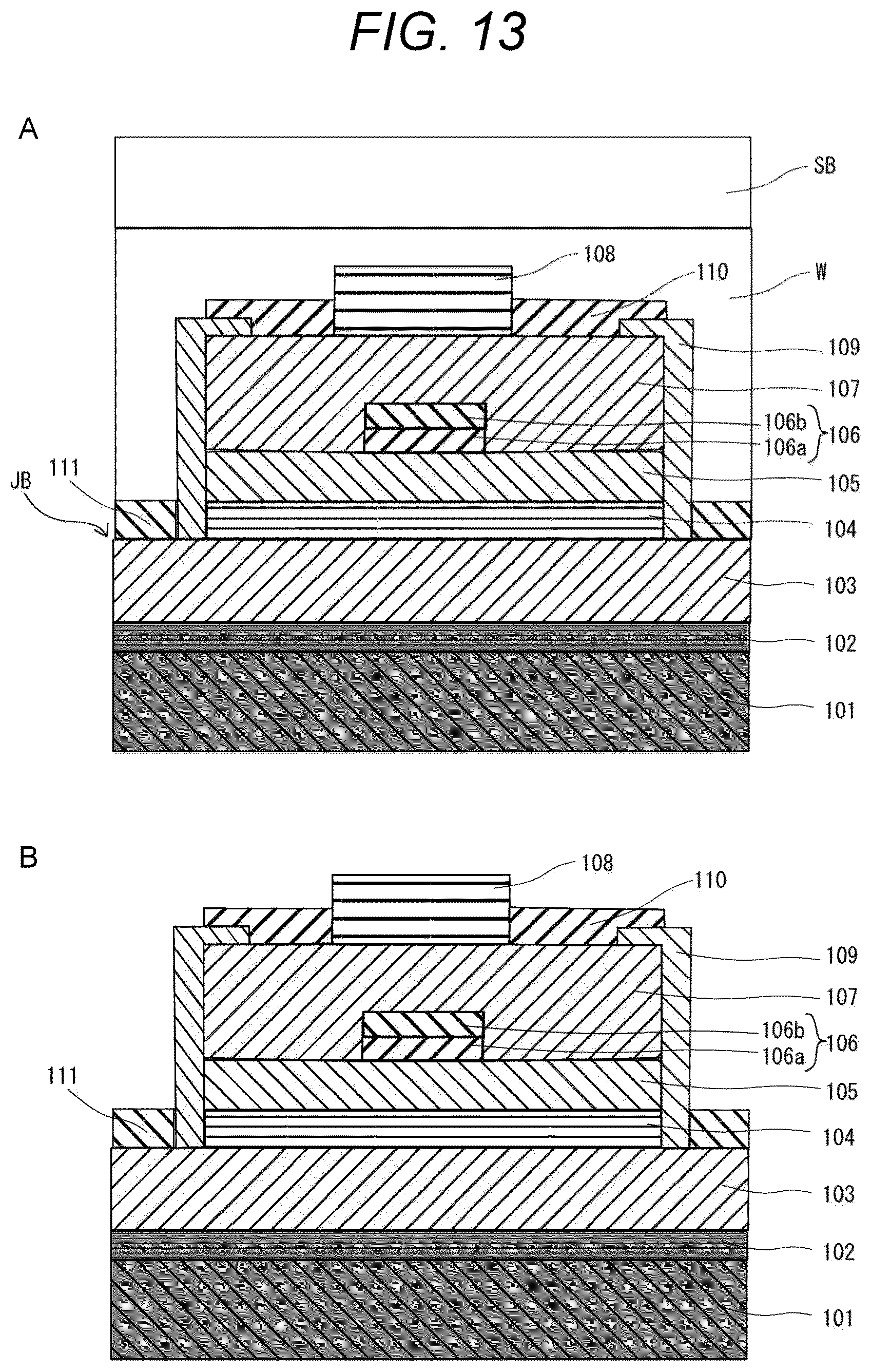

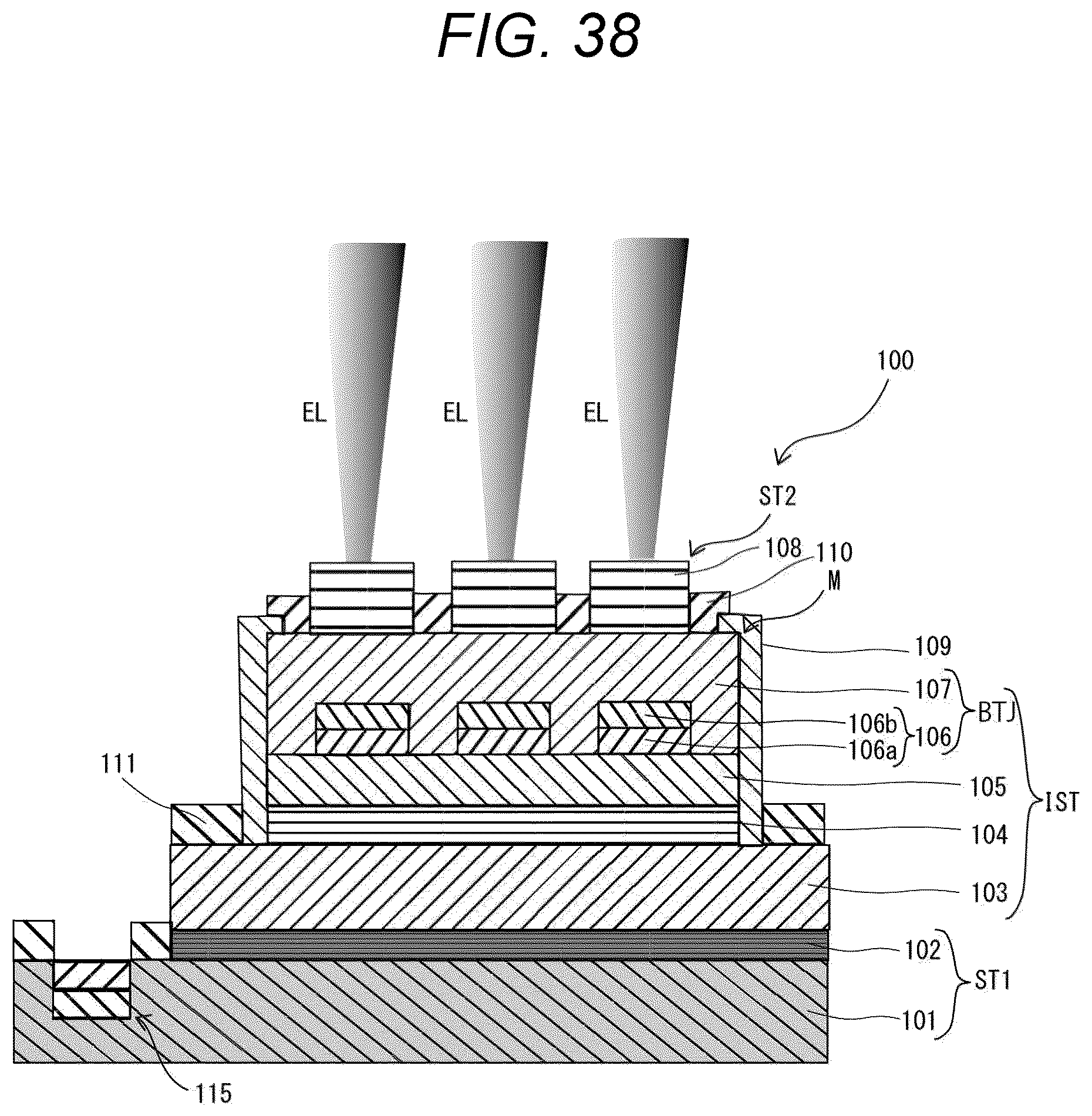

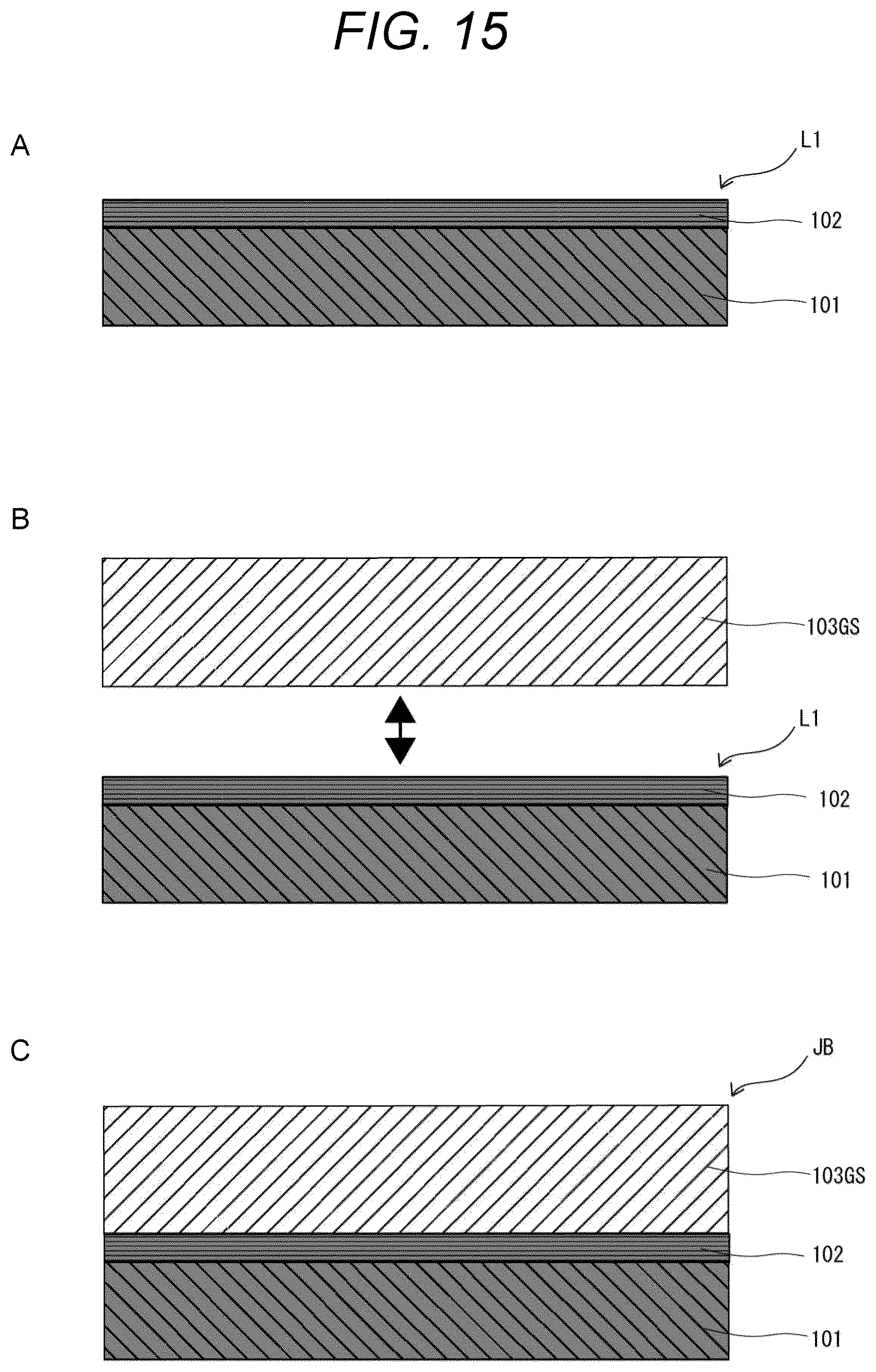

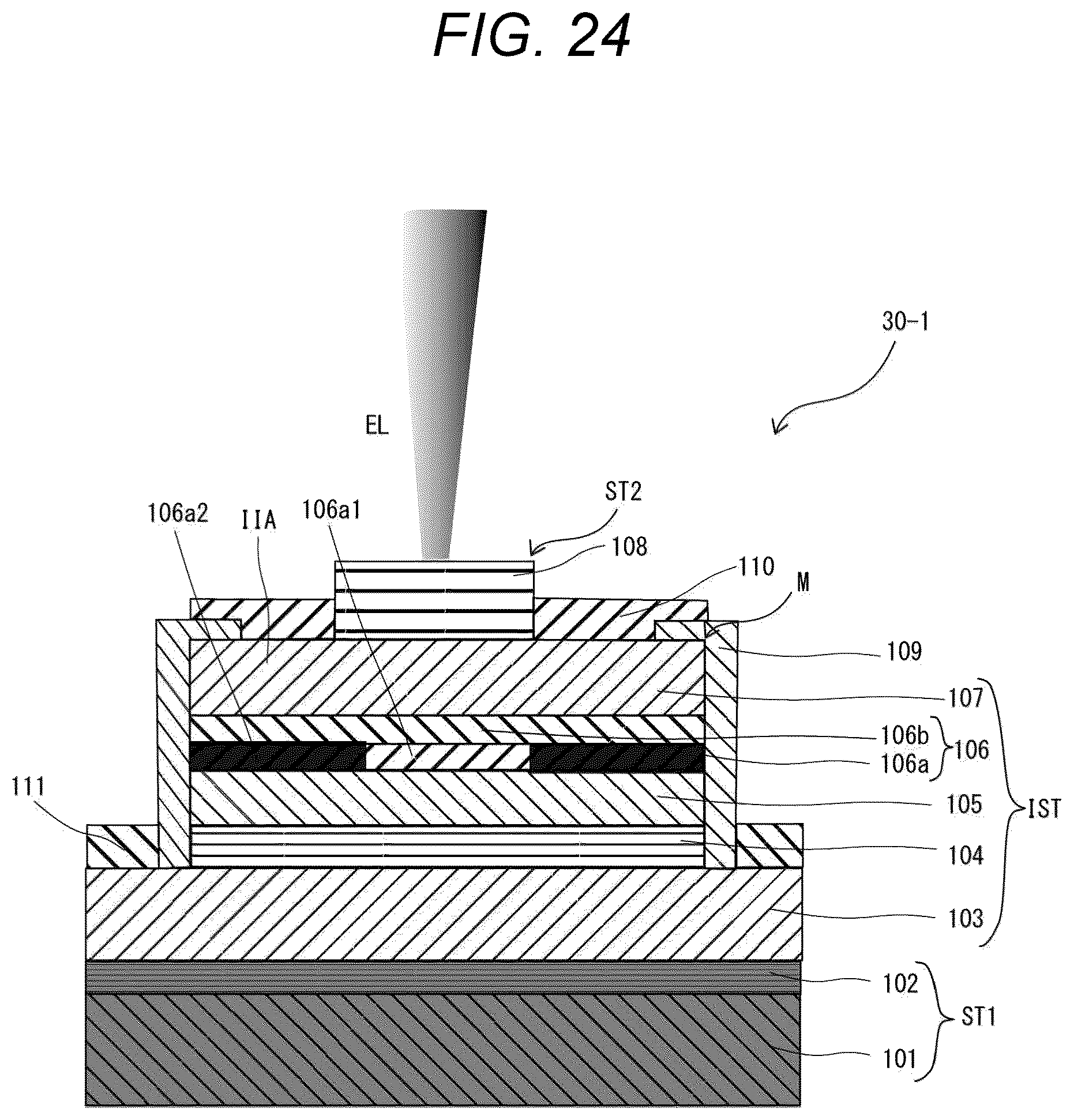

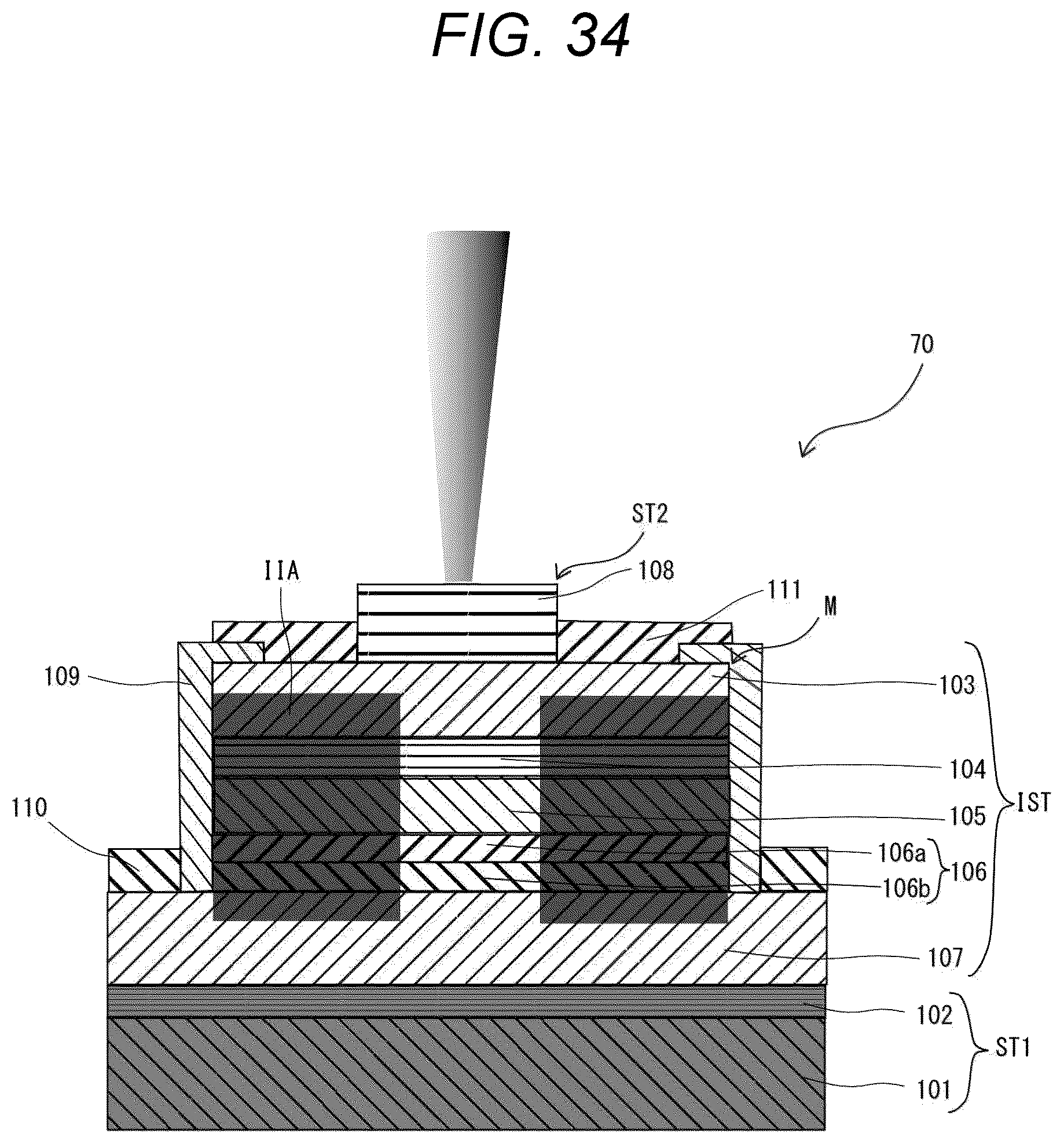

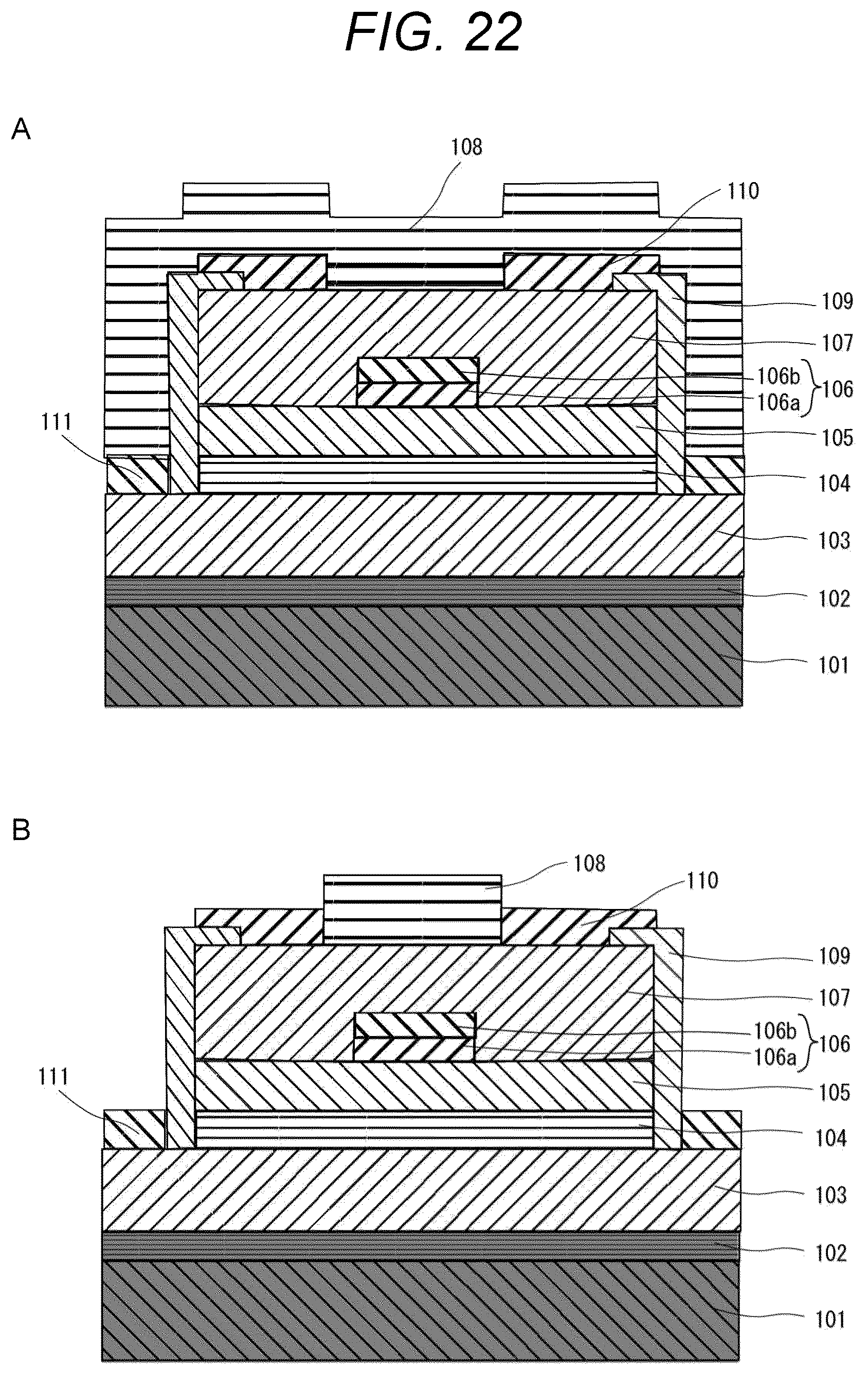

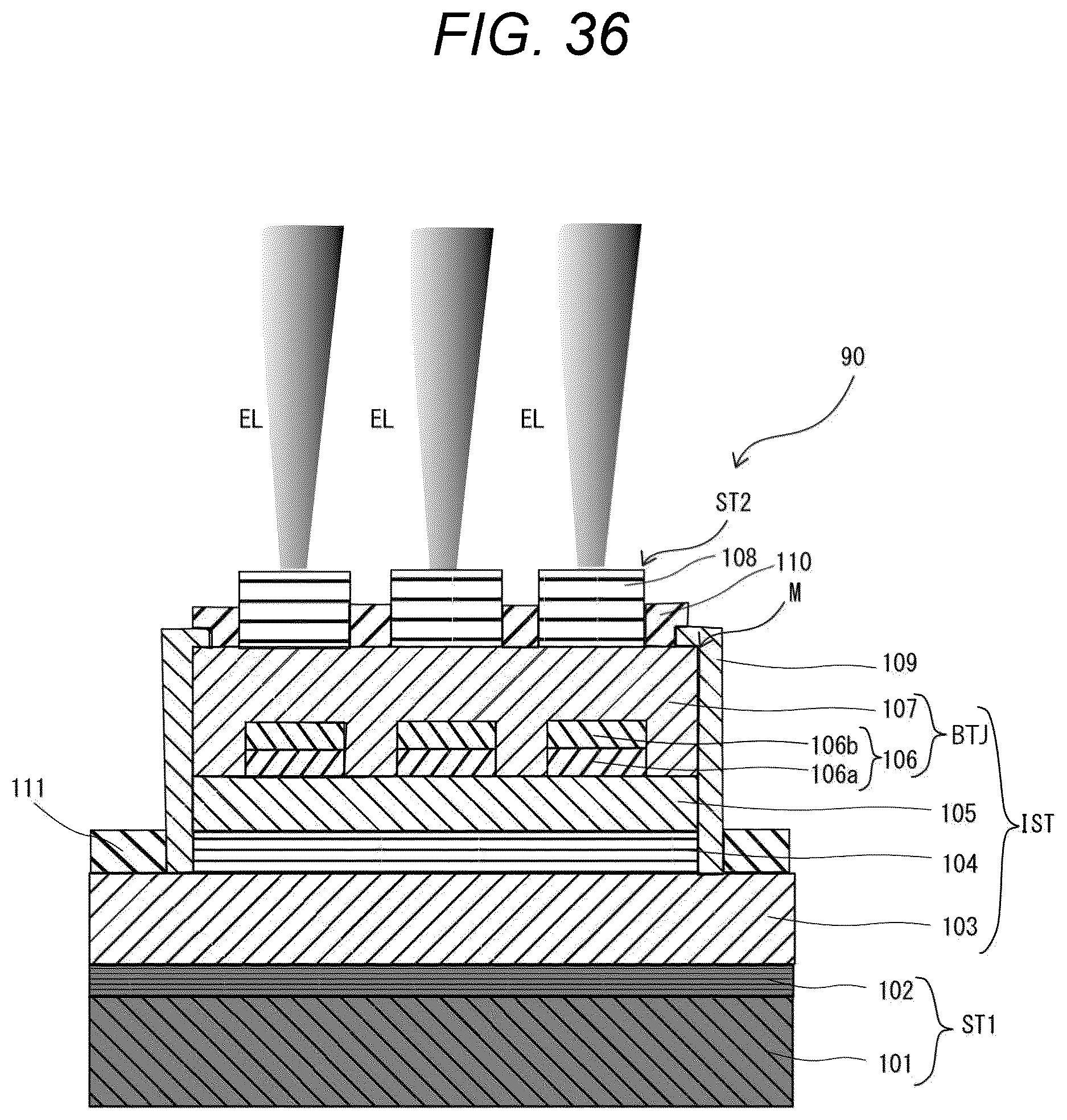

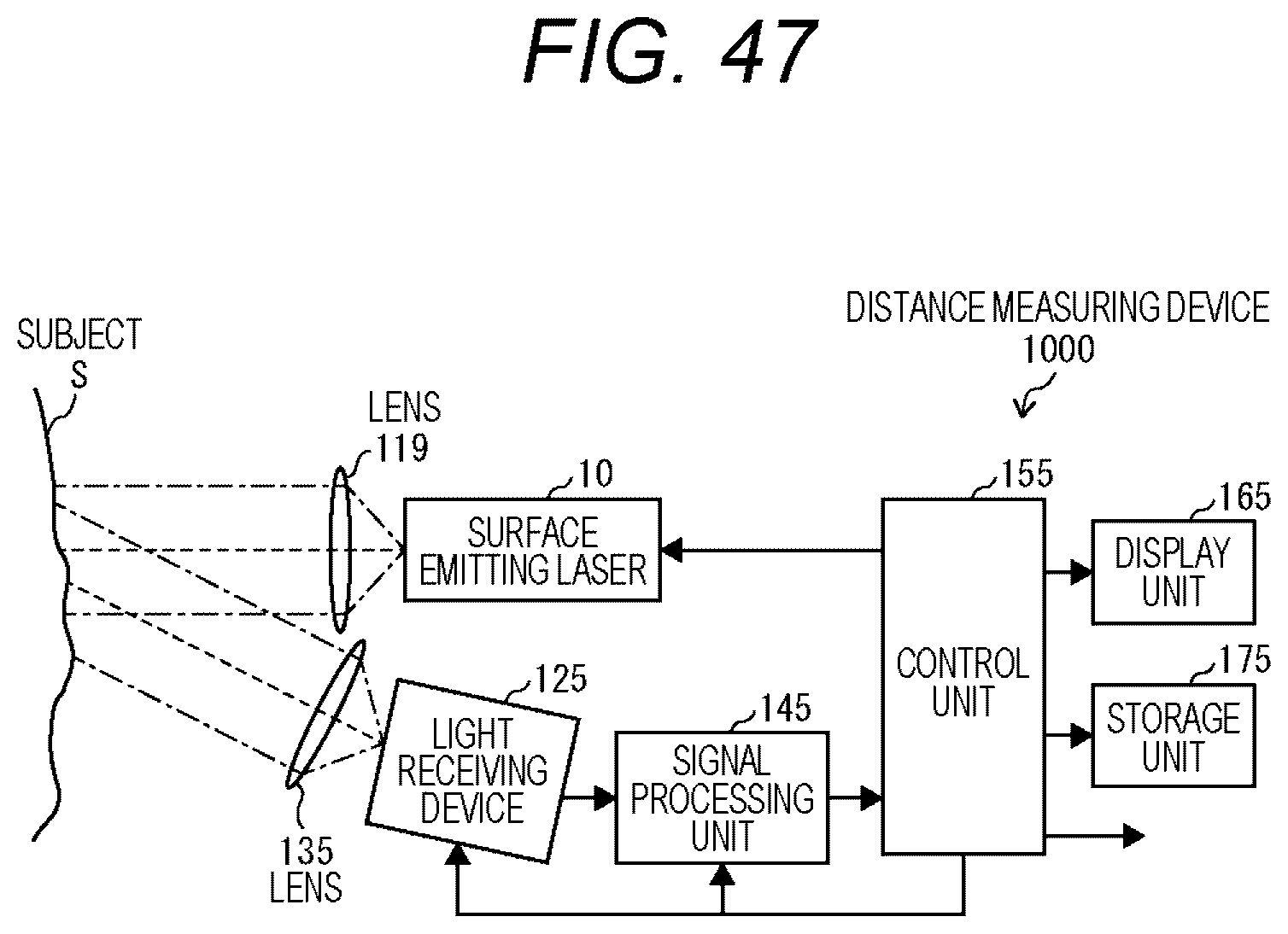

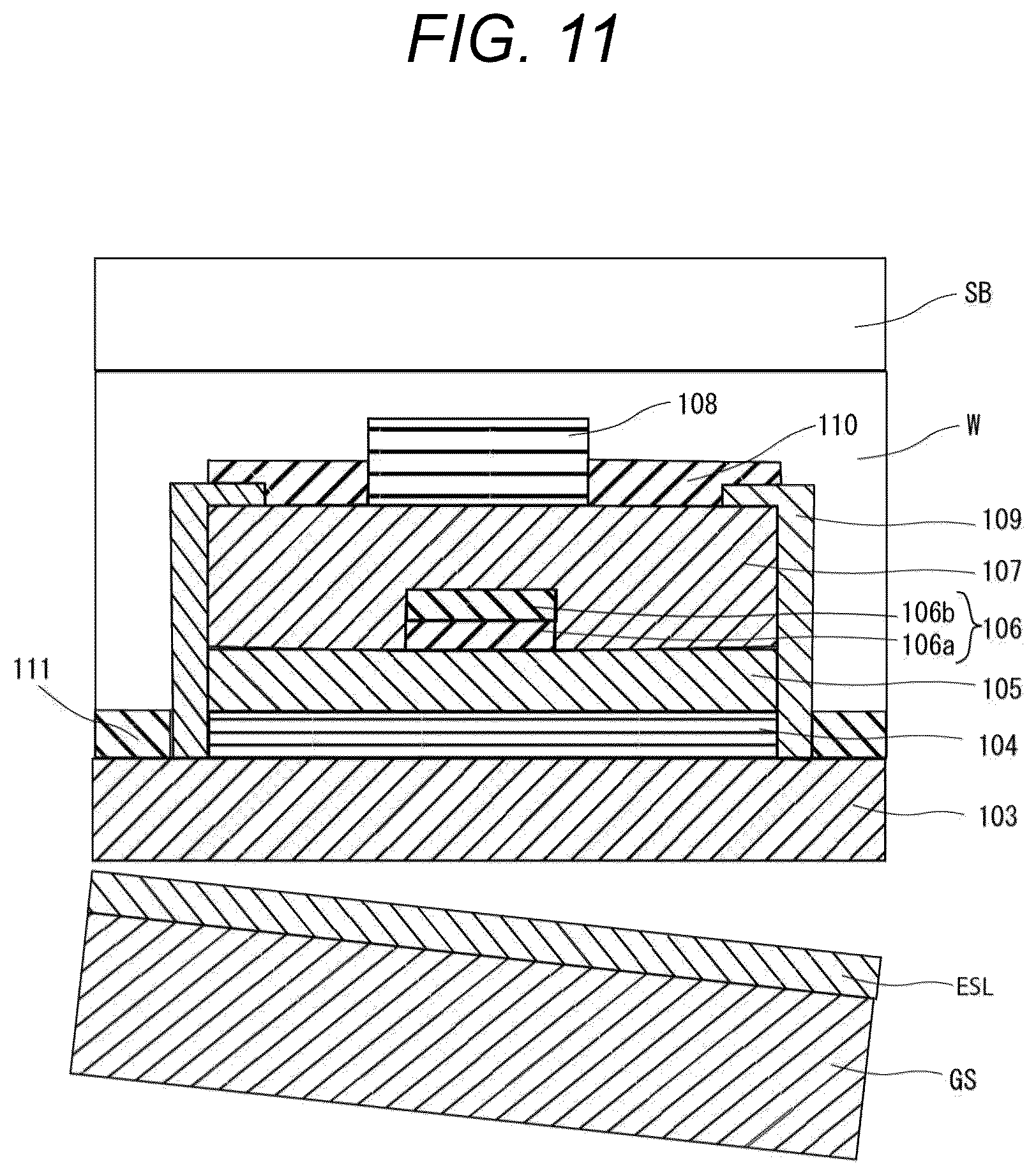

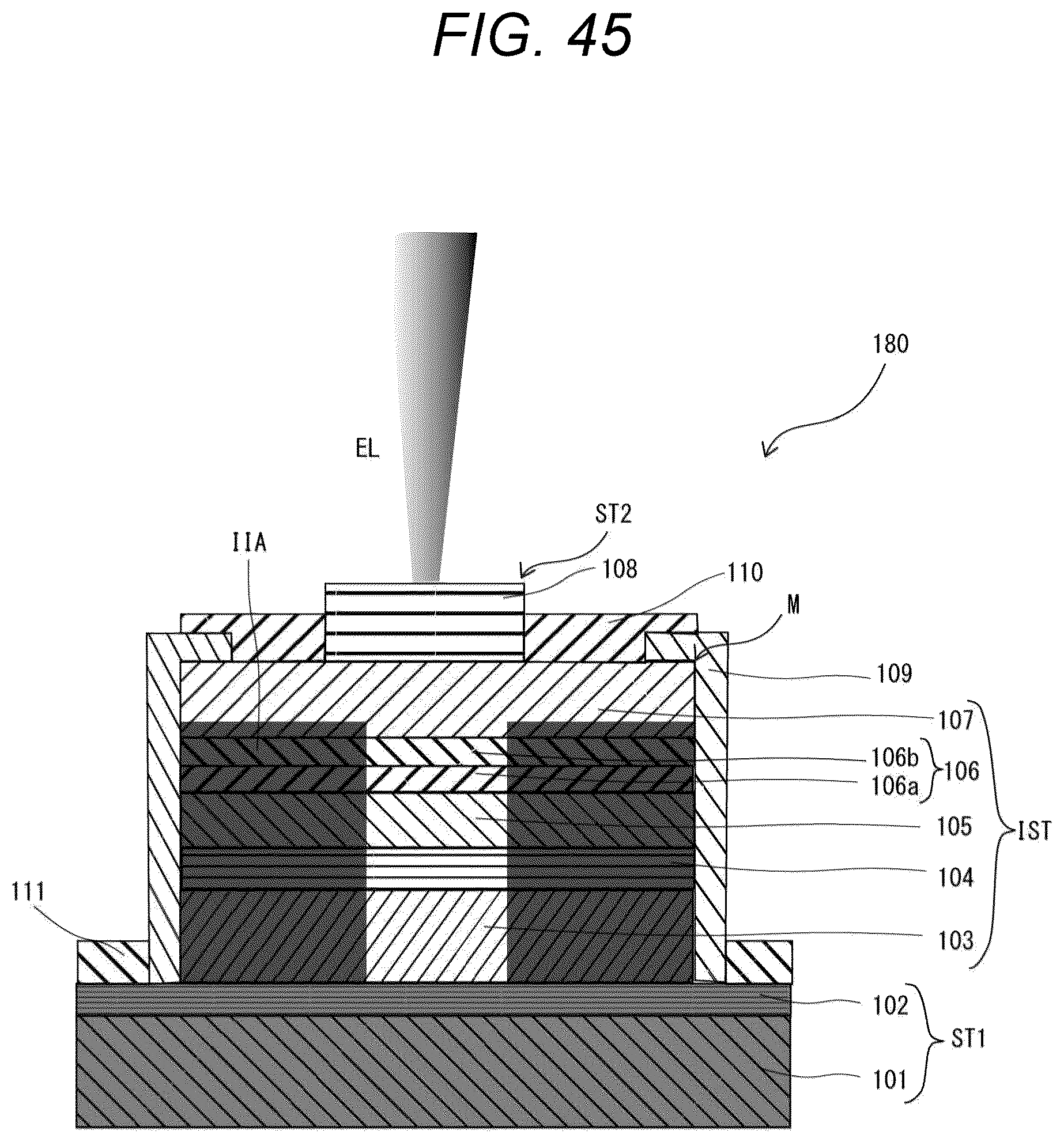

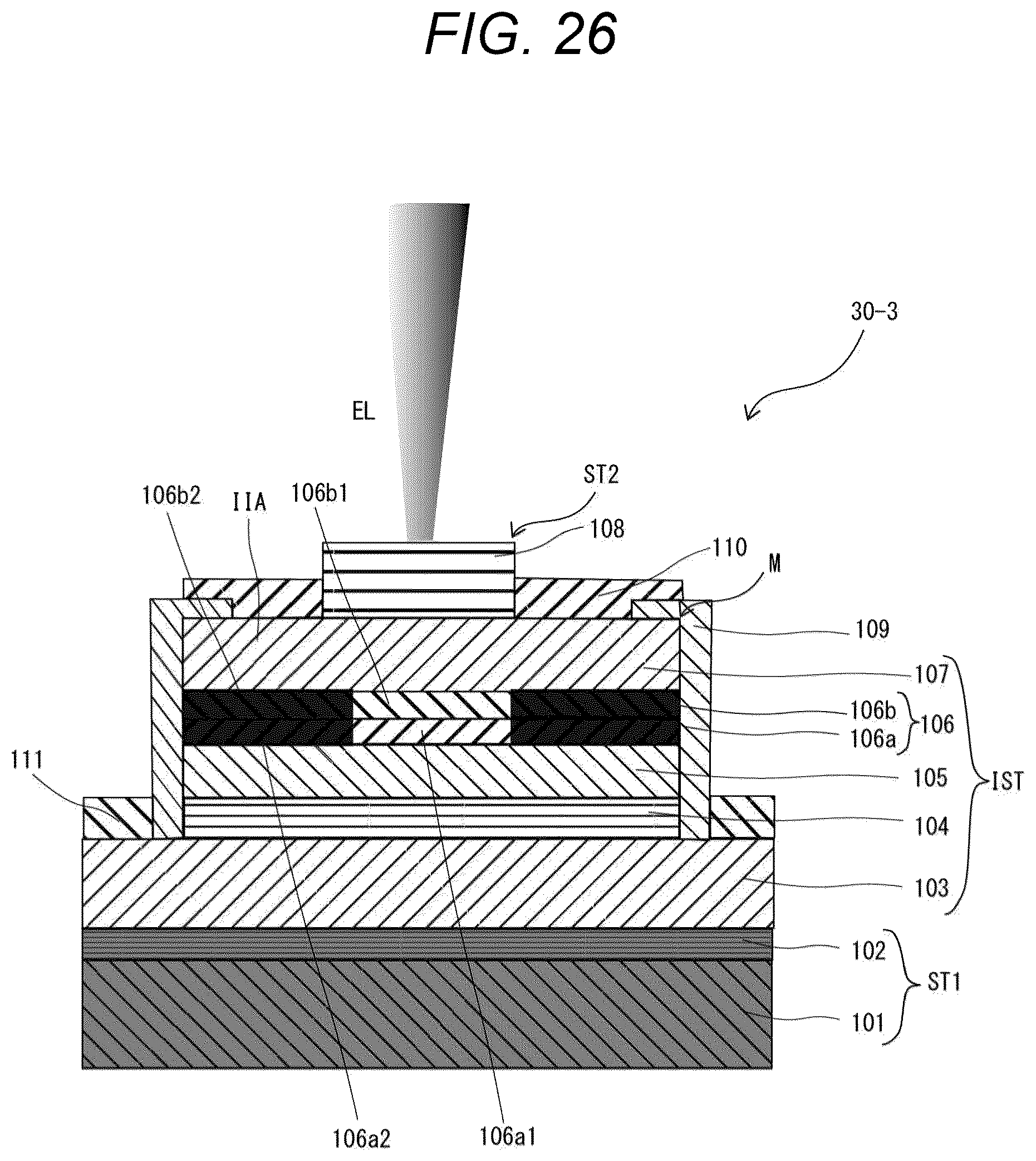

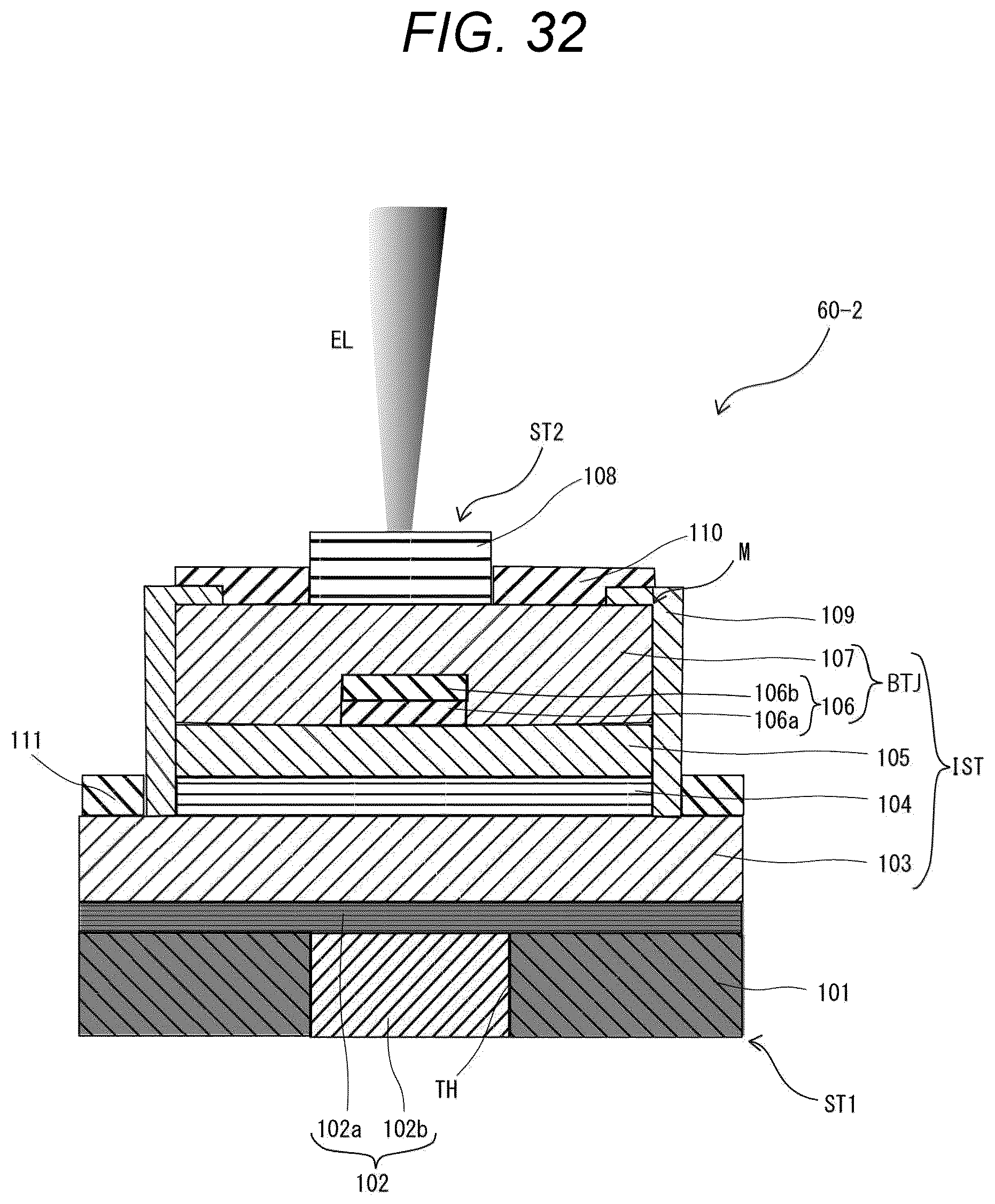

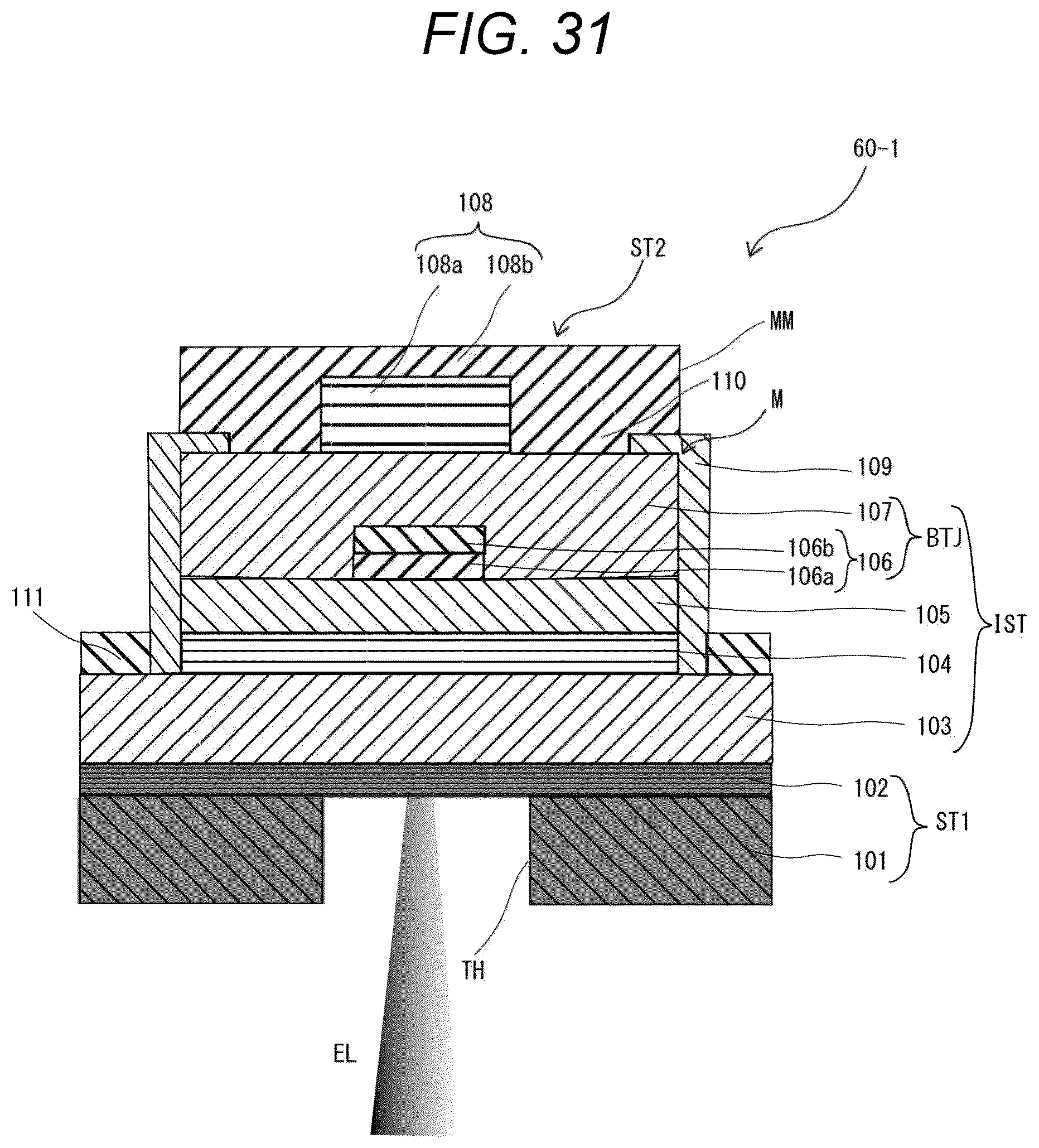

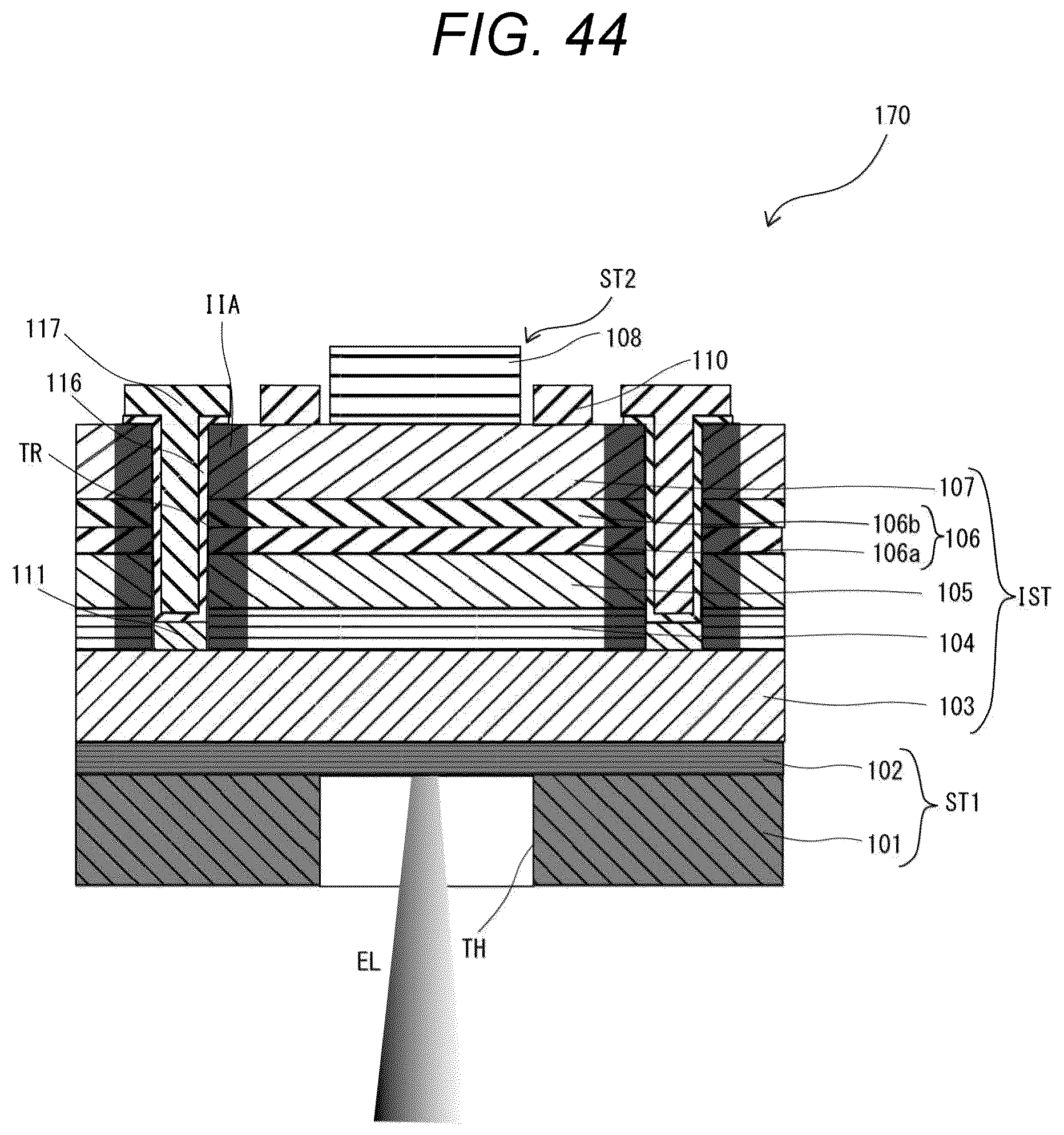

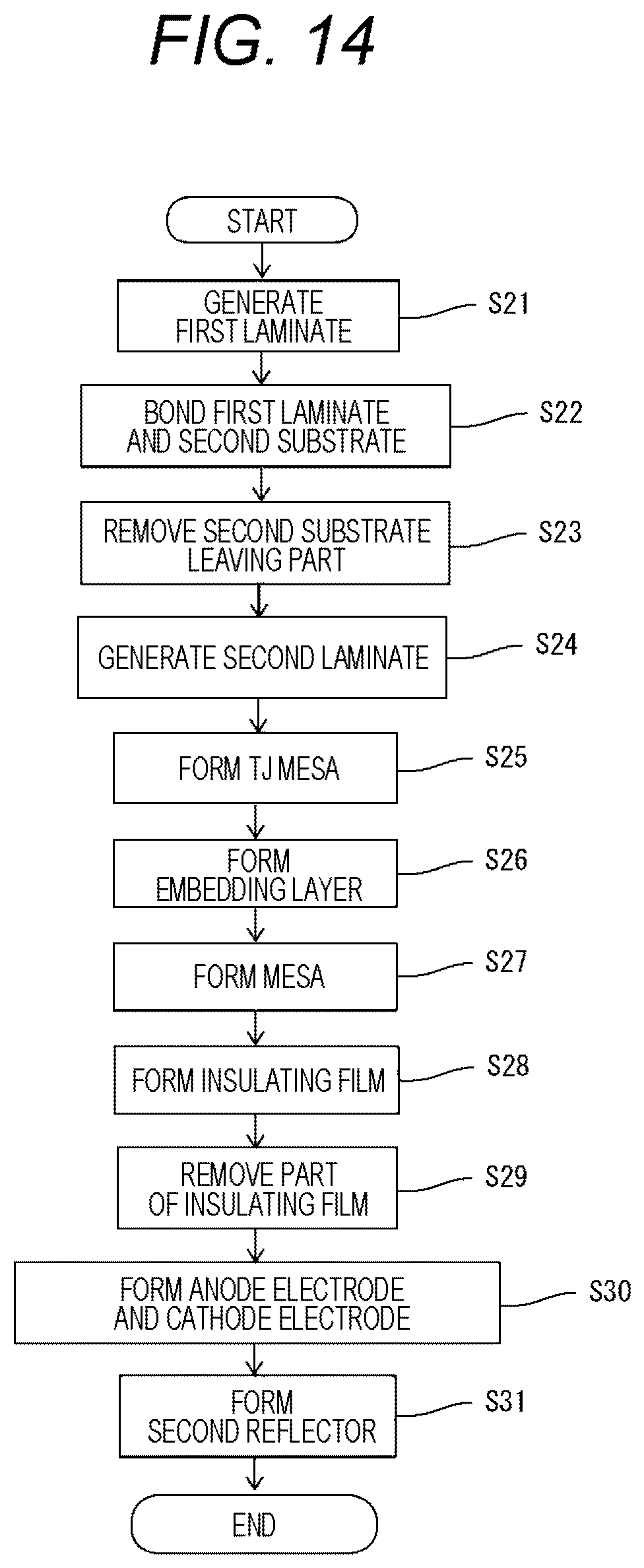

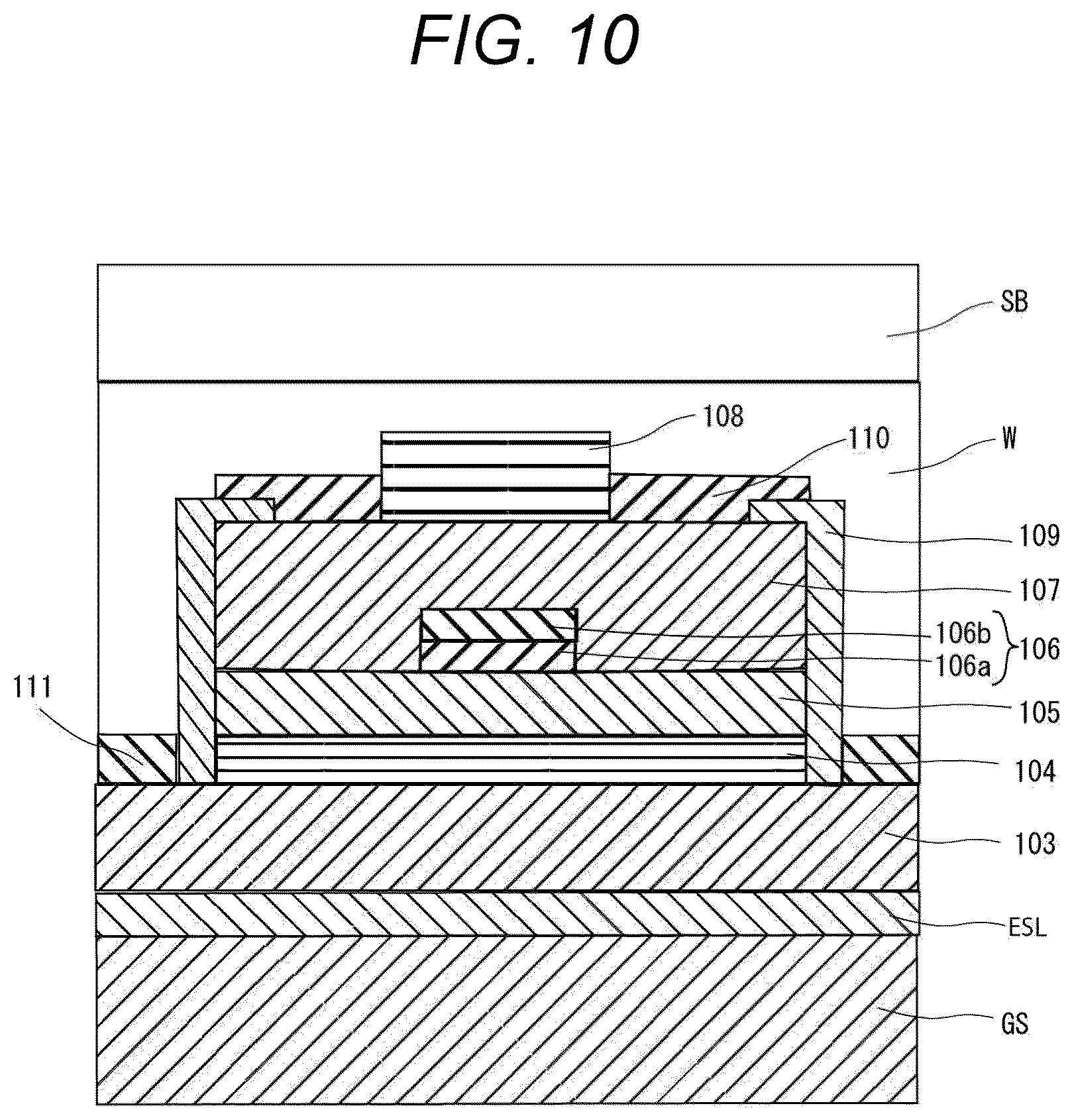

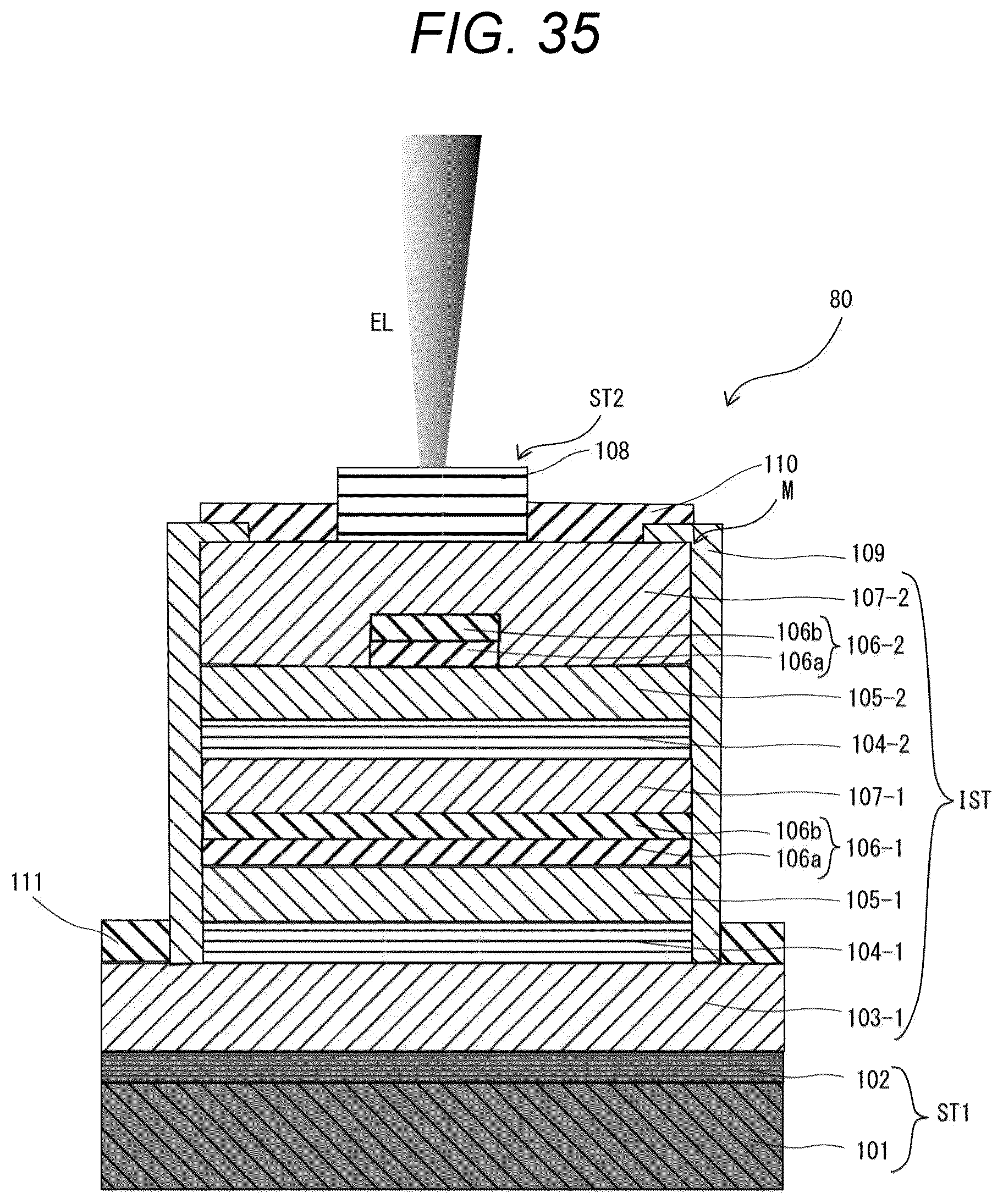

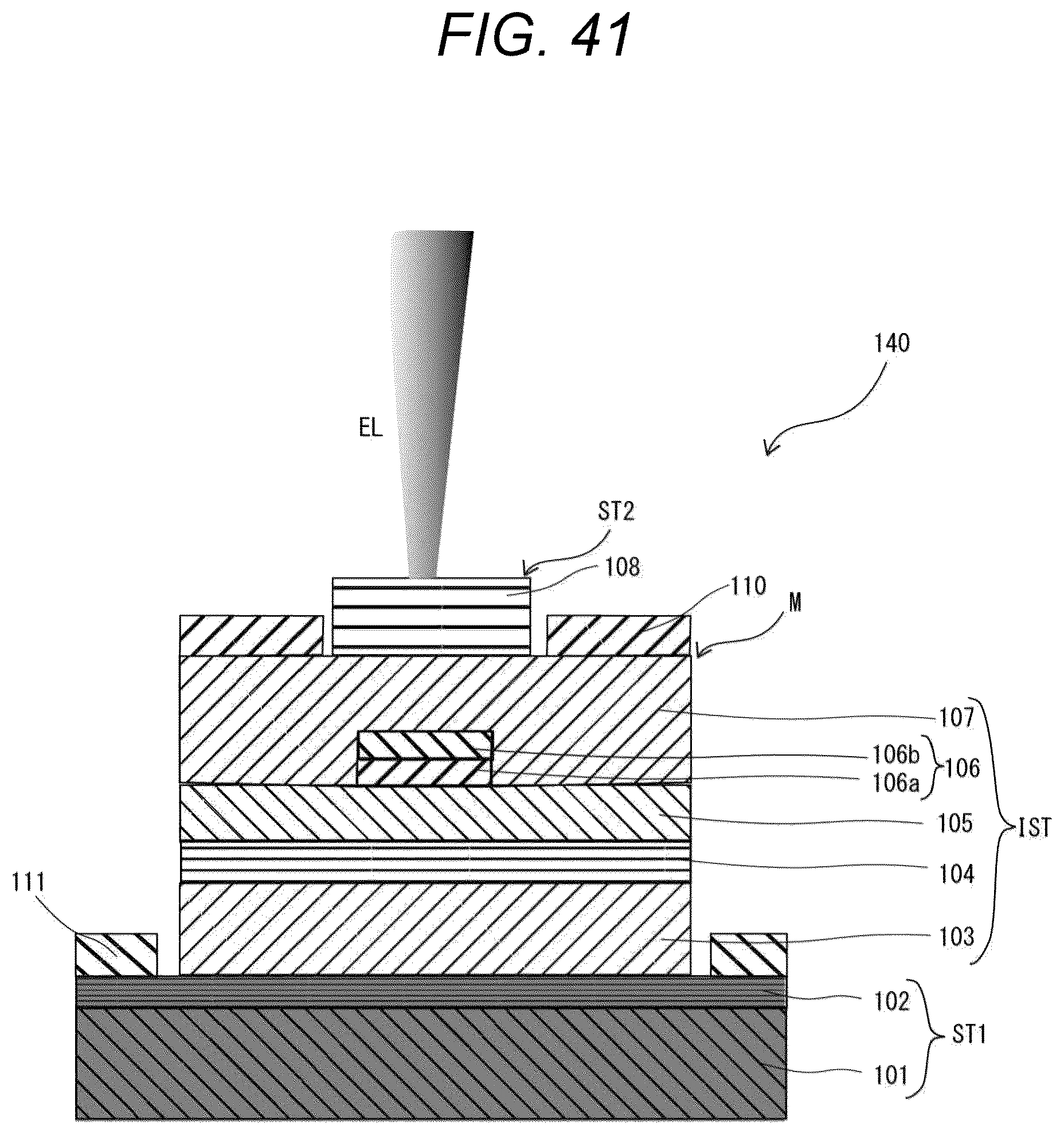

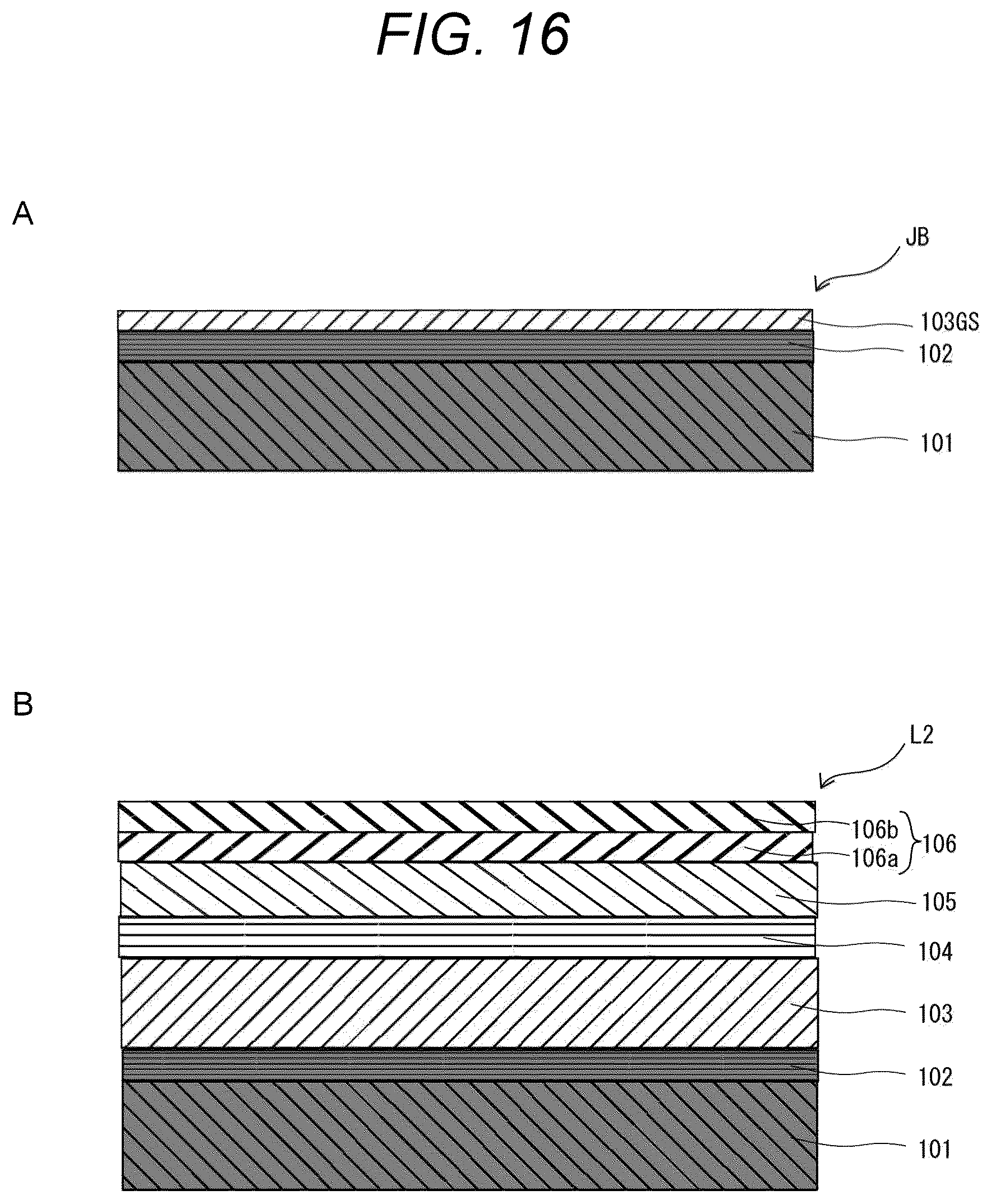

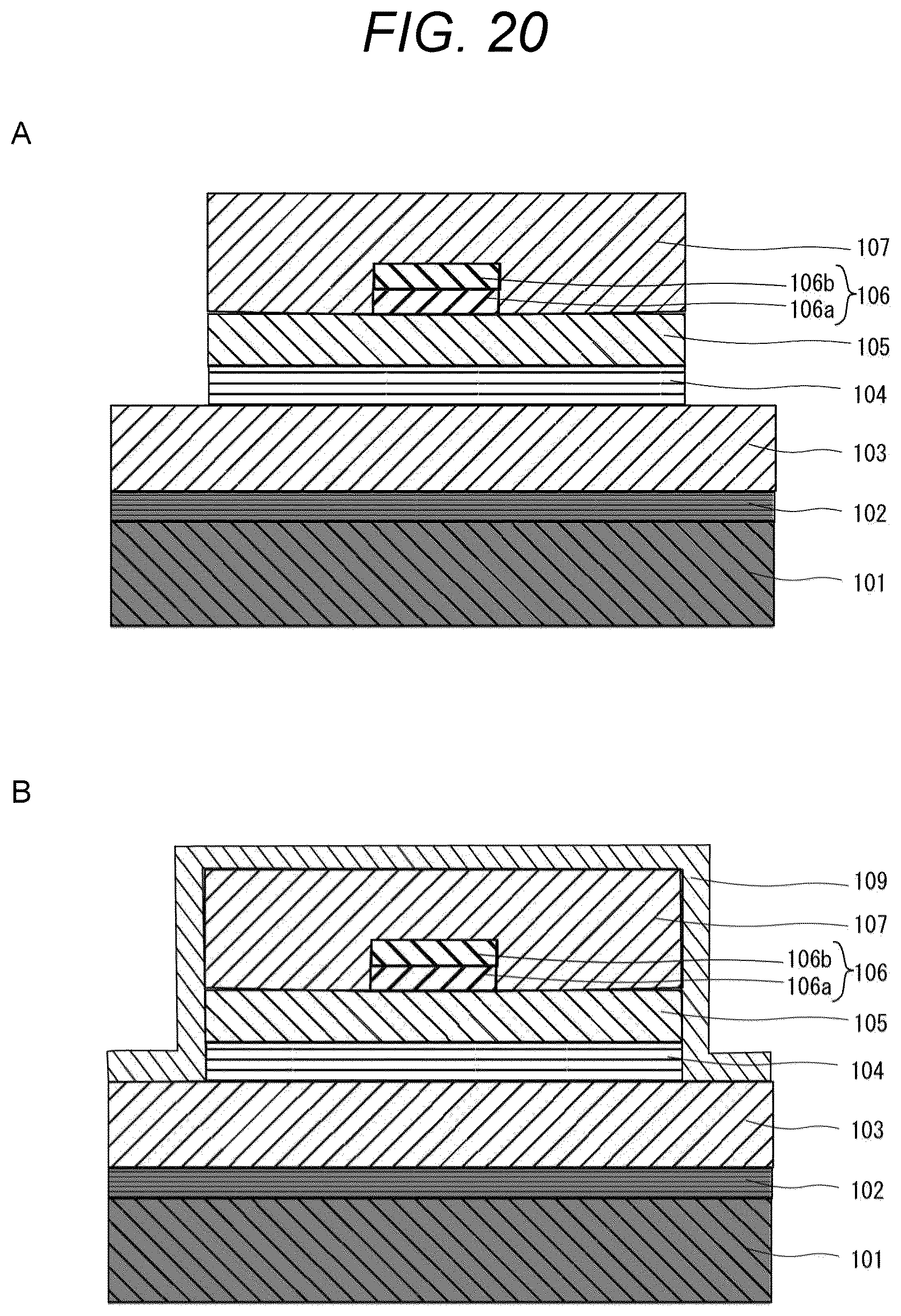

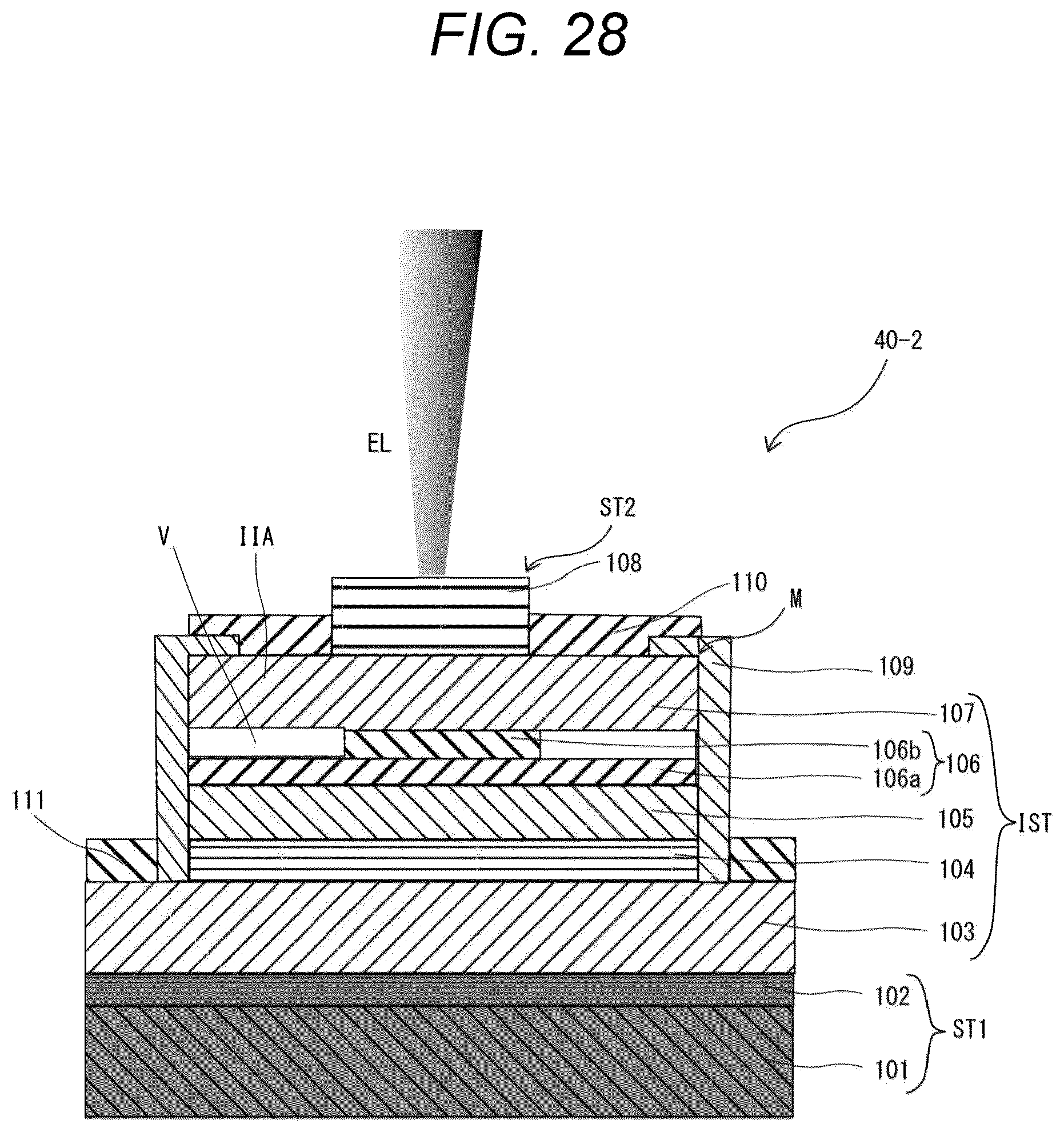

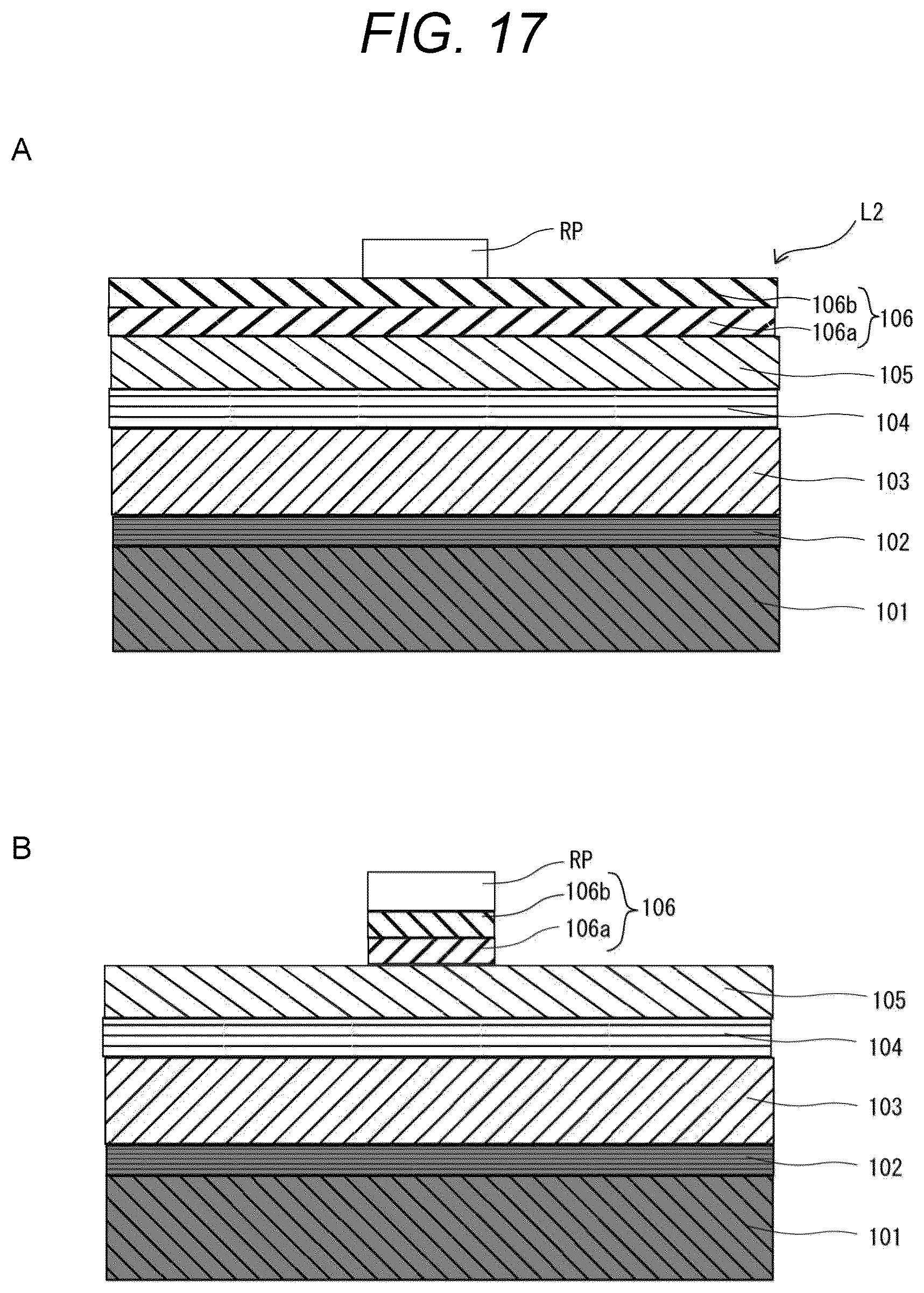

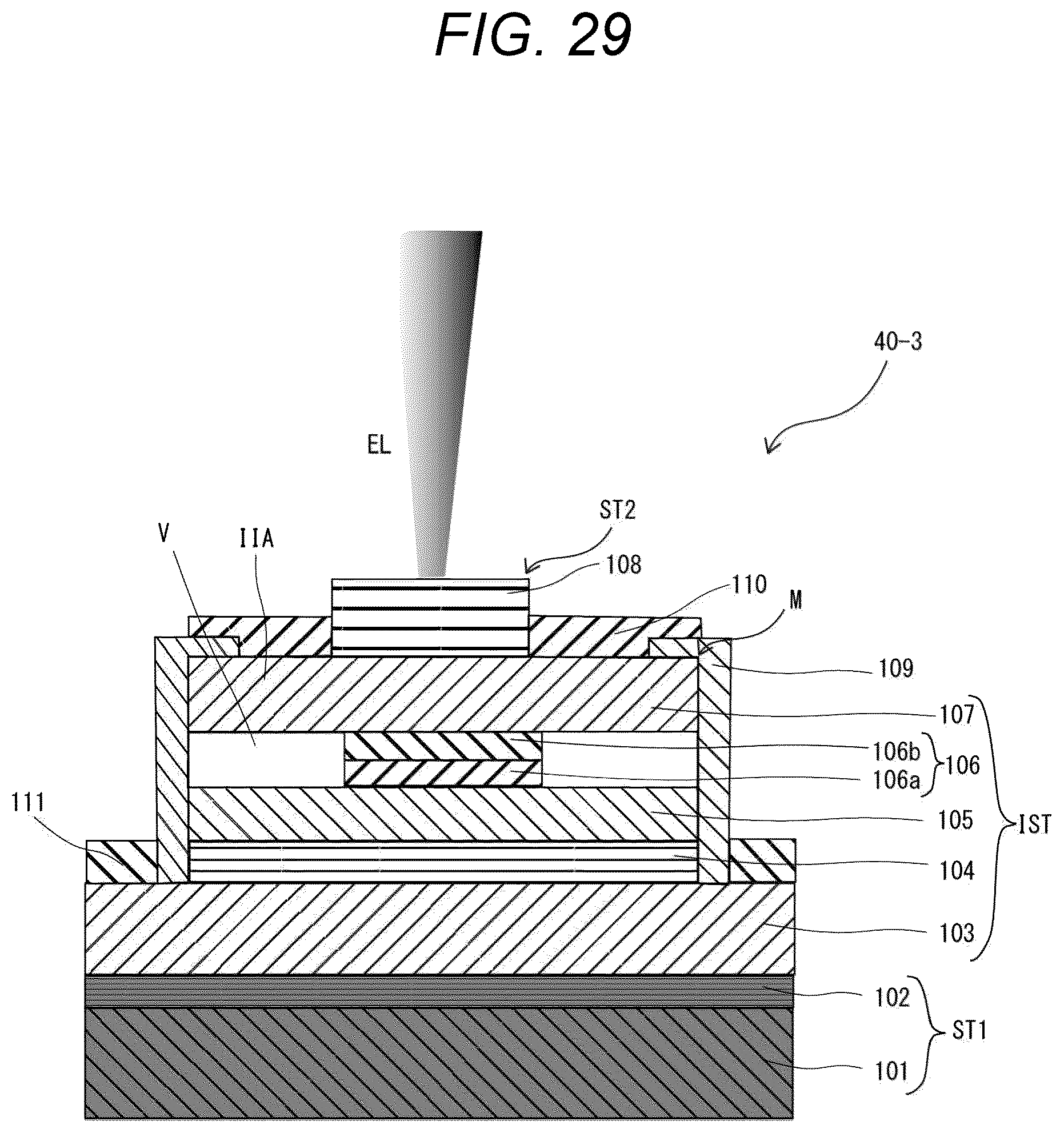

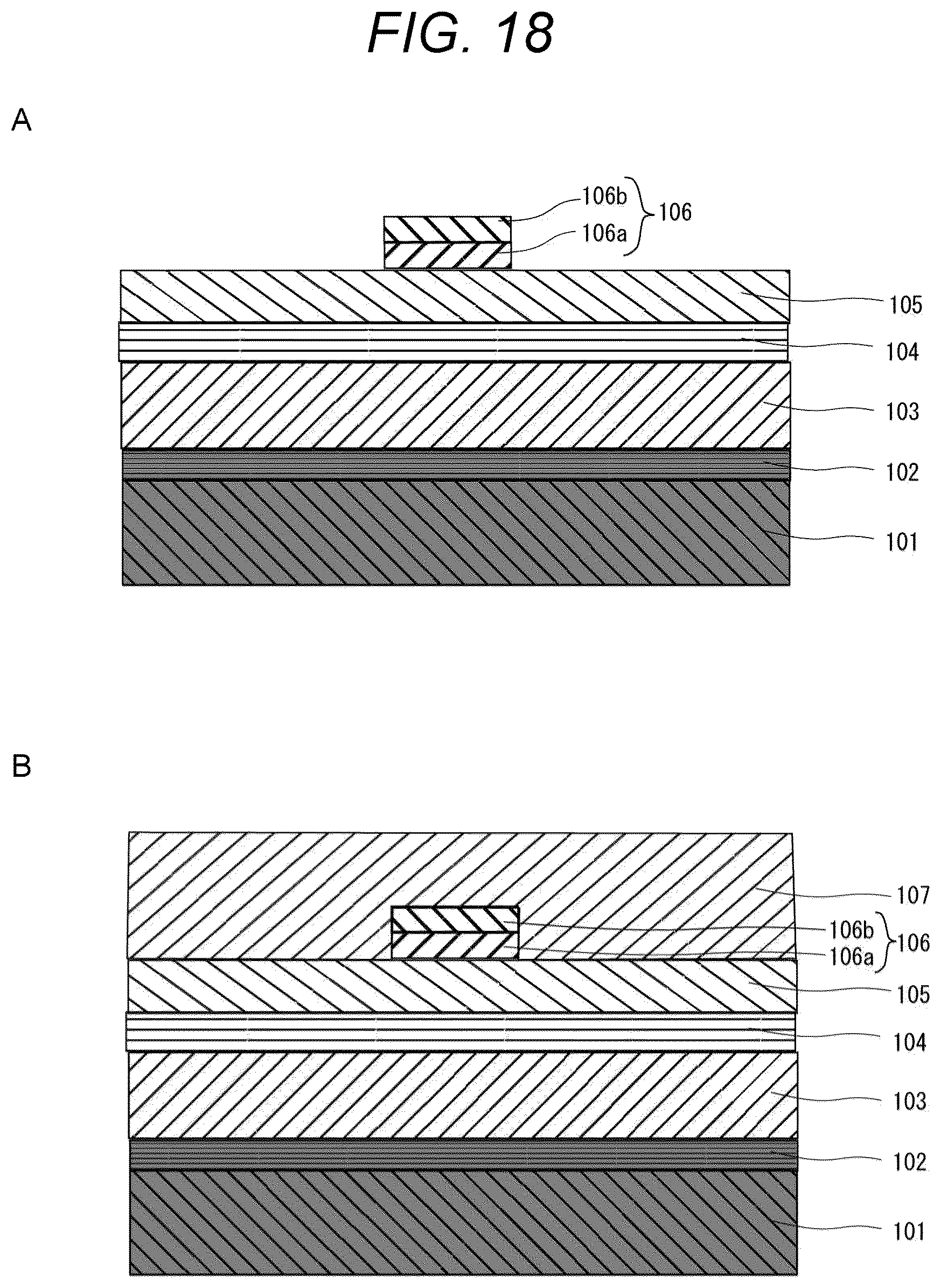

49 drawing sheets from US 2026/0269571 A1 · click any drawing to enlarge
