Sony Patents a Laser Emitter That Steers Its Own Light From the Inside
Sony has filed a patent for a laser emitter that can redirect its own light beam without any moving parts or external optics, by varying the thickness or density of a thin insulating layer built right into the device.
What Sony's self-steering laser layer actually does
Most small lasers send light straight out in a fixed direction. If you need to angle or shape that beam, you usually add lenses, mirrors, or other components on the outside. That adds bulk and complexity, which is a real problem when you're trying to shrink a device down to sensor or display size.
Sony's patent describes a surface-emitting laser (the kind that fires light straight up through a flat chip rather than out the side) with a built-in trick: a thin insulating layer sandwiched inside the device whose thickness or density changes gradually, or in distinct steps, across its surface. Because light bends differently depending on what material it travels through, this variation steers and shapes the beam as it bounces between the mirrors inside the chip.
The result is a laser that can do complex optical steering from within, before the light ever exits the device, with no extra parts bolted on outside.
… an insulating film disposed at least one of between the active layer and the first reflector and between the active layer and the second reflector, at least one of a film thickness or a refractive index of the insulating film changing continuously or in stages within a plane.
Translation: A specially shaped internal layer alters how light travels across the chip.
How the variable insulating film bends the light path
The device is a vertical-cavity surface-emitting laser, or VCSEL (pronounced "vixel"). In a standard VCSEL, an active layer generates light, and two reflectors (one above, one below) bounce that light back and forth until it amplifies and exits through the top surface.
Sony's twist is an insulating film placed between the active layer and one or both reflectors. What makes this unusual is that the film's properties are not uniform across its face:
- Its thickness can vary from one region to another, either gradually or in distinct steps.
- Its refractive index (a measure of how much a material slows and bends light) can similarly vary across the surface.
Because the optical path length (the effective distance light "sees" as it travels) depends on both thickness and refractive index, different parts of the beam experience different conditions. That means the phase of the light (the timing of its wave peaks) can be tuned spatially, shaping the wavefront before it exits.
This is essentially beam shaping done inside the chip itself, replacing external optics with engineered variation in a single thin film.
What this means for tiny lasers in sensors and displays
VCSELs are everywhere already: they power the Face ID sensor in your phone, lidar in autonomous vehicles, and high-speed fiber-optic data links. The bottleneck has always been that fine-grained beam control requires external optical components that take up space and add cost.
If Sony can bake that control into the emitter itself, it opens a path to smaller, cheaper, more capable sensors without redesigning the surrounding hardware. Sony's steady investment in imaging and sensing patents suggests this fits a broader push to own more of the signal chain in cameras and AR/VR hardware, where beam quality directly affects accuracy.
This is the 39th Sony filing we've tracked in our chip coverage since May, adding to earlier applications like one splitting video across two devices and one counting light pulses.
The core tradeoff here is manufacturing precision. Varying film thickness or refractive index across a chip surface at microscale is difficult to do consistently in high-volume production. Any drift in the process means the beam doesn't land where the design intended, which in a sensor context means wrong readings.
Sony is essentially betting that its fabrication control is tight enough to make this reliable. That's a reasonable bet for a company with decades of semiconductor manufacturing, but it's not a free lunch. The more complex the spatial variation in the film, the narrower the process window, and the harder it is to hold yields at scale.
The upside is real: cutting external optics shrinks the bill of materials and the physical footprint. For tightly integrated devices like AR glasses or medical sensors, that tradeoff reads as worth attempting. Whether production yields actually cooperate is a different question.
Get our take in your Top Stories
Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Sony patent news breaks.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

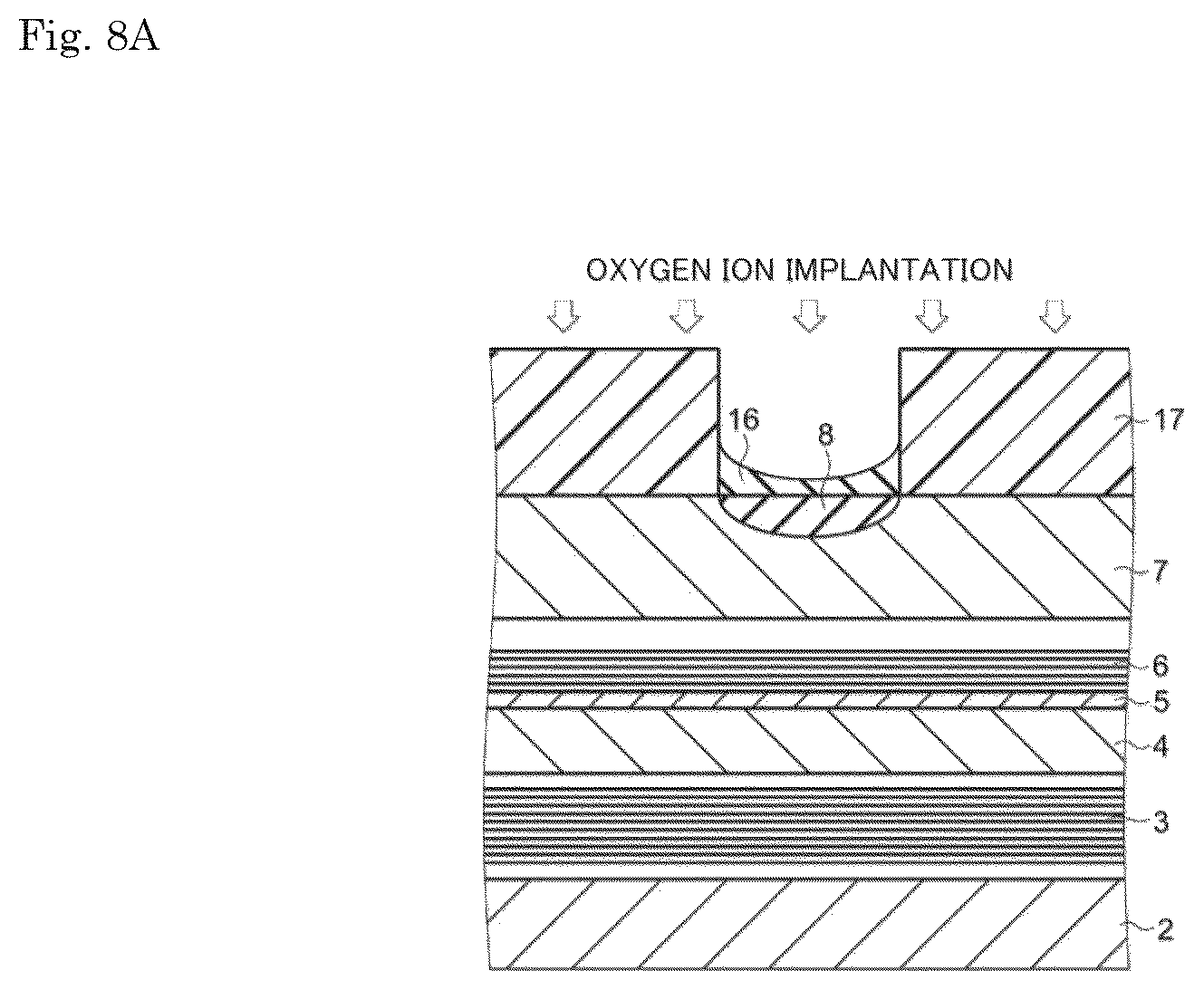

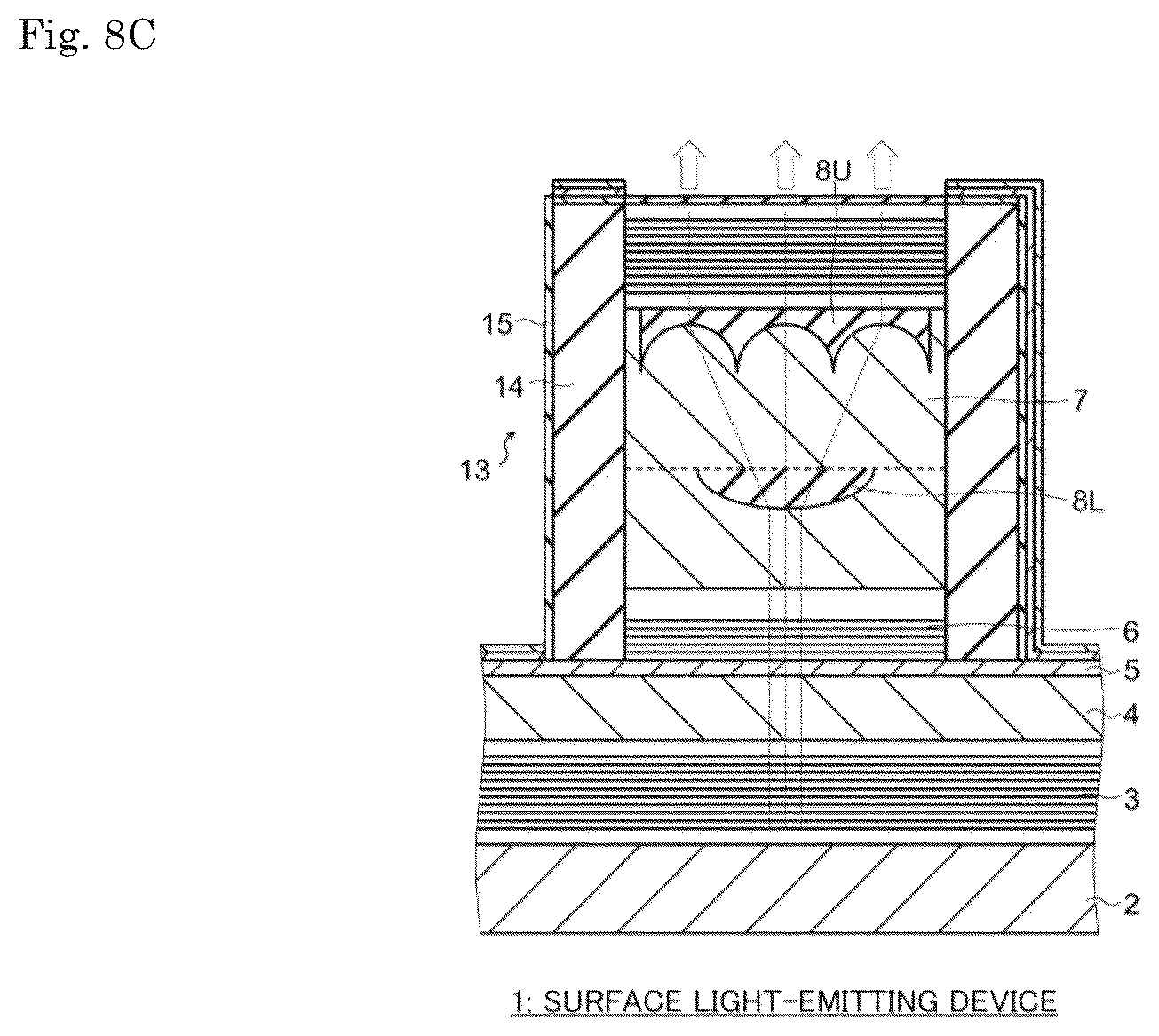

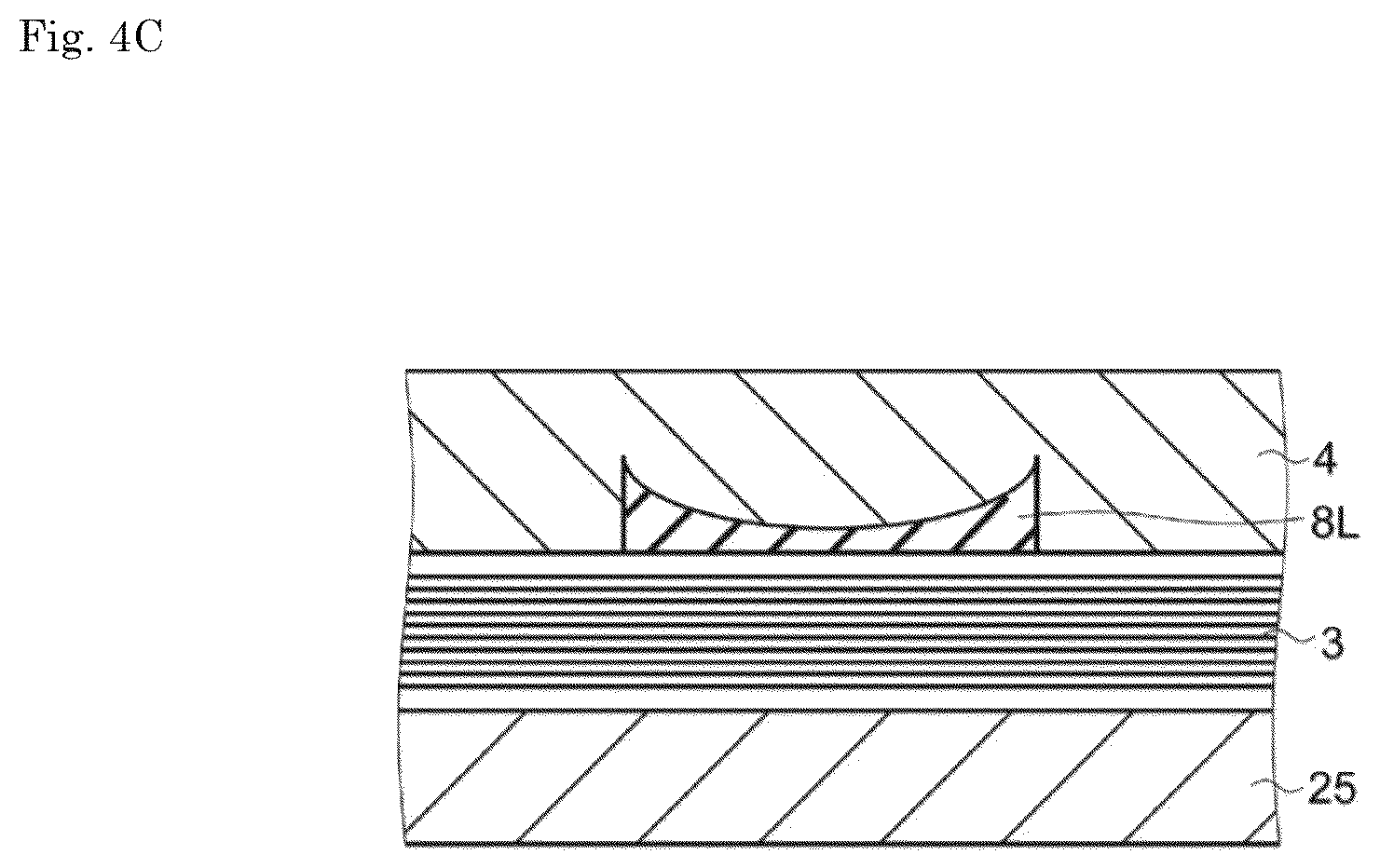

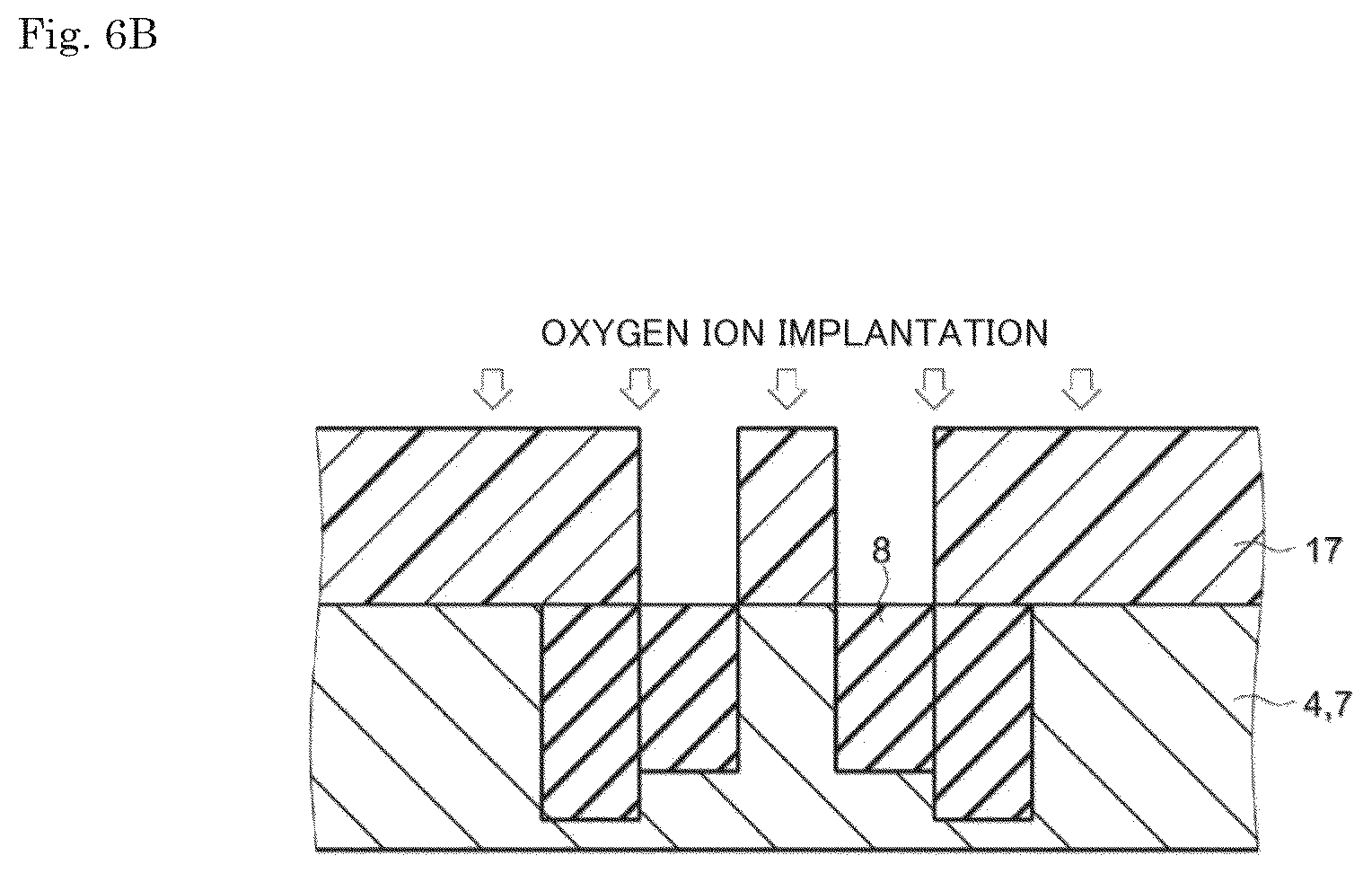

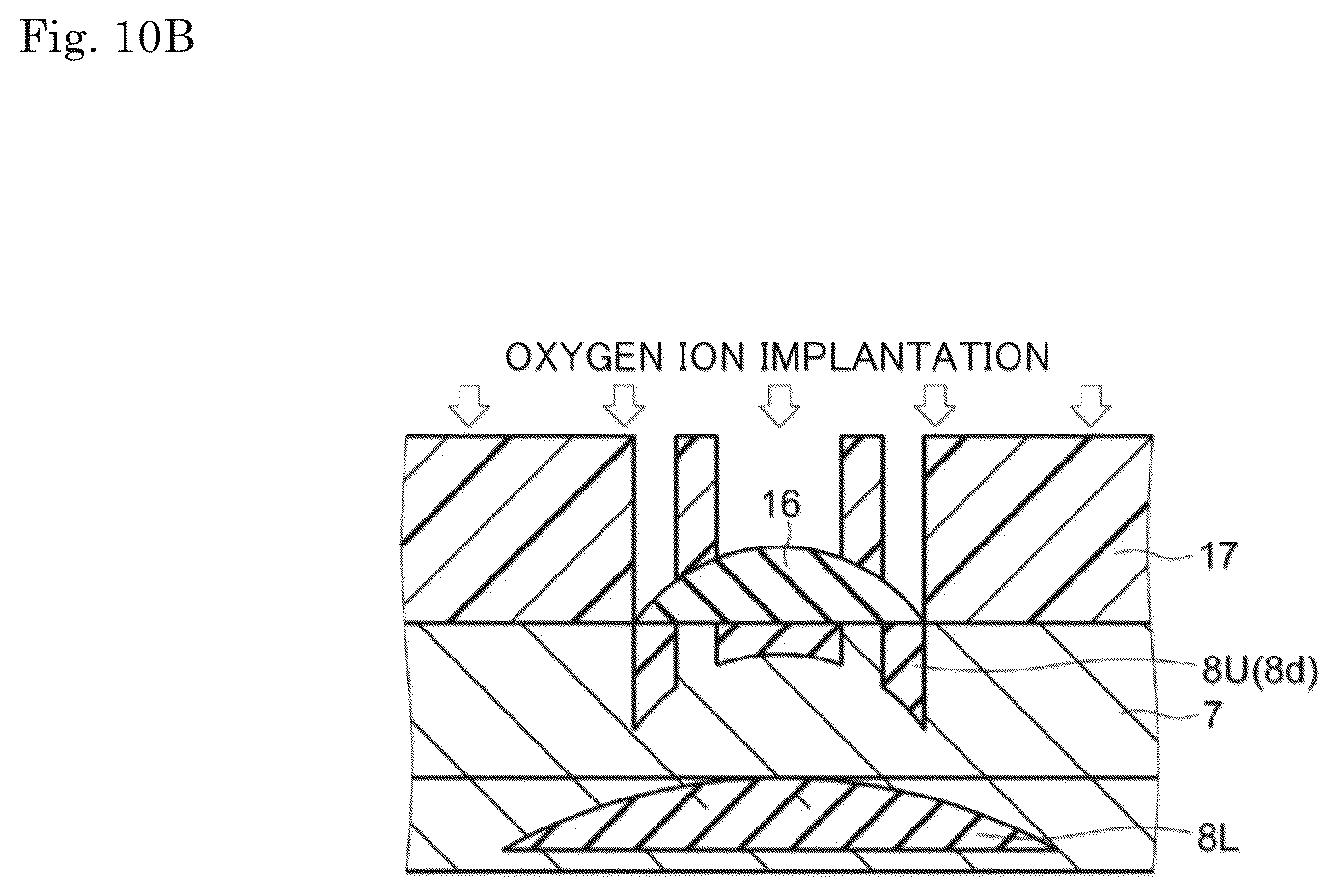

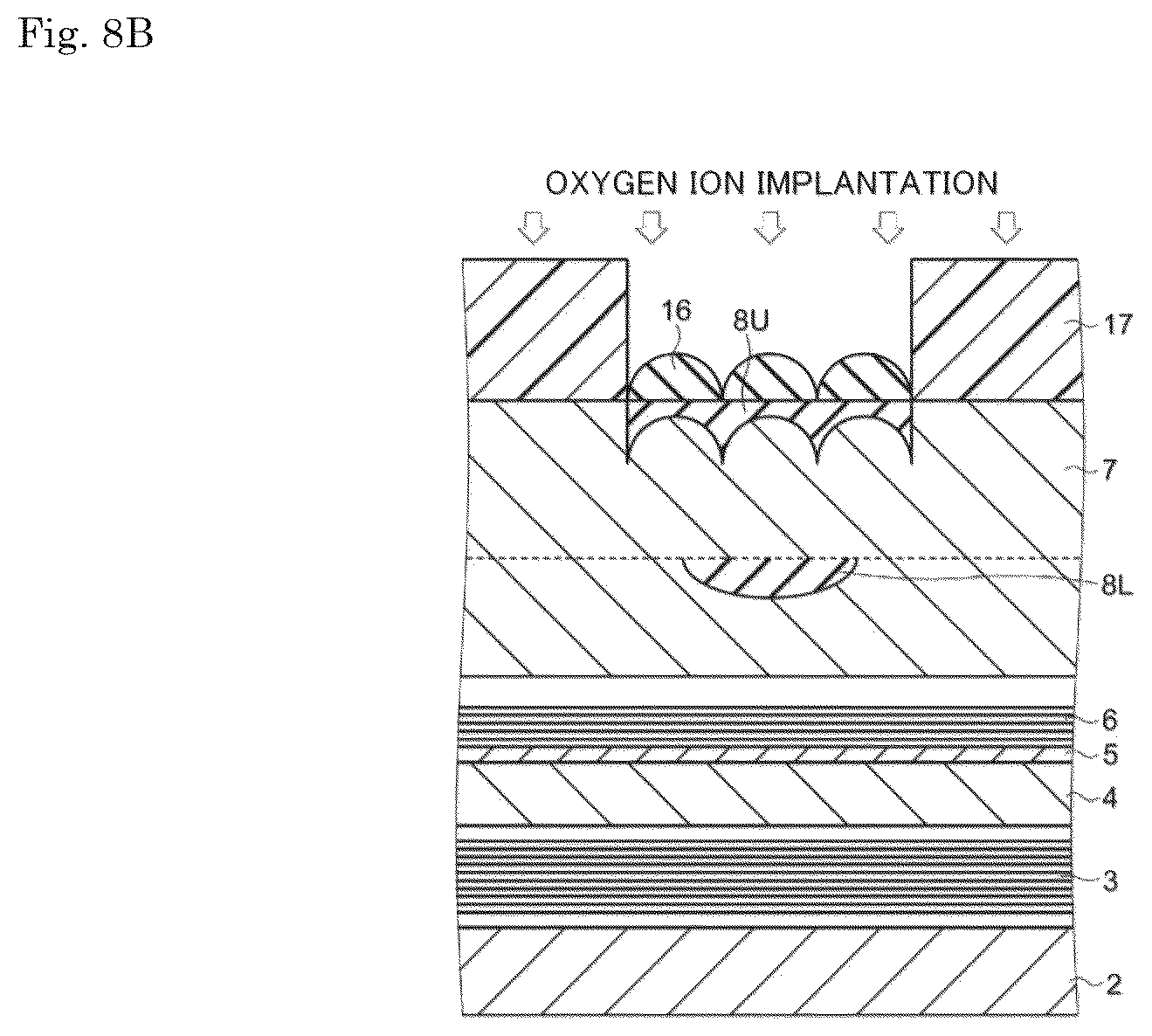

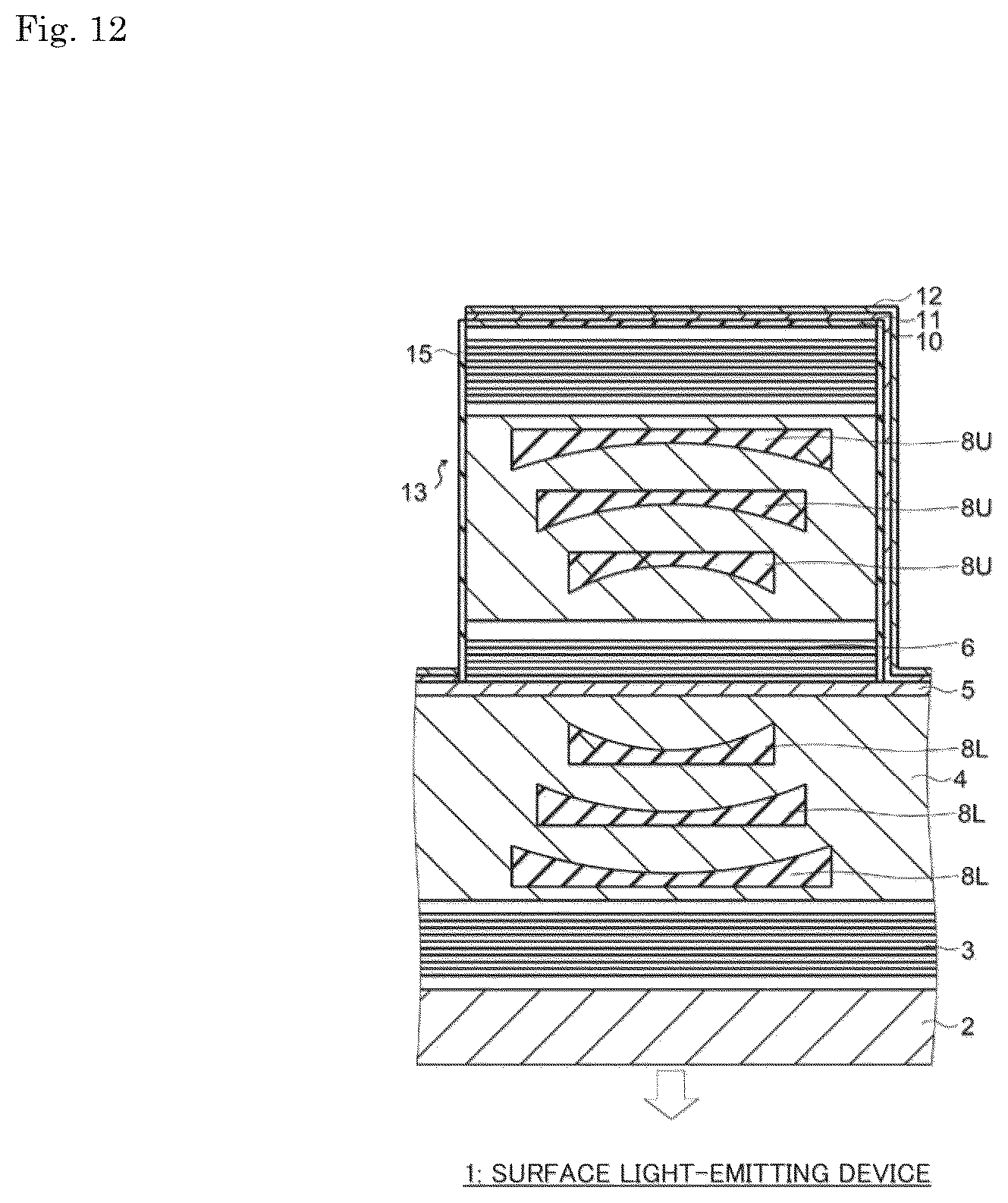

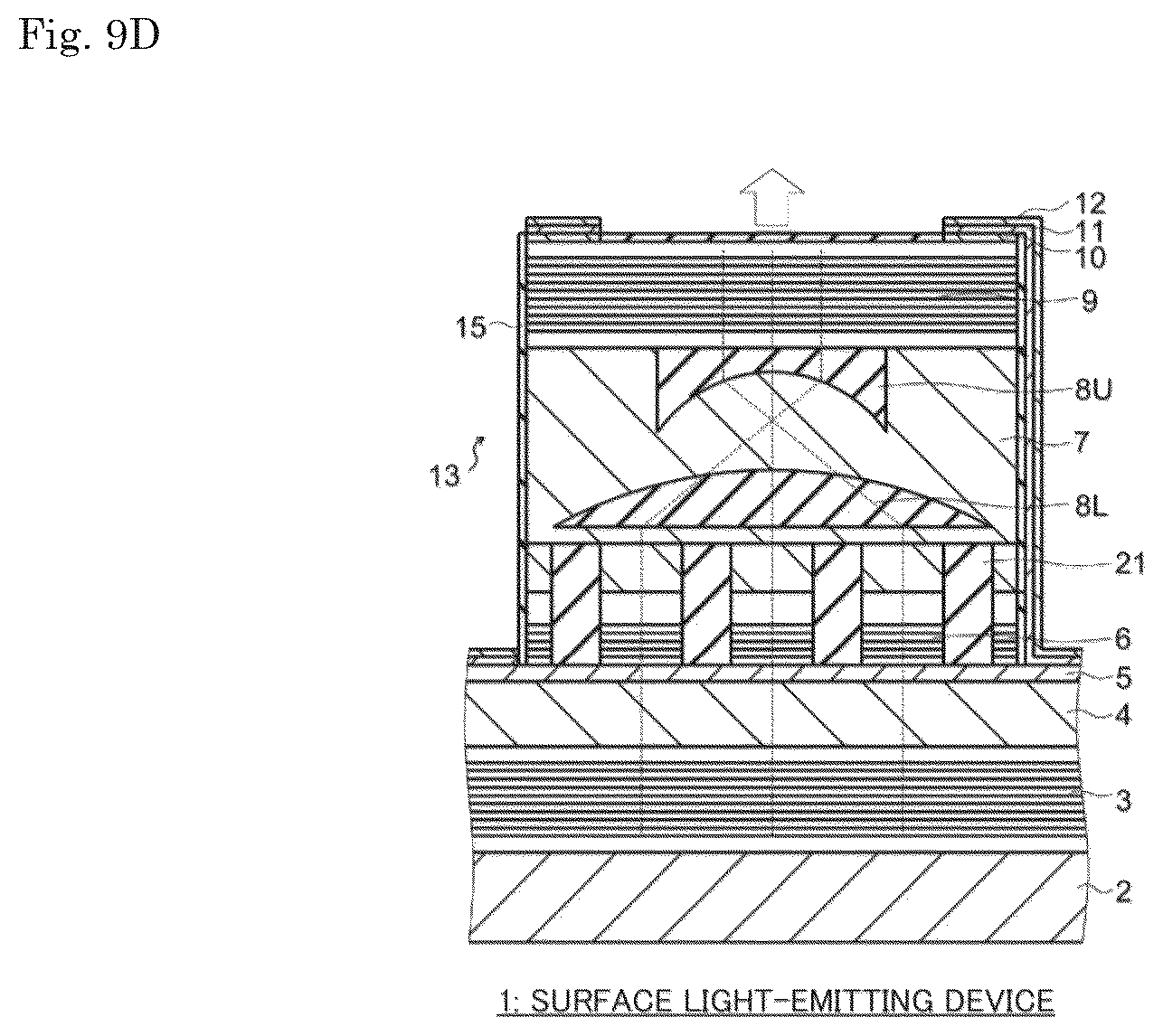

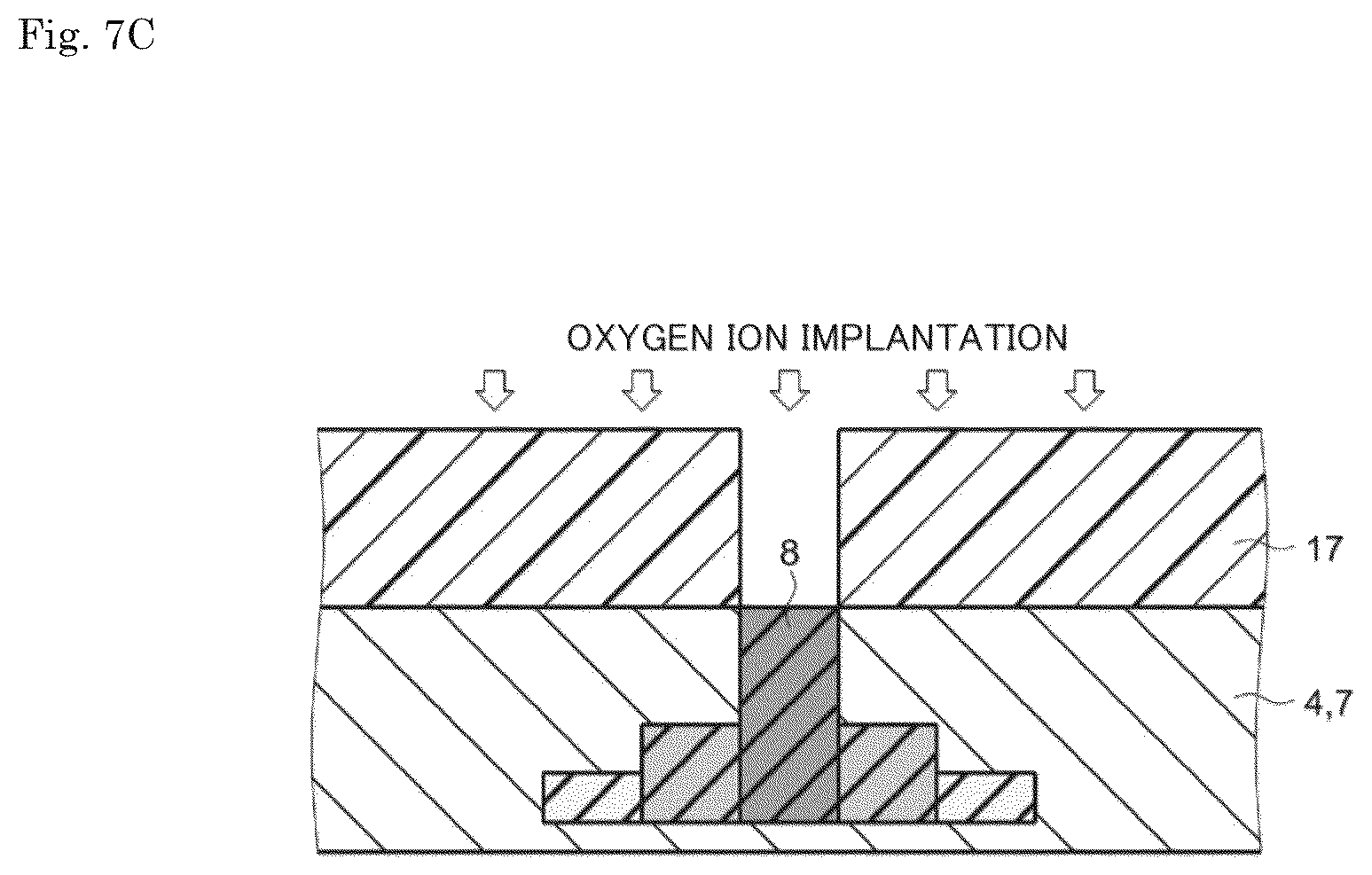

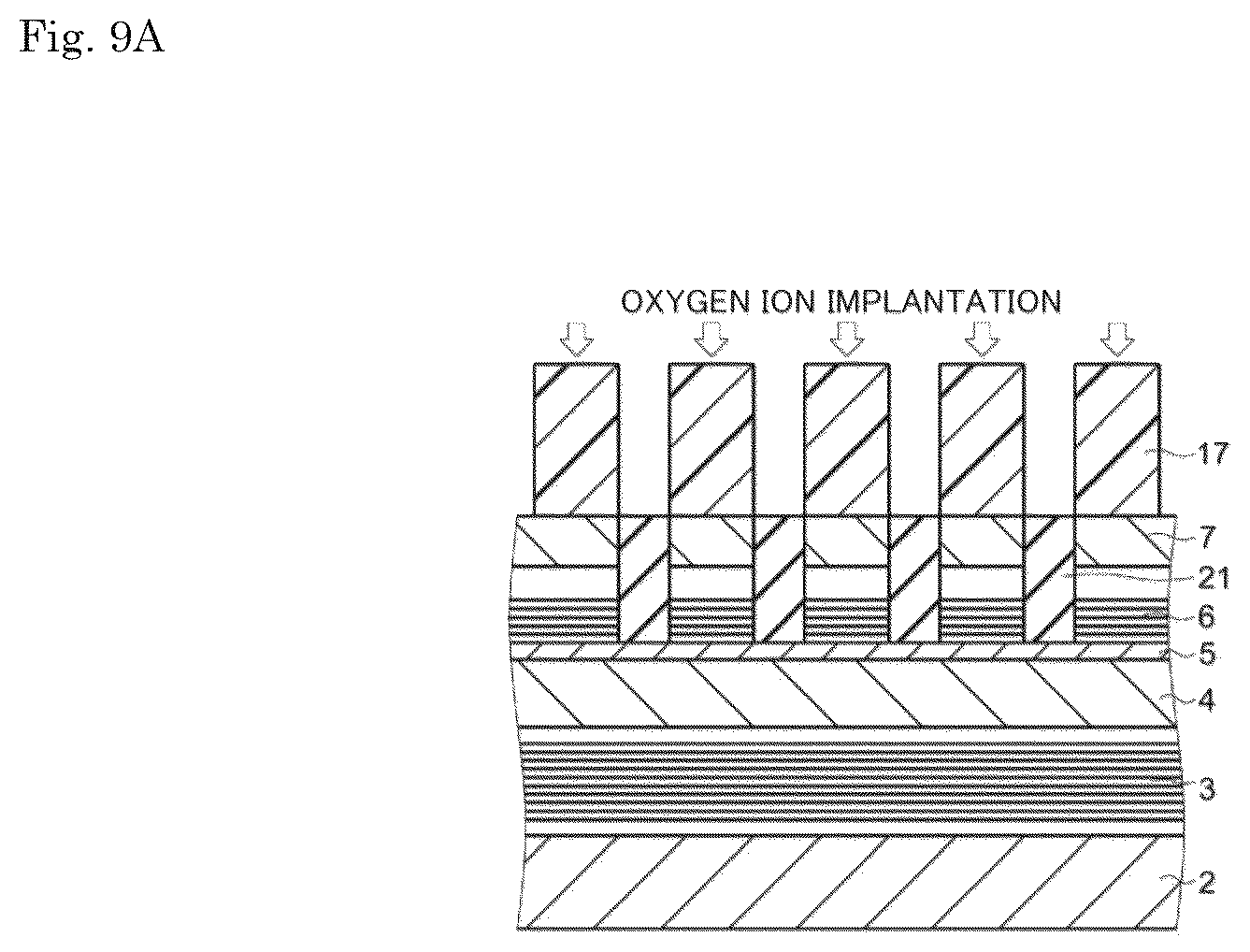

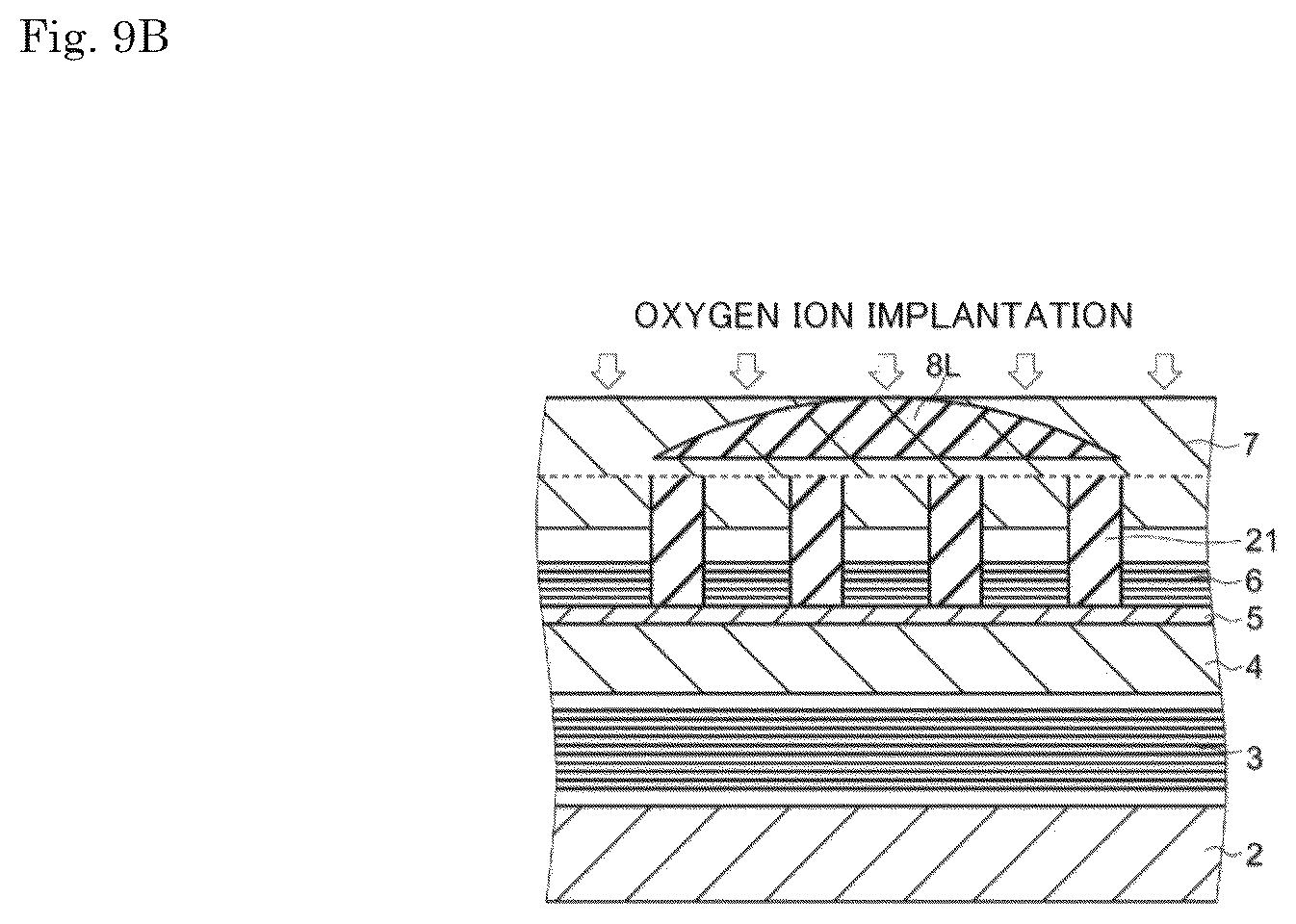

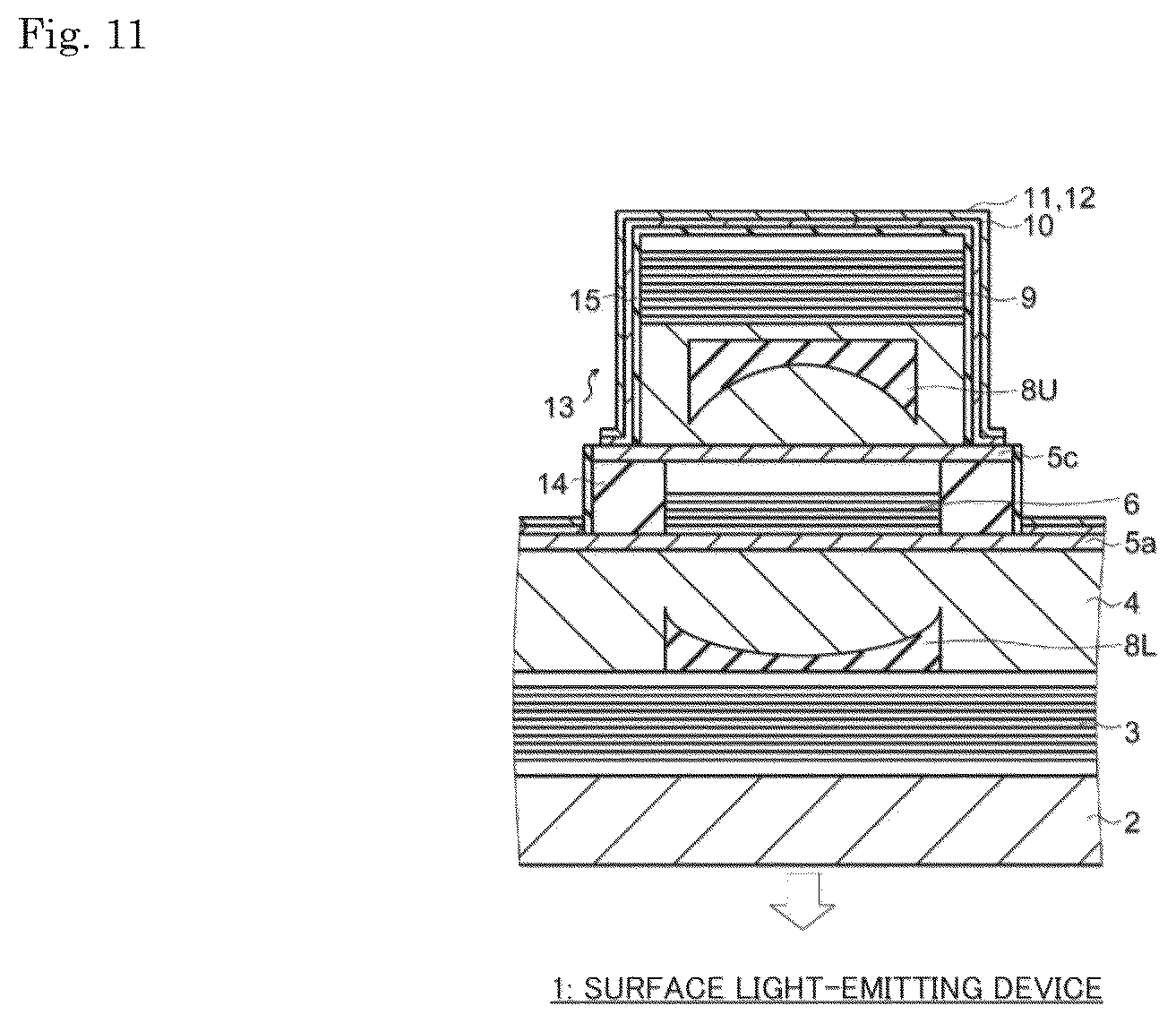

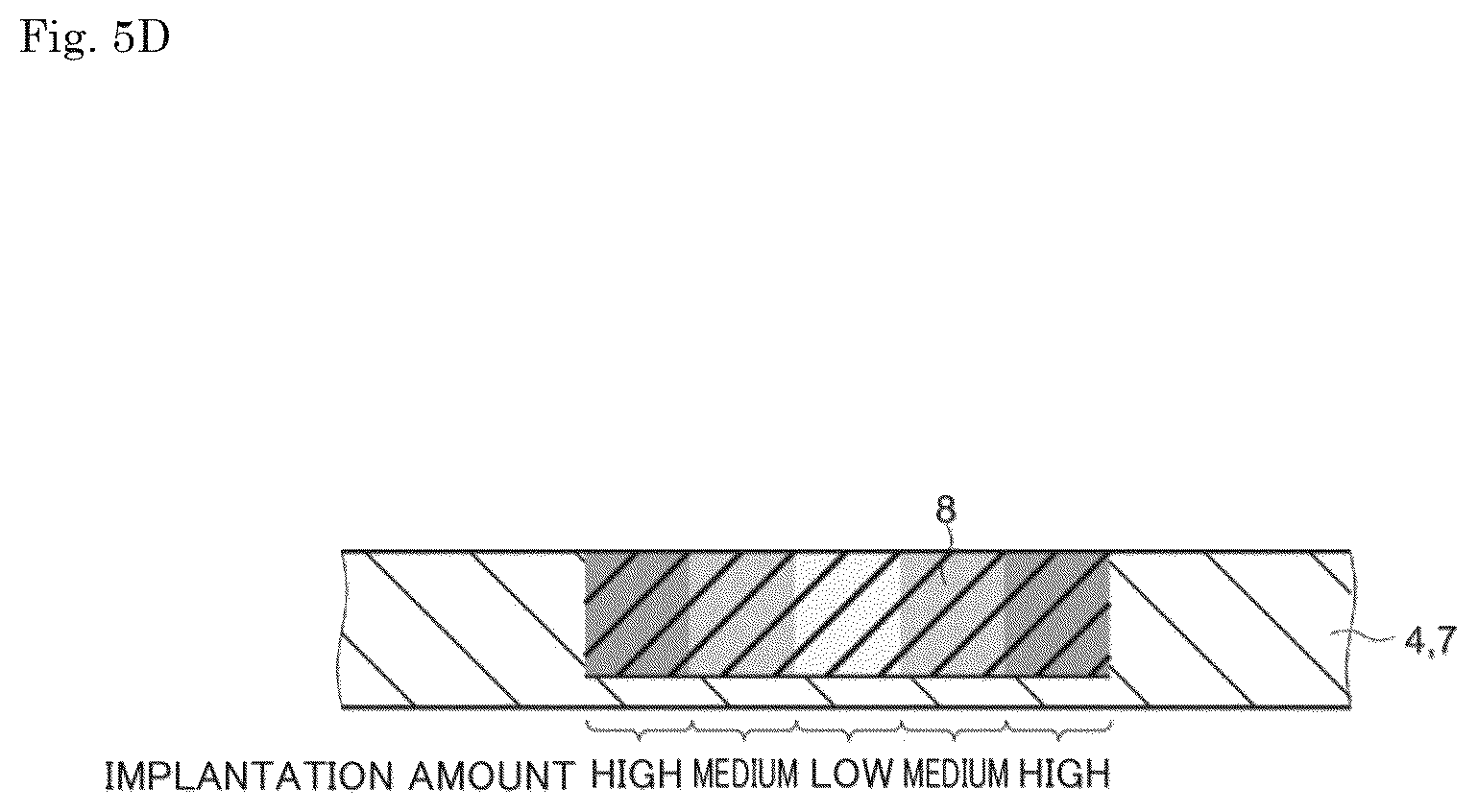

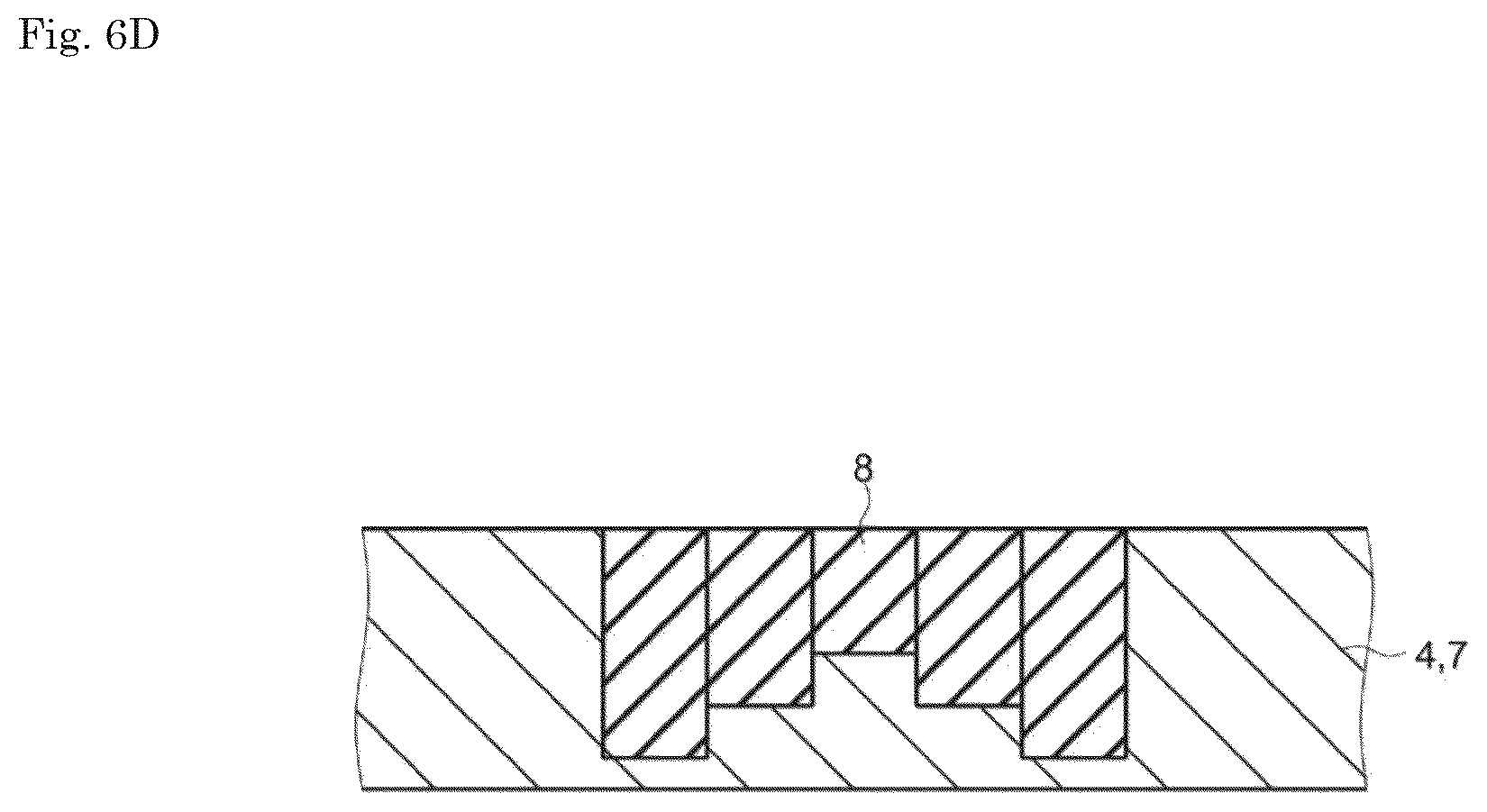

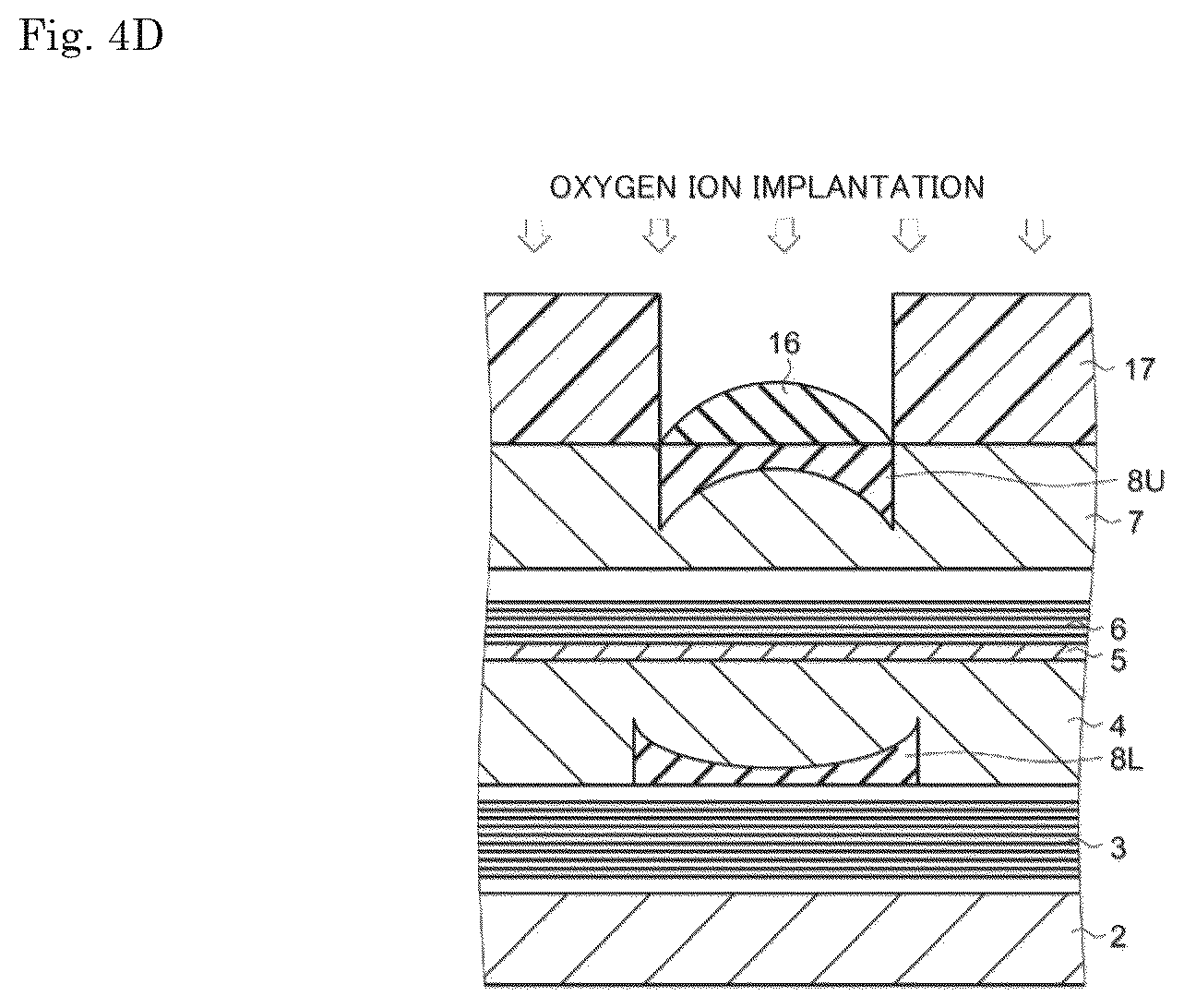

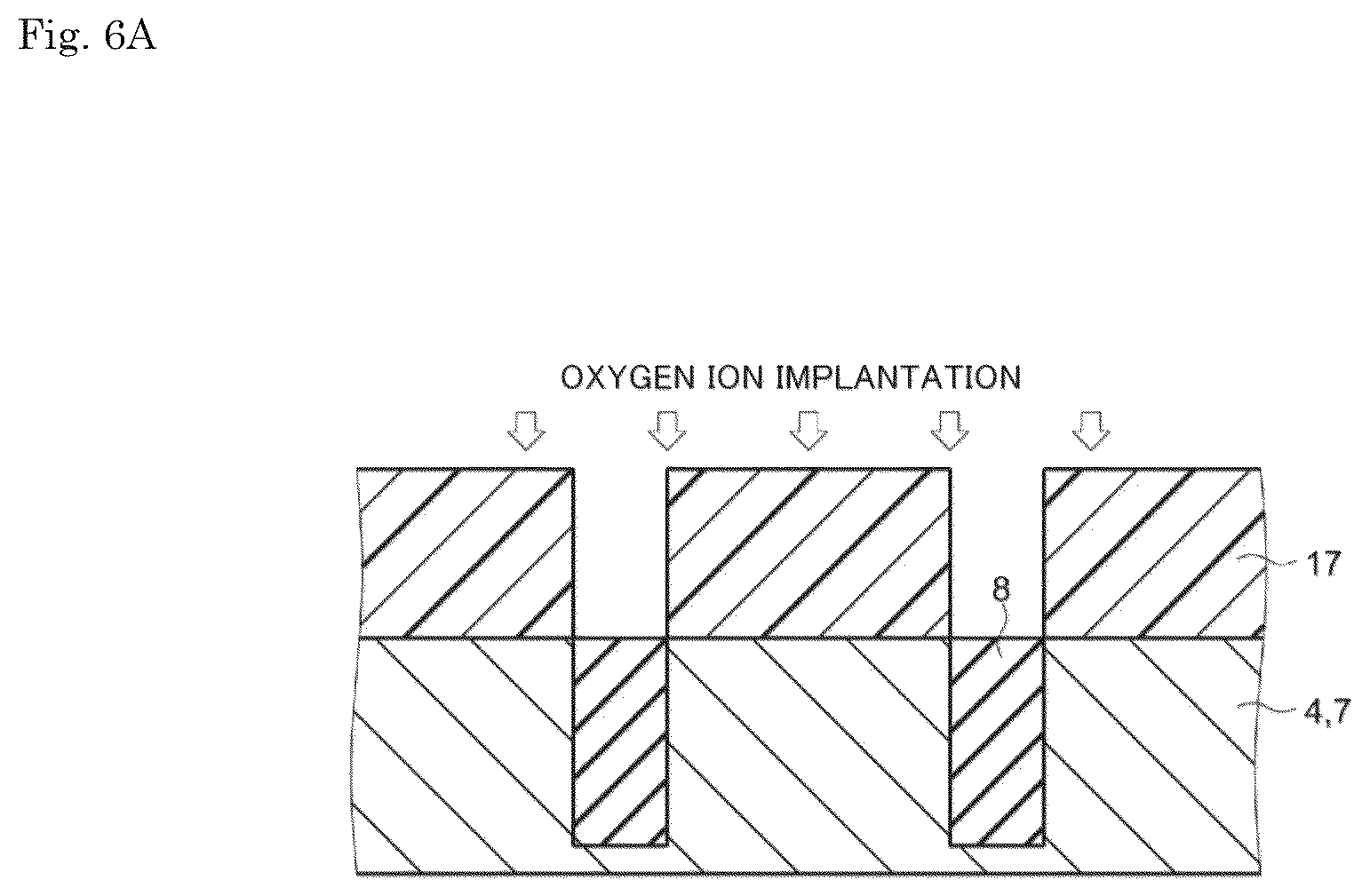

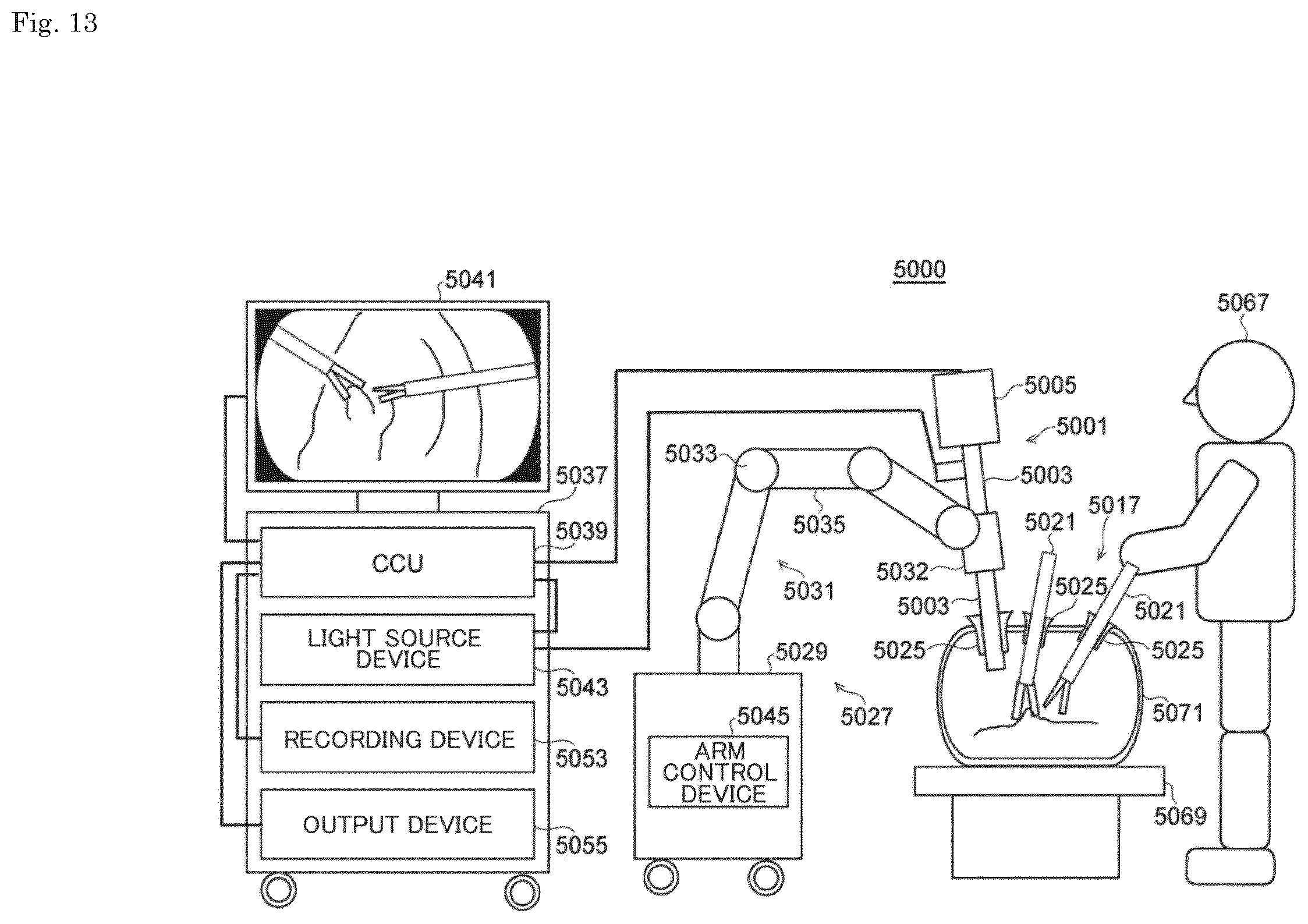

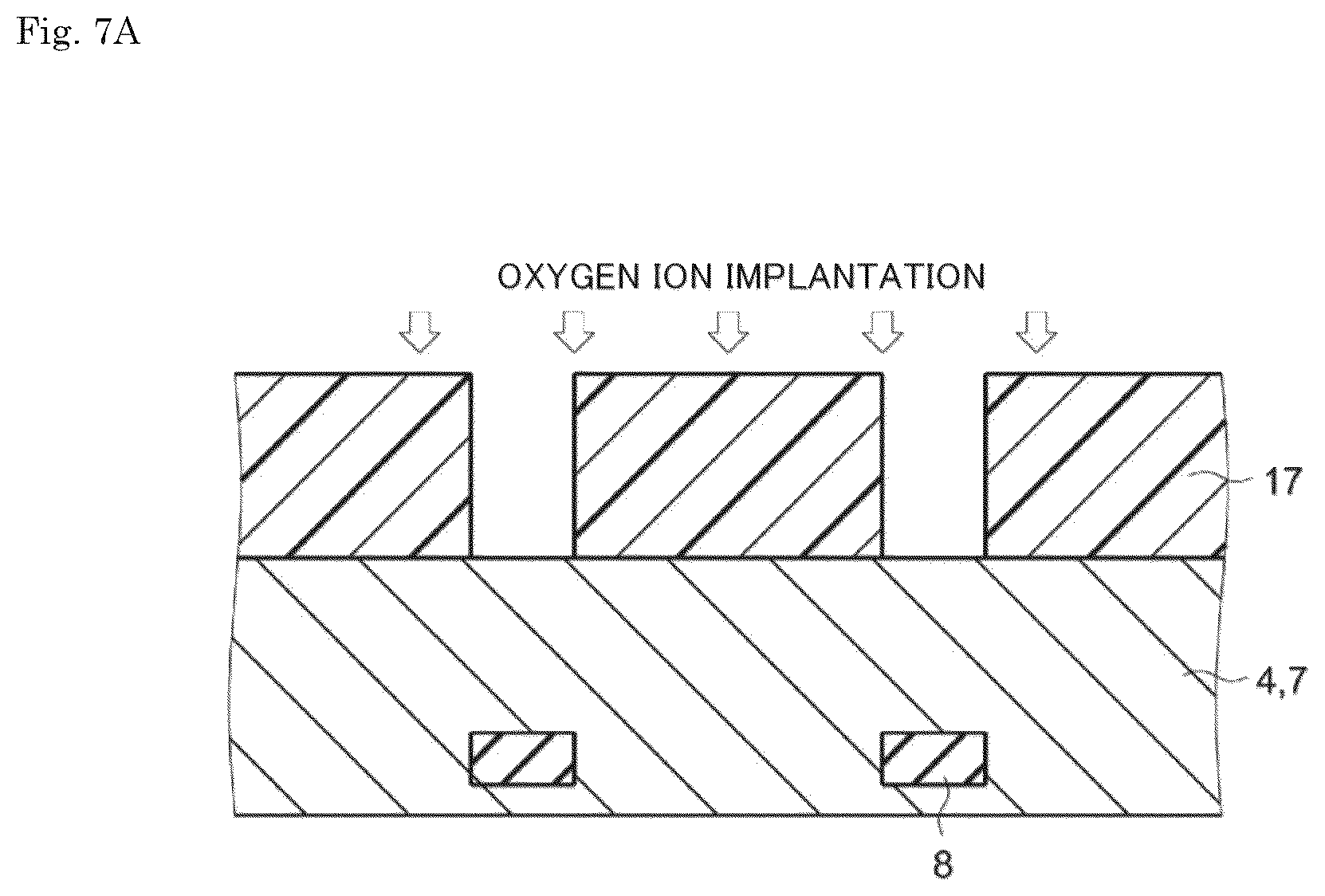

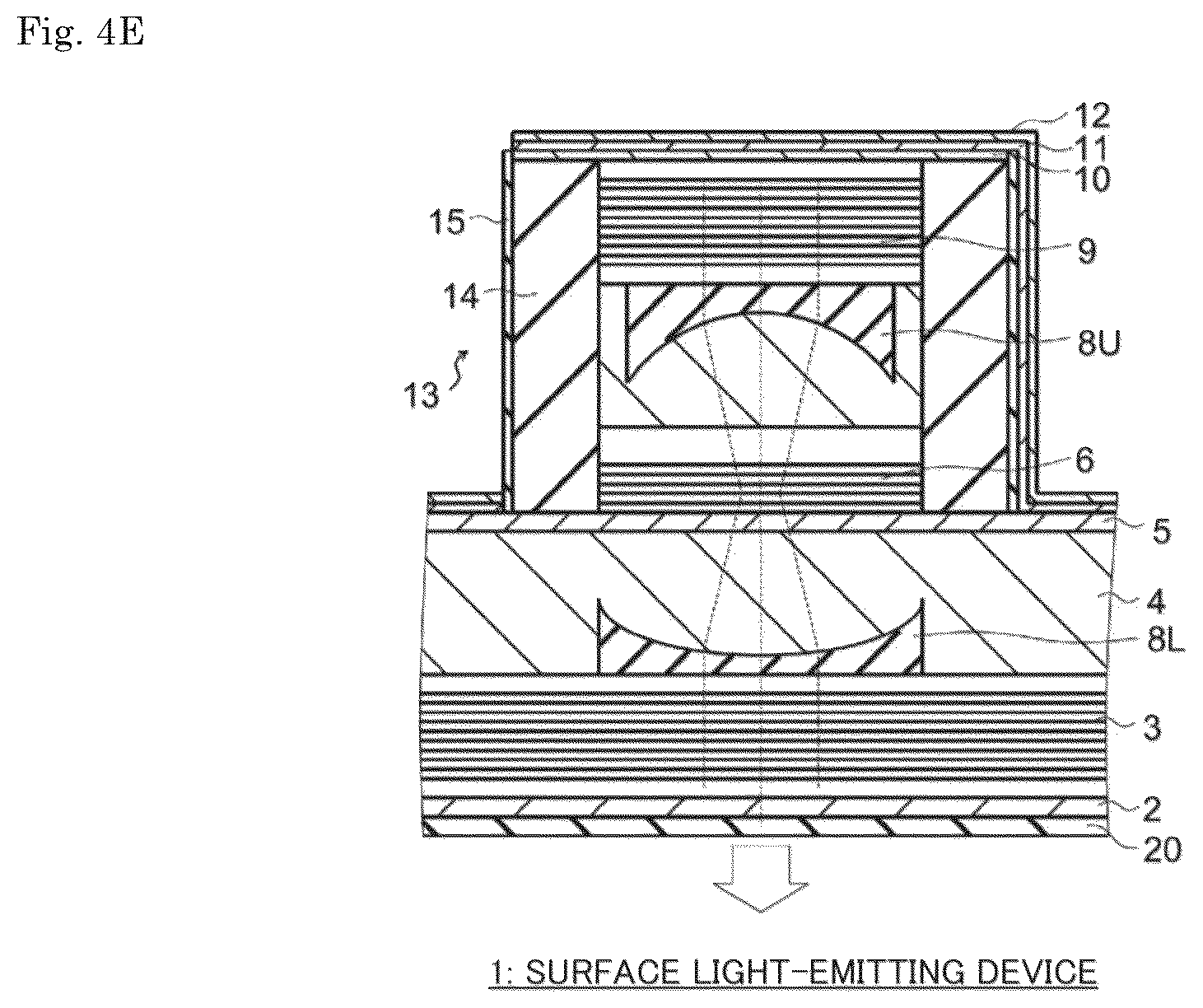

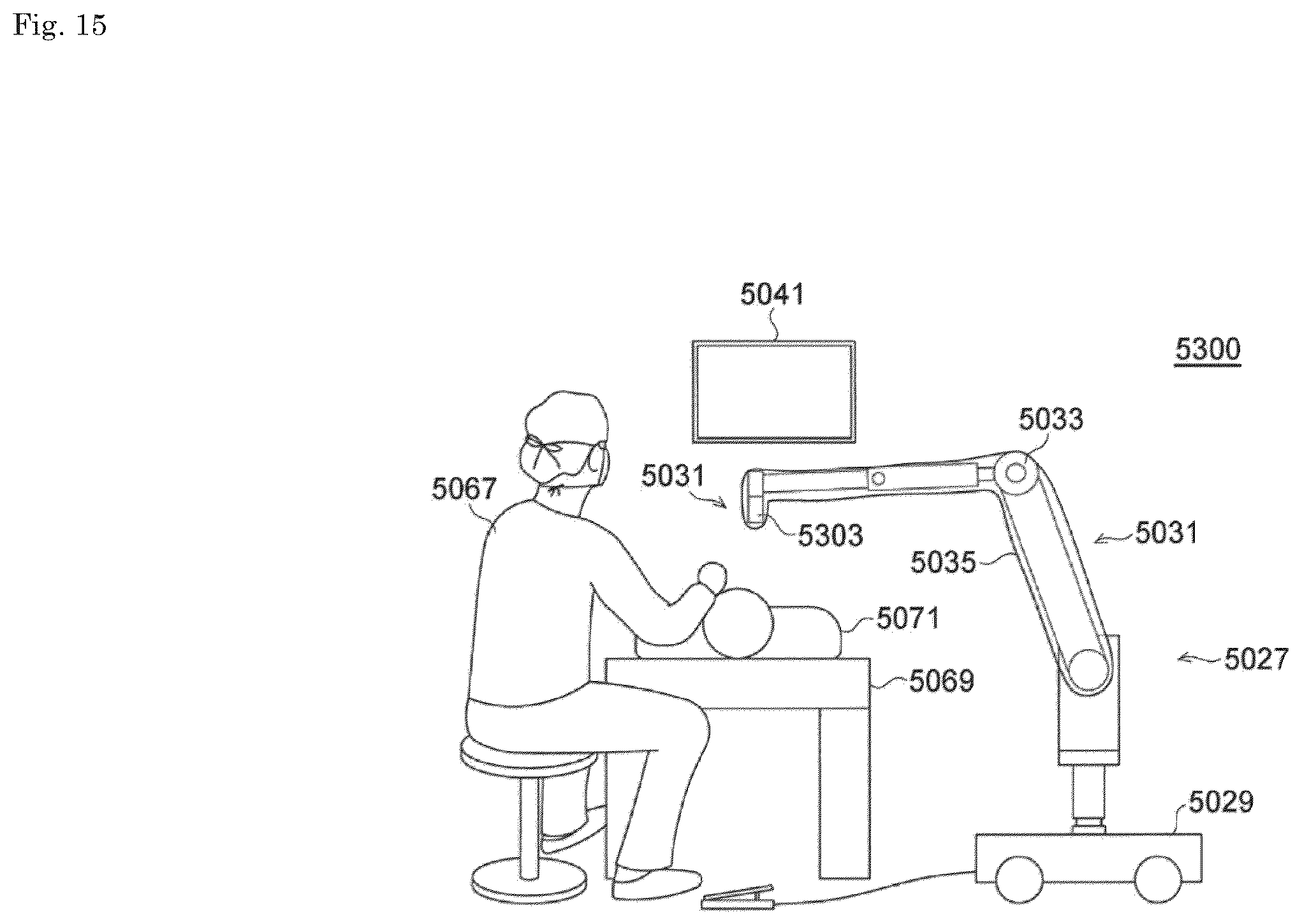

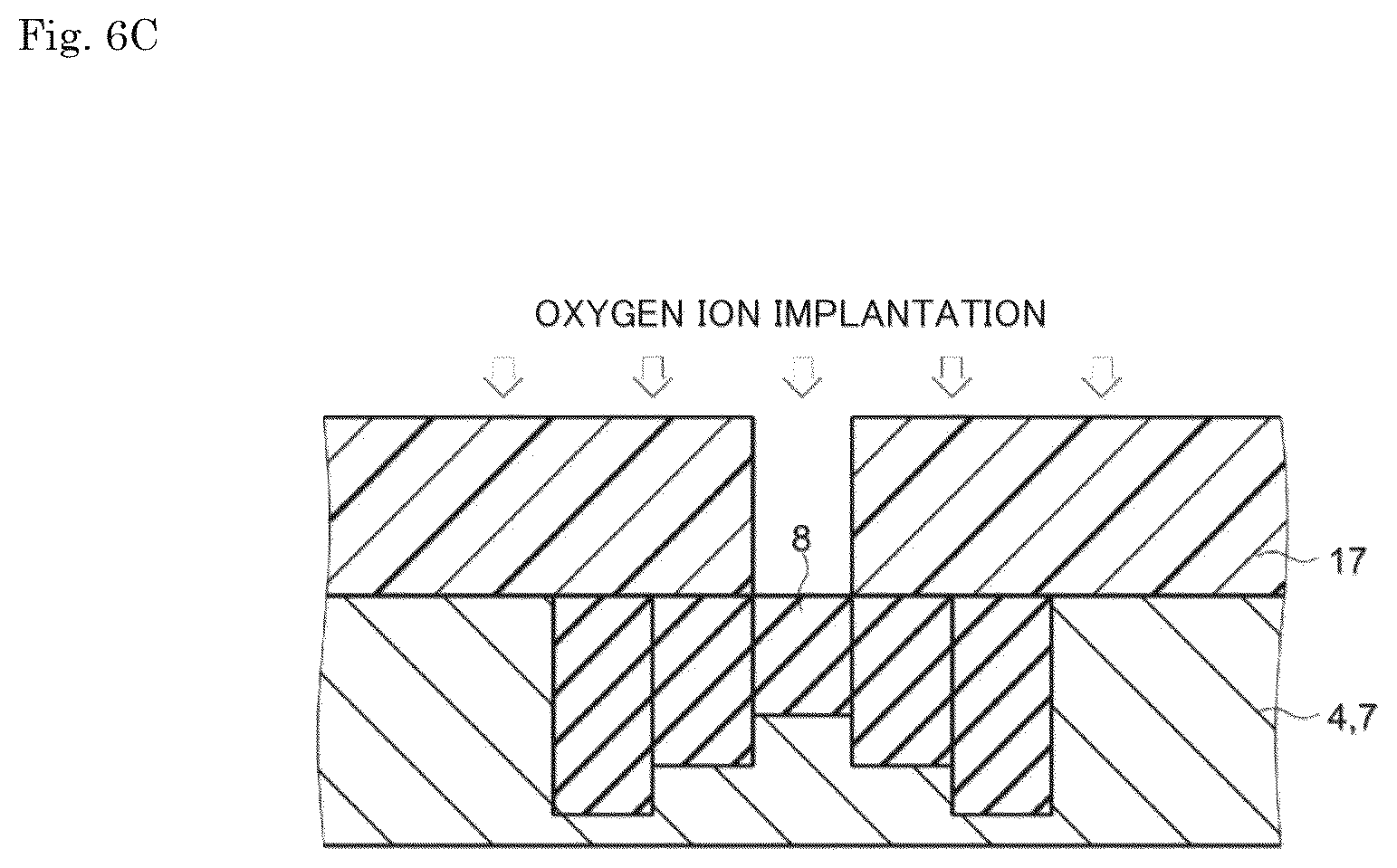

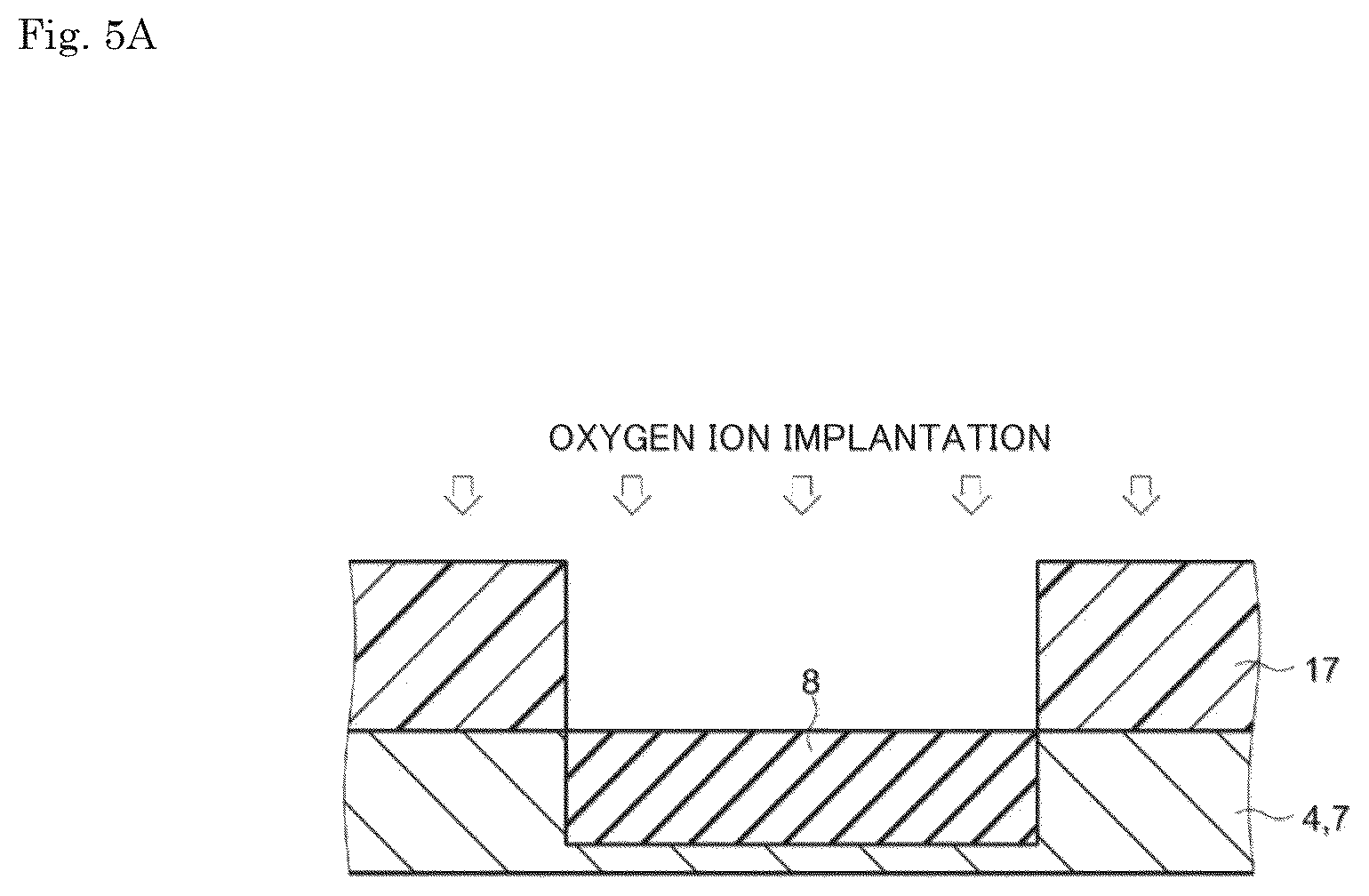

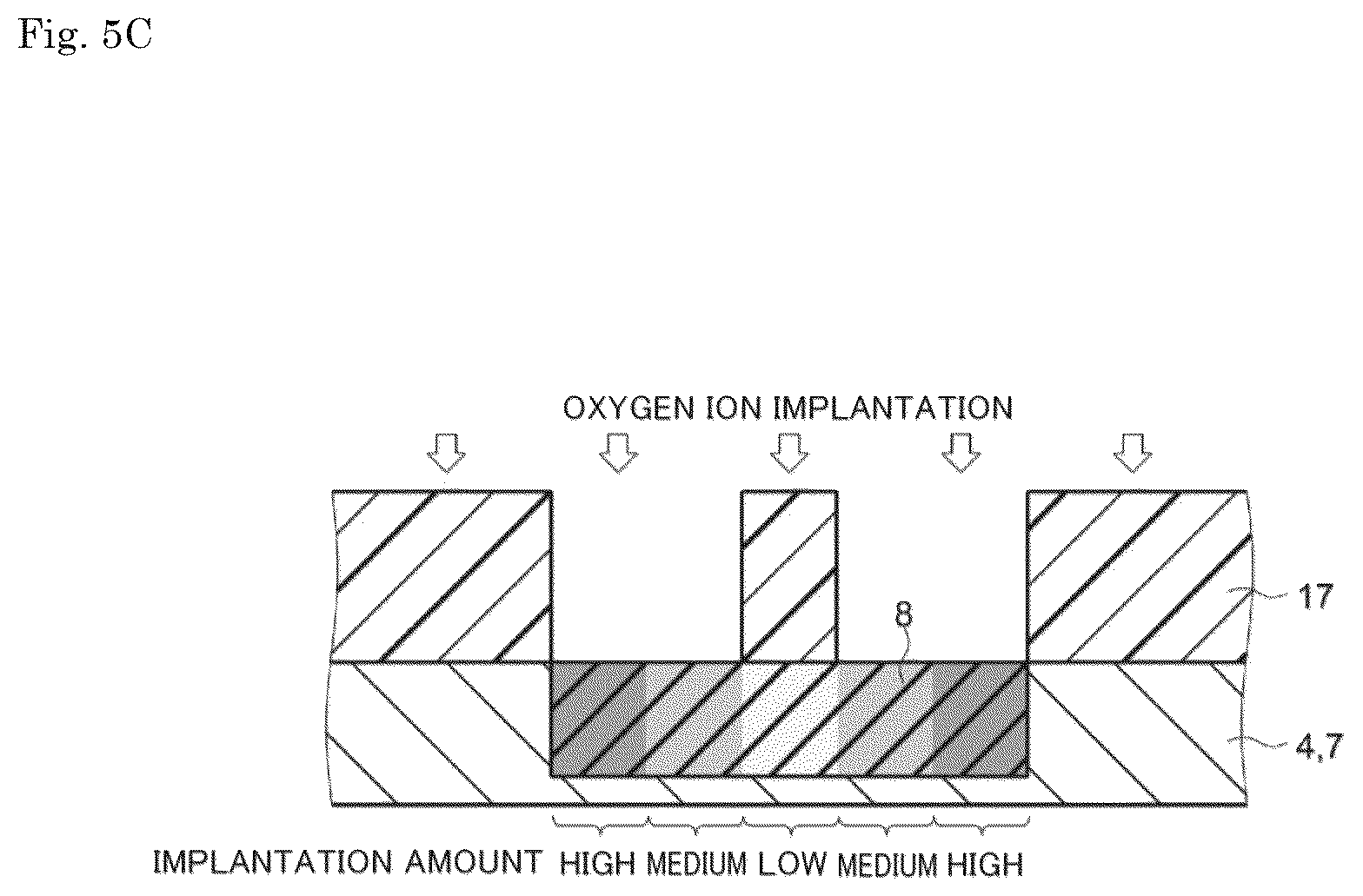

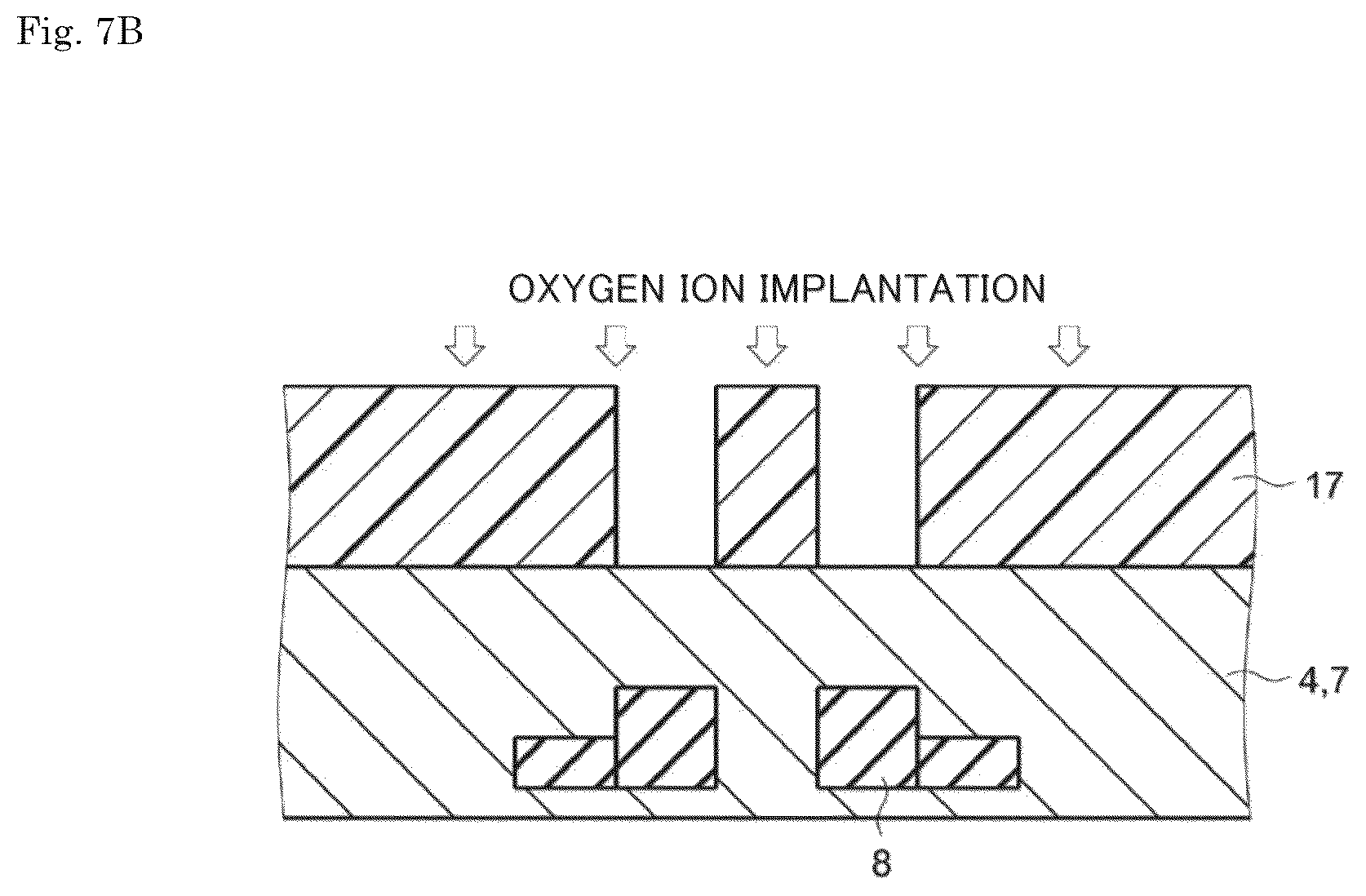

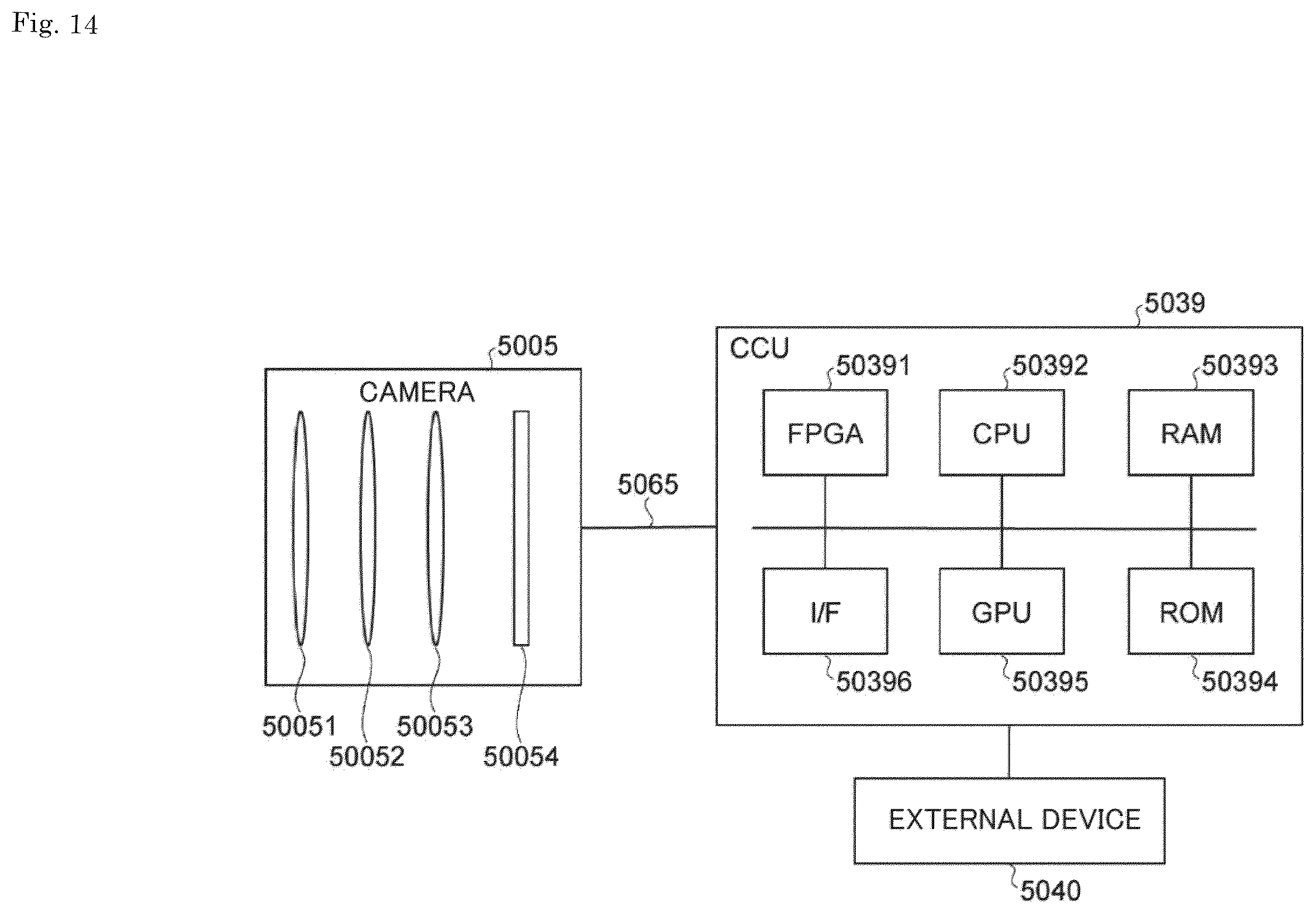

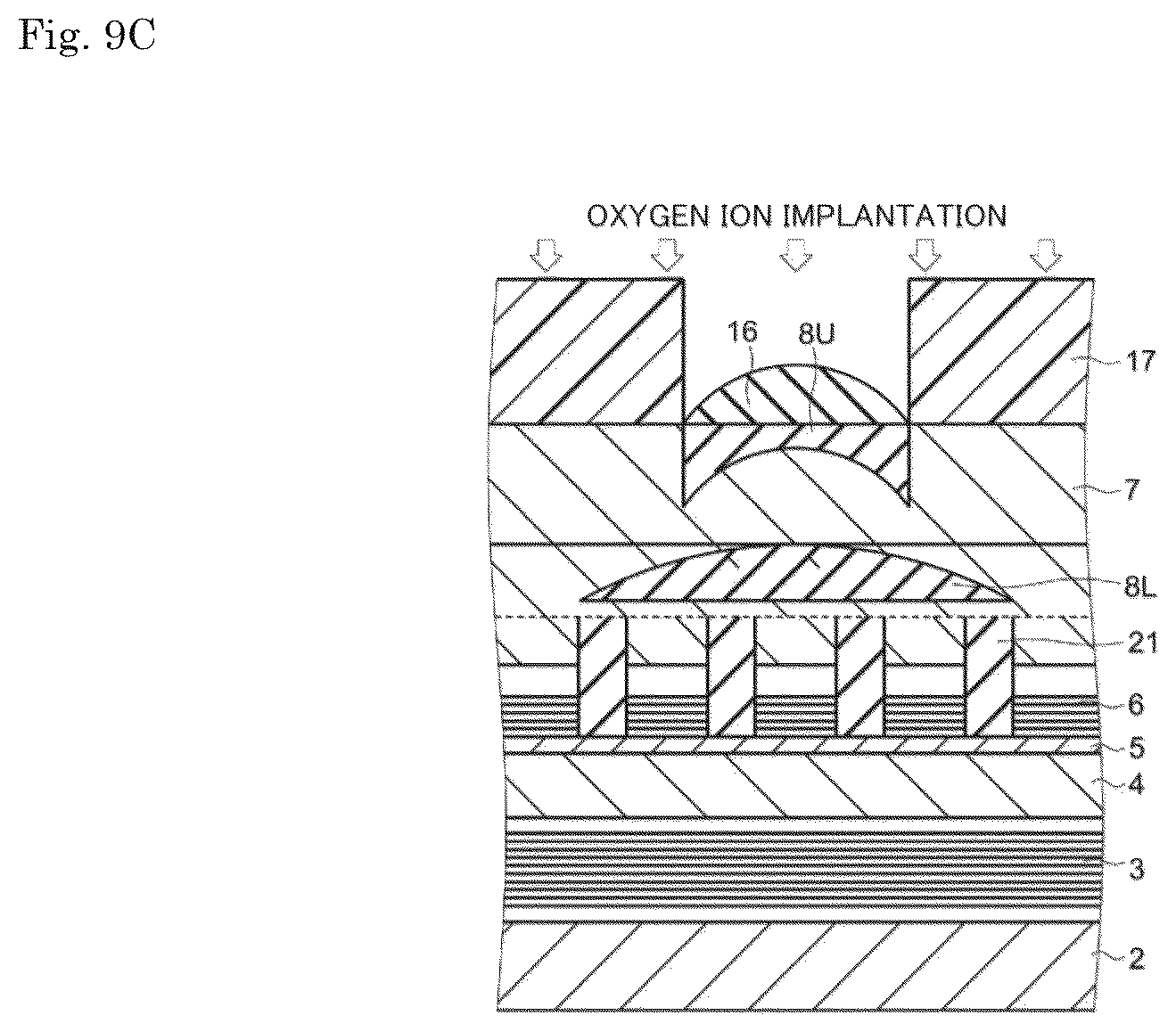

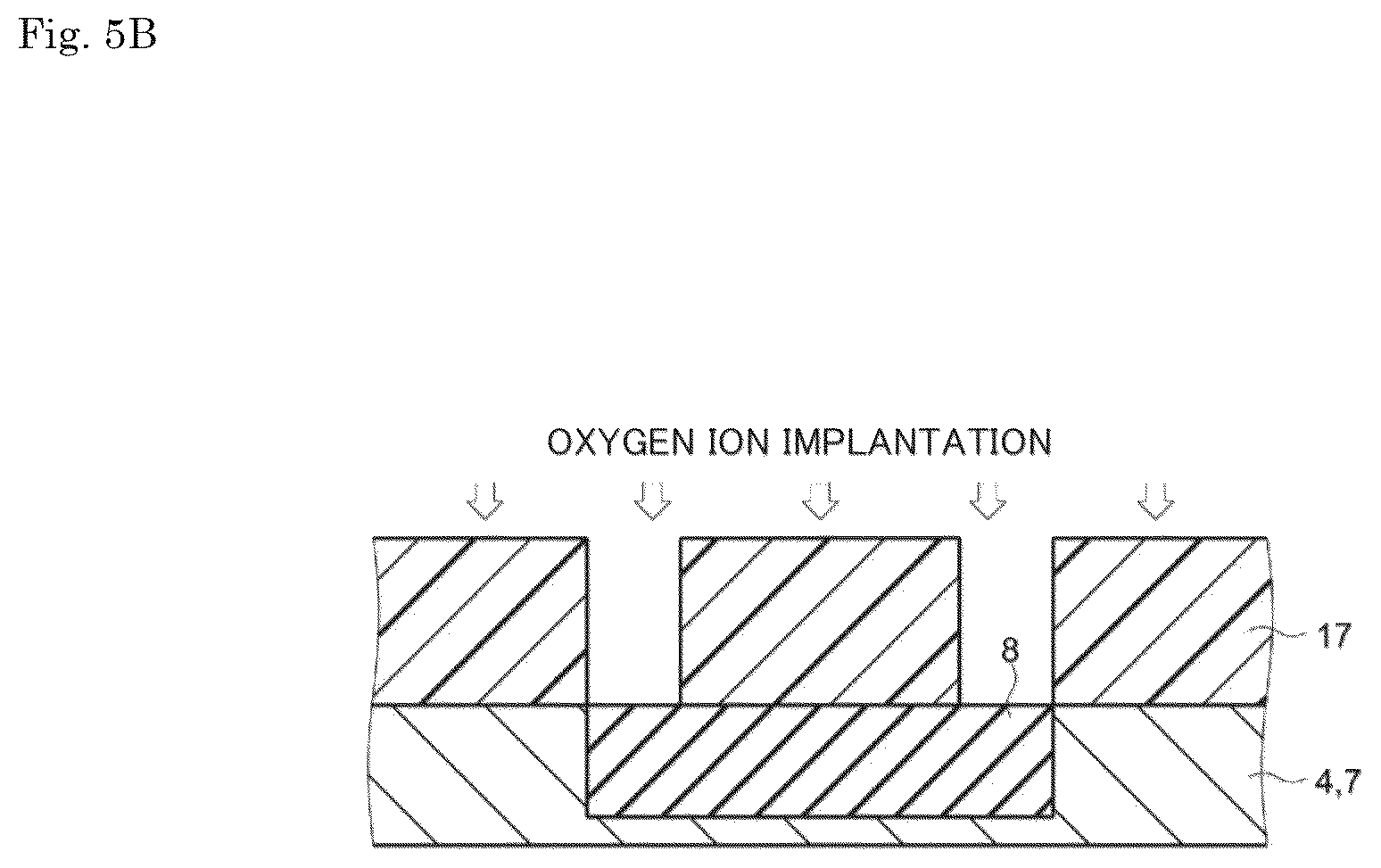

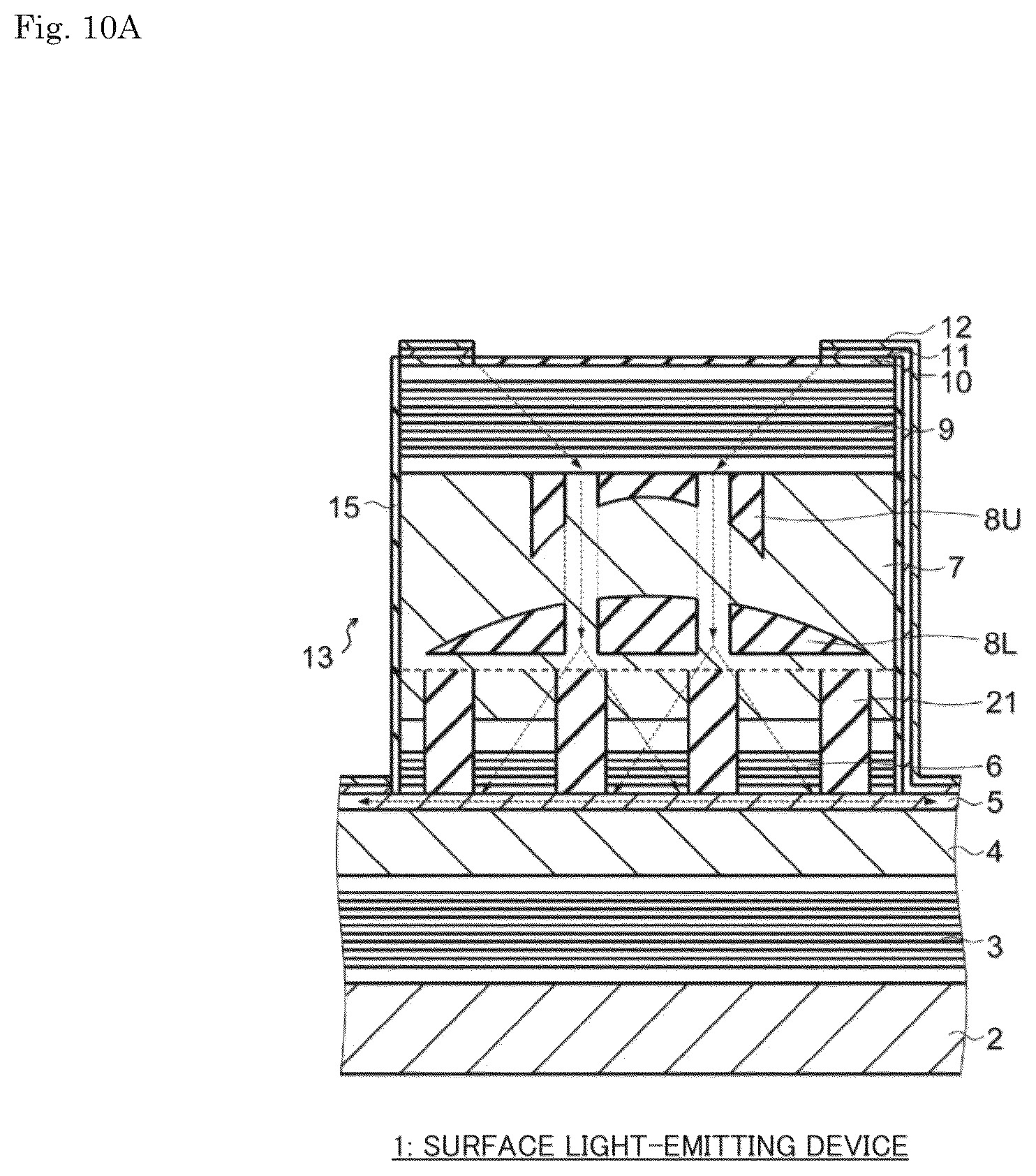

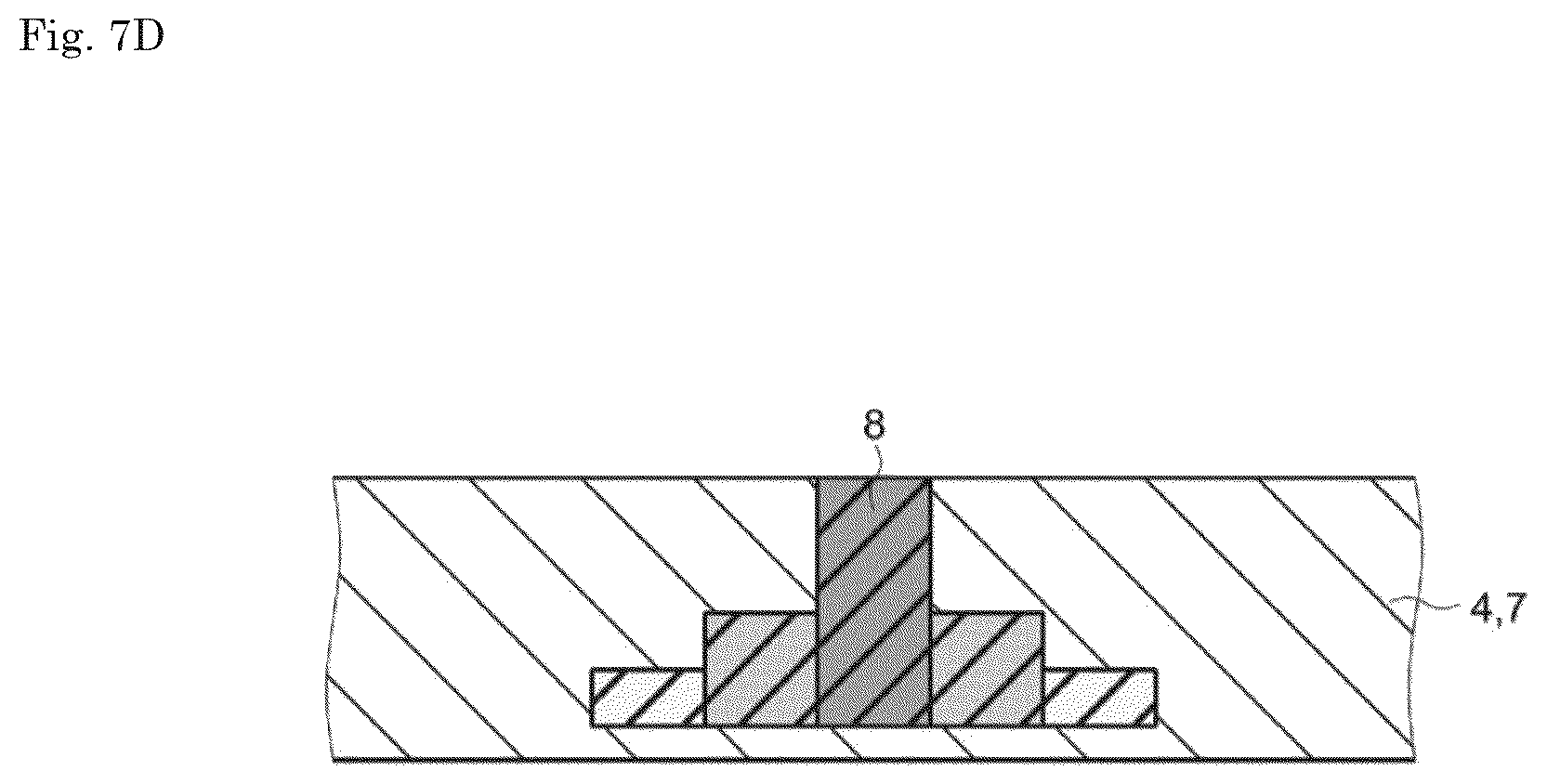

37 drawing sheets from US 2026/0269572 A1 · click any drawing to enlarge
