Intel Patents a Chip Design That Cuts Wasted Space in AI Hardware
AI chips burn an enormous amount of silicon doing the same multiplication math billions of times a second. Intel's new patent describes three separate techniques for making that math hardware smaller without slowing it down.
What Intel's chip-area problem actually means for AI hardware
A factory stamping out the same part ten thousand times an hour still wastes material if the machine is bigger than it needs to be. That same logic applies to AI chips, and it's a problem you feel indirectly every time a company says running AI costs too much.
Every AI model that recognizes your face, filters your spam, or generates an image is doing enormous amounts of multiplication inside the chip. Those multipliers take up physical space on silicon, and space costs money. Intel's patent describes ways to make those multipliers smaller or to share one multiplier across multiple jobs so you don't need as many copies.
The practical goal is a chip that does the same AI work in less silicon area, which usually also means less power and less heat. That matters whether the chip ends up in a server rack or eventually in a smaller device.
… circuitry for a convolutional layer uses a reduced number of convolutional block circuits that are reused across a plurality of clock cycles to apply different subsets of weight channels.
Translation: Intel saves chip space by reusing the same math units over multiple clock cycles instead of building separate circuits for everything.
How Intel's three circuit tricks shrink the math hardware
The patent covers three distinct circuit-level techniques for shrinking the hardware that handles the multiplication math inside a convolutional neural network layer (the part of an AI model that scans images or audio for patterns).
- Deferred two's complement arithmetic: Computers represent negative numbers using a format called two's complement, which normally requires extra circuitry at every individual multiplier. This approach strips that circuitry out of each multiplier and handles the negative-number conversion later, once all the individual results are being added together (the accumulation step). Fewer parts per multiplier means less total silicon.
- Range-relative encoding: Instead of treating each multiplication value as a standalone number, the circuit first locks onto the maximum possible value in the allowed range, then applies only the difference from that maximum. This lets the hardware avoid redundant full-range arithmetic at each step.
- Block reuse across clock cycles: After an earlier stage of the network has already compressed the data (dimensional reduction), the number of physical multiplier circuits can be reduced. The same circuits are then reused in multiple back-to-back clock cycles, each time processing a different slice of the weight data. Fewer circuits doing more shifts replaces many circuits each doing one shift.
All three techniques target the same root problem: the multiplier circuits in AI hardware are duplicated many times over, and each copy adds area, power draw, and heat.
What smaller AI chips mean for data centers and devices
Data center AI hardware is expensive partly because chips are large. Smaller circuits mean more chips per wafer, lower manufacturing cost, and lower power bills at scale. Intel's sustained push into AI accelerator silicon means techniques like these feed directly into competitive product roadmaps where every square millimeter of silicon has a dollar value attached.
For end users, the benefit is indirect but real. Chips that do the same work in less area can be made cheaper, run cooler, or be fitted into smaller devices. If these techniques make it into production silicon, the cost pressure on AI inference hardware drops, which is one of the factors that determines how affordable AI-powered products become.
Intel's 34th filing we've tracked in our AI chip wars watchlist since May follows one on cutting memory waste in image recognition and one on chips running four tasks at once.
Claims 1 through 20 are listed as canceled, which means no surviving claim text exists to analyze at this stage of the patent process. Without an active claim, there is nothing yet to block, license, or argue over in court.
The specification describes three circuit-level tricks for making the math inside a chip's neural network hardware faster and smaller. Each trick targets a specific step in how numbers get multiplied and added together during image or signal processing, which is the computational heart of most AI chips.
Whether this filing ultimately matters depends entirely on what replacement claims Intel submits. A broad replacement claim covering the general idea of deferring arithmetic corrections until a later accumulation step could give Intel real leverage. A narrow one limited to a specific circuit arrangement would protect only that exact design.
There are more where this came from
We read every patent application Big Tech publishes and send you the ones worth knowing. Plain English, free, every week.
The drawings

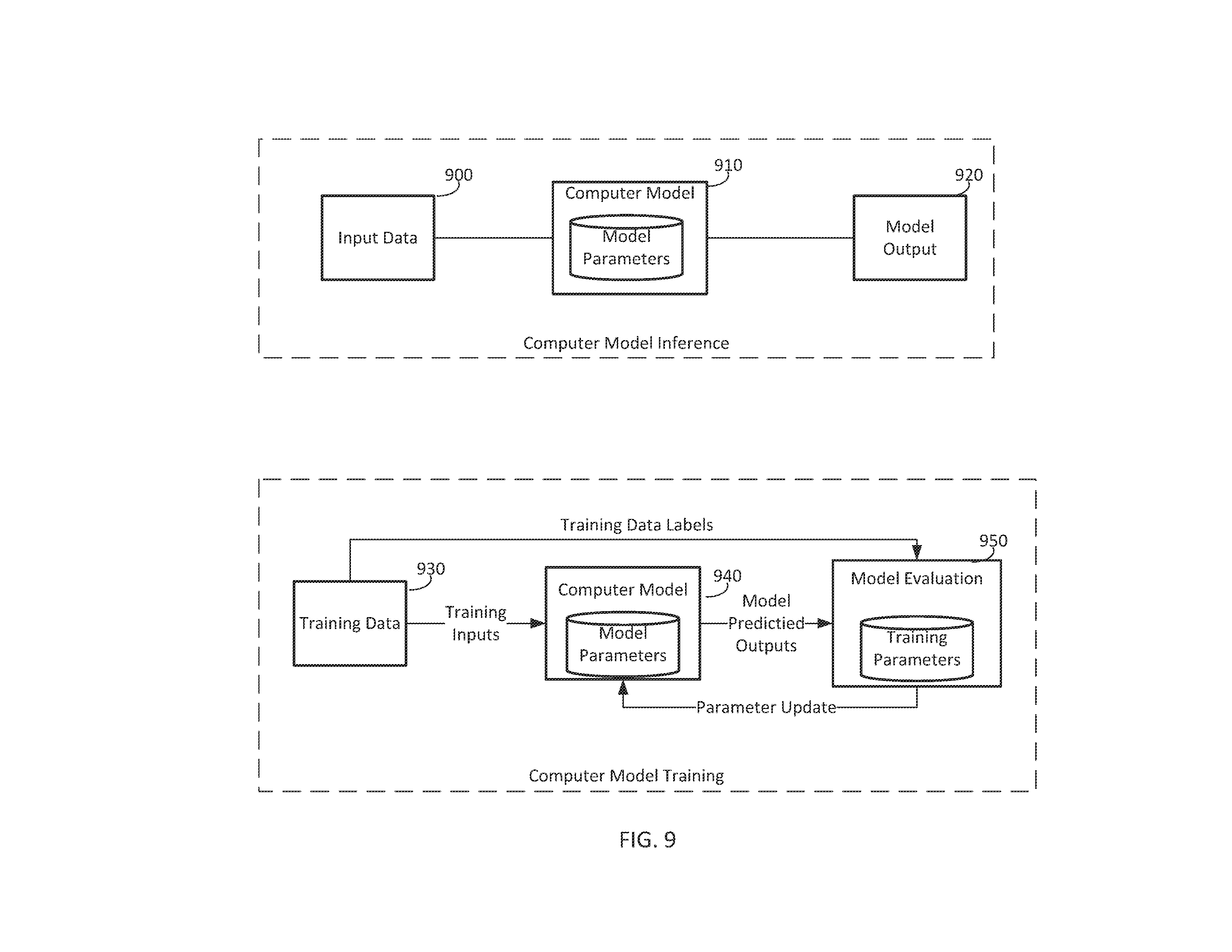

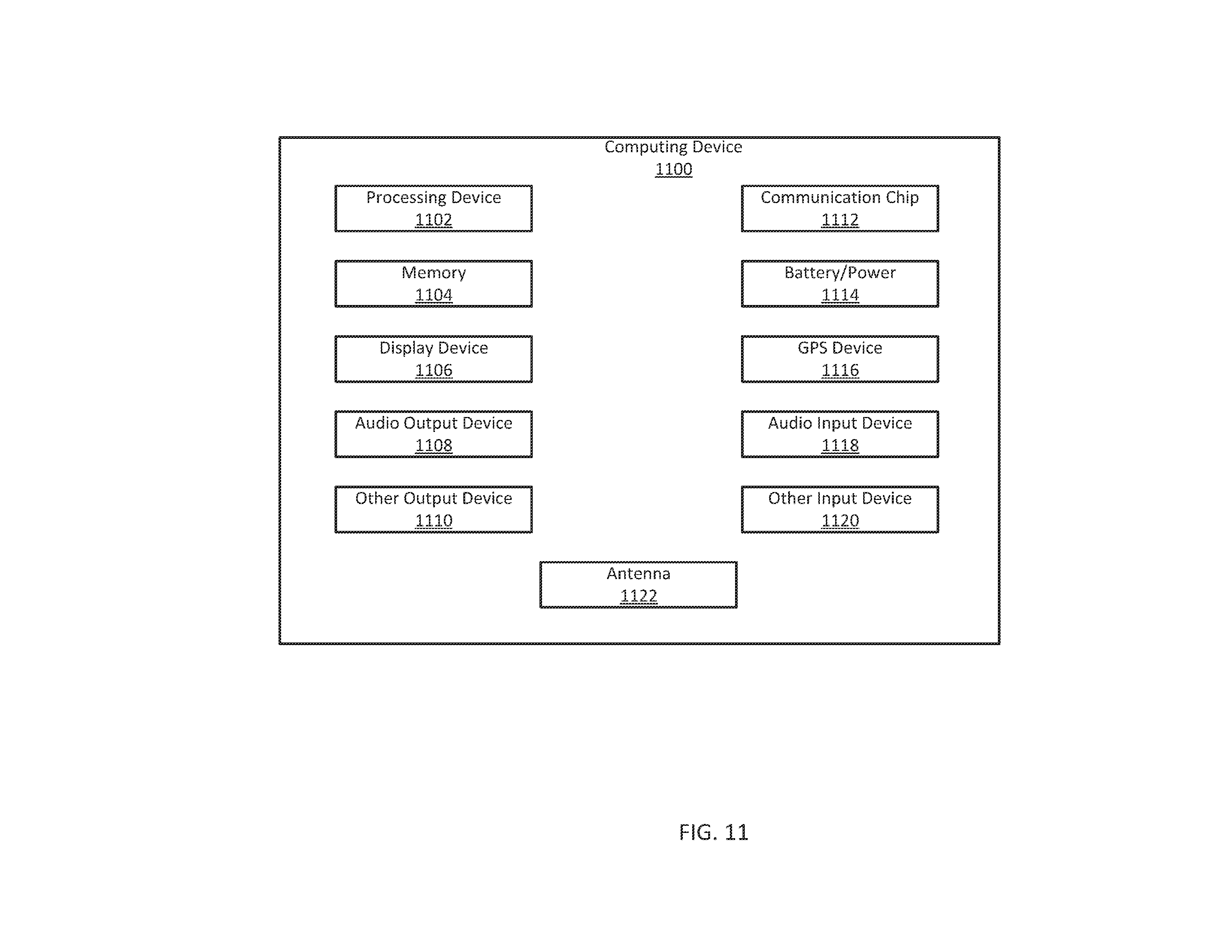

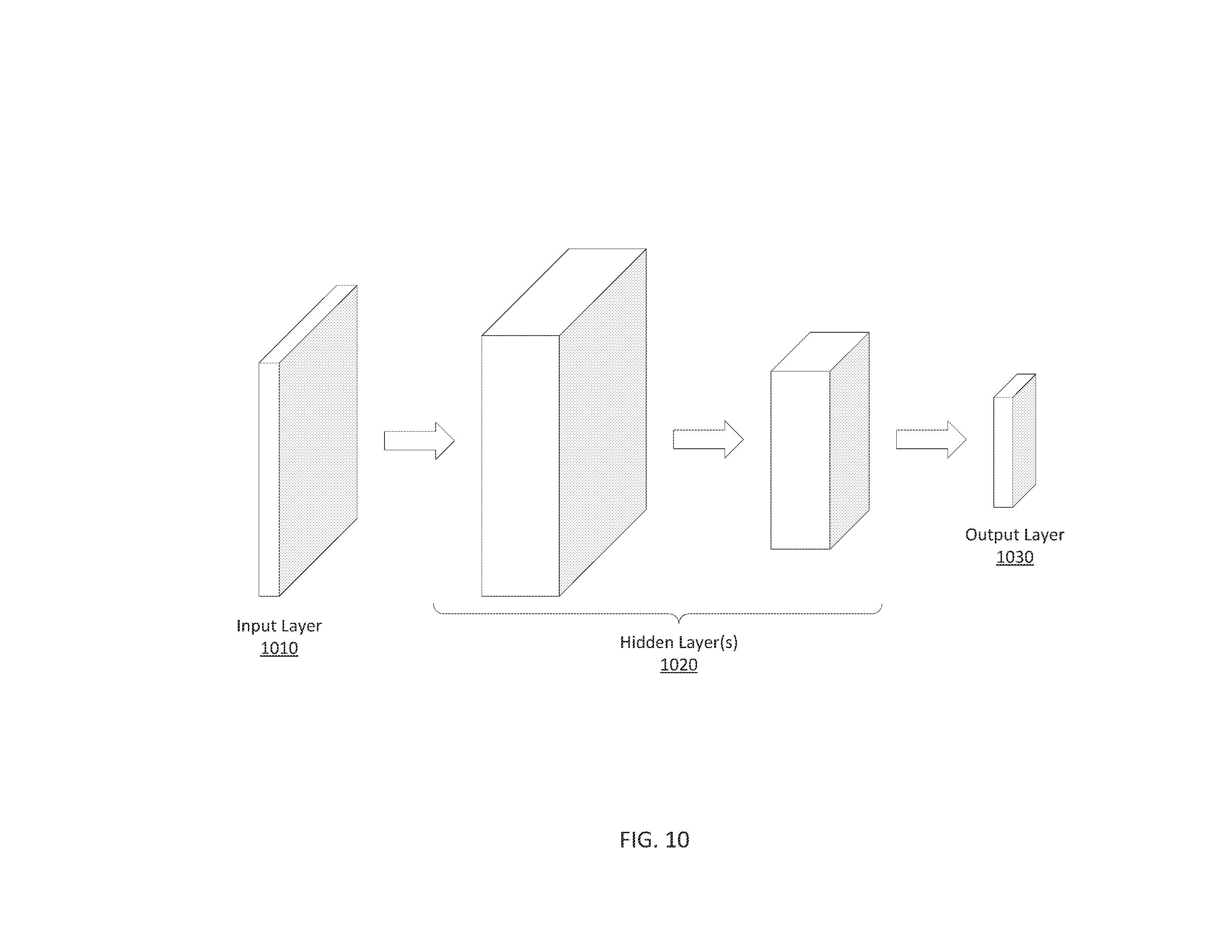

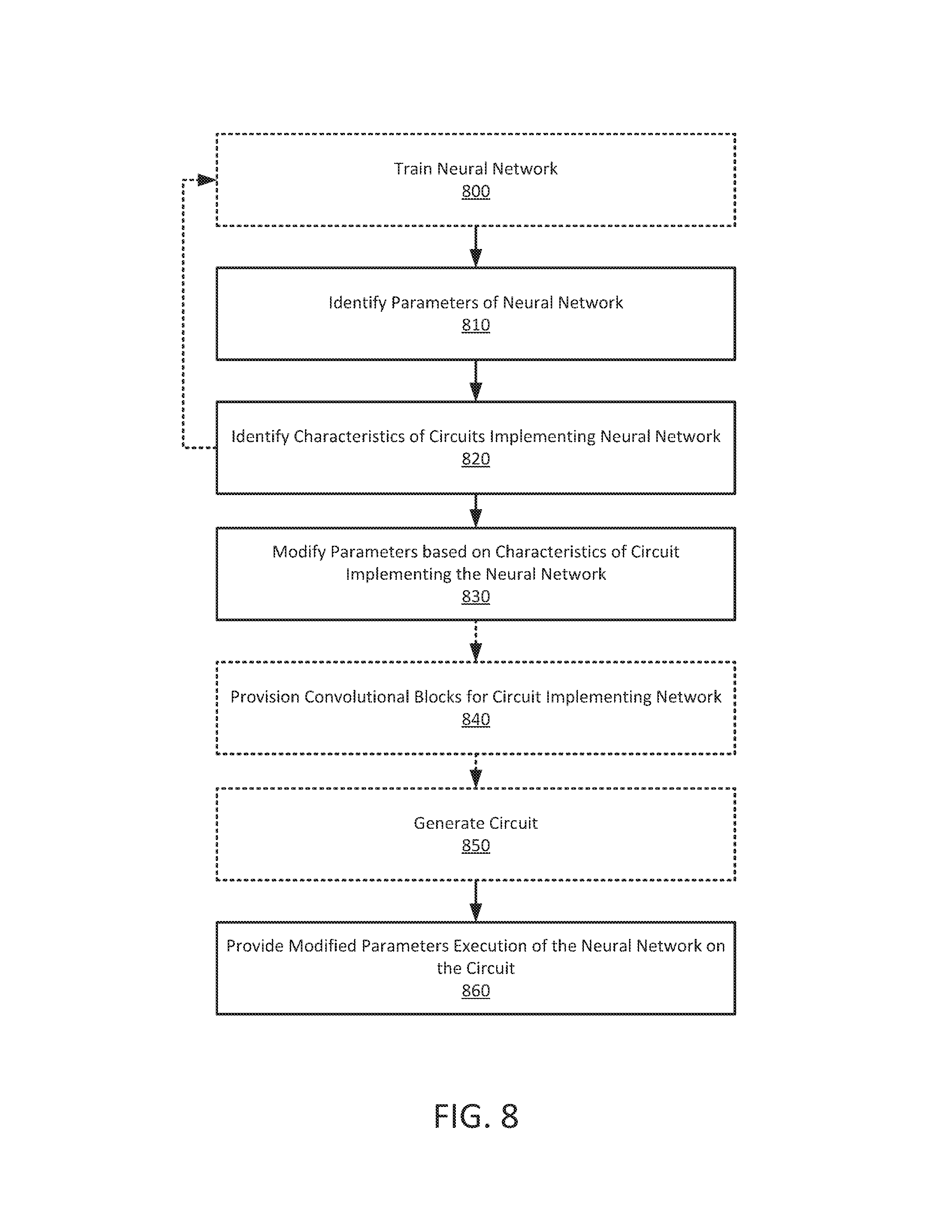

12 drawing sheets from US 2026/0260105 A1 · click any drawing to enlarge
