Sony Patents a Triple-Layer Camera Chip That Runs Two Sensors at Once

Sony's new patent describes a camera chip built from three stacked silicon layers, each with a distinct job: one captures light, one detects motion changes, and one converts everything into digital data. The goal is to make all three layers fit together without wasting a single millimeter of chip area.

An exploded view of the photodetector device, showing its three stacked substrates and the main components on each layer. Drawing from patent filing US 2026/0247047 A1.
An exploded view of the photodetector device, showing its three stacked substrates and the main components on each layer.All 26 drawings ↓
Publication number
US 2026/0247047 A1(US20260247047A1)
Applicant
Sony Semiconductor Solutions Corporation
Filed · Published
Aug 13, 2025 · Aug 20, 2026
Inventors
Kenta Ono, Takayuki Kai, Yumi Yatsunami, Hiroyuki Ozawa
Status when we published
Waiting for an examiner
Document
20 claims
US classification
348/294
Parent application
National Stage Entry of PCT/JP2024/010513 (filed Mar 18, 2024)(PCTJP2024010513)

What Sony's stacked three-chip camera sensor actually does

You're recording a fast-moving scene with your camera and two things need to happen at the same time: the sensor has to capture a sharp, full-resolution frame and instantly flag anything that just moved. Most chips struggle to do both efficiently because they're trying to cram two very different jobs onto the same piece of silicon.

Sony's patent describes a sensor built from three separate chips bonded together in a stack. The bottom layer captures light from two sets of pixels. The middle layer watches for sudden changes in brightness (the kind of thing that tells a camera "something moved"). The top layer handles the number-crunching that turns raw light data into a proper digital image. Each layer only does its own job, so none of them wastes space accommodating the other two.

The practical payoff is a sensor that can shoot normal video and react to fast motion events at the same time, without one task slowing down the other. That combination is useful anywhere a camera needs both a clean image record and split-second motion awareness.

From the filing · CLAIM 1
… a first signal processing circuit that performs signal processing by performing analog-to-digital conversion on a plurality of pixel signals according to the amount of incident light on a basis of the charges accumulated in the plurality of first photoelectric conversion elements …

Translation: The chip converts light into digital data using one set of sensors to create standard images.

How the three substrates divide the sensing workload

The patent describes a photodetection device built by physically bonding three semiconductor substrates on top of each other.

  • First substrate (bottom): holds two sets of photoelectric conversion elements (the tiny structures that turn incoming light into electrical charge). One set feeds the normal image pipeline; the other feeds a separate motion-detection circuit.
  • Second substrate (middle): contains an event detection circuit, which watches the charge from the second set of pixels and generates an "event signal" whenever the brightness at any point changes by a meaningful amount. This is similar to how event cameras work: instead of capturing every frame at a fixed rate, they only note what changed and when, which is extremely fast and power-efficient.
  • Third substrate (top): holds the analog-to-digital conversion circuit (the circuitry that translates the continuous electrical signal from the first pixel set into discrete numbers a processor can use), producing conventional pixel-by-pixel image data.

The key engineering claim is about area efficiency. Because each substrate handles only one type of circuit, the designers can size each layer to match exactly what that layer needs, preventing empty silicon from appearing in any of the three tiers. The layers communicate through vertical electrical connections between the bonded chips.

From the filing · THE ABSTRACT
A size of stacked chips can be optimized by preventing a useless space from being generated in each layer of the stacked chips.

Translation: Sony designed this three-layer chip to be as compact as possible by eliminating empty space between the layers.

What this means for cameras that need speed and detail together

Cameras that need to track fast objects (think autonomous vehicles, robotics, high-speed industrial inspection, or high-end smartphones in sport mode) currently have to choose between conventional image quality and event-based speed. A chip that handles both in hardware, on a single compact stack, removes that tradeoff at the sensor level rather than pushing it onto software.

Sony Semiconductor Solutions is one of the world's dominant image sensor suppliers, so a structural change to how they stack chip layers has downstream effects on every device that uses their sensors. The three-substrate approach described here is the kind of incremental-but-load-bearing architecture patent that shapes product lines for years, and it sits alongside a growing body of new tech patents in stacked image-sensor design that signal where camera silicon is heading.

Sony's 336th filing among the patents we've tracked since May includes earlier work on seeing through glass and fixing avatar elbows in VR, all part of our Sony coverage.

Source: US 2026/0247047 A1 at the USPTO (PDF). Full patent text and figures are in the official publication.

Get our take in your Top Stories

Liked this breakdown? Add Patentlyze as a preferred source on Google, and our plain-English take shows up more often in your Top Stories the next time Sony patent news breaks.

There are more where this came from

We read the new patents from Big Tech, carmakers and more and send you the ones worth knowing. Plain English, free, every week.

The drawings · 26 sheets

26 drawing sheets from US 2026/0247047 A1 · click any drawing to enlarge

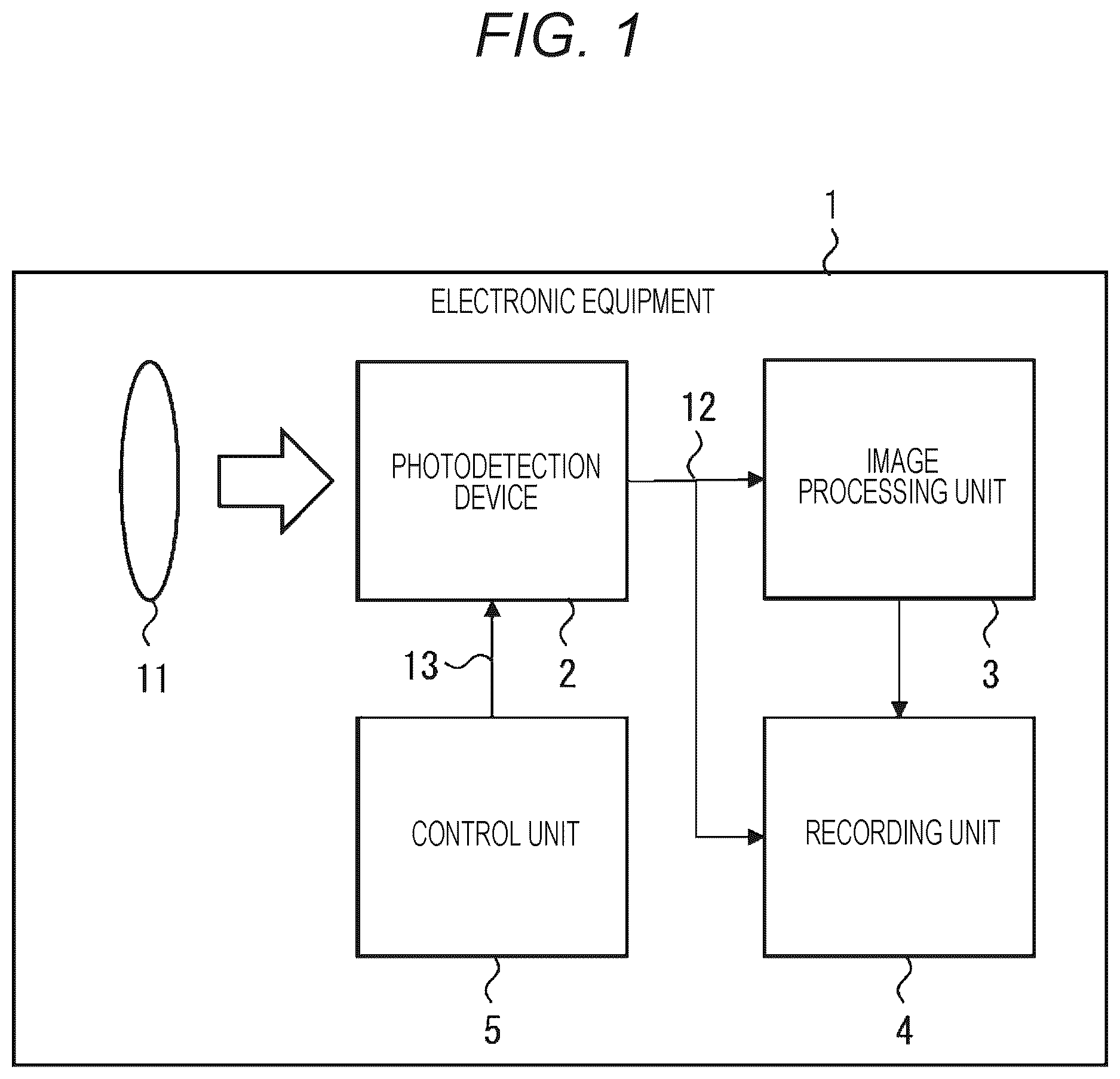

Electronic equipment block diagram., drawing sheet 1 from US 2026/0247047 A1
Sheet 1 Electronic equipment block diagram.

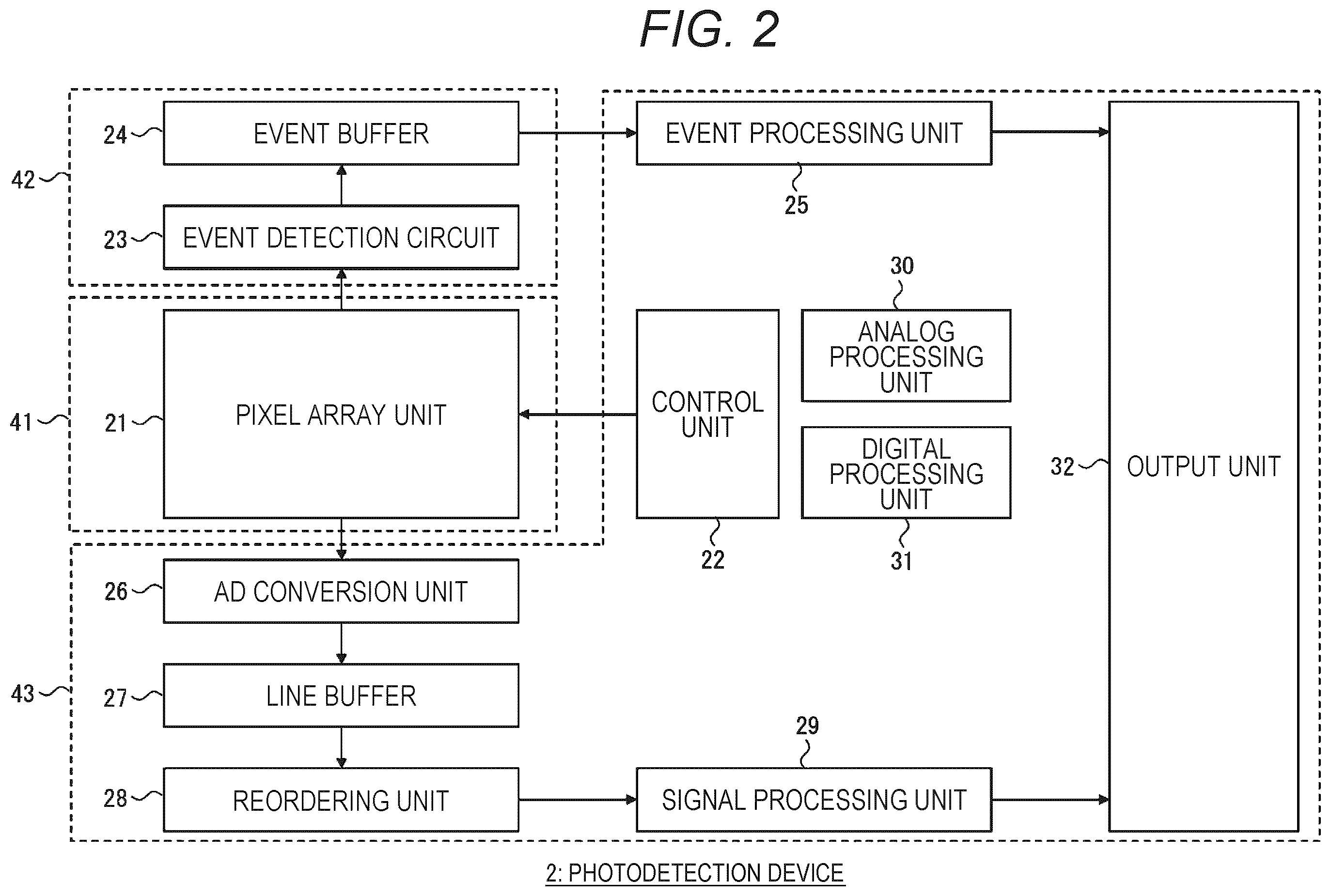

Photodetection device block diagram., drawing sheet 2 from US 2026/0247047 A1
Sheet 2 Photodetection device block diagram.

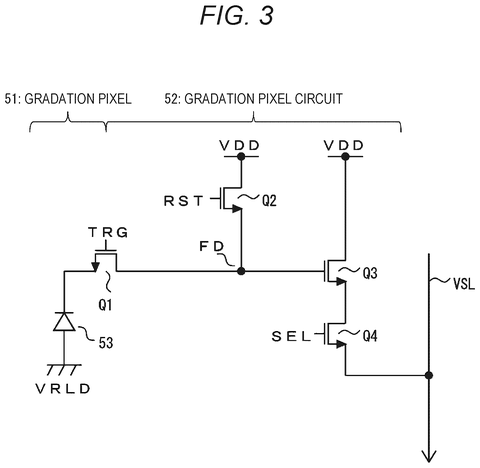

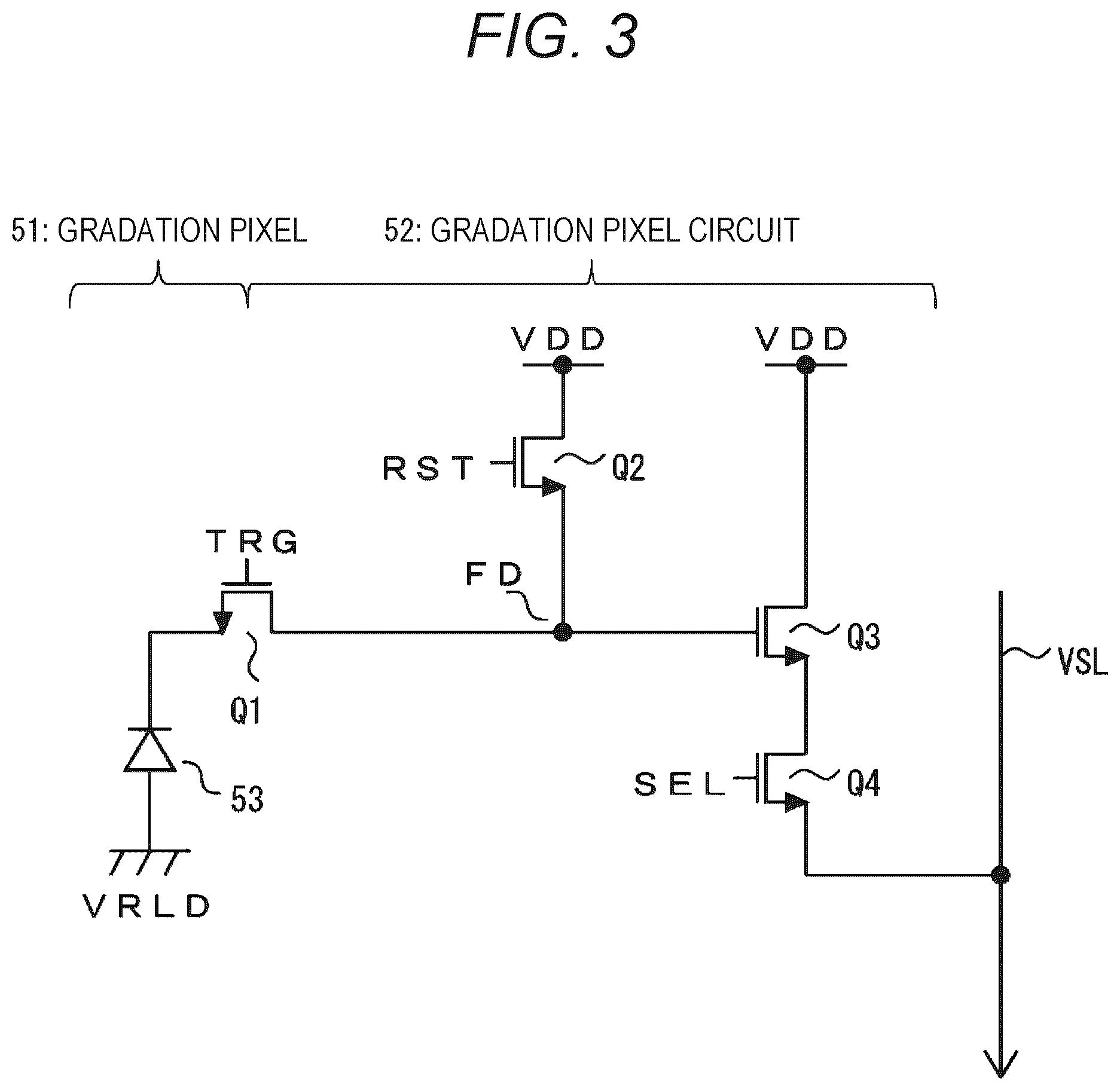

Gradation pixel circuit., drawing sheet 3 from US 2026/0247047 A1
Sheet 3 Gradation pixel circuit.

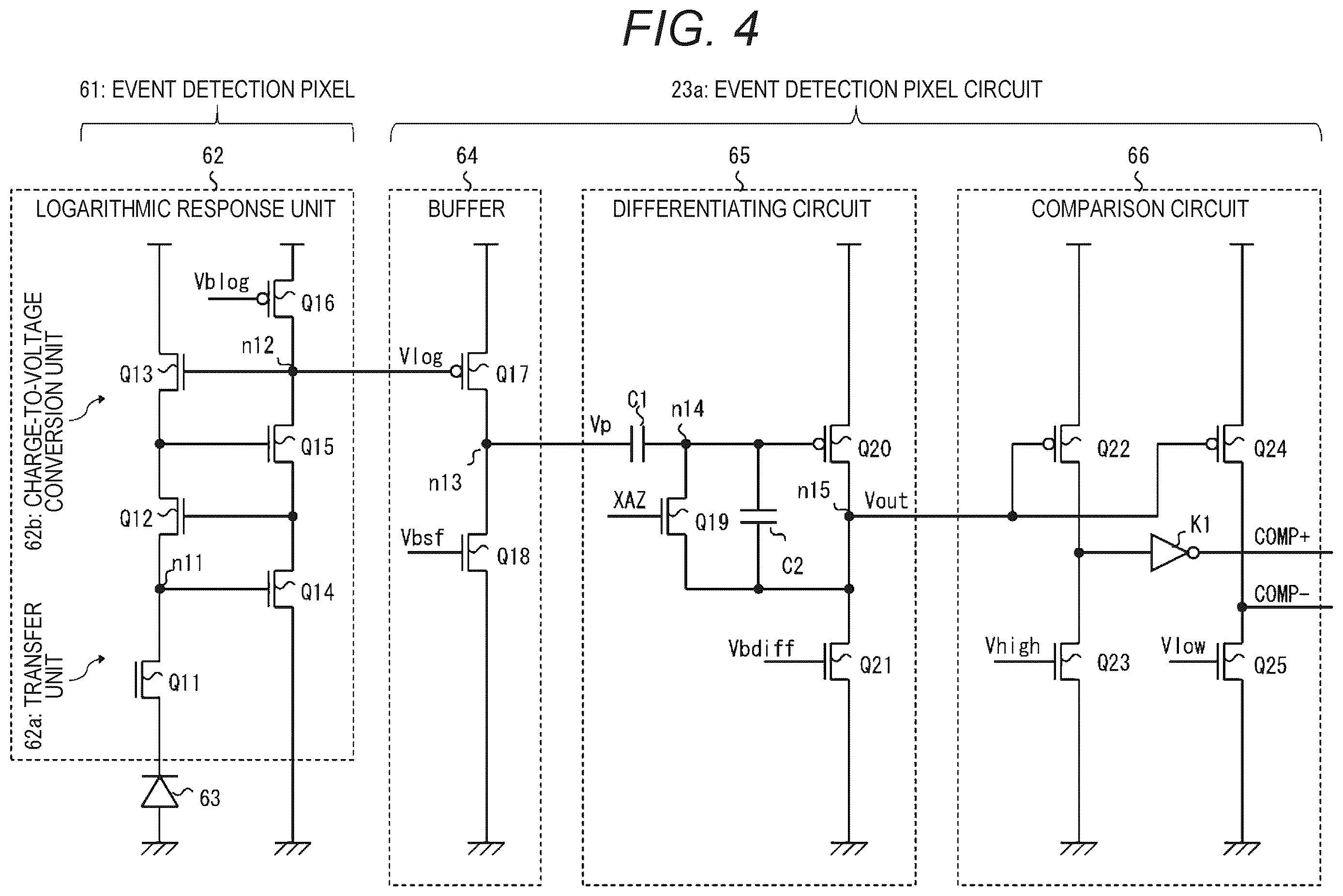

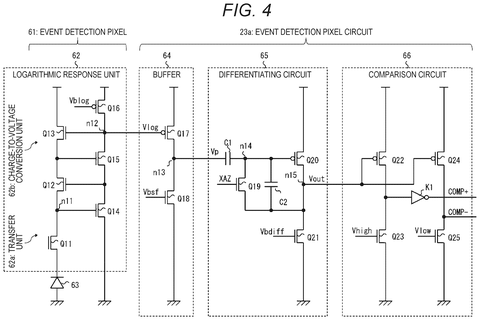

Event detection pixel circuit., drawing sheet 4 from US 2026/0247047 A1
Sheet 4 Event detection pixel circuit.

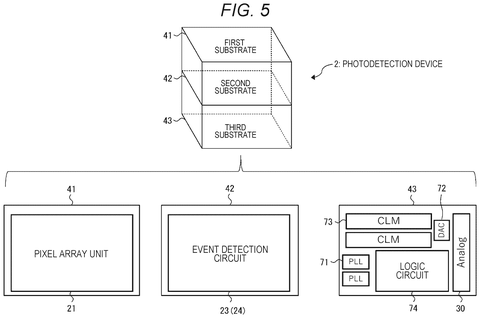

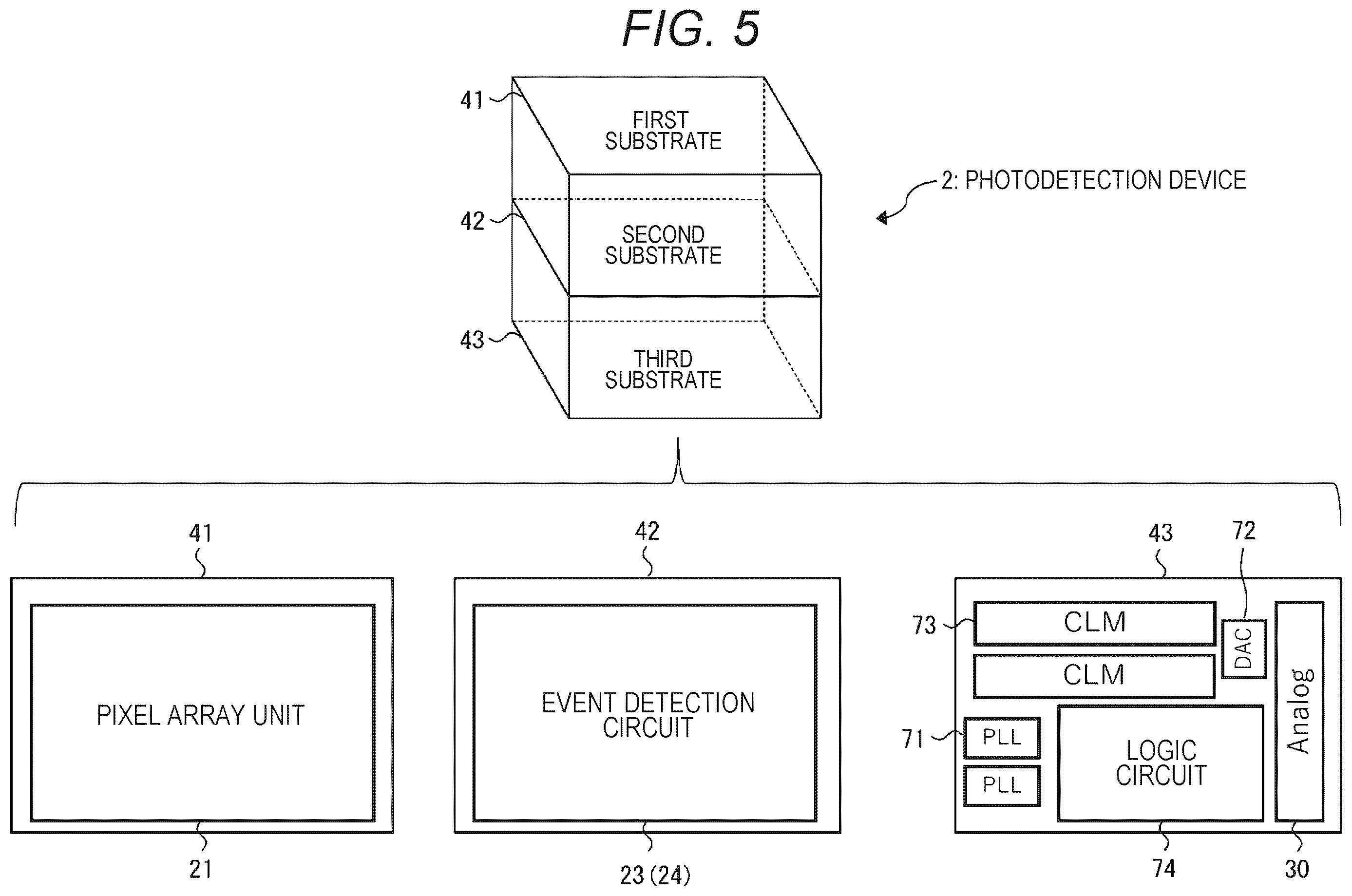

Photodetection device stacked substrates., drawing sheet 5 from US 2026/0247047 A1
Sheet 5 Photodetection device stacked substrates.

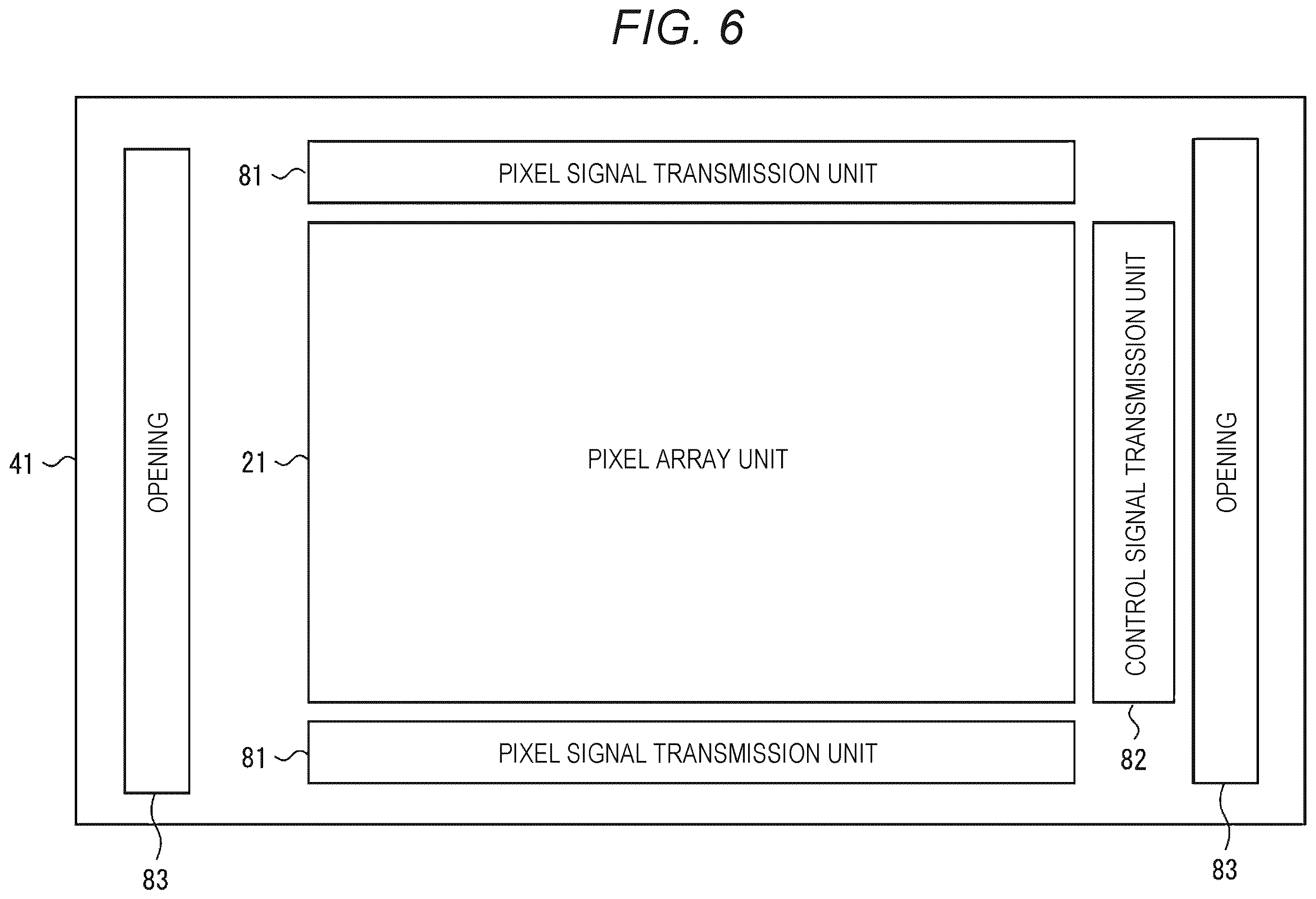

First substrate layout., drawing sheet 6 from US 2026/0247047 A1
Sheet 6 First substrate layout.
Second substrate layout., drawing sheet 7 from US 2026/0247047 A1
Sheet 7 Second substrate layout.

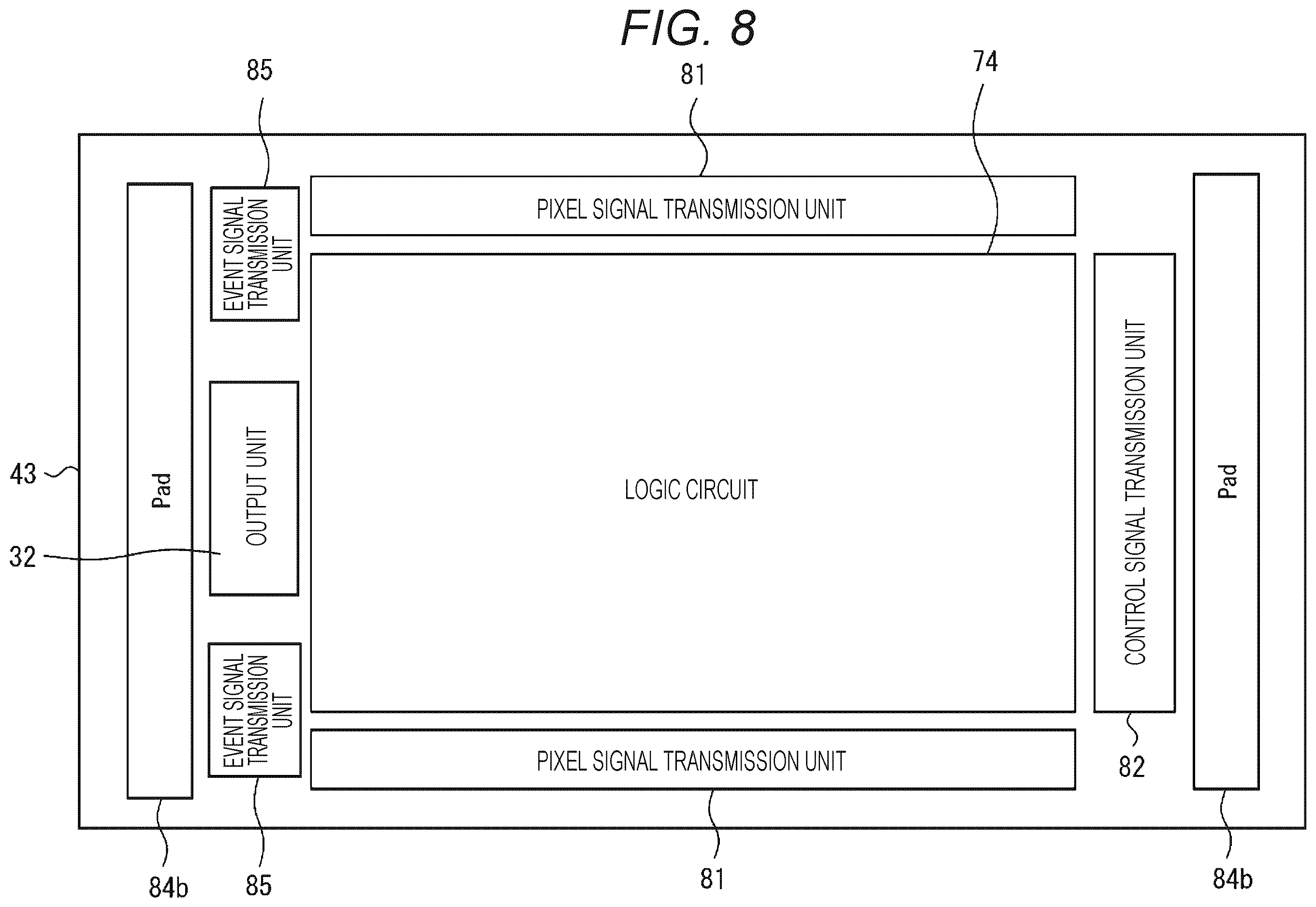

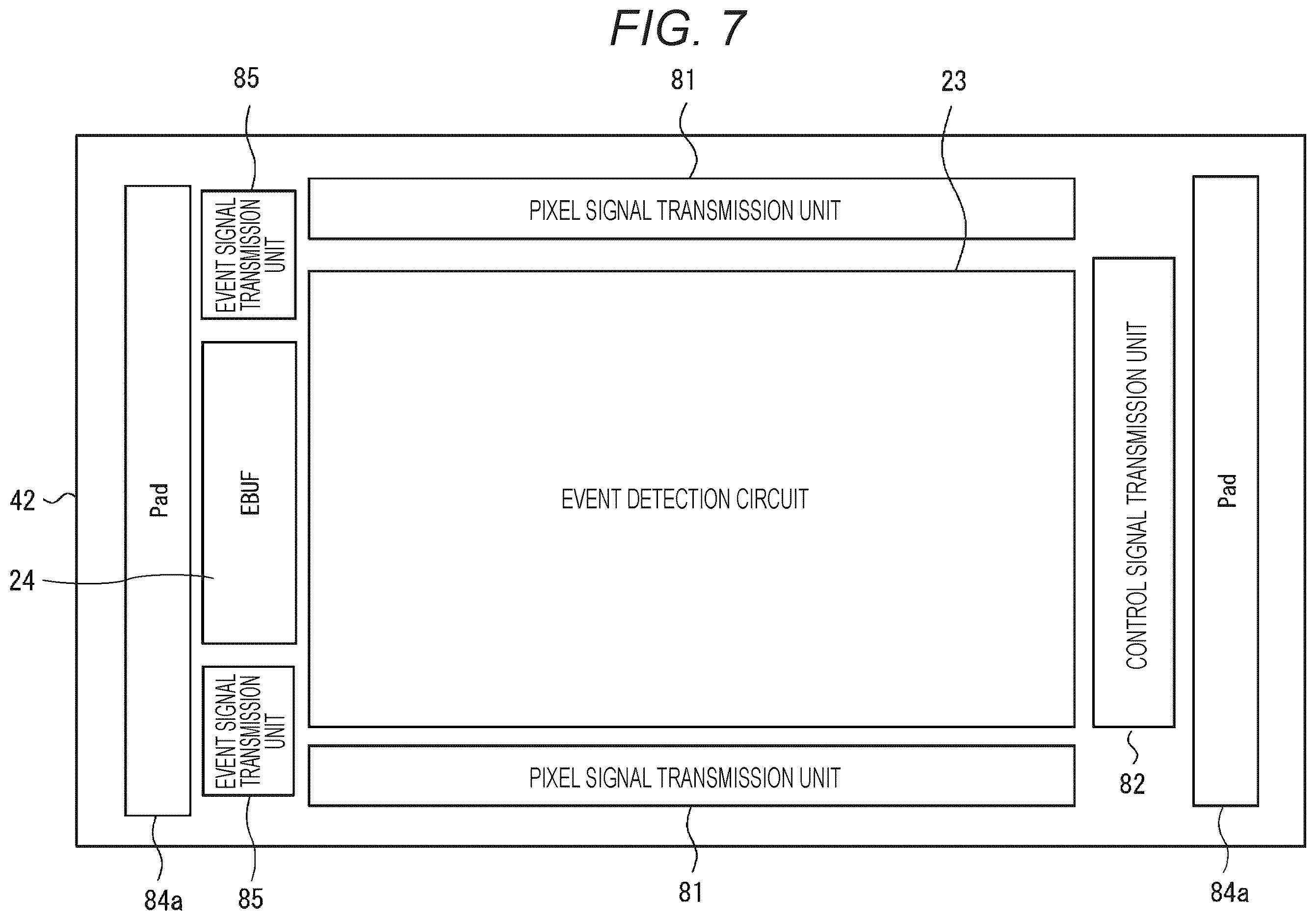

Third substrate layout., drawing sheet 8 from US 2026/0247047 A1
